Model Details

ASP-24-3-HR

ASP-24-3-HR

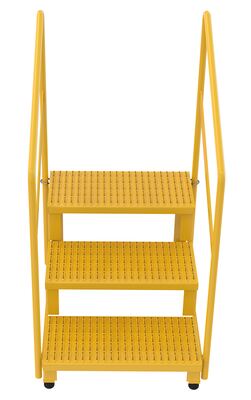

Steel Adjustable Step Stand 24 inches Wide 3-Step with Handrails 500 Lbs. Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Total Ship Wt.(lbs.): 128 (only 1 package) Size: 26.4375"W x 33.875"L x 52"H Color: Yellow Non-Returnable

Handrail Construction: Steel Tubing Sch 40 Number of Steps: 3 Step Angle (degrees): 30
Top Step Height (in.): 20 to 22-1/4 Top Step Width (in.): 23-13/16 Top Step Depth (in.): 11-3/4
Step Width (in.): 23-13/16 Step Depth (in.): 11-3/4 Handle Height (in.): 52
Step Spacing: 7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ASP-24-3-HR


ASP-24-3-HR

Steel Adjustable Step Stand 24 inches Wide 3-Step with Handrails 500 Lbs. Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Dimensions: 26.4375"W x 33.875"L x 52"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215376990 GTIN: 00691215376990
Warranty: -- Shipping Weight: 128 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Handrail Construction: Steel Tubing Sch 40 Number of Steps: 3 Step Angle (degrees): 30
Top Step Height (in.): 20 to 22-1/4 Top Step Width (in.): 23-13/16 Top Step Depth (in.): 11-3/4
Step Width (in.): 23-13/16 Step Depth (in.): 11-3/4 Handle Height (in.): 52
Step Spacing: 7
