Adjustable Step Stands with Handrail

- - - -

Description
Model Chart
PDF's
Image Gallery
ASP-24-HR_A.jpg ASP-24-HR_C.jpg ASP-24-HR_F.jpg ASP-24-HR_J.jpg
ASP-24-HR_G.jpg ASP-24-HR_H.jpg ASP-24-HR_I.jpg ASP-24-HR_K.jpg

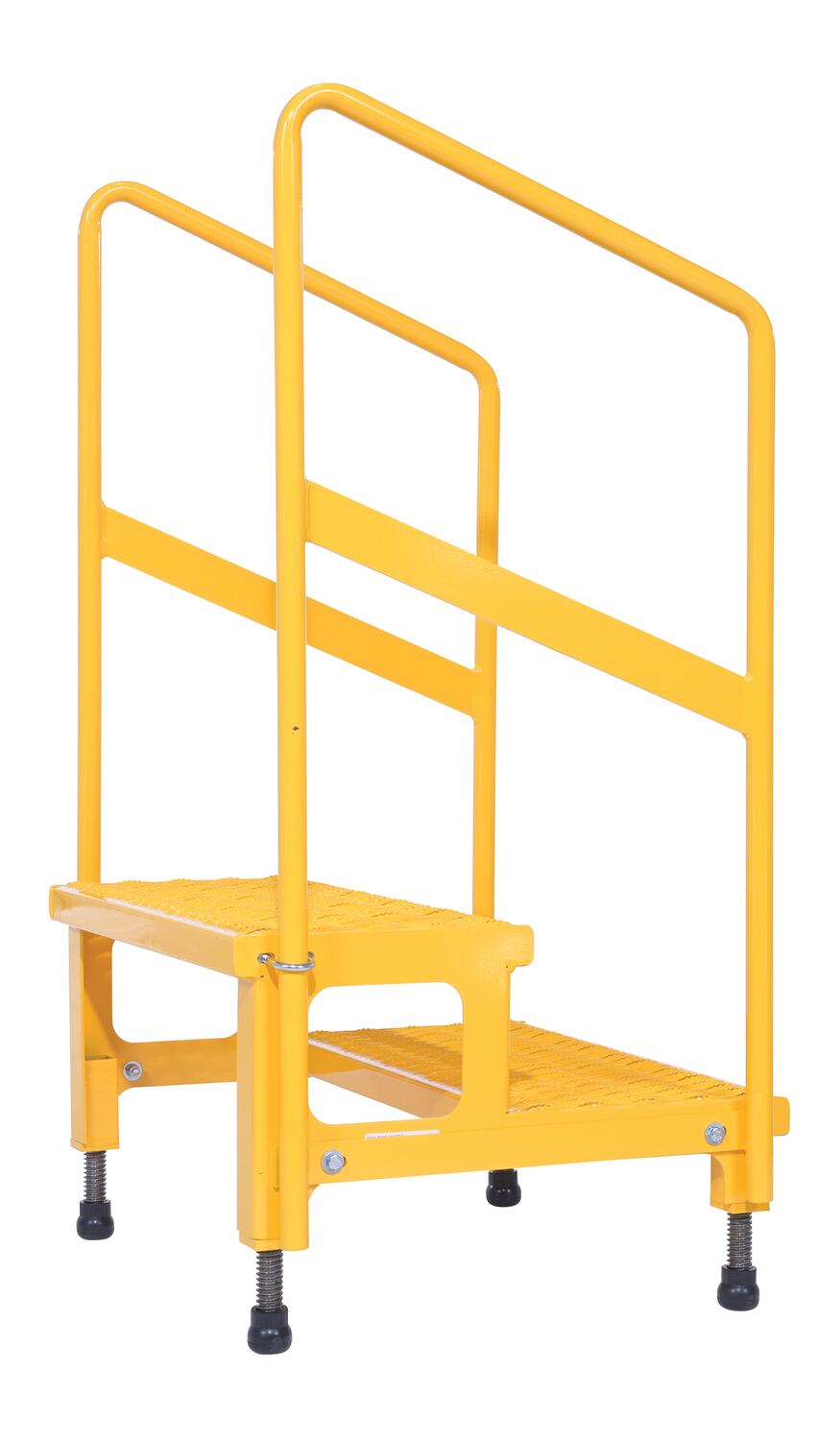

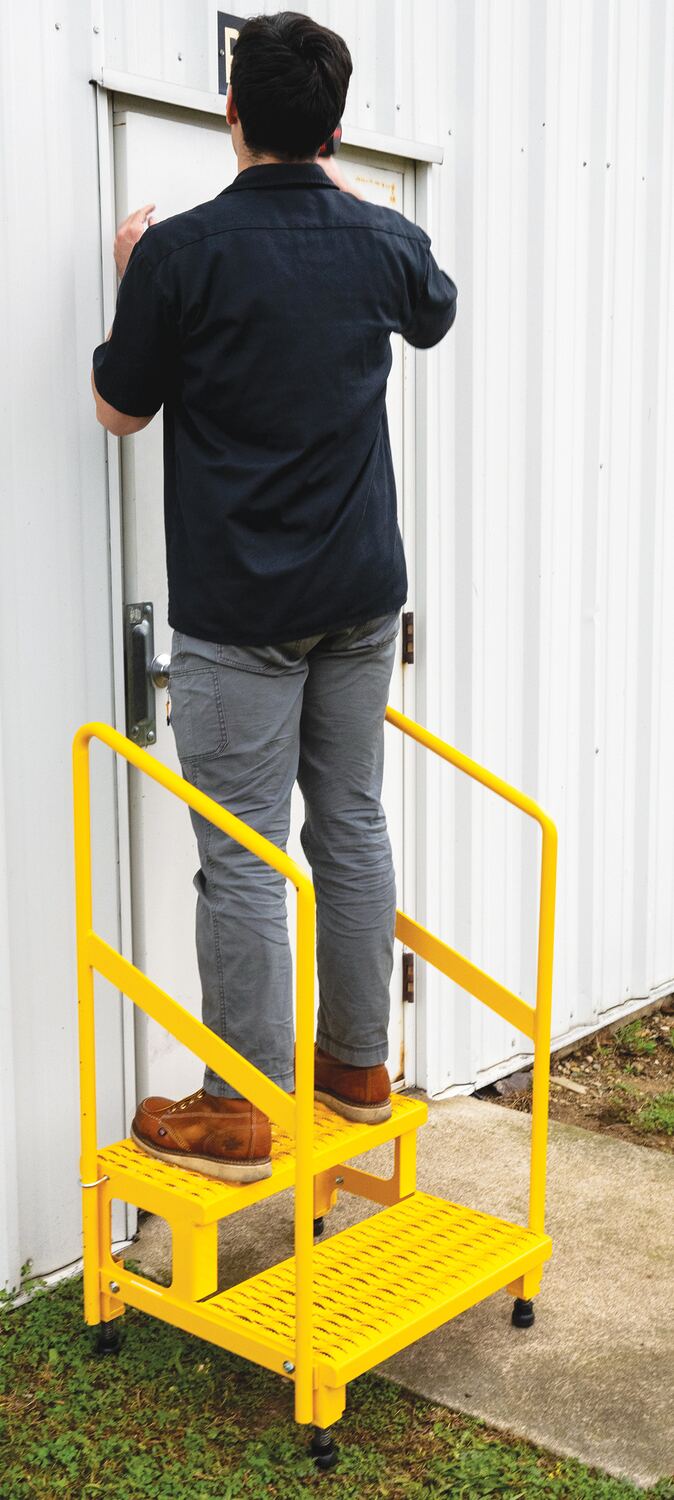

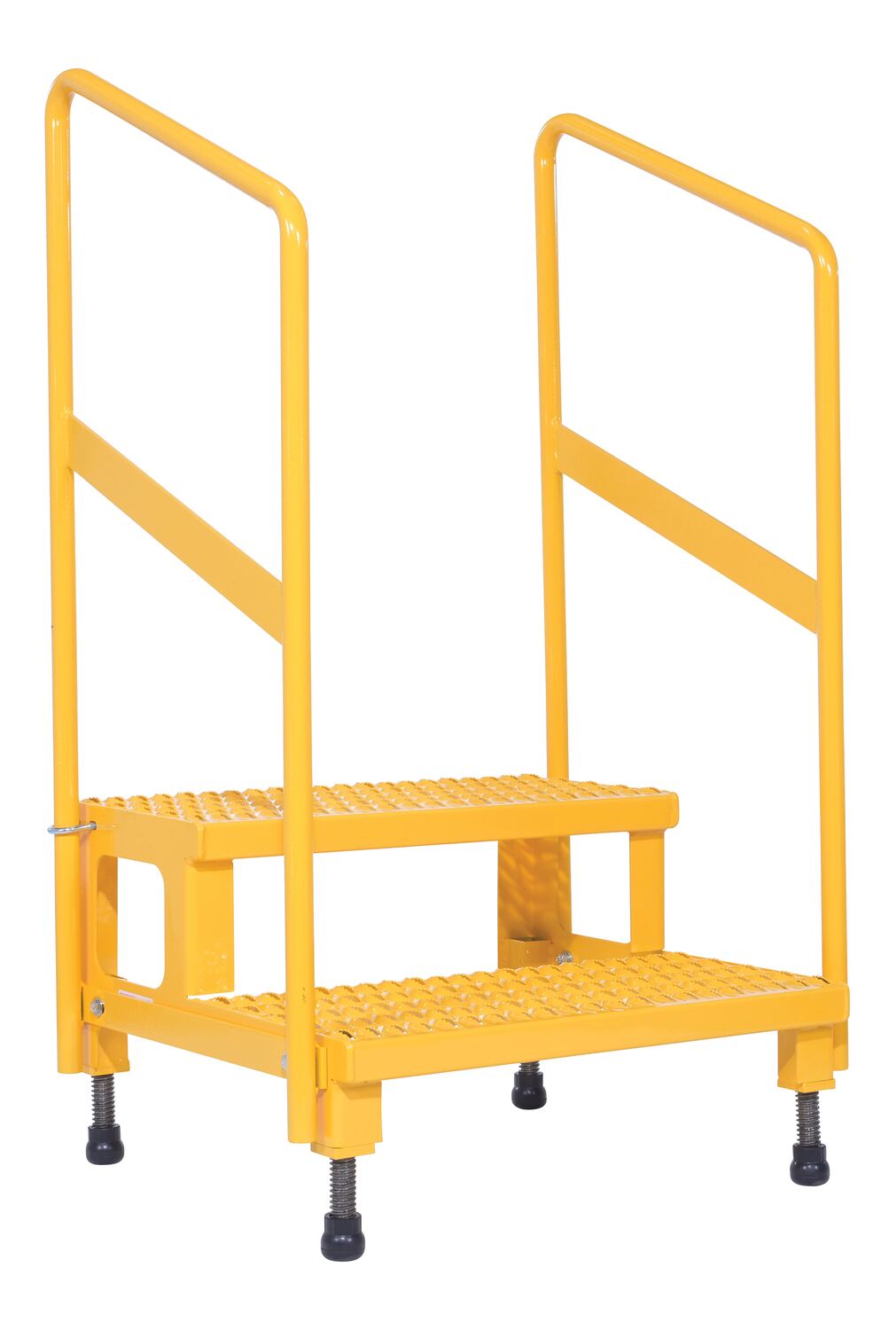

Adjustable Step Stands with Handrail

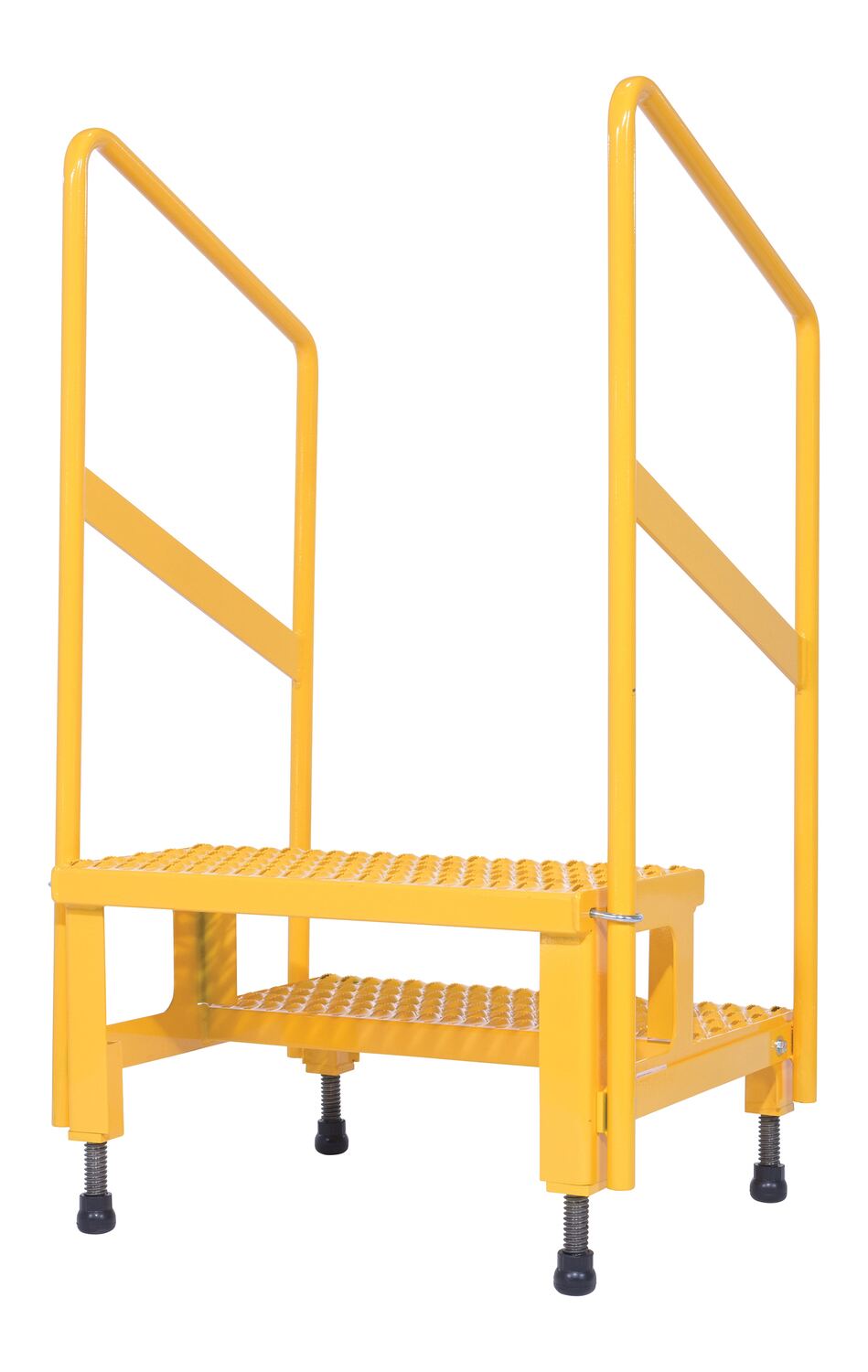

model: ASP-24-HR



Adjustable Step Stands with Handrail

model: ASP-24-HR

Featured Industrial Ladders


Folding Ladders with Wheels
Aluminum Telescopic Ladders
Portable Adjustable Height Worker Stands
Aluminum Adjustable Work-Mate Stands
Aluminum Ladder/Carts
Rolling Step Stools (over 17 inches high)
Aluminum Cross-Over Ladders
Standard Slope Ladders
Fiberglass Step Ladders
model chart

Product Family Overview

Print Friendly
Adjustable Step Stands with Handrail
SERIES: ASP-HR

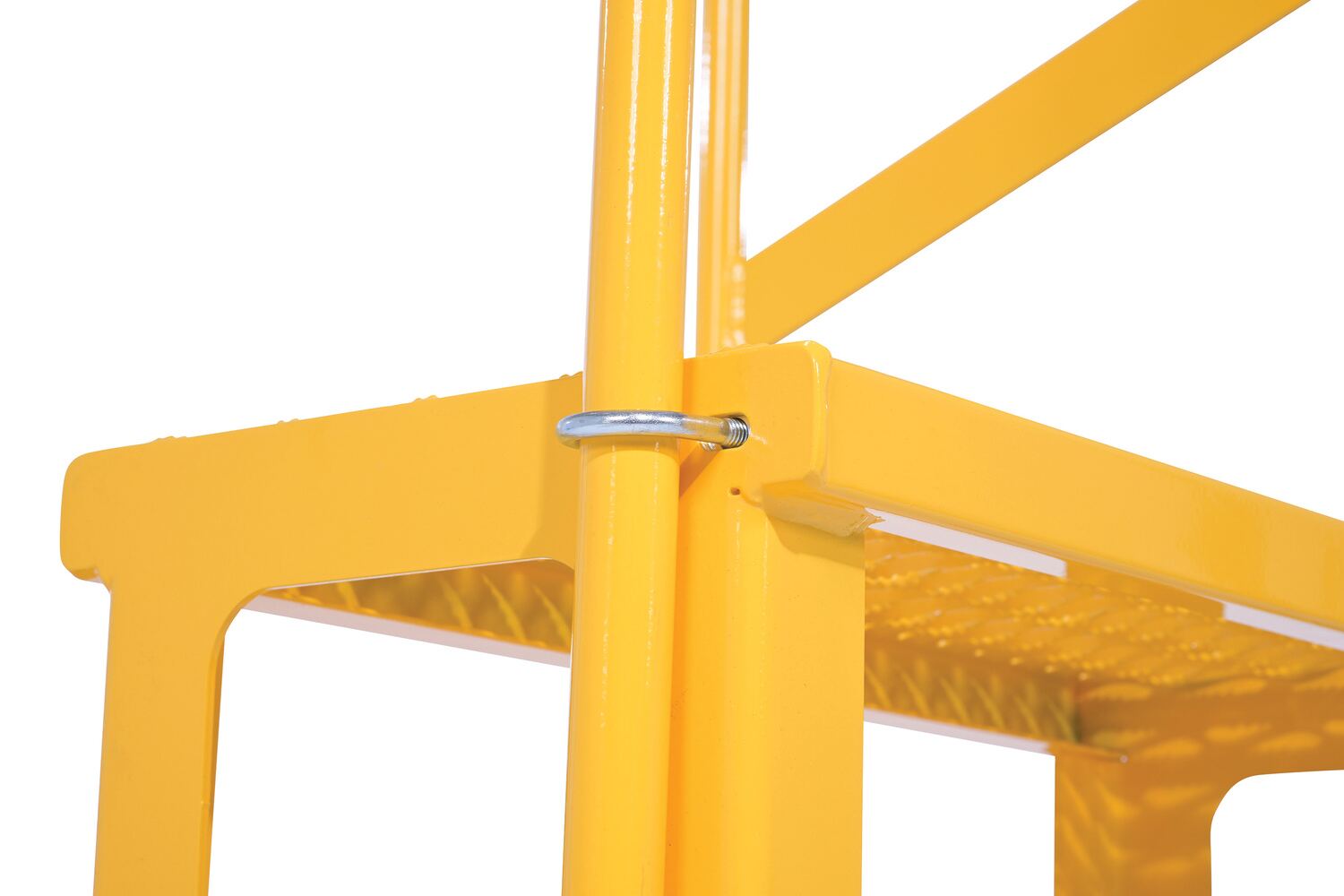

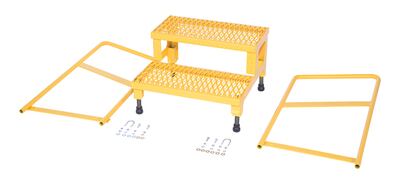

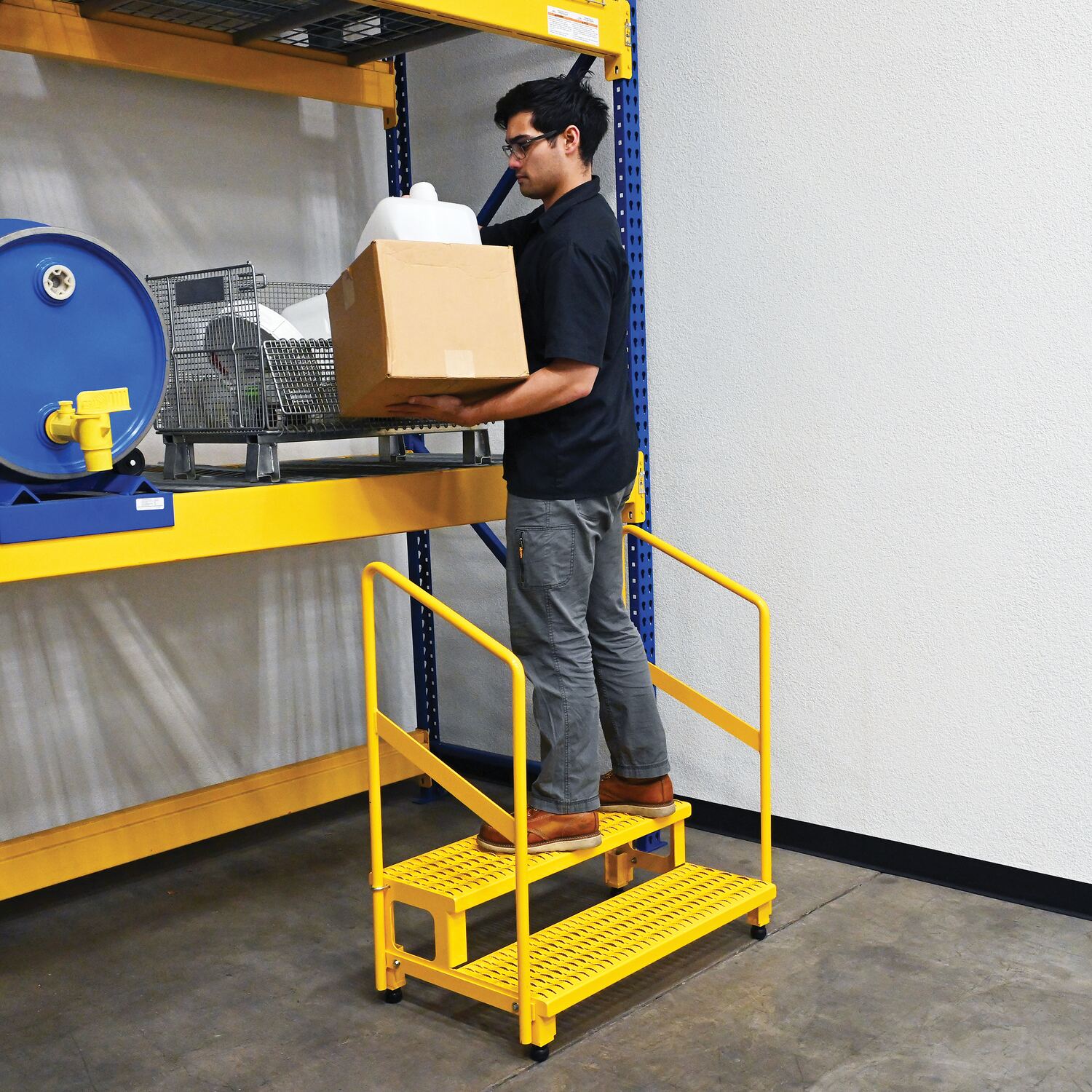

ASP-36-HR_L.jpgThe Adjustable Step-Mate Stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface provides extra traction to reduce the potential for slipping. Individual step depth is 11-3/4". Models feature two bolt-on handrails for added stability during use. Handrail measure 20-1/4"D x 40-7/8"H when installed. The legs adjust individually, by screwing them into or out of the leg base, so the unit can be leveled on uneven floors. Each leg fitted with rubber tip for better grip. Uniform capacity is 500 pounds.The unit has a welded construction with yellow baked in powder coated finish for superior toughness.

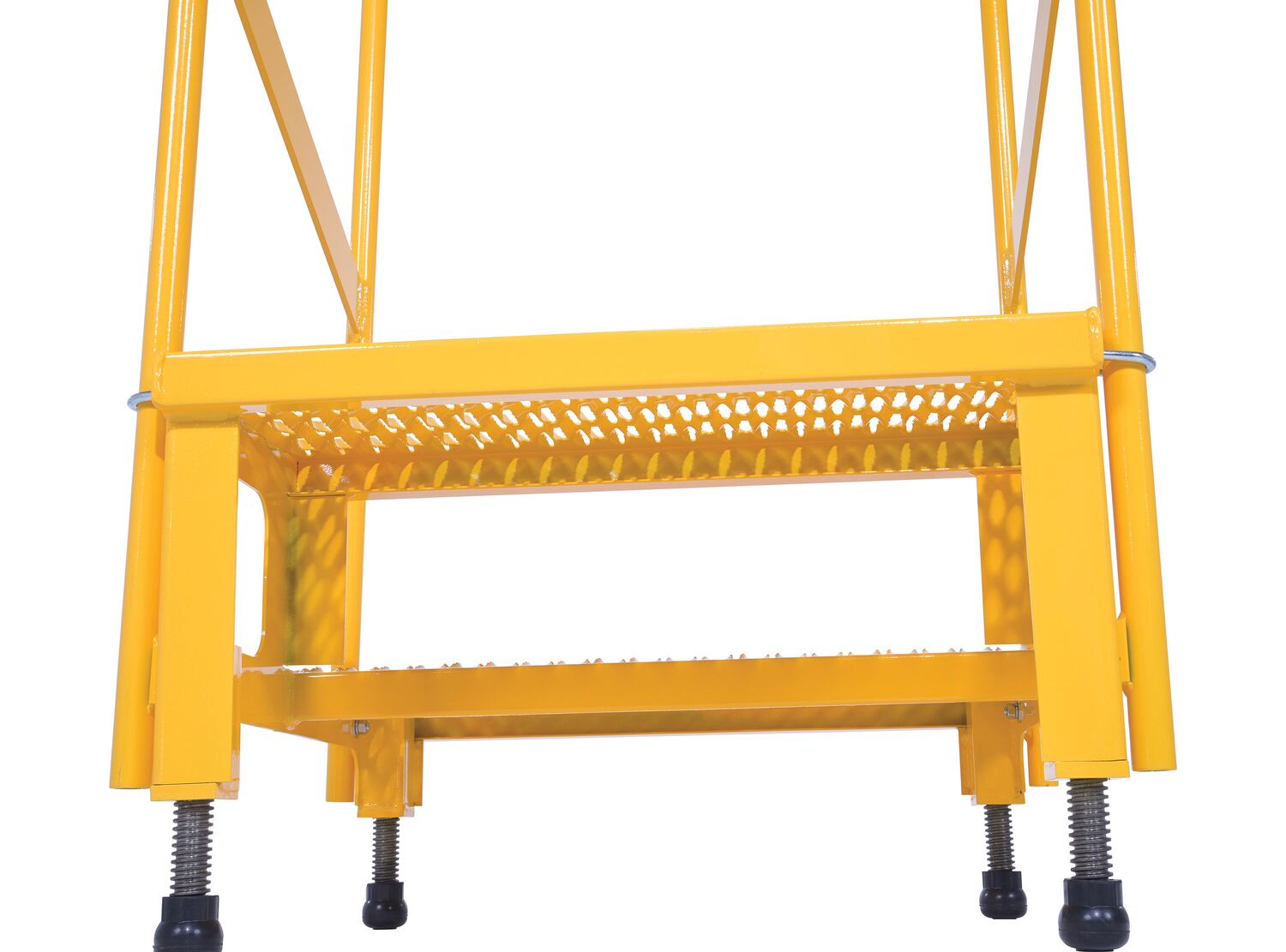

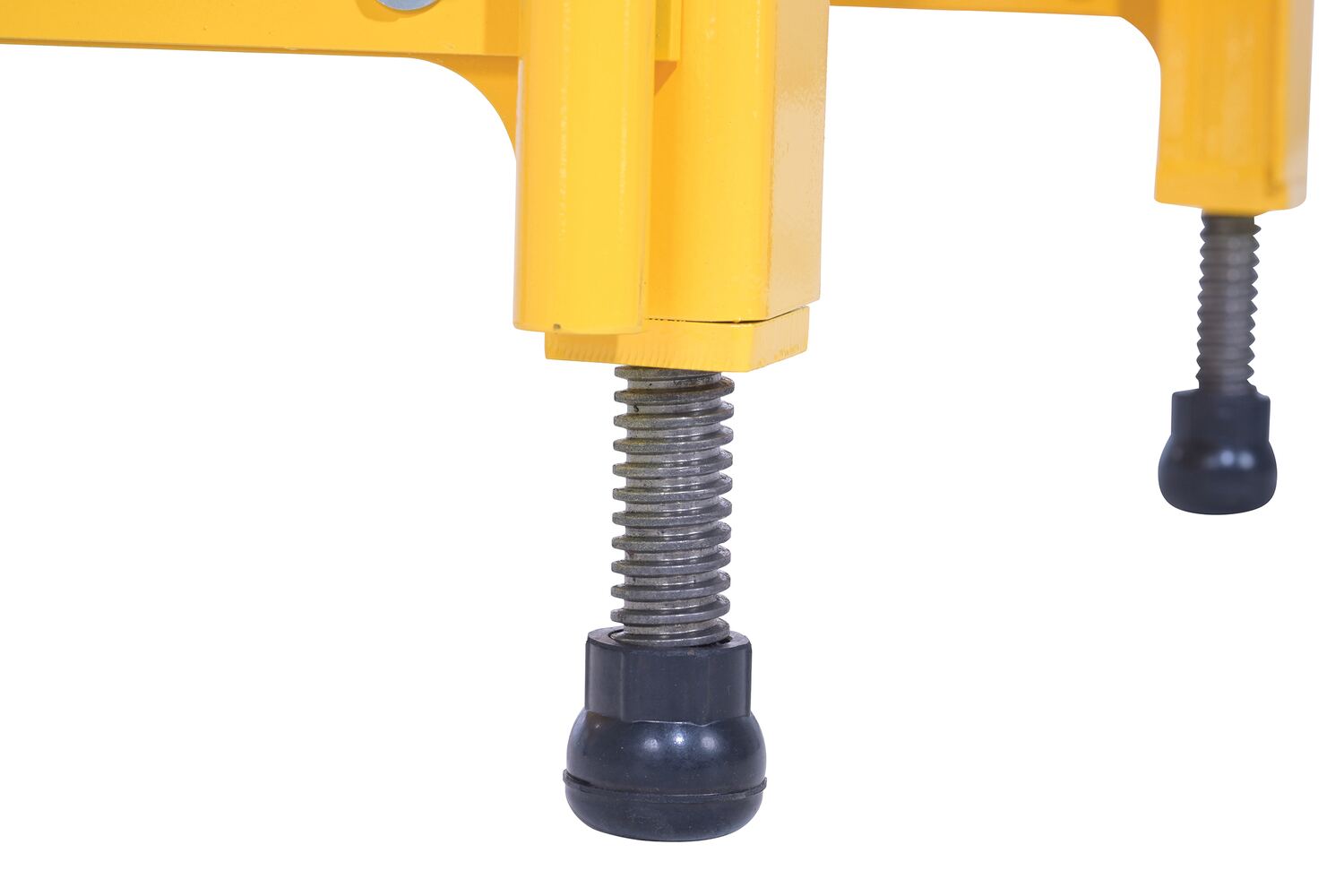

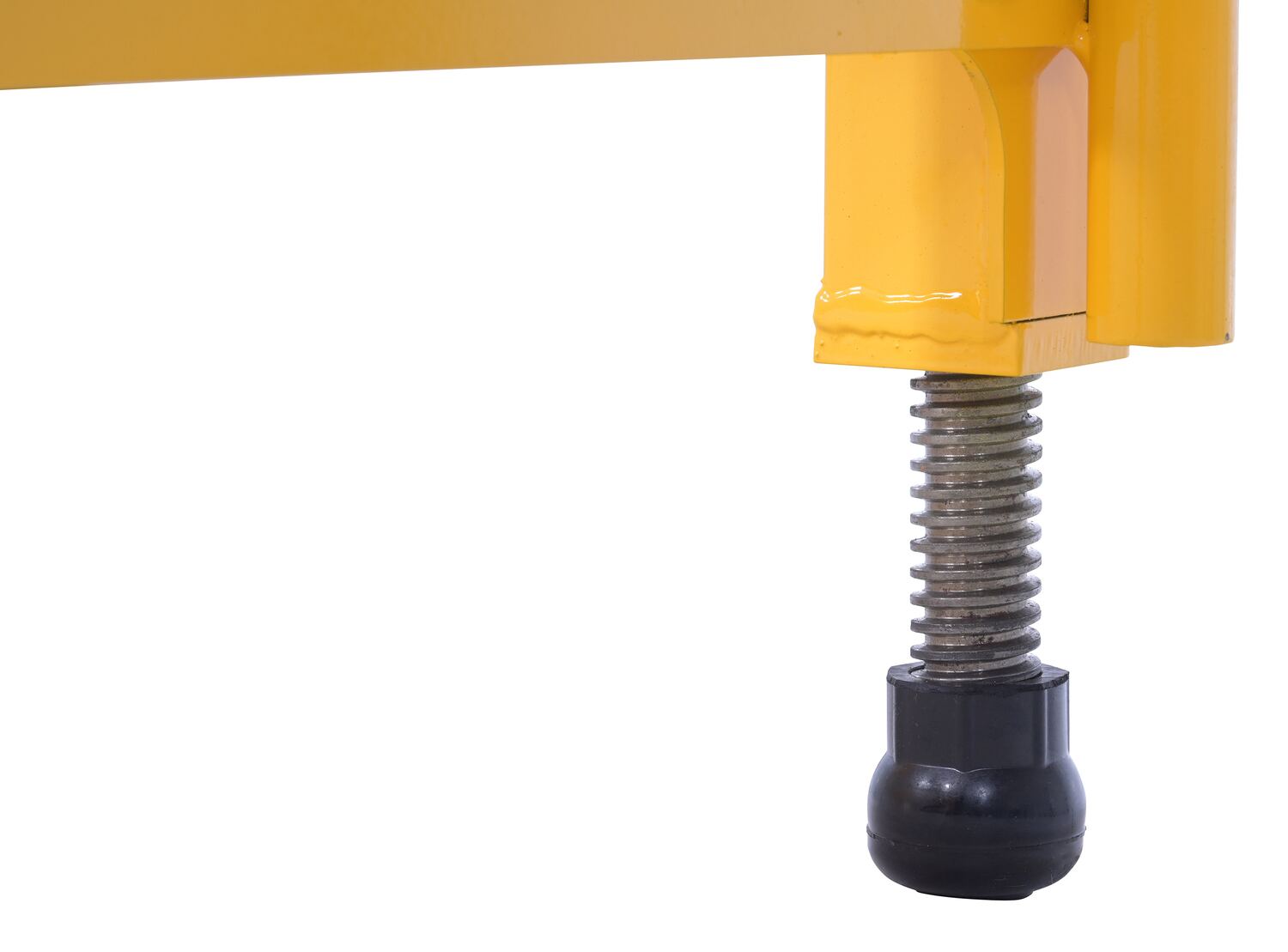

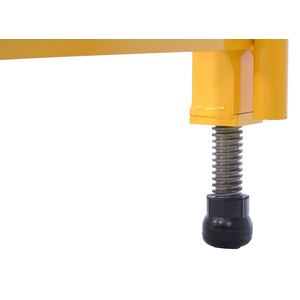

  • Independently adjustable height legs may be set to level unit on uneven floors

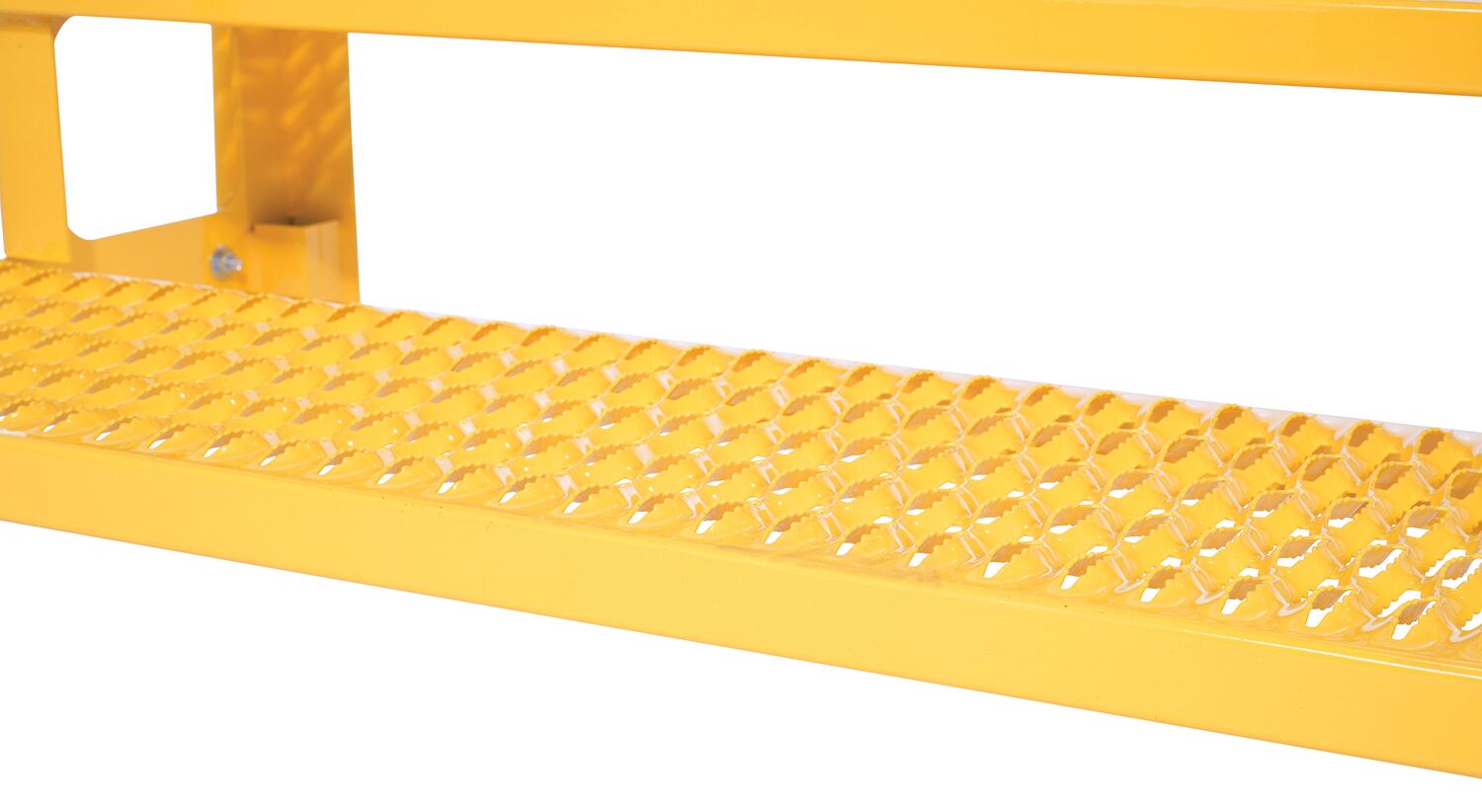

  • Serrated step surface provides excellent traction even in wet environments

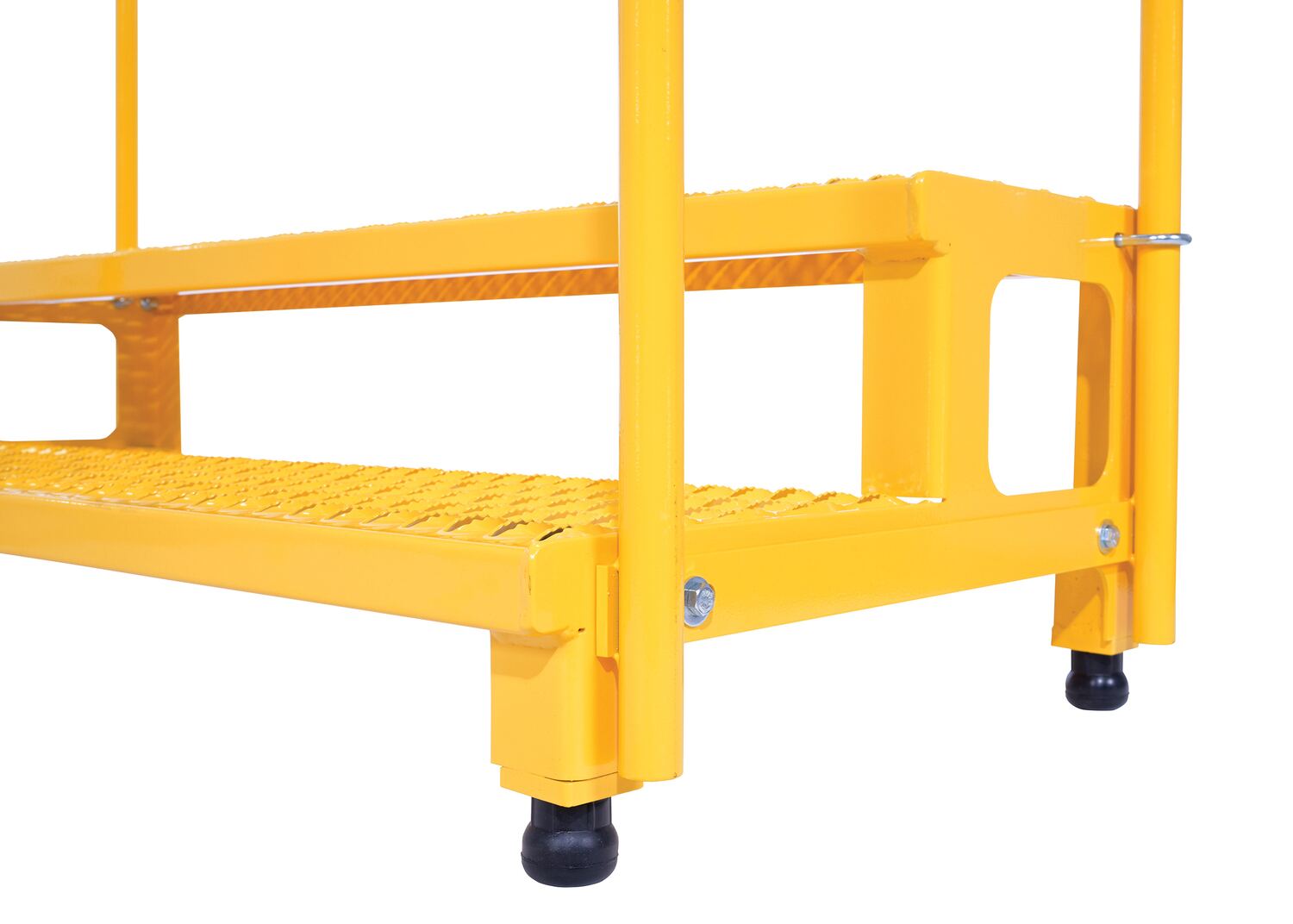

  • Each leg fitted with rubber tip for better grip & traction
  • Models feature handrails for added stability during use

See Our Standard Adjustable Step-Mate Stands

ASP-36-HR_L.jpgThe Adjustable Step-Mate Stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface provides extra traction to reduce the potential for slipping. Individual step depth is 11-3/4". Models feature two bolt-on handrails for added stability during use. Handrail measure 20-1/4"D x 40-7/8"H when installed. The legs adjust individually, by screwing them into or out of the leg base, so the unit can be leveled on uneven floors. Each leg fitted with rubber tip for better grip. Uniform capacity is 500 pounds.The unit has a welded construction with yellow baked in powder coated finish for superior toughness.

  • Independently adjustable height legs may be set to level unit on uneven floors
  • Serrated step surface provides excellent traction even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature handrails for added stability during use

See Our Standard Adjustable Step-Mate Stands

Other Step Stands

 Stainless Steel Step Stands Galvanized Steel Steps Adjustable Step Stands with Handrail Aluminum Folding Step Platforms

Additional Models In This Family
view entire Image Gallery

ASP-36-3-HR

ASP-36-3-HR

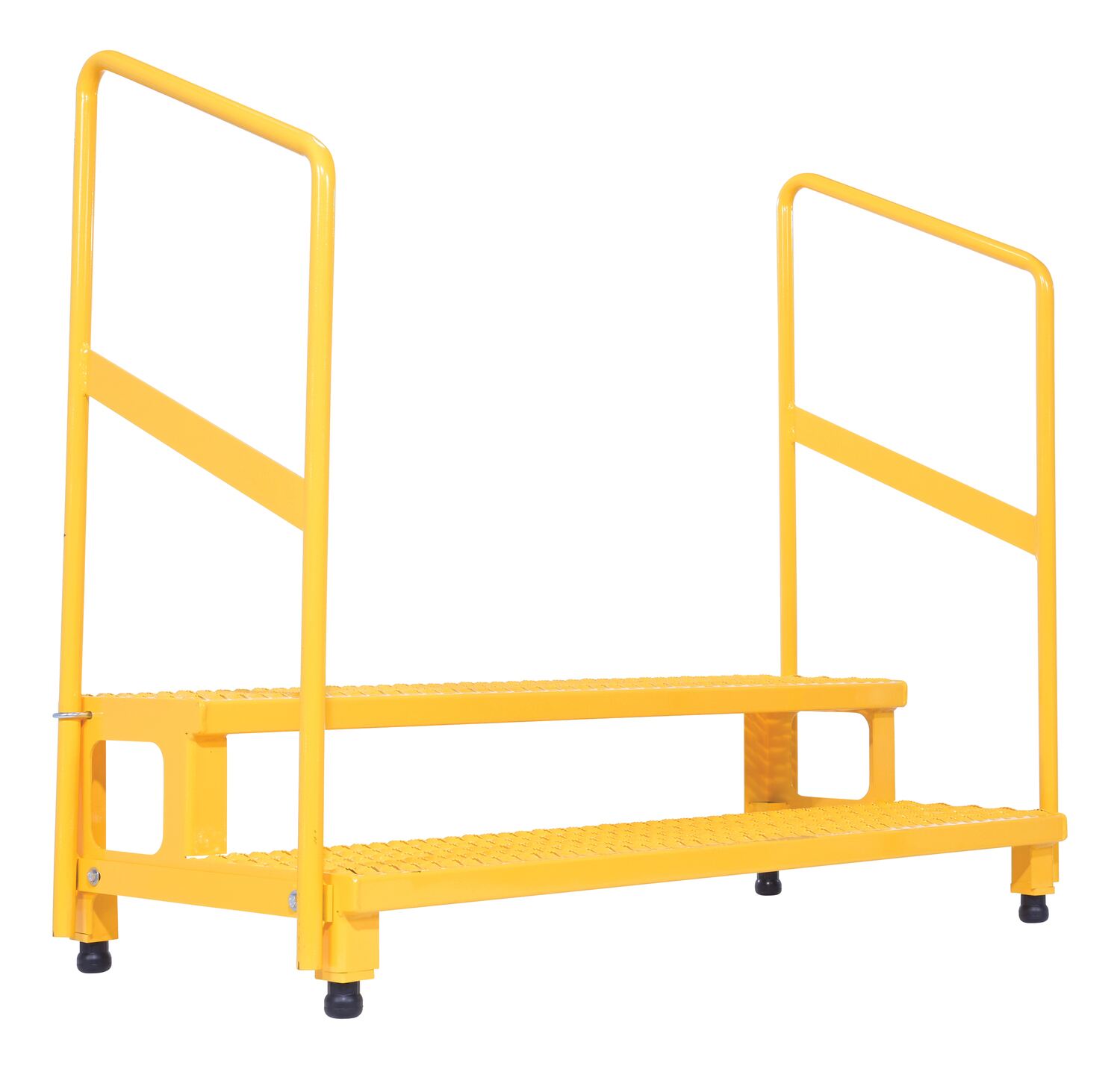

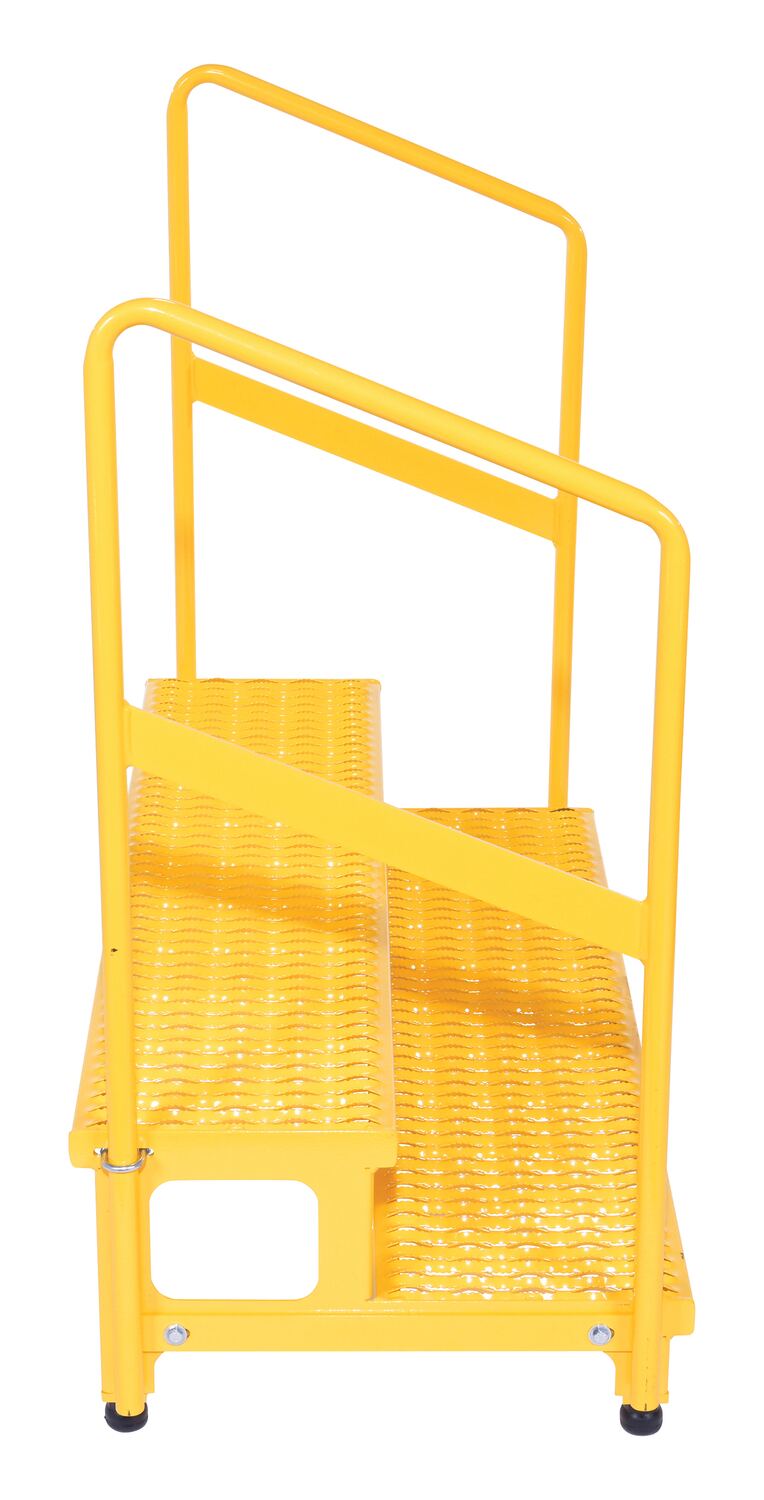

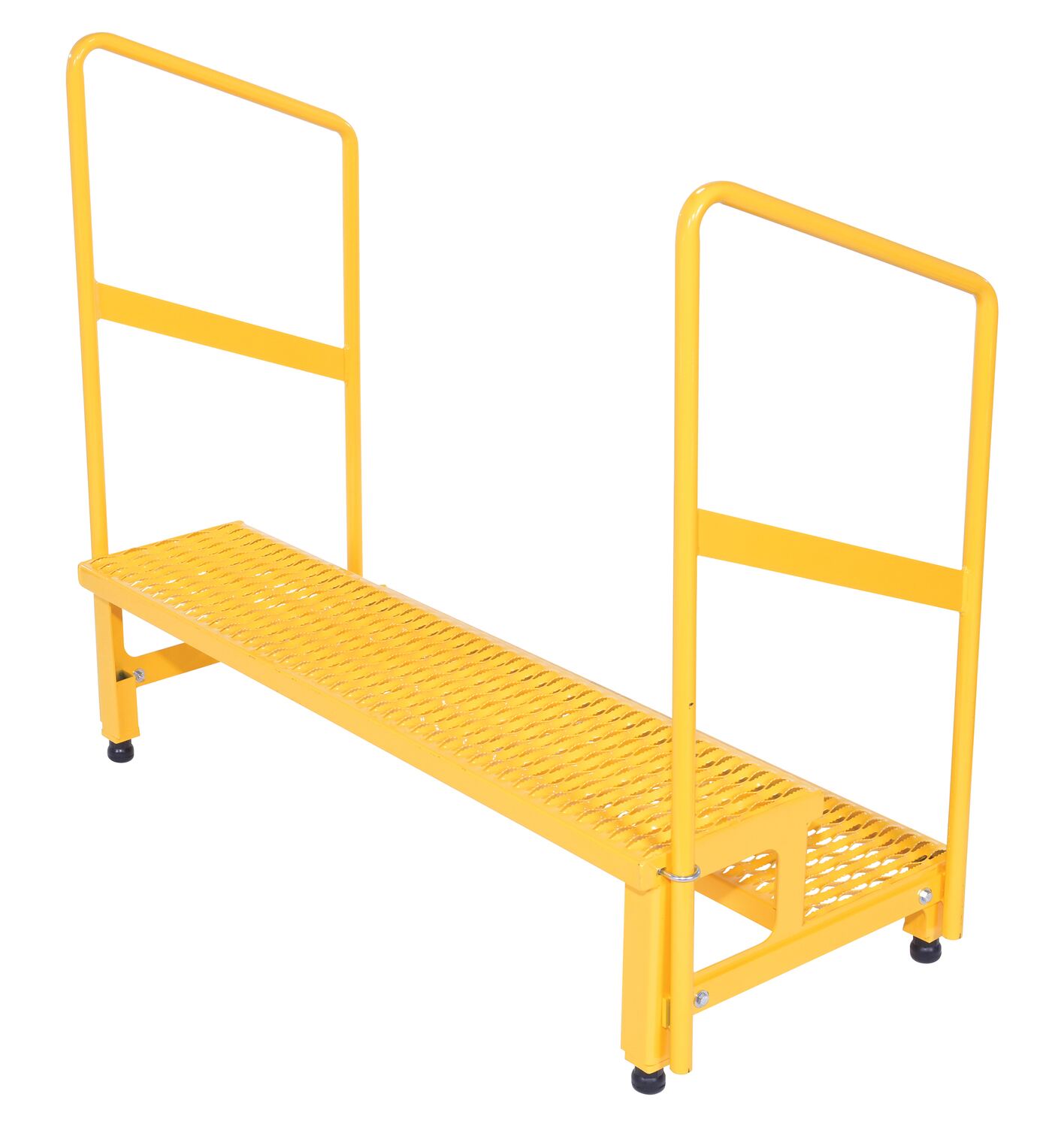

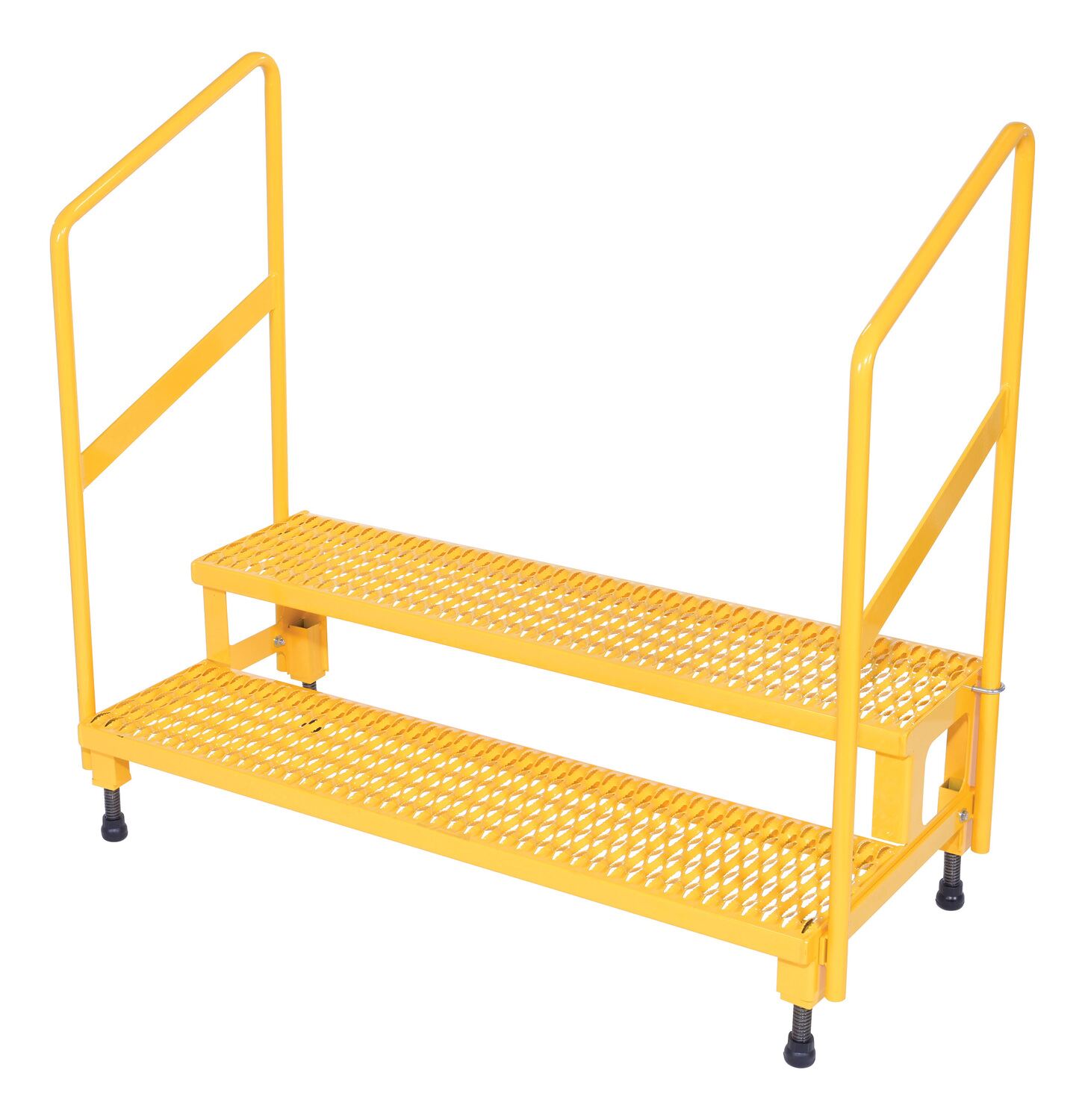

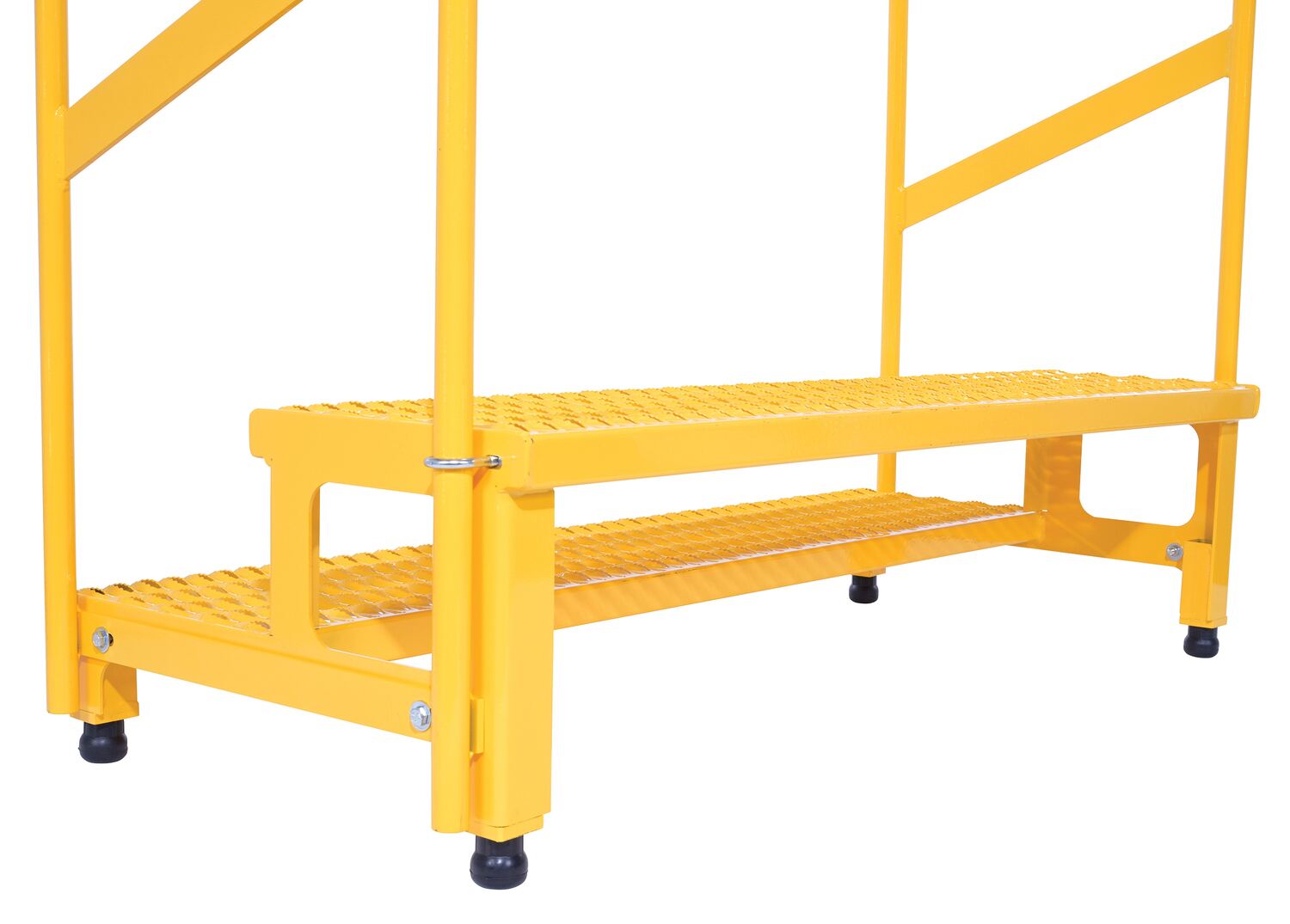

ASP-48-HR

ASP-48-HR

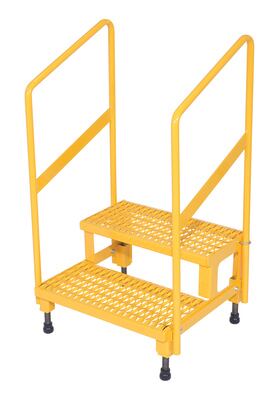

ASP-24-HR

ASP-24-HR

ASP-24-HR

ASP-24-HR

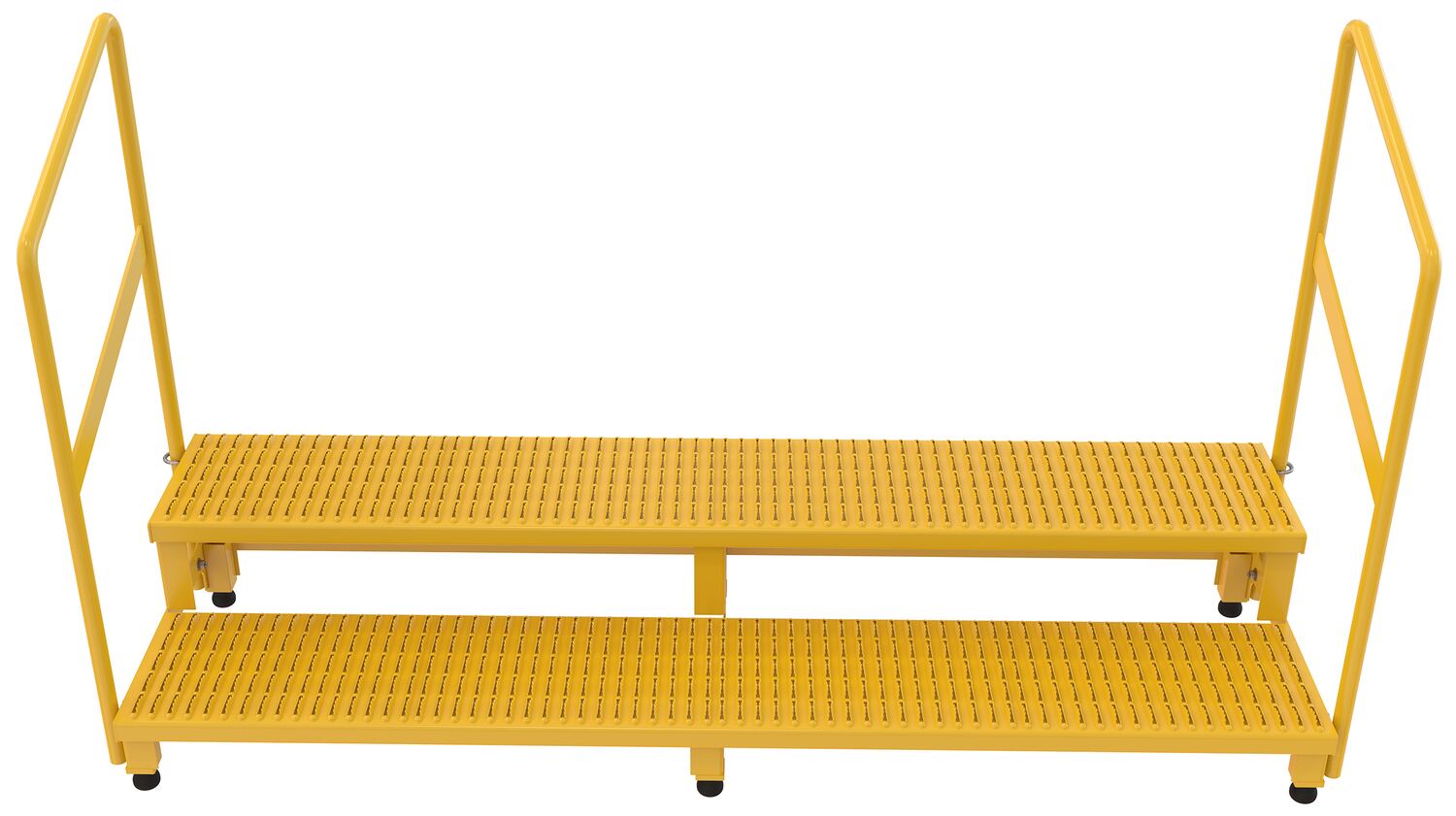

ASP-72-HR

ASP-72-HR

ASP-48-HR

ASP-48-HR

ASP-60-HR

ASP-60-HR

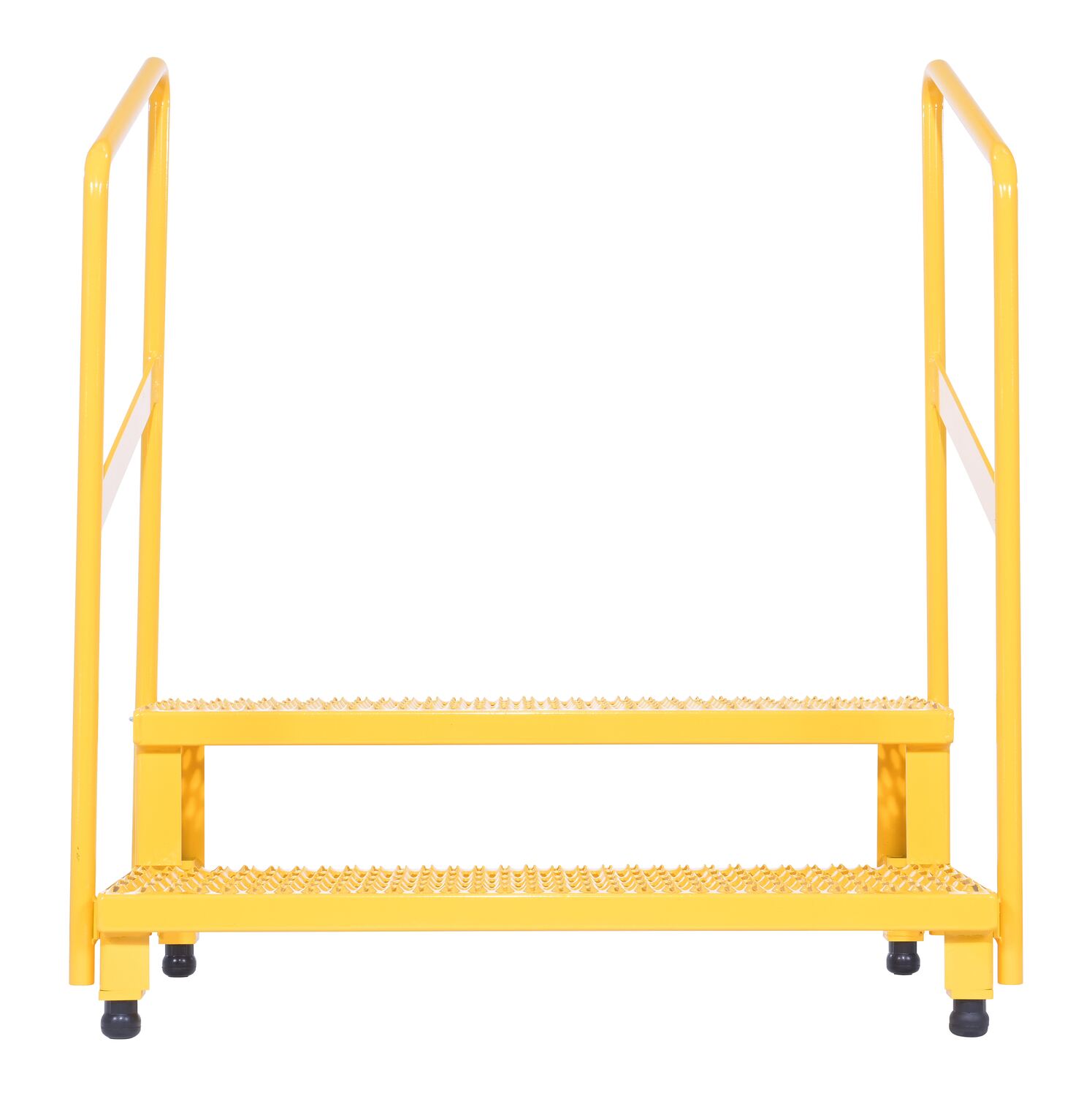

ASP-36-HR

ASP-36-HR

ASP-24-HR

ASP-24-HR

ASP-48-HR

ASP-48-HR

ASP-24-3-HR

ASP-24-3-HR

ASP-24-HR

ASP-24-HR

ASP-36-HR

ASP-36-HR

ASP-24-HR

ASP-24-HR

ASP-24-HR

ASP-24-HR

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

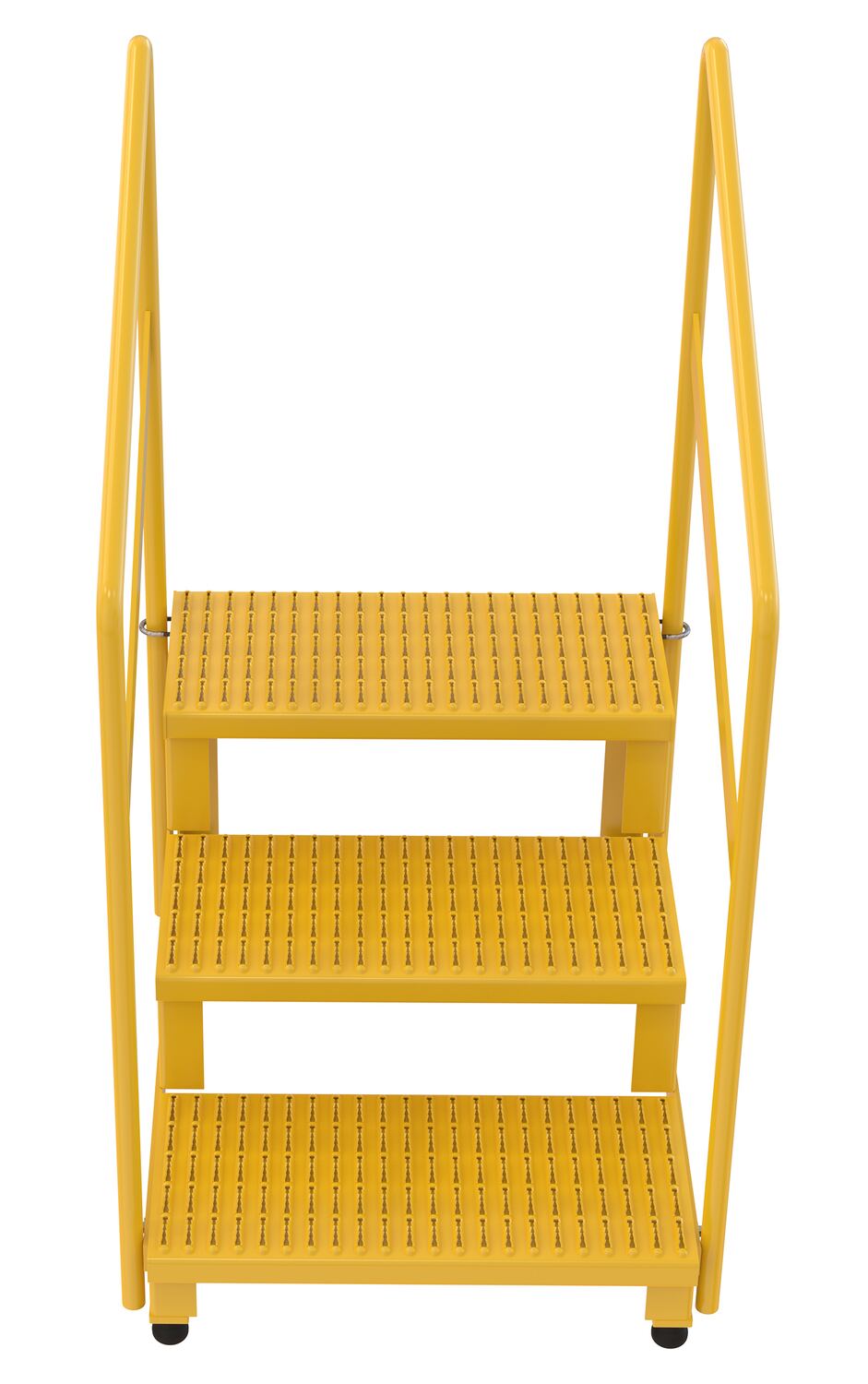

ASP-24-3-HR NEW ASP-24-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 24 inches Wide 3-Step with Handrails 500 Lbs. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Number of Steps: 3		128
ASP-24-HR ASP-24-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 25-15/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		98
ASP-36-3-HR NEW ASP-36-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 36 inches Wide 3-Step with Handrails 500 Lb. Capacity YellowHandle Construction: Steel Tubing Sch 40
Handle Height (in.): 52		148
ASP-36-HR ASP-36-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 38-3/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		110

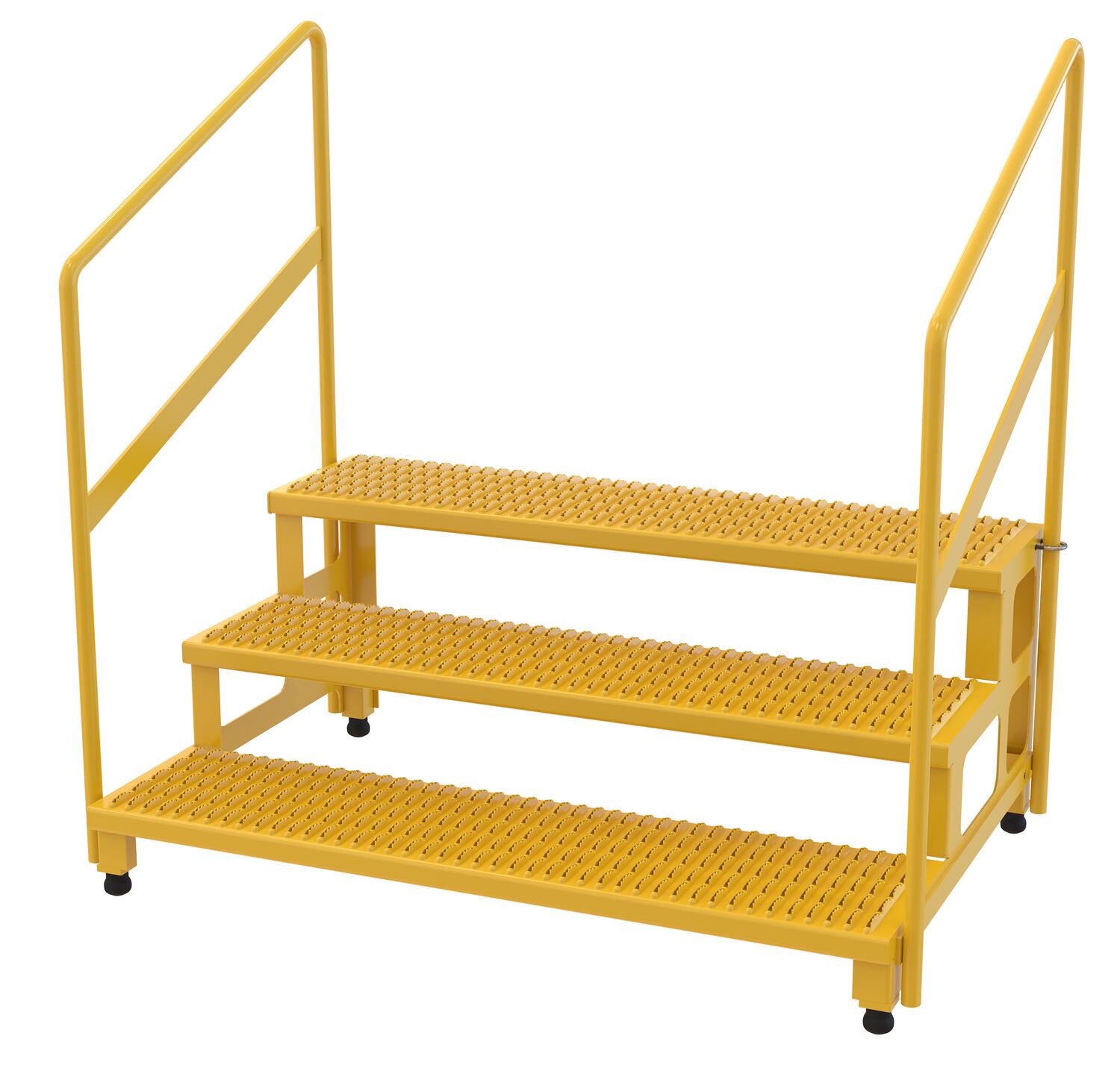

ASP-48-3-HR NEW ASP-48-3-HR90 Days Limited WarrantySteel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52		169
ASP-48-HR ASP-48-HR90 Days Limited WarrantySteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 50-1/2 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		122
ASP-60-HR NEW ASP-60-HR90 Days Limited WarrantySteel Adjustable Step Stand 60 Inches Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		157
ASP-72-HR NEW ASP-72-HR90 Days Limited WarrantySteel Adjustable Step Stand 72 inch Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		172

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ASP-24-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-36-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-48-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4

ASP-24-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Number of Steps: 3
Handrail Construction: Steel Tubing Sch 40
Number of Steps: 3

ASP-36-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handle Construction: Steel Tubing Sch 40
Handle Height (in.): 52
Handle Construction: Steel Tubing Sch 40
Handle Height (in.): 52

ASP-48-3-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52
Handrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52

ASP-60-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4

ASP-72-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Handrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4
Adjustable Step Stands with Handrail PDF's will open in a new window when clicked.

Manuals


ASP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ASP-24-3-HR

ASP-24-HR

ASP-36-3-HR

ASP-36-HR

ASP-48-3-HR

ASP-48-HR

ASP-60-HR

ASP-72-HR

Testing Certificates


ASP-24-3-HR

ASP-24-HR

ASP-36-3-HR

ASP-36-HR

ASP-48-3-HR

ASP-48-HR

ASP-60-HR

ASP-72-HR

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Step Stands Mailing Brochure

Adjustable Step Stands w/ Handrails Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Serrated Steel Fold-Up Steps
Product

Serrated Steel Fold-Up Steps

Container Step Platform
Product

Container Step Platform

Double Sided Step Ladders
Product

Double Sided Step Ladders

Adjustable Step-Mate Stands
Product

Adjustable Step-Mate Stands

Portable Adjustable Height Worker Stands
Product

Portable Adjustable Height Worker Stands

Steel Adjustable Work-Mate Stands
Product

Steel Adjustable Work-Mate Stands

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Adjustable Step Stands with Ha...




ASP-36-HR_L.jpgThe Adjustable Step-Mate Stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface provides extra traction to reduce the potential for slipping. Individual step depth is 11-3/4". Models feature two bolt-on handrails for added stability during use. Handrail measure 20-1/4"D x 40-7/8"H when installed. The legs adjust individually, by screwing them into or out of the leg base, so the unit can be leveled on uneven floors. Each leg fitted with rubber tip for better grip. Uniform capacity is 500 pounds.The unit has a welded construction with yellow baked in powder coated finish for superior toughness.

  • Independently adjustable height legs may be set to level unit on uneven floors
  • Serrated step surface provides excellent traction even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature handrails for added stability during use

See Our Standard Adjustable Step-Mate Stands

Model # Description Attributes Net Wt.
(lbs)
ASP-24-3-HR ASP-24-3-HRSteel Adjustable Step Stand 24 inches Wide 3-Step with Handrails 500 Lbs. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Number of Steps: 3		128
ASP-24-HR ASP-24-HRSteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 25-15/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		98
ASP-36-3-HR ASP-36-3-HRSteel Adjustable Step Stand 36 inches Wide 3-Step with Handrails 500 Lb. Capacity YellowHandle Construction: Steel Tubing Sch 40
Handle Height (in.): 52		148
ASP-36-HR ASP-36-HRSteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 38-3/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		110
ASP-48-3-HR ASP-48-3-HRSteel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handle Height (in.): 52		169
ASP-48-HR ASP-48-HRSteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 50-1/2 In. x 43-1/8 In. 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4		122
ASP-60-HR ASP-60-HRSteel Adjustable Step Stand 60 Inches Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		157
ASP-72-HR ASP-72-HRSteel Adjustable Step Stand 72 inch Wide 2-Step with Handrails 500 Lb. Capacity YellowHandrail Construction: Steel Tubing Sch 40
Handrail Height (in.): 45-1/4		172
