Model Details

ASP-48-3-HR

Printer Friendly
ASP-48-3-HR

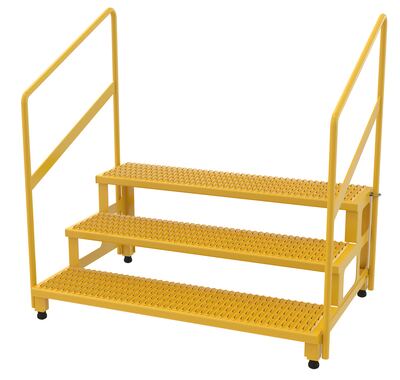

Steel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Total Ship Wt.(lbs.): 169 (only 1 package) Size: 51.125"W x 33.875"L x 52"H Color: Yellow Non-Returnable

Handrail Construction: Steel Tubing Sch 40 Handle Height (in.): 52 Number of Steps: 3
Step Angle (degrees): 30 Top Step Height (in.): 20 to 22-1/4 Top Step Width (in.): 48-1/2
Top Step Depth (in.): 11-3/4 Step Width (in.): 48-1/2 Step Depth (in.): 11-3/4
Step Spacing: 7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ASP-48-3-HR
ASP-48-3-HR

Steel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Dimensions: 51.125"W x 33.875"L x 52"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215377010 GTIN: 00691215377010
Warranty: -- Shipping Weight: 169 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Handrail Construction: Steel Tubing Sch 40 Handle Height (in.): 52 Number of Steps: 3
Step Angle (degrees): 30 Top Step Height (in.): 20 to 22-1/4 Top Step Width (in.): 48-1/2
Top Step Depth (in.): 11-3/4 Step Width (in.): 48-1/2 Step Depth (in.): 11-3/4
Step Spacing: 7
