Model Details

AY-207236-L

AY-207236-L

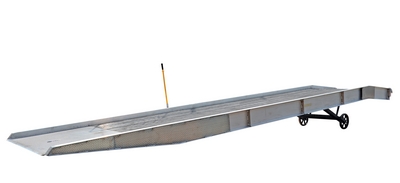

Aluminum Yard Ramp 432 In. x 74 In. 20000 Lb. Capacity Silver

The portable Aluminum Yard Ramp with Aluminum grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Grating is rust resistant aluminum. It includes hand pump hydraulic lift, safety pressure relief valve, anchor chains, and tow bar pocket.

  • Aluminum side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Hand pump hydraulic lift easily adjusts to different dock heights
Total Ship Wt.(lbs.): 3465 (only 1 package) Size: 74"W x 432"L x 45"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 20000 Usable Width (in.): 66 Hydraulic Lift: Hand Pump
Tire Size (in.): 18 Tire Thickness (in.): 5 Curb Height (in.): 4
Lowered Height (in.): 45 Raised Height (in.): 62 Usable Lip Support Edge (in.): 13-1/2
Deck Type: Aluminum Bar Grating

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AY-207236-L


AY-207236-L

Aluminum Yard Ramp 432 In. x 74 In. 20000 Lb. Capacity Silver

The portable Aluminum Yard Ramp with Aluminum grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. Grating is rust resistant aluminum. It includes hand pump hydraulic lift, safety pressure relief valve, anchor chains, and tow bar pocket.

  • Aluminum side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Hand pump hydraulic lift easily adjusts to different dock heights
Dimensions: 74"W x 432"L x 45"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215049214 GTIN: 00691215049214
Warranty: -- Shipping Weight: 3465 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 20000 Usable Width (in.): 66 Hydraulic Lift: Hand Pump
Tire Size (in.): 18 Tire Thickness (in.): 5 Curb Height (in.): 4
Lowered Height (in.): 45 Raised Height (in.): 62 Usable Lip Support Edge (in.): 13-1/2
Deck Type: Aluminum Bar Grating
