Model Details

BTT-5-36

BTT-5-36

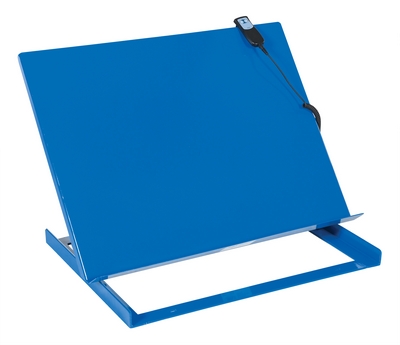

Linear Bench Top Tilter 28 In. x 36 In. 500 Lb. Capacity Blue

The heavy-duty bench top tilter easily attaches to most industrial table tops, work benches, and mobile lift tables of sufficient load capacity and surface size. The unit slides back as it tilts to maintain the center of gravity over the frame. Manual units can be adjusted only when unloaded and the linear actuated units are equipped with a push-button hand pendant control. The flat base plate has slotted holes for installation.

  • Ideal for loading and unloading fork truck batteries
  • Features a roller deck for easy battery movement
  • Front locking safety tabs secure battery in cart
  • Welded steel construction for maximum strength
Total Ship Wt.(lbs.): 127 (only 1 package) Size: 28"W x 36"L x 8"H Color: Blue

Uniform Capacity (lb.): 500 Platform Width (in.): 36 Platform Depth (in.): 28
Platform Height (in.): 5 Tilt Degree: 0-45 Lip Height (in.): 3
Attachment Method: Bolt On Mounting Holes (qty.): 4 Mounting Hole Diameter (in.): 3/8
Plate Thickness (in.): 1/4 Operation: Linear Actuated AC Voltage/Phase: 115/1

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: BTT-5-36


BTT-5-36

Linear Bench Top Tilter 28 In. x 36 In. 500 Lb. Capacity Blue

The heavy-duty bench top tilter easily attaches to most industrial table tops, work benches, and mobile lift tables of sufficient load capacity and surface size. The unit slides back as it tilts to maintain the center of gravity over the frame. Manual units can be adjusted only when unloaded and the linear actuated units are equipped with a push-button hand pendant control. The flat base plate has slotted holes for installation.

  • Ideal for loading and unloading fork truck batteries
  • Features a roller deck for easy battery movement
  • Front locking safety tabs secure battery in cart
  • Welded steel construction for maximum strength
Dimensions: 28"W x 36"L x 8"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215009720 GTIN: 00691215009720
Warranty: -- Shipping Weight: 127 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Platform Width (in.): 36 Platform Depth (in.): 28
Platform Height (in.): 5 Tilt Degree: 0-45 Lip Height (in.): 3
Attachment Method: Bolt On Mounting Holes (qty.): 4 Mounting Hole Diameter (in.): 3/8
Plate Thickness (in.): 1/4 Operation: Linear Actuated AC Voltage/Phase: 115/1
