Product Family Overview


Bench Top Tilters
SERIES: BTT

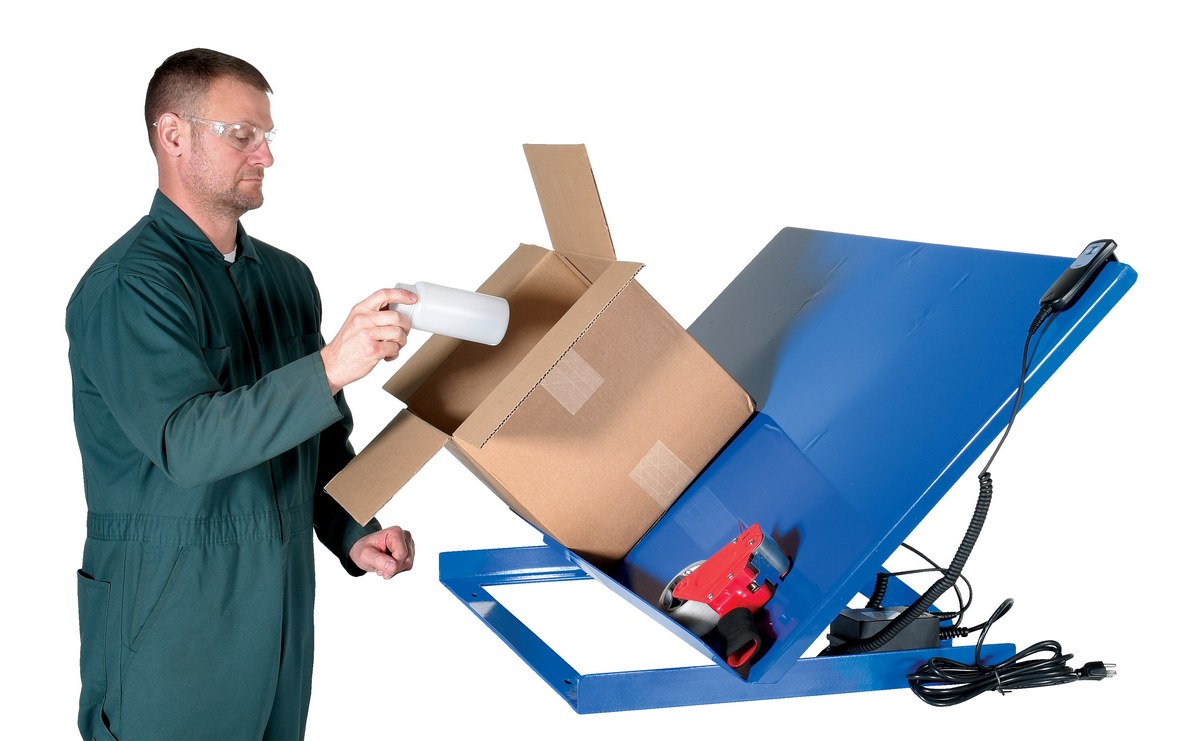

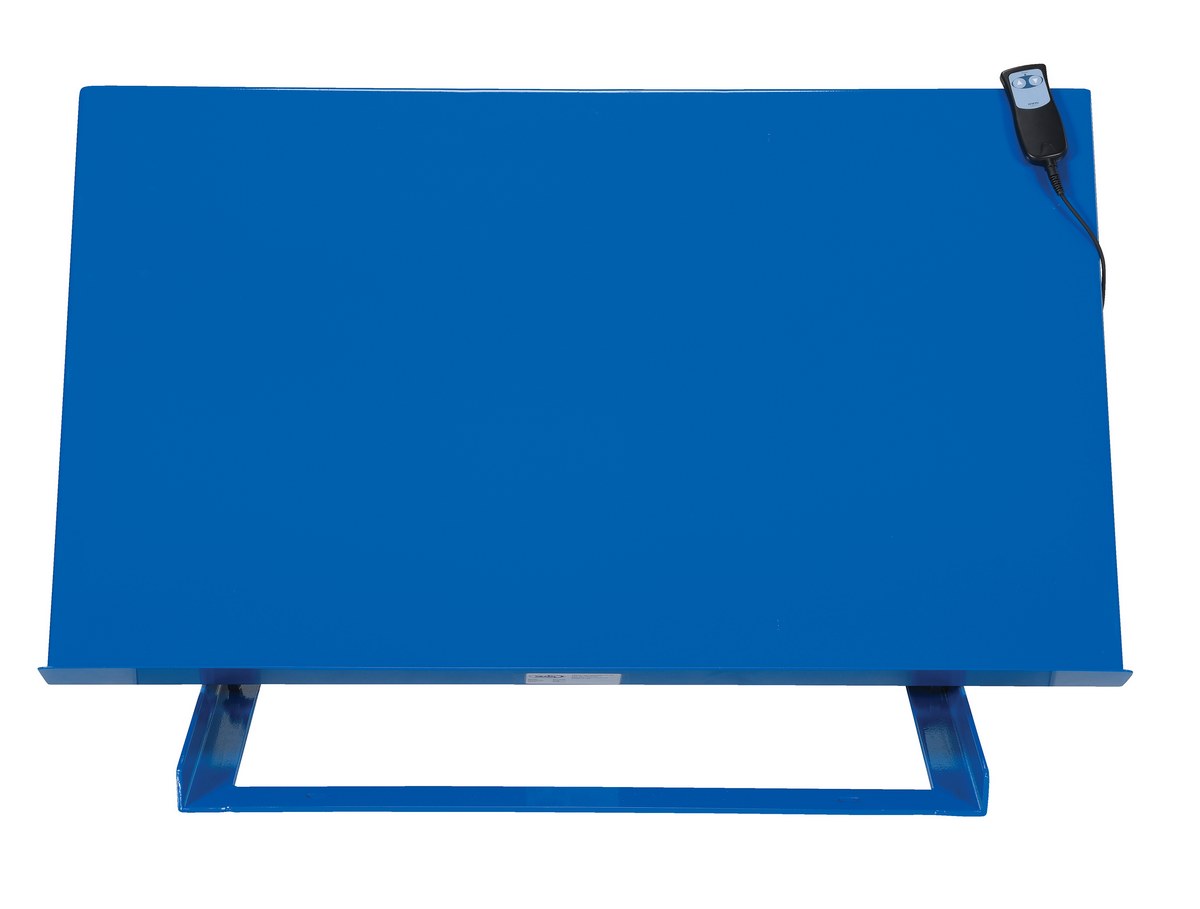

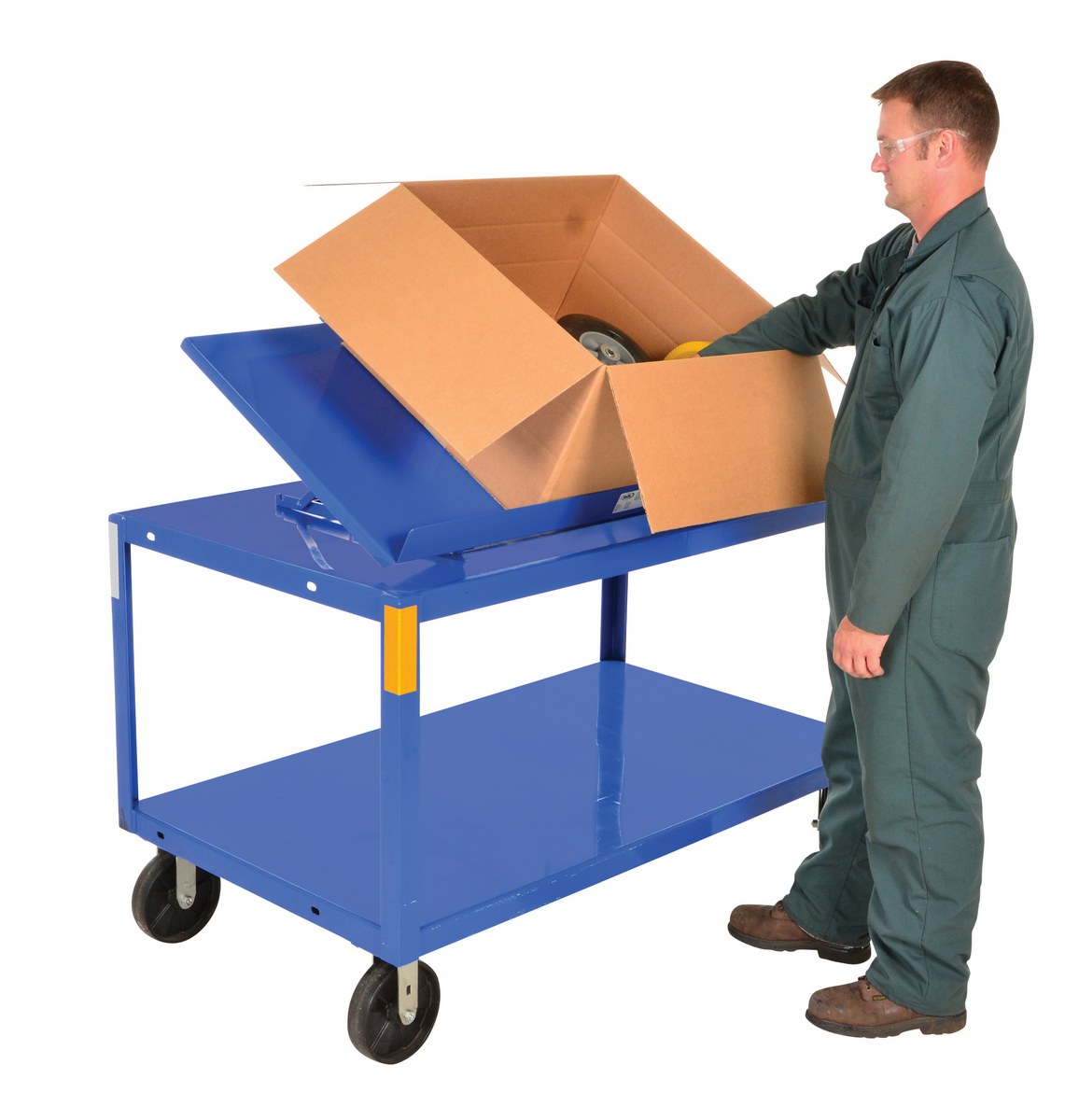

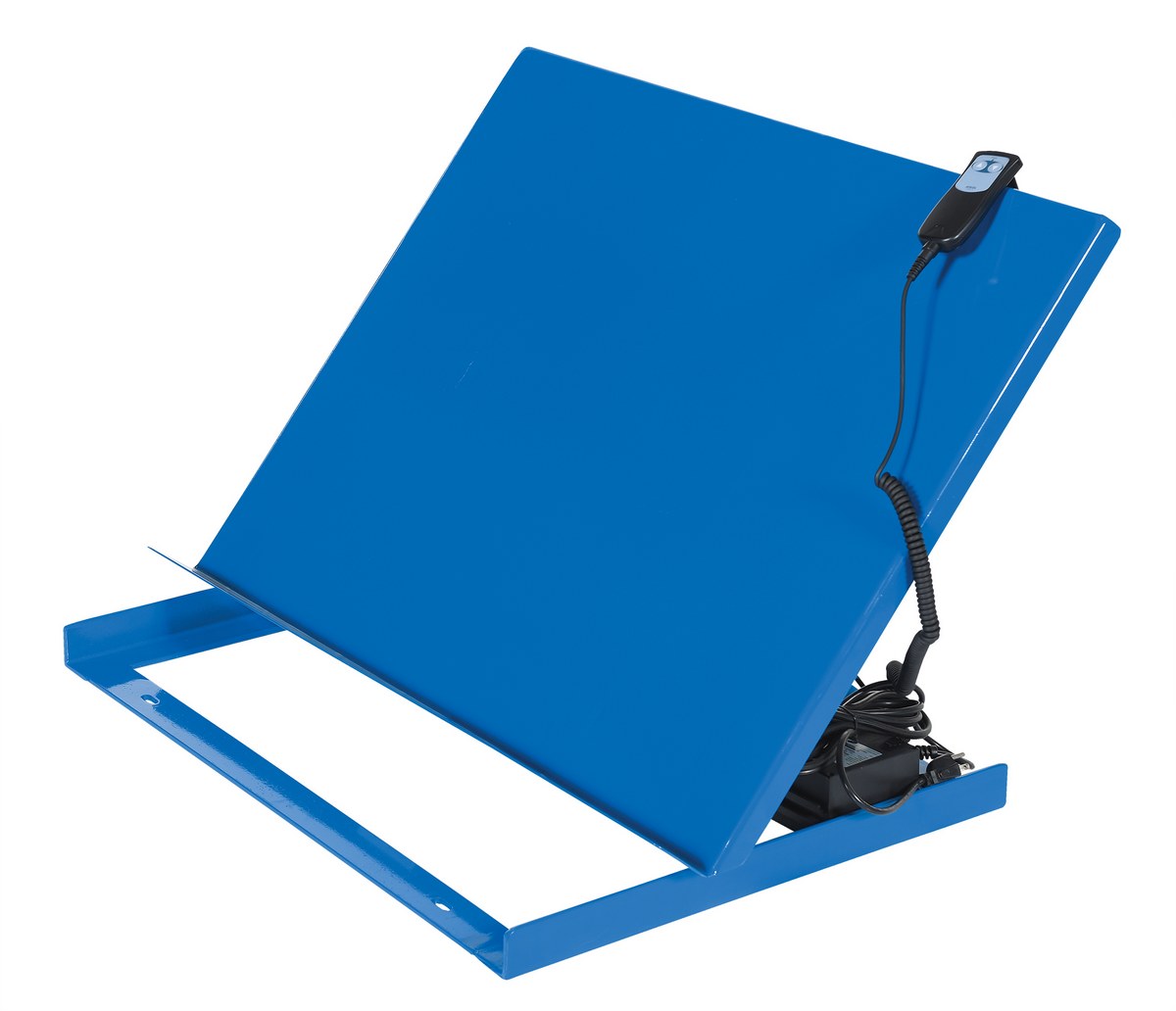

Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size. Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation. Units are colored royal blue.

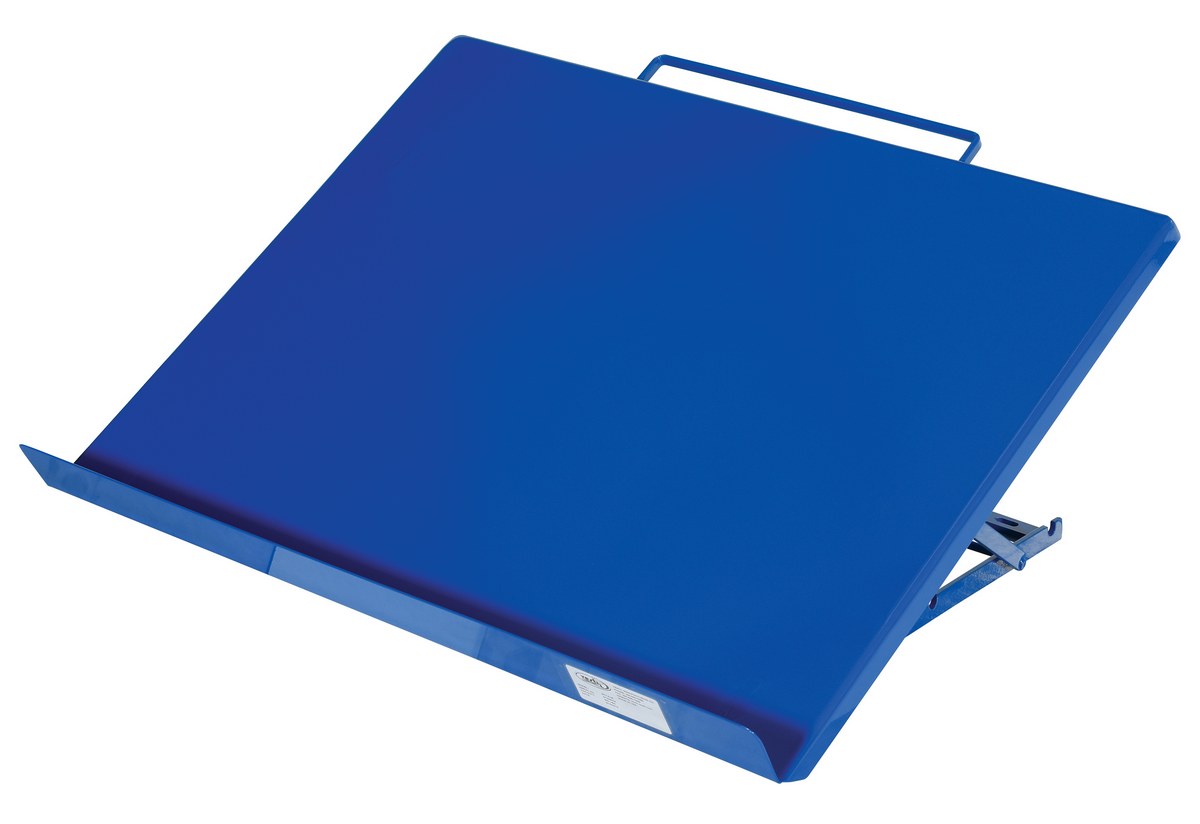

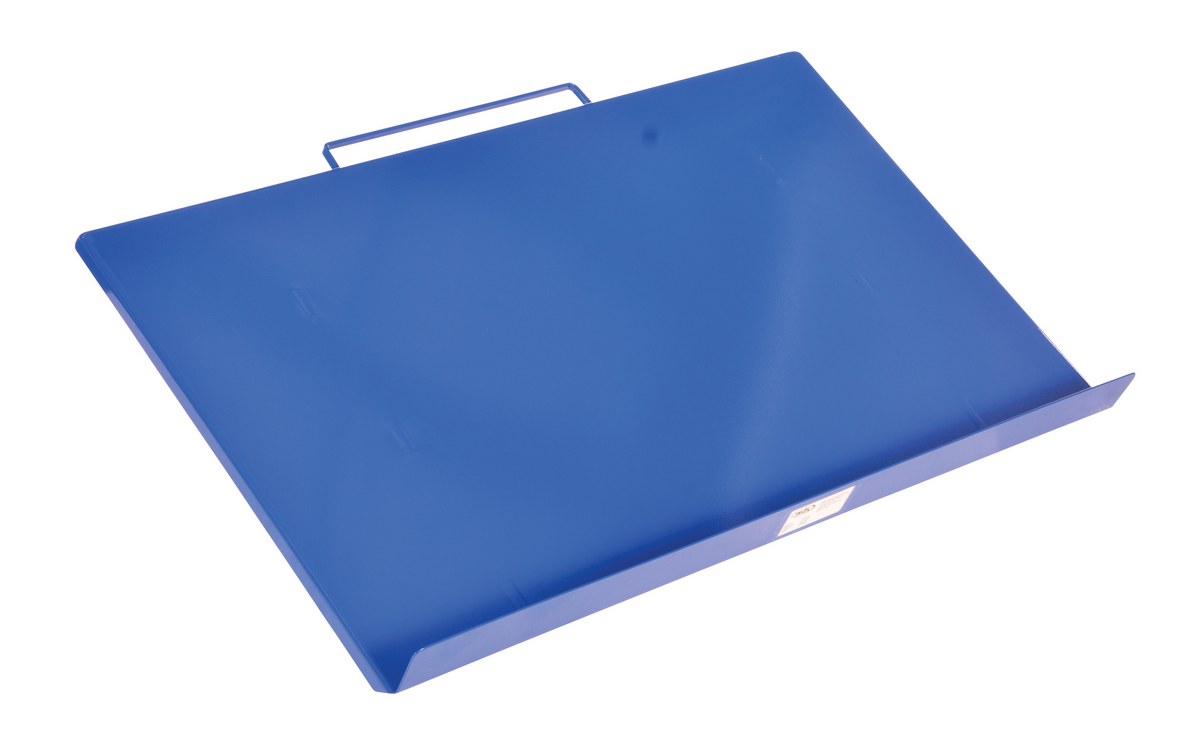

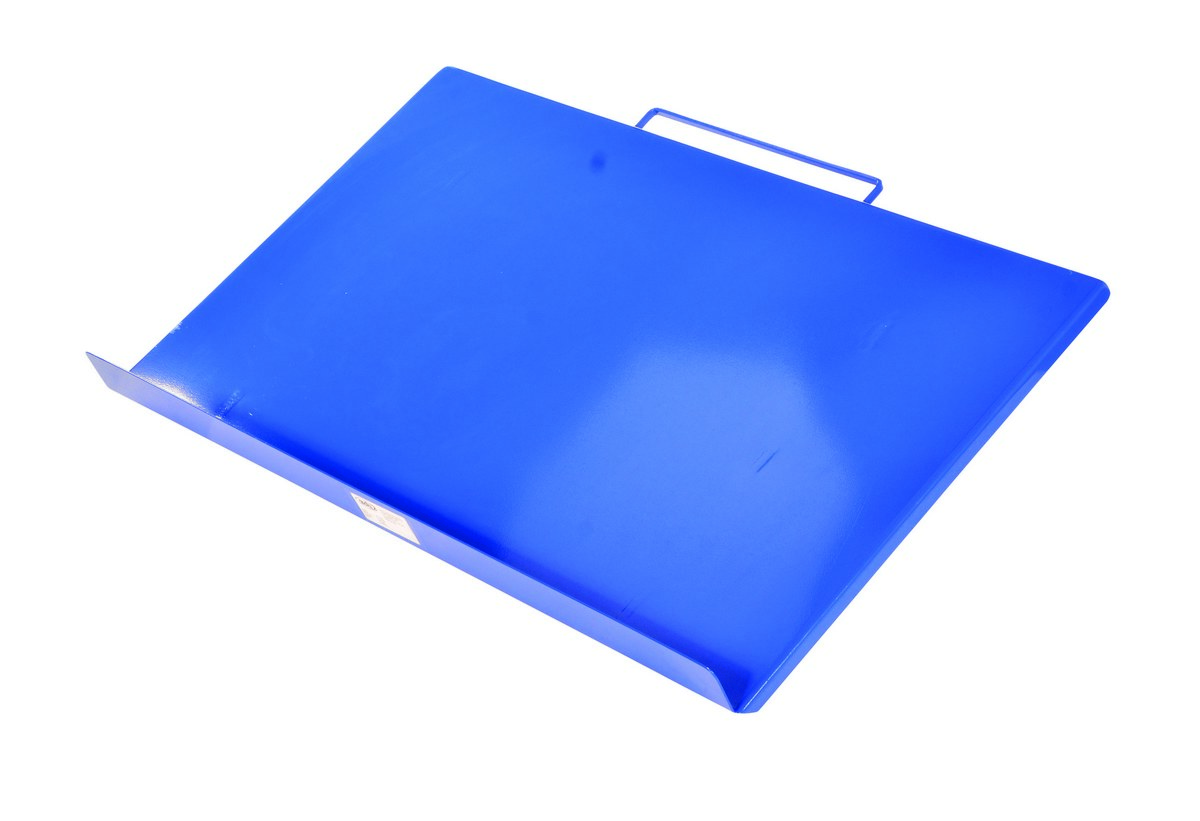

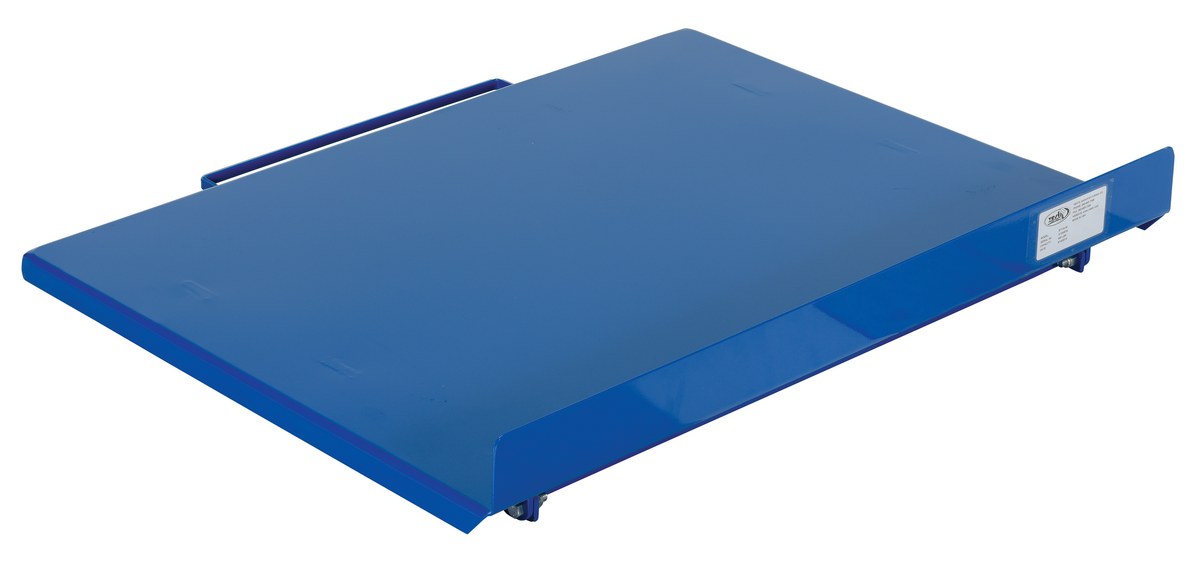

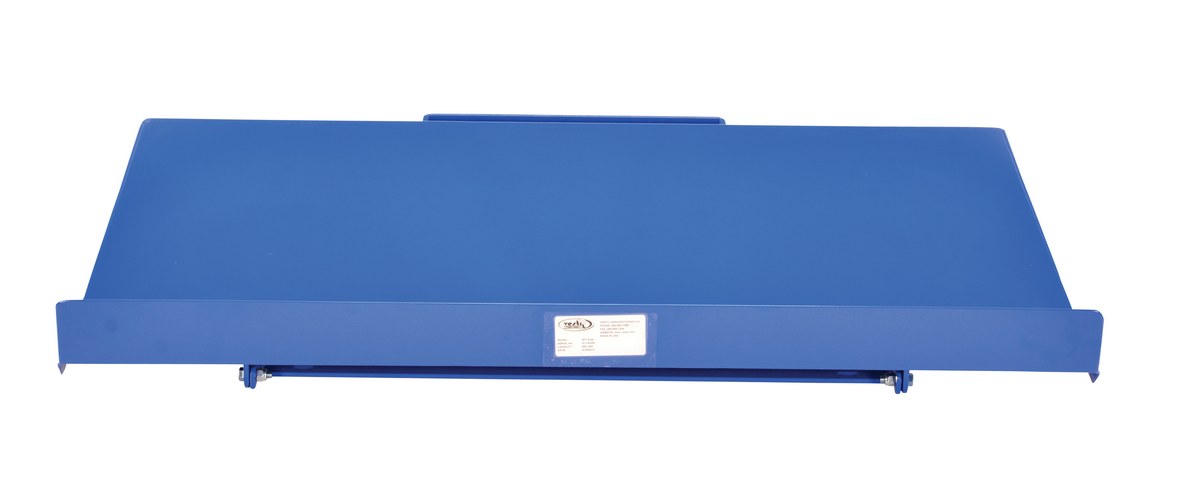

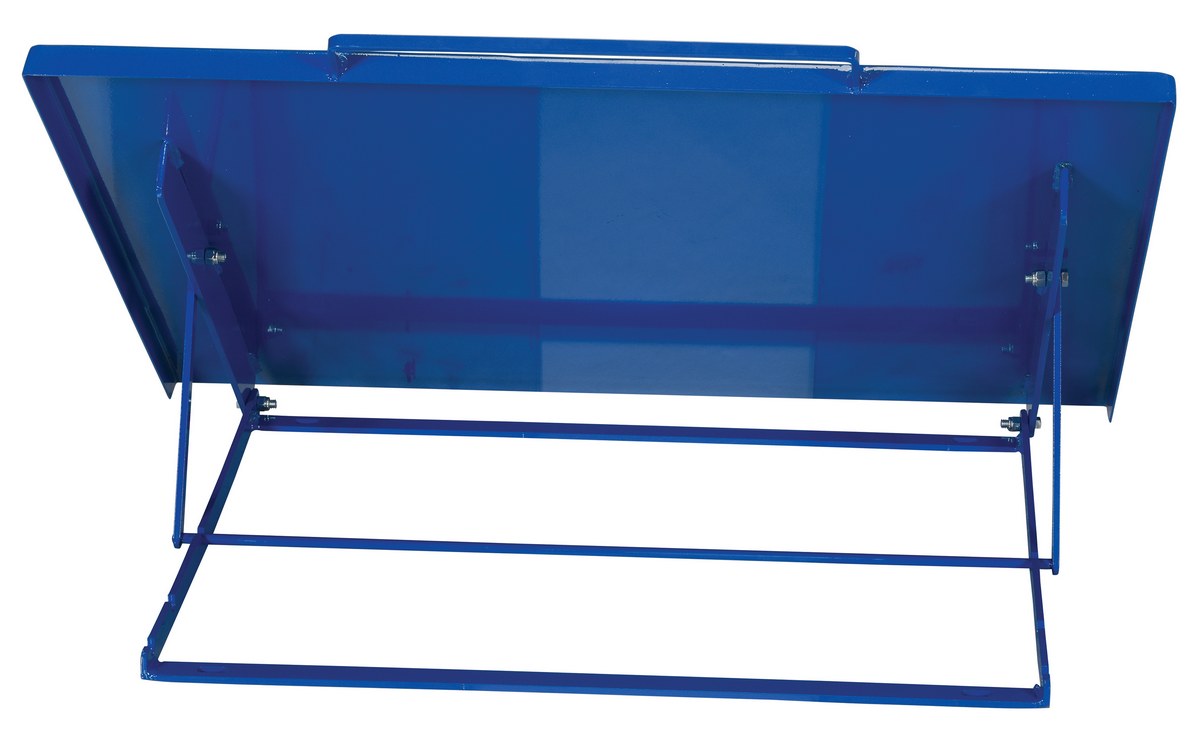

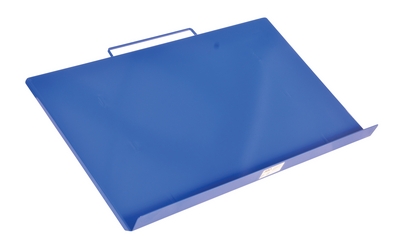

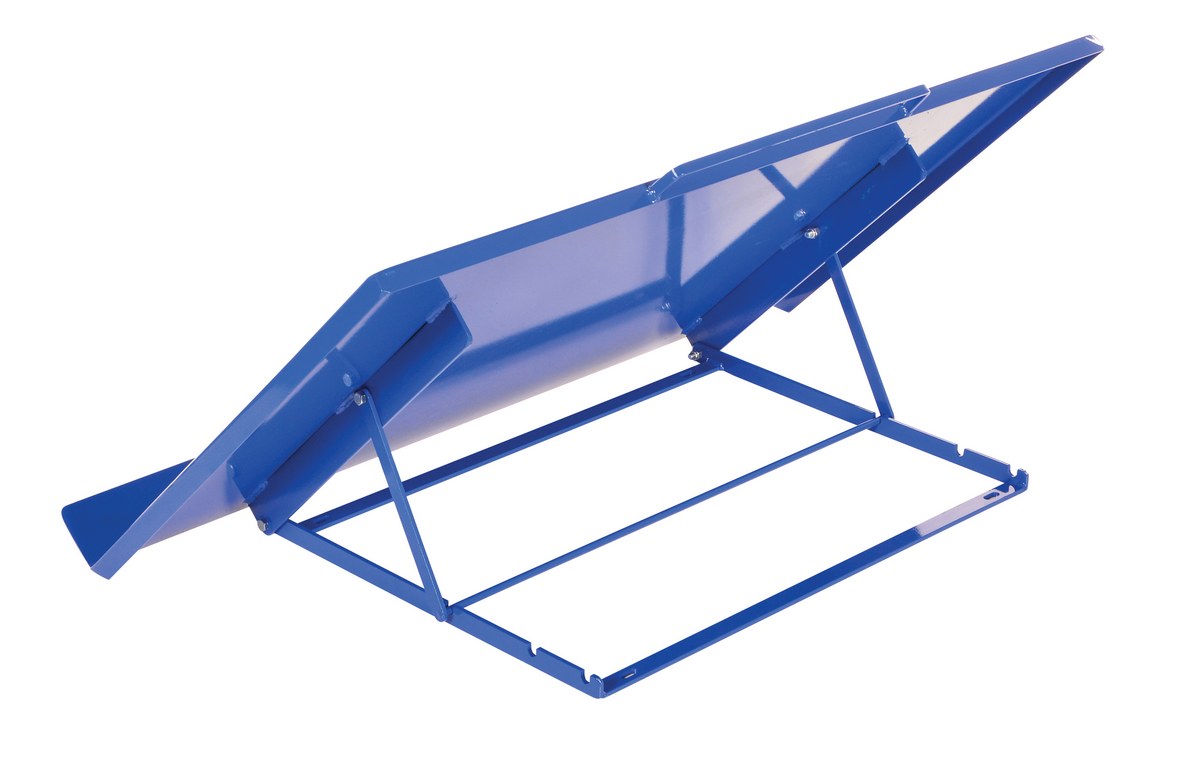

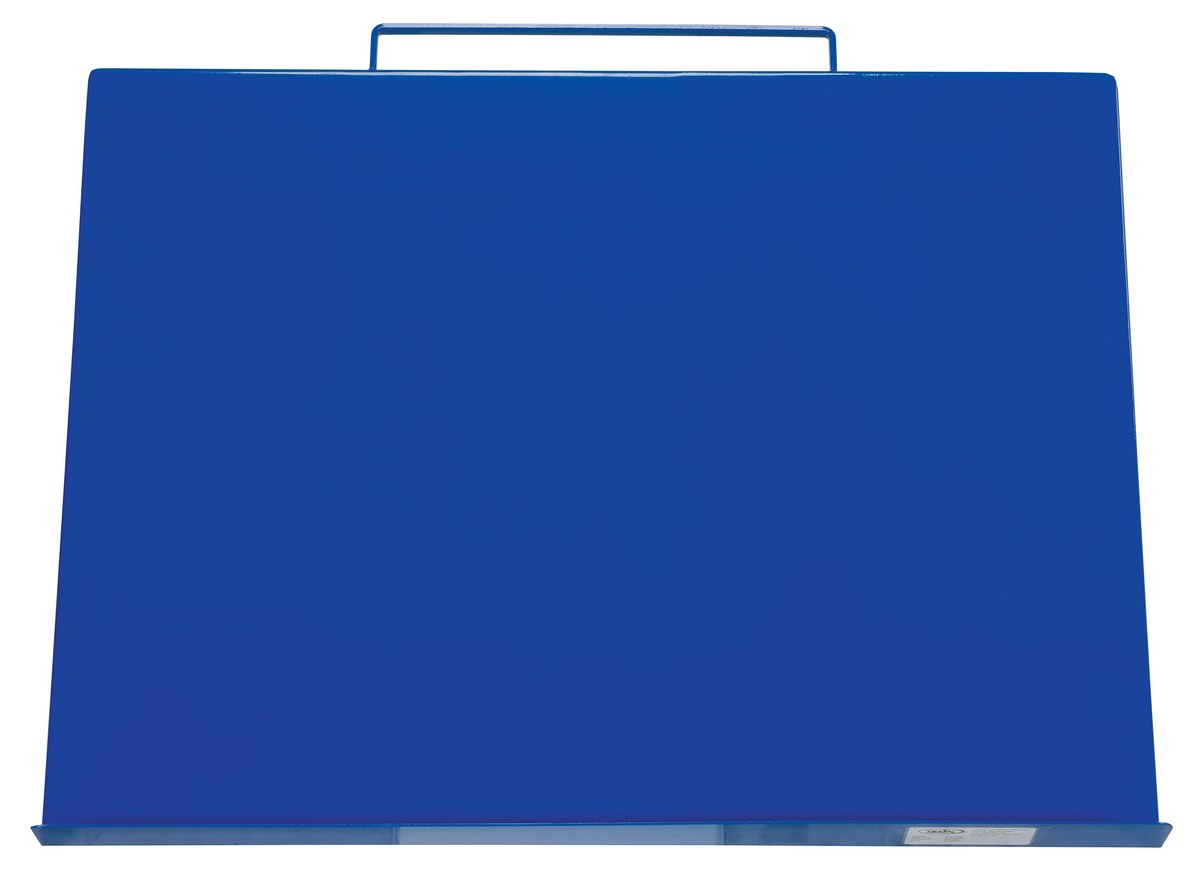

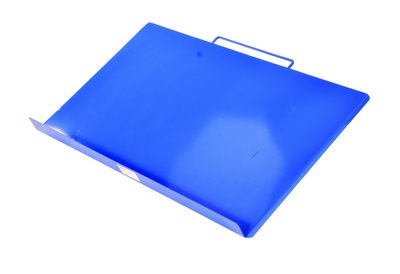

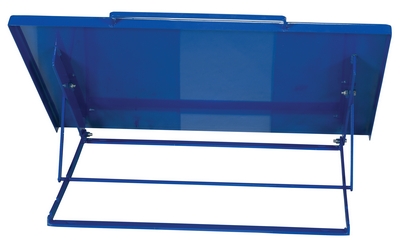

  • Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle. Tilter is adjustable at 15, 30 or 45 degree angles. Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.

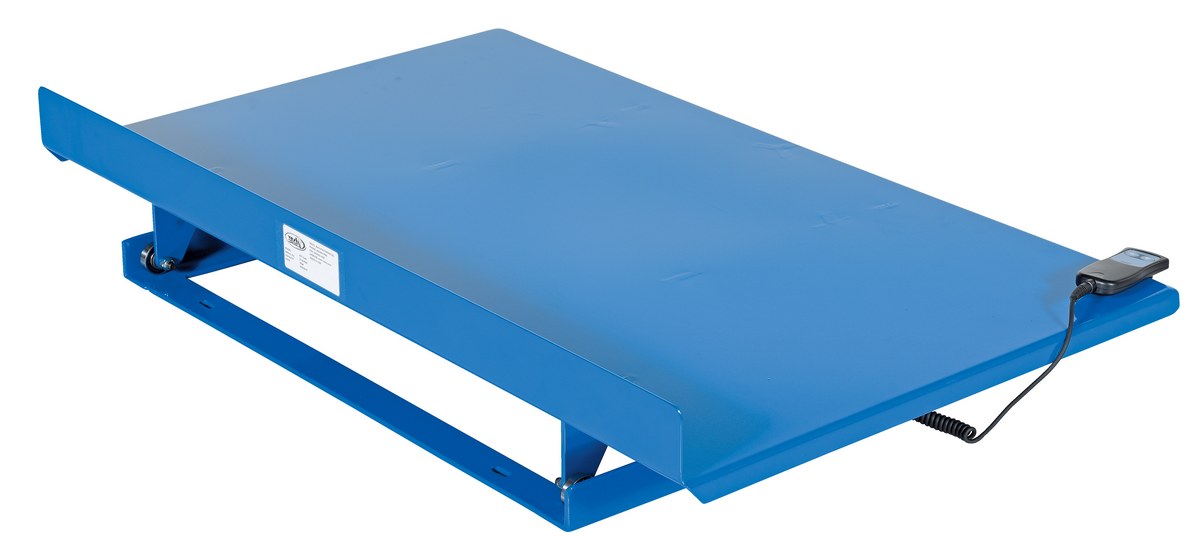

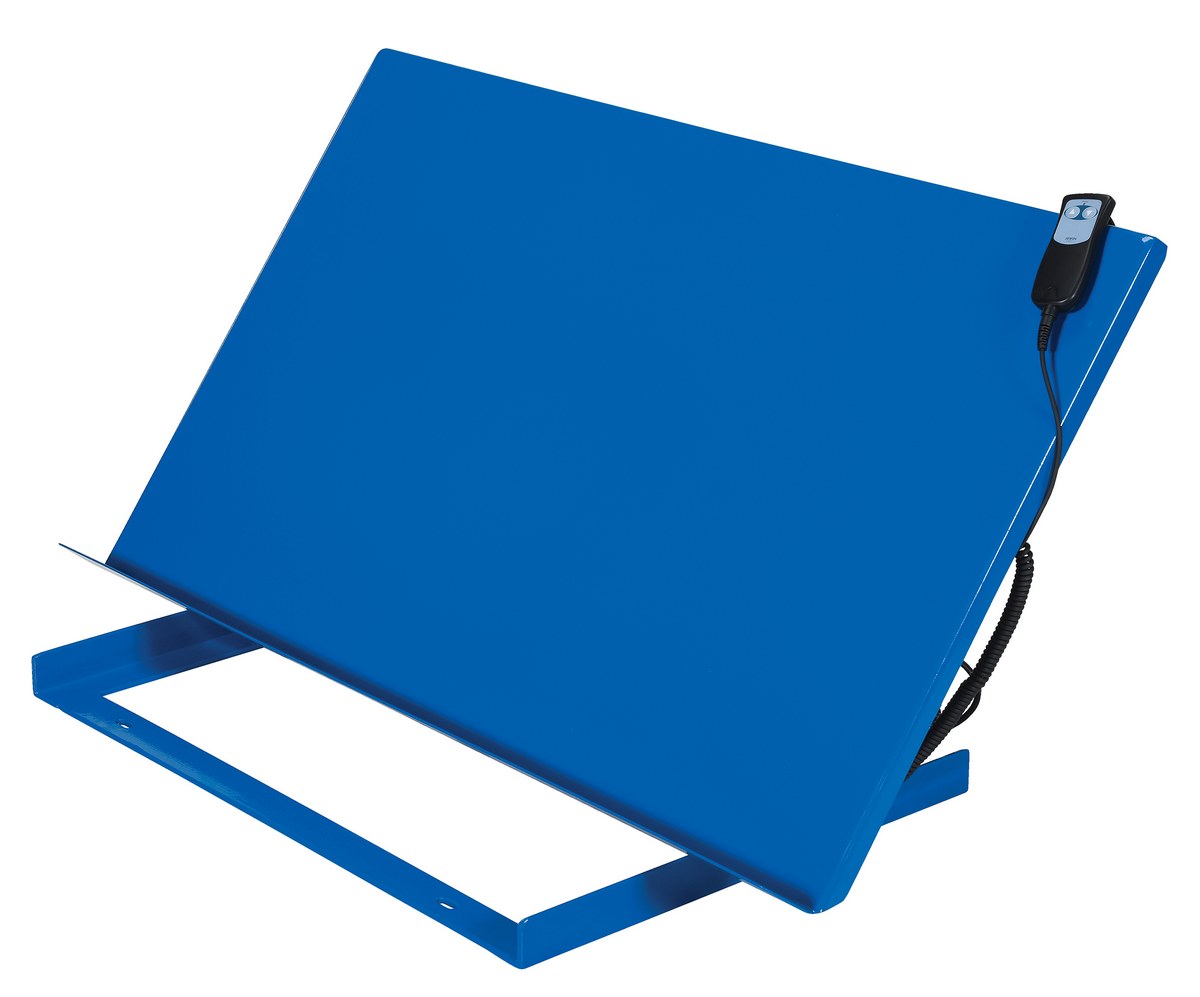

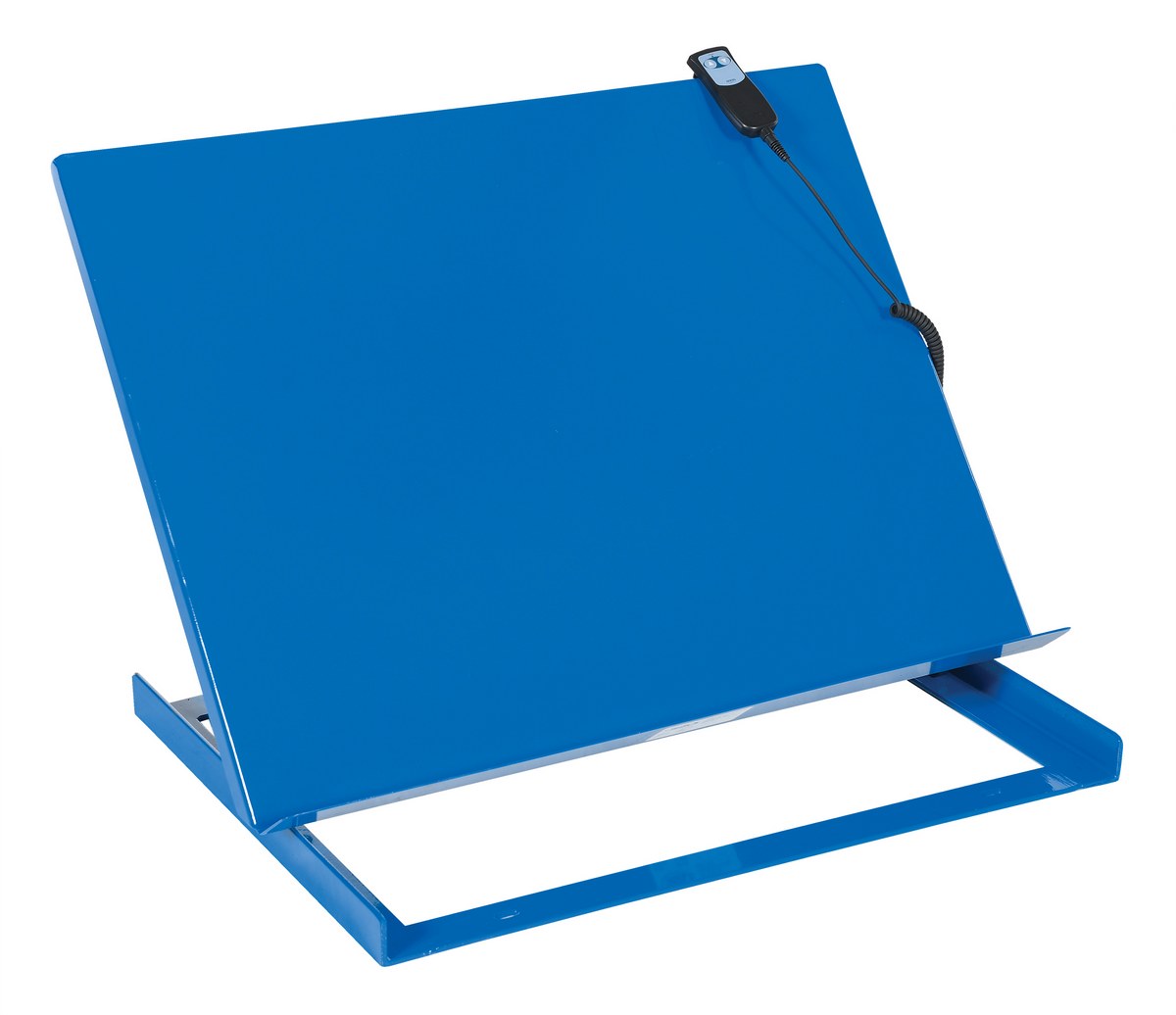

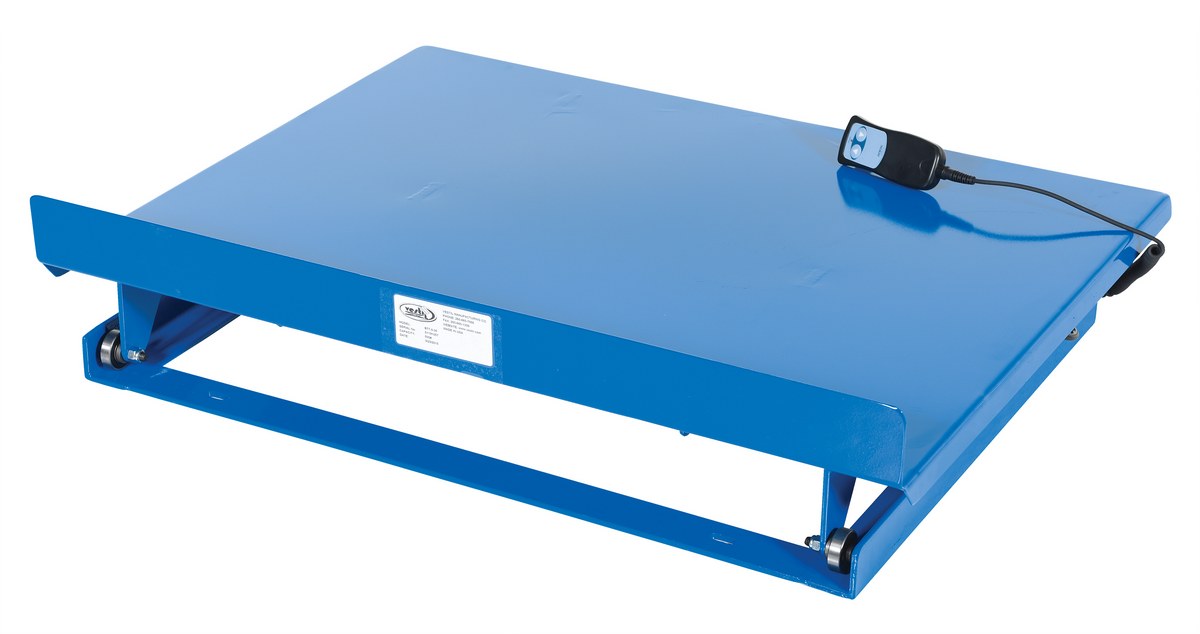

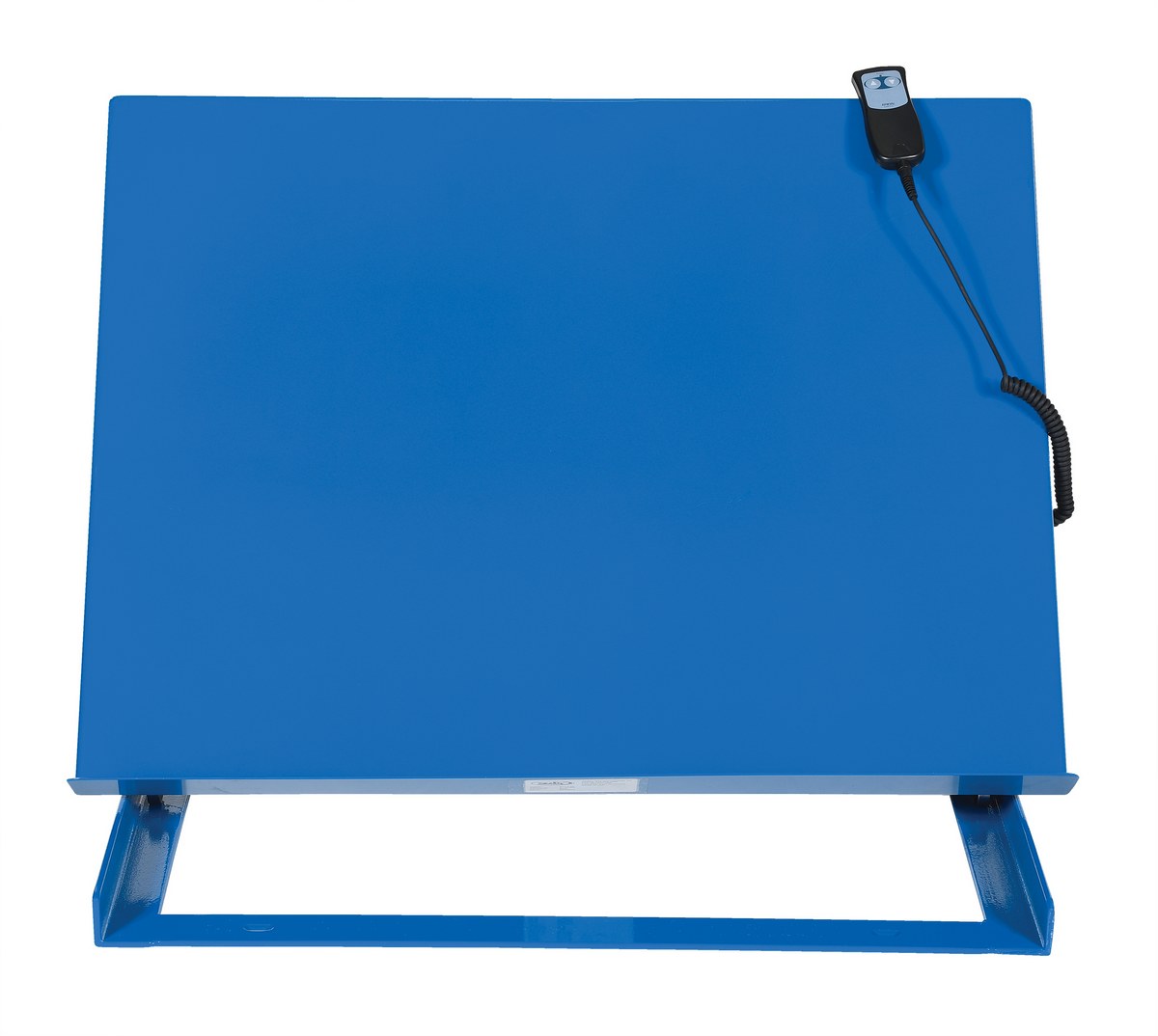

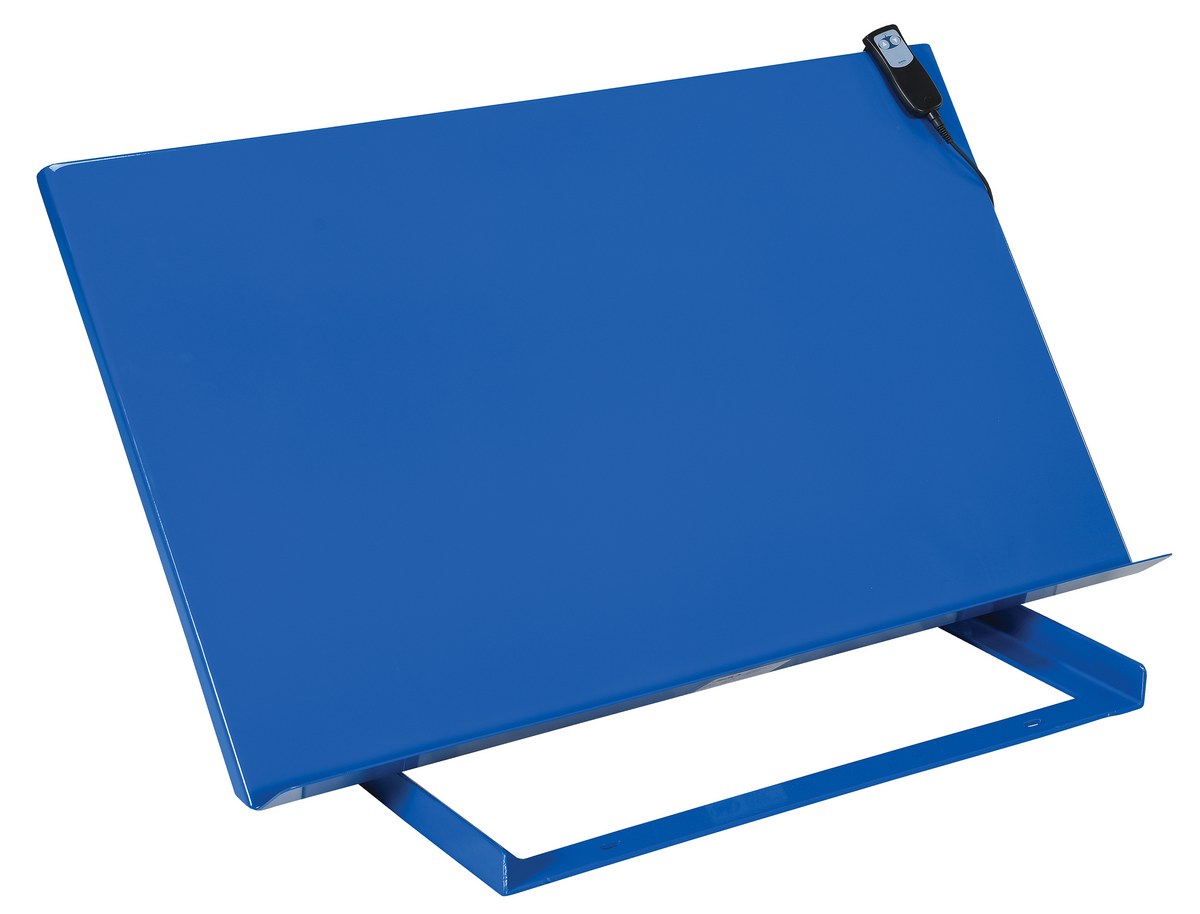

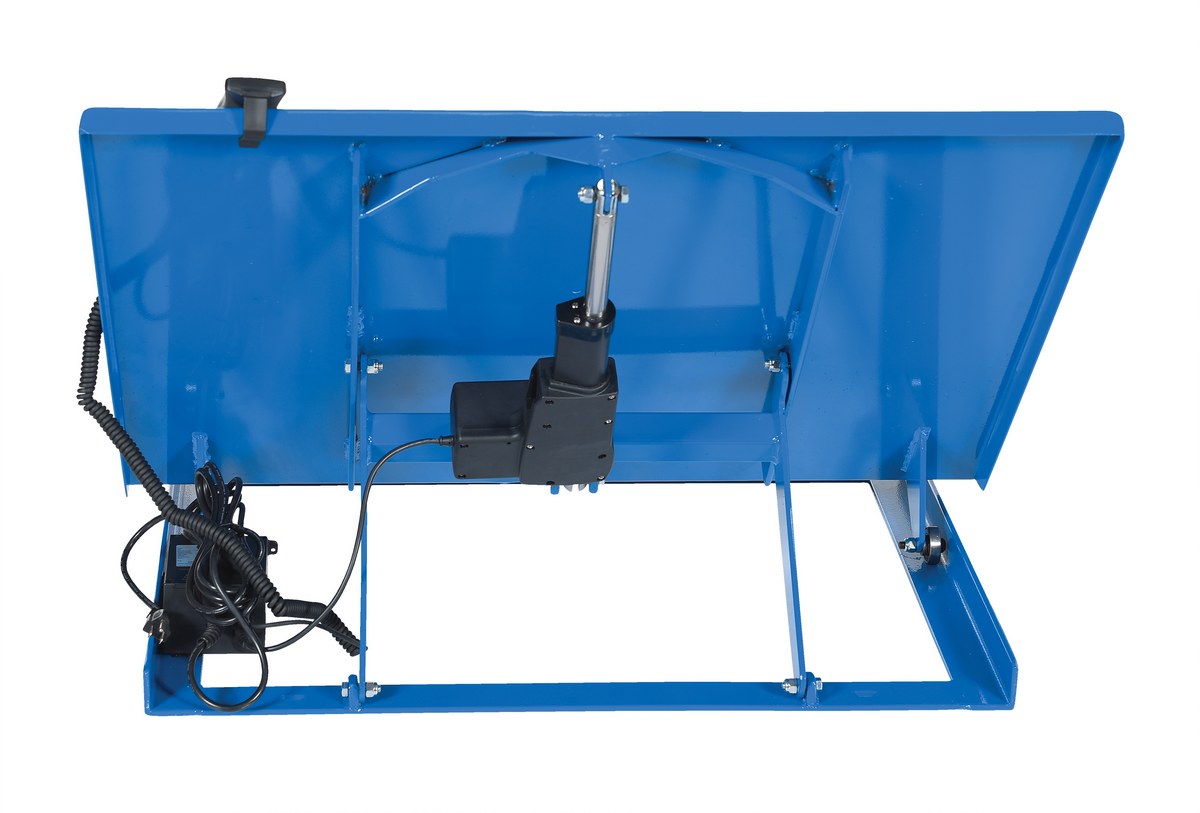

  • Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height.
  • External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height.
  • The Bench Top Tilters have a sliding top which tilts within its own base frame. The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size. Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation. Units are colored royal blue.

  • Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle. Tilter is adjustable at 15, 30 or 45 degree angles. Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.
  • Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height.
  • External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height.
  • The Bench Top Tilters have a sliding top which tilts within its own base frame. The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

Additional Models In This Family

BTT-5-36

model BTT-5-36

BTT-5-46

model BTT-5-46

BTT-6-36

model BTT-6-36

BTT-10-36

model BTT-10-36

BTT-10-46

model BTT-10-46

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
BTT-10-36 BTT-10-361 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 36 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 36
193
BTT-10-46 BTT-10-461 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 46 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 46
225
BTT-5-36 BTT-5-361 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 36 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 36
127
BTT-5-46 BTT-5-461 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 46 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 46
127
BTT-6-36 BTT-6-361 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 36 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 36
112
BTT-6-46 BTT-6-461 Year Limited WarrantyLinear Bench Top Tilter 28 In. x 46 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 46
116

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

BTT-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 36
Uniform Capacity (lb.): 1000
Platform Width (in.): 36

BTT-10-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 46
Uniform Capacity (lb.): 1000
Platform Width (in.): 46

BTT-5-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 36
Uniform Capacity (lb.): 500
Platform Width (in.): 36

BTT-5-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 46
Uniform Capacity (lb.): 500
Platform Width (in.): 46

BTT-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 36
Uniform Capacity (lb.): 600
Platform Width (in.): 36

BTT-6-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 46
Uniform Capacity (lb.): 600
Platform Width (in.): 46


Bench Top Tilters PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


BTT-5-36

BTT-5-46

BTT-6-36

BTT-6-46

BTT-10-36

BTT-10-46

SDS Sheets

Hydraulic Oil SDS Sheet for: BTT-10-36
Hydraulic Oil SDS Sheet for: BTT-10-46
Hydraulic Oil SDS Sheet for: BTT-5-36
Hydraulic Oil SDS Sheet for: BTT-5-46
Hydraulic Oil SDS Sheet for: BTT-6-36

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Bench Top Tilters




Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size. Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation. Units are colored royal blue.

  • Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle. Tilter is adjustable at 15, 30 or 45 degree angles. Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.
  • Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height.
  • External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height.
  • The Bench Top Tilters have a sliding top which tilts within its own base frame. The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

Bench Top Tilters
Model Image PDF's Platform
(WxLxH)
Capacity
(lbs)
Degree
of Tilt
Operation Wt.
(lbs)
BTT-6-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36"x28"x2" 600 15, 30 & 45 Manual 112
BTT-6-46 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 46"x28"x2" 600 15, 30 & 45 Manual 116
BTT-5-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36"x28"x5" 500 0 to 45 Linear Actuated 127
BTT-5-46 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 46"x28"x5" 500 0 to 45 Linear Actuated 135
BTT-10-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36"x28"x3" 1,000 0 to 45 Linear Actuated 196
BTT-10-46 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 46"x28"x3" 1,000 0 to 45 Linear Actuated 217
