Model Details

CART-500-LA-PSS

Printer Friendly
CART-500-LA-PSS

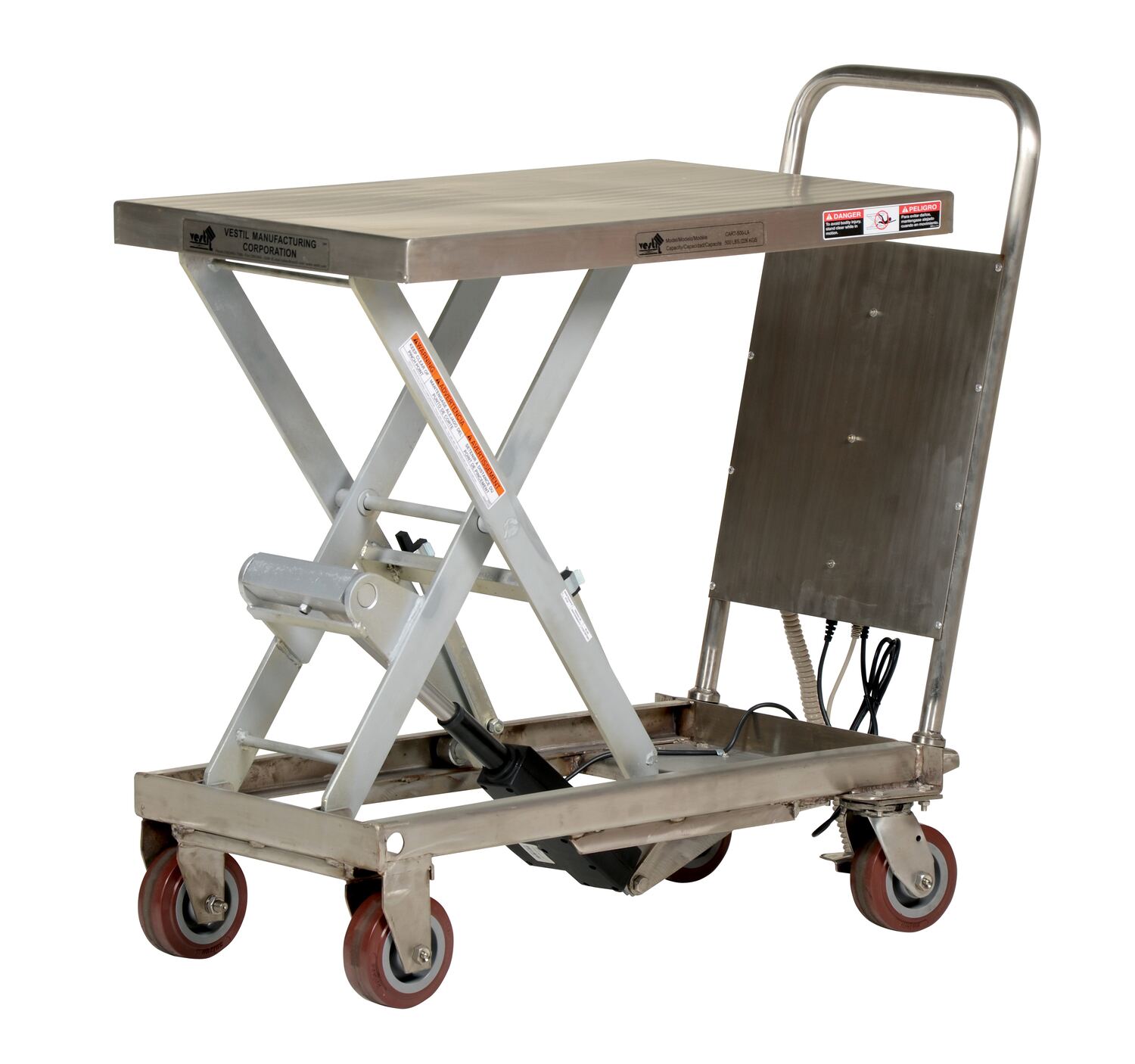

Partially Stainless Steel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/Silver

The linear actuated elevating cart transports materials from workstation to workstation with ease. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down- a common problem with hydraulic carts. This linear actuated cart is powered with a DC battery and features an on-board charger. A hand held pendant control connects to power unit with a coil cord. The units rolls smoothly on two rigid and two swivel casters. The platform, handle, base frame, caster brackets, and hardware are stainless steel. The scissor legs are zinc-plated. Battery pack, charger, and hand control are plastic. The linear actuator is plastic with a chrome-plated piston, while the wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 146 (only 1 package) Size: 37"W x 44"L x 38.4375"H Color: Silver Non-Returnable QuickShip

Uniform Capacity (lb.): 500 Platform Width (in.): 19-1/2 Platform Length (in.): 32
Lowered Height (in.): 15 Raised Height (in.): 33 Battery Quantity/Voltage: (2) 12V
Caster Diameter (in.): 4 Caster Width (in.): 2 Caster (qty.): 4
Caster Material: Poly-on-Steel Coil Cord Length (ft.): 6

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-500-LA-PSS
CART-500-LA-PSS

Partially Stainless Steel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/Silver

The linear actuated elevating cart transports materials from workstation to workstation with ease. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down- a common problem with hydraulic carts. This linear actuated cart is powered with a DC battery and features an on-board charger. A hand held pendant control connects to power unit with a coil cord. The units rolls smoothly on two rigid and two swivel casters. The platform, handle, base frame, caster brackets, and hardware are stainless steel. The scissor legs are zinc-plated. Battery pack, charger, and hand control are plastic. The linear actuator is plastic with a chrome-plated piston, while the wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 37"W x 44"L x 38.4375"H Sell UOM: EA-Each Color: Silver
Material: Partial Stainless Steel UPC: 691215076128 GTIN: 00691215076128
Warranty: -- Shipping Weight: 146 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Platform Width (in.): 19-1/2 Platform Length (in.): 32
Lowered Height (in.): 15 Raised Height (in.): 33 Battery Quantity/Voltage: (2) 12V
Caster Diameter (in.): 4 Caster Width (in.): 2 Caster (qty.): 4
Caster Material: Poly-on-Steel Coil Cord Length (ft.): 6
