Linear Actuated Elevating Carts
SERIES: CART

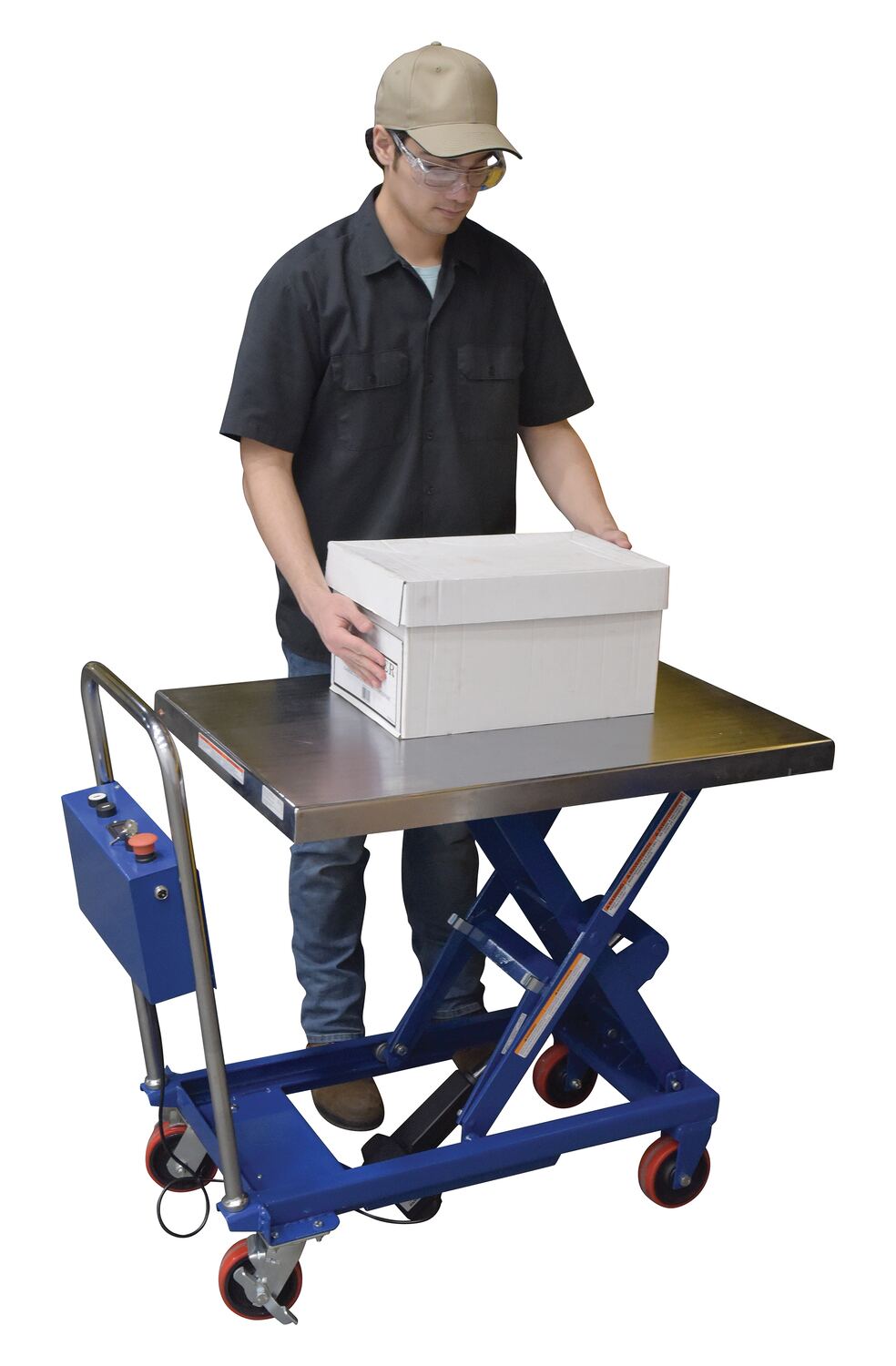

Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts.

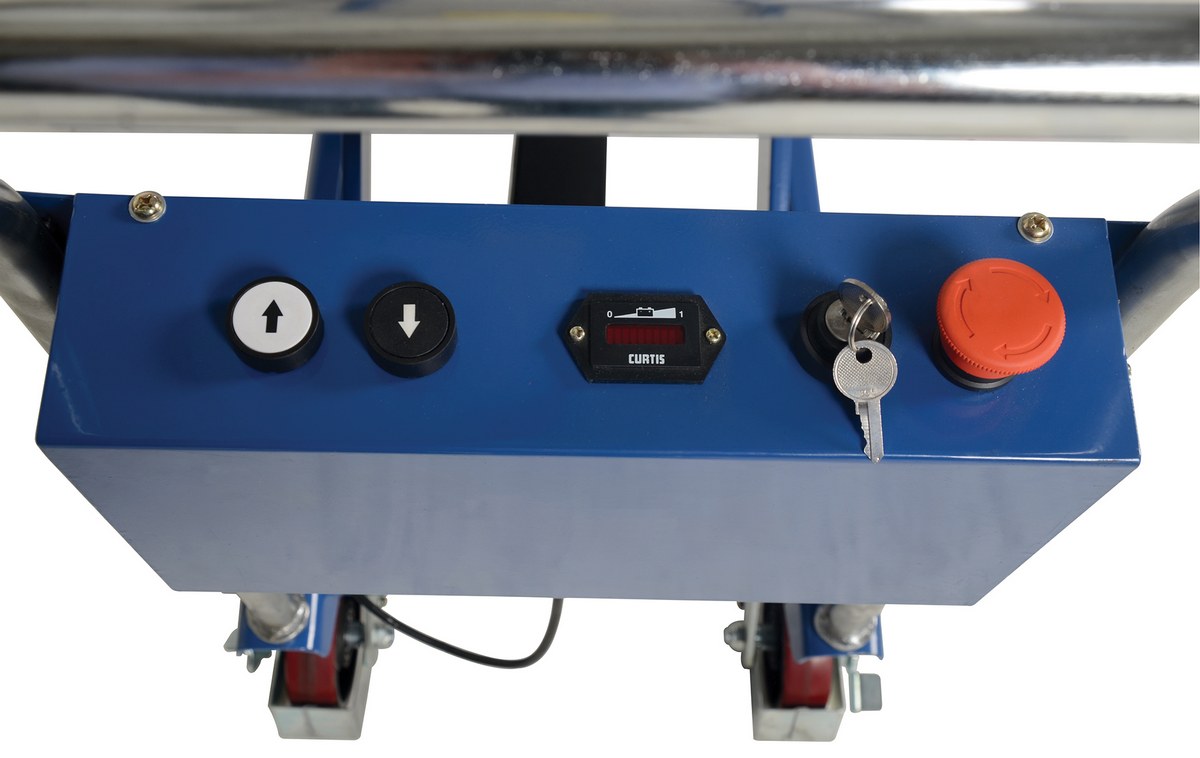

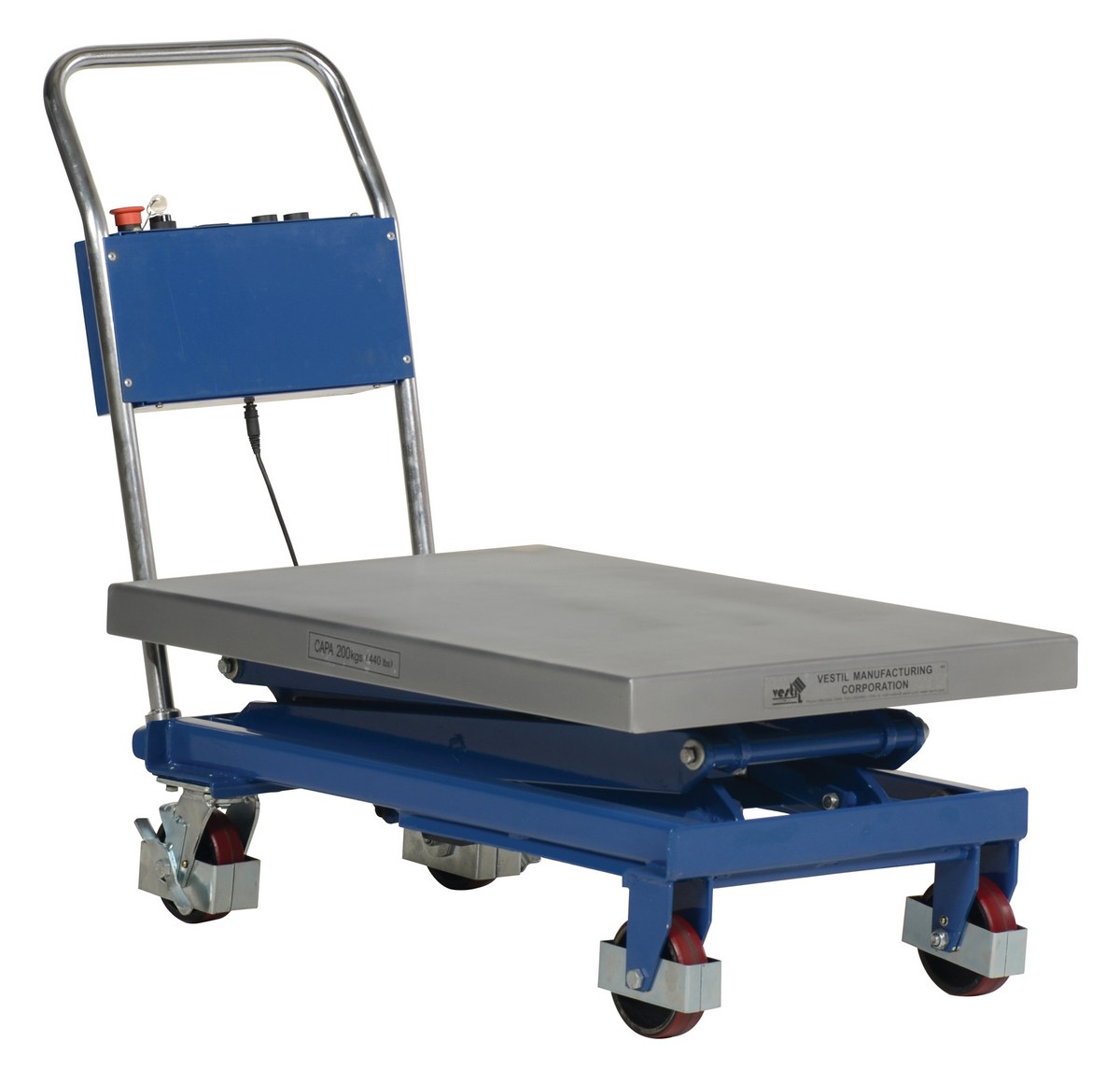

CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard.

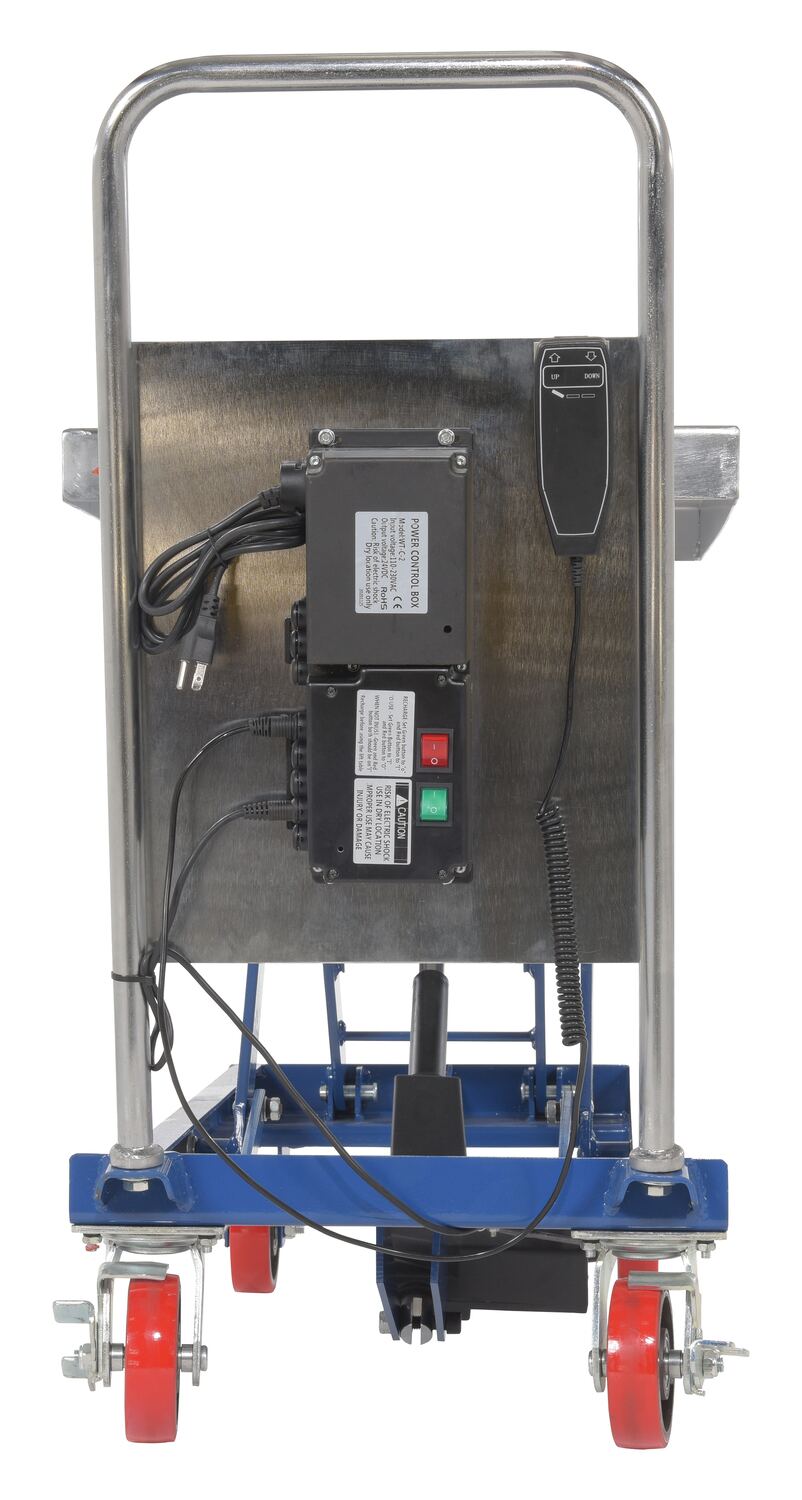

CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger.

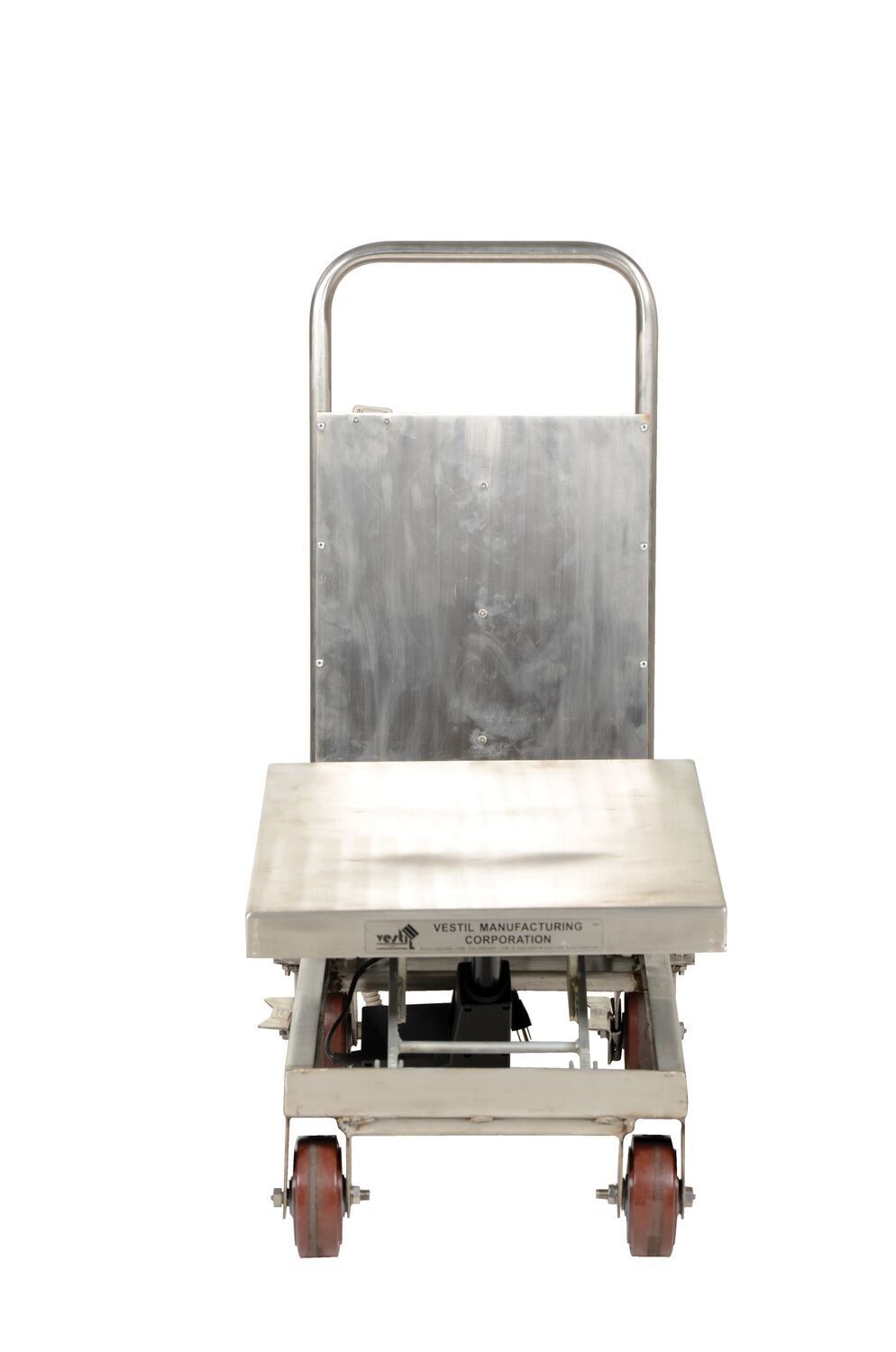

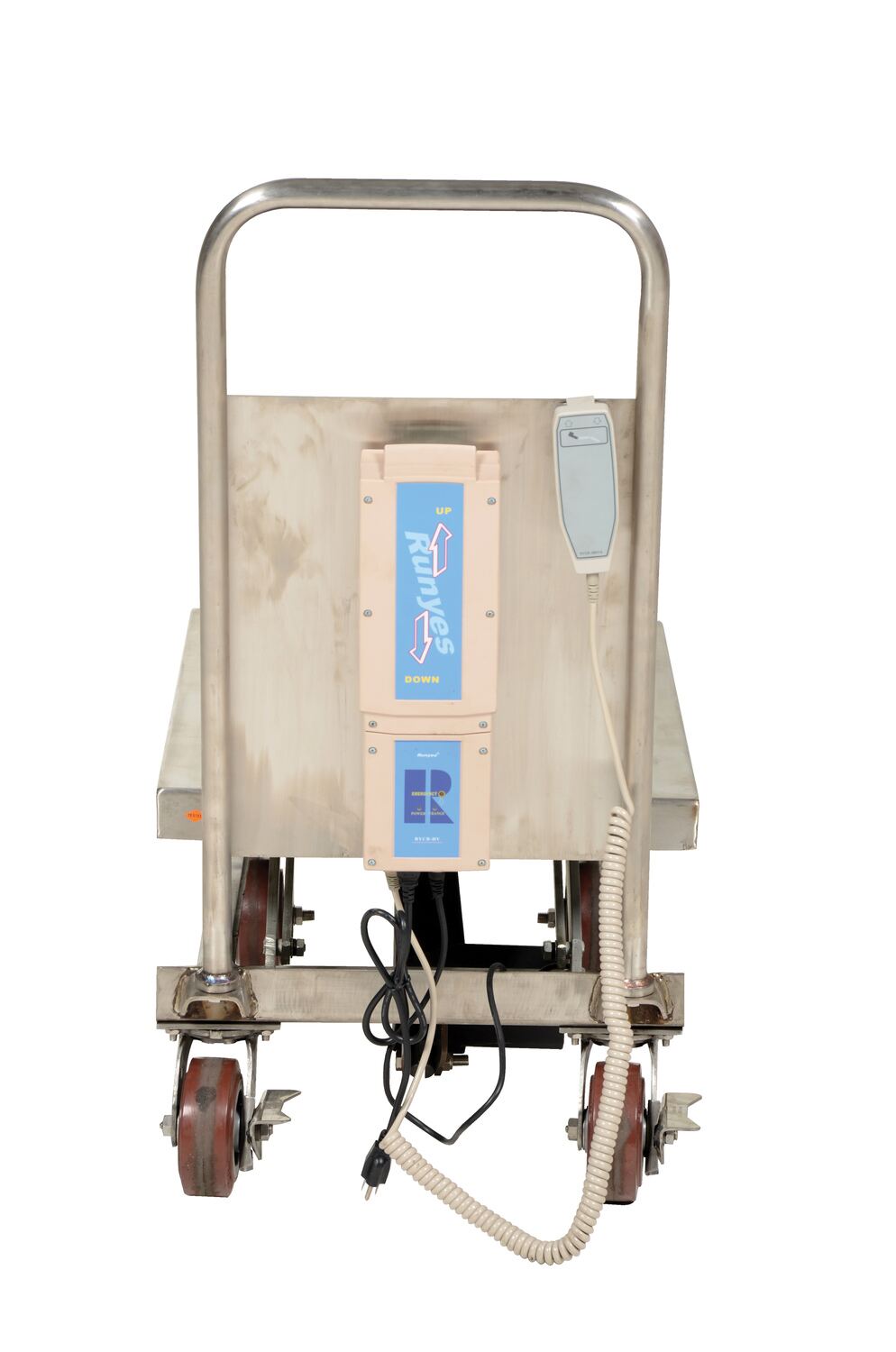

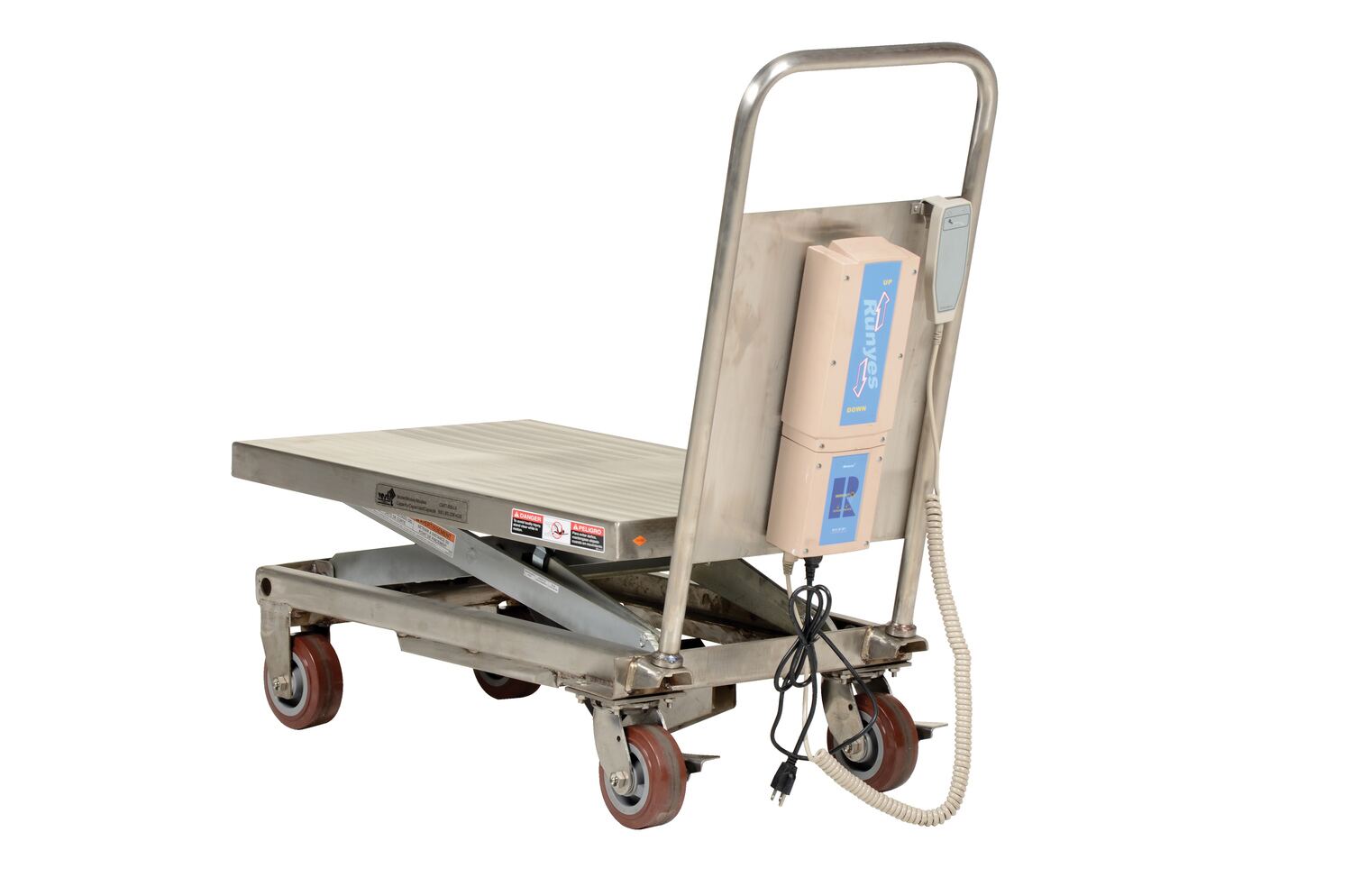

Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.

Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts.

CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard.

CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger.

Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.

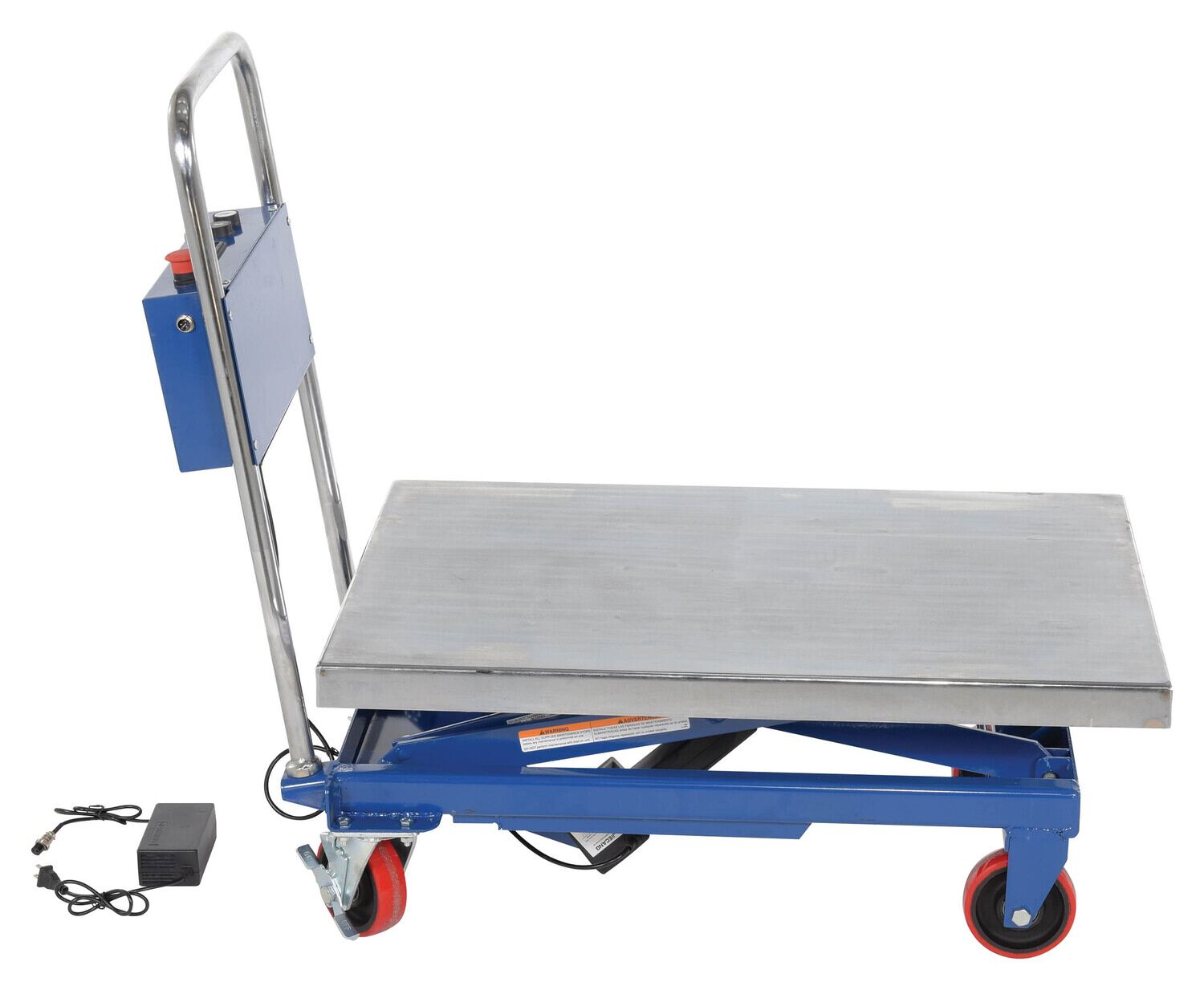

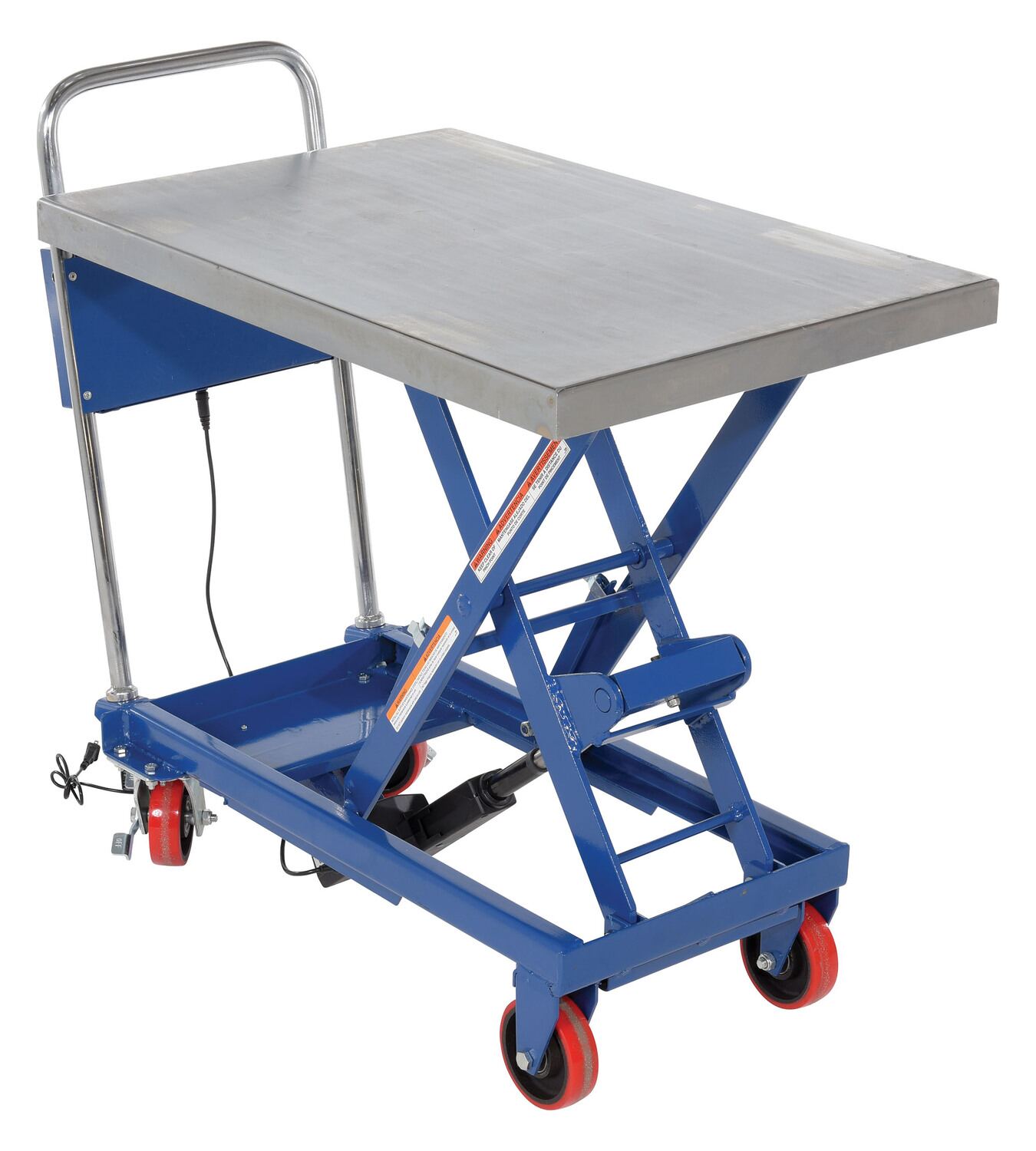

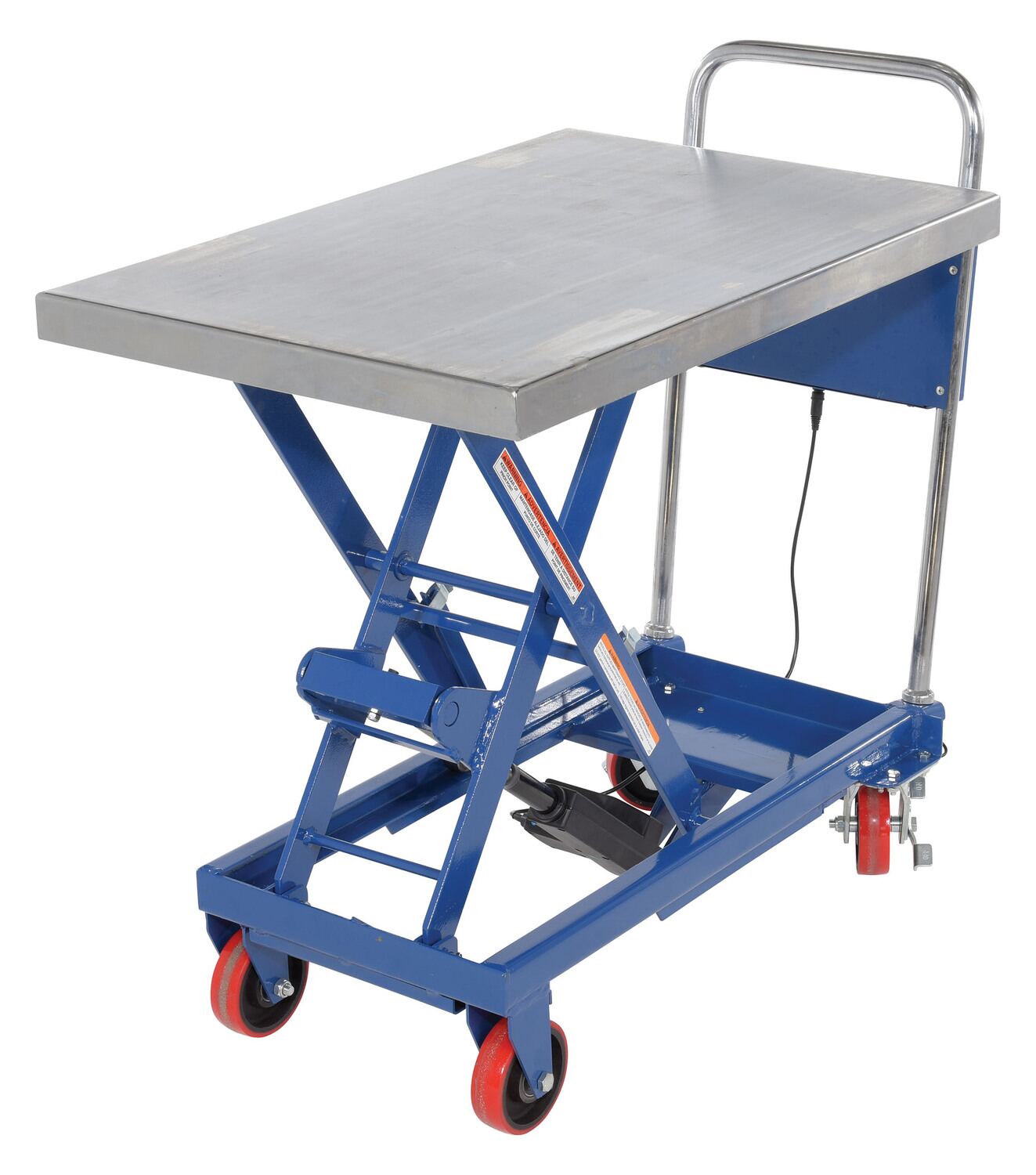

CART-400-LA

model CART-400-LA

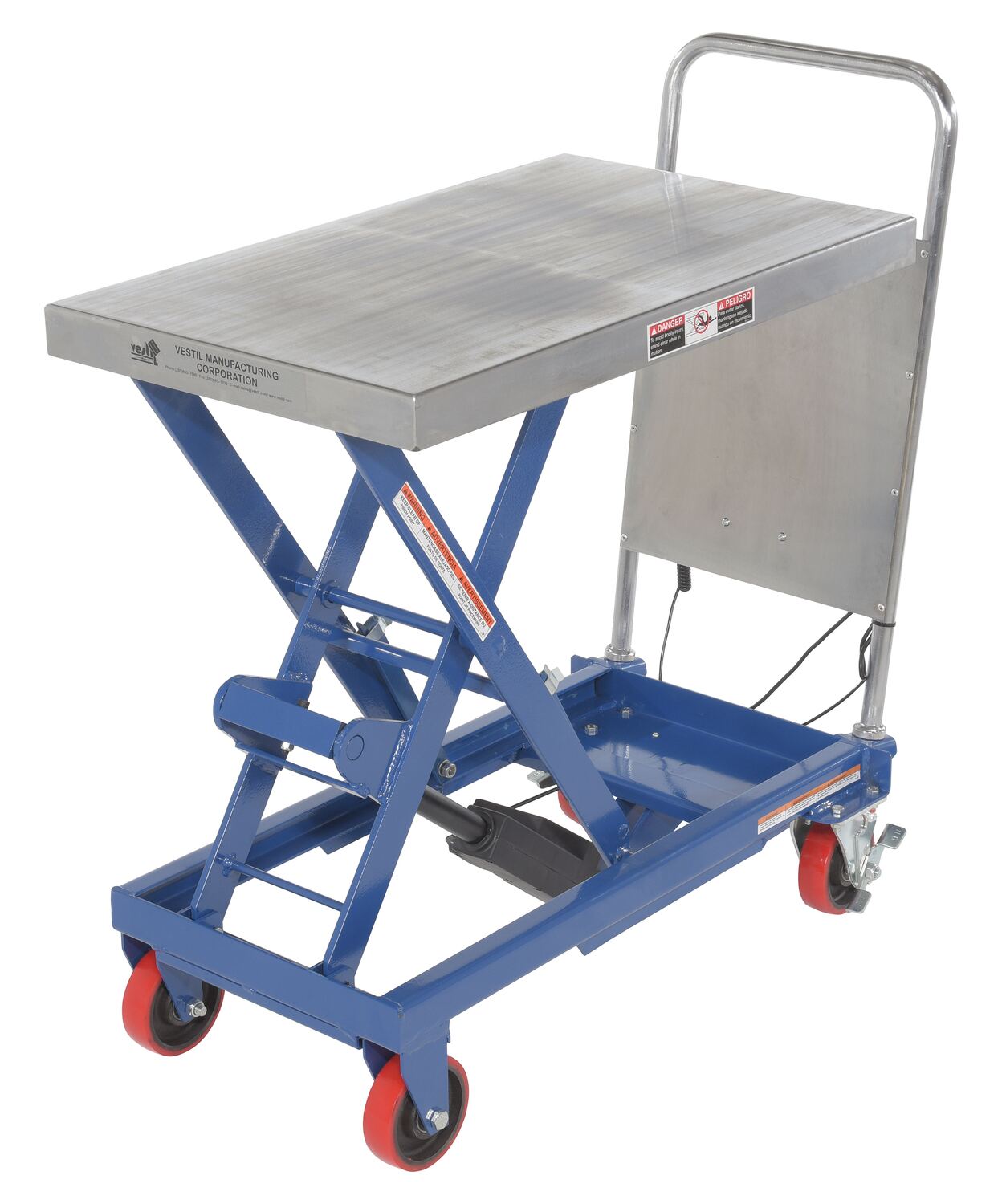

CART-500-LA

model CART-500-LA

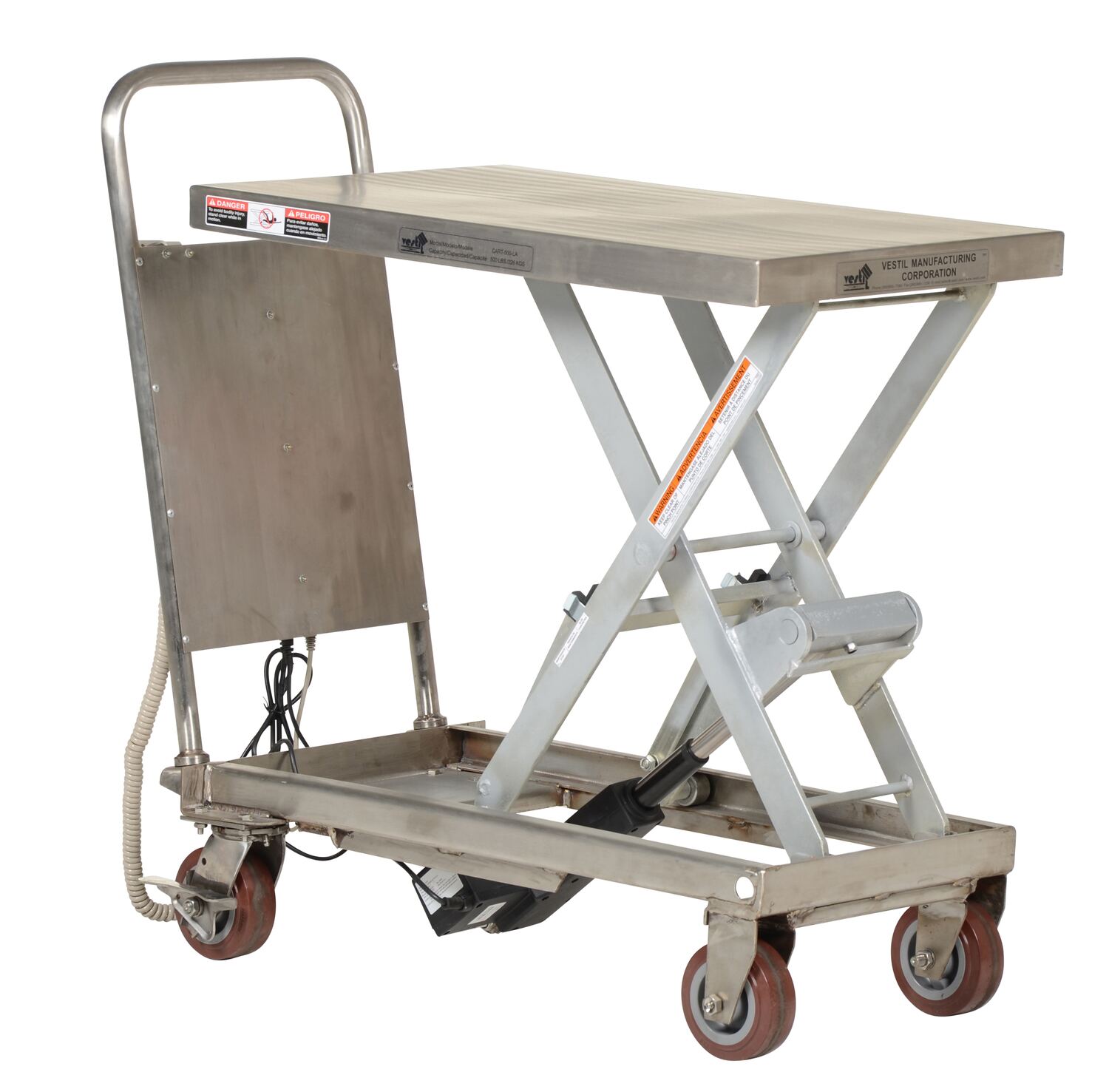

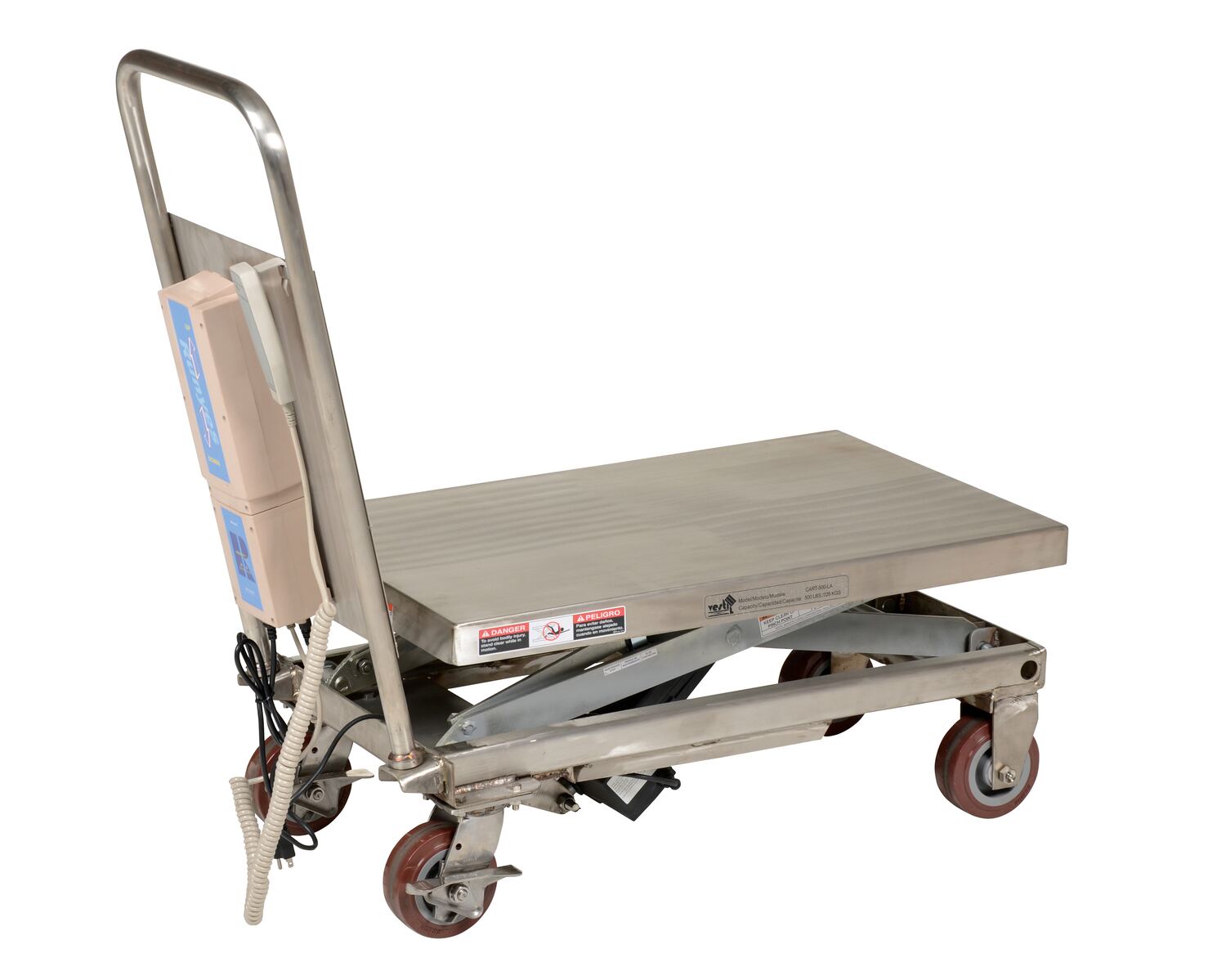

CART-500-LA-PSS

model CART-500-LA-PSS




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

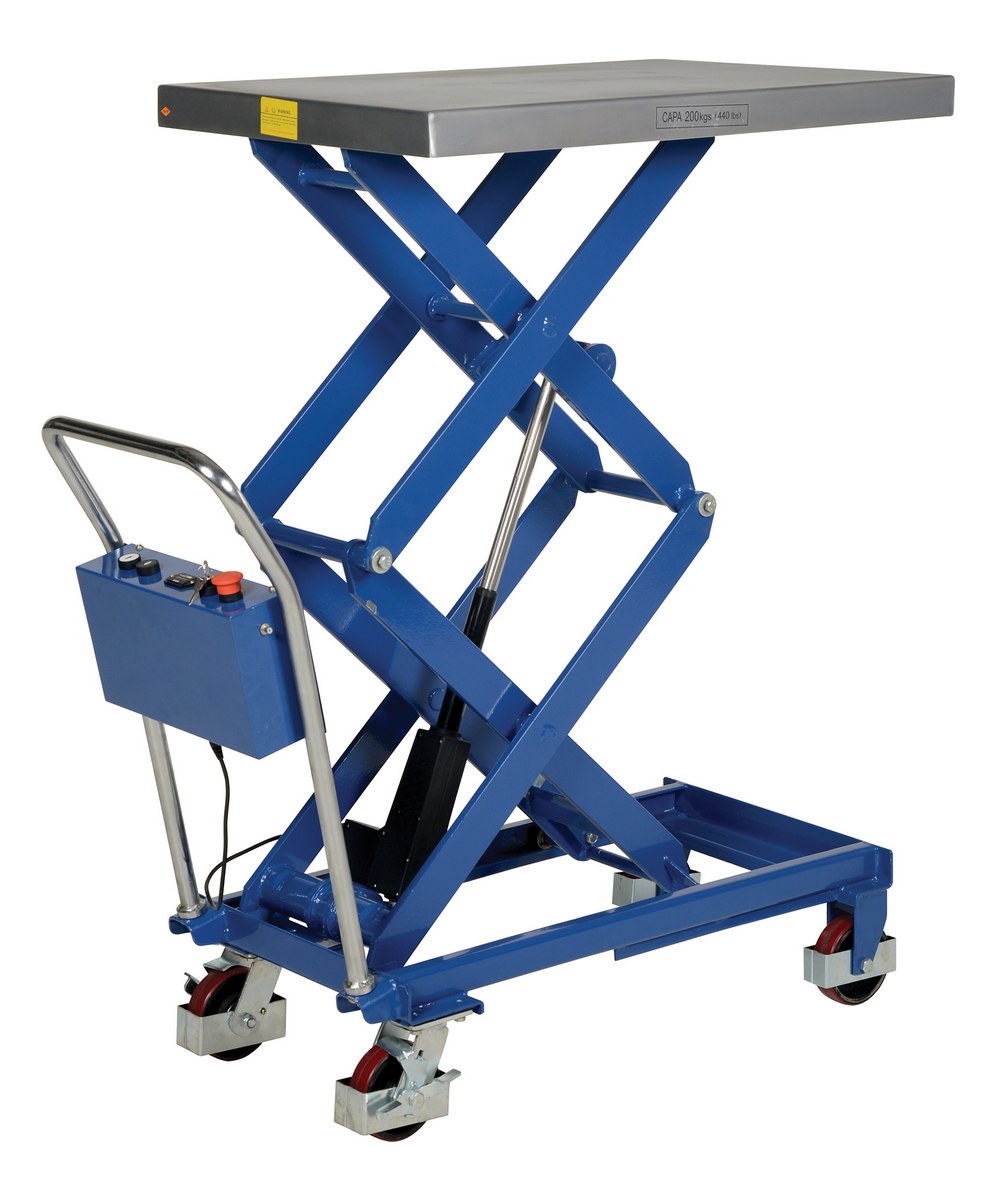

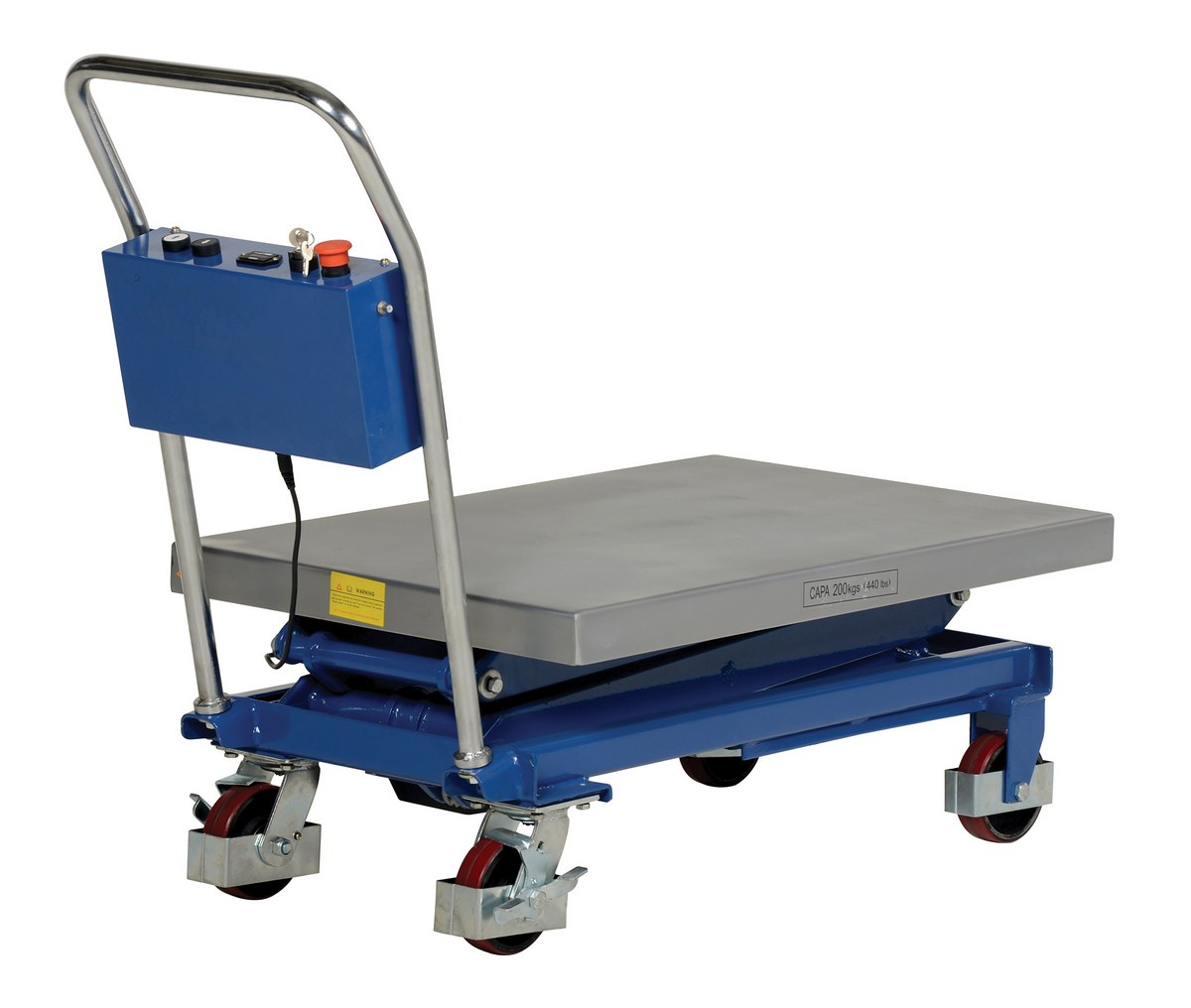

CART-400-D-LA 1 Year Limited WarrantySteel Linear Elevating Double Scissor Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/SilverUniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
294
CART-400-LA 1 Year Limited WarrantySteel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/SilverUniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
225
CART-500-LA 1 Year Limited WarrantySteel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
178
CART-500-LA-PSS 1 Year Limited WarrantyPartially Stainless Steel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
196

KEY: = Click For Expanded Model Details -- = 48hr Quickship item -- = Approval Drawing -- = Testing Certificate -- Warranty

Steel Linear Elevating Double Scissor Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/Silver


Unit: EACH
Size: 20.5W x 34.75L x 33H
Weight: 294
1 Year Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8

Steel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/Silver


Unit: EACH
Size: 20.5W x 34.75L x 33H
Weight: 310
1 Year Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8

Steel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/Silver


Unit: EACH
Size: 20.5W x 32.5L x 38.4375H
Weight: 178
1 Year Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2

Partially Stainless Steel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/Silver


Unit: EACH
Size: 37W x 44L x 38.4375H
Weight: 182
1 Year Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2


Linear Actuated Elevating Carts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-400-D-LA
Hydraulic Oil SDS Sheet for: CART-400-LA

Lithium Ion Rechargeable Battery Cell SDS Sheet for: CART-500-LA
Hydraulic Oil SDS Sheet for: CART-500-LA

Lithium Ion Rechargeable Battery Cell SDS Sheet for: CART-500-LA-PSS
Hydraulic Oil SDS Sheet for: CART-500-LA-PSS

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Linear Actuated Elevating Carts




Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts.

CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard.

CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger.

Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.


Linear Actuated Elevating Cart
Model Image PDFs Platform Size
(WxL)
Capacity
(lbs)
Lowered
Height
Raised
Height
Wt.
(lbs)
Steel Construction

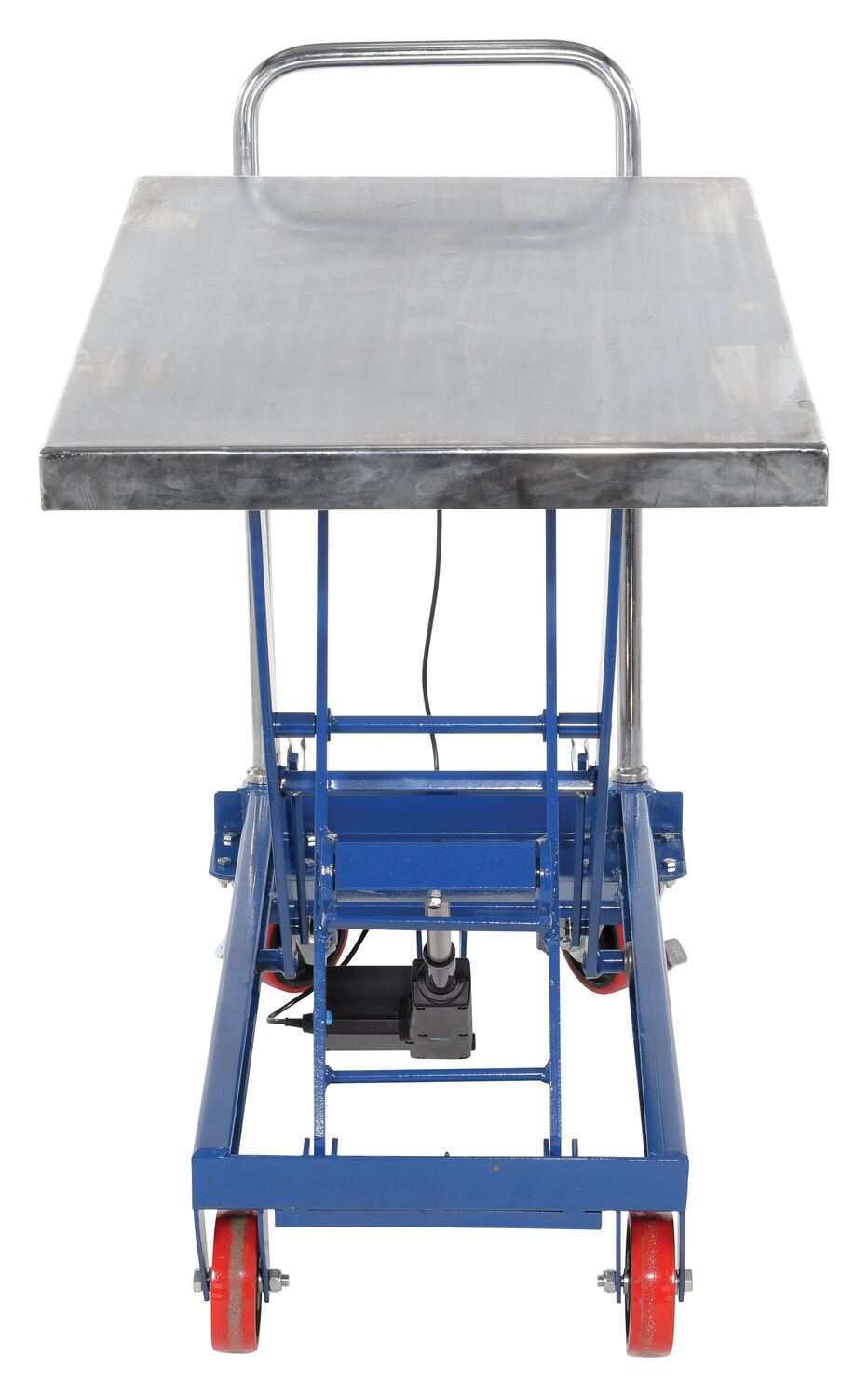

CART-400-LA Warranty PDFCompliance Certificate 23-5/8"x35-1/2" 400 15" 34" 225

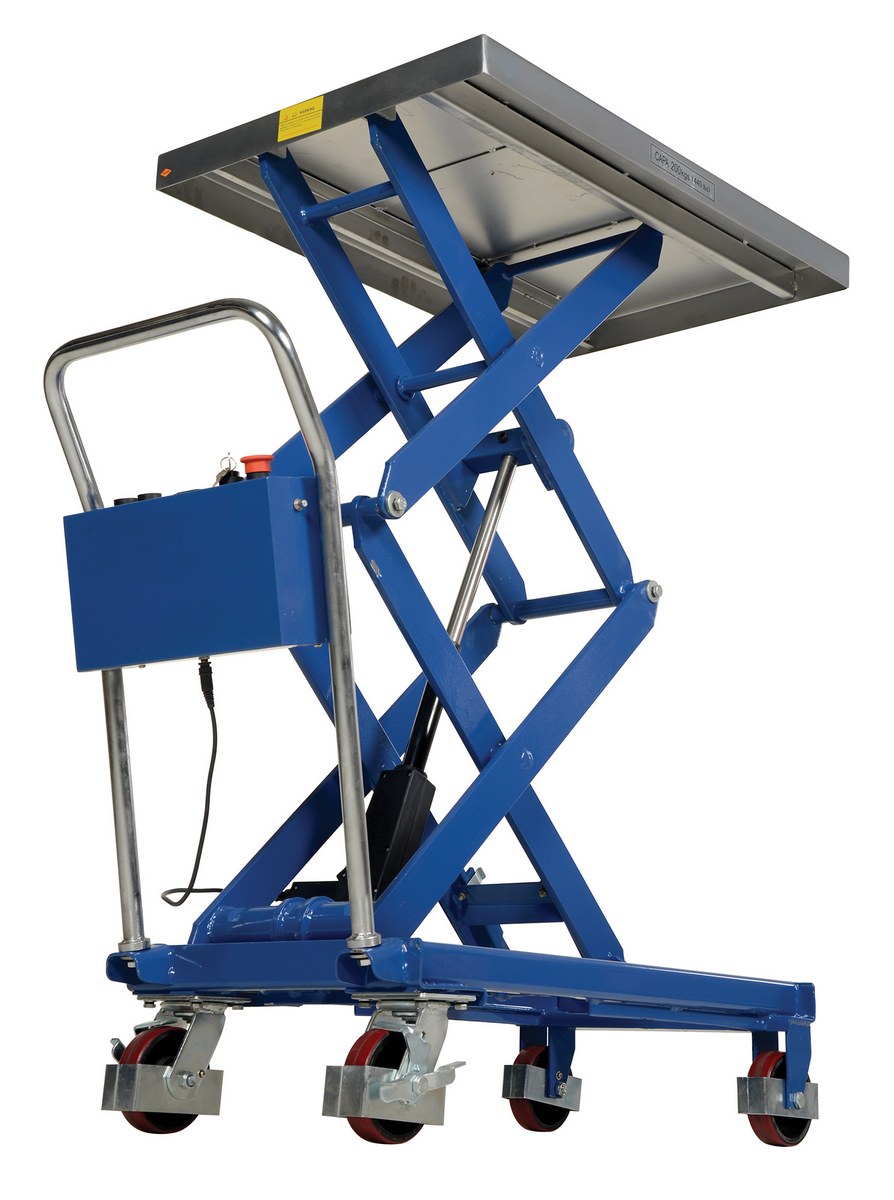

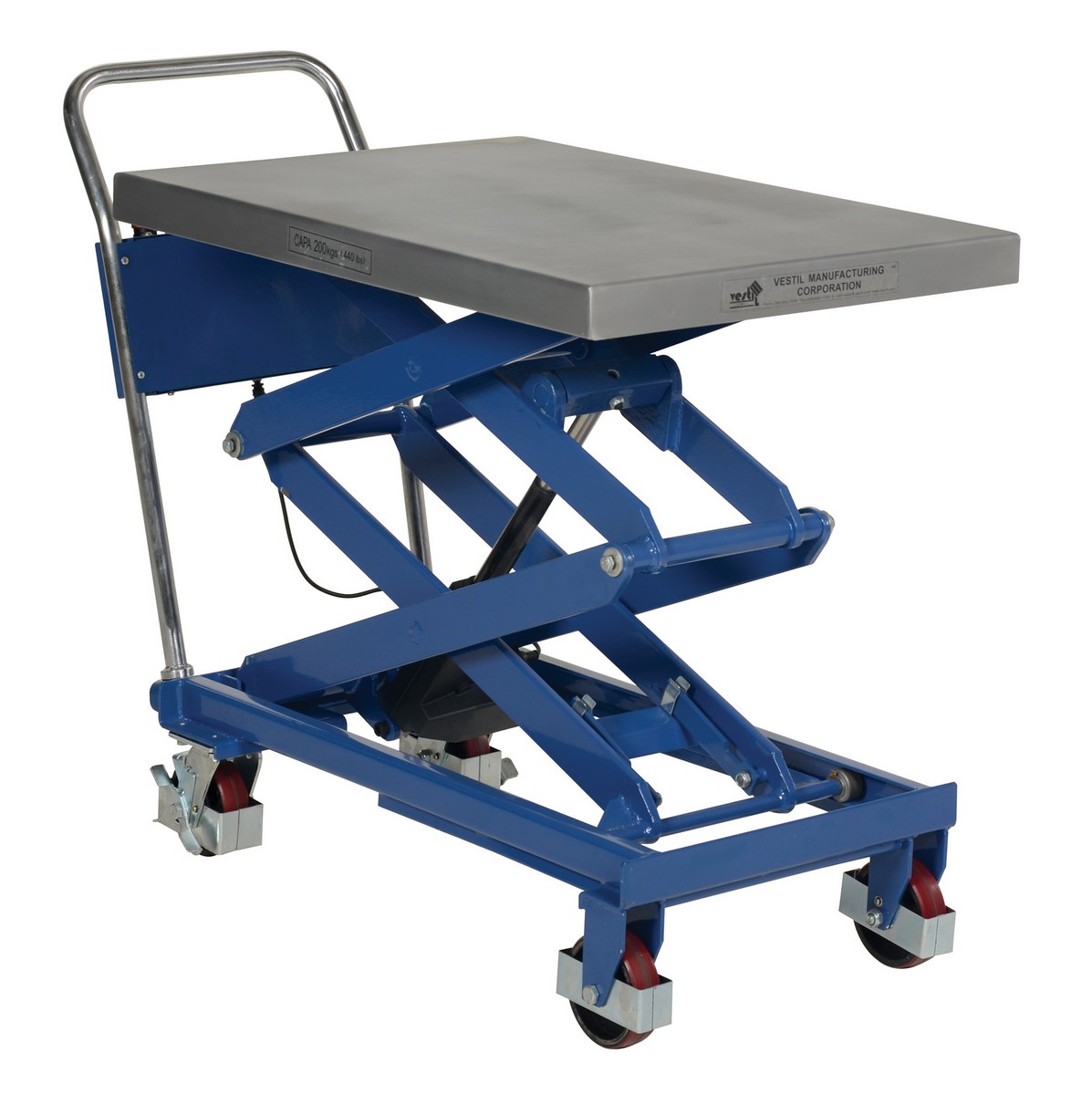

CART-400-D-LA Warranty PDFCompliance Certificate 23-5/8"x35-1/2" 400 15" 50" 310

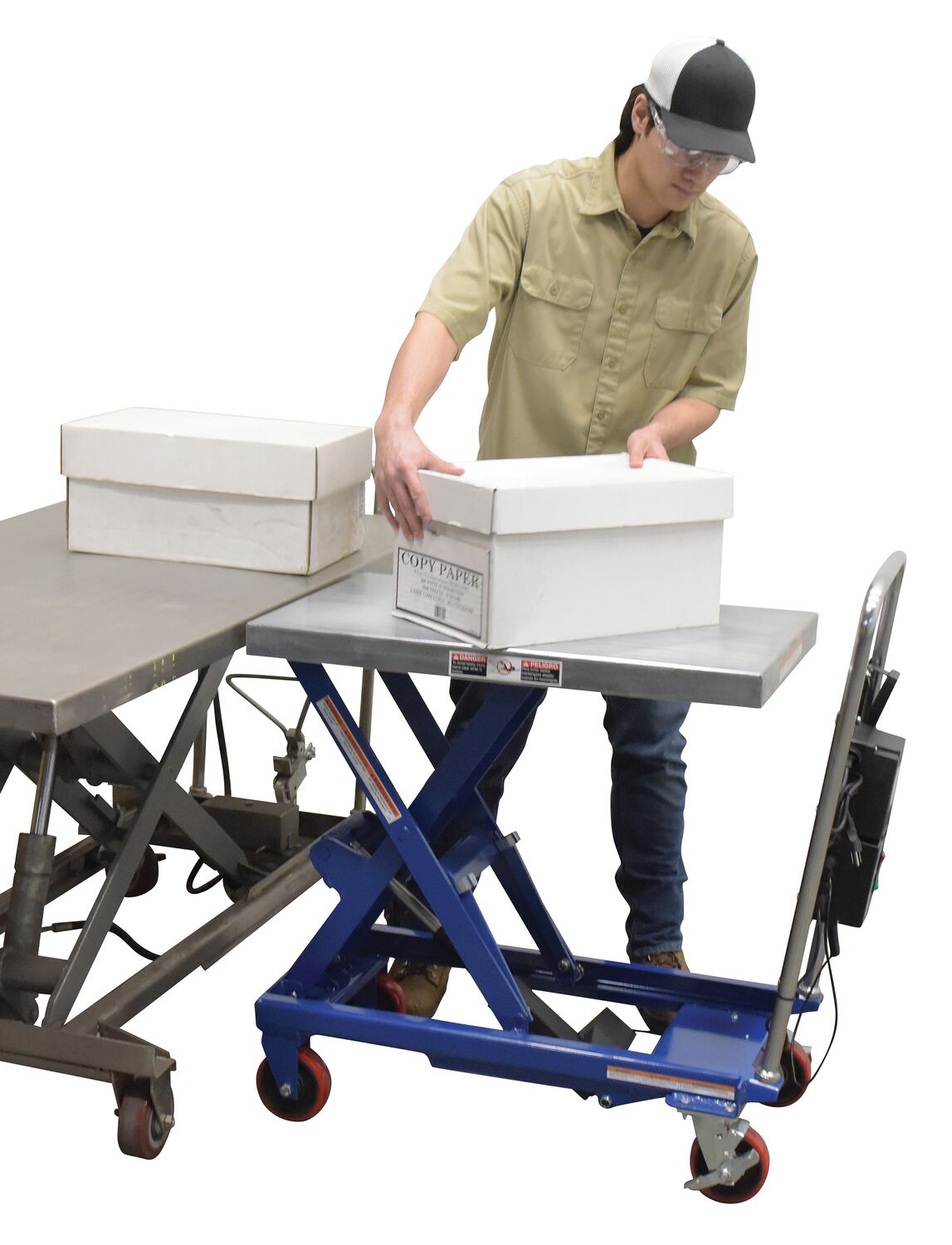

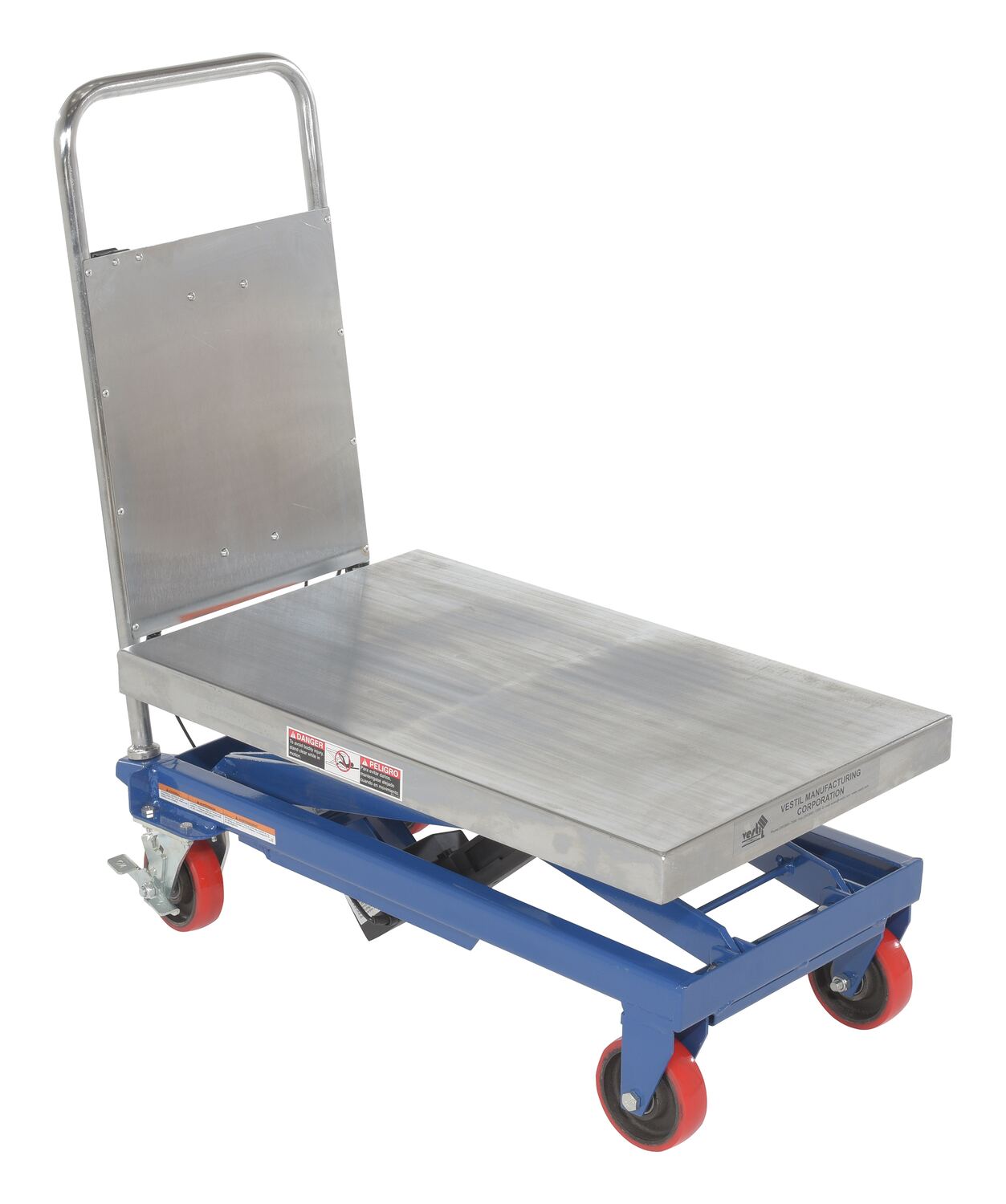

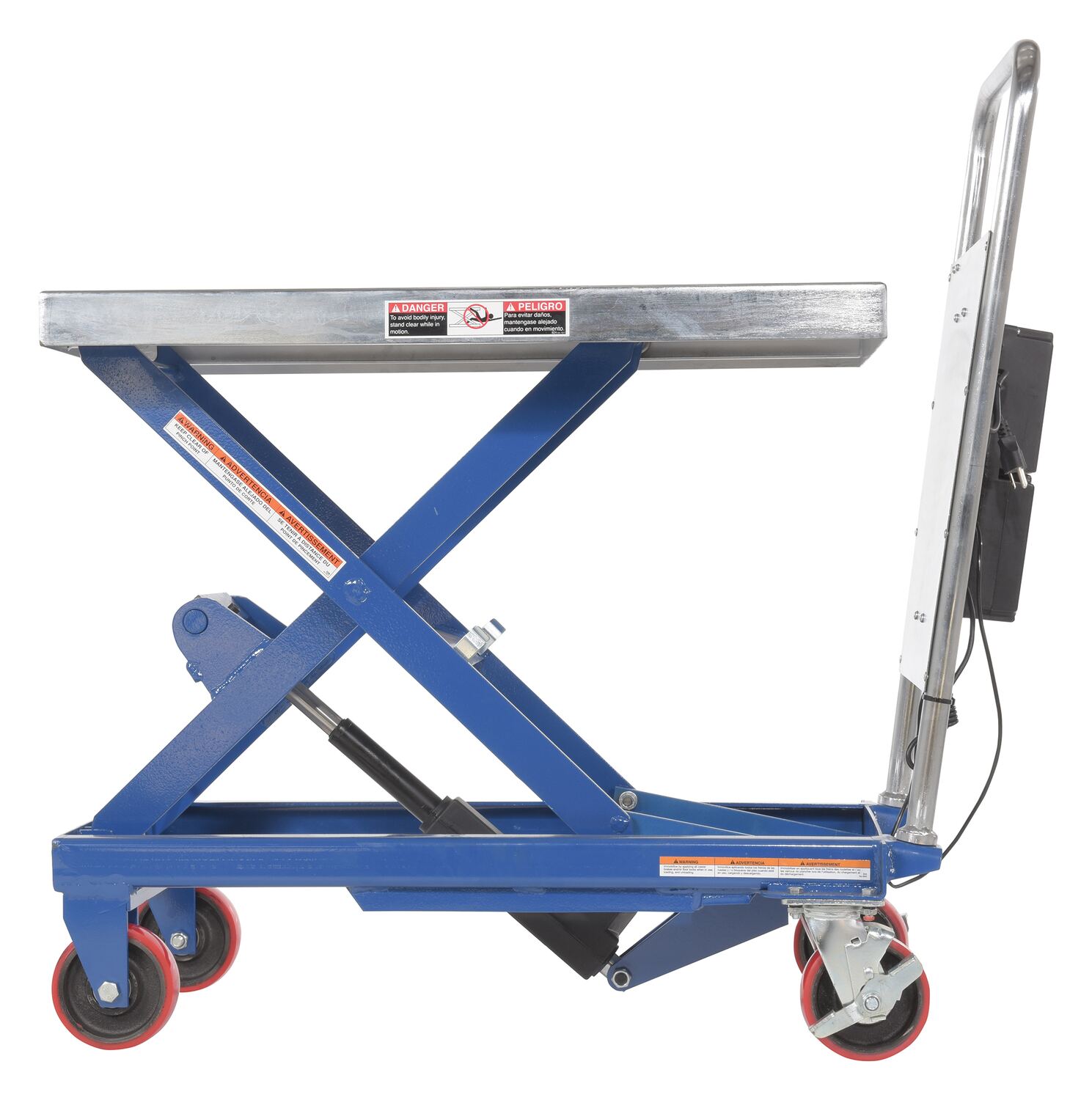

CART-500-LA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 19-1/2"x32" 500 15" 33" 248

Partially Stainless Steel Construction

CART-500-LA-PSS Warranty PDFCompliance Certificate 19-1/2"x32" 500 15" 33" 248
