Model Details

CJ-BEAM-SN

Printer Friendly
CJ-BEAM-SN

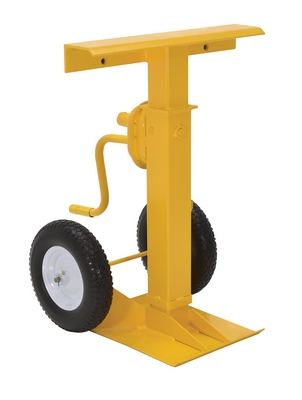

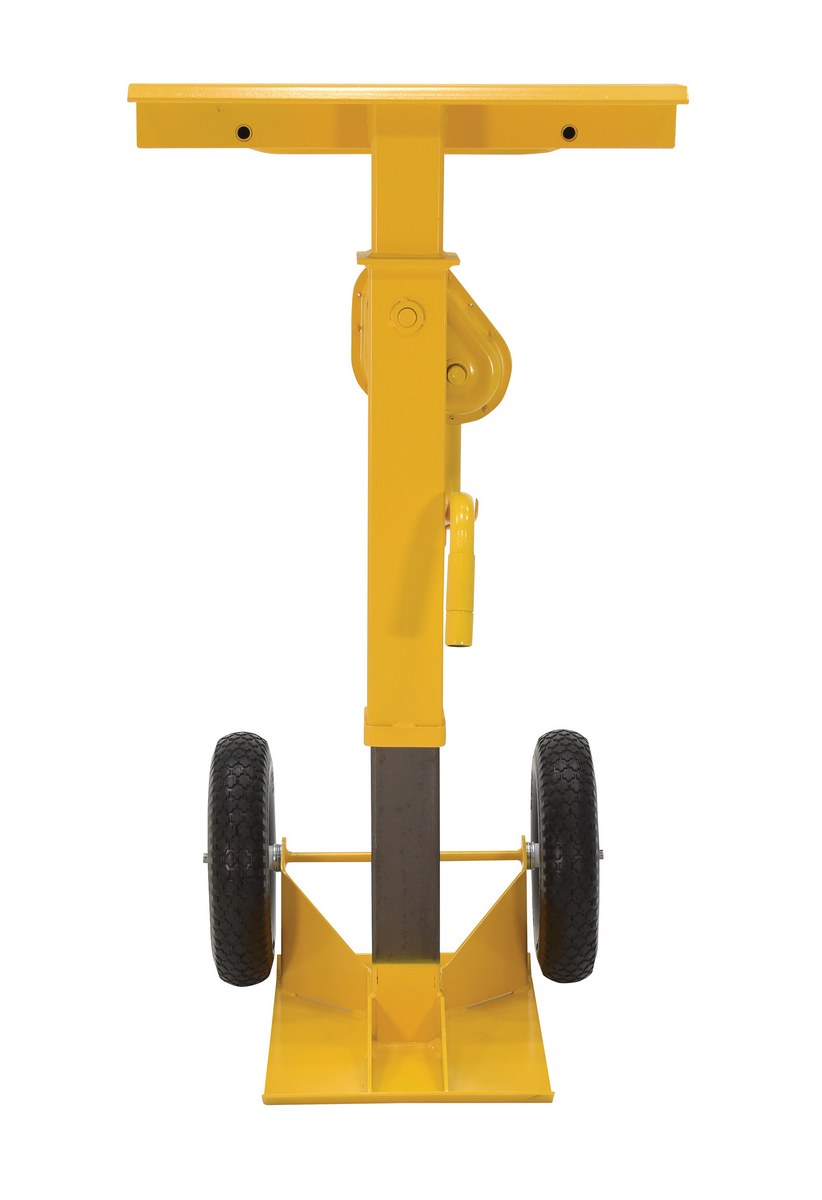

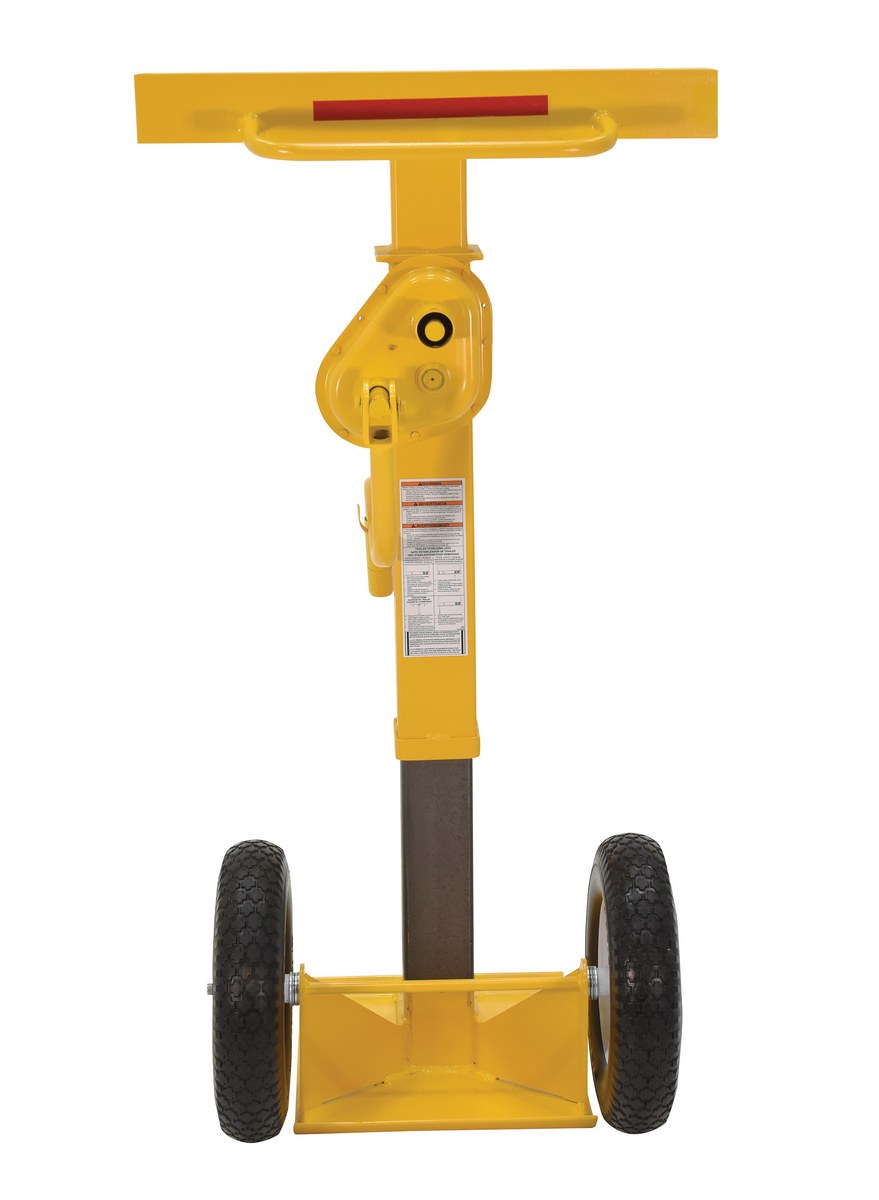

Steel Stabilizing Jack with Solid Foam Wheels 50000 Lb. Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. Also used to prevent landing gear from sinking into a soft surface. Flush-type Zerk fitting for lubricating ACME screw. Powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Total Ship Wt.(lbs.): 238 (only 1 package) Size: 29.75"W x 27.375"L x 41"H Color: Yellow QuickShip

Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 50,000 Lowered Height (in.): 41
Raised Height (in.): 55 Wheel Size (in.): 16 Wheel Type: Solid Foam
Beam Length (in.): 4-3/8 Beam Width (in.): 29-3/4 Beam Thickness (in.): 3/8
Operation: Hand Crank

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CJ-BEAM-SN
CJ-BEAM-SN

Steel Stabilizing Jack with Solid Foam Wheels 50000 Lb. Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. Also used to prevent landing gear from sinking into a soft surface. Flush-type Zerk fitting for lubricating ACME screw. Powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Dimensions: 29.75"W x 27.375"L x 41"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215050357 GTIN: 00691215050357
Warranty: -- Shipping Weight: 238 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 50,000 Lowered Height (in.): 41
Raised Height (in.): 55 Wheel Size (in.): 16 Wheel Type: Solid Foam
Beam Length (in.): 4-3/8 Beam Width (in.): 29-3/4 Beam Thickness (in.): 3/8
Operation: Hand Crank
