Model Details

D-750-36

D-750-36

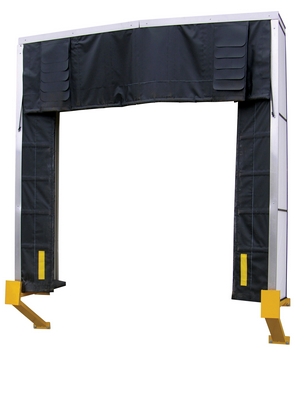

Vinyl Dock Shelter 36 In. 11 Ft. x 10.5 Ft. Black

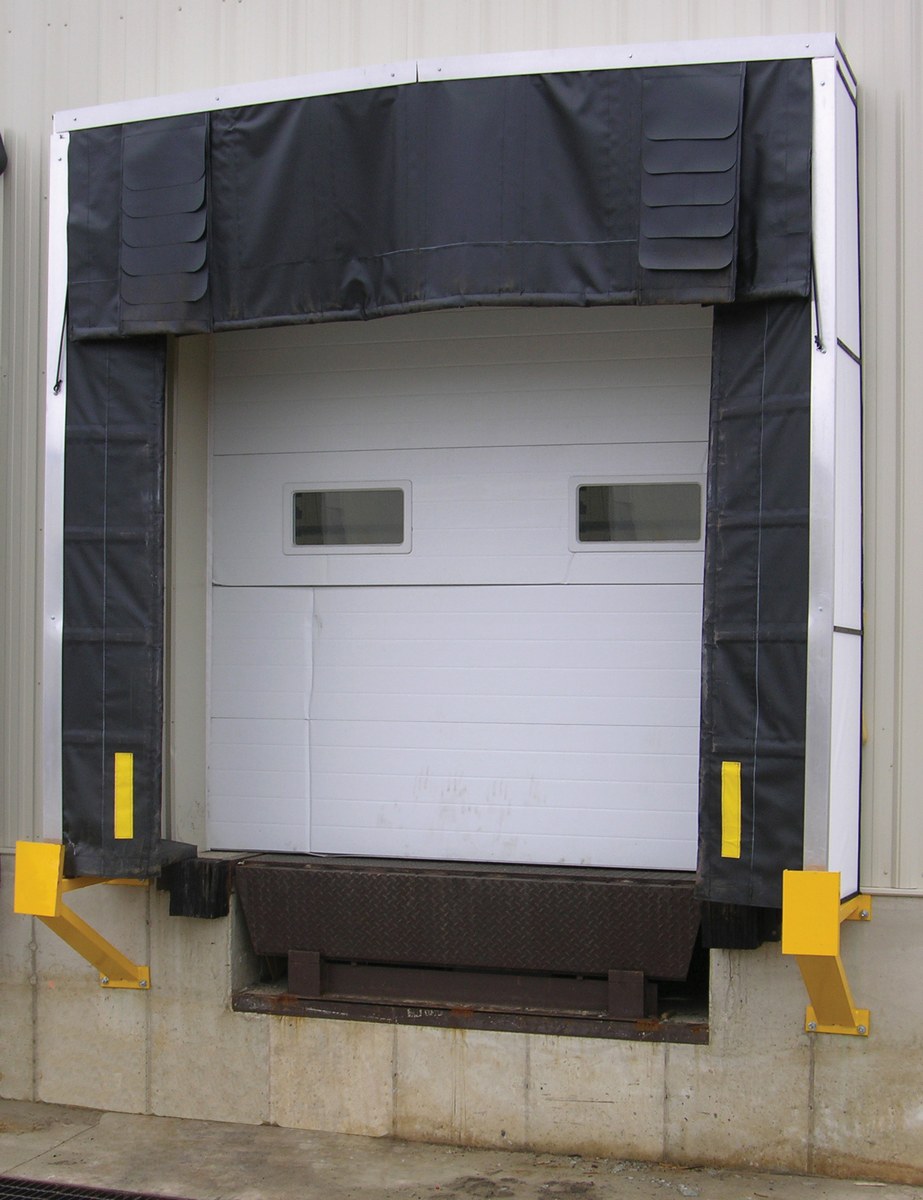

The Dock Shelter is used with doors up to one-hundred twenty (120) inch width by one-hundred twenty (120) inch height. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staved are sewn into the flaps. Seal is formed along the fronts and top of trailer when the vertical and top panels are pushed inward by the trailer. There has a recommended minimum trailer penetration for a good seal with a supporting structure that is made of wolmanized lumber. Shelter is protected by safety yellow steel guide protectors. When installed, the shelter will close the door opening down to ninety (90) inch width by ninety (90) inch height (between flaps). Includes two (2) yellow steel guide protectors and foam-filled corner pads for extra sealing action. This unit is non-returnable.

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Total Ship Wt.(lbs.): 546 (Multiple Packages: P1: 261 lbs + P2: 285 lbs) Size: 132"W x 36"L x 126"H Color: Black Non-Returnable

Projection (in.): 36 Long Wear Fabric (oz.): 40 Top Header Piece Width (in.): 132
Drop Curtain Height (in.): 36 Vertical Pieces (in.): 126 tall Vertical Flap Width (in.): 21
Recommended Trailer Penetration (in.): 10 Supported Wolmanized Lumber Width (in.): 2 Supported Wolmanized Lumber Length (in.): 4
Standard Guide Stipe Height (in.): 24 Vinyl Flaps (oz.): 40

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: D-750-36


D-750-36

Vinyl Dock Shelter 36 In. 11 Ft. x 10.5 Ft. Black

The Dock Shelter is used with doors up to one-hundred twenty (120) inch width by one-hundred twenty (120) inch height. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staved are sewn into the flaps. Seal is formed along the fronts and top of trailer when the vertical and top panels are pushed inward by the trailer. There has a recommended minimum trailer penetration for a good seal with a supporting structure that is made of wolmanized lumber. Shelter is protected by safety yellow steel guide protectors. When installed, the shelter will close the door opening down to ninety (90) inch width by ninety (90) inch height (between flaps). Includes two (2) yellow steel guide protectors and foam-filled corner pads for extra sealing action. This unit is non-returnable.

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Dimensions: 132"W x 36"L x 126"H Sell UOM: EA-Each Color: Black
Material: Vinyl UPC: 691215012430 GTIN: 00691215012430
Warranty: -- Shipping Weight: 261 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Projection (in.): 36 Long Wear Fabric (oz.): 40 Top Header Piece Width (in.): 132
Drop Curtain Height (in.): 36 Vertical Pieces (in.): 126 tall Vertical Flap Width (in.): 21
Recommended Trailer Penetration (in.): 10 Supported Wolmanized Lumber Width (in.): 2 Supported Wolmanized Lumber Length (in.): 4
Standard Guide Stipe Height (in.): 24 Vinyl Flaps (oz.): 40
