Model Details

DCR-205-15

DCR-205-15

Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1500 Lb. Capacity Yellow

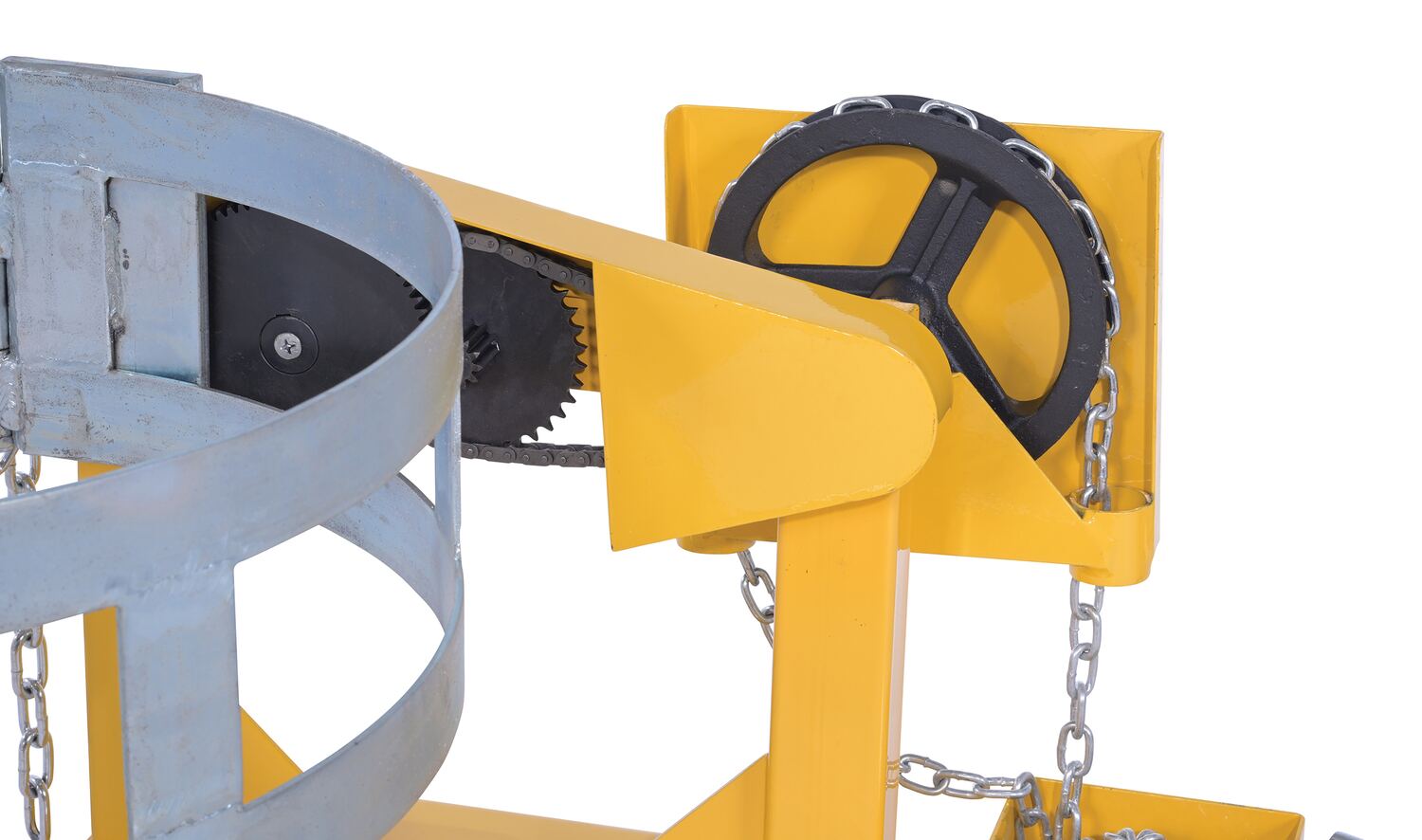

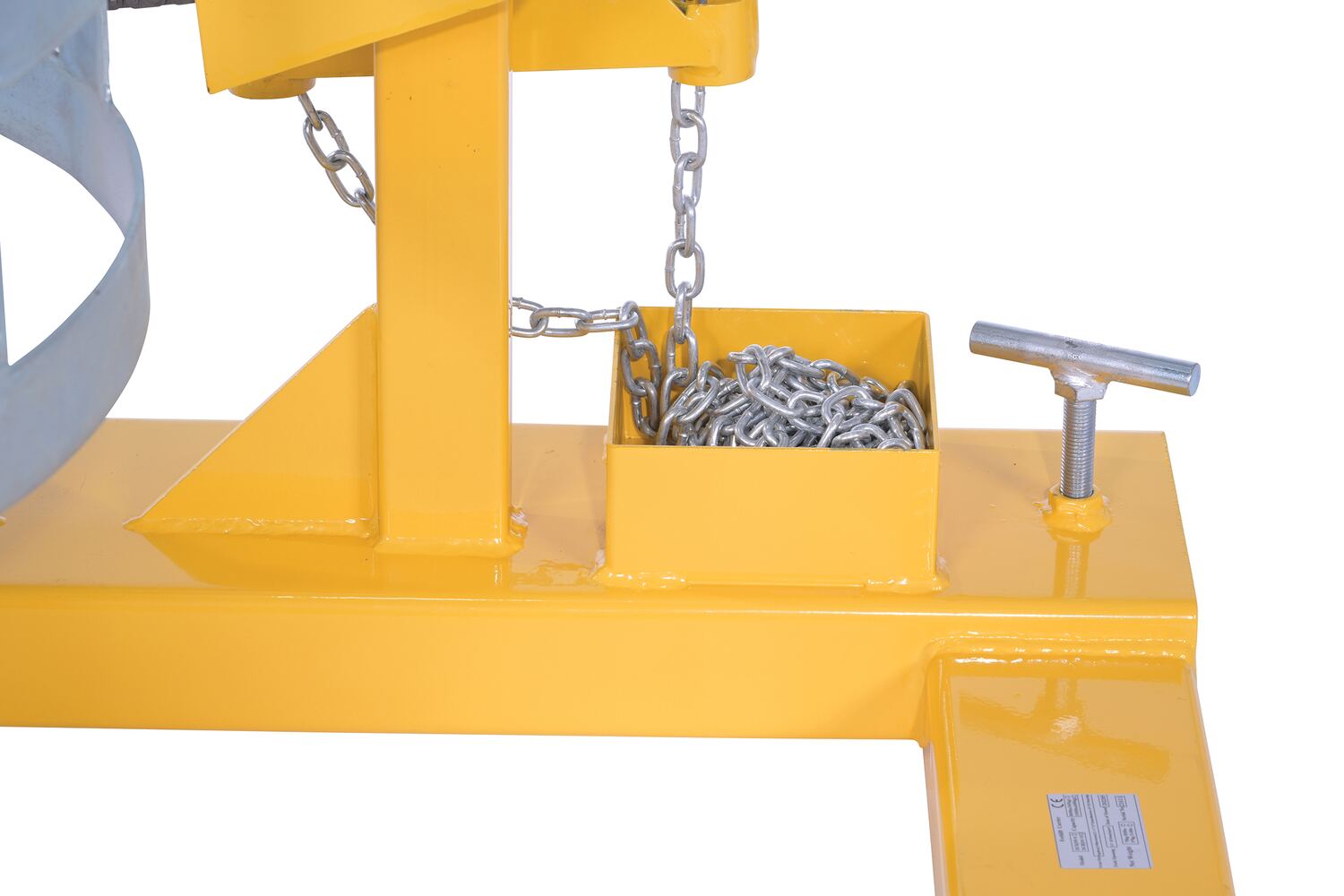

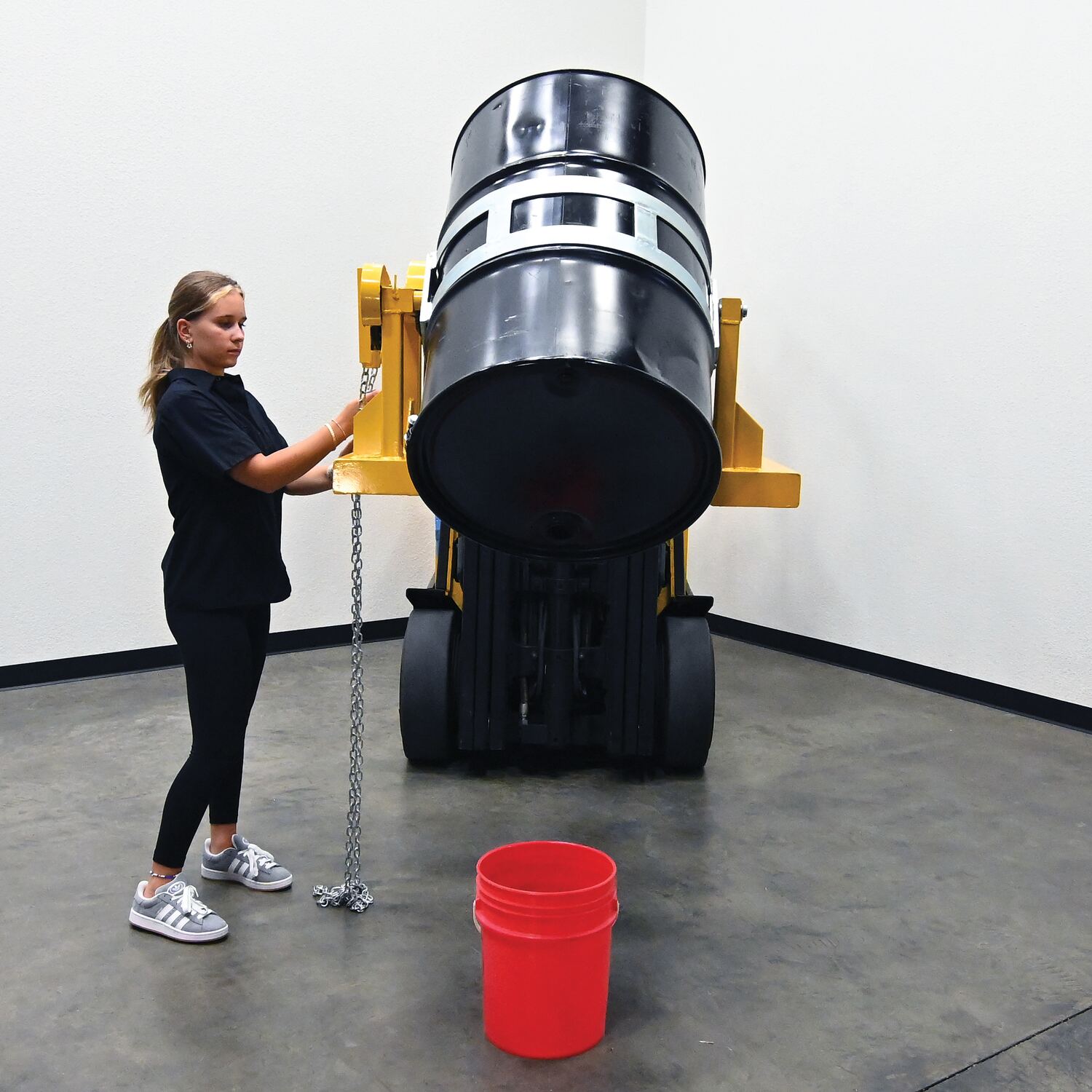

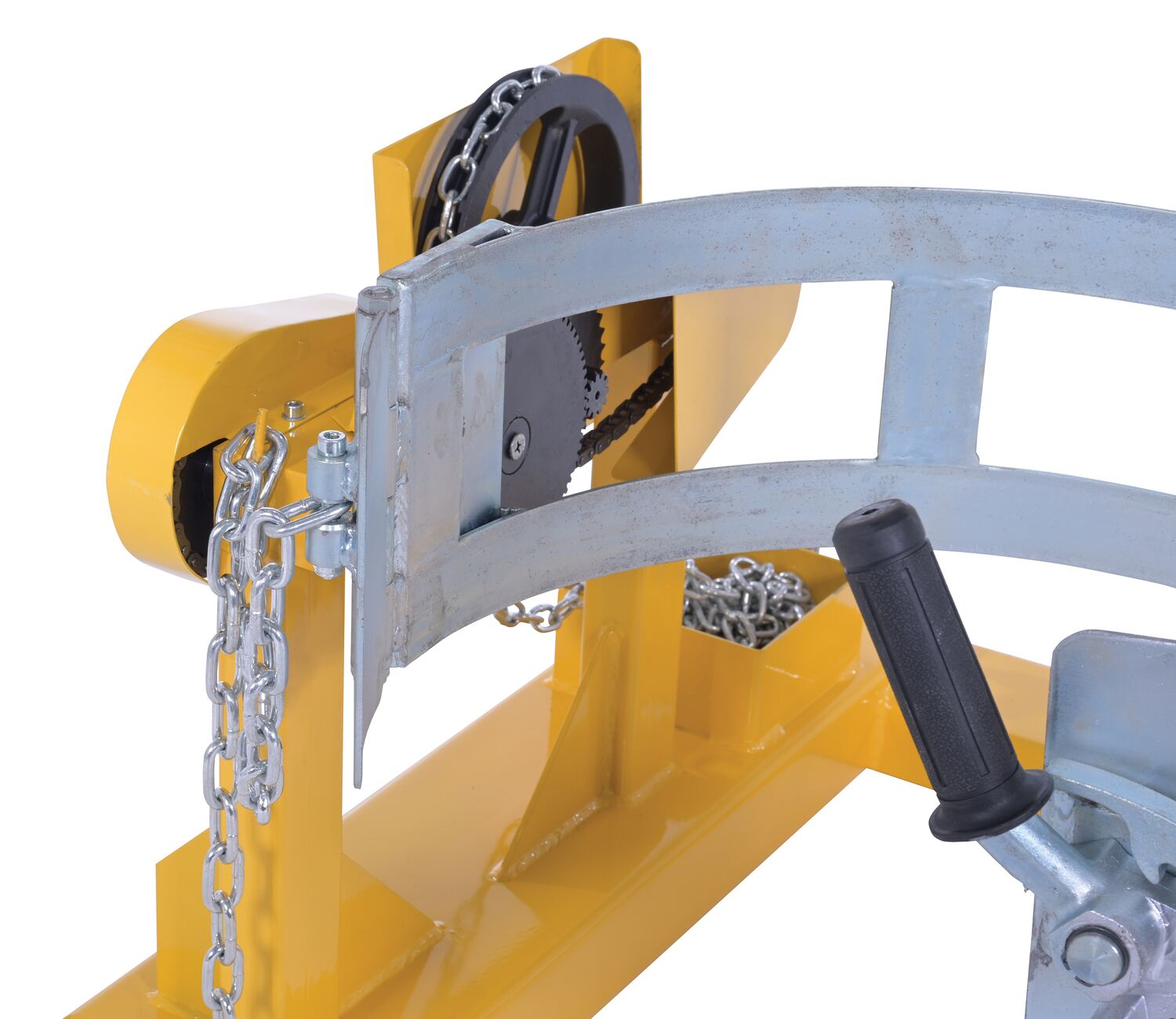

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. Bung nut wrench is also included for opening and closing drums. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.

  • Fork Truck drum carrier/rotator is for handling steel drums efficiently

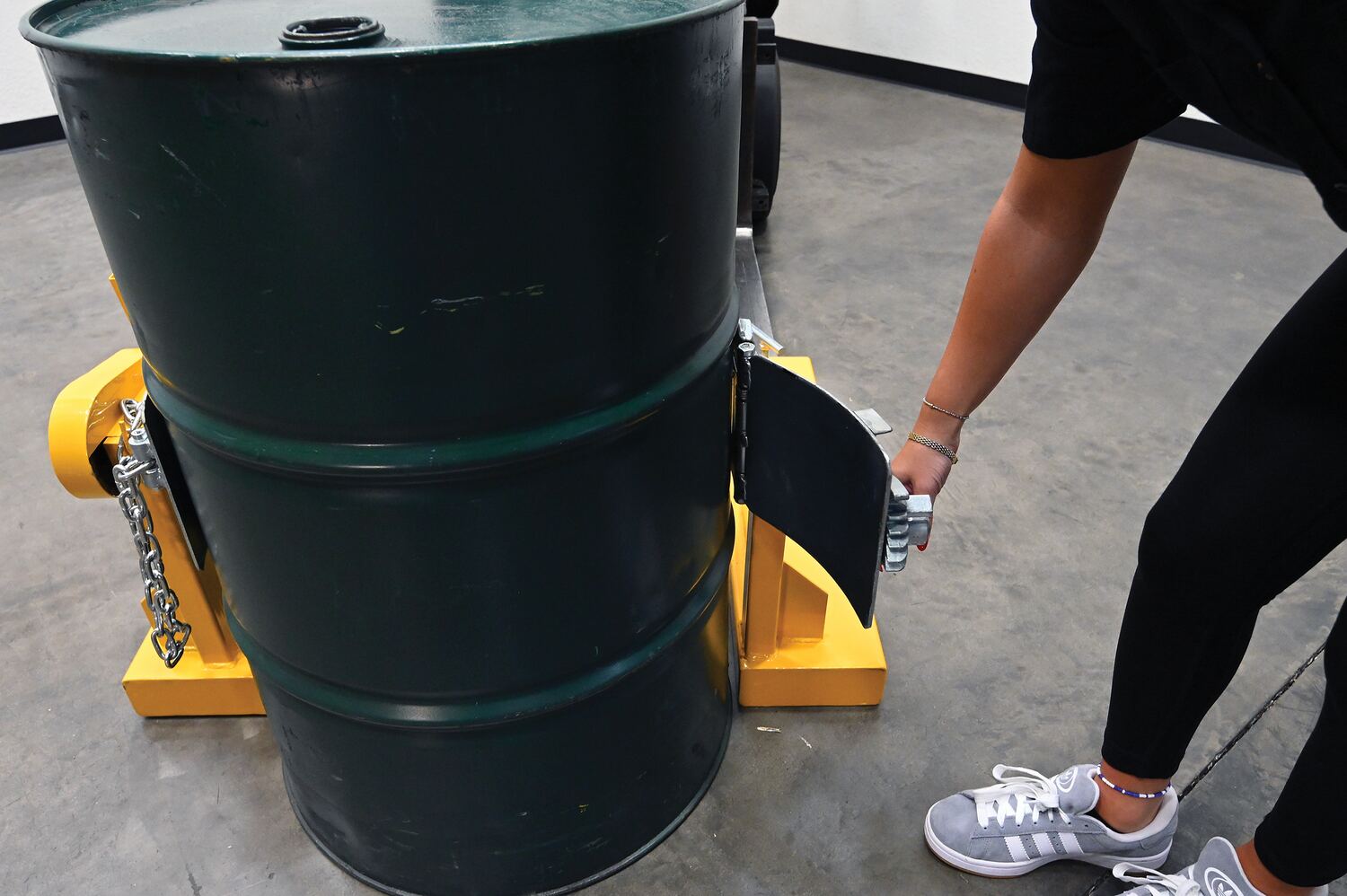

  • Chain locking system holds drums securely for ideal operation

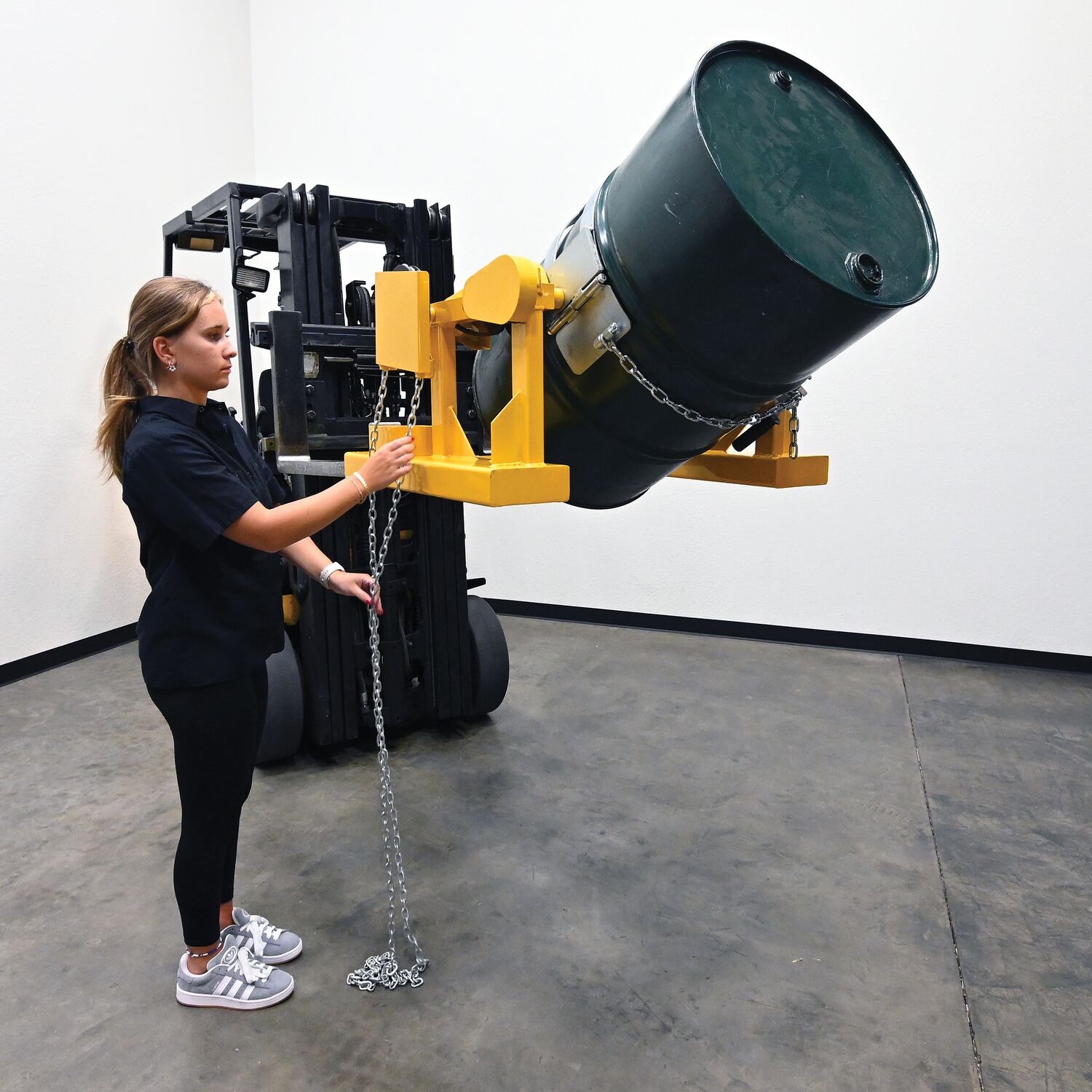

  • Additional chain allows the drum to be rotated from operator's seat
  • Includes a bung nut wrench for opening and closing drums effectively
Total Ship Wt.(lbs.): 222 (only 1 package) Size: 38.75"W x 38.625"L x 25.9375"H Color: Yellow QuickShip

Uniform Capacity (lb.): 1,500 Accepts: 55-gallon steel drum Drum Rotation (degree): 360

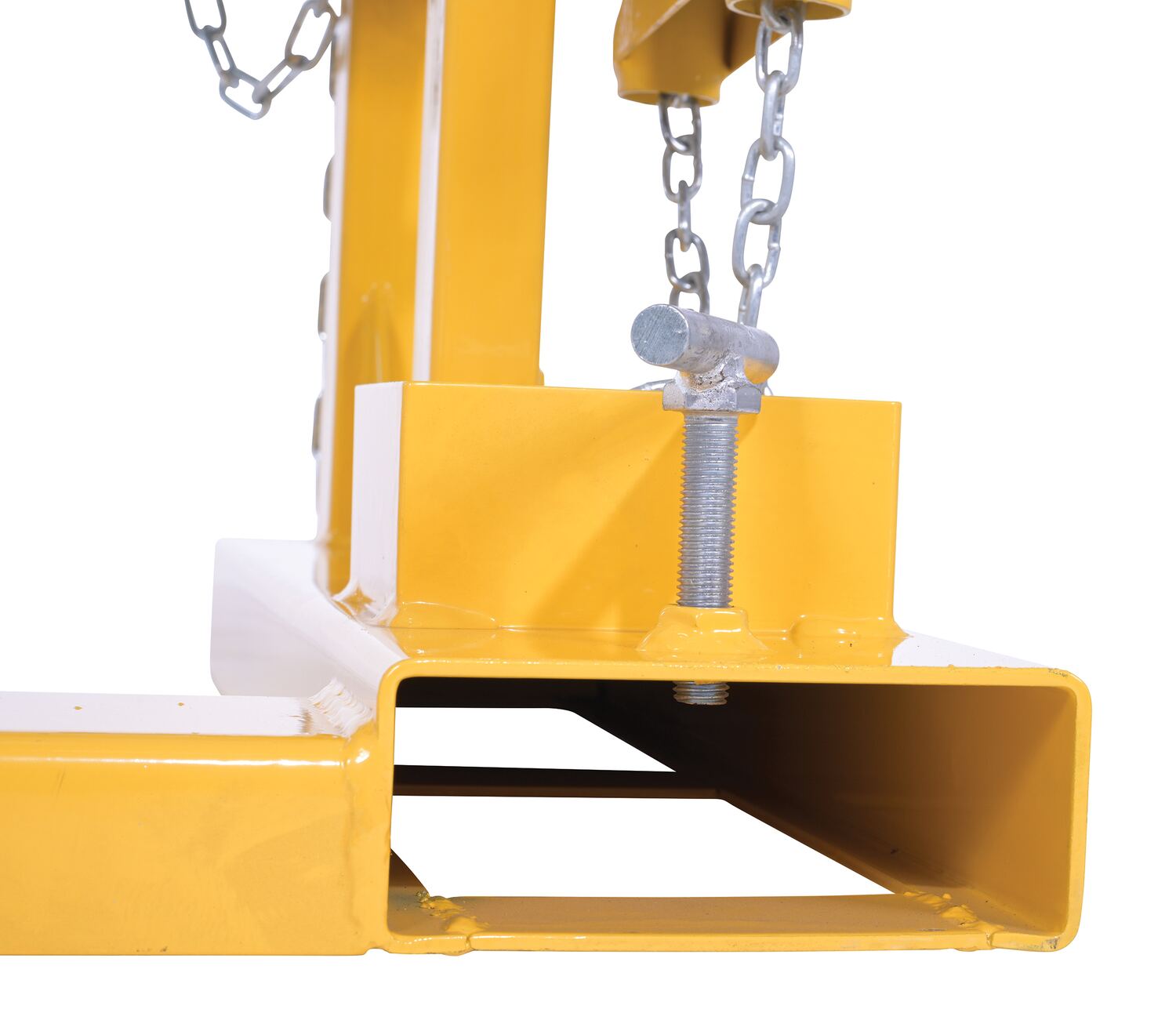

Fork Pocket Height (in.): 2-5/8 Fork Pocket Width (in.): 7 Safety Chain (in.): 56
Fork Pocket Centers (in.): 31-3/8 Crank Turns per 90 degree Rotation (qty.): 10 Rotation Chain (ft.): 15
Drum Restraint Method: Chain Drum Restraint Chain Length (in.): 33 Drum Cradle Finish: Zinc Plated

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DCR-205-15


DCR-205-15

Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1500 Lb. Capacity Yellow

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. Bung nut wrench is also included for opening and closing drums. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.

  • Fork Truck drum carrier/rotator is for handling steel drums efficiently
  • Chain locking system holds drums securely for ideal operation
  • Additional chain allows the drum to be rotated from operator's seat
  • Includes a bung nut wrench for opening and closing drums effectively
Dimensions: 38.75"W x 38.625"L x 25.9375"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215012782 GTIN: 00691215012782
Warranty: -- Shipping Weight: 222 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Accepts: 55-gallon steel drum Drum Rotation (degree): 360
Fork Pocket Height (in.): 2-5/8 Fork Pocket Width (in.): 7 Safety Chain (in.): 56
Fork Pocket Centers (in.): 31-3/8 Crank Turns per 90 degree Rotation (qty.): 10 Rotation Chain (ft.): 15
Drum Restraint Method: Chain Drum Restraint Chain Length (in.): 33 Drum Cradle Finish: Zinc Plated
