SERIES: DCR-205


Fork Truck Drum Carrier/Rotators

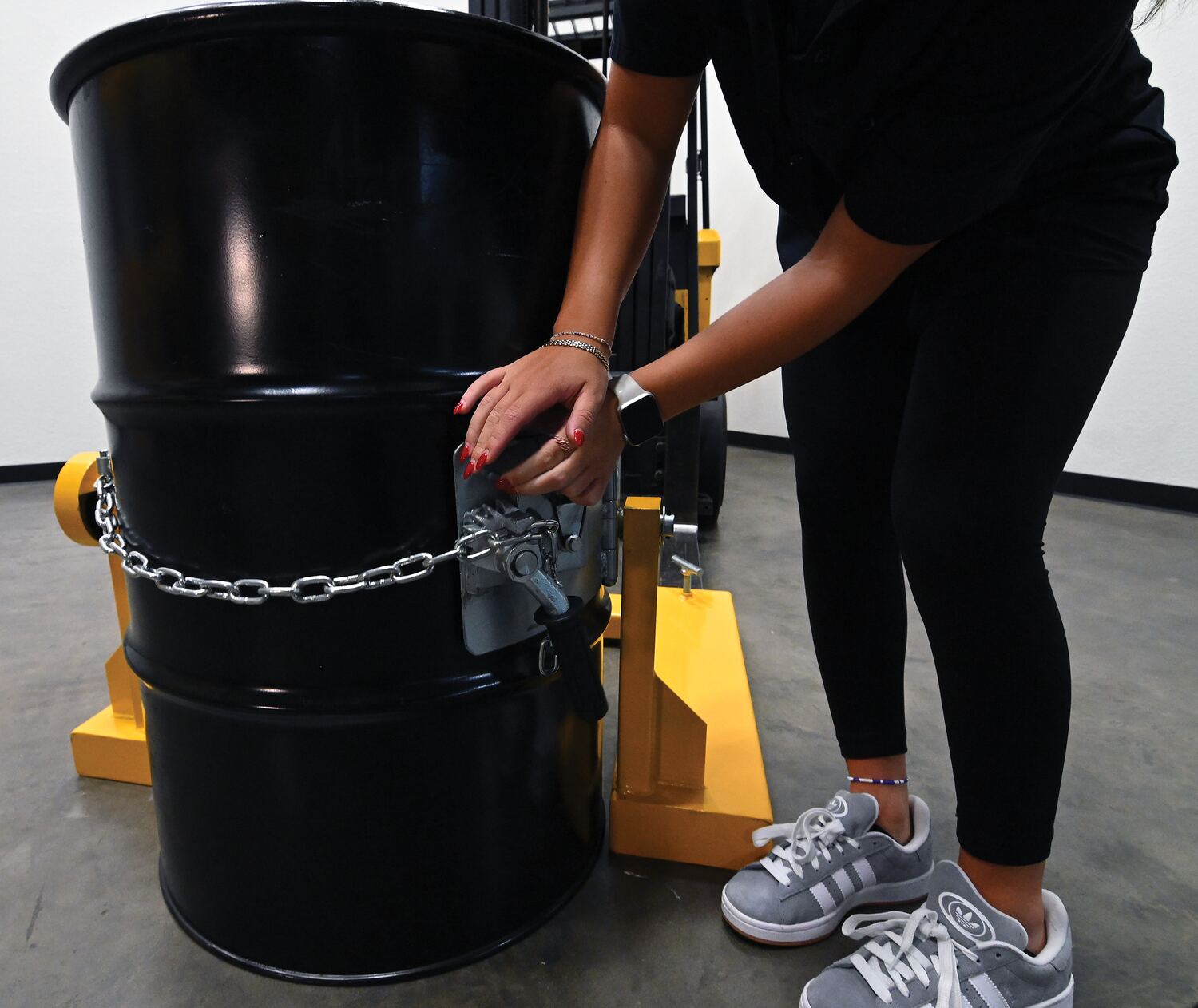

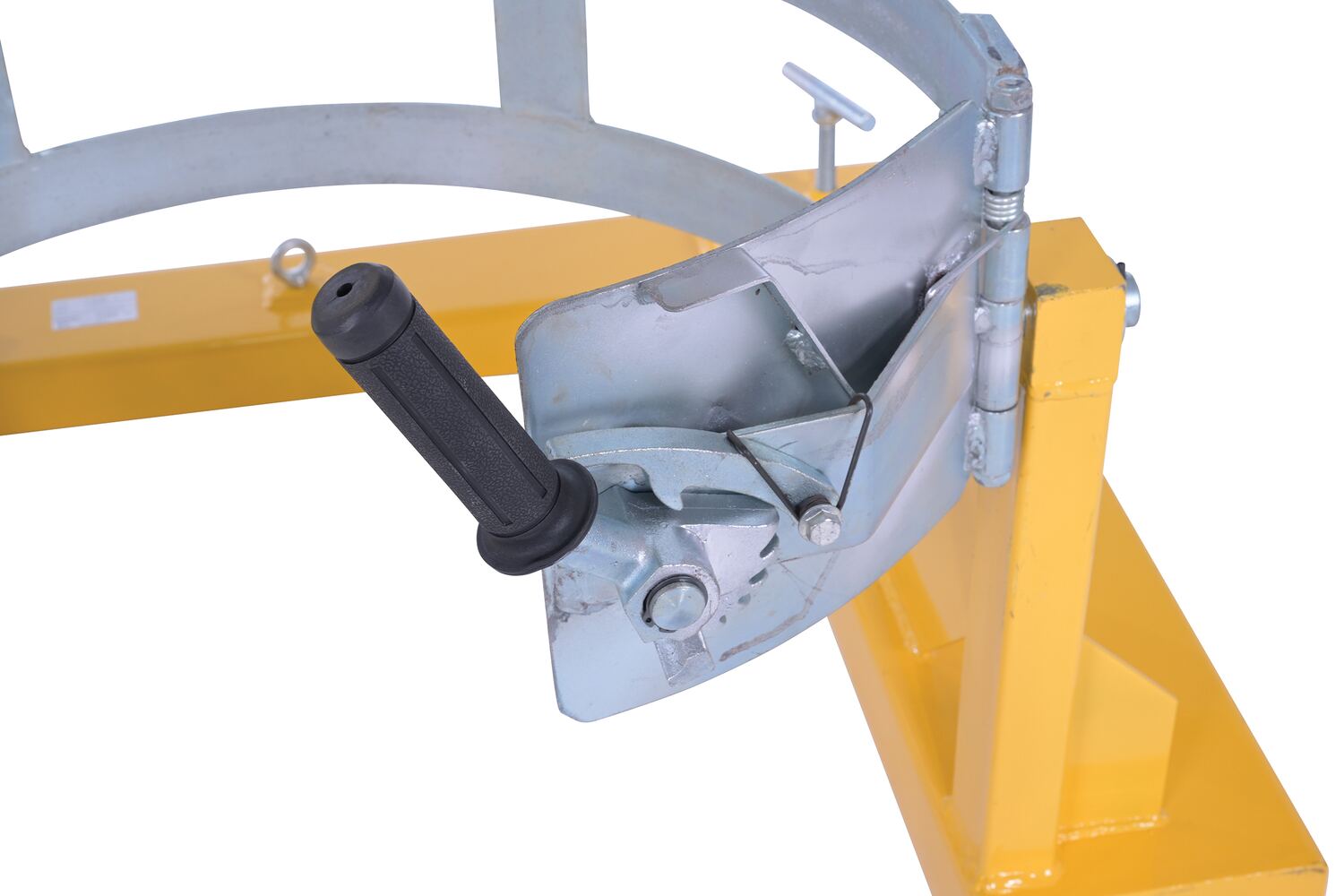

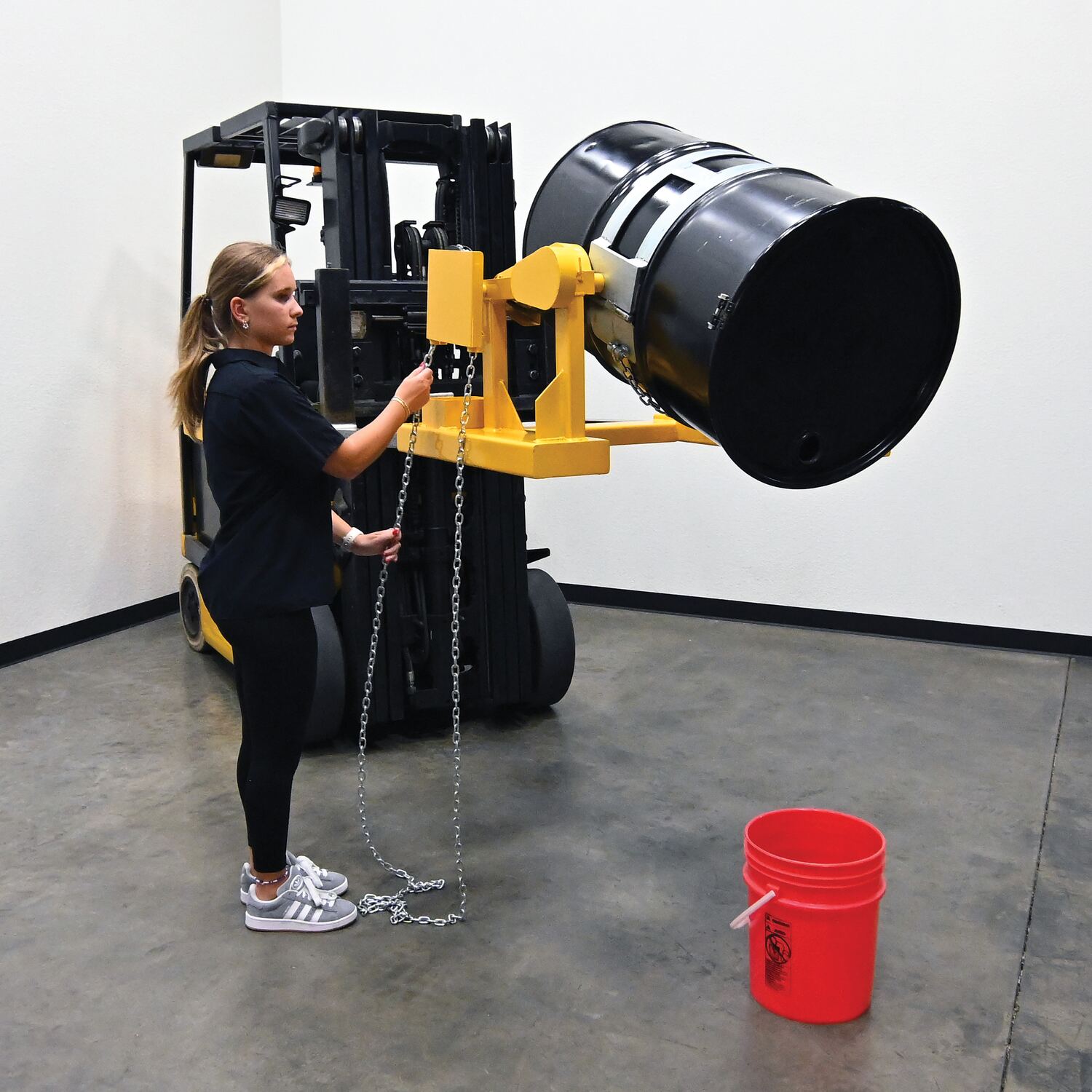

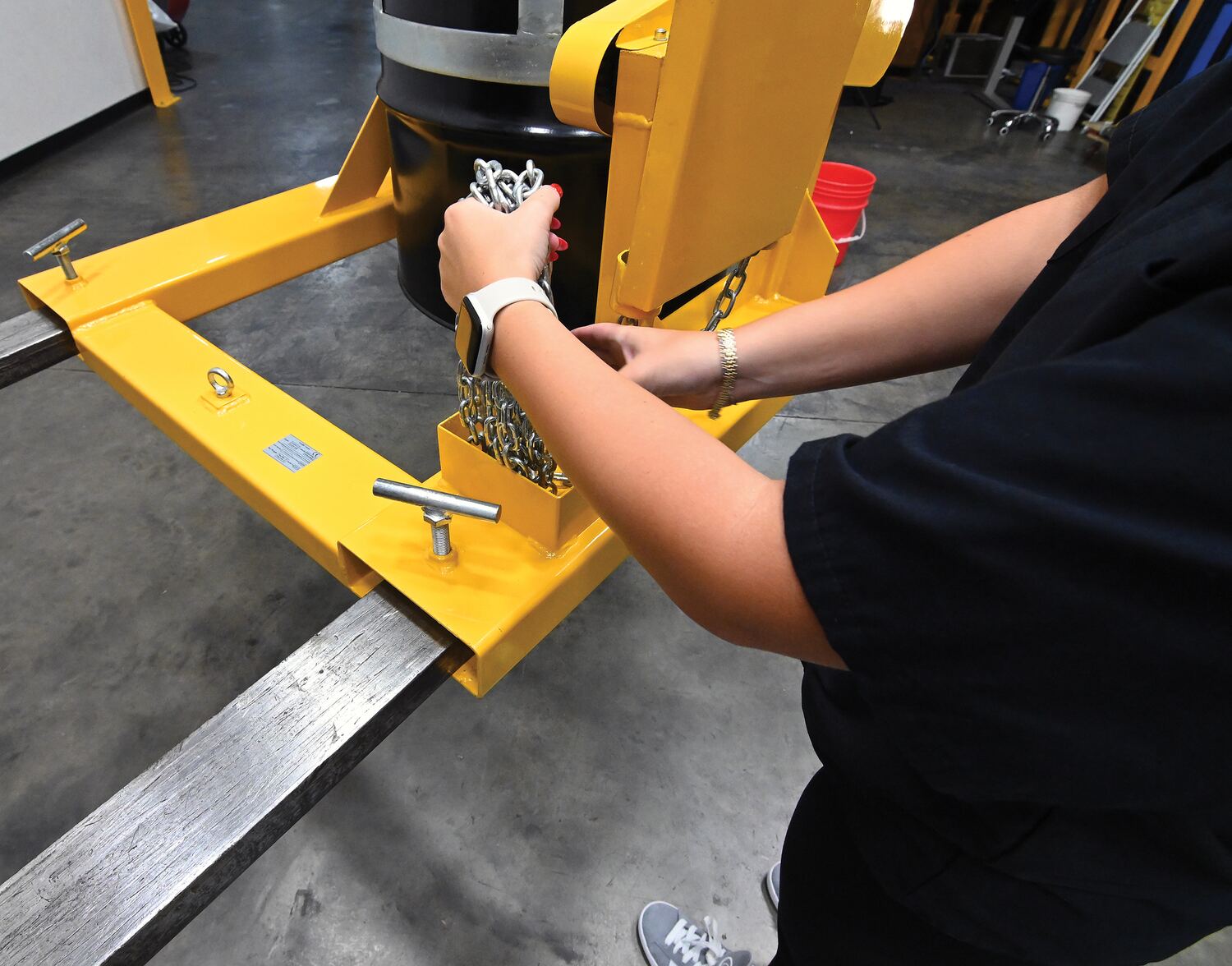

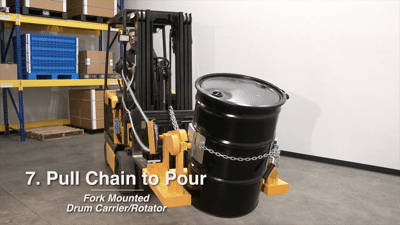

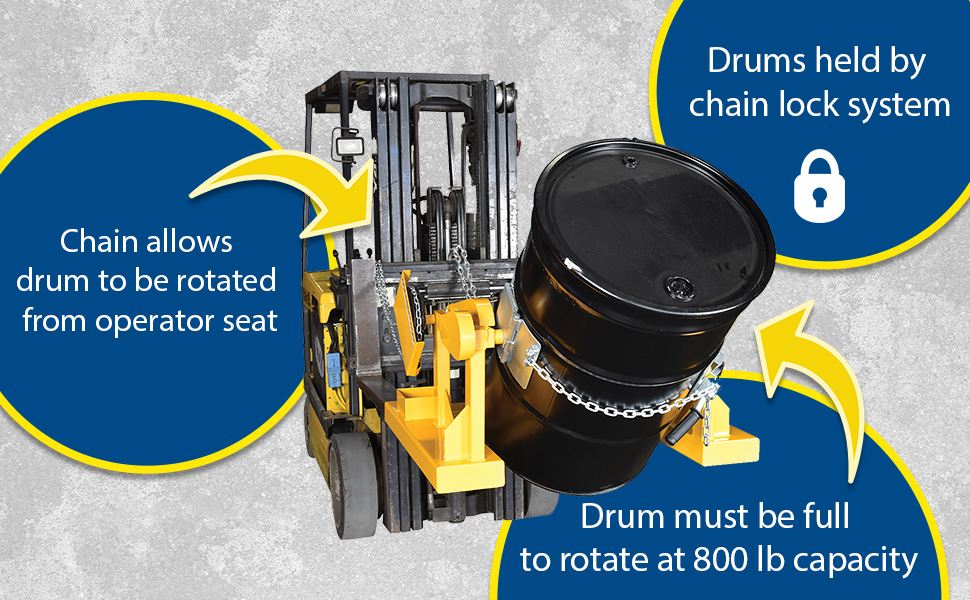

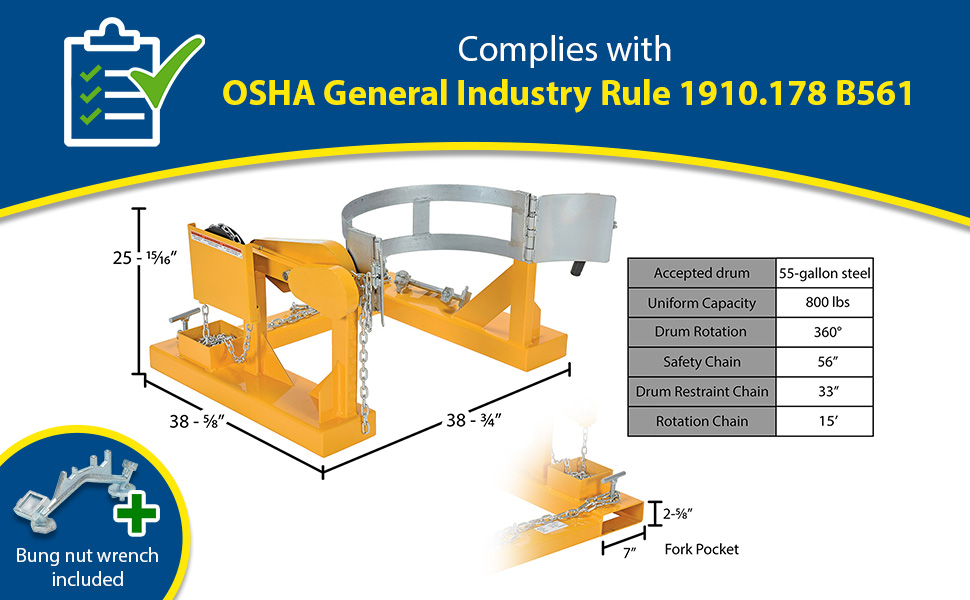

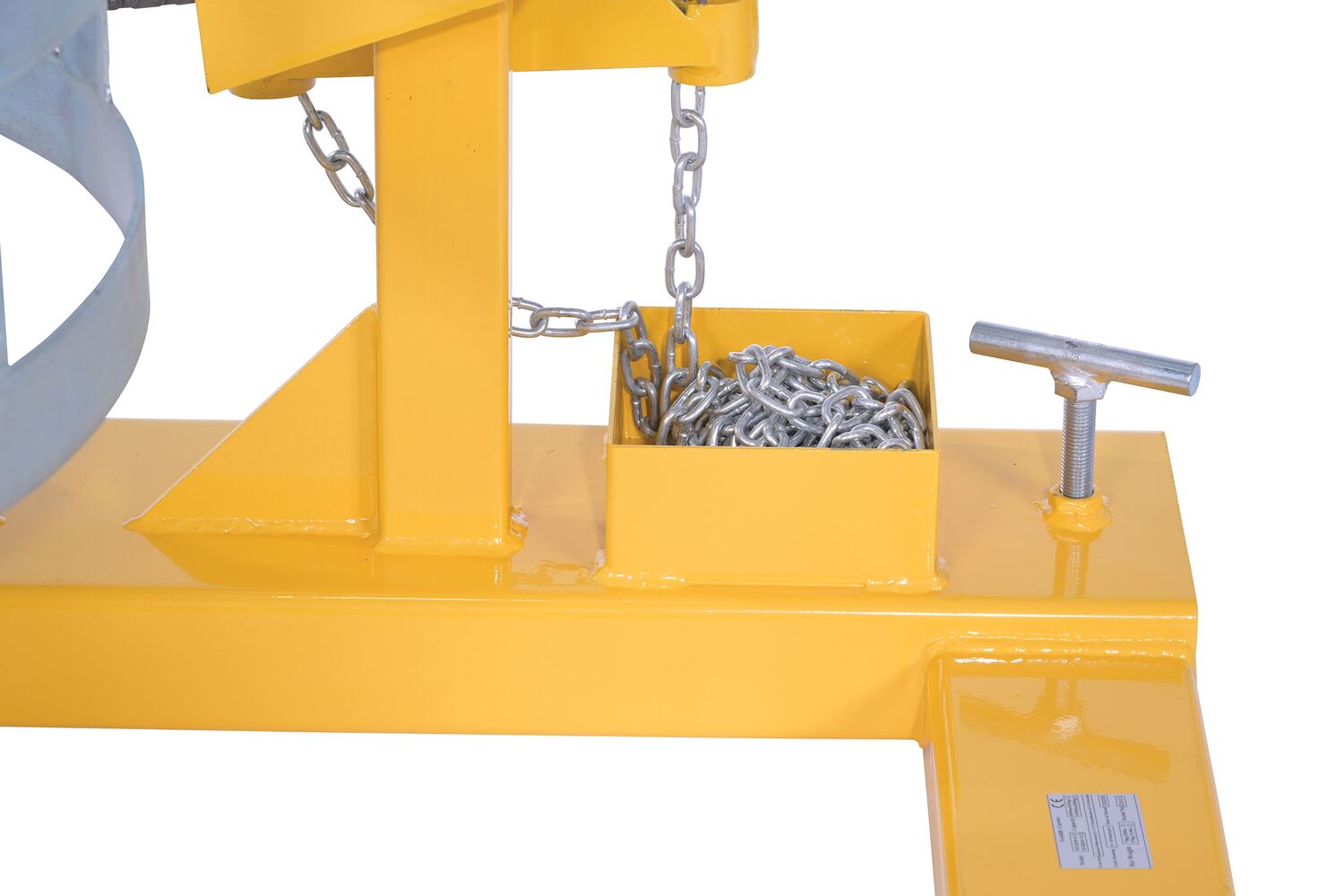

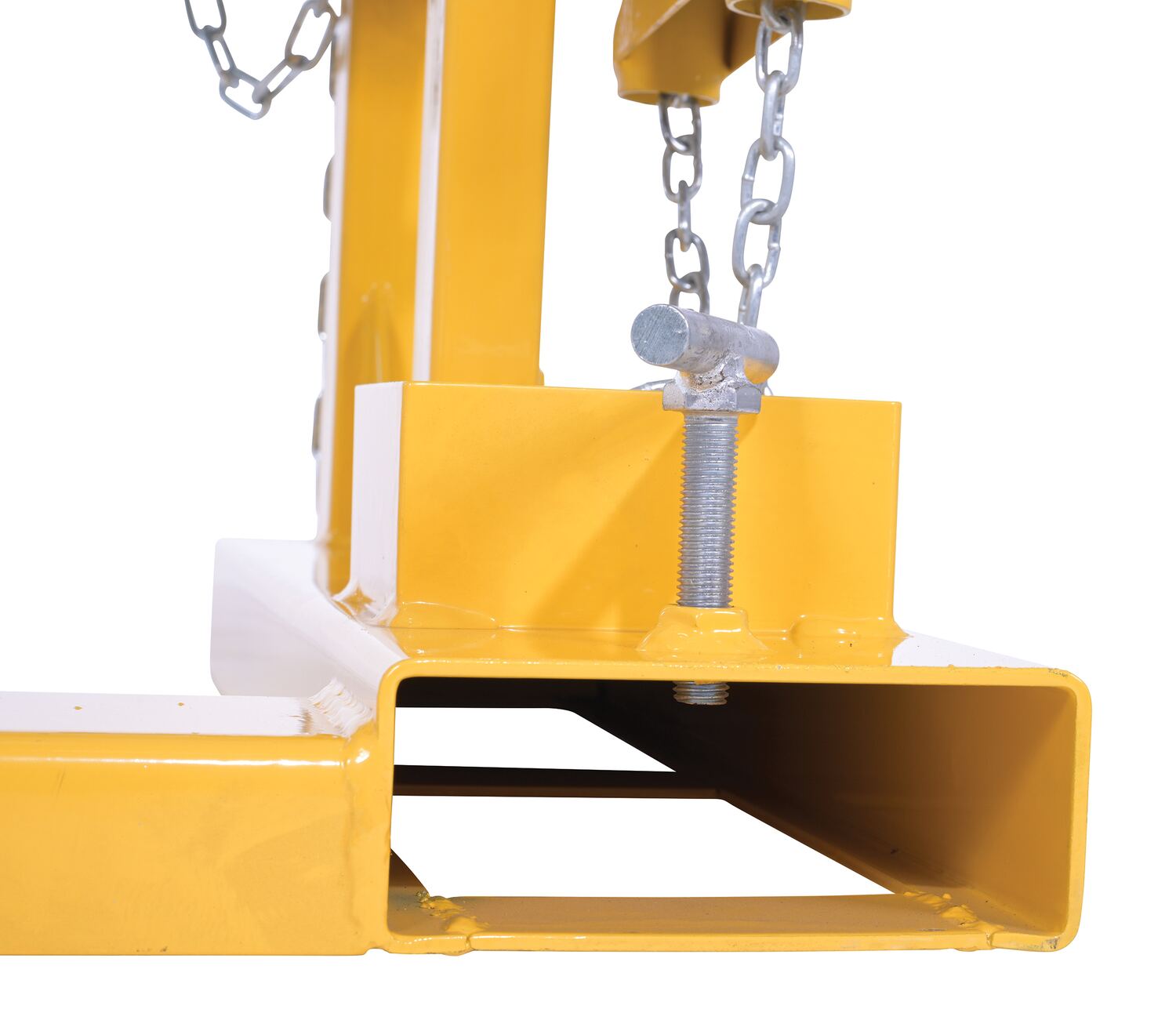

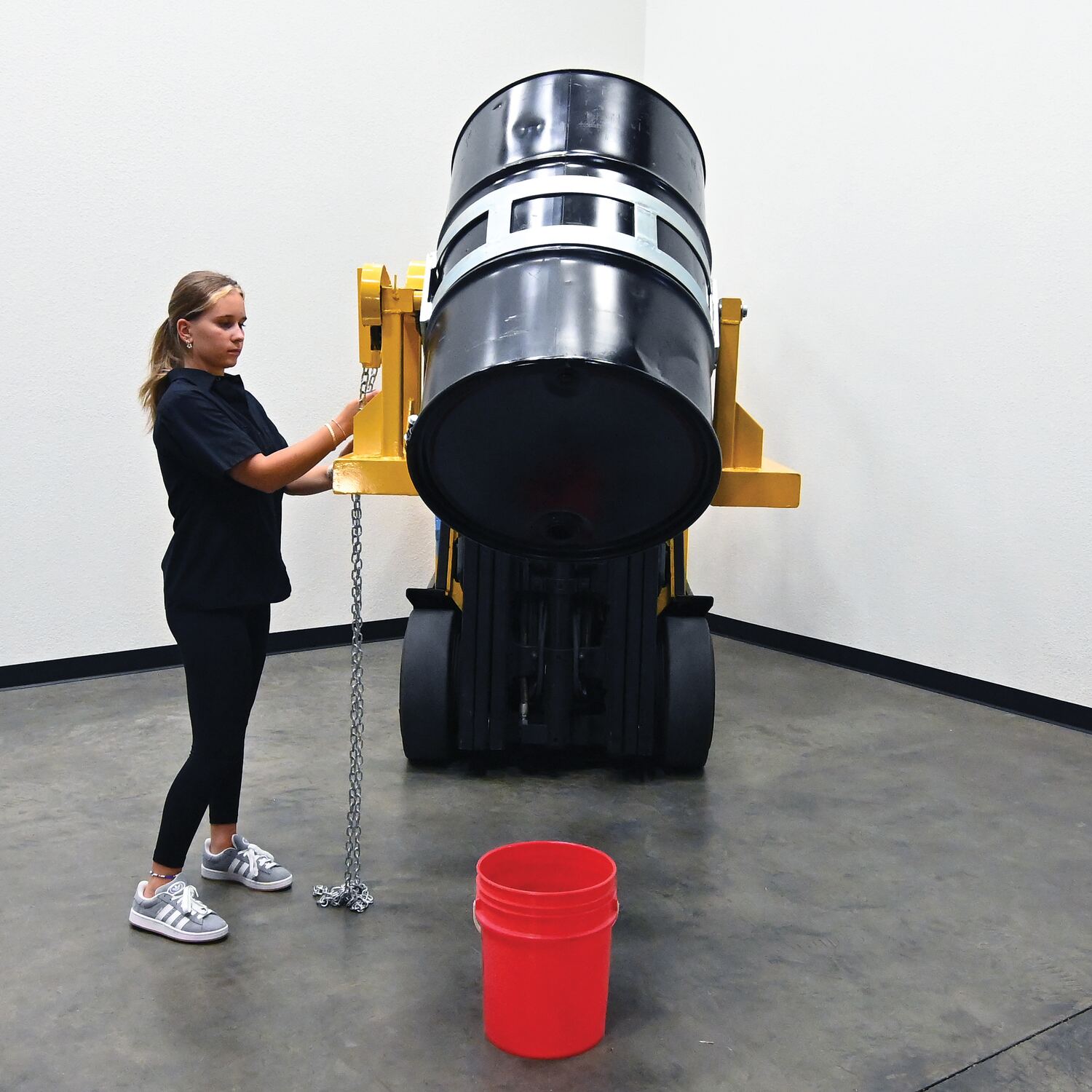

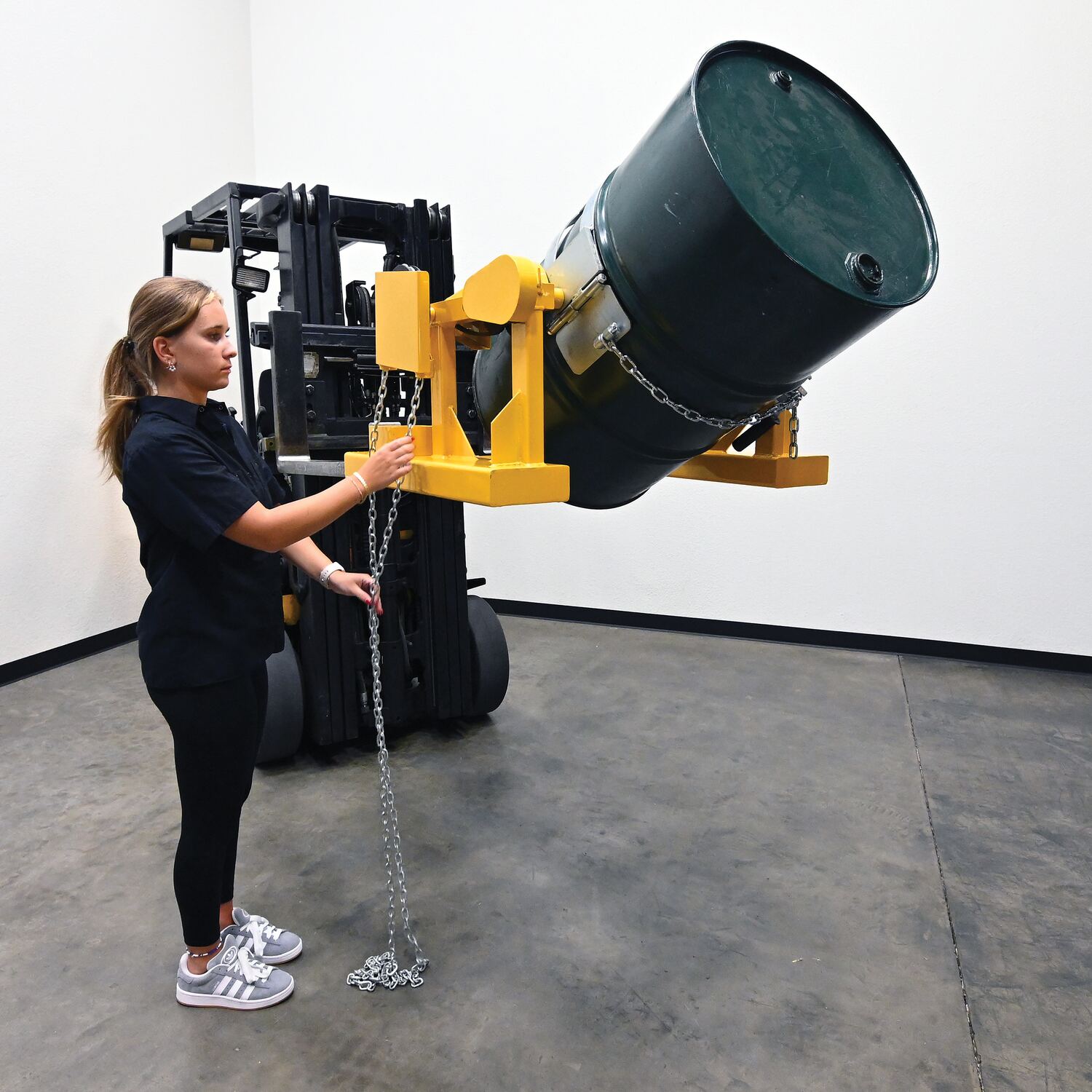

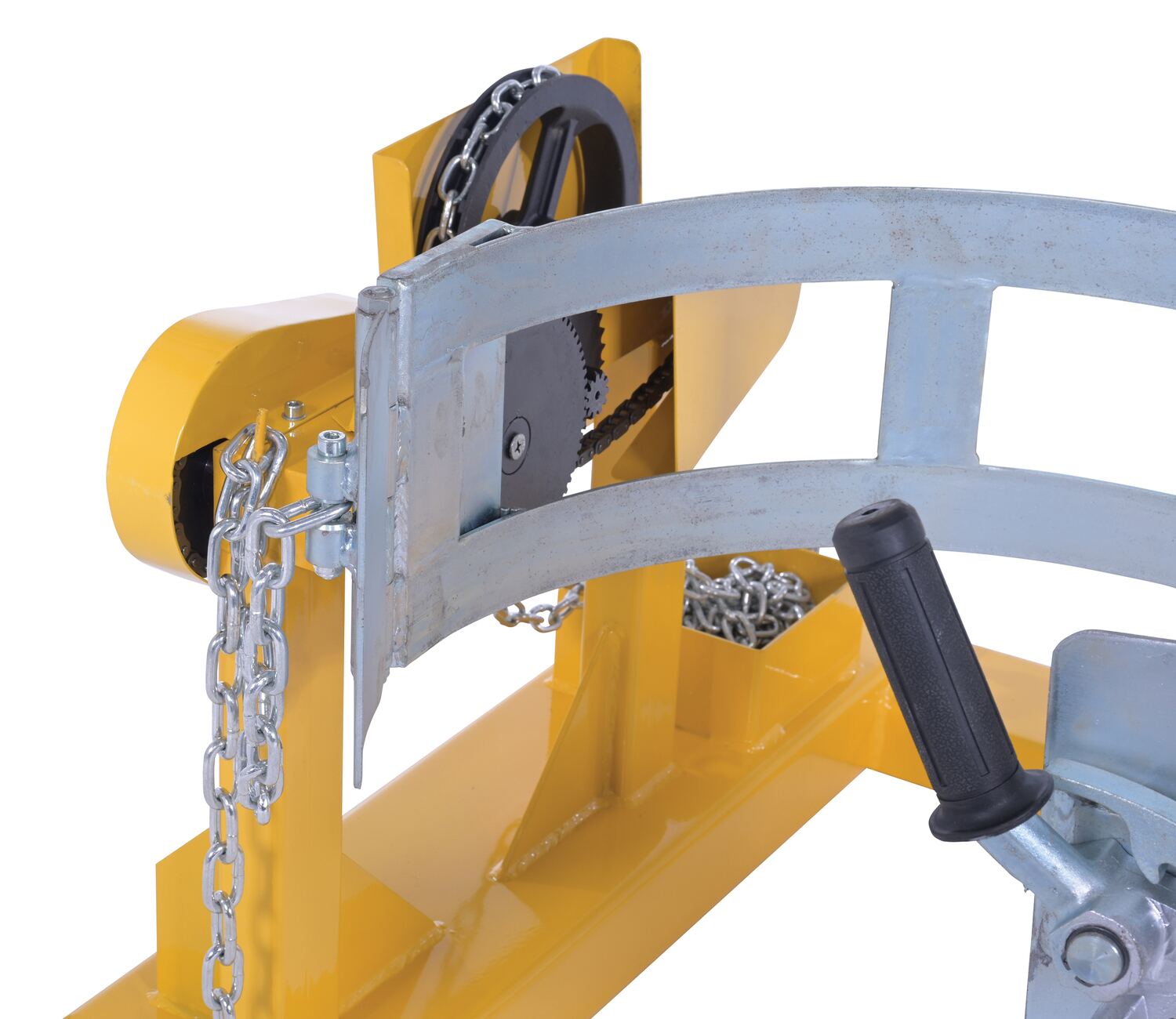

This product allows you to easily transport and rotate 55-gallon steel drums using a fork truck. Each standard unit is provided with a 15 foot long chain to allow the drum to be rotated up to 360 degrees from the fork truck operator's seat. Fork pockets measure 7-5/8"W x 2-5/8"H usable, except DCR-205-8 and DCR-205-15 usable is 7" W. DC powered units include (2) two 12V batteries, on-board charger, battery charge indicator gauge, and hand held control on a 4 ft. to 20 ft. long coil cord. Safety restraint is used to secure unit to fork truck. Bung Nut Wrench, model BNW-I, is also included for opening and closing drums.

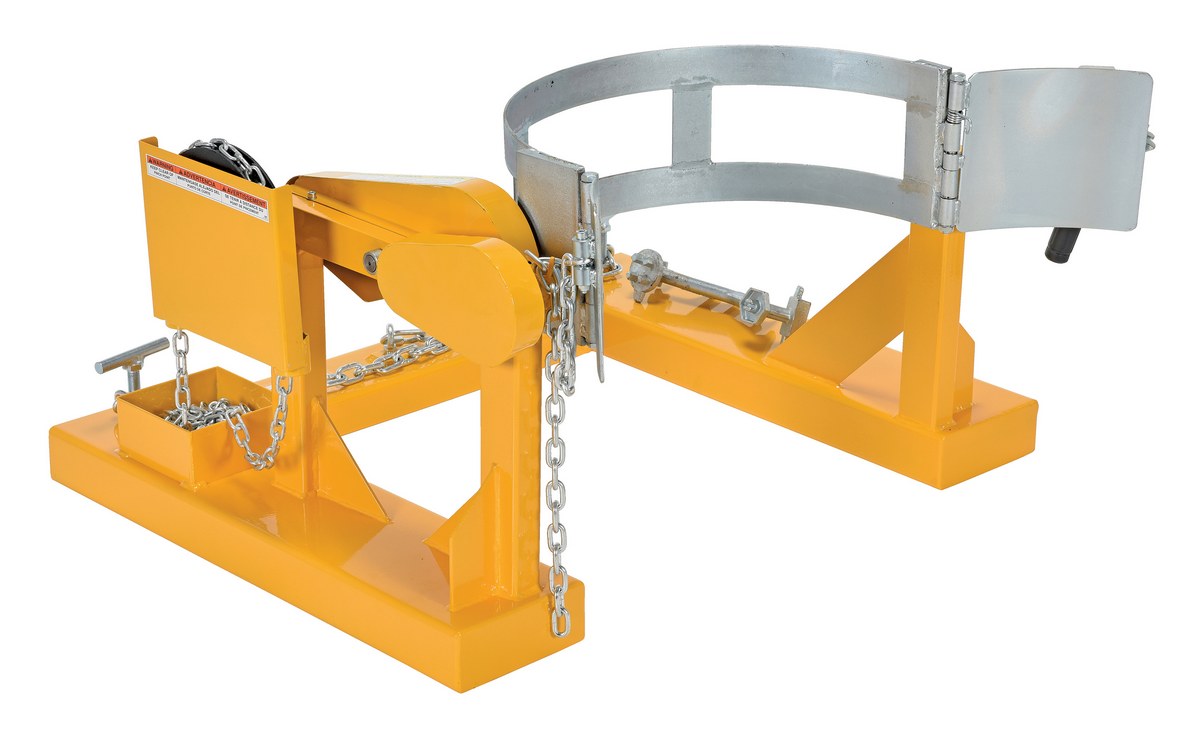

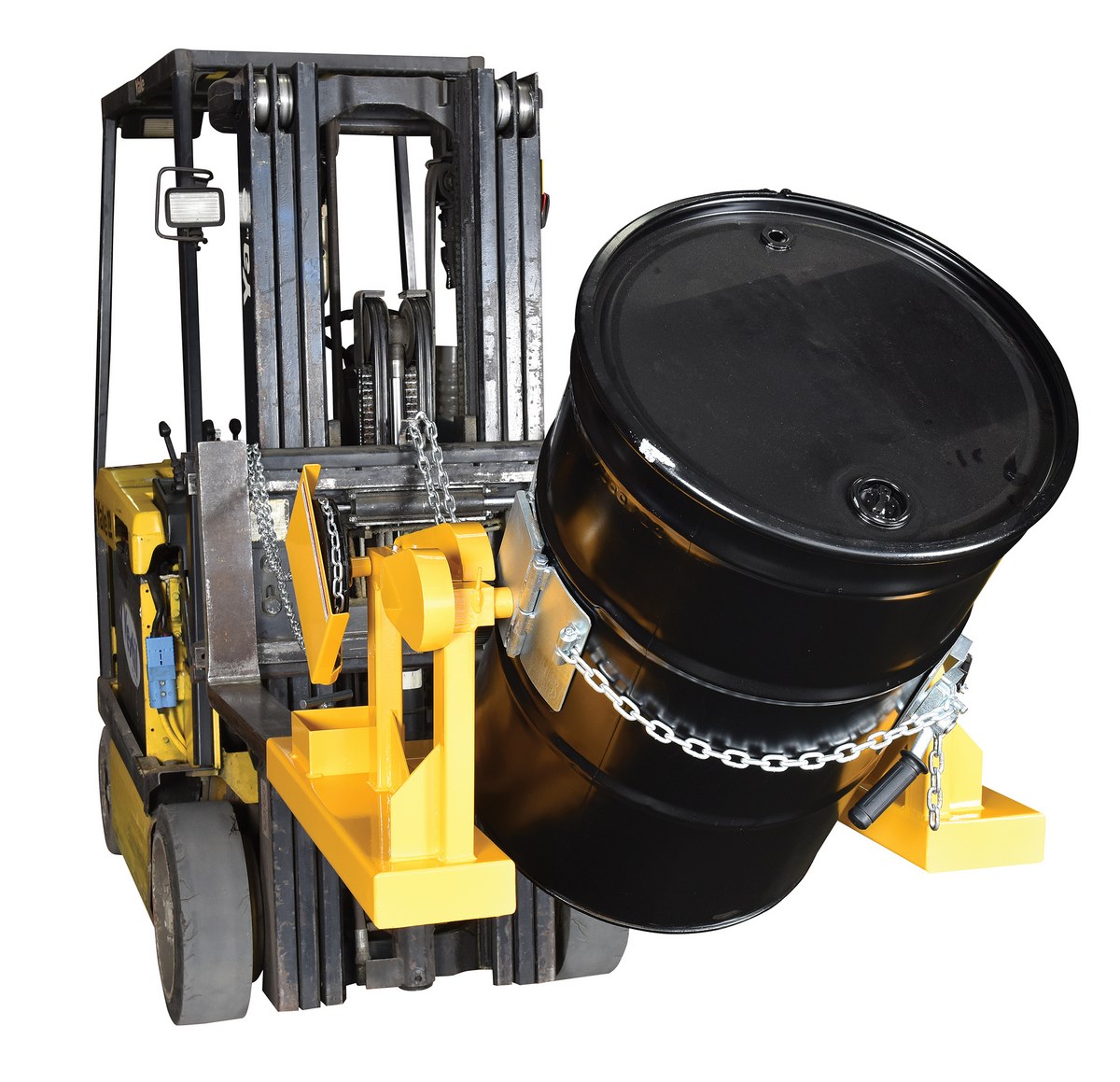

DCR-205-8

model DCR-205-8

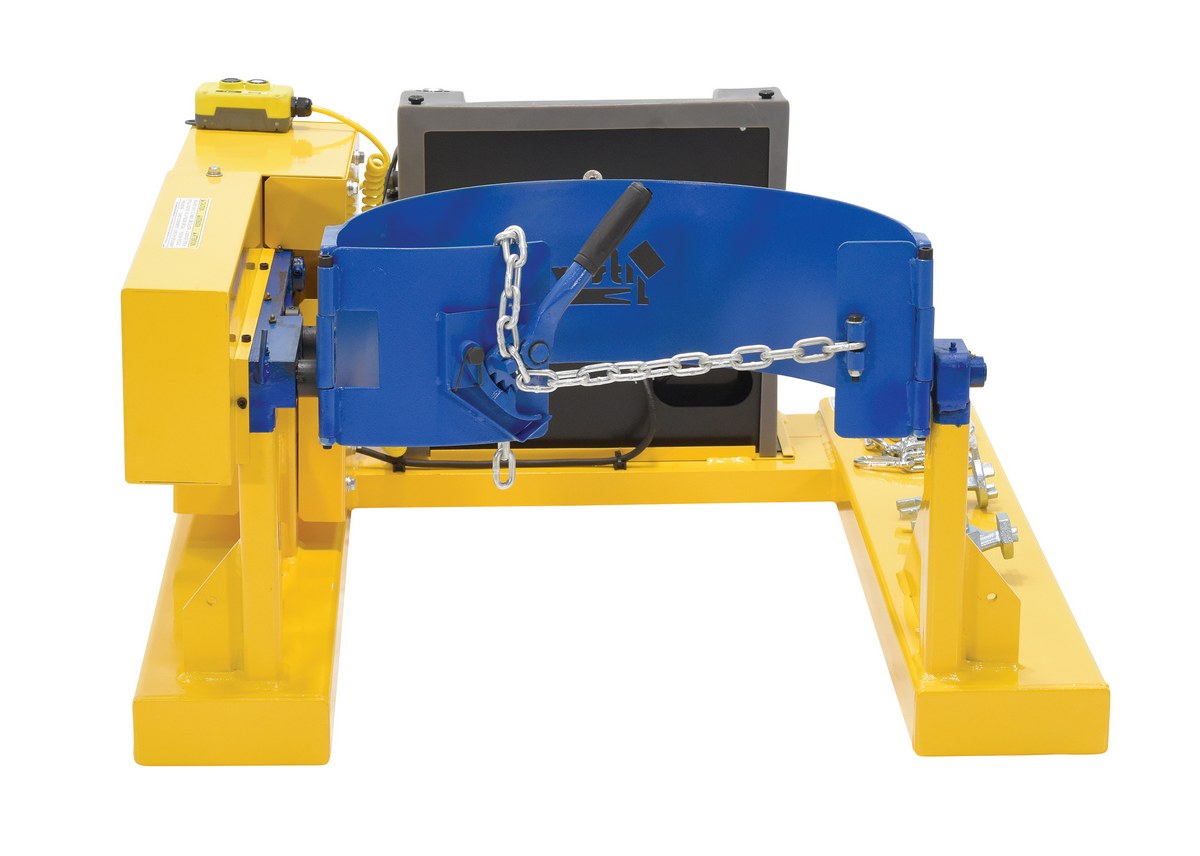

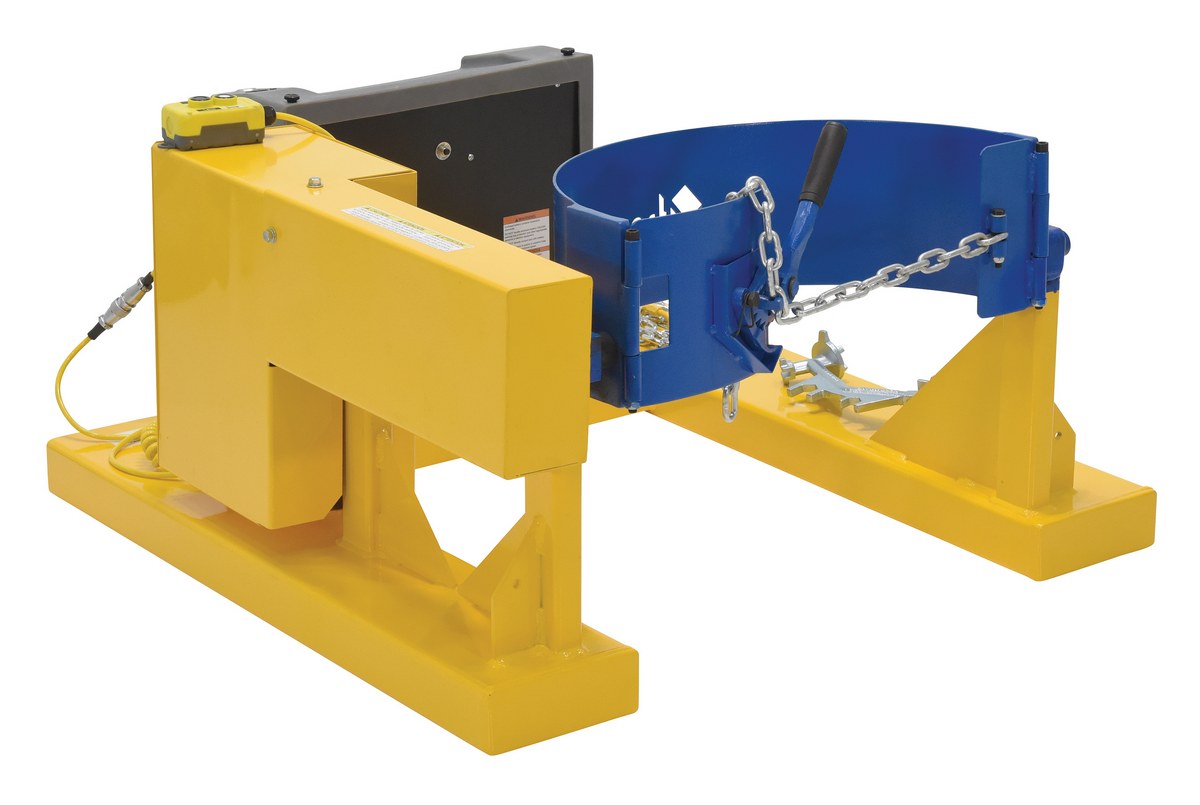

DCR-205-8-DC

model DCR-205-8-DC

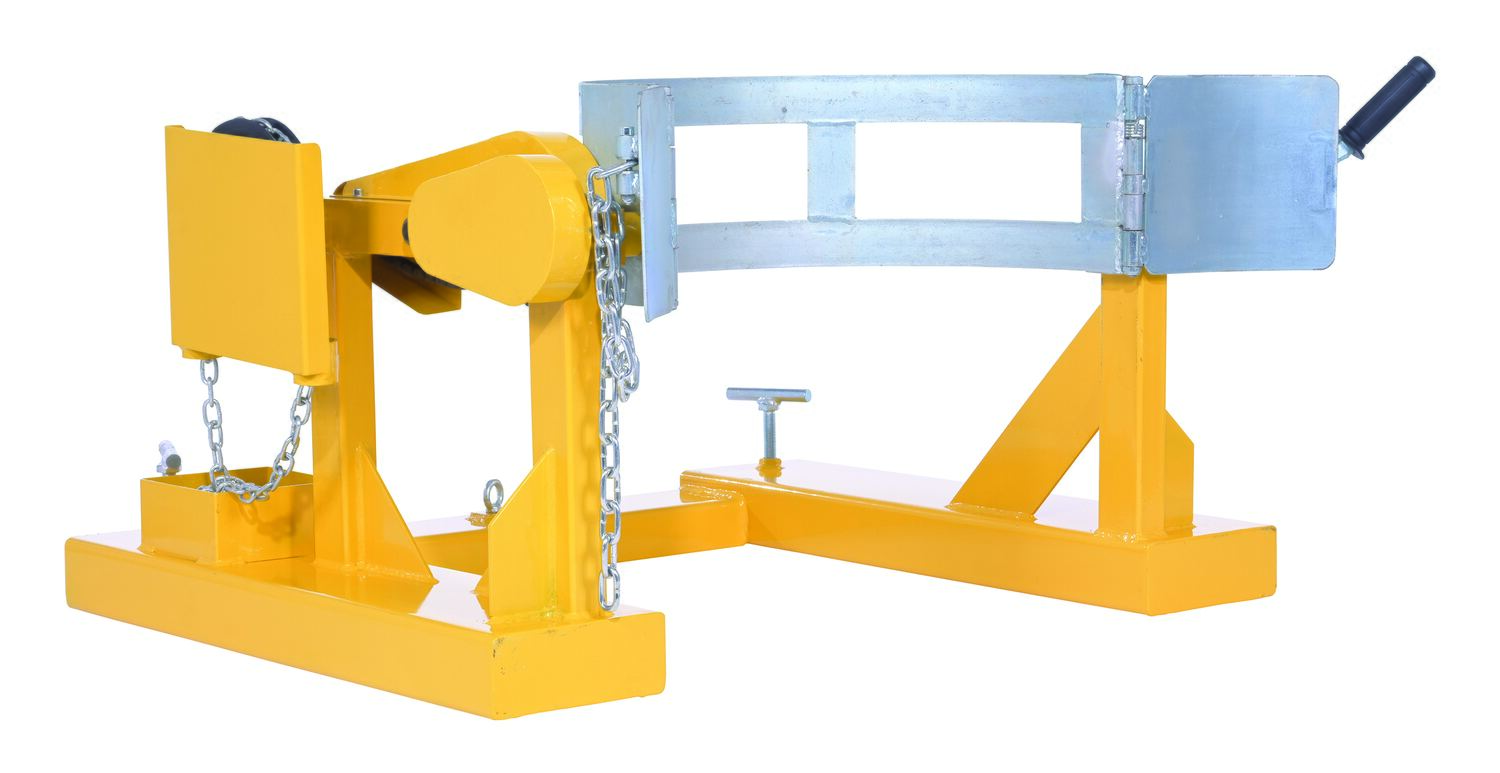

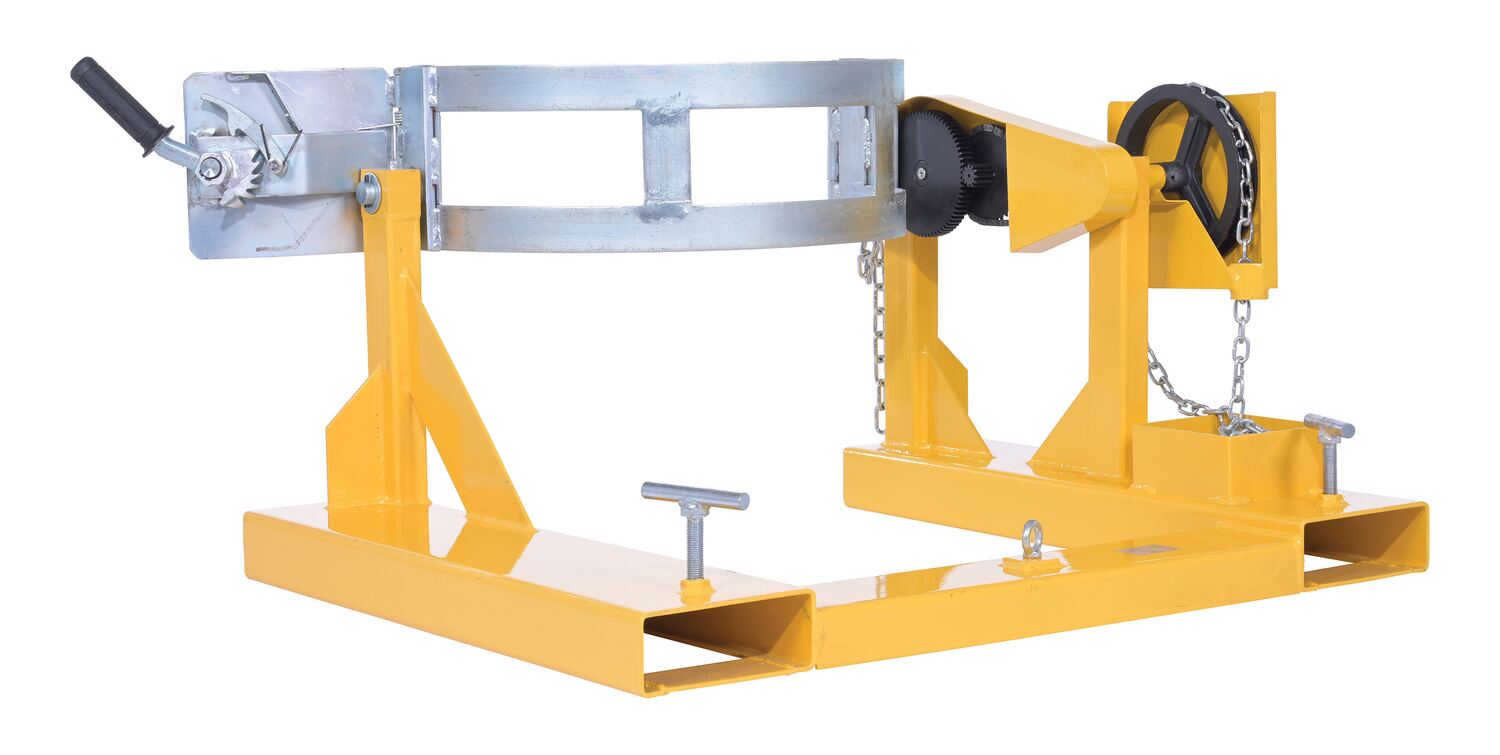

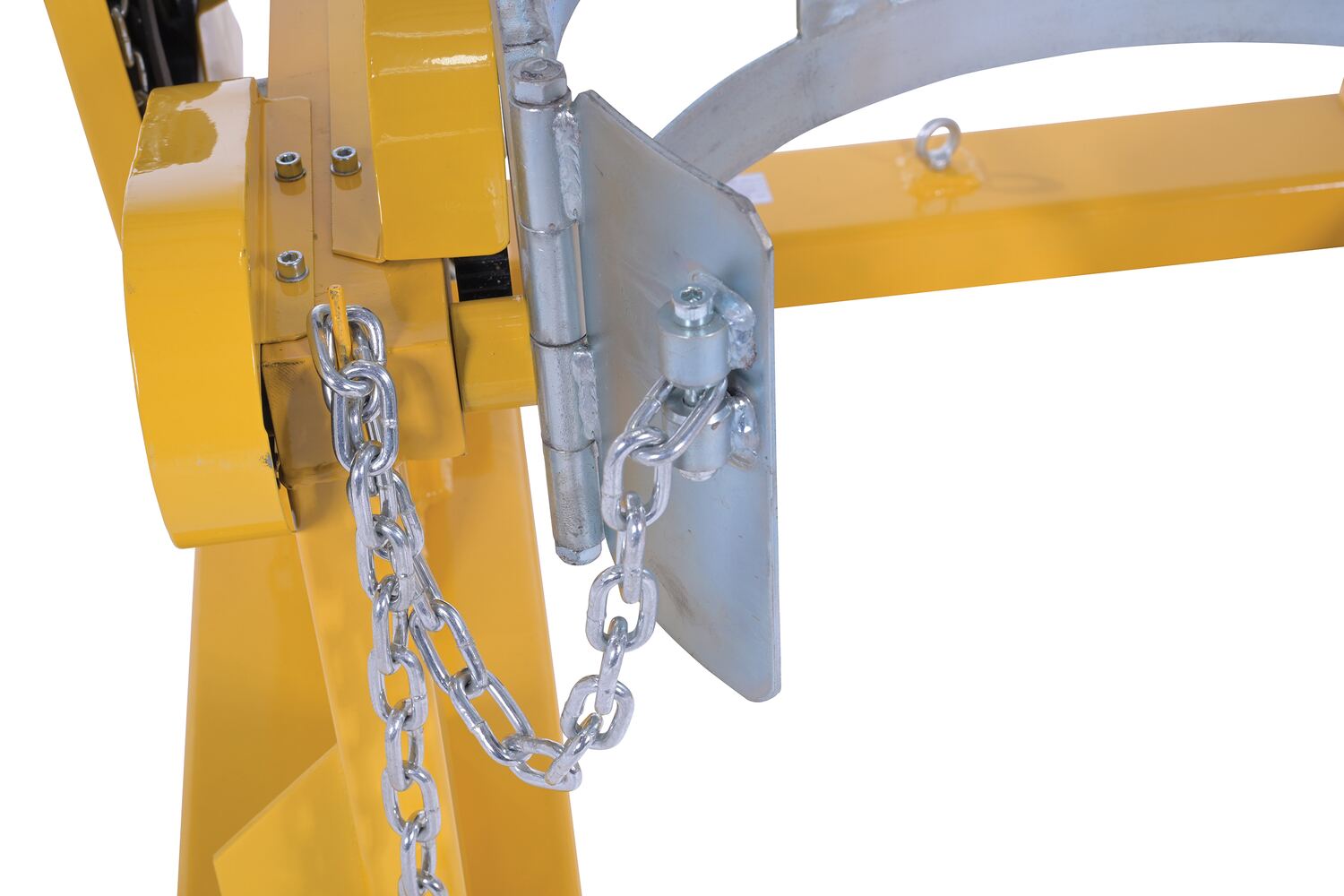

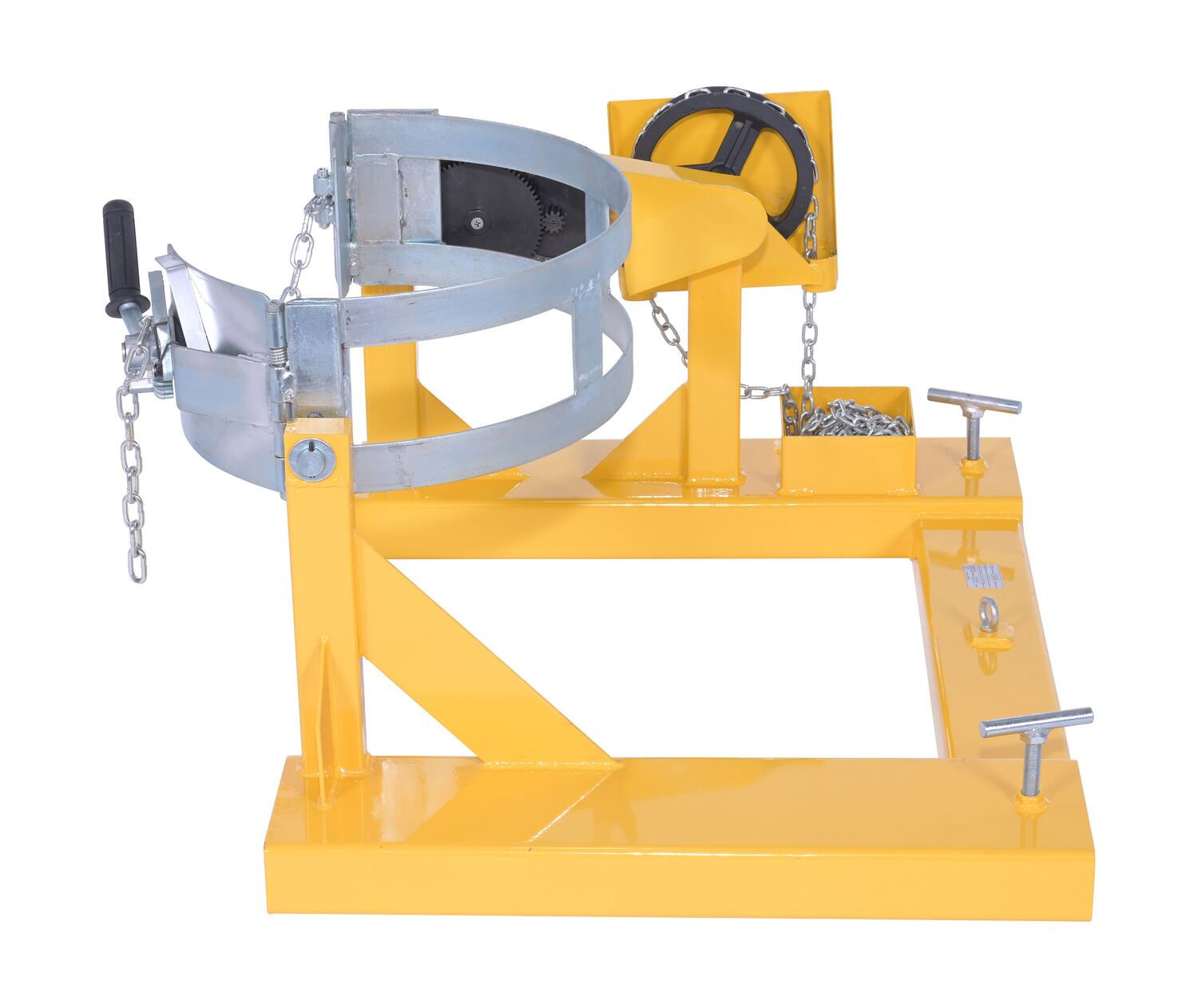

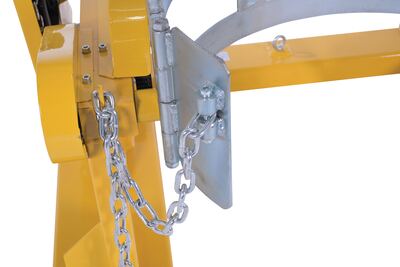

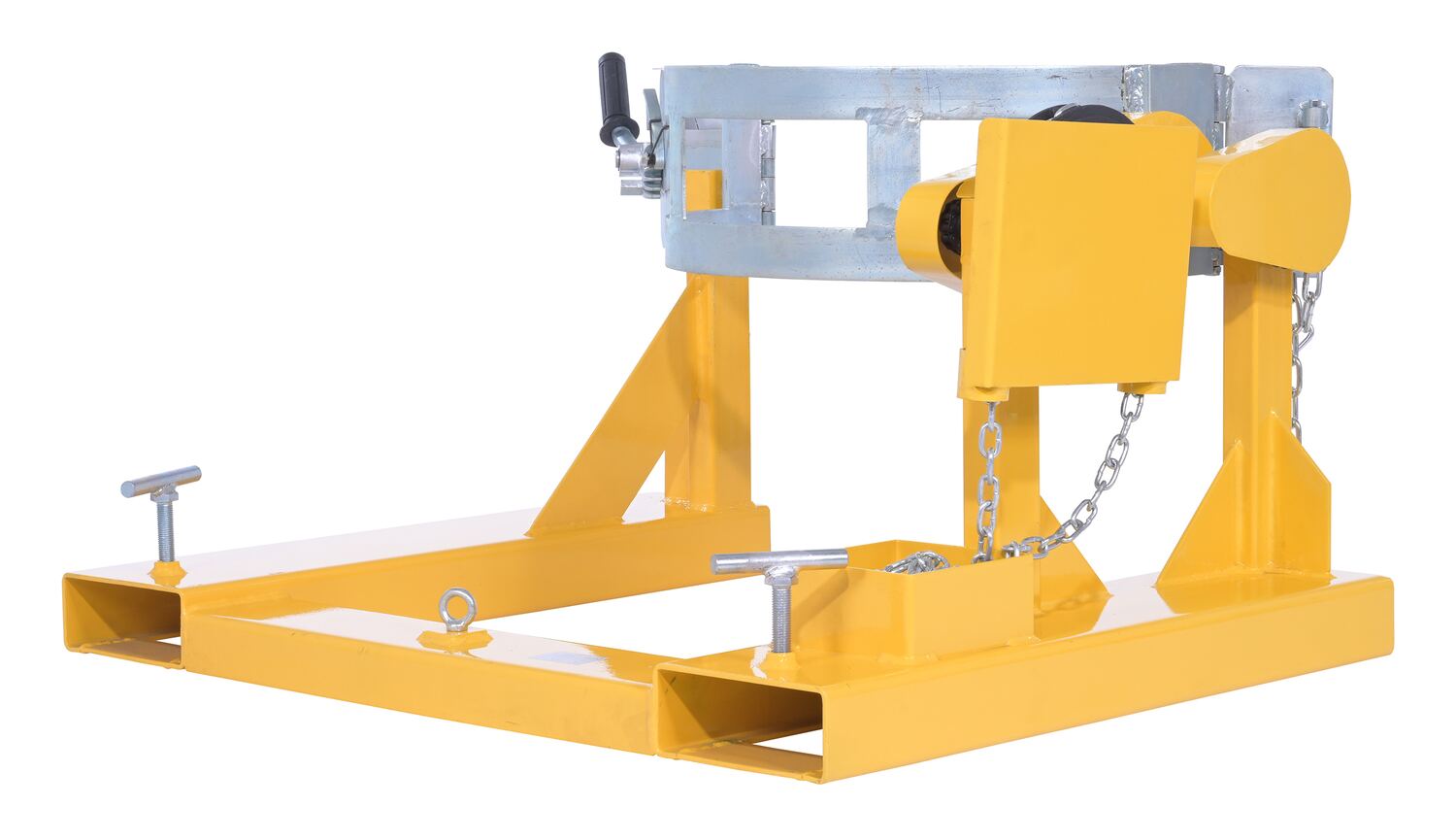

DCR-205-15

model DCR-205-15

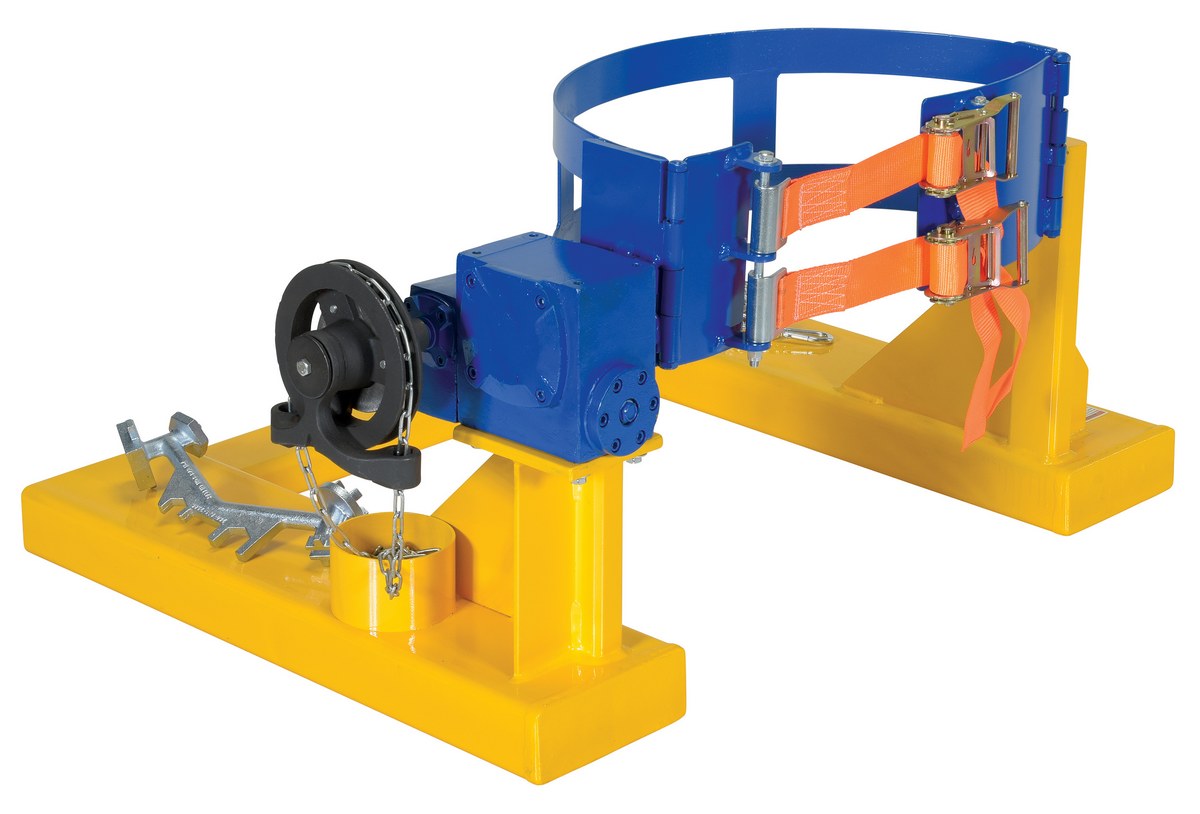

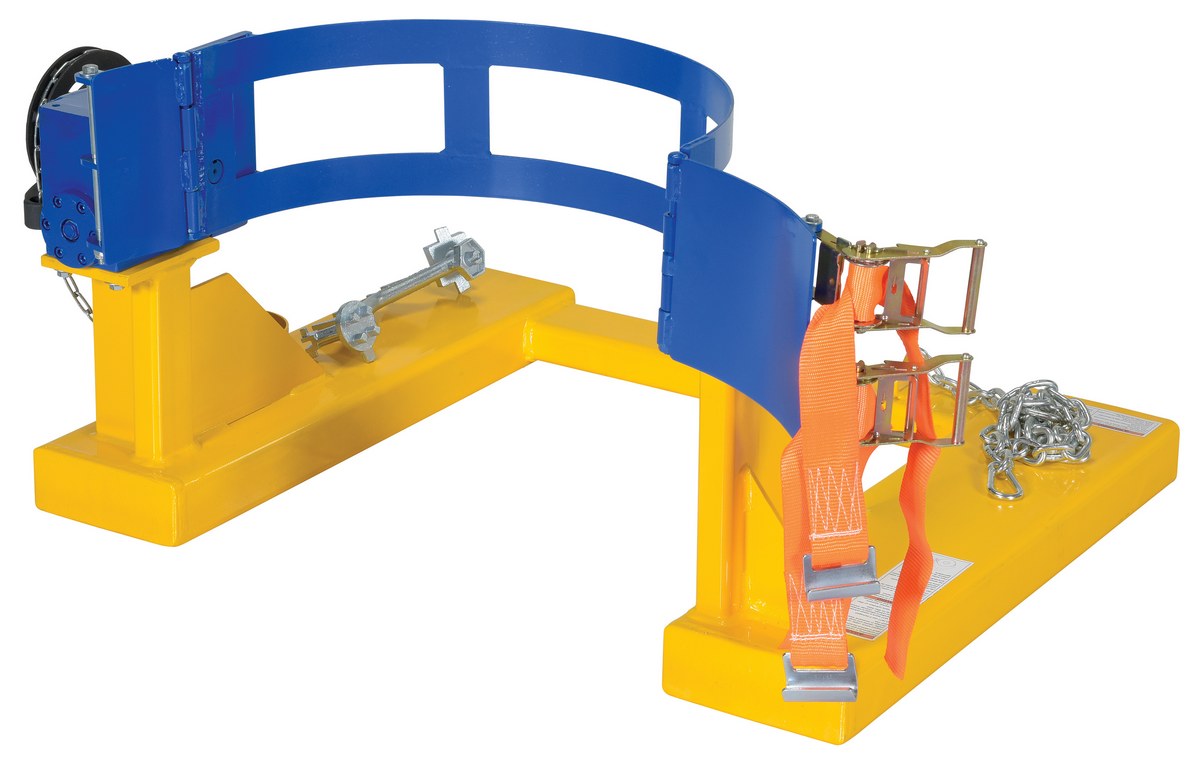

DCR-205-20

model DCR-205-20


Click a tab for more information. + Indicates items available under that tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Fork Mounted Drum Carrier/Rotator
Model PDF's Drum

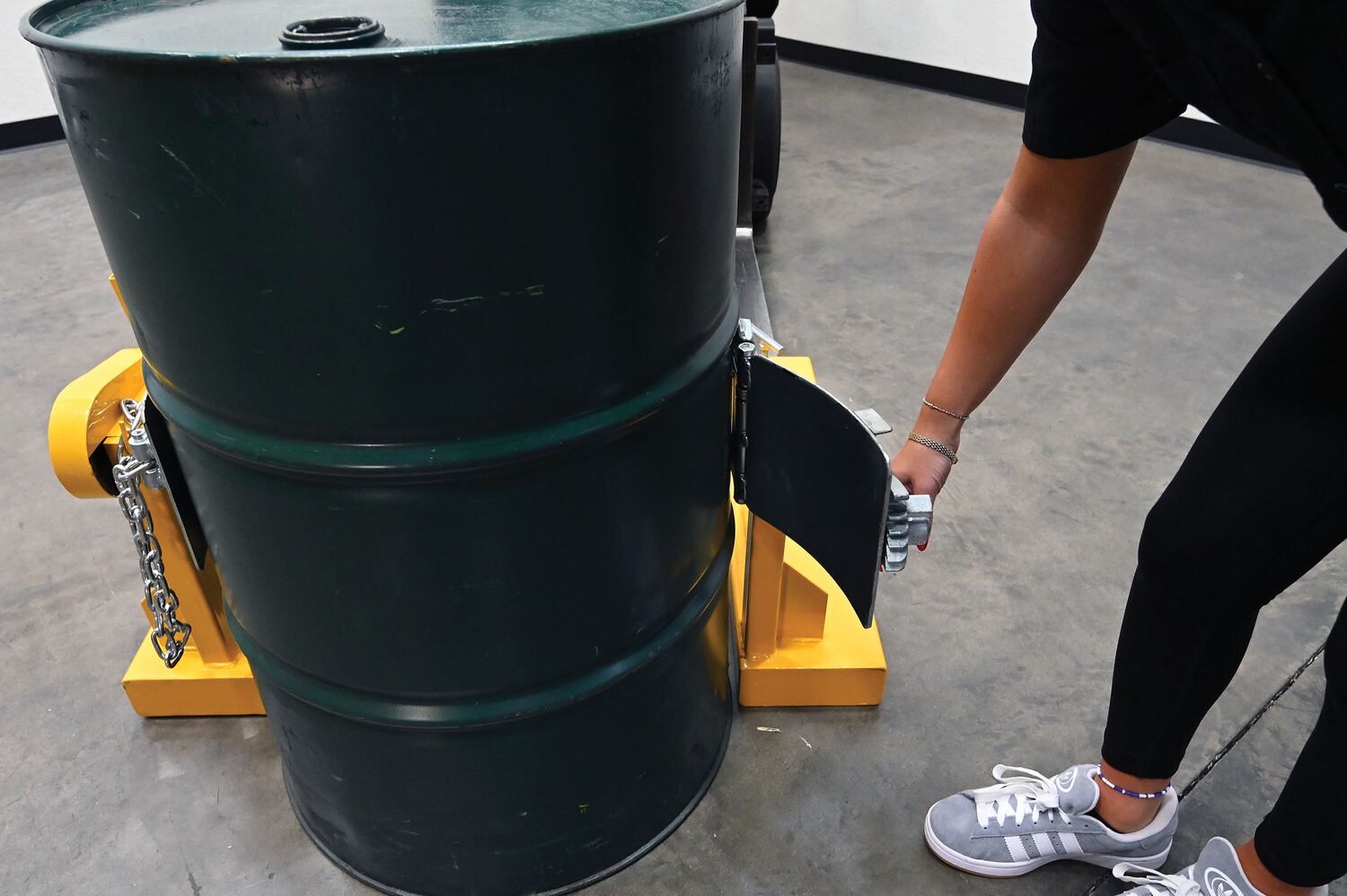

Restraint Method
Acceptable
Drum
Styles
Capacity (lbs) Crank
Turns Per 90 Degrees Rotation
Wt.
(lbs)

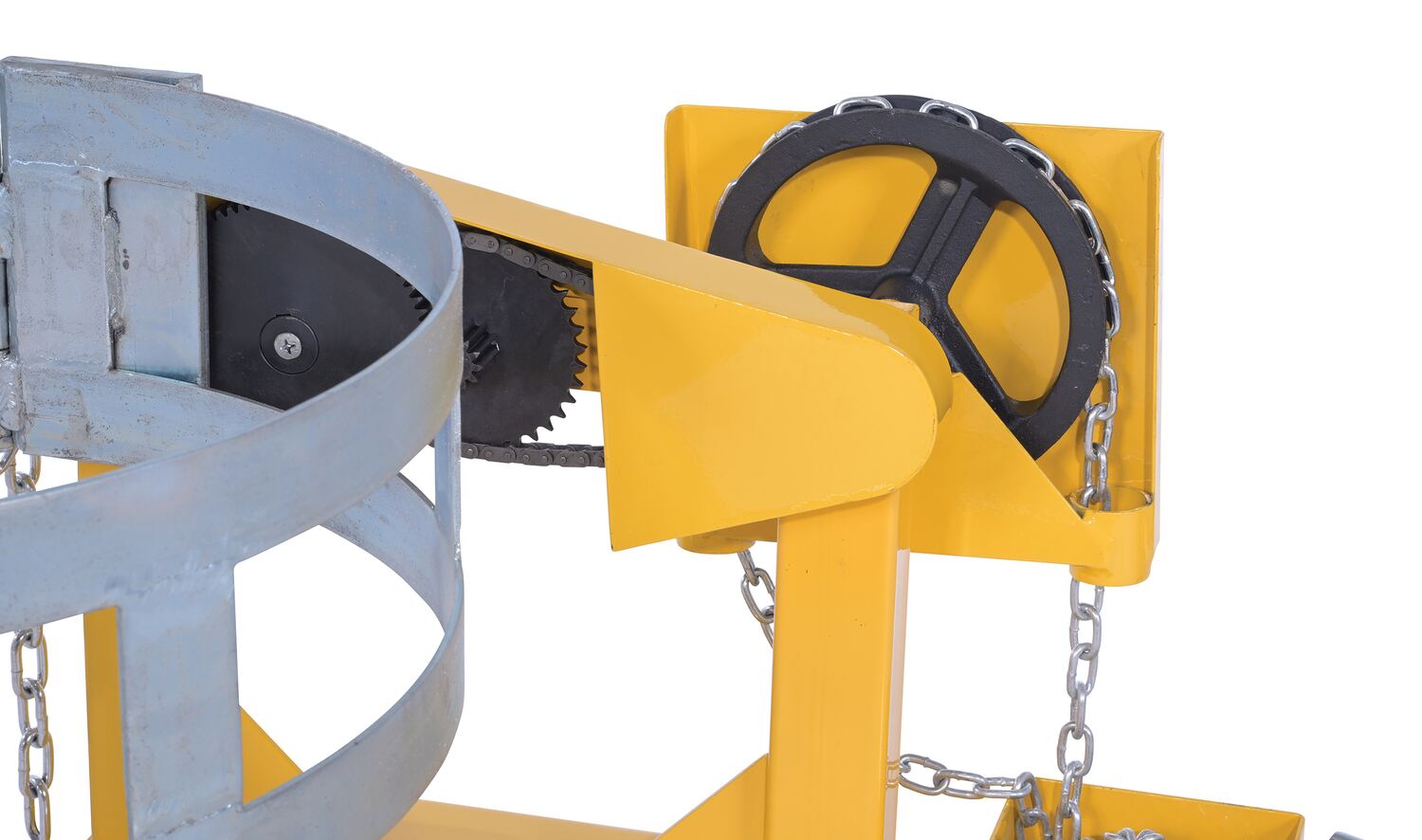

15 Foot Pull Chain Rotation

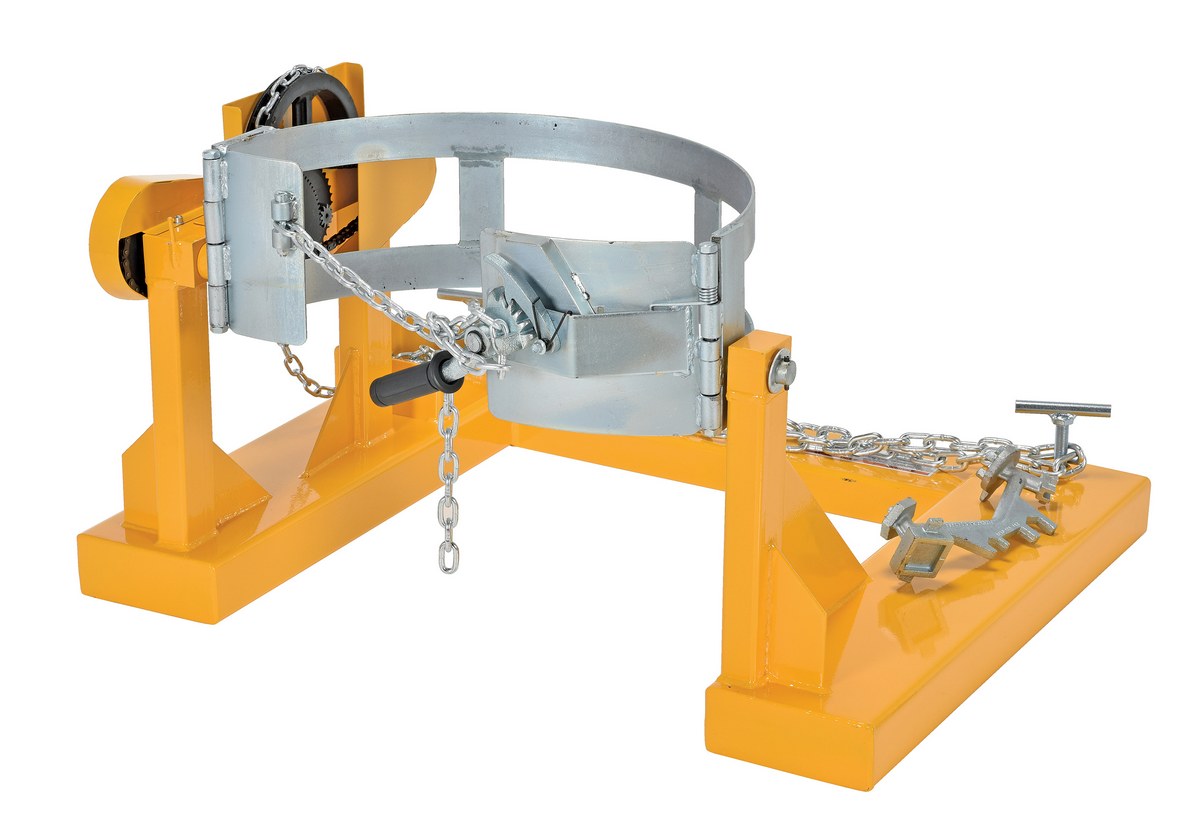

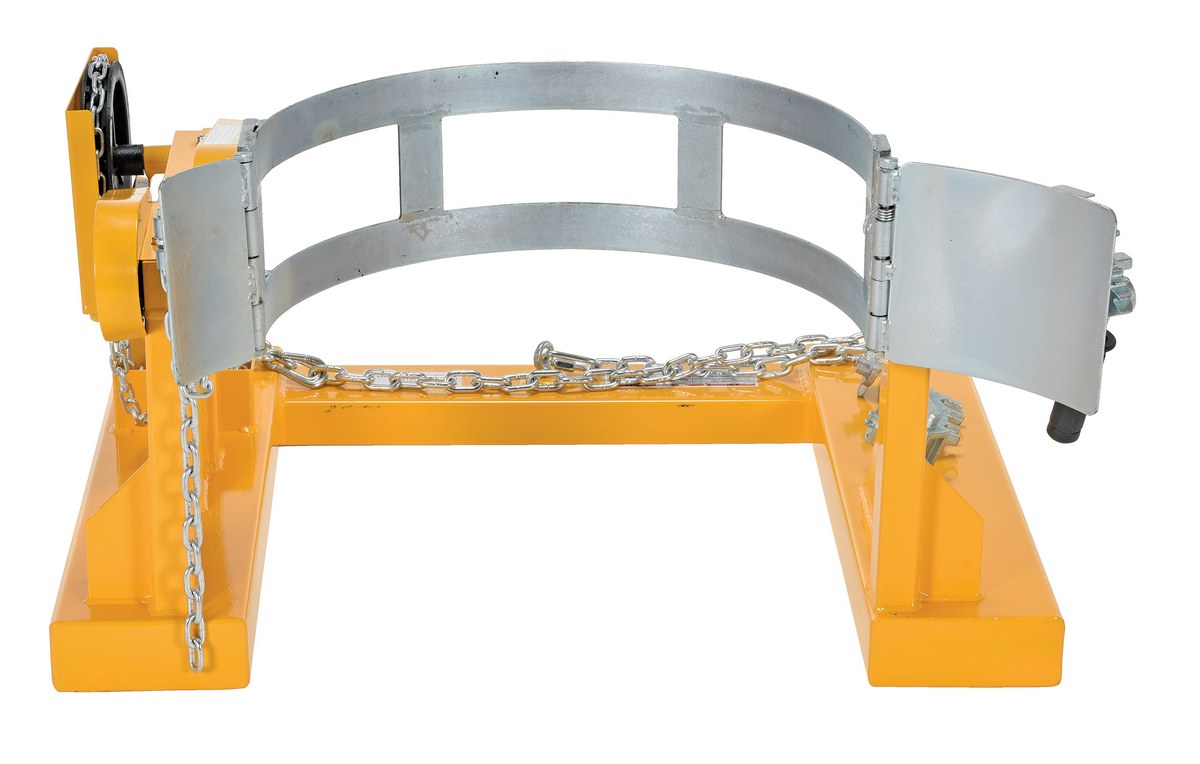

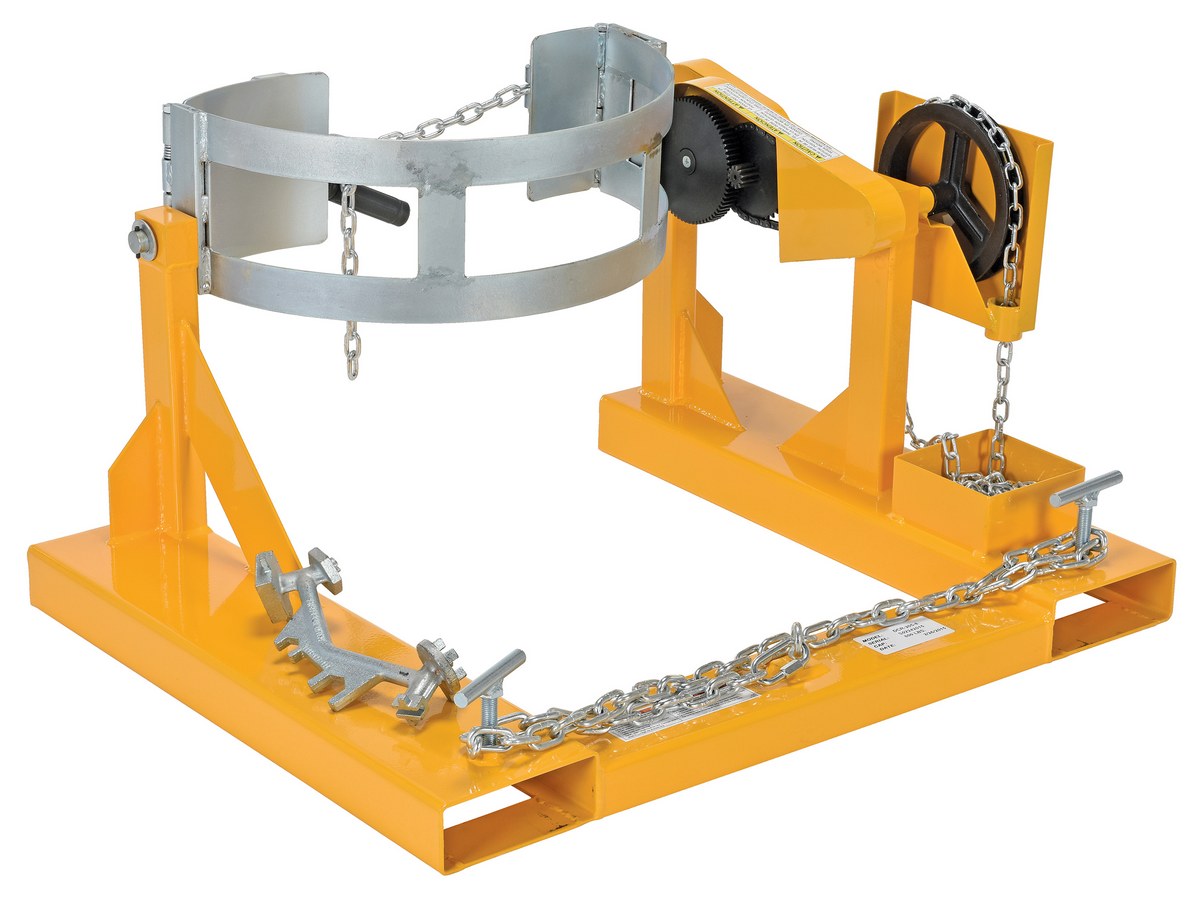

DCR-205-8 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 33" Chain 55 Gallon Steel 800 10 228

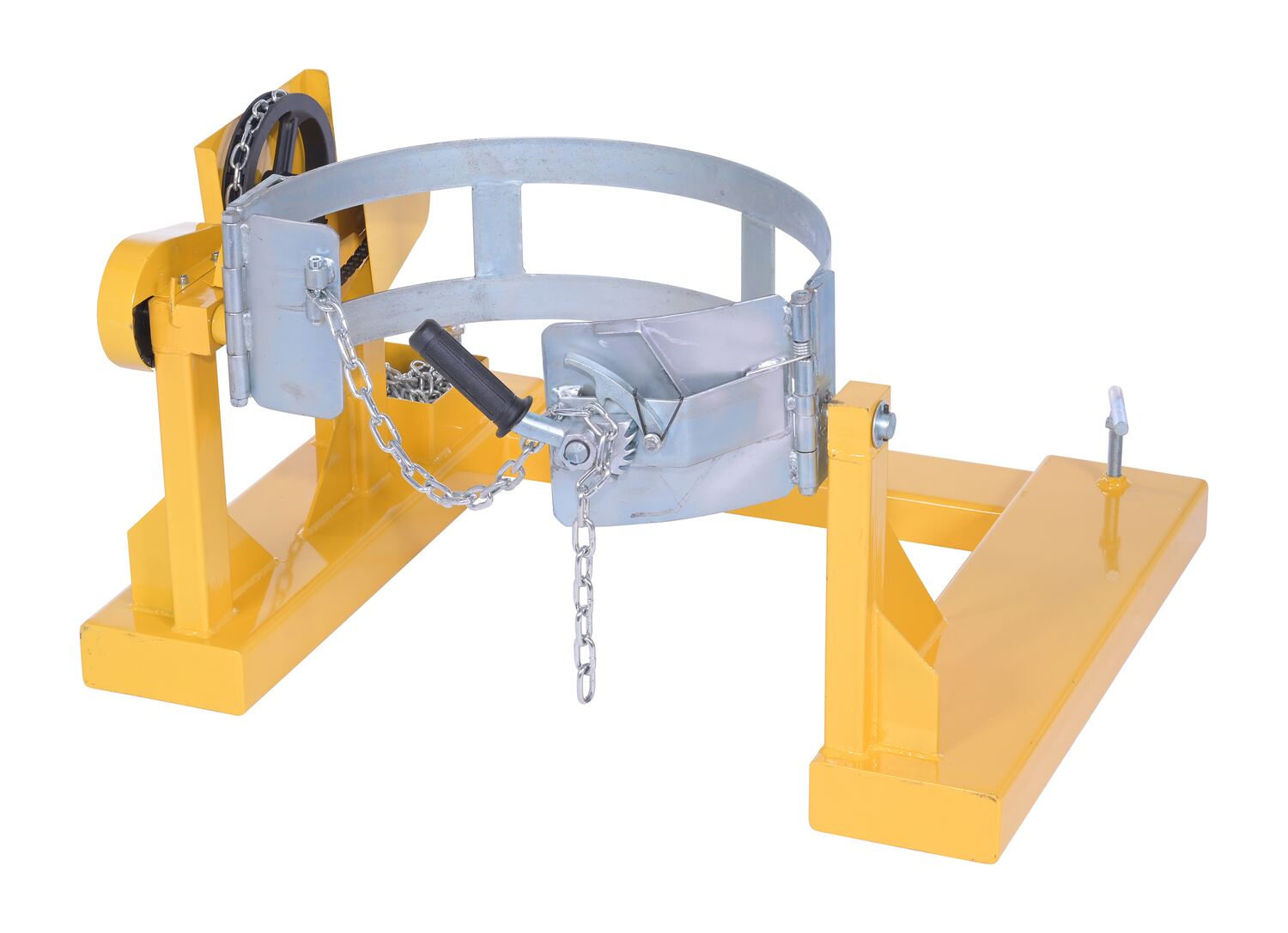

DCR-205-15 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 33" Chain 55 Gallon Steel 1,500 10 222

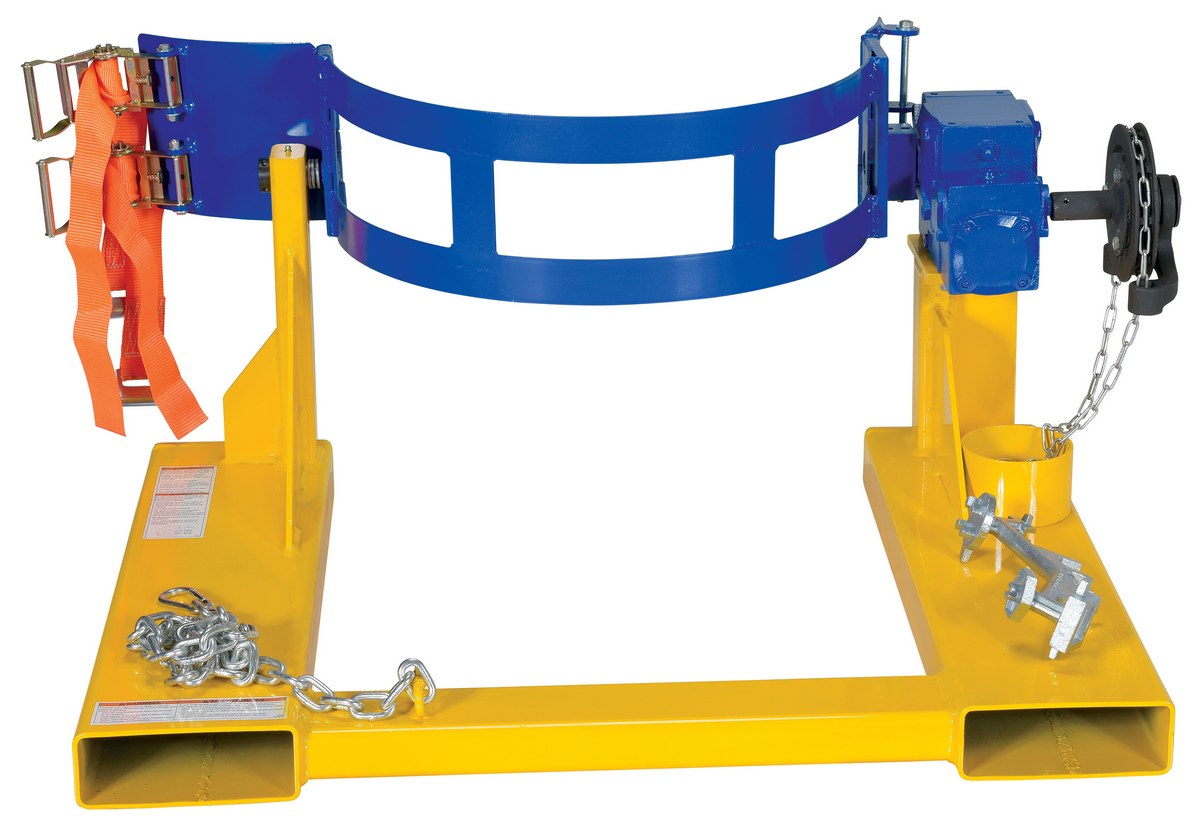

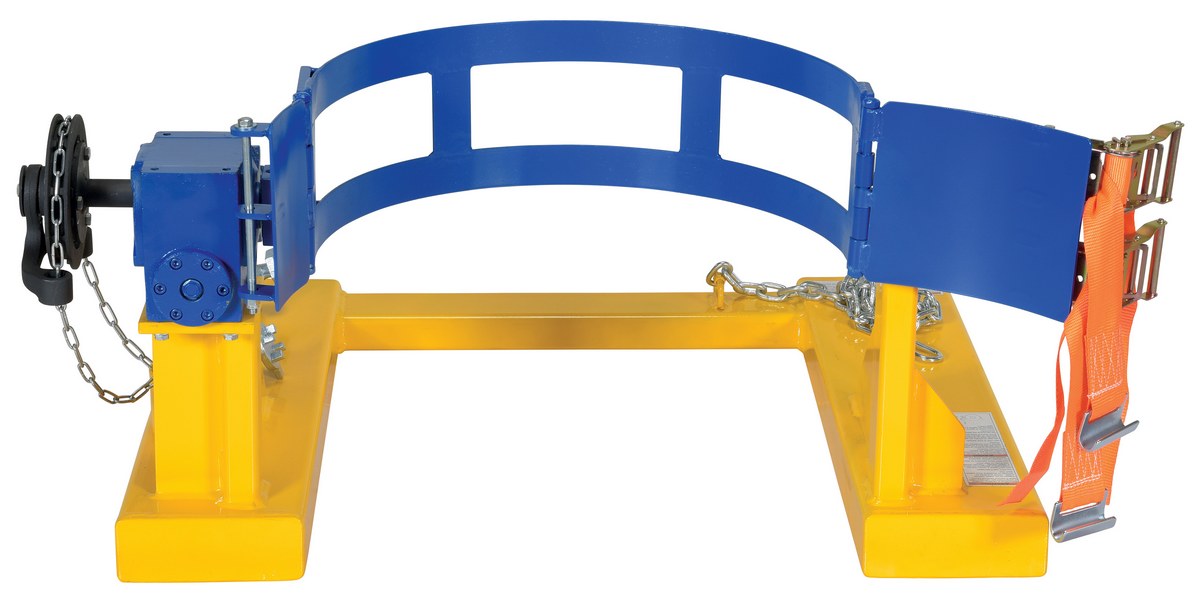

DCR-205-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Dual Ratchet Strap 55 Gallon Steel 2,000 15 229
12V DC Battery Powered Rotation

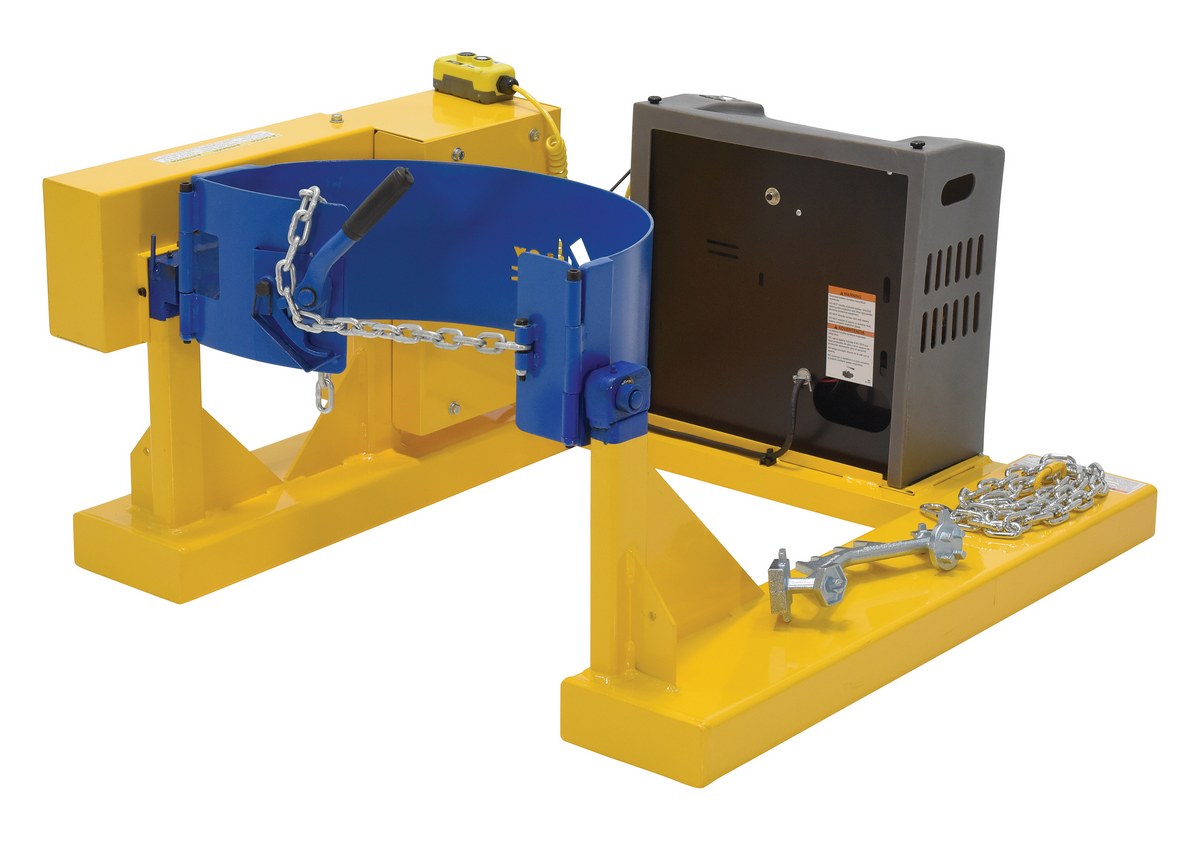

DCR-205-8-DC Warranty PDFCompliance Certificate 36" Chain 55 Gallon Steel 800 -- 241

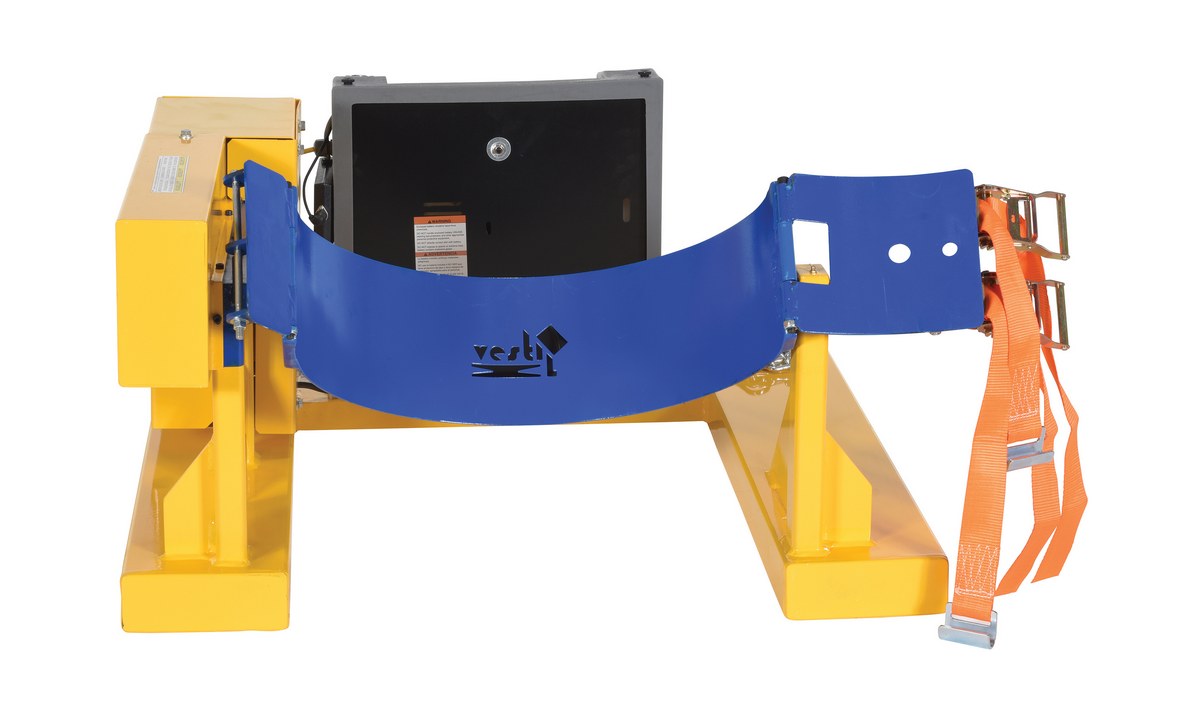

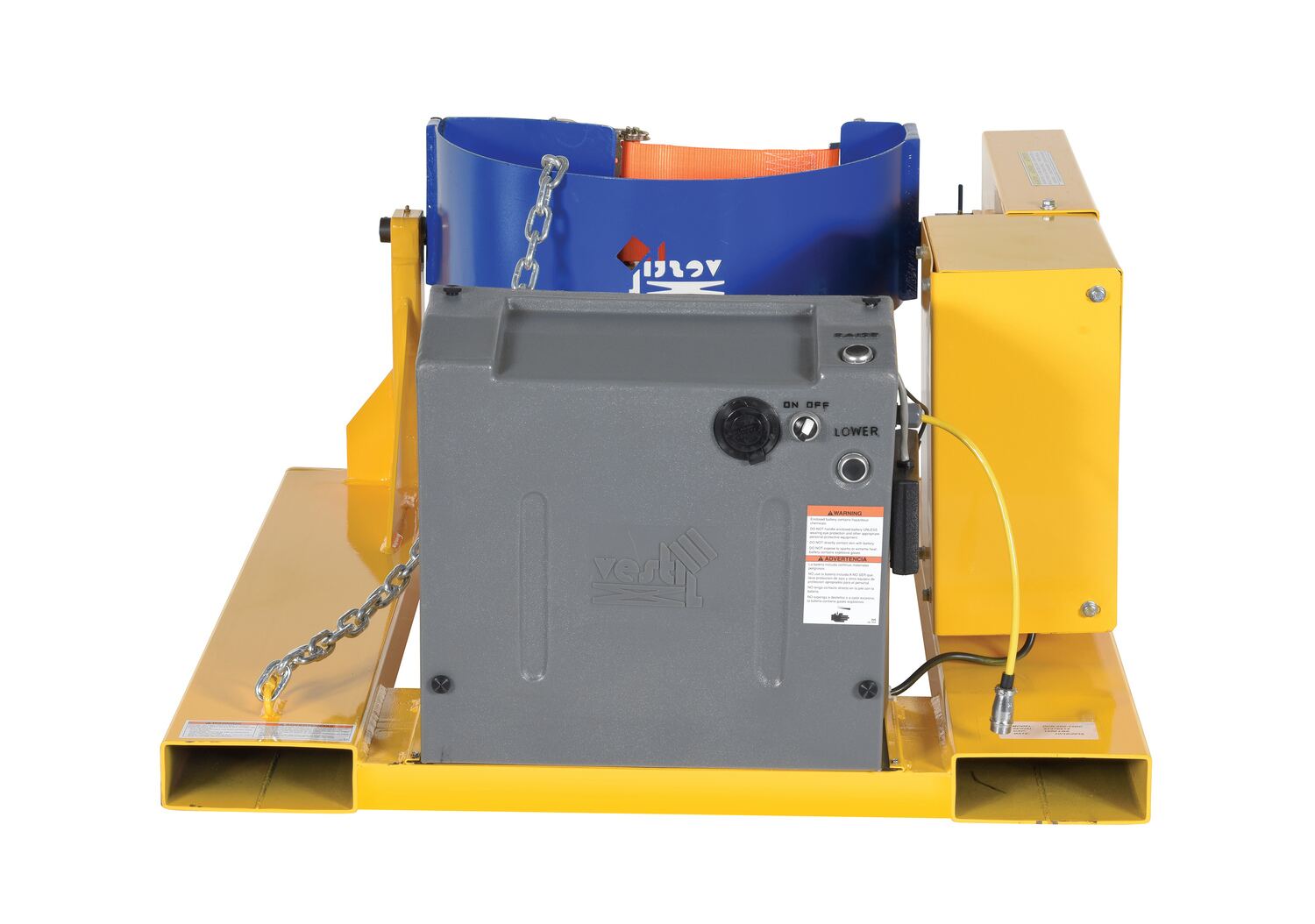

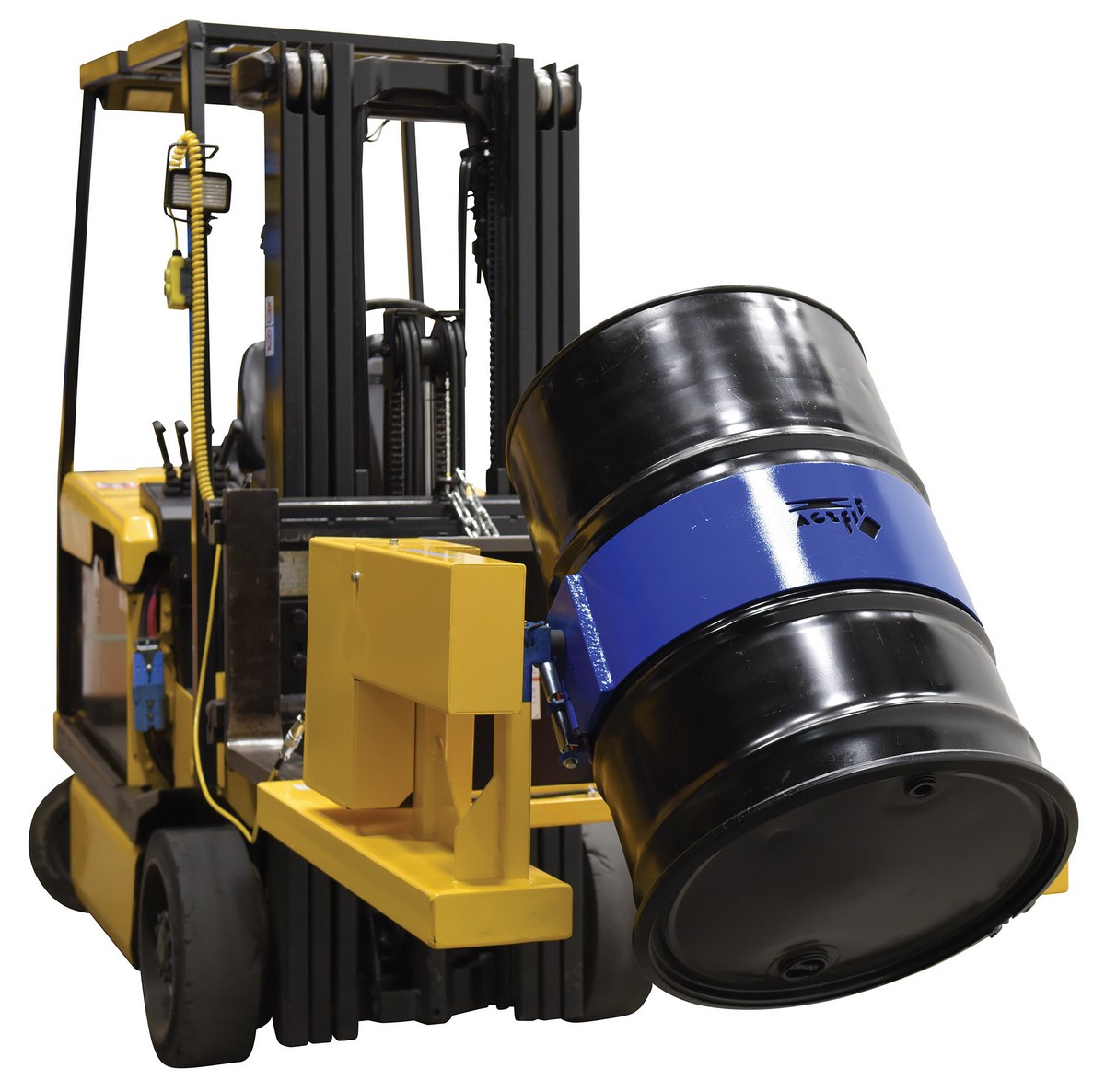

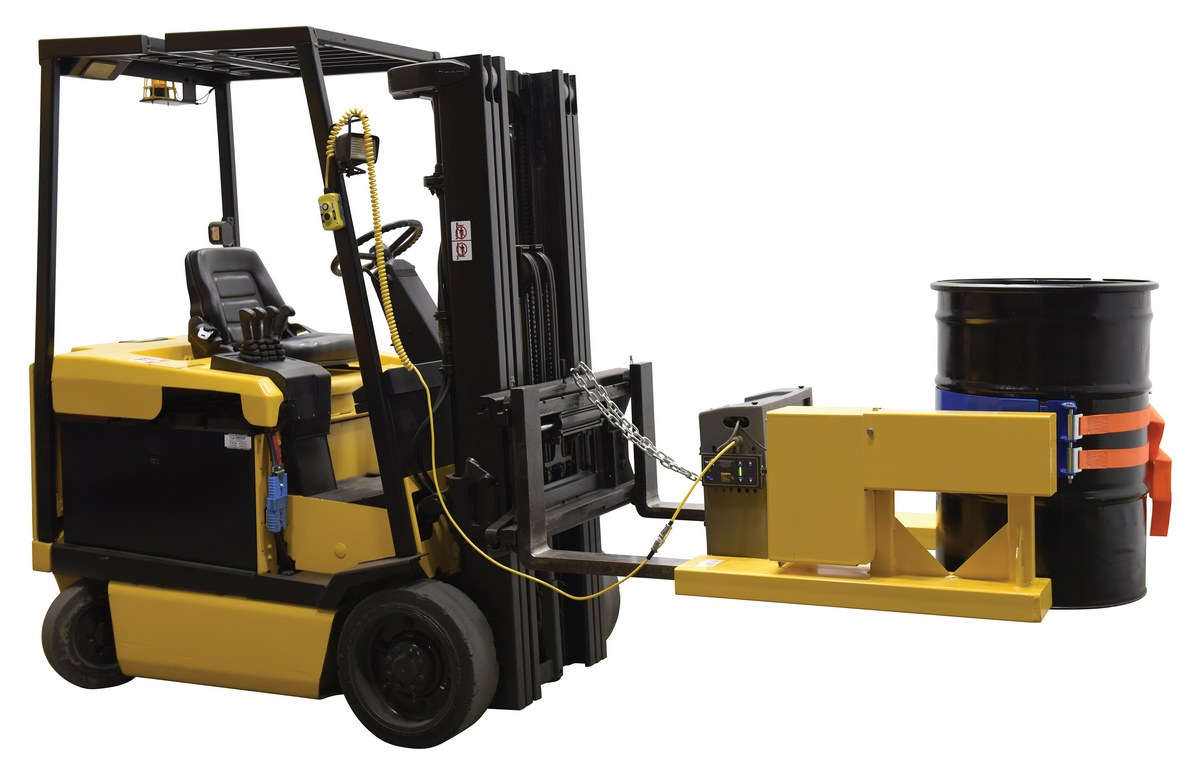

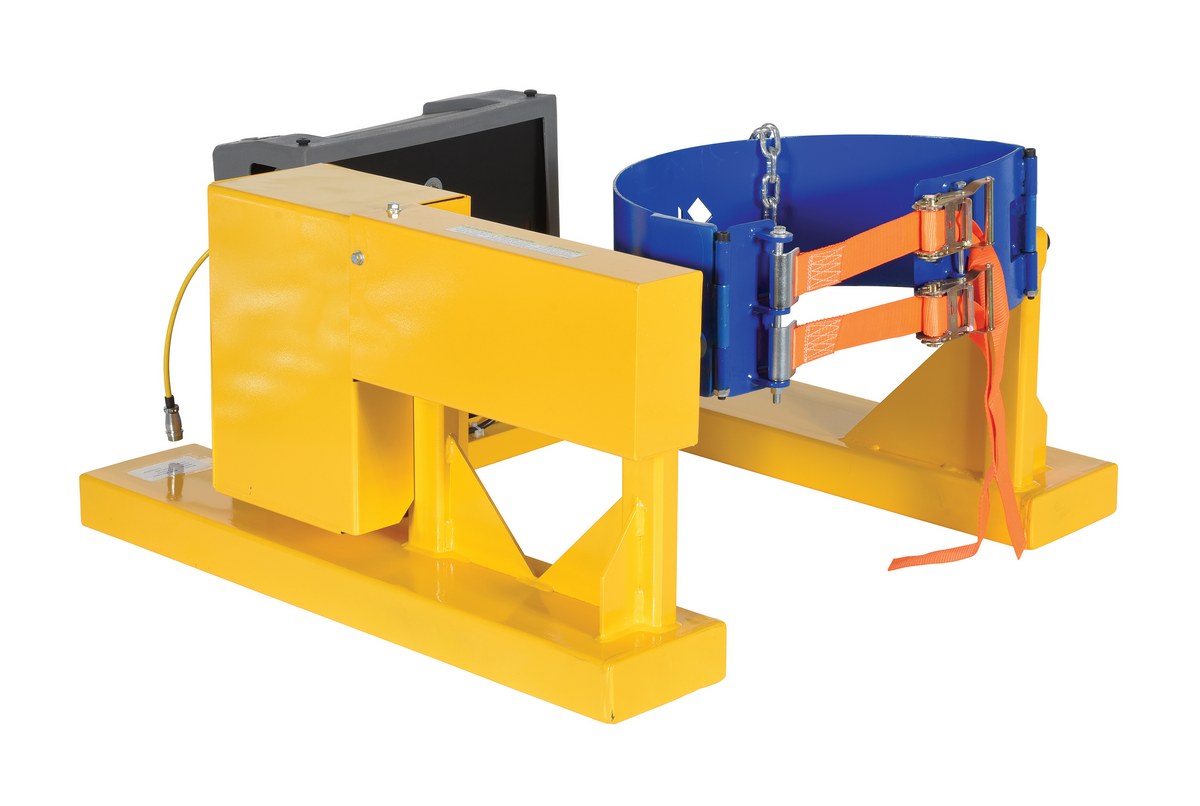

DCR-205-12-DC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" Chain 55 Gallon Steel 1,200 -- 306

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Literature PDF's

Owner's Manuals


Survey Sheets

No Survey Sheets for this product.


Other PDF's

...


Directory Of Available PDF's For All Products

Image Gallery

Image Gallery is being redesigned. Check back soon for all the latest Fork Truck Drum Carrier/Rotators images!

Options

RRC-2PB Radio Remote Control use w/ DC units 1

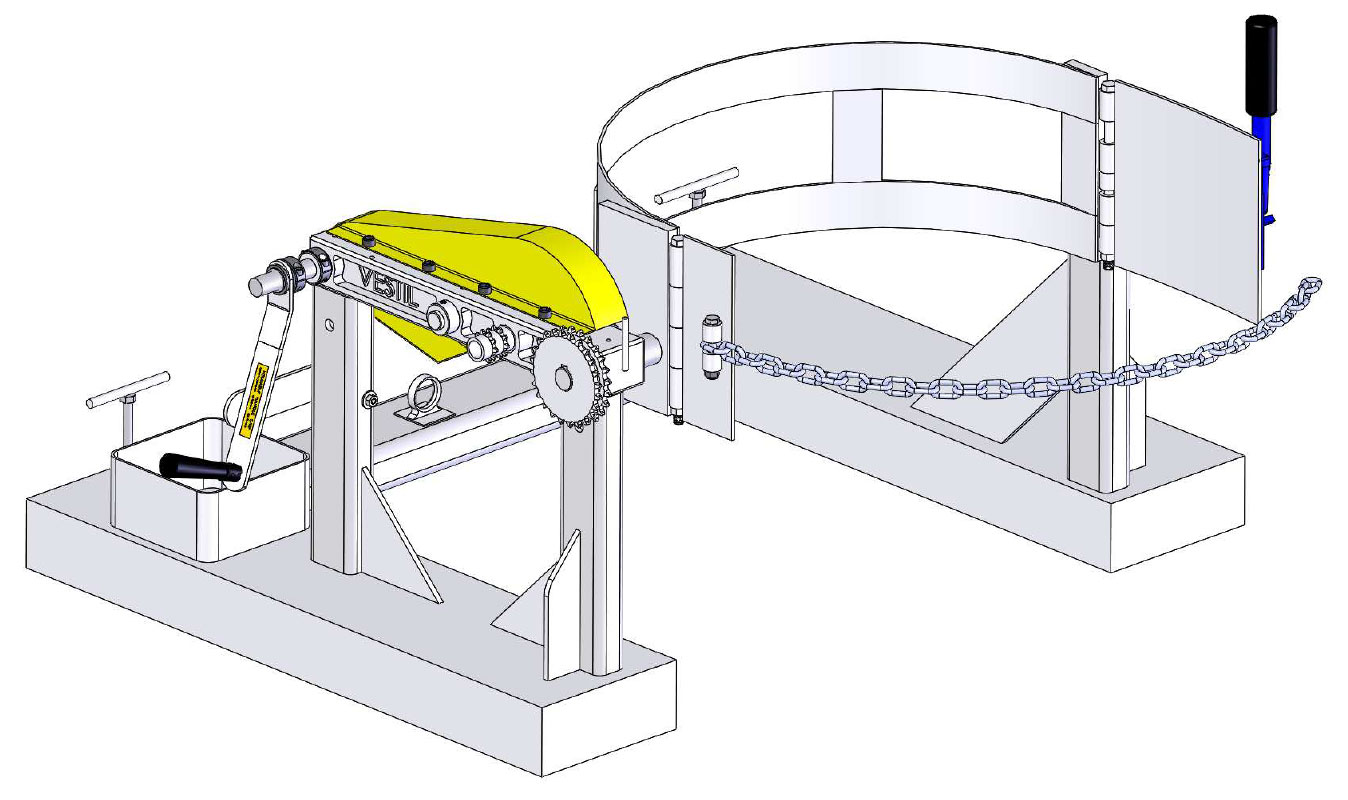

DCR-R-815-HC Hand Crank (In place of pull chain, For DCR-205-8 and DCR-205-15) 1
DCR-R-20-HC Hand Crank (In place of pull chain, For DCR-205-20) 1
