Model Details

DGD-A

DGD-A

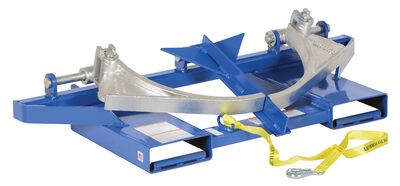

Steel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity Blue

The drum gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drum without leaving the seat of the fork truck. Simply slip the forks into the fork pocket, fasten the safety restraint and the drum gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. Features hinged folding design for storage and adjustable-width arms for use with steel drums. Safety restraint included. Welded steel construction. Powder coat finish.

  • Unique drum release design automatically releases drum by lowering forks
  • Heavy-duty welded steel construction provides long lasting rugged use
  • Knuckle grip design securely grabs steel drums
  • Fold-up arms provide convenient storage
Total Ship Wt.(lbs.): 211 (only 1 package) Size: 45"W x 35"L x 7.5"H Color: Blue

Uniform Capacity (lb.): 1,500 Accepts: (2) 30 and/or 55-gallon steel drums Fork Pocket on Center (in.): 24
Fork Pocket Width (in.): 7-5/8 Usable Fork Pocket Height (in.): 1-7/8 Fork Pocket Length (in.): 15-7/8
Type: Adjustable Fold-up Minimum Drum Spacing Each Side (in.): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DGD-A


DGD-A

Steel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity Blue

The drum gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drum without leaving the seat of the fork truck. Simply slip the forks into the fork pocket, fasten the safety restraint and the drum gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. Features hinged folding design for storage and adjustable-width arms for use with steel drums. Safety restraint included. Welded steel construction. Powder coat finish.

  • Unique drum release design automatically releases drum by lowering forks
  • Heavy-duty welded steel construction provides long lasting rugged use
  • Knuckle grip design securely grabs steel drums
  • Fold-up arms provide convenient storage
Dimensions: 45"W x 35"L x 7.5"H Sell UOM: EA-Each Color: Blue
Material: Welded Steel UPC: 691215013161 GTIN: 00691215013161
Warranty: -- Shipping Weight: 211 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Accepts: (2) 30 and/or 55-gallon steel drums Fork Pocket on Center (in.): 24
Fork Pocket Width (in.): 7-5/8 Usable Fork Pocket Height (in.): 1-7/8 Fork Pocket Length (in.): 15-7/8
Type: Adjustable Fold-up Minimum Drum Spacing Each Side (in.): 2
