Product Family Overview


Drum Grippers
SERIES: DGS, DGD

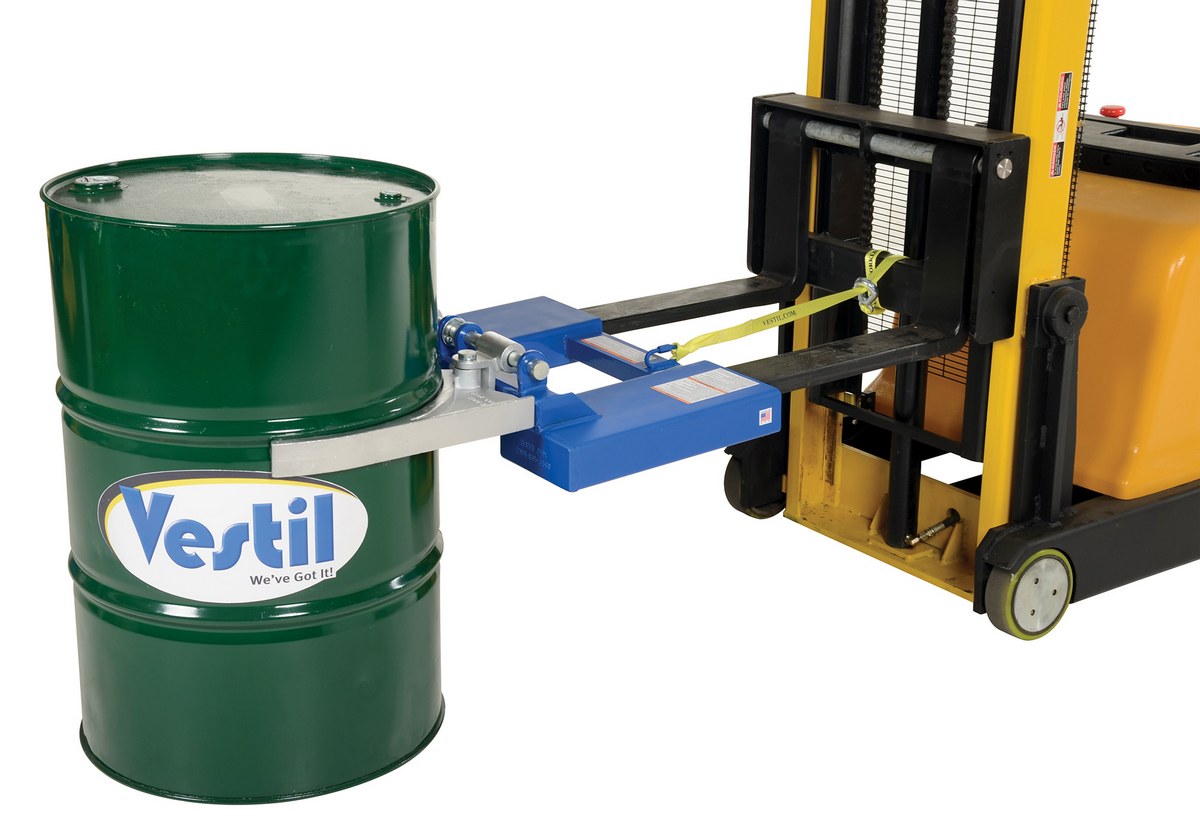

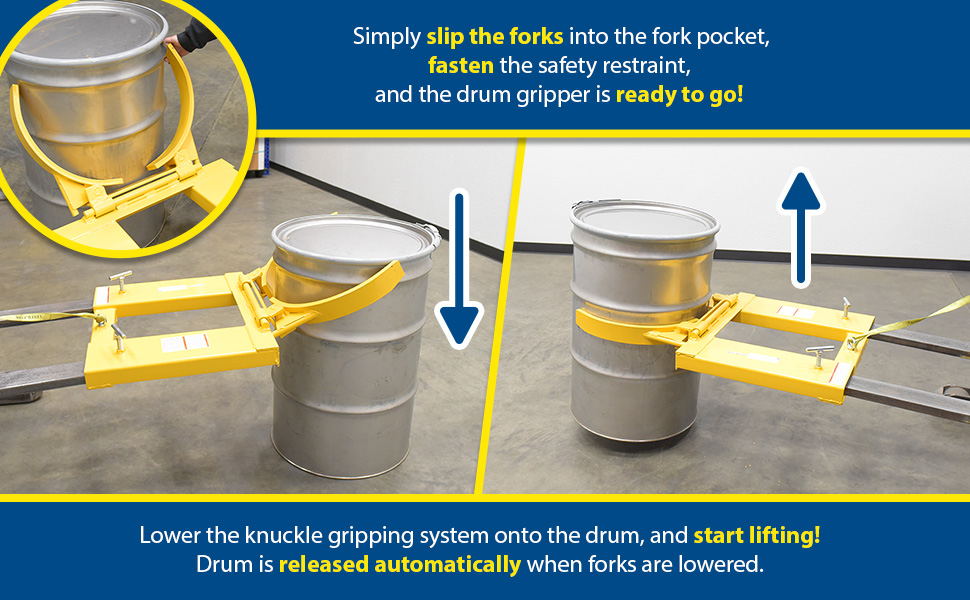

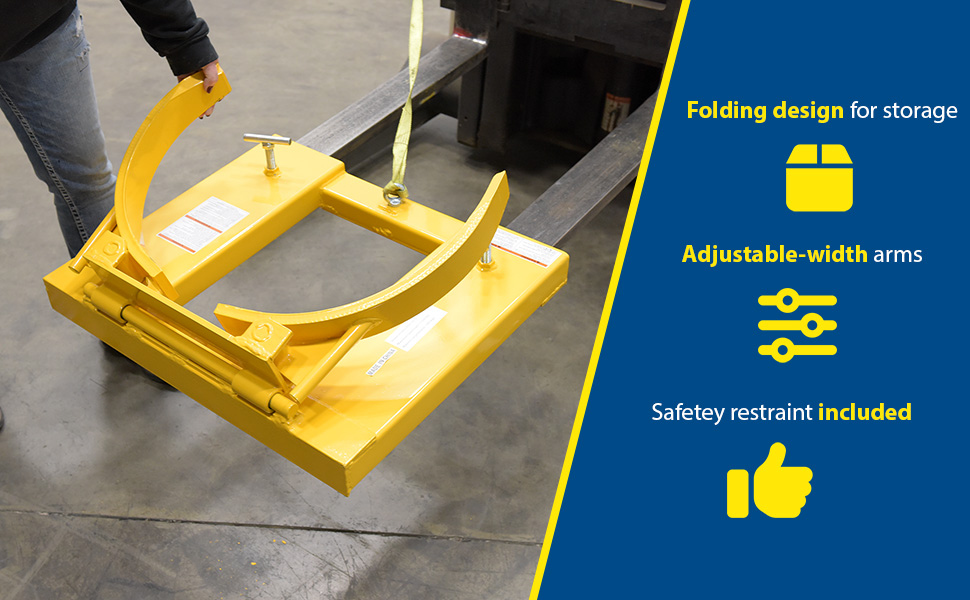

The Drum Gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drums without leaving the seat of the fork truck. Simply slip the forks into the fork tubes, fasten the safety restraint and the Drum Gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. All models feature hinged folding design for storage. Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.

Models DGS-A, DGD-A, and DGS-A-PSD features adjustable-width arms for use with both 30-gallon and 55-gallon steel and plastic drums (with top ring or top ridge). Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.

The Drum Gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drums without leaving the seat of the fork truck. Simply slip the forks into the fork tubes, fasten the safety restraint and the Drum Gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. All models feature hinged folding design for storage. Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.

Models DGS-A, DGD-A, and DGS-A-PSD features adjustable-width arms for use with both 30-gallon and 55-gallon steel and plastic drums (with top ring or top ridge). Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

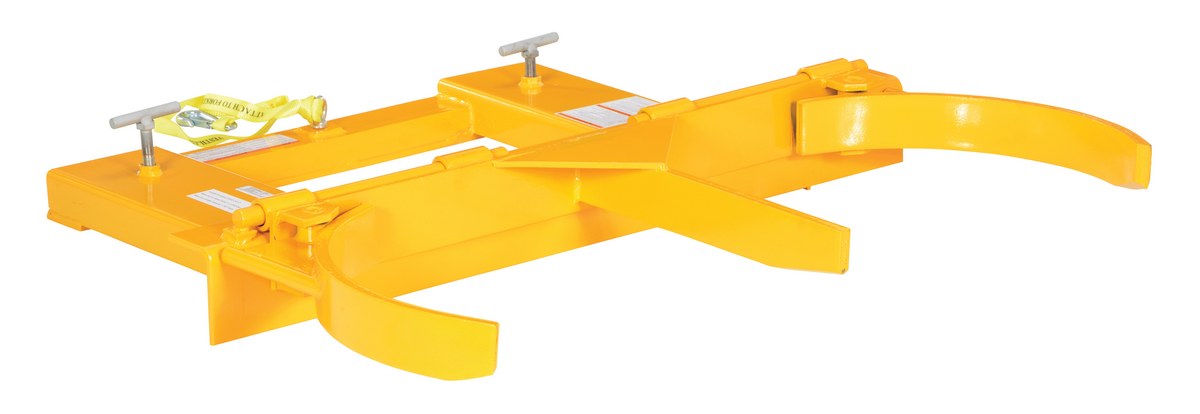

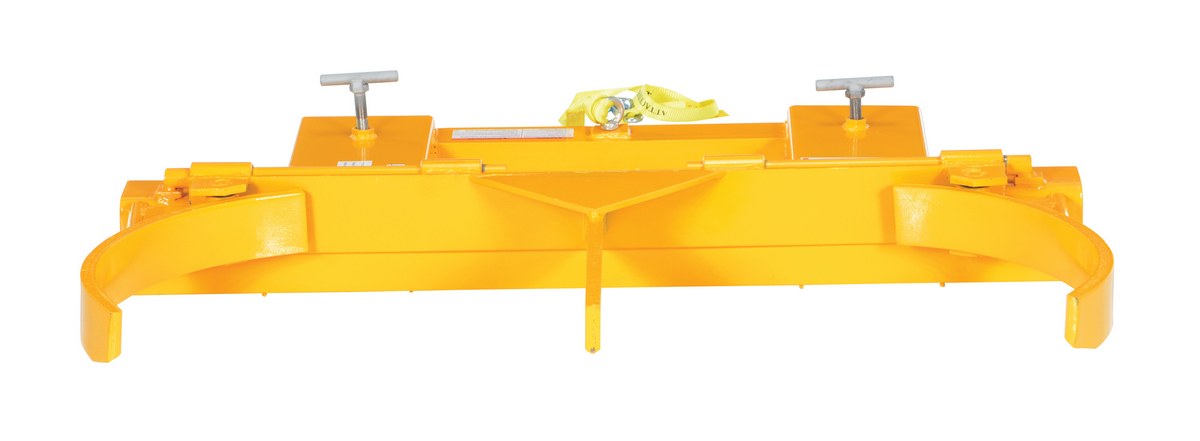

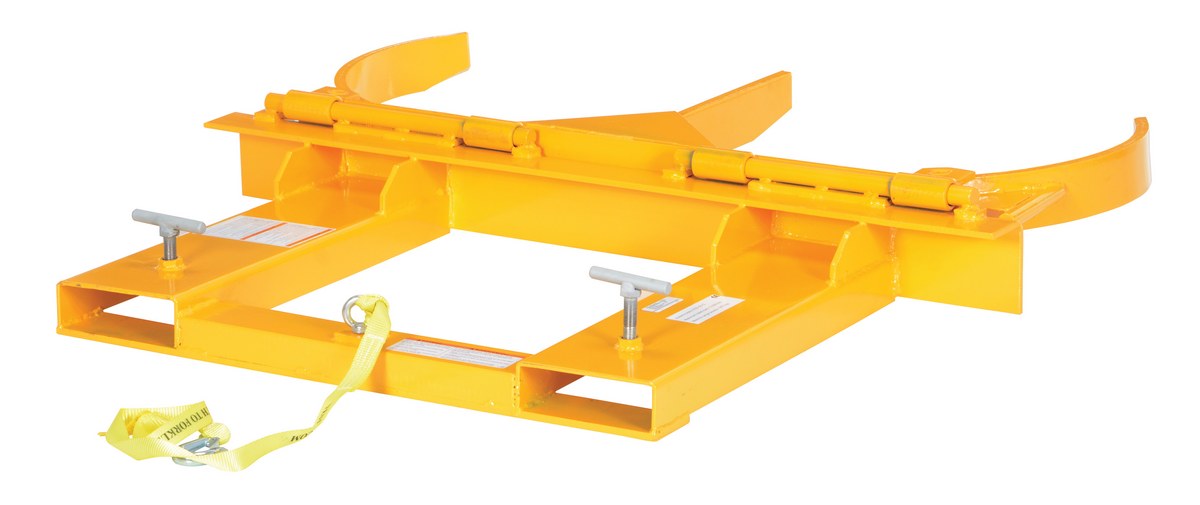

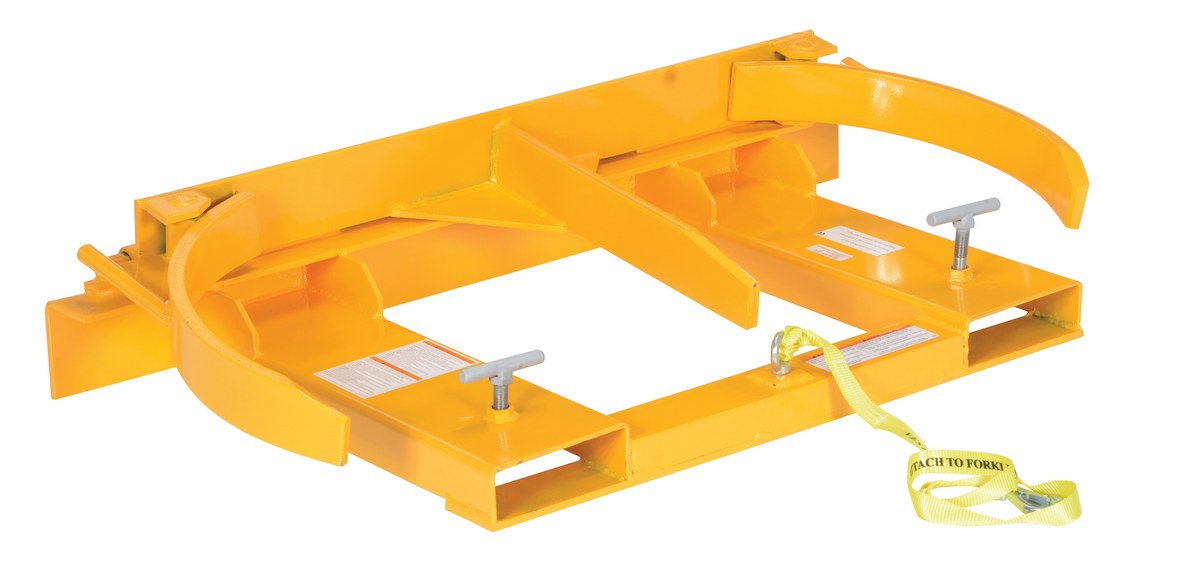

DGD-55-D DGD-55-D90 Days Limited WarrantySteel Deluxe Double Drum Gripper 55 Gallon 43-5/8 In. x 46-1/4 In. x 9-3/8 In. 2000 Lb. Capacity YellowUniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
223

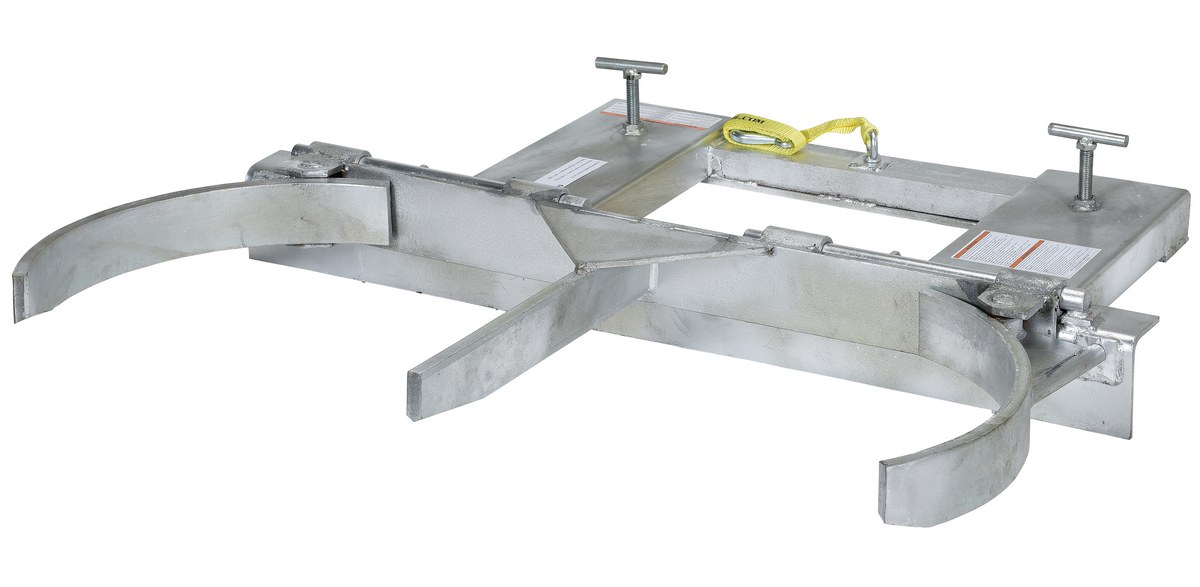

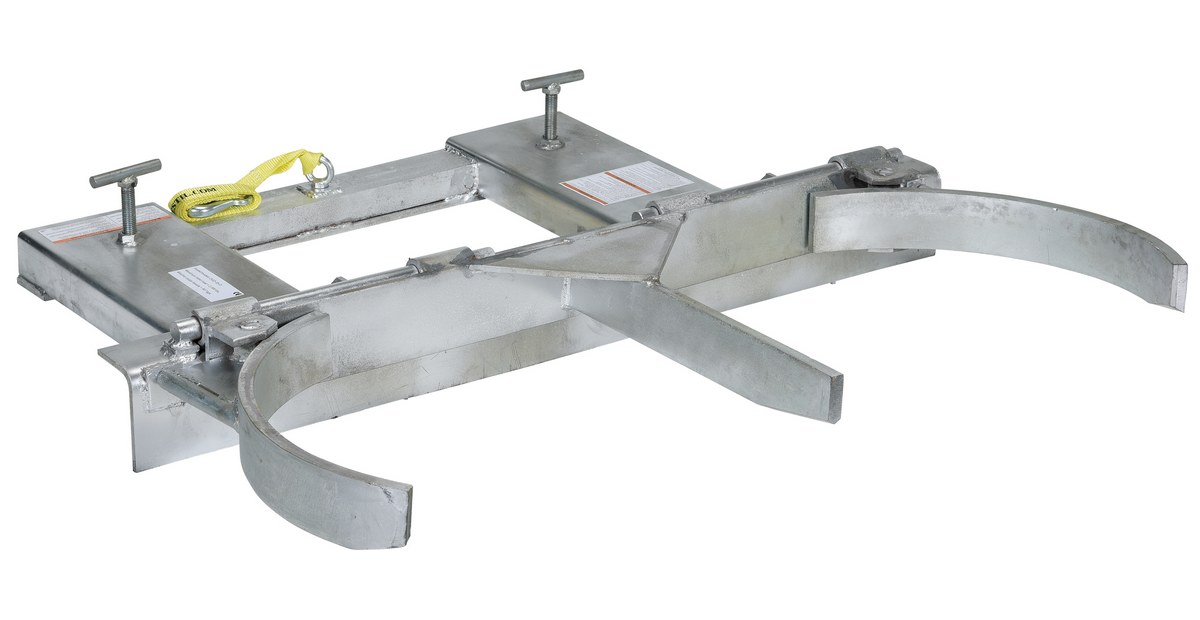

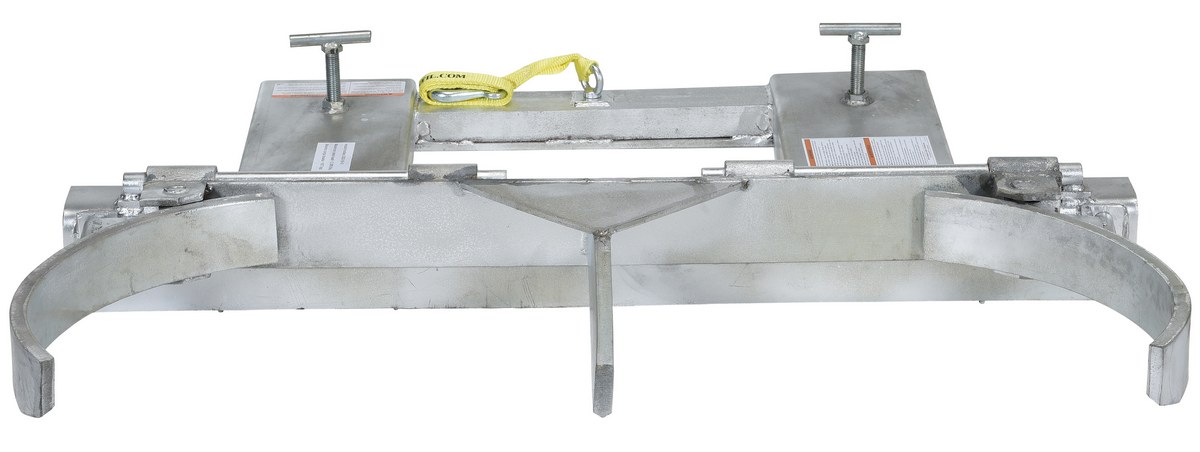

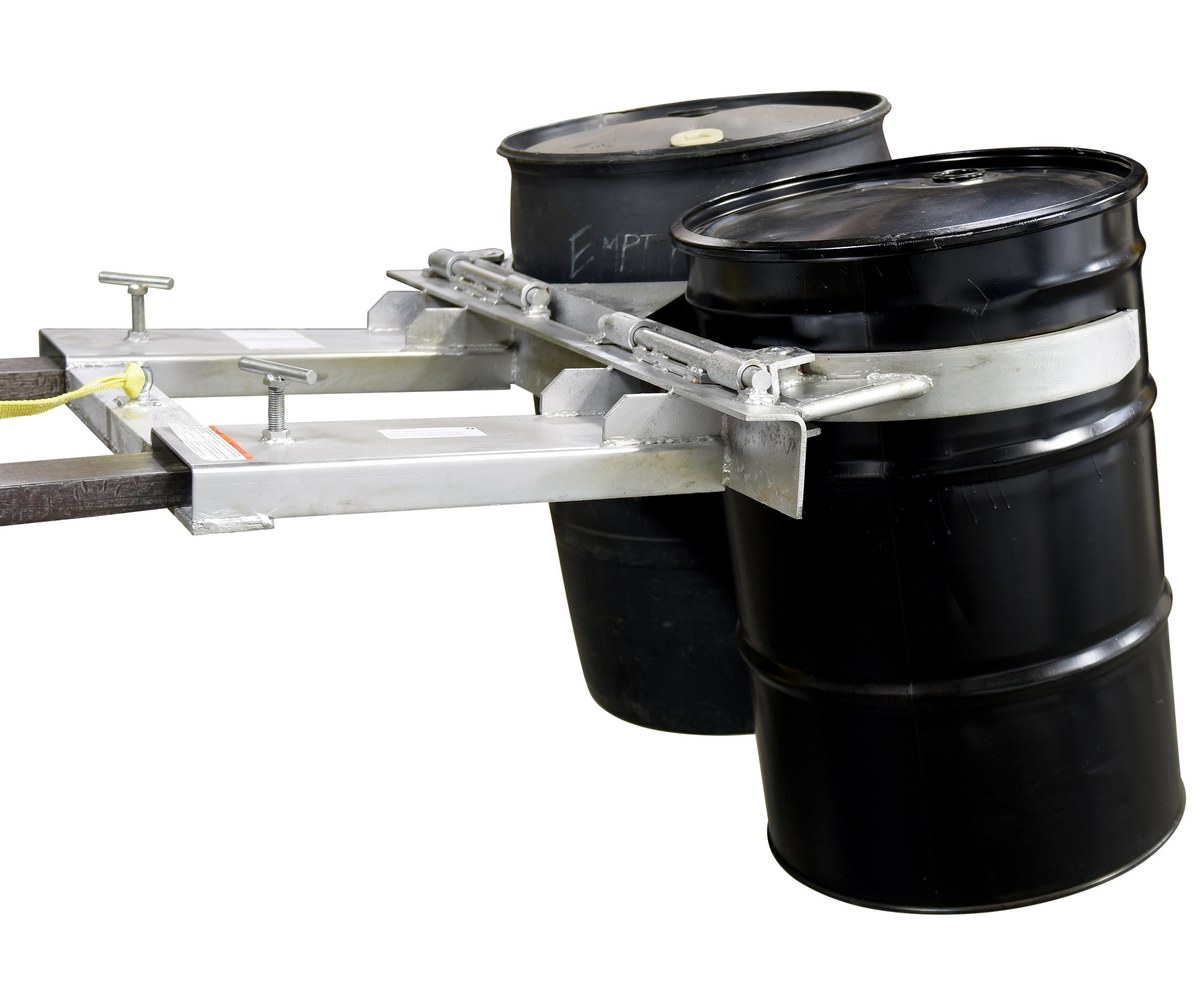

DGD-55-D-G DGD-55-D-G90 Days Limited WarrantyGalvanized Steel Deluxe Double Drum Gripper 55 Gallon 43-5/8 In. x 46 In. x 9-1/2 In. 2000 Lb. Capacity GrayUniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
258

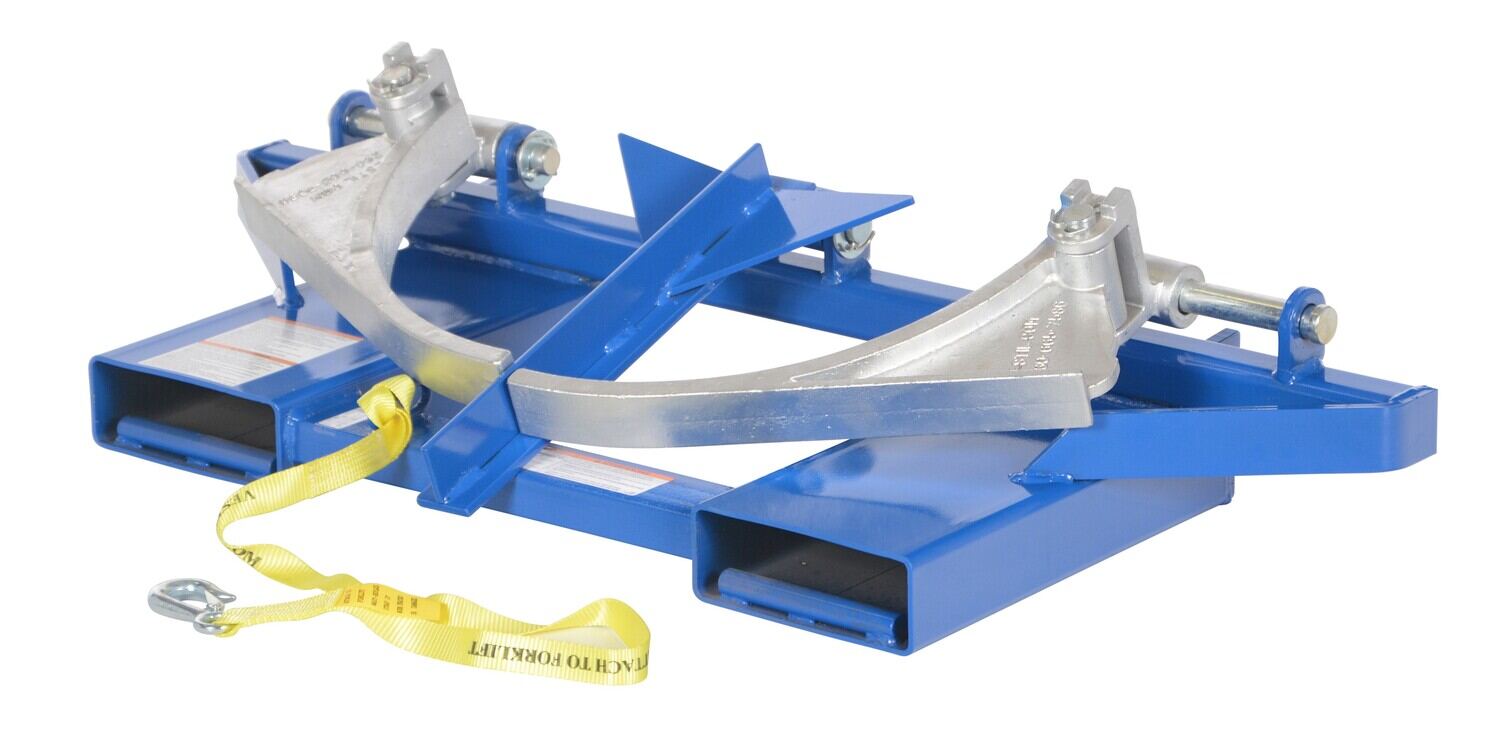

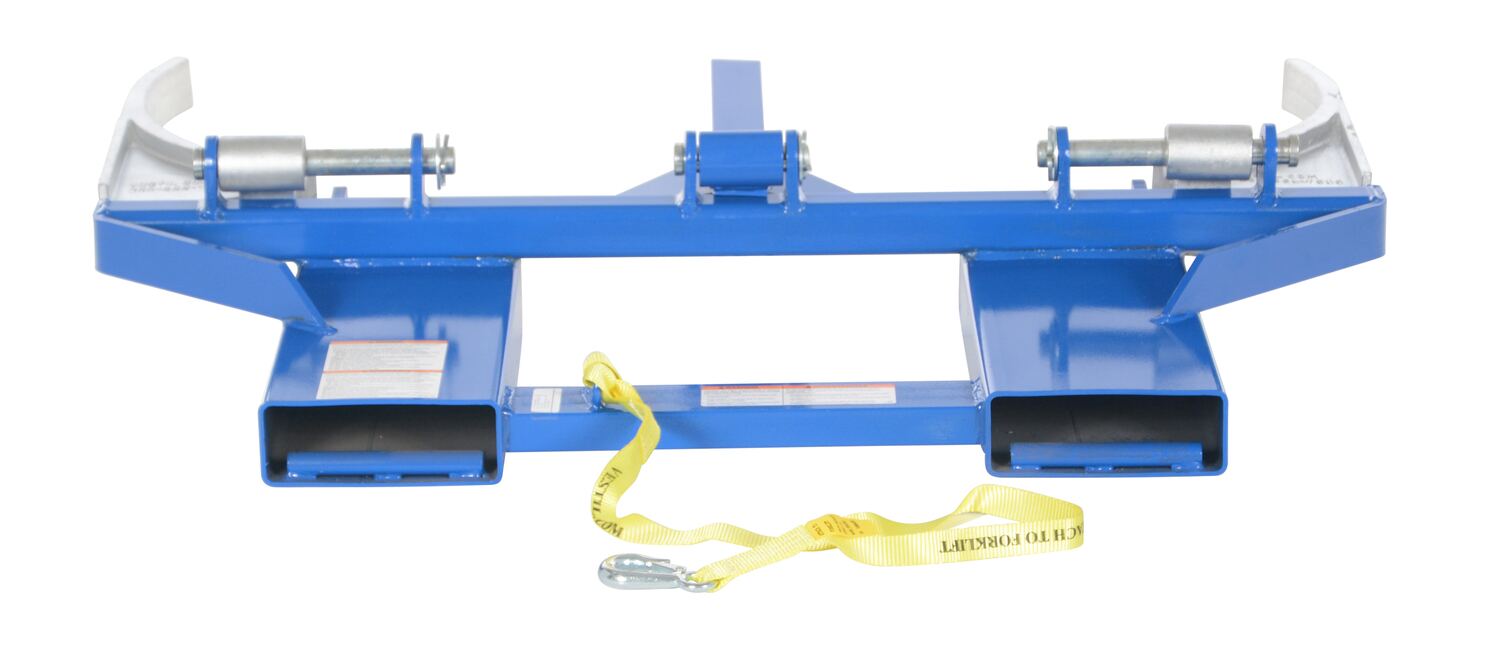

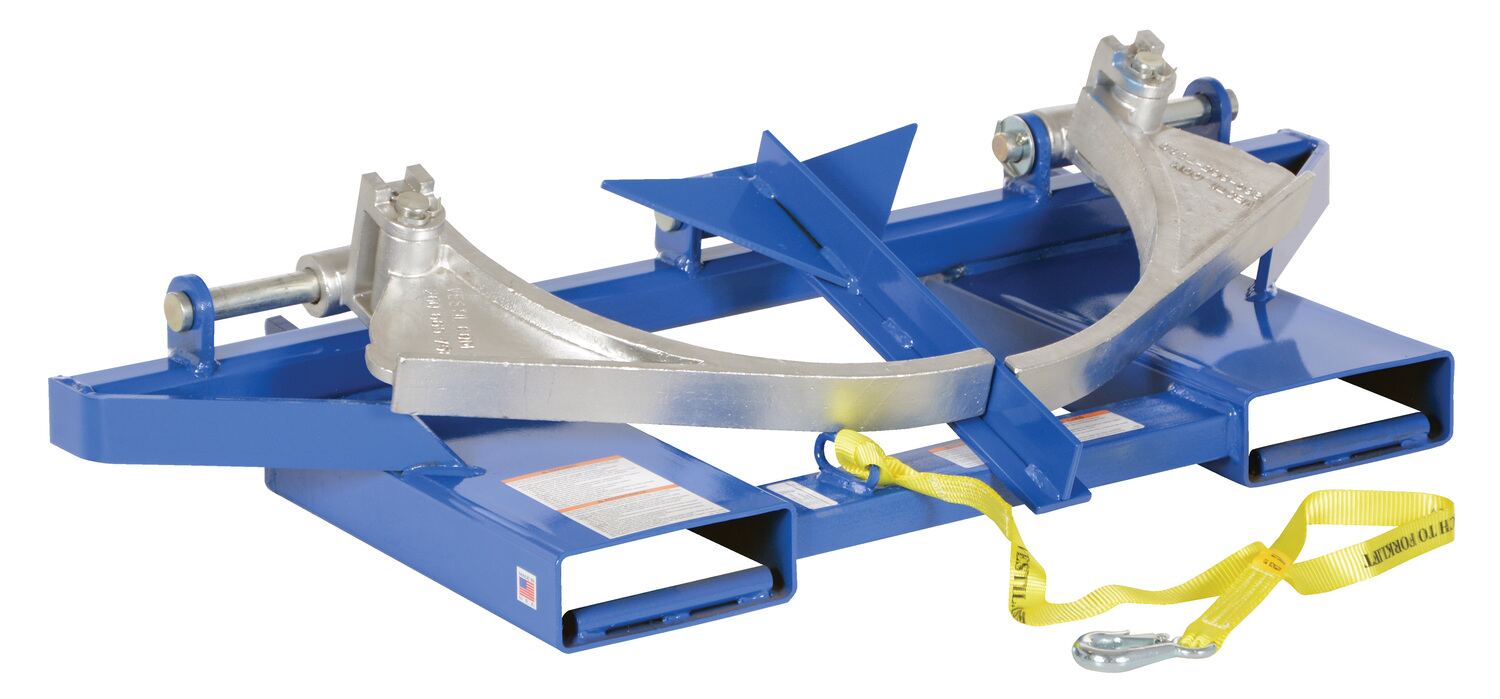

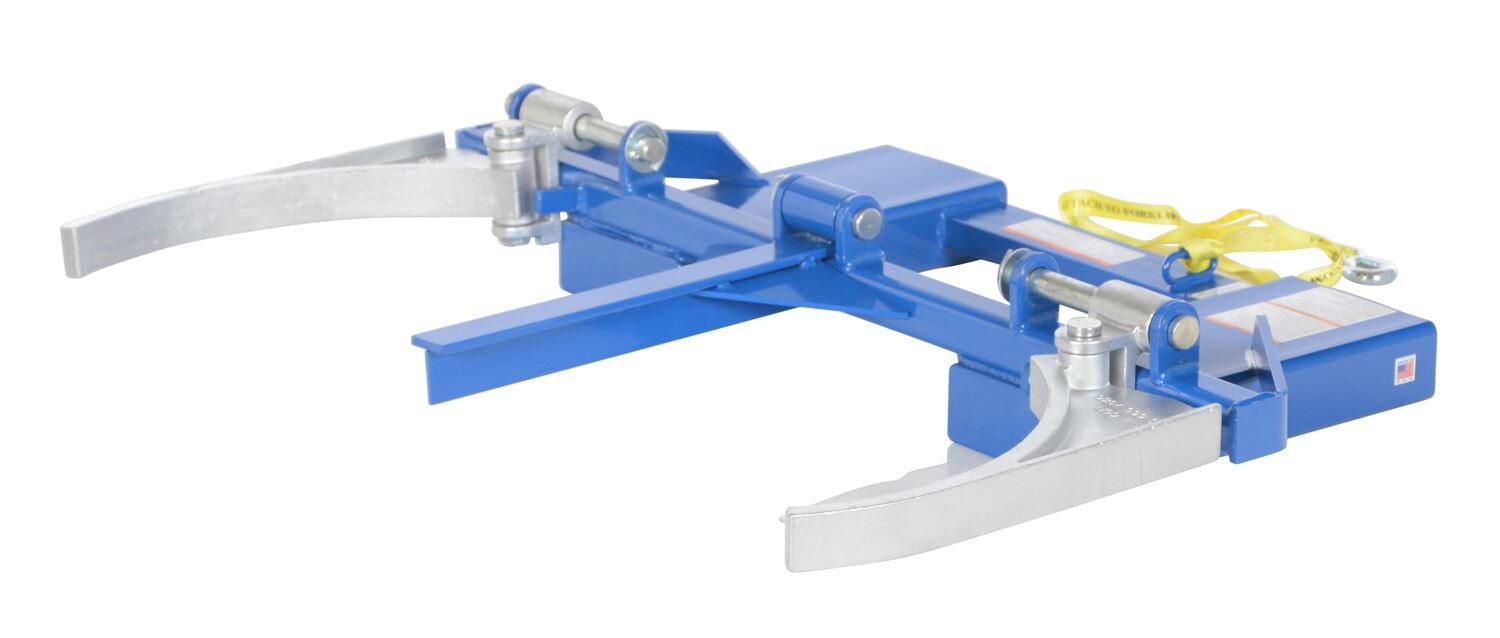

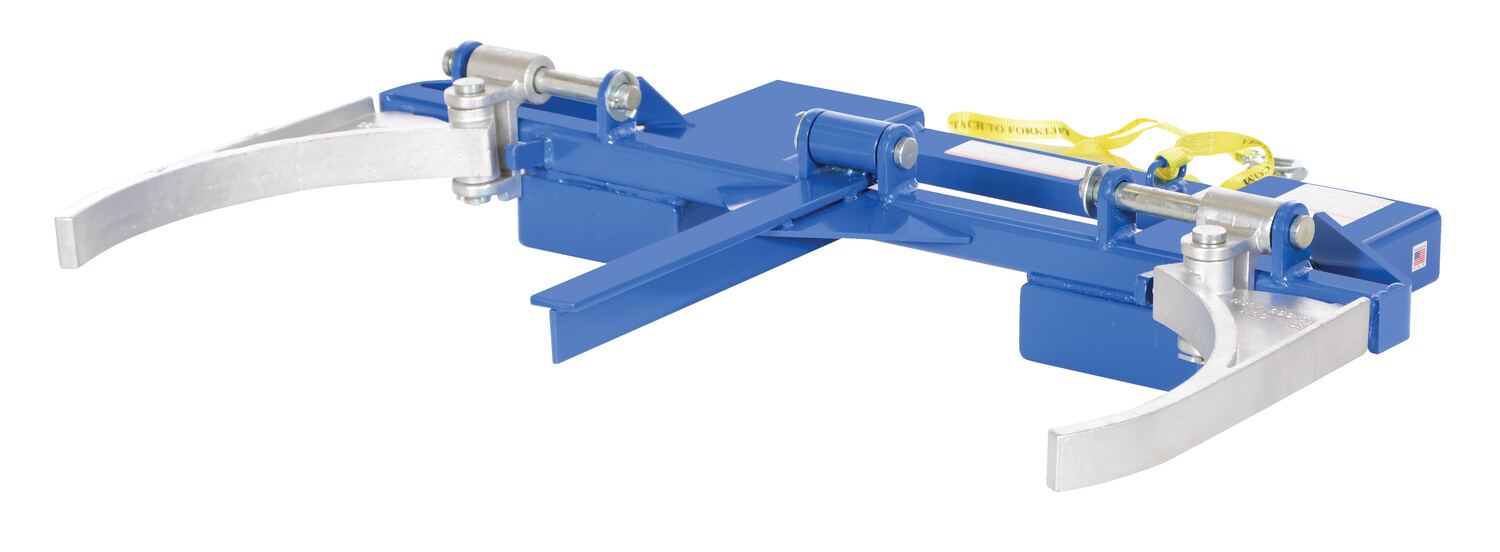

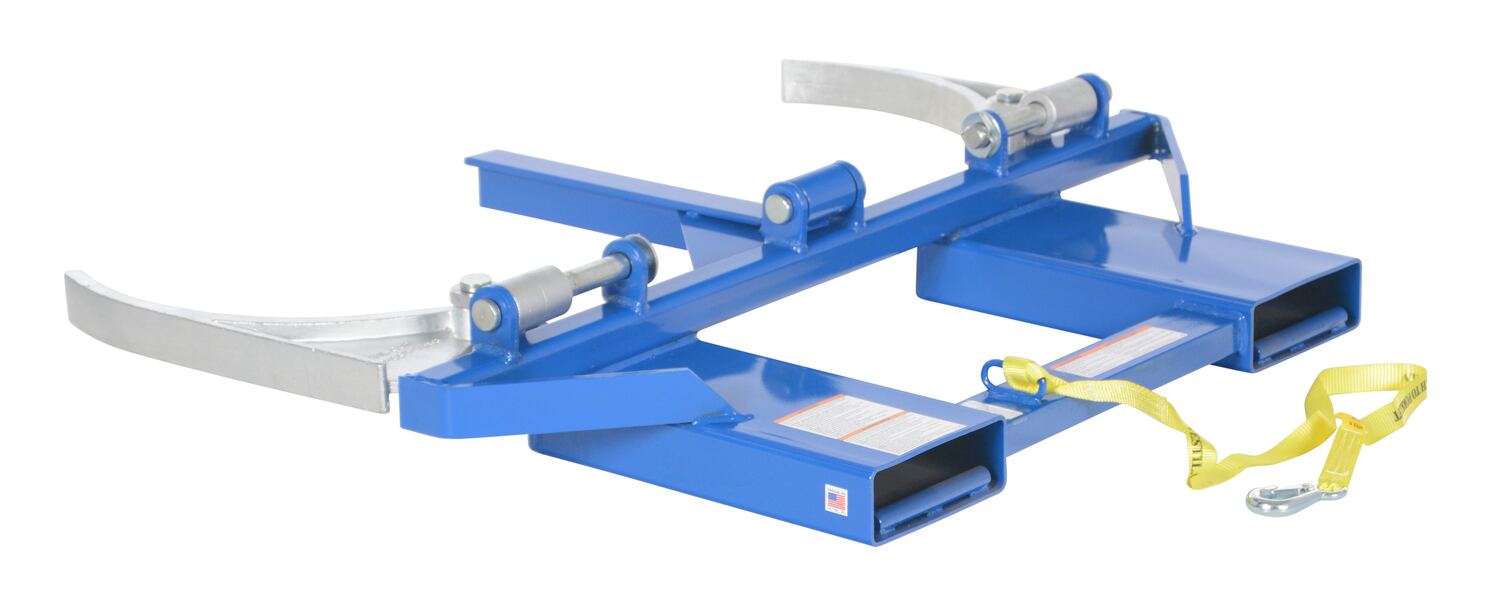

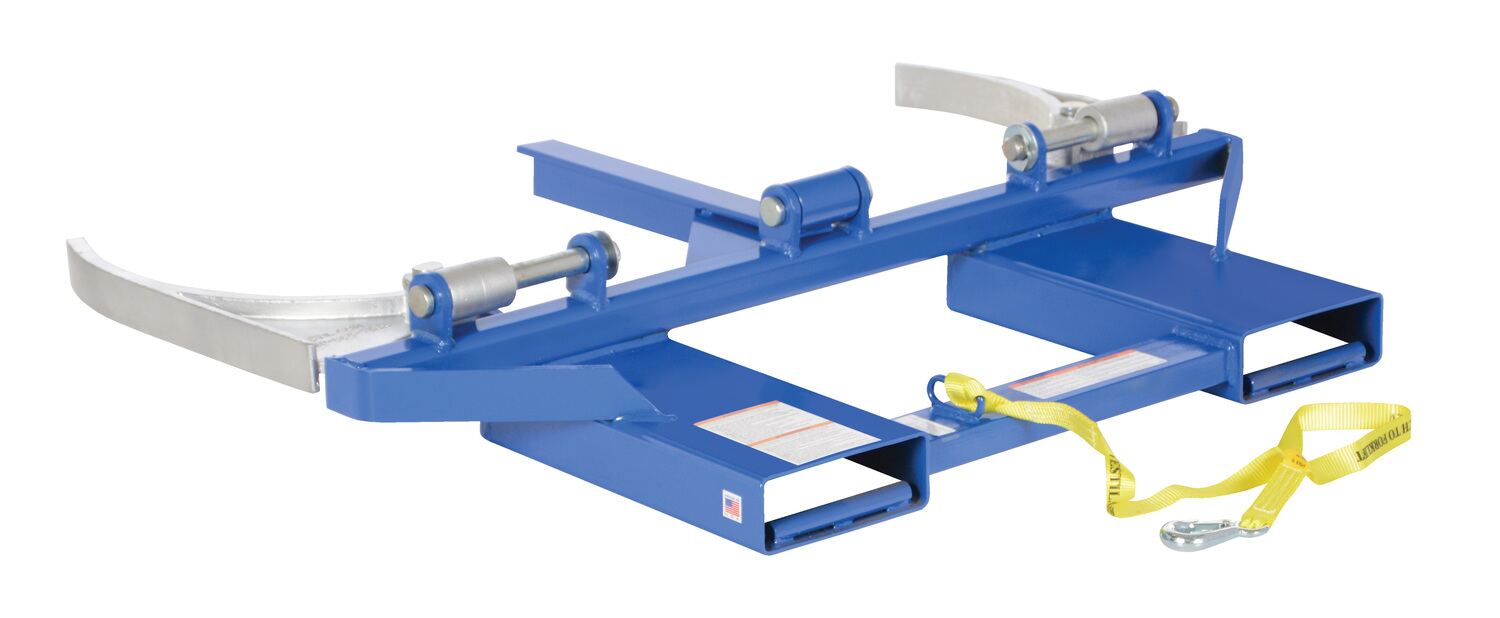

DGD-A DGD-A90 Days Limited WarrantySteel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Accepts: (2) 30 and/or 55-gallon steel drums
211

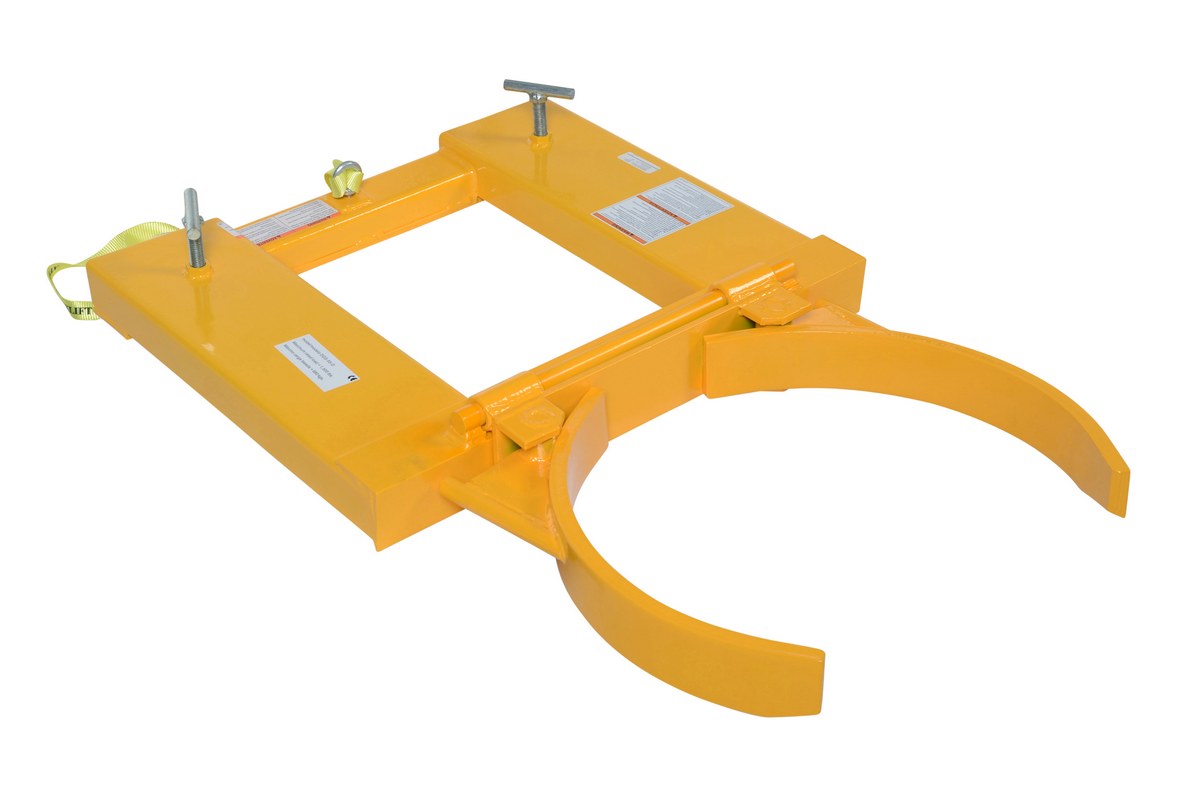

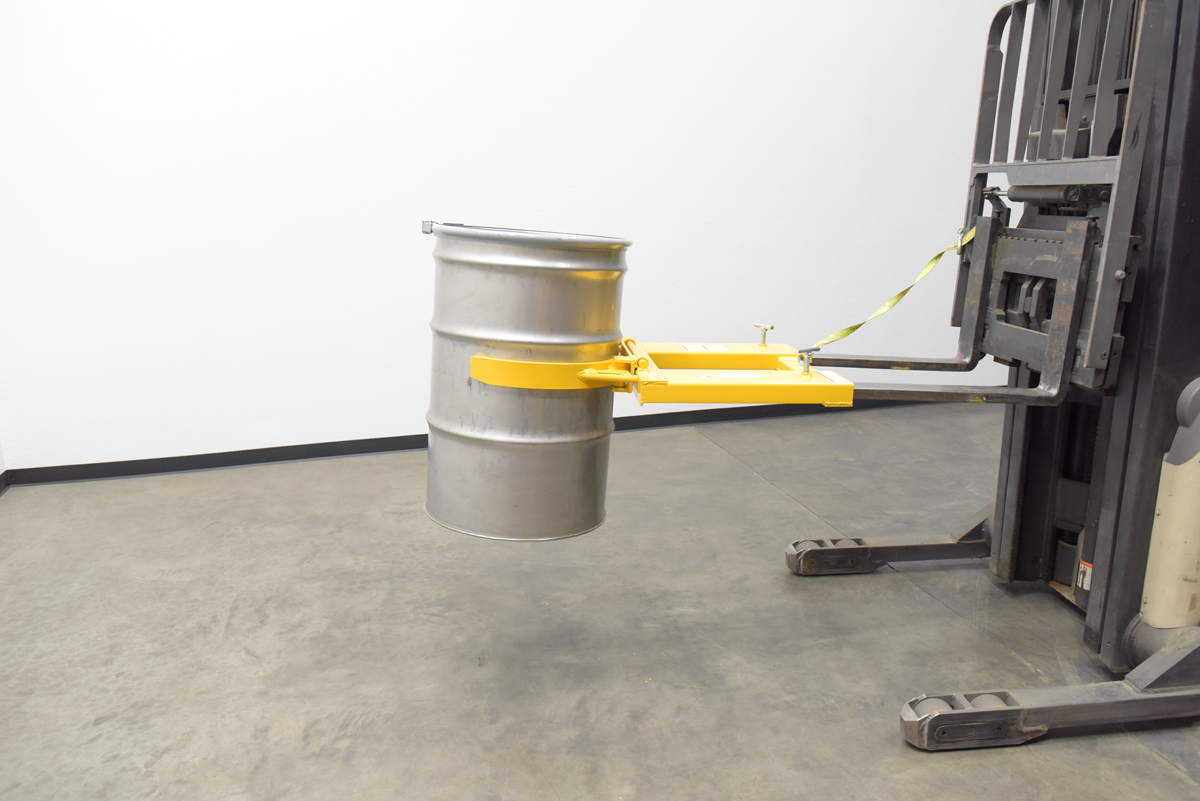

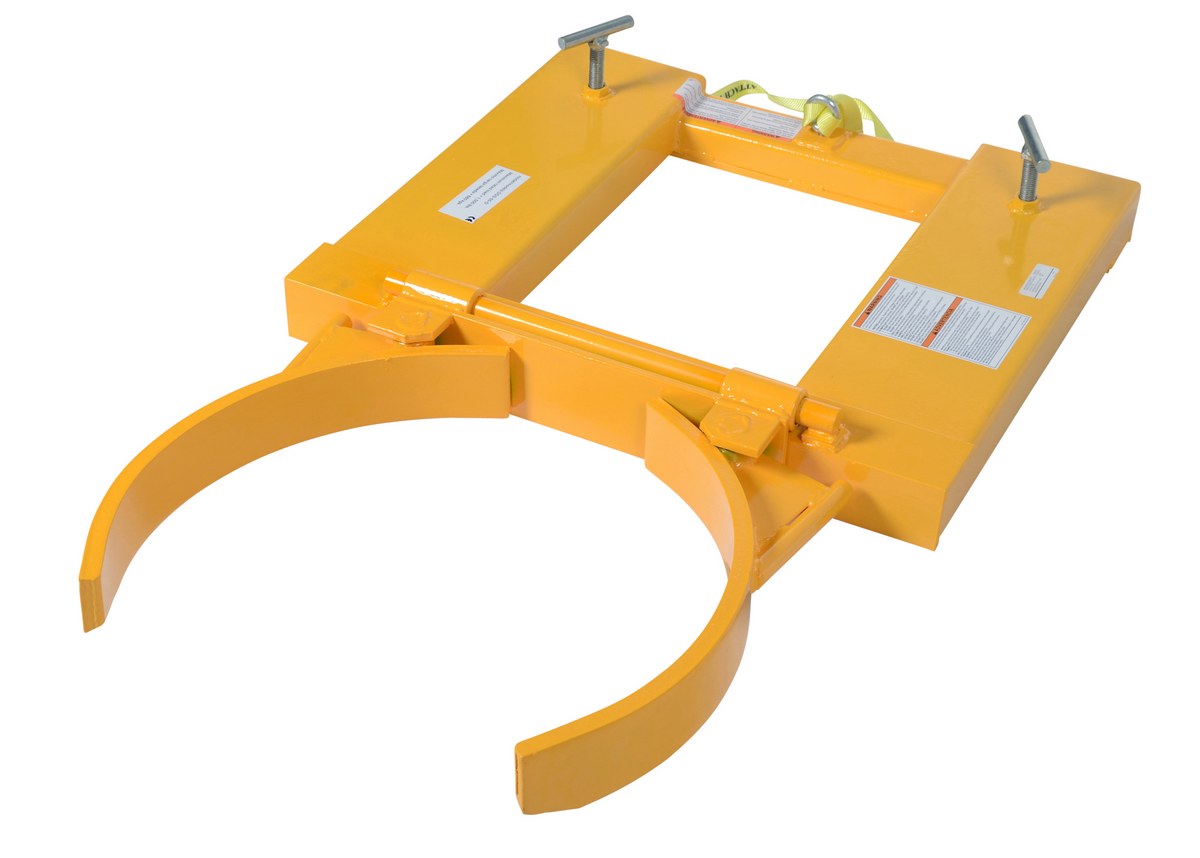

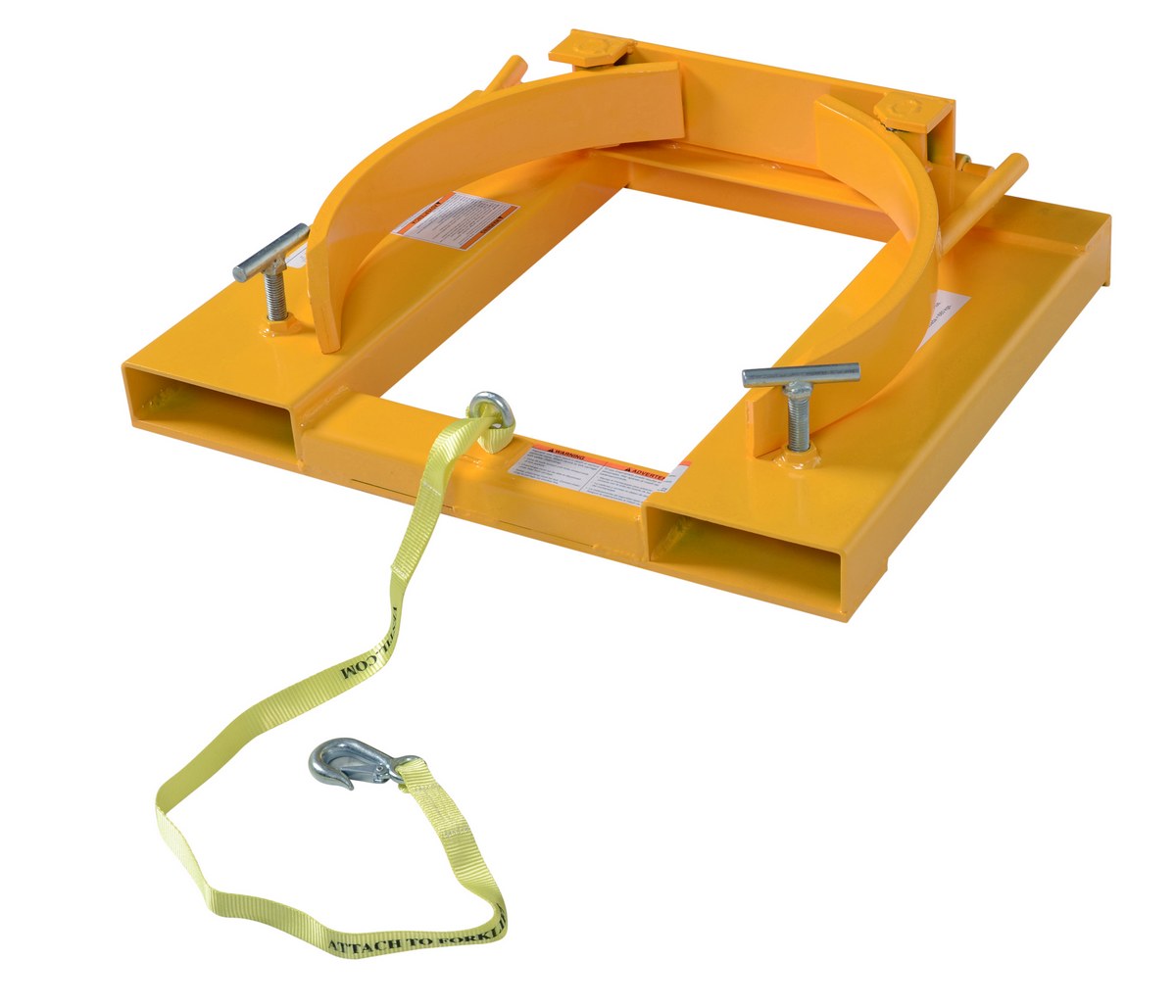

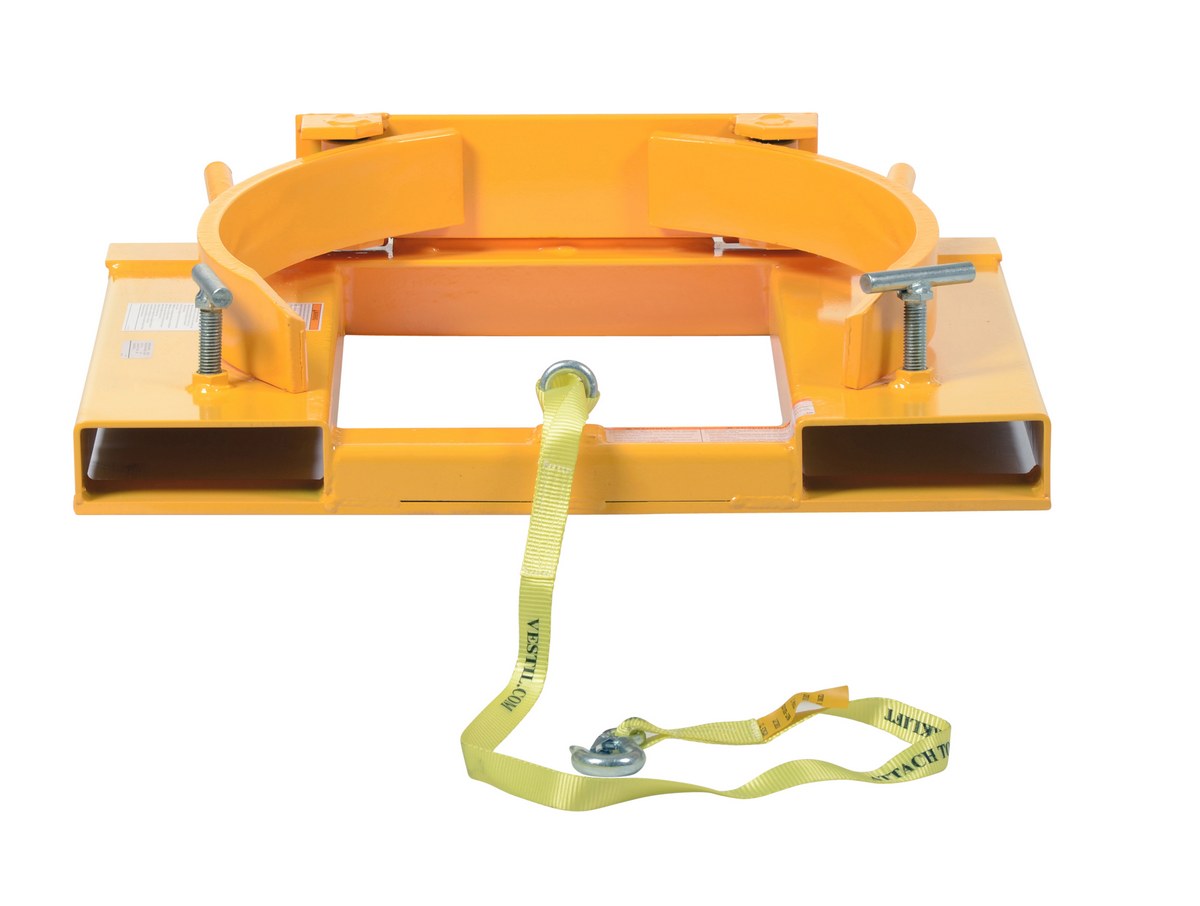

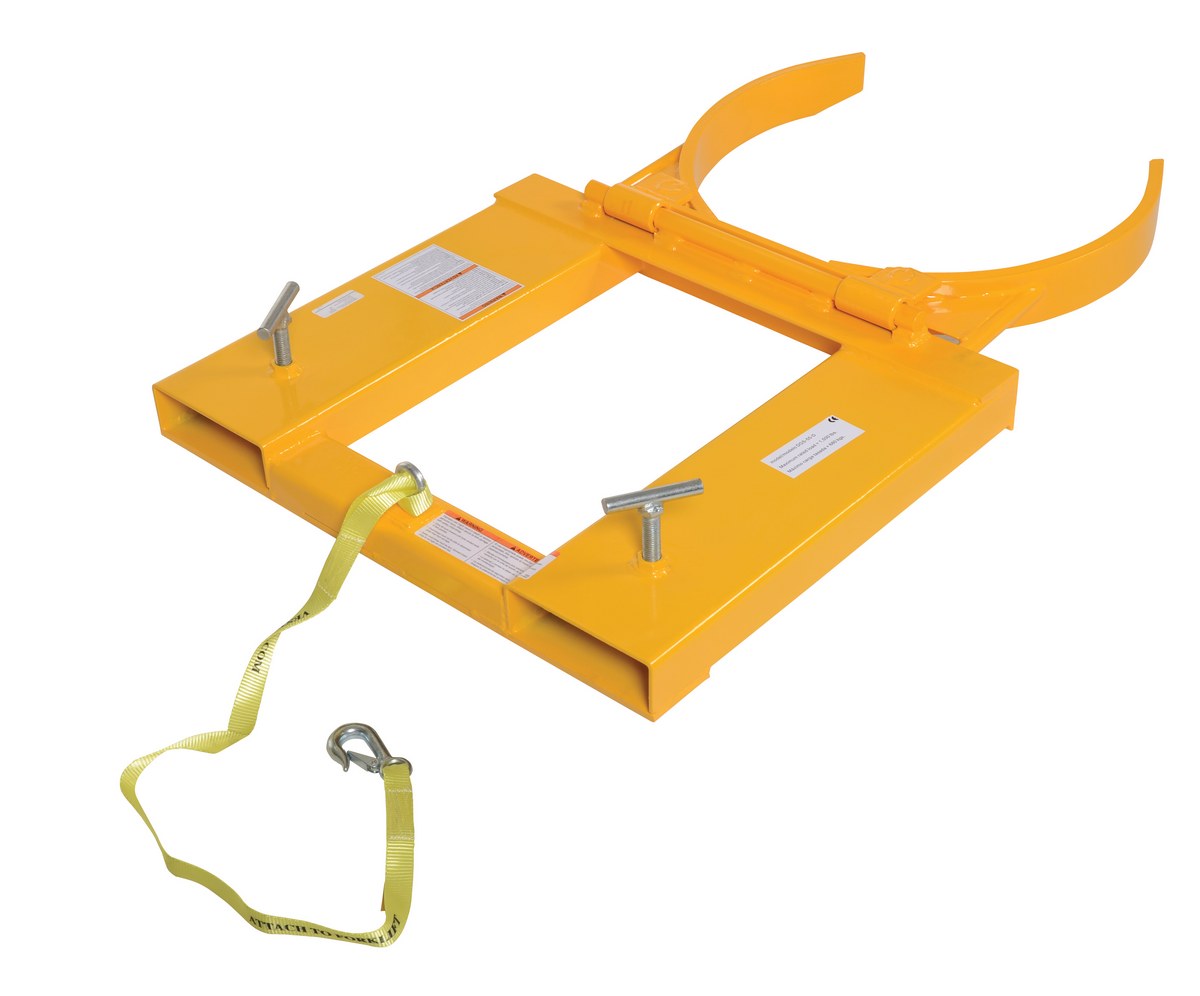

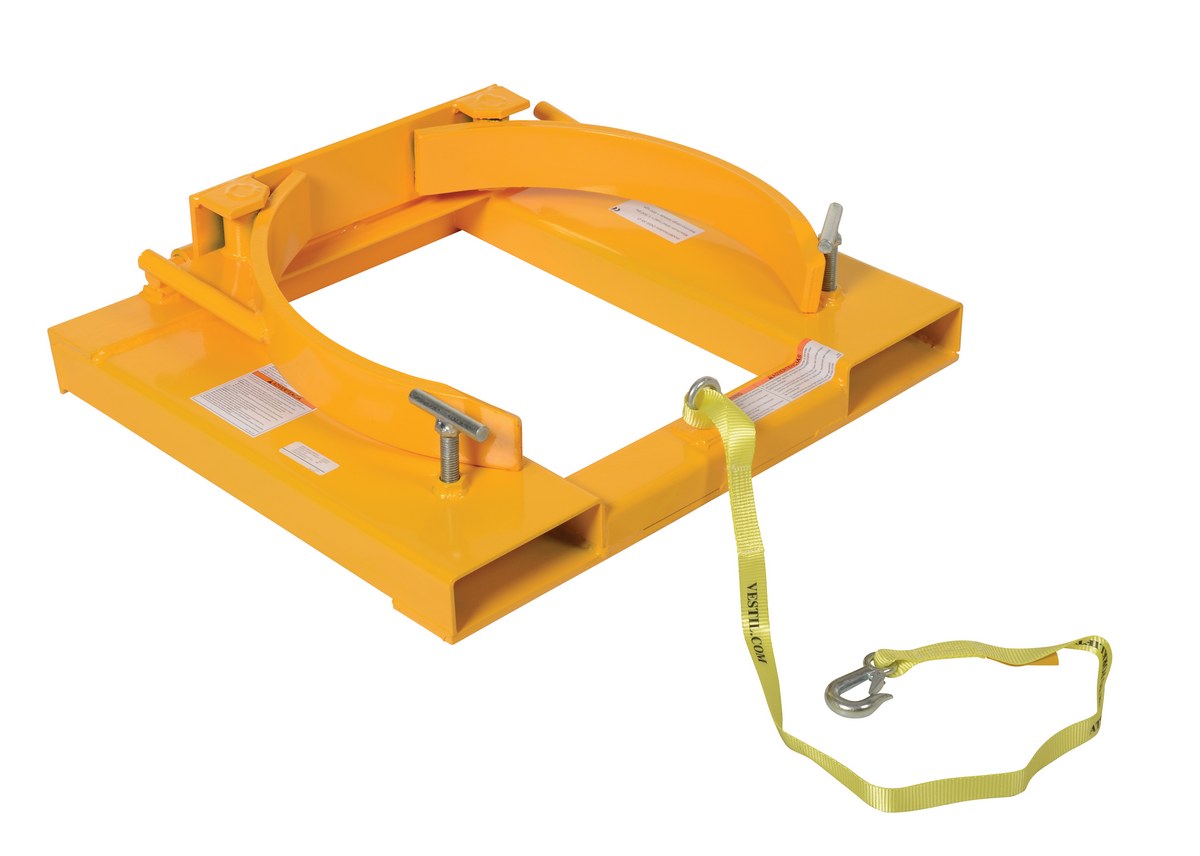

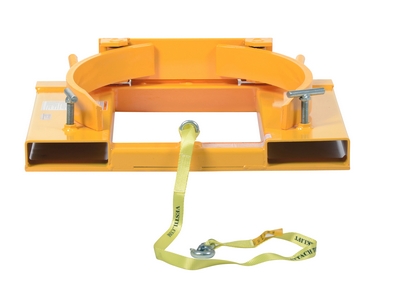

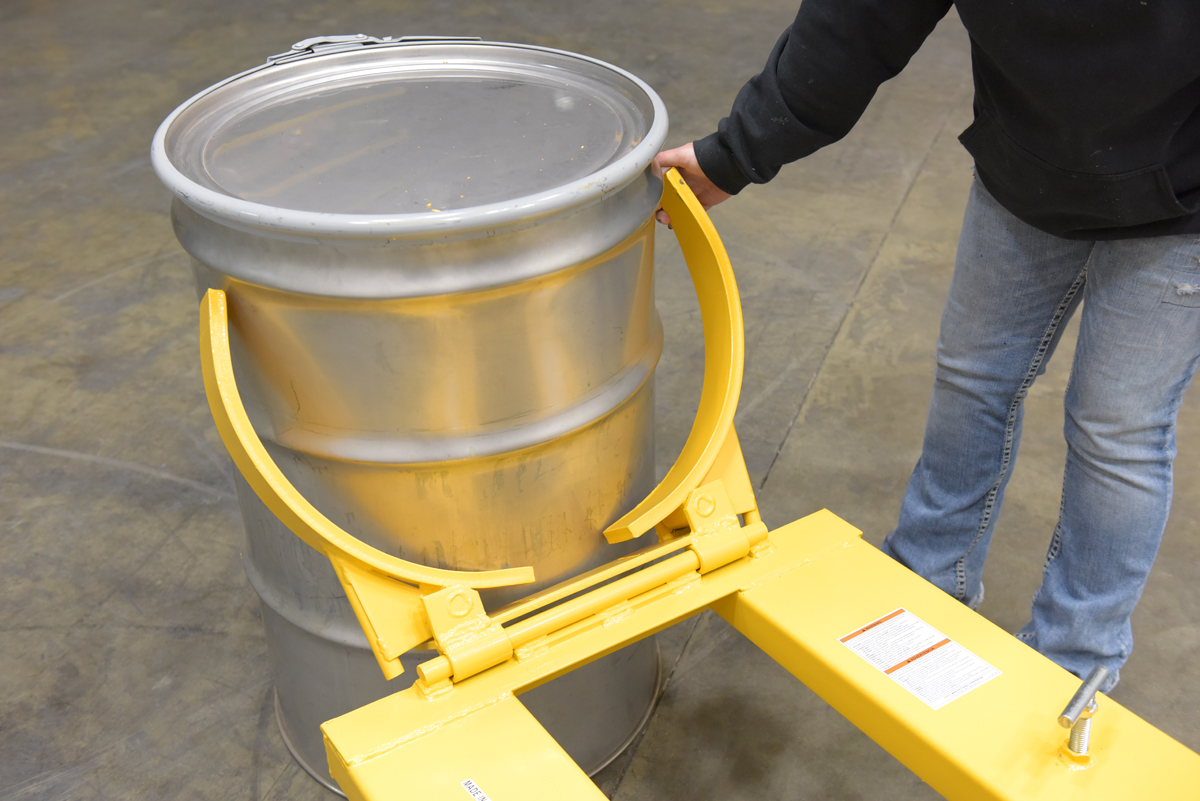

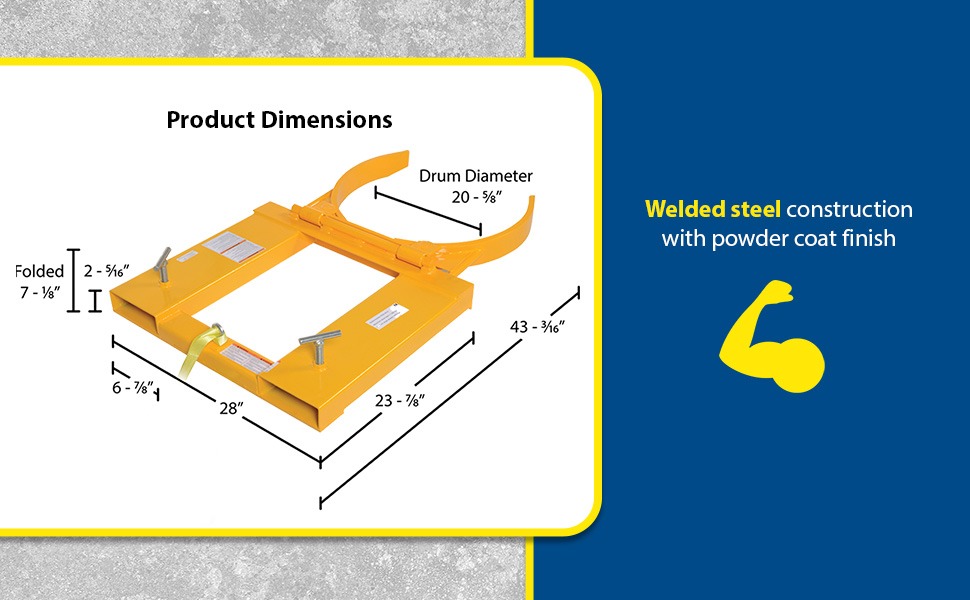

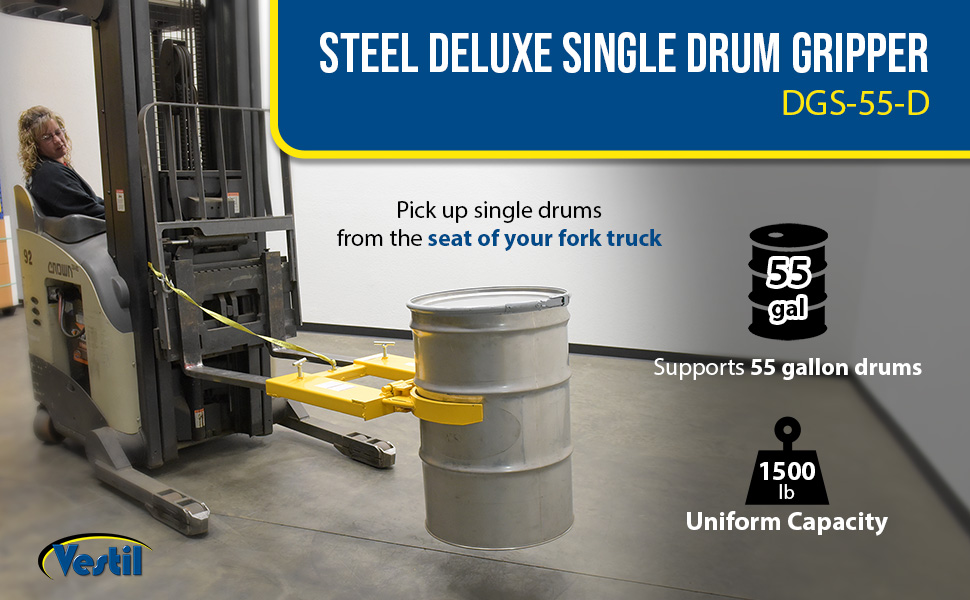

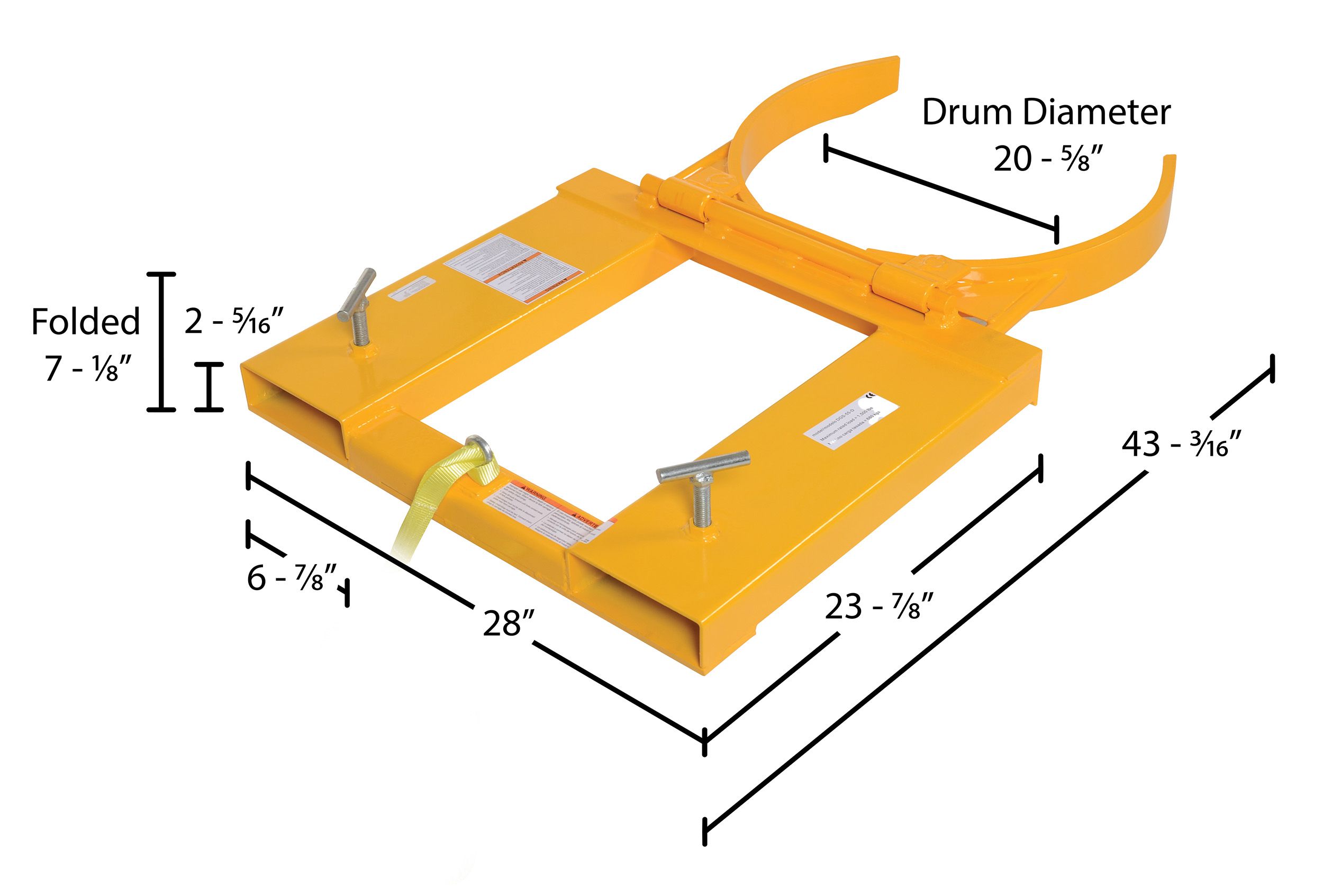

DGS-55-D DGS-55-D90 Days Limited WarrantySteel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In x 28 In x 7-1/8 In 1500 Lb. Capacity YellowUniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
156

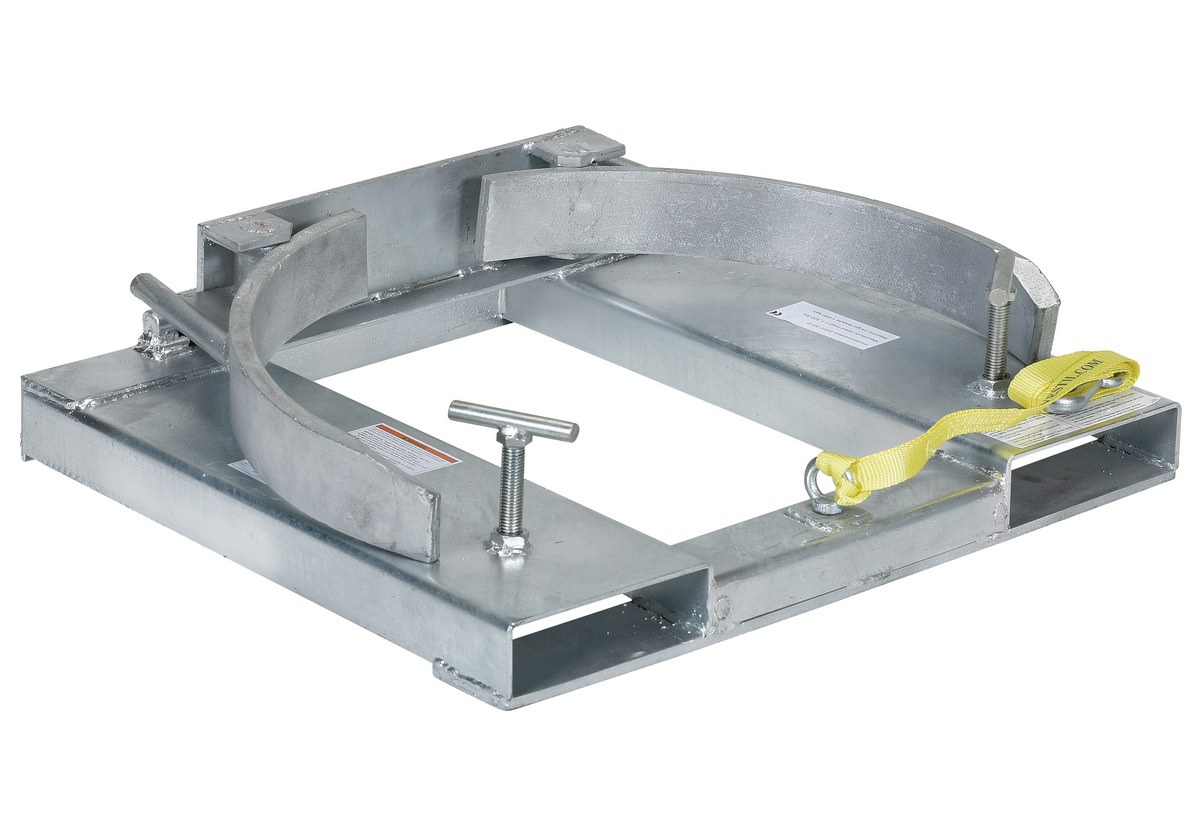

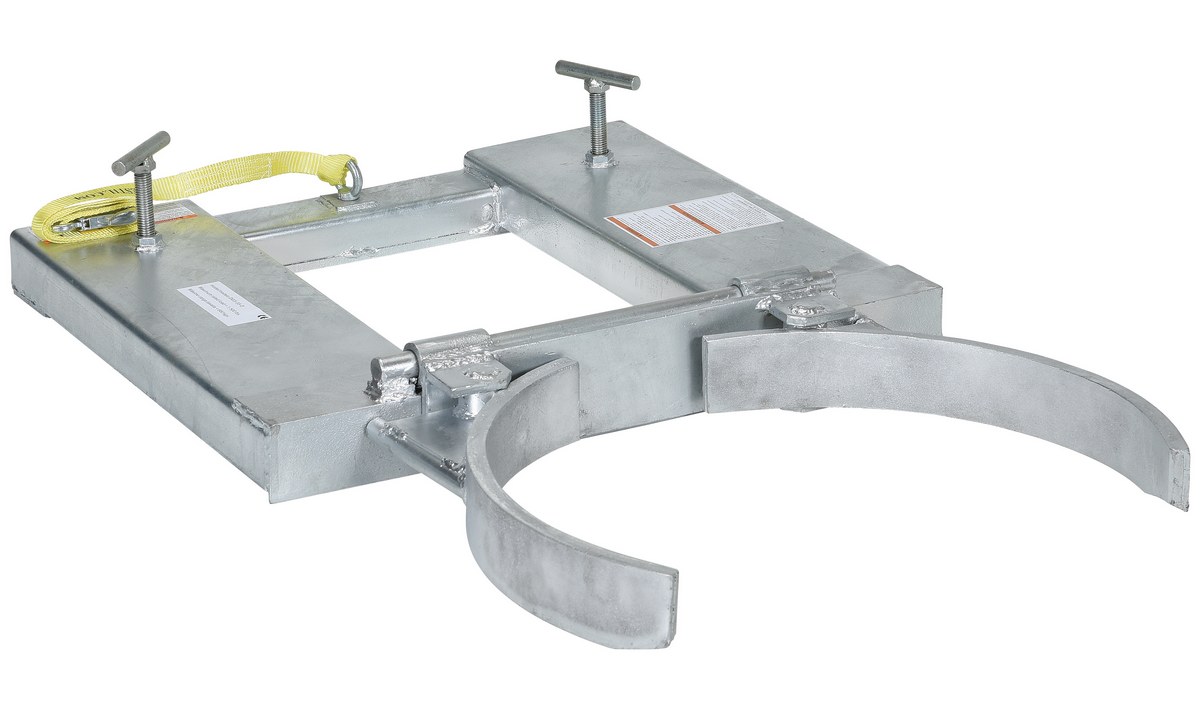

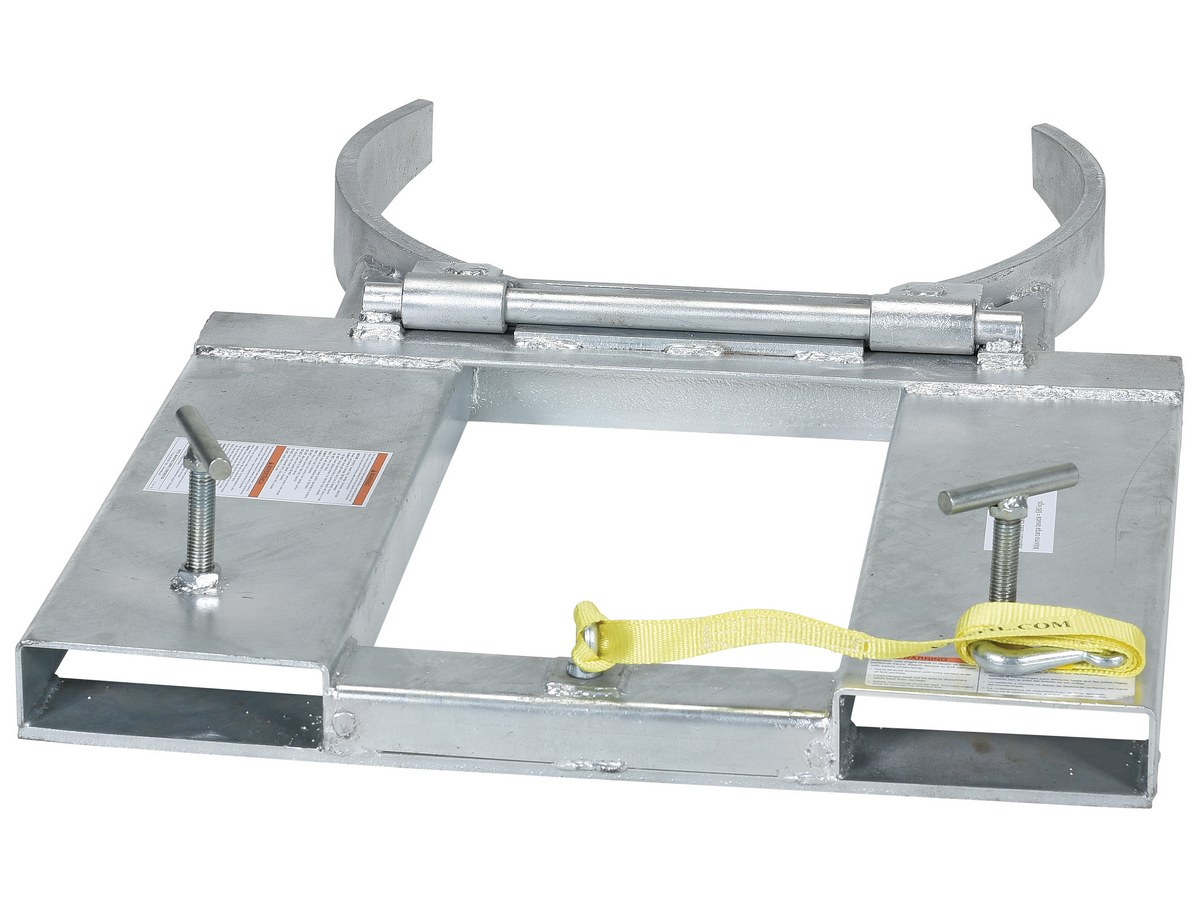

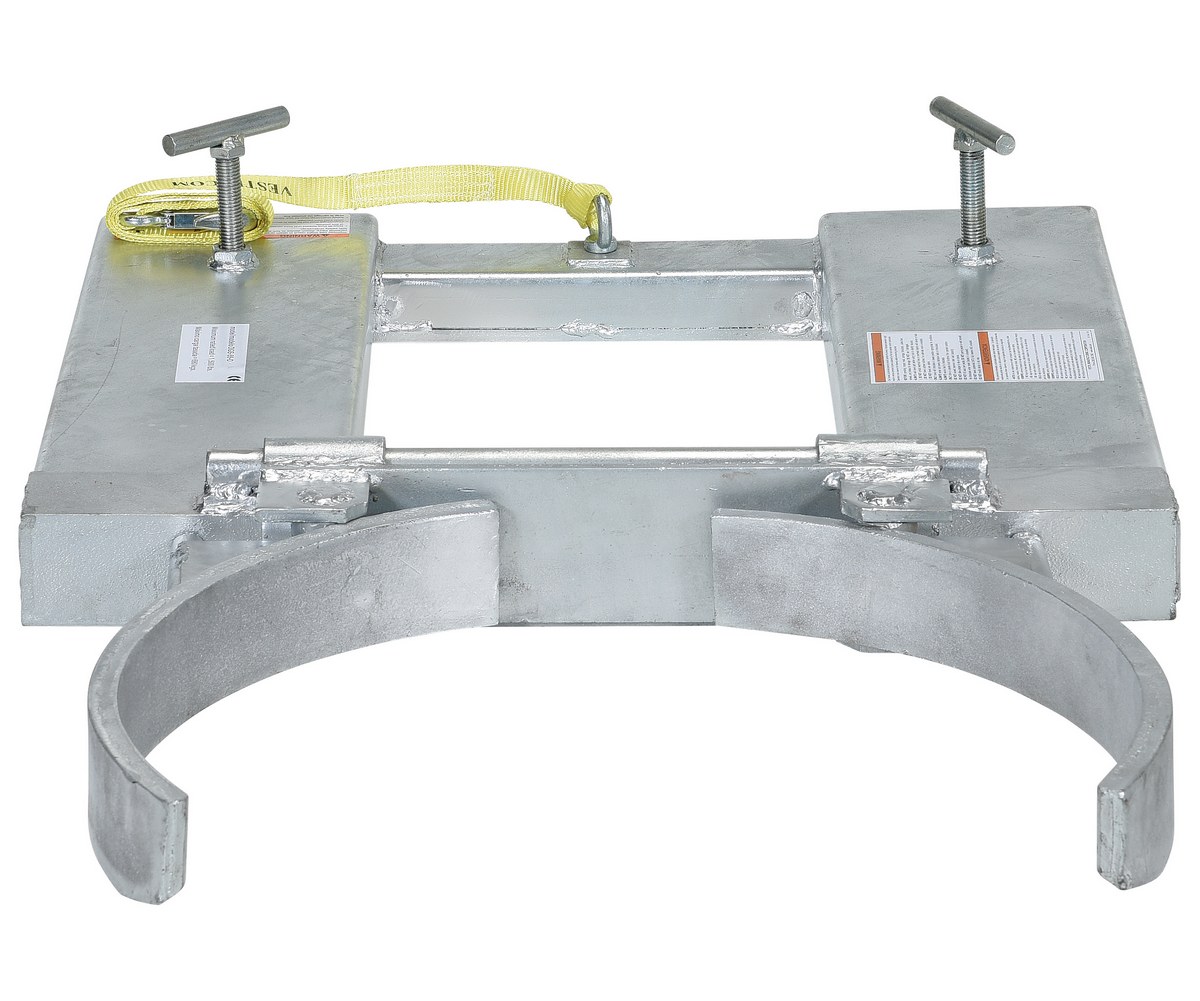

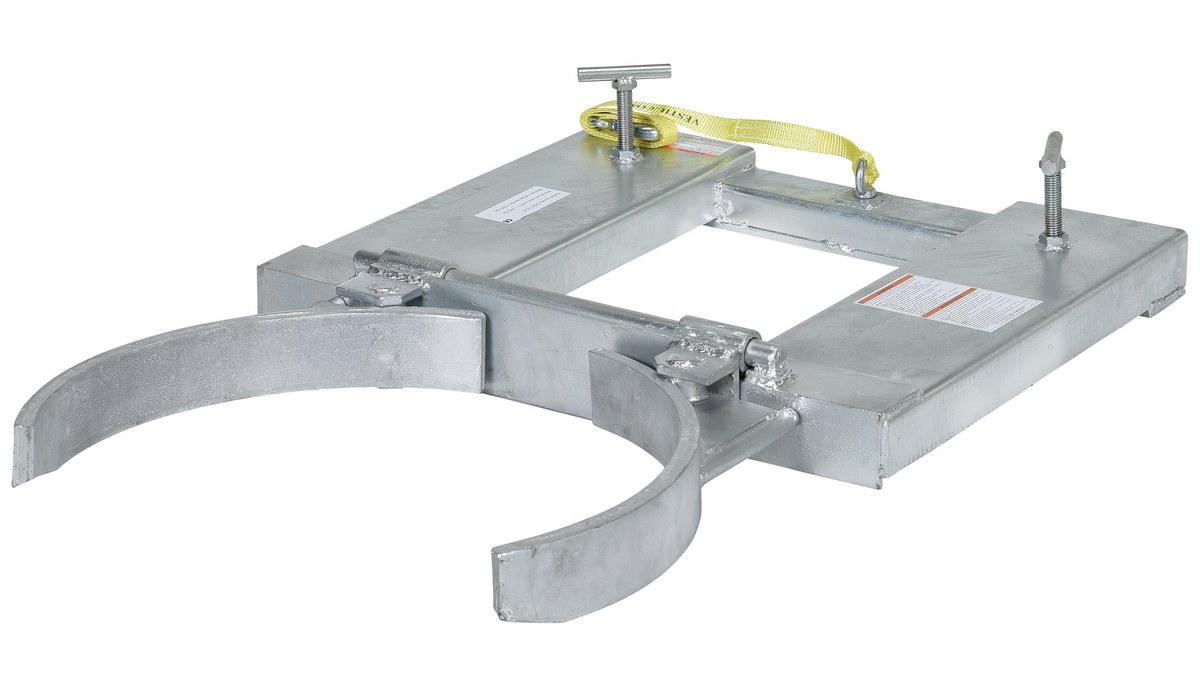

DGS-55-D-G DGS-55-D-G90 Days Limited WarrantyGalvanized Steel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In. x 28 In. x 7-1/8 In. 1500 Lb. Capacity GrayUniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
150

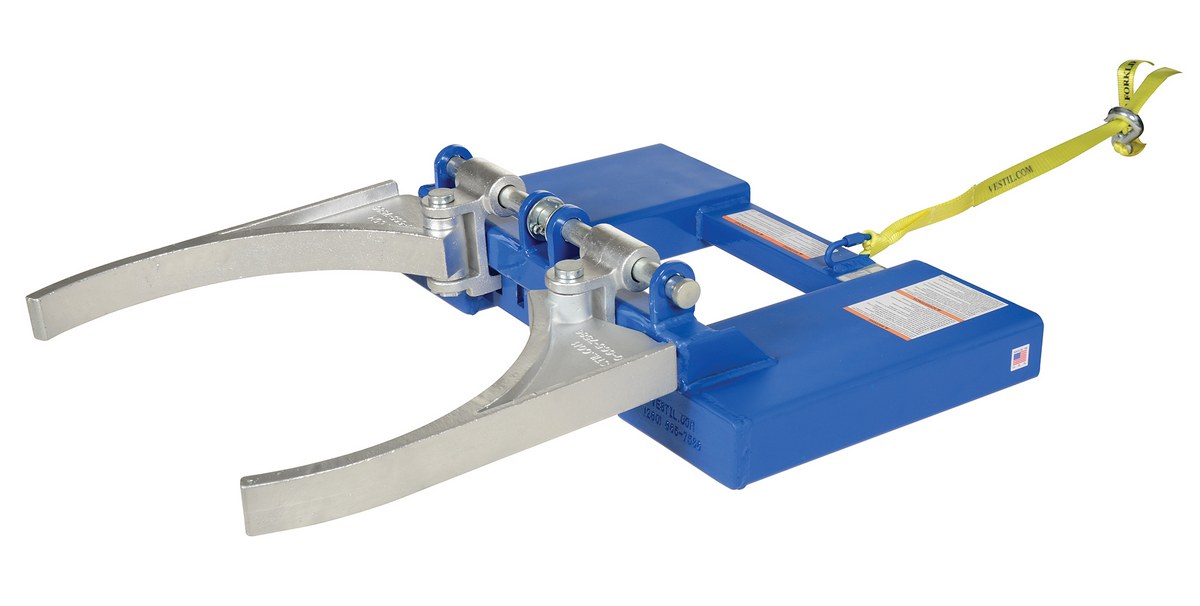

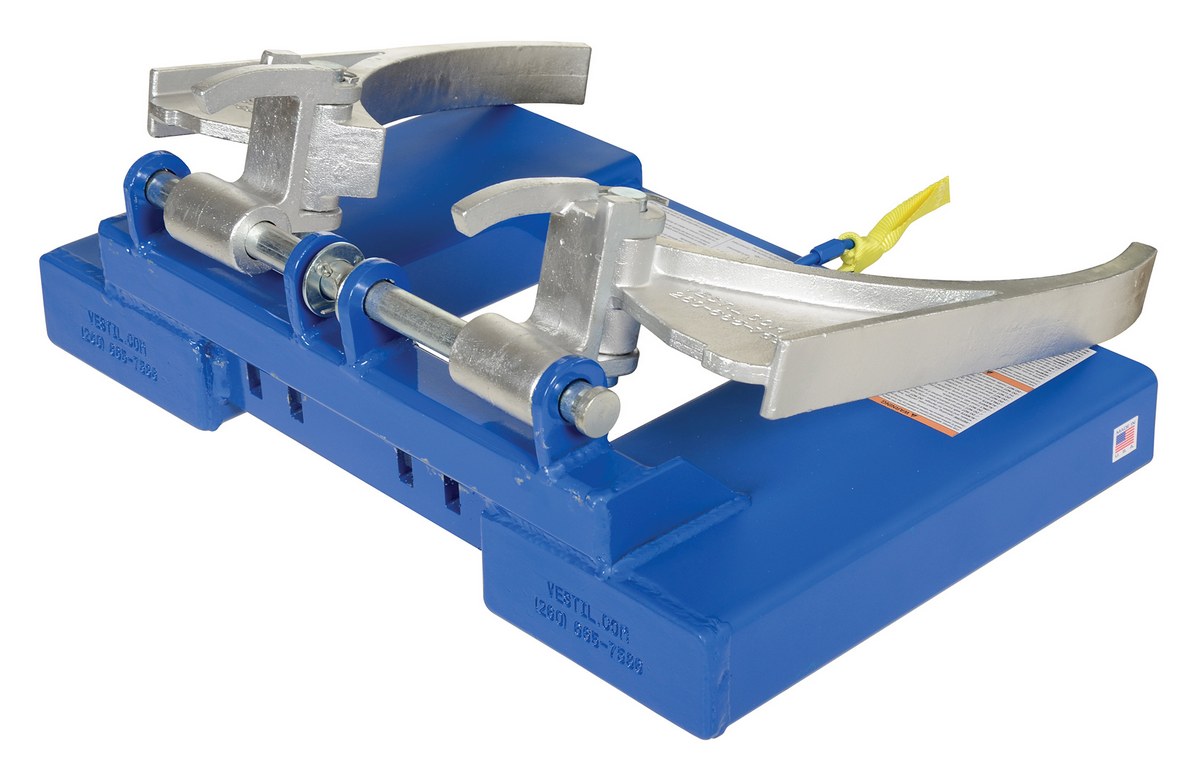

DGS-A DGS-A90 Days Limited WarrantySteel Adjustable Single Drum Gripper 35 In. x 27-3/4 In. x 7-1/2 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Accepts: (1) 30 or 55-gallon steel drums
164

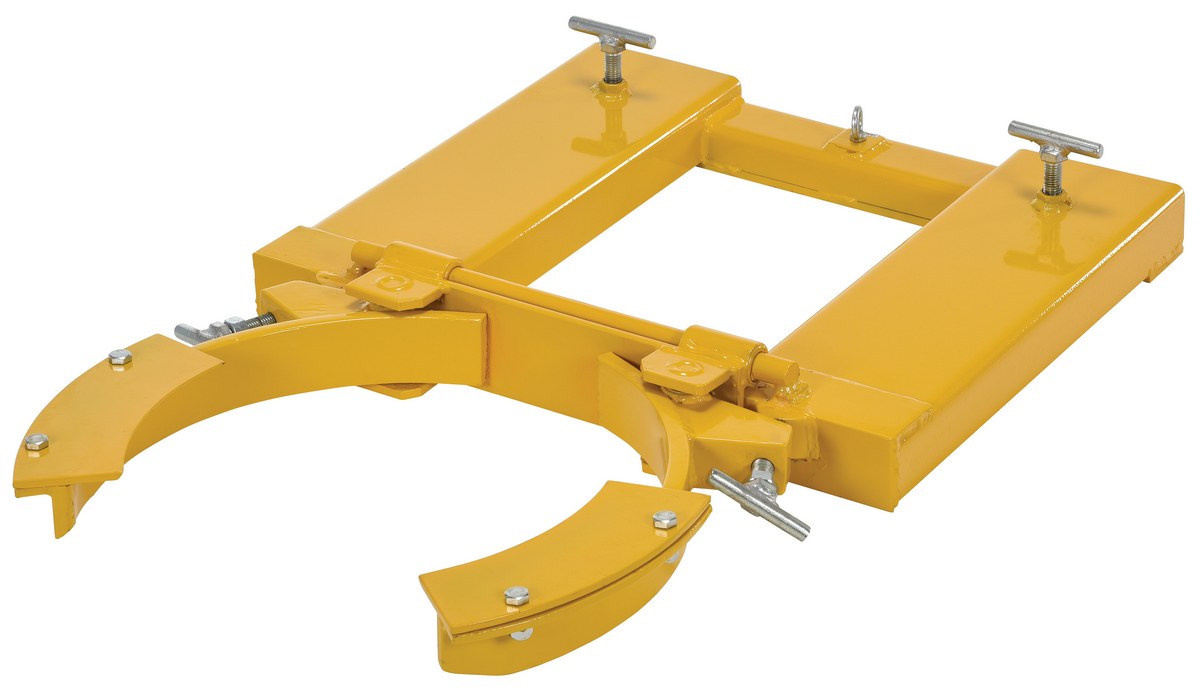

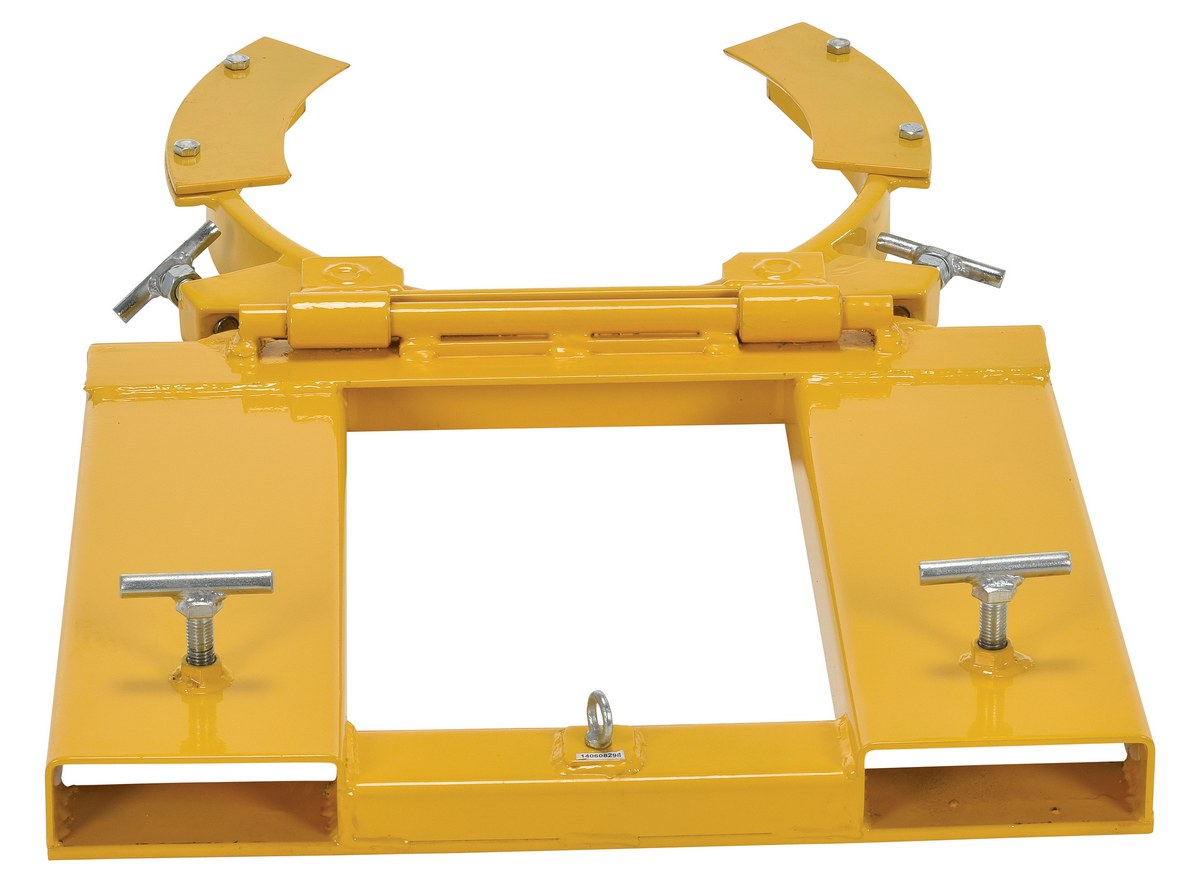

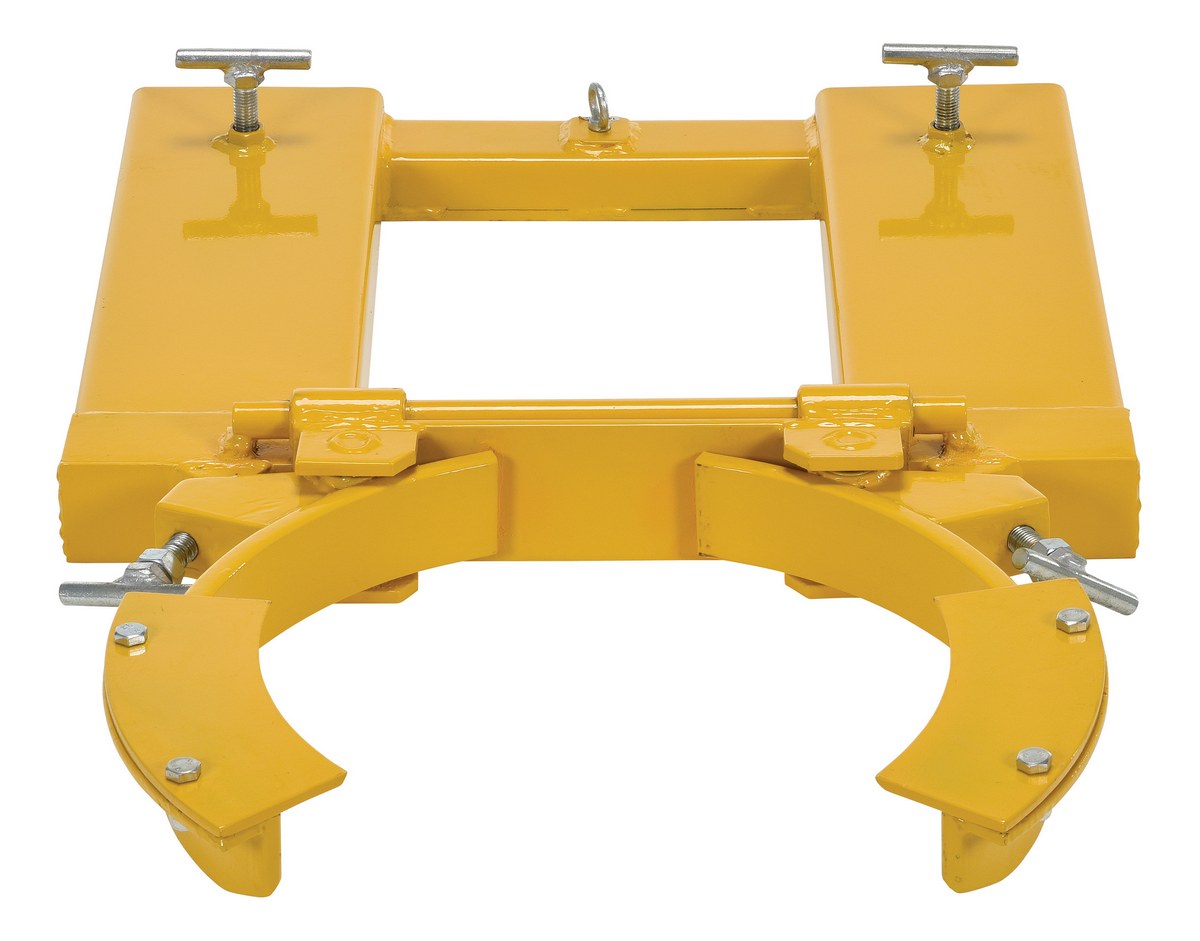

DGS-A-PSD DGS-A-PSD90 Days Limited WarrantySteel Adjustable Single Drum Gripper 24 In. x 28 In. x 8 In. 1500 Lb. Capacity YellowUniform Capacity (lb.): 1500
Fork Pocket Width (in.): 7
147

* Accepts Steel & Plastic (with top ring or top Ridge) drums

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DGD-55-D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums

DGD-55-D-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums
Uniform Capacity (lb.): 2,000
Accepts: (2) 55-gallon steel drums

DGD-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: (2) 30 and/or 55-gallon steel drums
Uniform Capacity (lb.): 1,500
Accepts: (2) 30 and/or 55-gallon steel drums

DGS-55-D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums

DGS-55-D-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums
Uniform Capacity (lb.): 1,500
Accepts: (1) 55-gallon steel drums

DGS-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Accepts: (1) 30 or 55-gallon steel drums
Uniform Capacity (lb.): 800
Accepts: (1) 30 or 55-gallon steel drums

DGS-A-PSD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Fork Pocket Width (in.): 7
Uniform Capacity (lb.): 1500
Fork Pocket Width (in.): 7

Drum Grippers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DGD-55-D

DGD-55-D-G

DGD-A

DGS-55-D

DGS-55-D-G

DGS-A

DGS-A-PSD

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Can I use the DGD-55-D on one just one drum?

A: Yes, this product will still work with one drum, or with two drums.


Q: What is the size of the fork pockets?

A: The size of the fork pockets is 20.5" center to center.
