Model Details

DSJ-300-P

Printer Friendly
DSJ-300-P

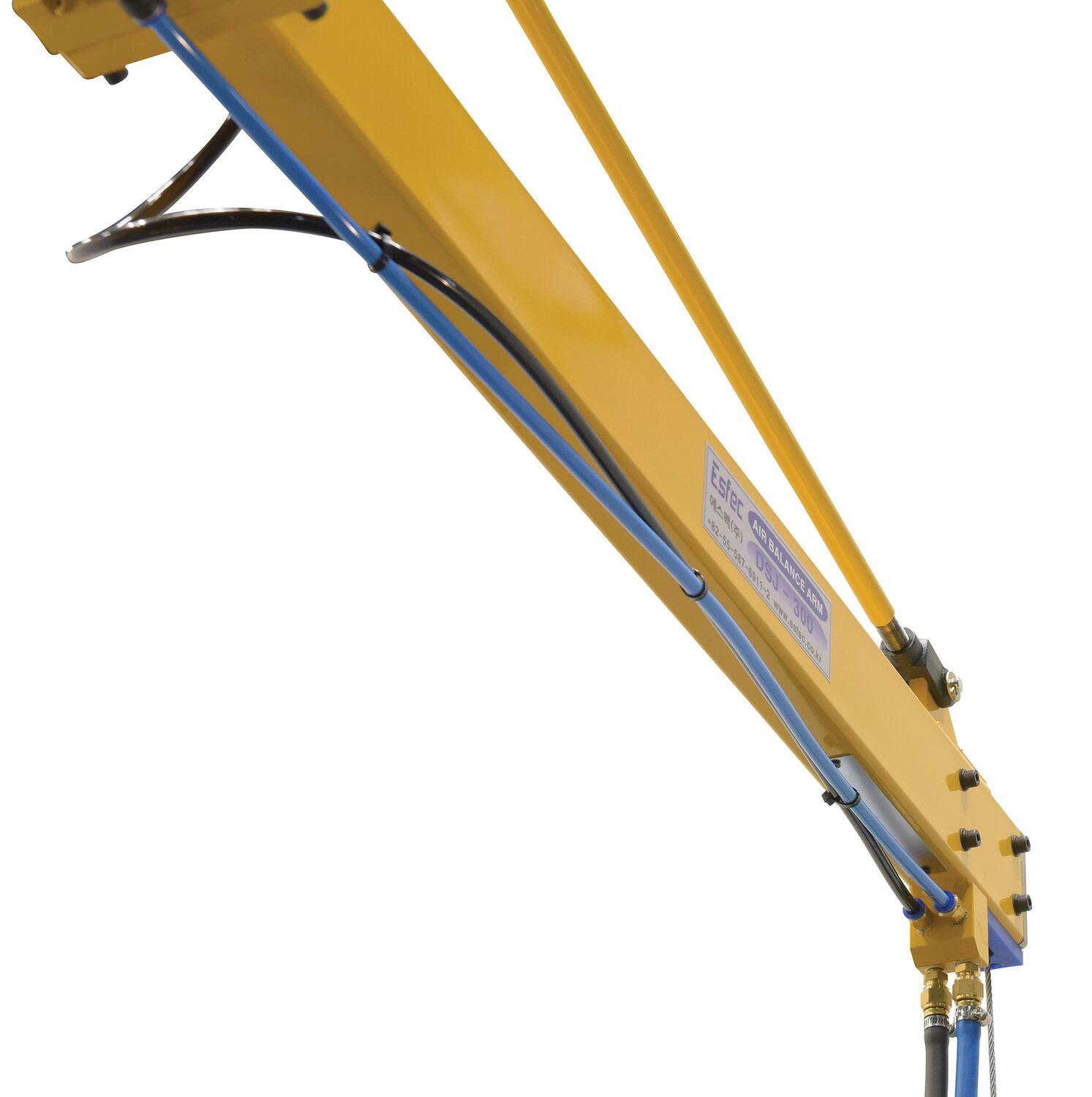

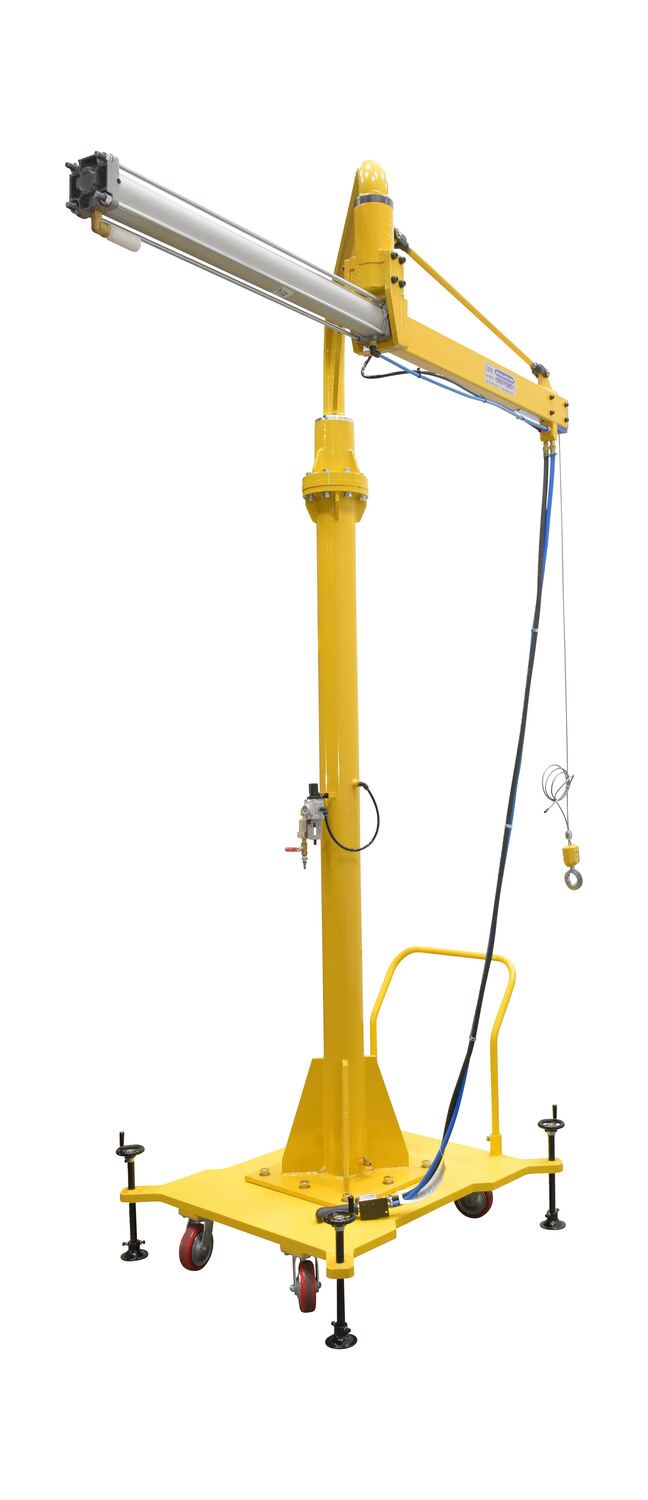

Steel Air Balanced Lifter Portable Maximum Arm Length 93 In. 250 Lb. Capacity

The air balancer jib lifter achieves high performance, excellent safety, and low cost in the handling of heavy materials. Designed to effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable and in turn, positioning the load. This is a portable unit.

  • Performance, safety, low cost, and ideal for heavy materials
  • Handle materials in a three dimensional work space
  • Push-button hand control operates the pneumatic cylinder
  • Position the load by raising and lowering the cable
Total Ship Wt.(lbs.): 1043 (only 1 package) Size: 111.6875"W x 41.25"L x 127.25"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 57-1/2 Maximum Arm Length (in.): 93
Arm Rotation (degree): 360 Air Pressure (psi): 100

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DSJ-300-P
DSJ-300-P

Steel Air Balanced Lifter Portable Maximum Arm Length 93 In. 250 Lb. Capacity

The air balancer jib lifter achieves high performance, excellent safety, and low cost in the handling of heavy materials. Designed to effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable and in turn, positioning the load. This is a portable unit.

  • Performance, safety, low cost, and ideal for heavy materials
  • Handle materials in a three dimensional work space
  • Push-button hand control operates the pneumatic cylinder
  • Position the load by raising and lowering the cable
Dimensions: 111.6875"W x 41.25"L x 127.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215076692 GTIN: 00691215076692
Warranty: -- Shipping Weight: 1043 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Korea
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 250 Up/Down Stroke (in.): 57-1/2 Maximum Arm Length (in.): 93
Arm Rotation (degree): 360 Air Pressure (psi): 100
