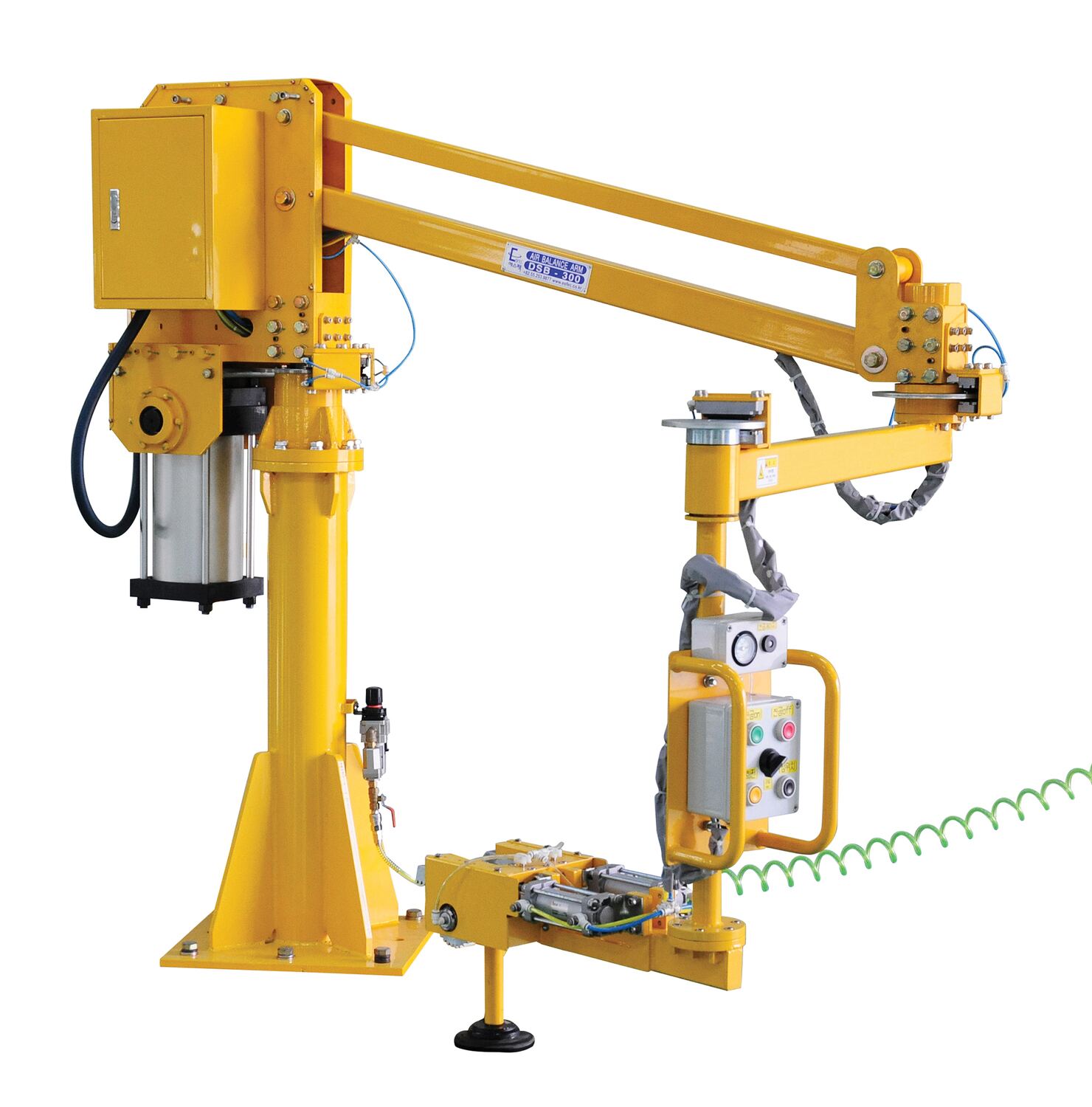

model: DSL-300

SERIES: DSL
Air Balance Jib Lifters

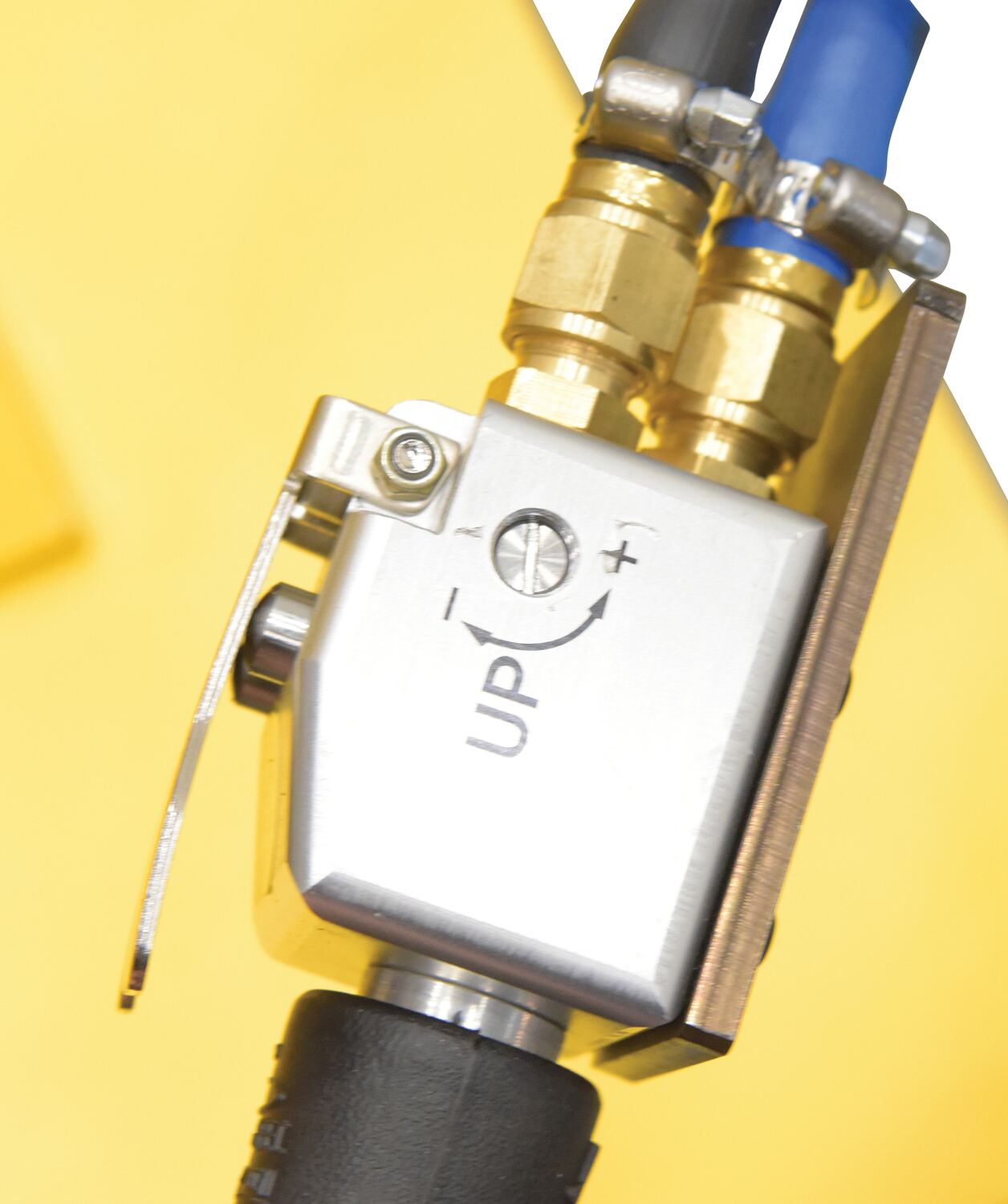

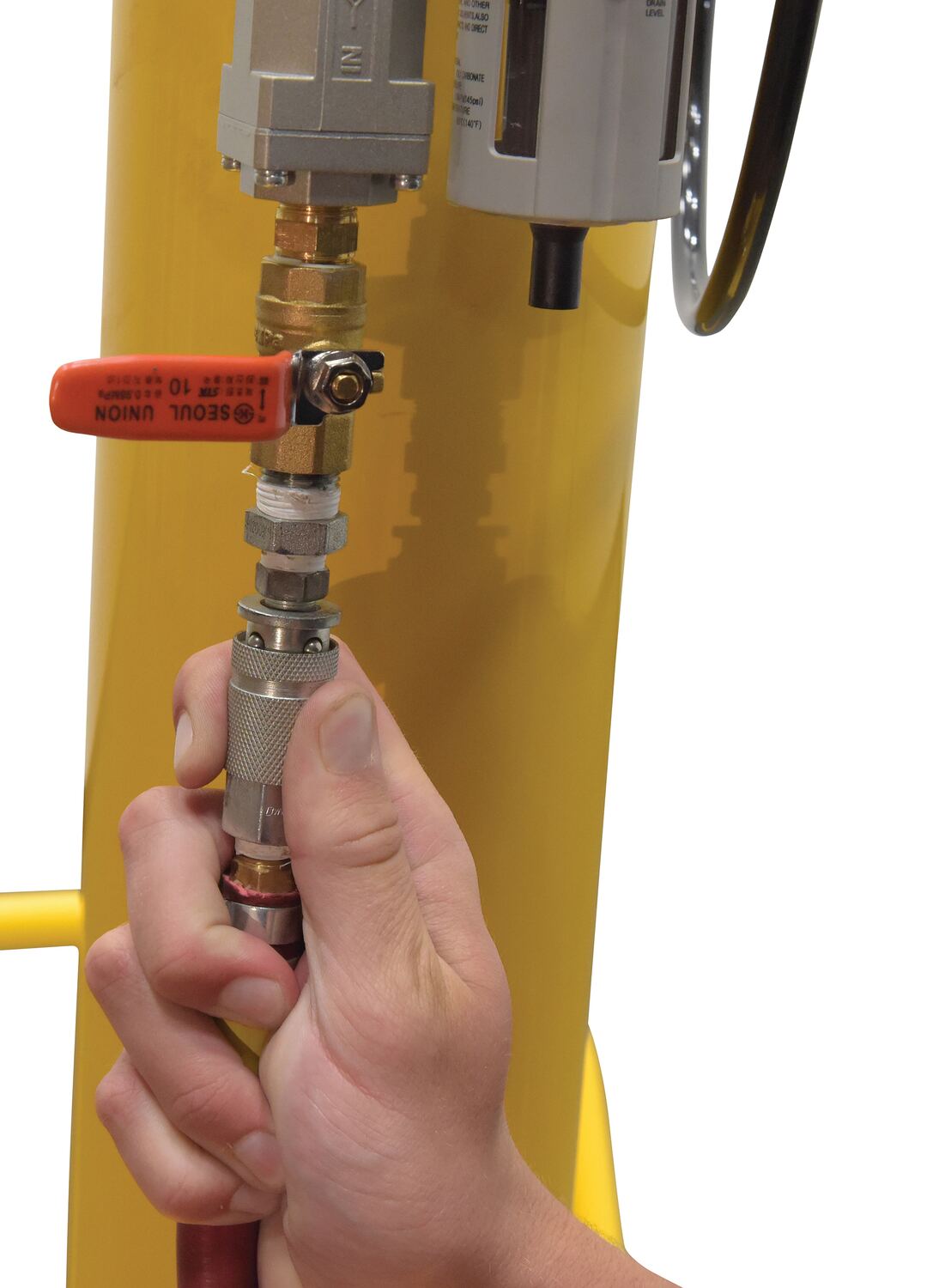

The Air Balancers achieve high performance, excellent safety, and low cost in the handling of heavy materials. Effortlessly handle materials in a three dimensional work space. The push-button hand control operates the pneumatic cylinder, raising and lowering the cable, in turn, positioning the load. Arm rotation is 360 degrees. Air pressure 100 psi.



DSJ-300

model DSJ-300


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Air Balance Jib Lifter
Model PDFs Stroke Max Arm Length Capacity
(lbs)
Arm
Rotation
Air Pressure Wt. (lbs)

Floor Mount

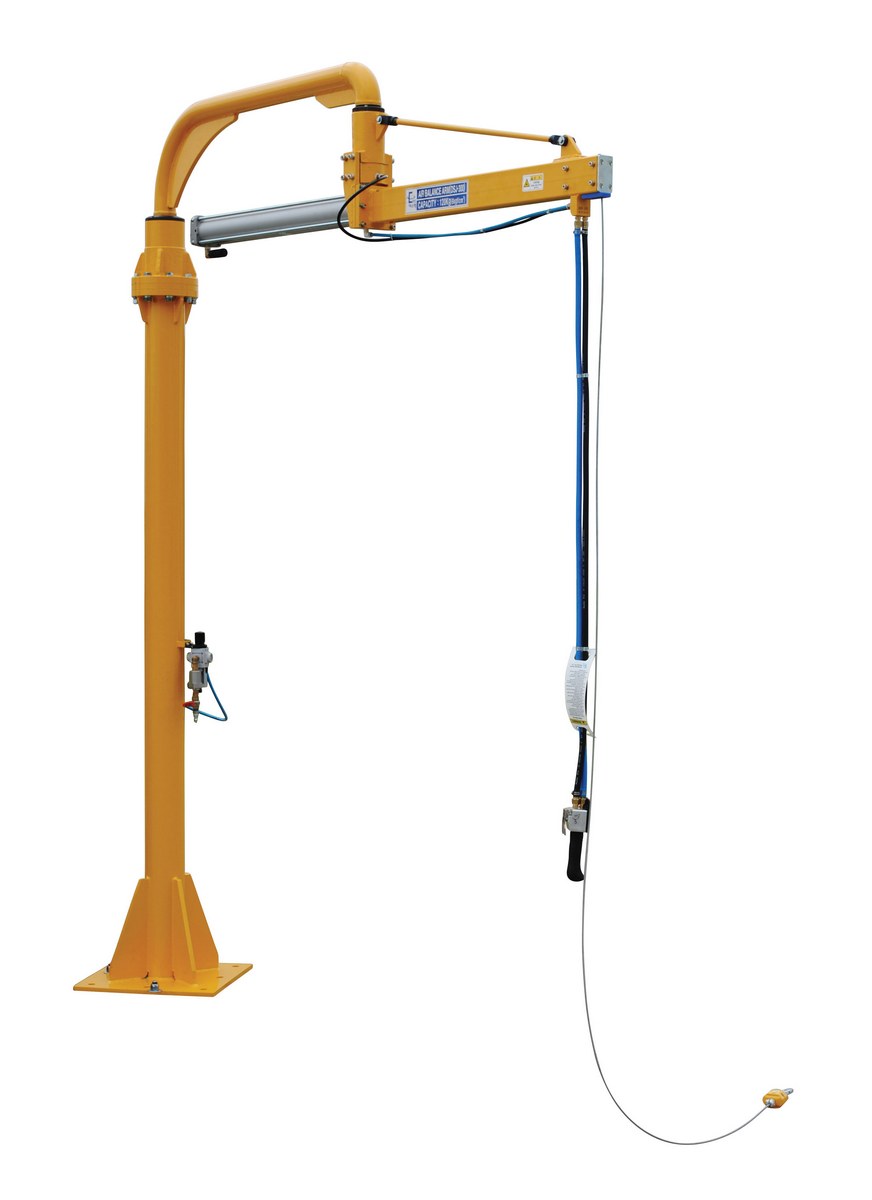

DSJ-300 icon_approvaldrawings.jpgWarranty PDF 57-1/2" 93" 250 360 degrees 100 psi 647

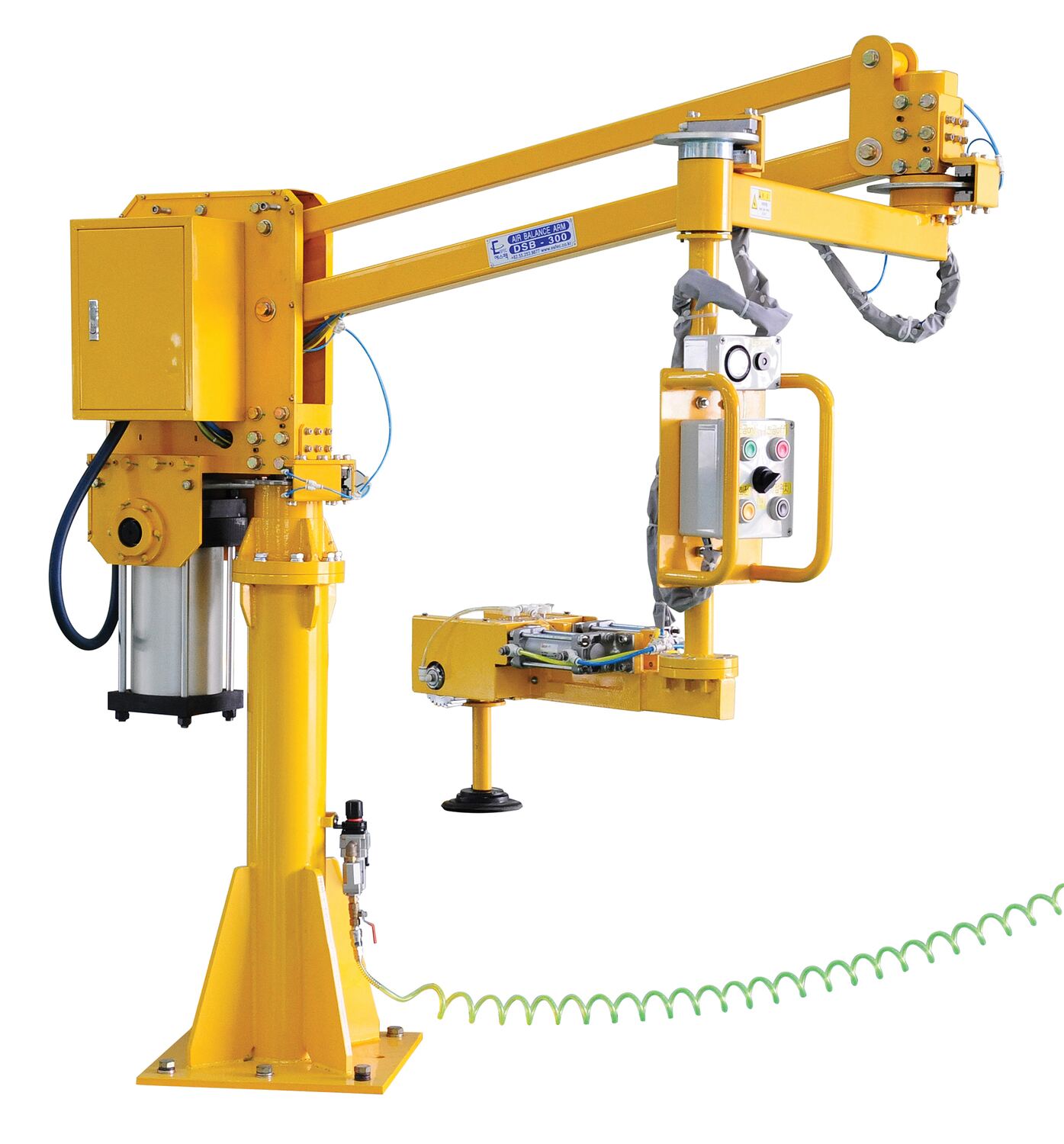

DSL-300 Warranty PDF 47-1/4" 78-1/4" 250 360 degrees 100 psi 697
DSC-300 Warranty PDF 78-3/4" 86-1/2" 350 360 degrees 100 psi 823

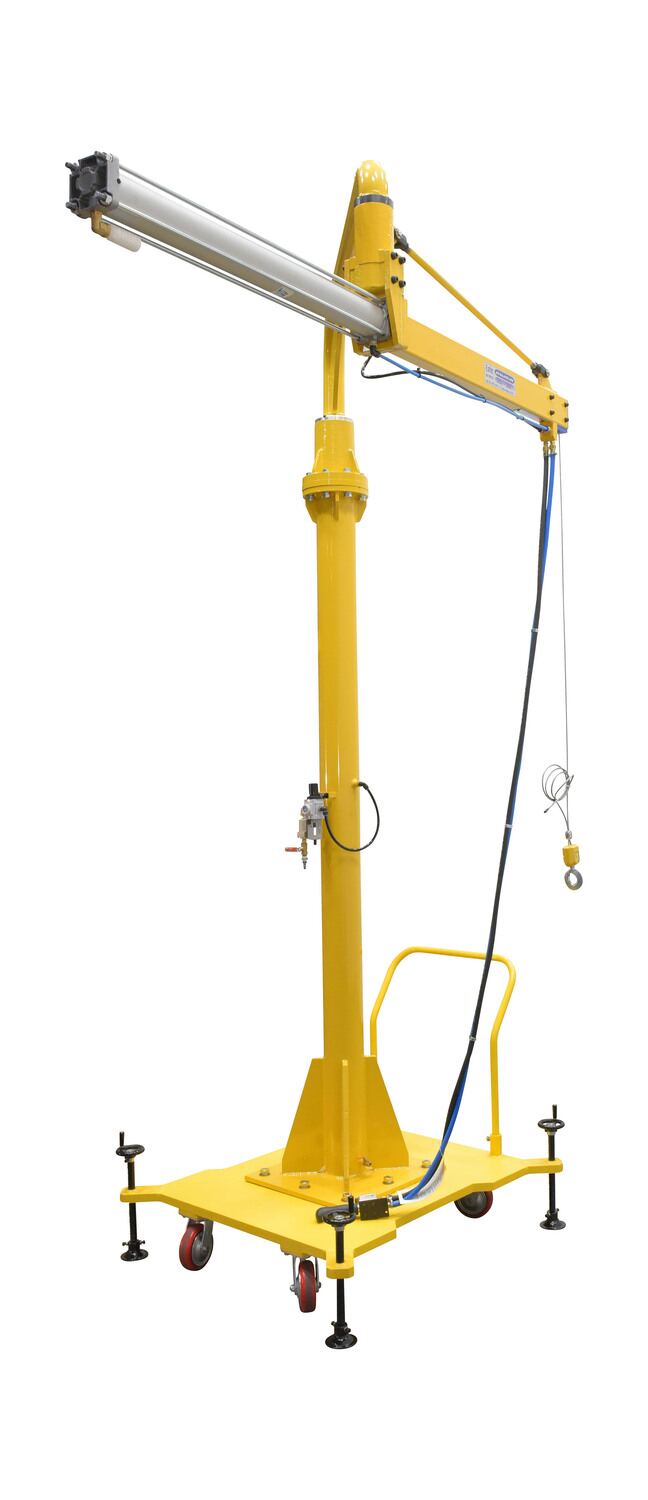

Portable

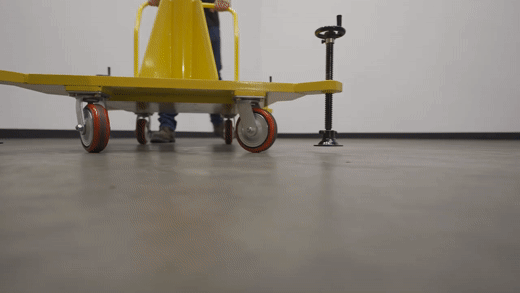

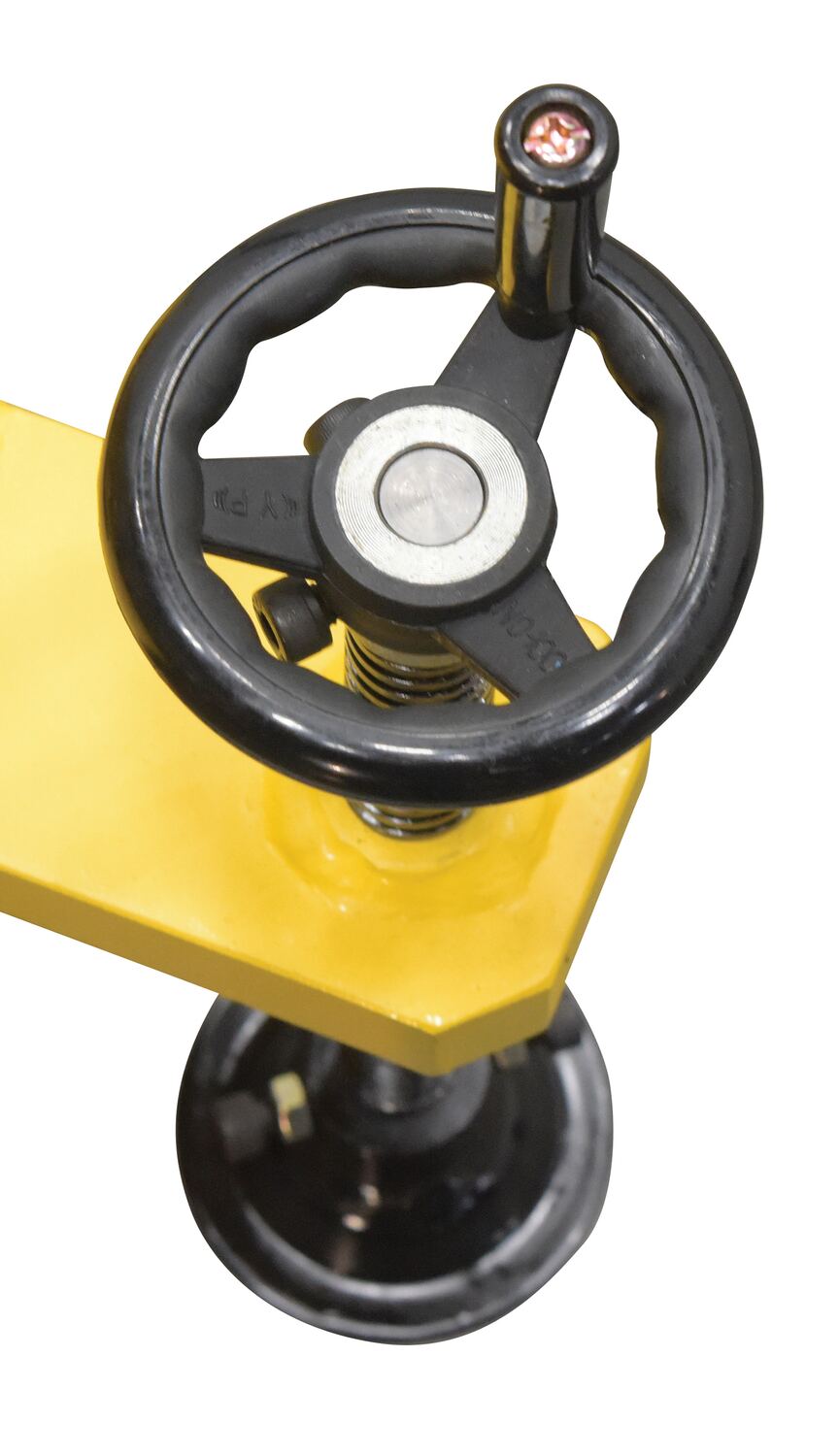

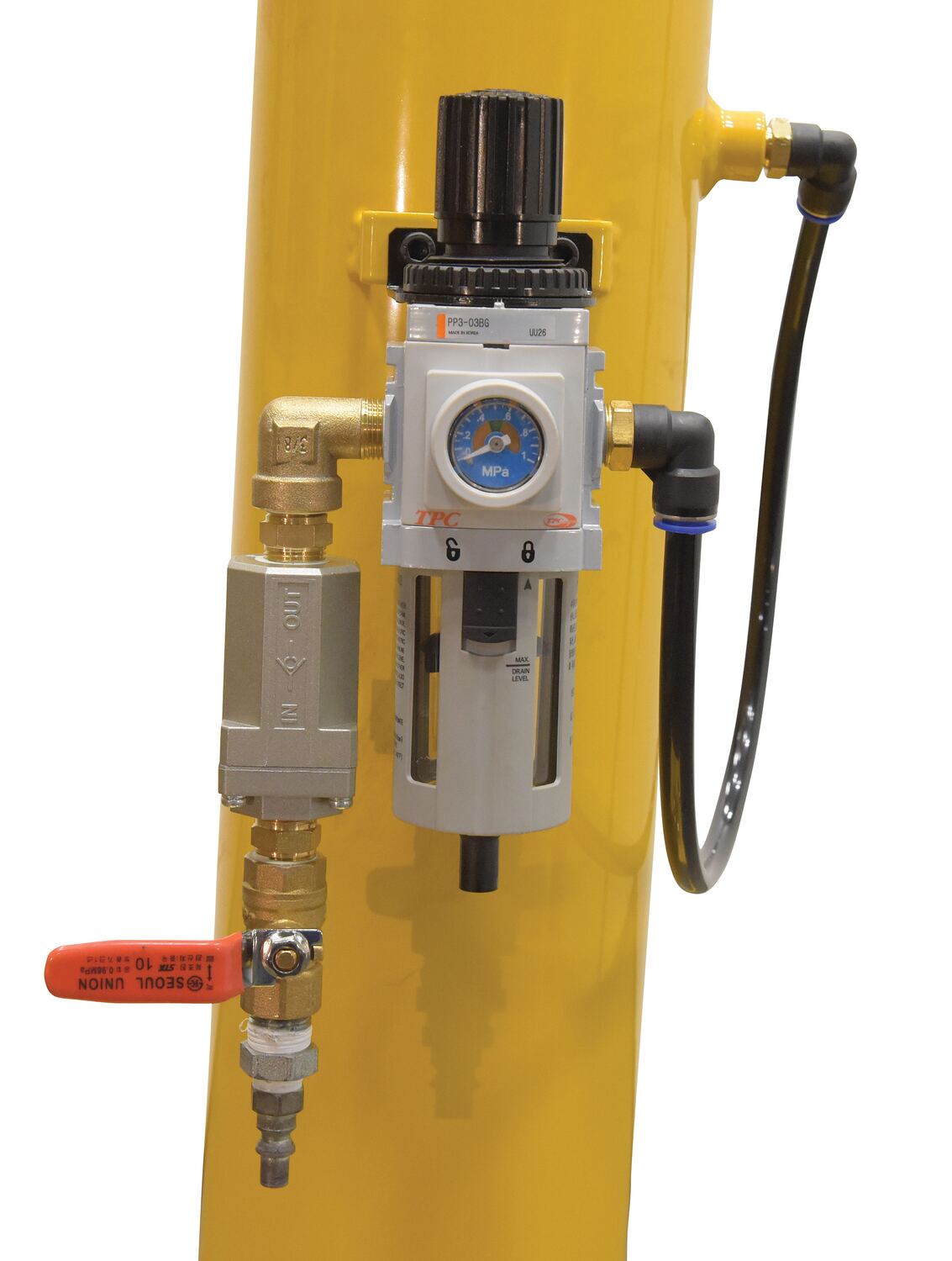

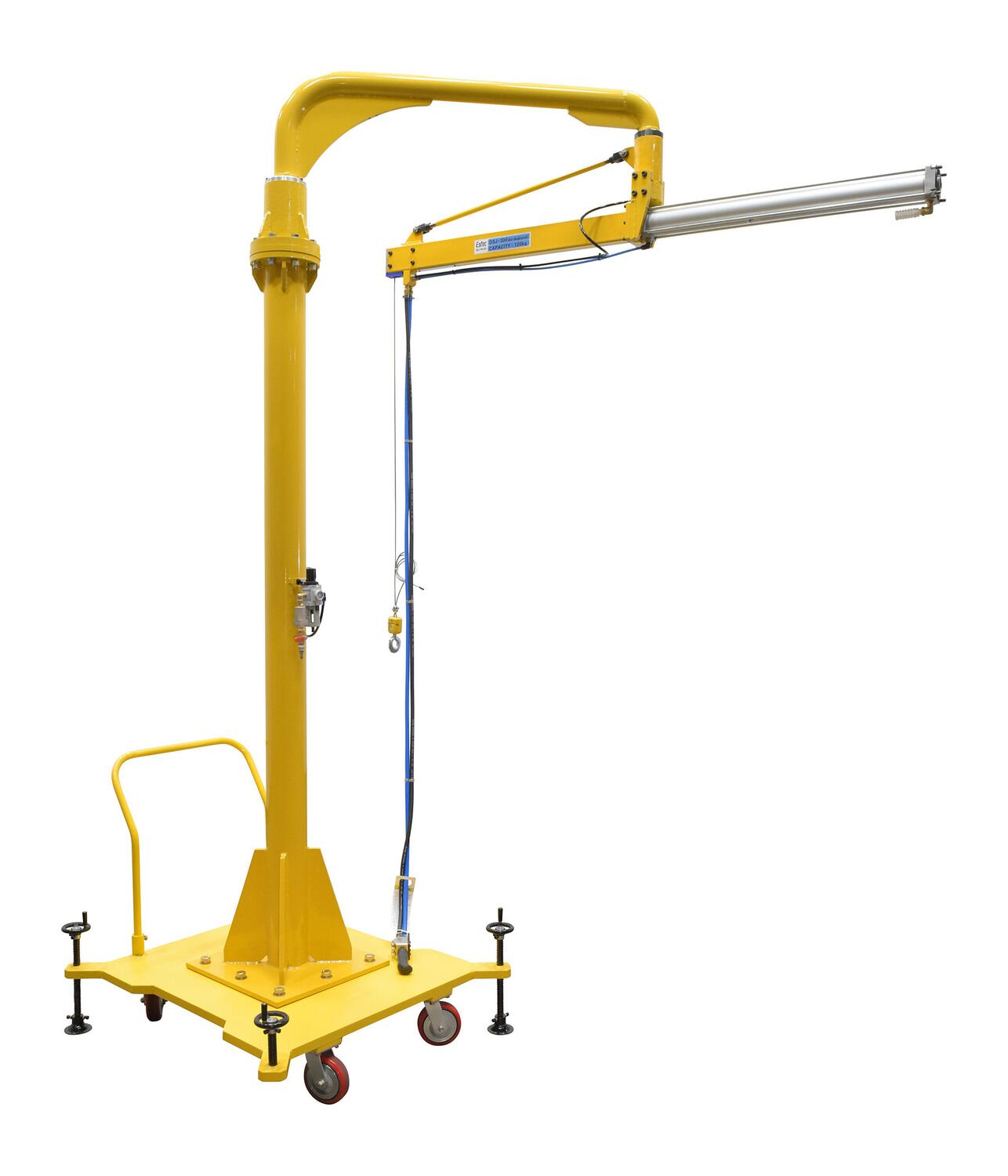

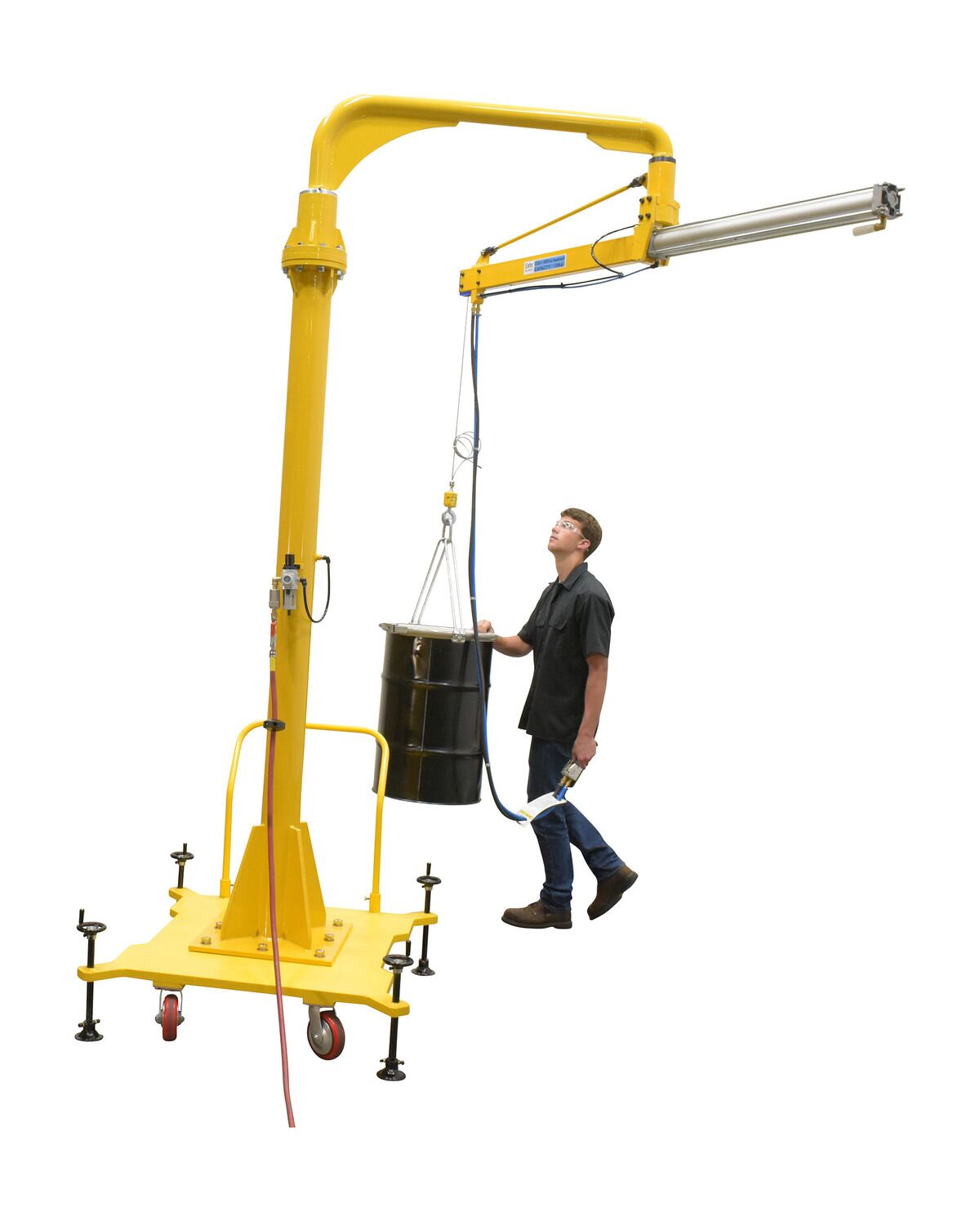

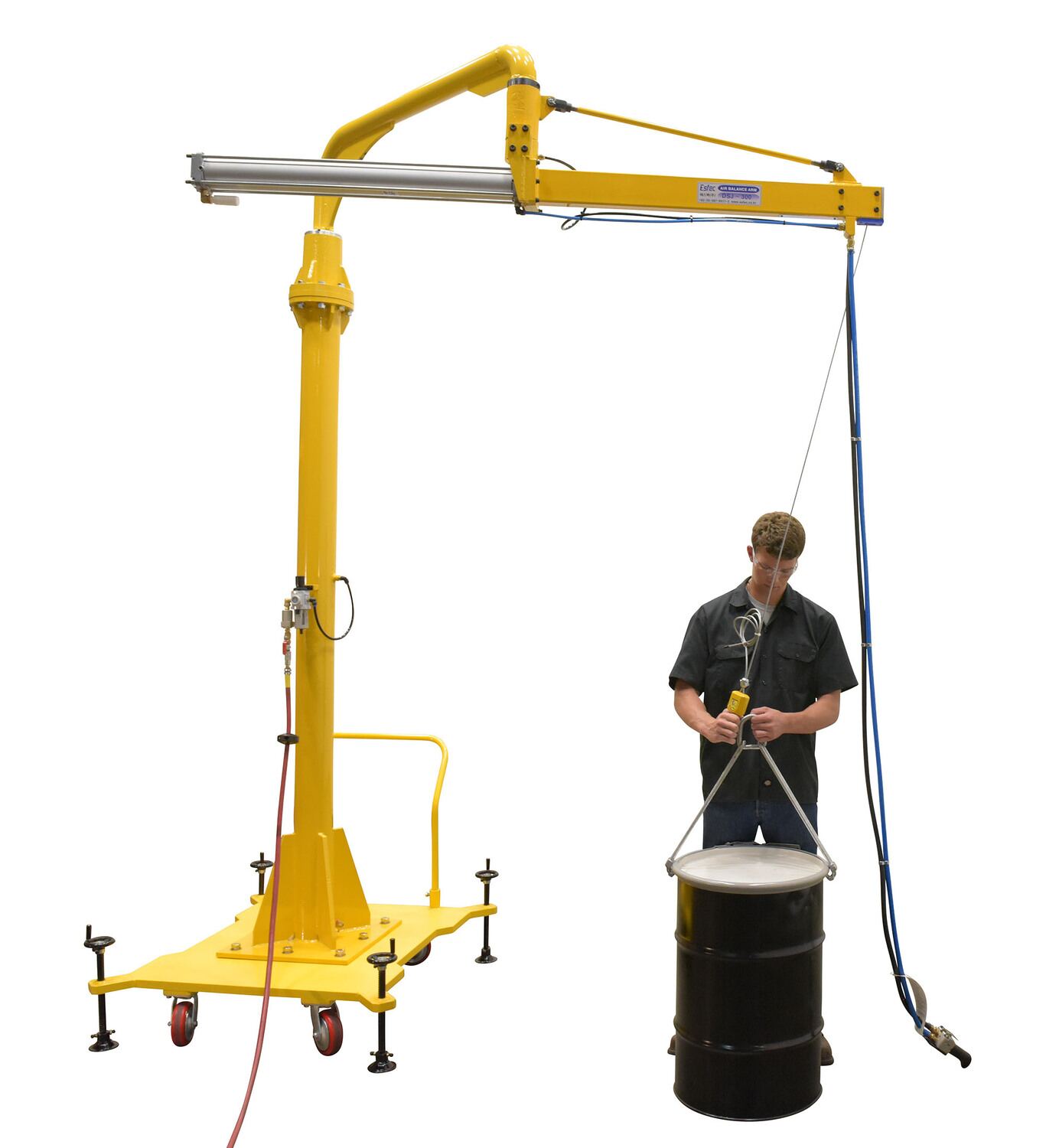

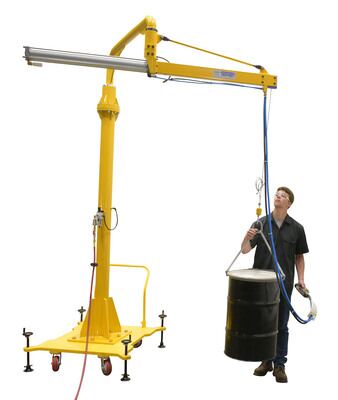

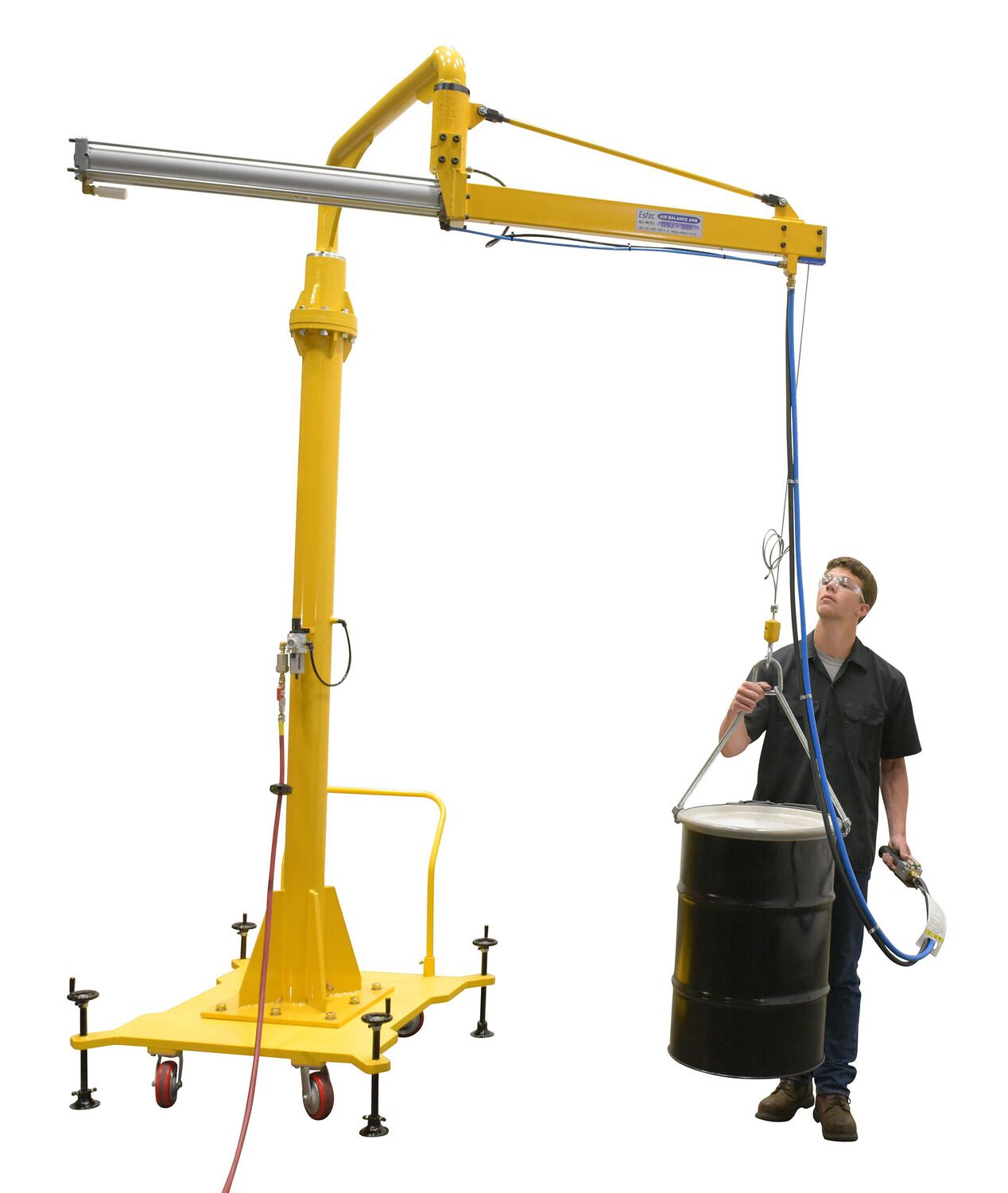

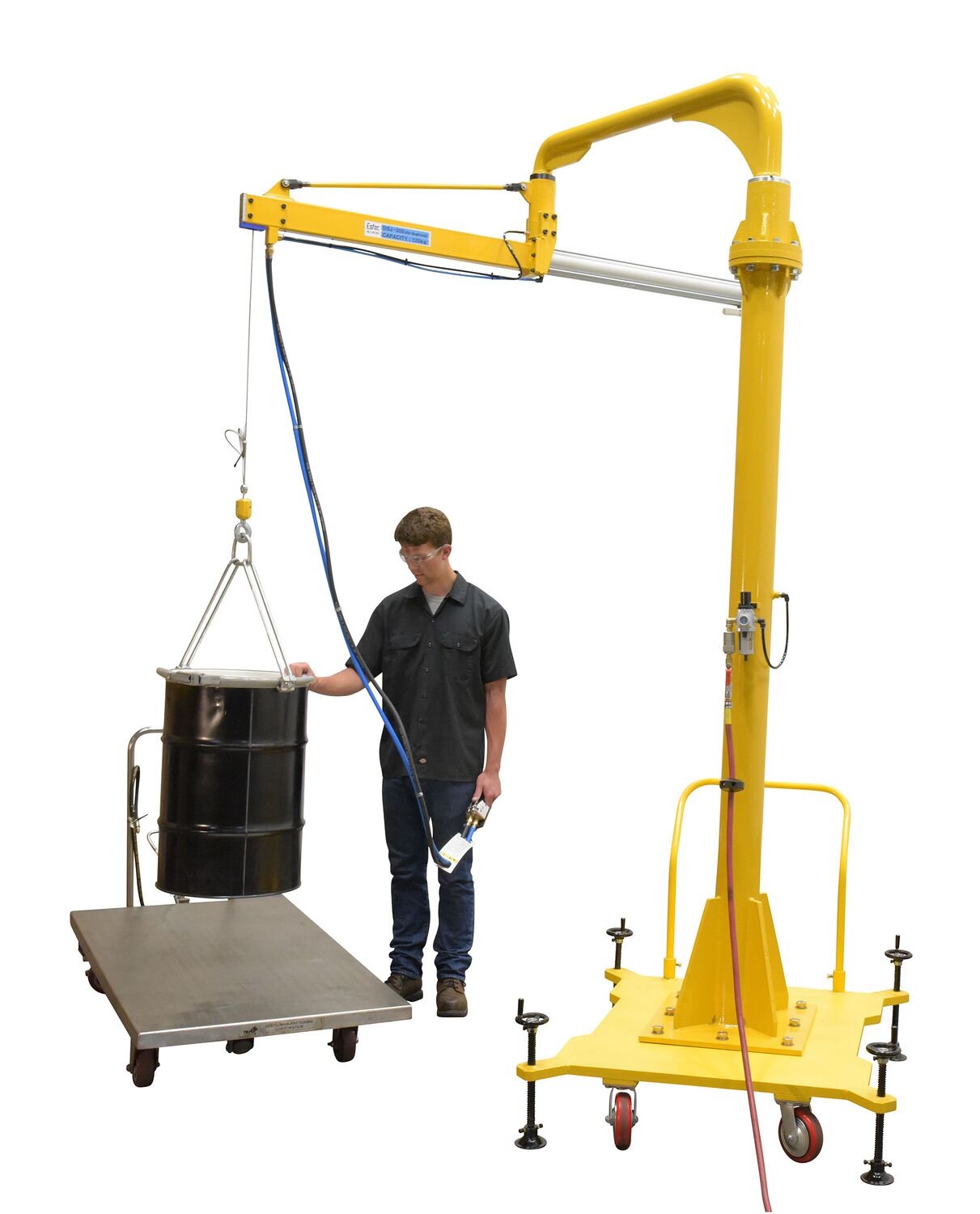

DSJ-300-P Warranty PDF 57-1/2" 93" 250 360 degrees 100 psi 1043

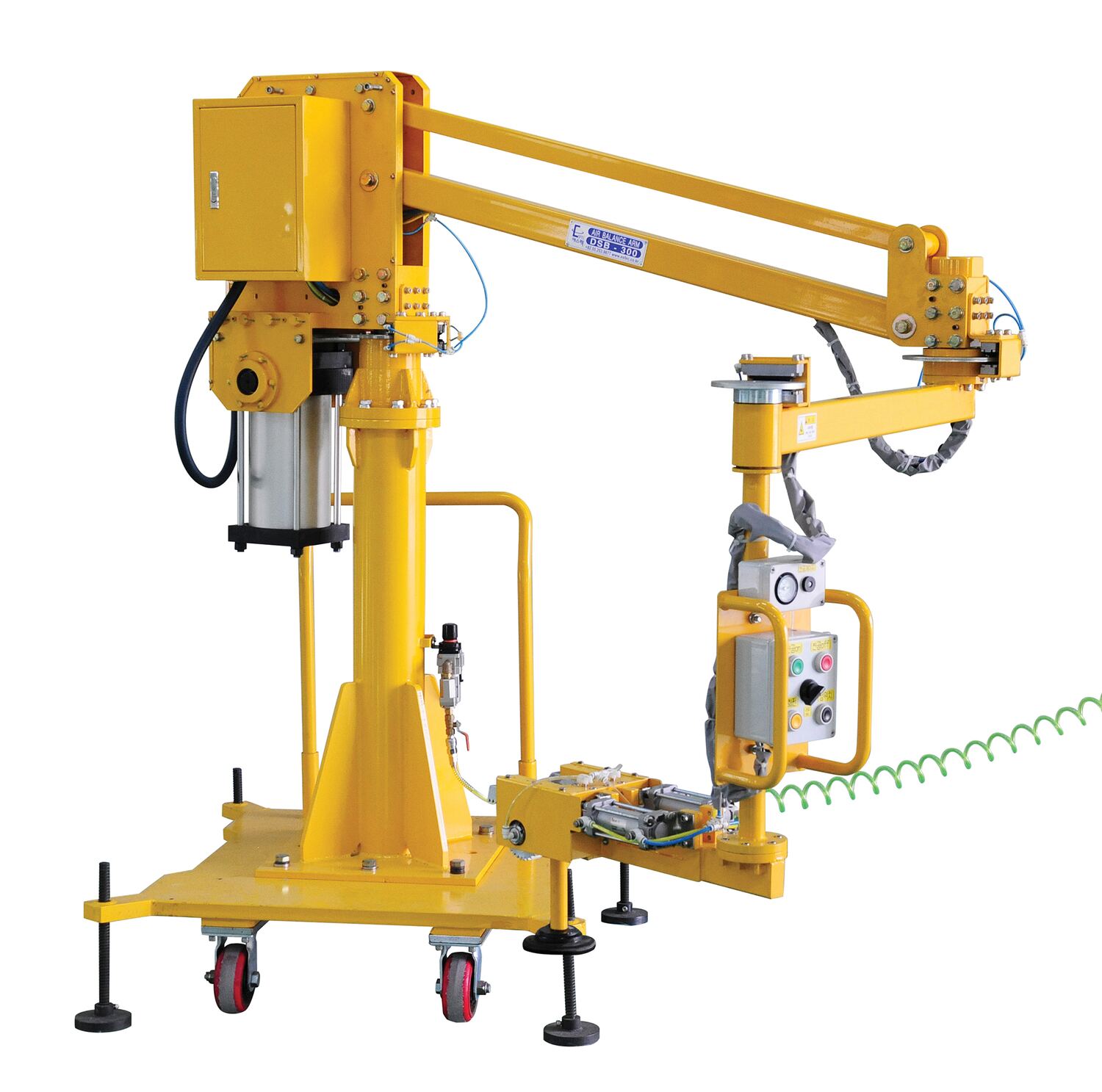

DSL-300-P icon_approvaldrawings.jpgWarranty PDF 47-1/4" 78-1/4" 250 360 degrees 100 psi 1087
DSC-300-P Warranty PDF 78-3/4" 86-1/2" 350 360 degrees 100 psi 1219

Ceiling Mount

DSJ-300-C Warranty PDF 57-1/2" 93" 250 360 degrees 100 psi 471
DSL-300-C Warranty PDF 47-1/4" 78-1/4" 250 360 degrees 100 psi 515
DSC-300-C Warranty PDF 78-3/4" 86-1/2" 350 360 degrees 100 psi 647

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Mechanical & Pneumatic Hoist Attachments
Model PDFs Description Capacity
(lbs)
Wt. (lbs)
VAC-6 Warranty PDFicon_approvaldrawings.jpg Pneumatic Vacuum 250 32

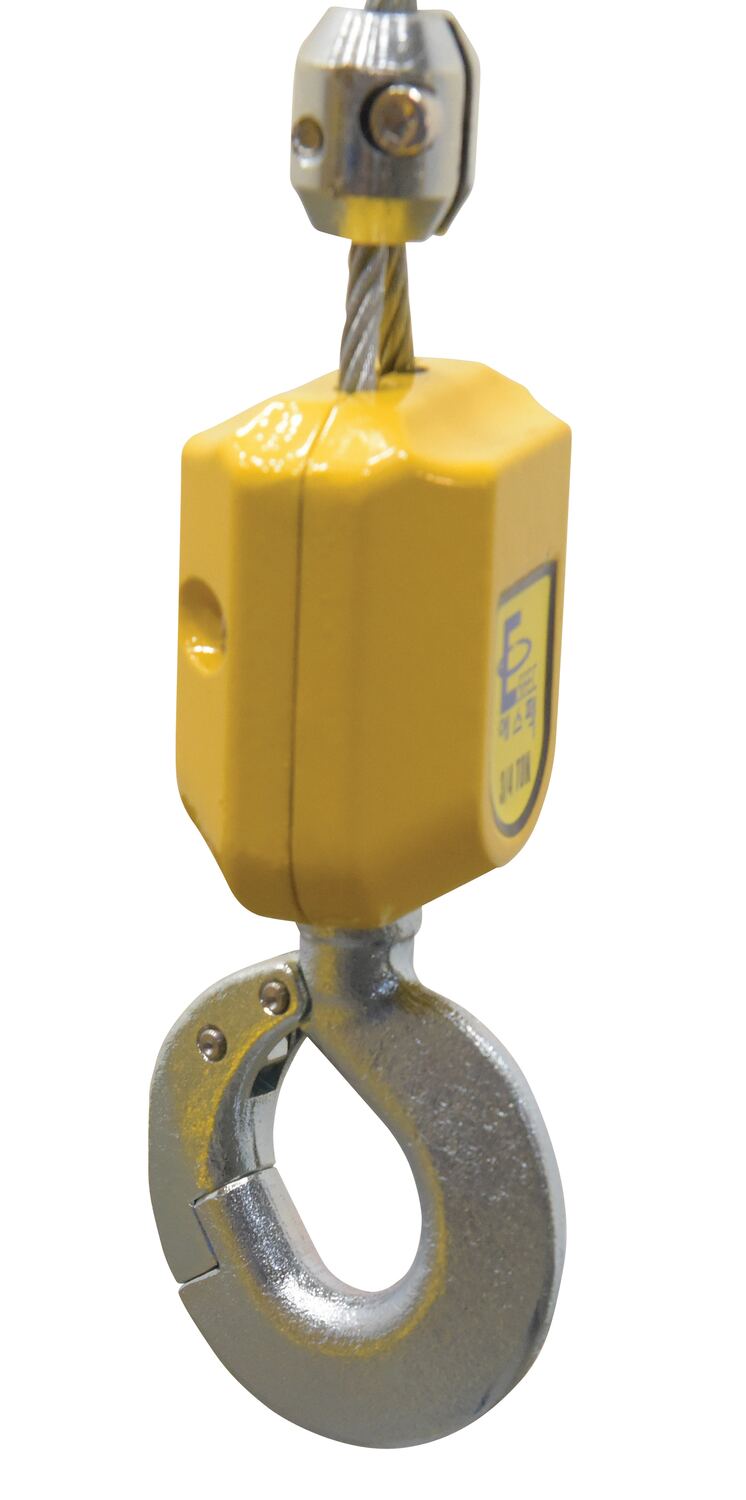

LMEC-DH Warranty PDFicon_approvaldrawings.jpg Double Hook 250 20

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
