Model Details

EH-7236

EH-7236

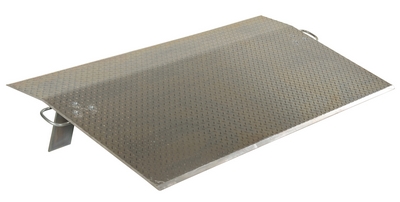

Aluminum Economizer Dock Plate 72 In. x 36 In. 1/2 In. Plate Thickness 7800 Lb. Capacity Silver

The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. This dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

  • Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
  • High-strength 6061 aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs and lifting handles are OSHA compliant
  • Beveled entrance and exit edges allow for smoother transition
Total Ship Wt.(lbs.): 129 (only 1 package) Size: 78"W x 36"L x 9.5"H Color: Silver QuickShip

Uniform Capacity (lb.): 7800 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 72 Usable Length (in.): 36 Plate Thickness (in.): 1/2
Height Difference Between Truck and Door (in.): 5 Leg Height (in.): 9 OSHA: 1910.30(a)
ANSI: MH 30.2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EH-7236


EH-7236

Aluminum Economizer Dock Plate 72 In. x 36 In. 1/2 In. Plate Thickness 7800 Lb. Capacity Silver

The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. This dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

  • Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
  • High-strength 6061 aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs and lifting handles are OSHA compliant
  • Beveled entrance and exit edges allow for smoother transition
Dimensions: 78"W x 36"L x 9.5"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215017152 GTIN: 00691215017152
Warranty: -- Shipping Weight: 129 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 7800 Bend or Crown (degrees): 11 Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 72 Usable Length (in.): 36 Plate Thickness (in.): 1/2
Height Difference Between Truck and Door (in.): 5 Leg Height (in.): 9 OSHA: 1910.30(a)
ANSI: MH 30.2
