Model Details

EHLT-N-1648-1-32

EHLT-N-1648-1-32

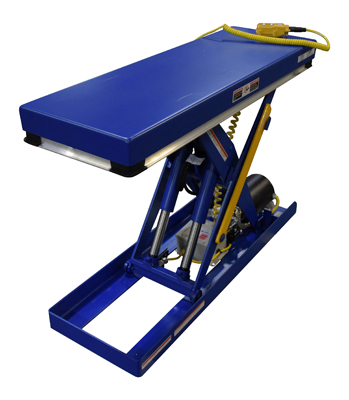

Steel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 1000 Lb. Capacity Blue

The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points while lowering the table, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, maintenance prop, upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and a state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available.

  • Electric toe guard protects pinch points while lowering for maximum safety
  • Internal safety velocity fuse maintains platform height in case of hose or fitting failure
  • Displacement-style hydraulic cylinders for maximum strength
  • Standard 56 frame electric motor is a fully enclosed with optional voltages available
Total Ship Wt.(lbs.): 359 (only 1 package) Size: 16.375"W x 48.375"L x 8"H Color: Blue Non-Returnable

Uniform Static Capacity (lb.): 1,000 Raised Height (in.): 32 Lowered Height (in.): 8
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLT-N-1648-1-32


EHLT-N-1648-1-32

Steel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 1000 Lb. Capacity Blue

The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include an electric toe guard to protect pinch points while lowering the table, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, maintenance prop, upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and a state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available.

  • Electric toe guard protects pinch points while lowering for maximum safety
  • Internal safety velocity fuse maintains platform height in case of hose or fitting failure
  • Displacement-style hydraulic cylinders for maximum strength
  • Standard 56 frame electric motor is a fully enclosed with optional voltages available
Dimensions: 16.375"W x 48.375"L x 8"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215086431 GTIN: 00691215086431
Warranty: -- Shipping Weight: 359 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Static Capacity (lb.): 1,000 Raised Height (in.): 32 Lowered Height (in.): 8
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
