model: EHLT-N-1648-2-32


SERIES: EHLT-N

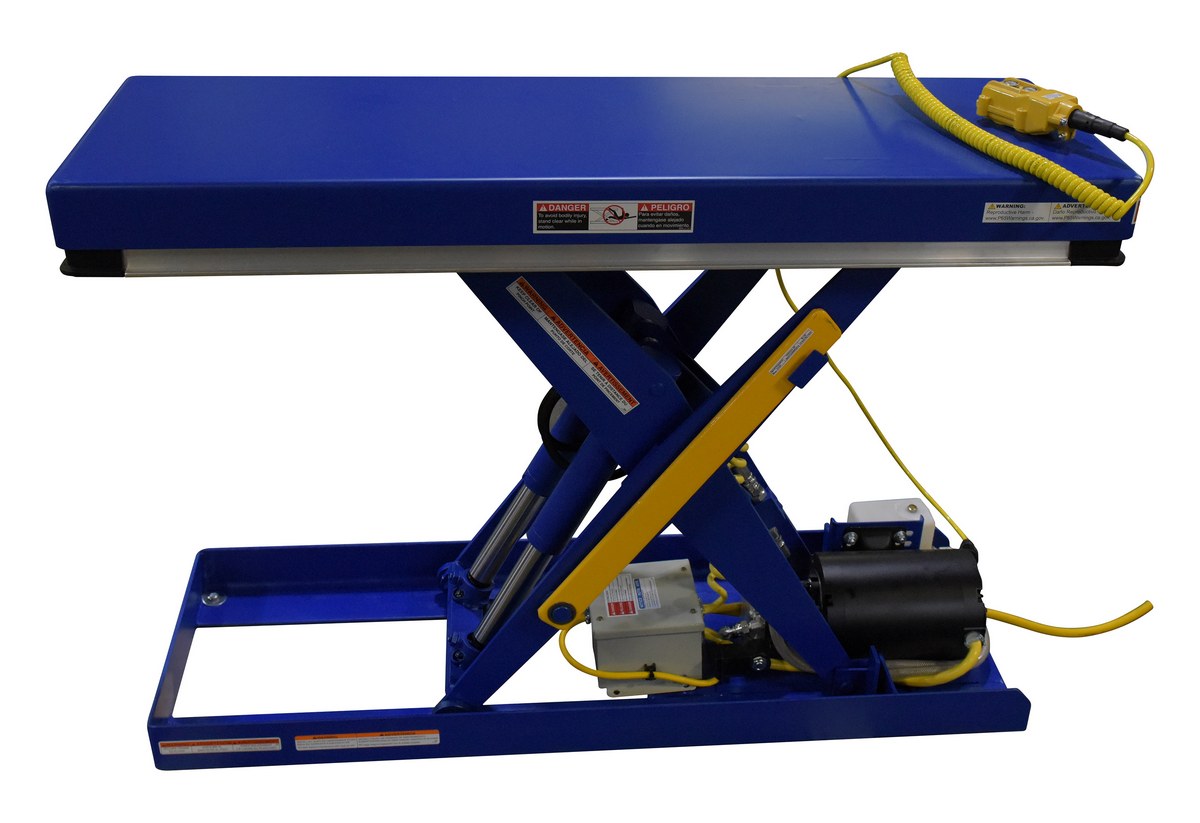

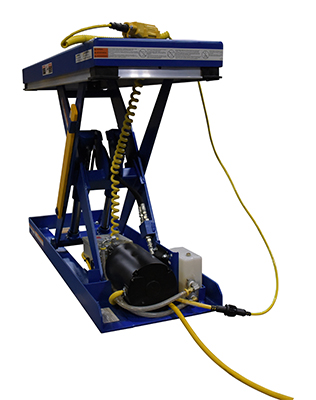

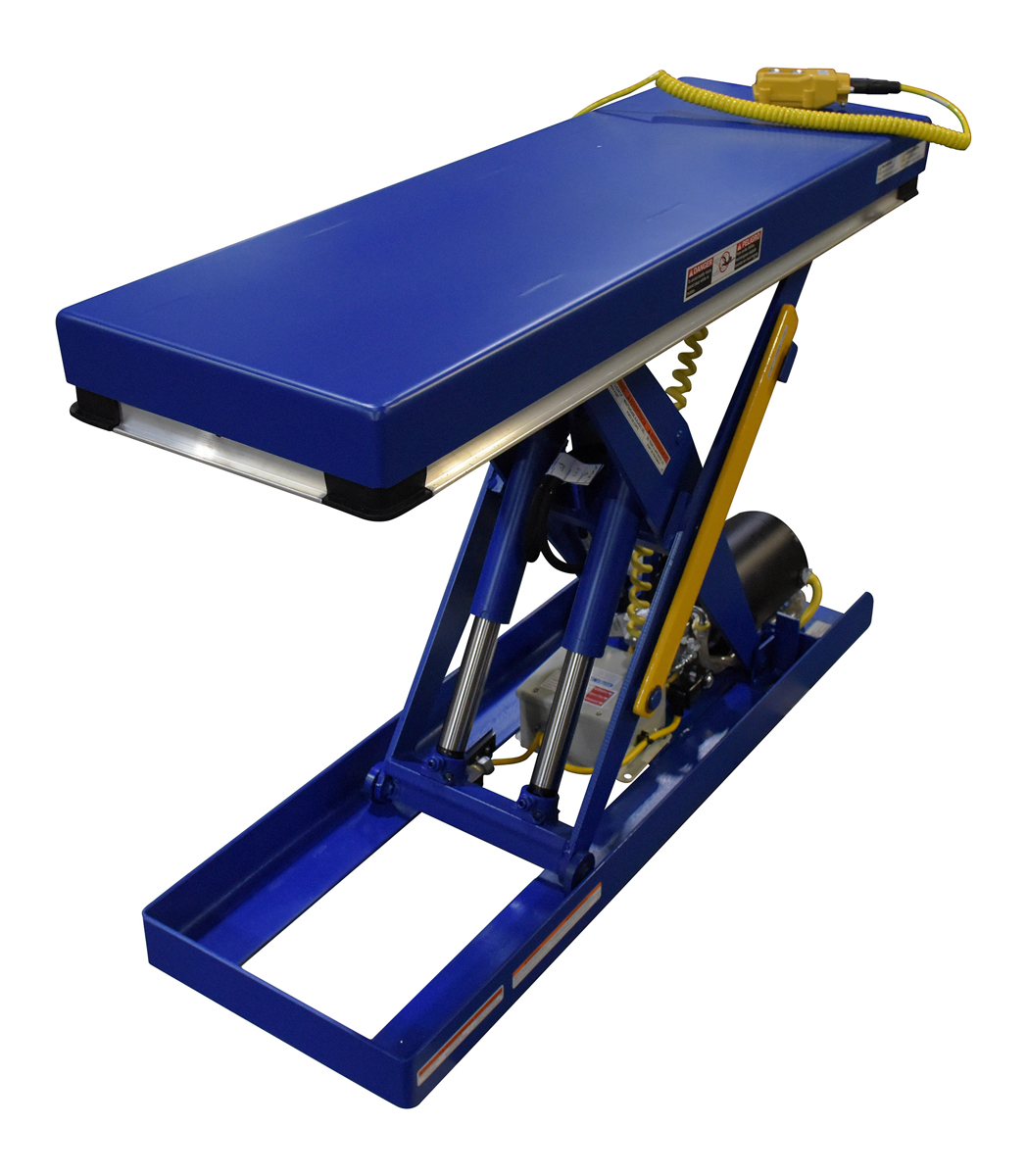

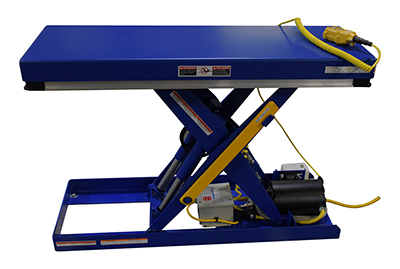

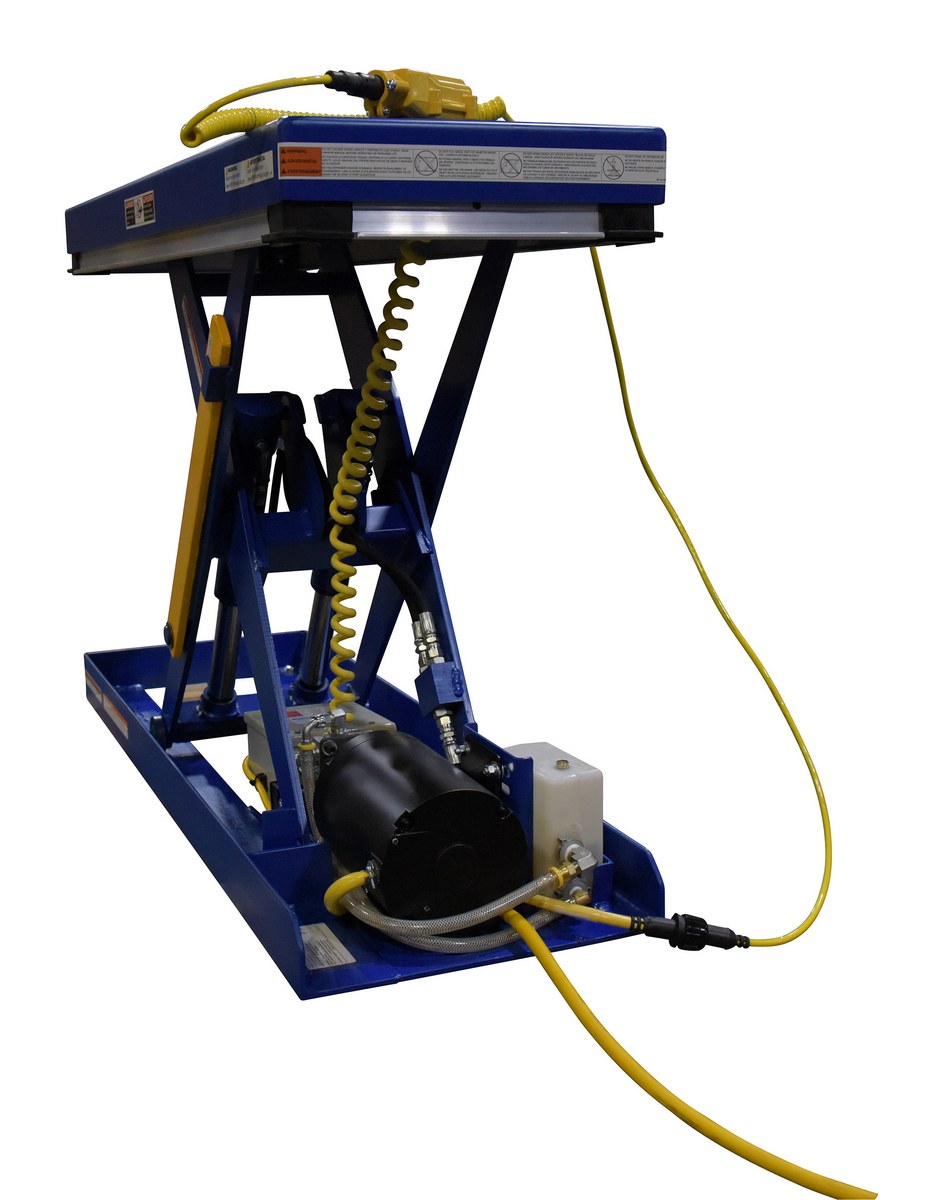

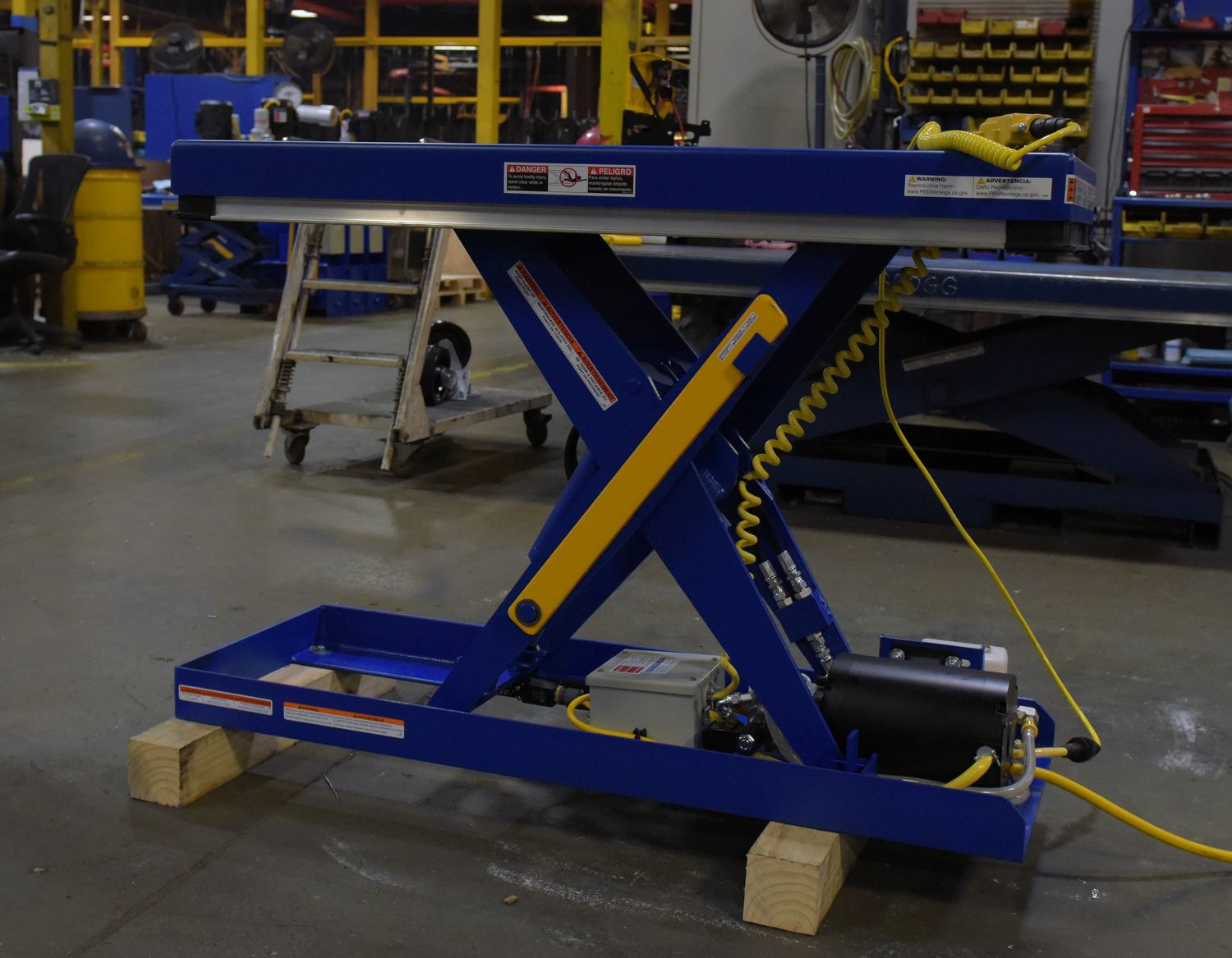

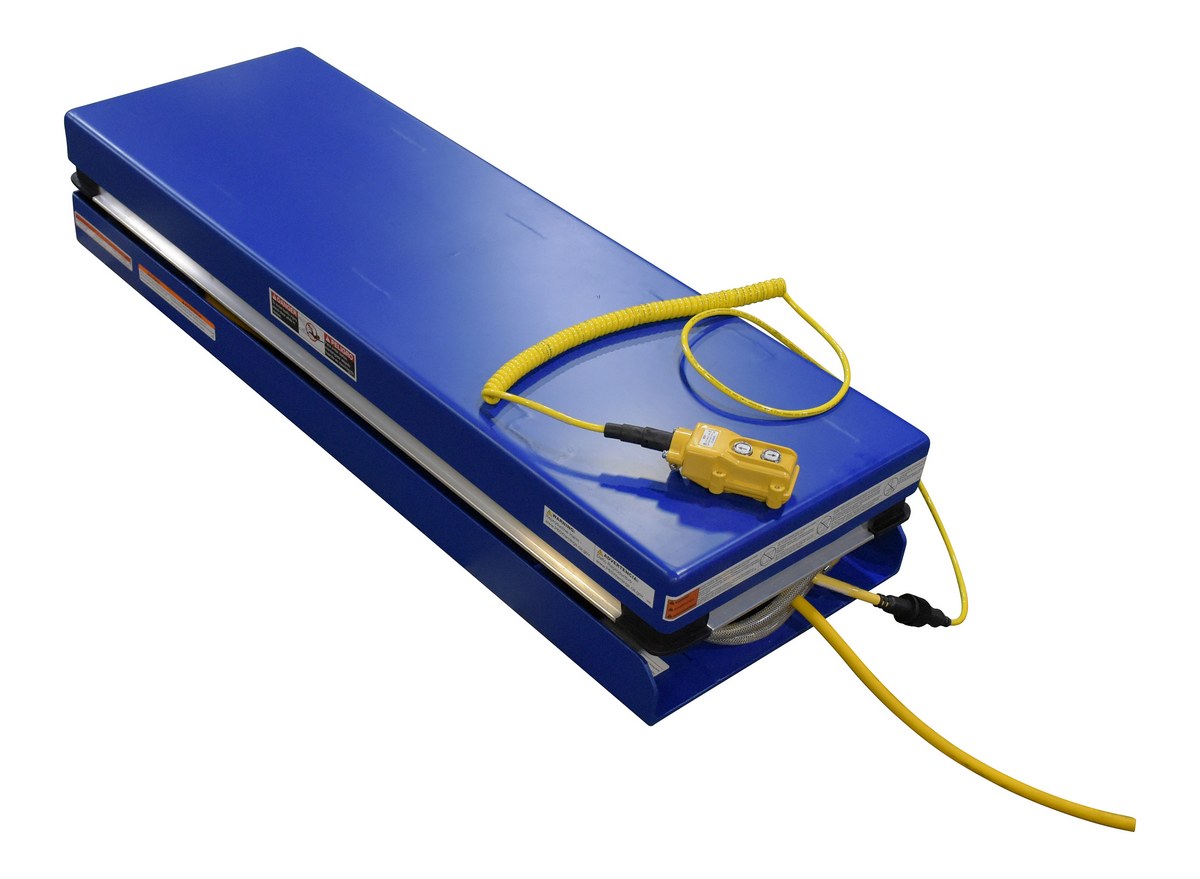

Narrow Scissor Lift Tables

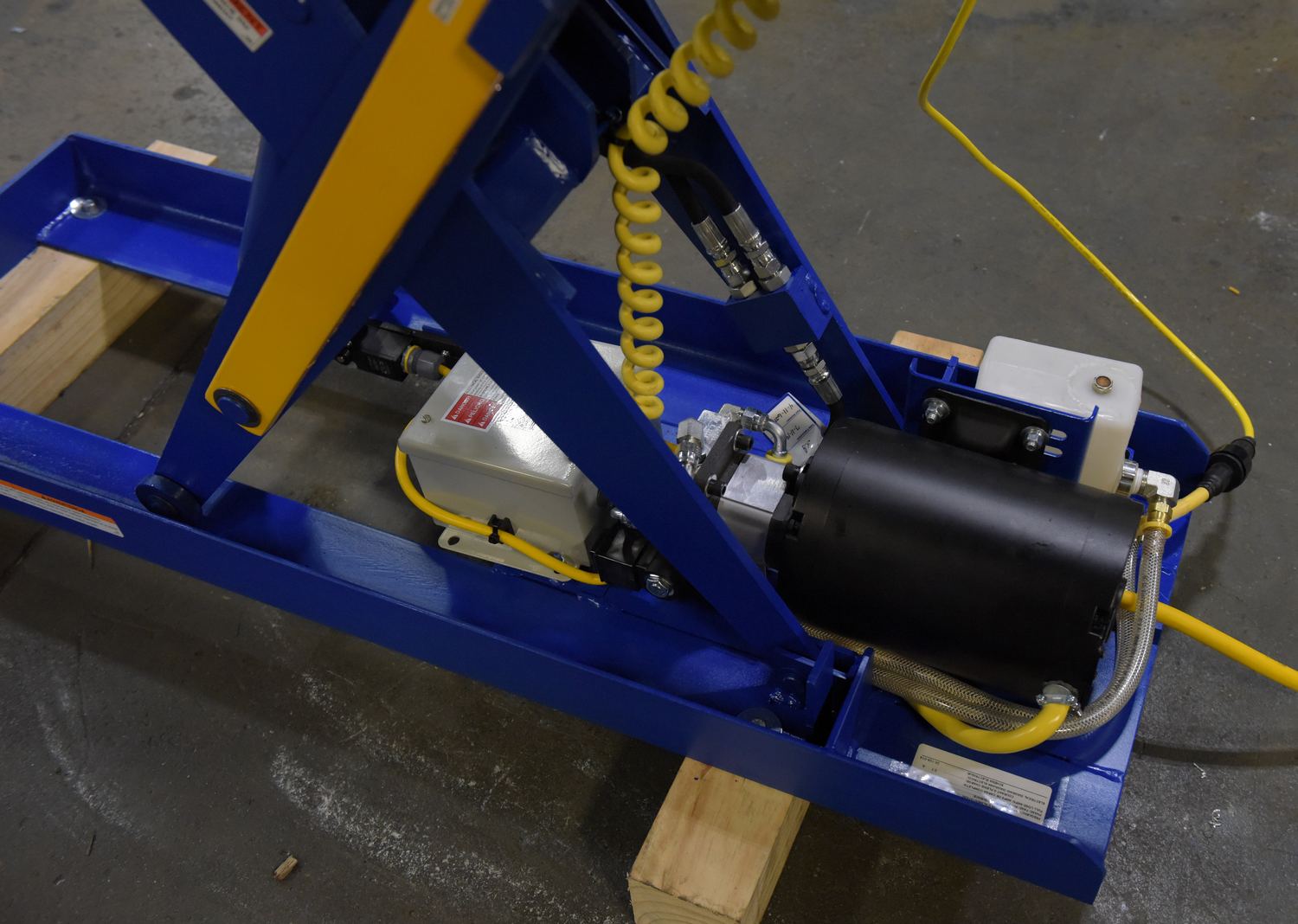

The Narrow Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points while lowering of the table, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, maintenance prop, upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. 2HP, 460V, 3 Phase, 60 HZ totally enclosed motor standard, other voltages available.

The Narrow Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points while lowering of the table, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, maintenance prop, upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. 2HP, 460V, 3 Phase, 60 HZ totally enclosed motor standard, other voltages available.

Other Lift & Tilt Tables

Electric Hydraulic Scissor Lift Tables

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Narrow Scissor Lift Table

Model PDFs Platform
Size (WxL)
Lowered
Height
Raised
Height
*Uniform
Capacity (lbs)
Voltage
Phase
Wt.
(lbs)
EHLT-N-1648-1-32 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 16"x48" 8" 32" 1,000 460/3 359
EHLT-N-1648-2-32 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 16"x48" 8" 32" 2,000 460/3 364
*Uniform static capacity
