Model Details

EHLT2448-3-43FC

Printer Friendly
EHLT2448-3-43FC

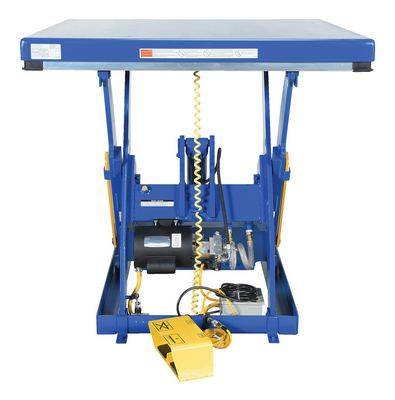

Steel Electric Hydraulic Lift Table with Foot Control 24 In. x 48 In. 3000 Lb. Capacity Blue

The electric hydraulic scissor lift table with foot control is used by all types of manufacturing and warehouse facilities. The unit lifts products to a desired height creating an ergonomically friendly workspace. The lift table is designed with steel construction for durability and longevity. Additional safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table as well as a foot control for lowering and raising the unit. An internal safety velocity fuse is included to maintain platform height in the event of hose or fitting failure. The standard 56 frame electric motor is fully enclosed with additional voltage options available.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
Total Ship Wt.(lbs.): 694 (only 1 package) Size: 24.375"W x 51"L x 7"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 3,000 Travel Time (sec.): 16 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Foot Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 24-3/8 x 48-3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLT2448-3-43FC
EHLT2448-3-43FC

Steel Electric Hydraulic Lift Table with Foot Control 24 In. x 48 In. 3000 Lb. Capacity Blue

The electric hydraulic scissor lift table with foot control is used by all types of manufacturing and warehouse facilities. The unit lifts products to a desired height creating an ergonomically friendly workspace. The lift table is designed with steel construction for durability and longevity. Additional safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table as well as a foot control for lowering and raising the unit. An internal safety velocity fuse is included to maintain platform height in the event of hose or fitting failure. The standard 56 frame electric motor is fully enclosed with additional voltage options available.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
Dimensions: 24.375"W x 51"L x 7"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215060363 GTIN: 00691215060363
Warranty: -- Shipping Weight: 694 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3,000 Travel Time (sec.): 16 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Foot Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 24-3/8 x 48-3/8
