Electric Hydraulic Scissor Lift Tables

  2. Ergonomic Solutions
  3. Lift & Tilt Tables
  4. ...
Click Image to Enlarge

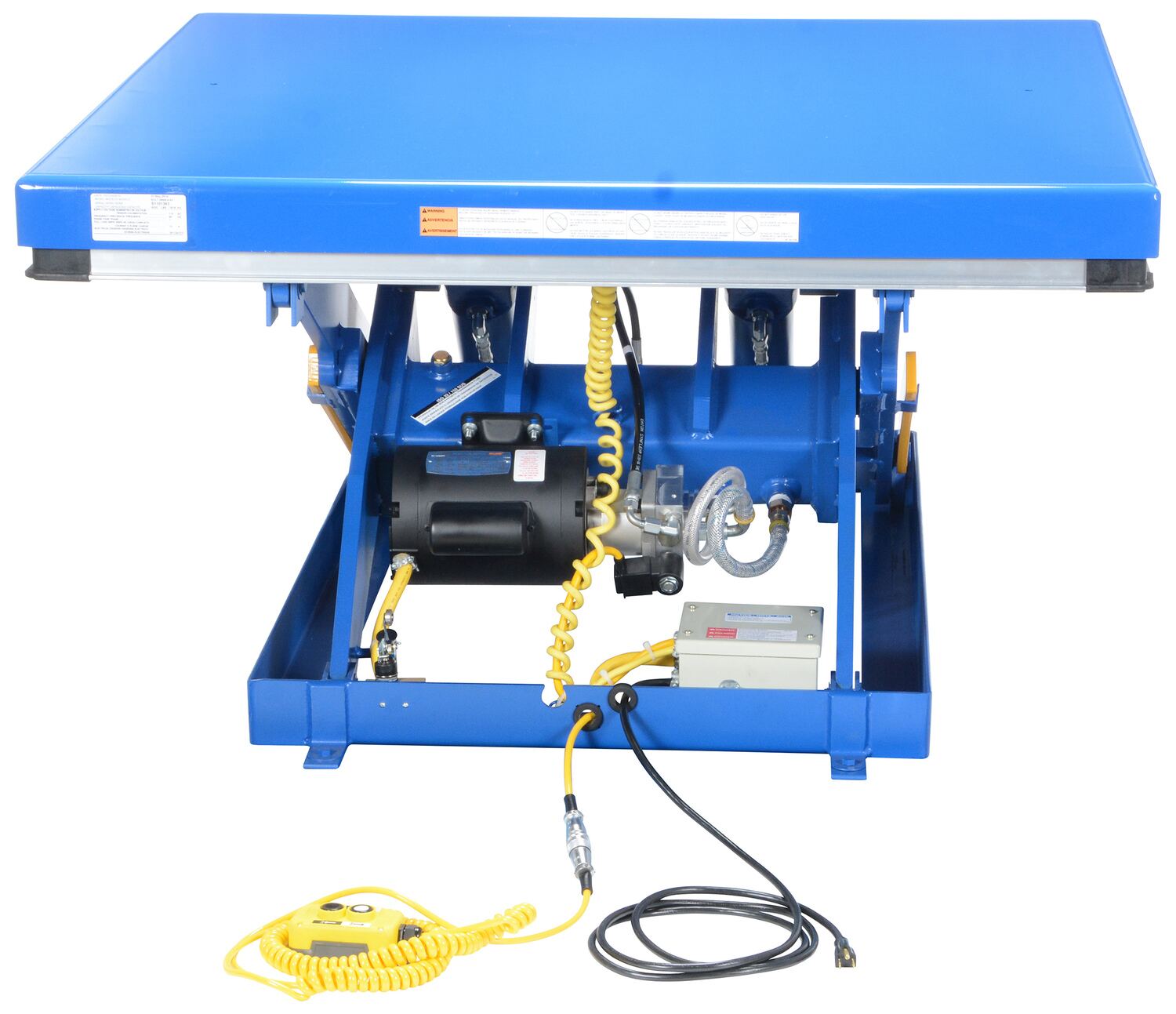

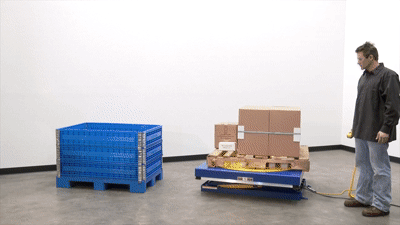

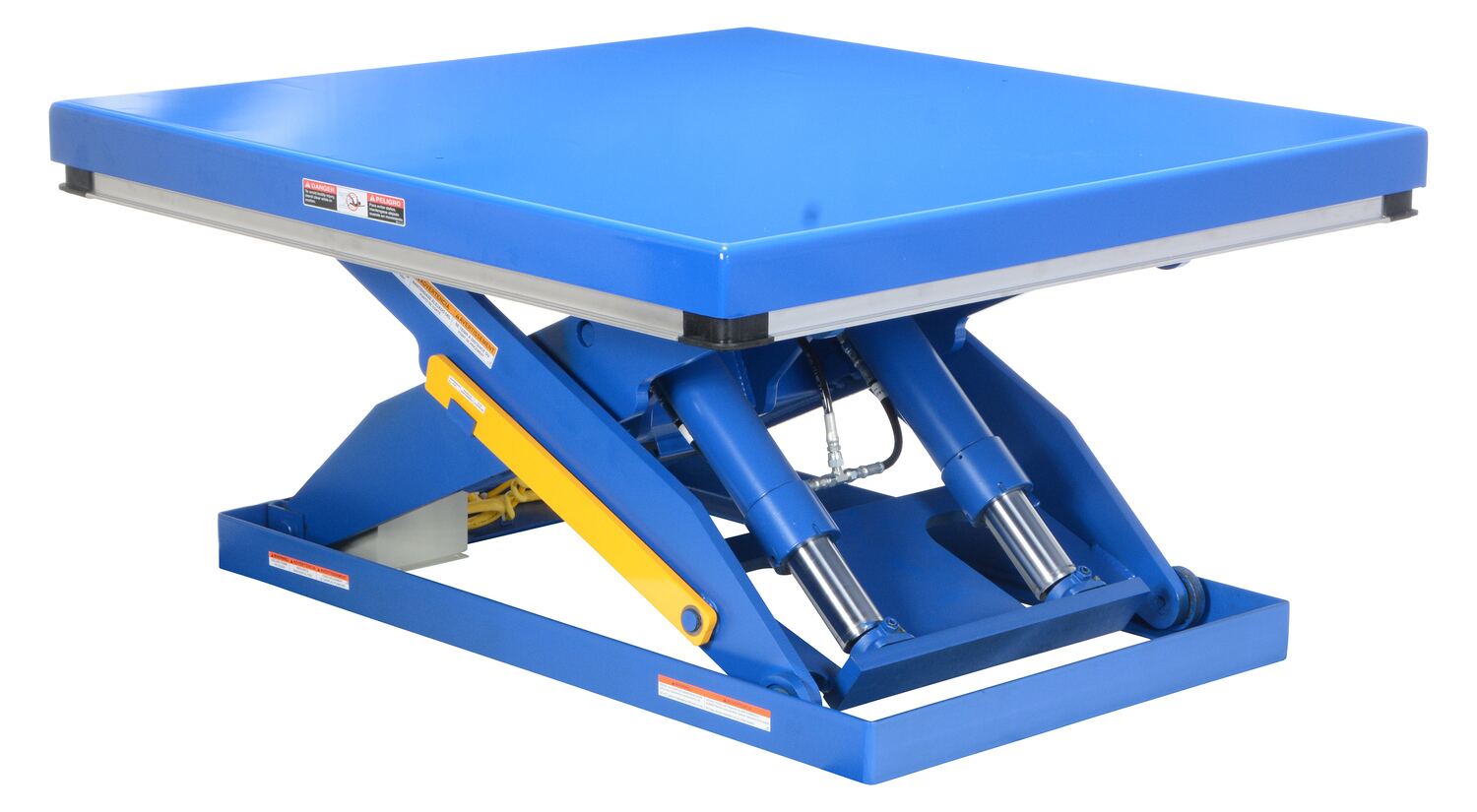

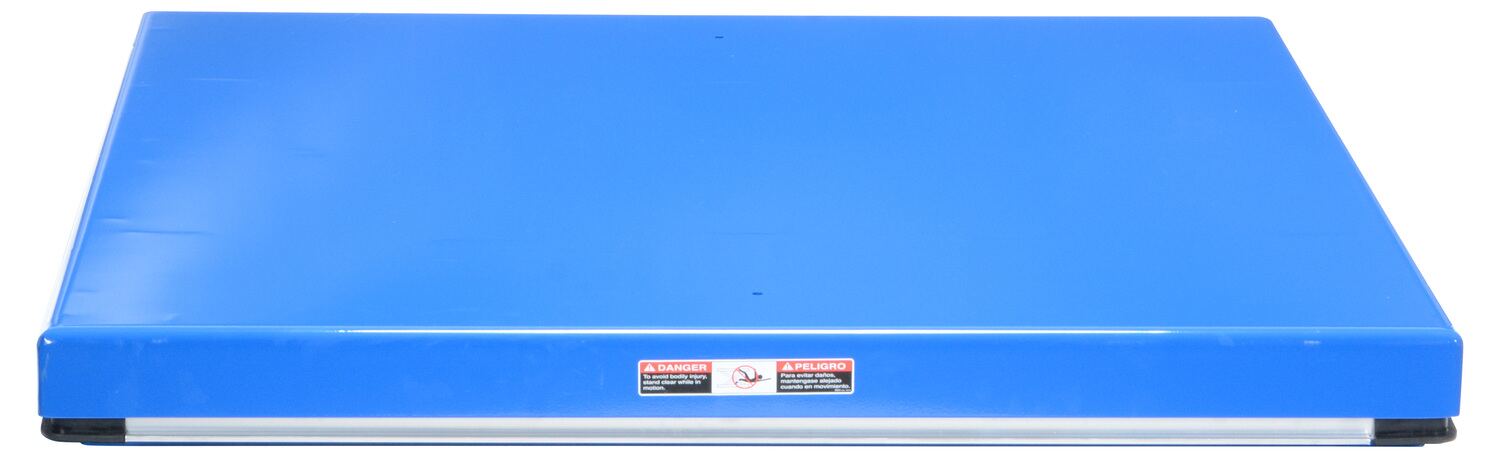

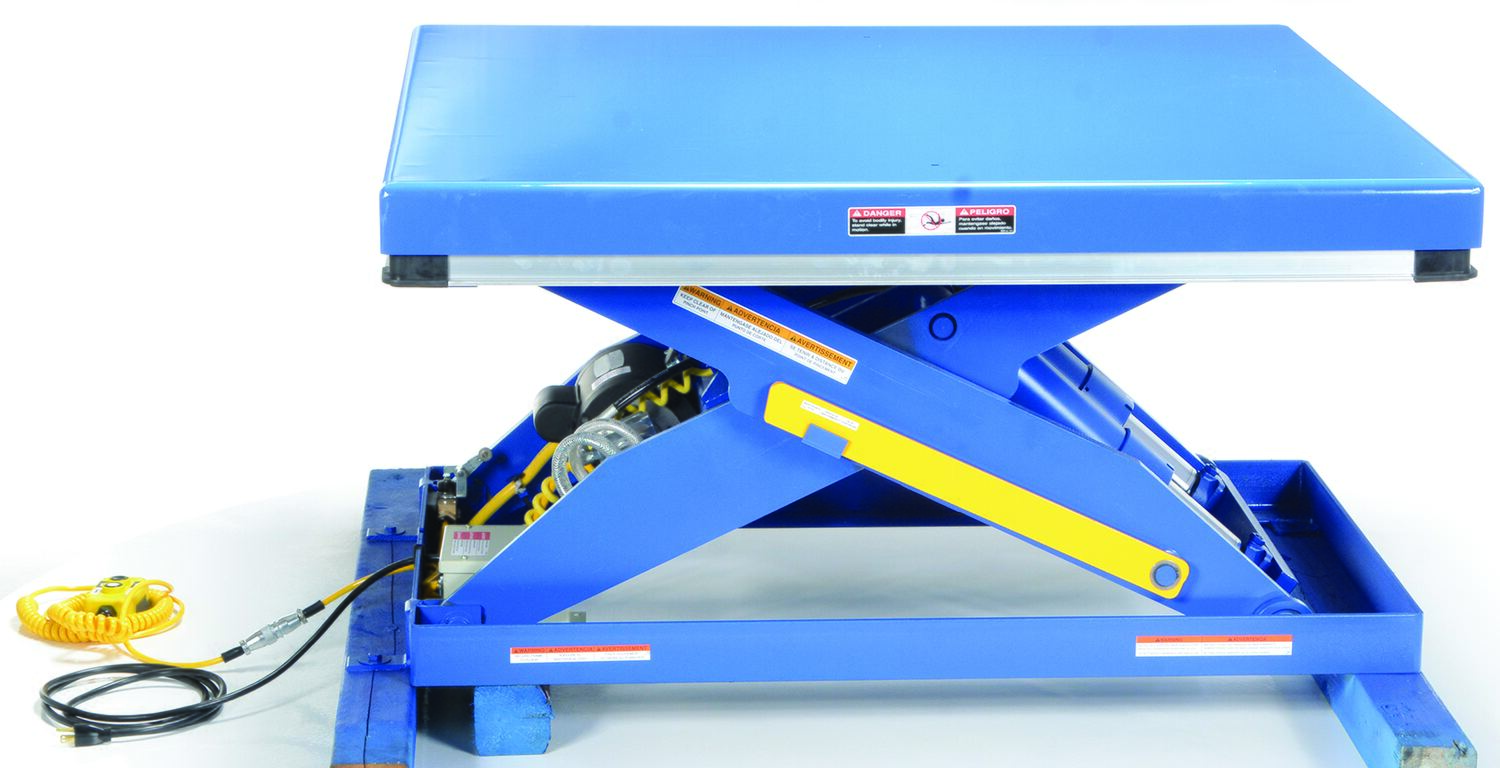

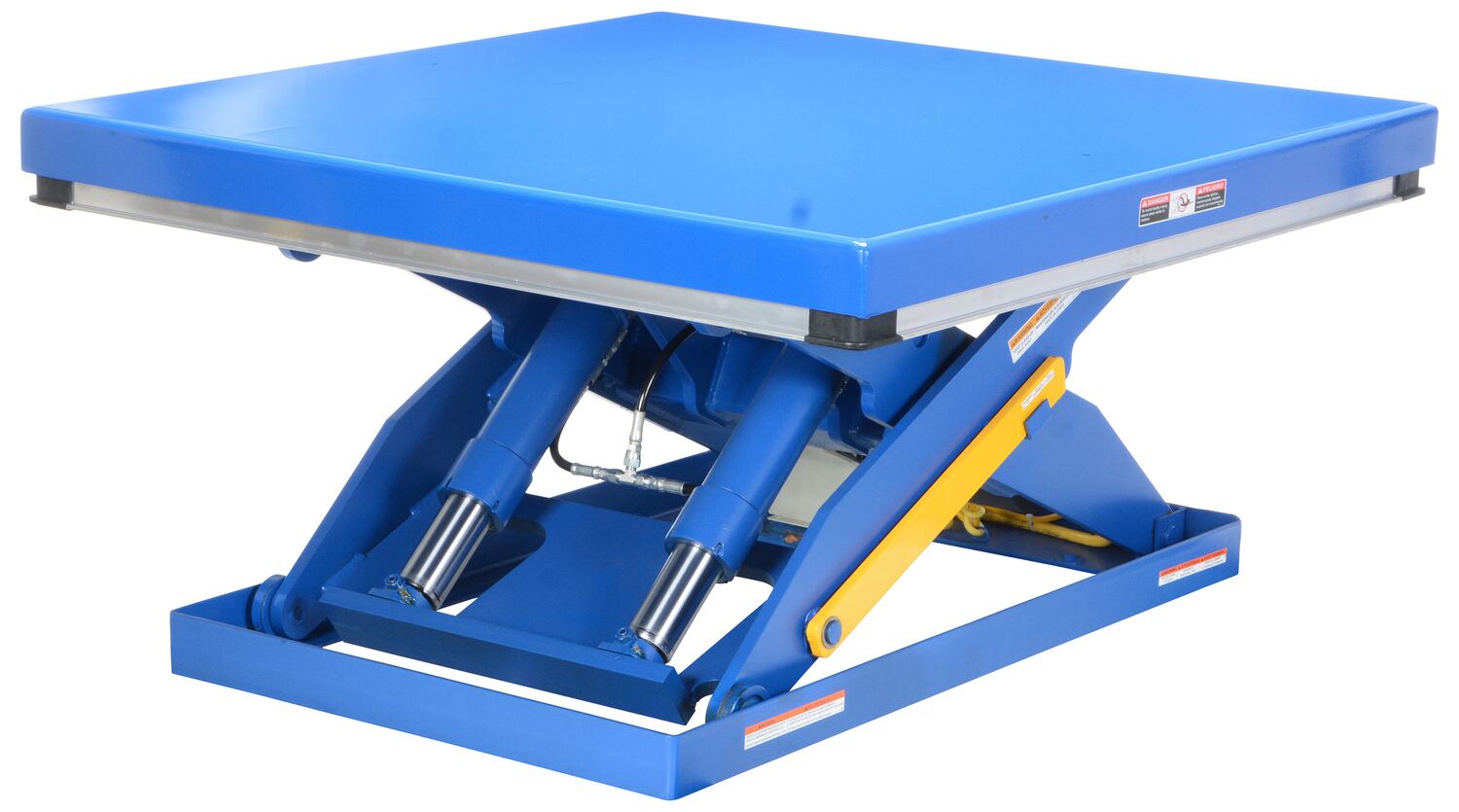

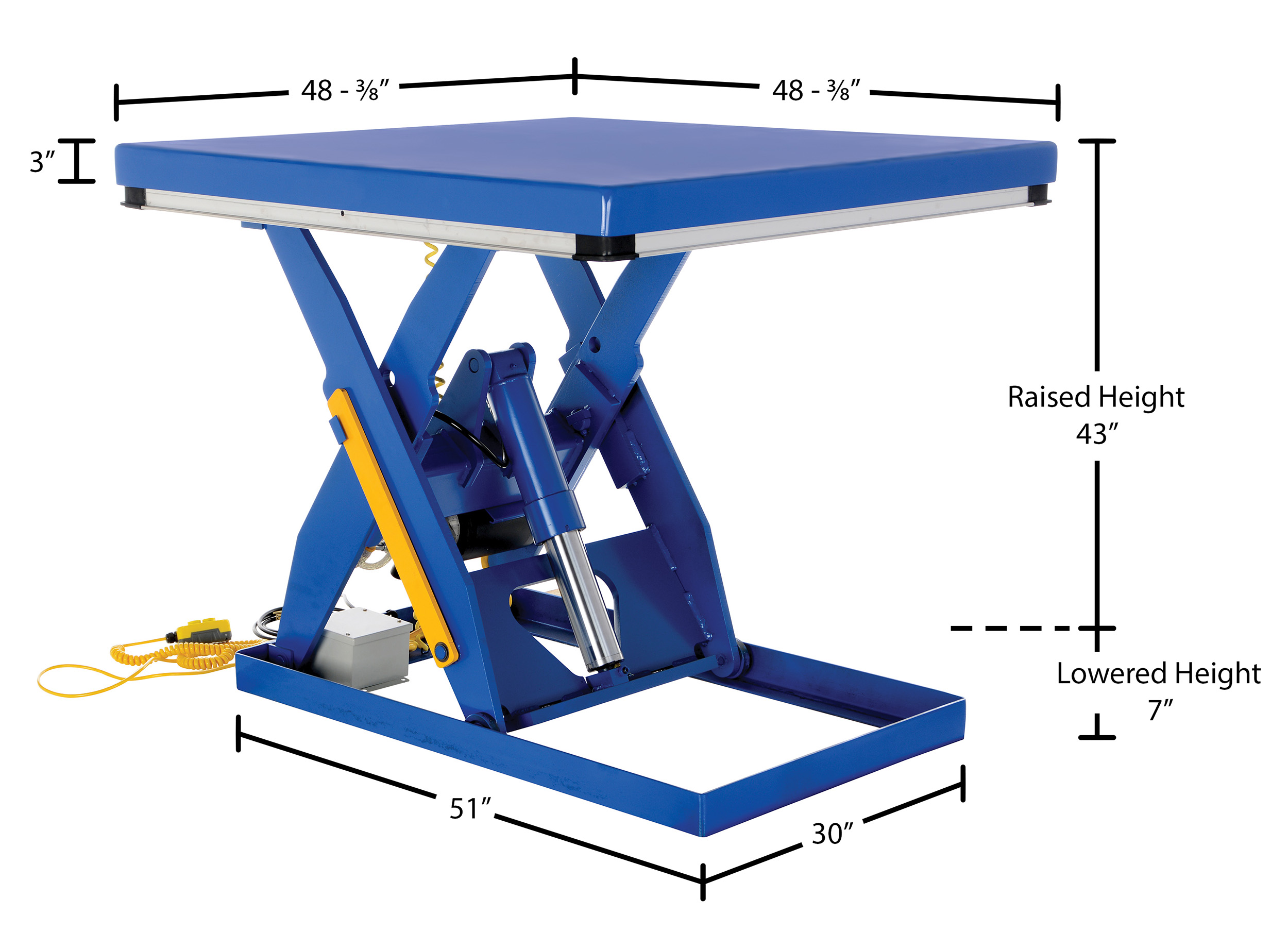

model: EHLT-4848-4-43

EHLT-4848-4-43_E.jpg EHLT-4848-4-43_B.jpg EHLT-4848-4-43_A.jpg EHLT-4848-4-43_C.jpg
Print Friendly

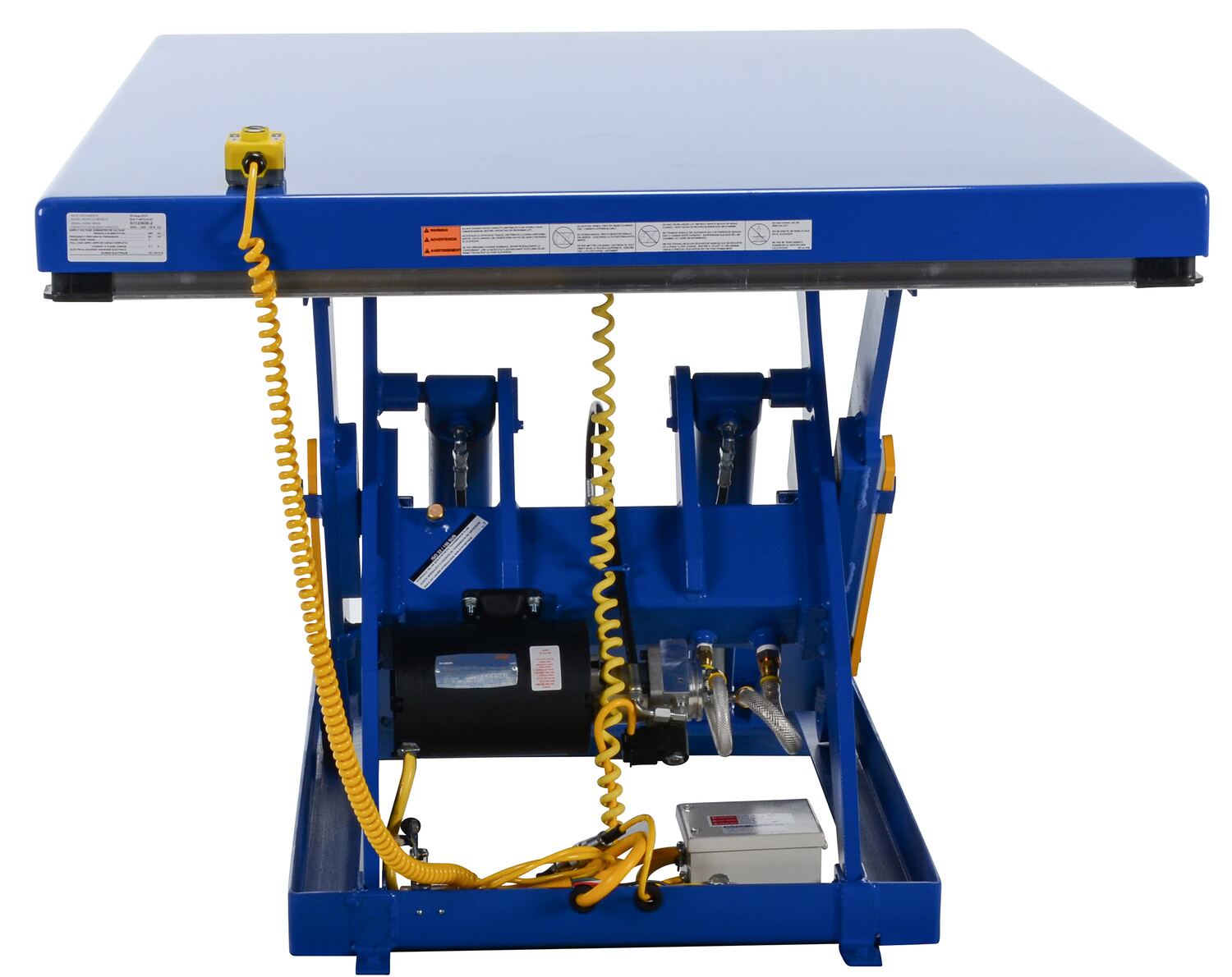

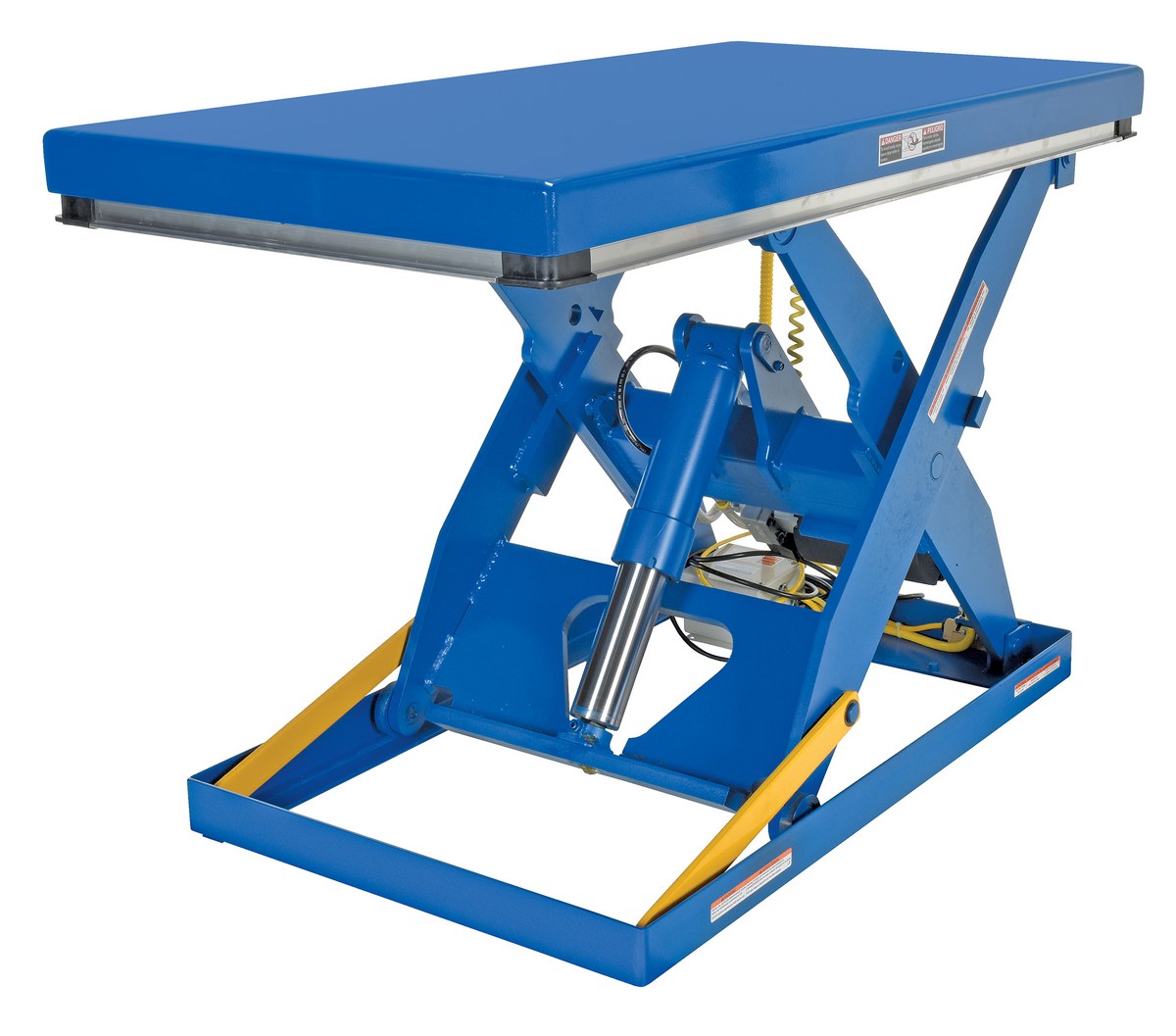

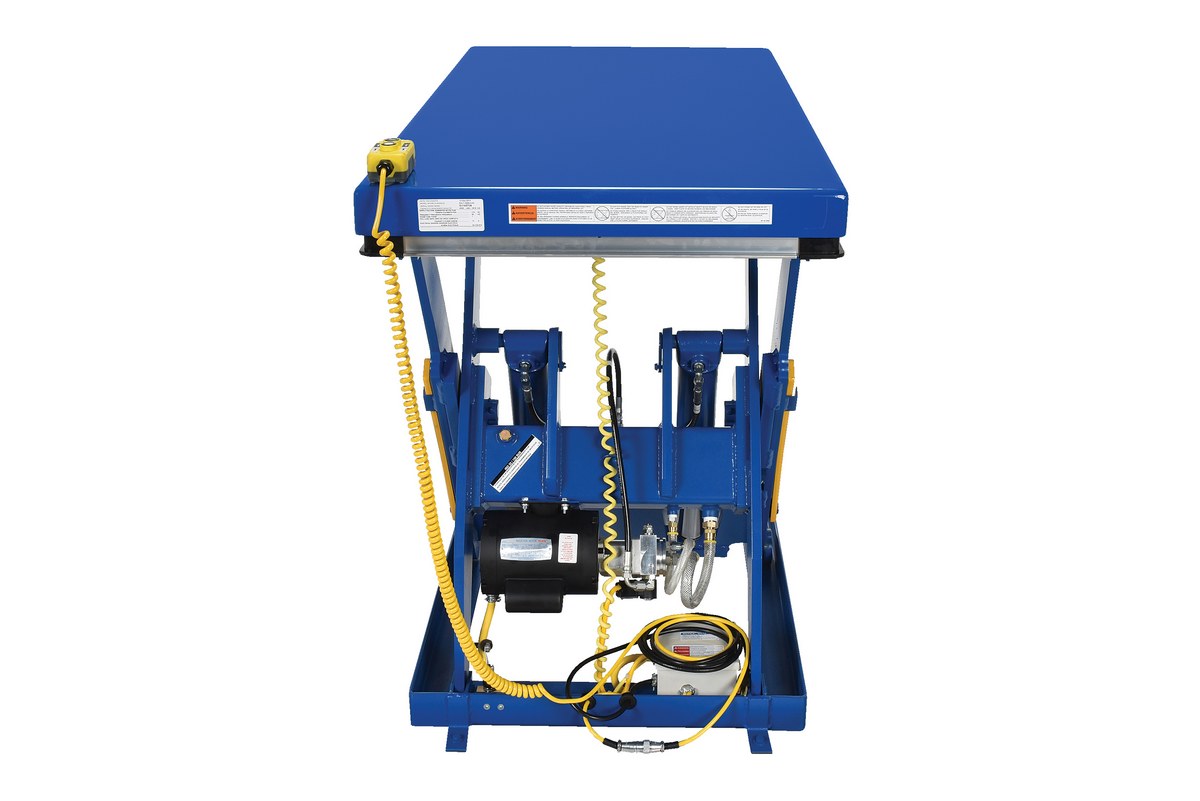

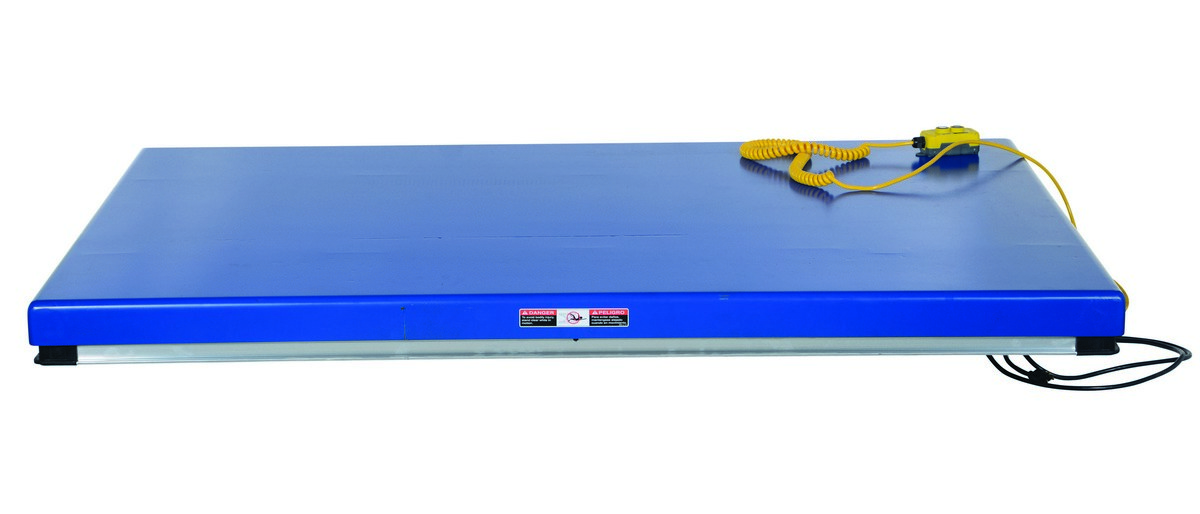

Electric Hydraulic Scissor Lift Tables
SERIES: EHLT

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.

Other Lift & Tilt Tables

 Electric Hydraulic Scissor Lift Tables Rotary Air/Hydraulic Scissor Lift Tables Heavy-Duty Air Bag Scissor Lift Tables Low-Profile Air Bag Scissor Lift Tables

Share This Page

How To Order
EHLT-1-43

model EHLT-1-43

EHLT-2-55

model EHLT-2-55

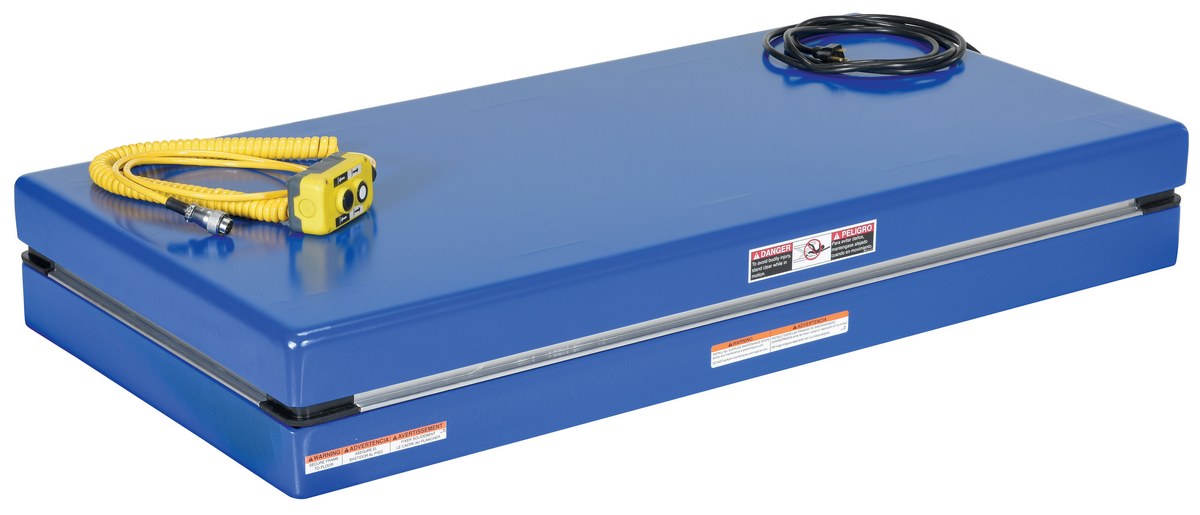

EHLT-2448-2-43

model EHLT-2448-2-43

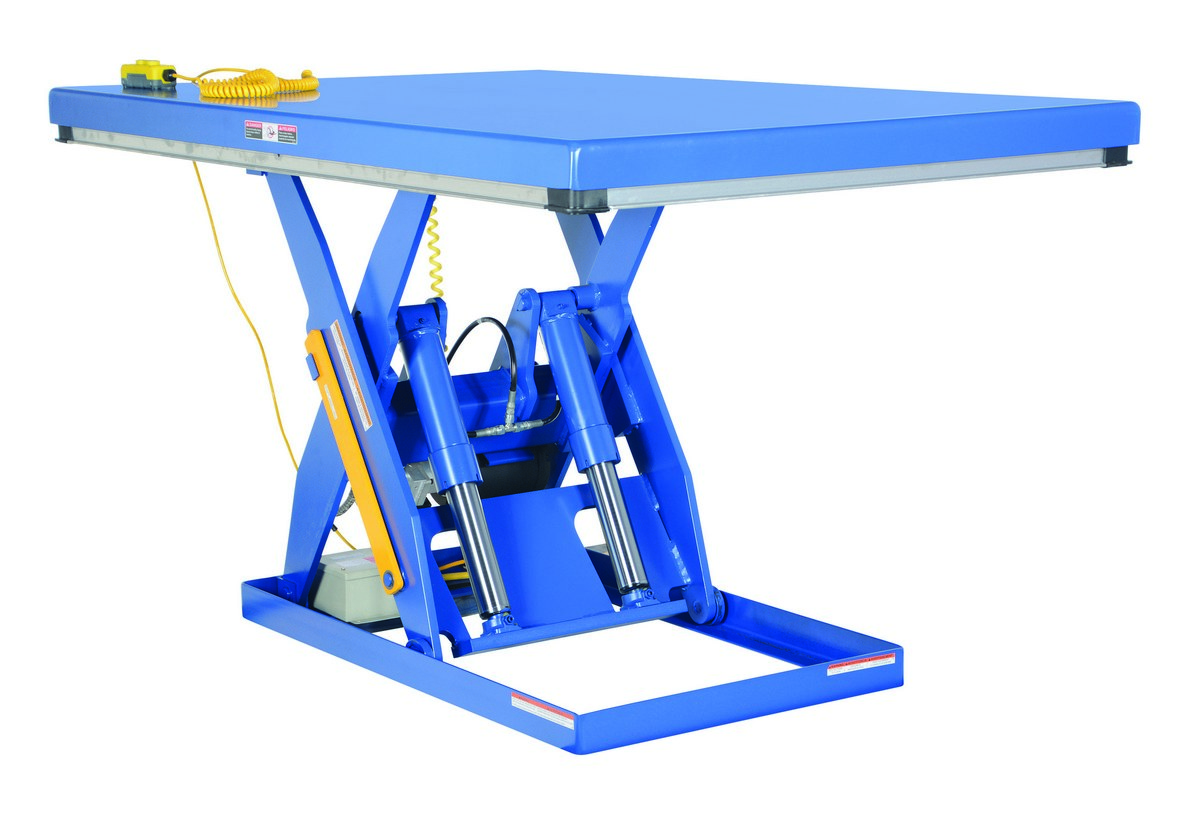

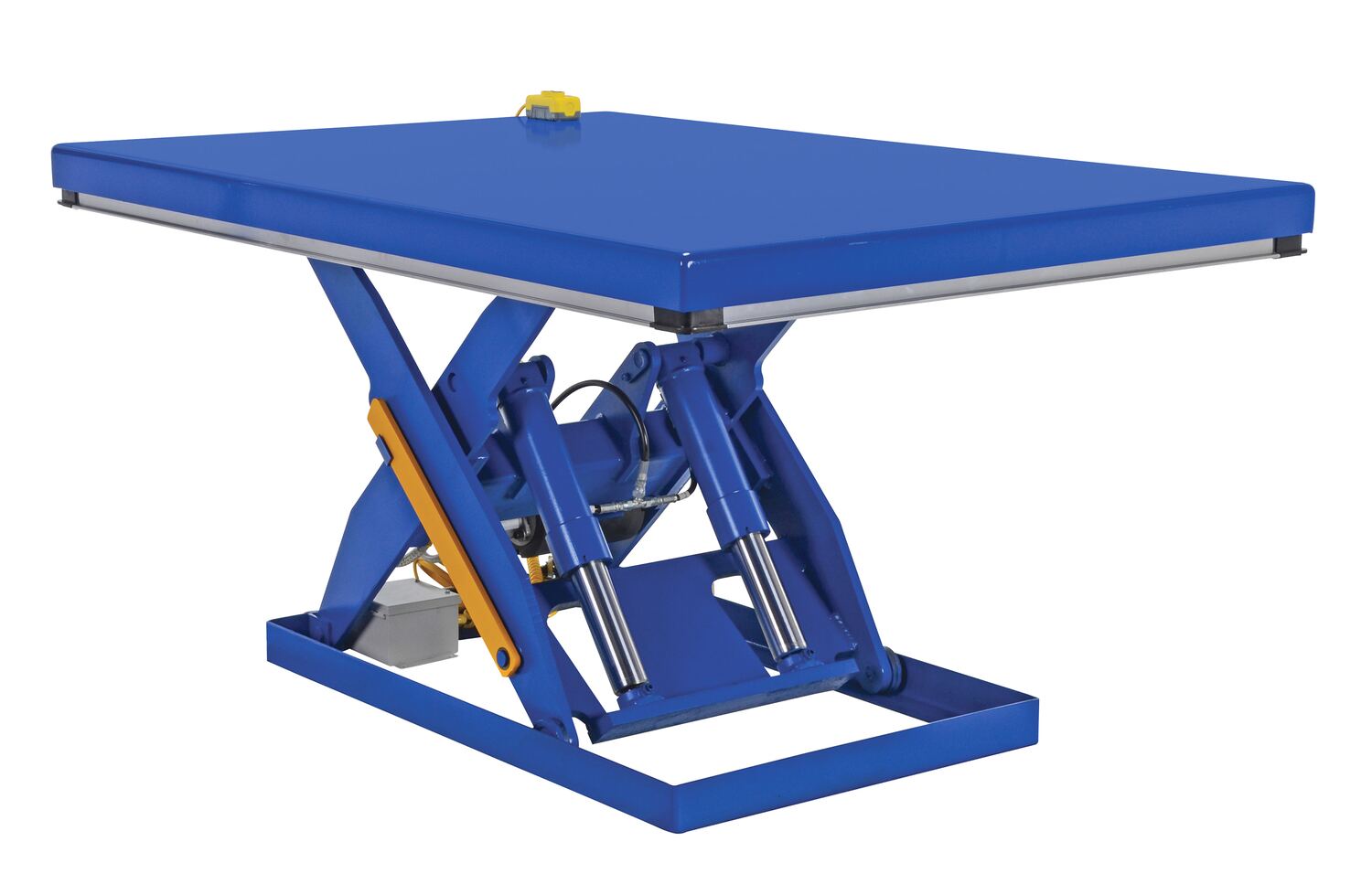

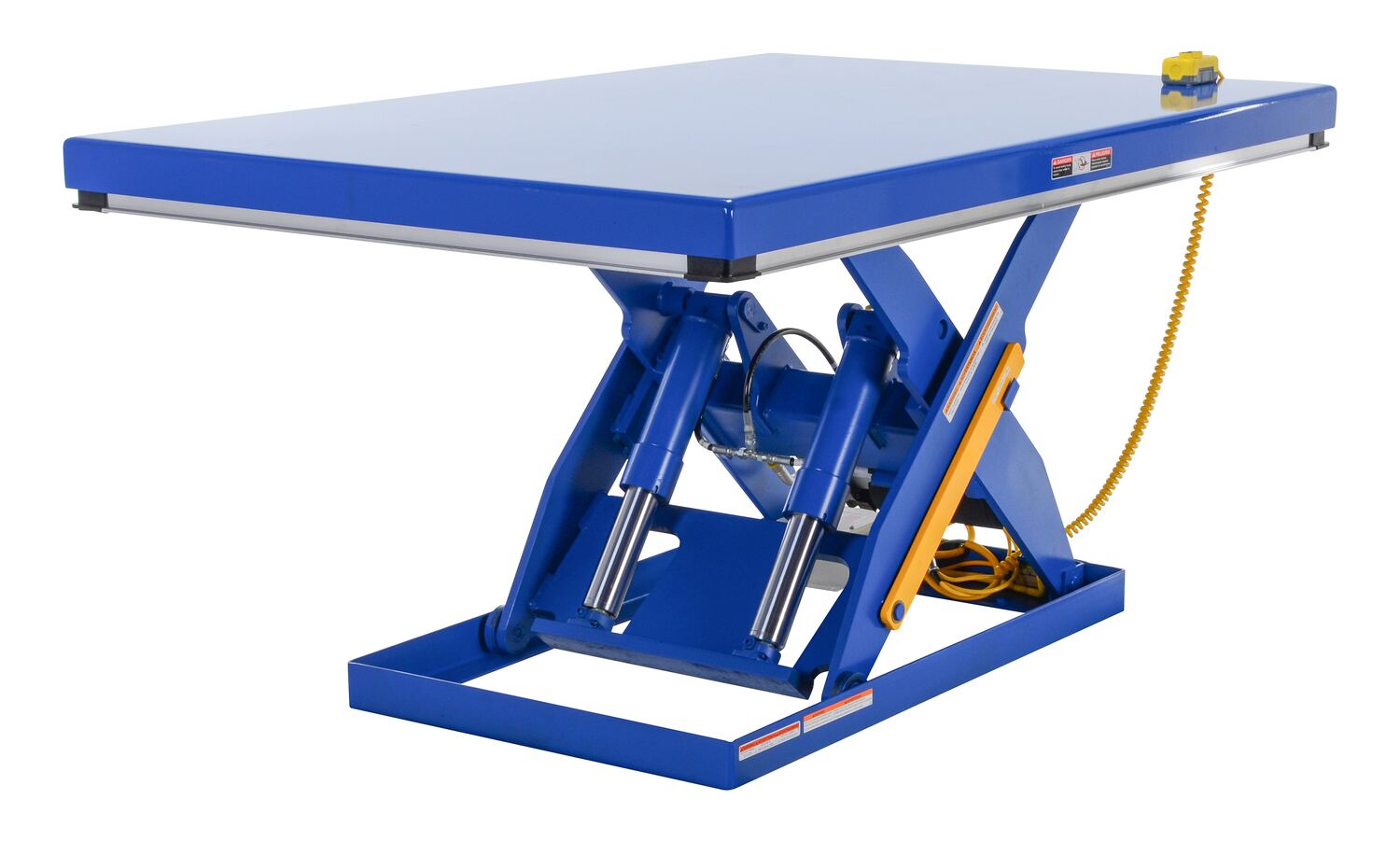

EHLT-4872-4-43

model EHLT-4872-4-43

EHLT-6-56

model EHLT-6-56

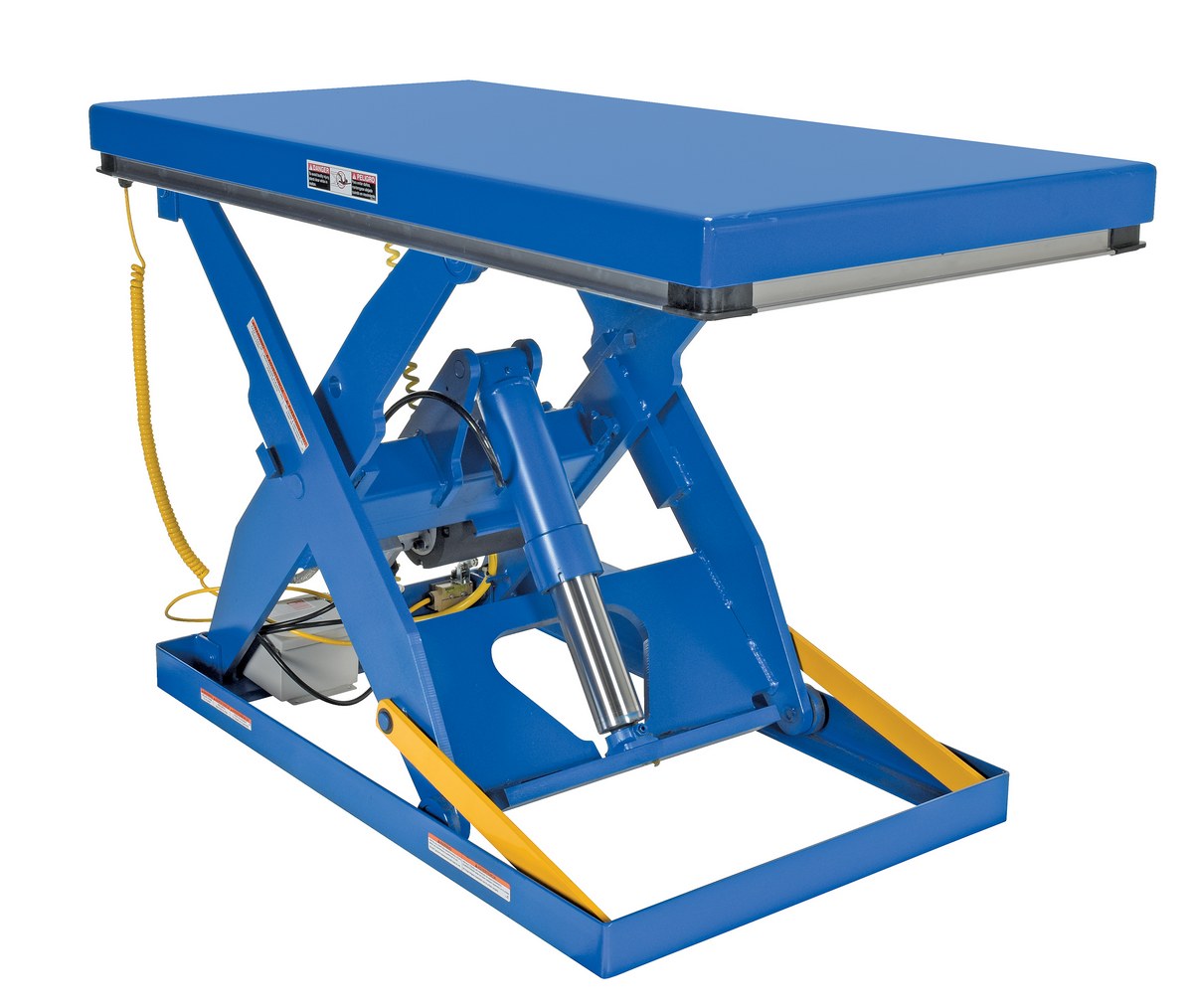

EHLT-3060-3-43

model EHLT-3060-3-43

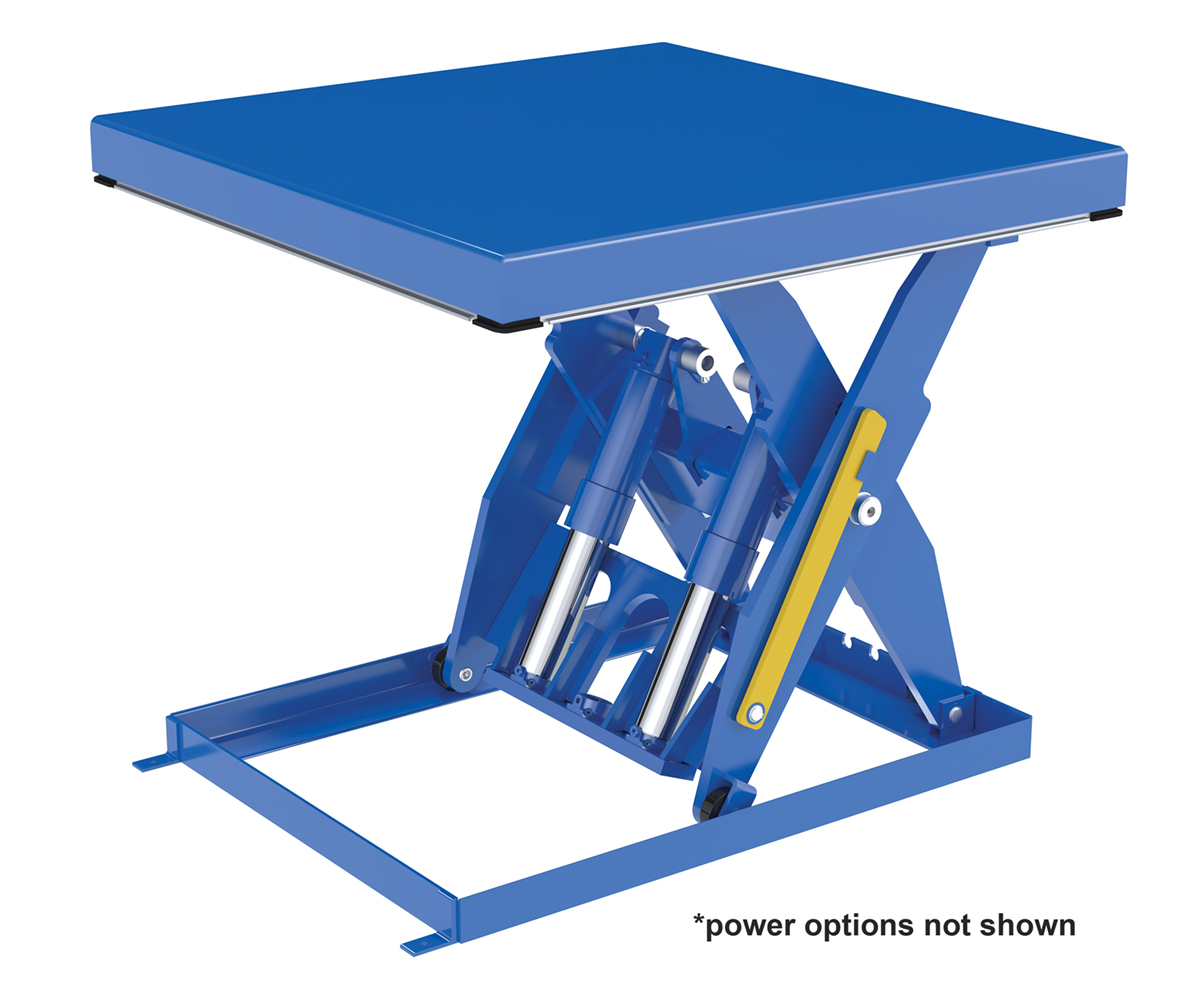

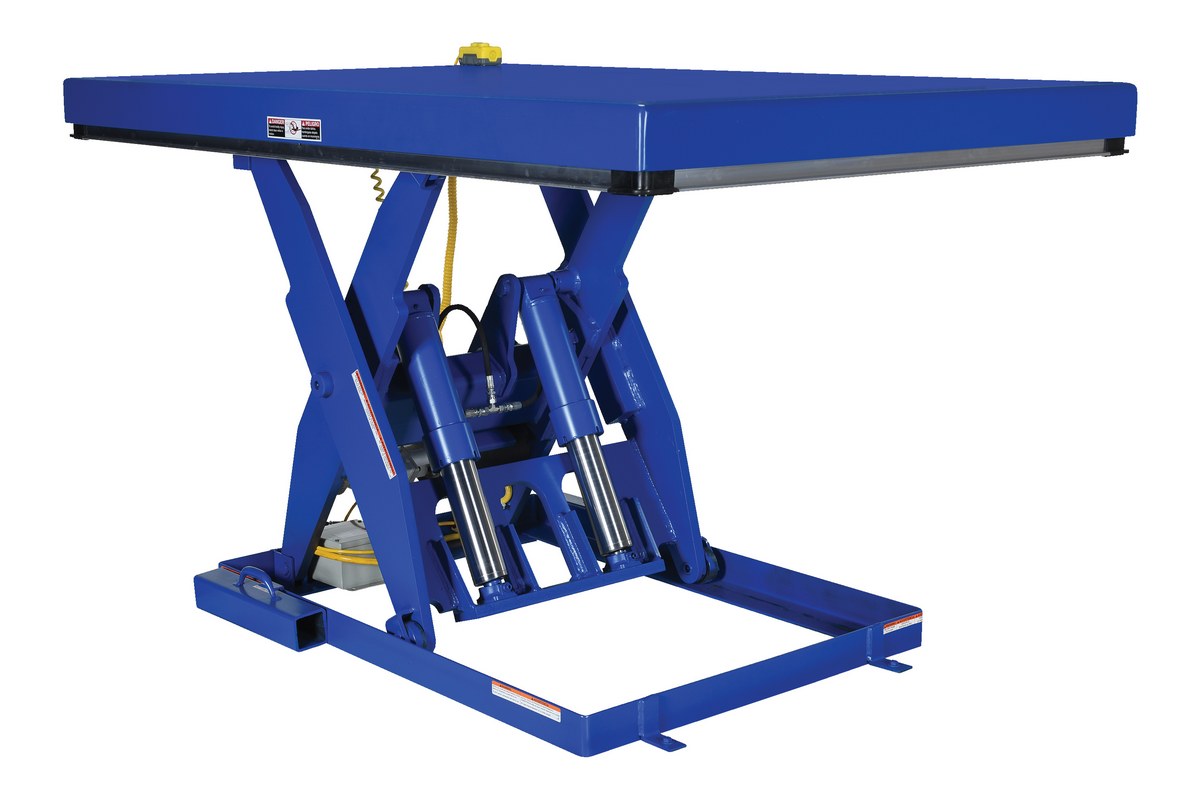

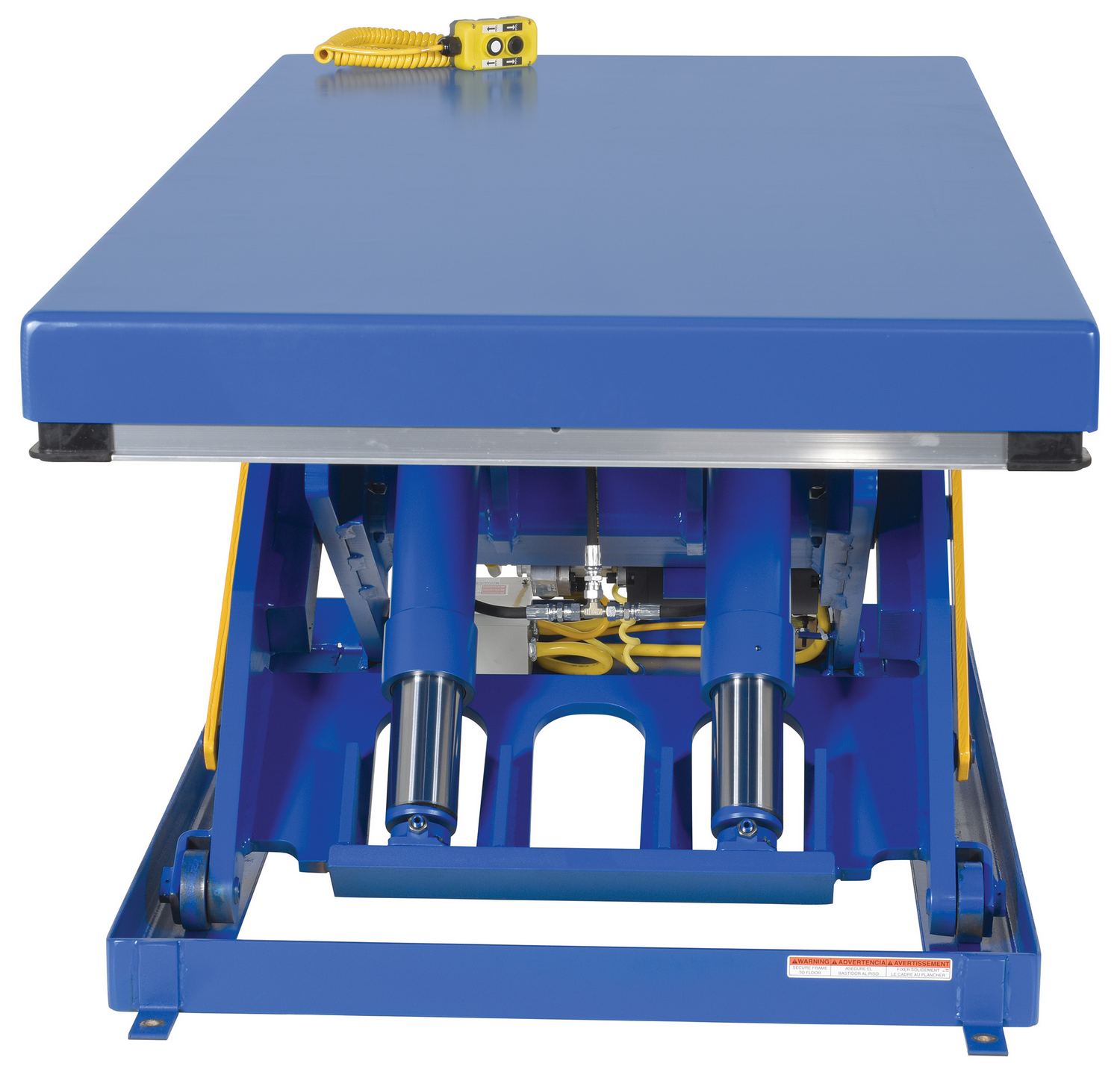

EHLT-4872-6-44

model EHLT-4872-6-44

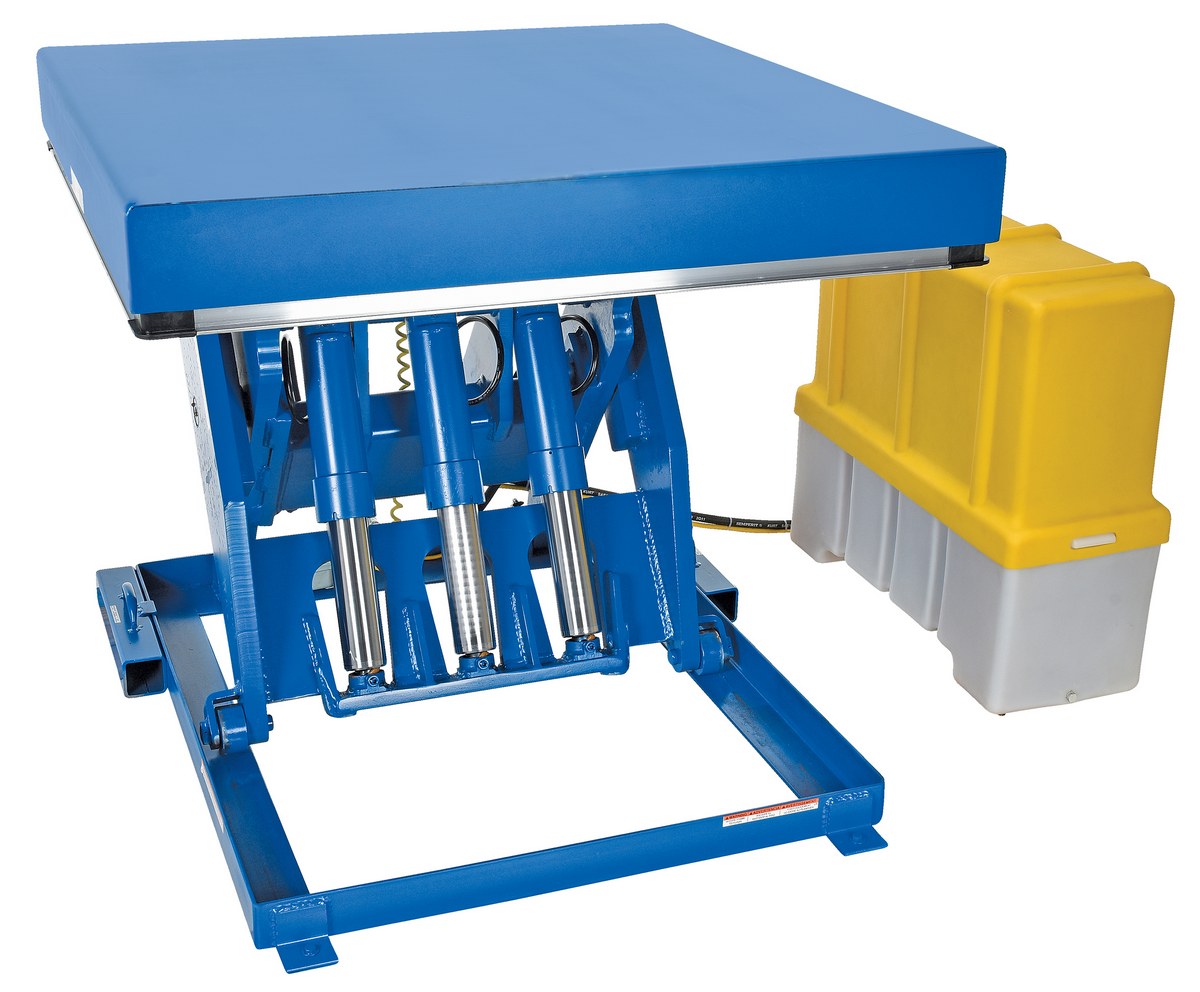

EHLT-4848-12-43

model EHLT-4848-12-43

EHLT-4848-10-43

model EHLT-4848-10-43

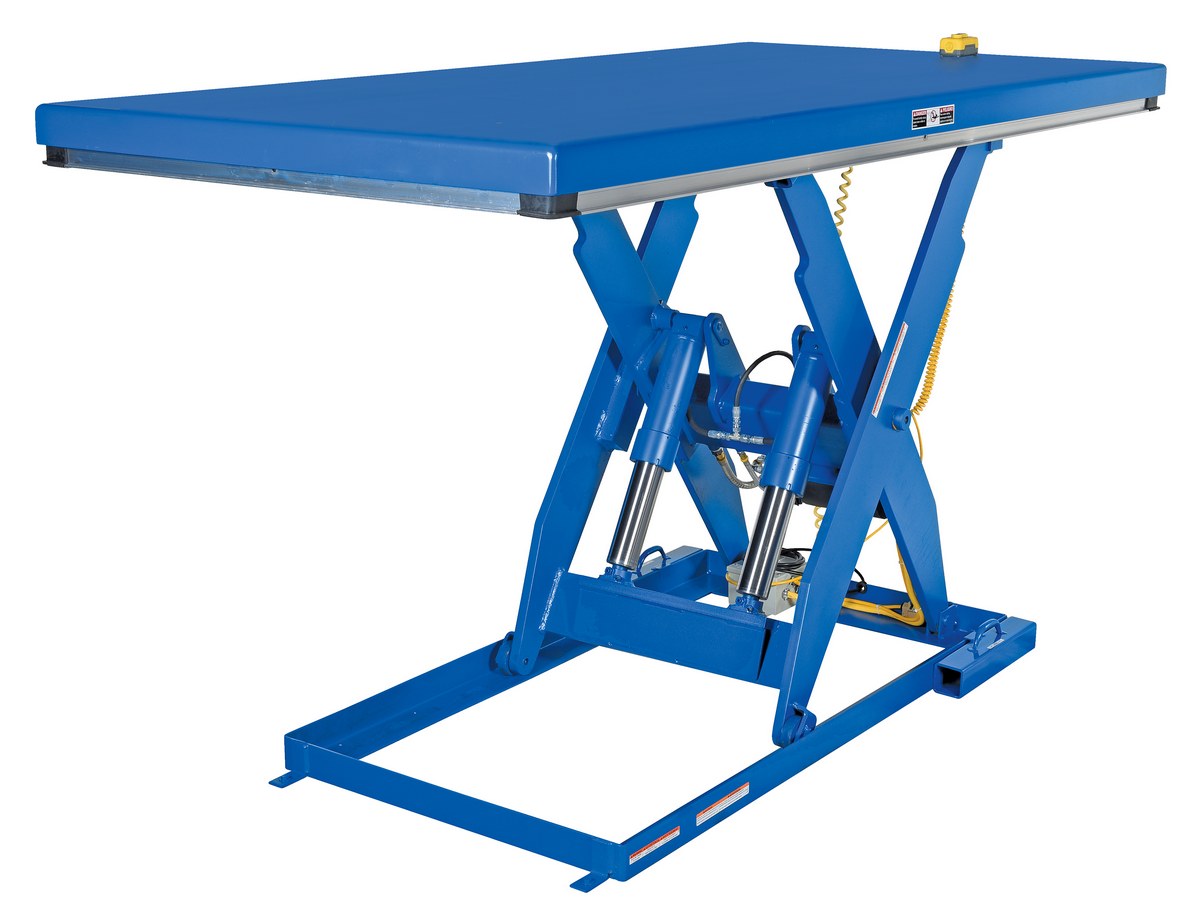

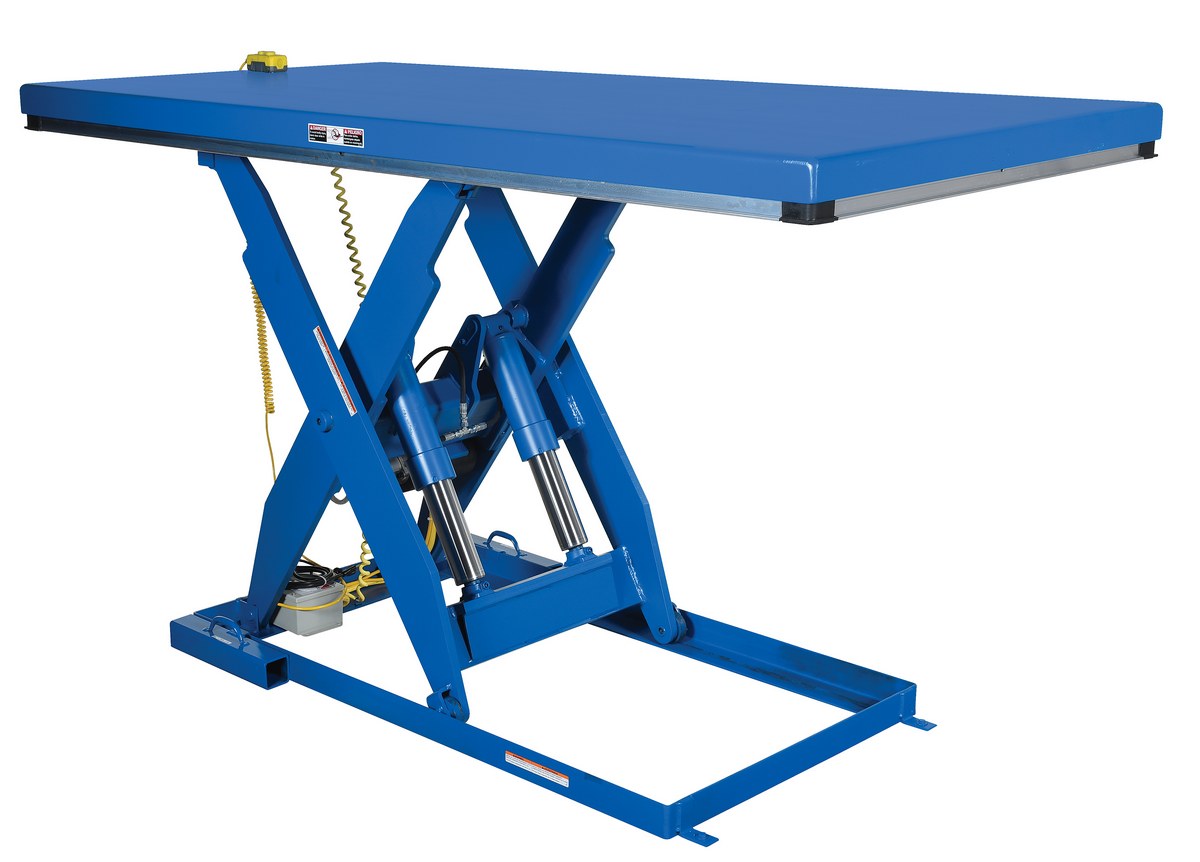

EHLT-4896-4-56

model EHLT-4896-4-56



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
EHLT-2448-1-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 1K 24X48Uniform Capacity (lb.): 1,000652
EHLT-2448-2-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 24X48Uniform Capacity (lb.): 2,000631

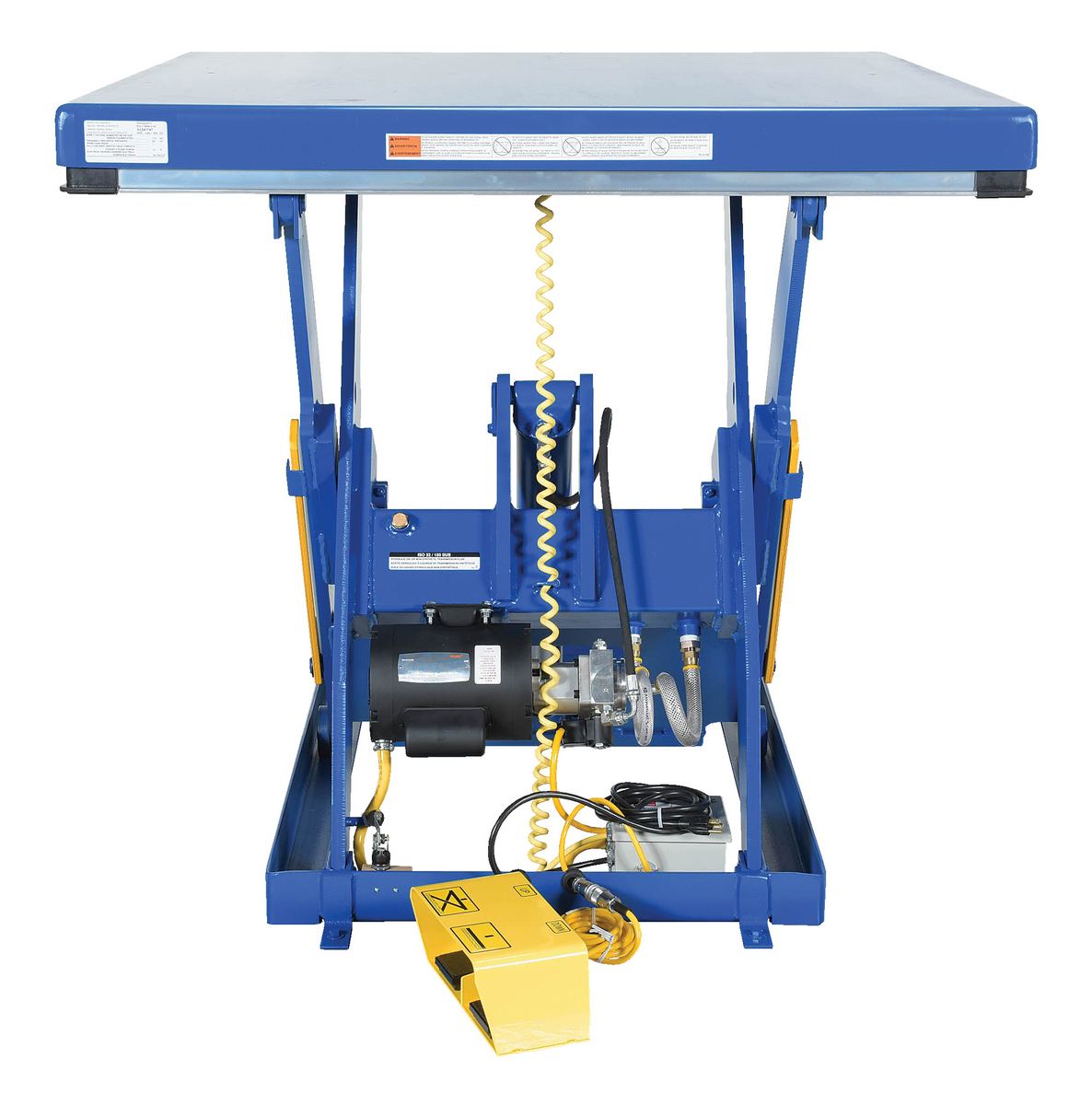

EHLT2448-2-43FC 1 Year Limited WarrantyLIFT TABLE - FOOT CONTROL 24IN X 48INUniform Capacity (lb.): 2,000639
EHLT-2448-2-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 2K 24X48Uniform Capacity (lb.): 2,000652

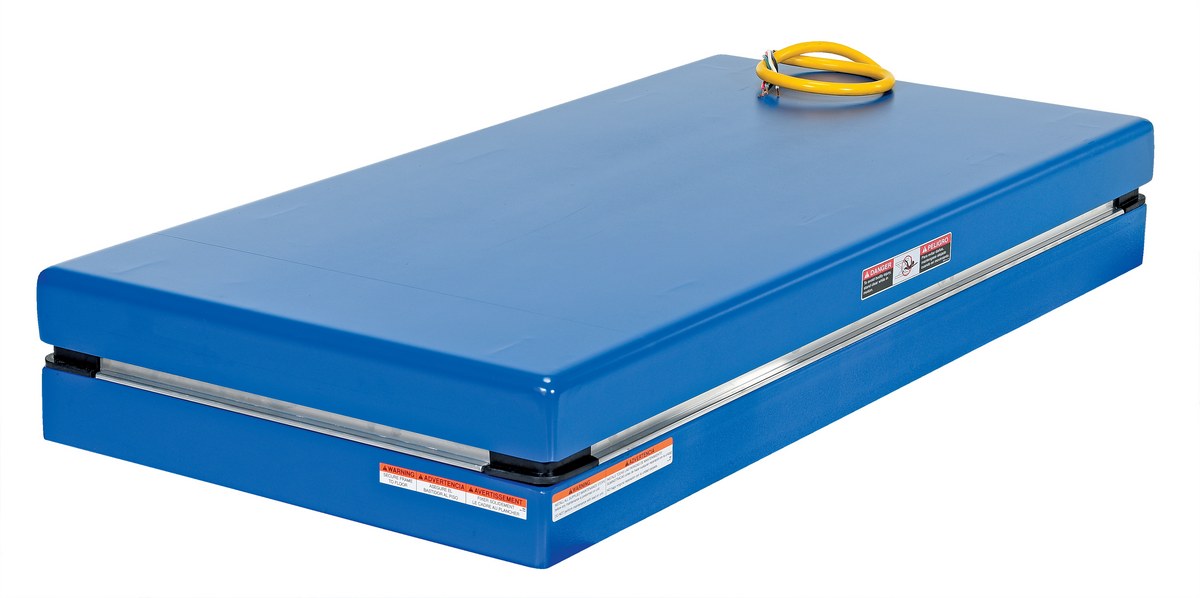

EHLT-2448-3-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 24X48Uniform Capacity (lb.): 3,000694
EHLT2448-3-43FC 1 Year Limited WarrantyELEC/HYD SCISSOR TABLE W/FOOT CONTROLUniform Capacity (lb.): 3,000694
EHLT-2448-3-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 3K 24X48Uniform Capacity (lb.): 3,000694

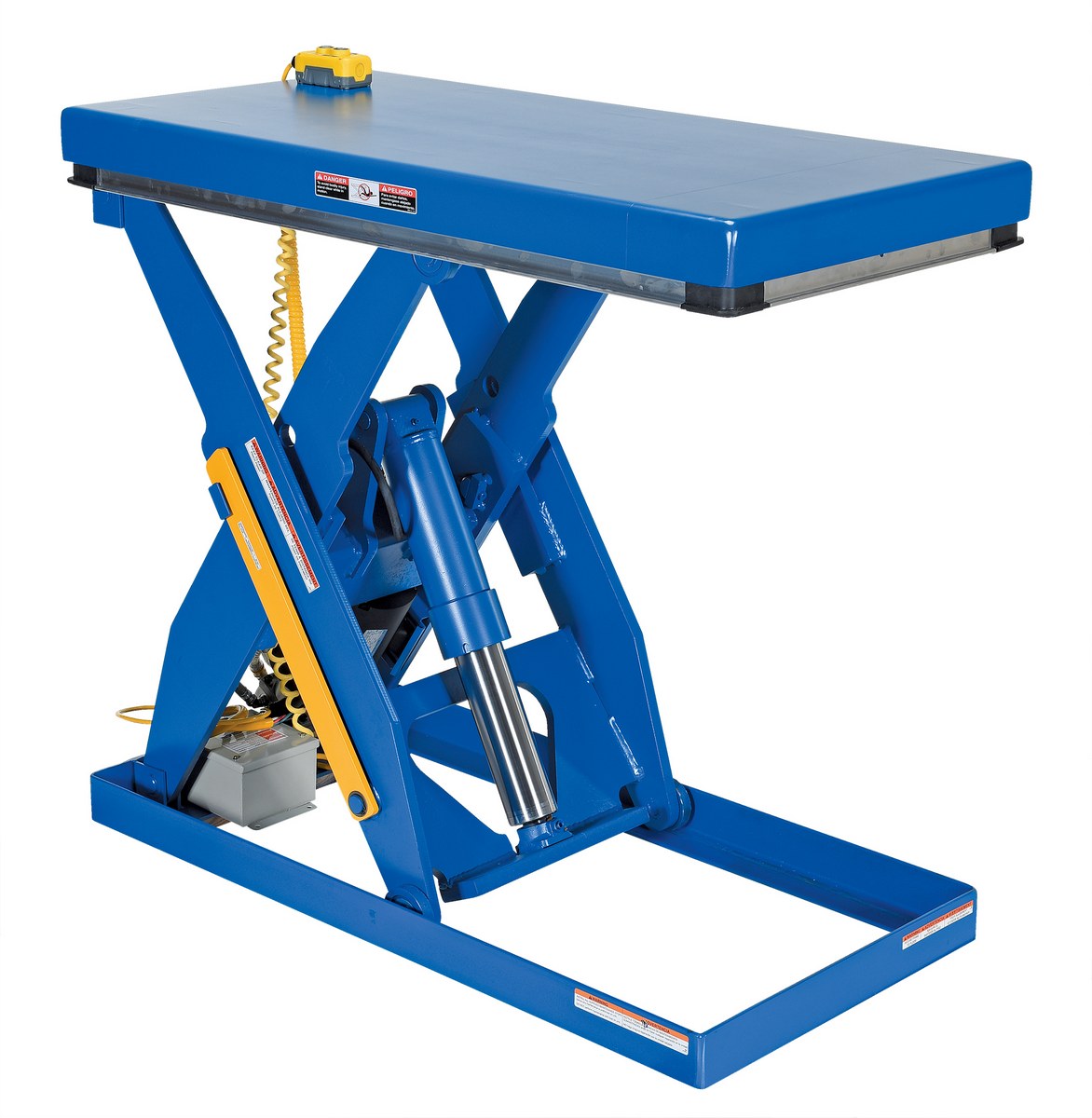

EHLT-2448-3-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 24X48Uniform Capacity (lb.): 3,000733

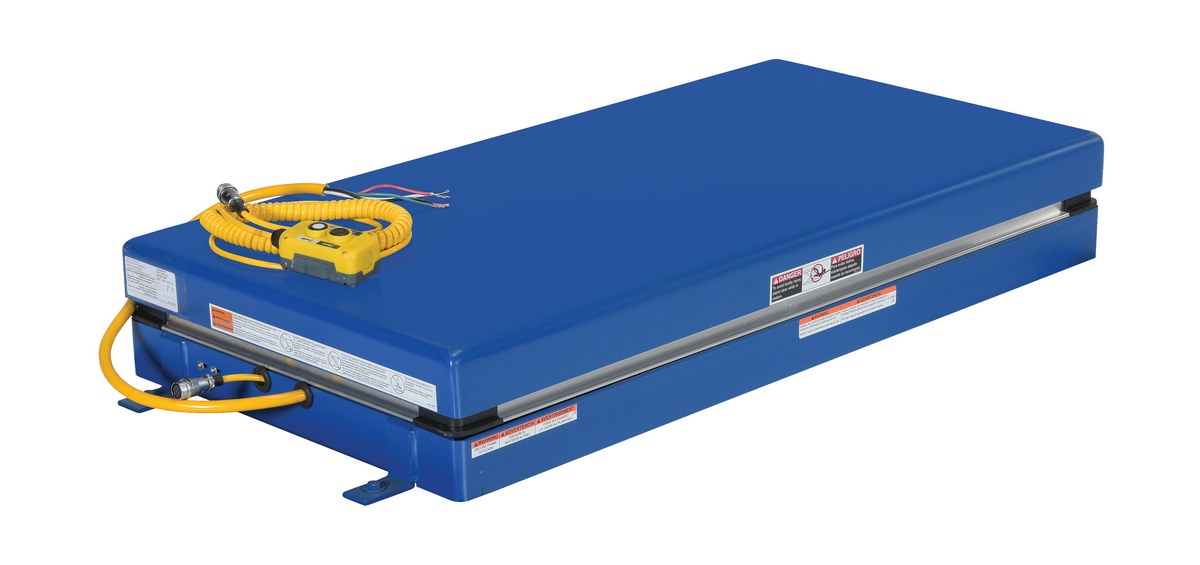

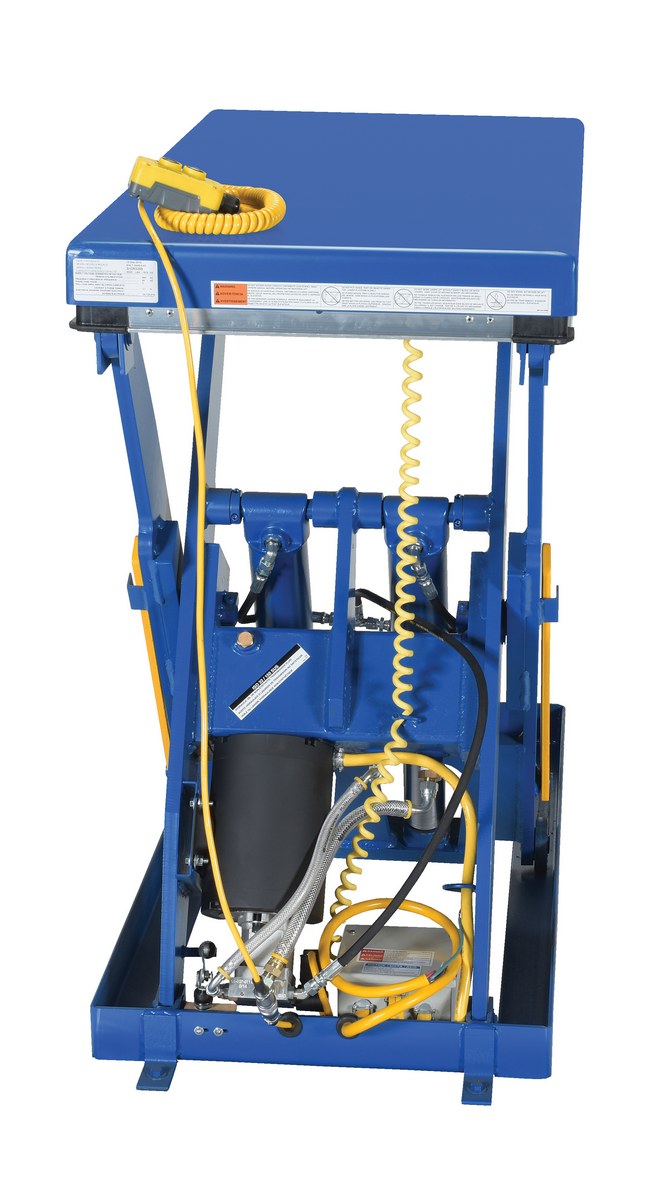

EHLT-2448-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 24X48Uniform Capacity (lb.): 4,000714
EHLT-2448-4-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 4K 24X48Uniform Capacity (lb.): 4,000714

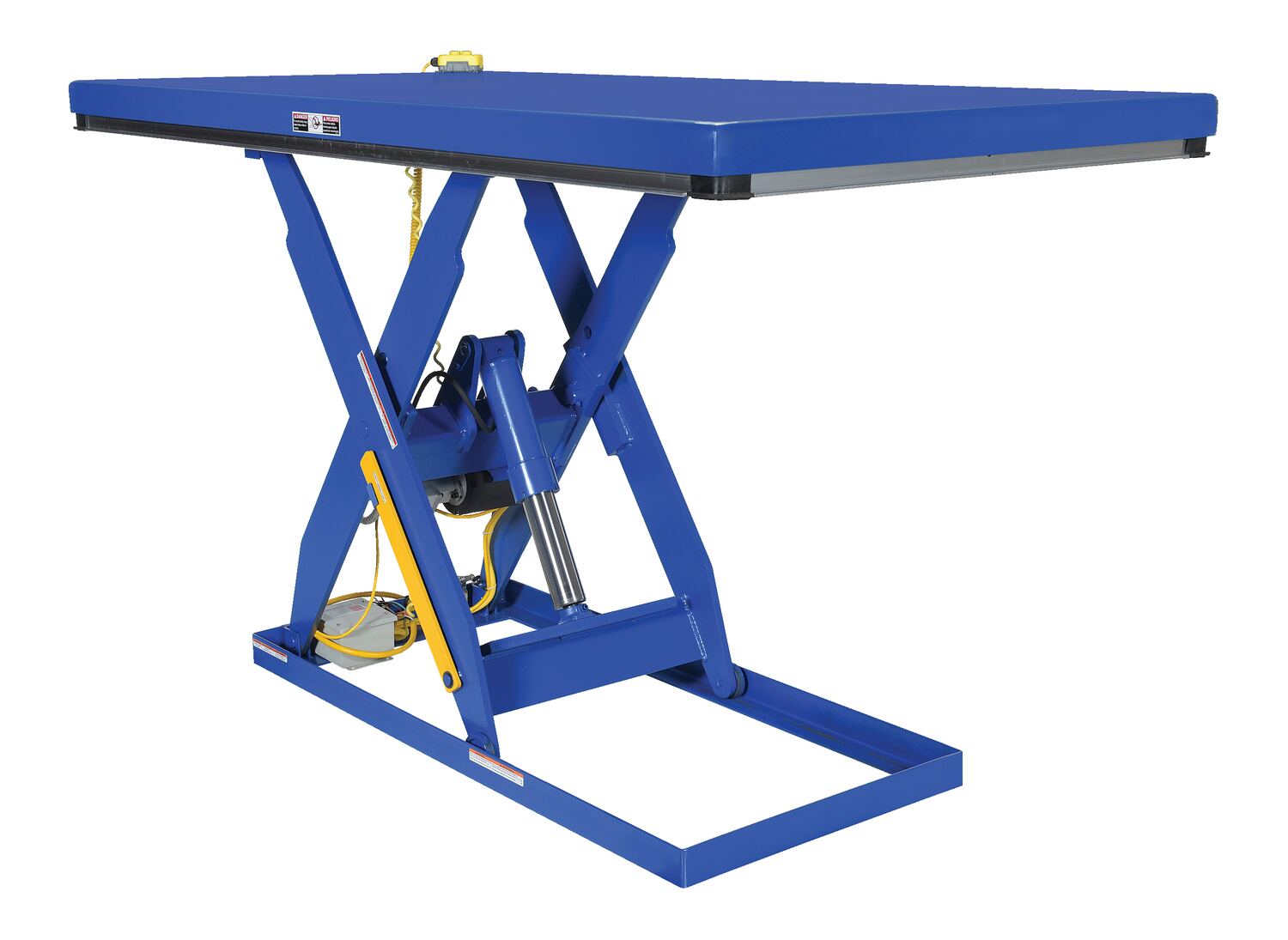

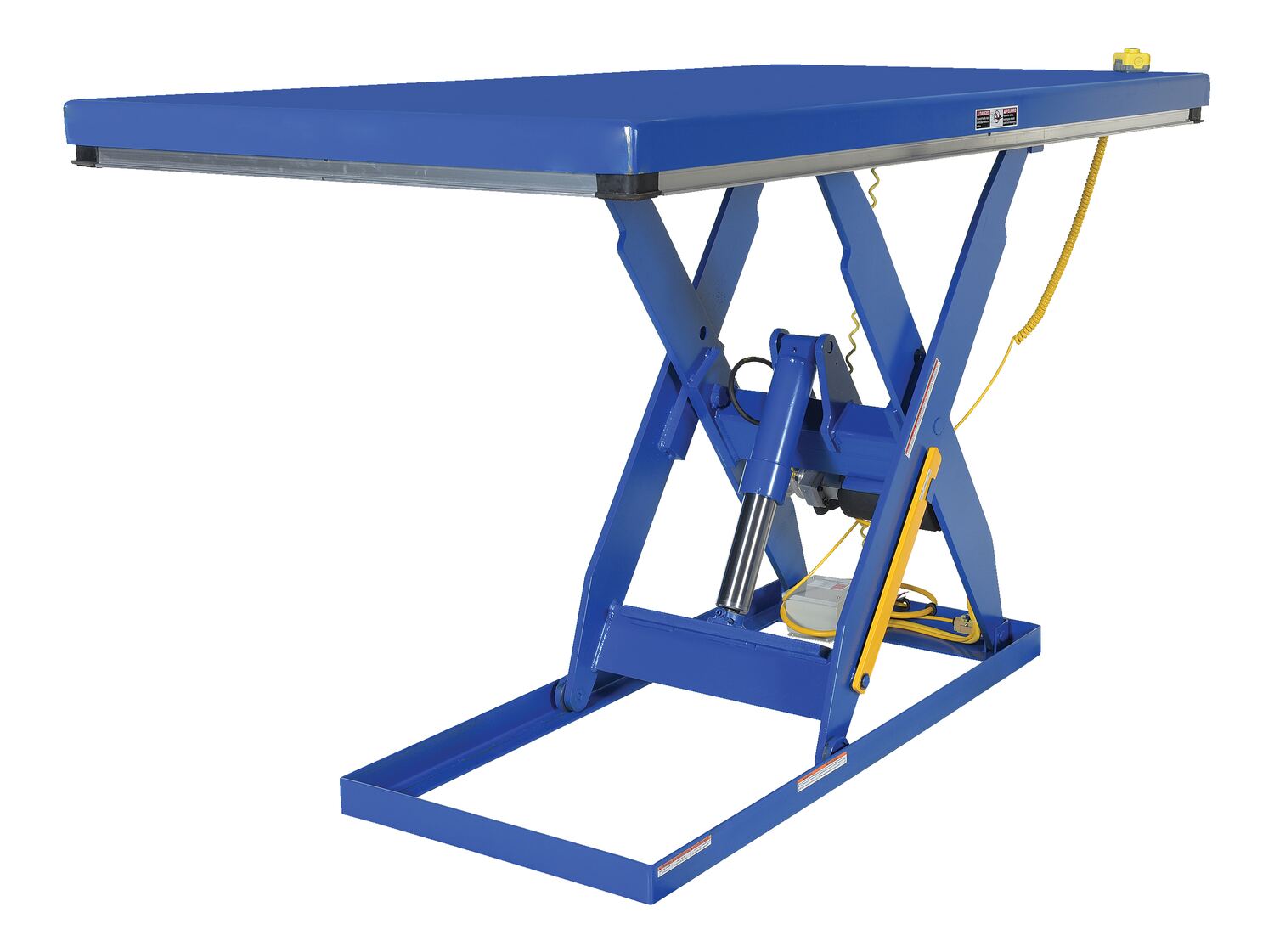

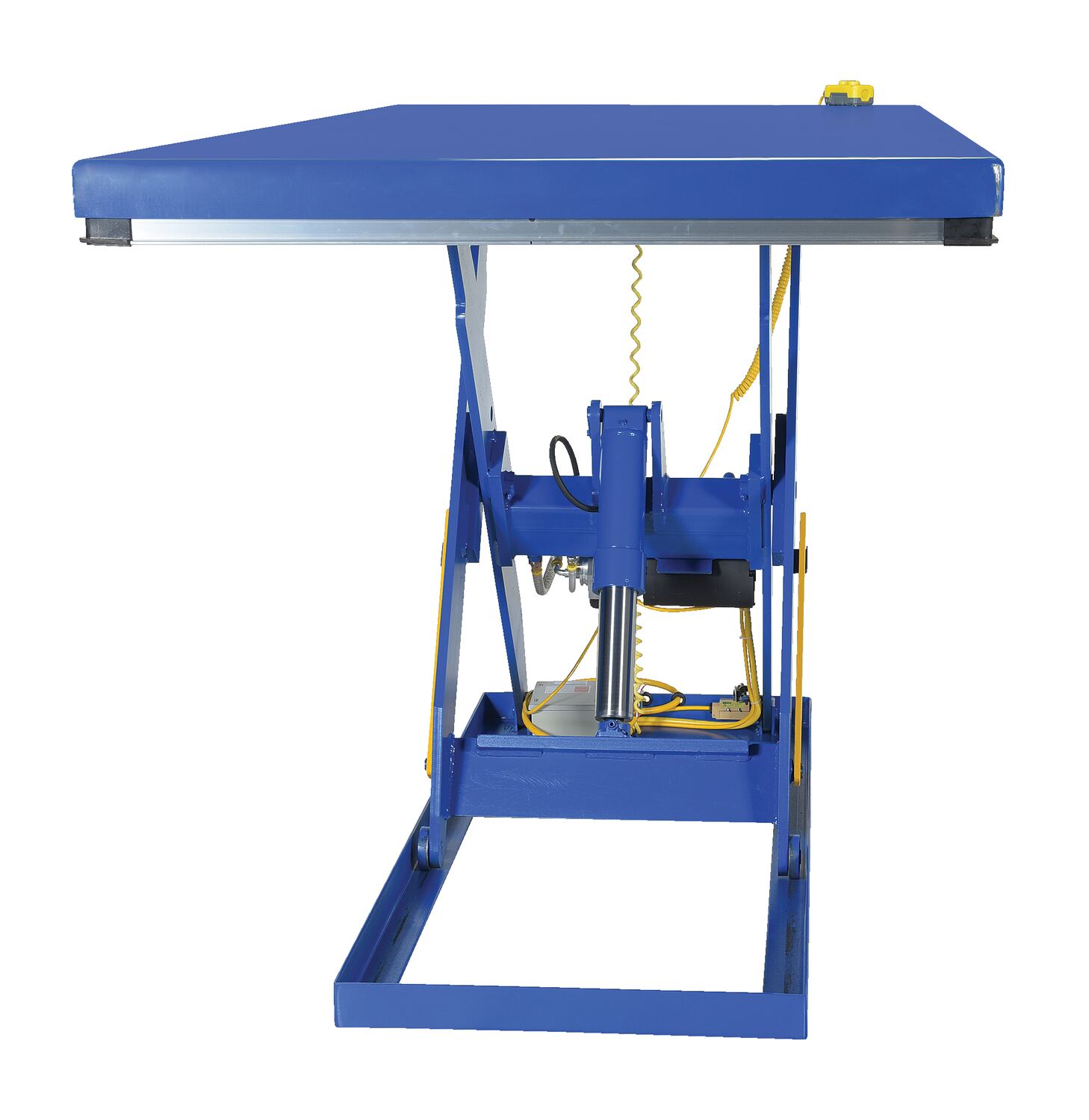

EHLT-2466-2-55 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 24X66Uniform Capacity (lb.): 2000858

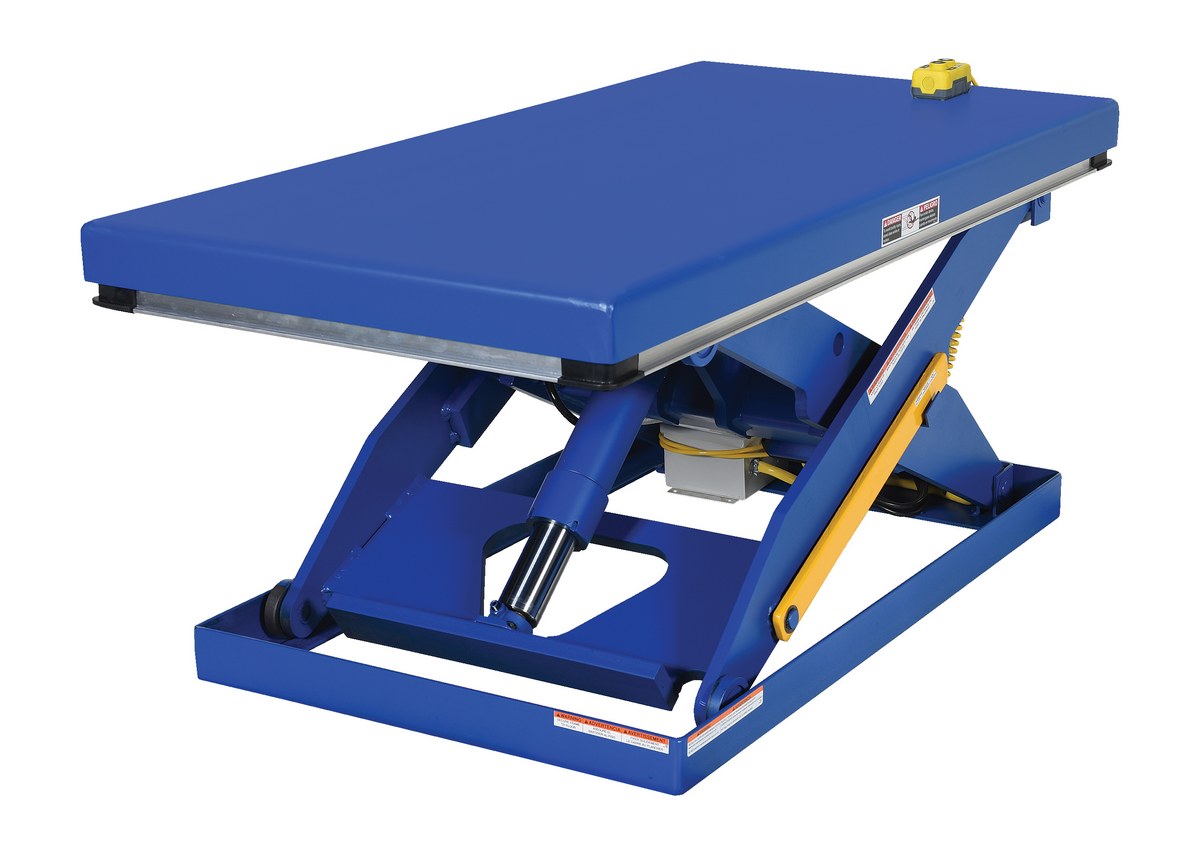

EHLT-3060-2-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 30X60Uniform Capacity (lb.): 2,000702
EHLT-3060-3-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 30X60Uniform Capacity (lb.): 3,000823
EHLT-3060-3-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 30X60Uniform Capacity (lb.): 3,000823

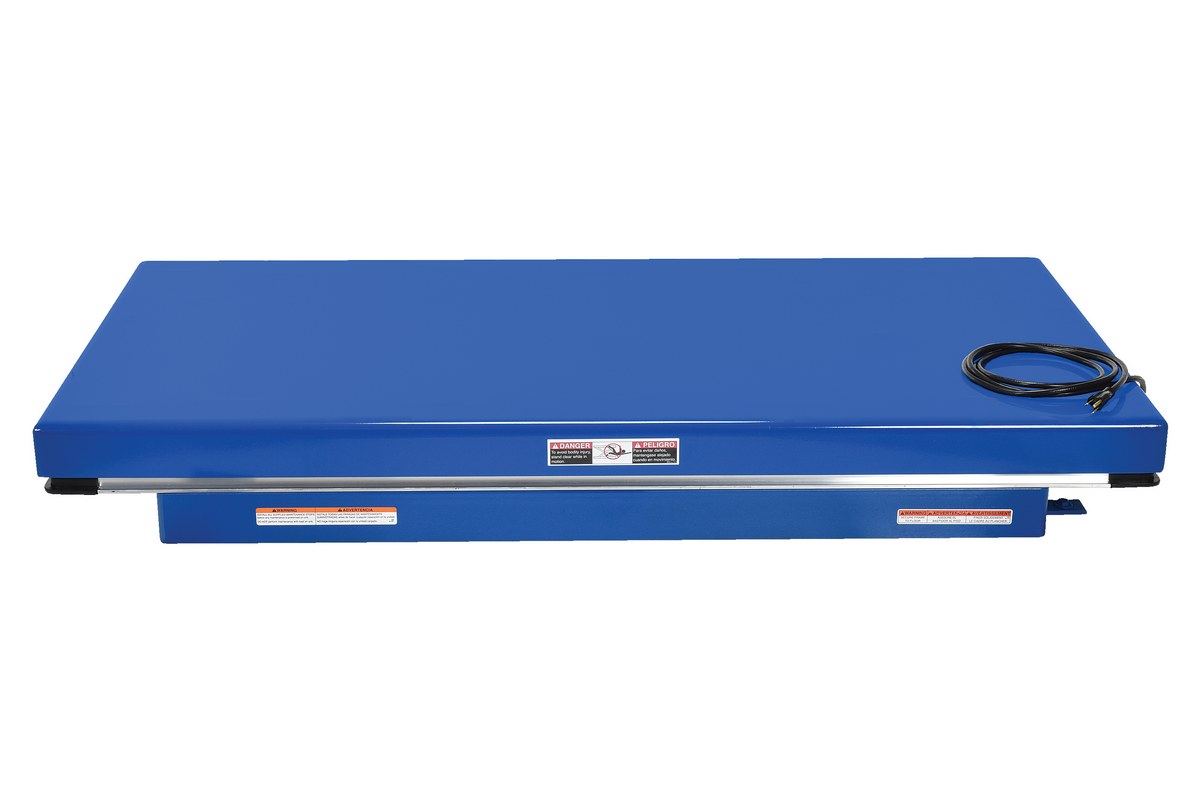

EHLT-3060-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 30X60Uniform Capacity (lb.): 4,000827
EHLT-3060-4-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 30X60Uniform Capacity (lb.): 4,000827

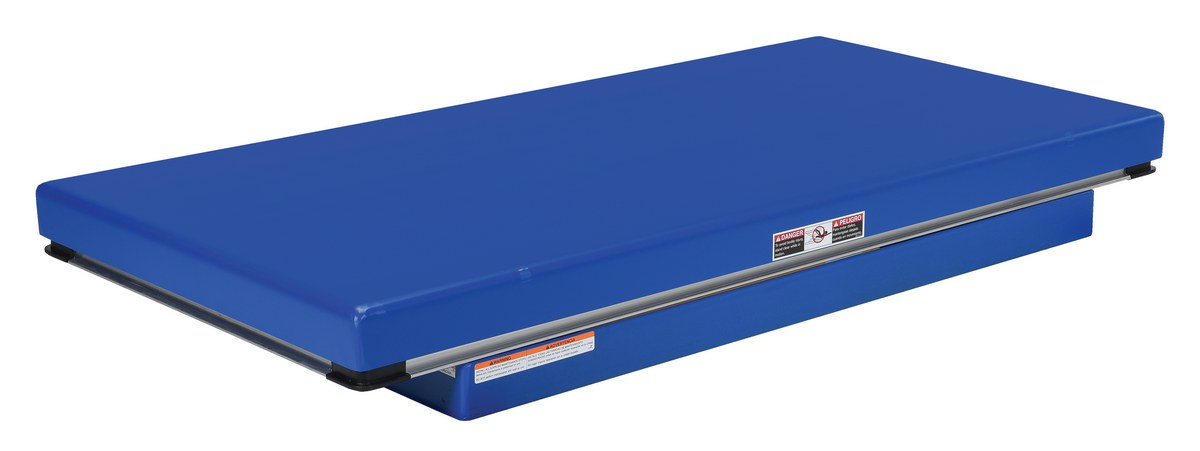

EHLT-3072-2-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 30X72Uniform Capacity (lb.): 2000842
EHLT-3072-3-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 30X72Uniform Capacity (lb.): 3000860
EHLT-3072-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 30X72Uniform Capacity (lb.): 4000895

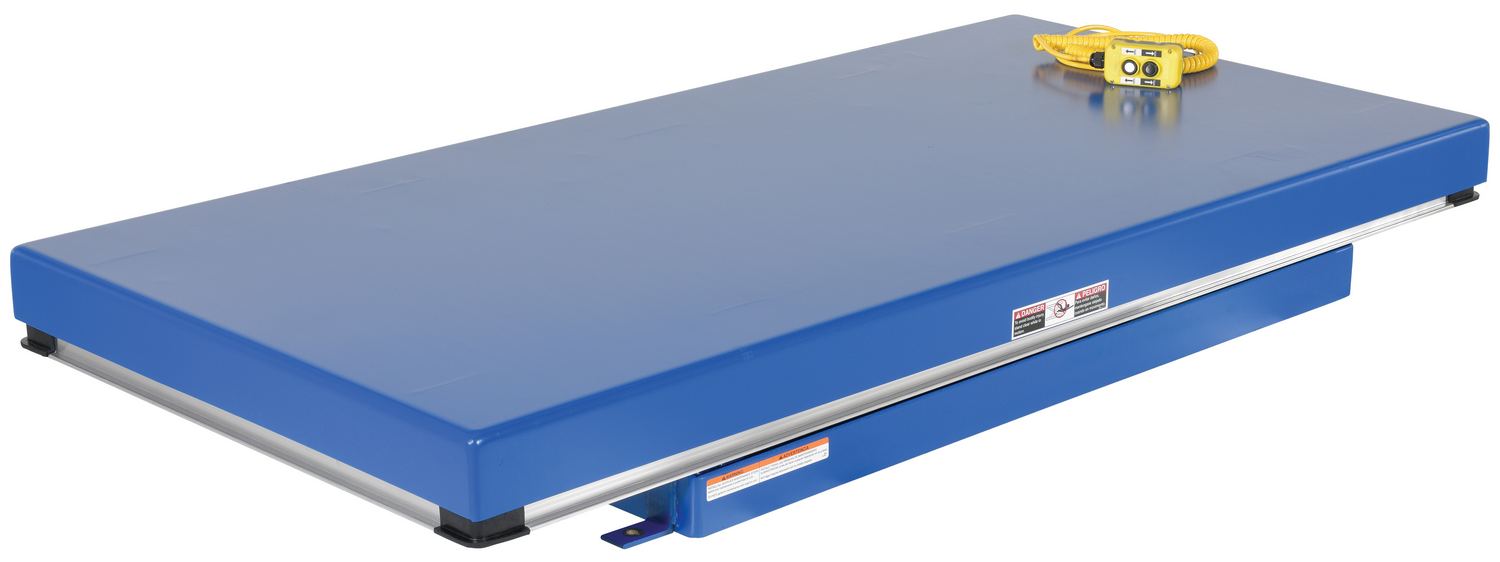

EHLT-3648-5-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 5K 36X48Uniform Capacity (lb.): 50001197

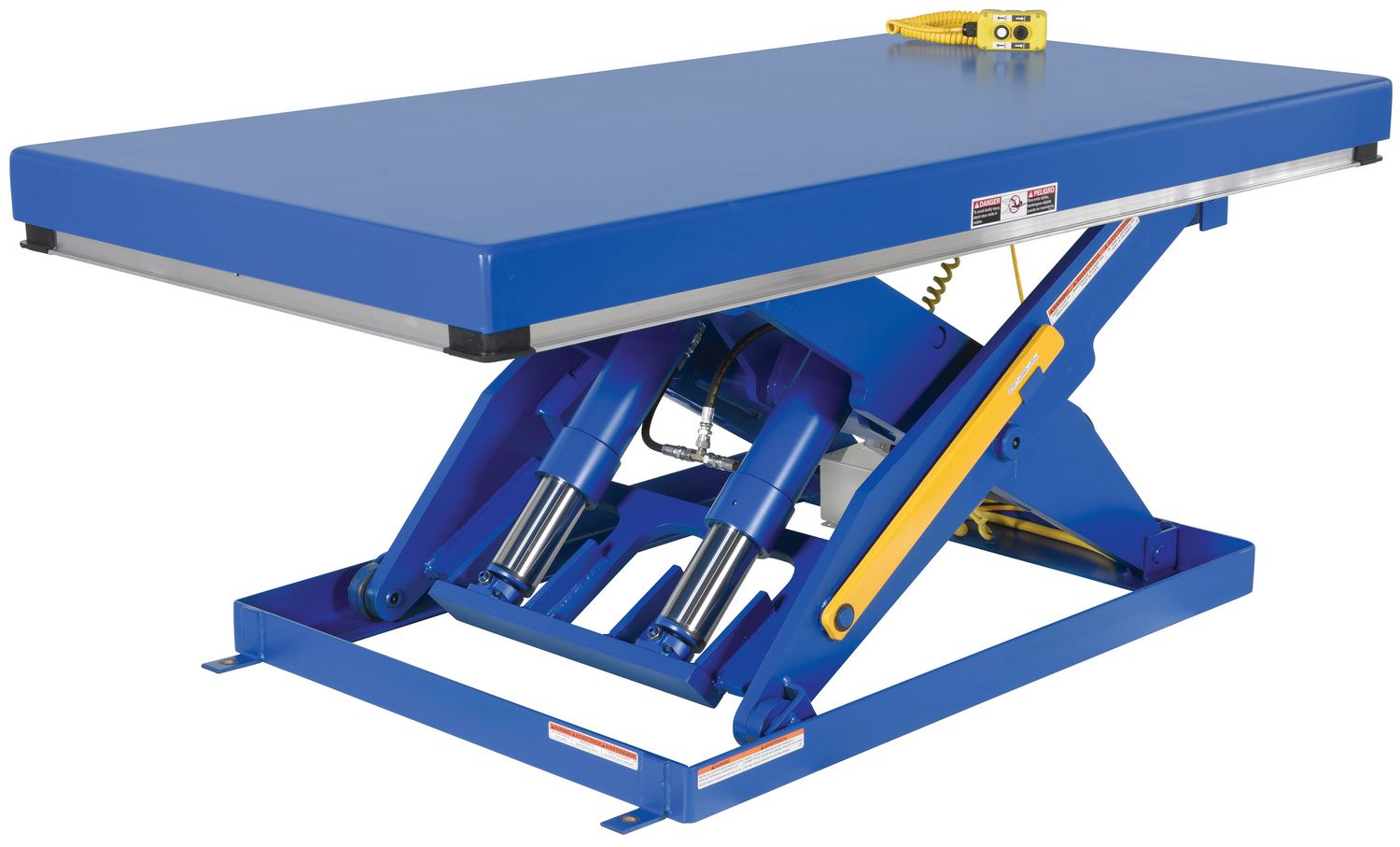

EHLT-3648-6-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 6K 36X48Uniform Capacity (lb.): 60001197
EHLT-3672-2-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 36X72Uniform Capacity (lb.): 2,000838
EHLT-3672-3-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 36X72Uniform Capacity (lb.): 3,000855

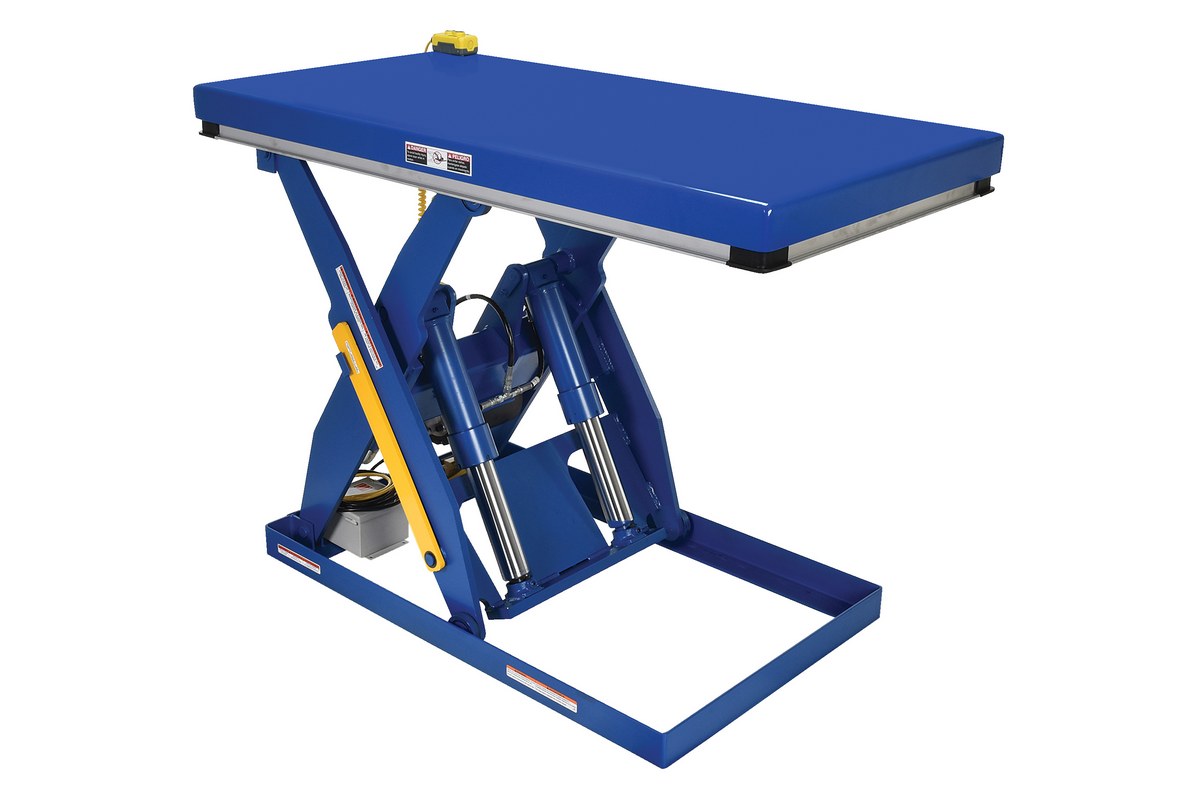

EHLT-3672-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 36X72Uniform Capacity (lb.): 4,000893
EHLT-3672-5-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 5K 36X72Uniform Capacity (lb.): 5,0001181
EHLT-3672-6-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 6K 36X72Uniform Capacity (lb.): 6,0001172
EHLT-3672-8-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 8K 36X72Uniform Capacity (lb.): 8,0001827

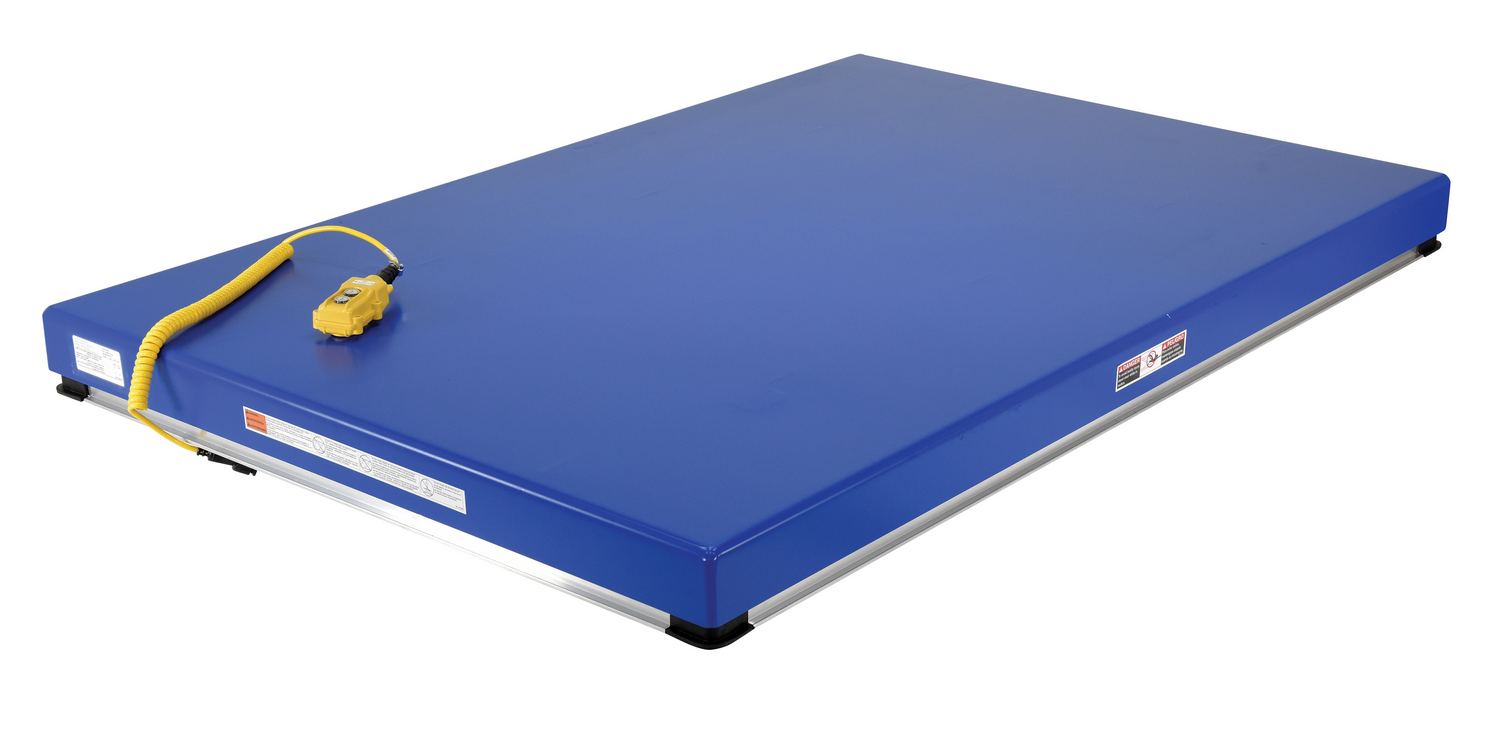

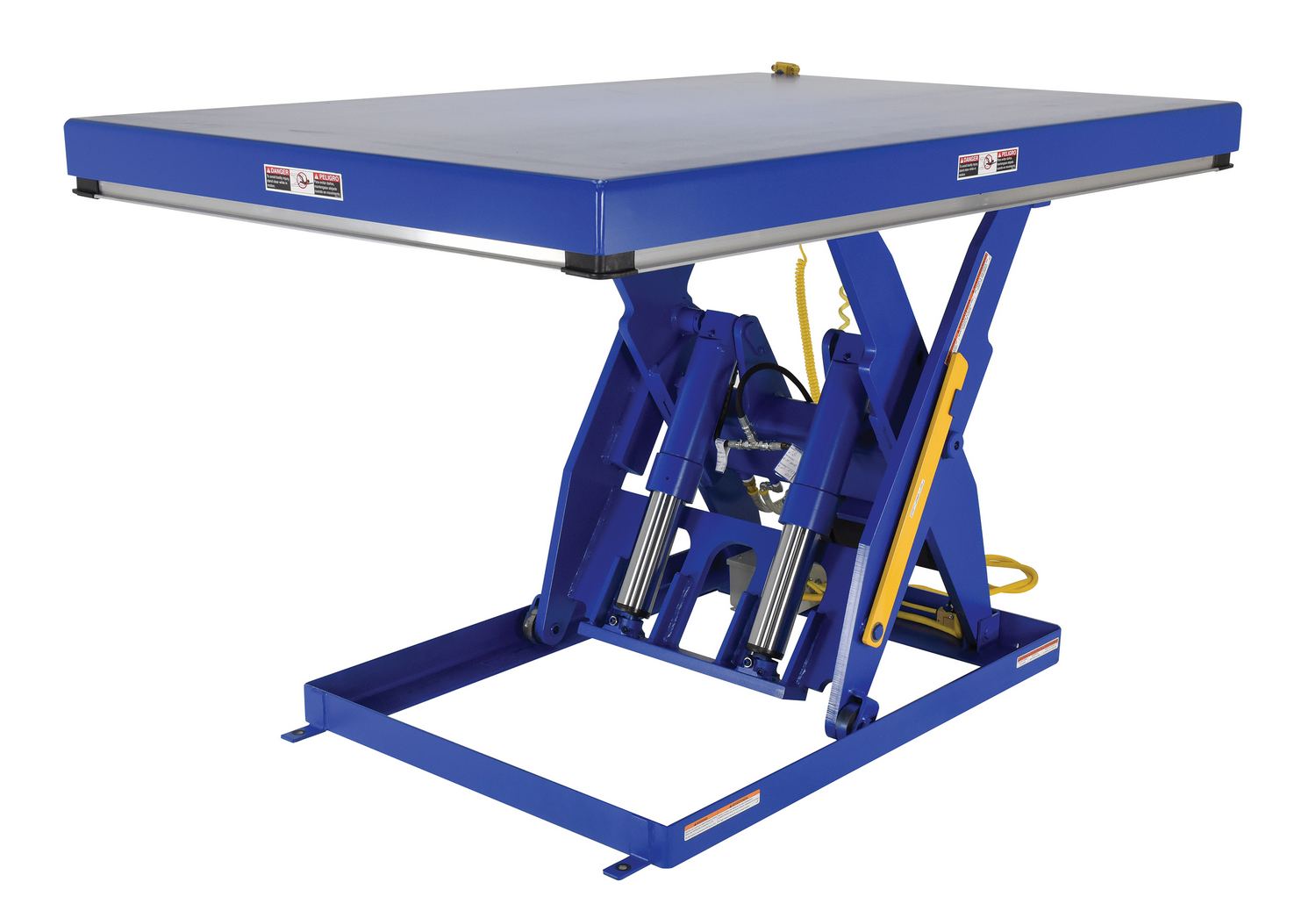

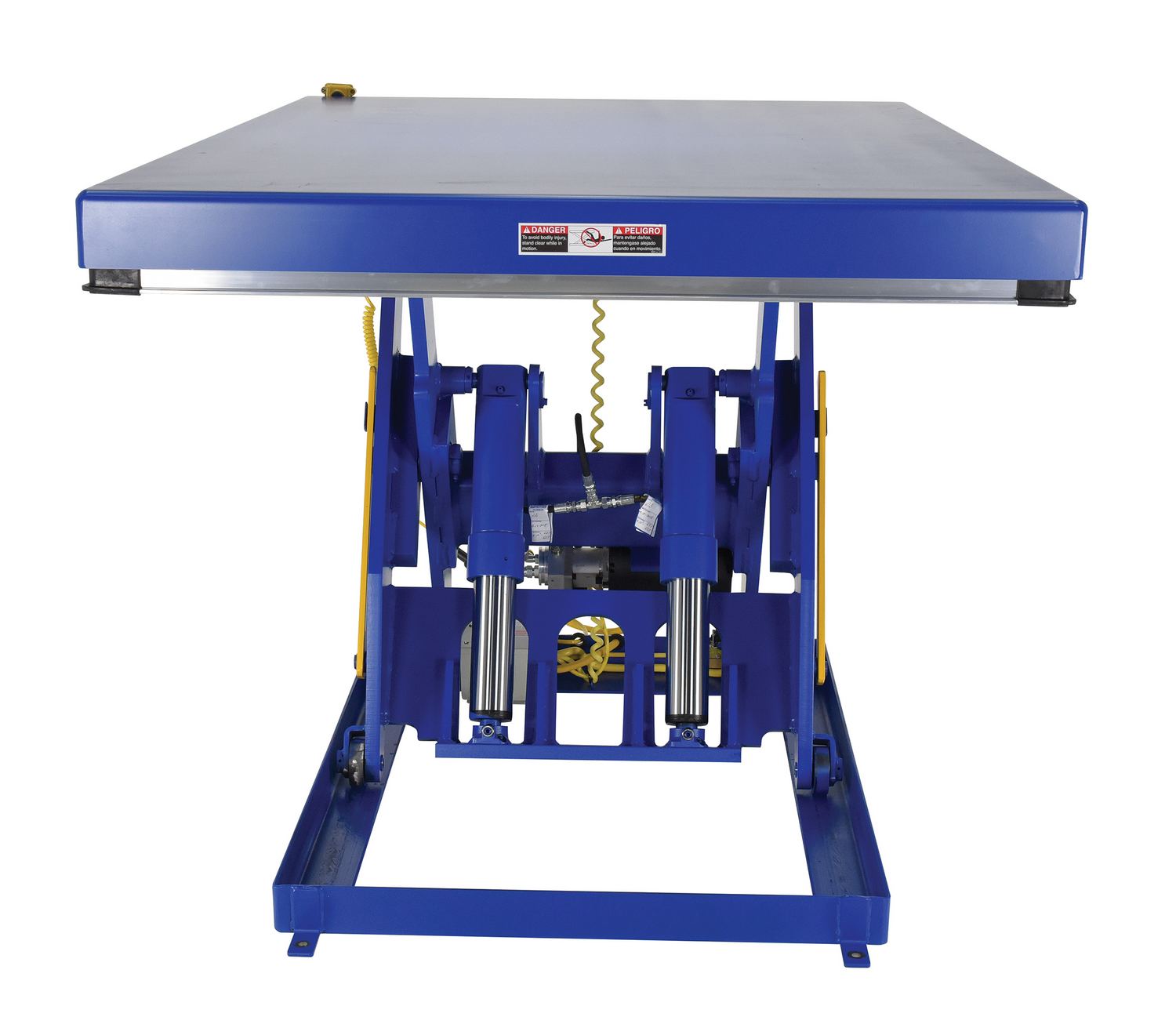

EHLT-3684-4-56 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 36X84Uniform Capacity (lb.): 40001827

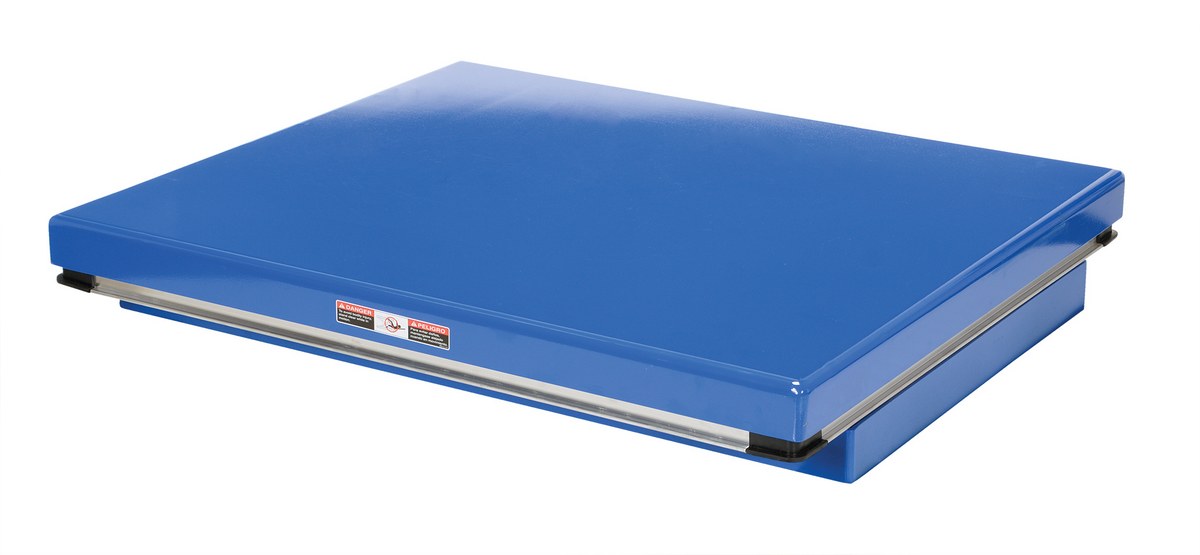

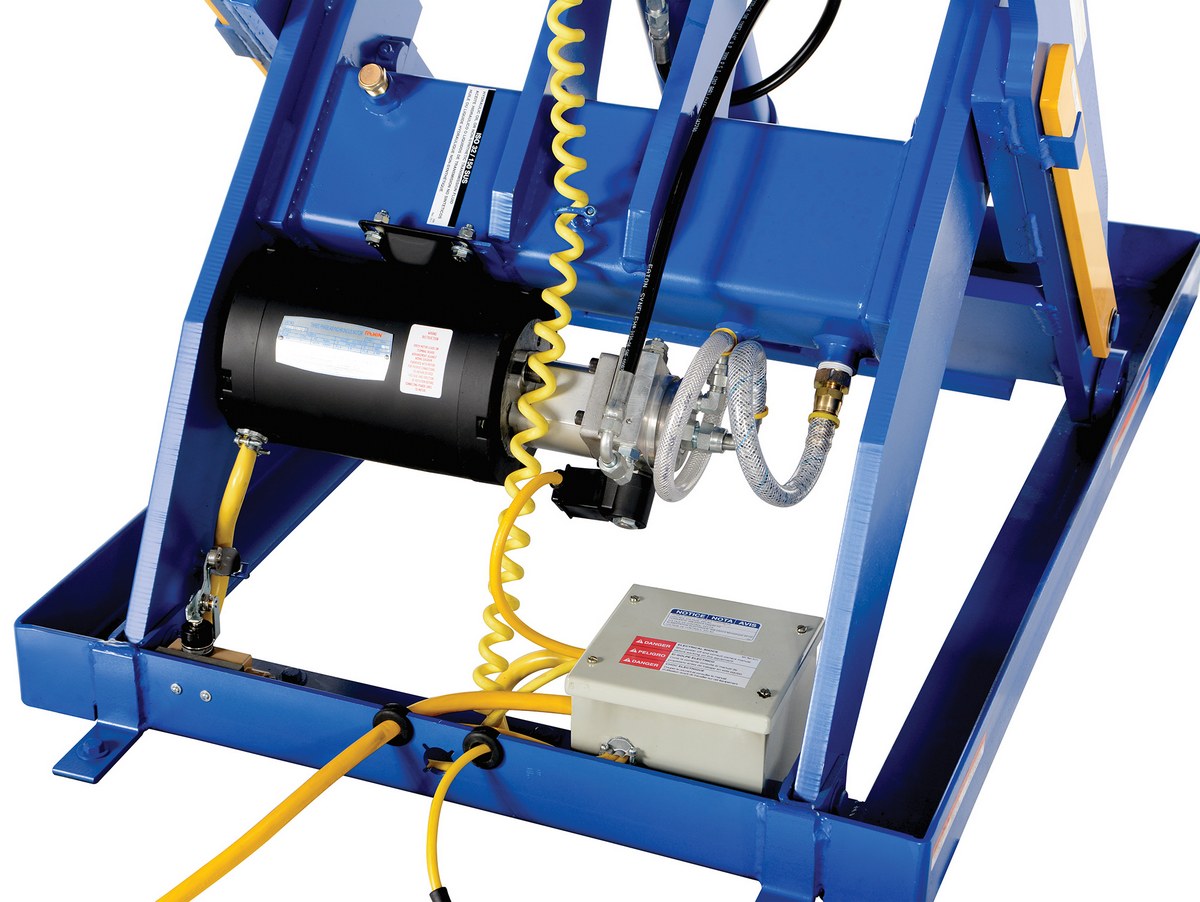

EHLT-4048-3-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 40X48Uniform Capacity (lb.): 3,000807

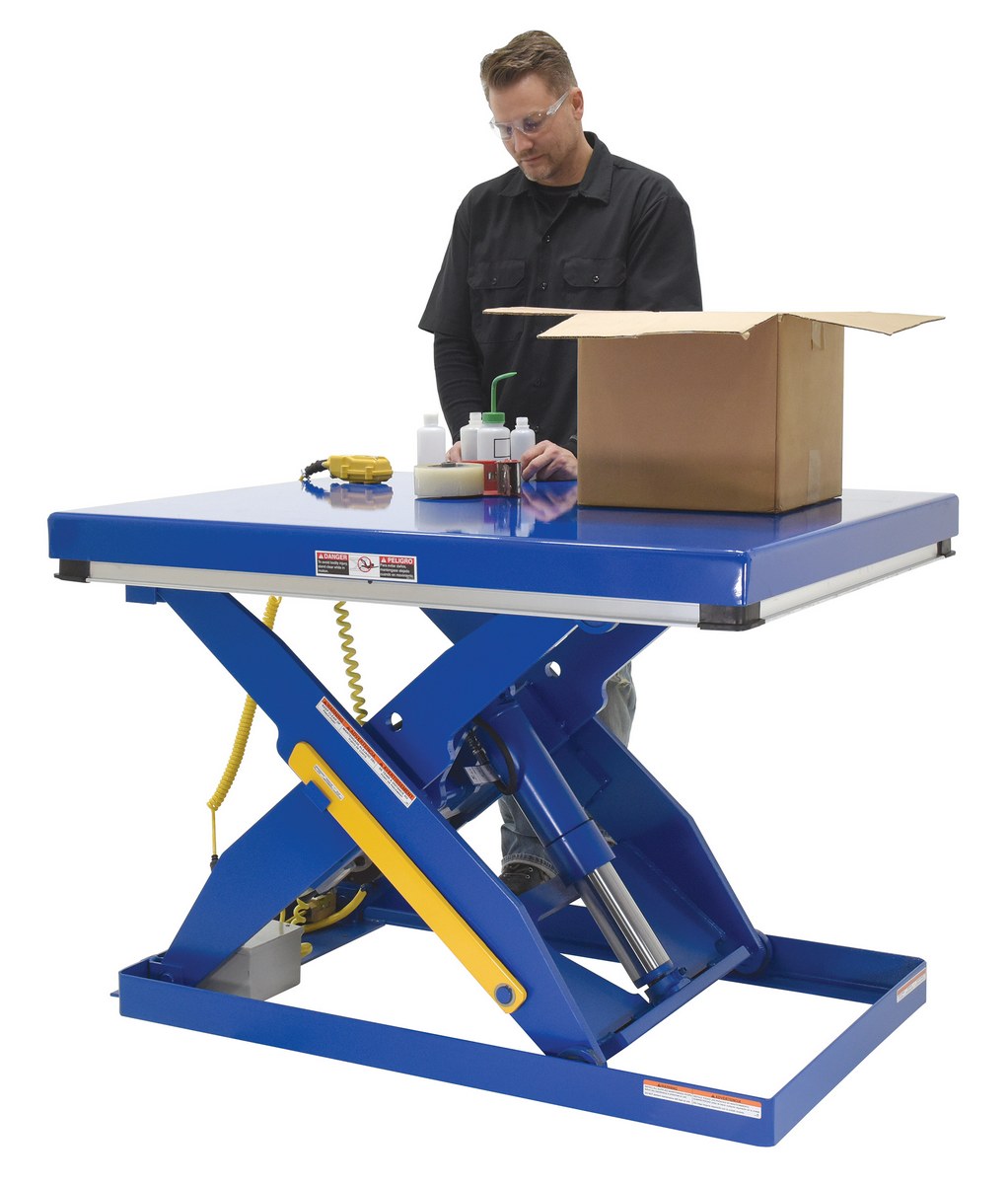

EHLT-4048-3-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 40X48Uniform Capacity (lb.): 3,000807

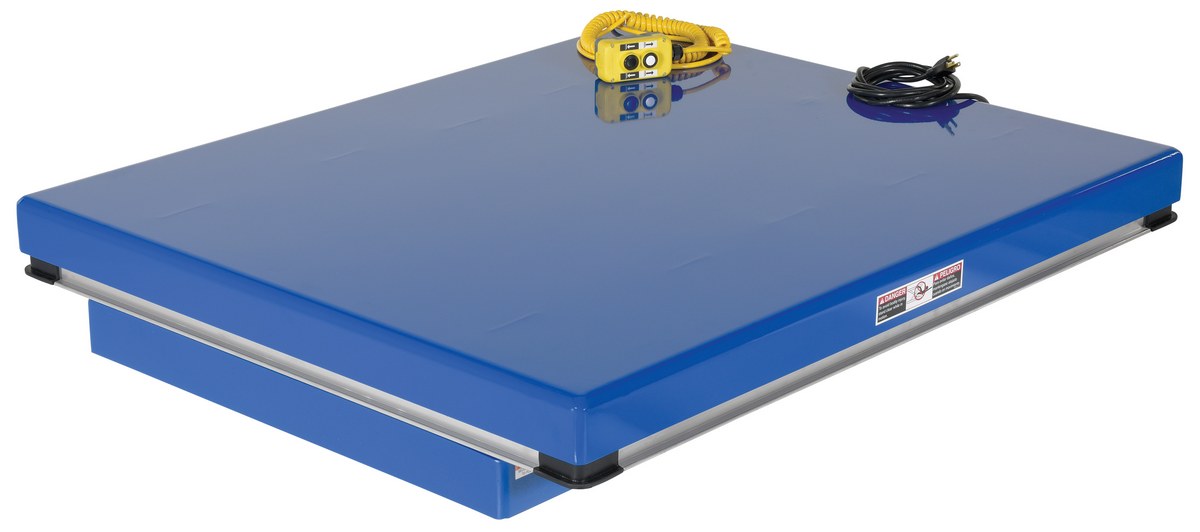

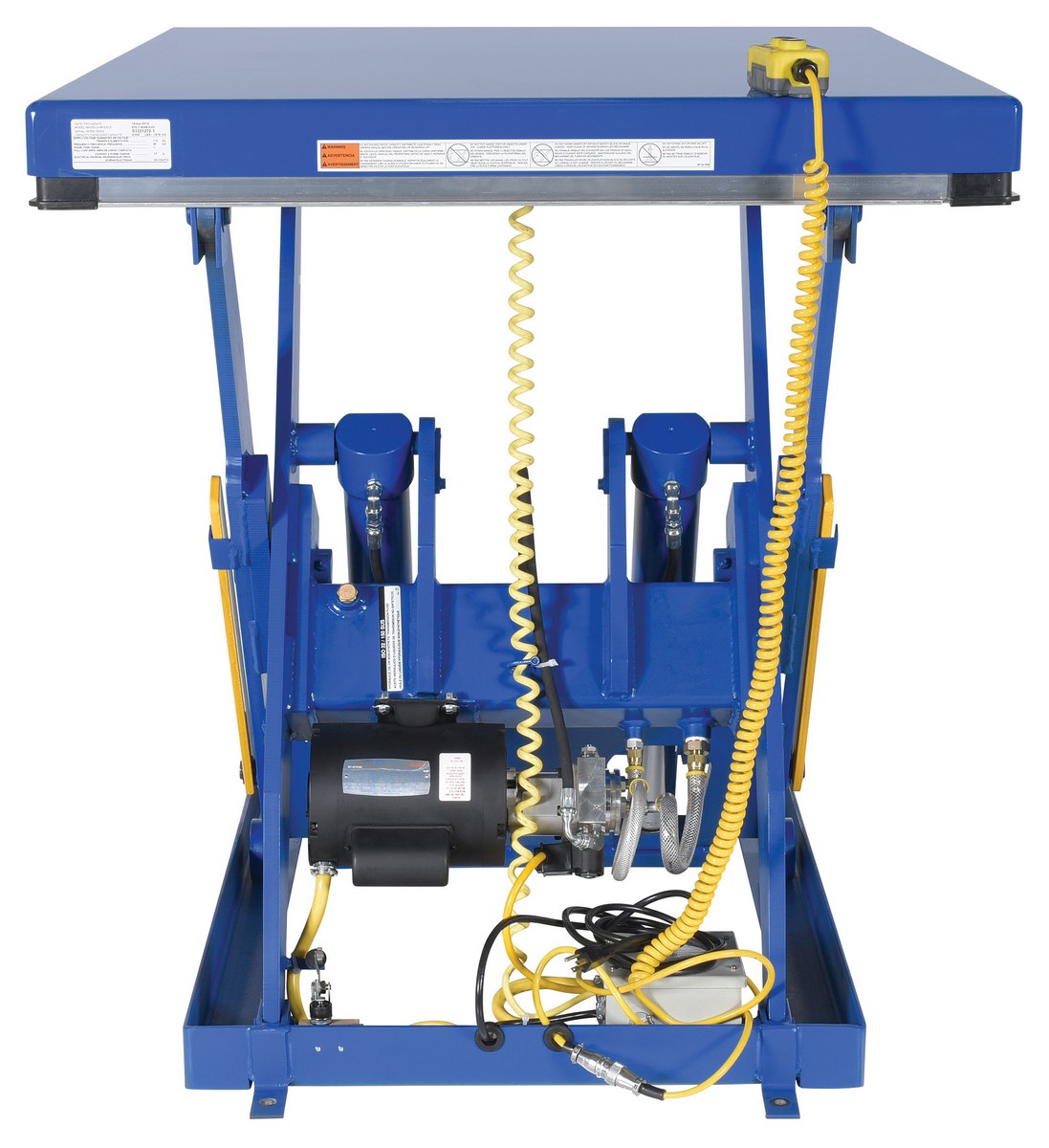

EHLT-4048-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 40X48Uniform Capacity (lb.): 4,000878
EHLT-4048-4-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 40X48Uniform Capacity (lb.): 4,000878

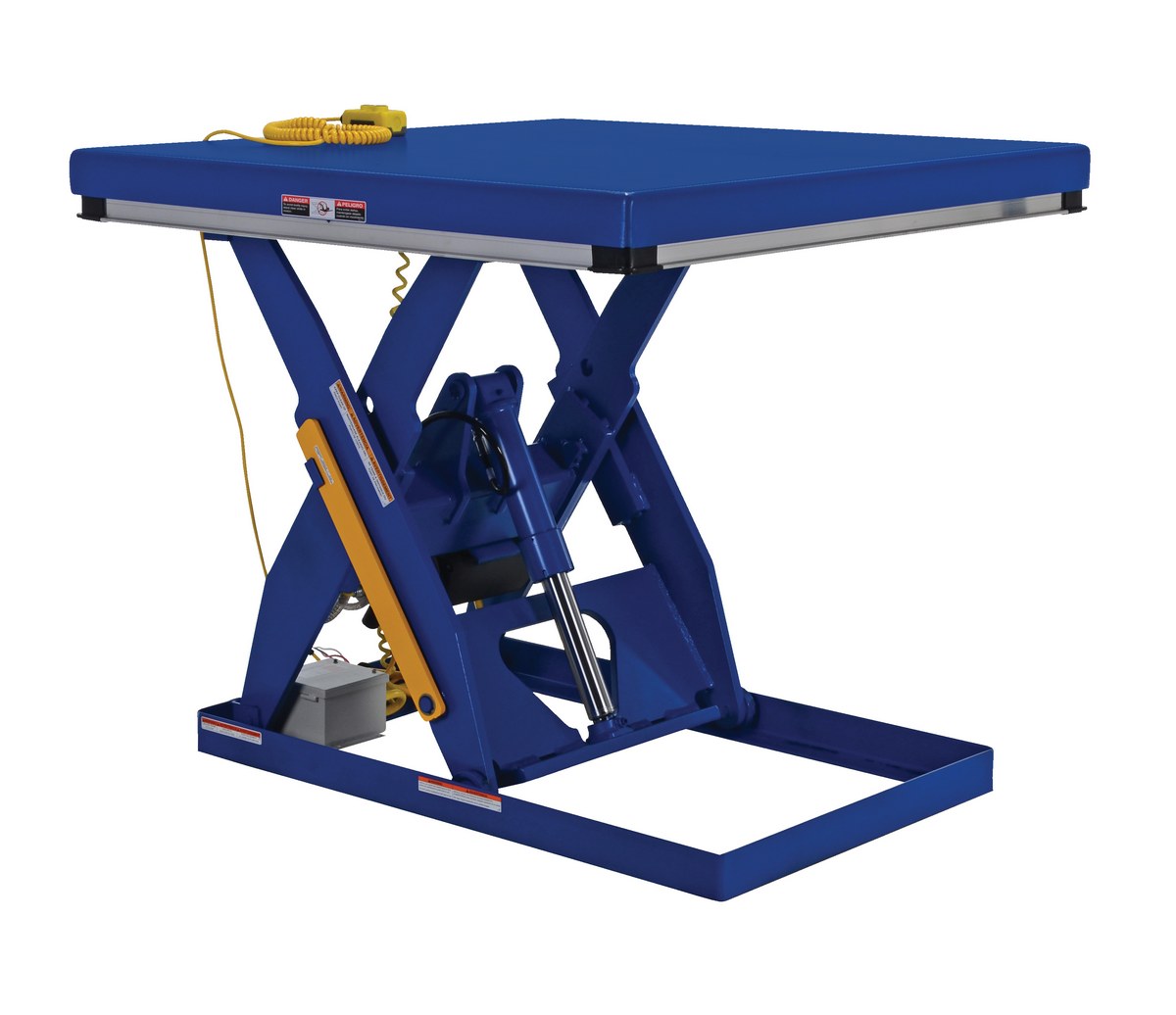

EHLT-4848-1-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 1K 48X48Uniform Capacity (lb.): 1000820
EHLT-4848-1-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 1K 48X48Uniform Capacity (lb.): 1,000820

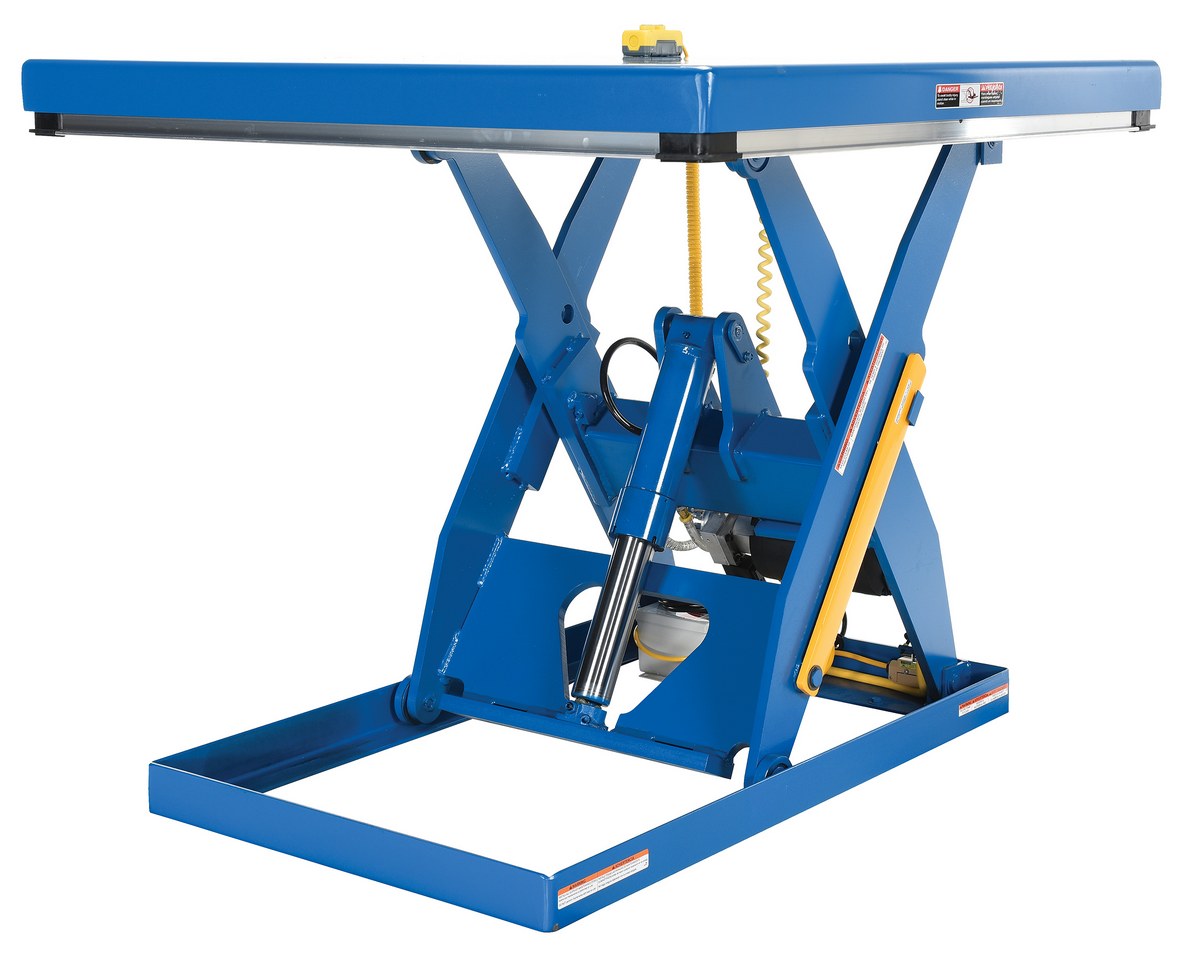

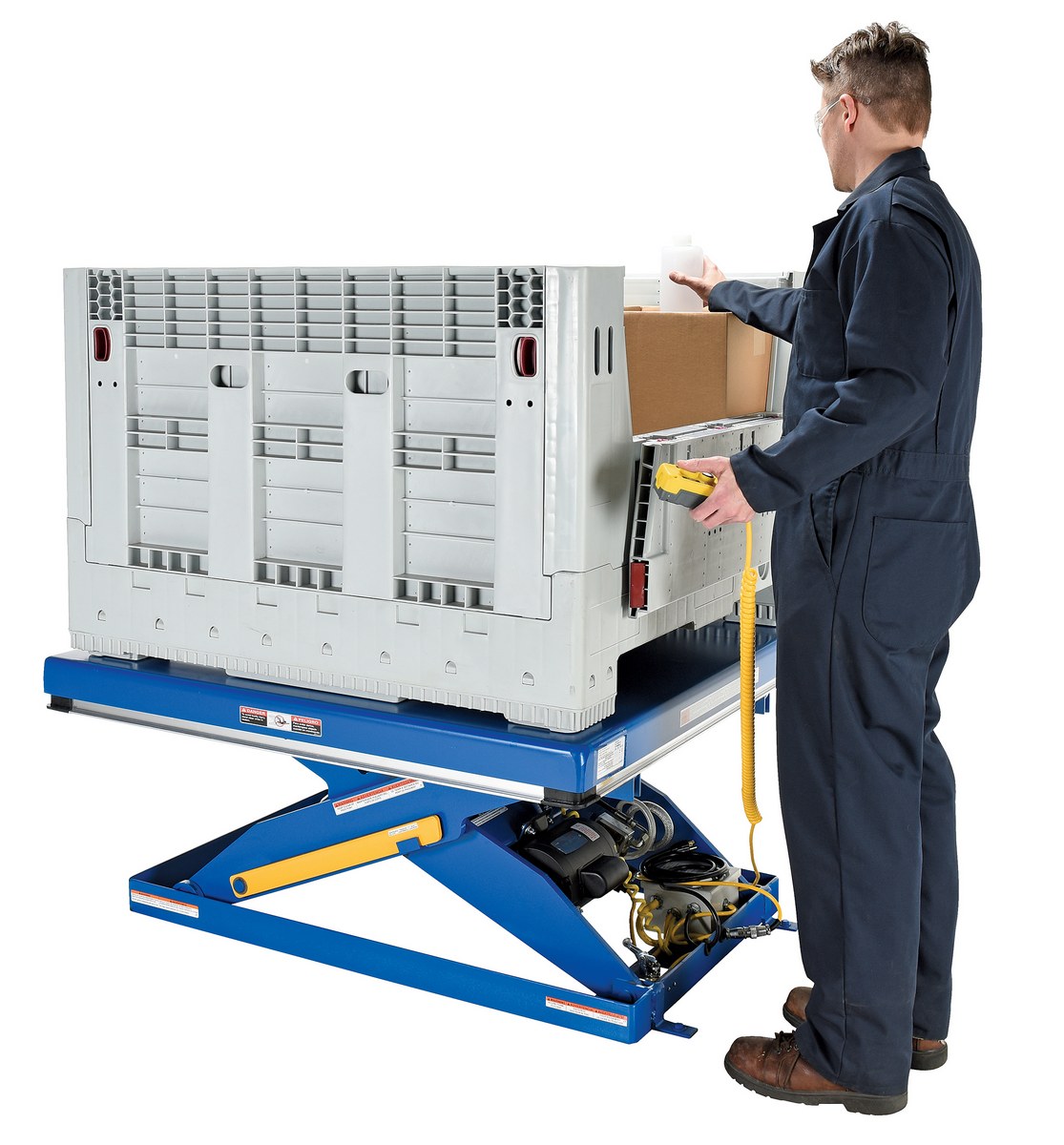

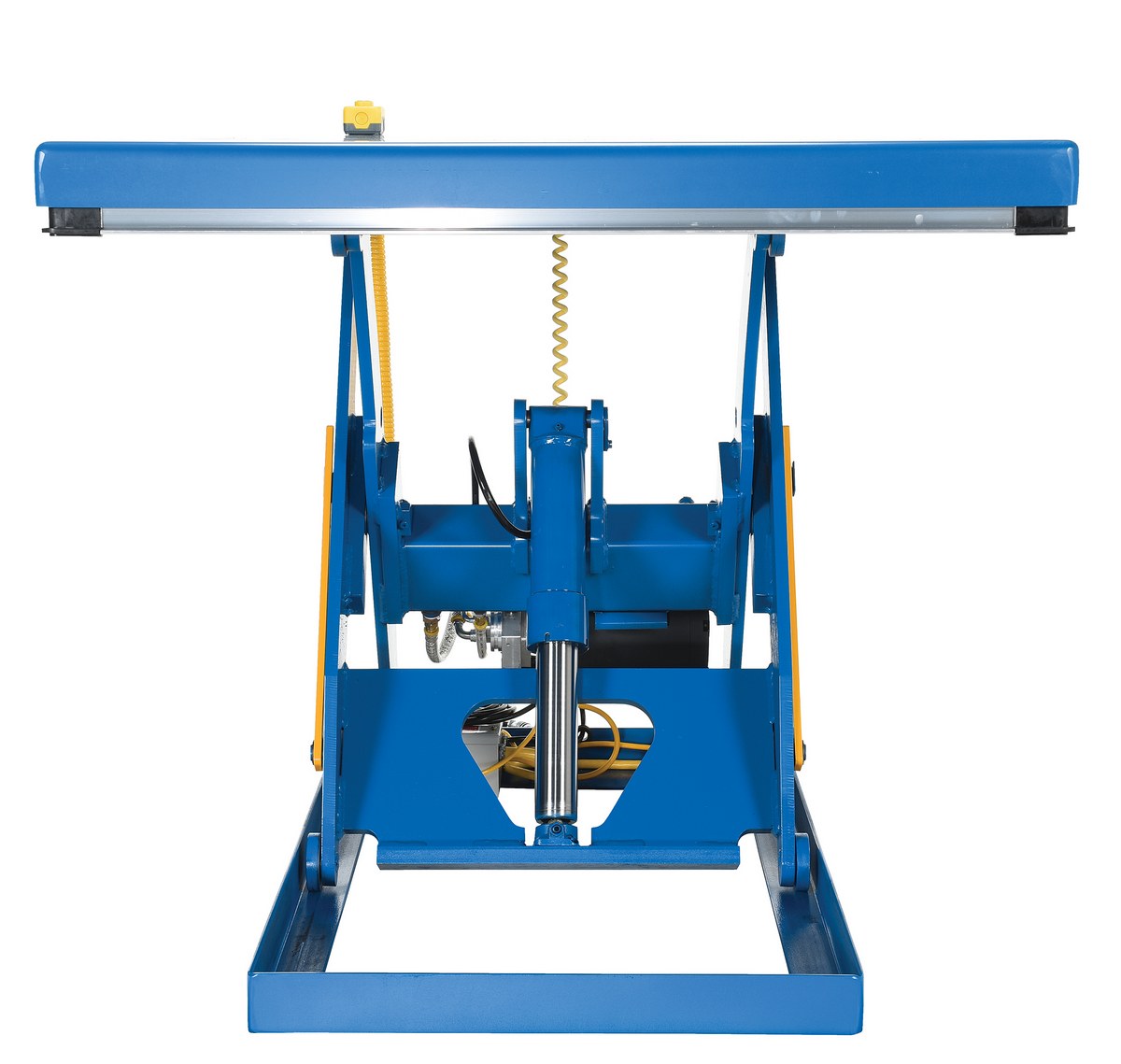

EHLT-4848-2-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 48X48Uniform Capacity (lb.): 2000820

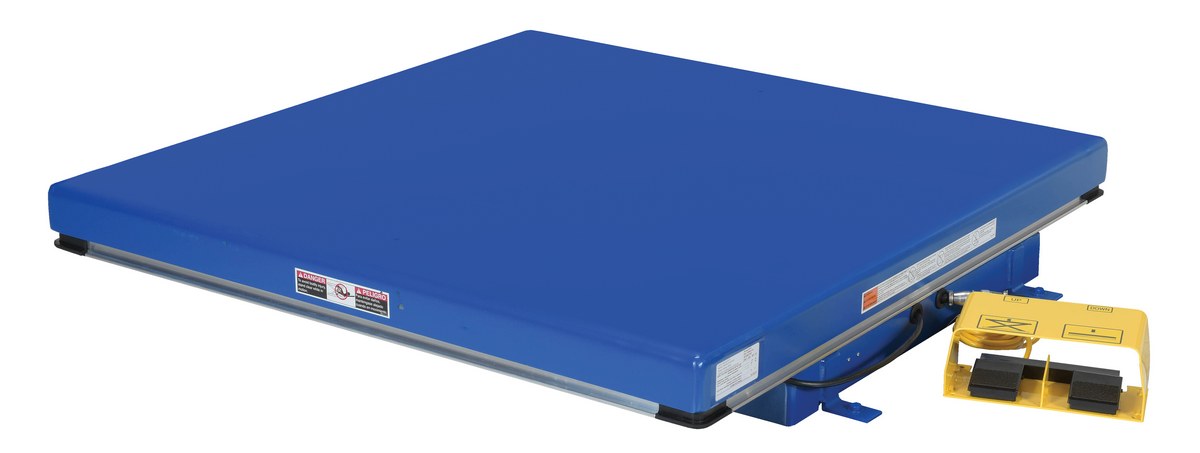

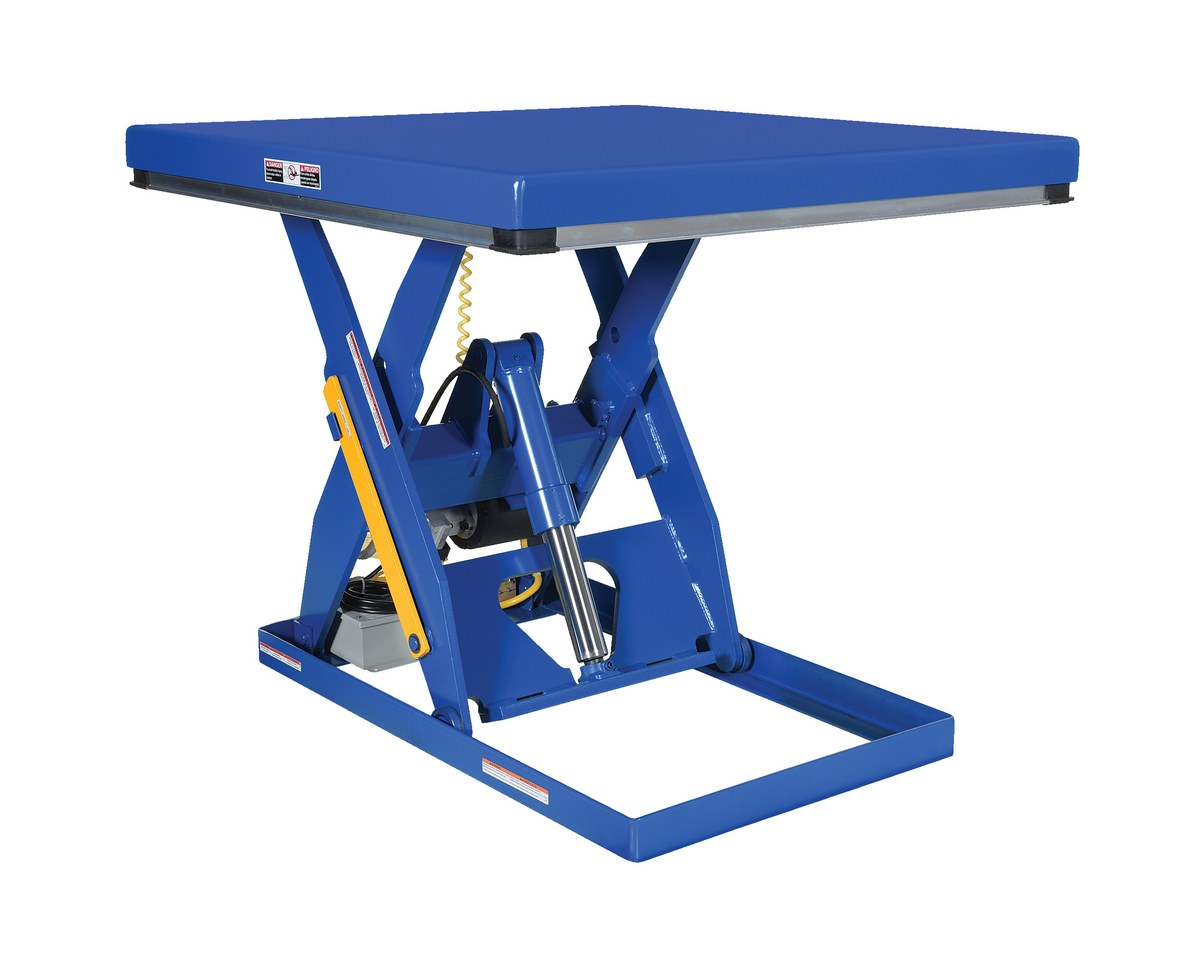

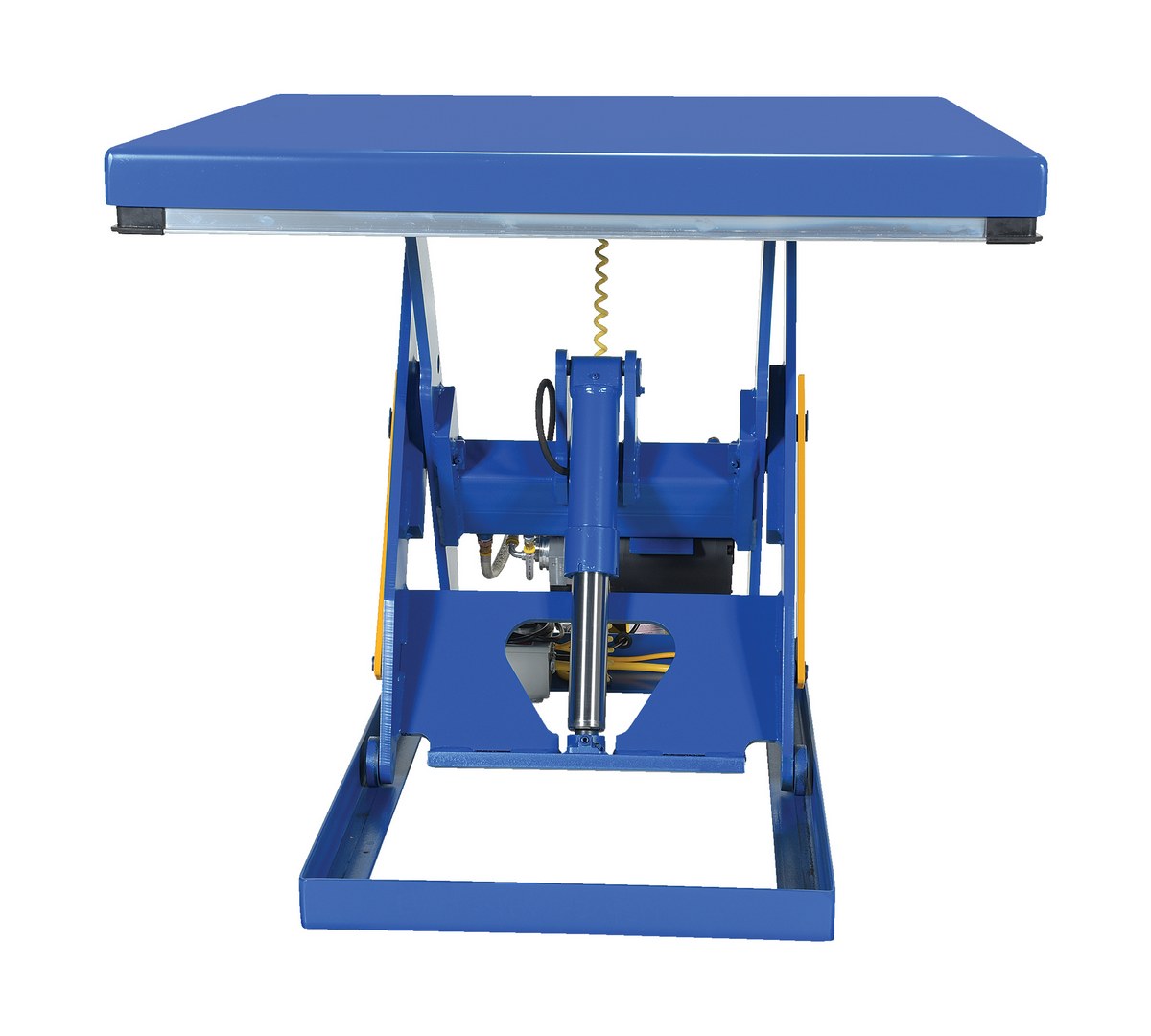

EHLT4848-2-43FC 1 Year Limited WarrantyLIFT TABLE - FOOT CONTROL 48IN X 48INUniform Capacity (lb.): 2,000750
EHLT-4848-2-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 2K 48X48Uniform Capacity (lb.): 2,000820

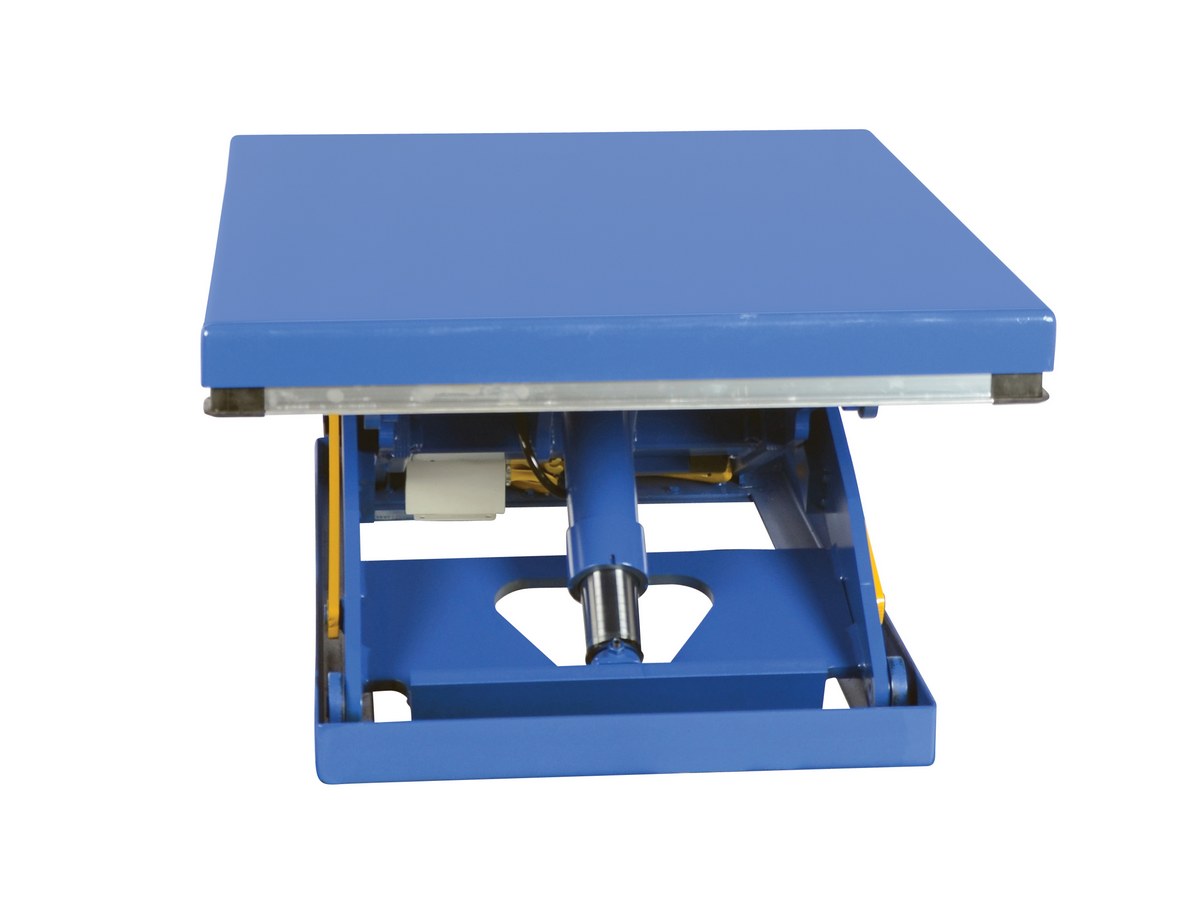

EHLT-4848-3-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 48X48Uniform Capacity (lb.): 3,000841
EHLT-4848-3-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 3K 48X48Uniform Capacity (lb.): 3,000841
EHLT-4848-3-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 48X48Uniform Capacity (lb.): 3,000841

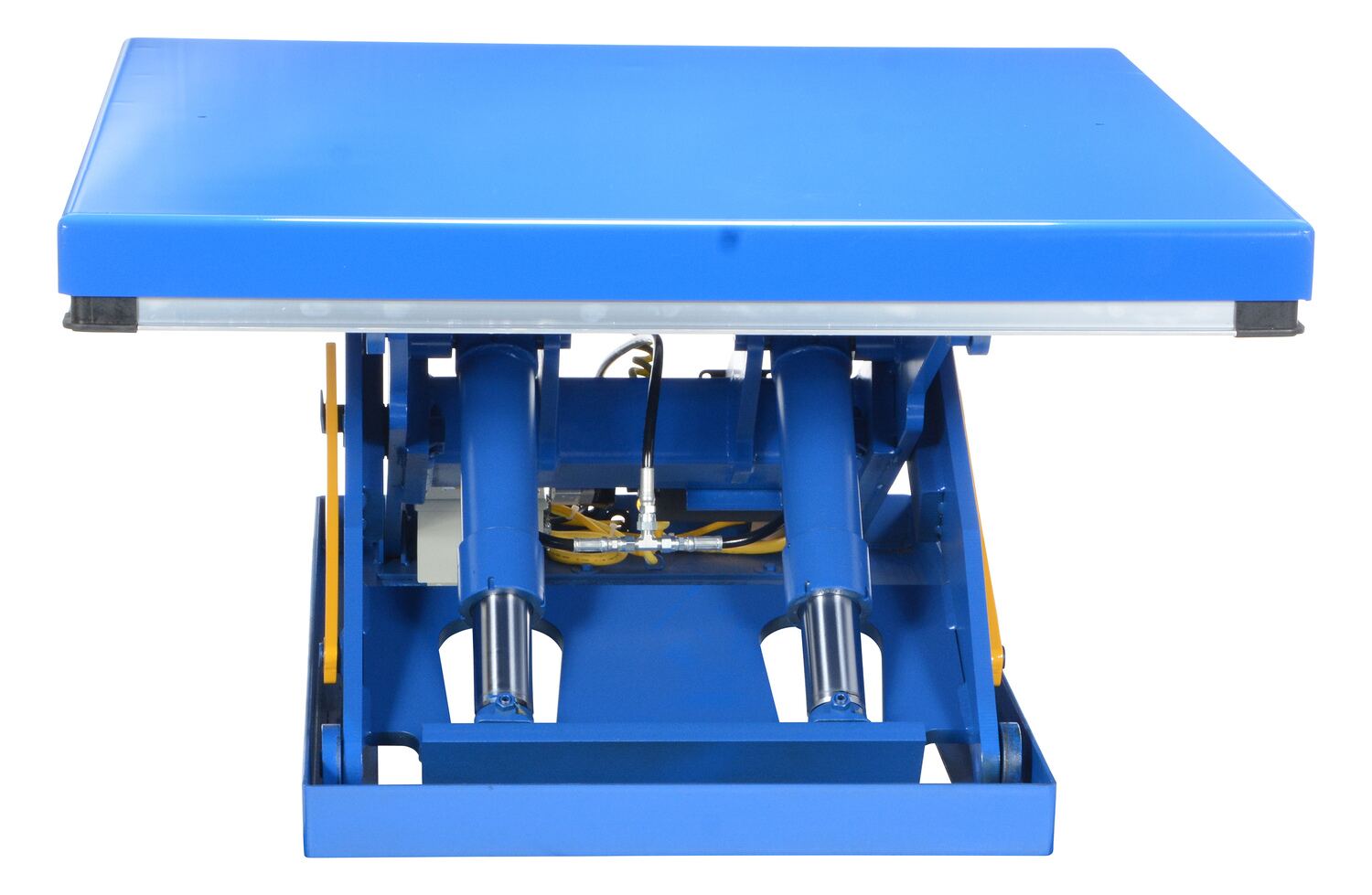

EHLT-4848-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 48X48Uniform Capacity (lb.): 4,000918
EHLT-4848-4-43-PSS 1 Year Limited WarrantyELECTRIC HYDRAULIC PSS LIFT TABLE 4K 48X48Uniform Capacity (lb.): 4,000918
EHLT-4848-4-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 48X48Uniform Capacity (lb.): 4,000918

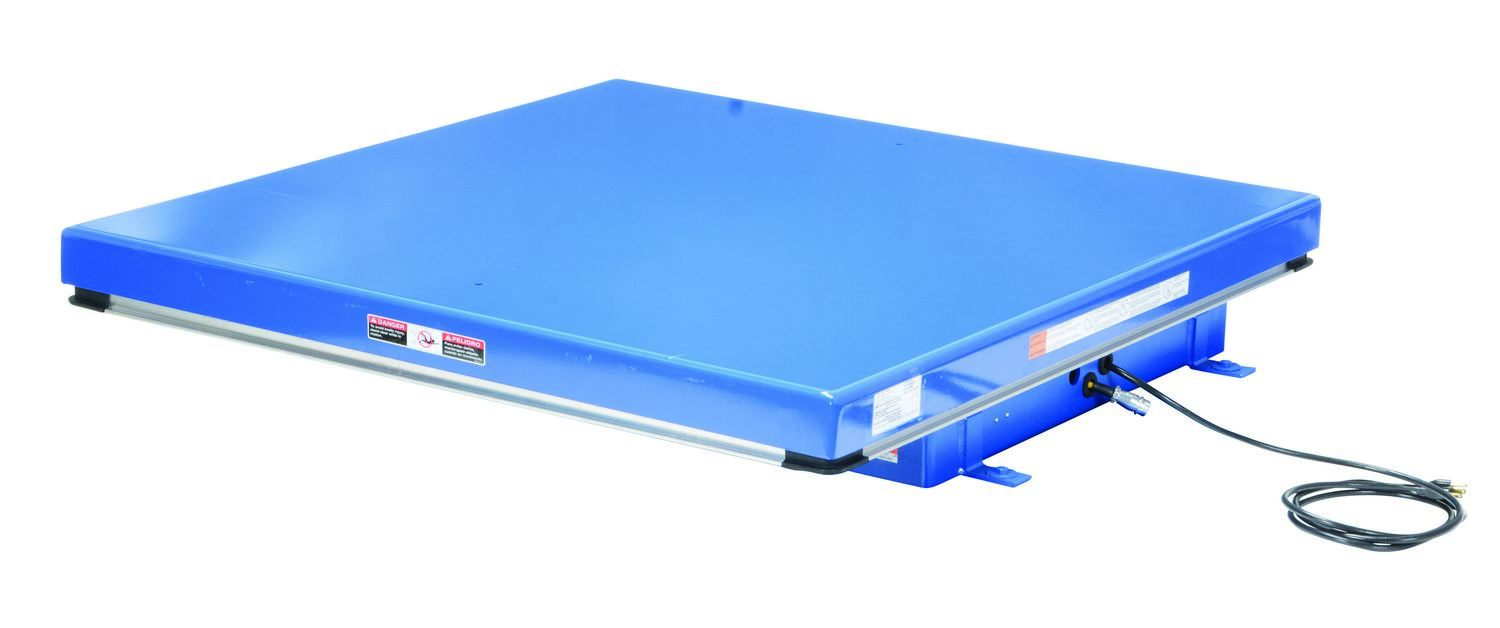

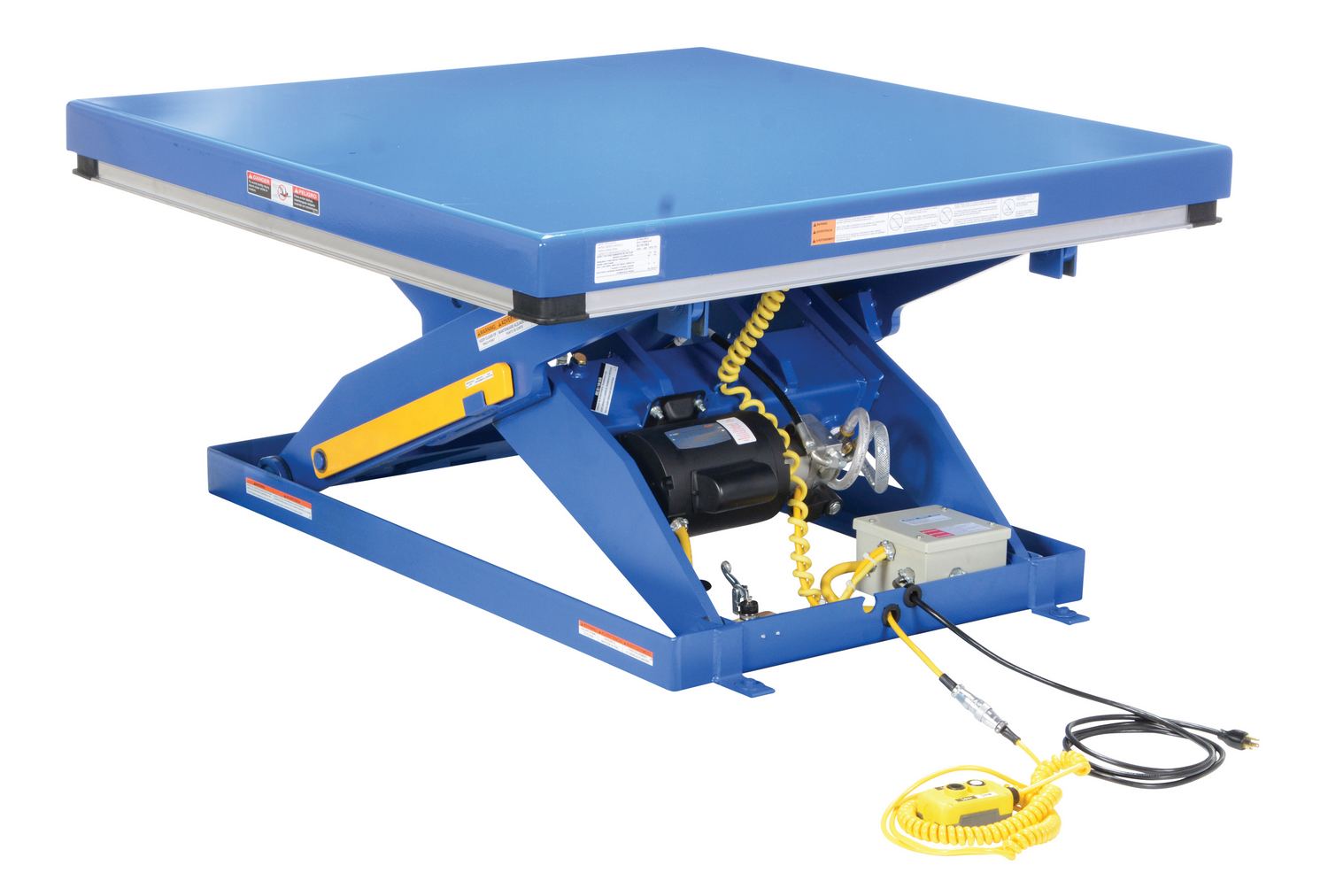

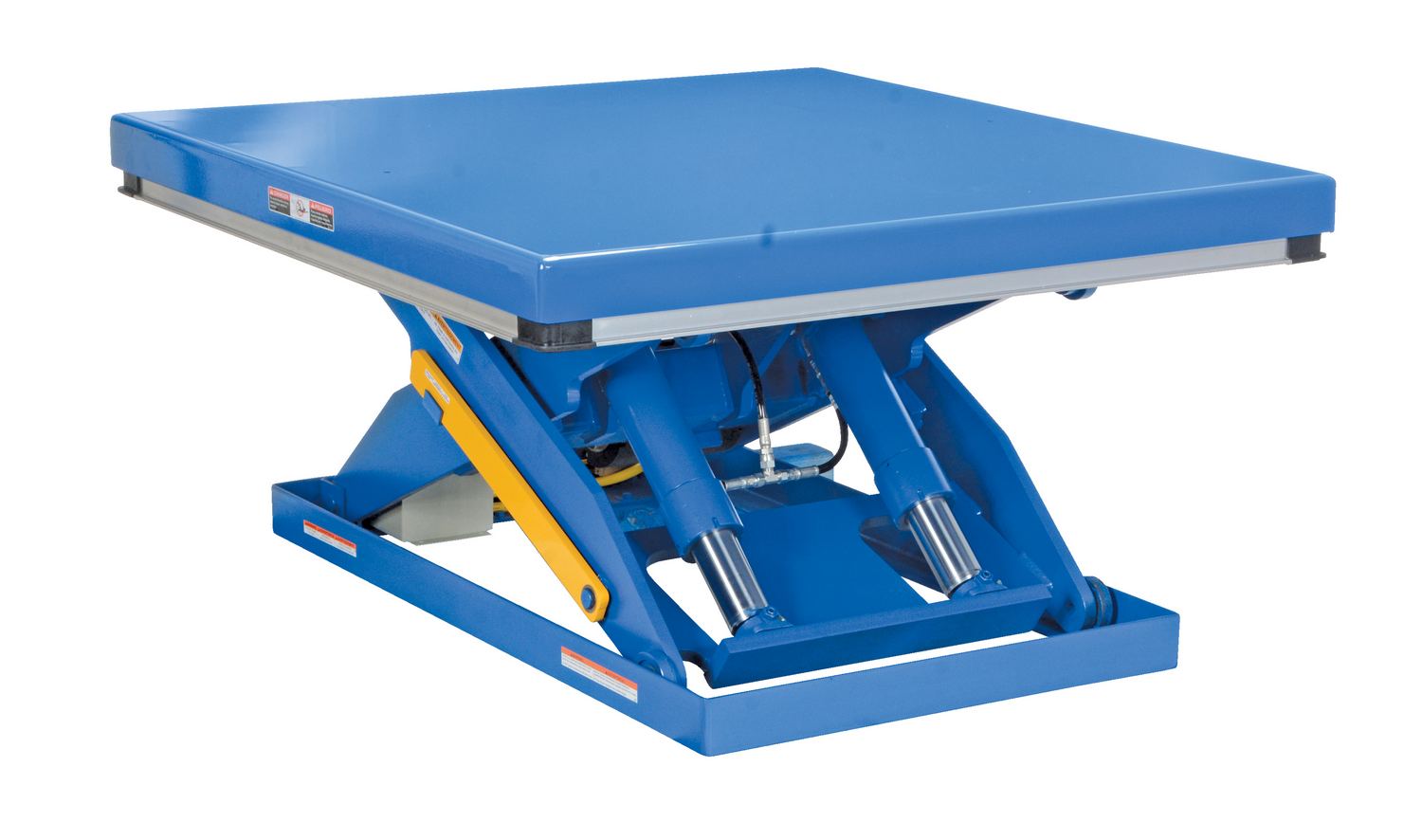

EHLT-4848-5-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 5K 48X48Uniform Capacity (lb.): 50001082
EHLT-4848-6-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 6K 48X48Uniform Capacity (lb.): 60001105

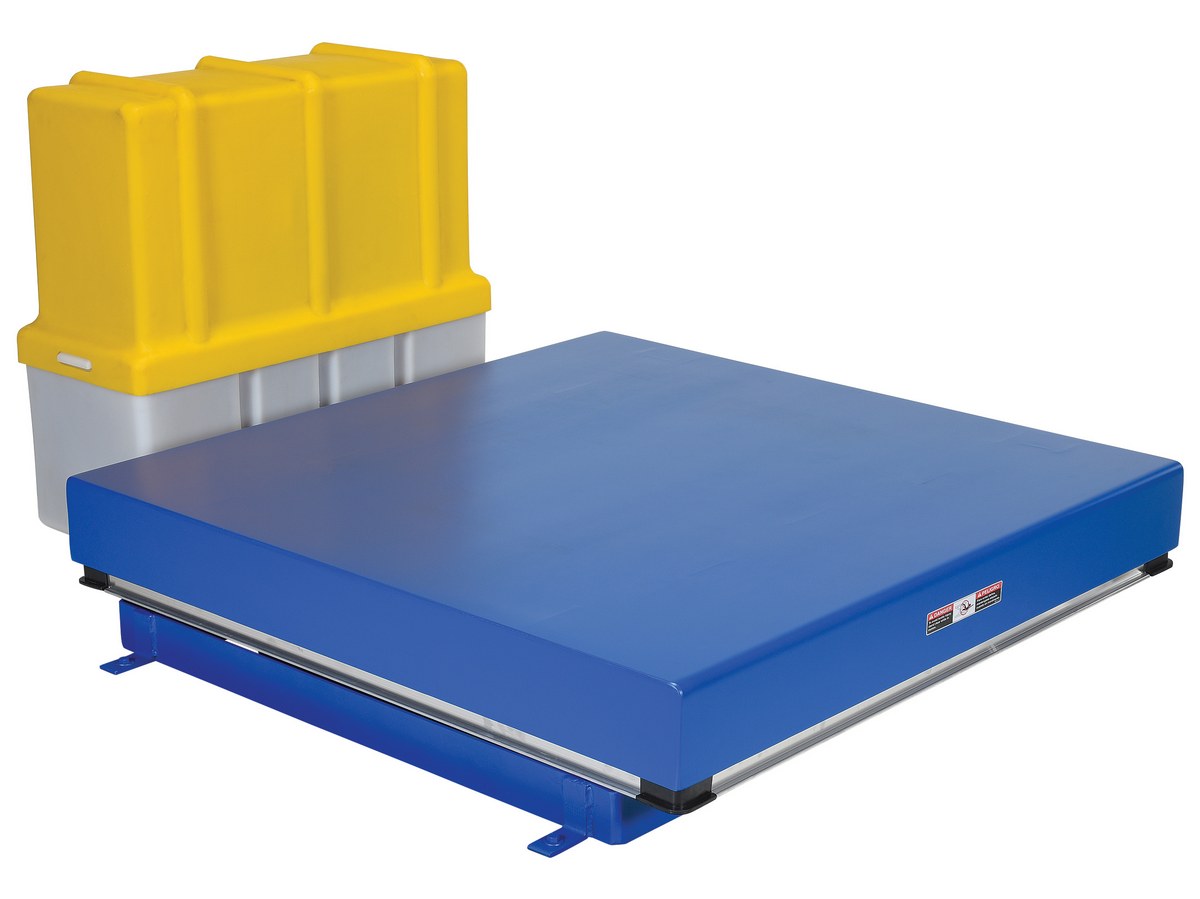

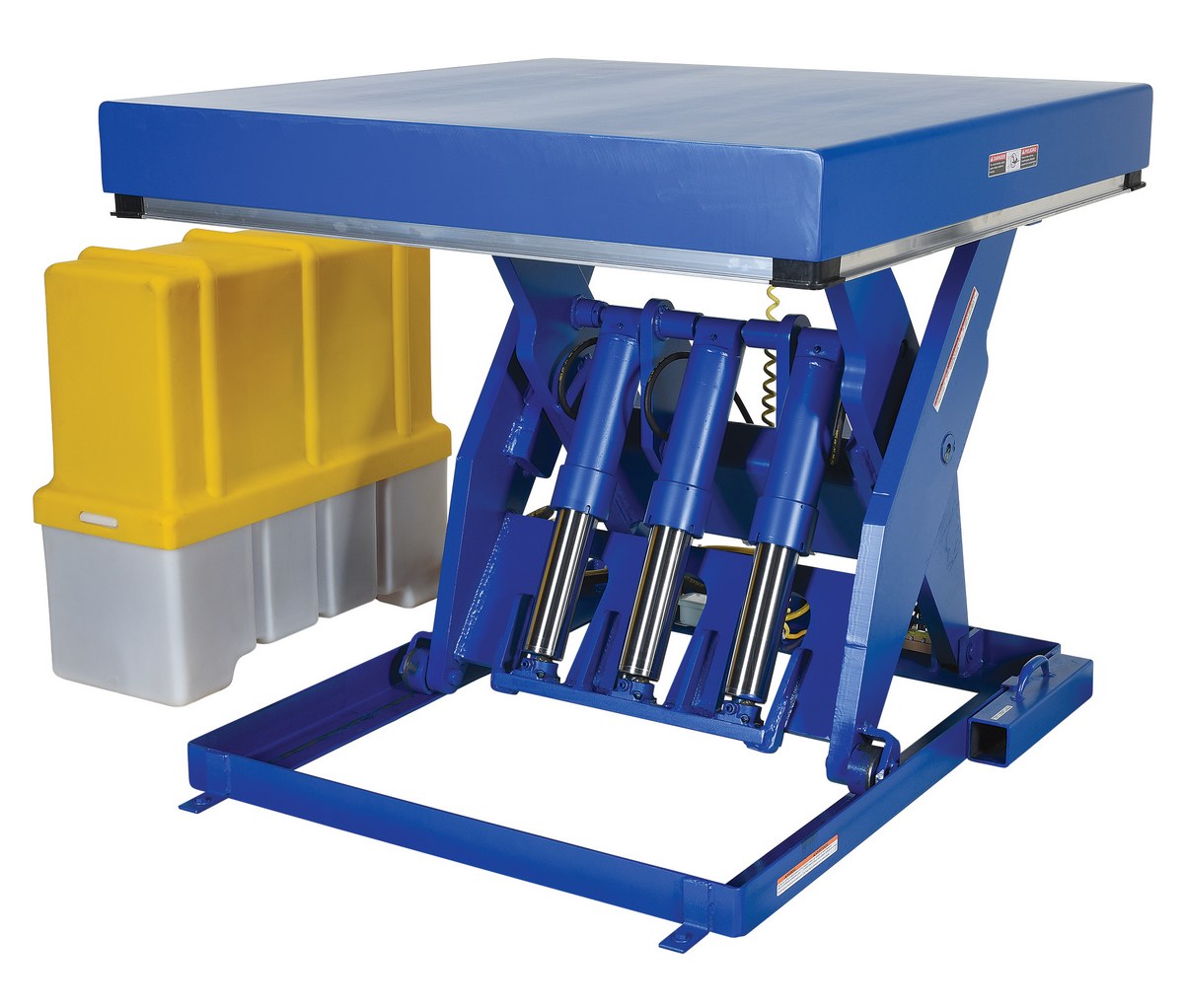

EHLT-4848-10-43 1 Year Limited WarrantyELECT HYDRAULIC LIFT TABLE 10K 48X48Uniform Capacity (lb.): 100001719

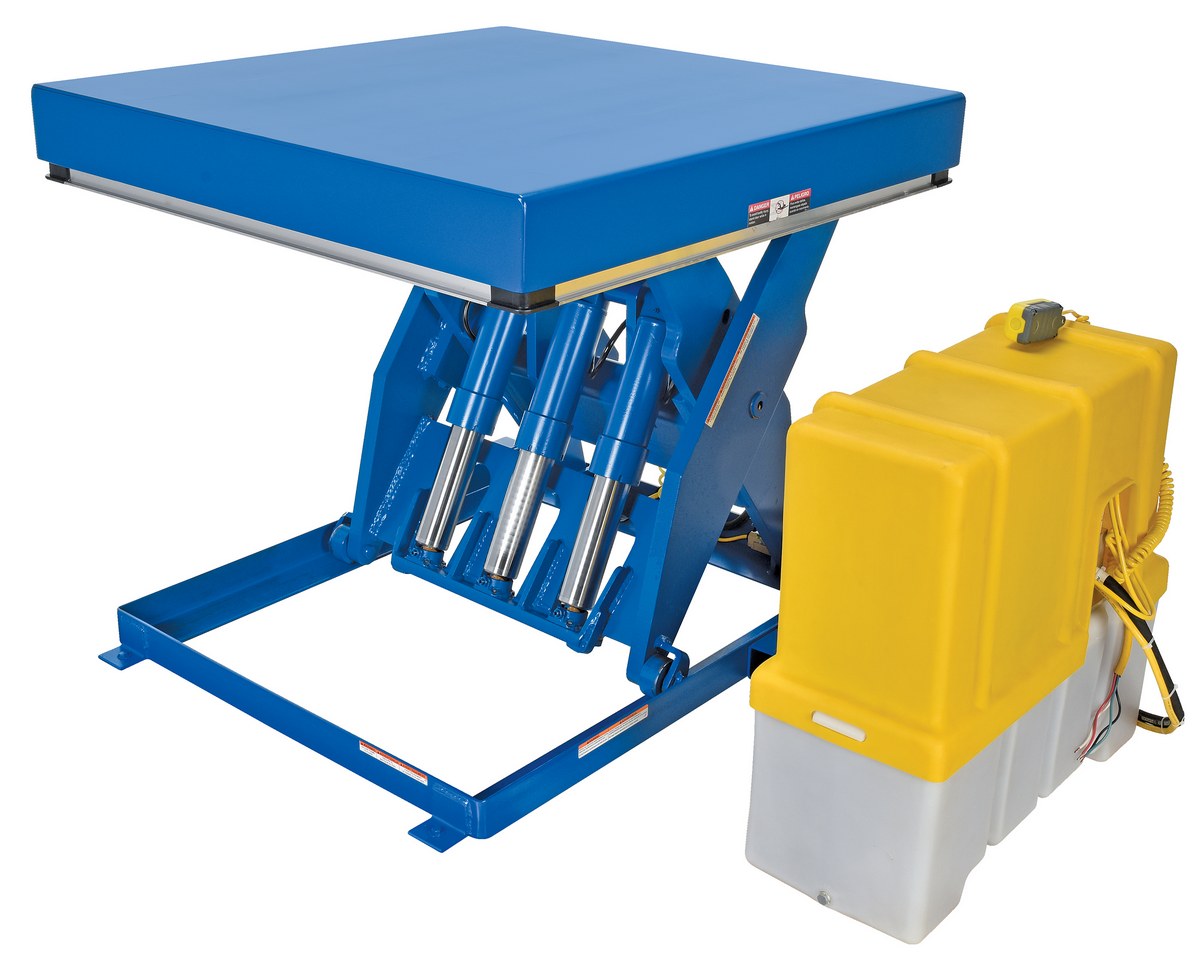

EHLT-4848-12-43 1 Year Limited WarrantyELECT HYDRAULIC LIFT TABLE 12K 48X48Uniform Capacity (lb.): 120001720

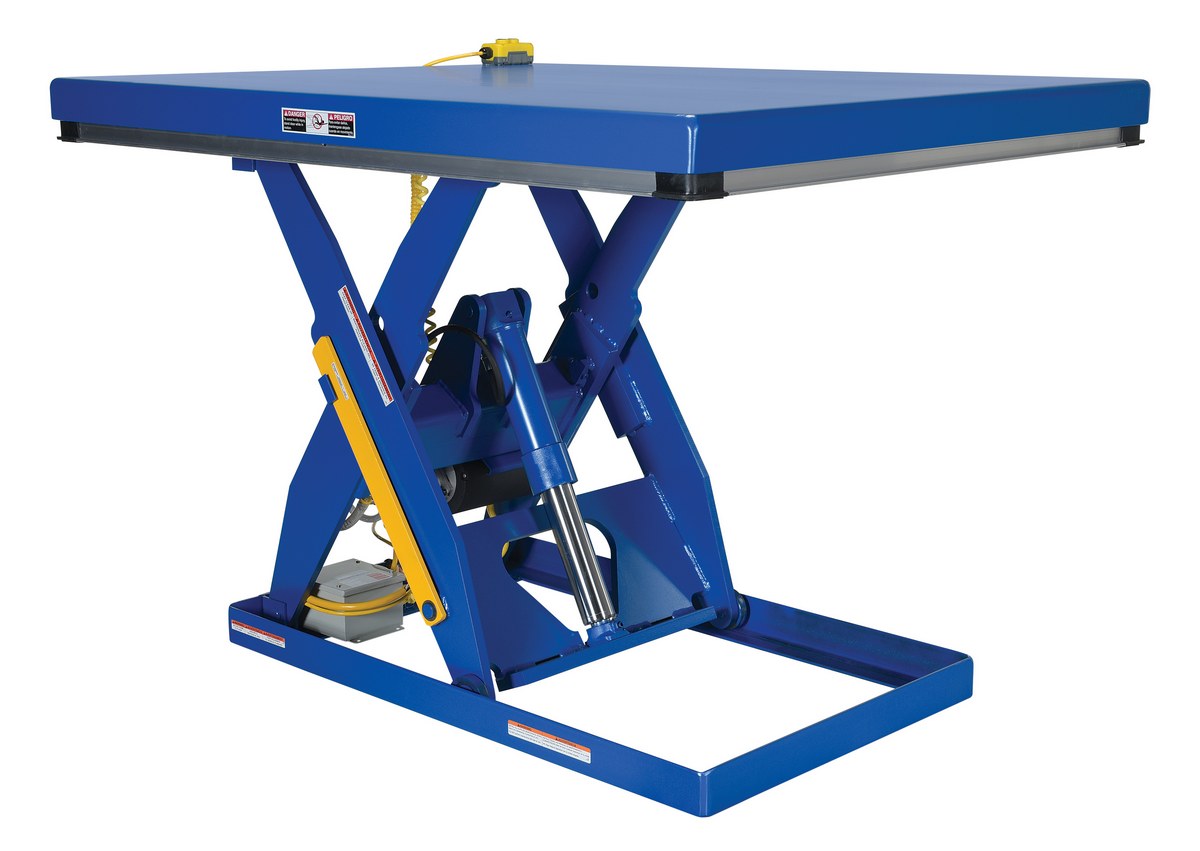

EHLT-4860-2-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 48X60Uniform Capacity (lb.): 2000868

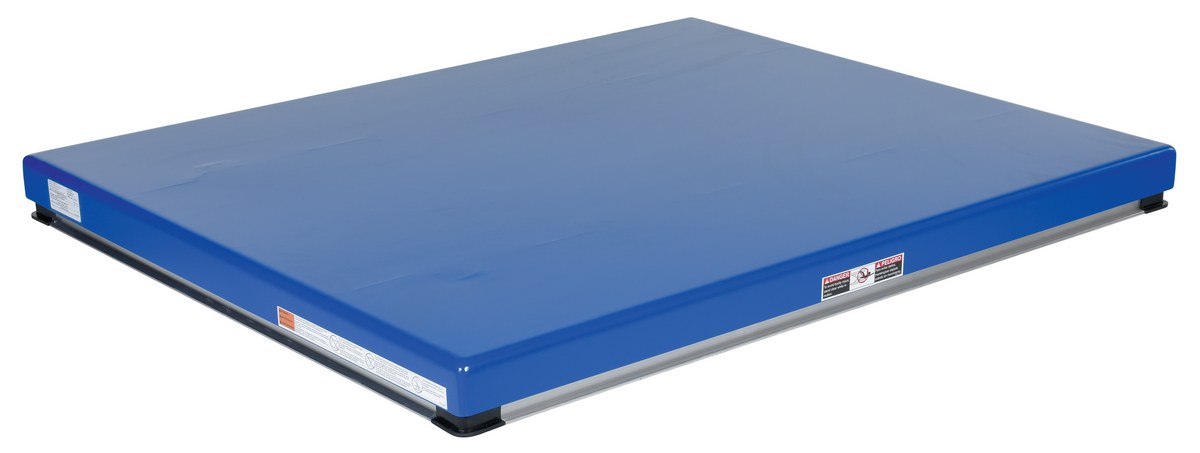

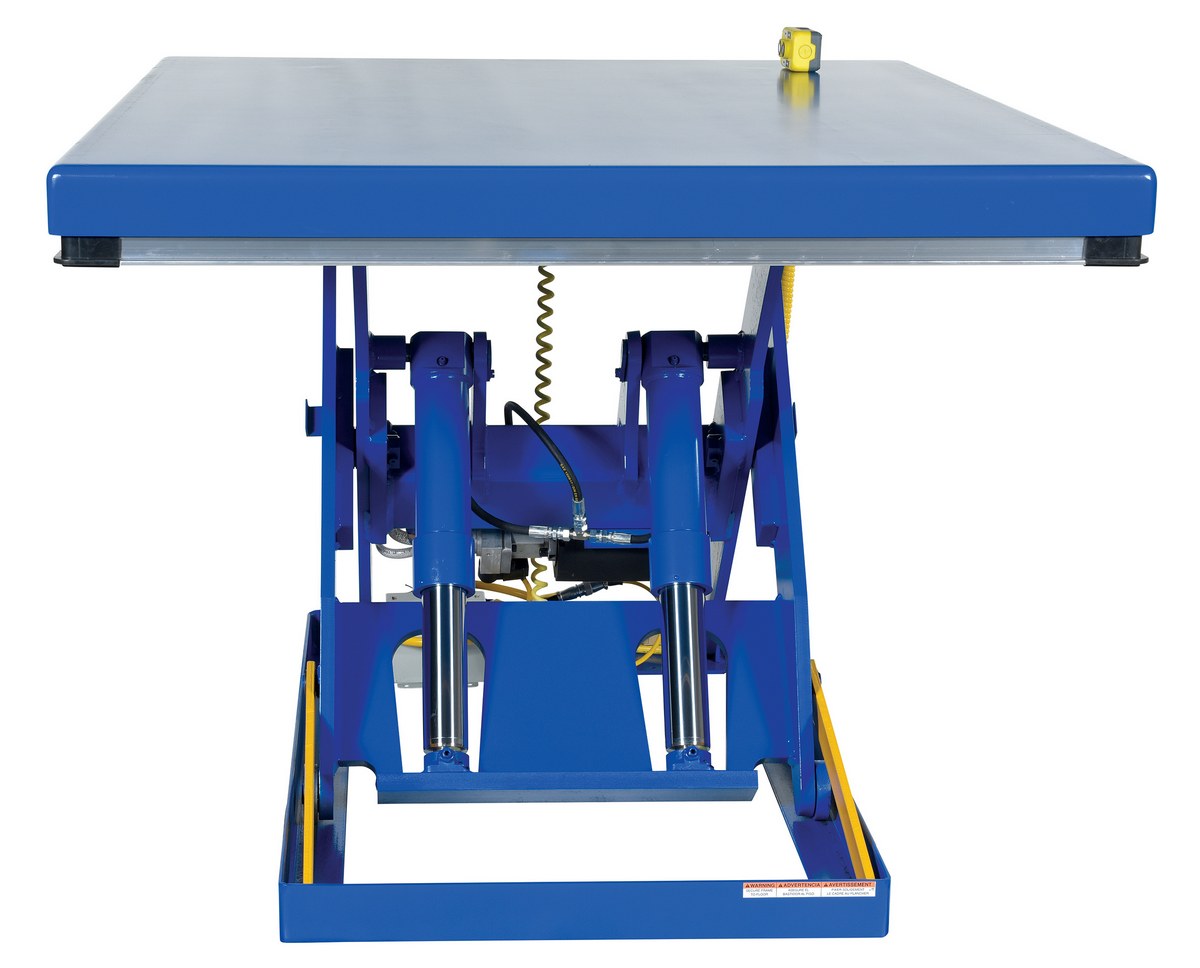

EHLT-4860-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 48X60Uniform Capacity (lb.): 4000914

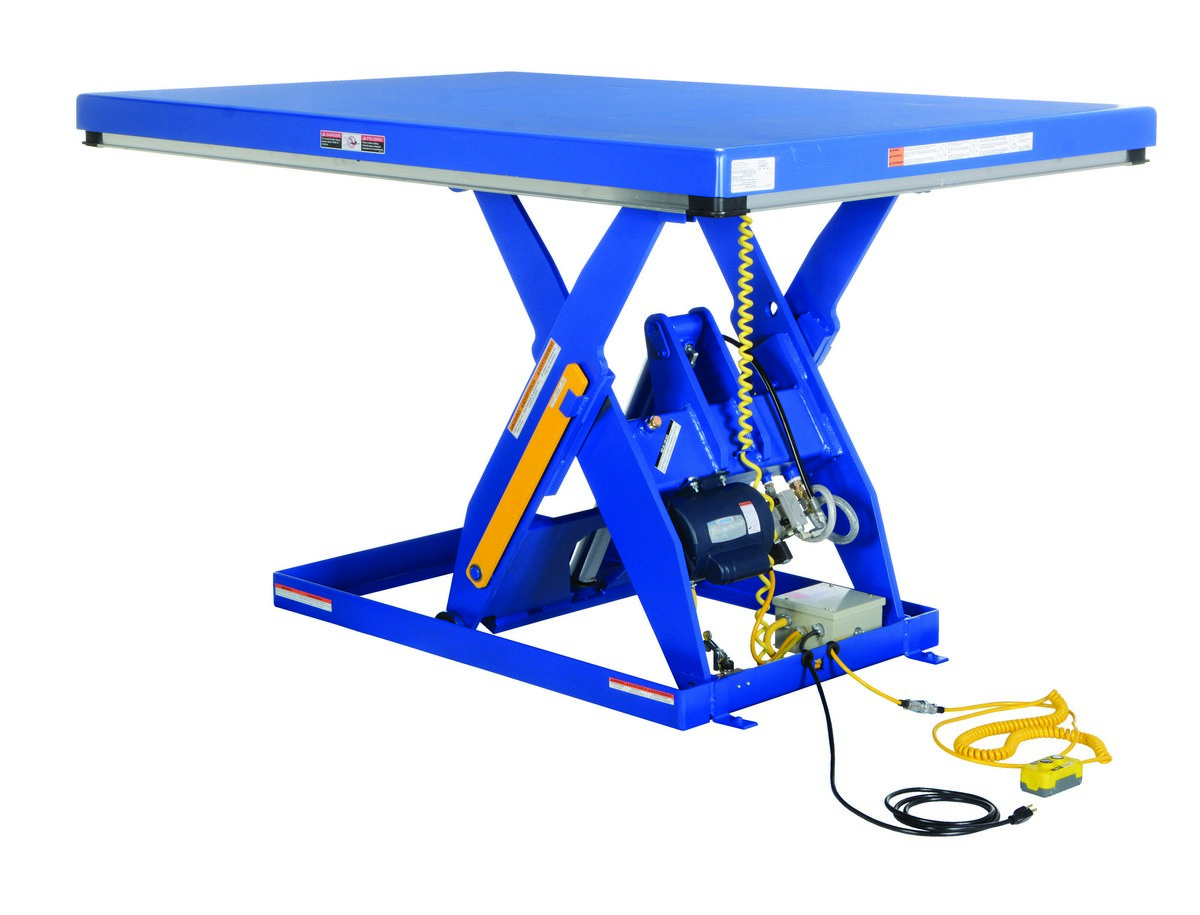

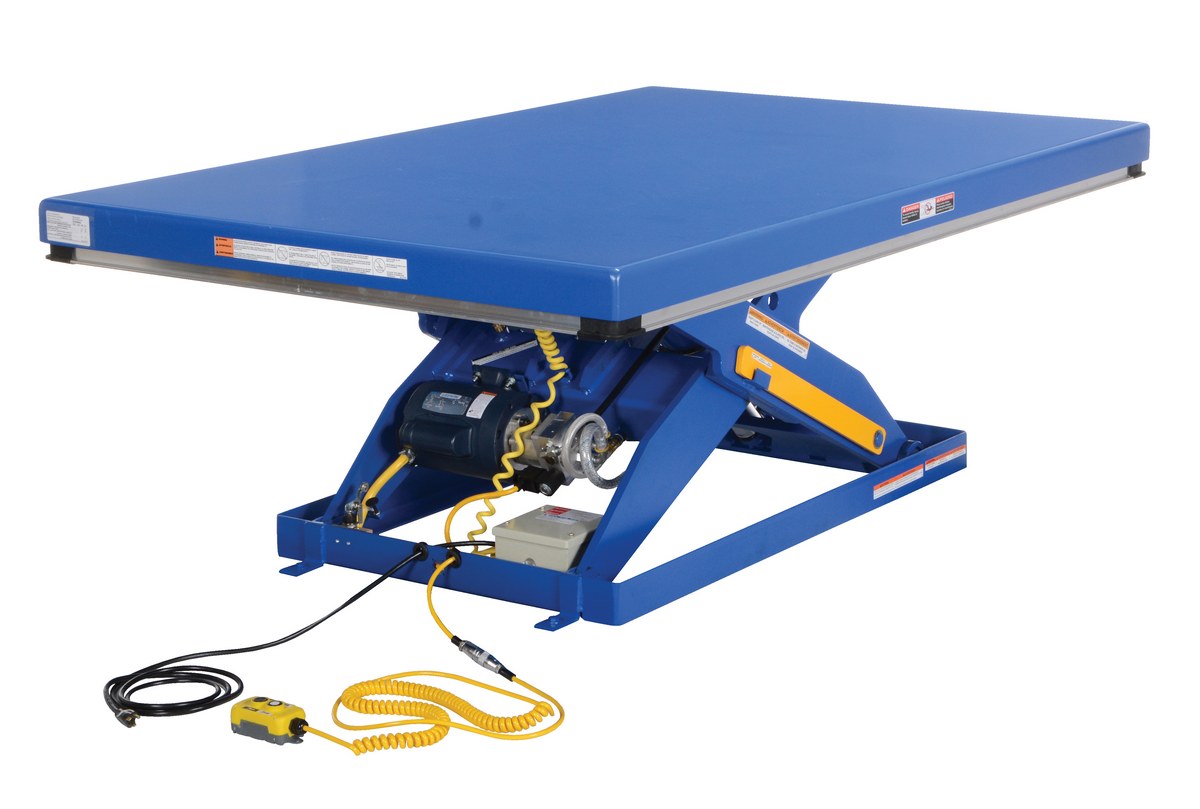

EHLT-4872-2-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 48X72Uniform Capacity (lb.): 2000843
EHLT-4872-3-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 48X72Uniform Capacity (lb.): 3,000946
EHLT-4872-3-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 3K 48X72Uniform Capacity (lb.): 3,000946
EHLT-4872-4-43 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 48X72Uniform Capacity (lb.): 4,000962
EHLT-4872-4-43-QS 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 48X72Uniform Capacity (lb.): 4,000962
EHLT-4872-5-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 5K 48X72Uniform Capacity (lb.): 50001234

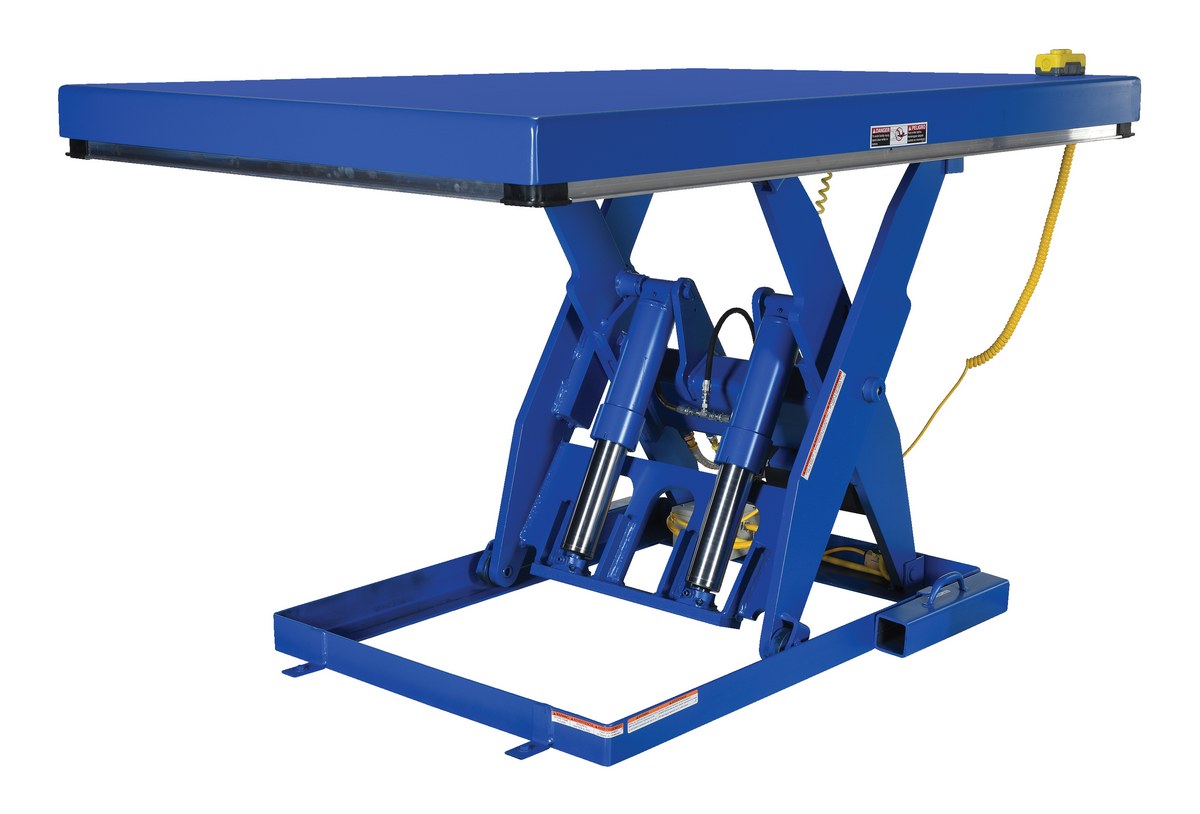

EHLT-4872-6-44 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 6K 48X72Uniform Capacity (lb.): 60001240
EHLT-4884-2-67 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 48X84Uniform Capacity (lb.): 20001406
EHLT-4896-2-55 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 2K 48X96Uniform Capacity (lb.): 20001266

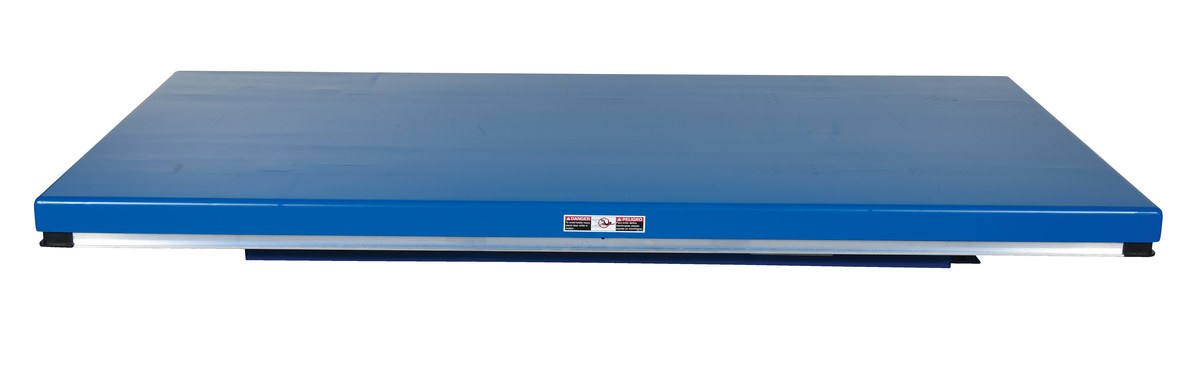

EHLT-4896-4-56 1 Year Limited WarrantyELECTRIC HYDRAULIC LIFT TABLE 4K 48X96Uniform Capacity (lb.): 40001602

* Model Number Format = EHLT - (width)(length) - capacity - raised height | -QS = Quick Ship Model | -PSS = Partial Stainless Steel

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

Model Number Format
EHLT - (width)(length) - capacity - raised height

Vertical
Travel		 Platform
Width		 Platform
Length		 Capacity
(lbs.)		 Raised
Height		 Lowered
Height		 Travel
Time (sec.)		 Wt.
(lbs.)
36" 24"-48" 48"-72" 1,000 43" 7" 7 638
36" 24"-48" 48"-72" 2,000 43" 7" 11 738
36" 24"-48" 48"-72" 3,000 43" 7" 16 950
36" 24"-48" 48"-72" 4,000 43" 7" 22 980
36" 36"-48" 48"-72" 5,000 44" 8" 32 1029
36" 36"-48" 48"-72" 6,000 44" 8" 32 1108
36" 36"-48" 48"-72" *8,000 44" 8" 15 1281
33" 40"-60" 48"-72" *10,000 43" 10" 15 1438
33" 40"-60" 48"-72" *12,000 43" 10" 15 1596
48" 24"-48" 64"-90" 1,000 55" 7" 11 755
48" 24"-48" 64"-90" 2,000 55" 7" 16 1176
48" 24"-48" 64"-90" 3,000 55" 7" 22 1250
48" 36"-48" 64"-96" 4,000 56" 8" 32 1271
48" 36"-48" 64"-96" 5,000 56" 8" 32 1339
48" 36"-48" 64"-96" 6,000 56" 8" 48 1420
48" 36"-48" 64"-96" *8,000 56" 8" 15 1574
45" 40"-60" 64"-96" *10,000 55" 10" 15 1659
45" 40"-60" 64"-96" *12,000 55" 10" 20 1816
60" 24"-48" 84"-108" 1,000 67" 7" 16 1303
60" 24"-48" 84"-108" 2,000 67" 7" 14 1313
60" 24"-48" 84"-108" 3,000 67" 7" 16 1456
60" 48"-72" 96"-120" *4,000 68" 8" 26 1848
60" 48"-72" 96"-120" *5,000 68" 8" 26 1869
60" 48"-72" 96"-120" *6,000 70" 10" 30 1890
60" 62"-72" 96"-120" *8,000 70" 10" 30 3000
58" 62"-72" 96"-120" *10,000 72" 14" 30 3498
58" 62"-72" 96"-120" *12,000 72" 14" 30 3510
72" 24"-48" 102"-120" 1,000 79" 7" 12 2047
72" 24"-48" 102"-120" 2,000 79" 7" 16 2060
71" 48"-72" 120"-144" *3,000 82" 11" 16 2089
71" 48"-72" 120"-144" *4,000 82" 11" 26 3217
71" 48"-72" 120"-144" *5,000 82" 11" 26 3675
70" 62"-72" 120"-144" *6,000 82" 12" 30 3773
70" 62"-72" 120"-144" *8,000 82" 12" 30 4007

* DENOTES 6.5 HP 460V 3-PHASE (EXTERNALLY MOUNTED) OTHER Voltages AVAILABLE

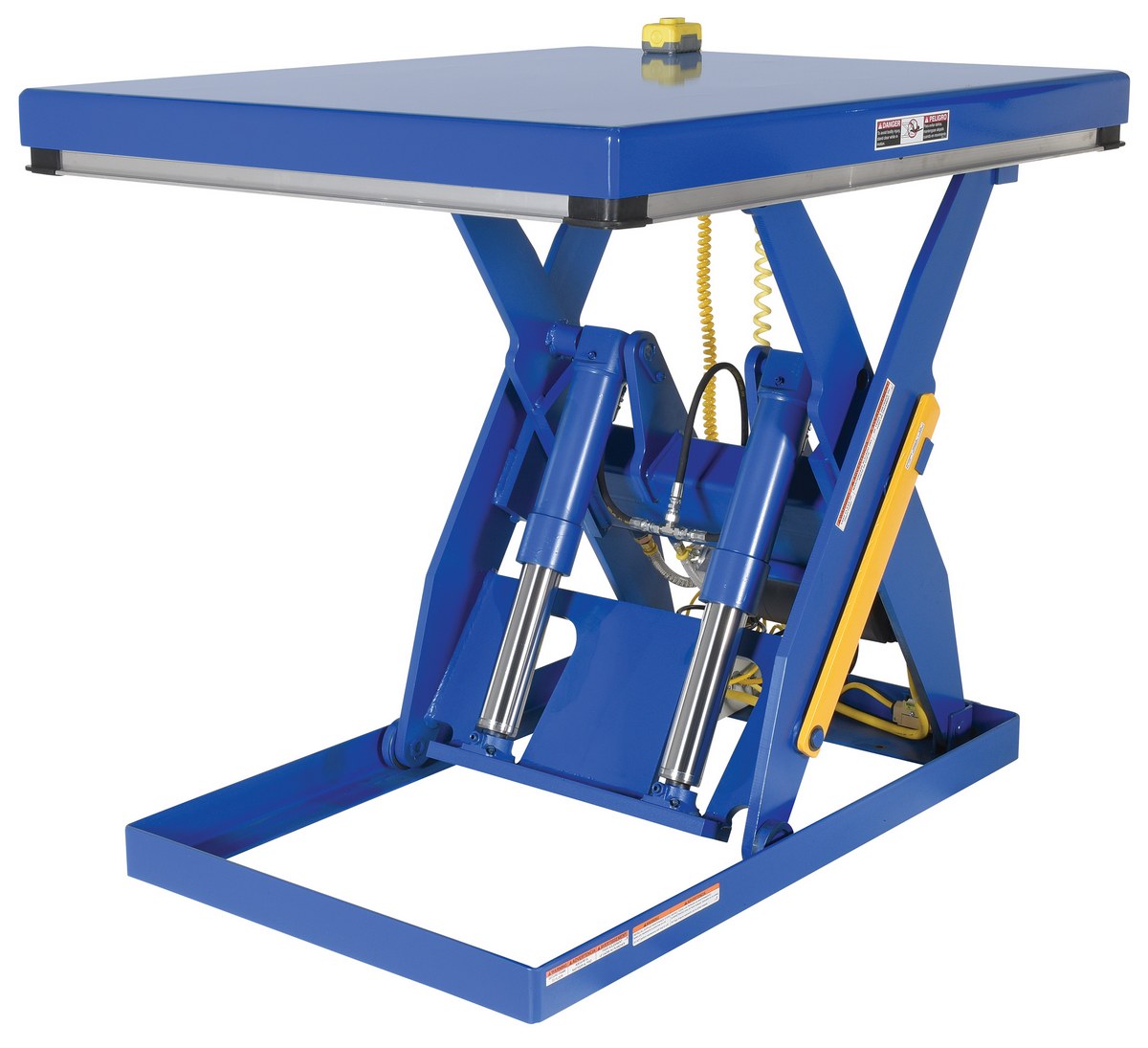

Quickship Scissor Lift Tables (460V 3 Phase Standard)
Model Image PDF's Platform Size
(WxL)		 Capacity
(lbs)		 Raised
Height		 Lowered
Height		 Voltage/
Phase		 Wt.
(lbs)
EHLT-2448-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 3,000 43" 7" 460/3 694
EHLT-3060-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 30"x60" 3,000 43" 7" 460/3 823

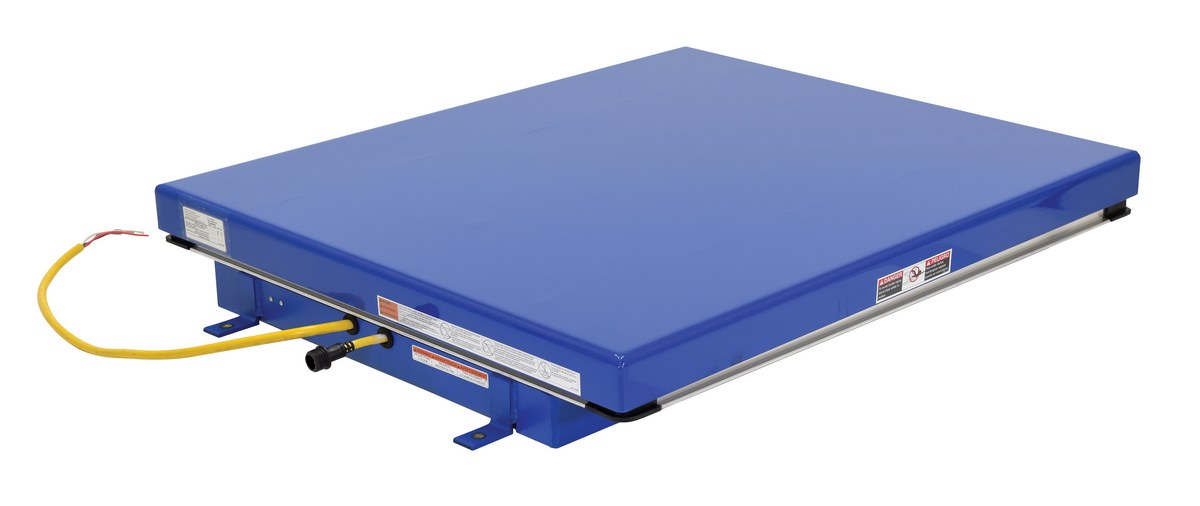

EHLT-4048-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 40"x48" 3,000 43" 7" 460/3 807

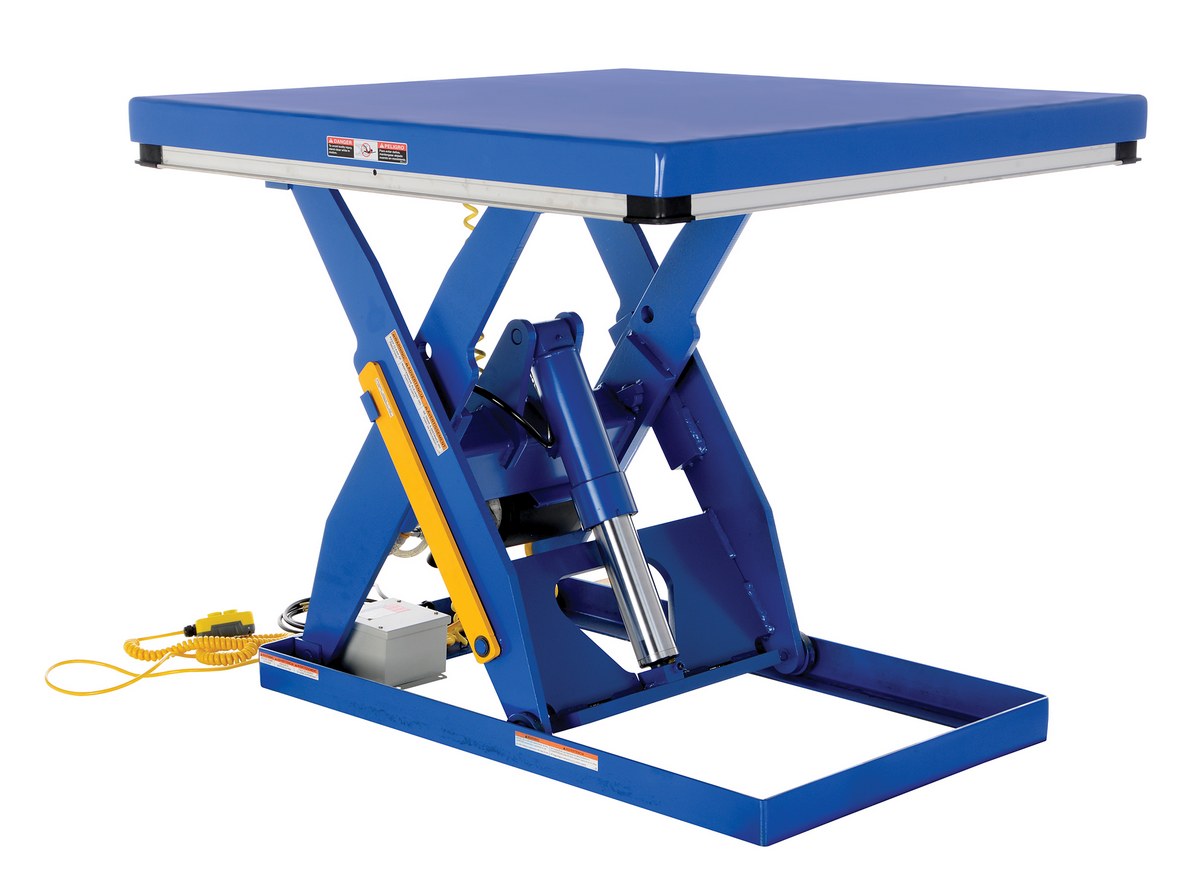

EHLT-4848-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 3,000 43" 7" 460/3 841
EHLT-4872-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x72" 3,000 43" 7" 460/3 946
EHLT-3060-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 30"x60" 4,000 43" 7" 460/3 827
EHLT-4048-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 40"x48" 4,000 43" 7" 460/3 878
EHLT-4848-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 4,000 43" 7" 460/3 918
EHLT-4872-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x72" 4,000 43" 7" 460/3 963

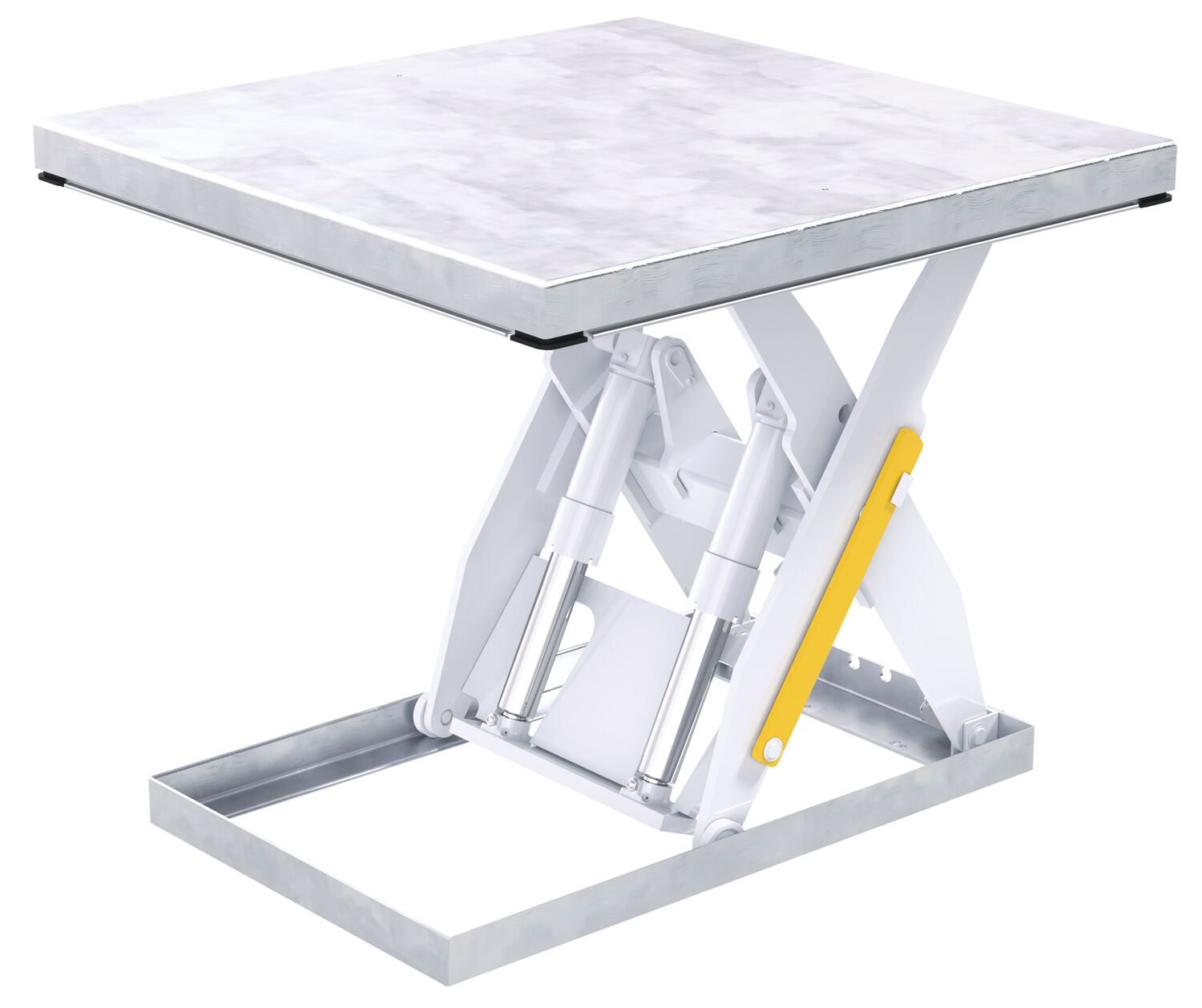

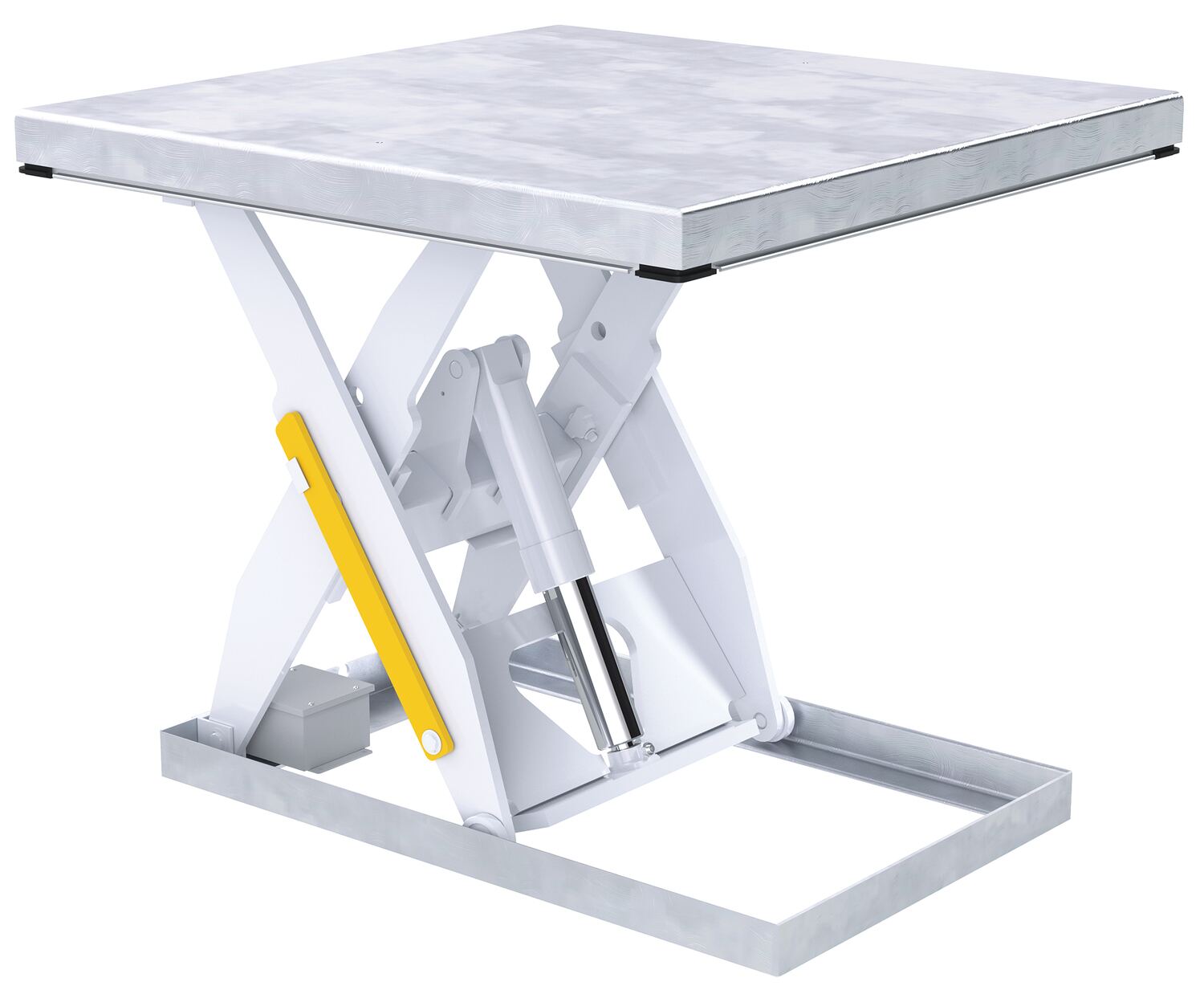

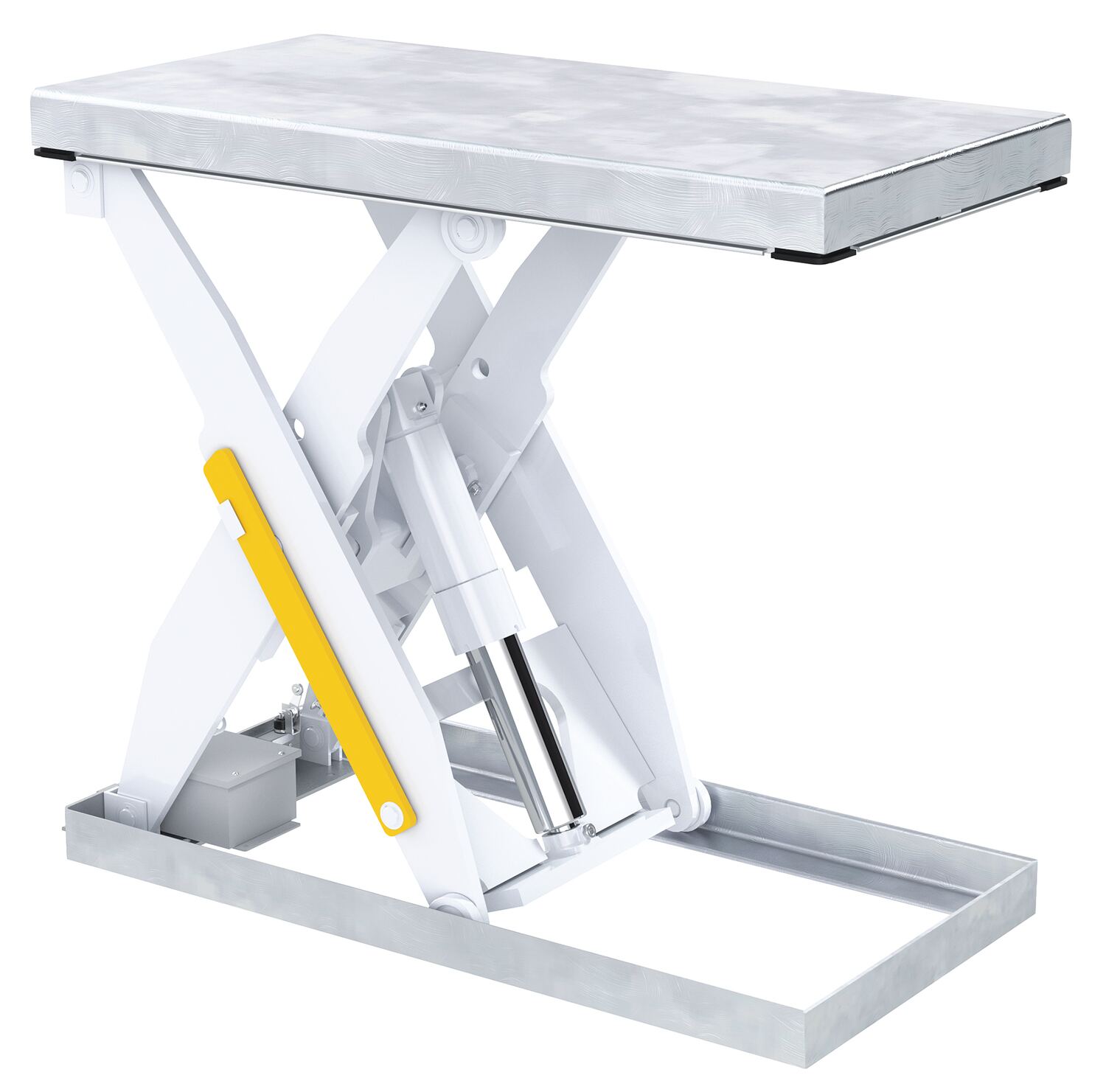

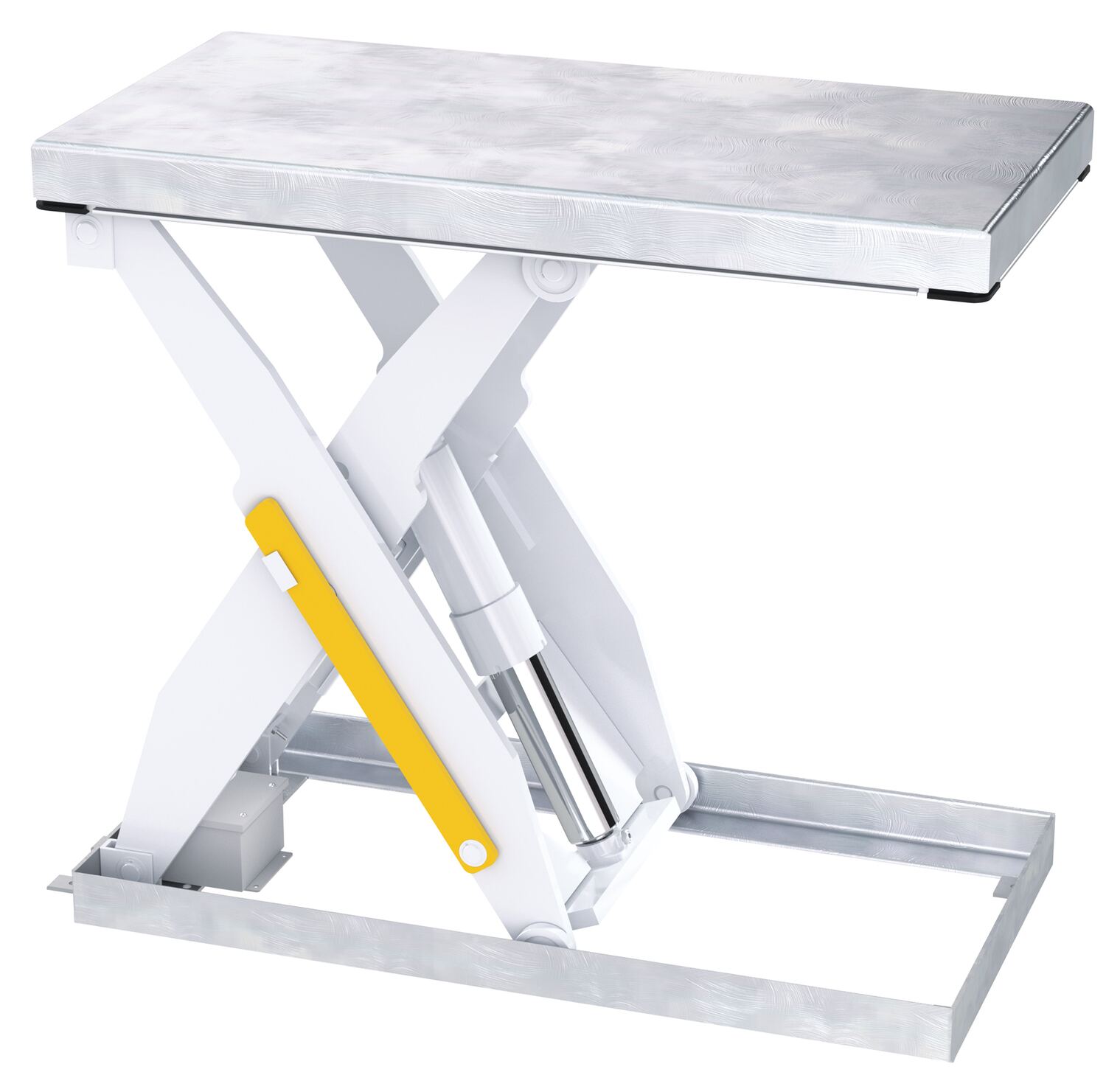

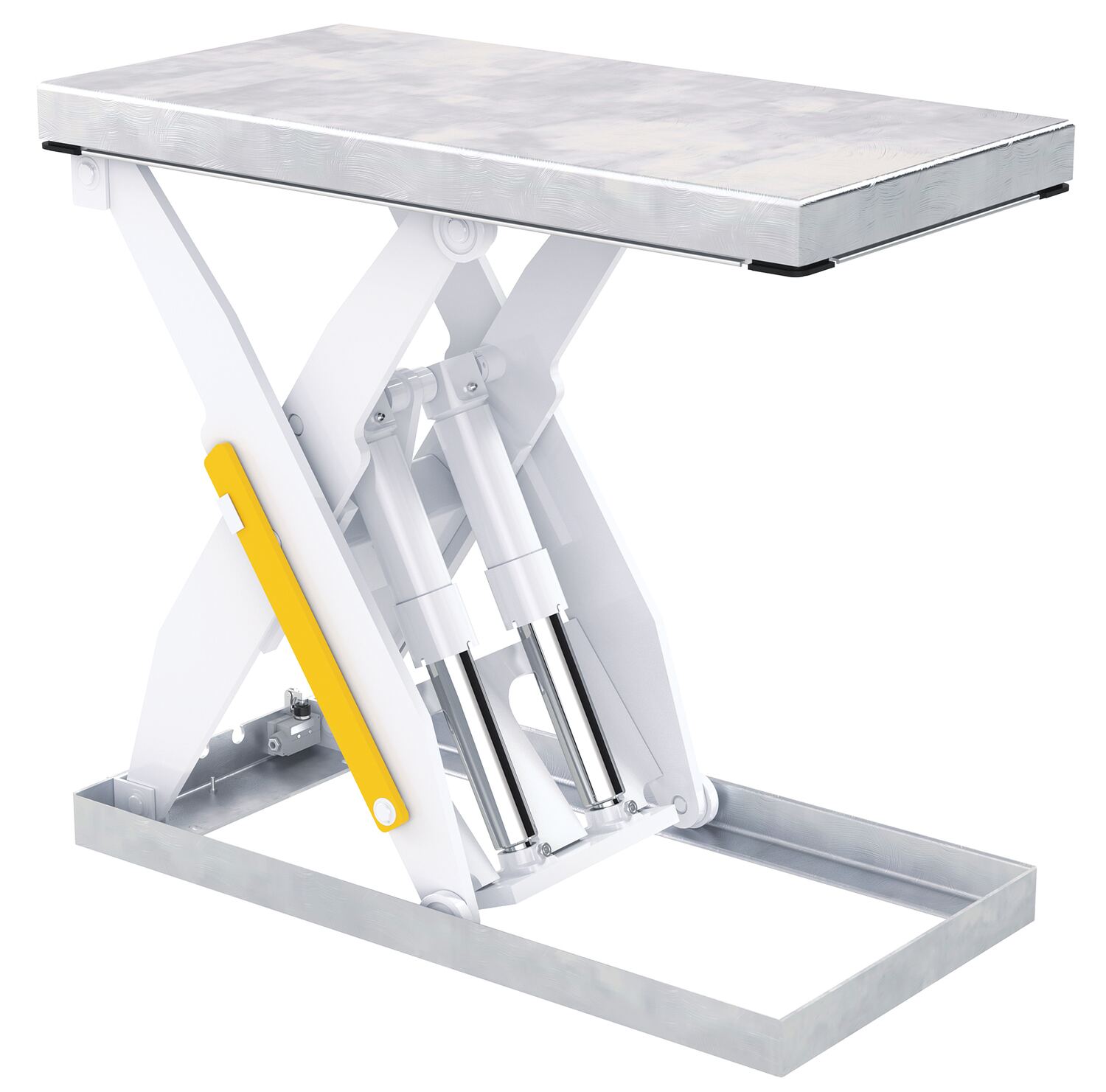

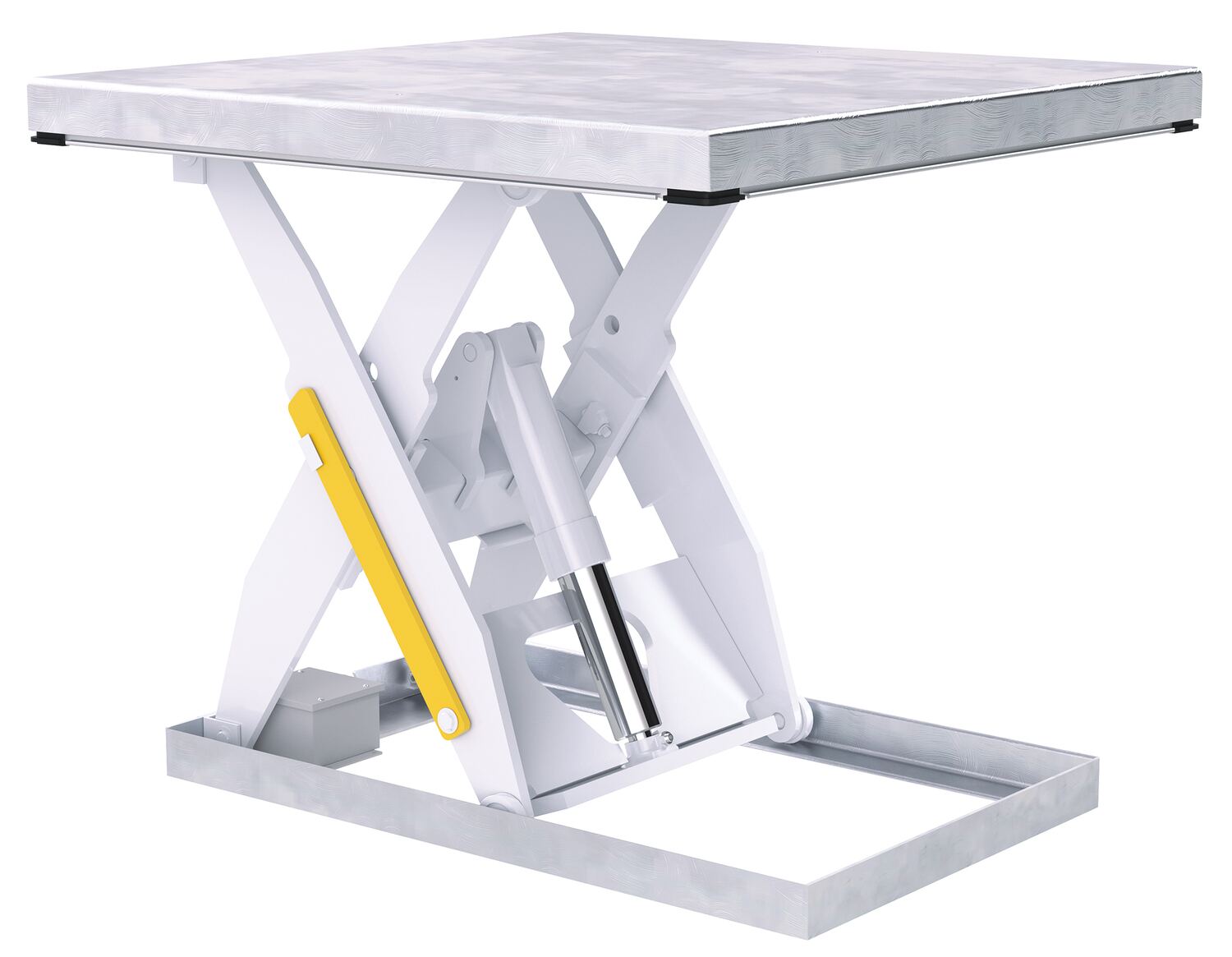

Partially Stainless Steel Scissor Lift Tables (460V 3 Phase Standard)
Model Image PDF's Platform Size
(WxL)		 Lowered
Height		 Raised
Height		 Capacity
(lbs)		 Voltage/
Phase		 Wt.
(lbs)

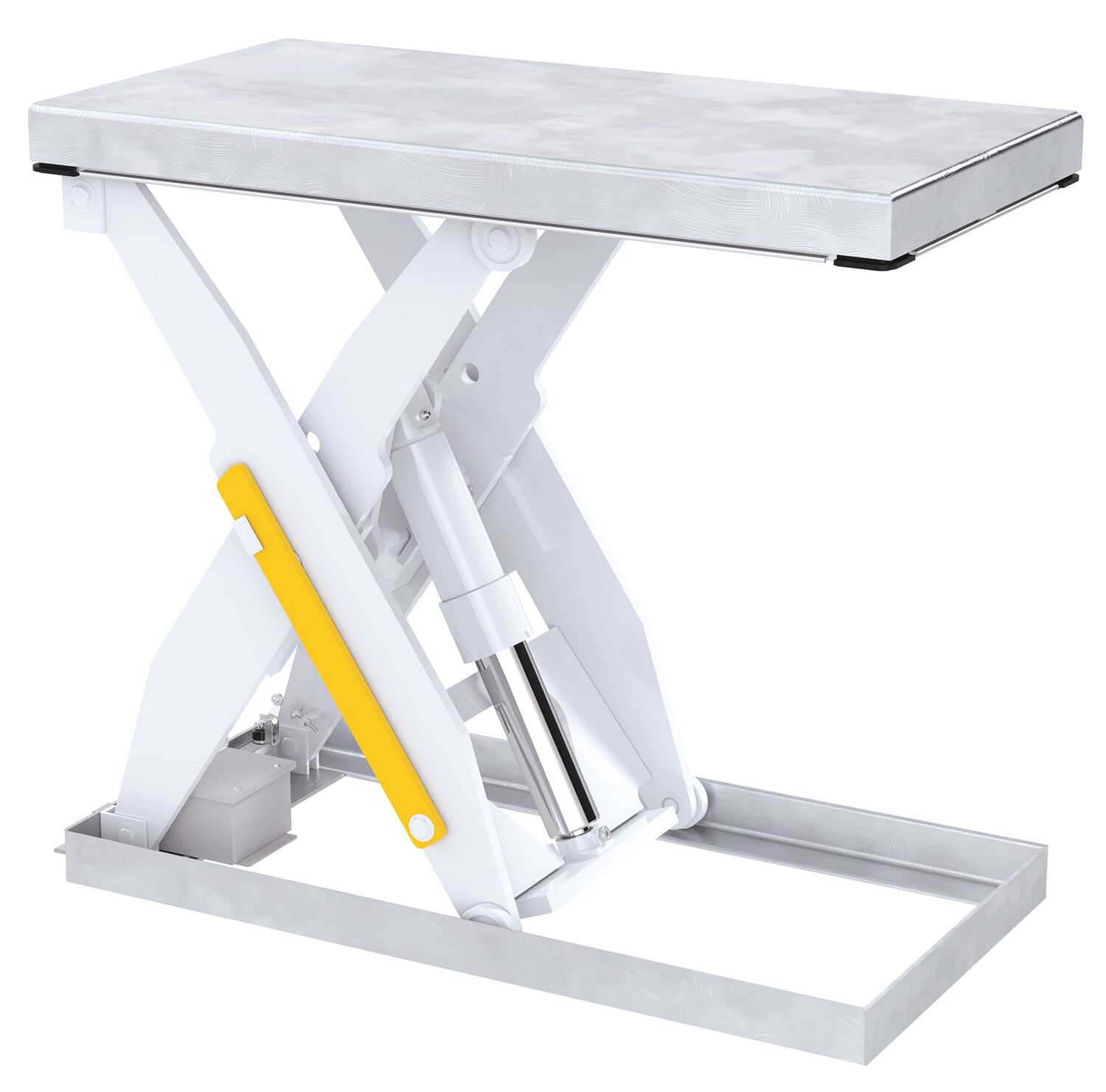

EHLT-2448-1-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 1,000 460/3 592
EHLT-2448-2-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 2,000 460/3 600
EHLT-2448-3-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 3,000 460/3 610
EHLT-2448-4-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 4,000 460/3 633

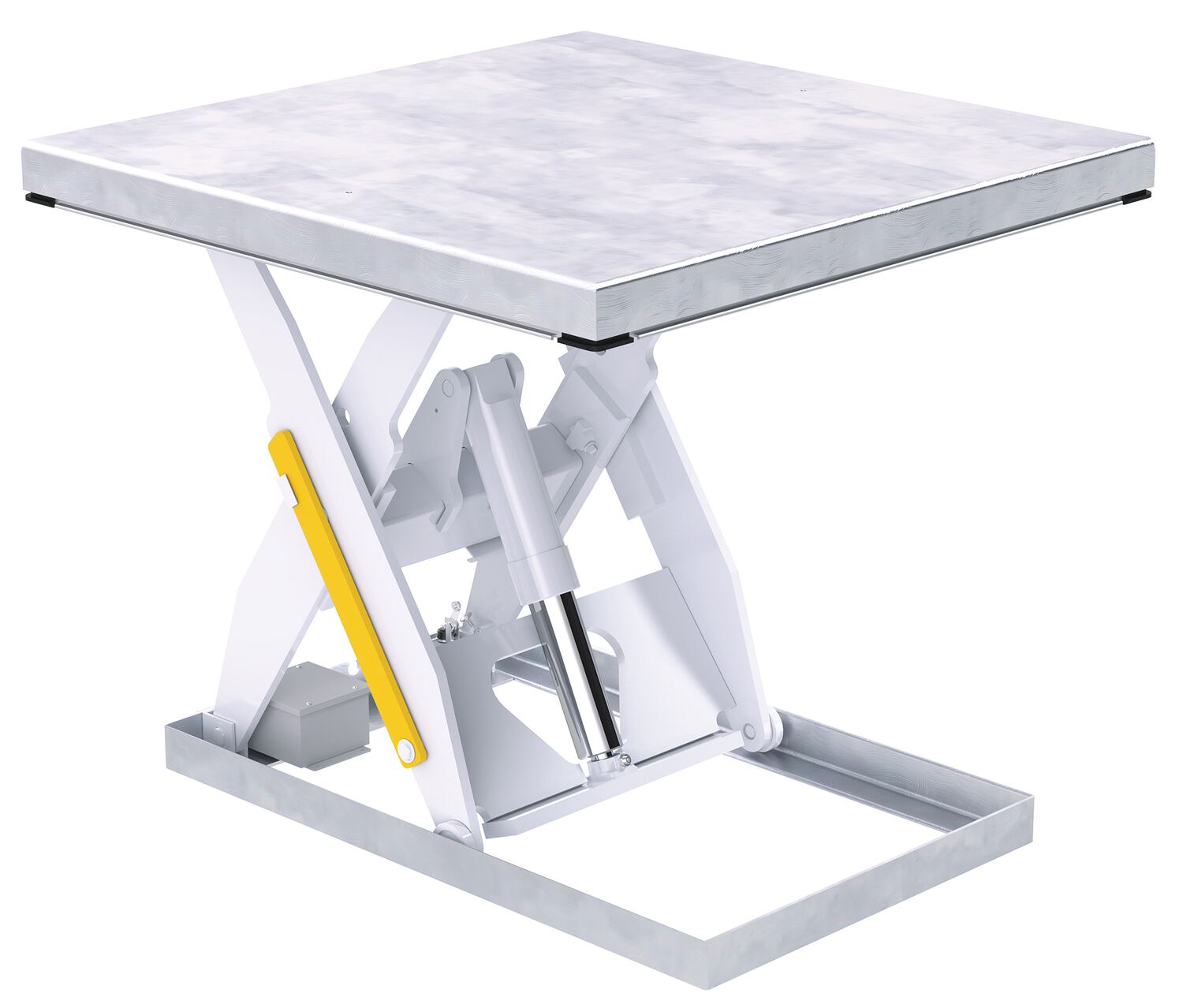

EHLT-4848-1-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 1,000 460/3 719
EHLT-4848-2-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 2,000 460/3 727
EHLT-4848-3-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 3,000 460/3 737
EHLT-4848-4-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 4,000 460/3 765

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LINK -Options For Electric Hydraulic Equipment
Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.

LINK -Safety Accordion Skirt

LINK-Integeral Scale for Scissor Tables

LINK-Radio Remote Control Option

LINK-Programmable Height Option

LINK-Manual Built-In Carousel Option
Options Available for Quickship Units
Model Description
VCC-115-1 VOLTAGE CHANGE TO 115V 1-PHASE AC POWER
VCC-208/230-1 VOLTAGE CHANGE TO 208-230V 1-PHASE AC POWER
VCC-208/230-3 VOLTAGE CHANGE TO 208-230V 3-PHASE AC POWER
FC-2 OPTIONAL TWO PEDAL FOOT CONTROL ON 8' CORD
Addl-FC-2 Additional OPTIONAL TWO PEDAL FOOT CONTROL ON 8' Cord (when purchased with a standard hand control)
LINK-Safety Accordian Skirt: Keep people and debris from getting under the lift. Customer Installed. Contact factory.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above


Electric Hydraulic Scissor Lift Tables PDF's will open in a new window when clicked.

EHLT, EHLTD & PST, 24-126-120
Owners Manual

Survey Sheets


EHLT
Survey Sheet


Survey Sheet

Approval Drawings


EHLT-2448-1-43

EHLT-2448-1-43-PSS

EHLT-2448-2-43

EHLT-2448-2-43-PSS

EHLT-2448-3-43

EHLT-2448-3-43-PSS

EHLT-2448-3-43-QS

EHLT-2448-4-43

EHLT-2448-4-43-PSS

EHLT-2464-1-55

EHLT-2464-2-55

EHLT-2464-3-55

EHLT-2484-1-67

EHLT-2484-2-67

EHLT-2484-3-67

EHLT-3060-3-43

EHLT-3060-3-43-QS

EHLT-3060-4-43

EHLT-3060-4-43-QS

EHLT-3084-1-67

EHLT-3084-2-67

EHLT-3464-1-55

EHLT-3464-2-55

EHLT-3464-3-55

EHLT-3648-1-43

EHLT-3648-2-43

EHLT-3648-5-44

EHLT-3648-6-44

EHLT-3648-8-44

EHLT-3664-4-56

EHLT-3664-5-56

EHLT-3672-2-43

EHLT-3672-3-43

EHLT-3684-1-67

EHLT-3684-2-67

EHLT-3690-2-55

EHLT-3696-4-56

EHLT-3696-5-56

EHLT-4048-3-43

EHLT-4048-3-43-QS

EHLT-4048-4-43

EHLT-4048-4-43-QS

EHLT-4048-10-43

EHLT-4048-12-43

EHLT-4064-10-55

EHLT-4064-12-55

EHLT-4084-8-56

EHLT-4848-1-43-PSS

EHLT-4848-2-43

EHLT-4848-2-43-PSS

EHLT-4848-3-43

EHLT-4848-3-43-PSS

EHLT-4848-3-43-QS

EHLT-4848-4-43

EHLT-4848-4-43-PSS

EHLT-4848-4-43-QS

EHLT-4848-5-44

EHLT-4848-6-44

EHLT-4848-8-44

EHLT-4848-10-43

EHLT-4848-12-43

EHLT-4864-3-55

EHLT-4864-6-56

EHLT-4864-10-55

EHLT-4864-12-55

EHLT-4872-1-55

EHLT-4872-2-55

EHLT-4872-3-43

EHLT-4872-3-43-QS

EHLT-4872-3-55

EHLT-4872-4-43

EHLT-4872-4-43-QS

EHLT-4872-5-43

EHLT-4872-5-44

EHLT-4872-6-44

EHLT-4872-8-44

EHLT-4884-2-67

EHLT-4896-4-56

EHLT-4896-5-56

EHLT-24102-1-79

EHLT-24102-2-79

EHLT-30102-1-79

EHLT-30102-2-79

EHLT-42102-1-79

EHLT-42102-2-79

EHLT-43102-1-79

EHLT-43102-2-79

EHLT-48102-1-79

EHLT-48102-2-79

EHLT-72120-6-70

EHLT-72120-8-70

Testing Certificates


EHLT-2448-1-43-PSS

EHLT-2448-2-43

EHLT2448-2-43FC

EHLT-2448-2-43-PSS

EHLT-2448-3-43

EHLT2448-3-43FC

EHLT-2448-3-43-PSS

EHLT-2448-3-43-QS

EHLT-2448-4-43

EHLT-2448-4-43-PSS

EHLT-2466-2-55

EHLT-3060-2-43

EHLT-3060-3-43

EHLT-3060-3-43-QS

EHLT-3060-4-43

EHLT-3060-4-43-QS

EHLT-3072-2-43

EHLT-3072-3-43

EHLT-3072-4-43

EHLT-3648-5-44

EHLT-3648-6-44

EHLT-3672-2-43

EHLT-3672-3-43

EHLT-3672-4-43

EHLT-3672-5-44

EHLT-3672-6-44

EHLT-3672-8-44

EHLT-3684-4-56

EHLT-4048-3-43

EHLT-4048-3-43-QS

EHLT-4048-4-43

EHLT-4048-4-43-QS

EHLT-4848-1-43

EHLT-4848-1-43-PSS

EHLT-4848-2-43

EHLT4848-2-43FC

EHLT-4848-2-43-PSS

EHLT-4848-3-43

EHLT-4848-3-43-PSS

EHLT-4848-3-43-QS

EHLT-4848-4-43

EHLT-4848-4-43-PSS

EHLT-4848-4-43-QS

EHLT-4848-5-44

EHLT-4848-6-44

EHLT-4848-10-43

EHLT-4848-12-43

EHLT-4860-2-43

EHLT-4860-4-43

EHLT-4872-2-43

EHLT-4872-3-43

EHLT-4872-3-43-QS

EHLT-4872-4-43

EHLT-4872-4-43-QS

EHLT-4872-5-44

EHLT-4872-6-44

EHLT-4884-2-67

EHLT-4896-2-55

EHLT-4896-4-56

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets









Visit Our Youtube Channel For All Available Videos For All Products


EHLT-2448-2-43
 EHLT-2448-2-43 EHLT-2448-2-43
 EHLT-2448-2-43 EHLT-2448-2-43
 EHLT-2448-2-43 EHLT-2448-2-43
 EHLT-2448-2-43 EHLT-2448-2-43
 EHLT-2448-2-43 EHLT-2448-3-43-QS
 EHLT-2448-3-43-QS EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-3-43
 EHLT-2448-3-43 EHLT-2448-4-43
 EHLT-2448-4-43 EHLT-2448-4-43
 EHLT-2448-4-43 EHLT-2448-4-43
 EHLT-2448-4-43 EHLT-2448-4-43
 EHLT-2448-4-43 EHLT-3060-2-43
 EHLT-3060-2-43 EHLT-3060-2-43
 EHLT-3060-2-43 EHLT-3060-2-43
 EHLT-3060-2-43 EHLT-3060-2-43
 EHLT-3060-2-43 EHLT-3060-3-43-QS
 EHLT-3060-3-43-QS EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-3-43
 EHLT-3060-3-43 EHLT-3060-4-43-QS
 EHLT-3060-4-43-QS EHLT-3060-4-43
 EHLT-3060-4-43 EHLT-3060-4-43
 EHLT-3060-4-43 EHLT-3060-4-43
 EHLT-3060-4-43 EHLT-3060-4-43
 EHLT-3060-4-43 EHLT-3060-4-43
 EHLT-3060-4-43 EHLT-3060-4-43
 EHLT-3060-4-43 EHLT-3072-2-43
 EHLT-3072-2-43 EHLT-3072-3-43
 EHLT-3072-3-43 EHLT-3072-4-43
 EHLT-3072-4-43 EHLT-3672-2-43
 EHLT-3672-2-43 EHLT-3672-3-43
 EHLT-3672-3-43 EHLT-3672-4-43
 EHLT-3672-4-43 EHLT-3672-5-44
 EHLT-3672-5-44 EHLT-3672-5-44
 EHLT-3672-5-44 EHLT-3672-5-44
 EHLT-3672-5-44 EHLT-3672-5-44
 EHLT-3672-5-44 EHLT-4048-3-43-QS
 EHLT-4048-3-43-QS EHLT-4048-3-43-QS
 EHLT-4048-3-43-QS EHLT-4048-3-43-QS
 EHLT-4048-3-43-QS EHLT-4048-3-43-QS
 EHLT-4048-3-43-QS EHLT-4048-3-43-QS
 EHLT-4048-3-43-QS EHLT-4048-3-43
 EHLT-4048-3-43 EHLT-4048-3-43
 EHLT-4048-3-43 EHLT-4048-3-43
 EHLT-4048-3-43 EHLT-4048-3-43
 EHLT-4048-3-43 EHLT-4048-4-43-QS
 EHLT-4048-4-43-QS EHLT-4048-4-43
 EHLT-4048-4-43 EHLT-4048-4-43
 EHLT-4048-4-43 EHLT-4048-4-43
 EHLT-4048-4-43 EHLT-4048-4-43
 EHLT-4048-4-43 EHLT-4848-1-43
 EHLT-4848-1-43 EHLT-4848-1-43
 EHLT-4848-1-43 EHLT-4848-1-43
 EHLT-4848-1-43 EHLT-4848-10-43
 EHLT-4848-10-43 EHLT-4848-10-43
 EHLT-4848-10-43 EHLT-4848-10-43
 EHLT-4848-10-43 EHLT-4848-10-43
 EHLT-4848-10-43 EHLT-4848-12-43
 EHLT-4848-12-43 EHLT-4848-12-43
 EHLT-4848-12-43 EHLT-4848-12-43
 EHLT-4848-12-43 EHLT-4848-12-43
 EHLT-4848-12-43 EHLT-4848-2-43
 EHLT-4848-2-43 EHLT-4848-2-43
 EHLT-4848-2-43 EHLT-4848-2-43
 EHLT-4848-2-43 EHLT-4848-2-43
 EHLT-4848-2-43 EHLT-4848-2-43
 EHLT-4848-2-43 EHLT-4848-2-43
 EHLT-4848-2-43 EHLT-4848-2-43
 EHLT-4848-2-43 EHLT-4848-3-43-QS
 EHLT-4848-3-43-QS EHLT-4848-3-43
 EHLT-4848-3-43 EHLT-4848-3-43
 EHLT-4848-3-43 EHLT-4848-3-43
 EHLT-4848-3-43 EHLT-4848-3-43
 EHLT-4848-3-43 EHLT-4848-3-43
 EHLT-4848-3-43 EHLT-4848-3-43
 EHLT-4848-3-43 EHLT-4848-4-43-QS
 EHLT-4848-4-43-QS EHLT-4848-4-43
 EHLT-4848-4-43 EHLT-4848-4-43
 EHLT-4848-4-43 EHLT-4848-4-43
 EHLT-4848-4-43 EHLT-4848-4-43
 EHLT-4848-4-43 EHLT-4848-4-43
 EHLT-4848-4-43 EHLT-4848-6-44
 EHLT-4848-6-44 EHLT-4860-2-43
 EHLT-4860-2-43 EHLT-4860-2-43
 EHLT-4860-2-43 EHLT-4860-2-43
 EHLT-4860-2-43 EHLT-4860-2-43
 EHLT-4860-2-43 EHLT-4860-2-43
 EHLT-4860-2-43 EHLT-4860-4-43
 EHLT-4860-4-43 EHLT-4860-4-43
 EHLT-4860-4-43 EHLT-4860-4-43
 EHLT-4860-4-43 EHLT-4860-4-43
 EHLT-4860-4-43 EHLT-4864-3-55
 EHLT-4864-3-55 EHLT-4872-2-43
 EHLT-4872-2-43 EHLT-4872-2-43
 EHLT-4872-2-43 EHLT-4872-2-43
 EHLT-4872-2-43 EHLT-4872-2-43
 EHLT-4872-2-43 EHLT-4872-3-43-QS
 EHLT-4872-3-43-QS EHLT-4872-3-43
 EHLT-4872-3-43 EHLT-4872-3-43
 EHLT-4872-3-43 EHLT-4872-3-43
 EHLT-4872-3-43 EHLT-4872-4-43-QS
 EHLT-4872-4-43-QS EHLT-4872-4-43
 EHLT-4872-4-43 EHLT-4872-4-43
 EHLT-4872-4-43 EHLT-4872-4-43
 EHLT-4872-4-43 EHLT-4872-4-43
 EHLT-4872-4-43 EHLT-4872-5-44
 EHLT-4872-5-44 EHLT-4872-5-44
 EHLT-4872-5-44 EHLT-4872-5-44
 EHLT-4872-5-44 EHLT-4872-5-44
 EHLT-4872-5-44 EHLT-4872-6-44
 EHLT-4872-6-44 EHLT-4872-6-44
 EHLT-4872-6-44 EHLT-4872-6-44
 EHLT-4872-6-44 EHLT-4872-6-44
 EHLT-4872-6-44 EHLT-4872-6-44
 EHLT-4872-6-44 EHLT-4872-6-44
 EHLT-4872-6-44 EHLT-4872-6-44
 EHLT-4872-6-44 EHLT-4884-2-67
 EHLT-4884-2-67 EHLT-4896-4-56
 EHLT-4896-4-56 EHLT-4896-4-56
 EHLT-4896-4-56 EHLT-4896-4-56
 EHLT-4896-4-56 EHLT-4896-4-56
 EHLT-4896-4-56 EHLT-4896-4-56
 EHLT-4896-4-56 EHLT-4896-4-56
 EHLT-4896-4-56 EHLT4848-2-43FC
 EHLT4848-2-43FC EHLT4848-2-43FC
 EHLT4848-2-43FC EHLT4848-2-43FC
 EHLT4848-2-43FC EHLT4848-2-43FC
 EHLT4848-2-43FC EHLT4848-2-43FC
 EHLT4848-2-43FC
We are hoping to continue adding new product pictures to each gallery. Check back soon.


Q: What is the thickness of the top of the table?

A: The top plate on the EHLT is 1/4" thick.

Q: We are interested in the EHLT 1,000 lb. capacity lift table with a table top of 48 x 48. We want to change the voltage to 115 single phase. What is the travel time to the raised height.

A: For the EHLT-4848-1-43 with a 115 voltage, the raised time to 43" is 15 seconds. 16 seconds to the lowered height of 7".

Q: Are the EHLT scissor lift tables powder coated?

A: The Quick Ship (QS) tables have a powder coated deck. Some small bolt-on brackets are powder coated as well. The majority of the table is liquid painted.

Q: We are mounting the EHLT in a pit. Are there lifting eyes to lower the table?

A: Lifting eyes are bolted through the top platform to lower the EHLT into a pit from overhead. Please contact a sales associate for details.




Print Friendly

Related or Similar Products:

Integral Scale for Scissor Tables
Product

Integral Scale for Scissor Tables

Programmable Height For Lift Tables
Product

Programmable Height For Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables
Product

Rotary Air/Hydraulic Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables
Product

Low-Profile Air Bag Scissor Lift Tables

Manual Built-In Carousel for Scissor Tables
Product

Manual Built-In Carousel for Scissor Tables

Shorty Scissor Lift Tables
Product

Shorty Scissor Lift Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date

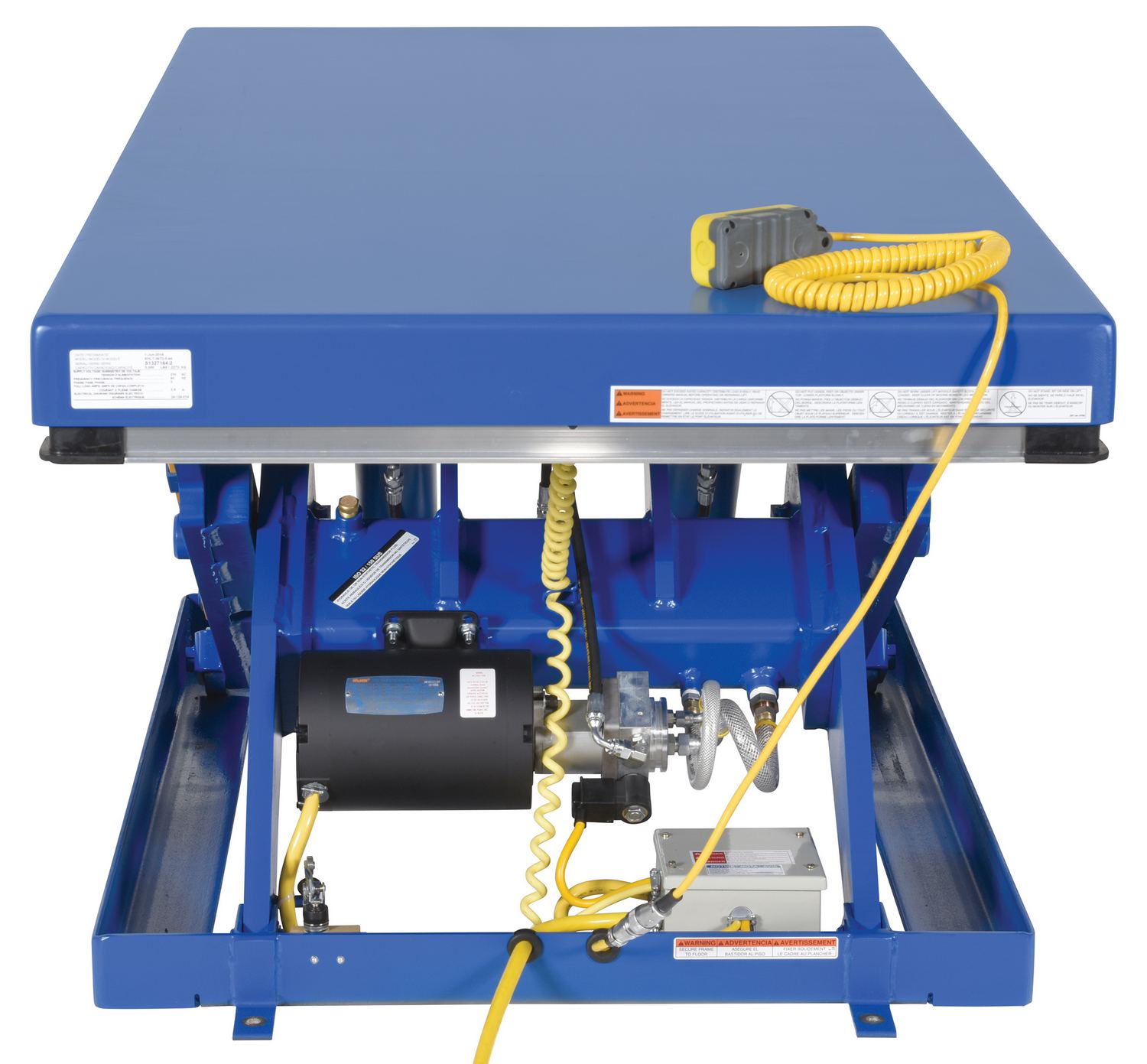

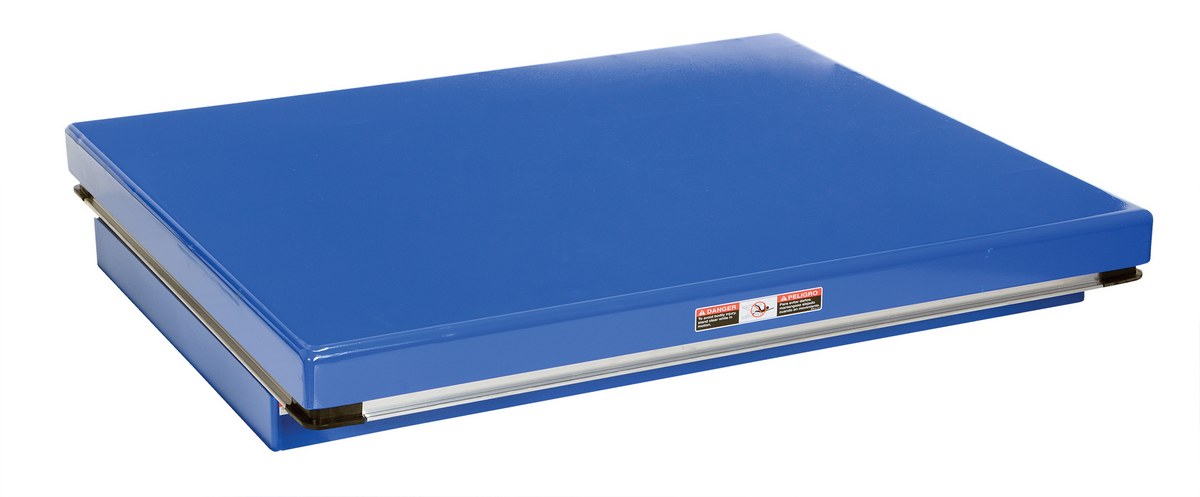

Electric Hydraulic Scissor Lif...




Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.



Model Number Format
EHLT - (width)(length) - capacity - raised height

Vertical
Travel		 Platform
Width		 Platform
Length		 Capacity
(lbs.)		 Raised
Height		 Lowered
Height		 Travel
Time (sec.)		 Wt.
(lbs.)
36" 24"-48" 48"-72" 1,000 43" 7" 7 638
36" 24"-48" 48"-72" 2,000 43" 7" 11 738
36" 24"-48" 48"-72" 3,000 43" 7" 16 950
36" 24"-48" 48"-72" 4,000 43" 7" 22 980
36" 36"-48" 48"-72" 5,000 44" 8" 32 1029
36" 36"-48" 48"-72" 6,000 44" 8" 32 1108
36" 36"-48" 48"-72" *8,000 44" 8" 15 1281
33" 40"-60" 48"-72" *10,000 43" 10" 15 1438
33" 40"-60" 48"-72" *12,000 43" 10" 15 1596
48" 24"-48" 64"-90" 1,000 55" 7" 11 755
48" 24"-48" 64"-90" 2,000 55" 7" 16 1176
48" 24"-48" 64"-90" 3,000 55" 7" 22 1250
48" 36"-48" 64"-96" 4,000 56" 8" 32 1271
48" 36"-48" 64"-96" 5,000 56" 8" 32 1339
48" 36"-48" 64"-96" 6,000 56" 8" 48 1420
48" 36"-48" 64"-96" *8,000 56" 8" 15 1574
45" 40"-60" 64"-96" *10,000 55" 10" 15 1659
45" 40"-60" 64"-96" *12,000 55" 10" 20 1816
60" 24"-48" 84"-108" 1,000 67" 7" 16 1303
60" 24"-48" 84"-108" 2,000 67" 7" 14 1313
60" 24"-48" 84"-108" 3,000 67" 7" 16 1456
60" 48"-72" 96"-120" *4,000 68" 8" 26 1848
60" 48"-72" 96"-120" *5,000 68" 8" 26 1869
60" 48"-72" 96"-120" *6,000 70" 10" 30 1890
60" 62"-72" 96"-120" *8,000 70" 10" 30 3000
58" 62"-72" 96"-120" *10,000 72" 14" 30 3498
58" 62"-72" 96"-120" *12,000 72" 14" 30 3510
72" 24"-48" 102"-120" 1,000 79" 7" 12 2047
72" 24"-48" 102"-120" 2,000 79" 7" 16 2060
71" 48"-72" 120"-144" *3,000 82" 11" 16 2089
71" 48"-72" 120"-144" *4,000 82" 11" 26 3217
71" 48"-72" 120"-144" *5,000 82" 11" 26 3675
70" 62"-72" 120"-144" *6,000 82" 12" 30 3773
70" 62"-72" 120"-144" *8,000 82" 12" 30 4007

* DENOTES 6.5 HP 460V 3-PHASE (EXTERNALLY MOUNTED) OTHER Voltages AVAILABLE

Quickship Scissor Lift Tables (460V 3 Phase Standard)
Model Image PDF's Platform Size
(WxL)		 Capacity
(lbs)		 Raised
Height		 Lowered
Height		 Voltage/
Phase		 Wt.
(lbs)
EHLT-2448-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 3,000 43" 7" 460/3 694
EHLT-3060-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 30"x60" 3,000 43" 7" 460/3 823
EHLT-4048-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 40"x48" 3,000 43" 7" 460/3 807
EHLT-4848-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 3,000 43" 7" 460/3 841
EHLT-4872-3-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x72" 3,000 43" 7" 460/3 946
EHLT-3060-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 30"x60" 4,000 43" 7" 460/3 827
EHLT-4048-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 40"x48" 4,000 43" 7" 460/3 878
EHLT-4848-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 4,000 43" 7" 460/3 918
EHLT-4872-4-43-QS icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x72" 4,000 43" 7" 460/3 963
Partially Stainless Steel Scissor Lift Tables (460V 3 Phase Standard)
Model Image PDF's Platform Size
(WxL)		 Lowered
Height		 Raised
Height		 Capacity
(lbs)		 Voltage/
Phase		 Wt.
(lbs)
EHLT-2448-1-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 1,000 460/3 592
EHLT-2448-2-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 2,000 460/3 600
EHLT-2448-3-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 3,000 460/3 610
EHLT-2448-4-43-PSS - icon_approvaldrawings.jpg 24"x48" 7" 43" 4,000 460/3 633
EHLT-4848-1-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 1,000 460/3 719
EHLT-4848-2-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 2,000 460/3 727
EHLT-4848-3-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 3,000 460/3 737

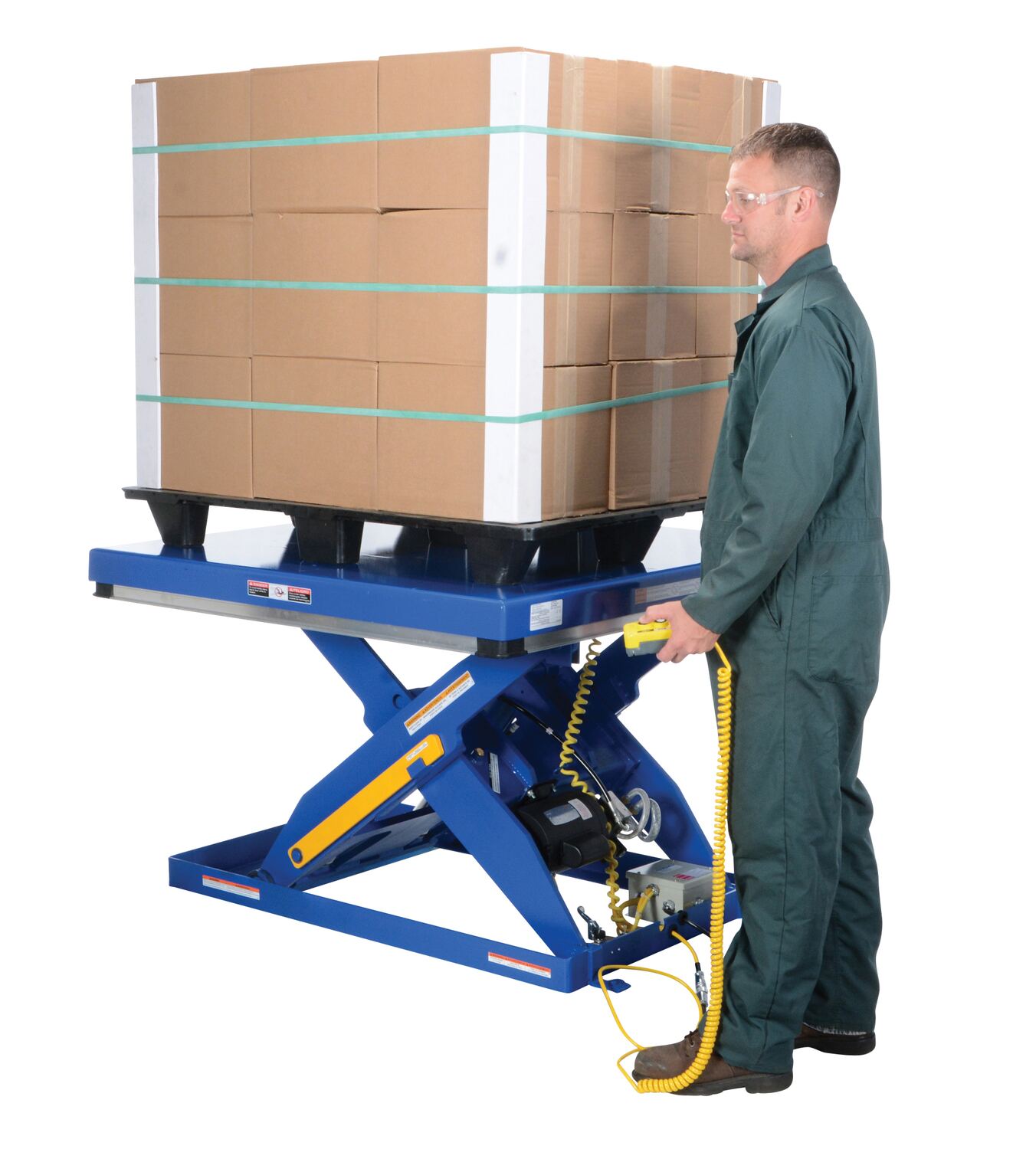

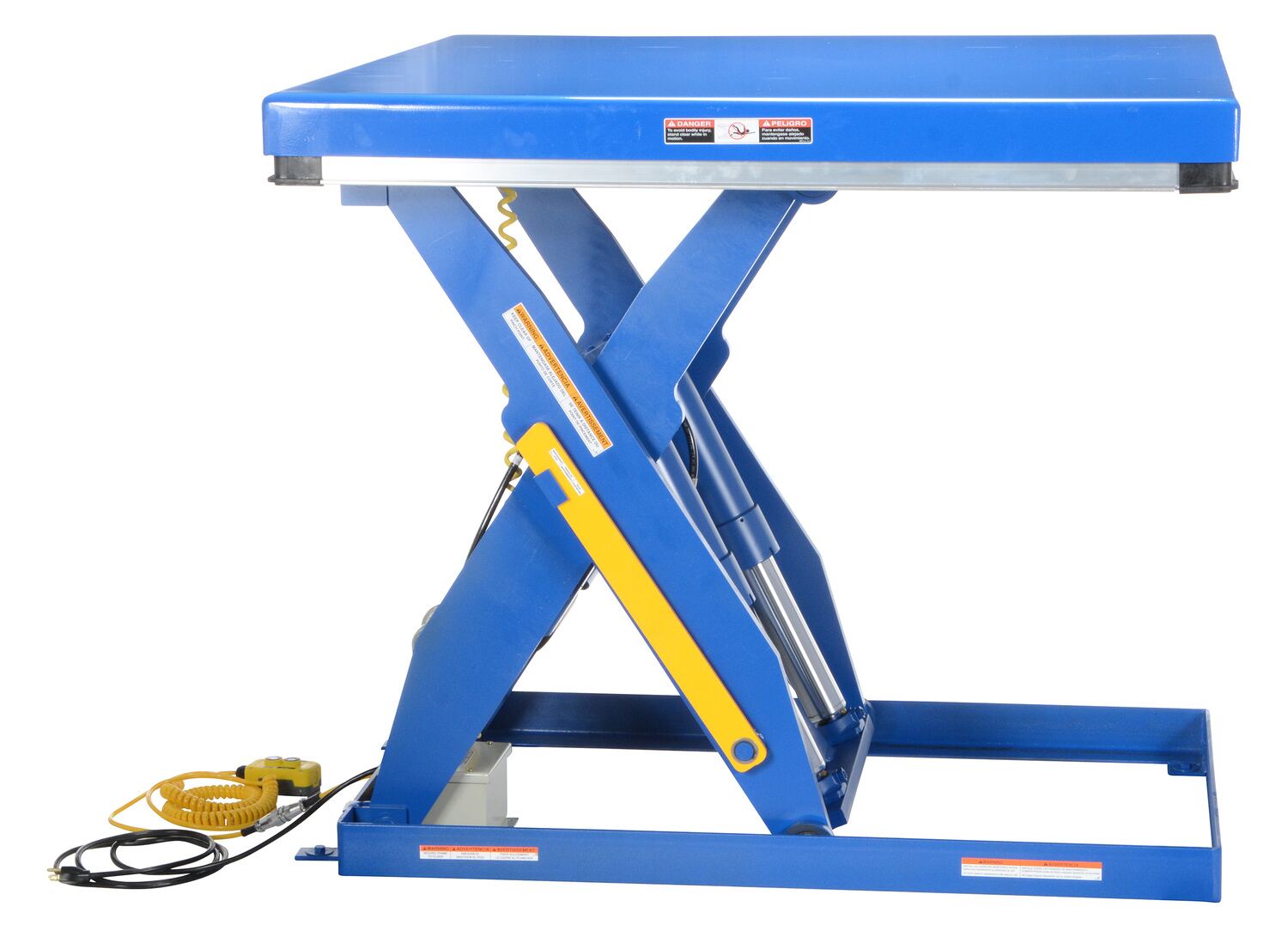

EHLT-4848-4-43-PSS - icon_approvaldrawings.jpg 48"x48" 7" 43" 4,000 460/3 765

Options


LINK -Options For Electric Hydraulic Equipment
Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.

LINK -Safety Accordion Skirt

LINK-Integeral Scale for Scissor Tables

LINK-Radio Remote Control Option

LINK-Programmable Height Option

LINK-Manual Built-In Carousel Option
Options Available for Quickship Units
Model Description
VCC-115-1 VOLTAGE CHANGE TO 115V 1-PHASE AC POWER
VCC-208/230-1 VOLTAGE CHANGE TO 208-230V 1-PHASE AC POWER
VCC-208/230-3 VOLTAGE CHANGE TO 208-230V 3-PHASE AC POWER
FC-2 OPTIONAL TWO PEDAL FOOT CONTROL ON 8' CORD
Addl-FC-2 Additional OPTIONAL TWO PEDAL FOOT CONTROL ON 8' Cord (when purchased with a standard hand control)
LINK-Safety Accordian Skirt: Keep people and debris from getting under the lift. Customer Installed. Contact factory.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
