Model Details

EHLTG-3850-4-36-PSS

EHLTG-3850-4-36-PSS

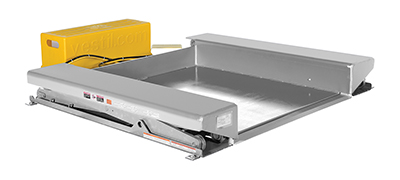

Partially Stainless Steel Ground Lift Scissor Table 38 In. x 50 In. 4000 Lb. Capacity Blue

A ground lift scissor table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard protects pinch points during lowering of the table and a safety velocity fuse to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and additional voltage options are available.

  • Perfect for ergonomic alignment
  • Built-in safety features to minimize vulnerability
  • Integral system to maintain platform height
  • Remote power for use away from table
Total Ship Wt.(lbs.): 1659 (only 1 package) Size: 61"W x 56"L x 44.5"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Platform Width (in.): 36 Platform Length (in.): 50
Raised Height (in.): 36 Platform Lowered Height (in.): 1/2 Hydraulic Component Rating (psi): 3000
Motor Horsepower: 2 Hertz: 60 Voltage: 460
Phase: 3 Remote Power Unit Length (in.): 32-1/2 Remote Power Unit Width (in.): 12
Remote Power Unit Height (in.): 12-1/2 Lift Time - Up (seconds): 40 Lift Time Down - (seconds): 13

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTG-3850-4-36-PSS


EHLTG-3850-4-36-PSS

Partially Stainless Steel Ground Lift Scissor Table 38 In. x 50 In. 4000 Lb. Capacity Blue

A ground lift scissor table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard protects pinch points during lowering of the table and a safety velocity fuse to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and additional voltage options are available.

  • Perfect for ergonomic alignment
  • Built-in safety features to minimize vulnerability
  • Integral system to maintain platform height
  • Remote power for use away from table
Dimensions: 61"W x 56"L x 44.5"H Sell UOM: EA-Each Color: Blue
Material: Partial Stainless Steel UPC: 691215337090 GTIN: 00691215337090
Warranty: -- Shipping Weight: 1659 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4000 Platform Width (in.): 36 Platform Length (in.): 50
Raised Height (in.): 36 Platform Lowered Height (in.): 1/2 Hydraulic Component Rating (psi): 3000
Motor Horsepower: 2 Hertz: 60 Voltage: 460
Phase: 3 Remote Power Unit Length (in.): 32-1/2 Remote Power Unit Width (in.): 12
Remote Power Unit Height (in.): 12-1/2 Lift Time - Up (seconds): 40 Lift Time Down - (seconds): 13
