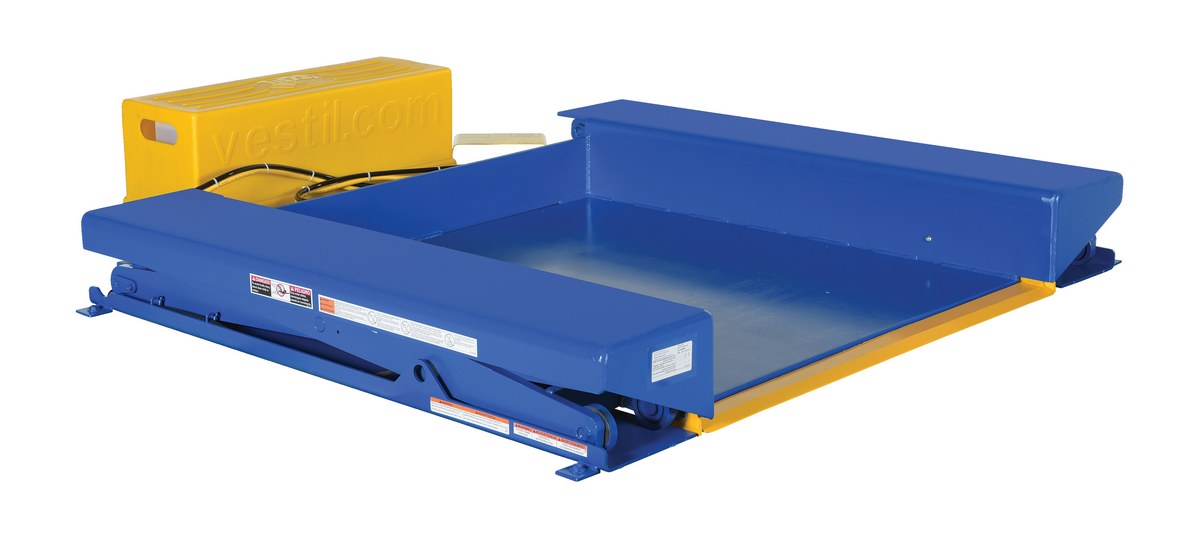

model EHLTG-4450-2-36
SERIES: EHLTG

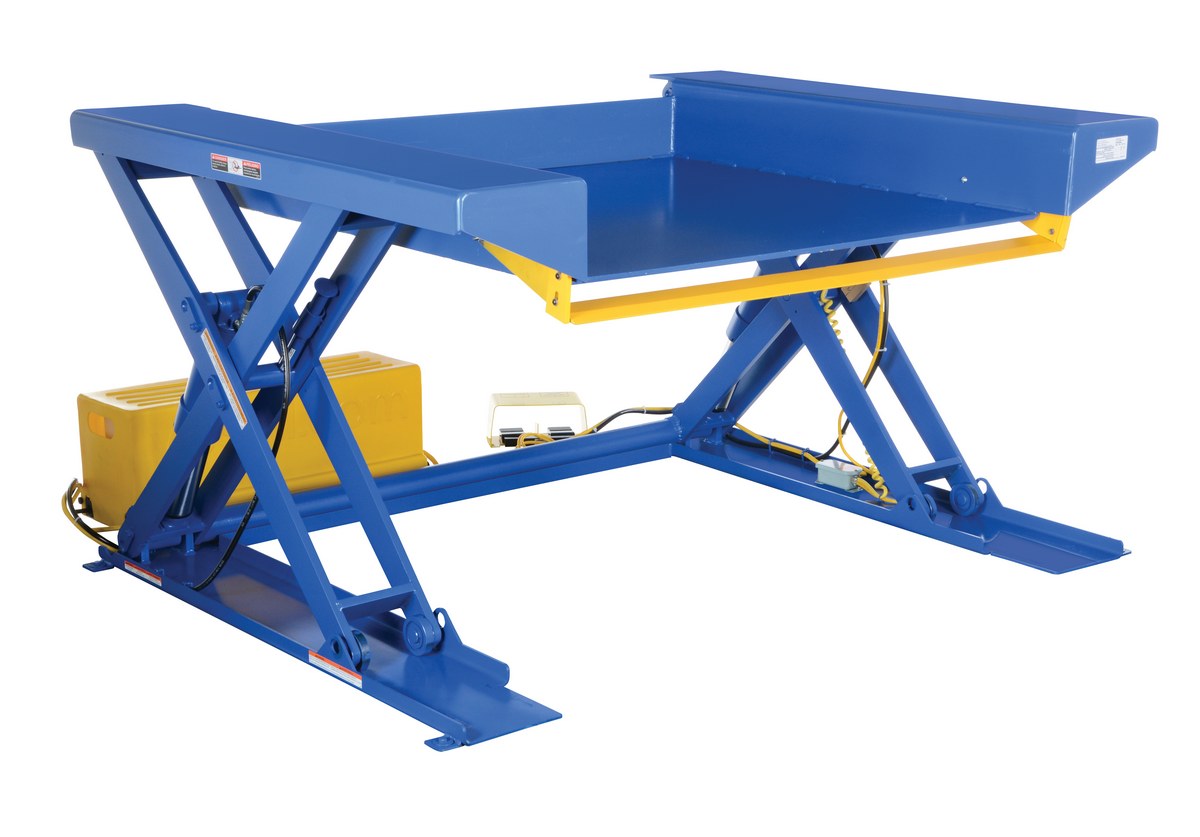

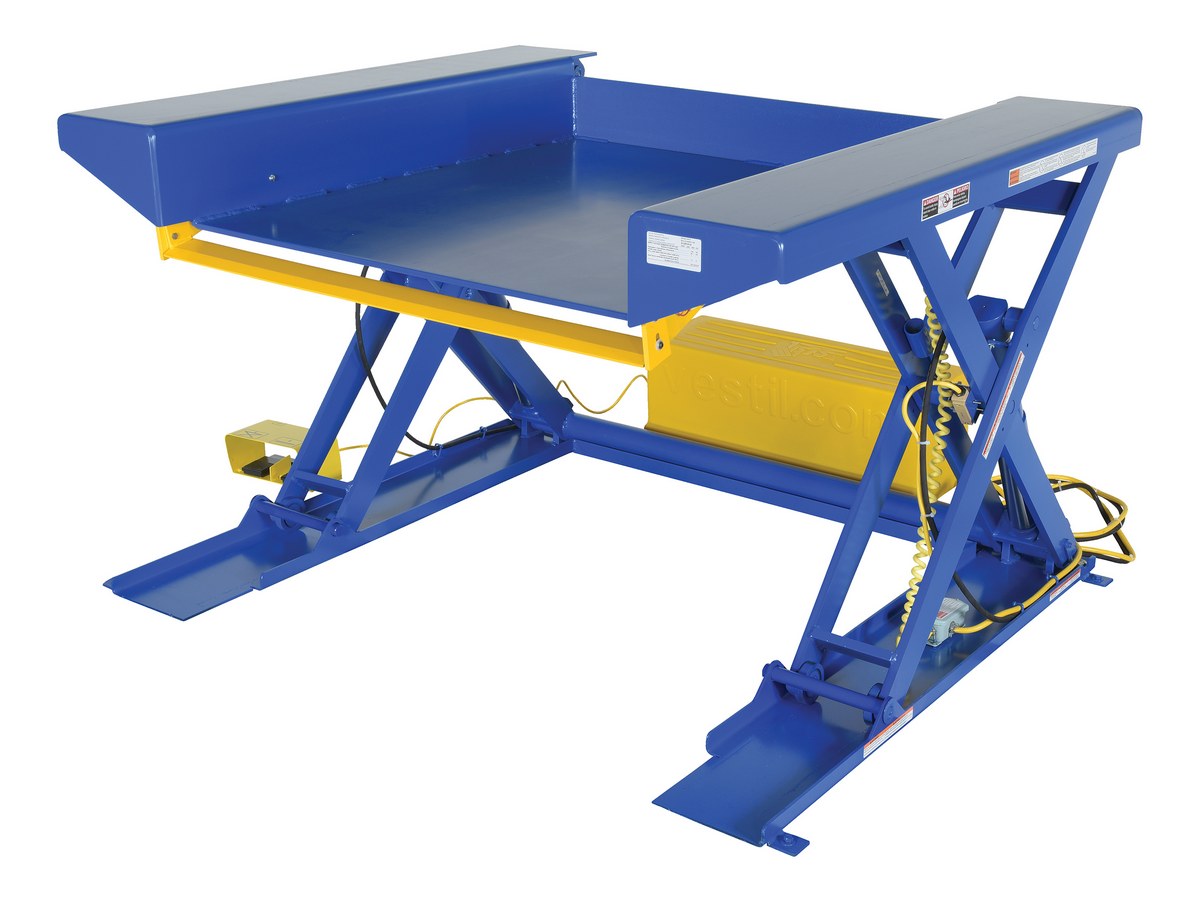

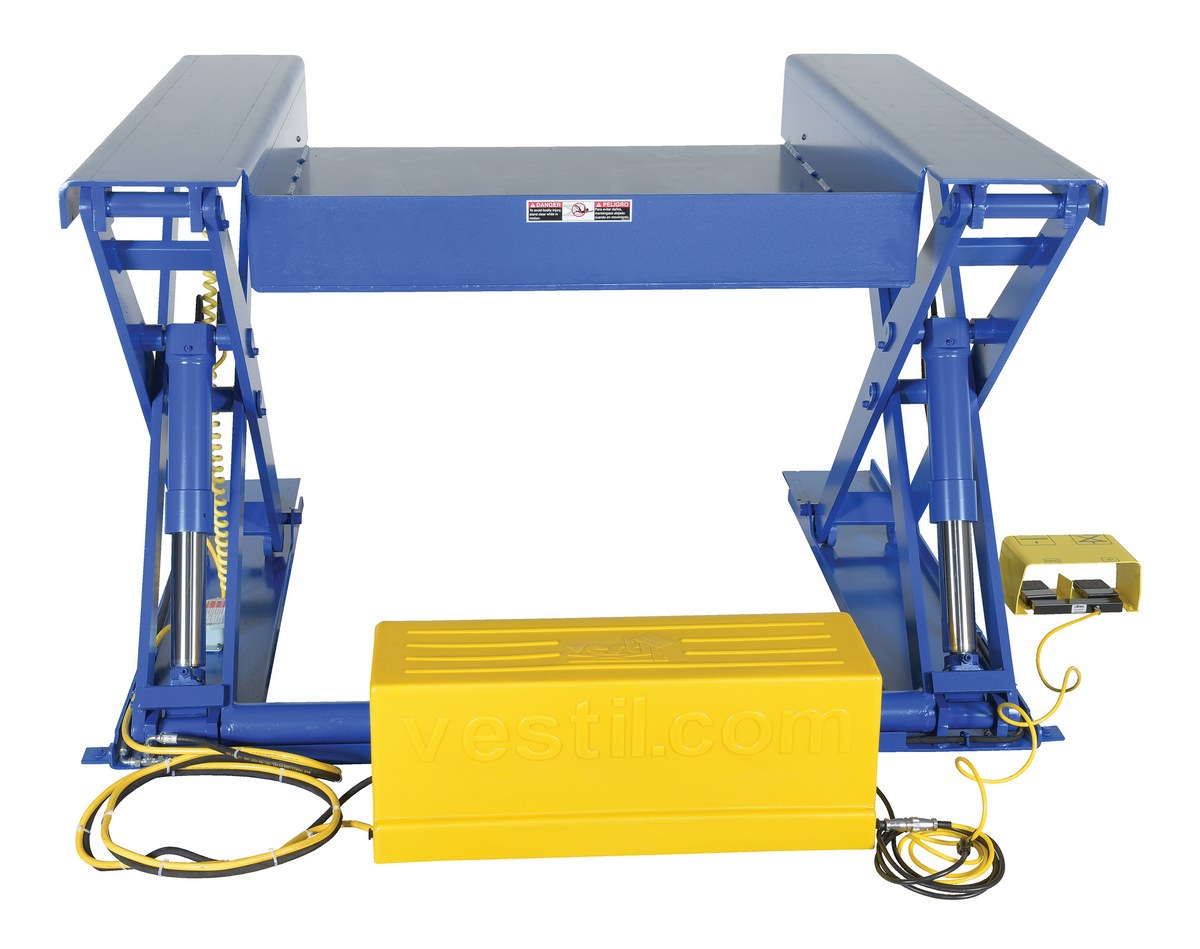

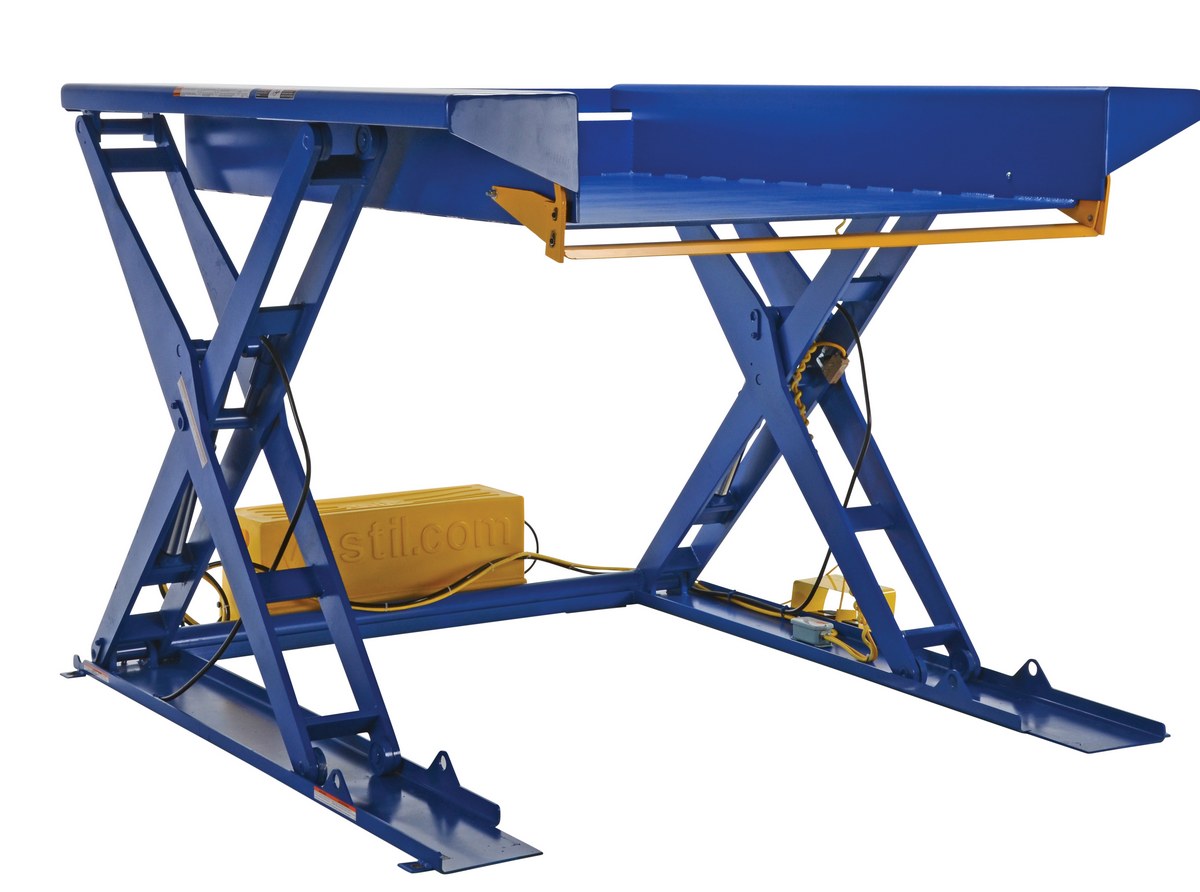

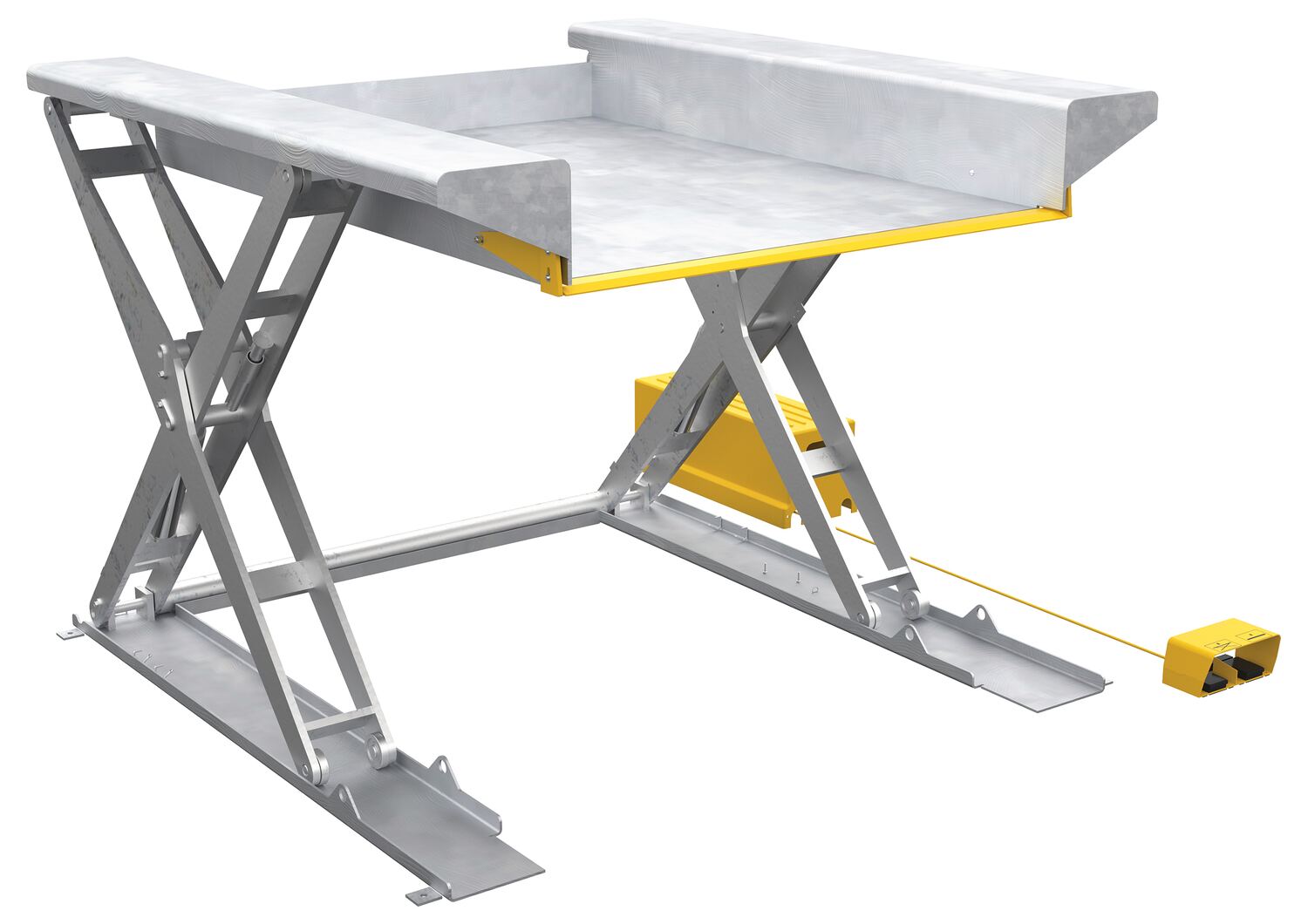

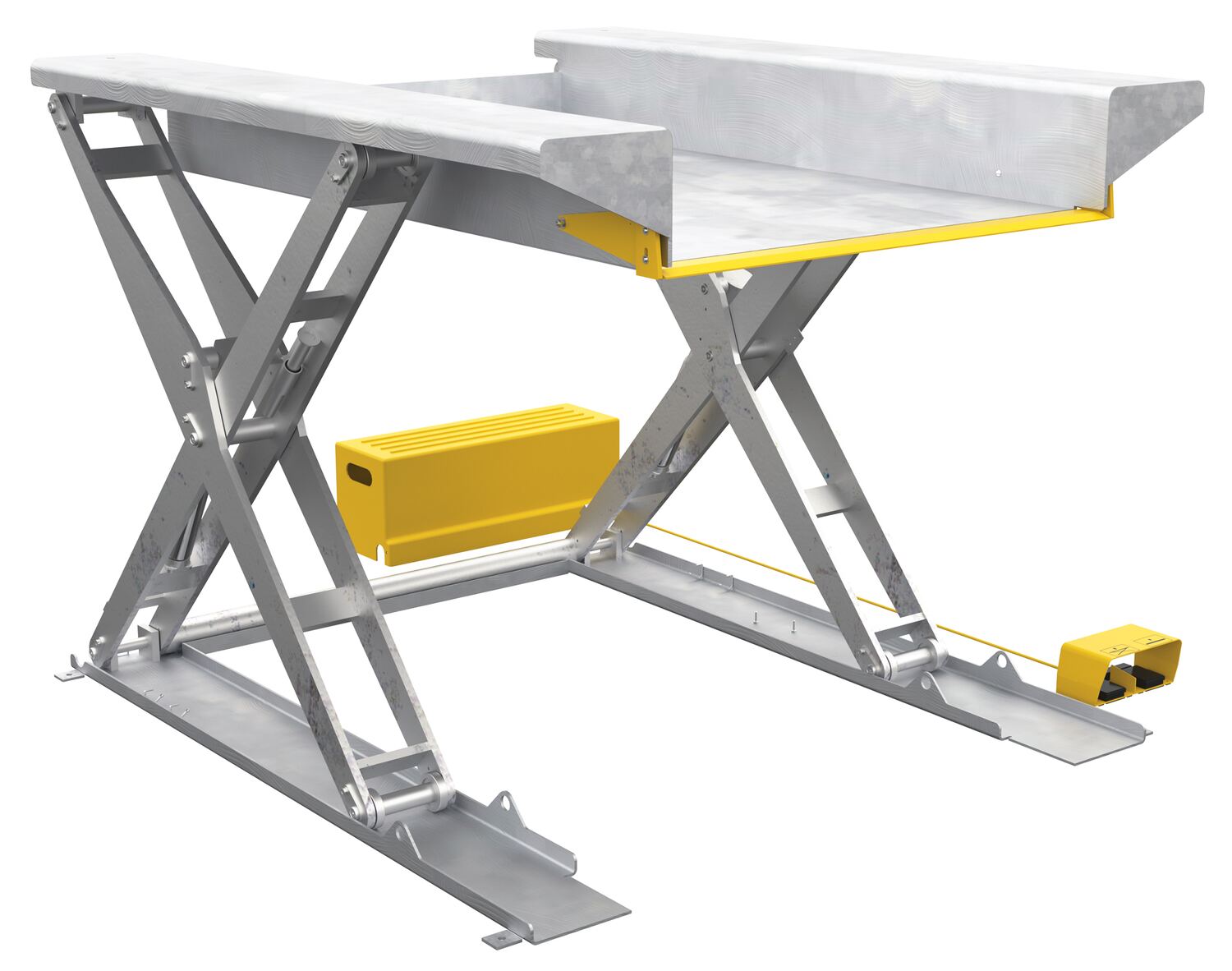

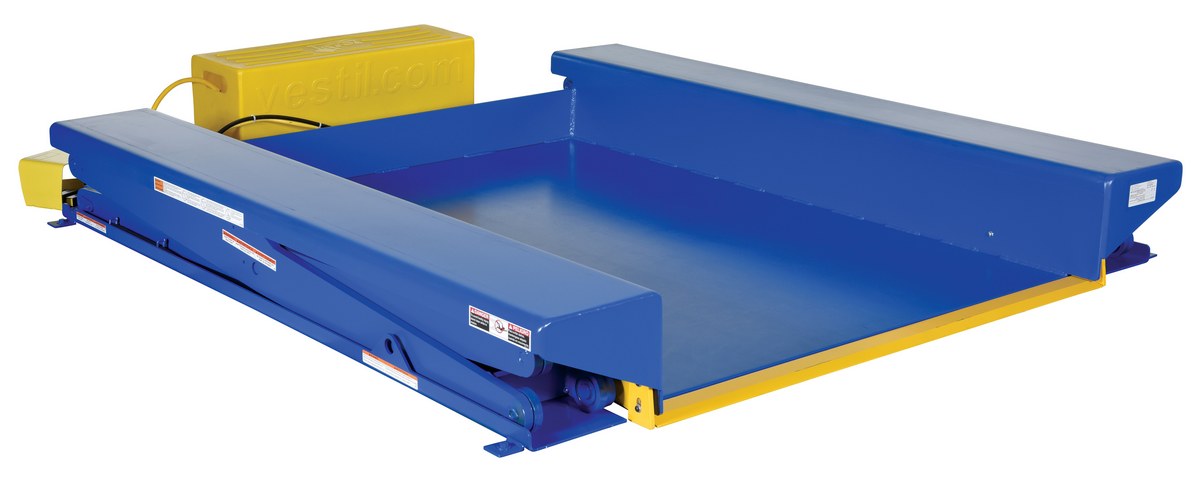

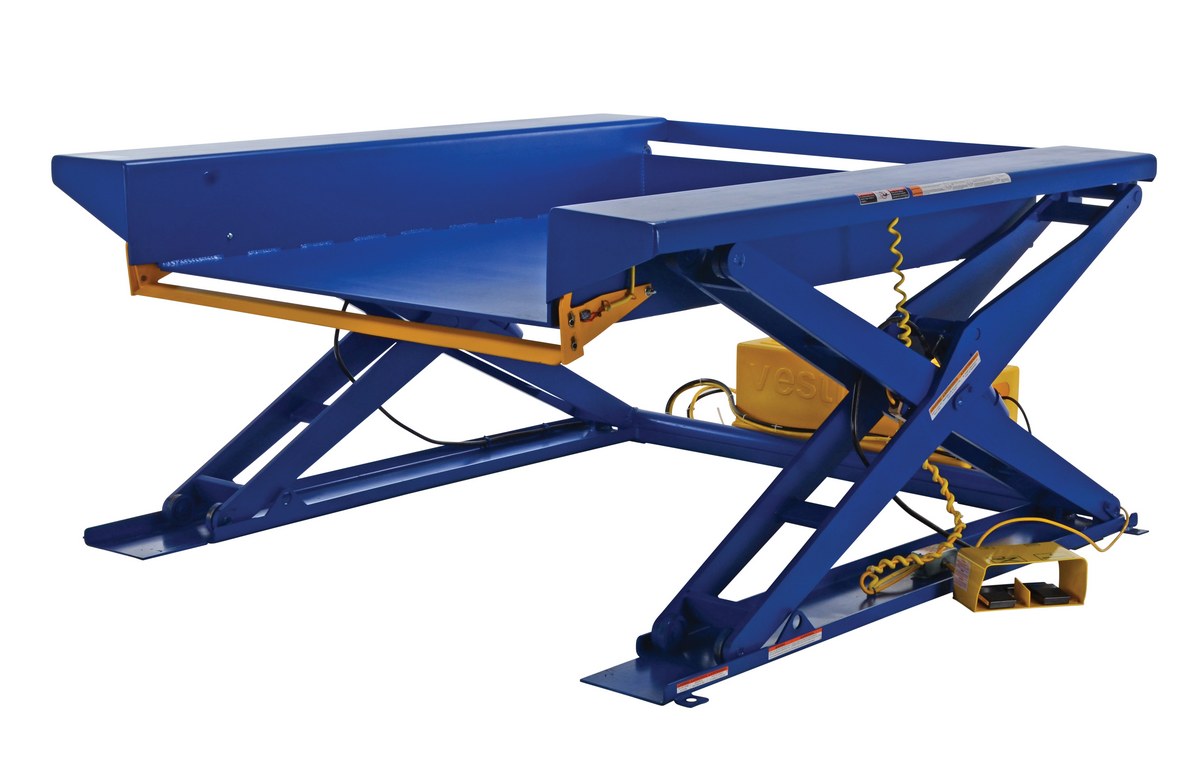

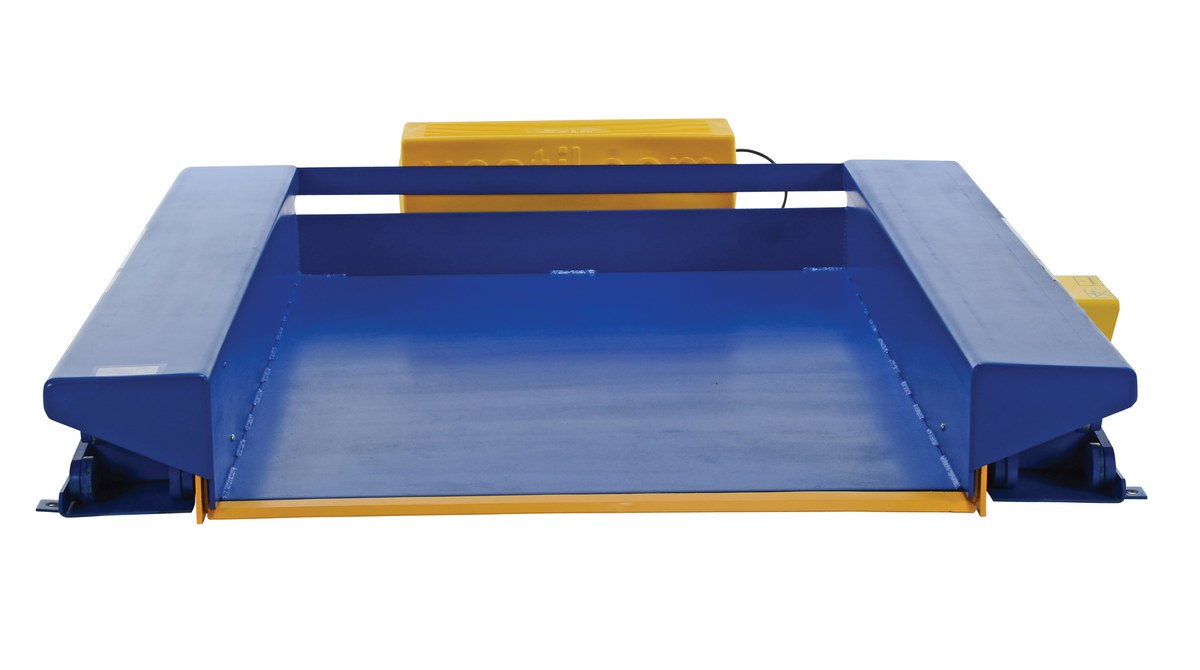

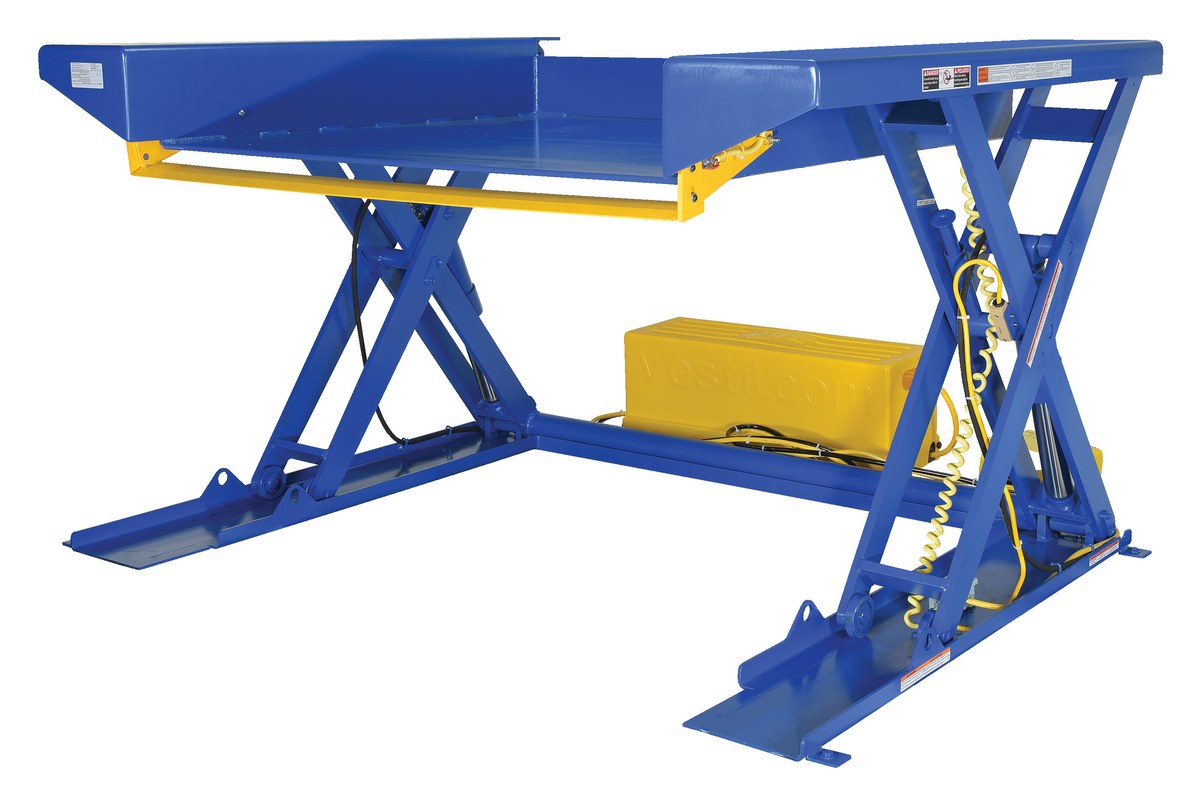

Ground Lift Scissor Tables

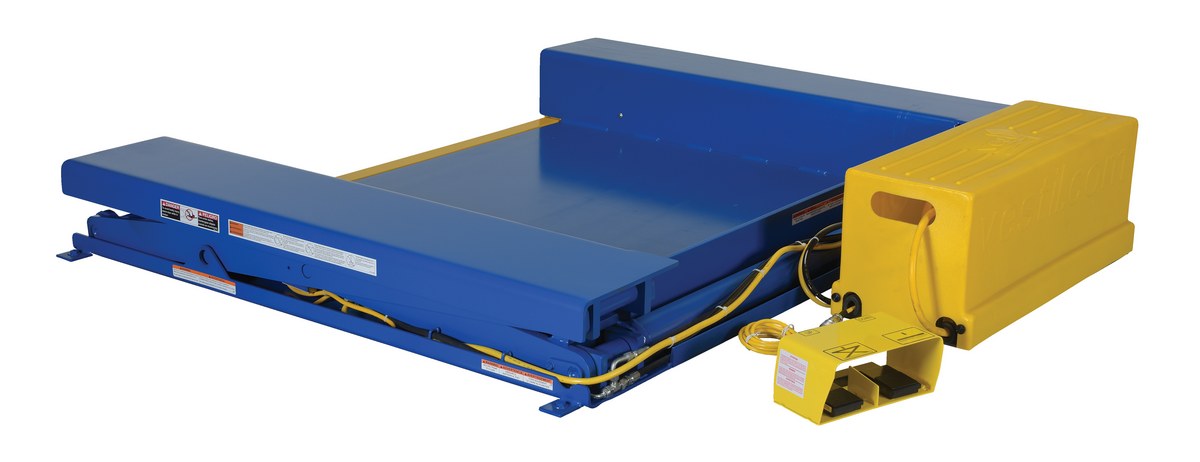

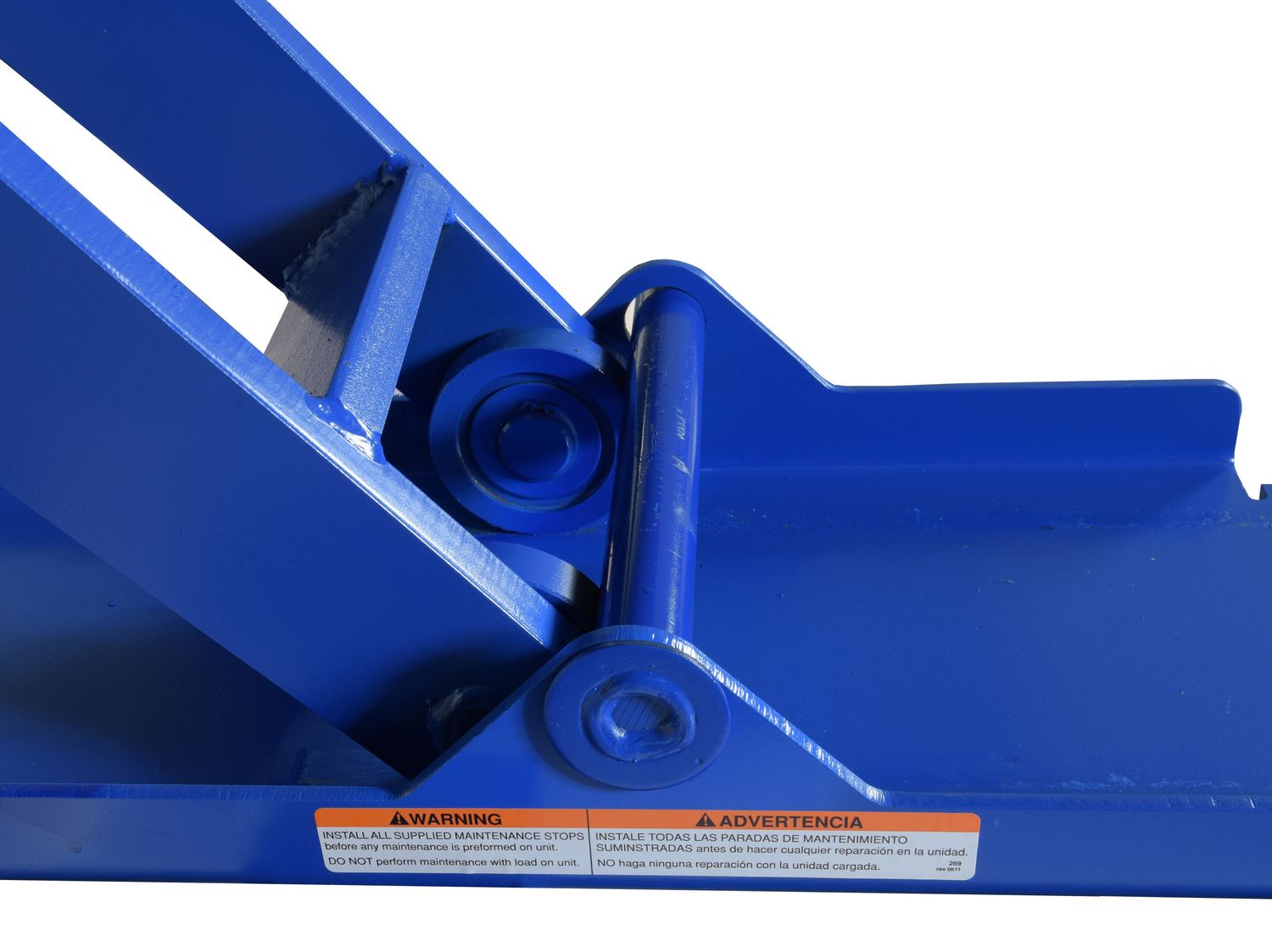

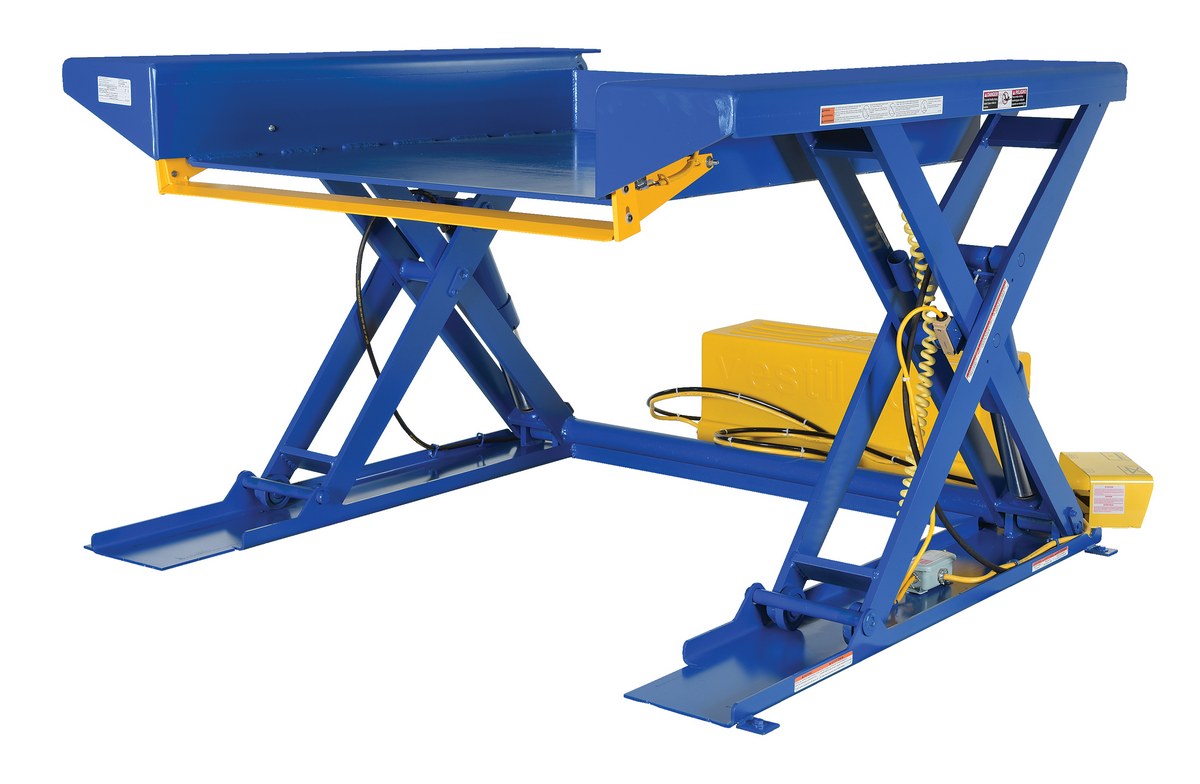

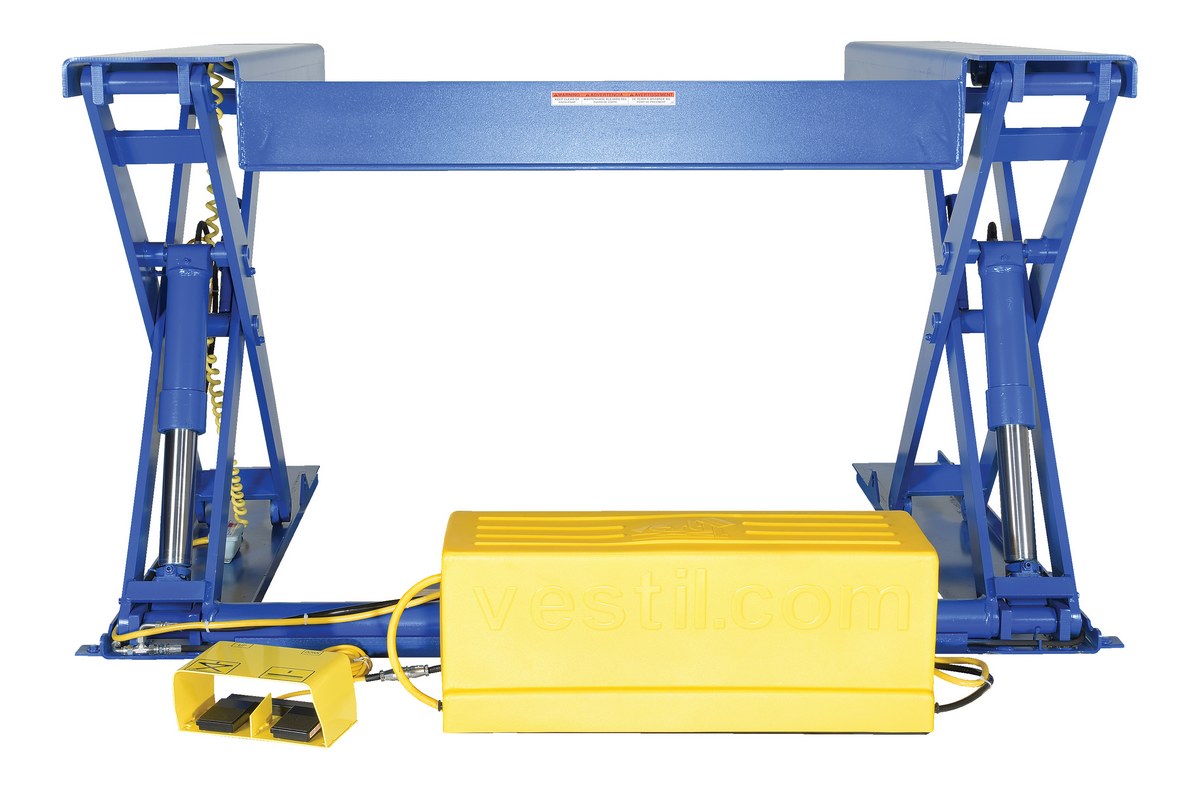

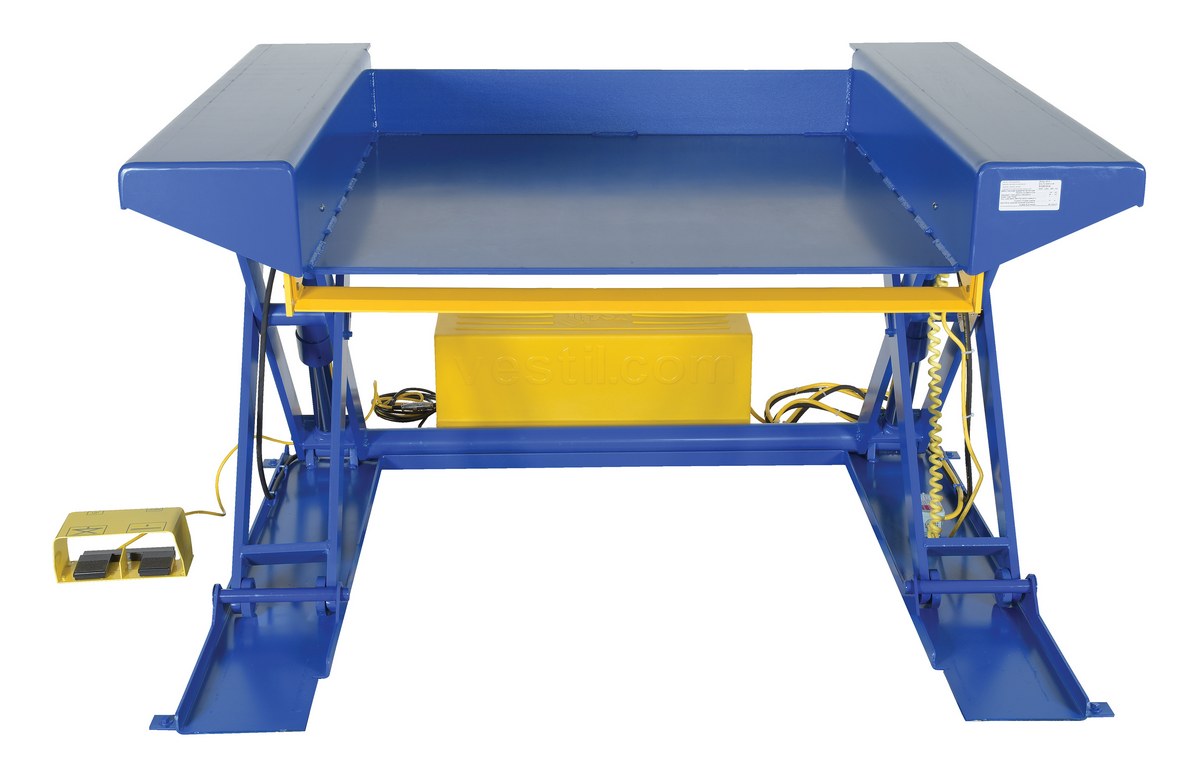

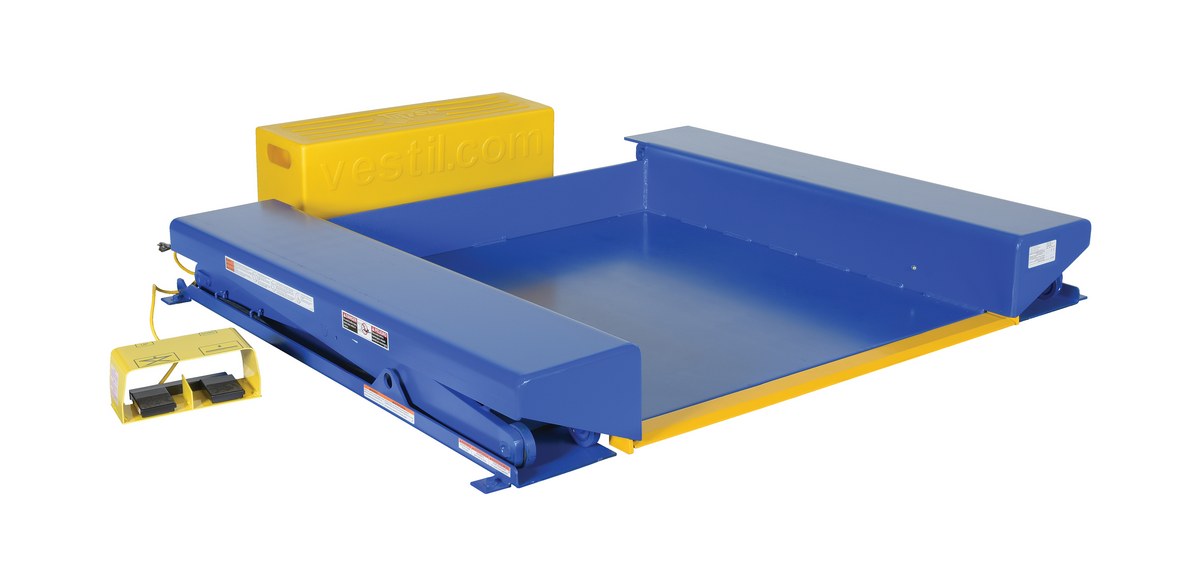

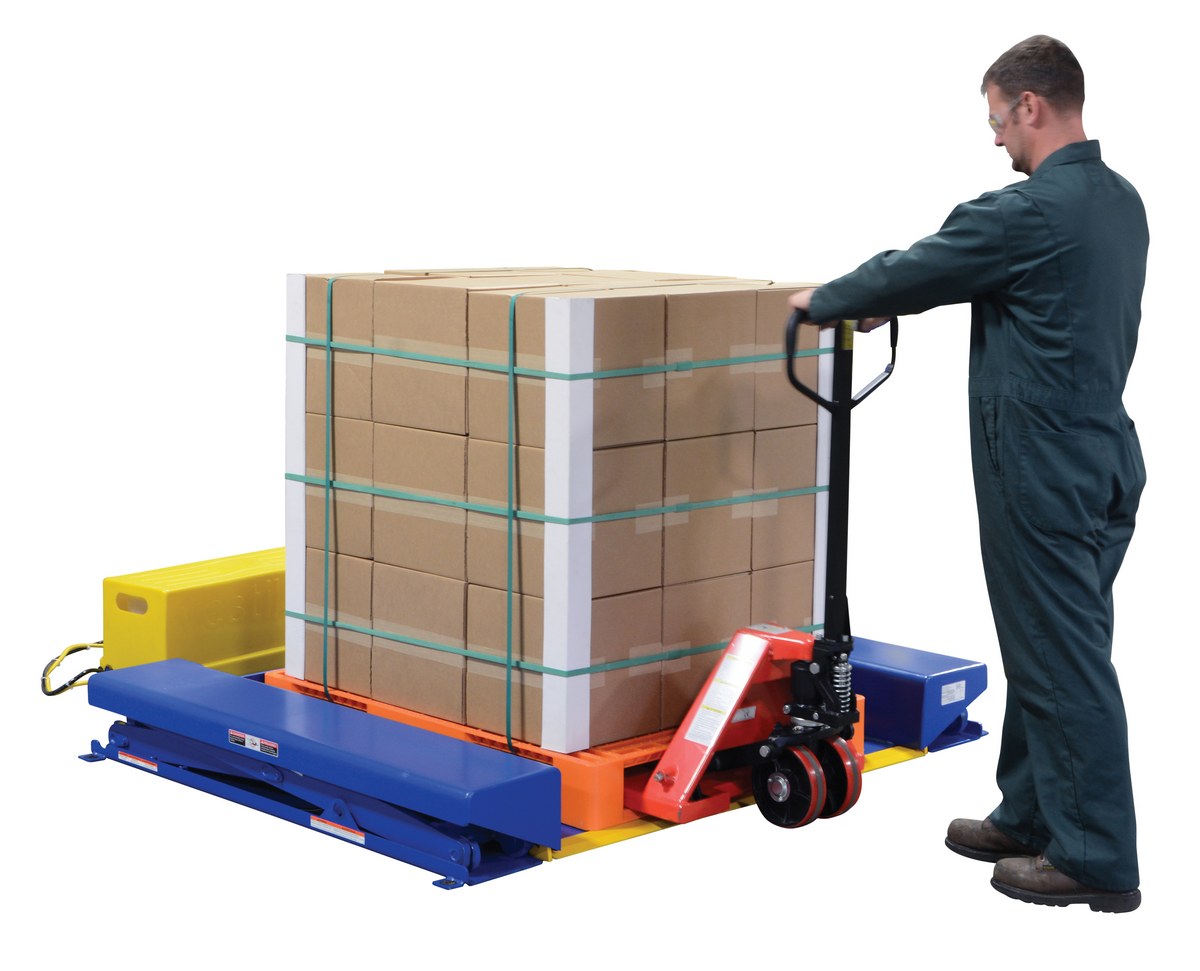

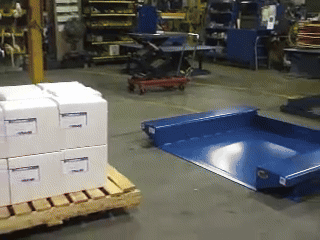

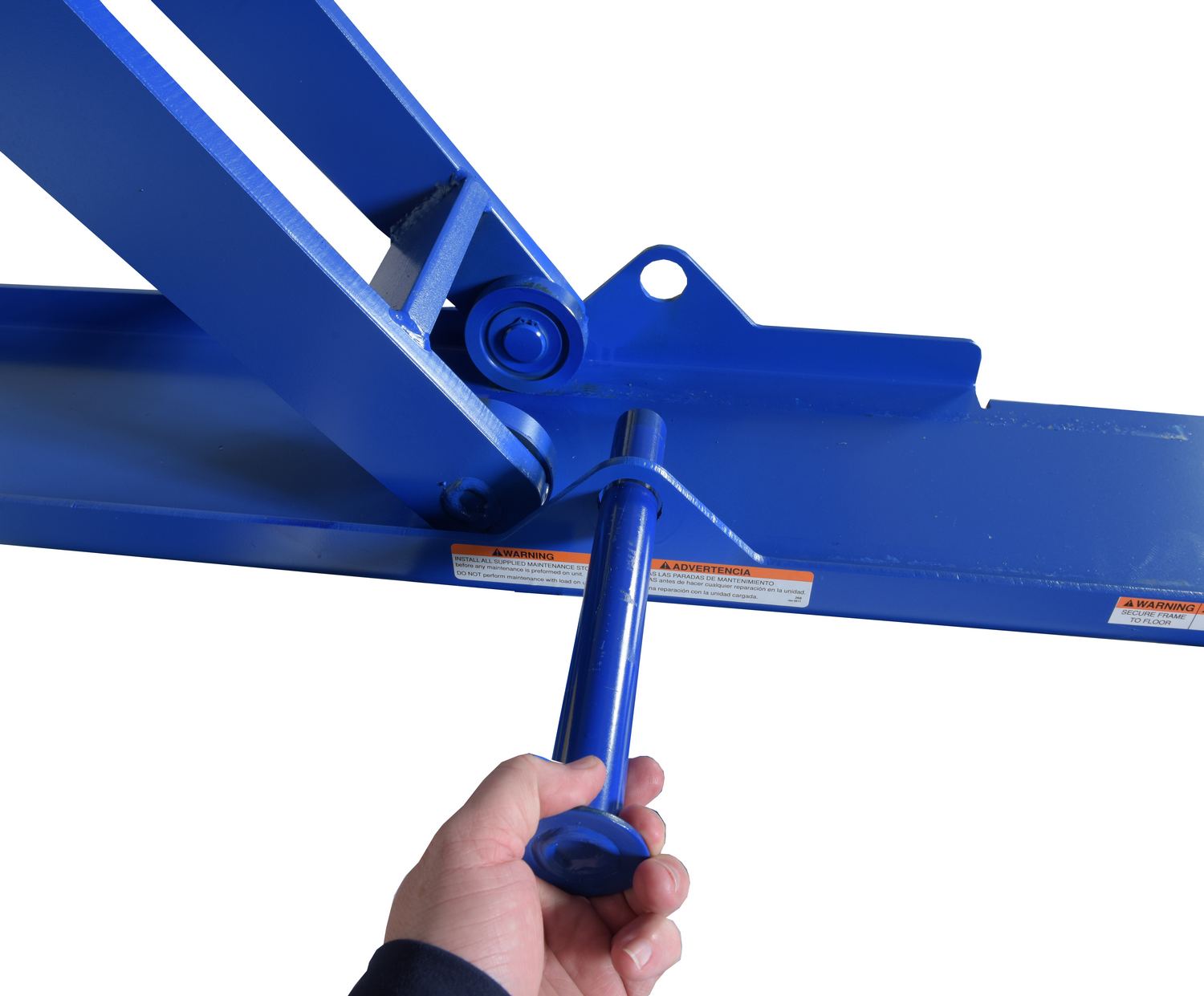

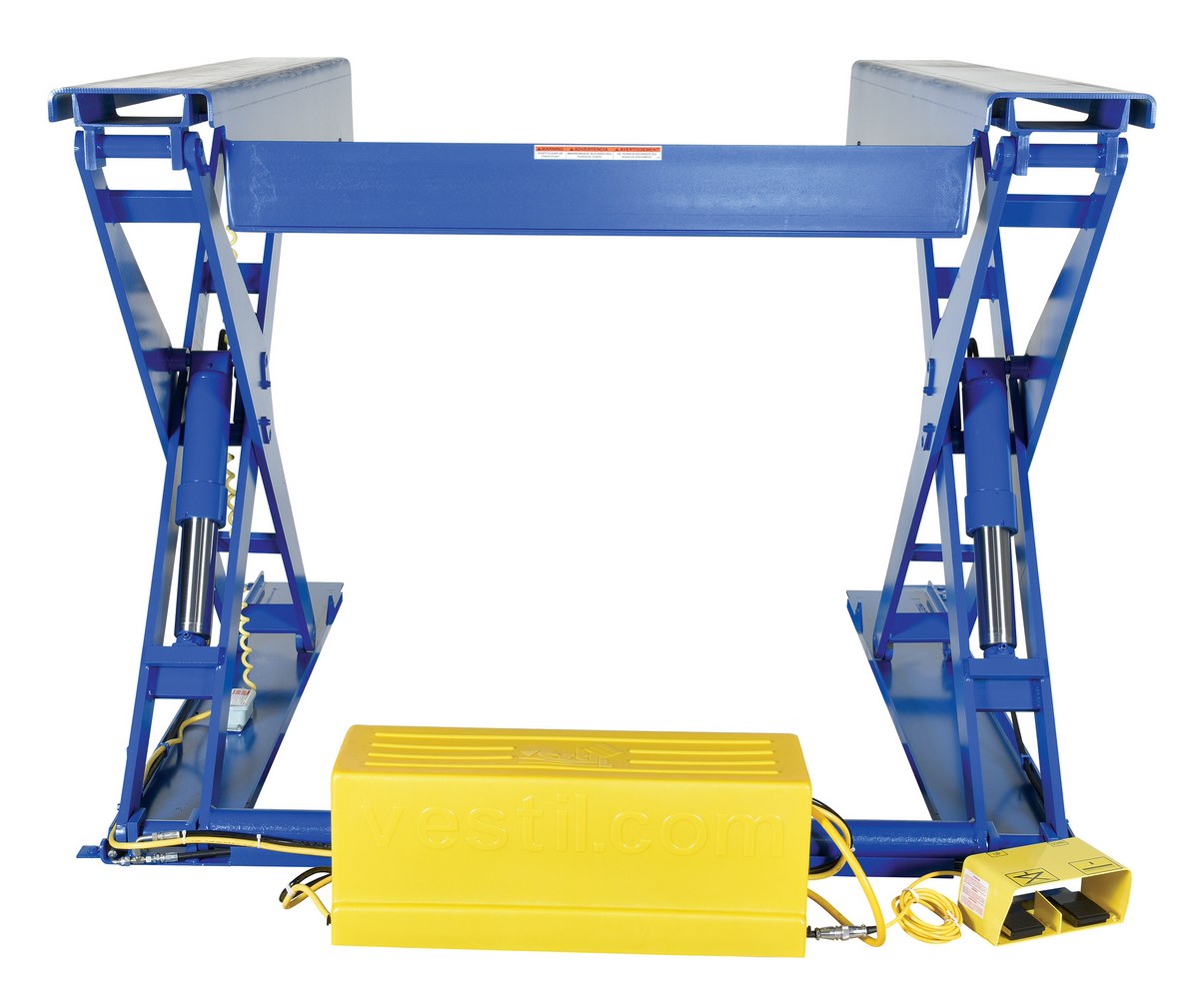

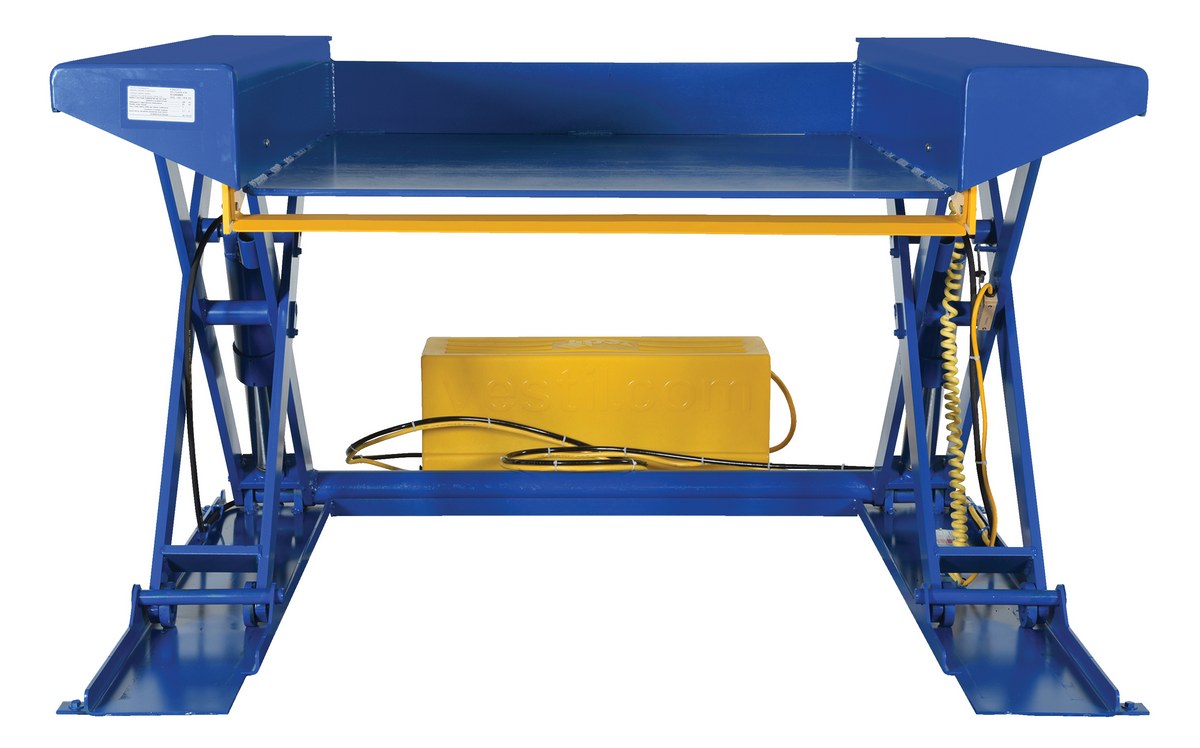

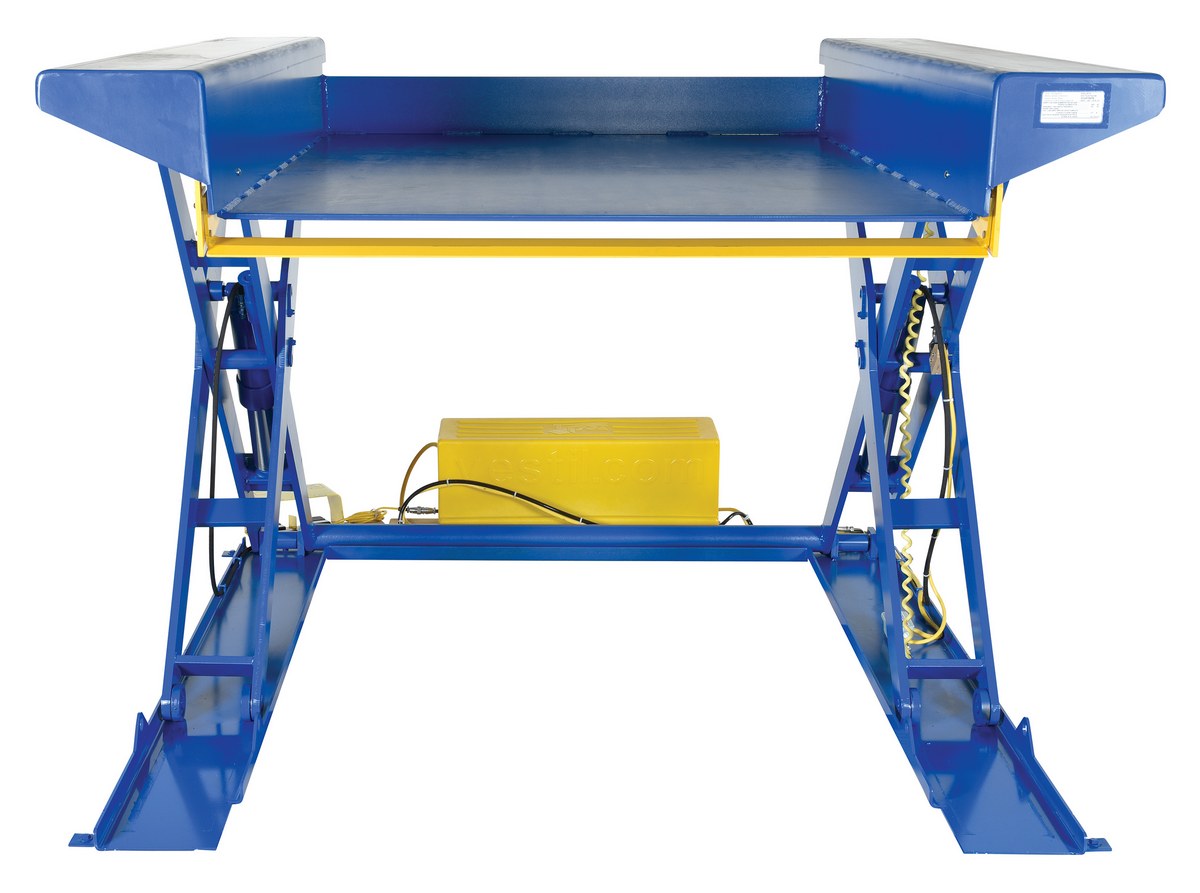

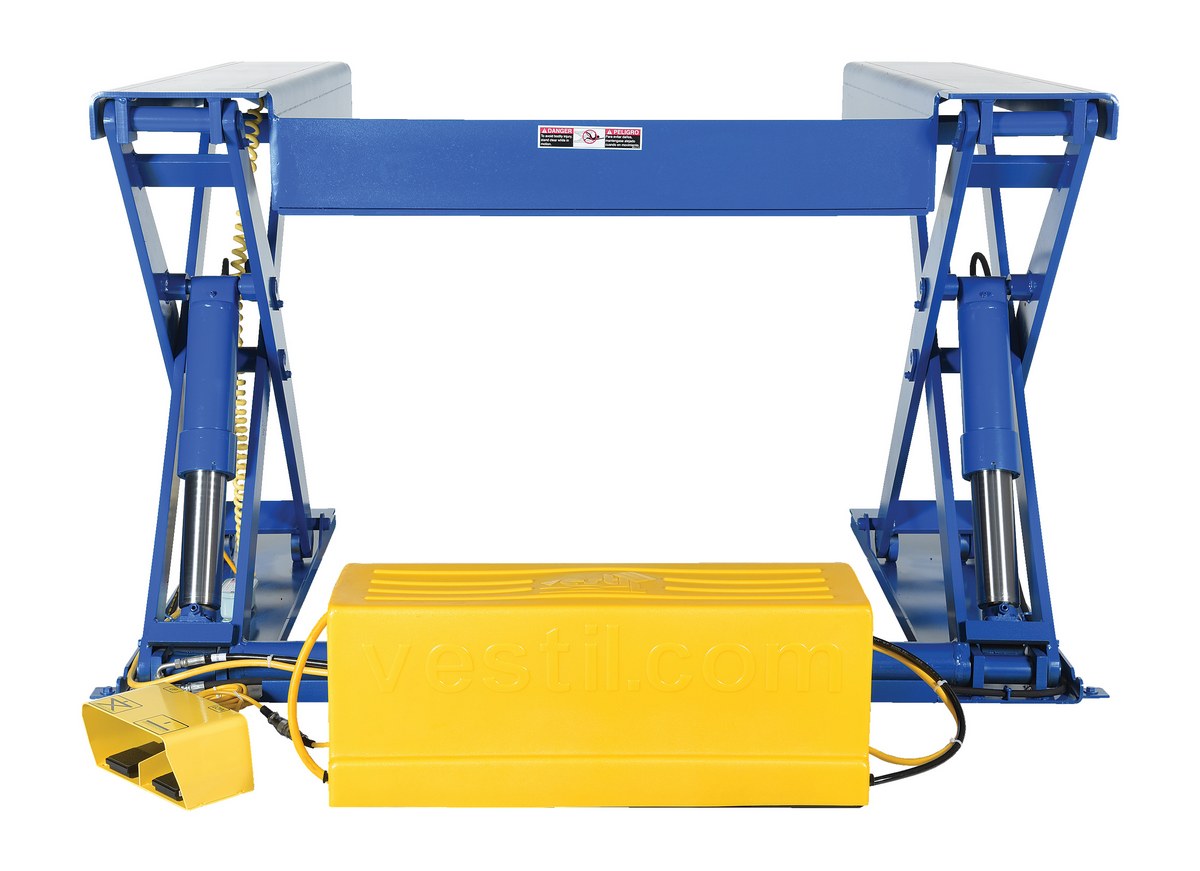

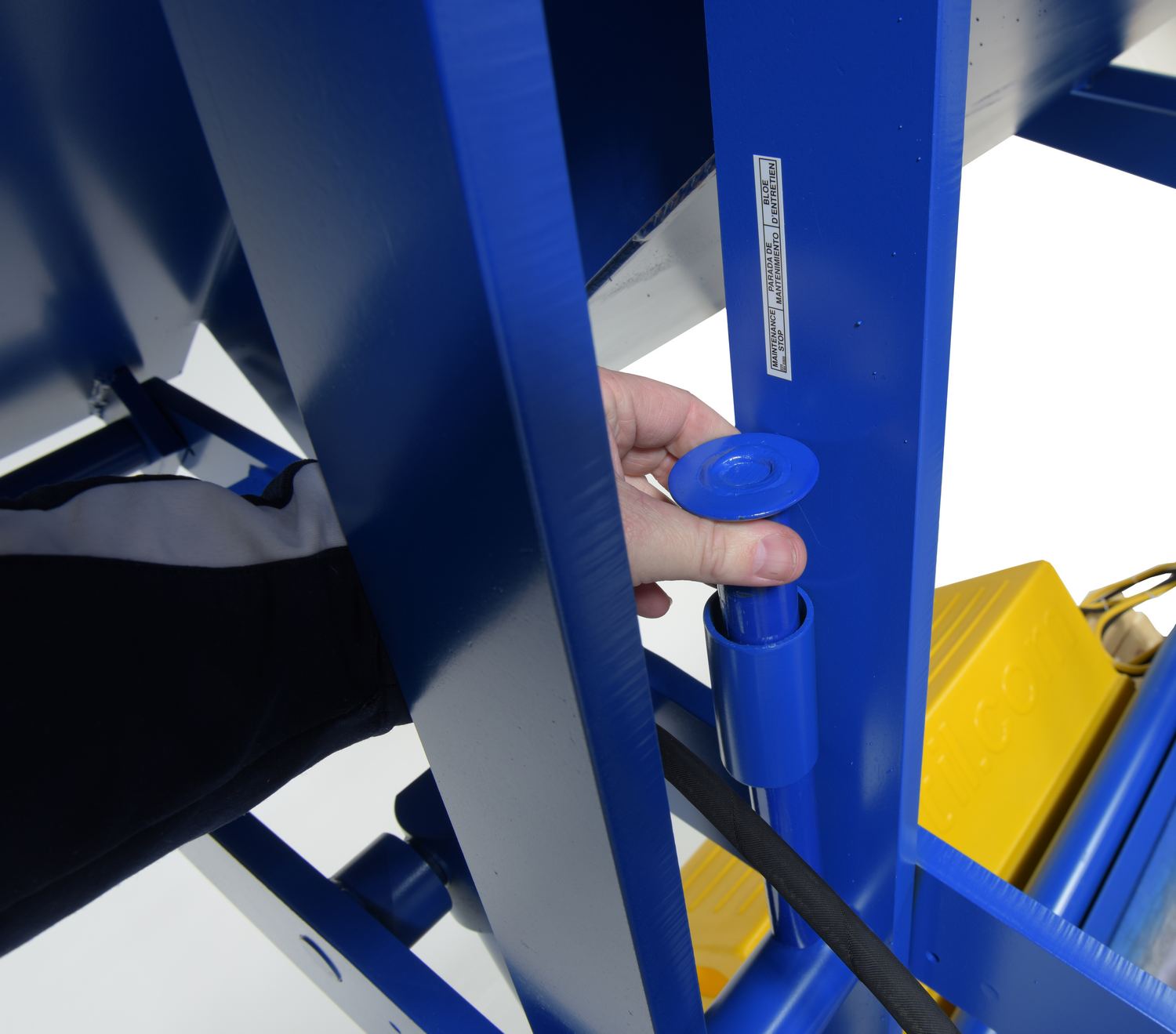

Ground Lift Scissor Tables are designed for use when powered fork trucks are not available. Pallets can be loaded onto table with pallet trucks and raised to an ergonomic working height. Lowered height is 1/2". Safety features include; entry-side electric toe guard to protect pinch points during lowering of the table, safety velocity fuse to maintain platform height in the envent of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. 2HP, 460V, 3-phase, 60 Hz totally enclosed motor is standard, other voltages available. Remote power unit can be located up to eight feet away from table. 3000 psi hydraulic components rating. Optional accordion skirting available, contact factory.

Check Out Our Ground Lift & Tilt Tables


EHLTG-4450-4-36

model EHLTG-4450-4-36

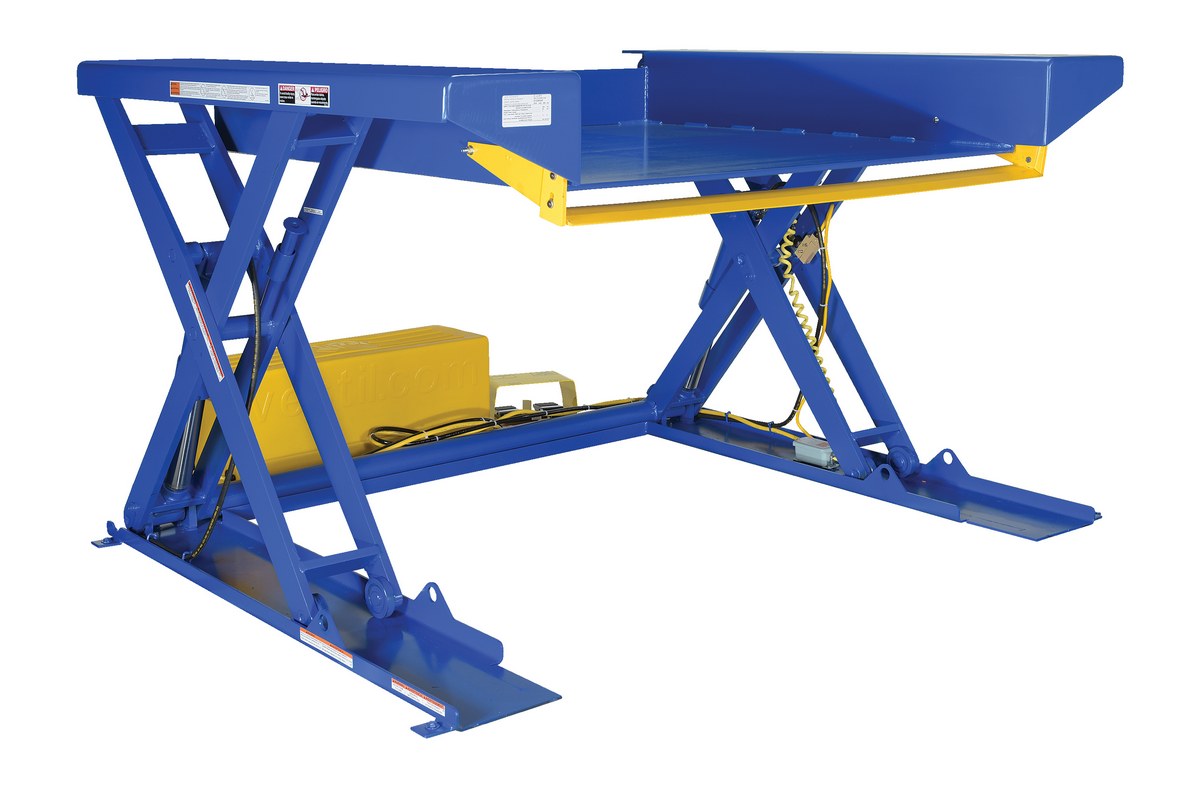

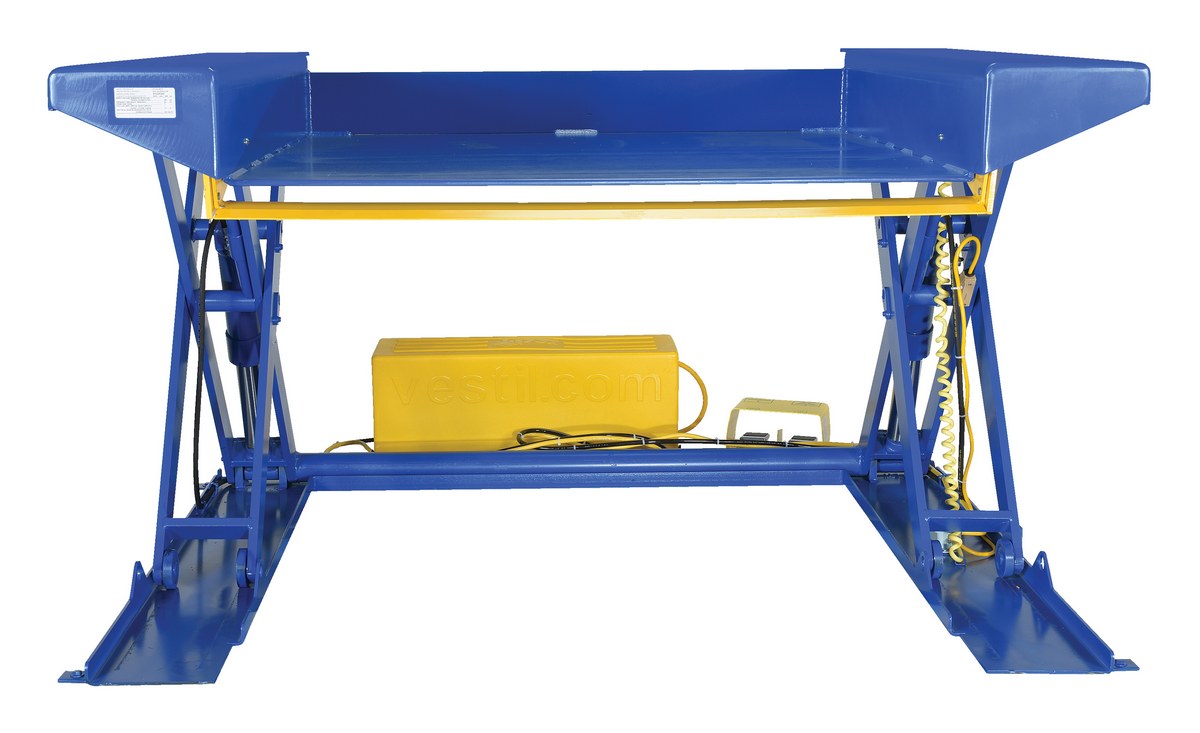

EHLTG-5250-2-36

model EHLTG-5250-2-36

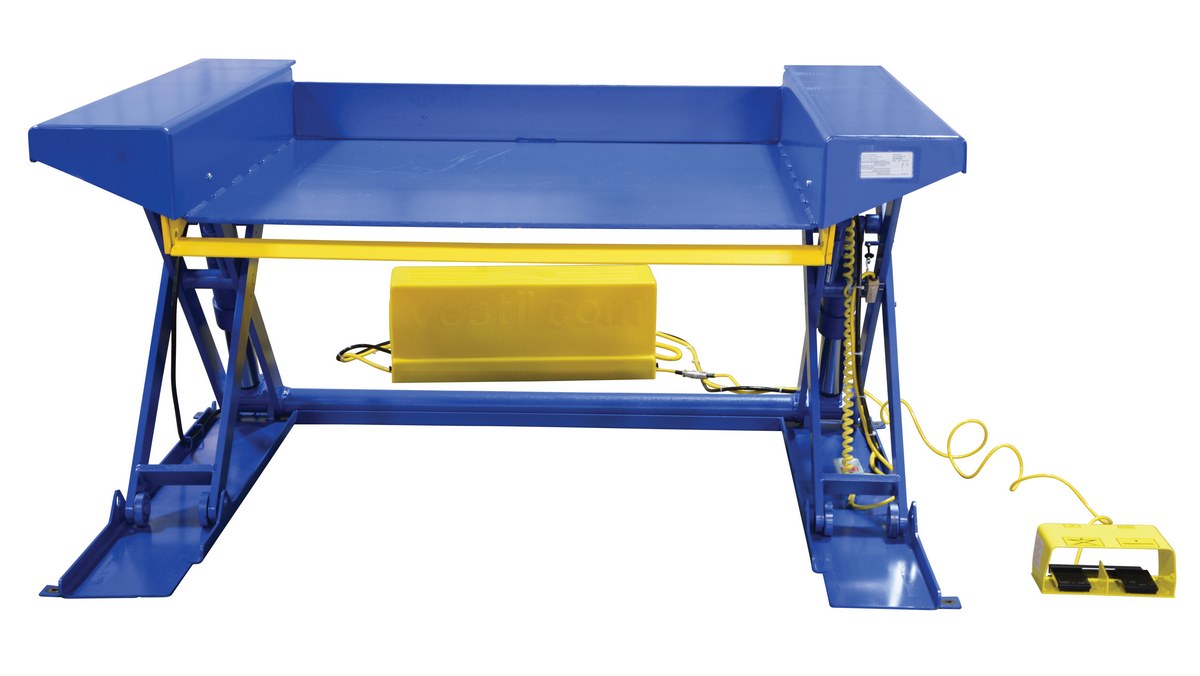

EHLTG-5250-4-36

model EHLTG-5250-4-36

EHLTG-5270-2-48

model EHLTG-5270-2-48

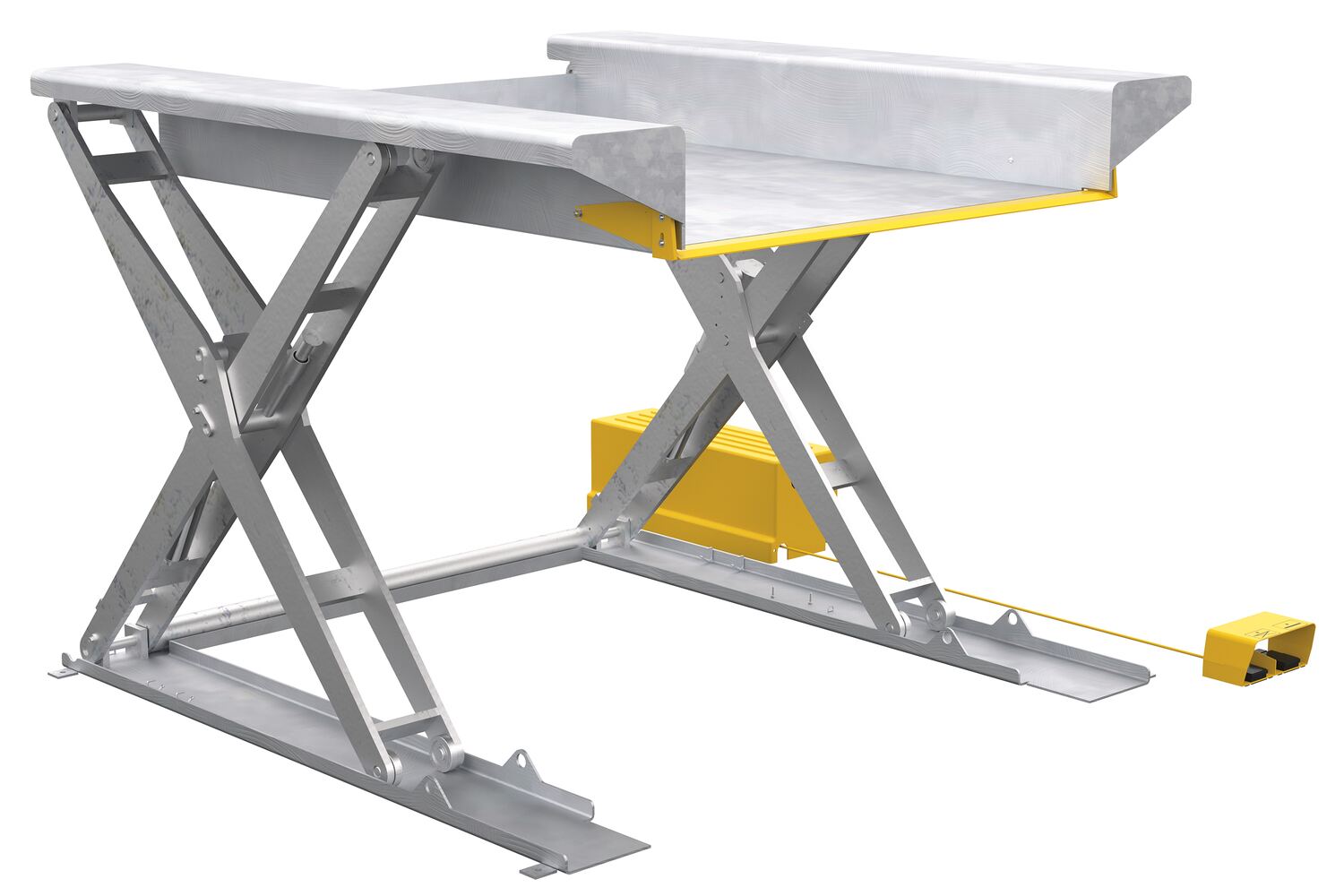

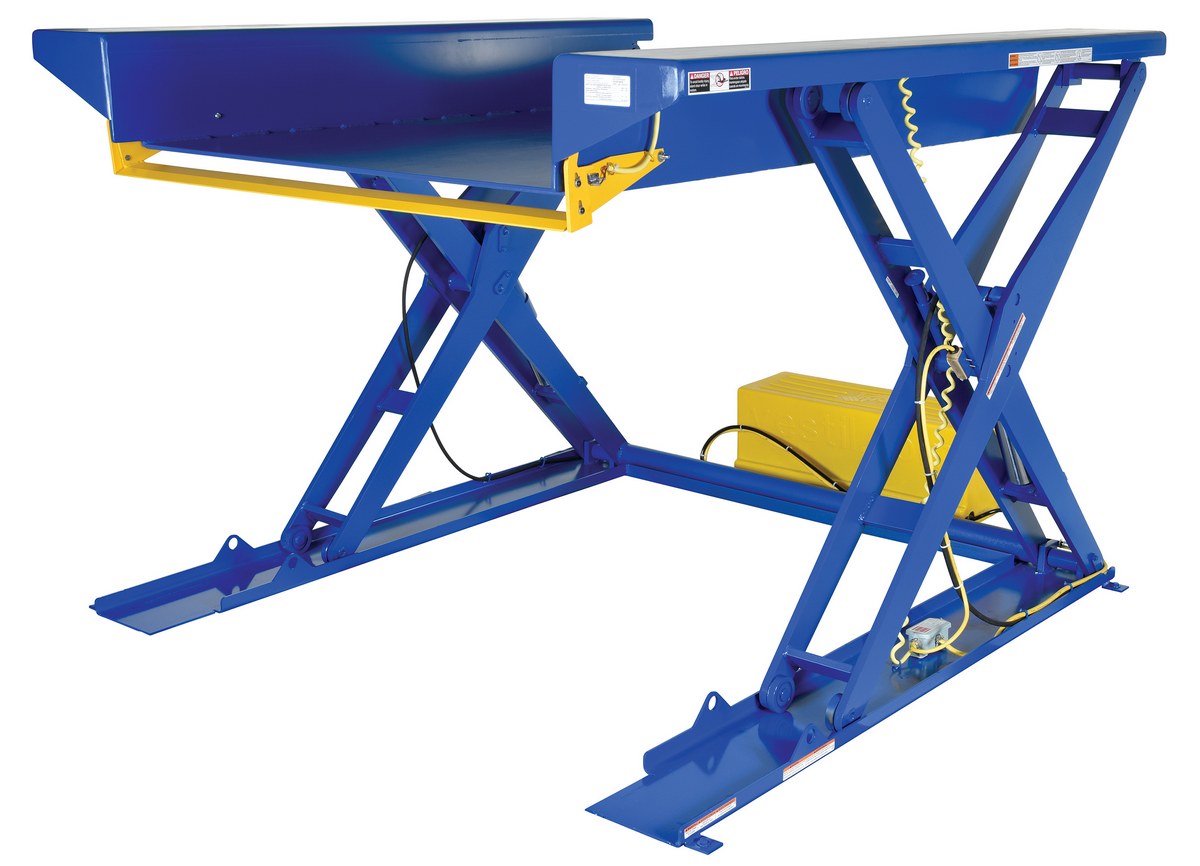

EHLTG-5270-4-48

model EHLTG-5270-4-48

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Ground Lift Scissor Table
Model PDF's Platform Size (WxL) Capacity (lbs) Raised Height Lowered Height Overall Size (WxLxH) Wt.
(lbs)
EHLTG-3850-2-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 38" x 51-1/2" 2,000 lb. 36" 1/2" 61" x 56" x 8-1/2" 1510
EHLTG-3850-4-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 38" x 51-1/2" 4,000 lb. 36" 1/2" 61" x 56" x 8-1/2" 1644
EHLTG-4450-2-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x51-1/2" 2,000 36" 1/2" 67"x56"x8-1/2" 1573
EHLTG-4450-4-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x51-1/2" 4,000 36" 1/2" 67"x56"x8-1/2" 1707
EHLTG-5250-2-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x 51-1/2" 2,000 36" 1/2" 75"x56"x8-1/2" 1717
EHLTG-5250-4-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x 51-1/2" 4,000 36" 1/2" 75"x56"x8-1/2" 1729

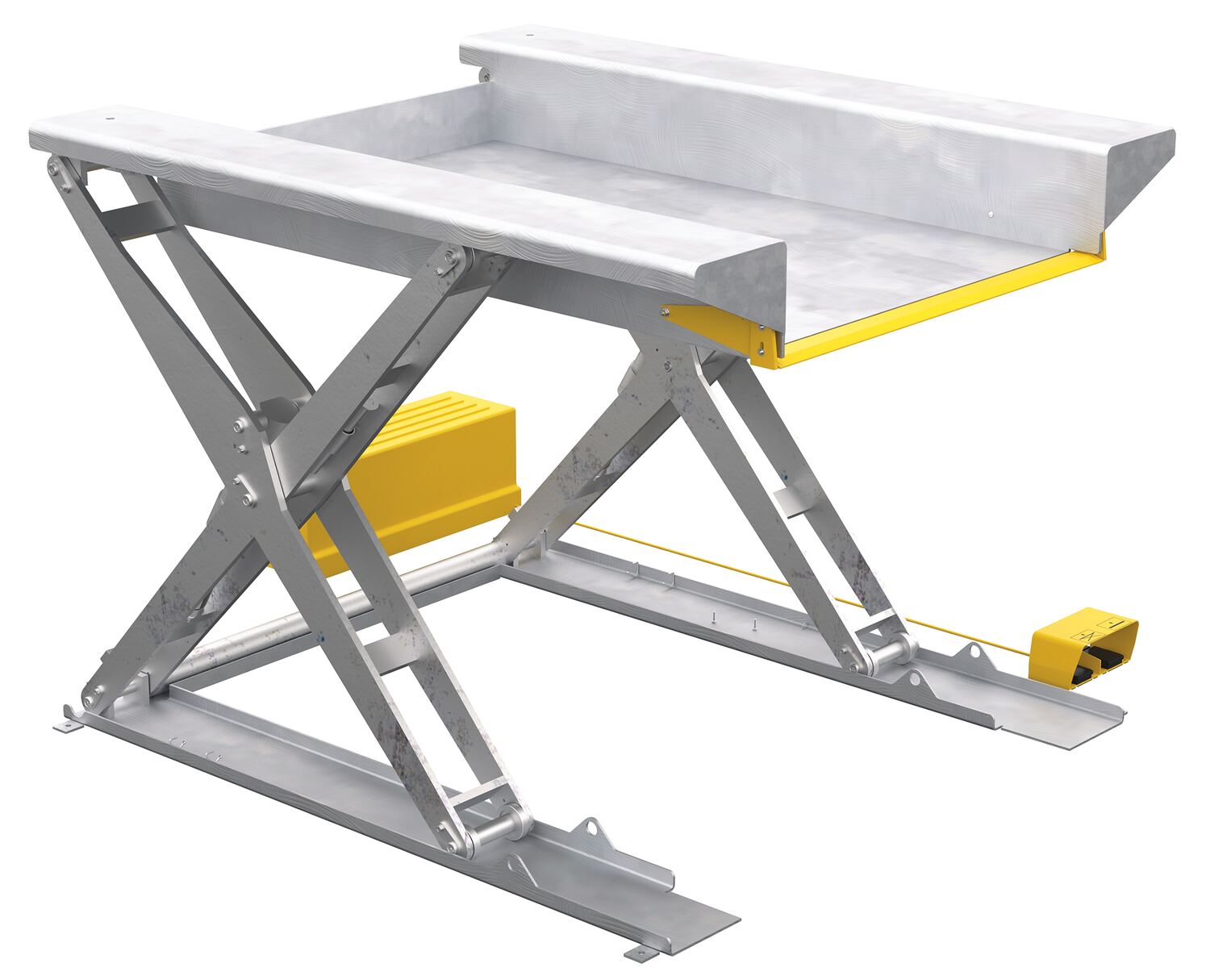

EHLTG-4470-2-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x73" 2,000 48" 1/2" 67"x78"x10-7/16" 2216
EHLTG-4470-4-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x73" 4,000 48" 1/2" 67"x78"x10-7/16" 2242
EHLTG-4484-3-54 icon_approvaldrawings.jpgWarranty PDF 44"x84" 3,000 54"
(106-1/2" w/ Handrails)
1/2"
(52-1/2" w/ Handrails)
67"x92"x106-1/2" 2835
EHLTG-5270-2-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x73" 2,000 48" 1/2" 75"x78"x10-7/16" 2322
EHLTG-5270-4-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x73" 4,000 48" 1/2" 75"x78"x10-7/16" 2348
EHLTG-5284-3-54 icon_approvaldrawings.jpgWarranty PDF 52"x84" 3,000 54"
(106-1/2" w/ Handrails)
1/2"
(52-1/2" w/ Handrails)
75"x92"x106-1/2" 2960

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

PDF's will open in a new window when clicked.

Owner's Manuals


Survey Sheets


Approval Drawings

EHLTG-3850-2-36
EHLTG-3850-4-36
EHLTG-4450-2-36
EHLTG-4450-4-36
EHLTG-4470-2-48
EHLTG-4470-4-48
EHLTG-5250-2-36
EHLTG-5250-4-36
EHLTG-5270-2-48
EHLTG-5270-4-48

Testing Certificates

EHLTG-3850-4-36
EHLTG-3850-2-36
EHLTG-5270-4-48
EHLTG-5250-4-36
EHLTG-5250-2-36
EHLTG-4470-4-48
EHLTG-4470-2-48
EHLTG-4450-4-36
EHLTG-5270-2-48
EHLTG-4450-2-36
EHLTG-52-SB
EHLTG-44-SB

Other PDF's

* No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Options

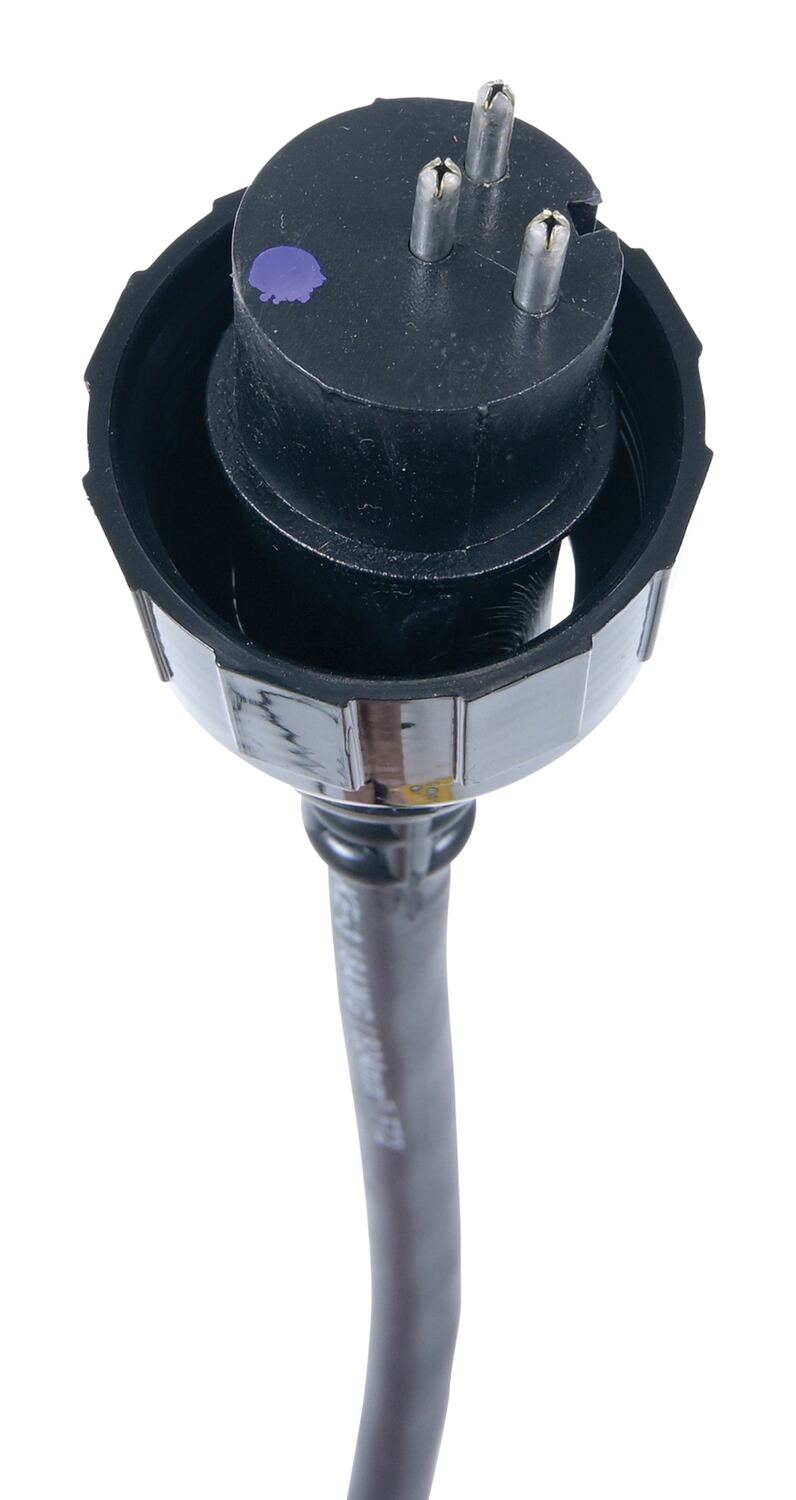

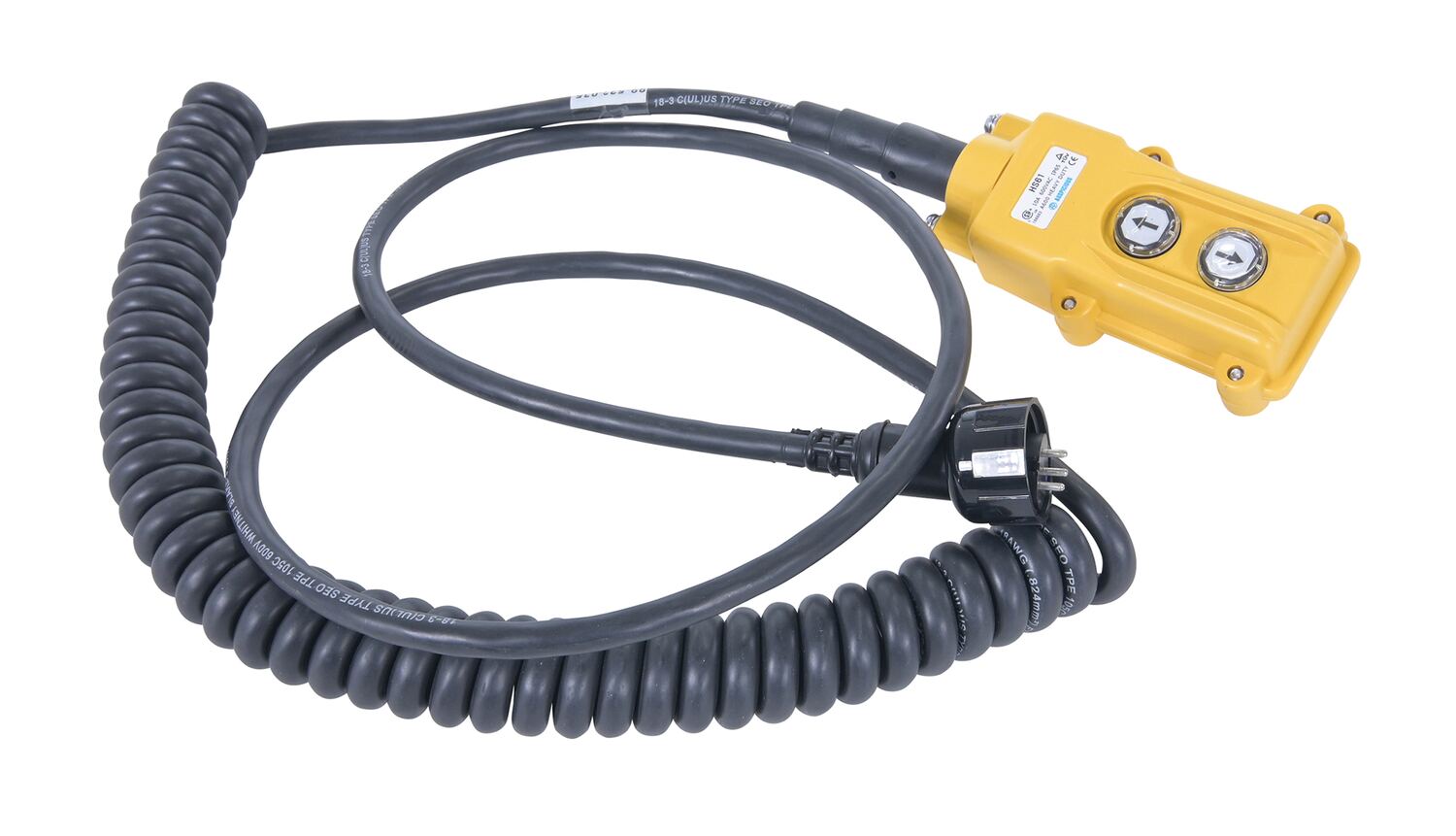

HH2PB-8-FC2 Hand Held Pendant Contrl (foot control Standard) 2

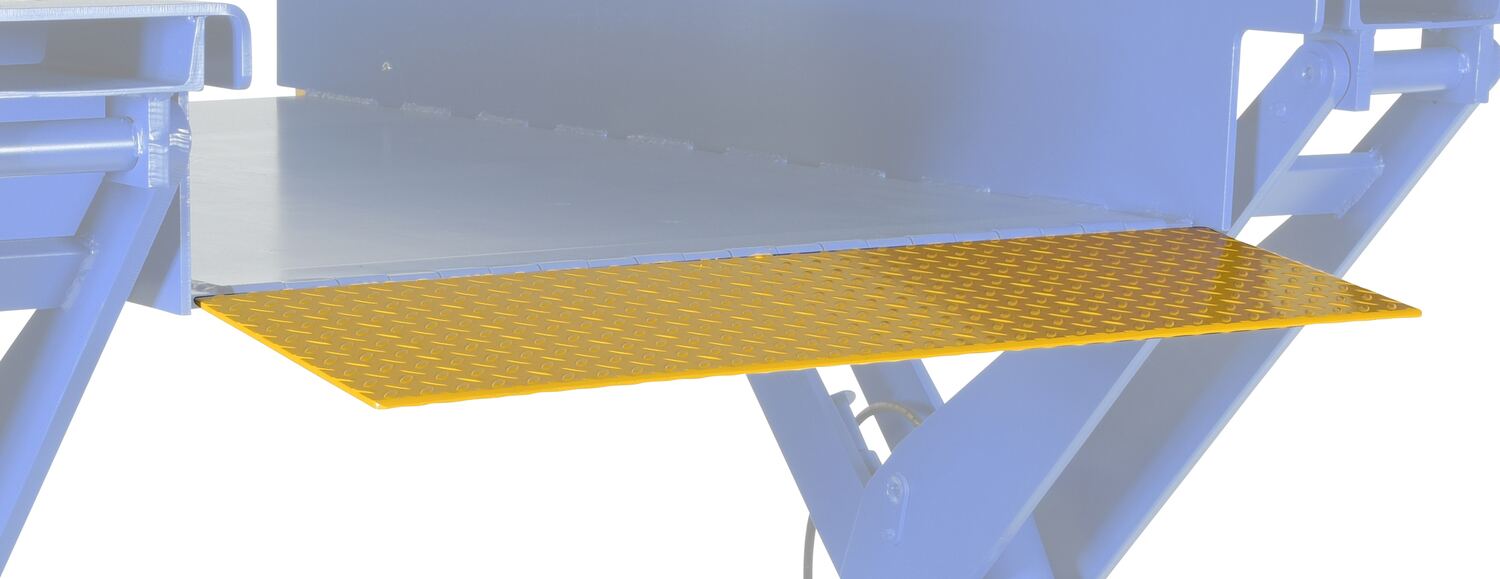

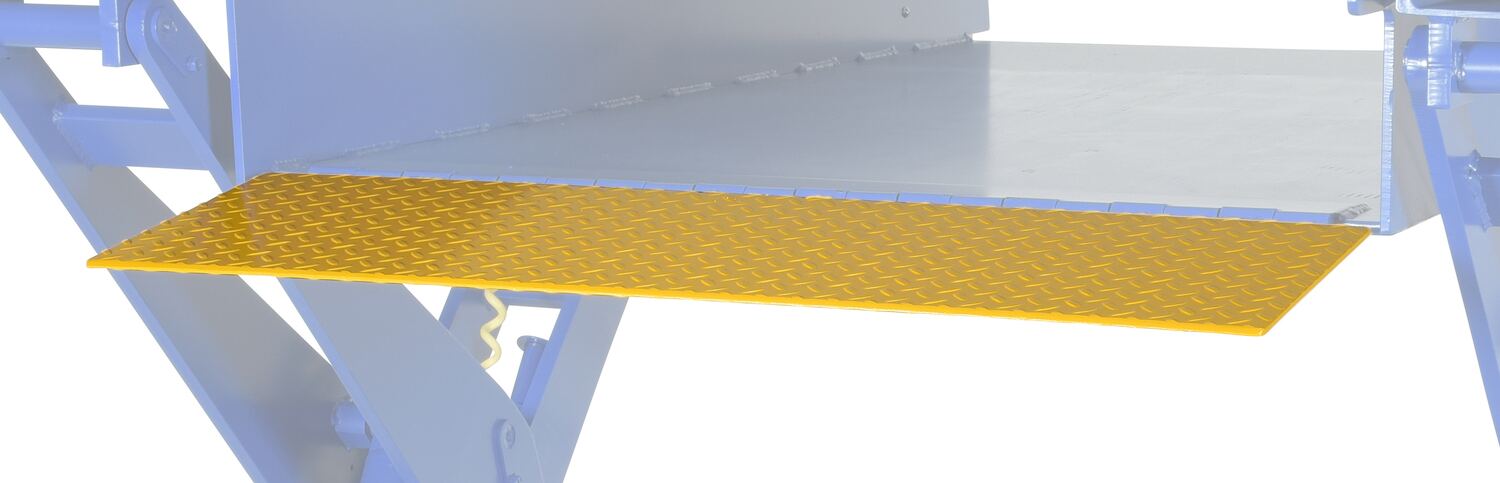

EHLTG-44-SB Steel Rollover Bridge For 44"W Decks (12" Long) / 3,000 lbs. capacity 36

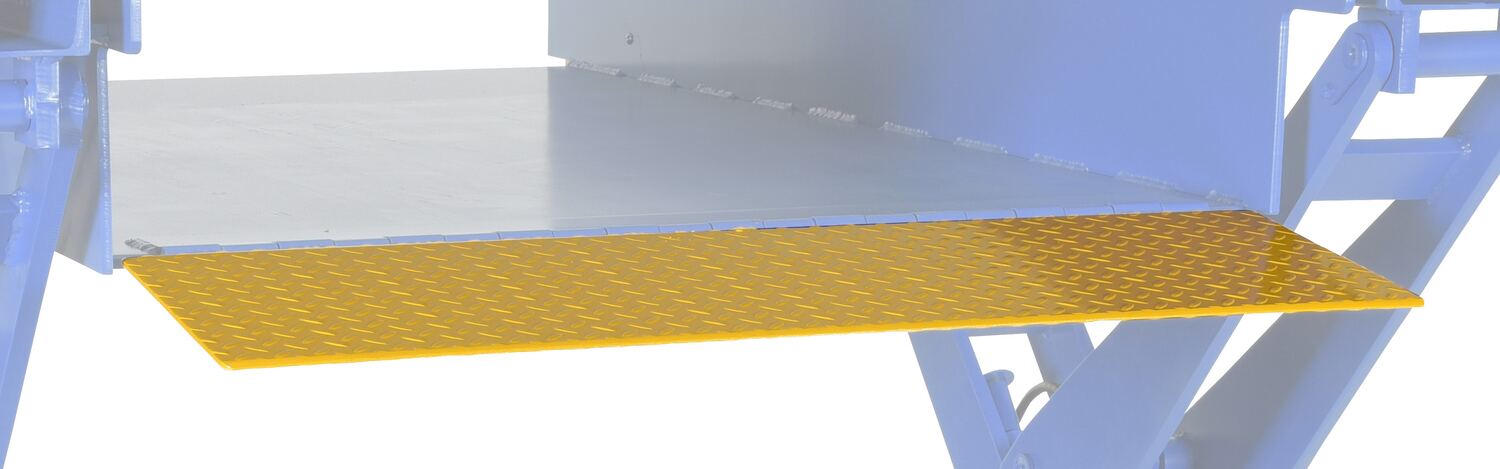

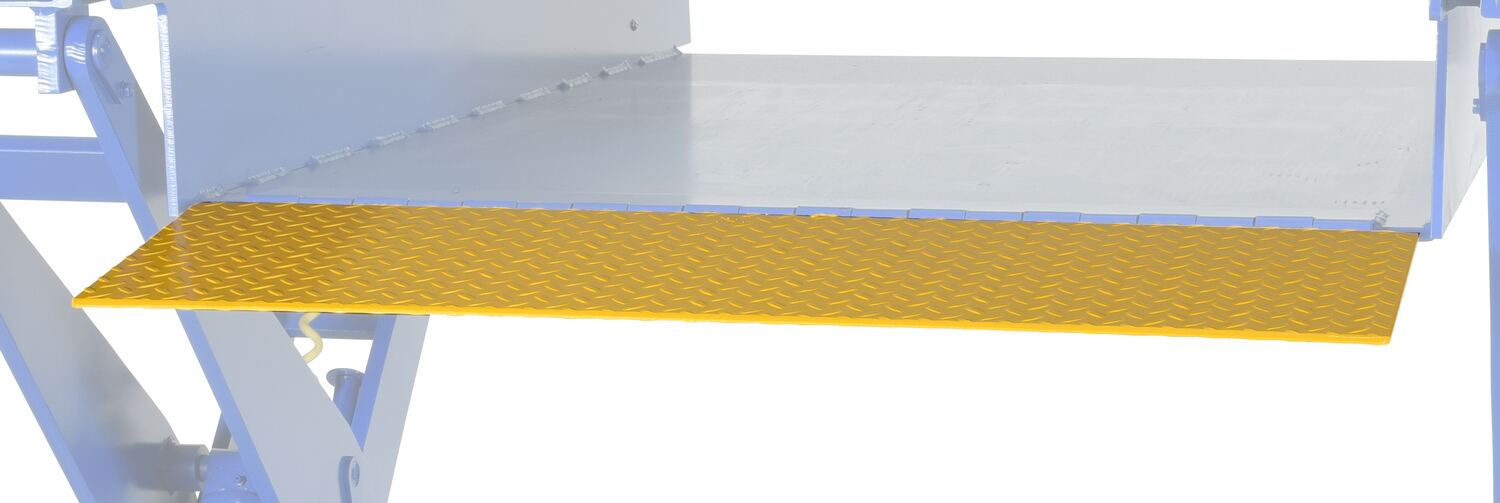

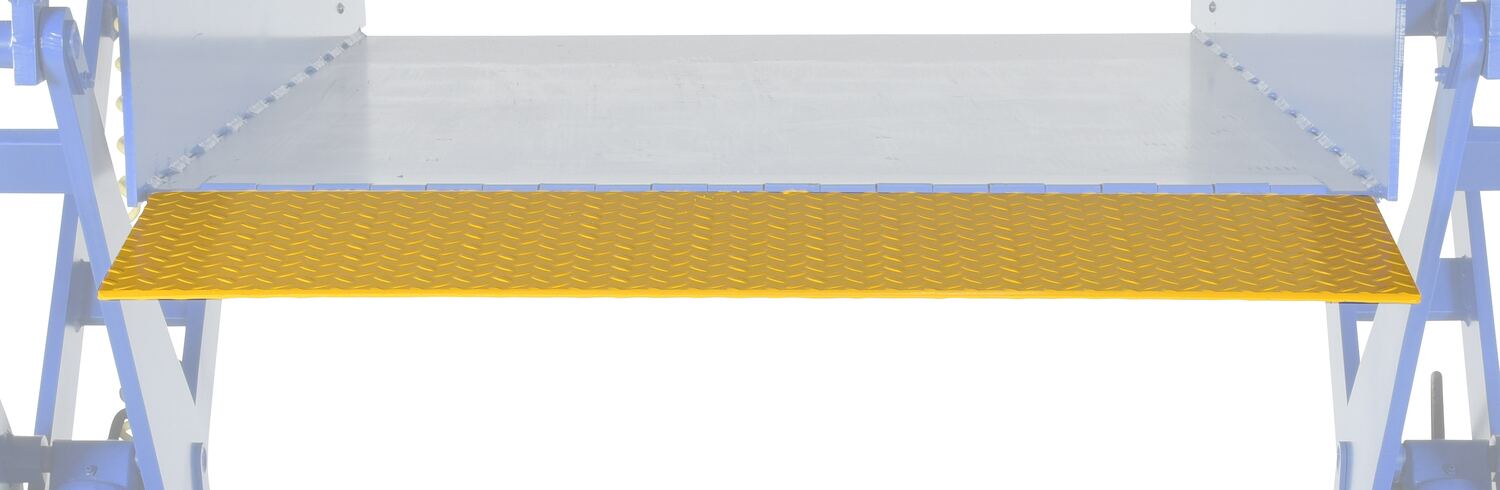

EHLTG-52-SB Steel Rollover Bridge For 52"W Decks (12" Long) /3,000 lbs. capacity 42

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Questions & Answers

No current Questions for this product. Check back soon, or submit a question to be answered below




If you did not find an expected Model or SKU # on this page, try the Options Tab.
