Model Details

EHLTX-4853-2-39

EHLTX-4853-2-39

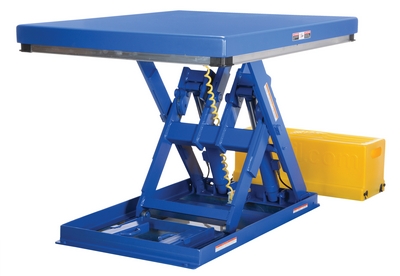

Steel Low Profile Electric Hydraulic Scissor Lift Tables 48 In. x 53 In. 2000 Lb. Capacity Blue

The low profile electric/hydraulic scissor lift table loads and unloads skids with a pallet truck without the need for a pit when using the optional approach ramp. The superior engineering features rugged durability with safety features that include an electric perimeter pinch point guard, emergency stop velocity fuse in cylinders, handheld control and maintenance supports. The remote power unit comes complete with a plastic cover to protect the motor from dust and debris.

  • Loads and unloads skids without the need for a pit
  • Features entry-side electric toe guard to protect pinch points
  • Includes velocity fuse to maintain platform height
  • Plastic cover protects motor from dust and debris
Total Ship Wt.(lbs.): 975 (only 1 package) Size: 48"W x 53"L x 3.25"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2,000 Raised Height (in.): 39 Travel Time (sec.): 14
Vertical Travel (in.): 35-3/4 Voltage/Phase: 460/3 Handheld Control Voltage: 24V AC
Platform Length (in.): 53 Platform Width (in.): 48

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTX-4853-2-39


EHLTX-4853-2-39

Steel Low Profile Electric Hydraulic Scissor Lift Tables 48 In. x 53 In. 2000 Lb. Capacity Blue

The low profile electric/hydraulic scissor lift table loads and unloads skids with a pallet truck without the need for a pit when using the optional approach ramp. The superior engineering features rugged durability with safety features that include an electric perimeter pinch point guard, emergency stop velocity fuse in cylinders, handheld control and maintenance supports. The remote power unit comes complete with a plastic cover to protect the motor from dust and debris.

  • Loads and unloads skids without the need for a pit
  • Features entry-side electric toe guard to protect pinch points
  • Includes velocity fuse to maintain platform height
  • Plastic cover protects motor from dust and debris
Dimensions: 48"W x 53"L x 3.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215065054 GTIN: 00691215065054
Warranty: -- Shipping Weight: 975 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2,000 Raised Height (in.): 39 Travel Time (sec.): 14
Vertical Travel (in.): 35-3/4 Voltage/Phase: 460/3 Handheld Control Voltage: 24V AC
Platform Length (in.): 53 Platform Width (in.): 48
