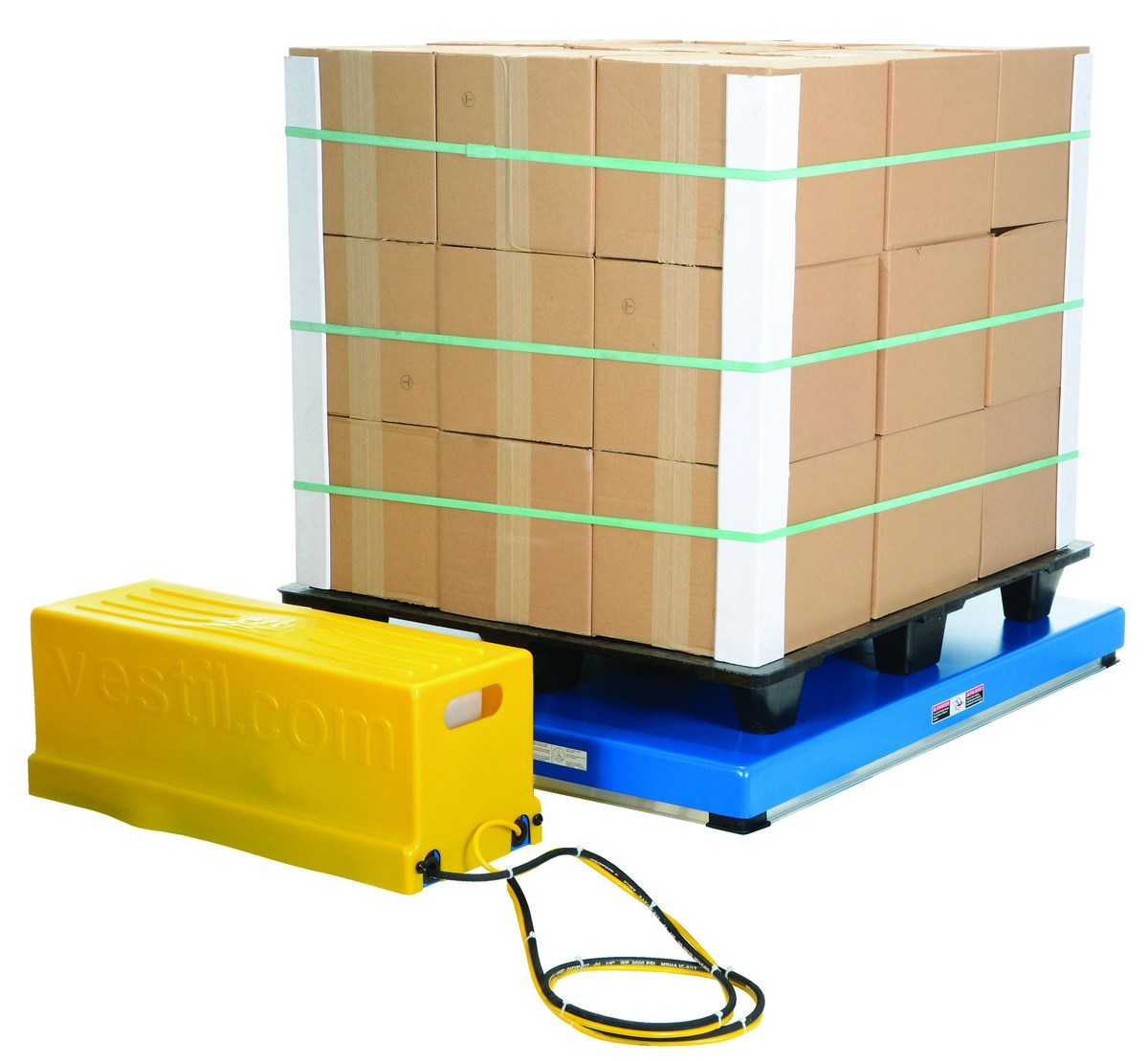

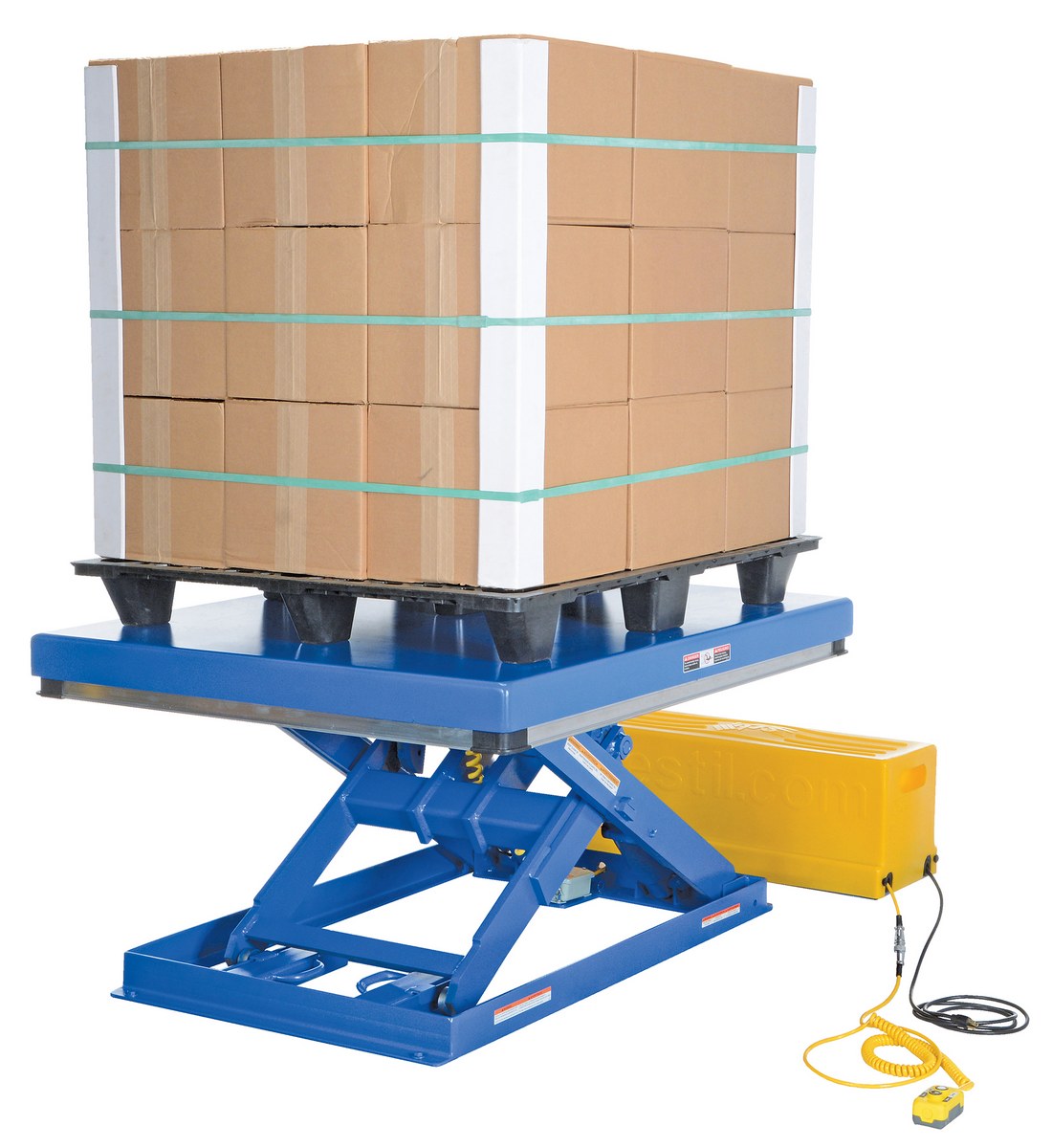

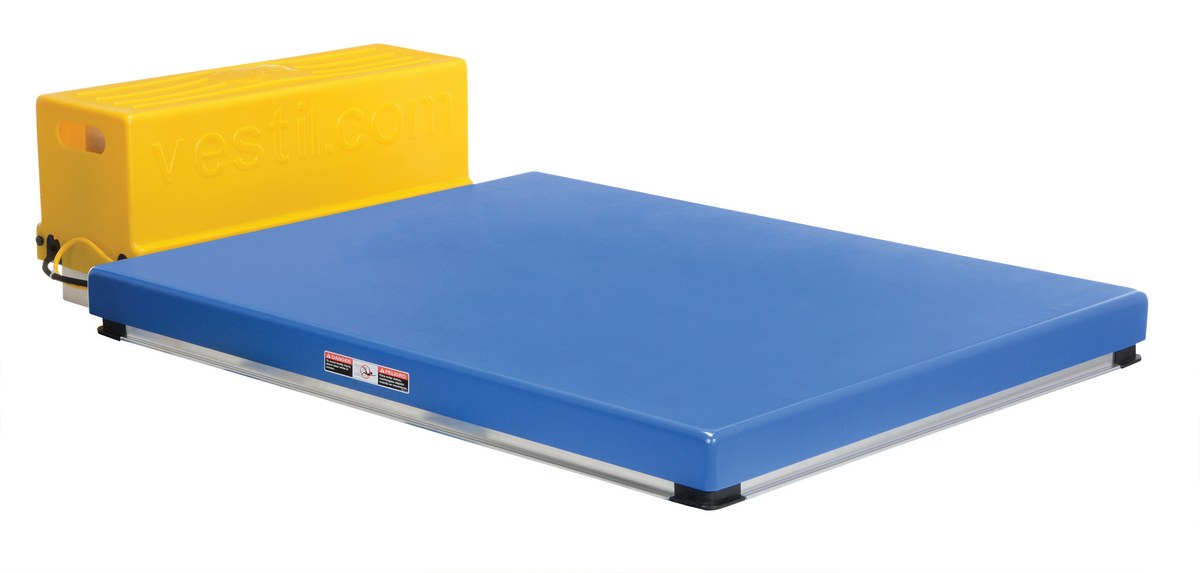

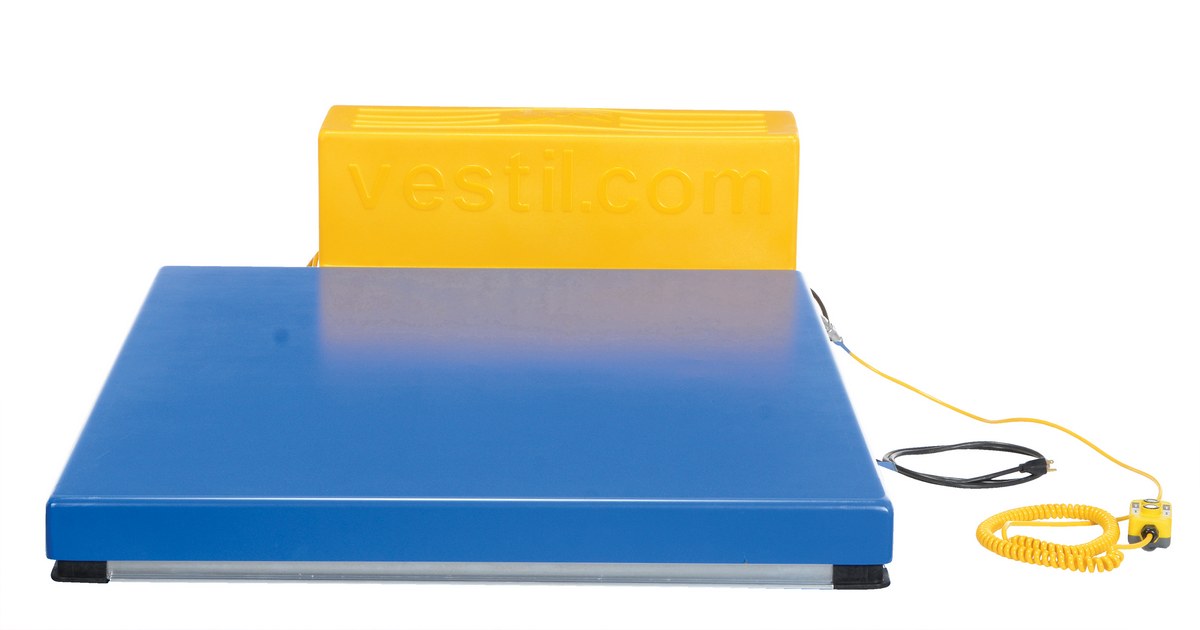

model: EHLTX-4253-3.5-39

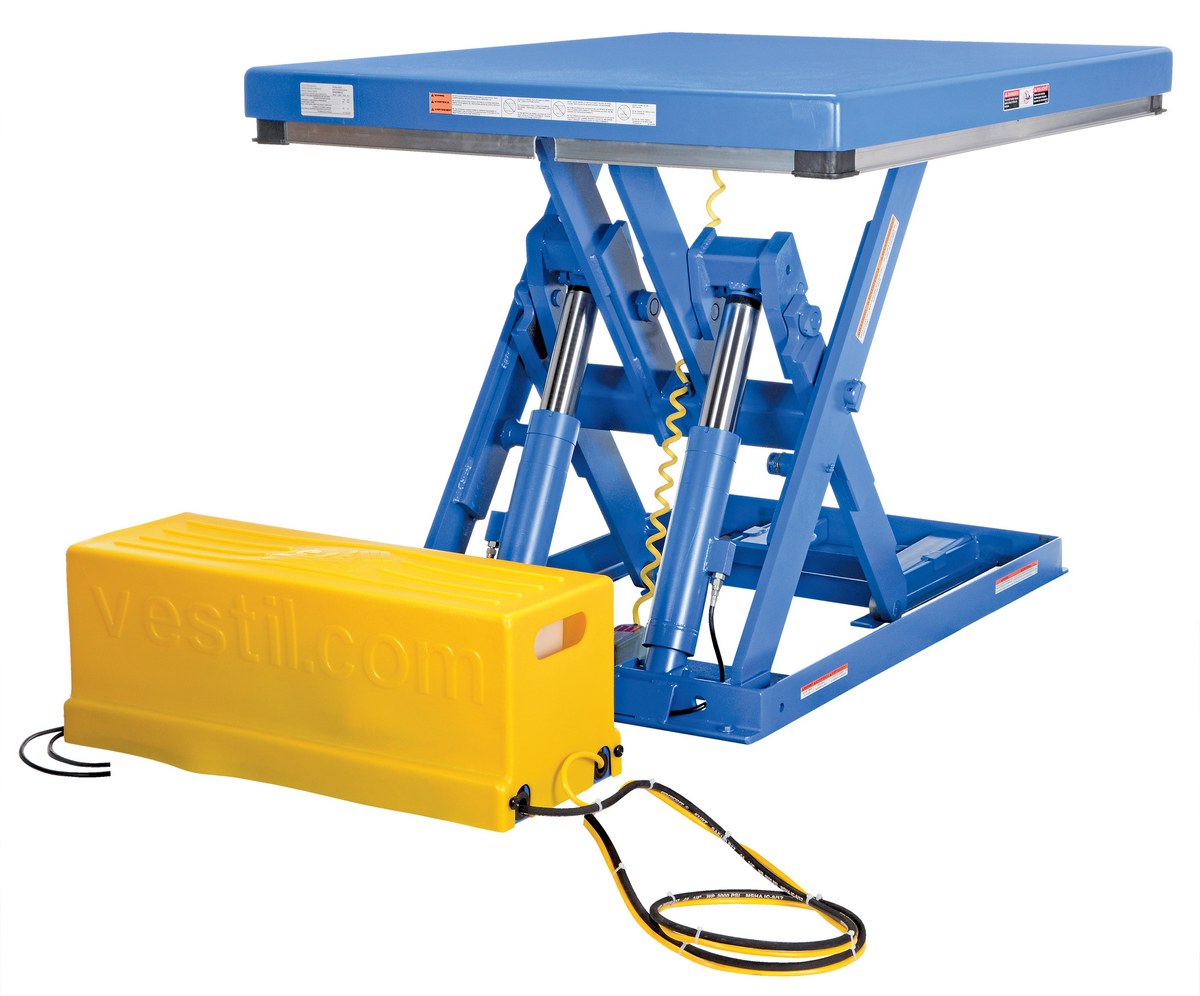

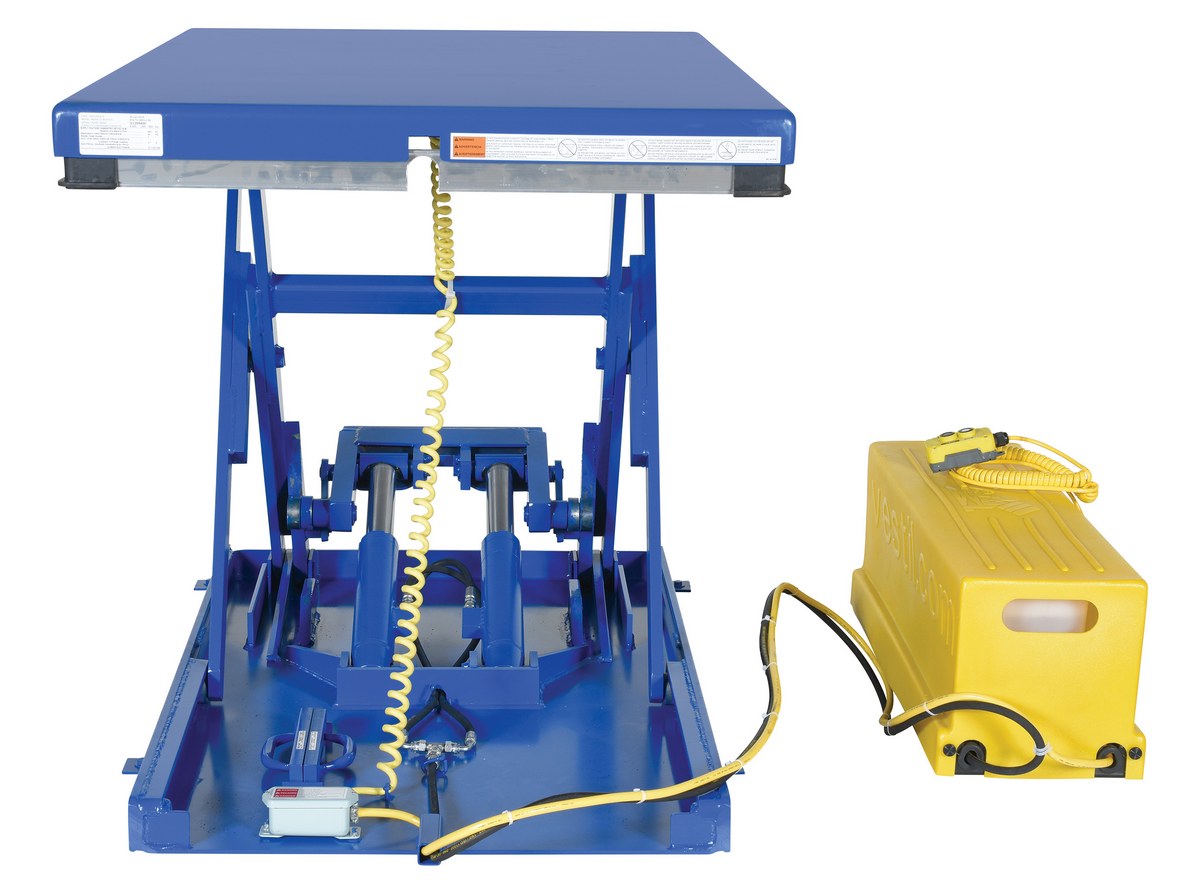

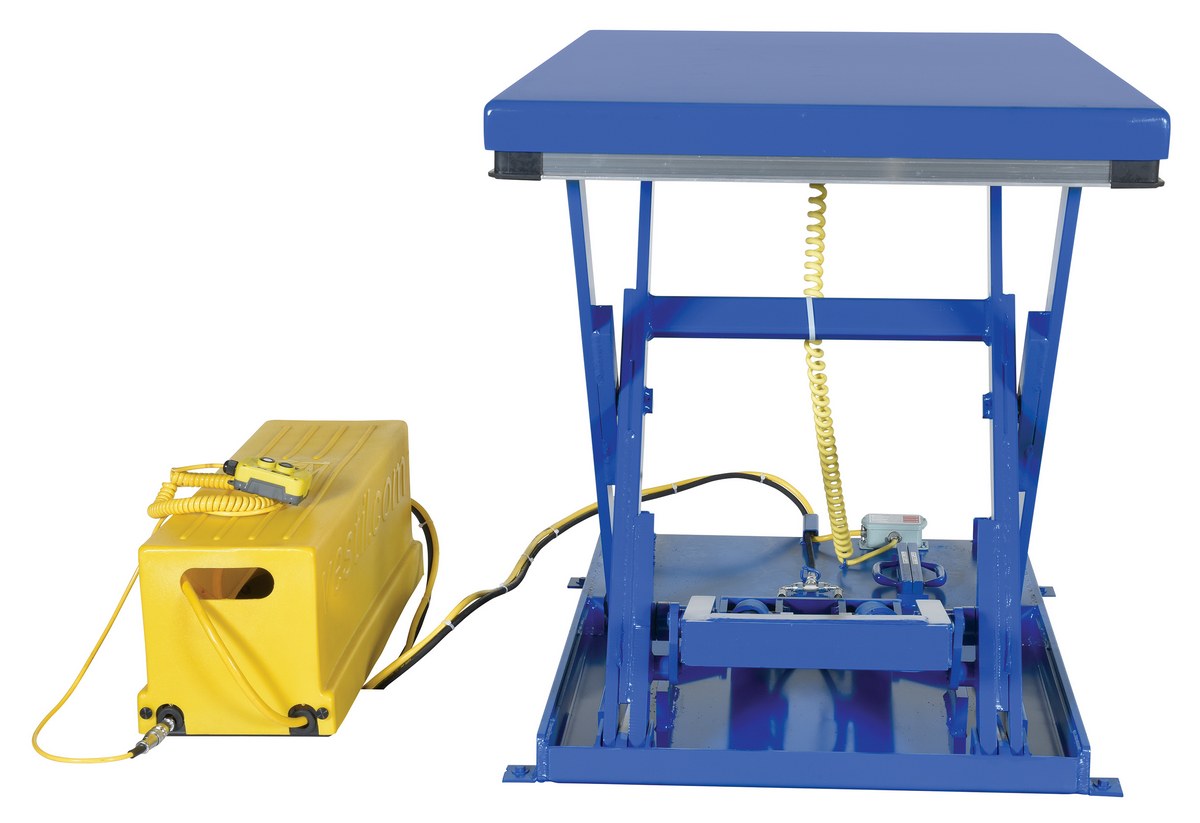

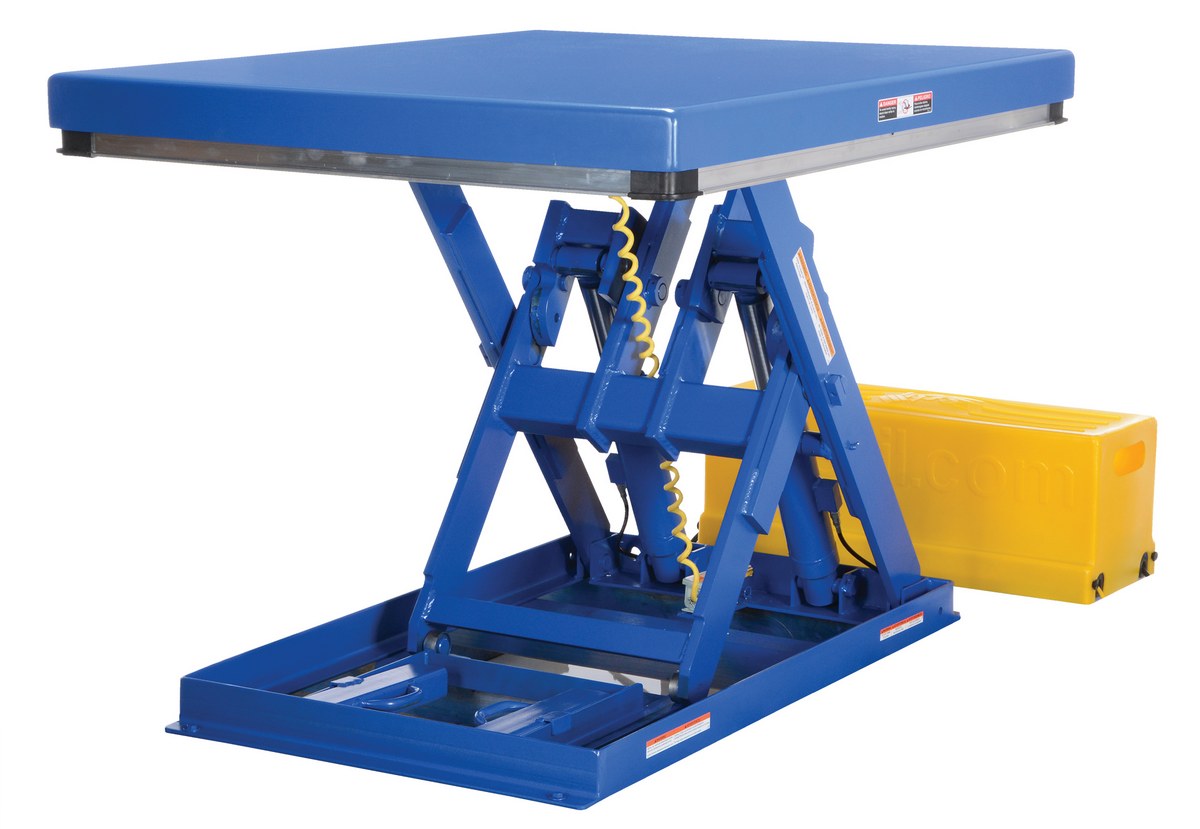

Low Profile Electric/Hydraulic Scissor Lift Tables
SERIES: EHLTX

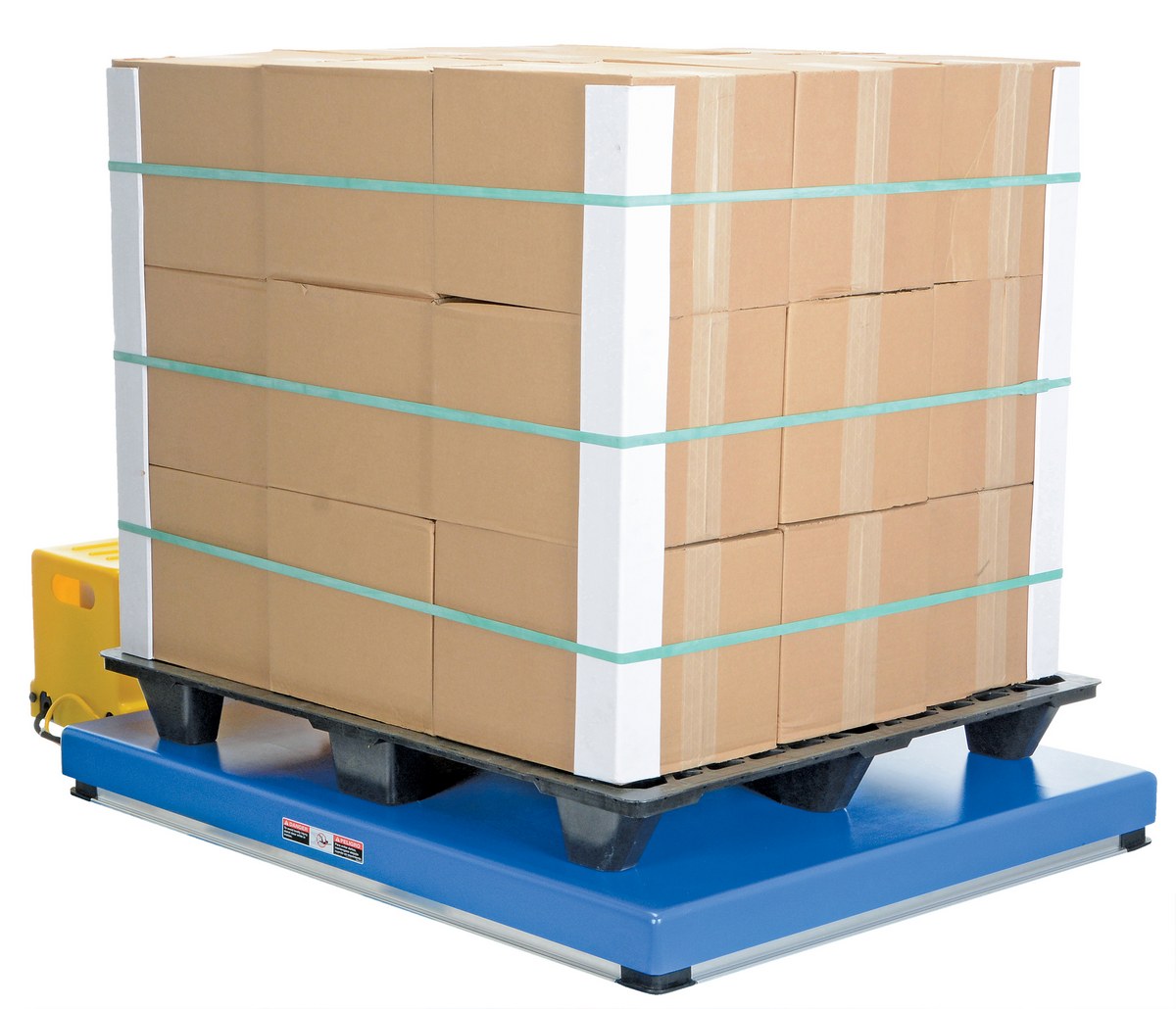

Load and unload skids with a pallet truck without the need for a pit when using the optional approach ramp. Superior engineered features and rugged dependability. Safety features include electric perimeter pinch point guard, emergency stop safety velocity fuse in cylinders, fused 24V AC hand held control, and maintenance supports. Remote power unit (32-1/2" x 12" x 12") with 8 foot of hose and cable comes complete with a plastic cover to protect the motor from dust and debris. All standard units are equiped with a 460V, 3-phase power supply.

Load and unload skids with a pallet truck without the need for a pit when using the optional approach ramp. Superior engineered features and rugged dependability. Safety features include electric perimeter pinch point guard, emergency stop safety velocity fuse in cylinders, fused 24V AC hand held control, and maintenance supports. Remote power unit (32-1/2" x 12" x 12") with 8 foot of hose and cable comes complete with a plastic cover to protect the motor from dust and debris. All standard units are equiped with a 460V, 3-phase power supply.

Other Lift & Tilt Tables

Electric Hydraulic Scissor Lift Tables

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Low Profile Electric/Hydraulic Scissor Lift Tables
Model Number Format
EHLTX - (width)(length) - capacity - raised height
Vertical Travel PDF's Platform Width Platform Length Capacity (lbs) Raised Height Lowered Height Travel Time (Sec) Wt.
(lbs)
35-3/4" Warranty PDF 36"-60" 53"-60" 1,000 39" 3-1/4" 14 915
35-3/4" Warranty PDF 36"-60" 53"-60" 2,000 39" 3-1/4" 14 975
35-3/4" Warranty PDF 36"-60" 53"-60" 3,000 39" 4-1/2" 22 1092
35-3/4" Warranty PDF 36"-60" 53"-60" 3,500 39" 4-1/2" 22 1869
EHLTX-3653-1-39
EHLTX-3660-2-39
EHLTX-4753-2-39
EHLTX-4853-3.5-39
EHLTX-5153-2-39
EHLTX-6053-2-39

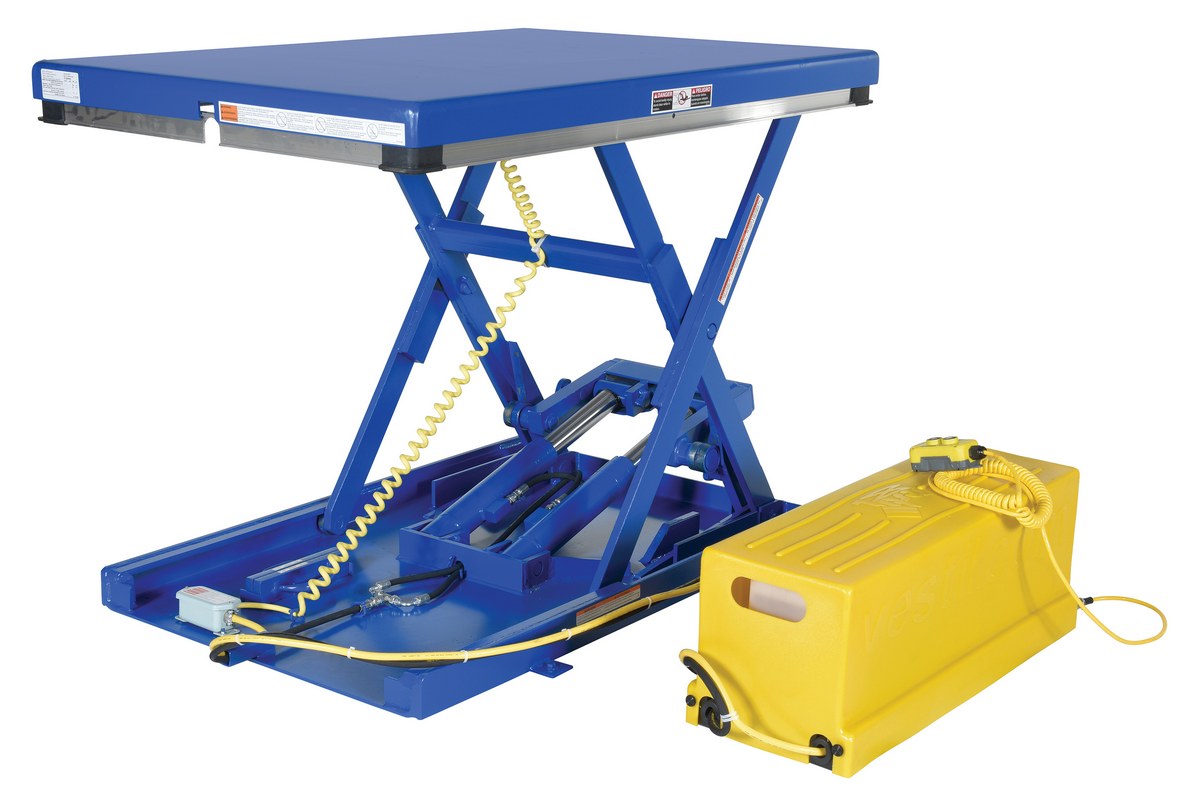

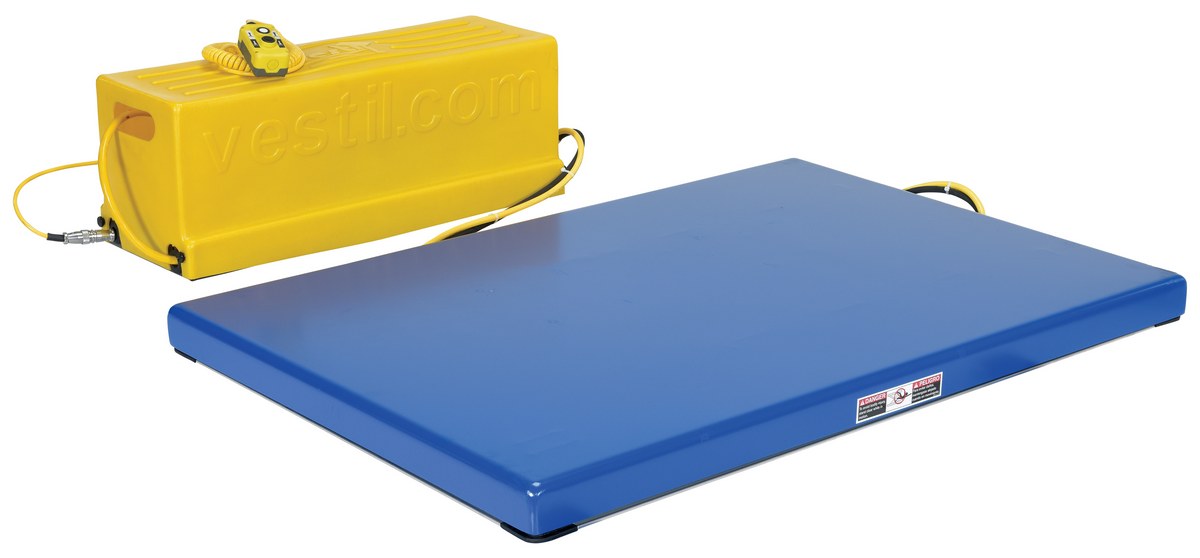

EHLTX-3653-2-39
EHLTX-4053-2-39
EHLTX-4756-1-39
EHLTX-4853-3-39
EHLTX-5353-3-39
EHLTX-6060-1-39
EHLTX-3653-3.5-39
EHLTX-4560-3.5-39
EHLTX-4756-2-39
EHLTX-4856-1-39
EHLTX-5454-1-39
EHLTX-6060-2-39
EHLTX-3653-3-39
EHLTX-4560-3-39
EHLTX-4760-1-39
EHLTX-4856-2-39
EHLTX-5454-2-39
EHLTX-6060-3.5-39
EHLTX-3656-1-39
EHLTX-4653-3.5-39
EHLTX-4760-2-39
EHLTX-4860-1-39
EHLTX-5656-1-39
EHLTX-6060-3-39
EHLTX-3656-2-39
EHLTX-4653-3-39
EHLTX-4853-1-39
EHLTX-4860-2-39
EHLTX-5656-2-39
EHLTX-3660-1-39
EHLTX-4753-1-39
EHLTX-4853-2-39
EHLTX-5153-1-39
EHLTX-6053-1-39

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

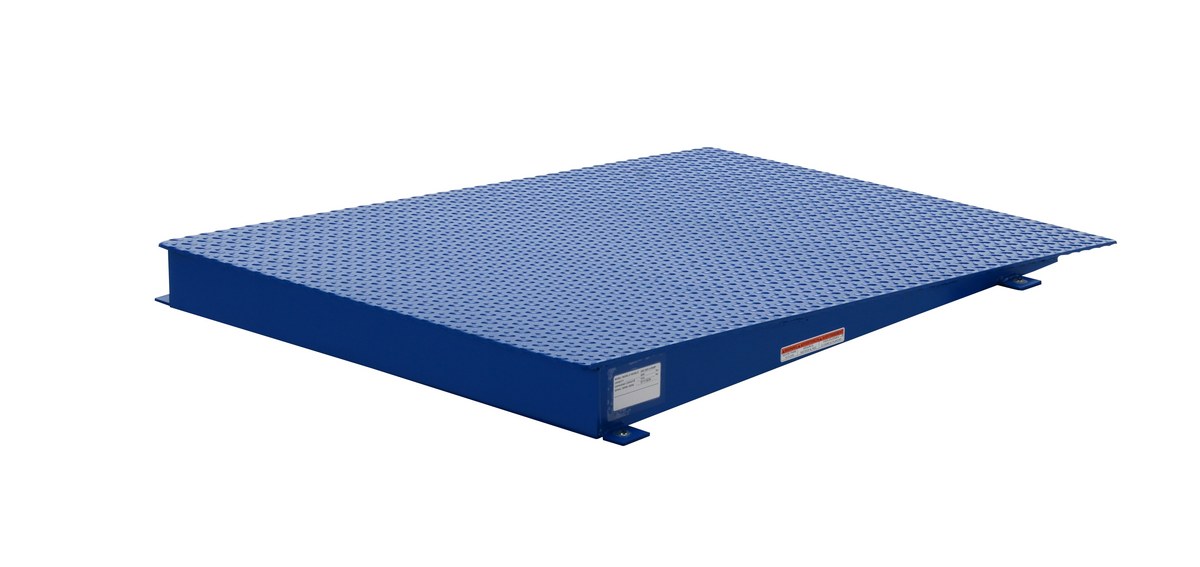

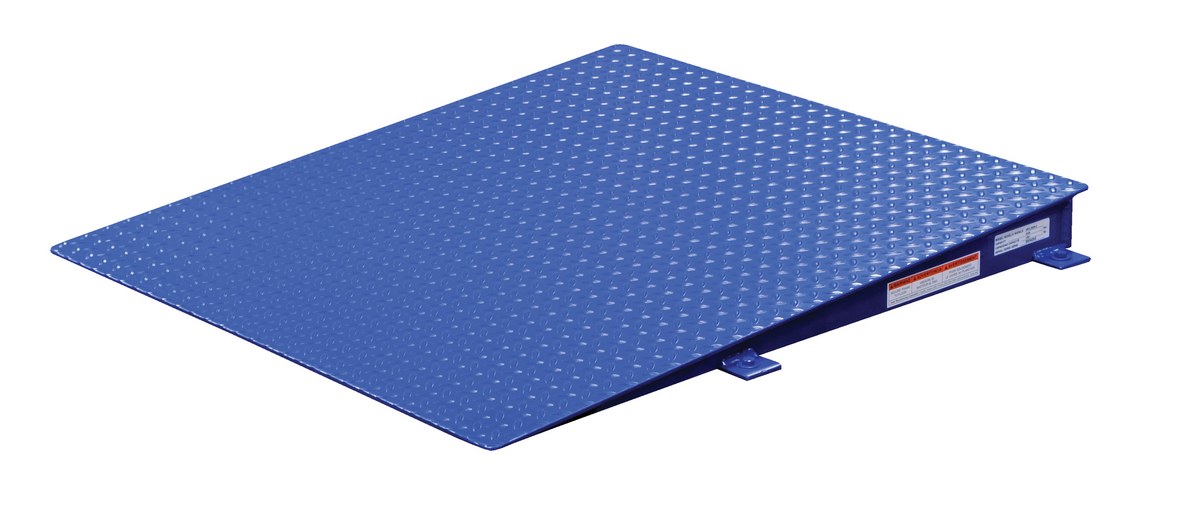

Approach Ramps for Low Profile Scissor Tables*
Model Image PDFs Usable
Width
Usable
Length
Height Wt.
(lbs)
ARX-3639-3 icon_approvaldrawings.jpgWarranty PDF 36" 39" 3-1/4" 150

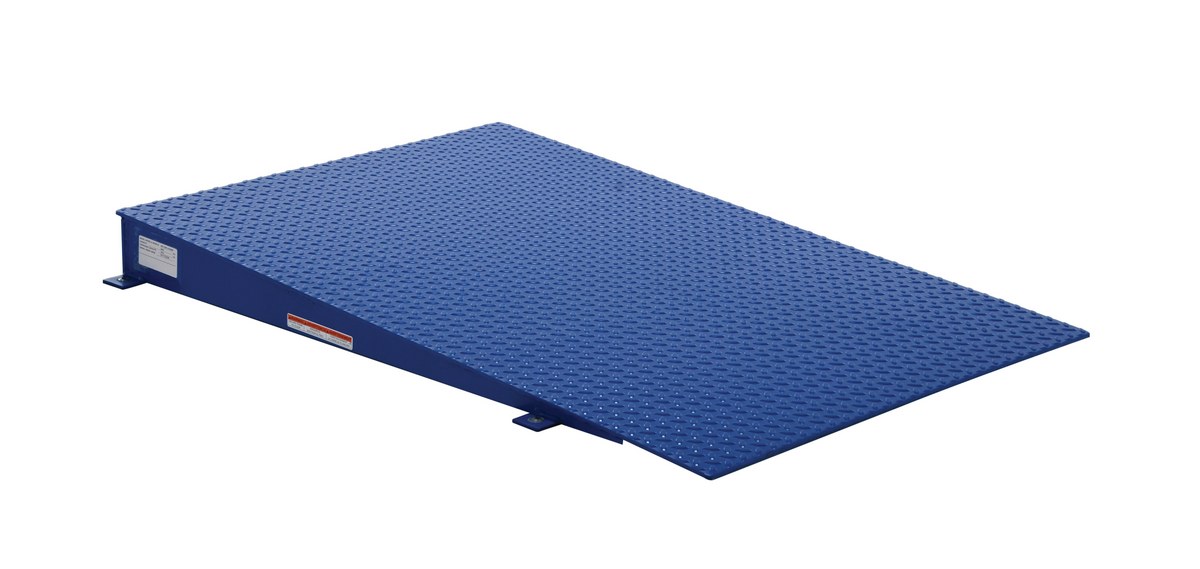

ARX-3654-4 icon_approvaldrawings.jpgWarranty PDF 36" 54" 4-1/2" 233
ARX-3665-5.5 - icon_approvaldrawings.jpgWarranty PDF 36" 65" 5-1/2" 271
*When ordering the rotate option, increase height of ramp by 1"

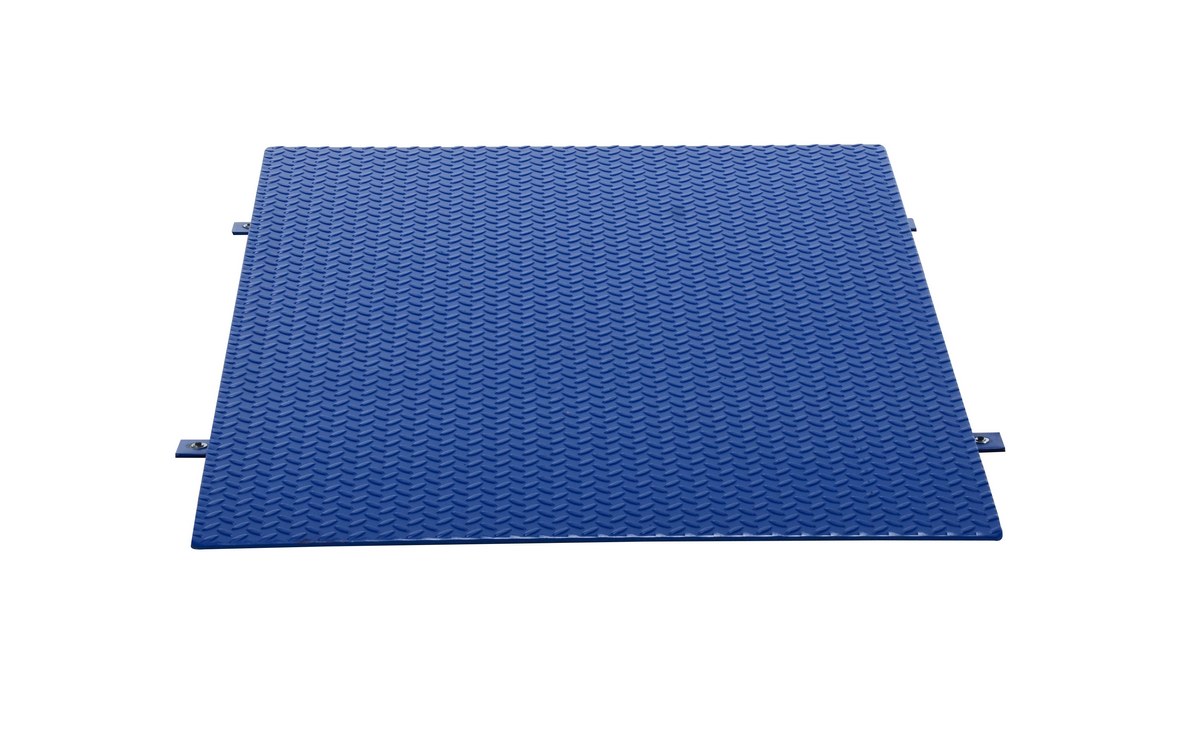

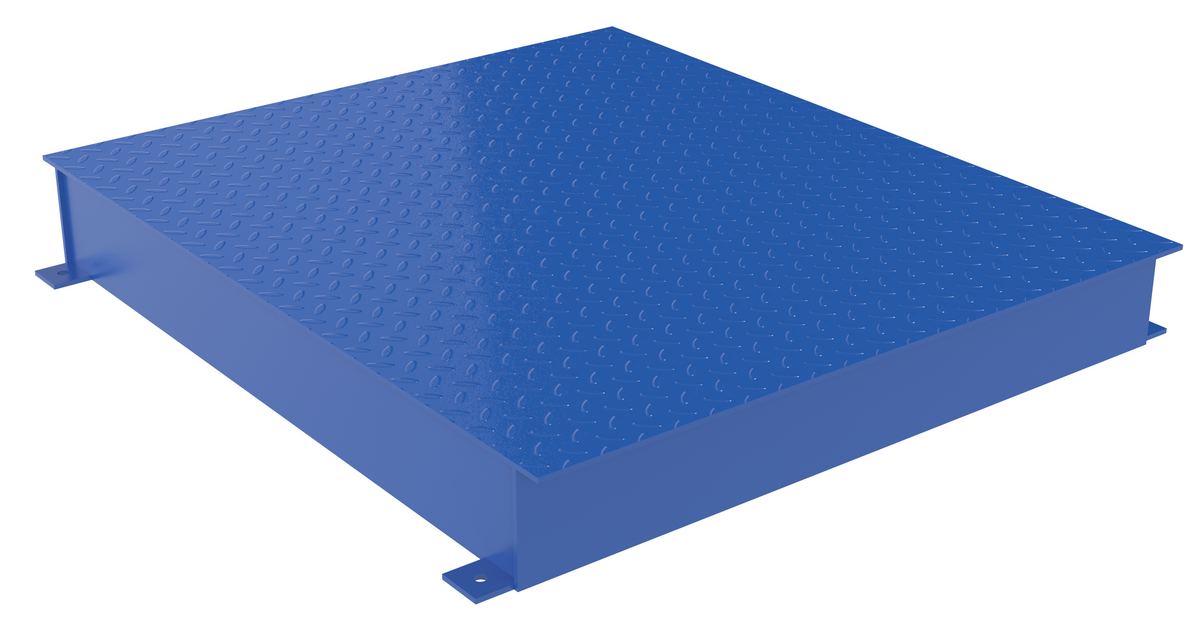

Approach Ramp Spacer
Model Image PDFs Works With Usable Width Usable Length Height Wt.
(lbs)

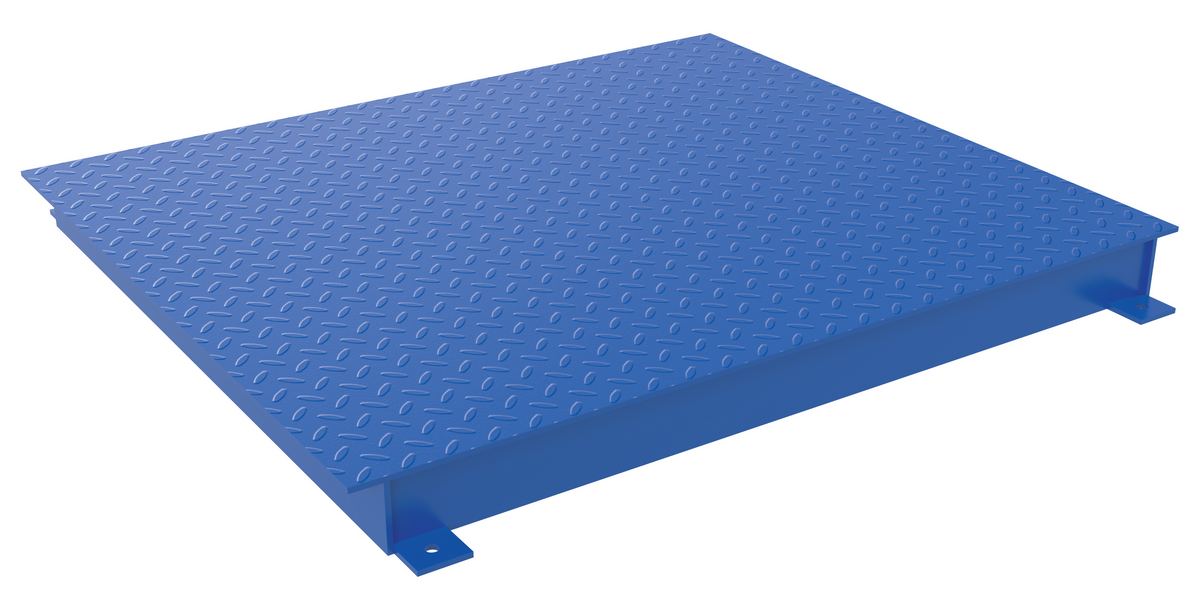

ARX-RS-3642-3 - Warranty PDF Model: ARX-3639-3 36" 42" 3-1/4" 208

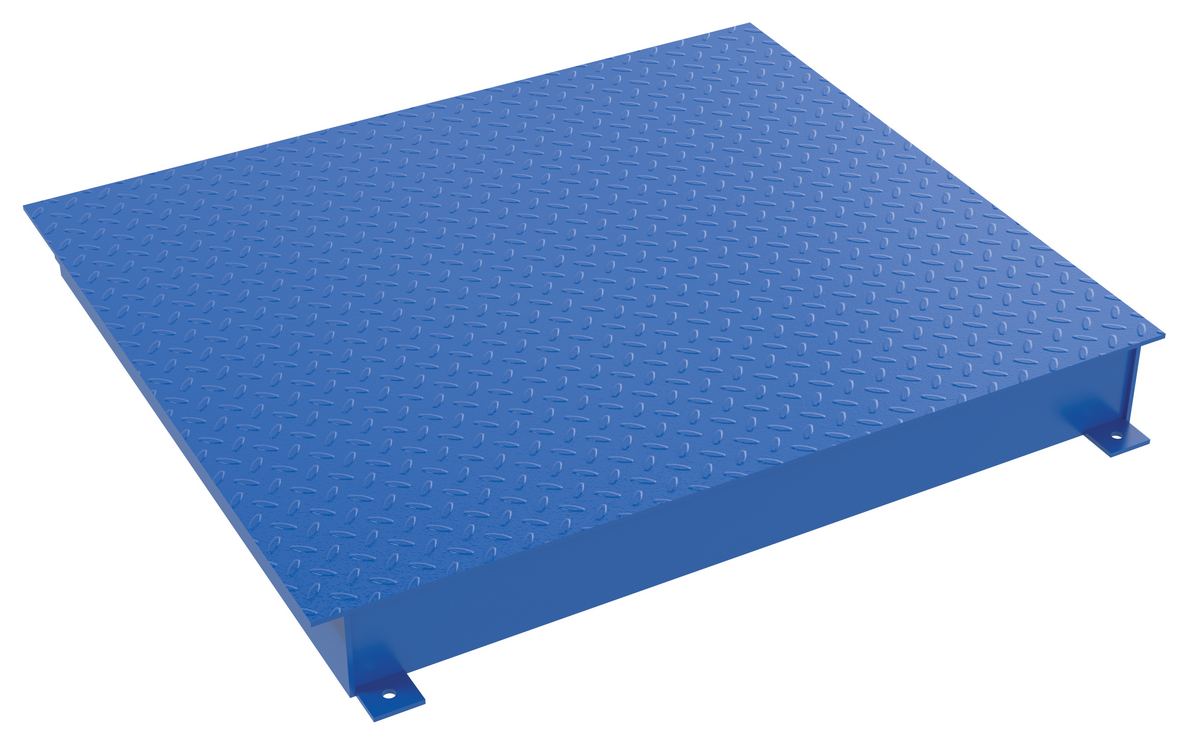

ARX-RS-3642-4 - Warranty PDF Model: ARX-3654-4 36" 42" 4-1/2" 234
ARX-RS-3642-5.5 - Warranty PDF Model: ARX-3665-5.5 36" 42" 5-1/2" 255

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

ARX-3639-3

ARX-3639-3

ARX-3654-4

ARX-3654-4

ARX-3665-5.5

ARX-3665-5.5

ARX-RS-3642-3

ARX-RS-3642-3

ARX-RS-3642-4

ARX-RS-3642-4

ARX-RS-3642-5.5

ARX-RS-3642-5.5

EHLT-AR-3665-7

EHLT-AR-3665-7

EHLT-AR-RS-3642-7

EHLT-AR-RS-3642-7

EHLTX-3653-1-39

EHLTX-3653-1-39

EHLTX-3653-2-39

EHLTX-3653-2-39

EHLTX-3653-3.5-39

EHLTX-3653-3.5-39

EHLTX-3656-1-39

EHLTX-3656-1-39

EHLTX-3656-2-39

EHLTX-3656-2-39

EHLTX-3660-1-39

EHLTX-3660-1-39

EHLTX-3660-2-39

EHLTX-3660-2-39

EHLTX-4053-2-39

EHLTX-4053-2-39

EHLTX-4560-3-39

EHLTX-4560-3-39

EHLTX-4560-3.5-39

EHLTX-4560-3.5-39

EHLTX-4653-3-39

EHLTX-4653-3-39

EHLTX-4653-3.5-39

EHLTX-4653-3.5-39

EHLTX-4753-1-39

EHLTX-4753-1-39

EHLTX-4753-2-39

EHLTX-4753-2-39

EHLTX-4756-1-39

EHLTX-4756-1-39

EHLTX-4756-2-39

EHLTX-4756-2-39

EHLTX-4760-1-39

EHLTX-4760-1-39

EHLTX-4760-2-39

EHLTX-4760-2-39

EHLTX-4853-1-39

EHLTX-4853-1-39

EHLTX-4853-2-39

EHLTX-4853-2-39

EHLTX-4853-3-39

EHLTX-4853-3-39

EHLTX-4853-3.5-39

EHLTX-4853-3.5-39

EHLTX-4856-1-39

EHLTX-4856-1-39

EHLTX-4856-2-39

EHLTX-4856-2-39

EHLTX-4860-1-39

EHLTX-4860-1-39

EHLTX-4860-2-39

EHLTX-4860-2-39

EHLTX-5153-1-39

EHLTX-5153-1-39

EHLTX-5153-2-39

EHLTX-5153-2-39

EHLTX-5353-3-39

EHLTX-5353-3-39

EHLTX-5454-1-39

EHLTX-5454-1-39

EHLTX-5454-2-39

EHLTX-5454-2-39

EHLTX-5656-1-39

EHLTX-5656-1-39

EHLTX-5656-2-39

EHLTX-5656-2-39

EHLTX-6053-1-39

EHLTX-6053-1-39

EHLTX-6053-2-39

EHLTX-6053-2-39

EHLTX-6060-1-39

EHLTX-6060-1-39

EHLTX-6060-2-39

EHLTX-6060-2-39

EHLTX-6060-3-39

EHLTX-6060-3-39

EHLTX-6060-3.5-39

EHLTX-6060-3.5-39






Low Profile Electric/Hydraulic Scissor Lift Tables PDF's will open in a new window when clicked.

Survey Sheets


Approval Drawings

ARX-3639-3
ARX-3654-4
ARX-3665-5.5
ARX-RS-3642-3
ARX-RS-3642-4
ARX-RS-3642-5.5
EHLT-AR-3665-7
EHLT-AR-RS-3642-7
EHLTX-3653-1-39
EHLTX-3653-2-39
EHLTX-3653-3.5-39
EHLTX-3656-1-39
EHLTX-3656-2-39
EHLTX-3660-1-39
EHLTX-3660-2-39
EHLTX-4053-2-39
EHLTX-4560-3.5-39
EHLTX-4560-3-39
EHLTX-4653-3.5-39
EHLTX-4653-3-39
EHLTX-4753-1-39
EHLTX-4753-2-39
EHLTX-4756-1-39
EHLTX-4756-2-39
EHLTX-4760-1-39
EHLTX-4760-2-39
EHLTX-4853-1-39
EHLTX-4853-2-39
EHLTX-4853-3.5-39
EHLTX-4853-3-39
EHLTX-4856-1-39
EHLTX-4856-2-39
EHLTX-4860-1-39
EHLTX-4860-2-39
EHLTX-5153-1-39
EHLTX-5153-2-39
EHLTX-5353-3-39
EHLTX-5454-1-39
EHLTX-5454-2-39
EHLTX-5656-1-39
EHLTX-5656-2-39
EHLTX-6053-1-39
EHLTX-6053-2-39
EHLTX-6060-1-39
EHLTX-6060-2-39
EHLTX-6060-3.5-39
EHLTX-6060-3-39

Testing Certificates

EHLTX-6060-2-39
EHLTX-4853-2-39
EHLTX-3653-2-39
ARX-3654-4
ARX-3639-3
EHLTX-6060-3.5-39
EHLTX-4653-3.5-39
EHLTX-4560-3.5-39
EHLTX-3653-3.5-39
EHLTX-6060-3-39
EHLTX-4653-3-39
EHLTX-4560-3-39
EHLTX-3656-1-39
EHLTX-3660-1-39
EHLTX-3653-1-39
EHLTX-4756-1-39
EHLTX-4753-1-39
EHLTX-4760-1-39
EHLTX-4856-1-39
EHLTX-4860-1-39
EHLTX-4853-1-39
EHLTX-6060-1-39
EHLTX-5454-1-39
EHLTX-6053-1-39
EHLTX-5153-1-39
EHLTX-5656-1-39
EHLTX-3656-2-39
EHLTX-4756-2-39
EHLTX-3660-2-39
EHLTX-4753-2-39
EHLTX-4760-2-39
EHLTX-4856-2-39
EHLTX-4860-2-39
EHLTX-5454-2-39
EHLTX-6053-2-39
EHLTX-5656-2-39
EHLTX-5153-2-39

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: Is there a ramp we can use with the low profile scissor lift table?

A: Yes we have approach ramps which are a great addition to the low profile scissor lift tables. You'll find that information under the options tab of the EHLTX information page. The ARX-3639-3 can be used with one and two thousand lb. capacity tables. For the 3 and 3.5 lb. capacity the ARX-3654-4 is the perfect transition from the pallet truck to the table.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Low Profile Electric/Hydraulic...




Load and unload skids with a pallet truck without the need for a pit when using the optional approach ramp. Superior engineered features and rugged dependability. Safety features include electric perimeter pinch point guard, emergency stop safety velocity fuse in cylinders, fused 24V AC hand held control, and maintenance supports. Remote power unit (32-1/2" x 12" x 12") with 8 foot of hose and cable comes complete with a plastic cover to protect the motor from dust and debris. All standard units are equiped with a 460V, 3-phase power supply.


Low Profile Electric/Hydraulic Scissor Lift Tables
Model Number Format
EHLTX - (width)(length) - capacity - raised height
Vertical Travel PDF's Platform Width Platform Length Capacity (lbs) Raised Height Lowered Height Travel Time (Sec) Wt.
(lbs)
35-3/4" Warranty PDF 36"-60" 53"-60" 1,000 39" 3-1/4" 14 915
35-3/4" Warranty PDF 36"-60" 53"-60" 2,000 39" 3-1/4" 14 975
35-3/4" Warranty PDF 36"-60" 53"-60" 3,000 39" 4-1/2" 22 1092
35-3/4" Warranty PDF 36"-60" 53"-60" 3,500 39" 4-1/2" 22 1869
EHLTX-3653-1-39
EHLTX-3660-2-39
EHLTX-4753-2-39
EHLTX-4853-3.5-39
EHLTX-5153-2-39
EHLTX-6053-2-39
EHLTX-3653-2-39
EHLTX-4053-2-39
EHLTX-4756-1-39
EHLTX-4853-3-39
EHLTX-5353-3-39
EHLTX-6060-1-39
EHLTX-3653-3.5-39
EHLTX-4560-3.5-39
EHLTX-4756-2-39
EHLTX-4856-1-39
EHLTX-5454-1-39
EHLTX-6060-2-39
EHLTX-3653-3-39
EHLTX-4560-3-39
EHLTX-4760-1-39
EHLTX-4856-2-39
EHLTX-5454-2-39
EHLTX-6060-3.5-39
EHLTX-3656-1-39
EHLTX-4653-3.5-39
EHLTX-4760-2-39
EHLTX-4860-1-39
EHLTX-5656-1-39
EHLTX-6060-3-39
EHLTX-3656-2-39
EHLTX-4653-3-39
EHLTX-4853-1-39
EHLTX-4860-2-39
EHLTX-5656-2-39
EHLTX-3660-1-39
EHLTX-4753-1-39
EHLTX-4853-2-39
EHLTX-5153-1-39
EHLTX-6053-1-39

Options


Approach Ramps for Low Profile Scissor Tables*
Model Image PDFs Usable
Width
Usable
Length
Height Wt.
(lbs)
ARX-3639-3 icon_approvaldrawings.jpgWarranty PDF 36" 39" 3-1/4" 150
ARX-3654-4 icon_approvaldrawings.jpgWarranty PDF 36" 54" 4-1/2" 233
ARX-3665-5.5 - icon_approvaldrawings.jpgWarranty PDF 36" 65" 5-1/2" 271
*When ordering the rotate option, increase height of ramp by 1"
Approach Ramp Spacer
Model Image PDFs Works With Usable Width Usable Length Height Wt.
(lbs)
ARX-RS-3642-3 - Warranty PDF Model: ARX-3639-3 36" 42" 3-1/4" 208
ARX-RS-3642-4 - Warranty PDF Model: ARX-3654-4 36" 42" 4-1/2" 234
ARX-RS-3642-5.5 - Warranty PDF Model: ARX-3665-5.5 36" 42" 5-1/2" 255
