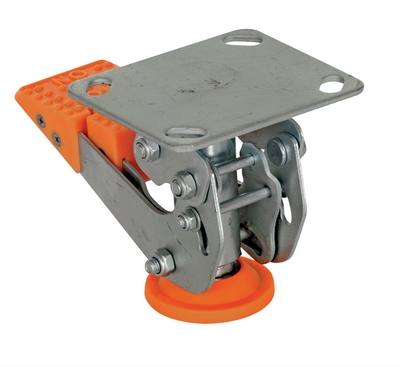

Floor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.

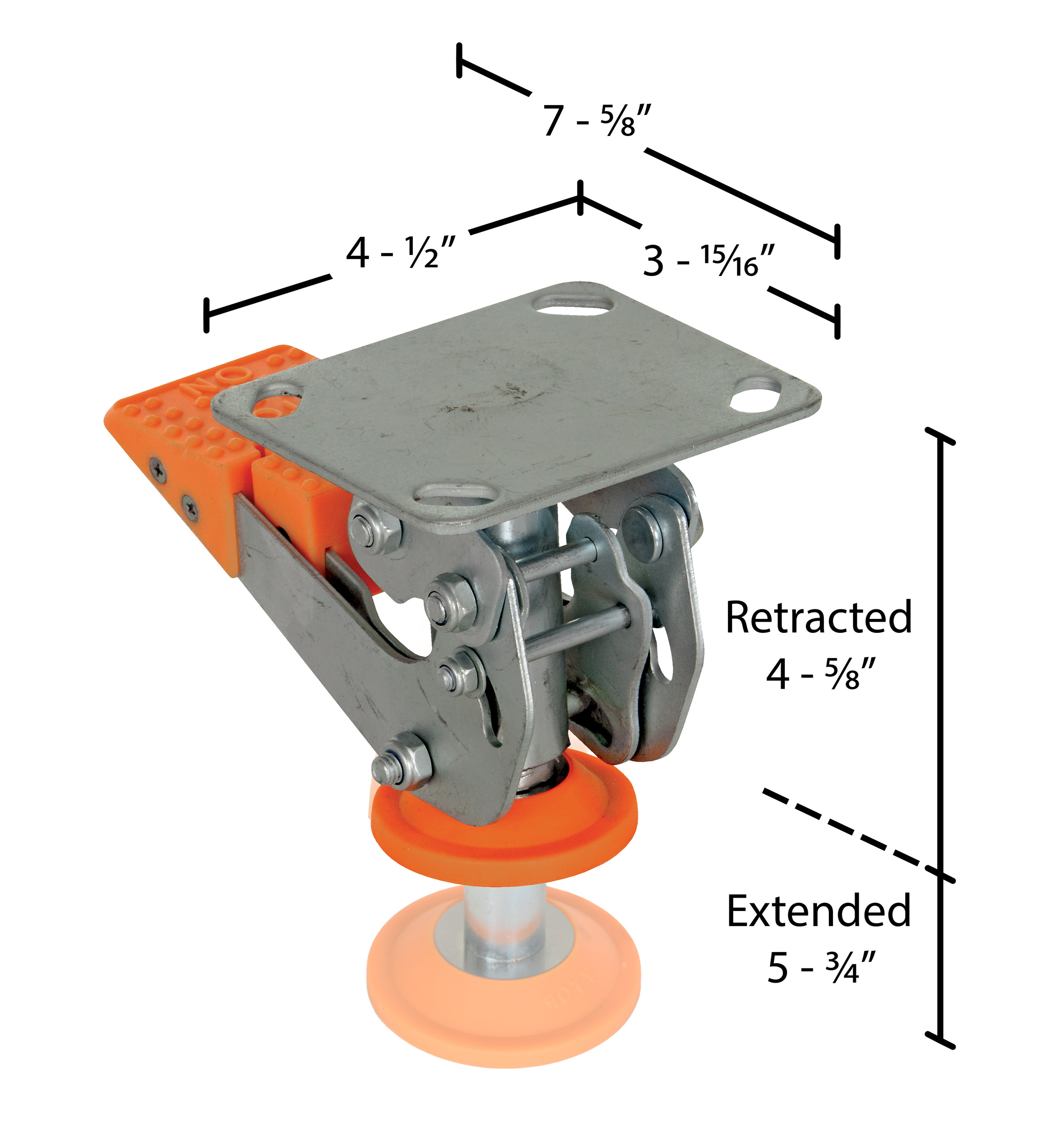

| Lowered Height (in.): 4-5/8 | Raised Height (in.): 5-3/4 | Foot Pad Diameter (in.): 2-9/16 |
| Foot Pad Material: Thermoplastic polyurethane (TPU) | Grip Pedal Material: Thermoplastic polyurethane (TPU) | Mounting Plate (in.): 3-15/16 x 4-1/2 |
| Slotted Holes on Center (in.): 3-1/16, 3-11/16 | Mounting Plate Thickness (in.): 3/16 | Slotted Mounting Hole Width/Height (in.): 3/8 x 13/16 |
| Inside Bolt Hole Spacing (in.): 2-9/16 X 3-3/16 | Outside Bolt Hole Spacing (in.): 3-3/16 X 3-11/16 | Suggested Caster Size (in.): 4 |
Quickship Item?
Quickship ItemCan It Ship UPS/FedEx?
Parcel - Can Go UPS
Details For Model: FL-LKH-4 |
|||||||||||||||||||||||||||||
|
Steel Floor Lock 4-5/8 to 5-3/4 In. Height SilverFloor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.
|
||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
