Model Details

FL-LKH-6

FL-LKH-6

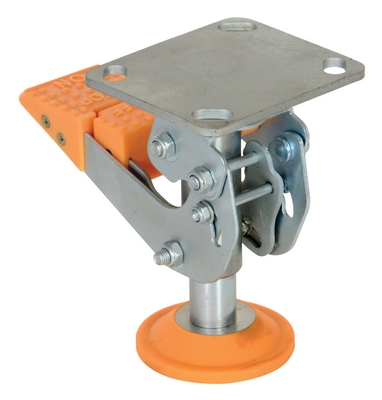

Steel Floor Lock 6-9/16 to 7-5/8 In. Height Silver

Floor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.

  • Steel construction for durability
  • Thermoplastic polyurethane base for stability
  • Locking device for quick service
  • Lightweight for portability
Total Ship Wt.(lbs.): 5 (only 1 package) Size: 4.5"W x 7.625"L x 6.5625"H Color: Silver QuickShip

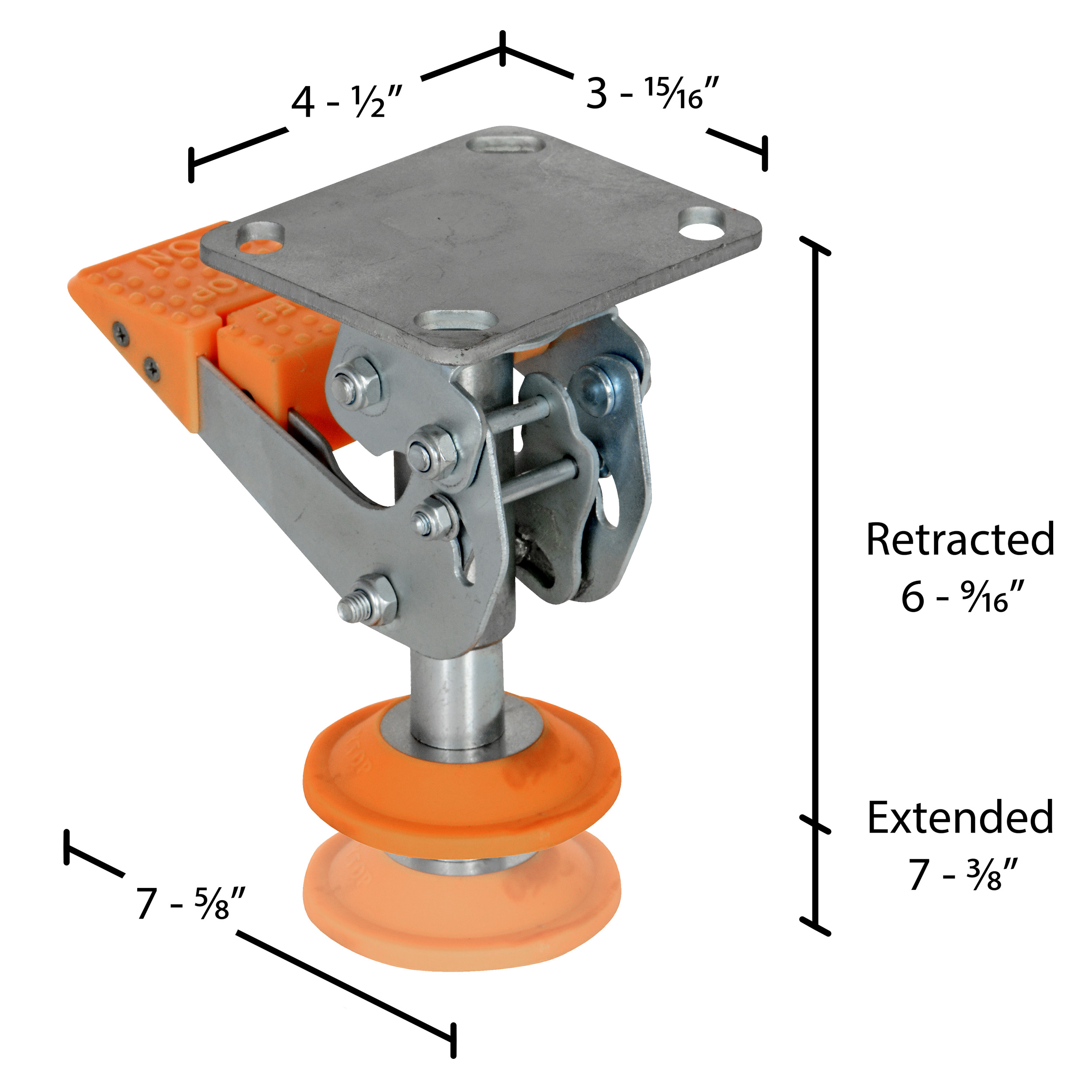

Lowered Height (in.): 6-9/16 Raised Height (in.): 7-5/8 Foot Pad Diameter (in.): 3-5/16
Foot Pad Material: Thermoplastic polyurethane (TPU) Grip Pedal Material: Thermoplastic polyurethane (TPU) Mounting Plate (in.): 3-15/16 x 4-1/2
Slotted Holes on Center (in.): 3-1/16, 3-11/16 Mounting Plate Thickness (in.): 3/16 Slotted Mounting Hole Width/Height (in.): 3/8 x 13/16
Inside Bolt Hole Spacing (in.): 2-9/16 X 3-3/16 Outside Bolt Hole Spacing (in.): 3-3/16 X 3-11/16 Suggested Caster Size (in.): 6

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-LKH-6


FL-LKH-6

Steel Floor Lock 6-9/16 to 7-5/8 In. Height Silver

Floor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.

  • Steel construction for durability
  • Thermoplastic polyurethane base for stability
  • Locking device for quick service
  • Lightweight for portability
Dimensions: 4.5"W x 7.625"L x 6.5625"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215114325 GTIN: 00691215114325
Warranty: -- Shipping Weight: 5 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Lowered Height (in.): 6-9/16 Raised Height (in.): 7-5/8 Foot Pad Diameter (in.): 3-5/16
Foot Pad Material: Thermoplastic polyurethane (TPU) Grip Pedal Material: Thermoplastic polyurethane (TPU) Mounting Plate (in.): 3-15/16 x 4-1/2
Slotted Holes on Center (in.): 3-1/16, 3-11/16 Mounting Plate Thickness (in.): 3/16 Slotted Mounting Hole Width/Height (in.): 3/8 x 13/16
Inside Bolt Hole Spacing (in.): 2-9/16 X 3-3/16 Outside Bolt Hole Spacing (in.): 3-3/16 X 3-11/16 Suggested Caster Size (in.): 6
