Model Details

H-150-MD-BD

H-150-MD-BD

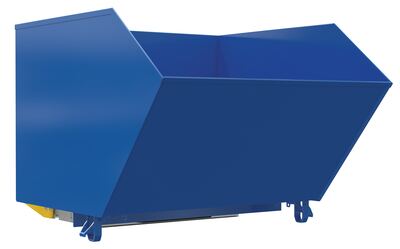

Steel Medium Duty Bump & Dump Hopper 1-1/2 Cubic Yard 4,000 Lb. Capacity Blue

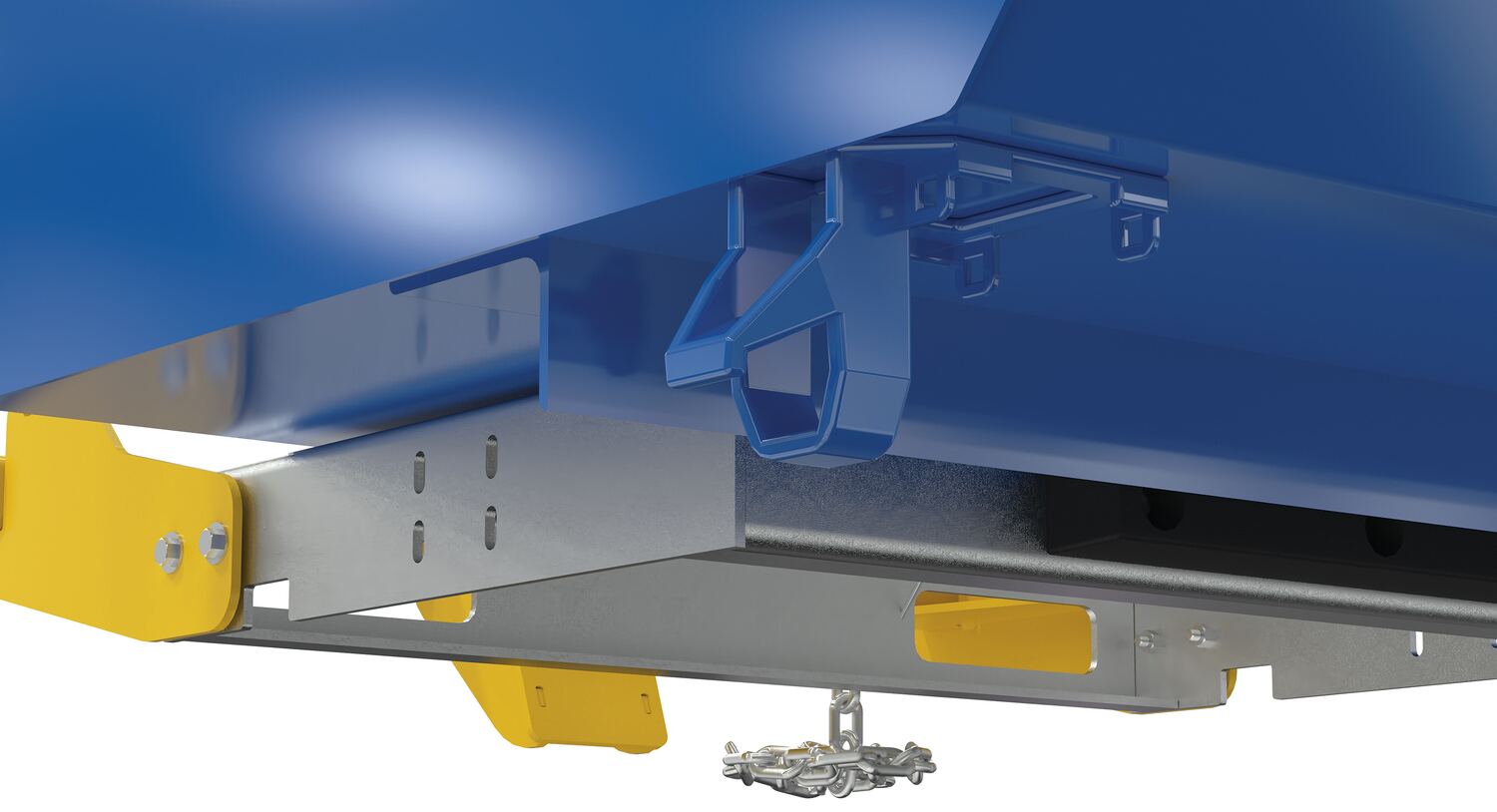

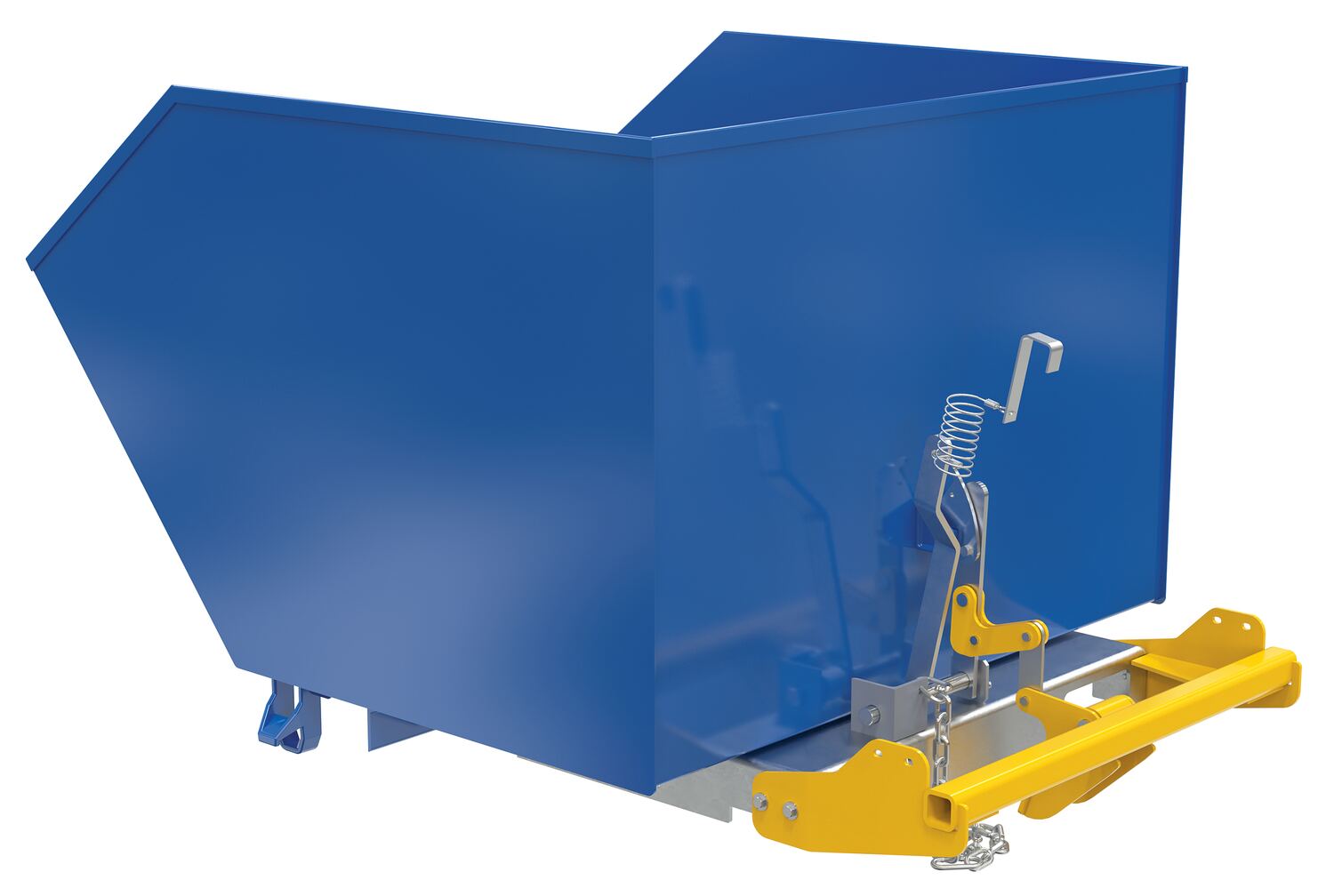

A self-dumping hopper with a bumper release defends worker safety. The hopper is automatically released to dump, when the edge of the hopper is contacted. Hopper then returns to an upright and locked position automatically after it dumps. A cable is also included that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Steel construction with blue baked-in powder-coated finish for added toughness. Hopper must be attached to the fork truck when dumping.

  • Capped fork pockets
  • Low Profile design
  • 90 Degree dump angle
  • Cushioned rubber bump stop
Total Ship Wt.(lbs.): 457 (only 1 package) Size: 51"W x 67"L x 38.6875"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Steel (gauge): Volume (cu. yd.): 1.5
Fork Pocket Center (in.): 21-5/8 Usable Fork Pocket Length (in.): Usable Fork Pocket Width (in.): 7
Usable Fork Pocket Height (in.): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: H-150-MD-BD


H-150-MD-BD

Steel Medium Duty Bump & Dump Hopper 1-1/2 Cubic Yard 4,000 Lb. Capacity Blue

A self-dumping hopper with a bumper release defends worker safety. The hopper is automatically released to dump, when the edge of the hopper is contacted. Hopper then returns to an upright and locked position automatically after it dumps. A cable is also included that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Steel construction with blue baked-in powder-coated finish for added toughness. Hopper must be attached to the fork truck when dumping.

  • Capped fork pockets
  • Low Profile design
  • 90 Degree dump angle
  • Cushioned rubber bump stop
Dimensions: 51"W x 67"L x 38.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215371797 GTIN: 00691215371797
Warranty: -- Shipping Weight: 457 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4000 Steel (gauge): Volume (cu. yd.): 1.5
Fork Pocket Center (in.): 21-5/8 Usable Fork Pocket Length (in.): Usable Fork Pocket Width (in.): 7
Usable Fork Pocket Height (in.): 2
