Model Details

H-LO-J-BEAM

Printer Friendly
H-LO-J-BEAM

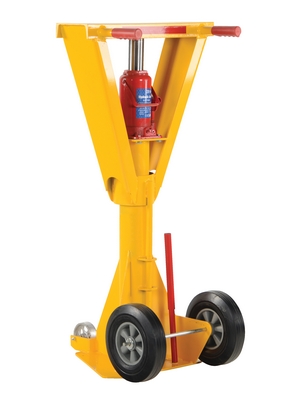

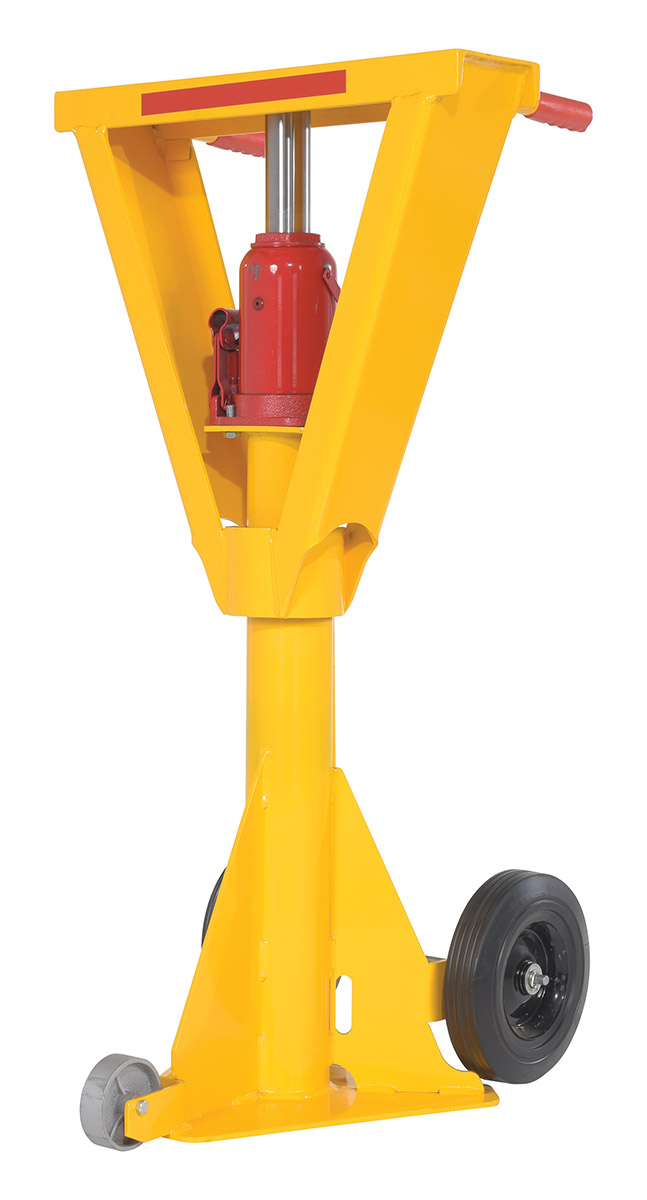

Steel Hydraulic Beam Trailer Stabilizing Jack 100,000 Lb. Static Capacity Yellow

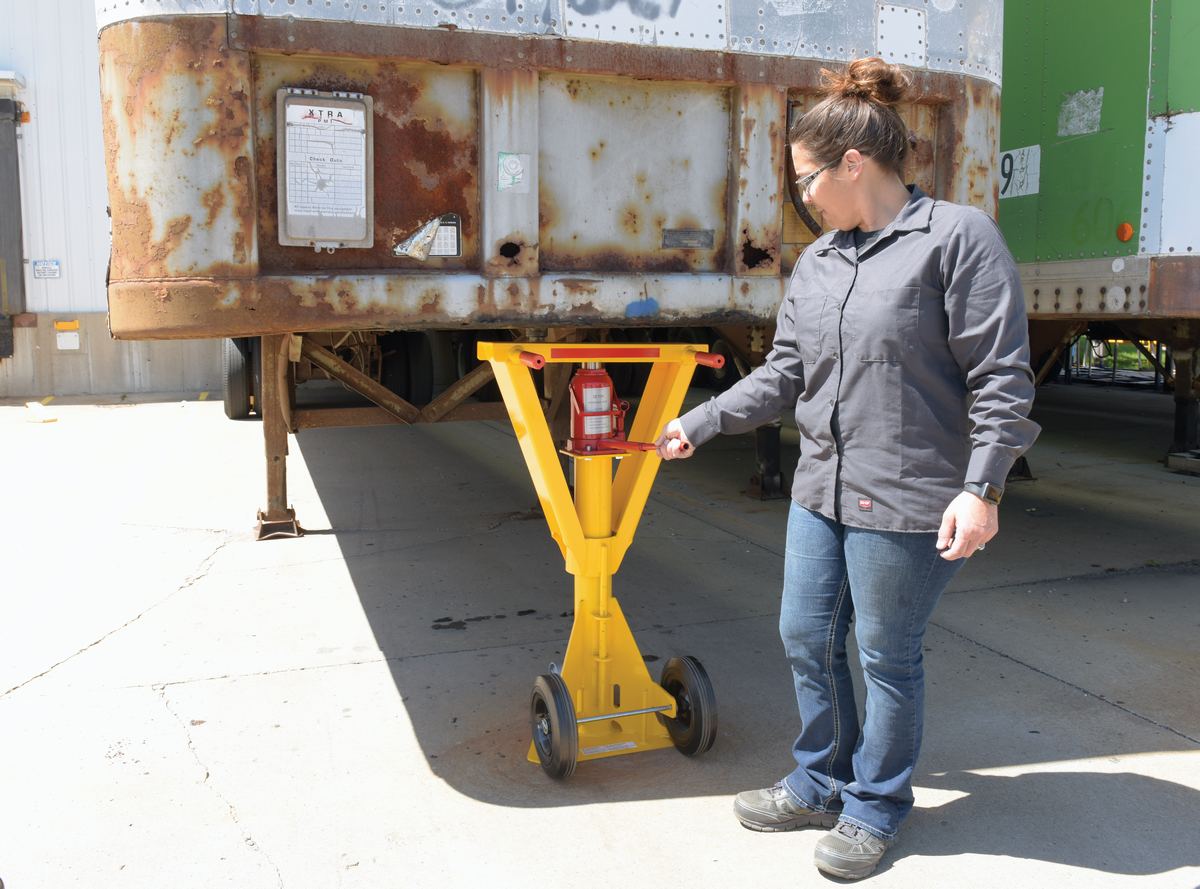

Trailer stabilizing jacks are used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. Also used to prevent landing gear from sinking into a soft surface. High strength steel construction. Flush-type Zerk fitting for lubricating acme screw. Meets OSHA regulations when used with wheel chocks. Powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Total Ship Wt.(lbs.): 192 (only 1 package) Size: 23.75"W x 26.6875"L x 47"H Color: Yellow QuickShip

Uniform Static Capacity (lb.): 100000 Uniform Lifting Capacity (lb.): 40,000 Lowered Height (in.): 41

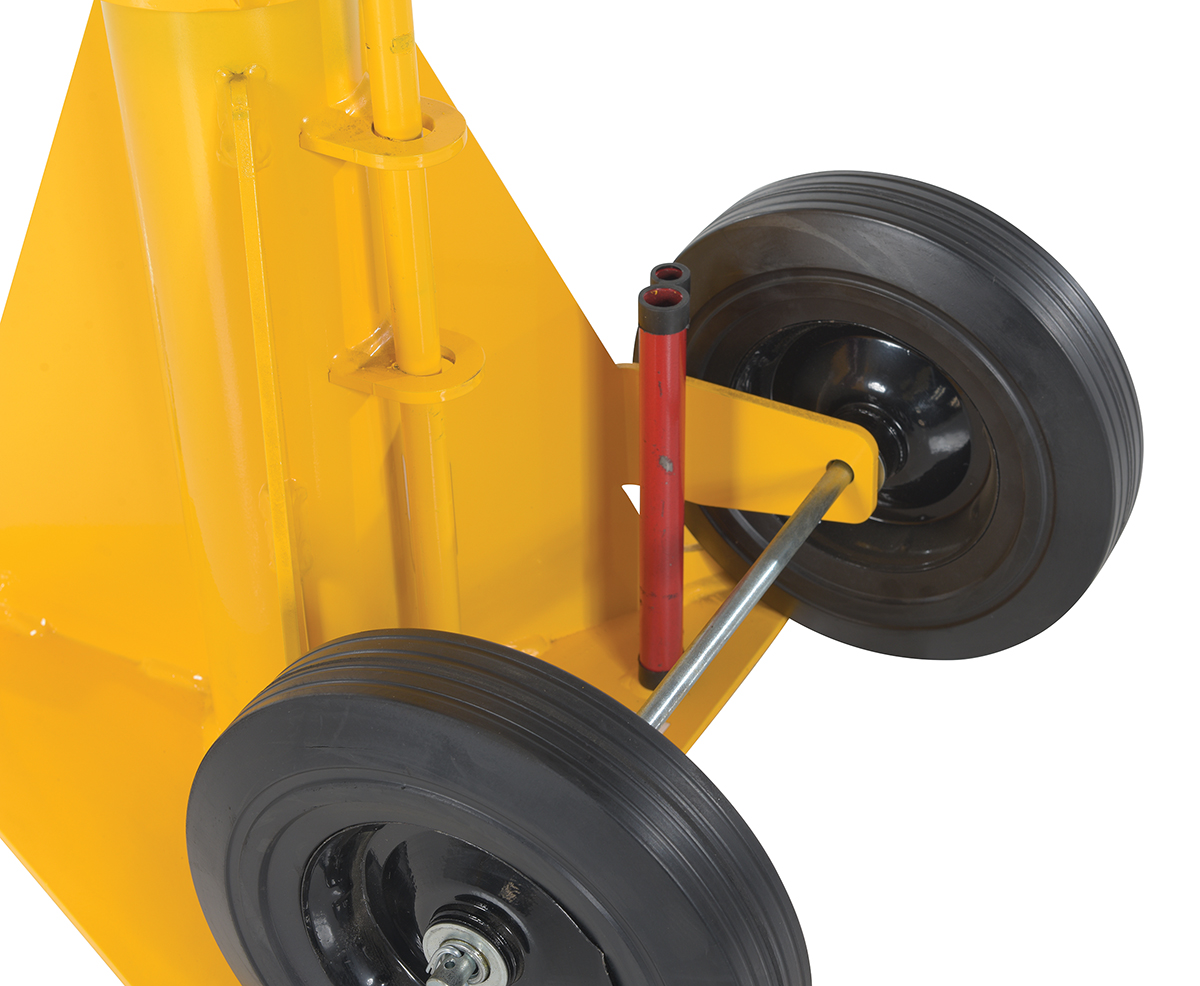

Raised Height (in.): 47 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Front Wheel Type: Steel Jack Type: Hydraulic

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: H-LO-J-BEAM
H-LO-J-BEAM

Steel Hydraulic Beam Trailer Stabilizing Jack 100,000 Lb. Static Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations. Also used to prevent landing gear from sinking into a soft surface. High strength steel construction. Flush-type Zerk fitting for lubricating acme screw. Meets OSHA regulations when used with wheel chocks. Powder coat safety yellow finish.

  • High strength steel construction offers long lasting rugged use
  • Reflective collar increases visibility at night
  • Unique design levels trailers parked on sloped ground
  • Meets OSHA regulations when used with wheel chocks
Dimensions: 23.75"W x 26.6875"L x 47"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215023429 GTIN: 00691215023429
Warranty: -- Shipping Weight: 192 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 100000 Uniform Lifting Capacity (lb.): 40,000 Lowered Height (in.): 41
Raised Height (in.): 47 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Front Wheel Type: Steel Jack Type: Hydraulic
