Model Details

HLD-116-10-S-DC

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
HLD-116-10-S-DC

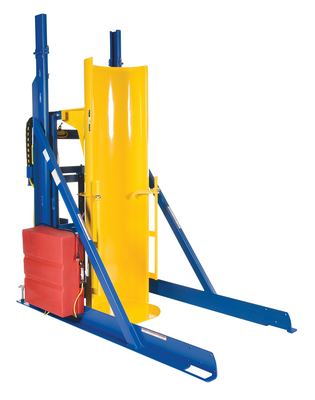

Steel DC Powered Stationary Lift and Dump Hydraulic Drum Dumper 116 In Dump Height 1,000 Lb. Capacity Blue / Yellow

The lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The portable HLD includes a lift cylinder that allows you to dump at various heights. Features a four (4) push button pendant, which allows the operator full independent control of both lift height and dump angle.

  • Strong construction for long term daily use
  • Ergonomically friendly design diminishes manual lifting
  • Complete control for specific angled dumping
  • Hydraulic lift for perfect height placement
Total Ship Wt.(lbs.): 1522 (only 1 package) Size: 51"W x 72.5"L x 97.875"H Color: Blue (Frame), Yellow (Chute) Non-Returnable

Uniform Capacity (lb.): 1,000 Power Source: 12V DC Compatible Drum Material: Any
Overall Raised Height (in): 194 Minimum Dump Height (in): 60 Maximum Dump Height (in): 116
Dump Angle (°): 45

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HLD-116-10-S-DC
HLD-116-10-S-DC

Steel DC Powered Stationary Lift and Dump Hydraulic Drum Dumper 116 In Dump Height 1,000 Lb. Capacity Blue / Yellow

The lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The portable HLD includes a lift cylinder that allows you to dump at various heights. Features a four (4) push button pendant, which allows the operator full independent control of both lift height and dump angle.

  • Strong construction for long term daily use
  • Ergonomically friendly design diminishes manual lifting
  • Complete control for specific angled dumping
  • Hydraulic lift for perfect height placement
Dimensions: 51"W x 72.5"L x 97.875"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Chute)
Material: Steel UPC: 691215129626 GTIN: 00691215129626
Warranty: -- Shipping Weight: 1522 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1,000 Power Source: 12V DC Compatible Drum Material: Any
Overall Raised Height (in): 194 Minimum Dump Height (in): 60 Maximum Dump Height (in): 116
Dump Angle (°): 45
