Model Details

HLD-94-15-P

- Temporarily Unavailable - Please Contact Sales

HLD-94-15-P

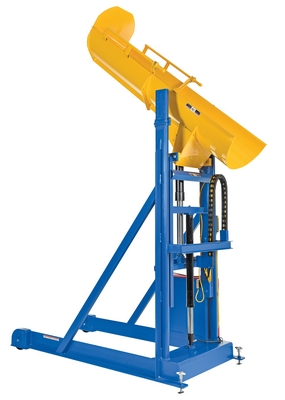

Steel Portable Lift and Dump Hydraulic Drum Dumper 94 In Dump Height 1,500 Lb. Capacity Blue / Yellow

The portable lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights. Feature a four (4) push button pendant which allows the operator full independent control of both lift height and the dump angle.

  • Drum dumper is needed to dump drums at variable heights
  • Similar to HDD because adjustable restraints work with 30 and 55 gal drums
  • Features a lift cylinder that allows you to dump at various heights
  • Includes pendant which allows full independent control of lift height and dump angle
Total Ship Wt.(lbs.): 1392 (only 1 package) Size: 51"W x 75.375"L x 87.75"H Color: Blue (Frame), Yellow (Chute) Non-Returnable

Uniform Capacity (lb.): 1,500 Power Source: 460V AC Minimum Dump Height (in.): 48
Maximum Dump Height (in.): 94 Rotation Height (in.): 163 Level Height (in.): 87-3/4
Dump Angle Degree: 40 Motor Horsepower: 2 Motor (Hz): 60
Power Cord Length (feet): 3

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HLD-94-15-P


HLD-94-15-P

Steel Portable Lift and Dump Hydraulic Drum Dumper 94 In Dump Height 1,500 Lb. Capacity Blue / Yellow

The portable lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights. Feature a four (4) push button pendant which allows the operator full independent control of both lift height and the dump angle.

  • Drum dumper is needed to dump drums at variable heights
  • Similar to HDD because adjustable restraints work with 30 and 55 gal drums
  • Features a lift cylinder that allows you to dump at various heights
  • Includes pendant which allows full independent control of lift height and dump angle
Dimensions: 51"W x 75.375"L x 87.75"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Chute)
Material: Steel UPC: 691215061148 GTIN: 00691215061148
Warranty: -- Shipping Weight: 1392 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1,500 Power Source: 460V AC Minimum Dump Height (in.): 48
Maximum Dump Height (in.): 94 Rotation Height (in.): 163 Level Height (in.): 87-3/4
Dump Angle Degree: 40 Motor Horsepower: 2 Motor (Hz): 60
Power Cord Length (feet): 3
