Model Details

HT-03-1616A

HT-03-1616A

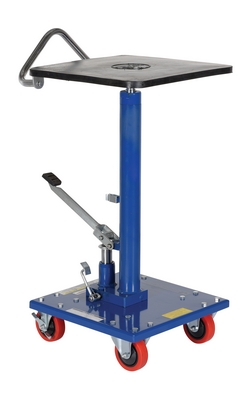

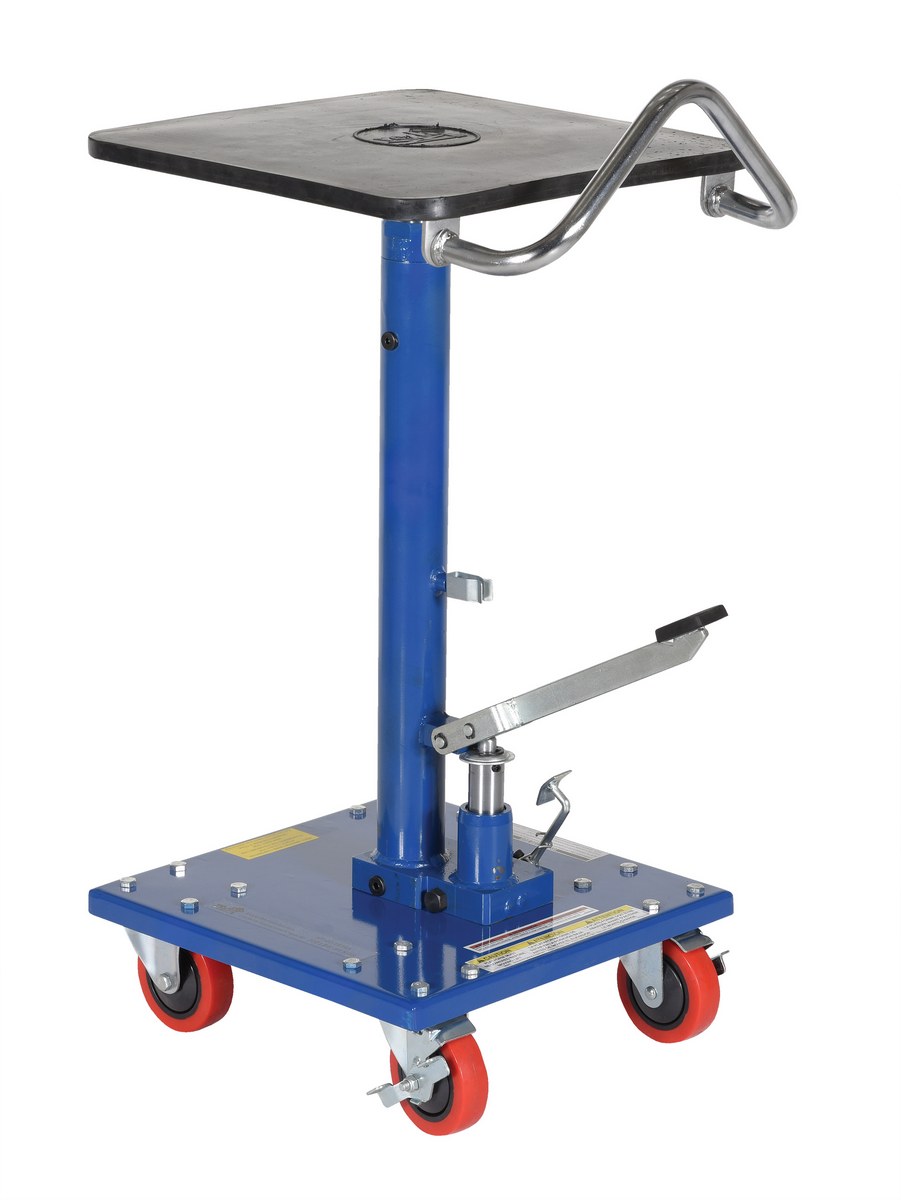

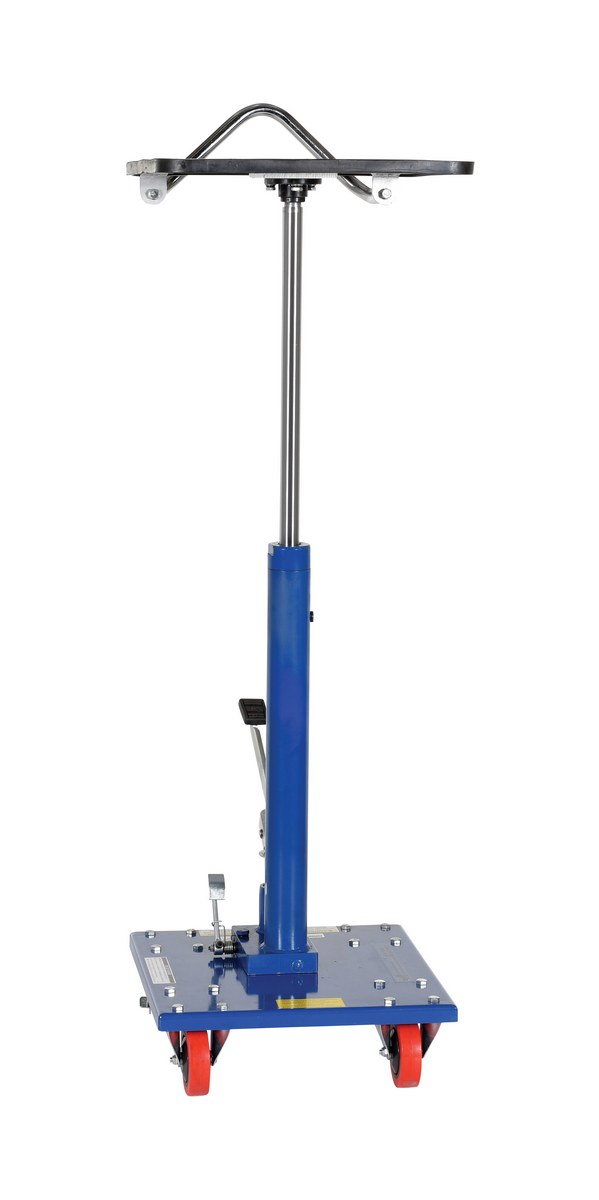

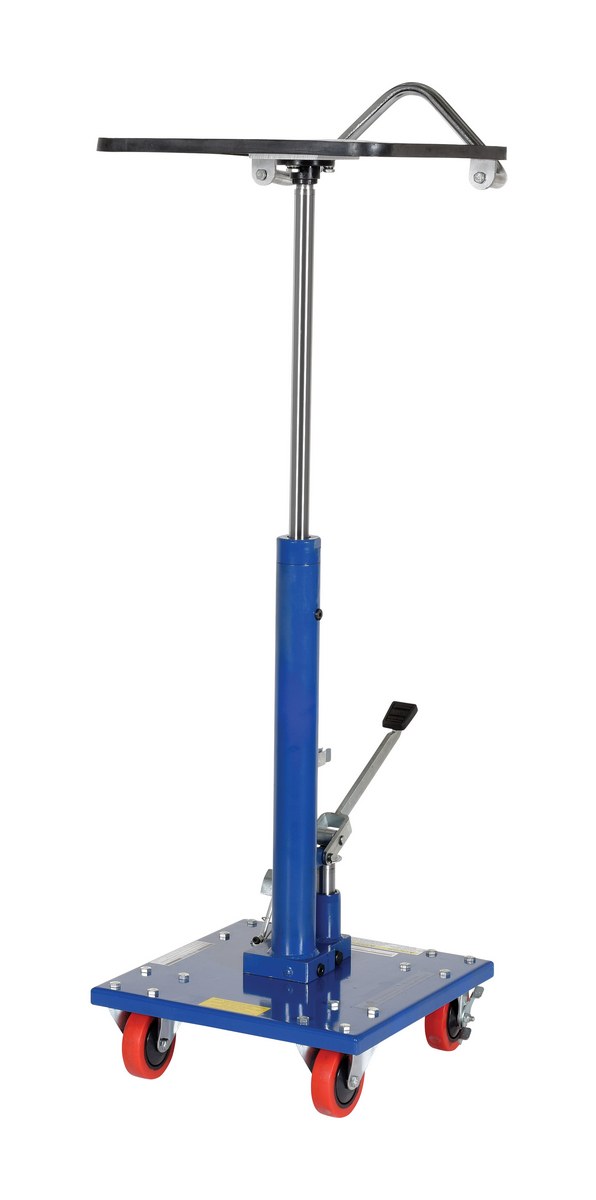

Steel Hydraulic Post Table 16 In. x 16 In. 300 Lb. Capacity Blue

The Hydraulic post table is built for heavy-duty shop use and includes a platform that swivels for use as a turntable. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four (4) casters; two (2) locking swivel with brakes and two (2) rigid. This light duty-unit features a single-speed foot pump. All foot pumps include a down speed control valve for safe platform lowering. Unit comes standard with a removable rubber platform cover.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Total Ship Wt.(lbs.): 126 (only 1 package) Size: 16"W x 16"L x 31"H Color: Blue

Uniform Capacity (lb.): 300 Platform Width (in.): 16 Platform Length (in.): 16
Lowered Height (in.): 31 Raised Height (in.): 49 Post (qty.): N/A
Operation: 1-Speed Foot Pump Caster Diameter (in.): 4 Caster Width (in.): 1-1/4
Caster Material: Poly-on-Poly Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid Platform Swivel Degree: 360
Handle Height (in.): 35 # Pumps to Raise : 15

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HT-03-1616A


HT-03-1616A

Steel Hydraulic Post Table 16 In. x 16 In. 300 Lb. Capacity Blue

The Hydraulic post table is built for heavy-duty shop use and includes a platform that swivels for use as a turntable. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four (4) casters; two (2) locking swivel with brakes and two (2) rigid. This light duty-unit features a single-speed foot pump. All foot pumps include a down speed control valve for safe platform lowering. Unit comes standard with a removable rubber platform cover.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Dimensions: 16"W x 16"L x 31"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215024143 GTIN: 00691215024143
Warranty: -- Shipping Weight: 126 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 300 Platform Width (in.): 16 Platform Length (in.): 16
Lowered Height (in.): 31 Raised Height (in.): 49 Post (qty.): N/A
Operation: 1-Speed Foot Pump Caster Diameter (in.): 4 Caster Width (in.): 1-1/4
Caster Material: Poly-on-Poly Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid Platform Swivel Degree: 360
Handle Height (in.): 35 # Pumps to Raise : 15
