SERIES: HT


Hydraulic Post Tables

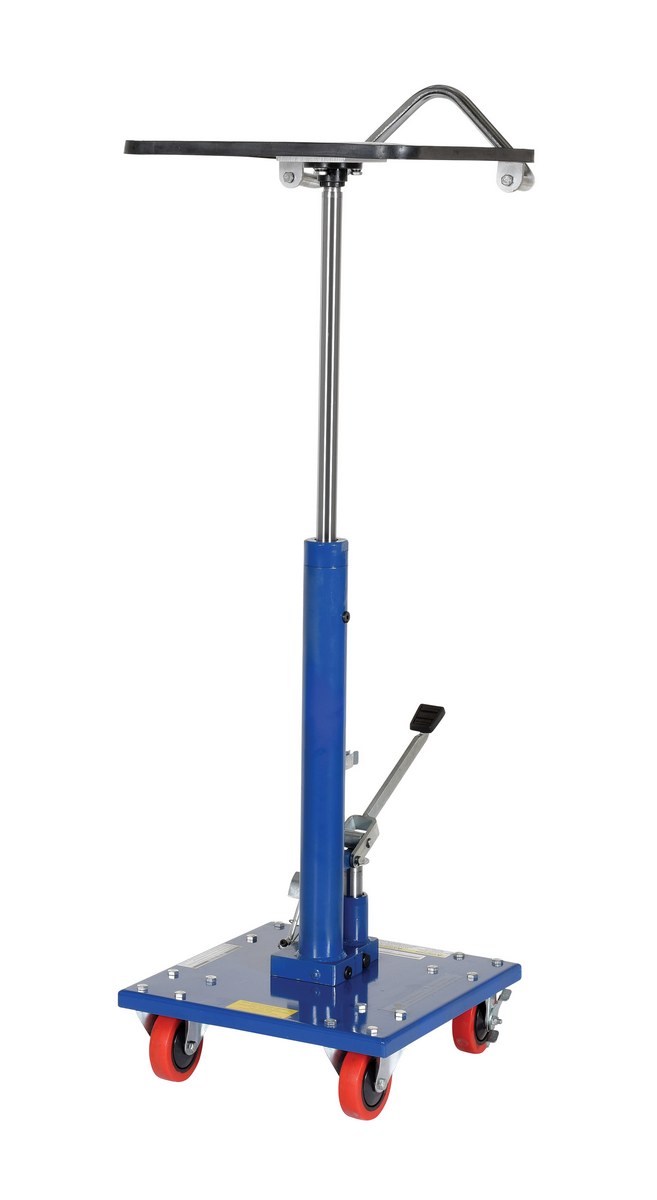

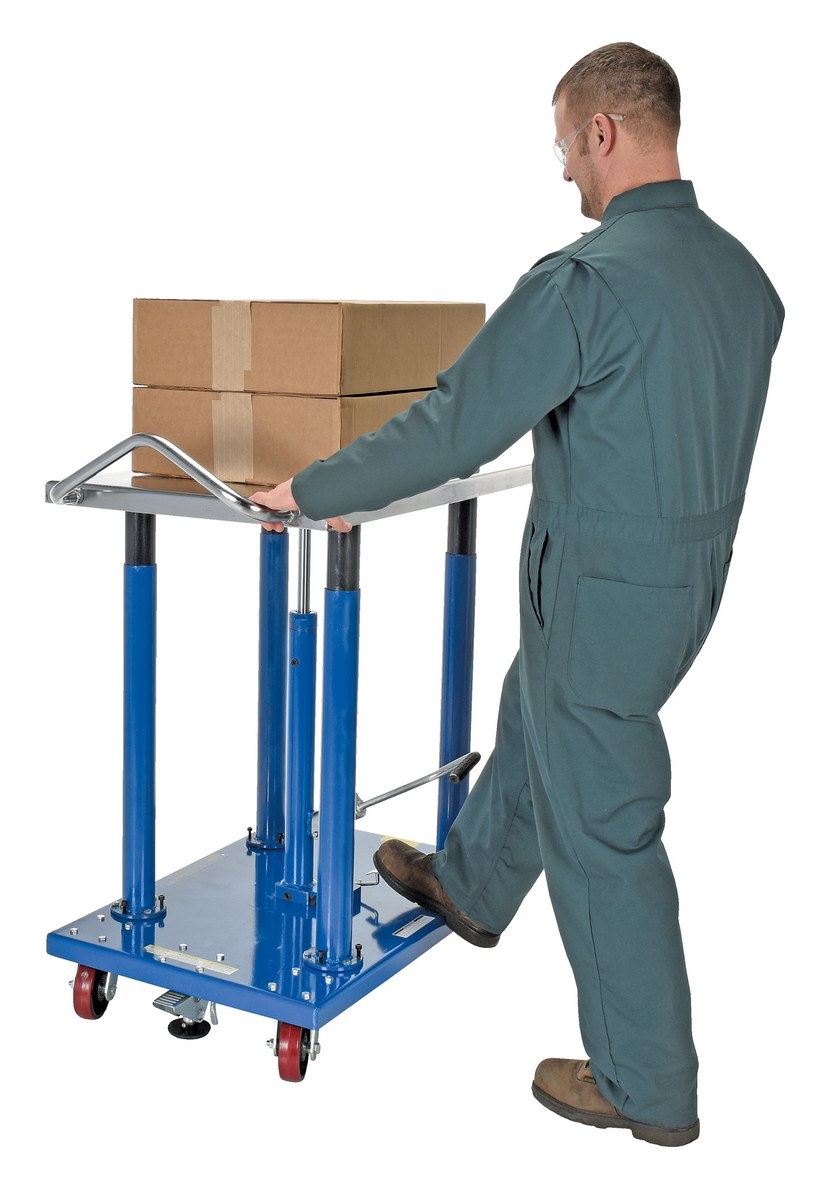

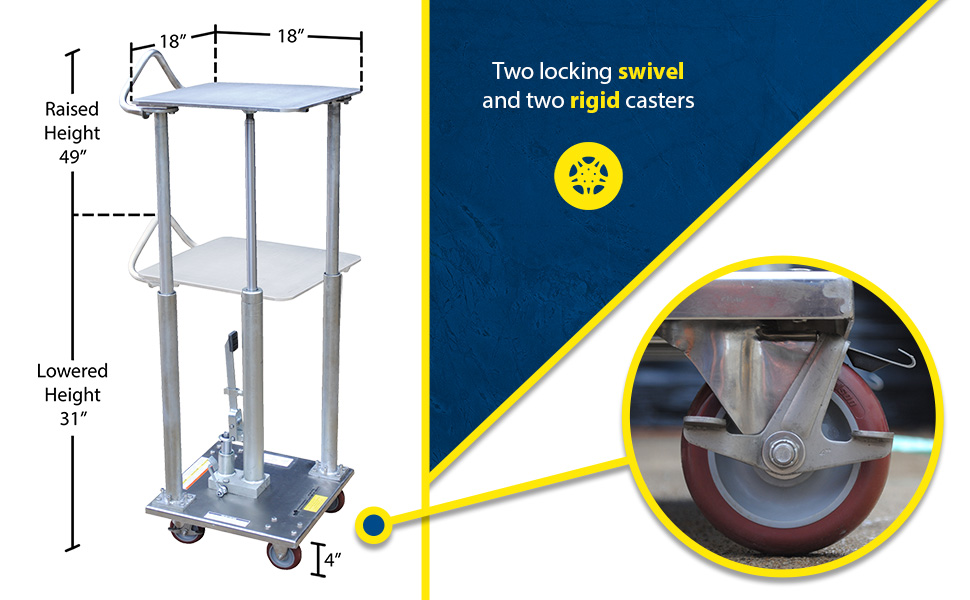

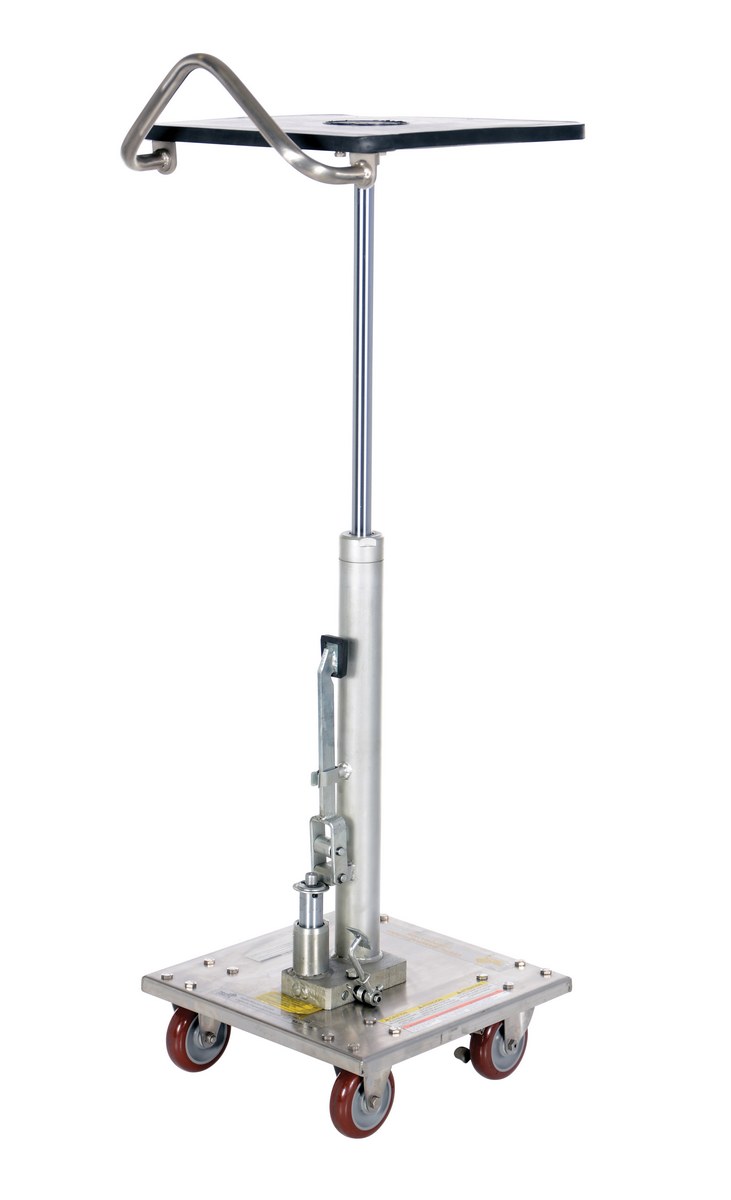

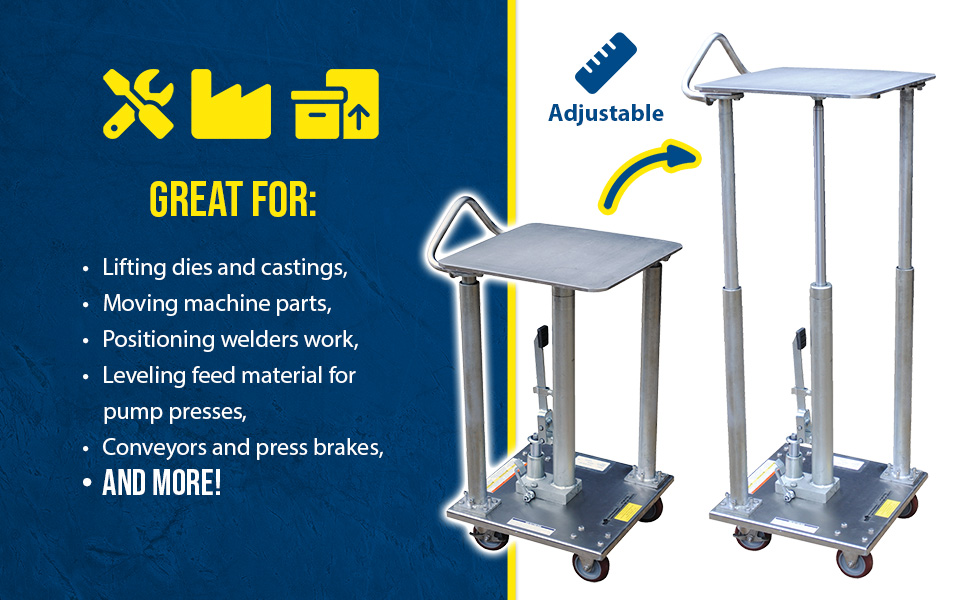

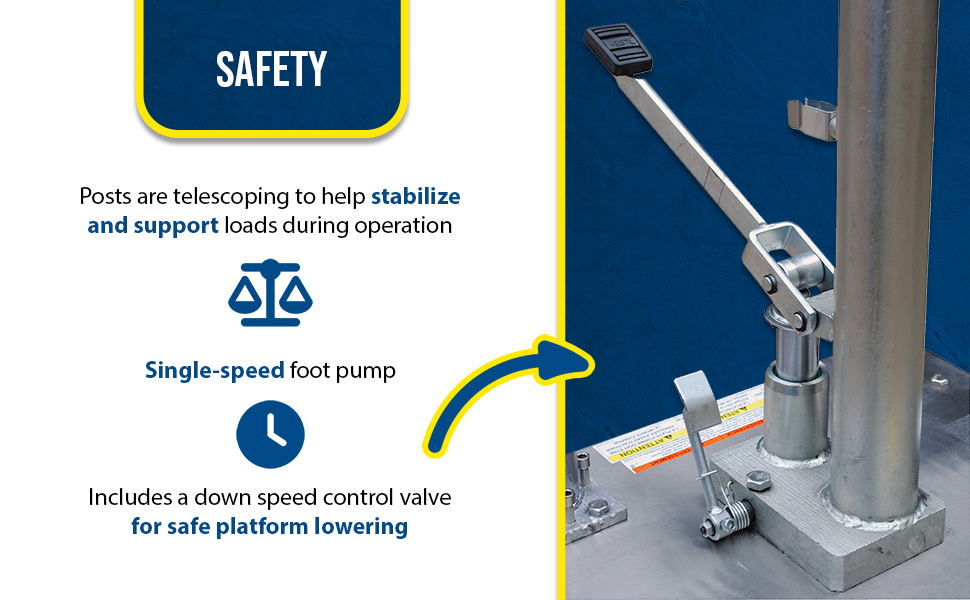

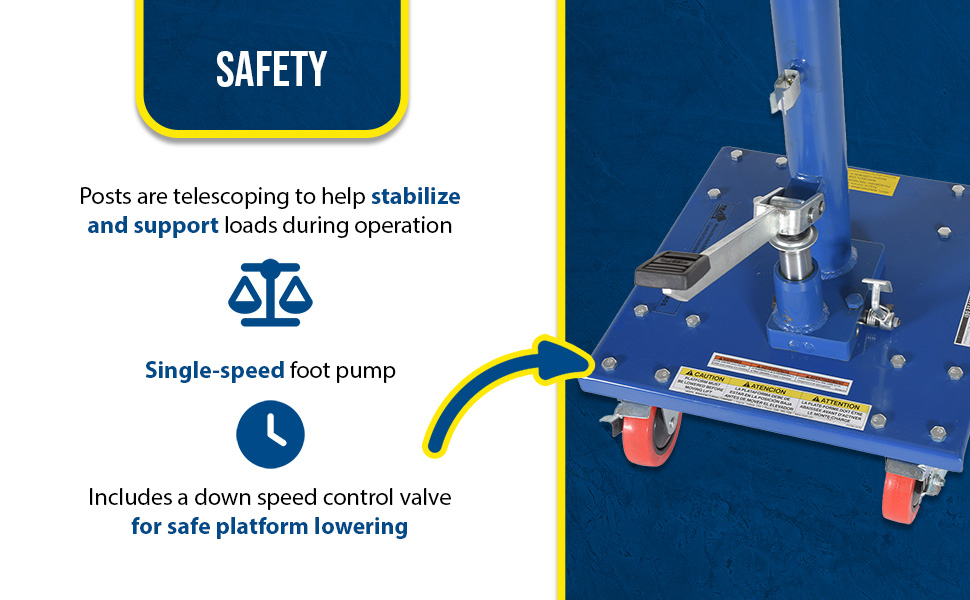

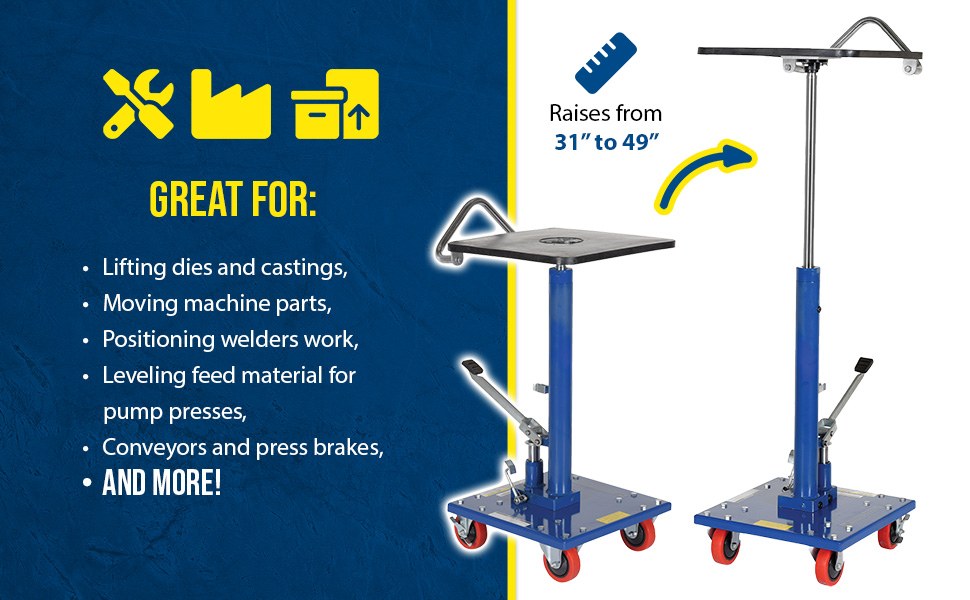

Hydraulic Post Tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, or a two speed auto shifter that automatically shifts when the table is loaded. DC units include one (1) 12V battery to raise and lower the platform. They also include a battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360 degrees for use as a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle, casters rigs, and hardware are stainless steel.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Hydraulic Post Table
Model PDF's Platform Size Service Range Operation Capacity (lbs) Number of Posts Caster
Size/Type

Wt.
(lbs)

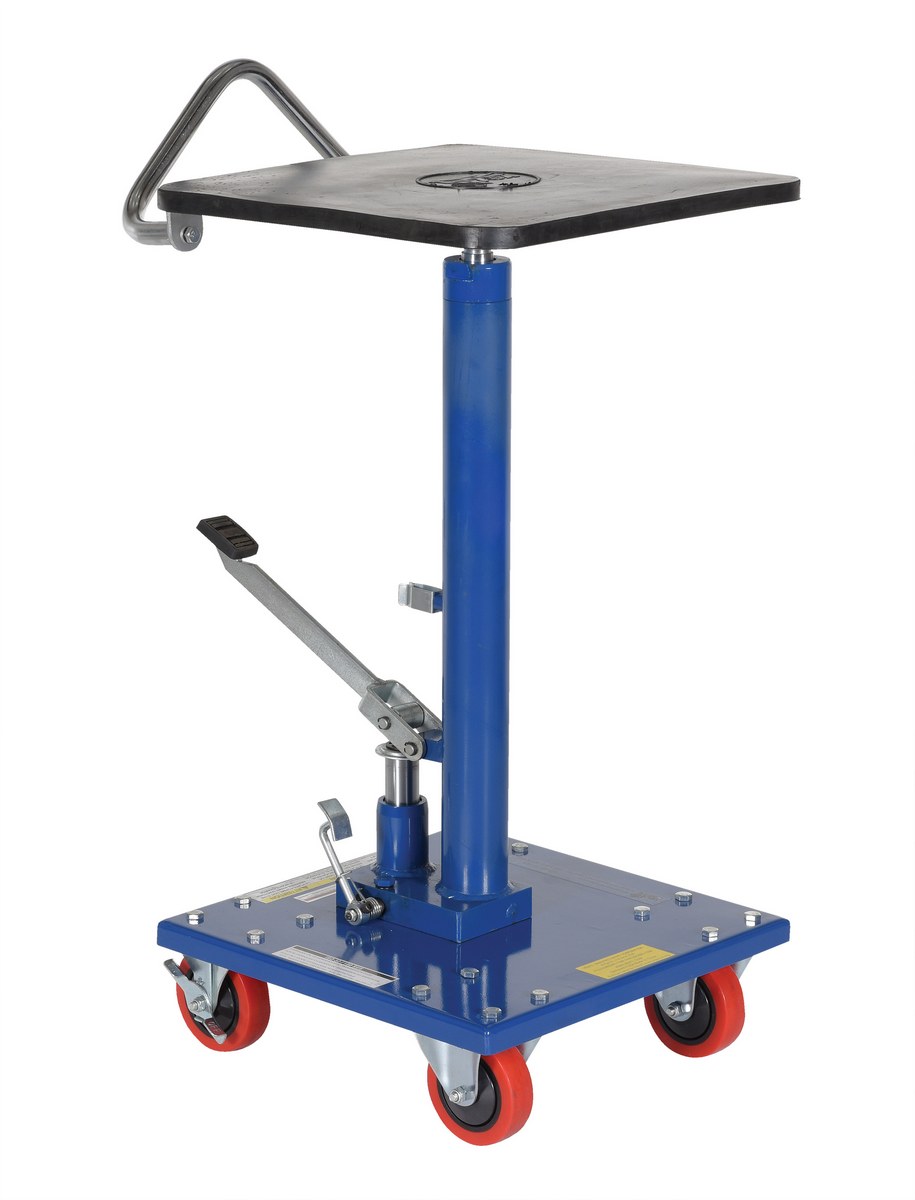

HT-02-1616A Warranty PDF
Compliance Certificate

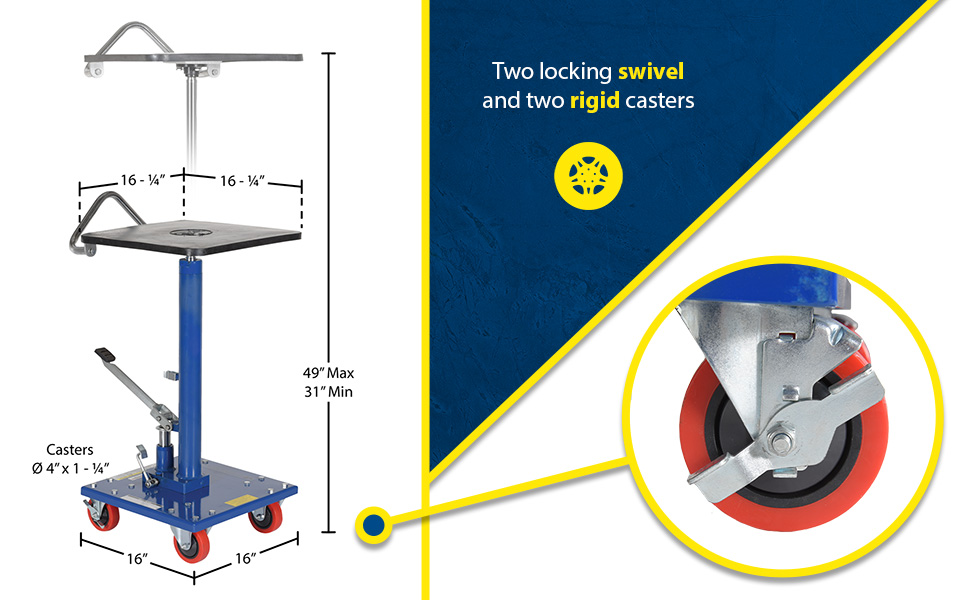

16"x16" 31" to 49" 1-Speed Foot Pump 200 0

4"x1-1/4" Poly-on-Poly

126

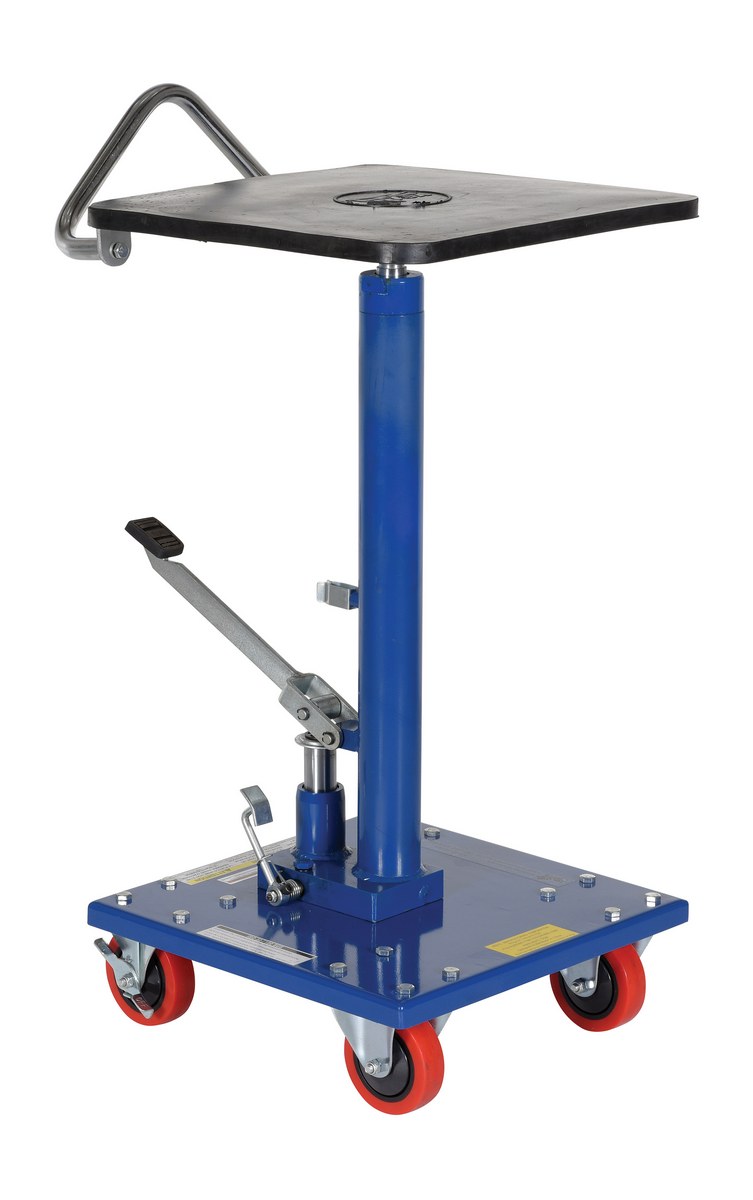

HT-03-1616A Warranty PDF
Compliance Certificate

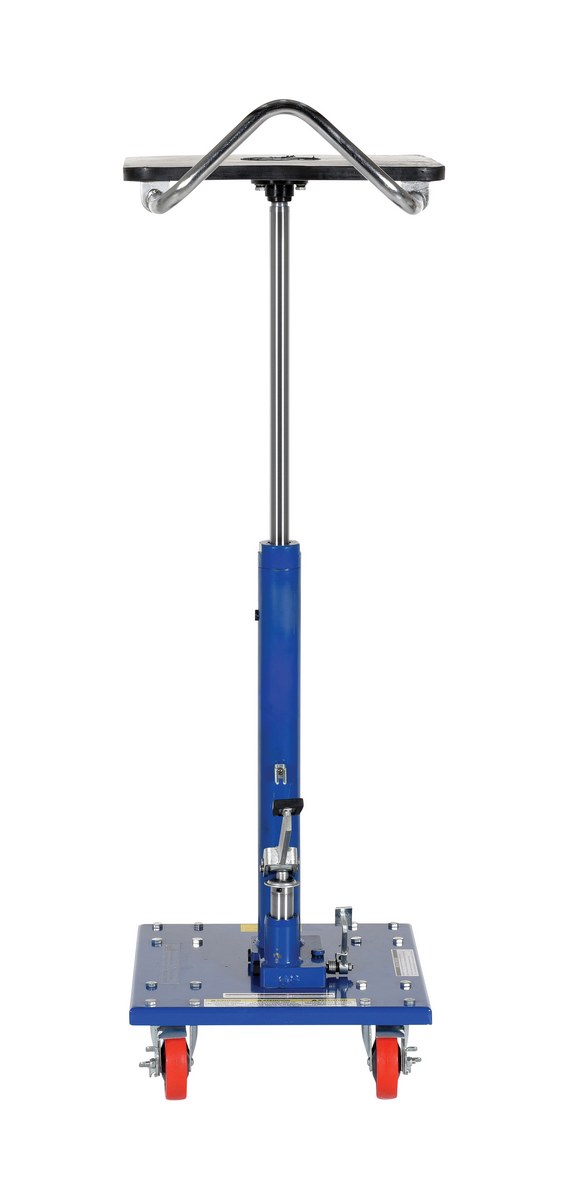

16"x16" 31" to 49" 1-Speed Foot Pump 300 0

4"x1-1/4" Poly-on-Poly

126
HT-05-1818A icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate

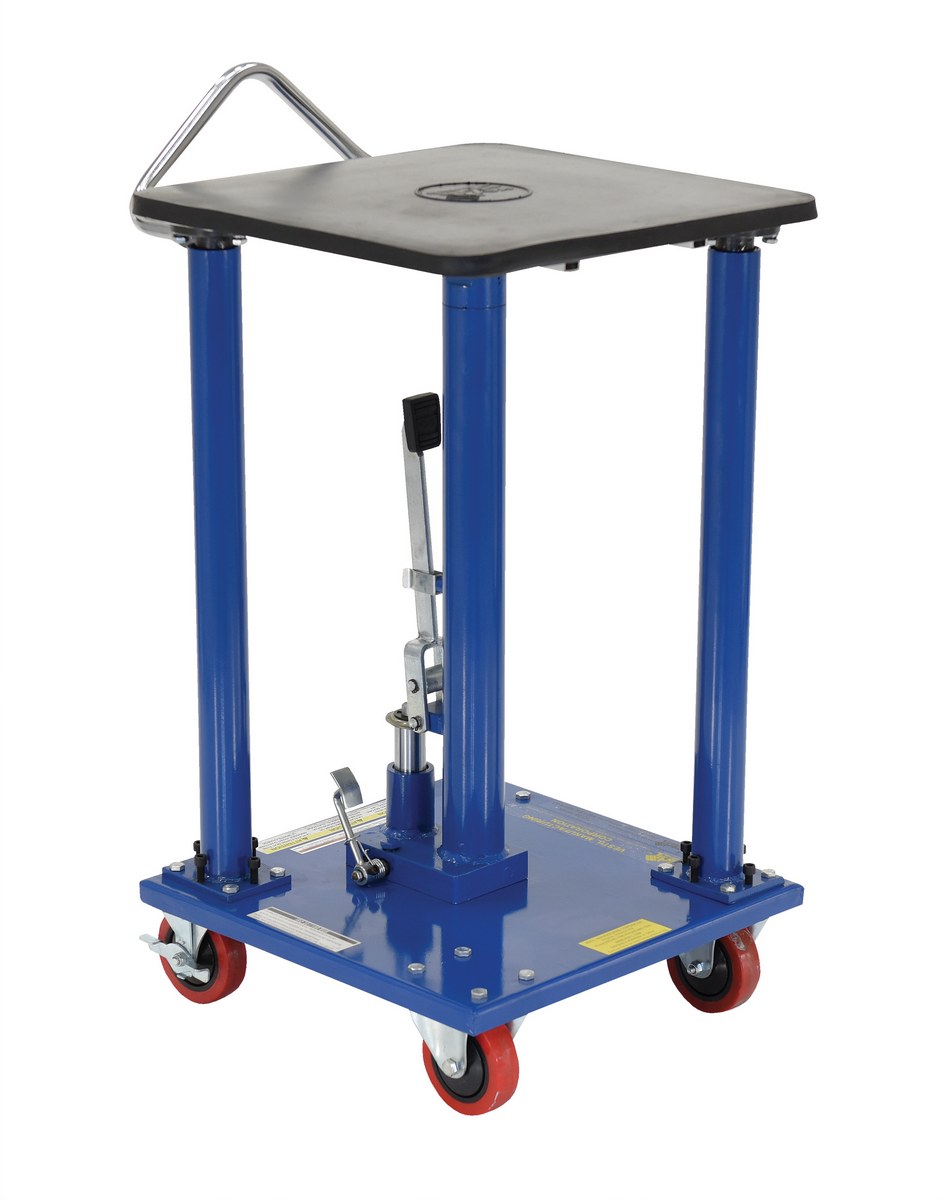

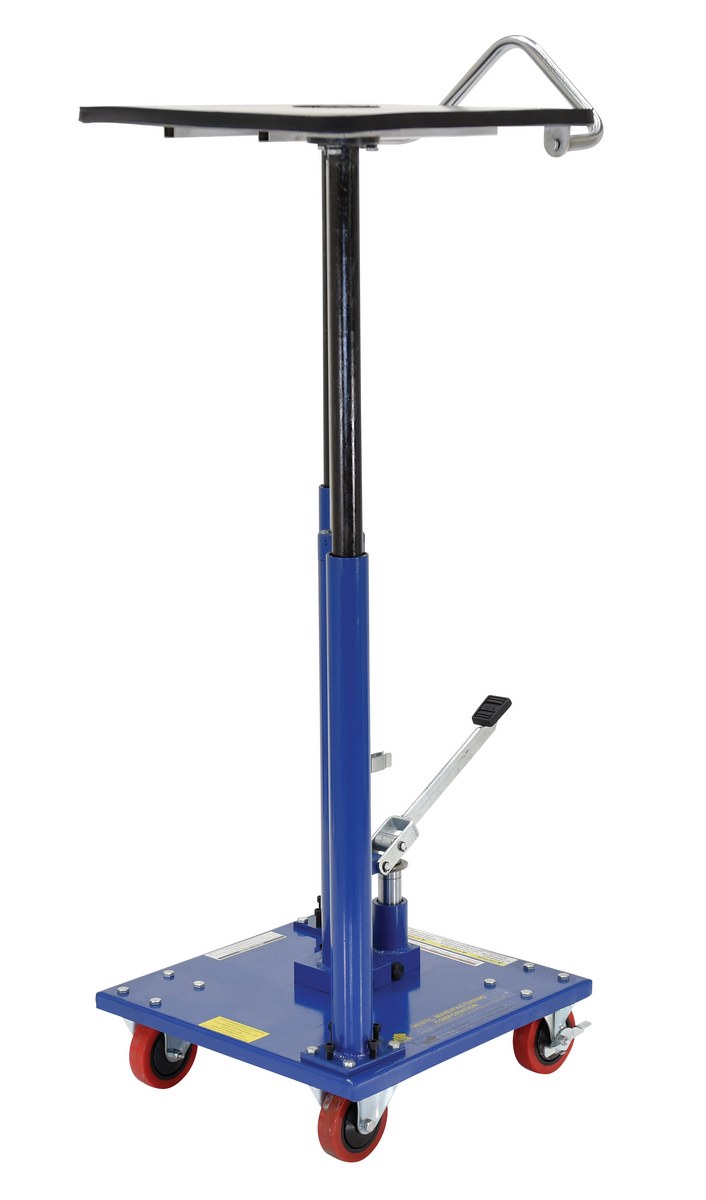

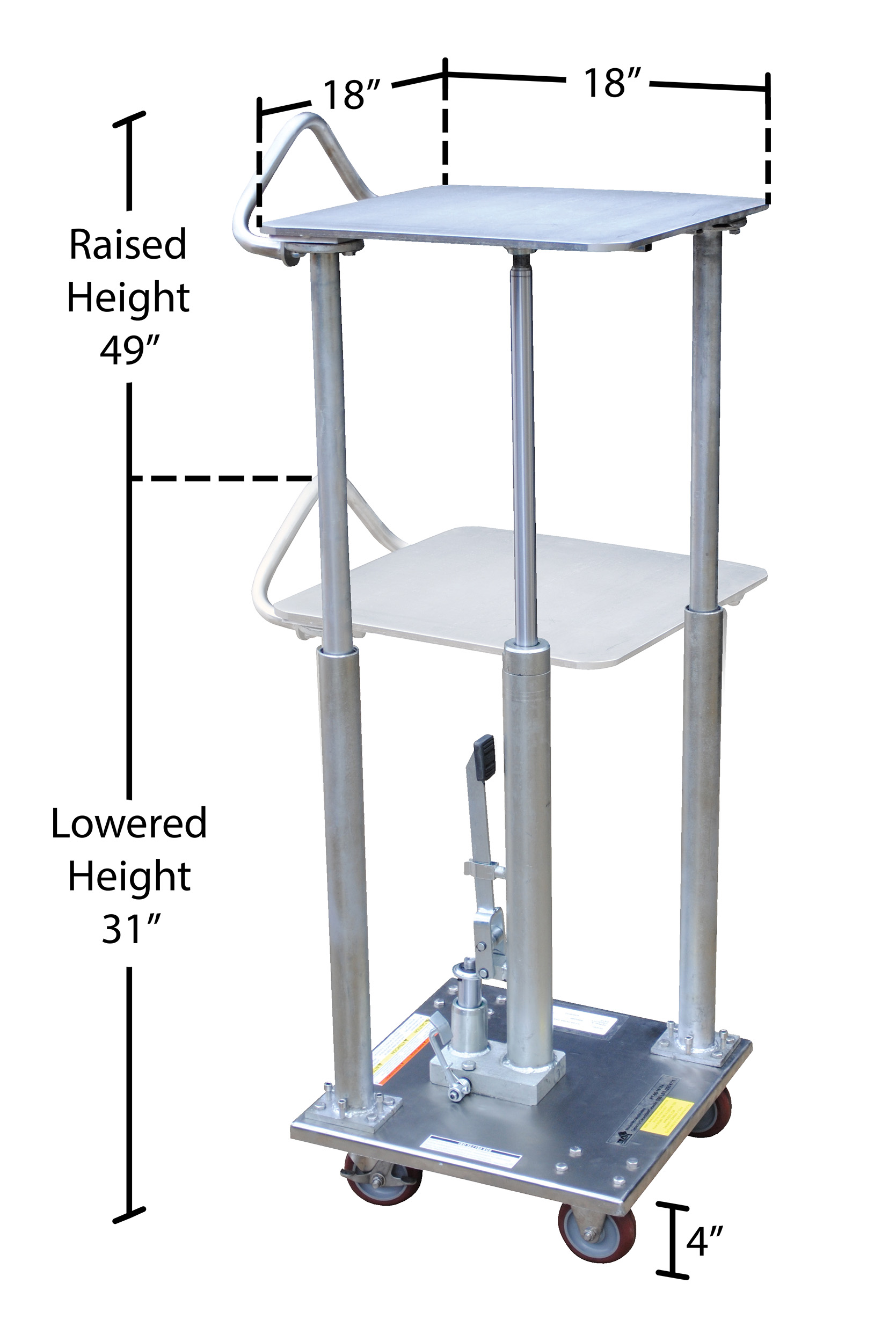

18"x18" 31" to 49" 1-Speed Foot Pump 500 2 4"x1-1/4" Poly-on-Poly 151

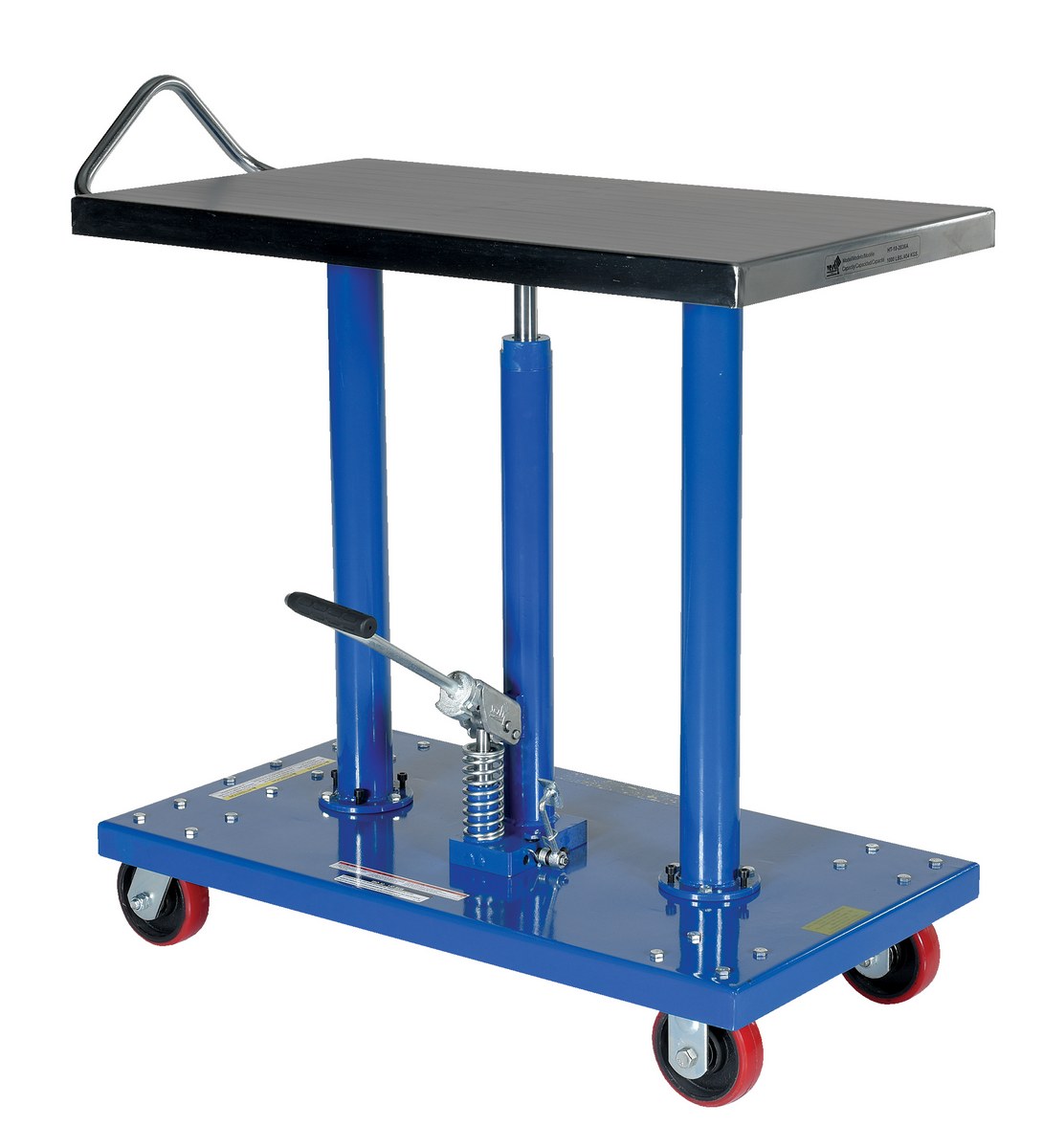

HT-10-2036A icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate

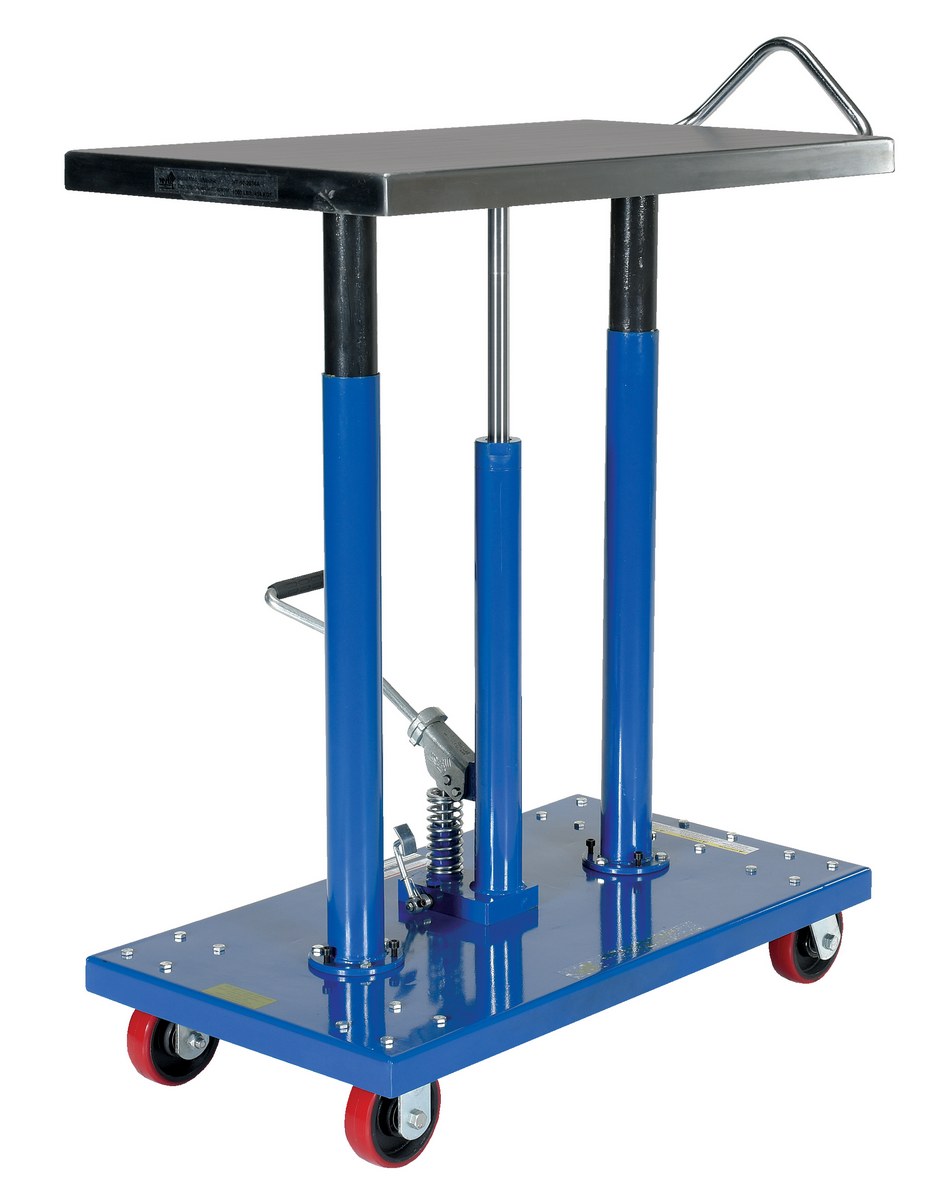

20"x36" 36" to 54" 2-Speed Foot Pump 1,000 2

5"x1-1/2" Poly-on-Steel

241

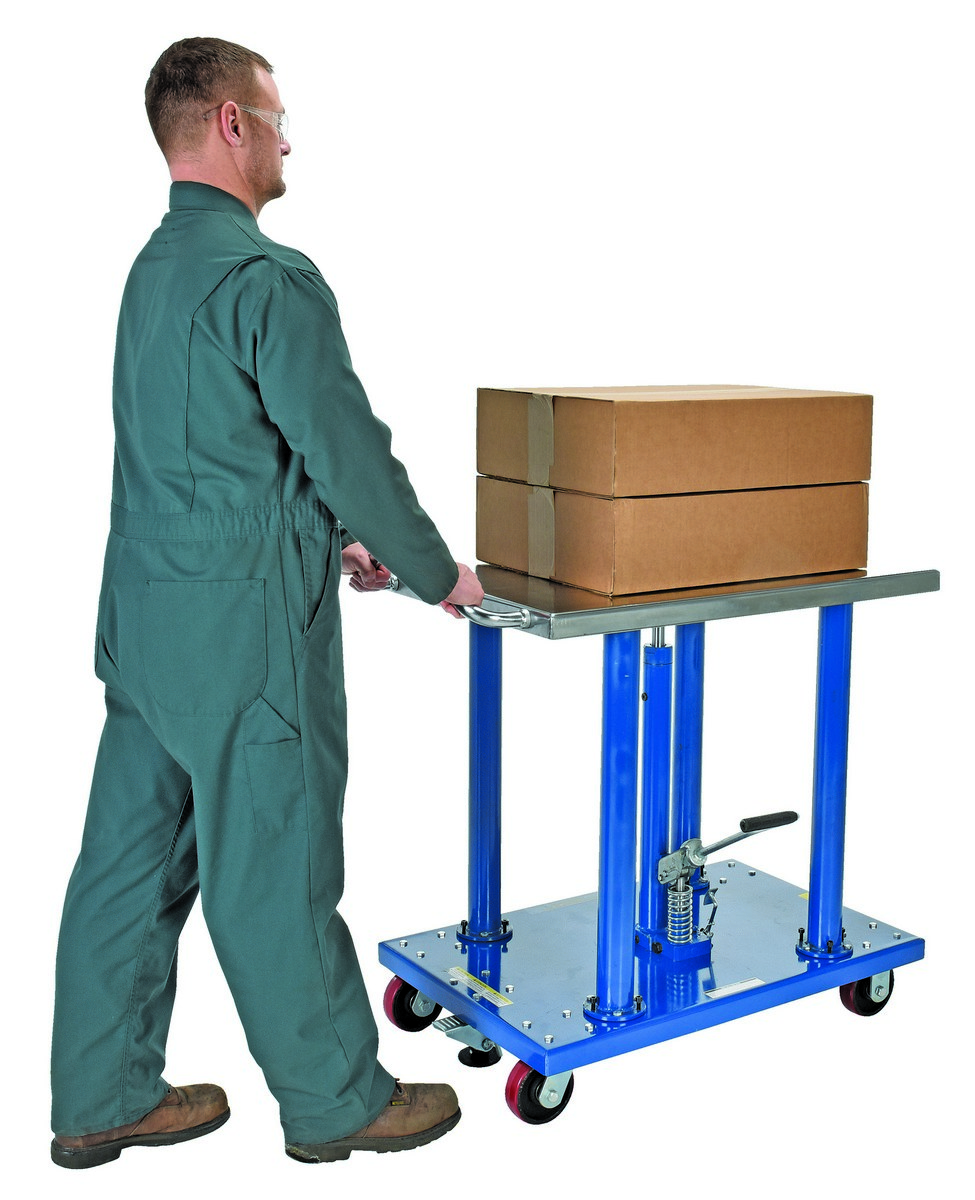

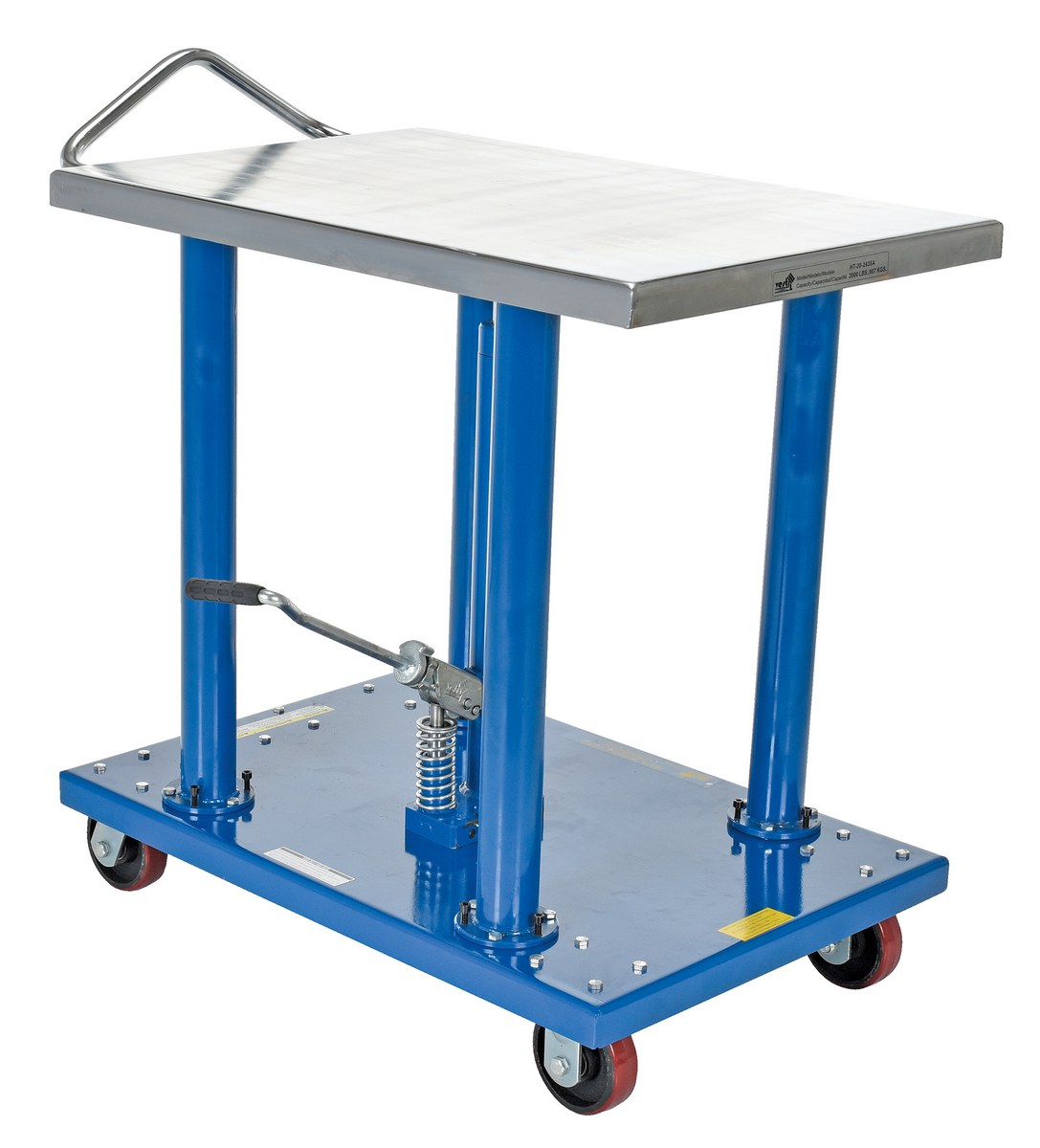

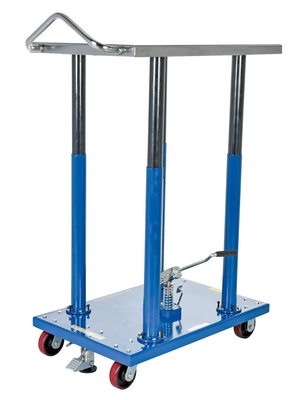

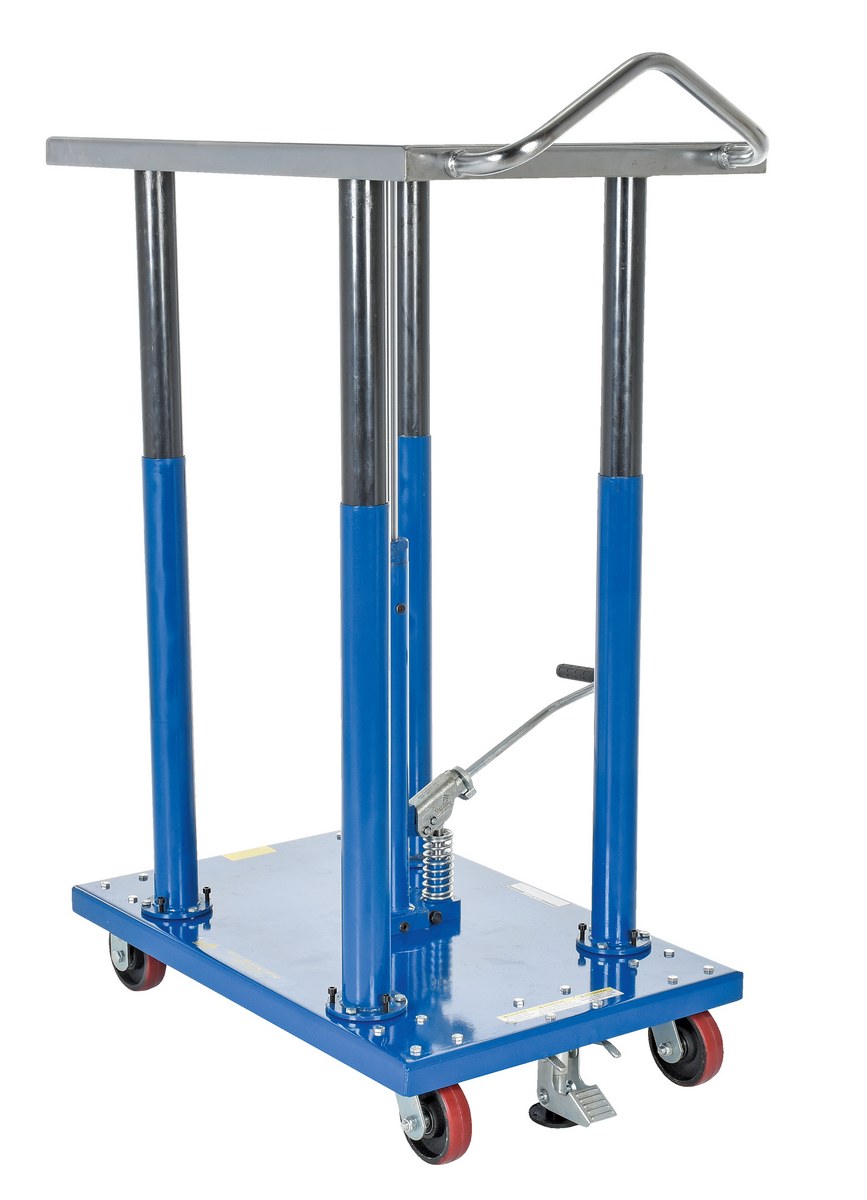

HT-20-2436A icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate

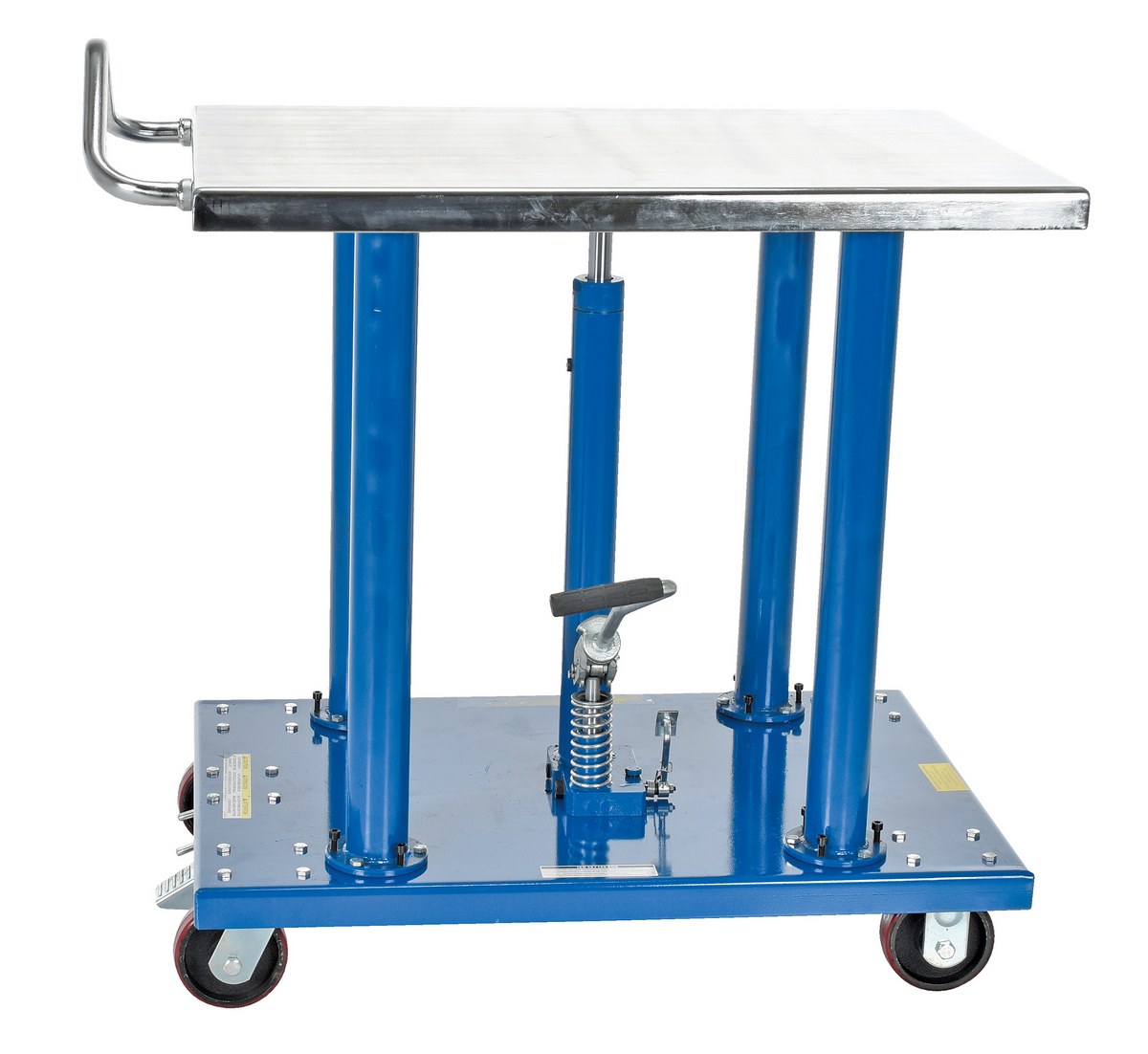

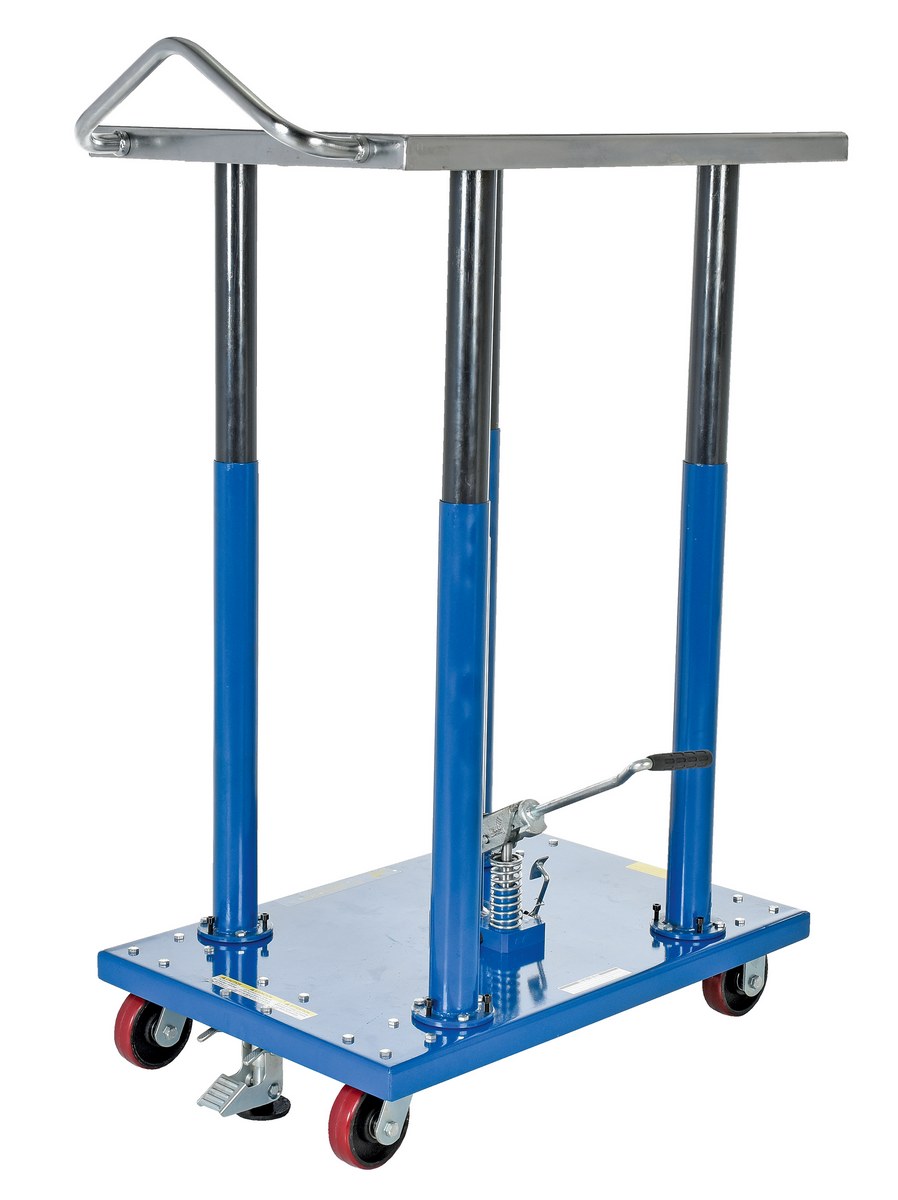

24"x36" 36" to 54" 2-Speed Foot Pump 2,000 4

5"x1-1/2" Poly-on-Steel

332

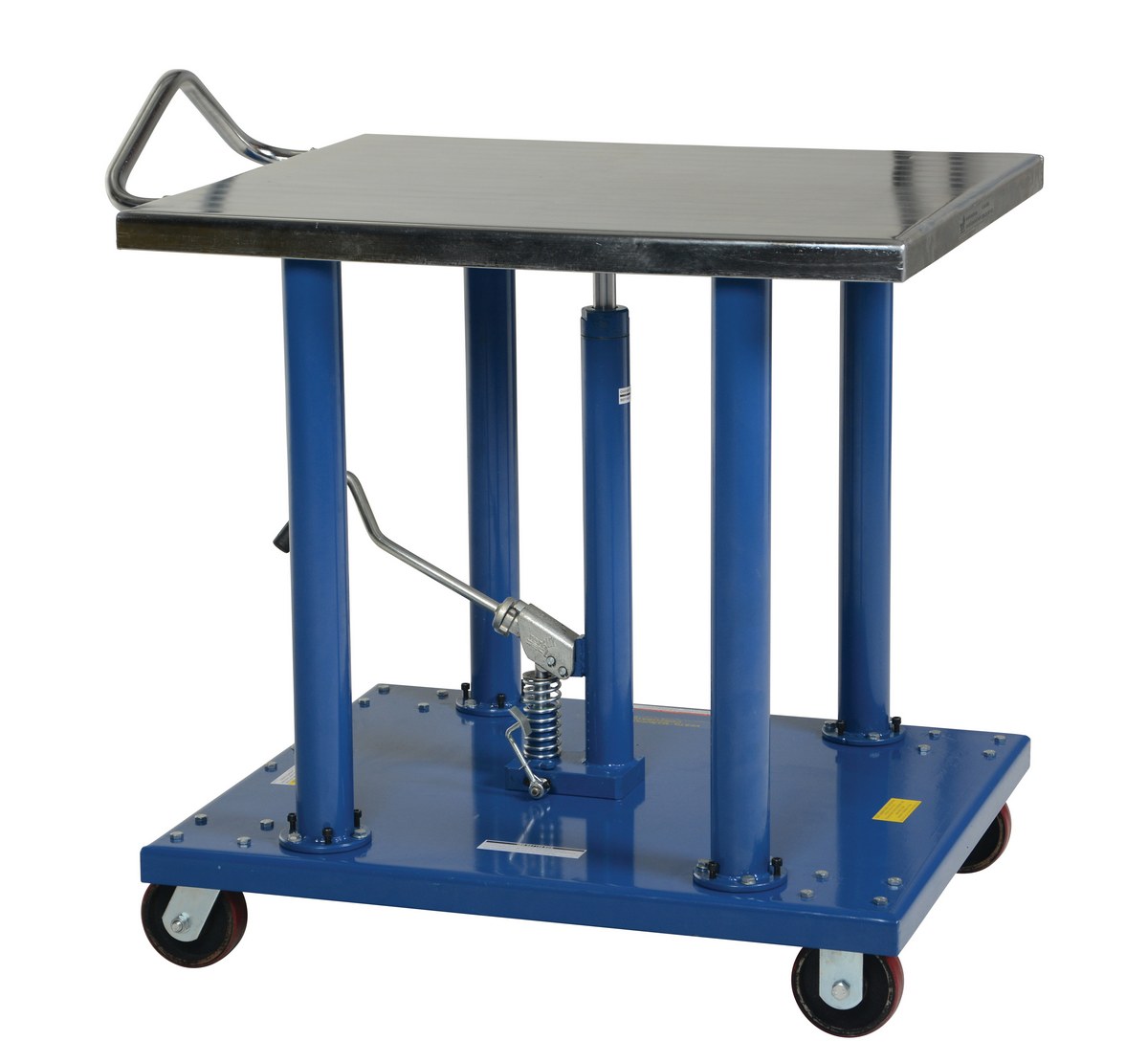

HT-20-3036A icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
30"x36" 36" to 54" 2-Speed Foot Pump 2,000 4

5"x1-1/2" Poly-on-Steel

376
HT-20-3042 icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate

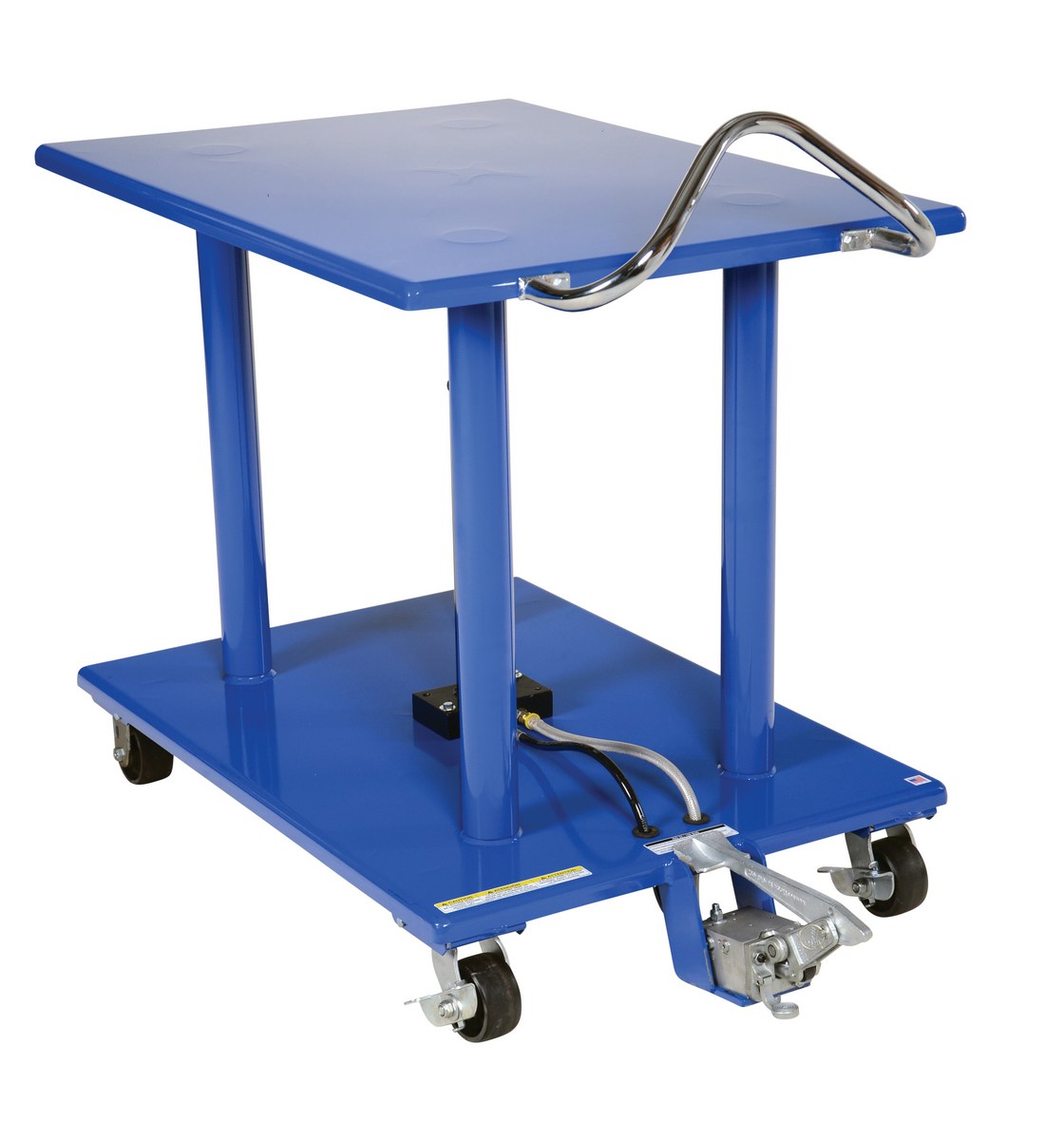

30"x42" 36" to 54" 2-Speed Auto Shift 2,000 4

4"x2" Phenolic

483

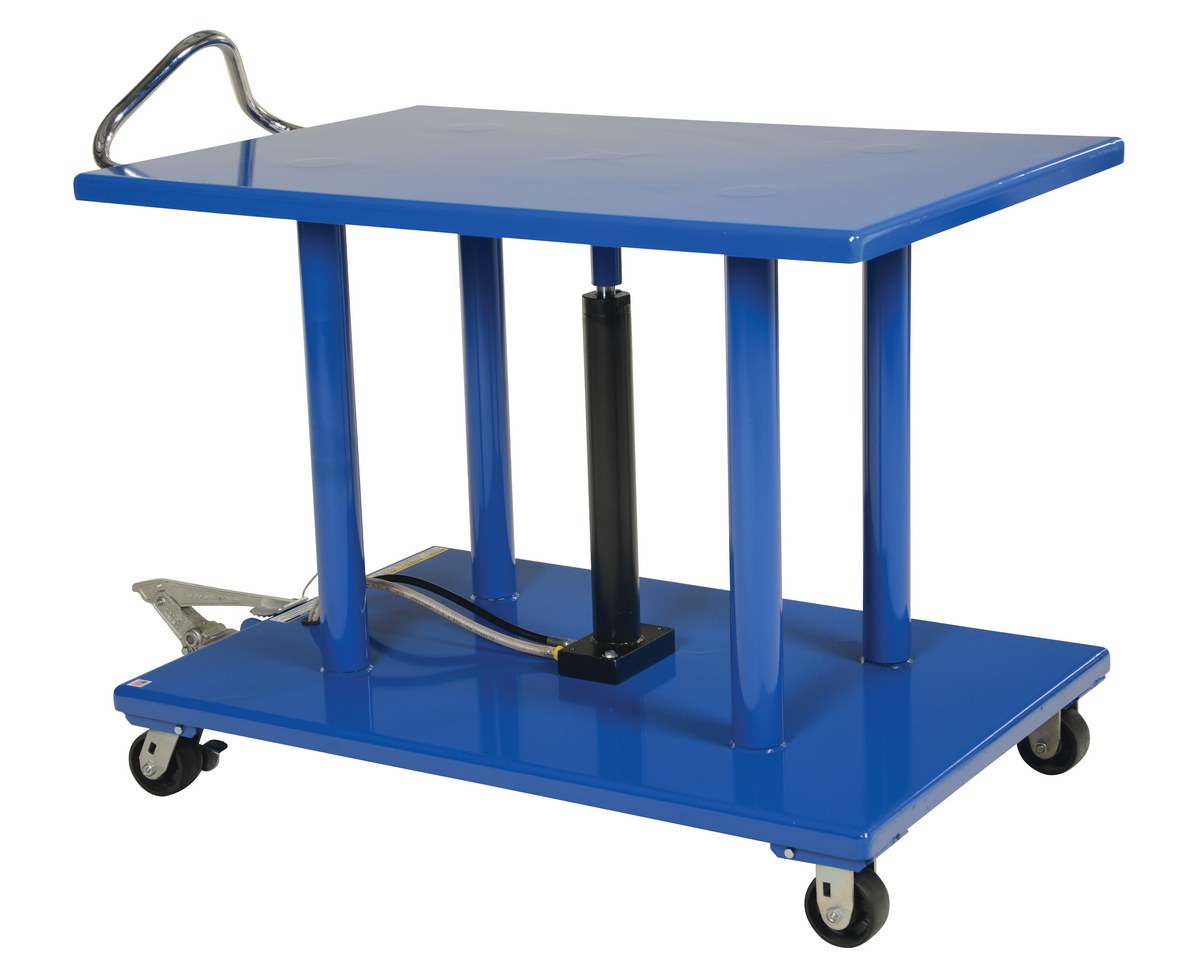

HT-20-3248 icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
32"x48" 36" to 54" 2-Speed Auto Shift 2,000 4 4"x2" Phenolic 475
HT-20-4048 Warranty PDF 40"x48" 36" to 54" 2-Speed Auto Shift 2,000 4 4"x2" Phenolic 540
HT-20-4848 Warranty PDF 48"x48" 36" to 54" 2-Speed Auto Shift 2,000 4 4"x2" Phenolic 565

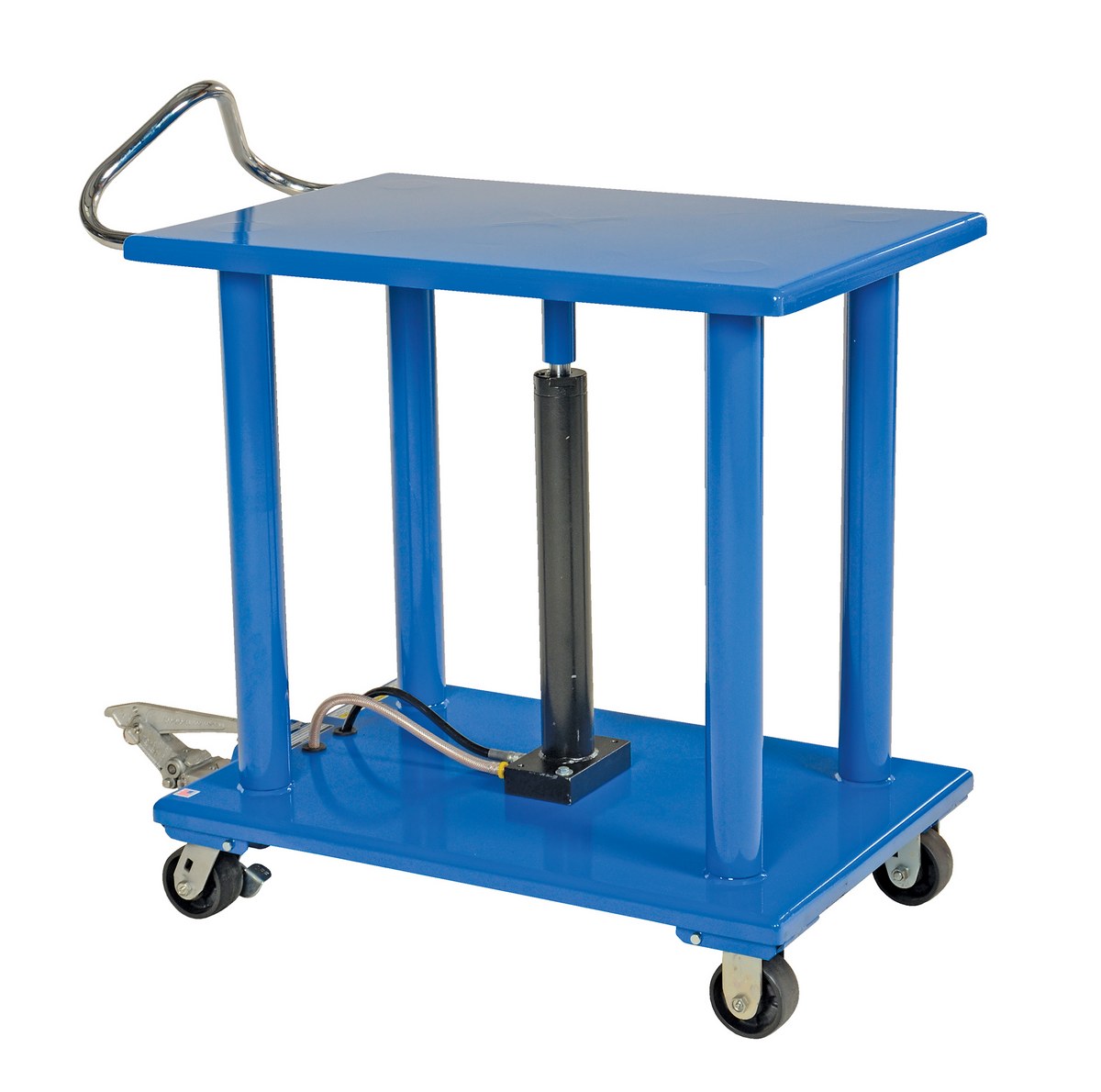

HT-30-2436 Warranty PDFCompliance Certificate 24"x36" 36" to 54" 2-Speed Auto Shift 3,000 4 4"x2" Phenolic 340
HT-30-3036 Warranty PDFCompliance Certificate 30"x36" 36" to 54" 2-Speed Auto Shift 3,000 4 4"x2" Phenolic 400
HT-30-3042 Warranty PDFCompliance Certificate 30"x42" 36" to 54" 2-Speed Auto Shift 3,000 4 4"x2" Phenolic 470
HT-30-3248 Warranty PDF 32"x48" 36" to 54" 2-Speed Auto Shift 3,000 4 4"x2" Phenolic 475
HT-30-4048 Warranty PDF 40"x48" 36" to 54" 2-Speed Auto Shift 3,000 4 4"x2" Phenolic 540
HT-30-4848 Warranty PDF 48"x48" 36" to 54" 2-Speed Auto Shift 3,000 4 4"x2" Phenolic 565
HT-40-2436 Warranty PDF
Compliance Certificate
24"x36" 36" to 54" 2-Speed Auto Shift 4,000 4 4"x2" Phenolic 346
HT-40-3036 icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
30"x36" 36" to 54" 2-Speed Auto Shift 4,000 4 4"x2" Phenolic 462
HT-40-3042 icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
30"x42" 36" to 54" 2-Speed Auto Shift 4,000 4 4"x2" Phenolic 477
HT-40-3248 Warranty PDF 32"x42" 36" to 54" 2-Speed Auto Shift 4,000 4 4"x2" Phenolic 475
HT-40-4048 Warranty PDFCompliance Certificate 40"x48" 36" to 54" 2-Speed Auto Shift 4,000 4 4"x2" Phenolic 540

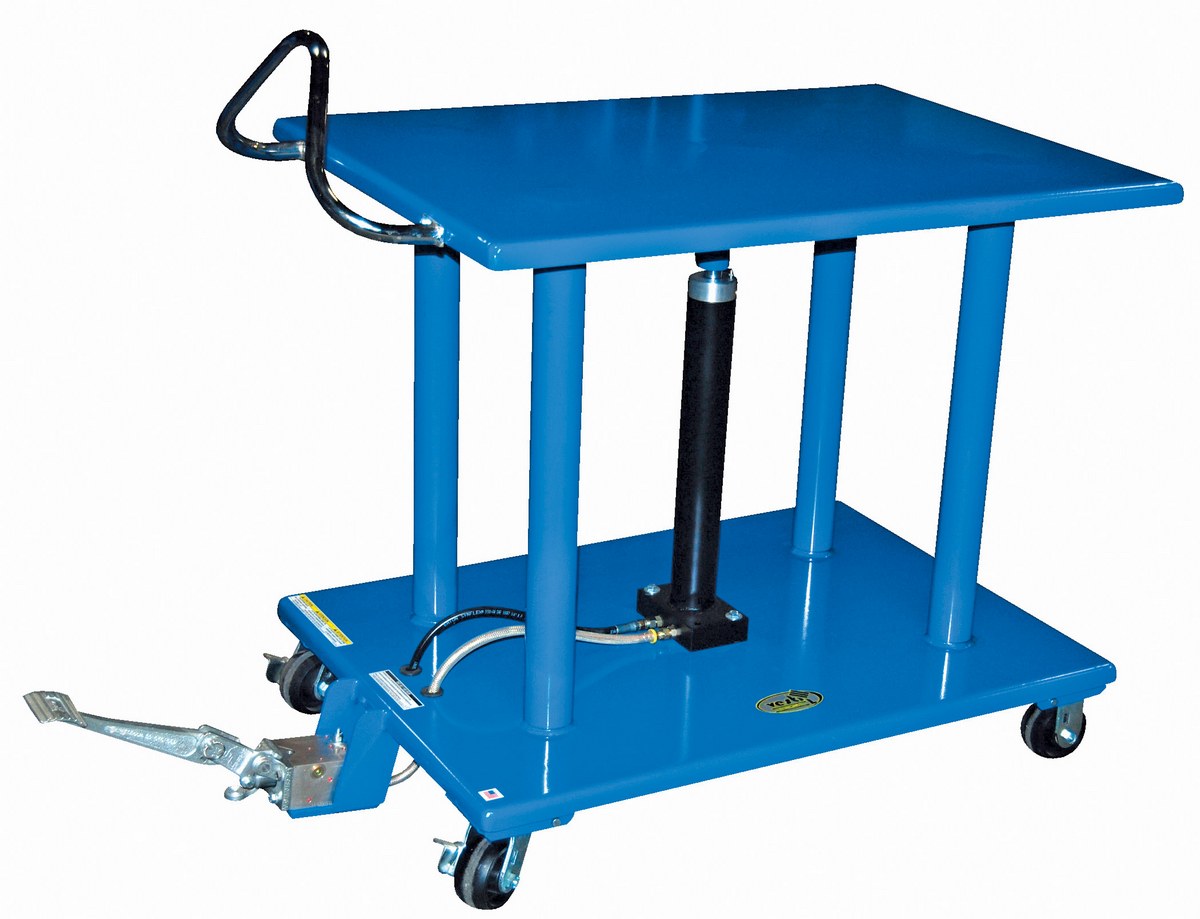

HT-40-4848 Warranty PDFCompliance Certificate 48"x48" 36" to 54" 2-Speed Auto Shift 4,000 4 4"x2" Phenolic 565
HT-60-2436 icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
24"x36" 36" to 54" 2-Speed Auto Shift 6,000 4

6"x 2-1/2" Phenolic

477
HT-60-3248 icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
32"x48" 36" to 54" 2-Speed Auto Shift 6,000 4

6"x 2-1/2" Phenolic

556
HT-60-4048 Warranty PDFCompliance Certificate 40"x48" 36" to 54" 2-Speed Auto Shift 6,000 4

6"x 2-1/2" Phenolic

576
HT-60-4848 Warranty PDFCompliance Certificate 48"x48" 36" to 54" 2-Speed Auto Shift 6,000 4

6"x 2-1/2" Phenolic

596

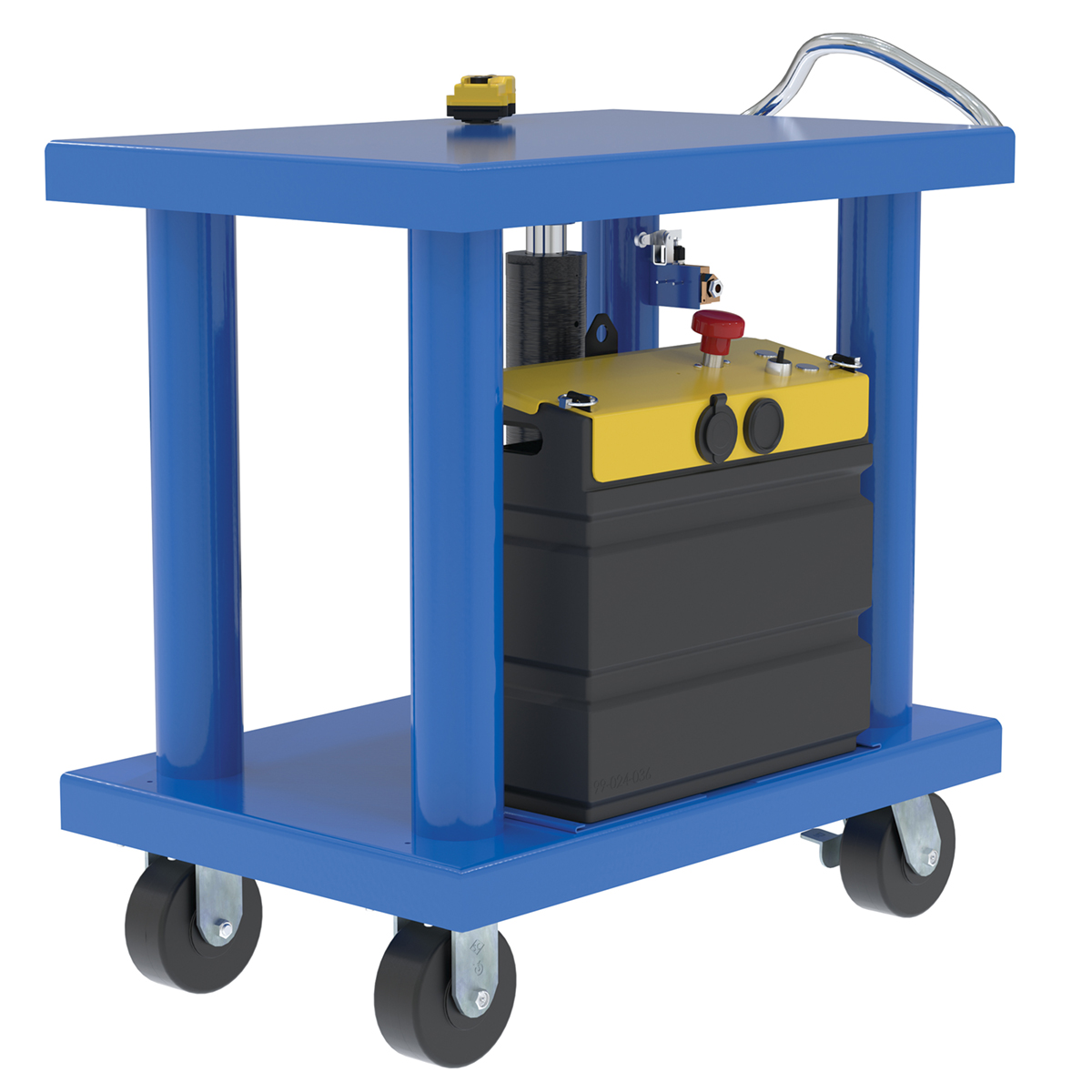

DC Powered Post Table
Model PDFs Platform
Size
Service Range Operation Capacity
(lbs)
# of Posts Caster Size/Type Wt.
(lbs)

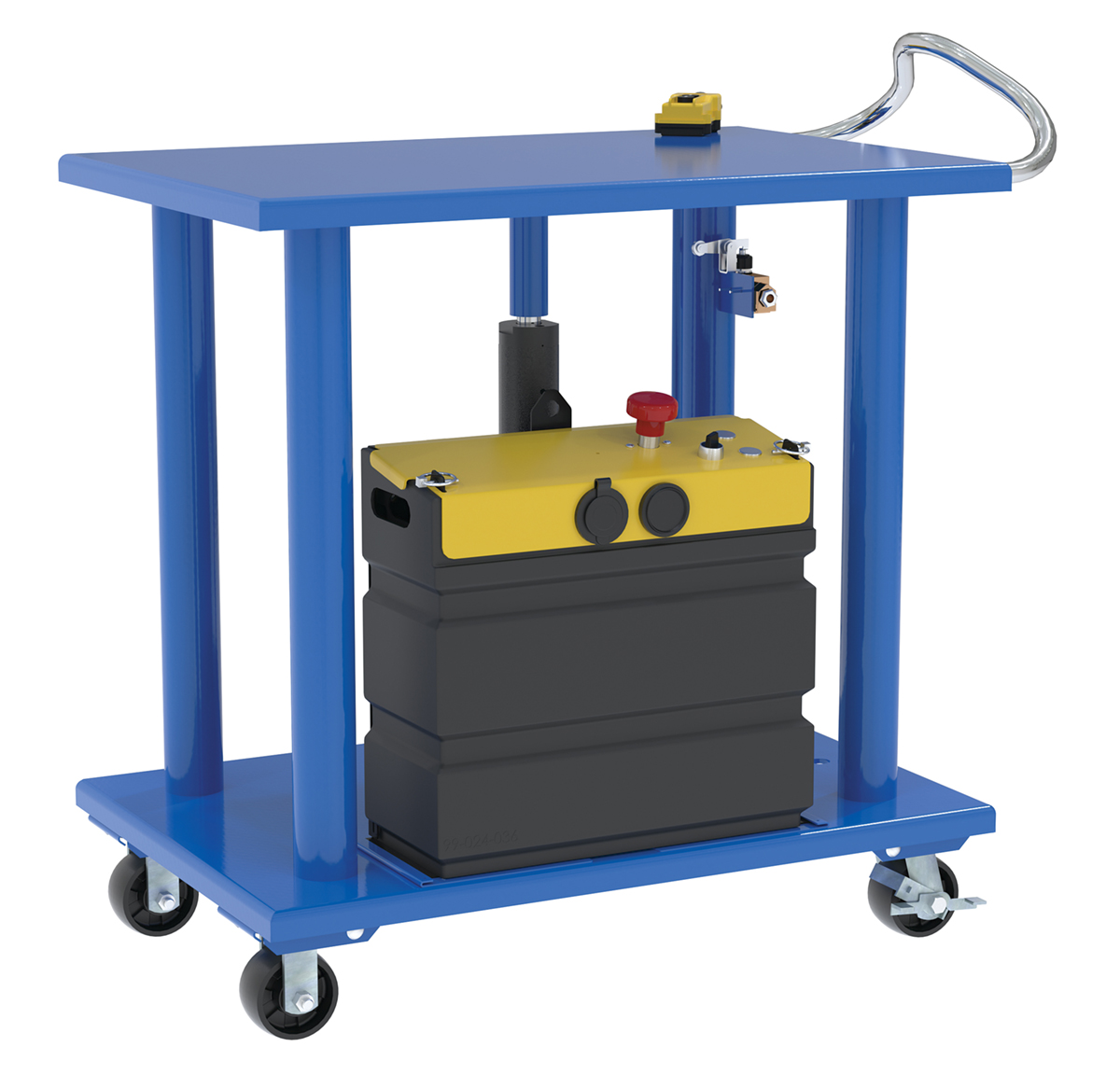

HT-20-2436-DC icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
24"x36" 36" to 54" 12V DC Power 2,000 4 4"x2" Phenolic 396

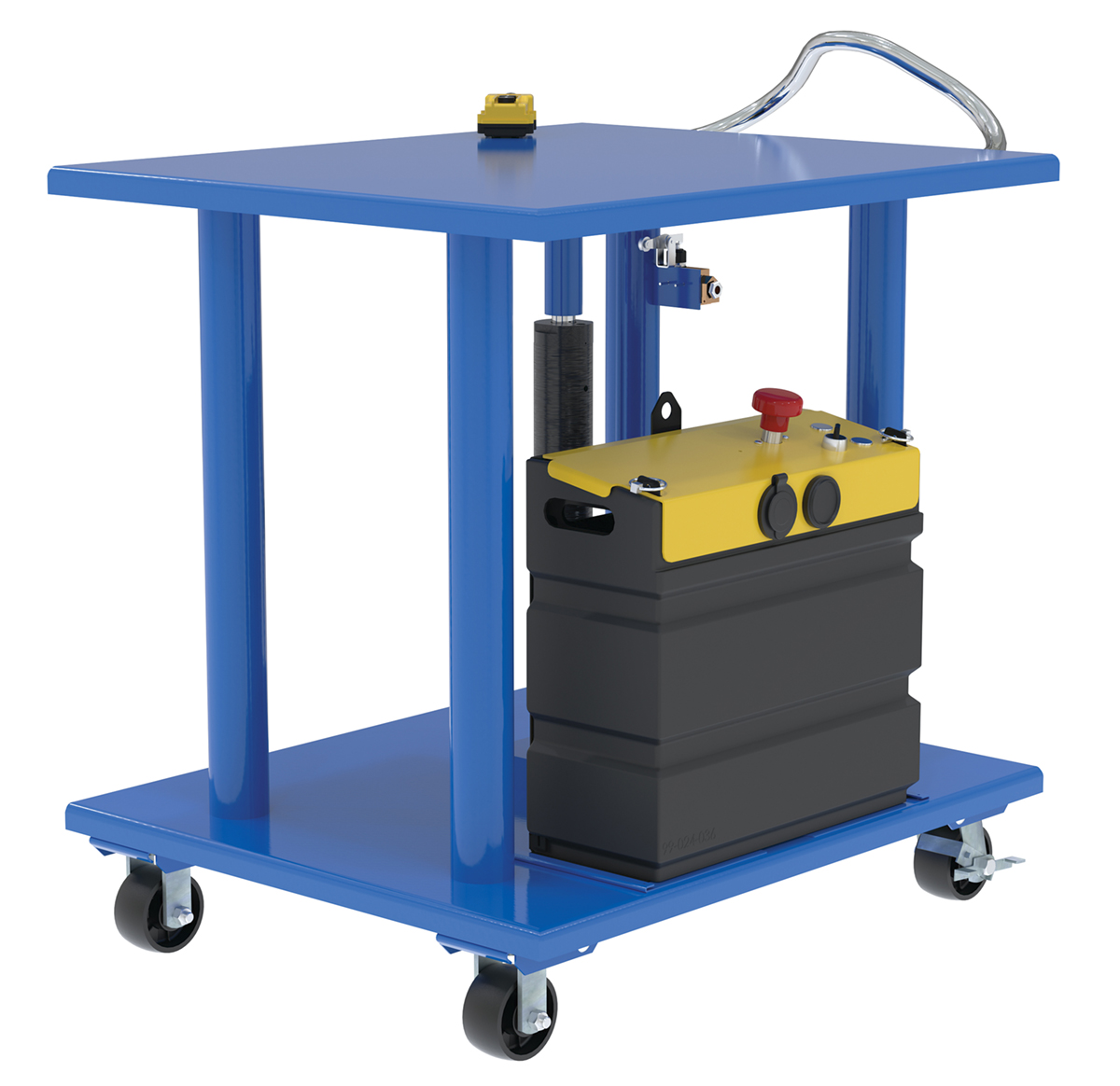

HT-20-3036-DC icon_approvaldrawings.jpgWarranty PDF
Compliance Certificate
30"x36" 36" to 54" 12V DC Power 2,000 4 4"x2" Phenolic 425
HT-40-2436-DC Warranty PDF 24"x36" 36" to 54" 12V DC Power 4,000 4 4"x2" Phenolic 501

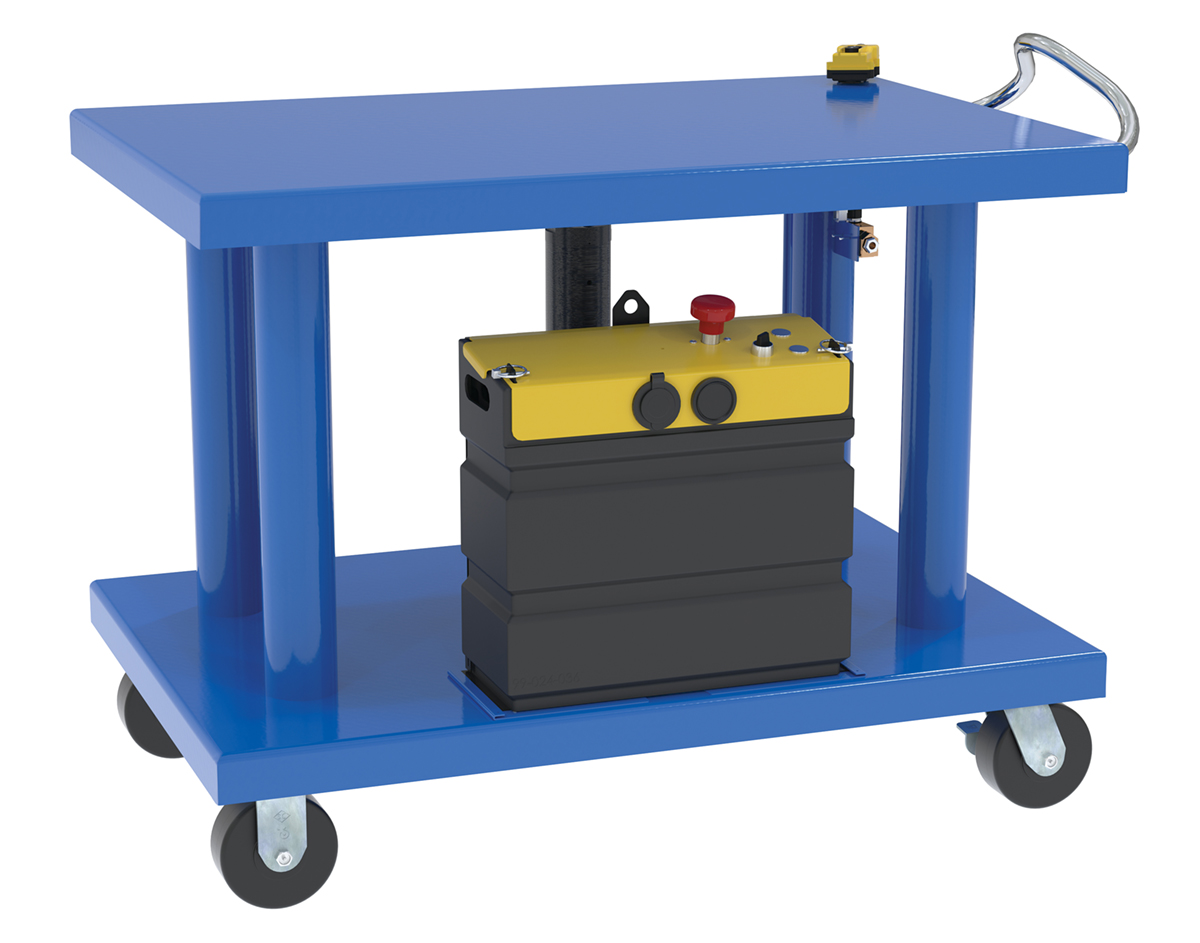

HT-40-3248-DC Warranty PDF 32"x48" 36" to 54" 12V DC Power 4,000 4 4"x2" Phenolic 555

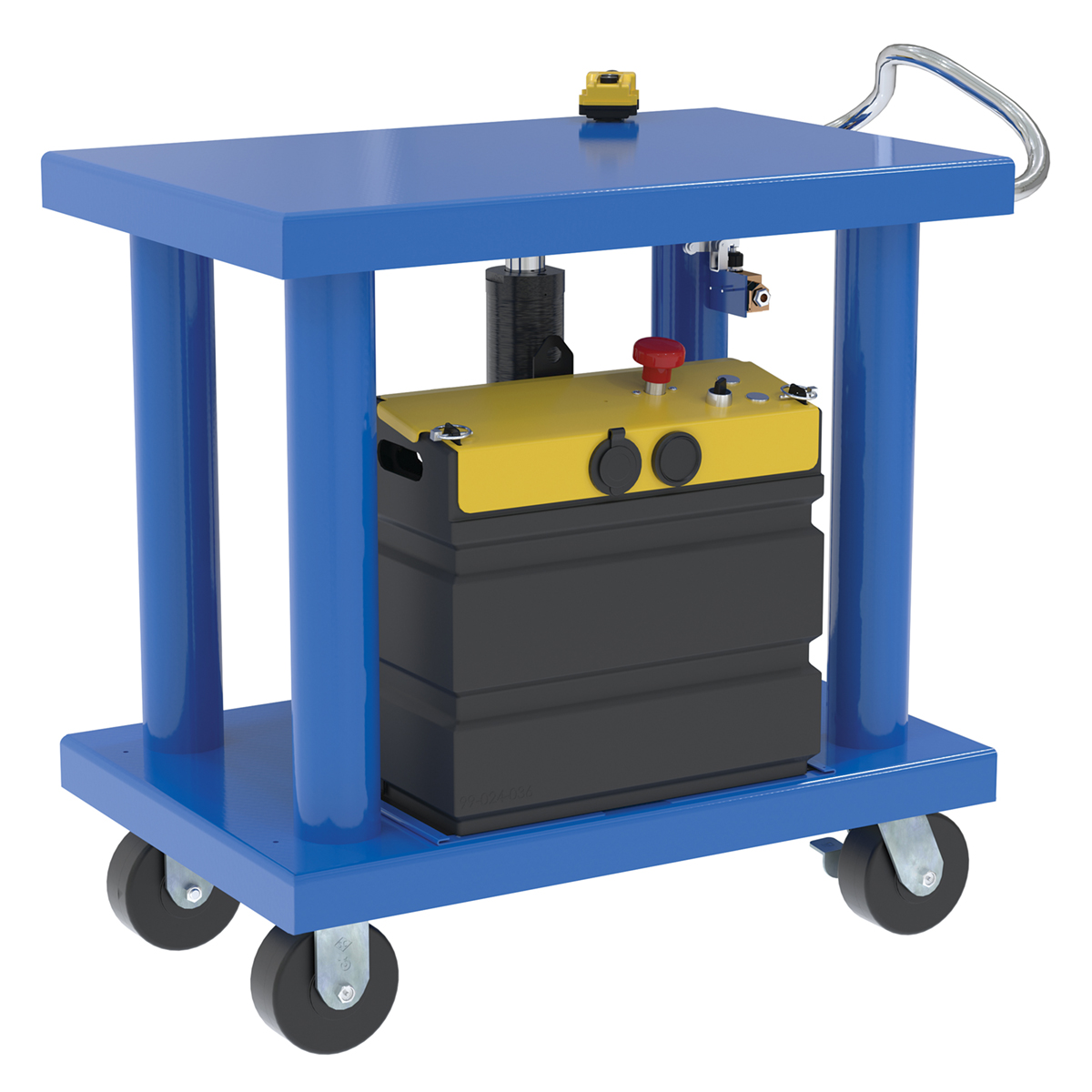

HT-60-2436-DC Warranty PDF 24"x36" 36" to 54" 12V DC Power 6,000 4 6"x2-1/2" Phenolic 558

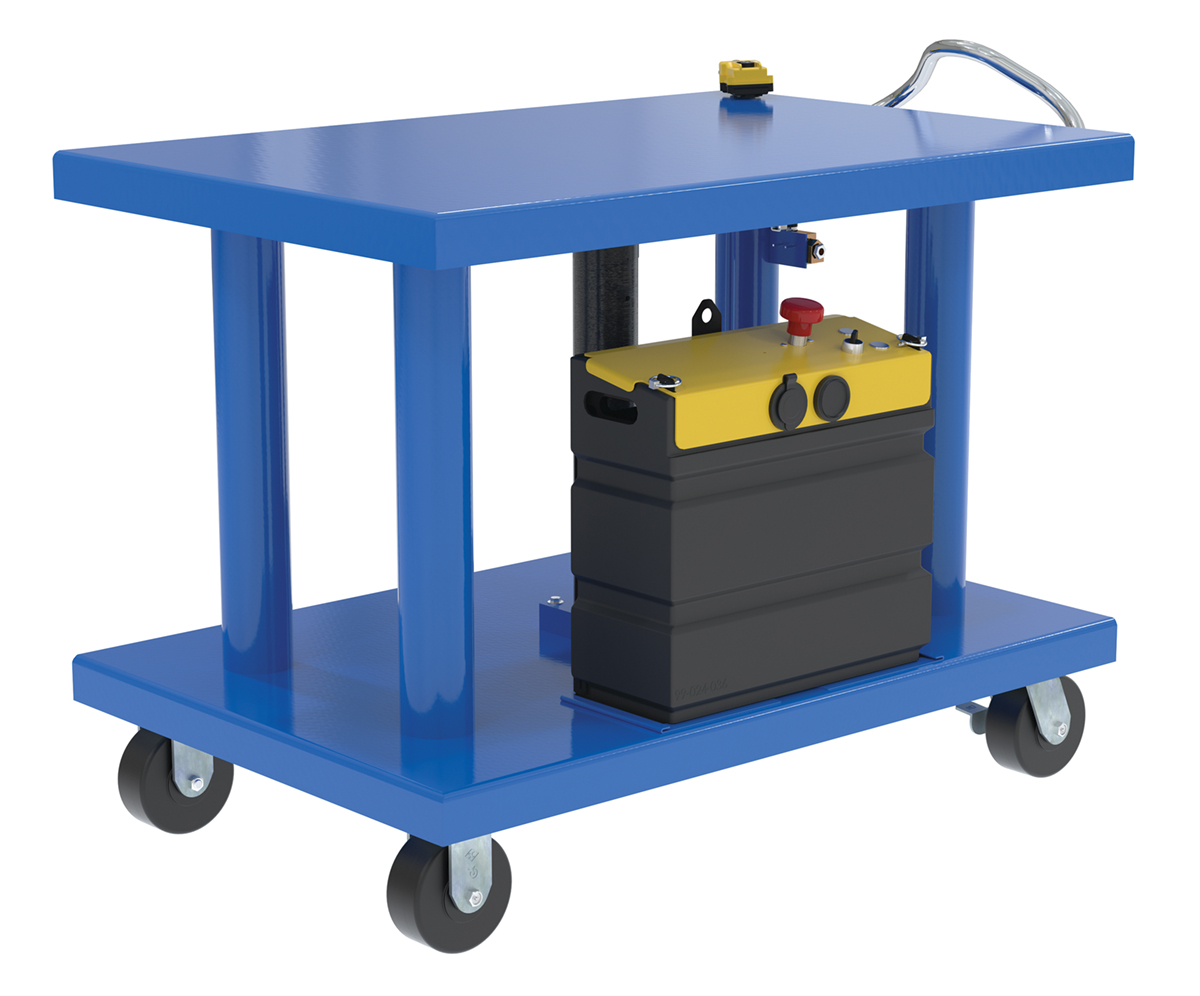

HT-60-3248-DC Warranty PDF 32"x48" 36" to 54" 12V DC Power 6,000 4 6"x2-1/2" Phenolic 625

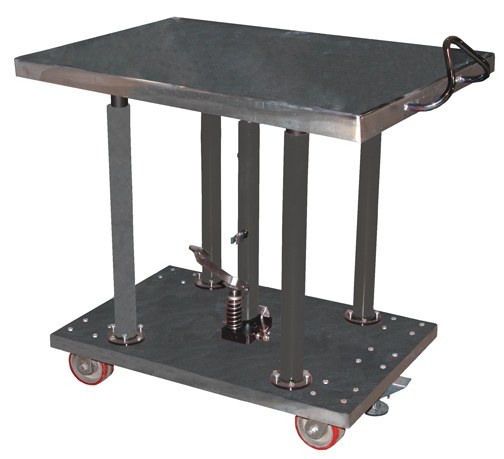

Partially Stainless Steel Construction
Model PDFs Platform
Size
Service Range Operation Capacity
(lbs)
# of Posts Caster Size/Type Wt.
(lbs)

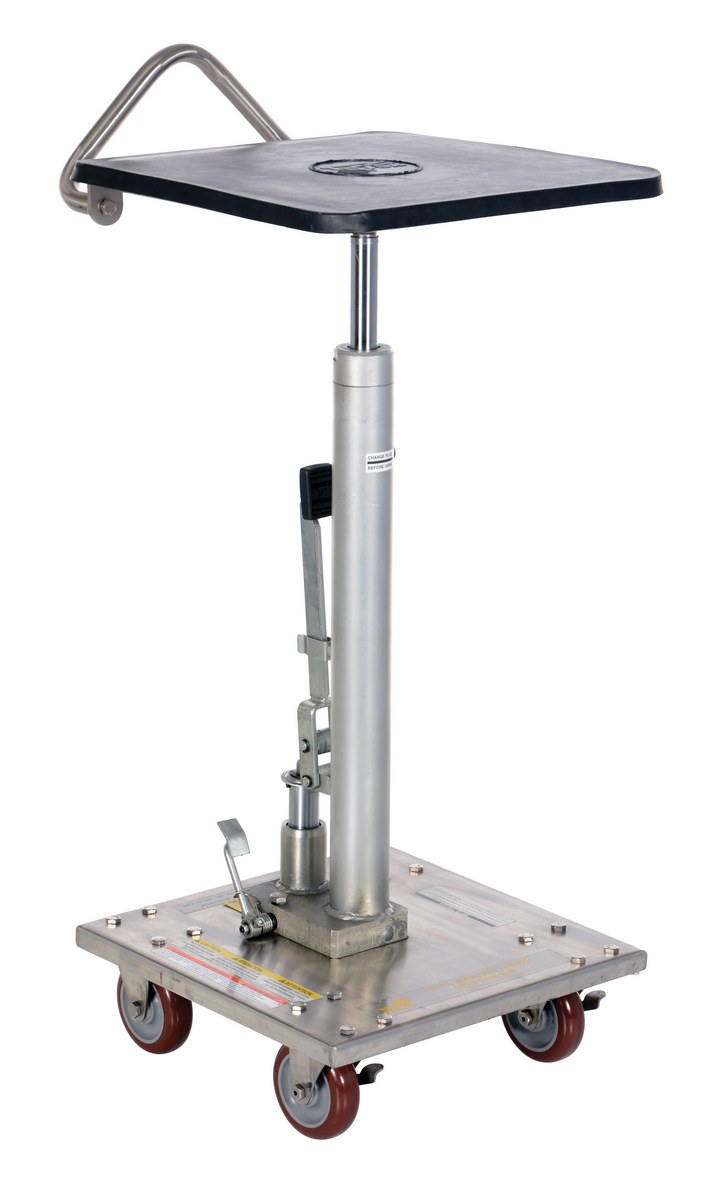

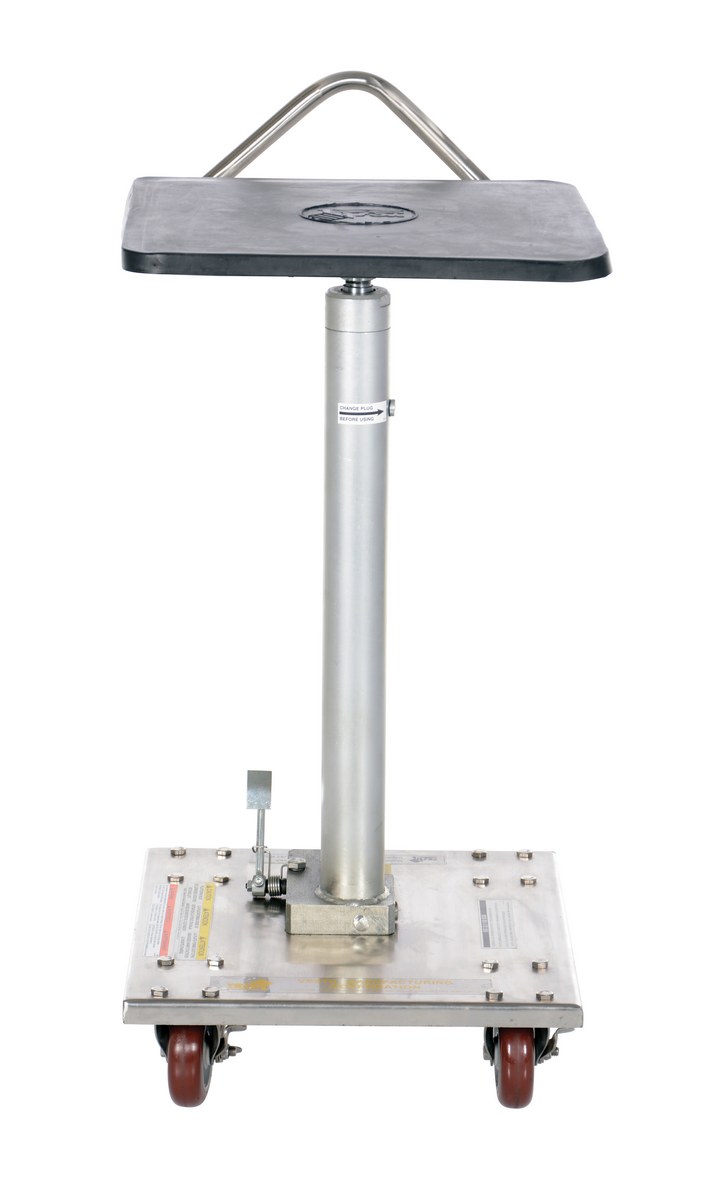

HT-02-1616A-PSS Warranty PDFCompliance Certificate 16"x16" 31" to 49" 1-Speed Foot Pump 200 0 4"x1-1/4" Poly-on-Poly 126

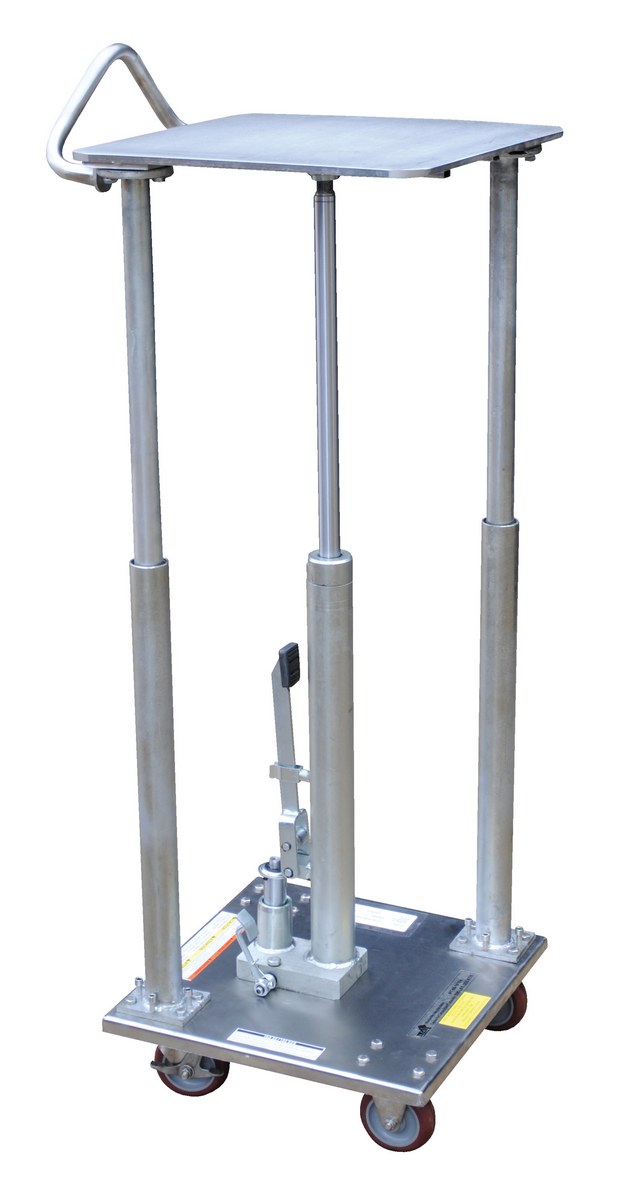

HT-05-1818A-PSS Warranty PDFCompliance Certificate 18"x18" 31" to 49" 1-Speed Foot Pump 500 2 4"x1-1/4" Poly-on-Poly 151
HT-10-2036A-PSS Warranty PDFCompliance Certificate 20"x36" 36" to 54" 2-Speed Foot Pump 1,000 2 4"x1-1/2" Poly-on-Poly 241

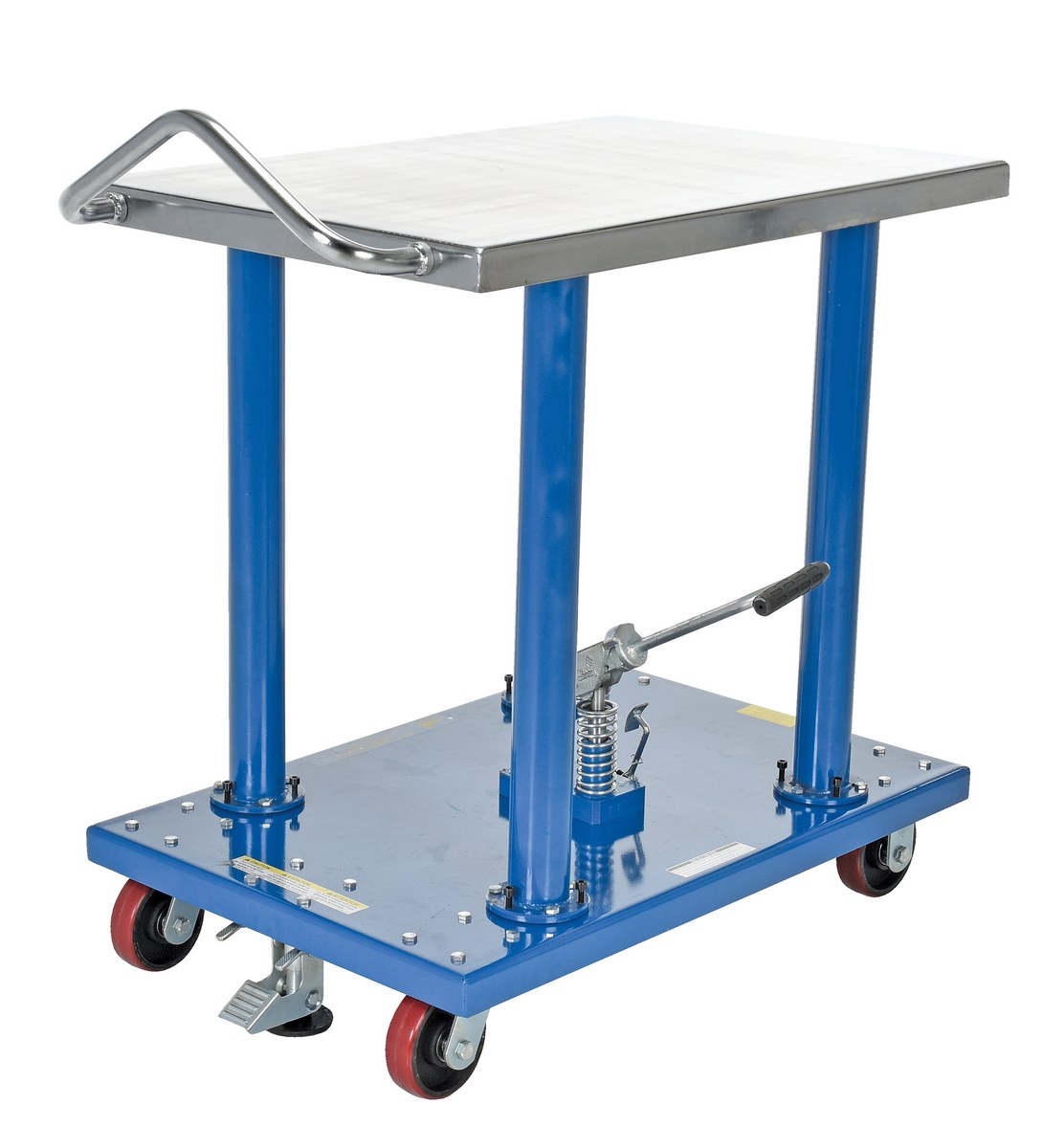

HT-20-2436A-PSS Warranty PDFCompliance Certificate 24"x36" 36" to 54" 2-Speed Foot Pump 2,000 4 5"x1-1/2" Poly-on-Poly 332
HT-20-3036A-PSS Warranty PDFCompliance Certificate 30"x36" 36" to 54" 2-Speed Foot Pump 2,000 4 5"x1-1/2" Poly-on-Poly 376
Post Lift Tables (Low Profile)
Model PDF Platform
(WxL)
Service Range Operation Capacity
(lbs)
# of Posts Caster Size/Type Wt.
(lbs)

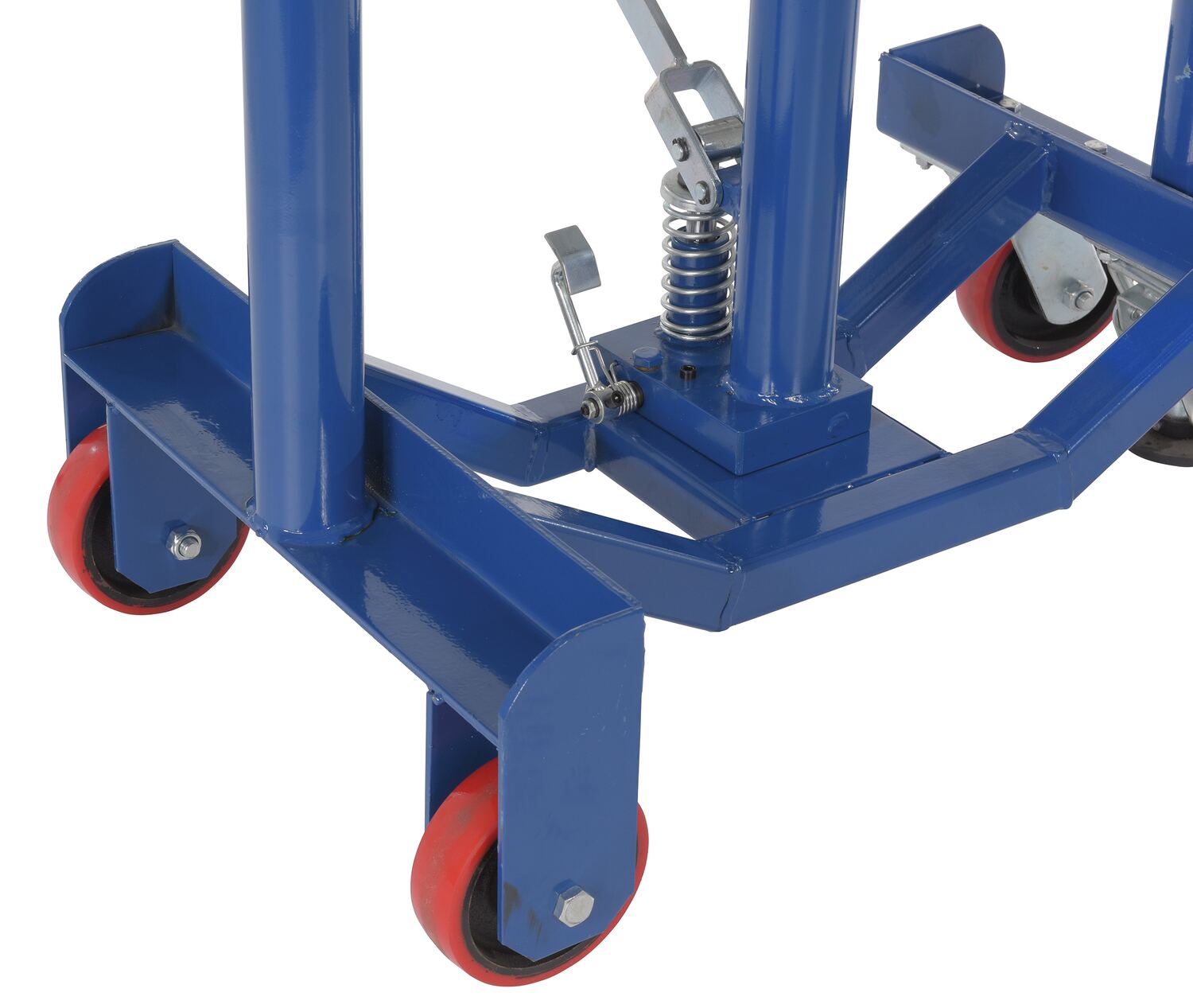

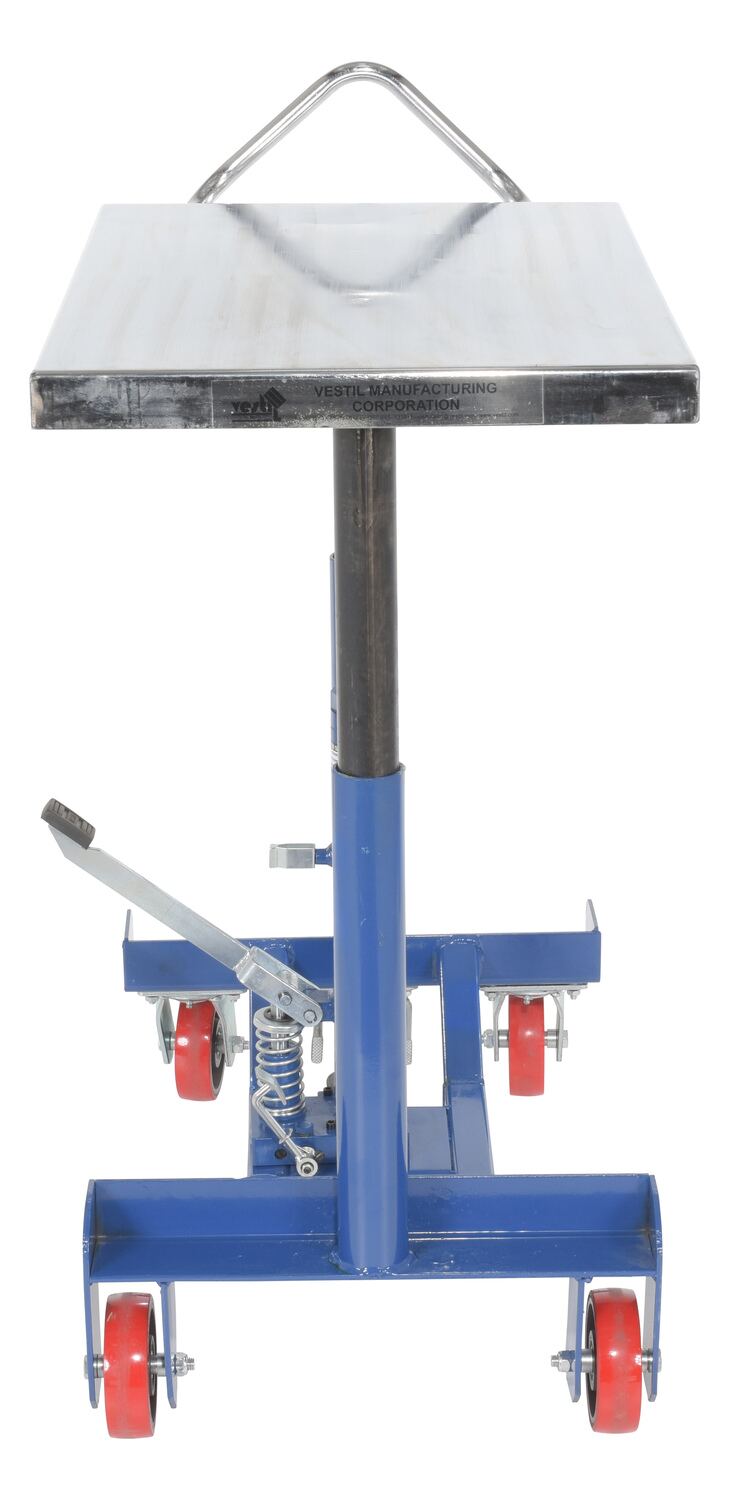

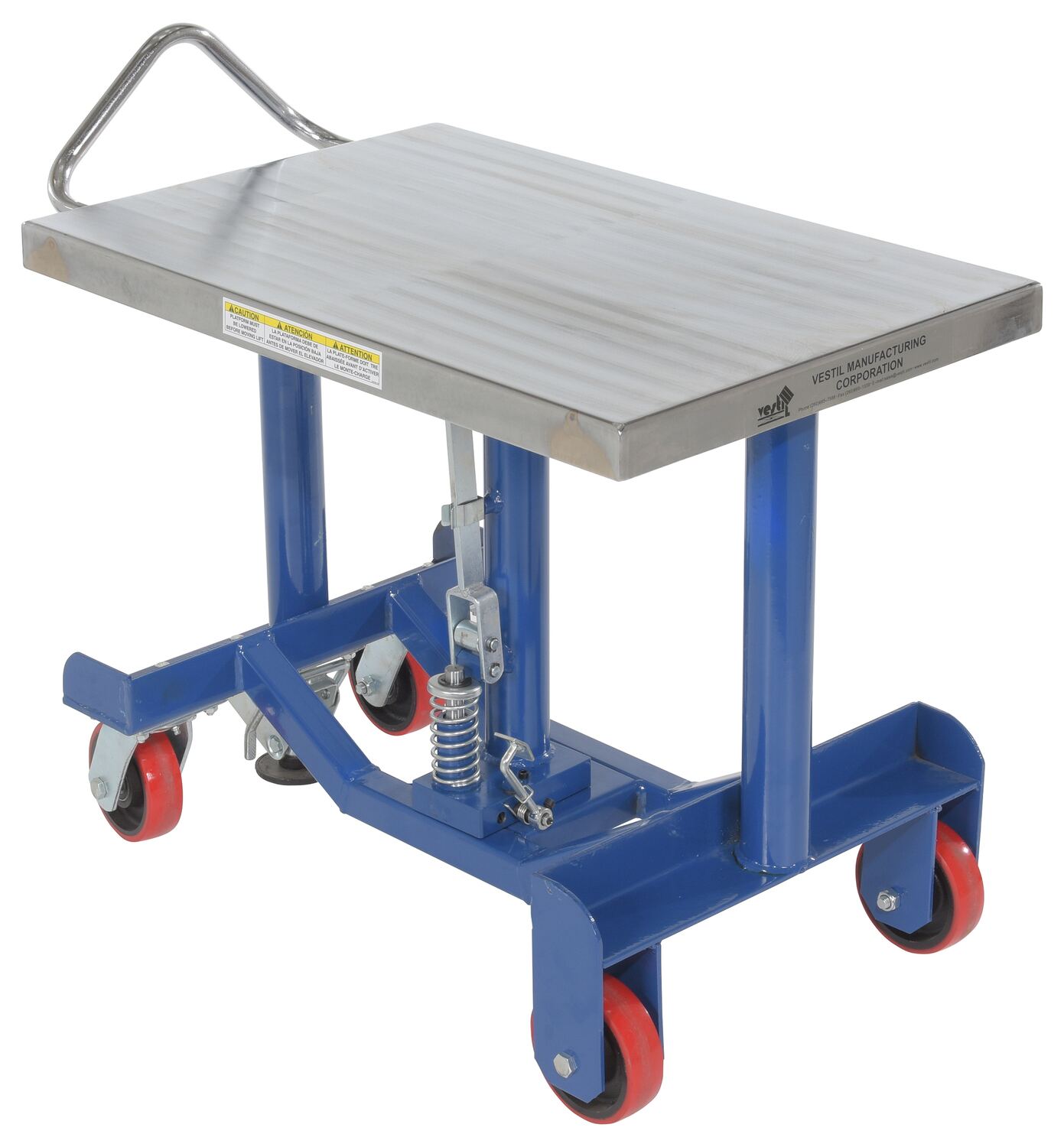

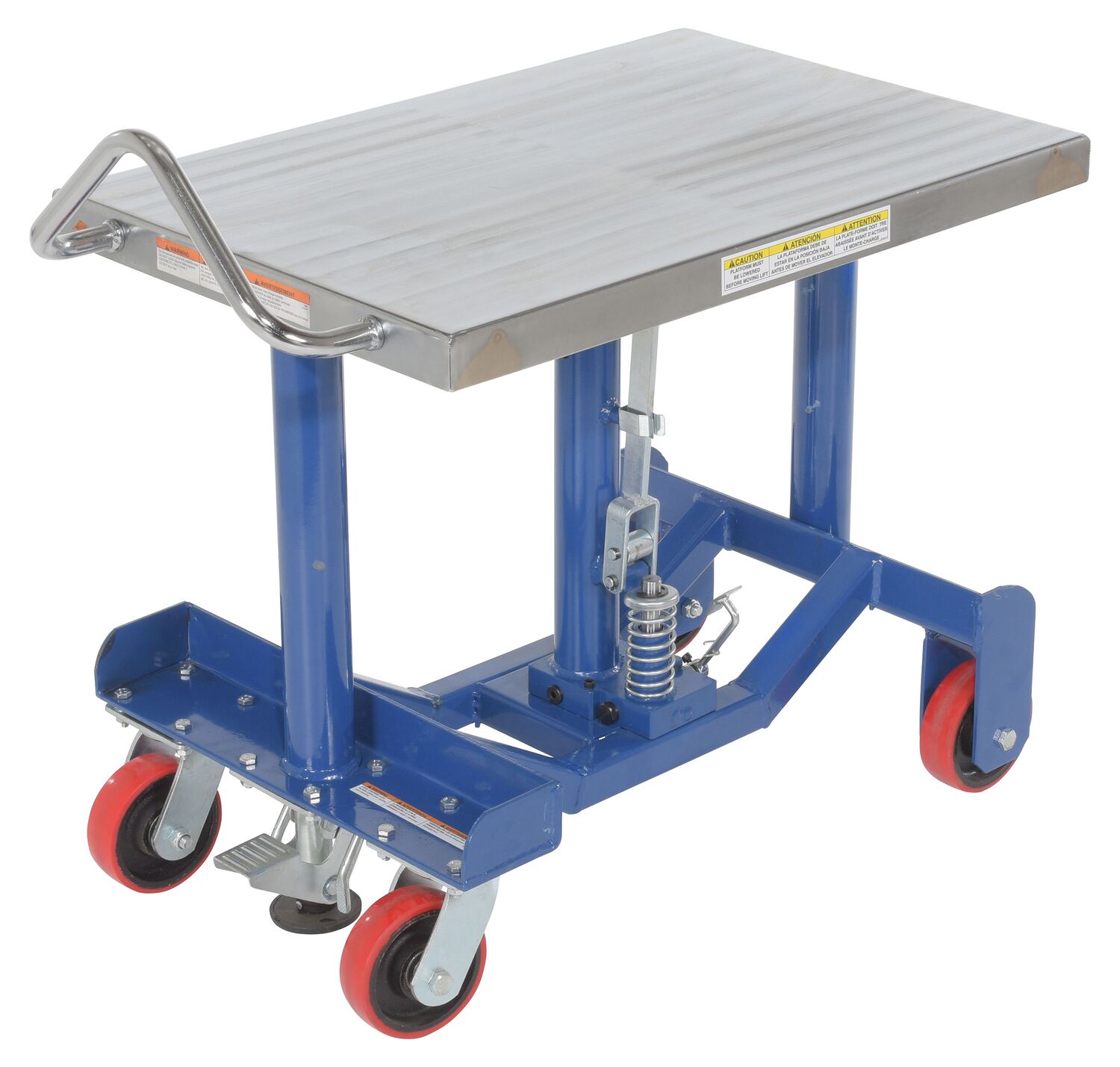

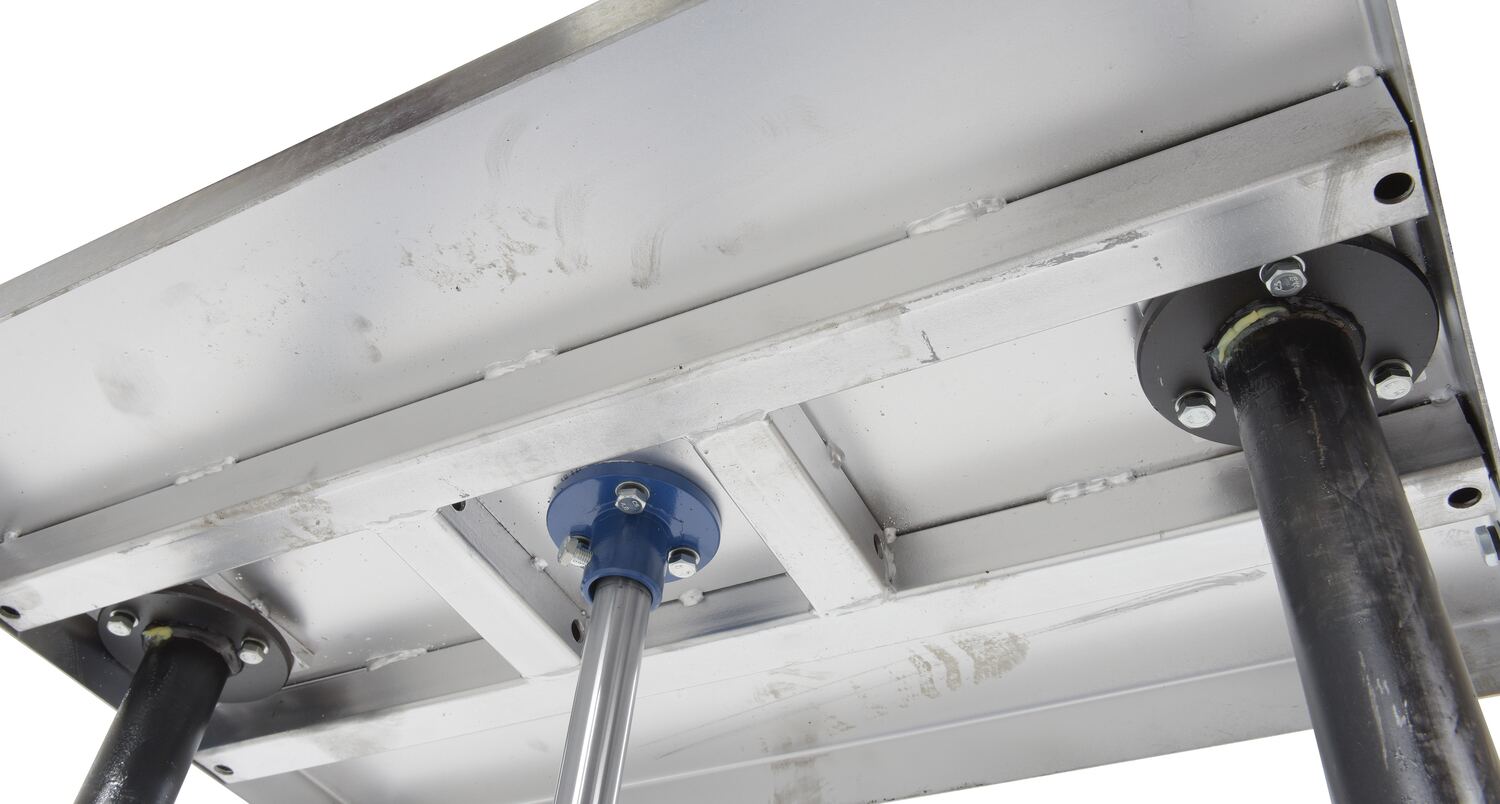

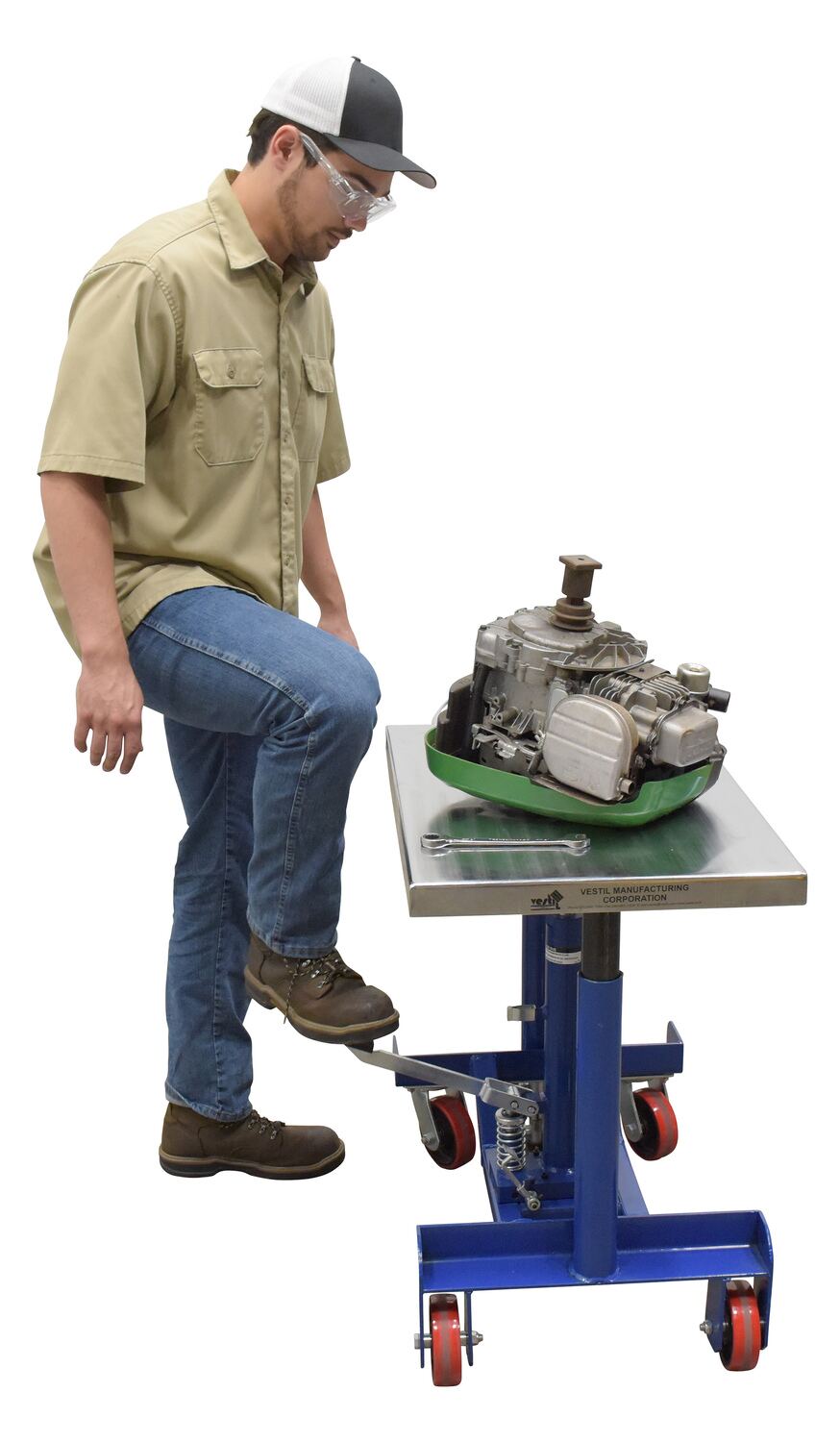

PT12-10 Warranty PDFCompliance Certificate 20"x30" 25"to37" 1-Speed Foot Pump 1,000 2 5" x 1-1/2" Poly-on-Steel 184
PT12-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x36" 25"to37" 1-Speed Foot Pump 2,000 4 5" x 1-1/2" Poly-on-Steel 254

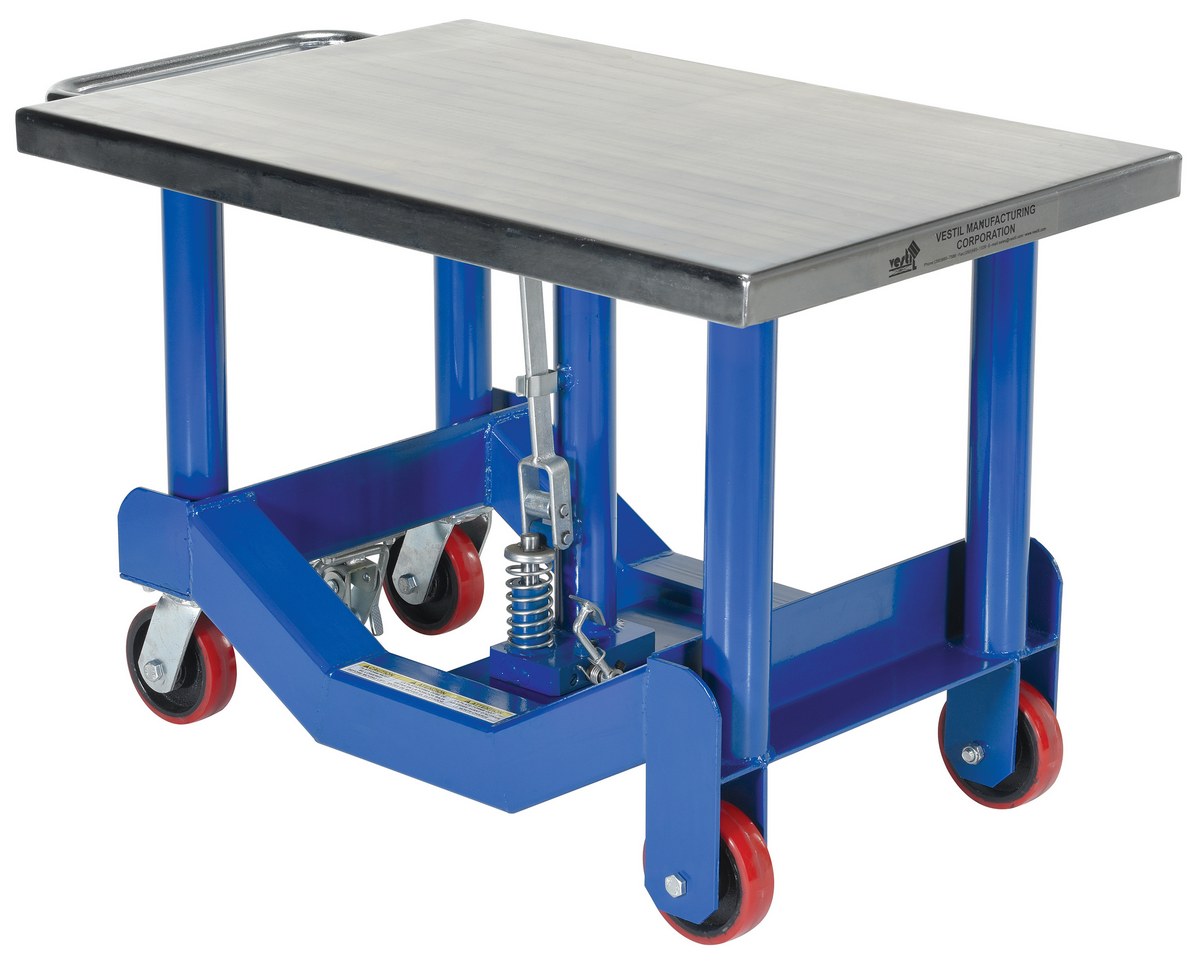

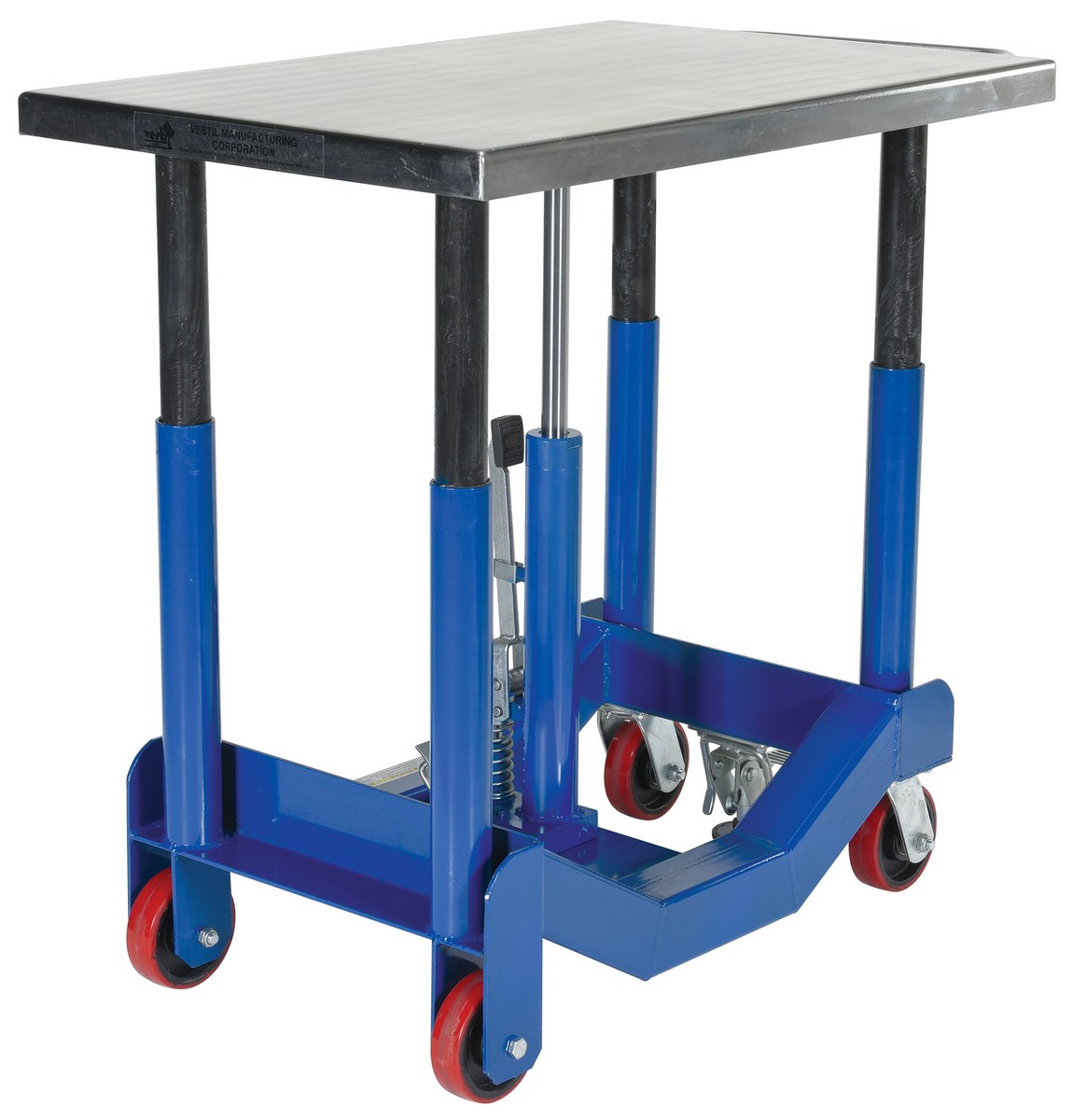

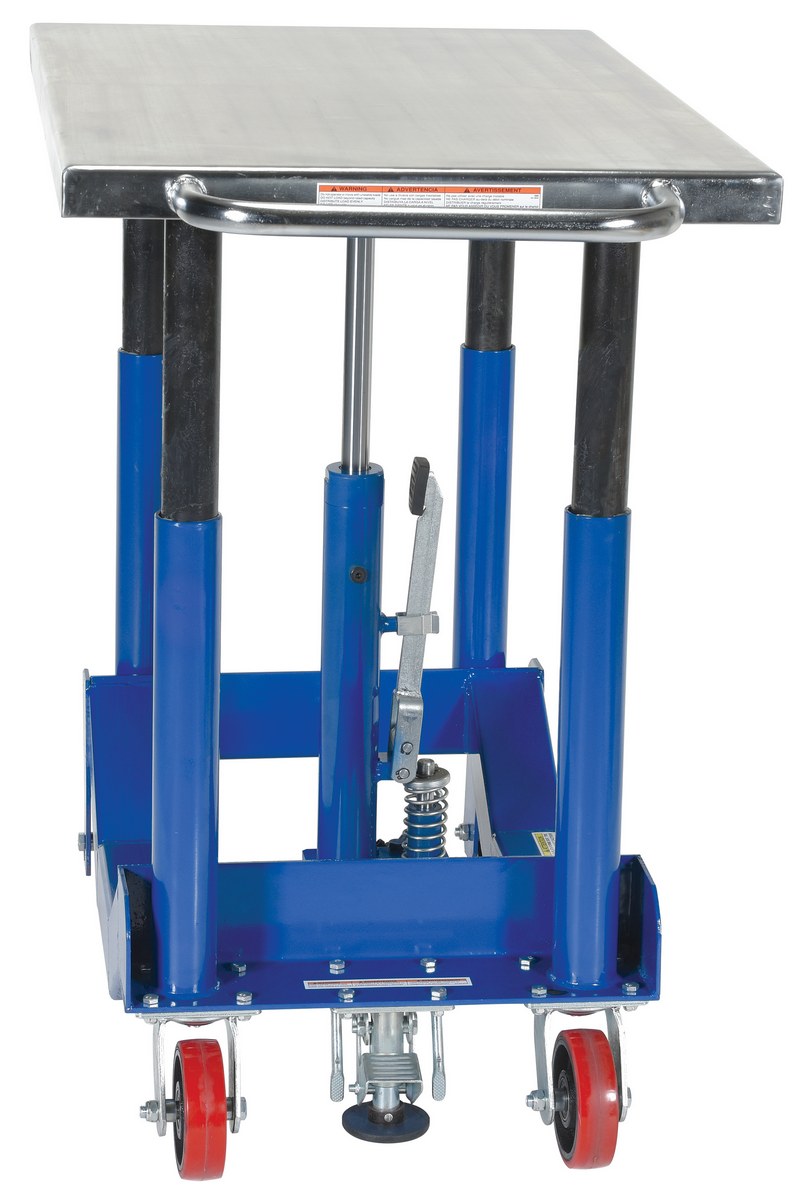

PT12-40 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x36" 25"to37" 1-Speed Foot Pump 4,000 4 5" x 1-1/2" Poly-on-Steel 270

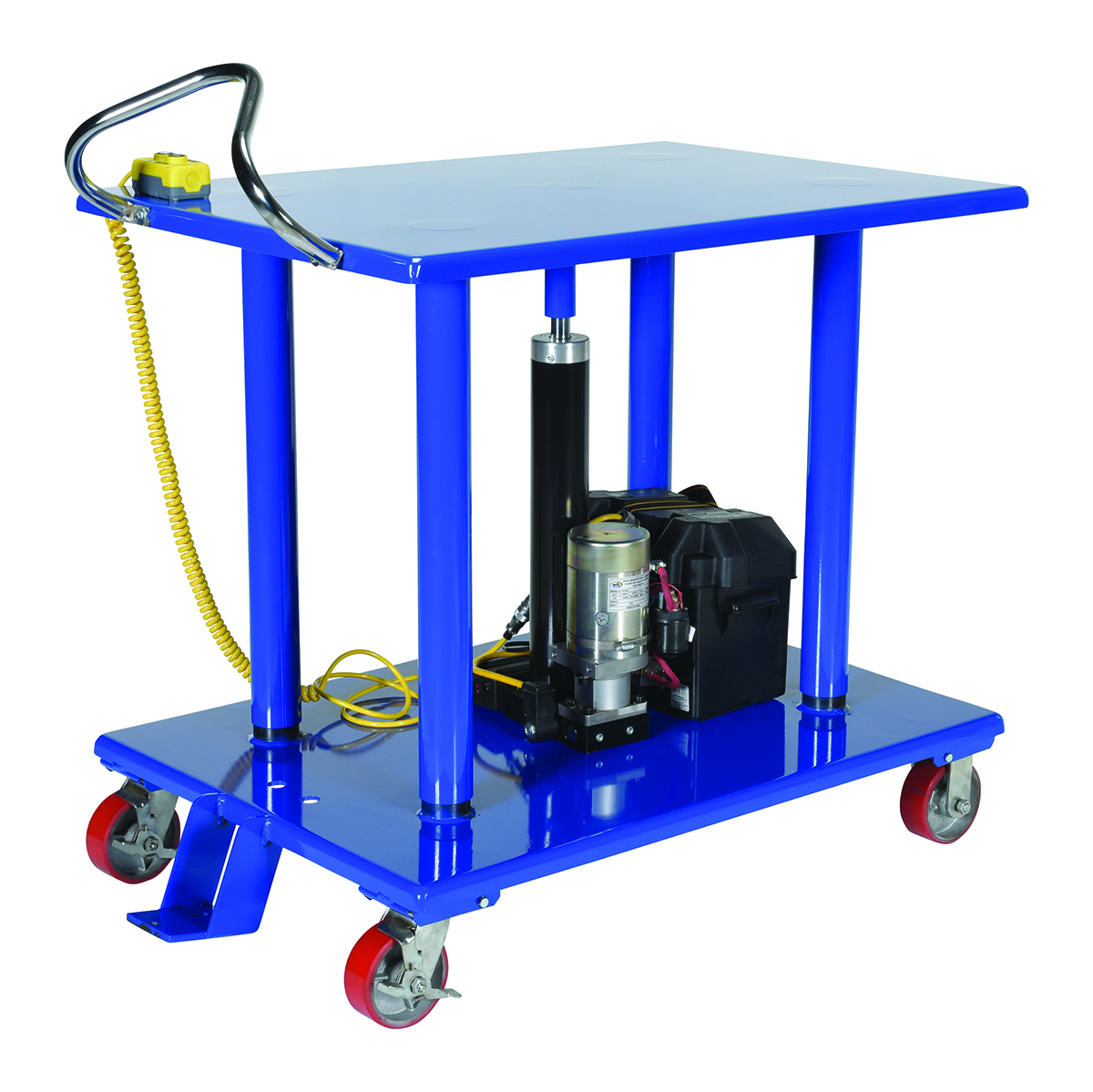

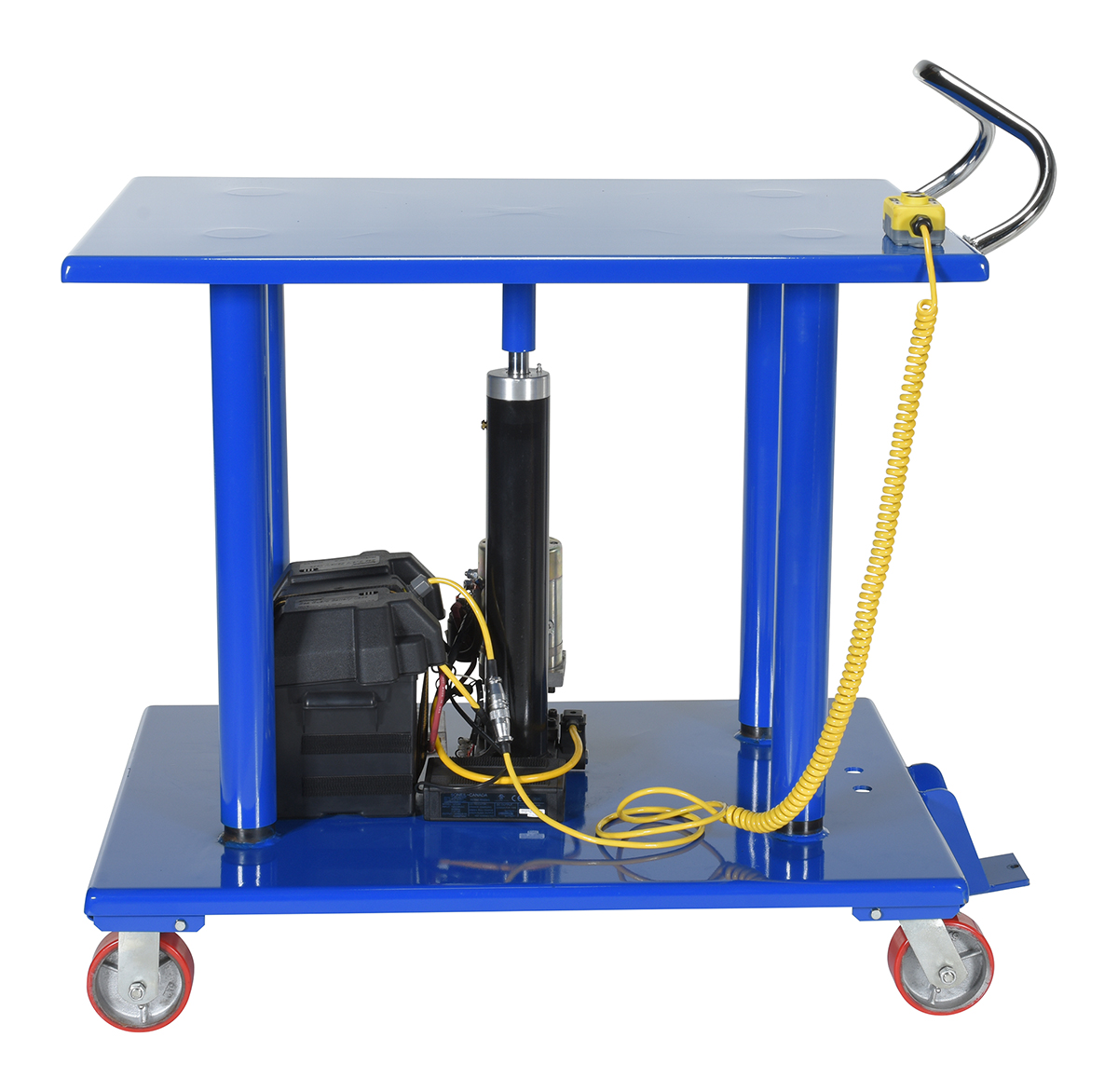

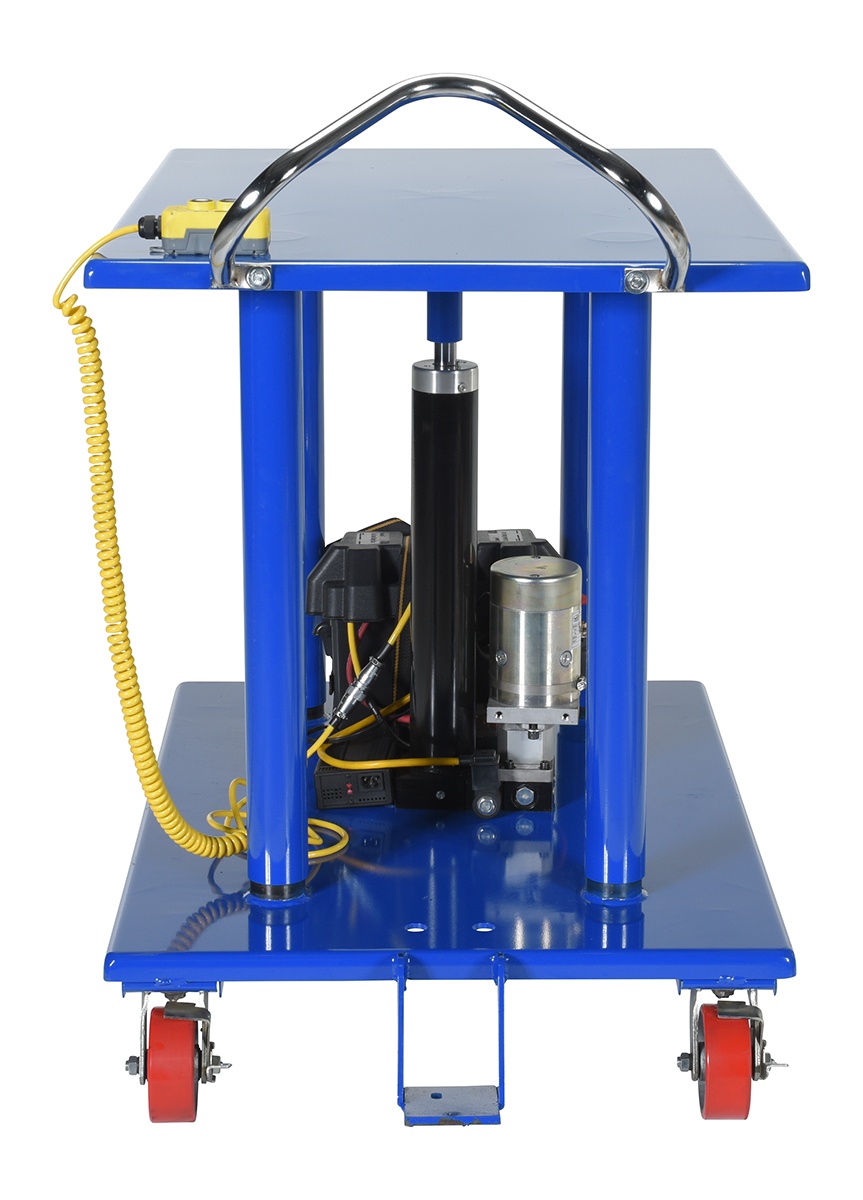

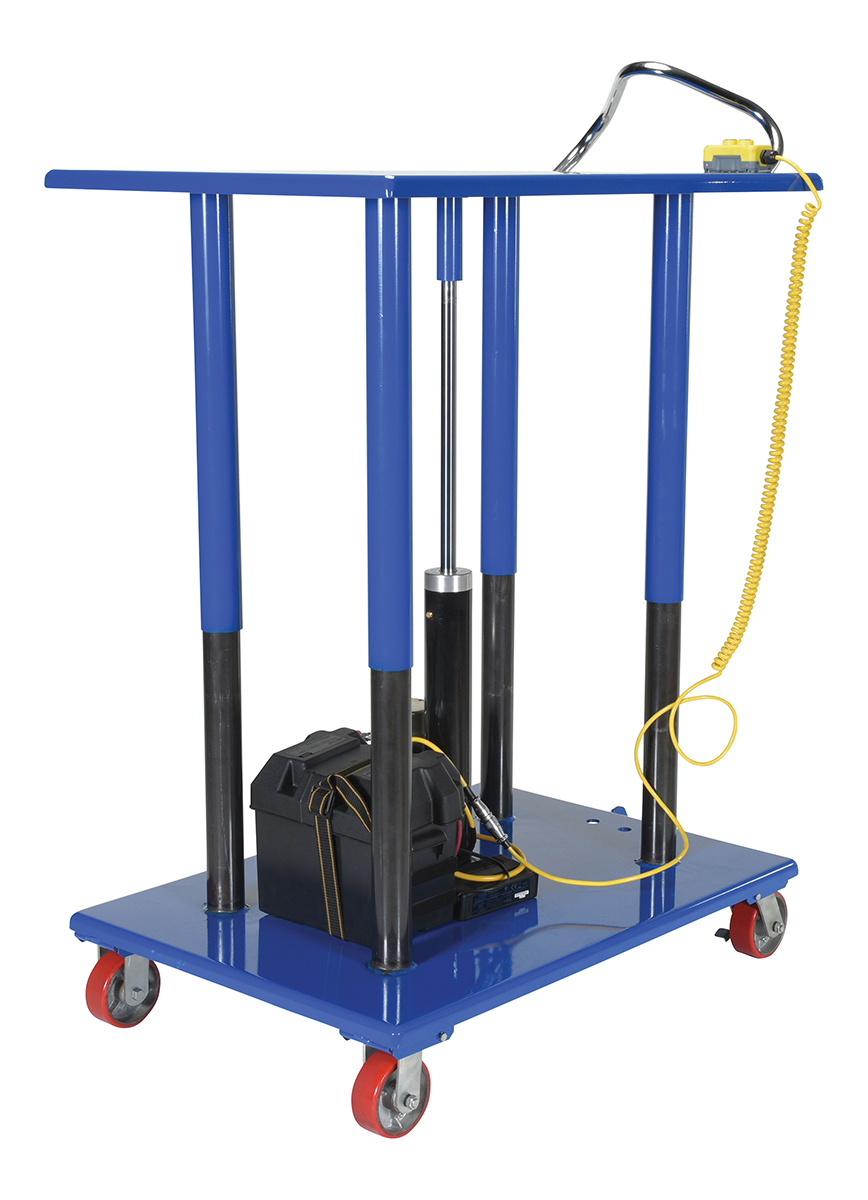

PT2436E* Warranty PDFCompliance Certificate 24"x36" 34"to52" Linear Actuated 1,000 4 5" x 1-1/2" Poly-on-Steel 240

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
