Model Details

HT-10-2036A

HT-10-2036A

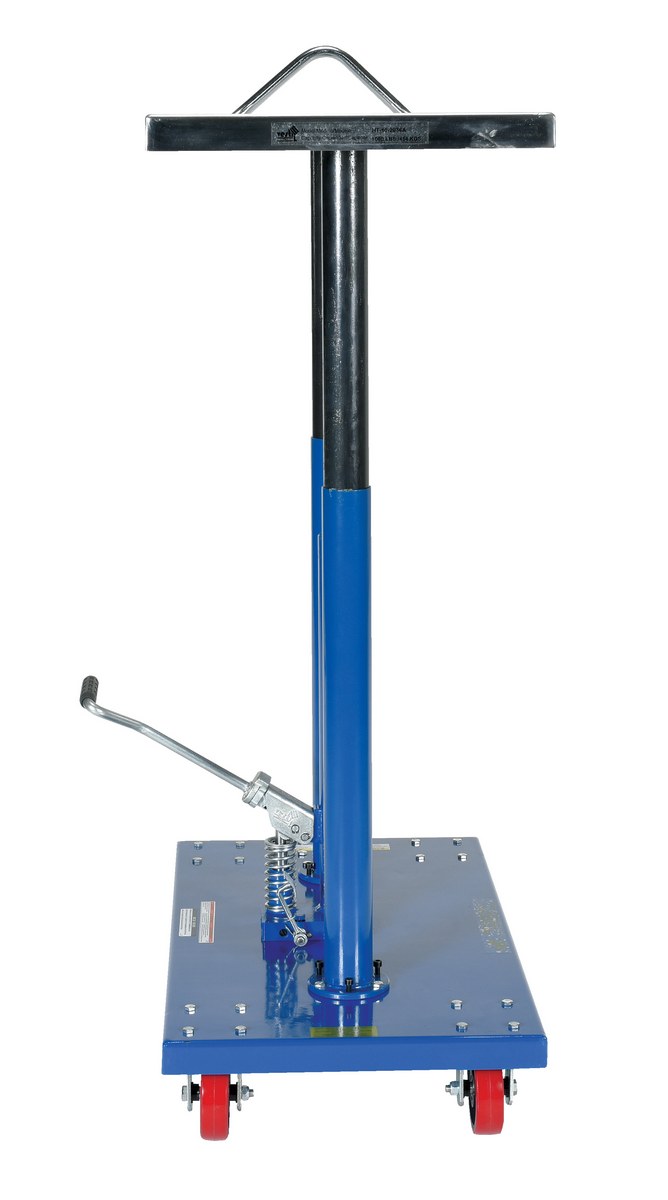

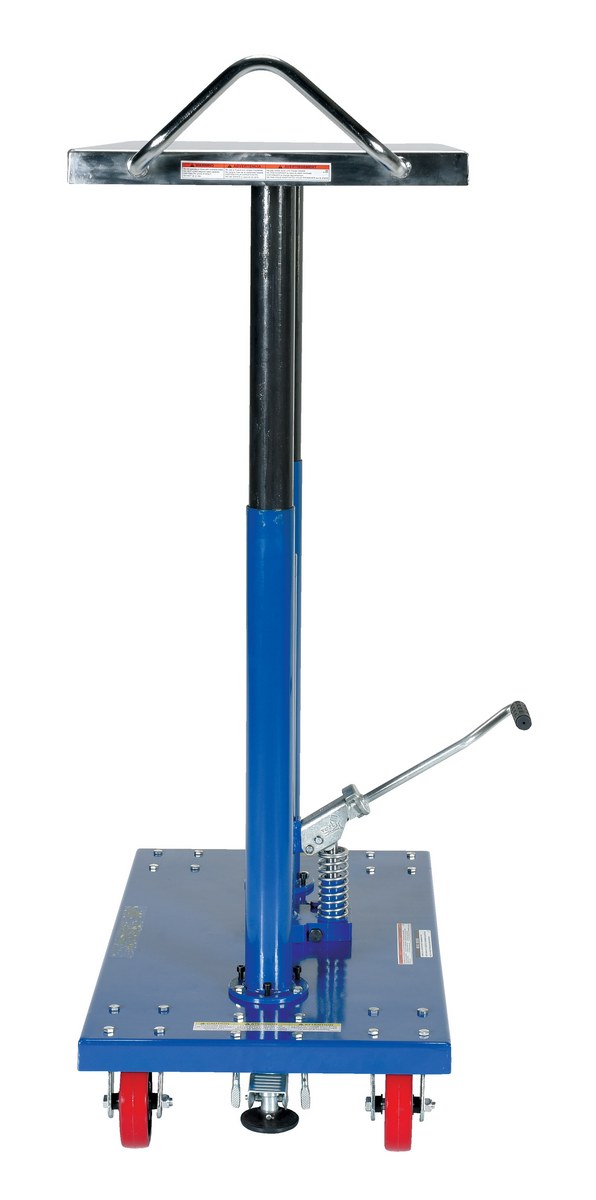

Steel Hydraulic Post Table 20 In. x 36 In. 1000 Lb. Capacity Blue

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four casters; two locking swivel with brakes and two rigid. The light duty-units feature a single-speed foot pump all foot pumps include a down speed control valve for safe platform lowering.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Total Ship Wt.(lbs.): 241 (only 1 package) Size: 20"W x 40"L x 36"H Color: Blue QuickShip

Uniform Capacity (lb.): 1000 Platform Width (in.): 20 Platform Length (in.): 36
Lowered Height (in.): 36 Raised Height (in.): 54 Post (qty.): 2
Operation: 2-Speed Foot Pump Caster Diameter (in.): 5 Caster Width (in.): 1-1/2
Caster Material: Poly-on-Steel Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid Top Deck Thickness (in.): 1/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HT-10-2036A


HT-10-2036A

Steel Hydraulic Post Table 20 In. x 36 In. 1000 Lb. Capacity Blue

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four casters; two locking swivel with brakes and two rigid. The light duty-units feature a single-speed foot pump all foot pumps include a down speed control valve for safe platform lowering.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Dimensions: 20"W x 40"L x 36"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215051682 GTIN: 00691215051682
Warranty: -- Shipping Weight: 241 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1000 Platform Width (in.): 20 Platform Length (in.): 36
Lowered Height (in.): 36 Raised Height (in.): 54 Post (qty.): 2
Operation: 2-Speed Foot Pump Caster Diameter (in.): 5 Caster Width (in.): 1-1/2
Caster Material: Poly-on-Steel Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid Top Deck Thickness (in.): 1/8
