Model Details

HYD-10-DA-SS

Printer Friendly
HYD-10-DA-SS

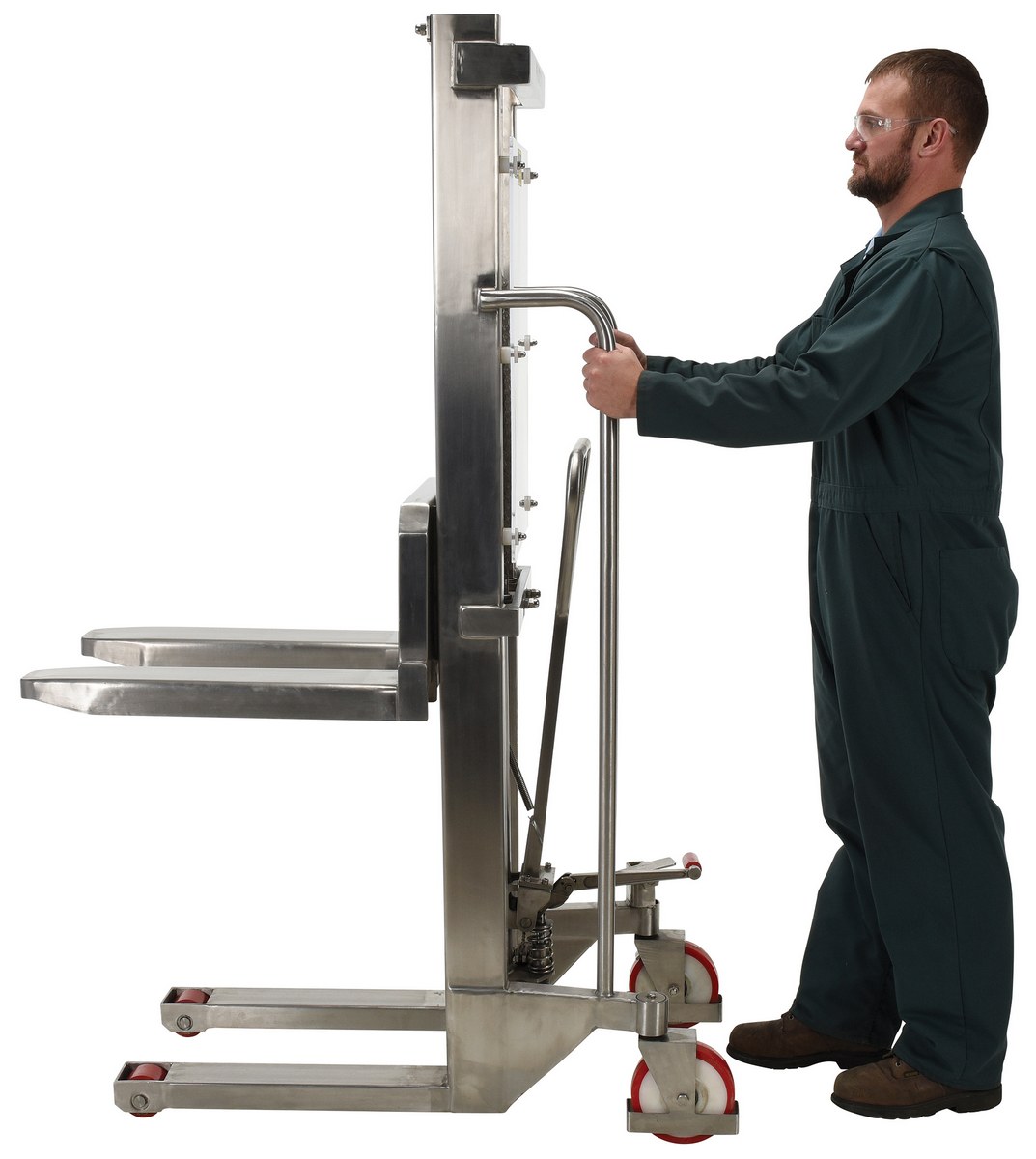

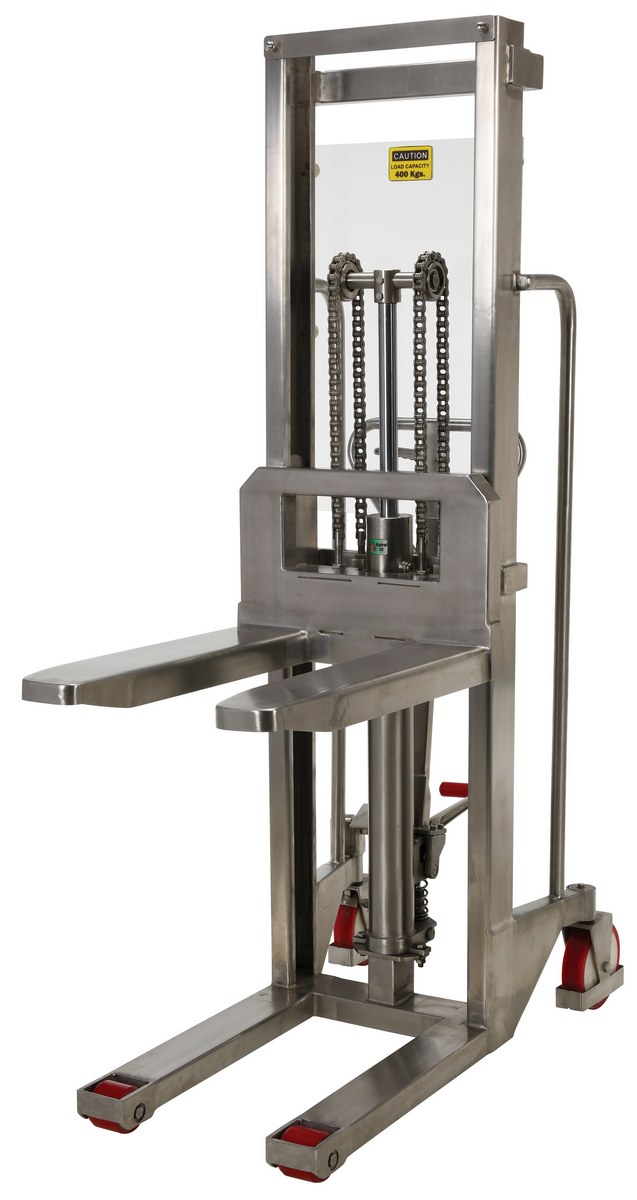

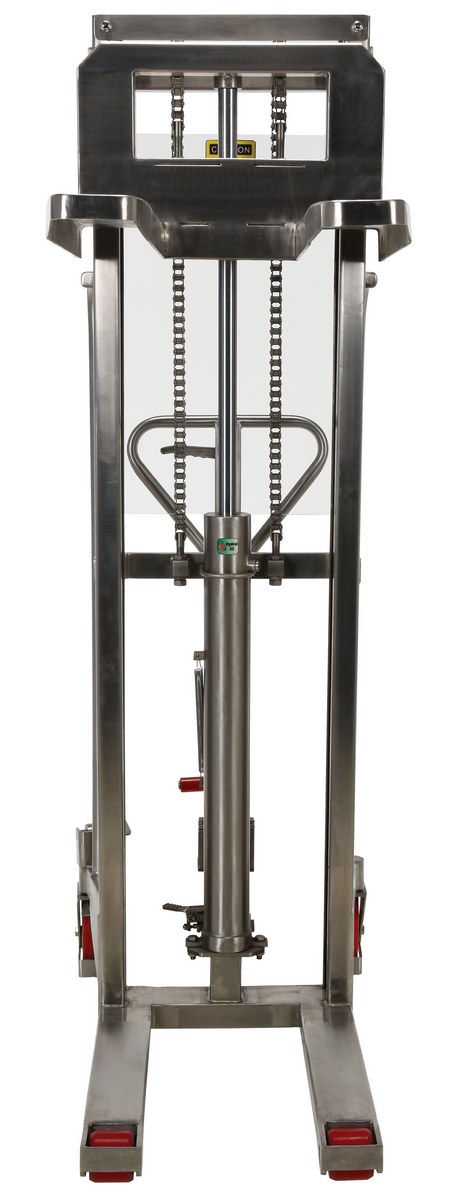

Stainless Steel Portable Hand Pump Hefti-Lift 48 In. x 74 In. 800 Lb. Capacity Silver

The Hefti-Lift is a user friendly, stainless steel portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. The non-slip chain is used for accurate positioning while the unit rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction and not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Includes a foot operated brake
  • Stainless steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 354 (only 1 package) Size: 23.5"W x 48"L x 74"H Color: Silver Non-Returnable QuickShip

Uniform Capacity (lb.): 800 Service Range (in.): 3-1/8 x 59 Operation: Dual Acting Manual Hand Pump
Pumps (qty.): 91 Fork Travel per Stroke (in.): 3/4 Individual Fork Width/Height (in.): 4-1/2 x 2-1/2
Fork Length (in.): 25-1/2 Overall Fork Width (in.): 22 Handle Height (in.): 46-3/4
Back Caster Quantity/Diameter/Width (in.): (2) 7 x 1-3/4 Back Caster Type: Swivel Front Caster Quantity/Diameter/Width (in.): (2) 3 x 2-3/4
Front Caster Type: Rigid Caster Material: Poly-on-Steel Outrigger Inside Dimension (in.): 13-3/4
Outrigger Outside Dimension (in.): 20

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-10-DA-SS
HYD-10-DA-SS

Stainless Steel Portable Hand Pump Hefti-Lift 48 In. x 74 In. 800 Lb. Capacity Silver

The Hefti-Lift is a user friendly, stainless steel portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. The non-slip chain is used for accurate positioning while the unit rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction and not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Includes a foot operated brake
  • Stainless steel construction provides long lasting rugged use
Dimensions: 23.5"W x 48"L x 74"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215103664 GTIN: 00691215103664
Warranty: -- Shipping Weight: 354 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: India
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Service Range (in.): 3-1/8 x 59 Operation: Dual Acting Manual Hand Pump
Pumps (qty.): 91 Fork Travel per Stroke (in.): 3/4 Individual Fork Width/Height (in.): 4-1/2 x 2-1/2
Fork Length (in.): 25-1/2 Overall Fork Width (in.): 22 Handle Height (in.): 46-3/4
Back Caster Quantity/Diameter/Width (in.): (2) 7 x 1-3/4 Back Caster Type: Swivel Front Caster Quantity/Diameter/Width (in.): (2) 3 x 2-3/4
Front Caster Type: Rigid Caster Material: Poly-on-Steel Outrigger Inside Dimension (in.): 13-3/4
Outrigger Outside Dimension (in.): 20
