Model Details

HYD-5-PSS

Printer Friendly
HYD-5-PSS

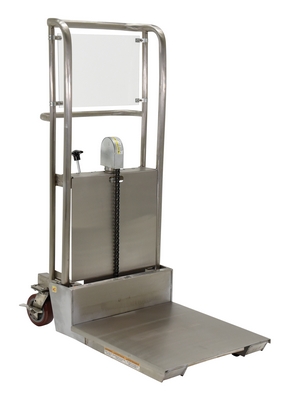

Partially Stainless Steel Foot Pump Hefti-Lift 36 In. x 52-1/8 In. 450 Lb. Capacity Silver

The Hefti-Lift is a user friendly, stainless steel portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. The non-slip chain is used for accurate positioning while the unit rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction and not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Partial stainless-steel construction provides long lasting use
Total Ship Wt.(lbs.): 236 (only 1 package) Size: 23"W x 36"L x 55"H Color: Silver Non-Returnable QuickShip

Uniform Capacity (lb.): 450 Platform Width/Length (in.): 21 x 24 Service Range (in.): 3-1/2 to 45-5/8
Operation: Foot Pump Pump (qty.): 22 Platform Travel per Stroke (in.): 3/4
Individual Fork Width/Height (in.): 4-3/8 x 2-1/2 Fork Length (in.): 40 Overall Fork Width (in.): 22
Handle Height (in.): 42 Back Caster Quantity/Diameter/Width (in.): (2) 5-1/8 x 2-1/2 Back Caster Type: Swivel
Front Caster Quantity/Diameter/Width (in.): (2) 5-1/8 x 1-5/8 Front Caster Type: Rigid Caster Material: Poly-on-Steel
Outrigger Inside Dimension (in.): 11-3/4 Outrigger Outside Dimension (in.): 18-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-5-PSS
HYD-5-PSS

Partially Stainless Steel Foot Pump Hefti-Lift 36 In. x 52-1/8 In. 450 Lb. Capacity Silver

The Hefti-Lift is a user friendly, stainless steel portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. The non-slip chain is used for accurate positioning while the unit rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction and not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Partial stainless-steel construction provides long lasting use
Dimensions: 23"W x 36"L x 55"H Sell UOM: EA-Each Color: Silver
Material: Partial Stainless Steel UPC: 691215067355 GTIN: 00691215067355
Warranty: -- Shipping Weight: 236 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 450 Platform Width/Length (in.): 21 x 24 Service Range (in.): 3-1/2 to 45-5/8
Operation: Foot Pump Pump (qty.): 22 Platform Travel per Stroke (in.): 3/4
Individual Fork Width/Height (in.): 4-3/8 x 2-1/2 Fork Length (in.): 40 Overall Fork Width (in.): 22
Handle Height (in.): 42 Back Caster Quantity/Diameter/Width (in.): (2) 5-1/8 x 2-1/2 Back Caster Type: Swivel
Front Caster Quantity/Diameter/Width (in.): (2) 5-1/8 x 1-5/8 Front Caster Type: Rigid Caster Material: Poly-on-Steel
Outrigger Inside Dimension (in.): 11-3/4 Outrigger Outside Dimension (in.): 18-1/4
