Model Details

MG-SP-36-1

- Temporarily Unavailable - Please Contact Sales

MG-SP-36-1

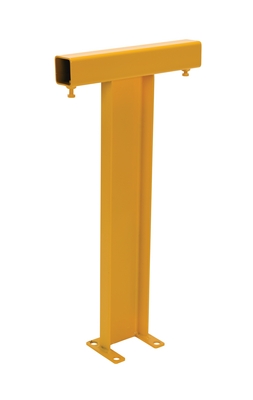

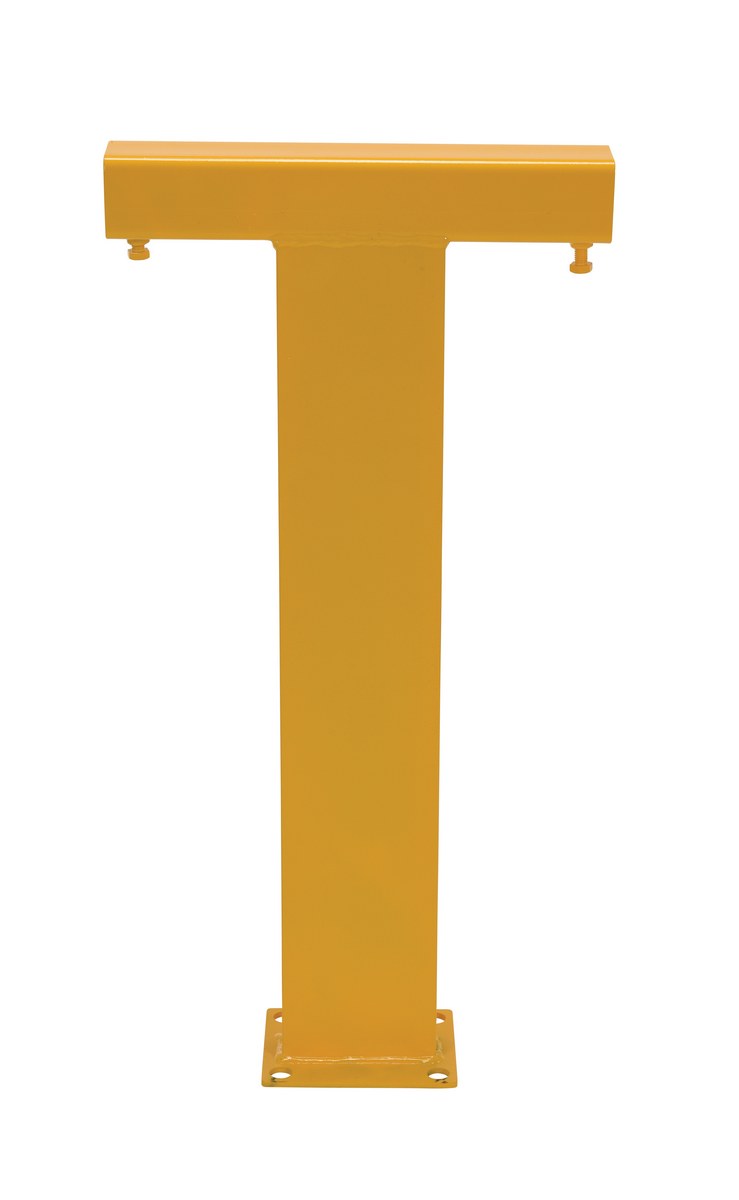

Steel Modular Guard System Straight Post 1 Rail 7-5/8 In. x 18 In. x 36 In. Yellow

Modular guard system can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. All components old separately.

  • Meant to fit almost any application
  • Designed for quick and easy assembly
  • Installed and secured to each post with a single bolt
  • Made from heavy-duty square steel tubing for strength
Total Ship Wt.(lbs.): 37 (only 1 package) Size: 18"W x 7.625"L x 36"H Color: Yellow

Component: Mounting Straight Post Rail Style: Single Hole Mount (qty.): 4
Mounting Plate Width (in.): 7-5/8 Mounting Plate Length (in.): 6 Mounting Plate Hole Diameter (in.): 7/8
Mounting Plate Thickness (in.): 1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: MG-SP-36-1


MG-SP-36-1

Steel Modular Guard System Straight Post 1 Rail 7-5/8 In. x 18 In. x 36 In. Yellow

Modular guard system can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. All components old separately.

  • Meant to fit almost any application
  • Designed for quick and easy assembly
  • Installed and secured to each post with a single bolt
  • Made from heavy-duty square steel tubing for strength
Dimensions: 18"W x 7.625"L x 36"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215028349 GTIN: 00691215028349
Warranty: -- Shipping Weight: 37 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Component: Mounting Straight Post Rail Style: Single Hole Mount (qty.): 4
Mounting Plate Width (in.): 7-5/8 Mounting Plate Length (in.): 6 Mounting Plate Hole Diameter (in.): 7/8
Mounting Plate Thickness (in.): 1/4
