model: MG-CP-36-2


SERIES: MG
Modular Guard Systems

Modular Guard System can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty 2-1/2" square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. Durable safety yellow powder coat finish. Steel construction. All components sold separately.

Modular Guard System can be ordered to fit almost any application. Designed for quick and easy assembly. Railing sections are installed and secured to each post with a single bolt. Select from different railing lengths to custom fit your application. Railing systems are made from heavy-duty 2-1/2" square steel tubing. Wall mounting posts may be used to secure guard assembly to a wall. Durable safety yellow powder coat finish. Steel construction. All components sold separately.

Other Machinery Guards

High Profile Machinery Guards with Welded Mesh

High Profile Machinery Guards with Welded Mesh

Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

Floor Stop Bollards

Floor Stop Bollards

Triple Elbow Guards with Center Support

Triple Elbow Guards with Center Support

90 Degree Triple Elbow Guards

90 Degree Triple Elbow Guards

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Modular Guard System

Model PDF Effective
Length
Overall
Length
Square Tube
(O.D.)
Wt.
(lbs)

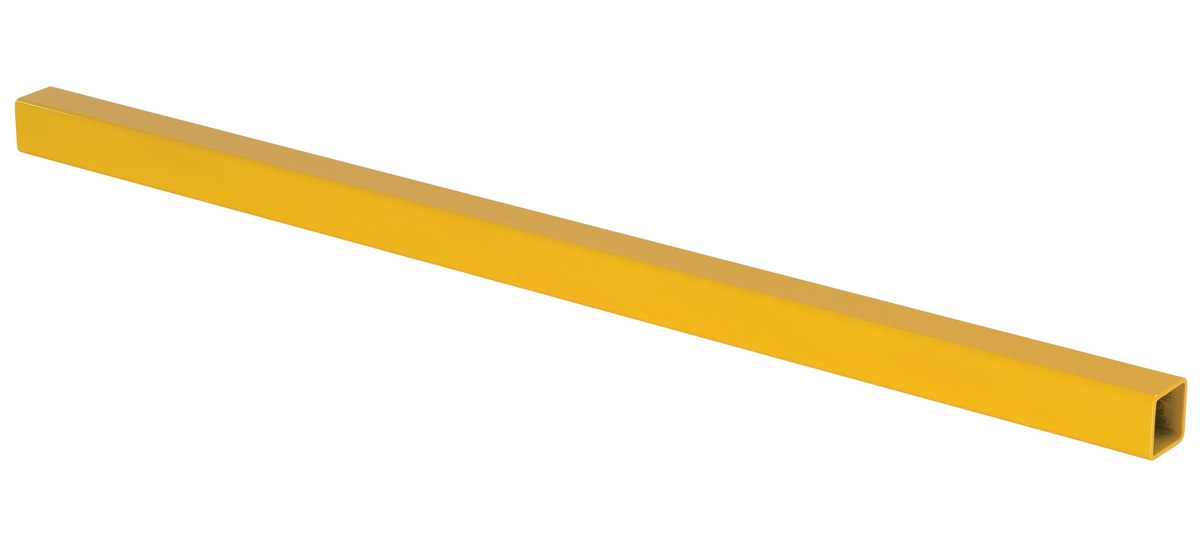

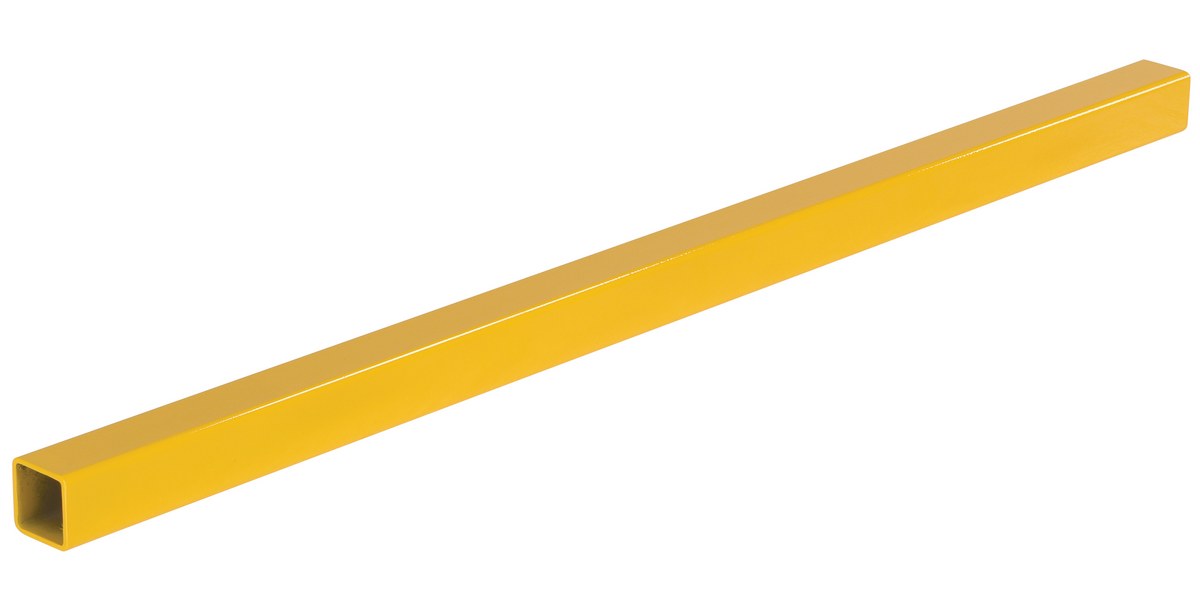

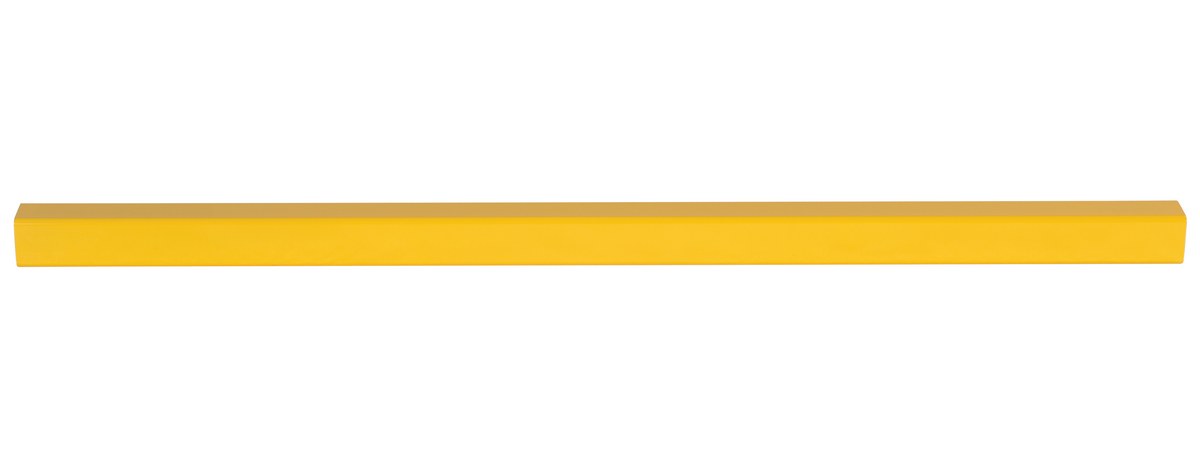

MG-R-4 icon_approvaldrawings.jpgWarranty PDF 48" 56" 2-1/2" 29

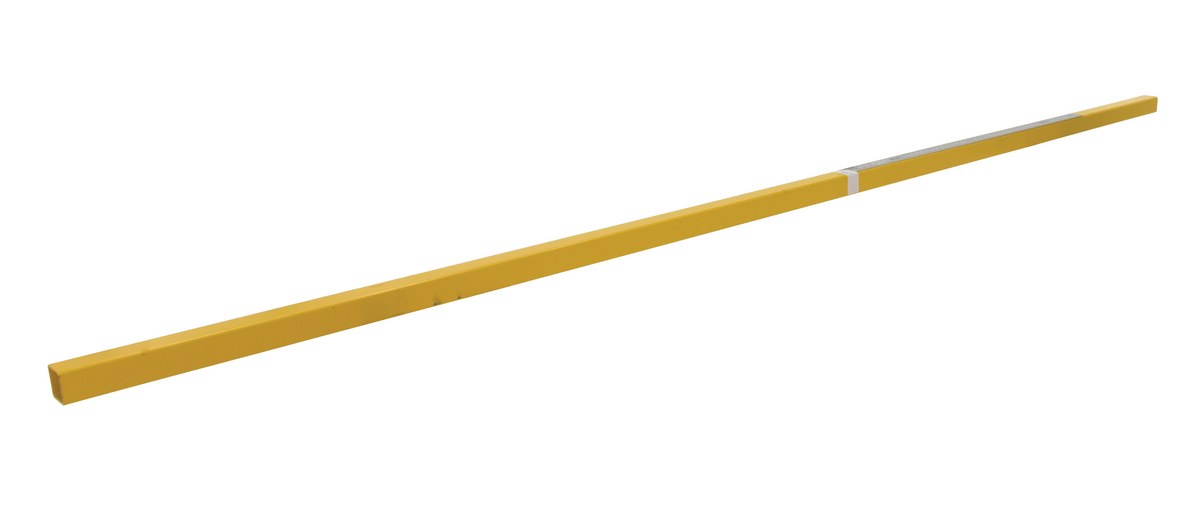

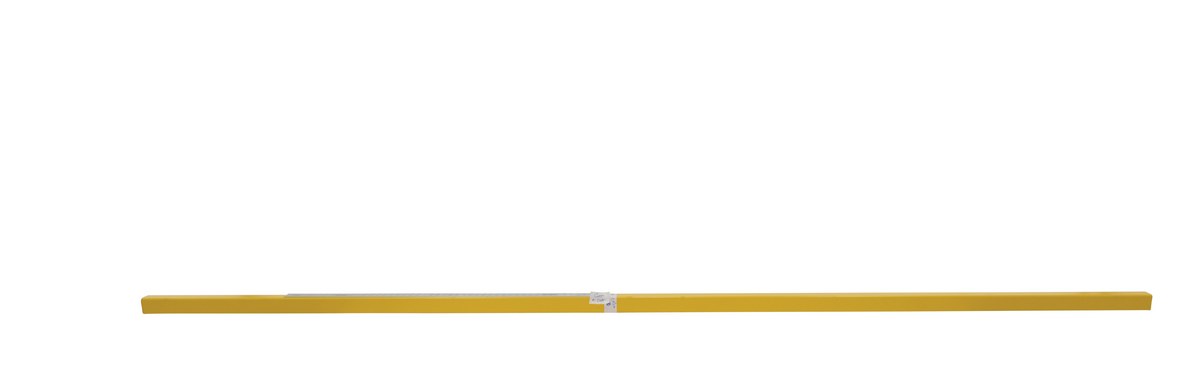

MG-R-6 icon_approvaldrawings.jpgWarranty PDF 72" 80" 2-1/2" 38

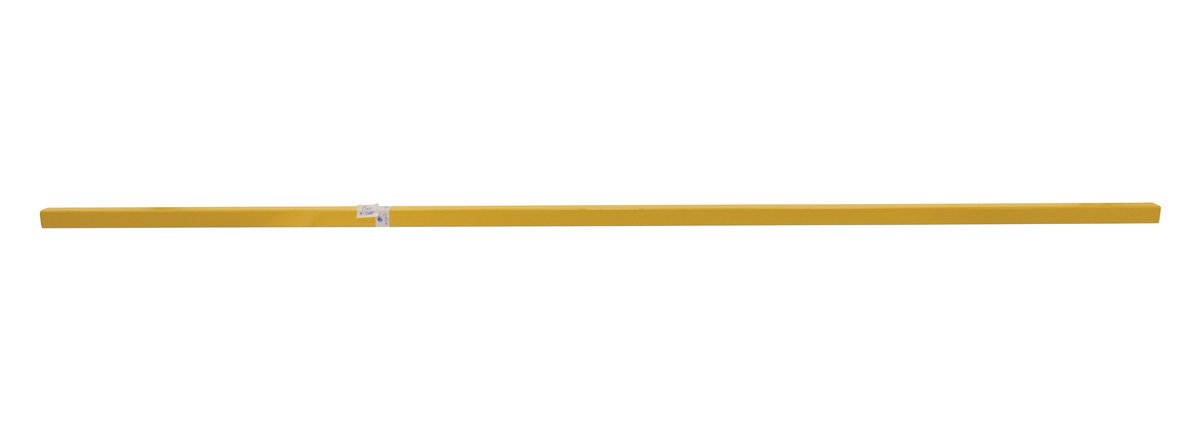

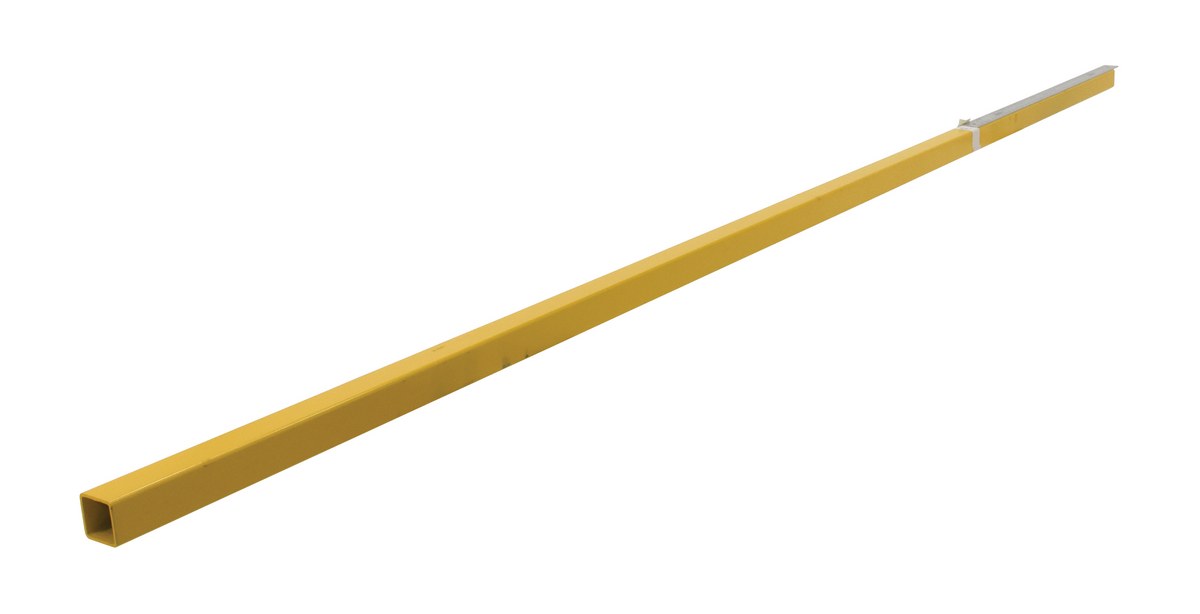

MG-R-8 icon_approvaldrawings.jpgWarranty PDF 98" 102" 2-1/2" 49

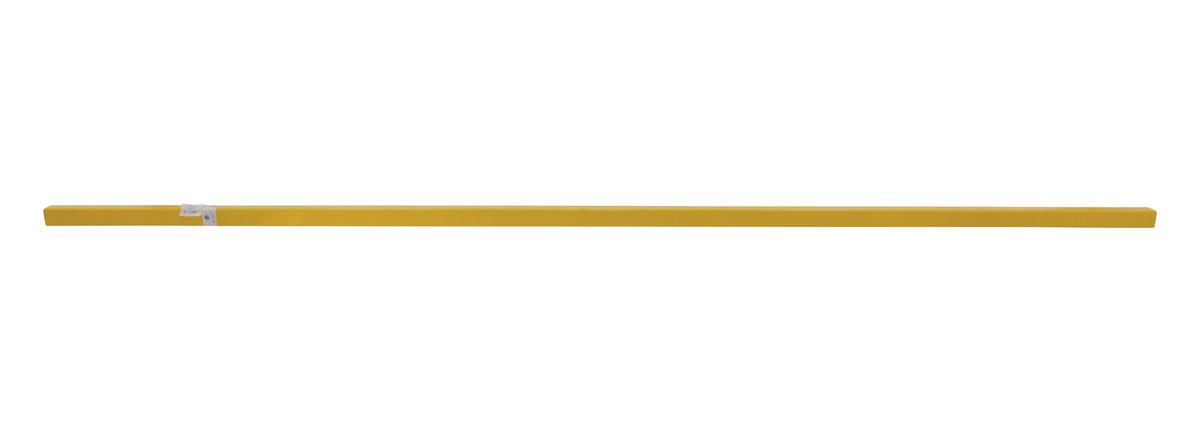

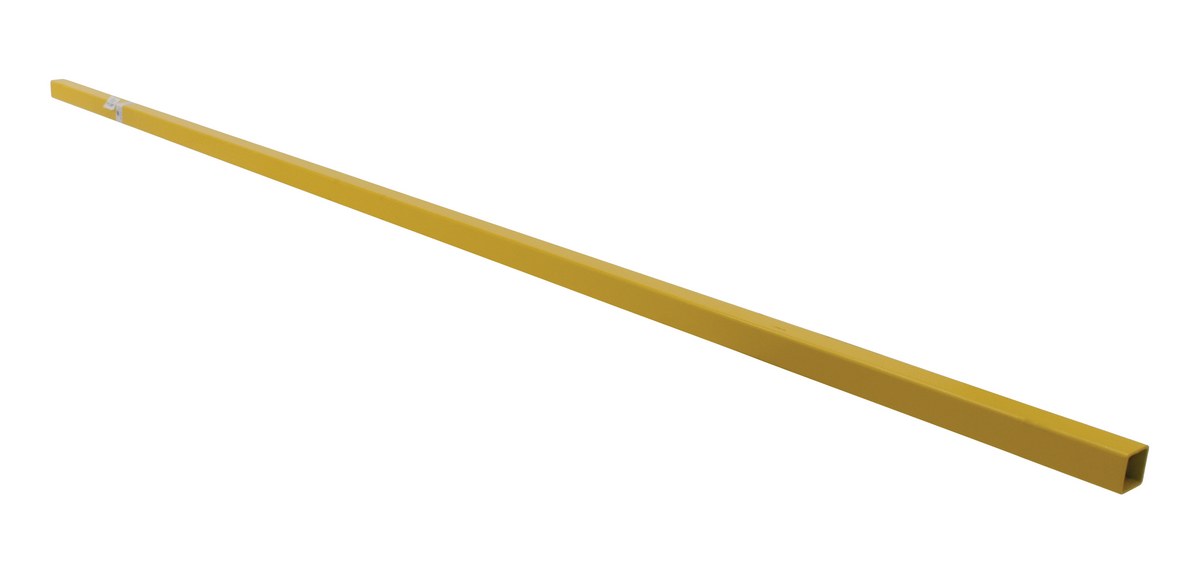

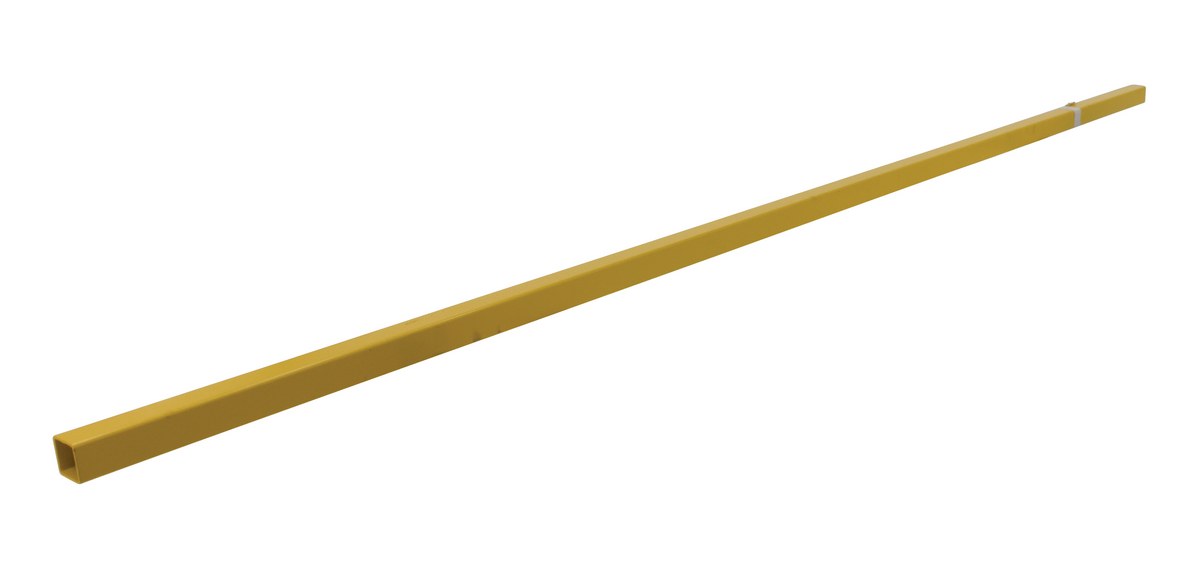

MG-R-10 icon_approvaldrawings.jpgWarranty PDF 120" 128" 2-1/2" 60

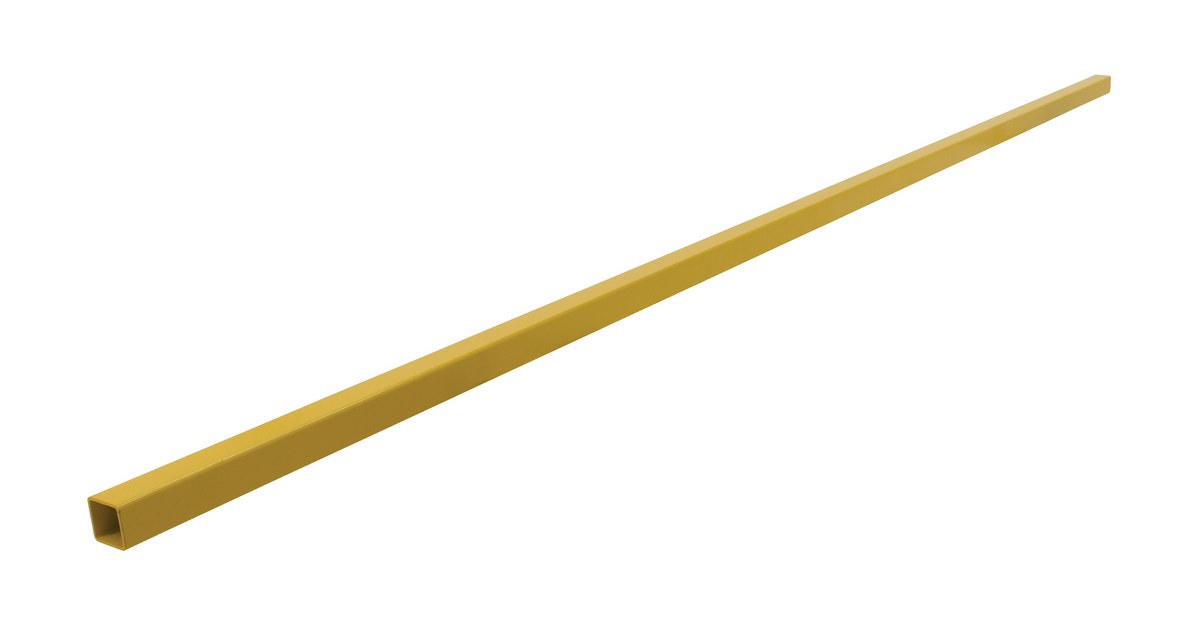

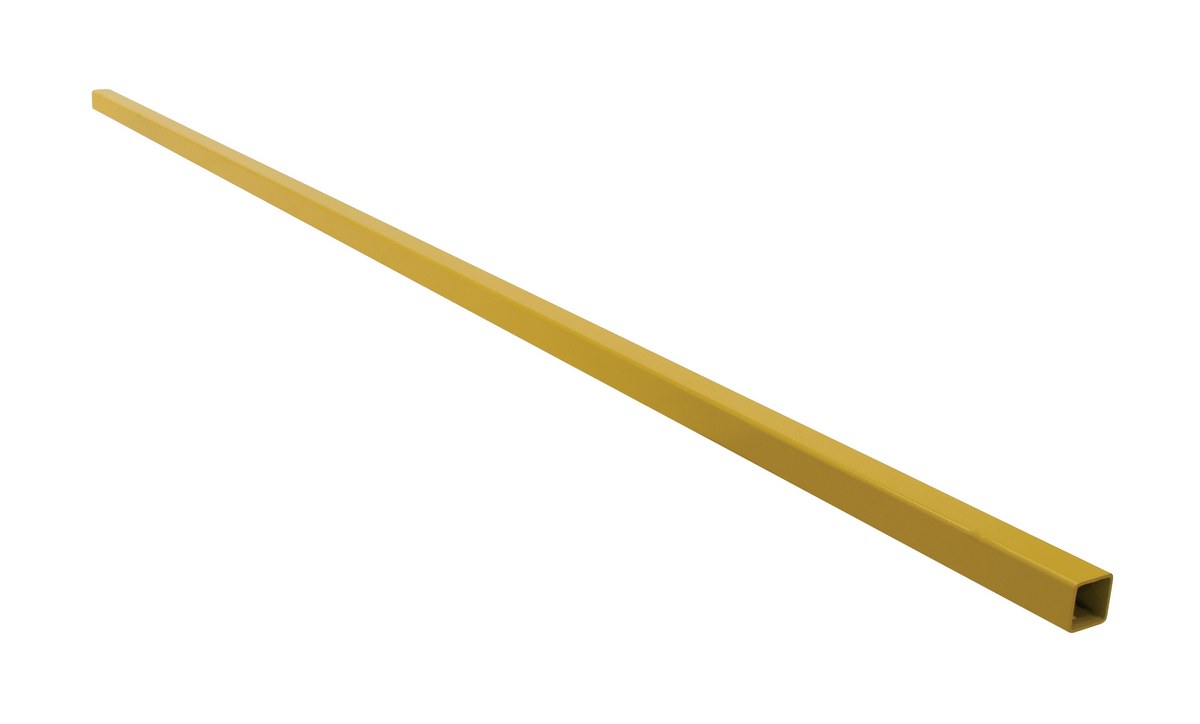

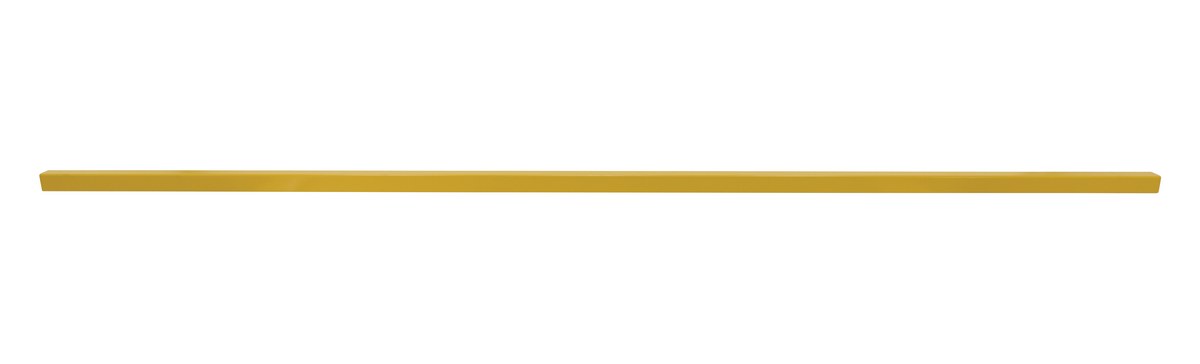

MG-R-12 icon_approvaldrawings.jpgWarranty PDF 144" 152" 2-1/2" 71
Mounting Posts
Model PDF Description Style Overall
Height
Wt.
(lbs)

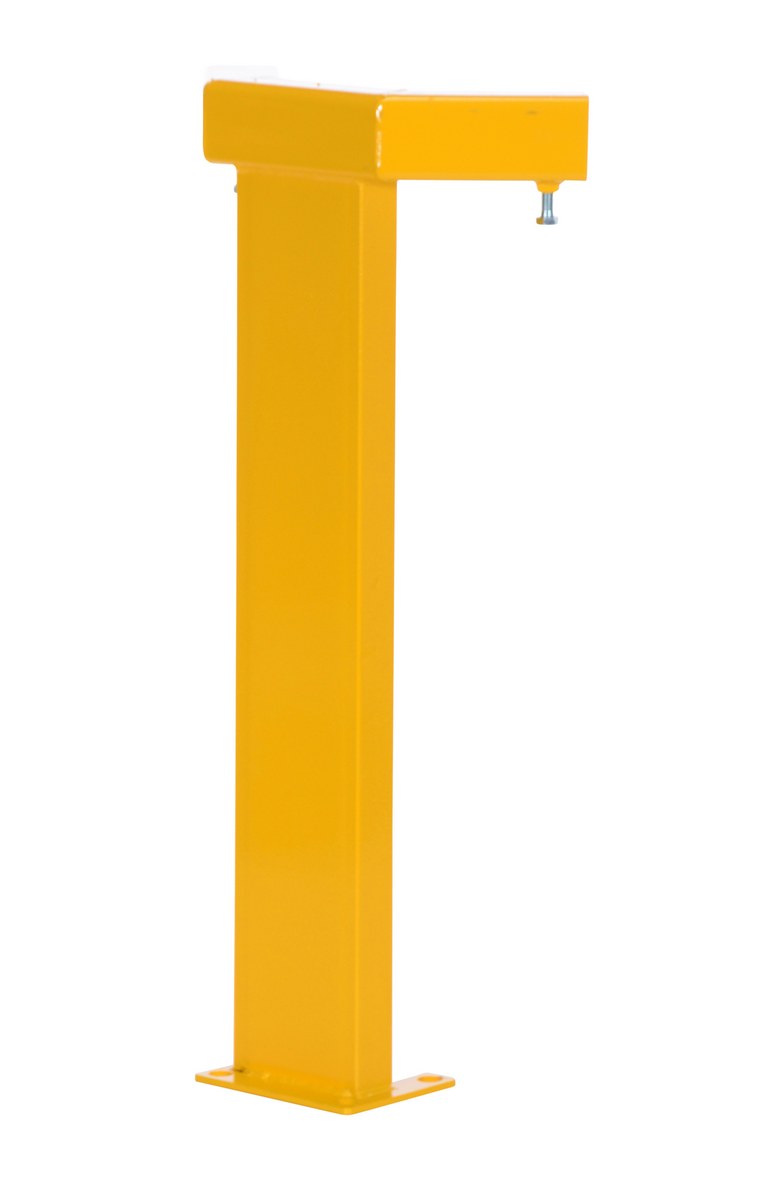

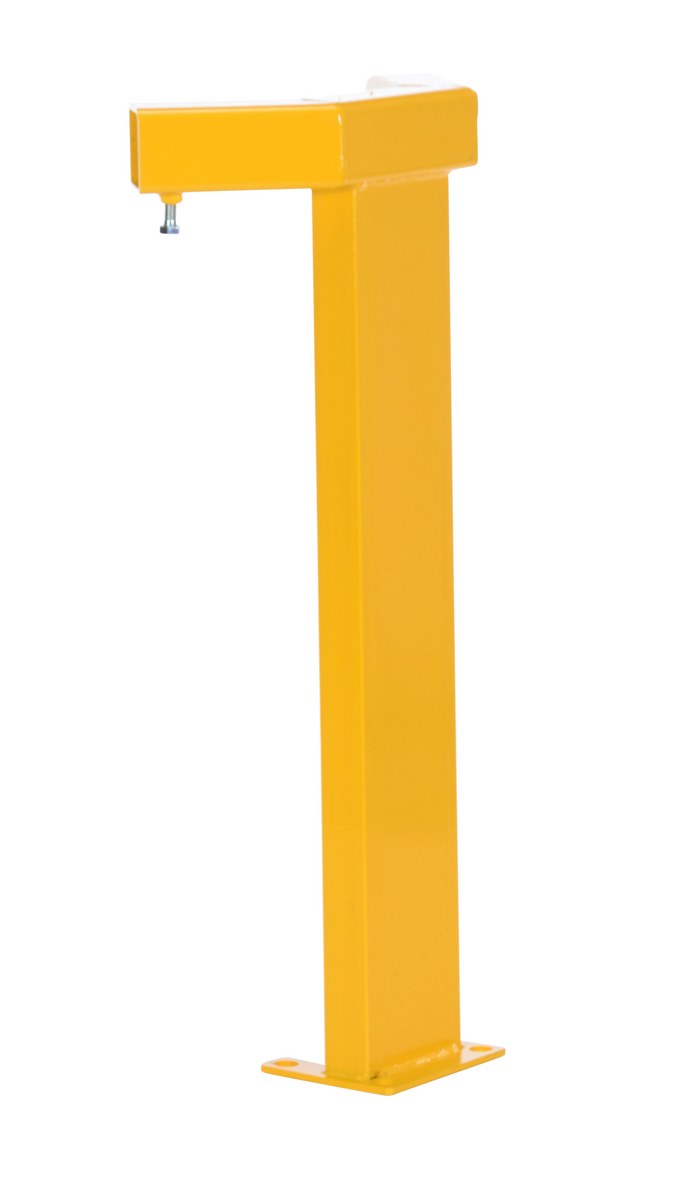

MG-CP-36-1 icon_approvaldrawings.jpgWarranty PDF Corner Post Single Rail 36" 37

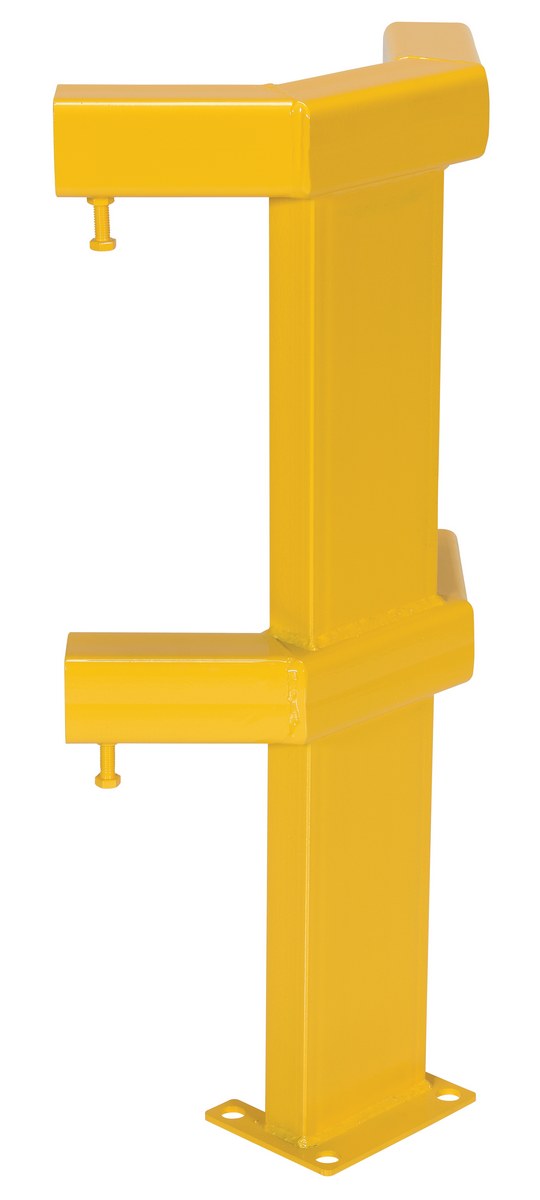

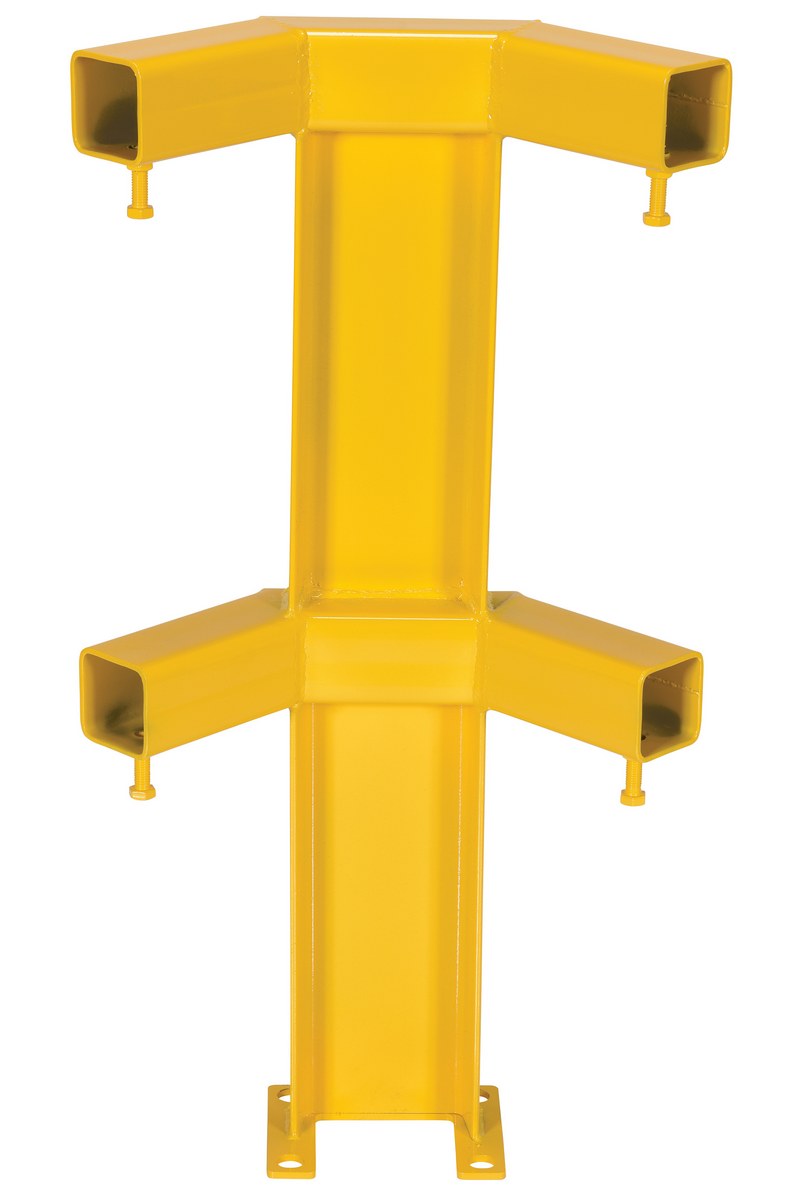

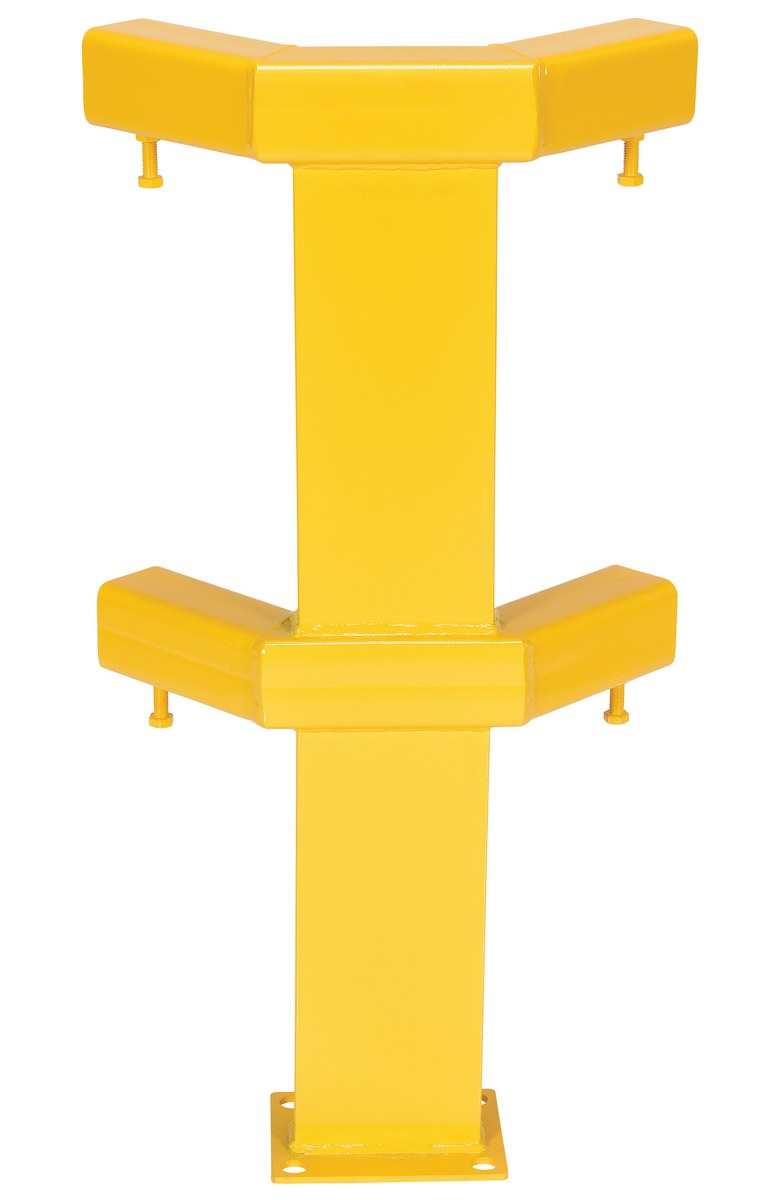

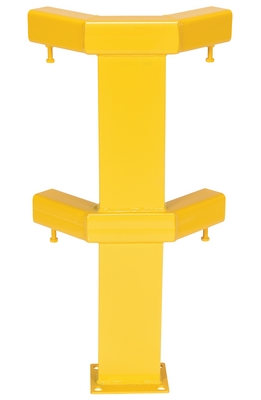

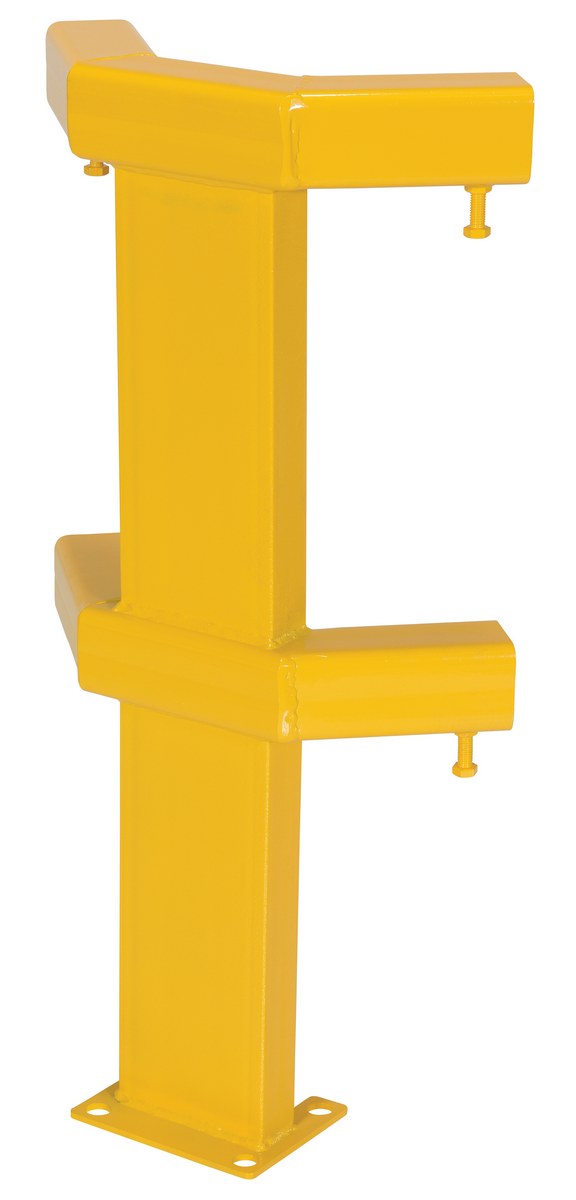

MG-CP-36-2 icon_approvaldrawings.jpgWarranty PDF Corner Post Double Rail 36" 54

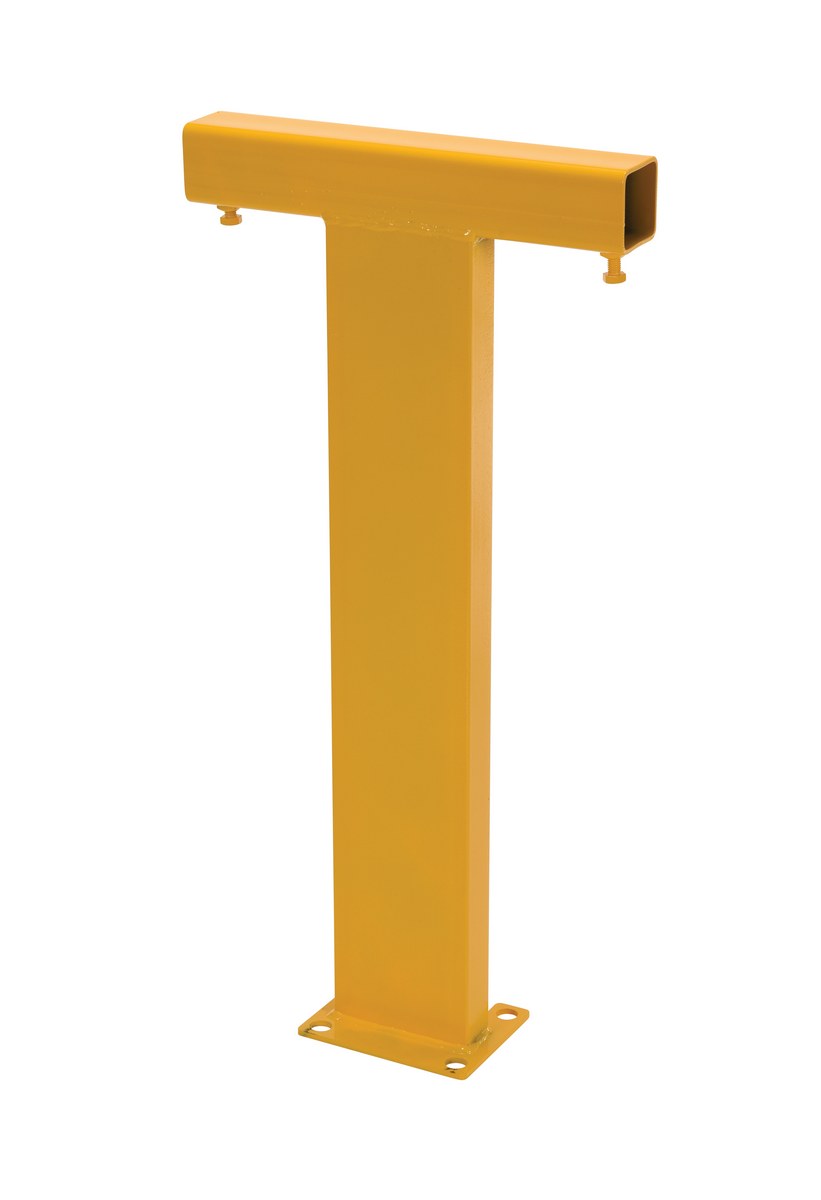

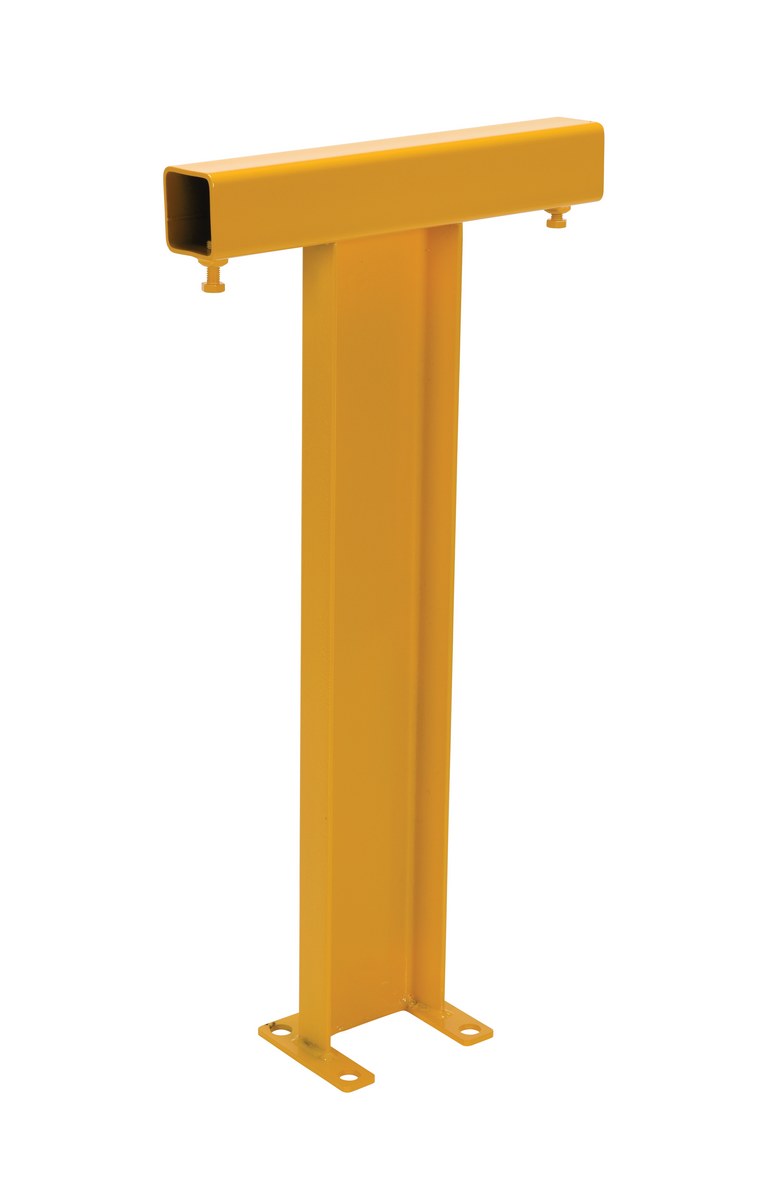

MG-SP-36-1 icon_approvaldrawings.jpgWarranty PDF Straight Post Single Rail 36" 37

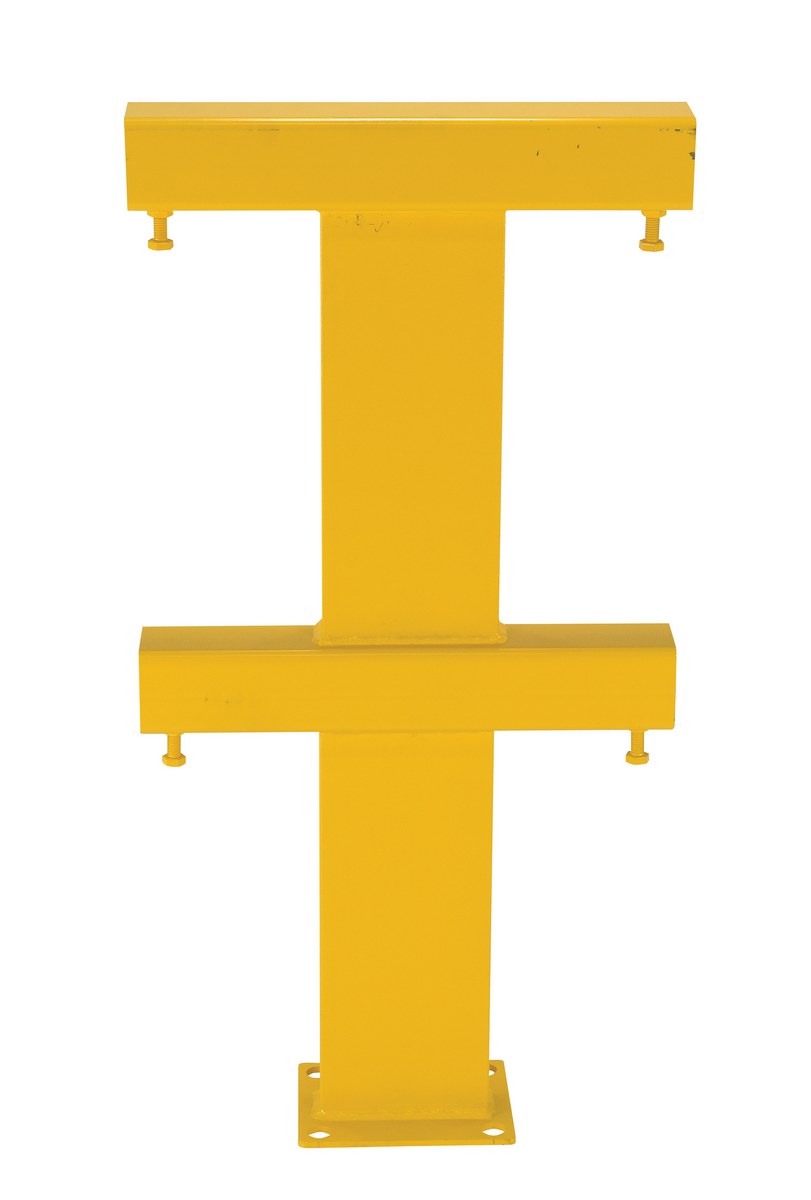

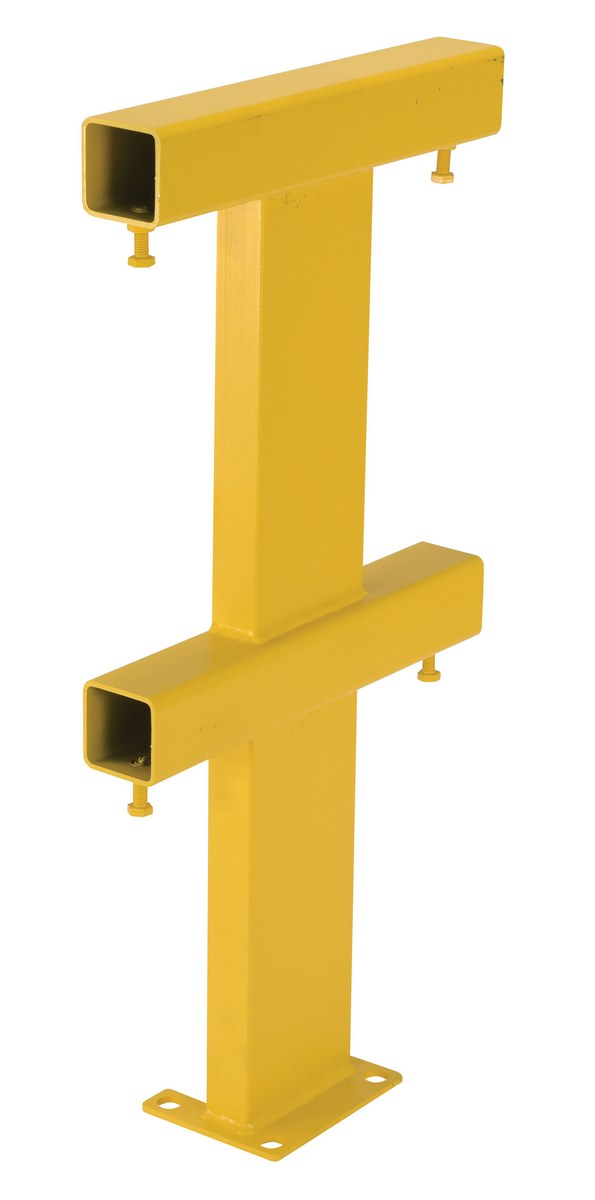

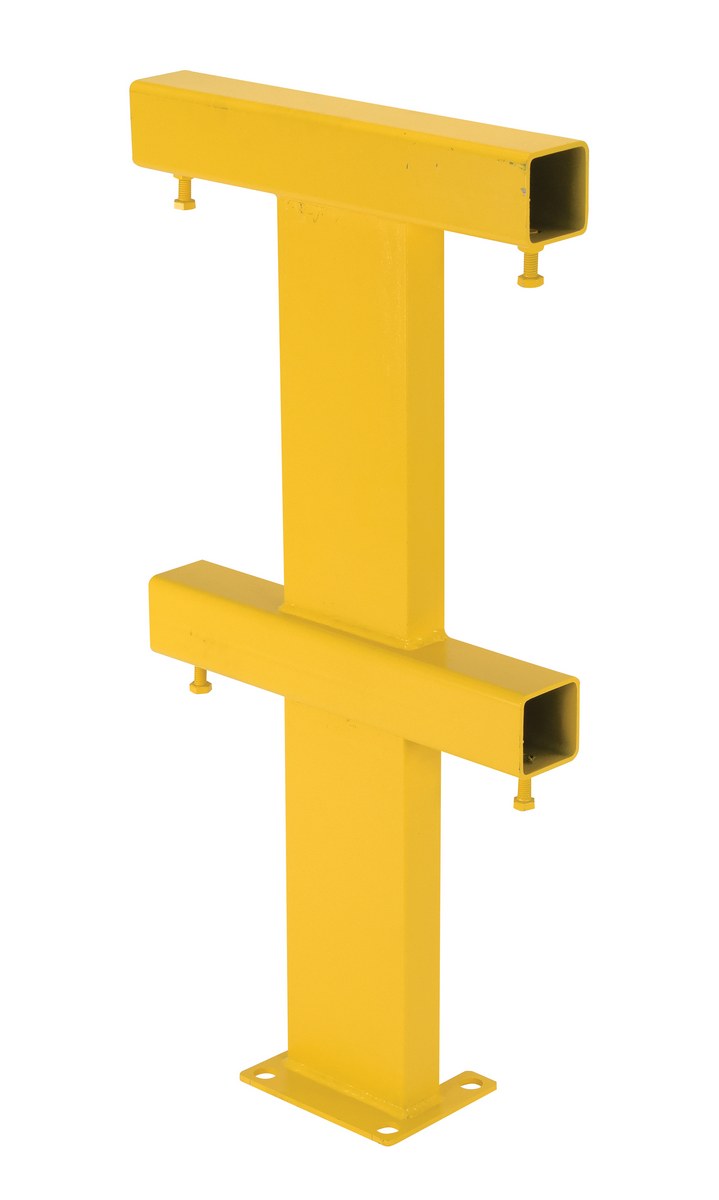

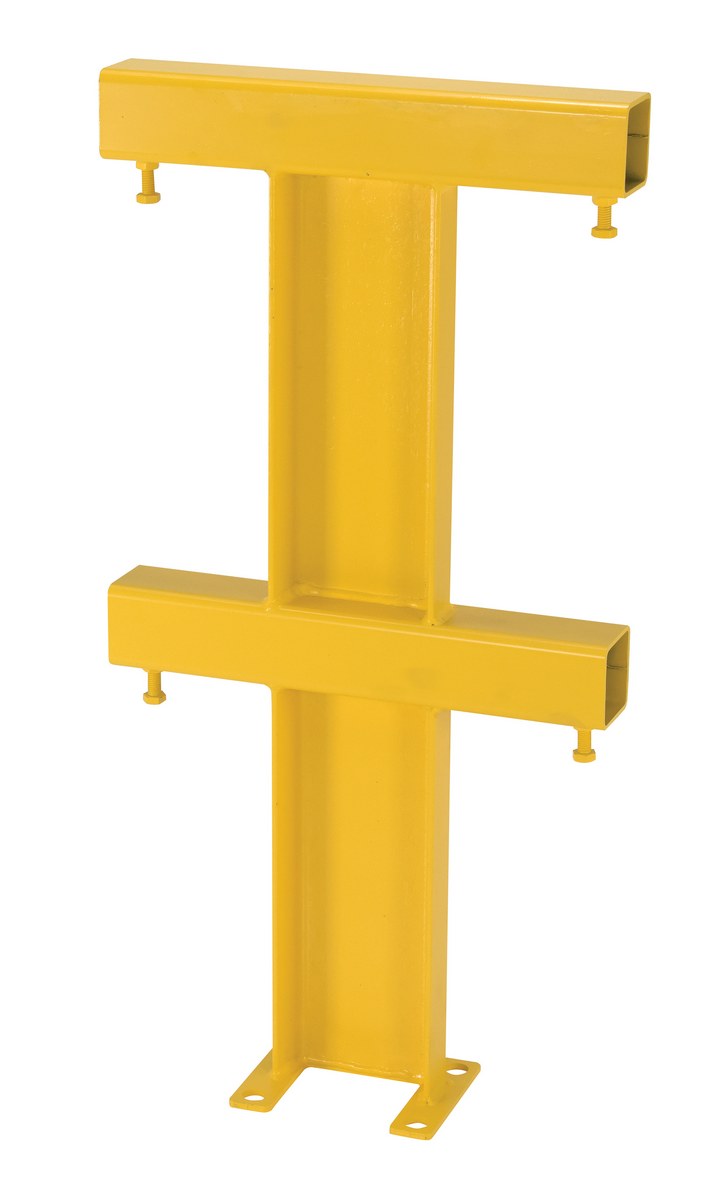

MG-SP-36-2 icon_approvaldrawings.jpgWarranty PDF Straight Post Double Rail 36" 68

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Mounting Options
Model Description Wt.
(lbs)

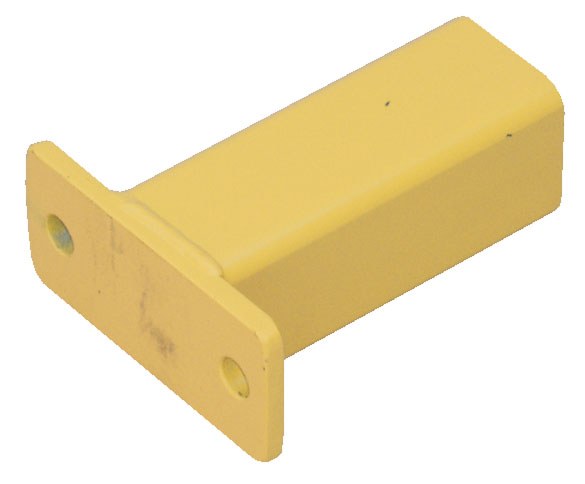

MG-WP-A icon_approvaldrawings.jpgWarranty PDF Wall Mounting Post - Post (2-1/2" x 2-1/2" square tubing, inner fitting) 7

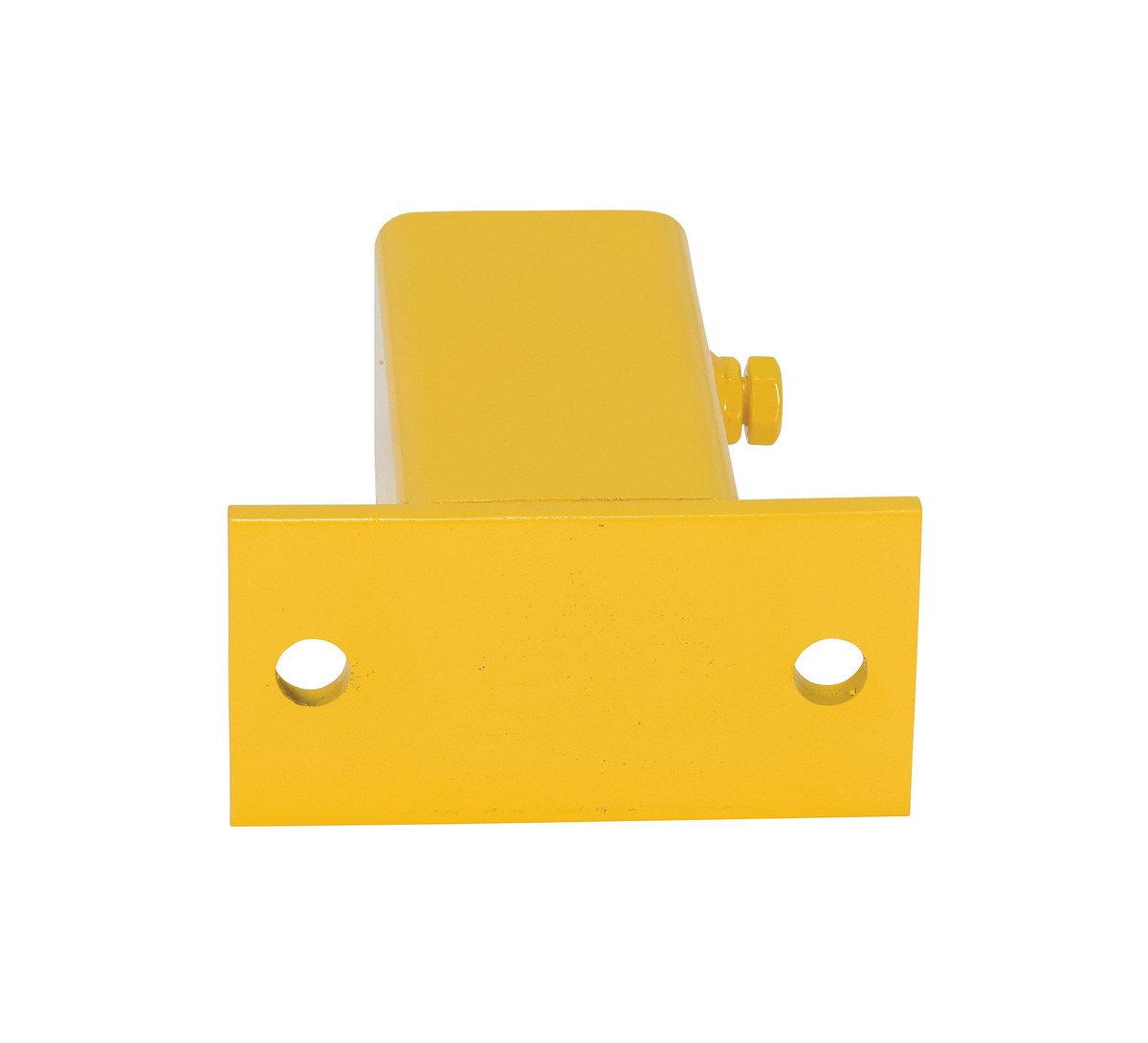

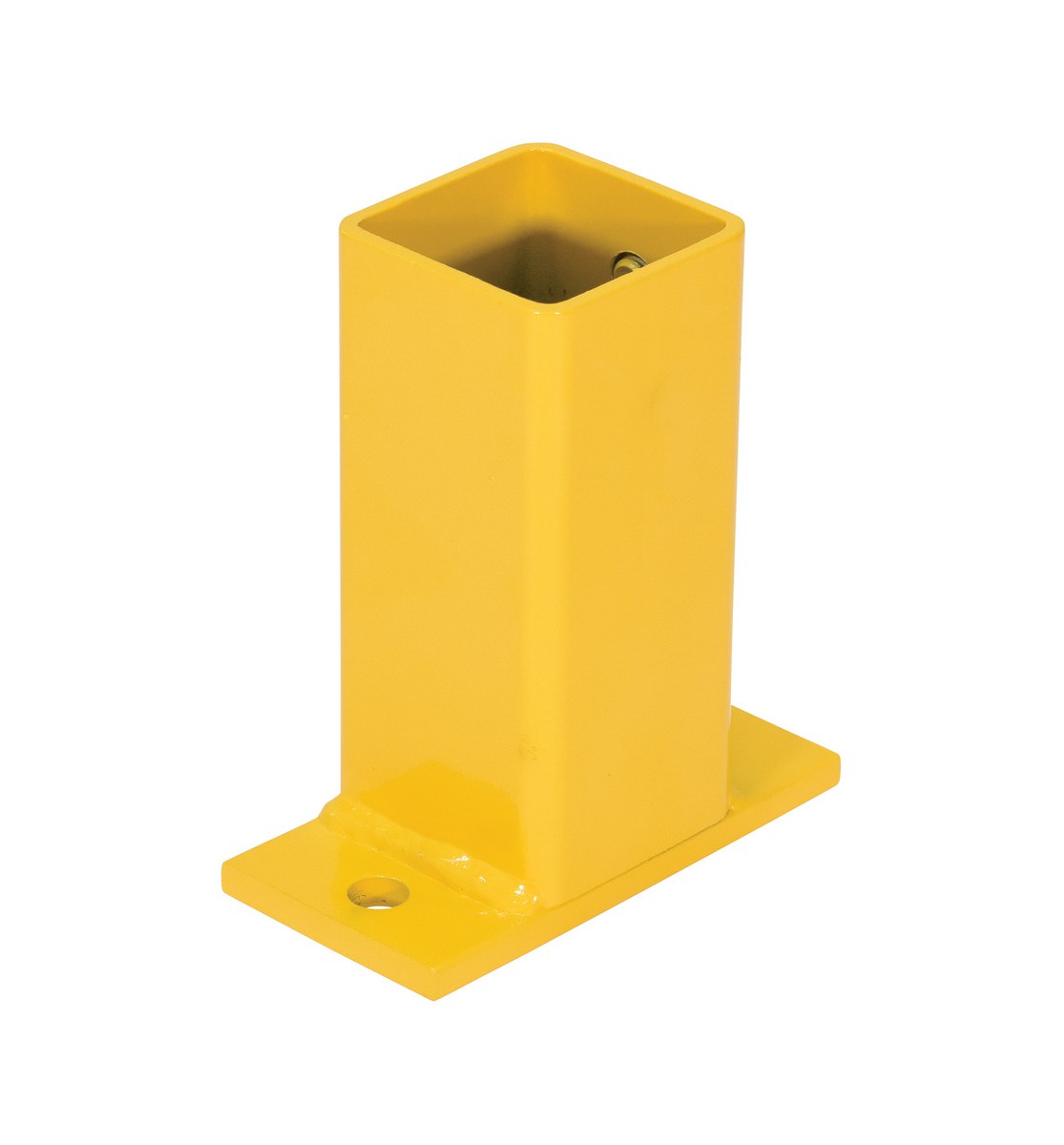

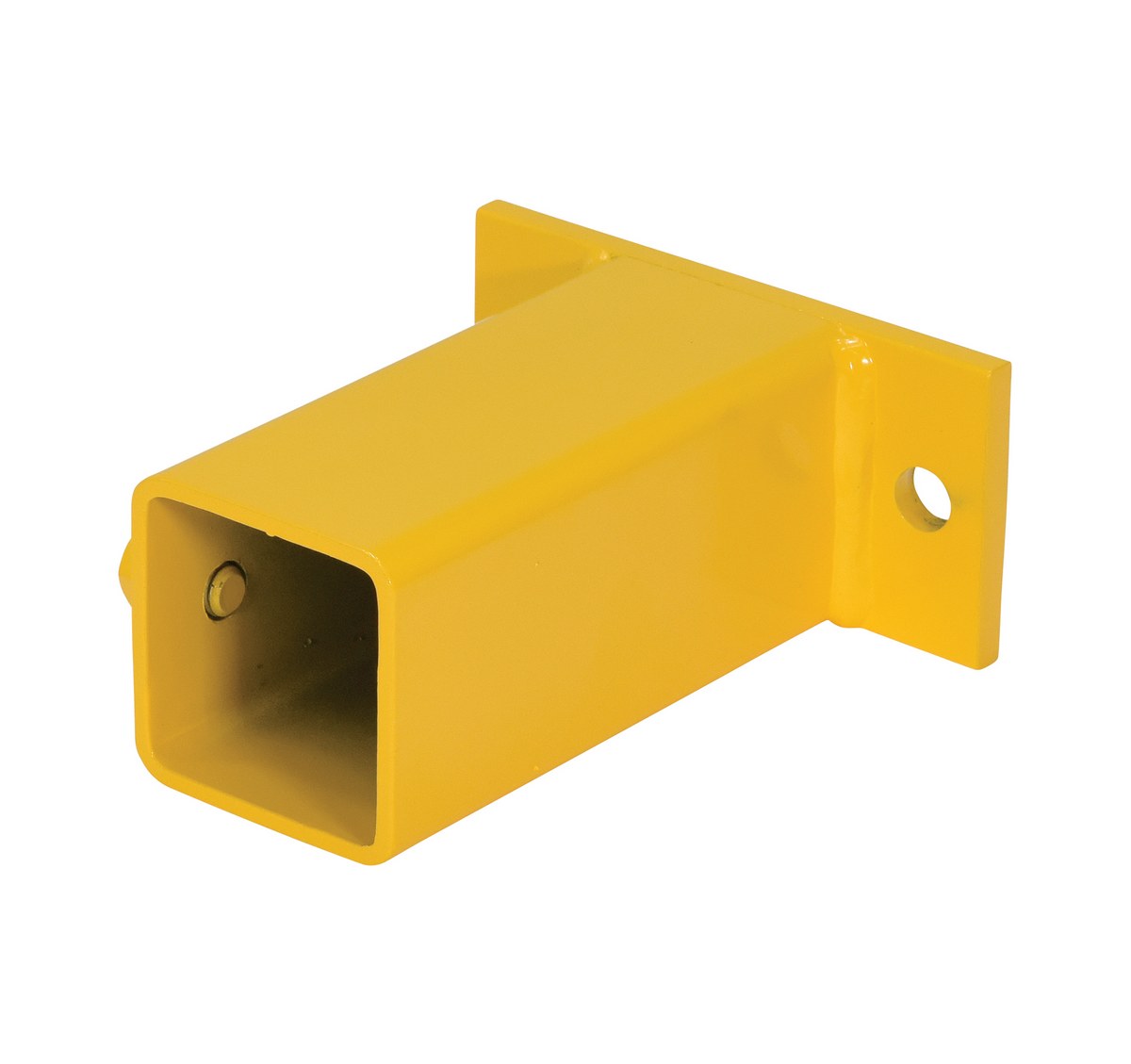

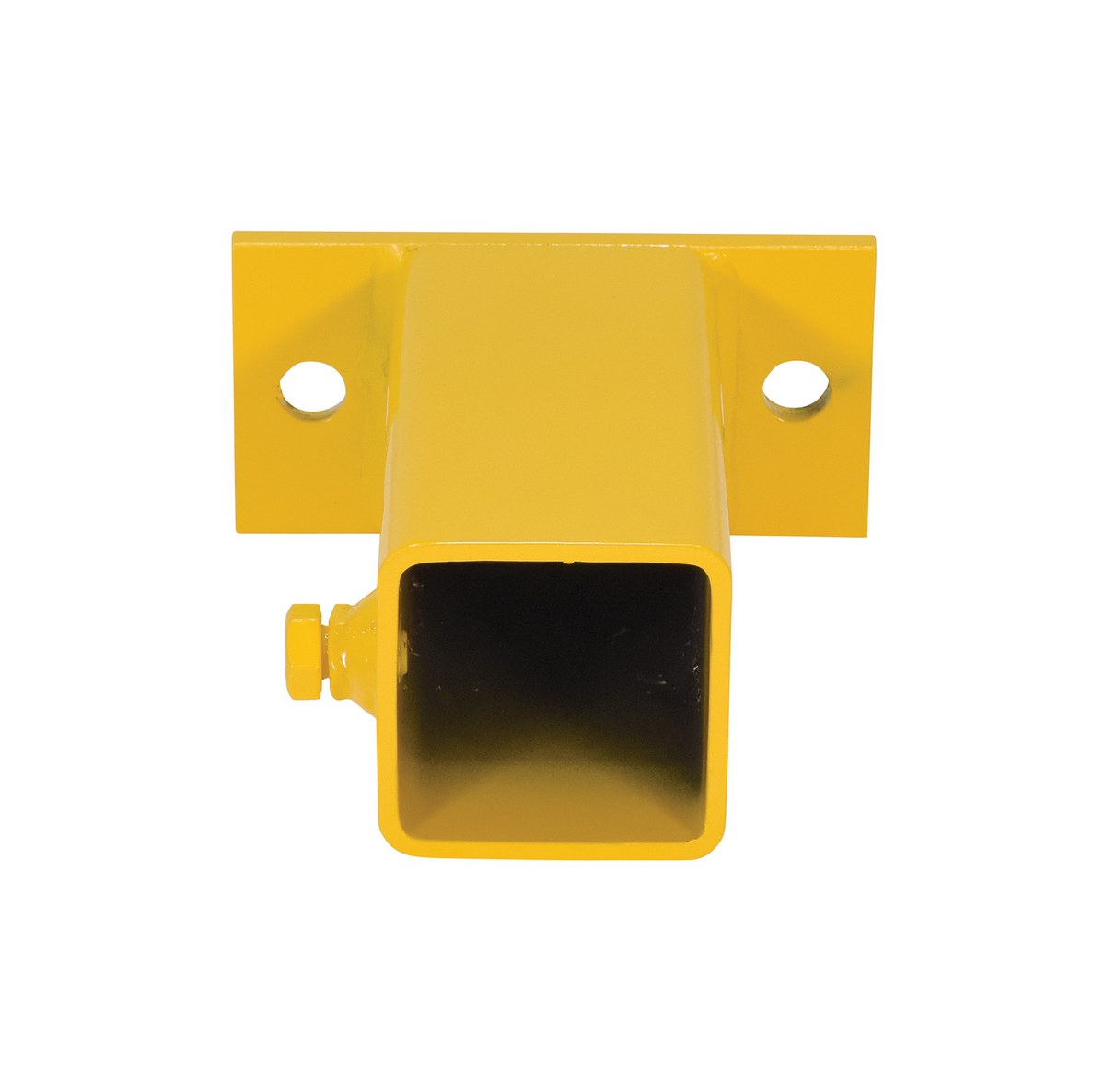

MG-WP-B icon_approvaldrawings.jpgWarranty PDF Wall Mounting Post - Railing (3" x 3" square tubing, outer fitting) 8
AS-344 Anchor Bolts For Concrete (1) 3/4"x4" 1
AS-344-4PK Anchor Bolts For Concrete (4) 3/4"x4" 4

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
