Model Details

PEL-400S-72-D3

Printer Friendly
PEL-400S-72-D3

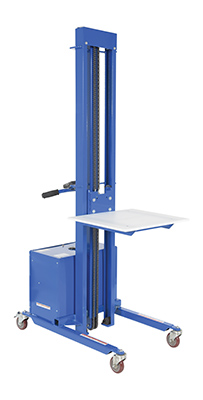

Steel Quick Lift DC Powered Lift 72 In. Raised Height 400 Lb. Capacity

The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. This quick lift comes with rigid front wheels and swivel rear wheels with locks. The DC system runs with an AC on-board charger. The steel unit has a powder coat blue finish with custom end attachments available.

  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning
  • Touch-pad control allows for easy operation
Total Ship Wt.(lbs.): 440 (only 1 package) Size: 24.125"W x 44.875"L x 82.25"H Color: Blue QuickShip

Uniform Capacity (lb.): 400 Lowered Height (in.): 6-1/2 Raised Height (in.): 72
Caster Diameter (in.): 4 Caster Type: (2) Rigid (2) Swivel with Brake Caster Material: Poly-on-Poly
DC Voltage: 24 AC Charger Voltage: 115 Horizontal Load Center (in.): 9
Includes: Fully Welded Frame Handle Length (in.): 6 Platform Length (in.): 20
Platform Thickness (in.): 1/2 Platform Width (in.): 24 Handle Material: Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PEL-400S-72-D3
PEL-400S-72-D3

Steel Quick Lift DC Powered Lift 72 In. Raised Height 400 Lb. Capacity

The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. This quick lift comes with rigid front wheels and swivel rear wheels with locks. The DC system runs with an AC on-board charger. The steel unit has a powder coat blue finish with custom end attachments available.

  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning
  • Touch-pad control allows for easy operation
Dimensions: 24.125"W x 44.875"L x 82.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215029599 GTIN: 00691215029599
Warranty: -- Shipping Weight: 440 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Lowered Height (in.): 6-1/2 Raised Height (in.): 72
Caster Diameter (in.): 4 Caster Type: (2) Rigid (2) Swivel with Brake Caster Material: Poly-on-Poly
DC Voltage: 24 AC Charger Voltage: 115 Horizontal Load Center (in.): 9
Includes: Fully Welded Frame Handle Length (in.): 6 Platform Length (in.): 20
Platform Thickness (in.): 1/2 Platform Width (in.): 24 Handle Material: Steel
