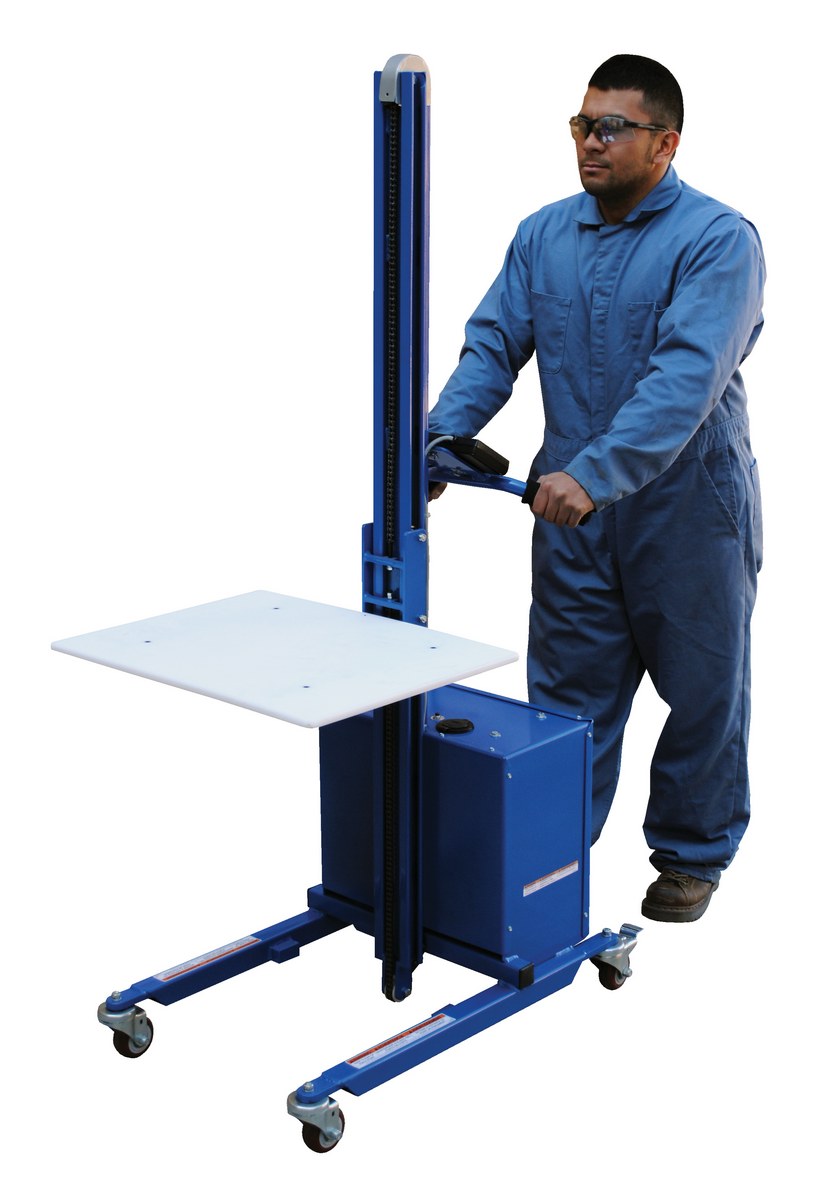

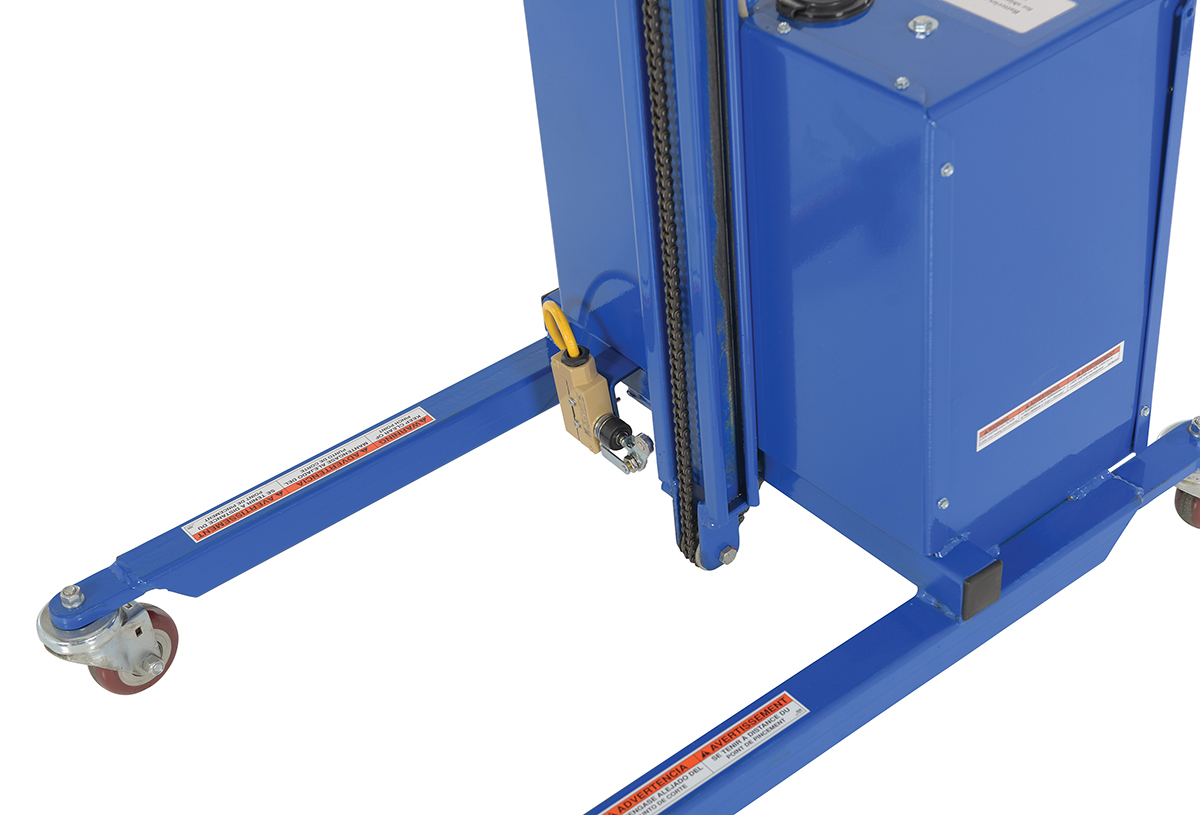

model PEL-88
SERIES: PEL


DC Powered Quick Lifts

24V DC STANDARD

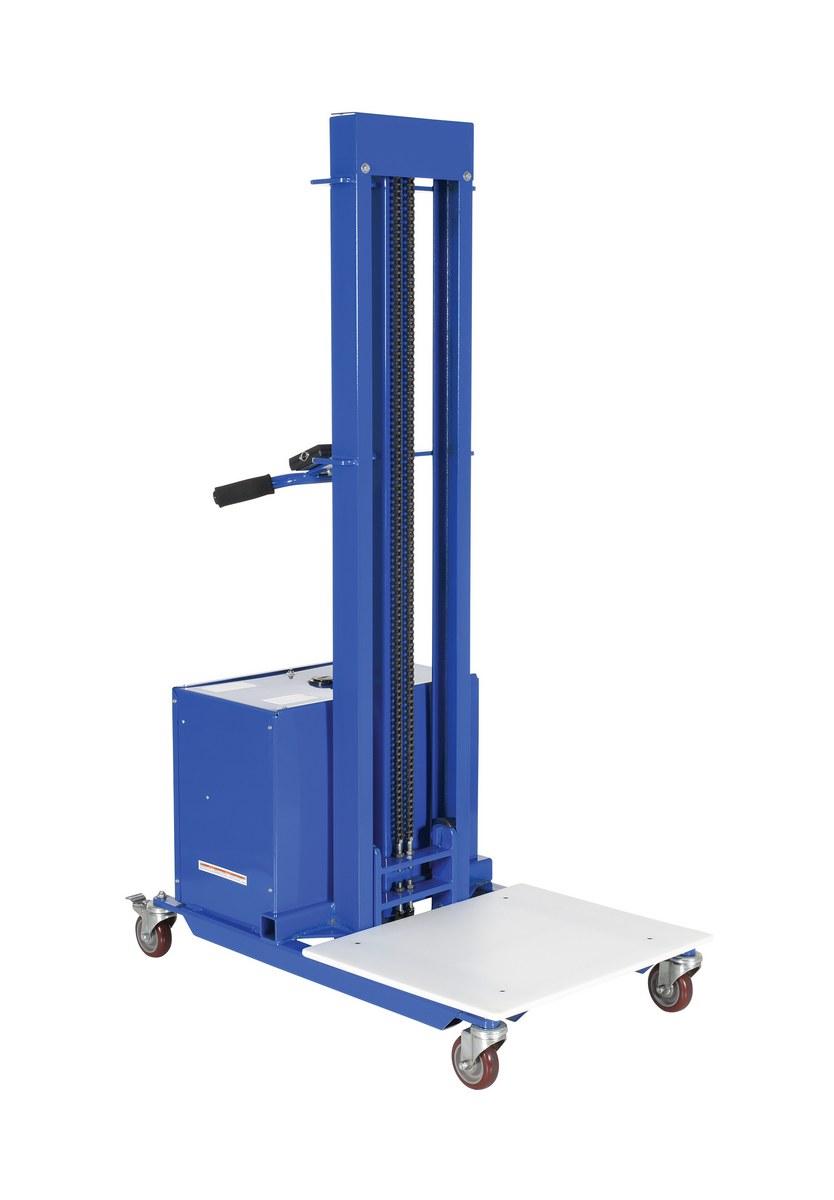

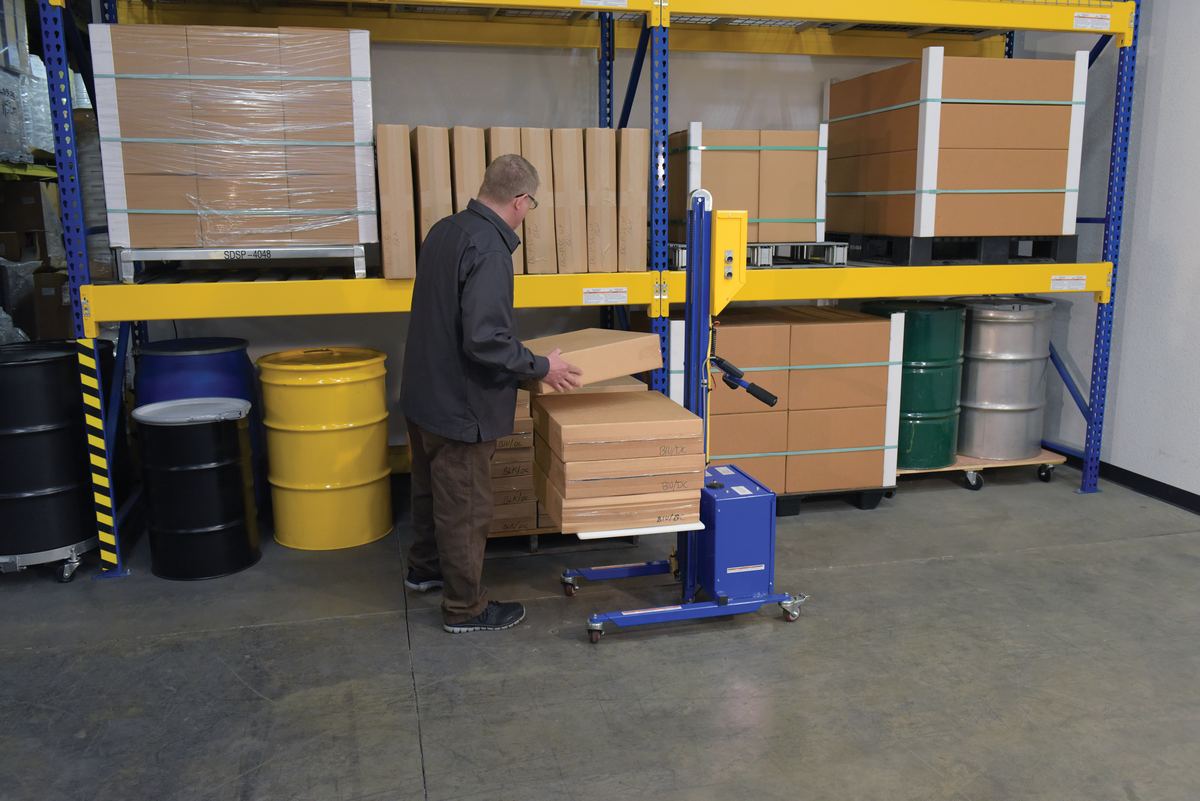

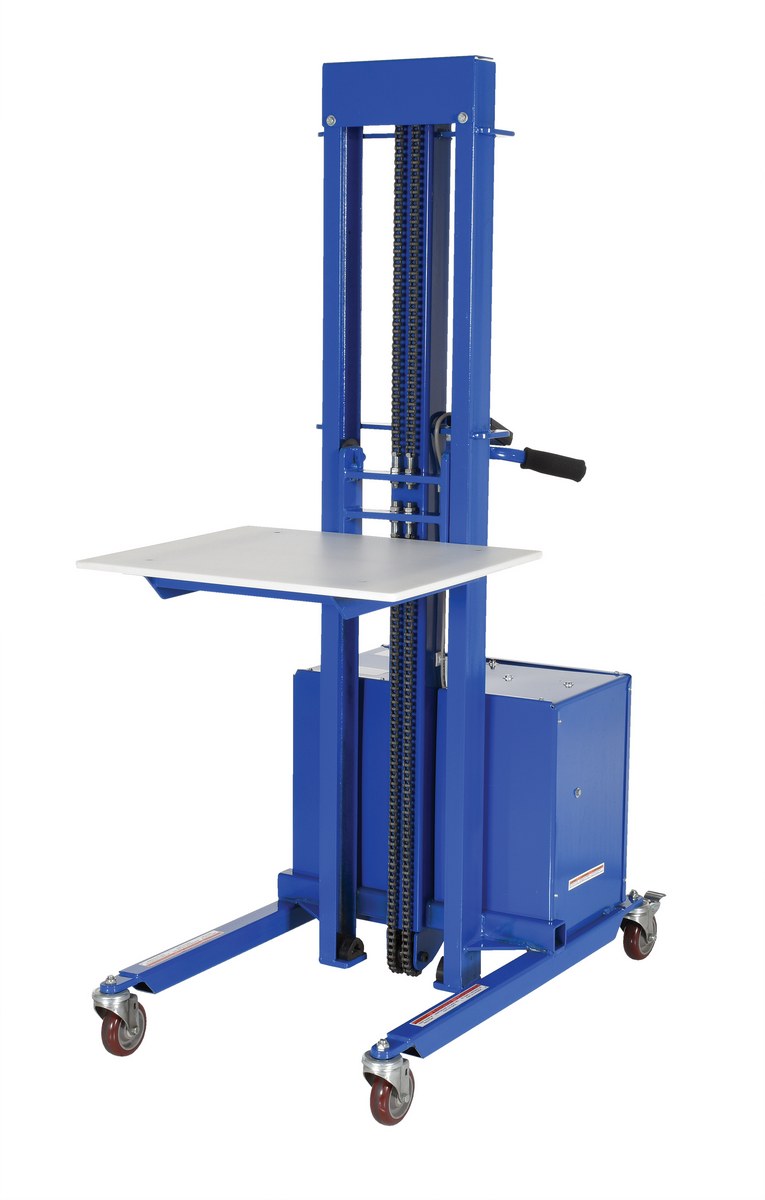

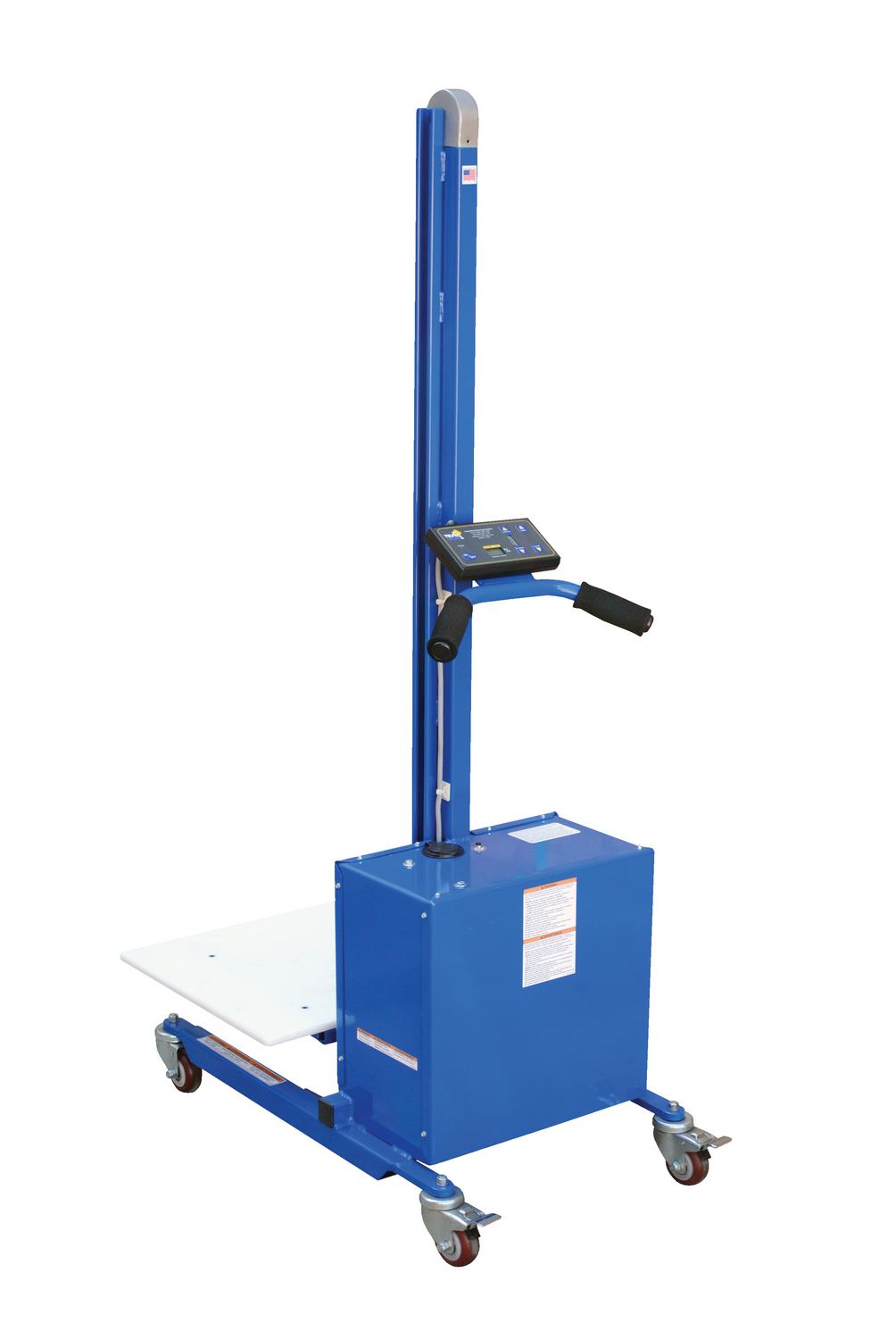

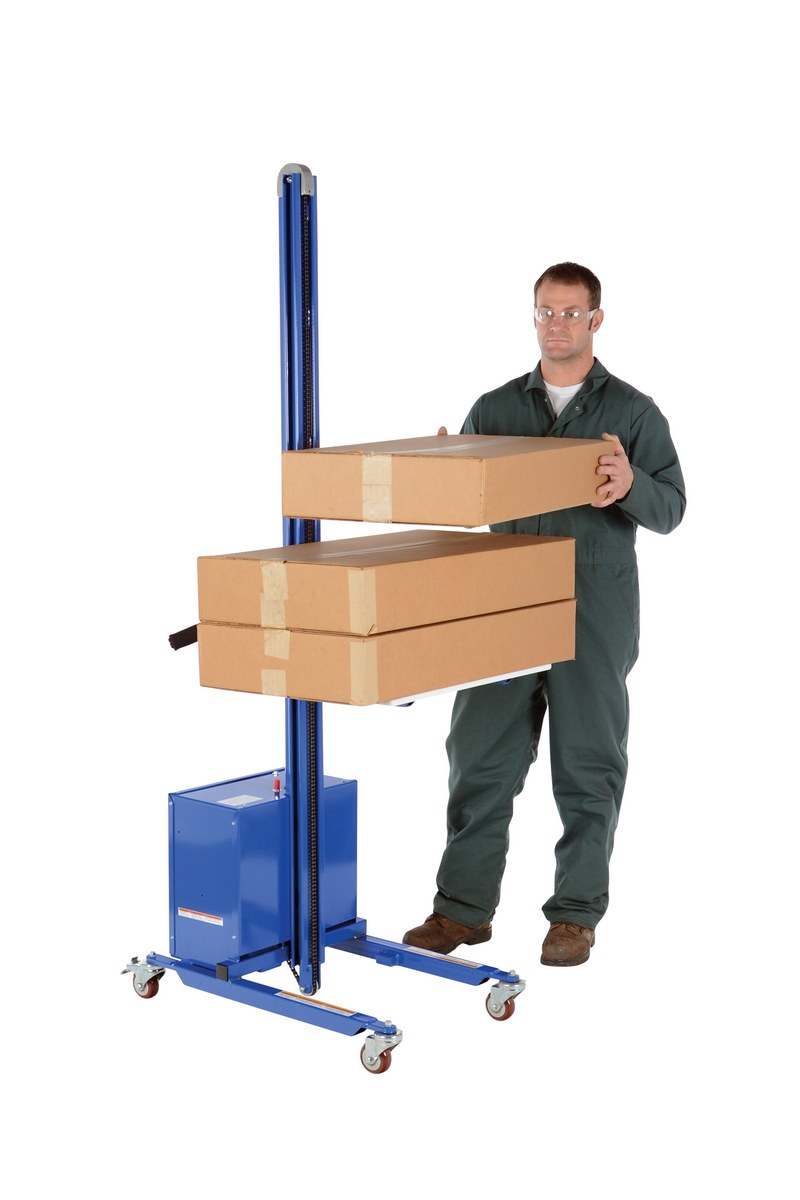

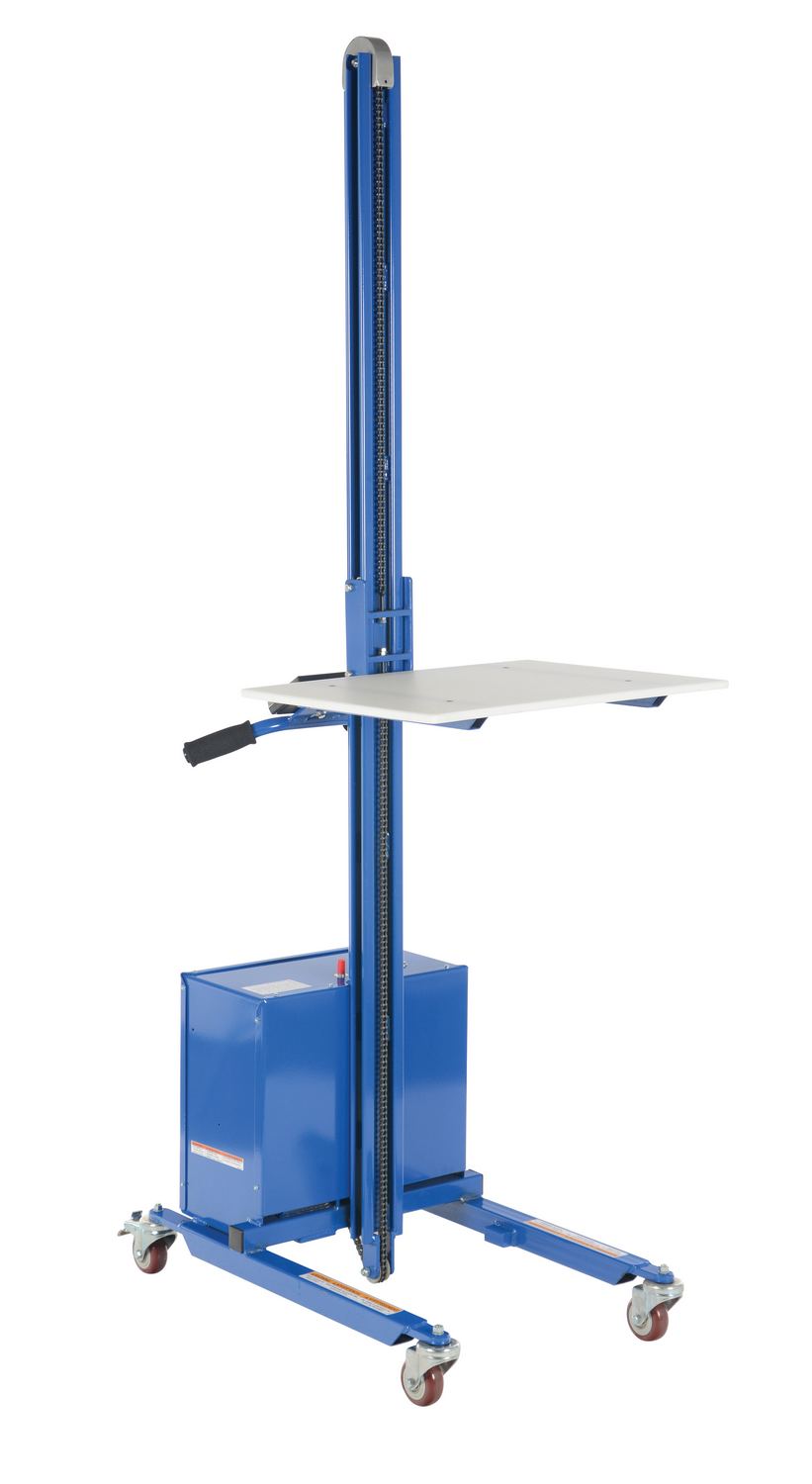

Powered Quick lift units transport and position loads quickly and efficiently. Features a low profile design for maneuvering in narrow aisles and confined spaces. Platform is constructed of high density polyethylene for secure lifting and lowering of products. Two swivel and two swivel locking casters are standard on all units with the exception of the Pel-400 units. Pel-400 comes standard with rigid front wheels and swivel rear wheels with locks. Units are available with AC power, DC Power, or a dual AC and DC powered unit. Steel units have a baked-in powder-coat finish.

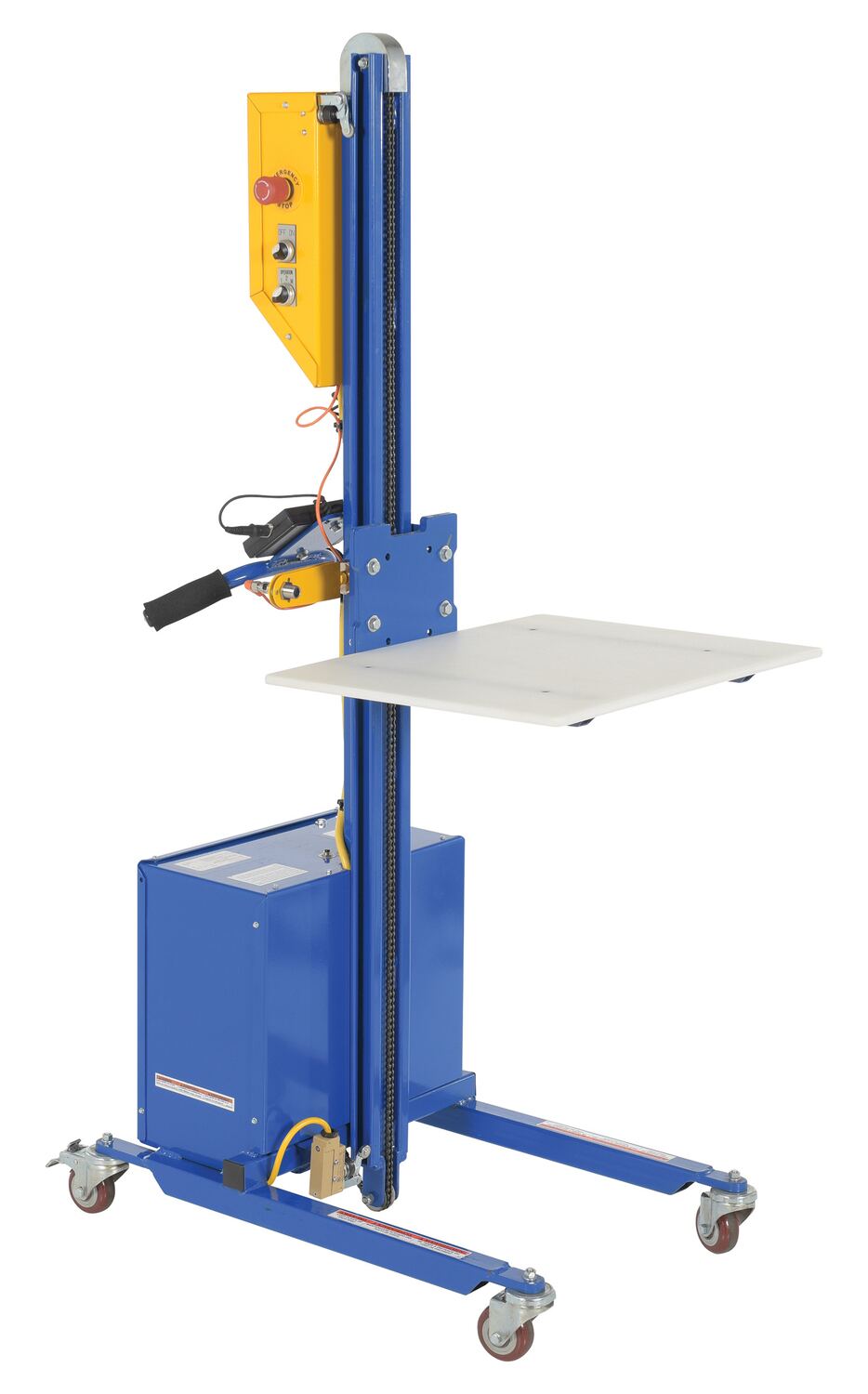

PEL-100

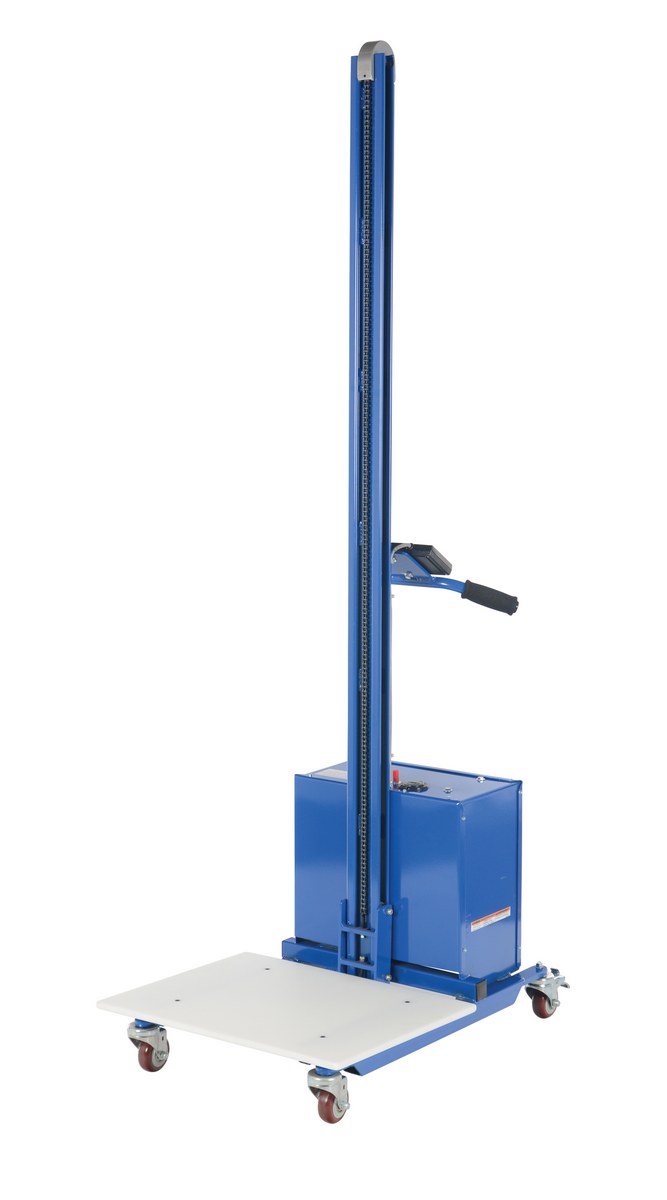

model PEL-100

PEL-400-57

model PEL-400-57

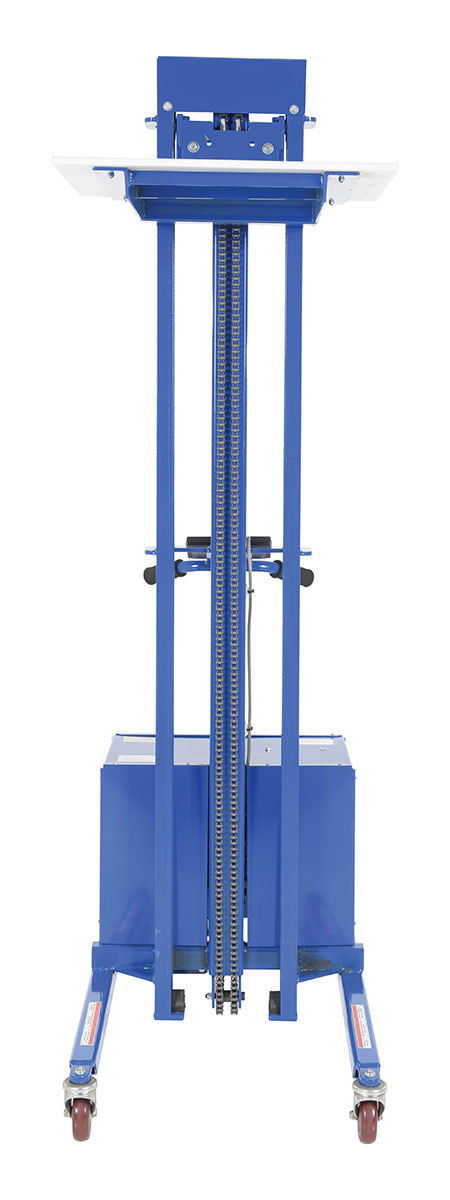

PEL-400-72

model PEL-400-72

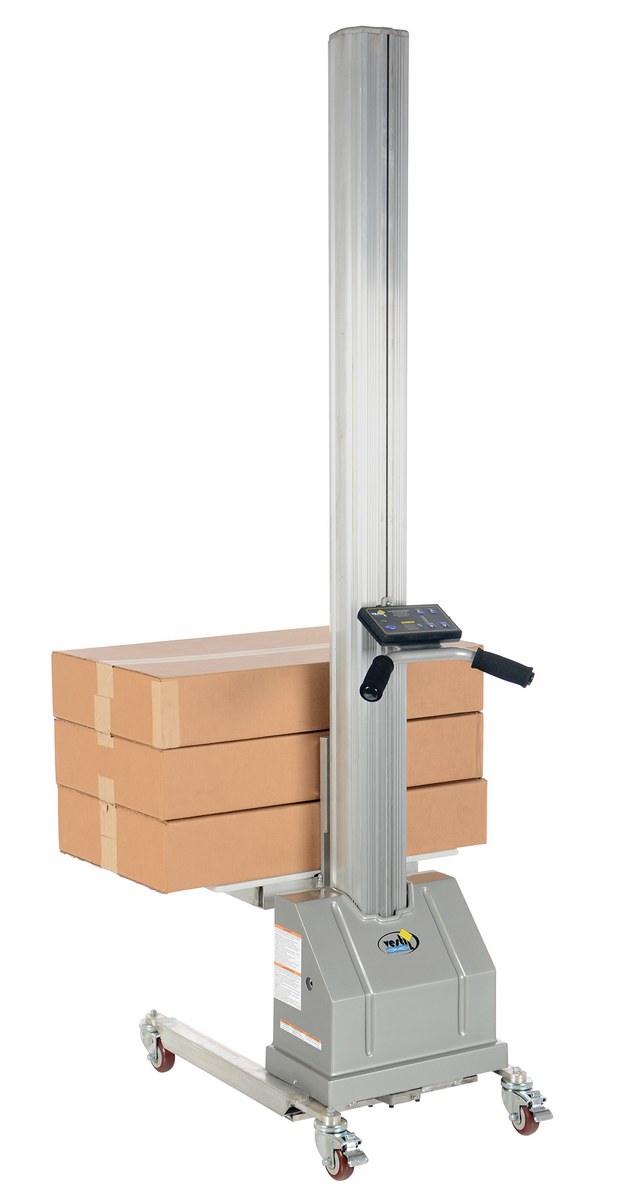

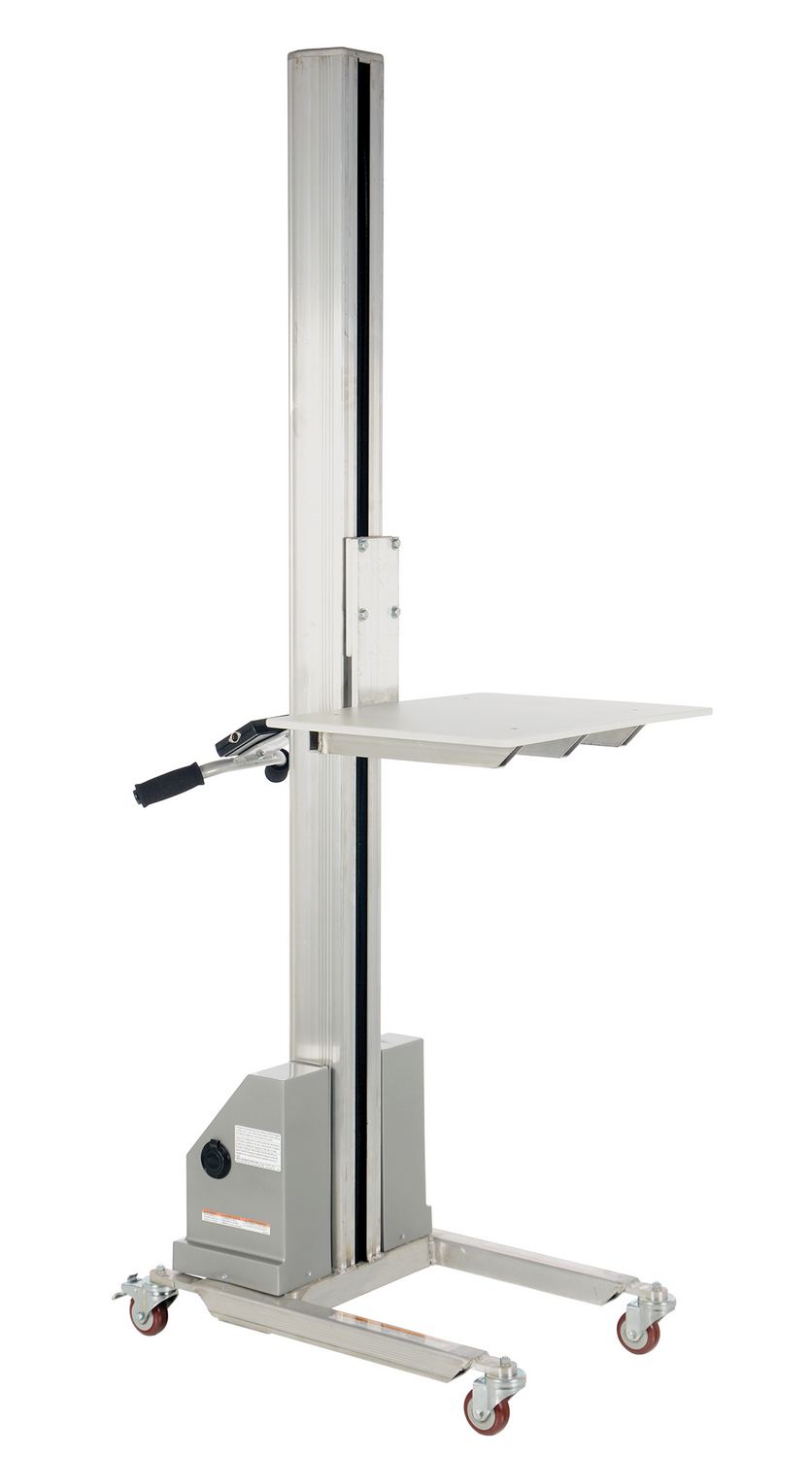

PEL-100-A

model PEL-100-A

PEL-88-A

model PEL-88-A

PEL-CONV

model PEL-CONV

PEL-DSPIN

model PEL-DSPIN

PEL-400-KEG-KT

model PEL-400-KEG-KT

PEL-PAIL

model PEL-PAIL

PEL-RR

model PEL-RR

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

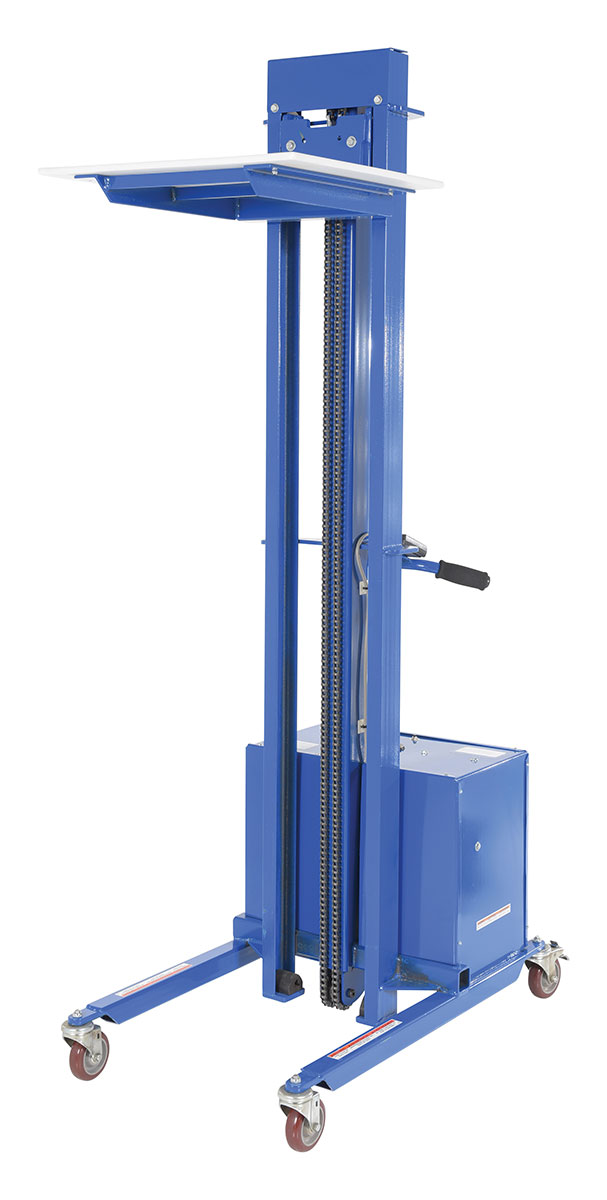

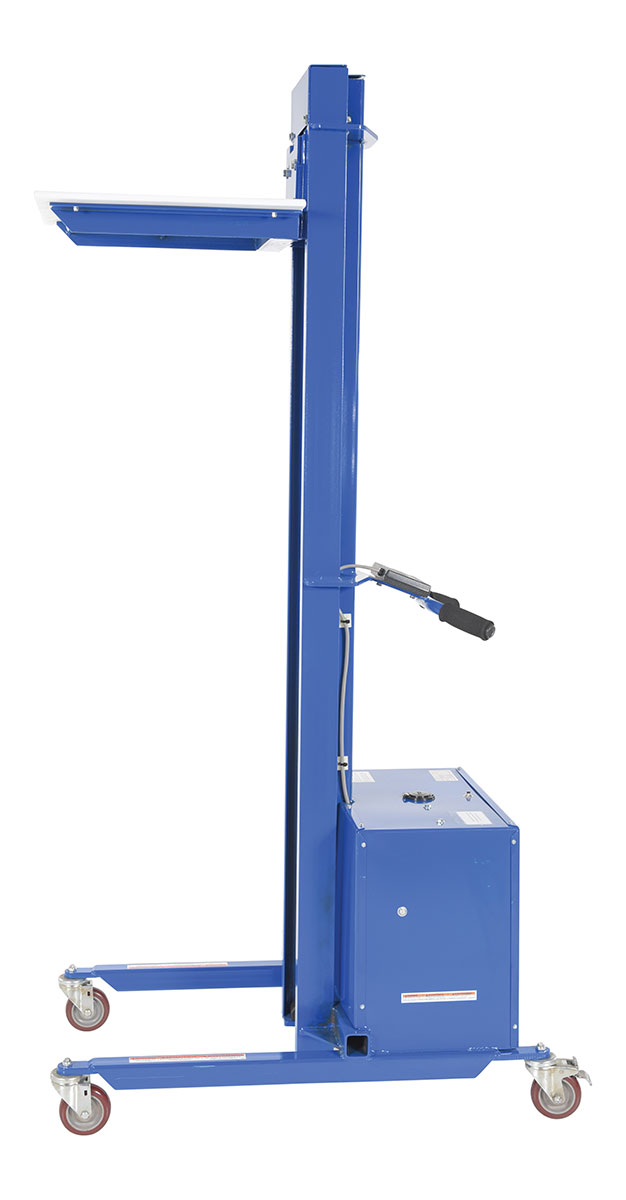

Steel Quick-Lift
Model Number PDF's Power
Option
Platform
Size (WxL)
Raised
Height
Lowered
Height
Capacity (lbs.) Caster
Size
Wt. (lbs)

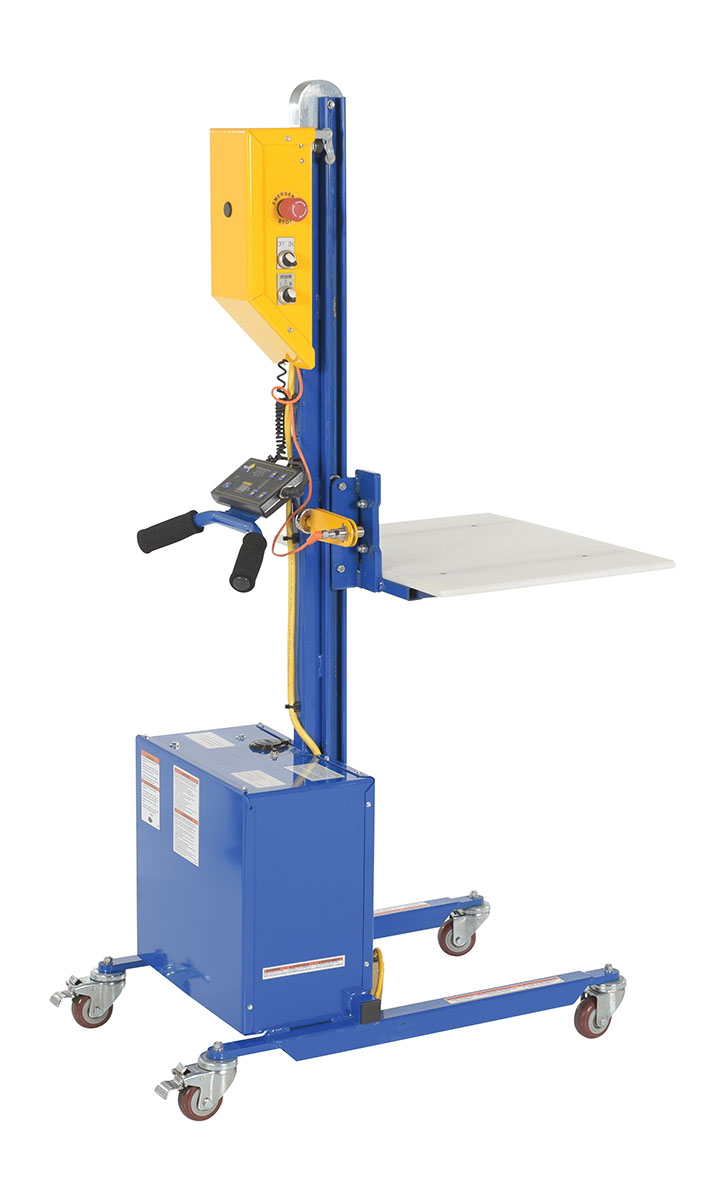

PEL-88 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC 23-1/2"x18-1/2" 57" 5-5/8" 175 3" 225

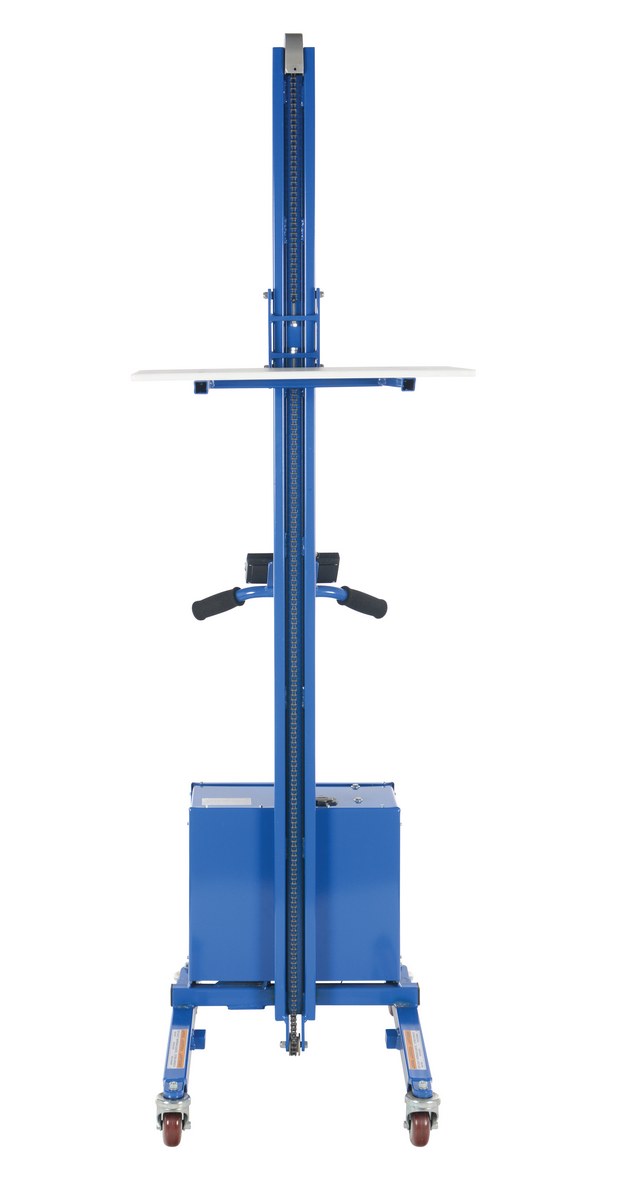

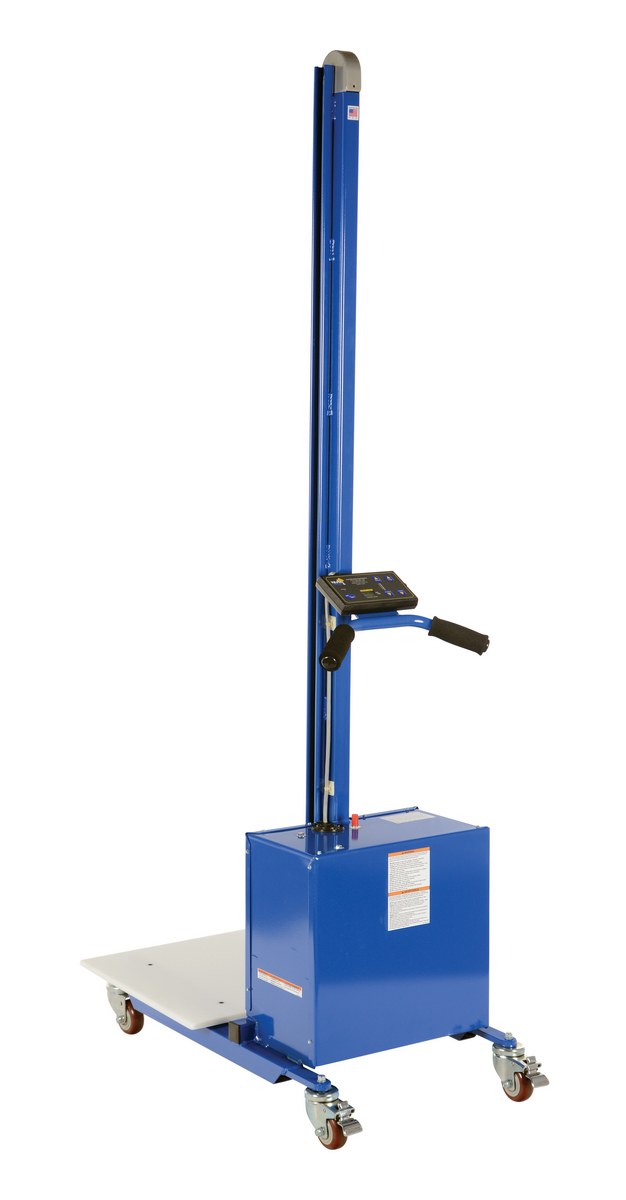

PEL-100 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC 23-1/2"x18-1/2" 72" 5-5/8" 125 3" 245

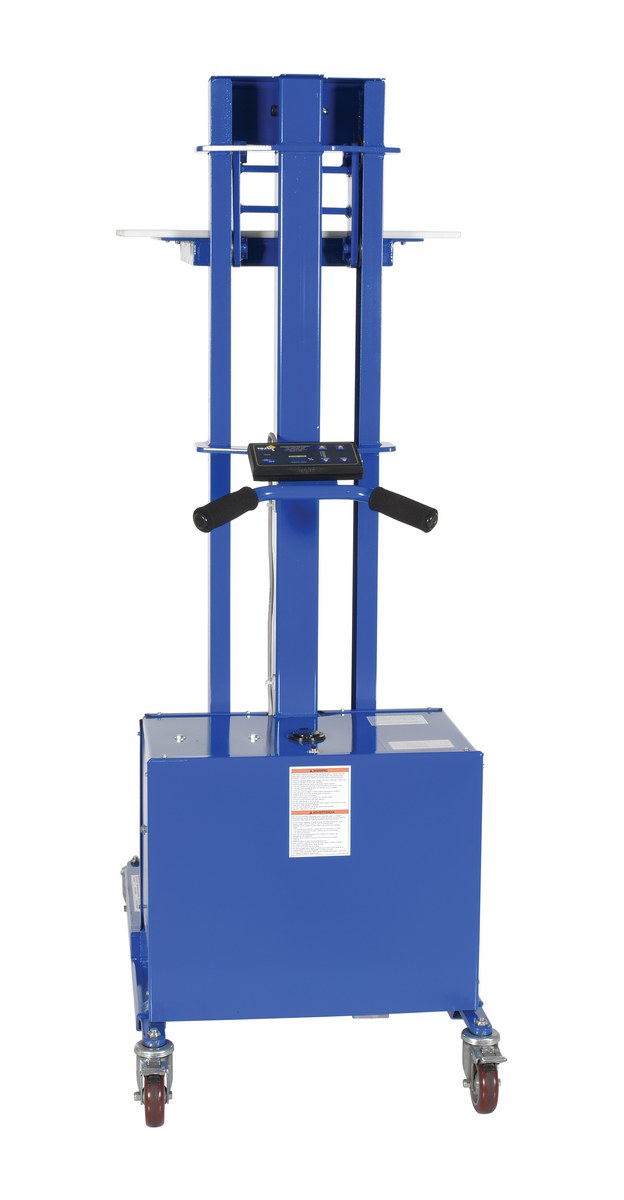

PEL-400-57 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC 24"x20" 57" 6-1/2" 400 4" 574

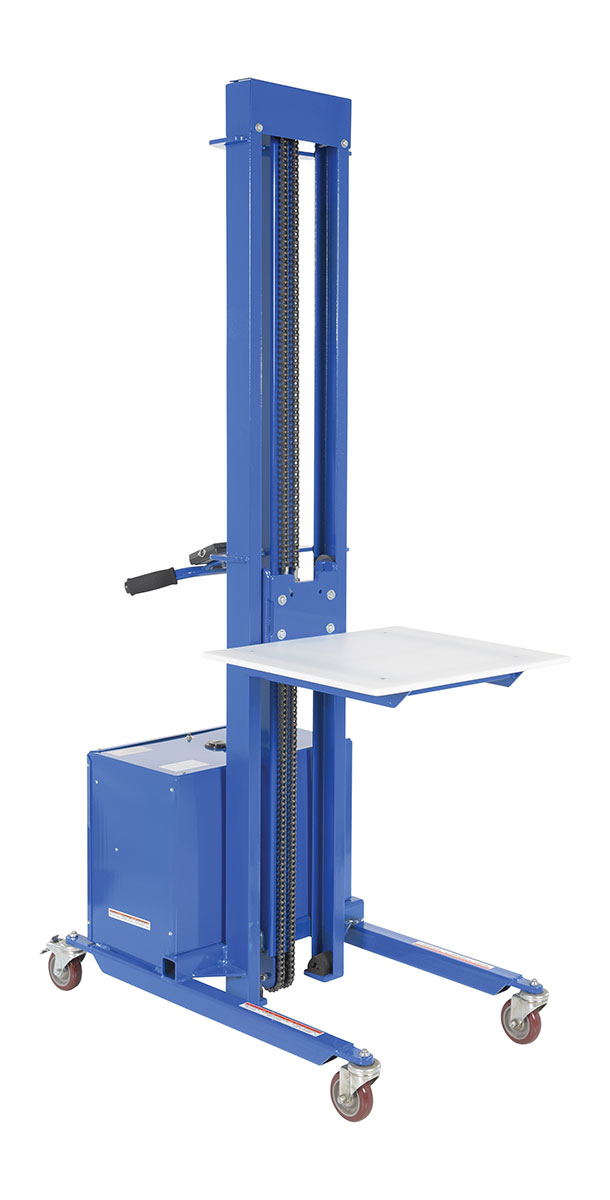

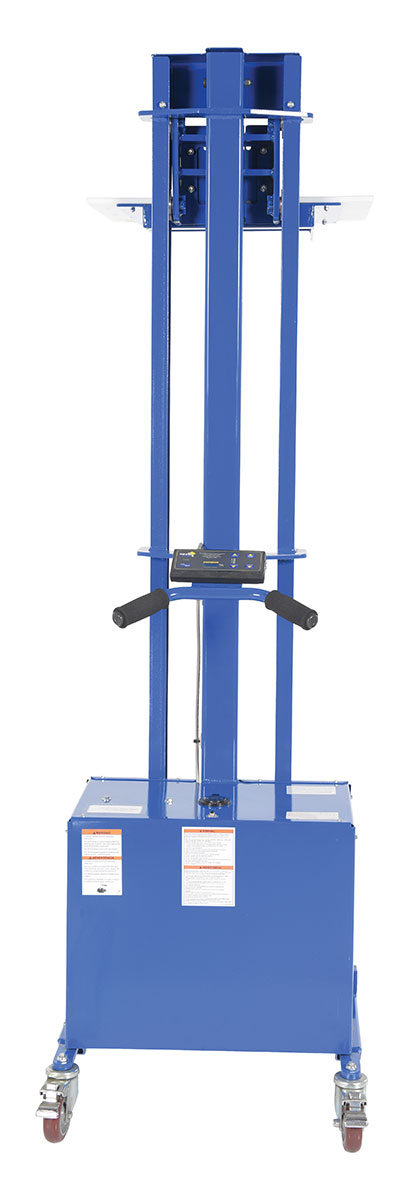

PEL-400-72 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC 24"x20" 72" 6-1/2" 400 4" 566
Quick-Lift Specialty Power Unit Options
Model Number PDF's Power
Option
Platform
Size (WxL)
Raised
Height
Lowered
Height
Capacity (lbs.) Caster
Size
Wt. (lbs)
PEL-88-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 115V AC - 1 Phase 23-1/2"x18-1/2" 57" 5-5/8" 175 3" 402
PEL-88-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 230V 1 AC - Phase 23-1/2"x18-1/2" 57" 5-5/8" 175 3" 402
PEL-88-DC3-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC & 115V AC - 1 Phase 23-1/2"x18-1/2" 57" 5-5/8" 175 3" 402
PEL-100-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 115V AC - 1 Phase 23-1/2"x18-1/2" 72 5-5/8" 125 3" 408
PEL-100-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 230V AC - 1 Phase 23-1/2"x18-1/2" 72 5-5/8" 125 3" 408
PEL-100-DC3-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC & 115V AC - 1 Phase 23-1/2"x18-1/2" 72 5-5/8" 125 3" 408
PEL-400-57-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 230V AC - 1 Phase 24"x20" 57" 6-1/2" 400 4" 873
PEL-400-57-DC3-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC & 115V AC - 1 Phase 24"x20" 57" 6-1/2" 400 4" 873
PEL-400-72-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 230V AC - 1 Phase 24"x20" 72" 6-1/2" 400 4" 895
PEL-400-72-DC3-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC & 115V AC - 1 Phase 24"x20" 72" 6-1/2" 400 4" 895

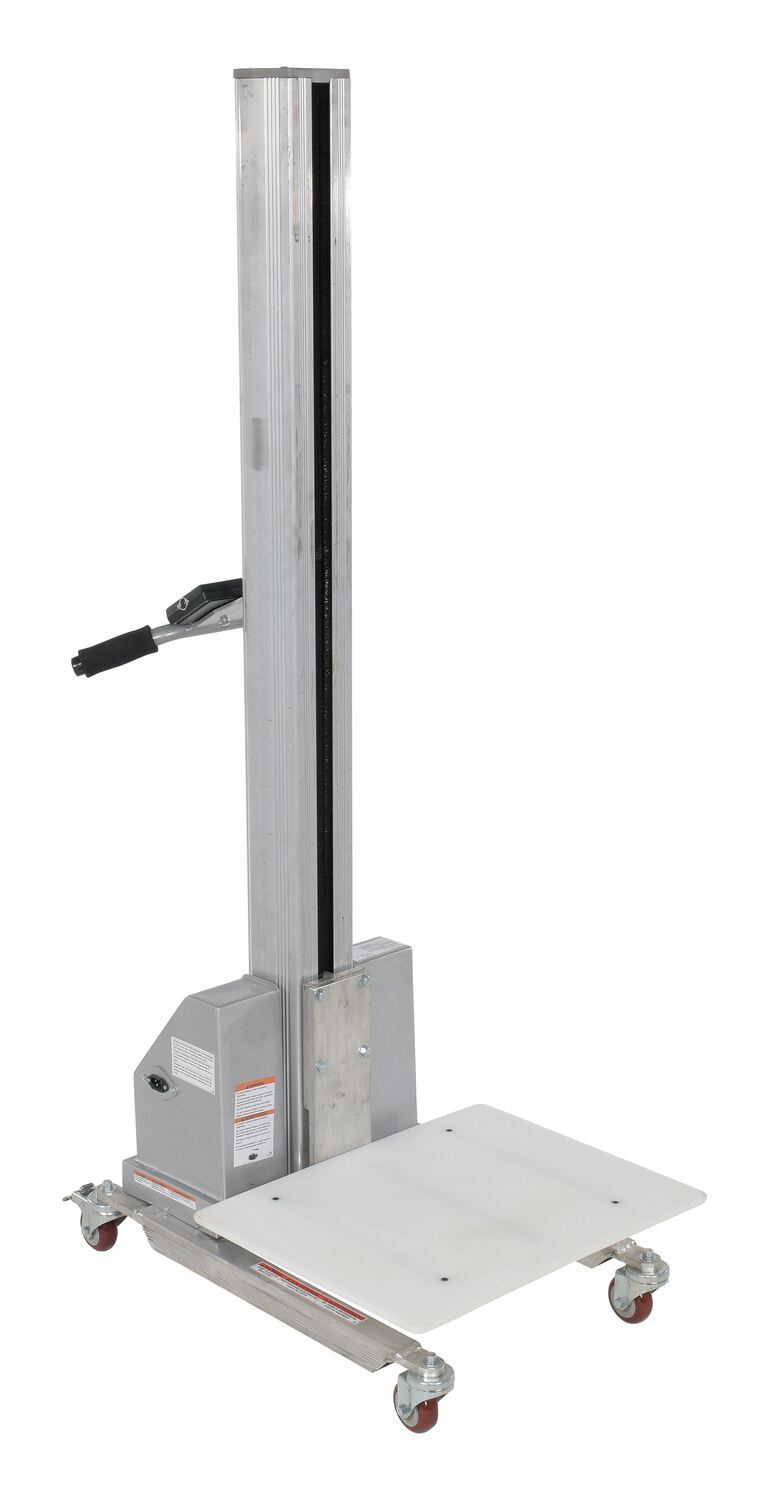

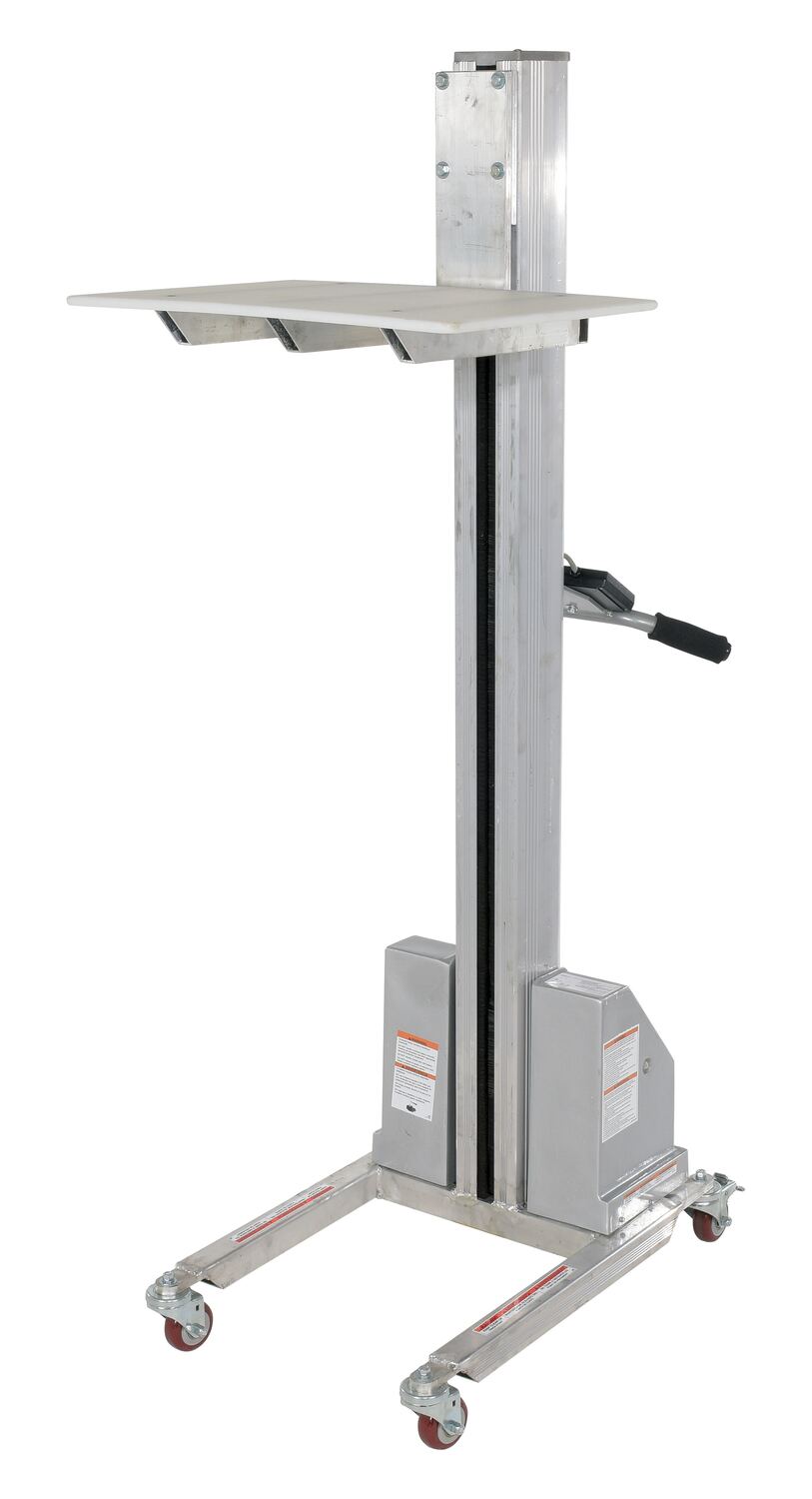

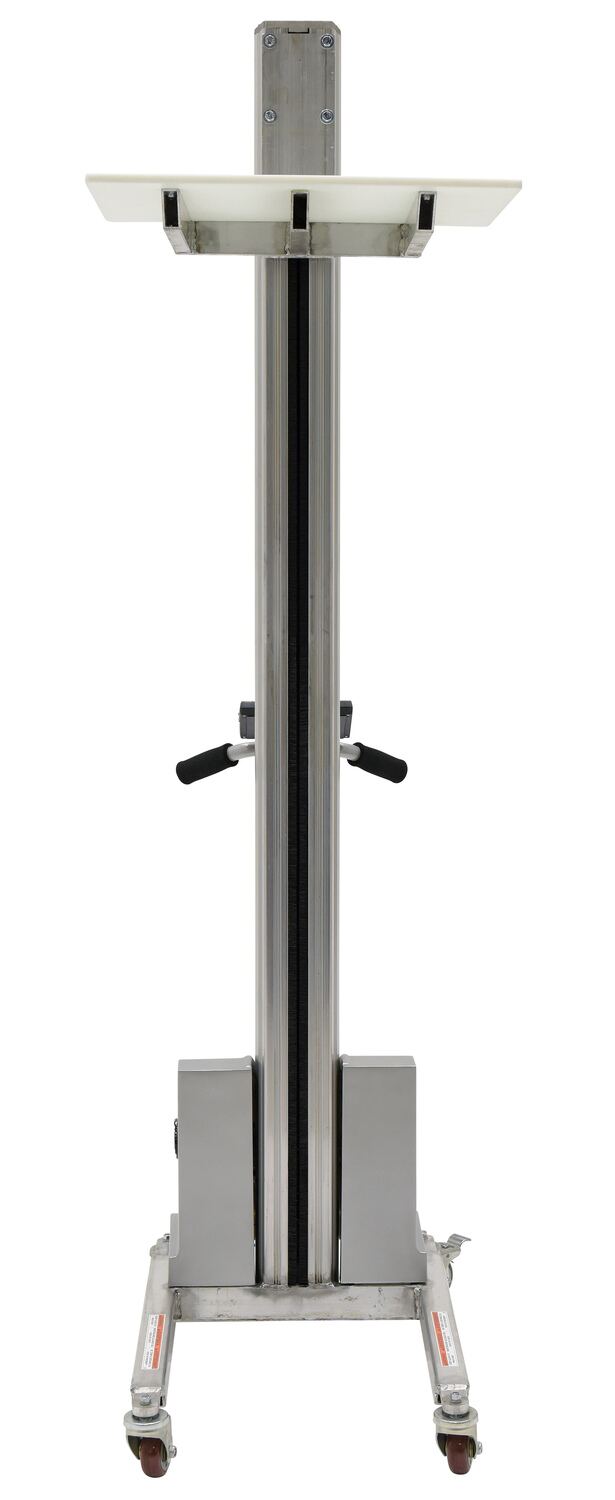

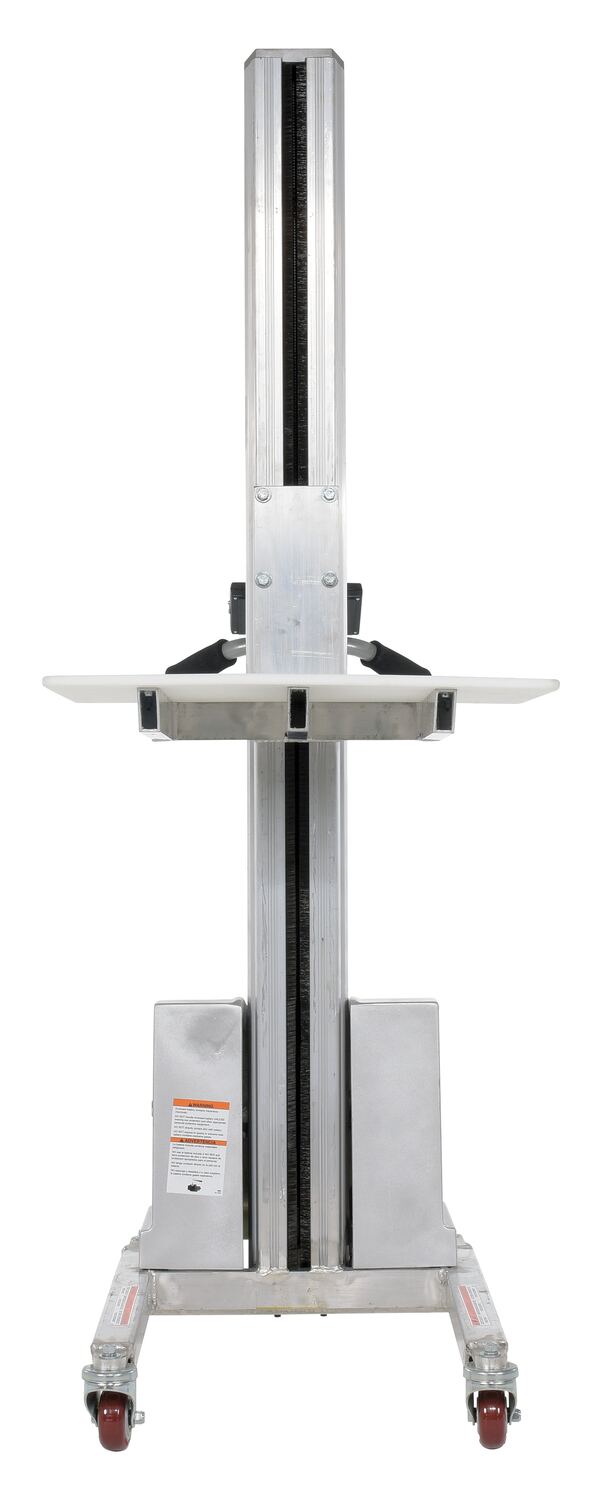

Aluminum Quick Lift
Model PDF's Power
Option
Platform
Size (WxL)
Raised
Height
Lowered
Height
Caster Size Capacity (lbs.) Wt. (lbs)

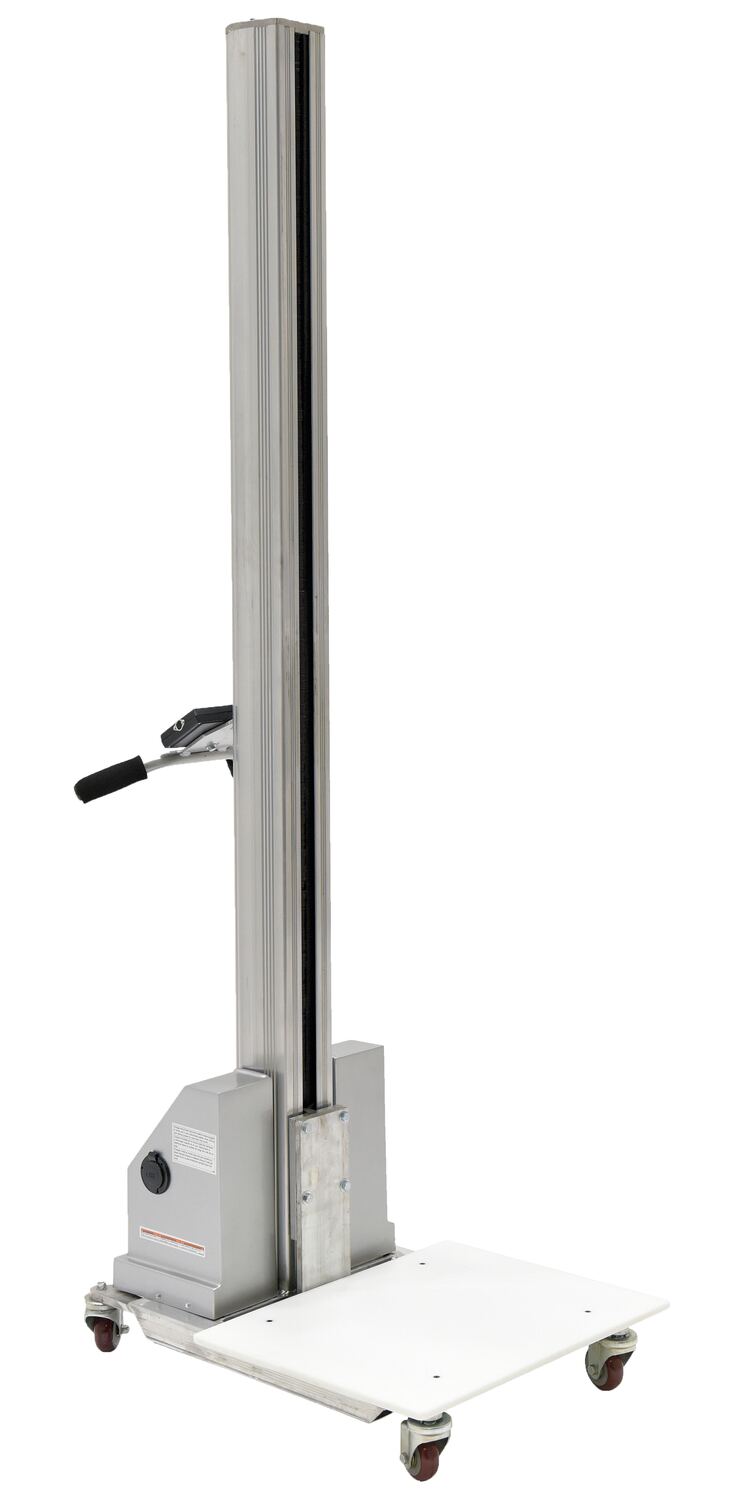

PEL-88-A icon_approvaldrawings.jpgtilt_m4.jpg 24V DC 23-1/2"x18-1/2" 57" 5-1/2" 3" 175 175
PEL-100-A icon_approvaldrawings.jpgtilt_m4.jpg 24V 23-1/2"x18-1/2" 72" 5-1/2" 3" 125 125
PEL-88-A-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 115V AC - 1 Phase 23-1/2"x18-1/2" 57" 5-1/2" 3" 175 378
PEL-88-A-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 230V AC - 1 Phase 23-1/2"x18-1/2" 57" 5-1/2" 3" 175 378
PEL-88-A-DC3-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC & 115V AC - 1 Phase 23-1/2"x18-1/2" 57" 5-1/2" 3" 175 458
PEL-100-A-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 115V AC - 1 Phase 23-1/2"x18-1/2" 72" 5-1/2" 3" 125 386
PEL-100-A-AC2 icon_approvaldrawings.jpgtilt_m4.jpg 230V AC - 1 Phase 23-1/2"x18-1/2" 72" 5-1/2" 3" 125 386
PEL-100-A-DC3-AC1 icon_approvaldrawings.jpgtilt_m4.jpg 24V DC & 115V AC - 1 Phase 23-1/2"x18-1/2" 72" 5-1/2" 3" 125 466

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets


Approval Drawings

PEL-88
PEL-88-A
PEL-88-KEG-KT
PEL-100
PEL-100-A
PEL-400-57
PEL-400-72
PEL-400-KEG-KT
PEL-CONV
PEL-DSPIN
PEL-HOOK
PEL-PAIL
PEL-RR
PEL-SPIN
PEL-VBLK

Testing Certificates

PEL-2PB
PEL-88
PEL-88-A
PEL-88-KEG-KT
PEL-100
PEL-100-A
PEL-400-57
PEL-400-72
PEL-400-KEG-KT
PEL-CONV
PEL-DSPIN
PEL-HOOK
PEL-INDEX-4
PEL-INDEX-21
PEL-PAIL
PEL-RR
PEL-RRC
PEL-SPIN
PEL-VBLK

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

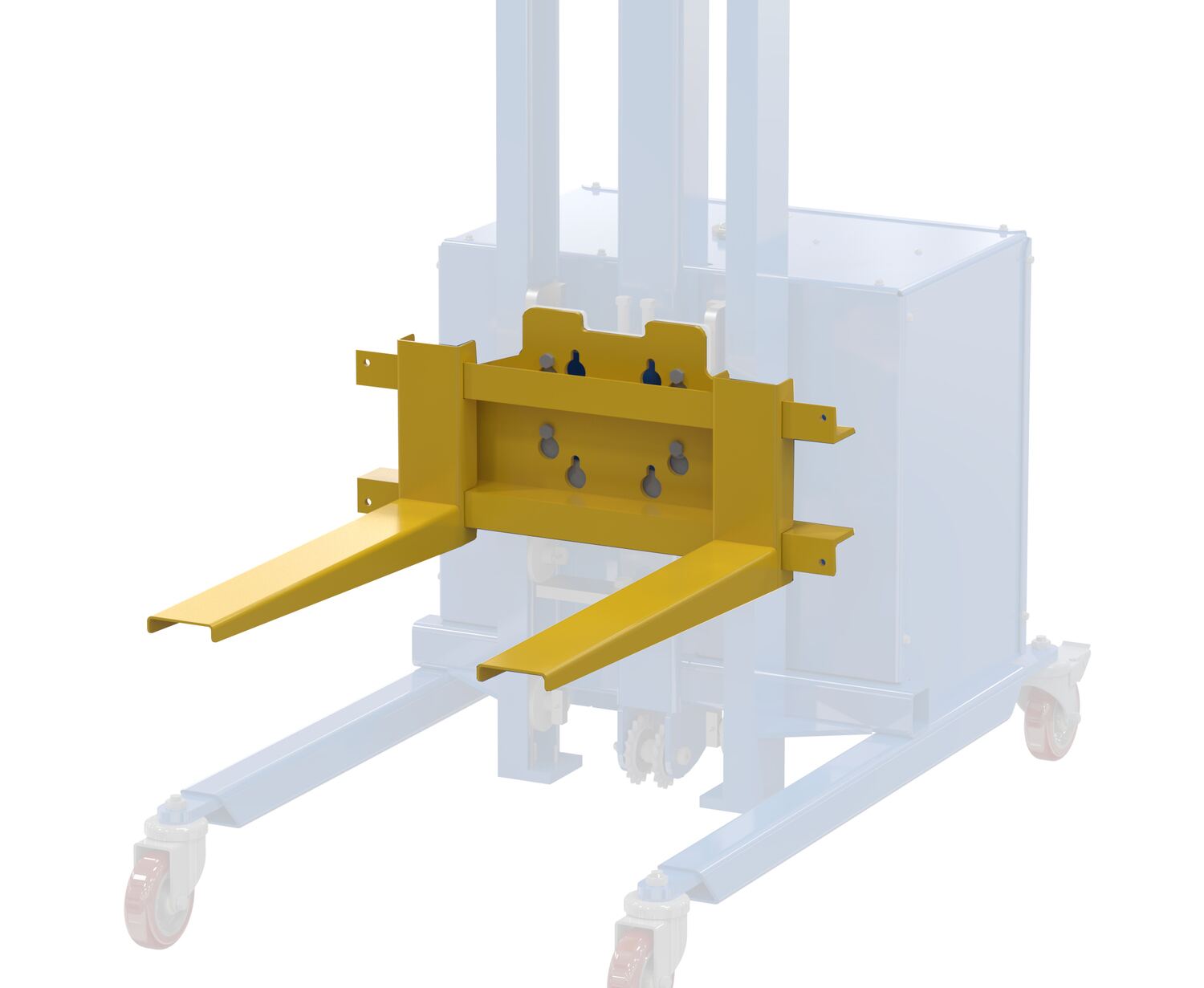

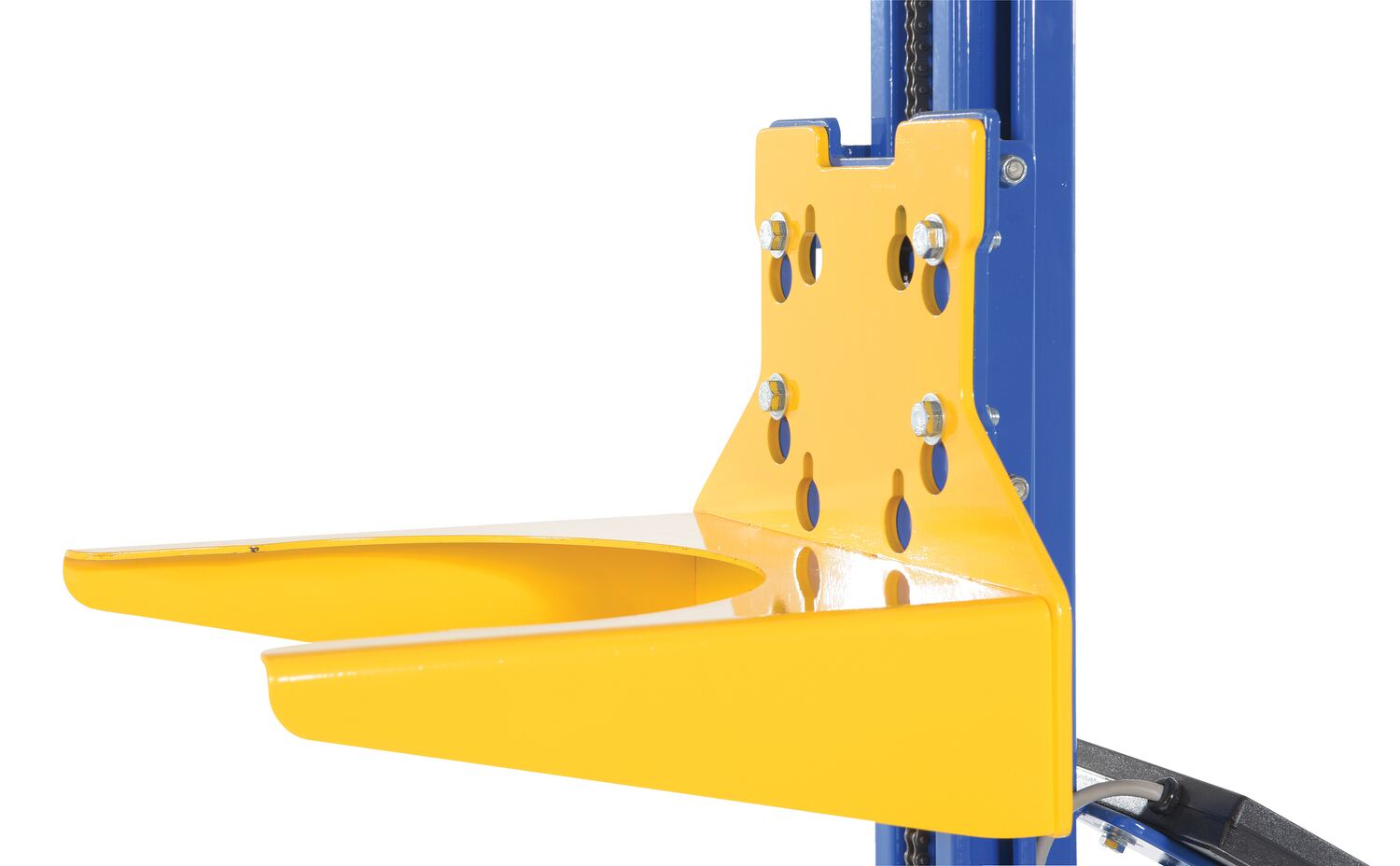

Optional Quick-Lift Attachments
Model Image PDF's Description Wt. (lbs)

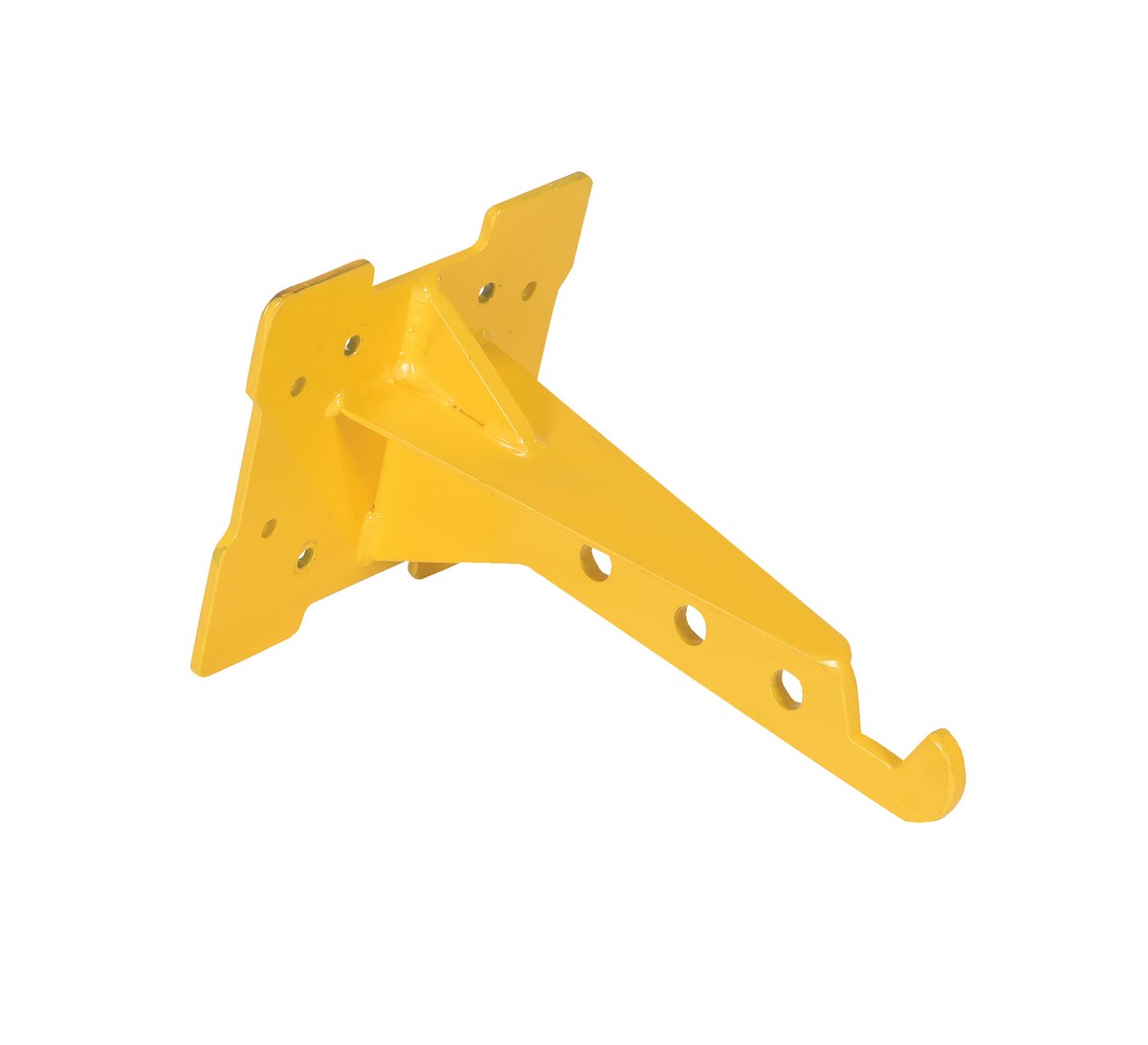

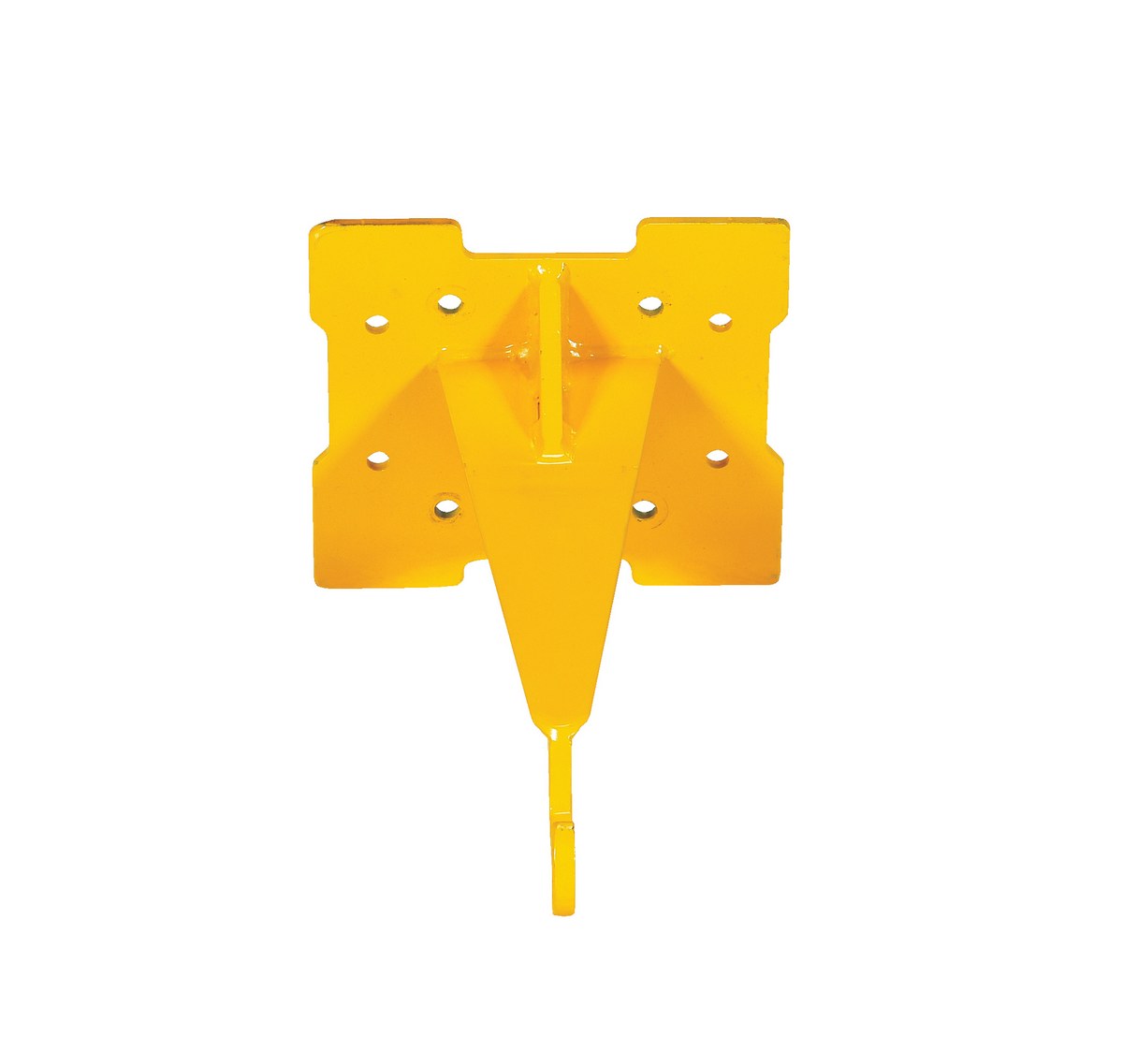

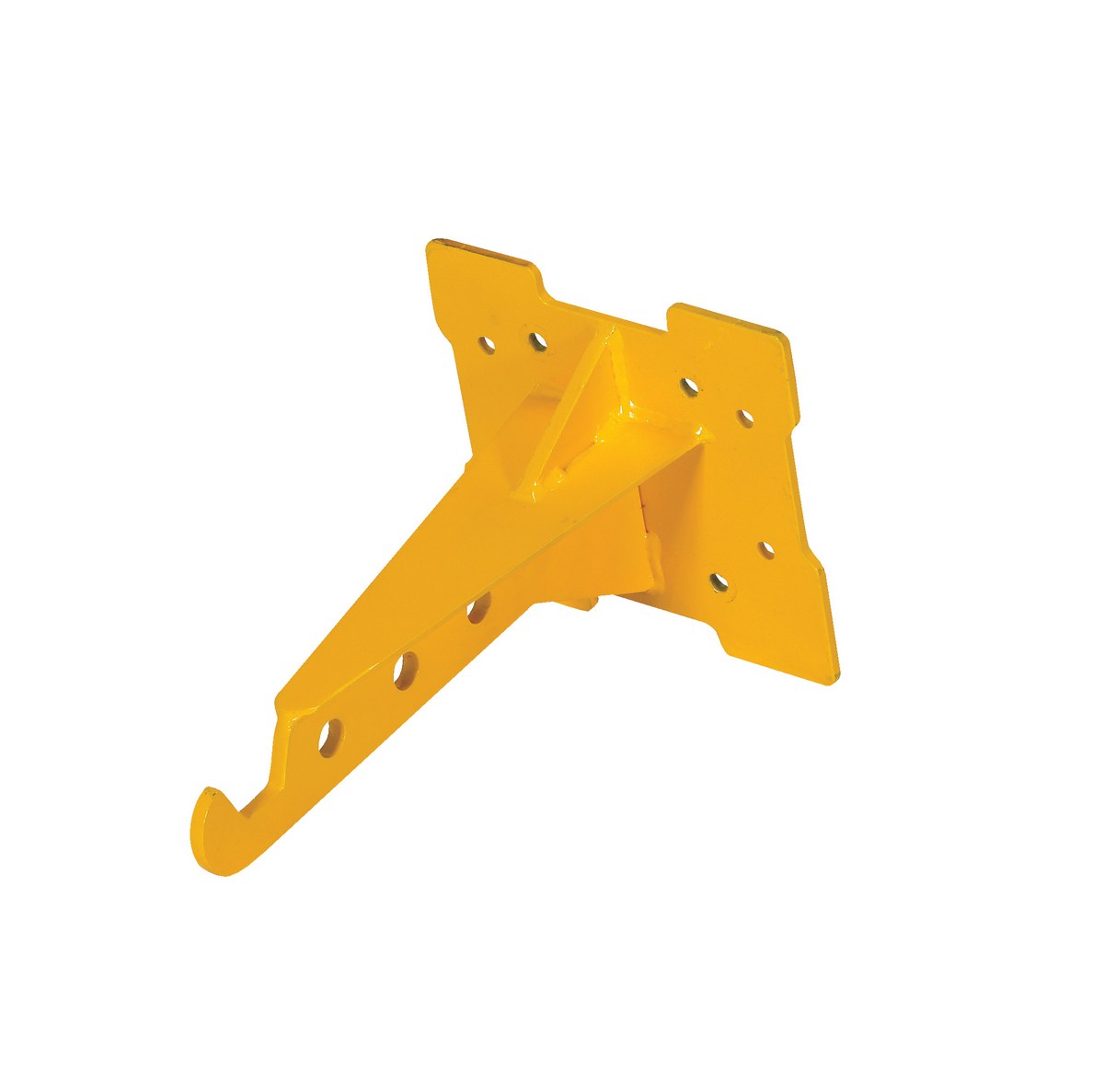

PEL-HOOK tilt_m4.jpg Hook Arm 9

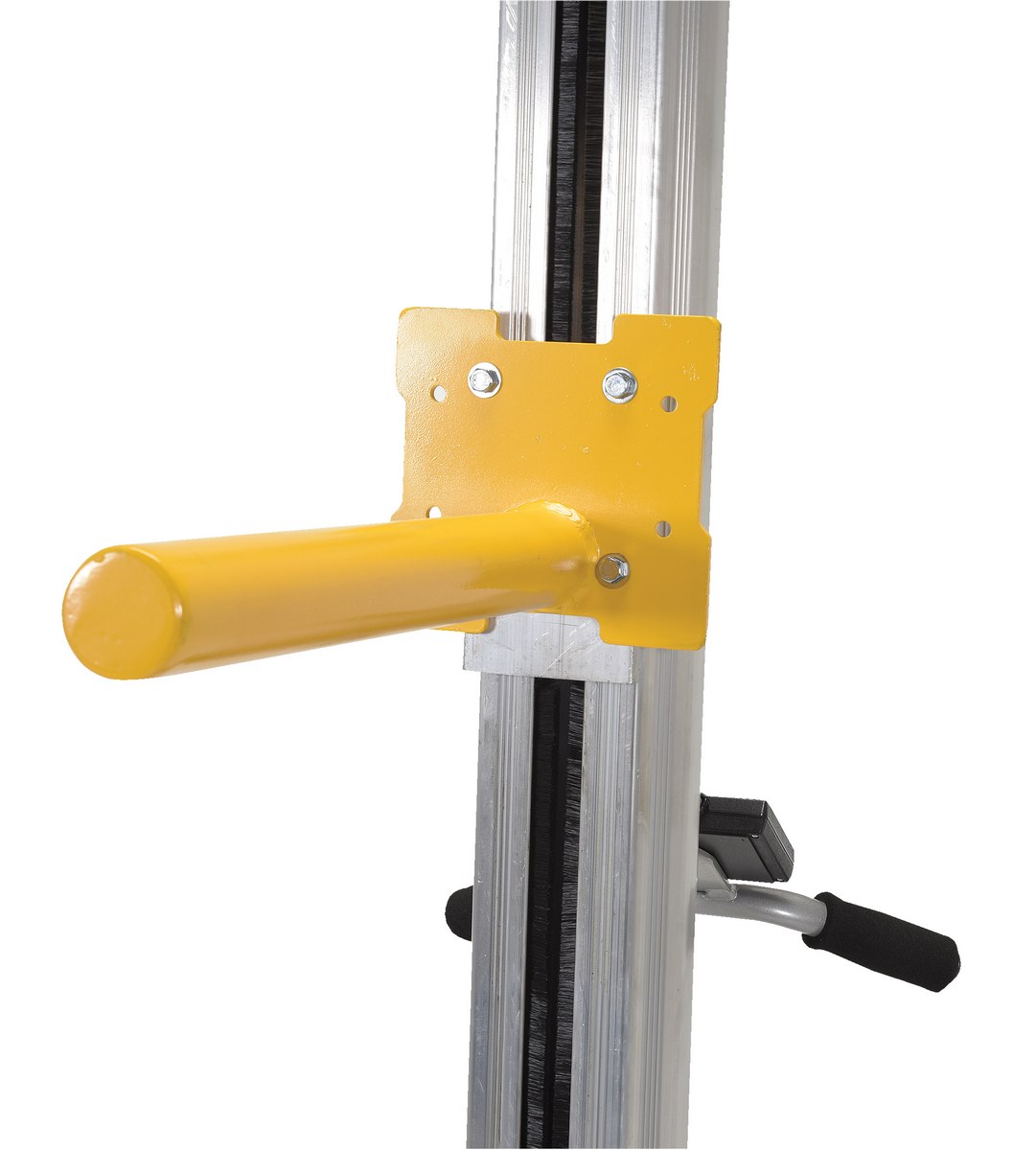

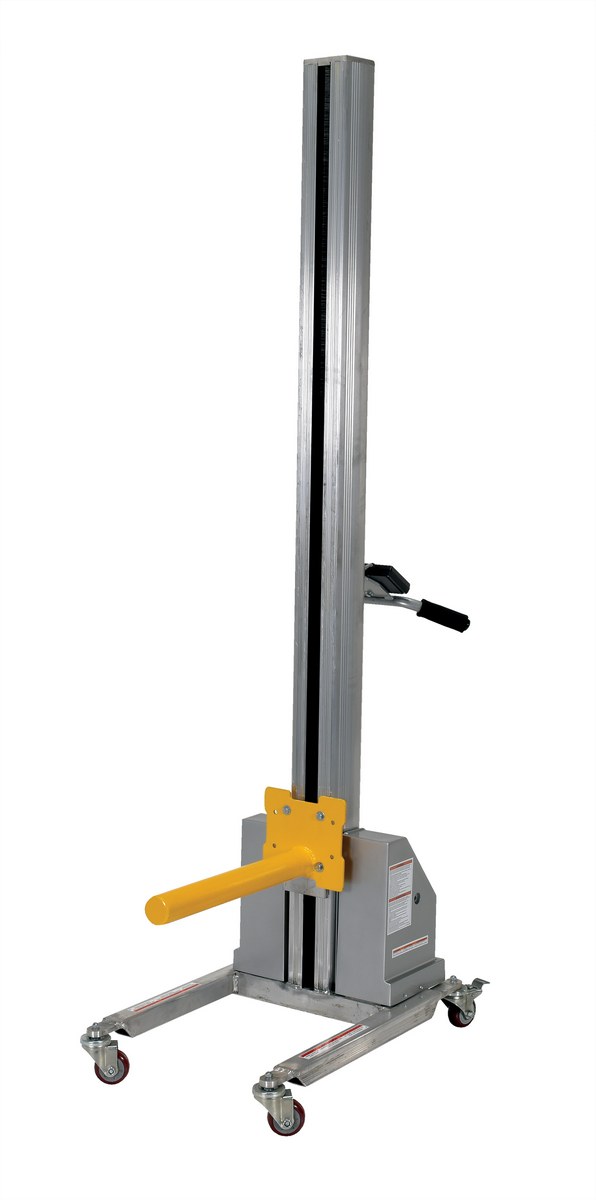

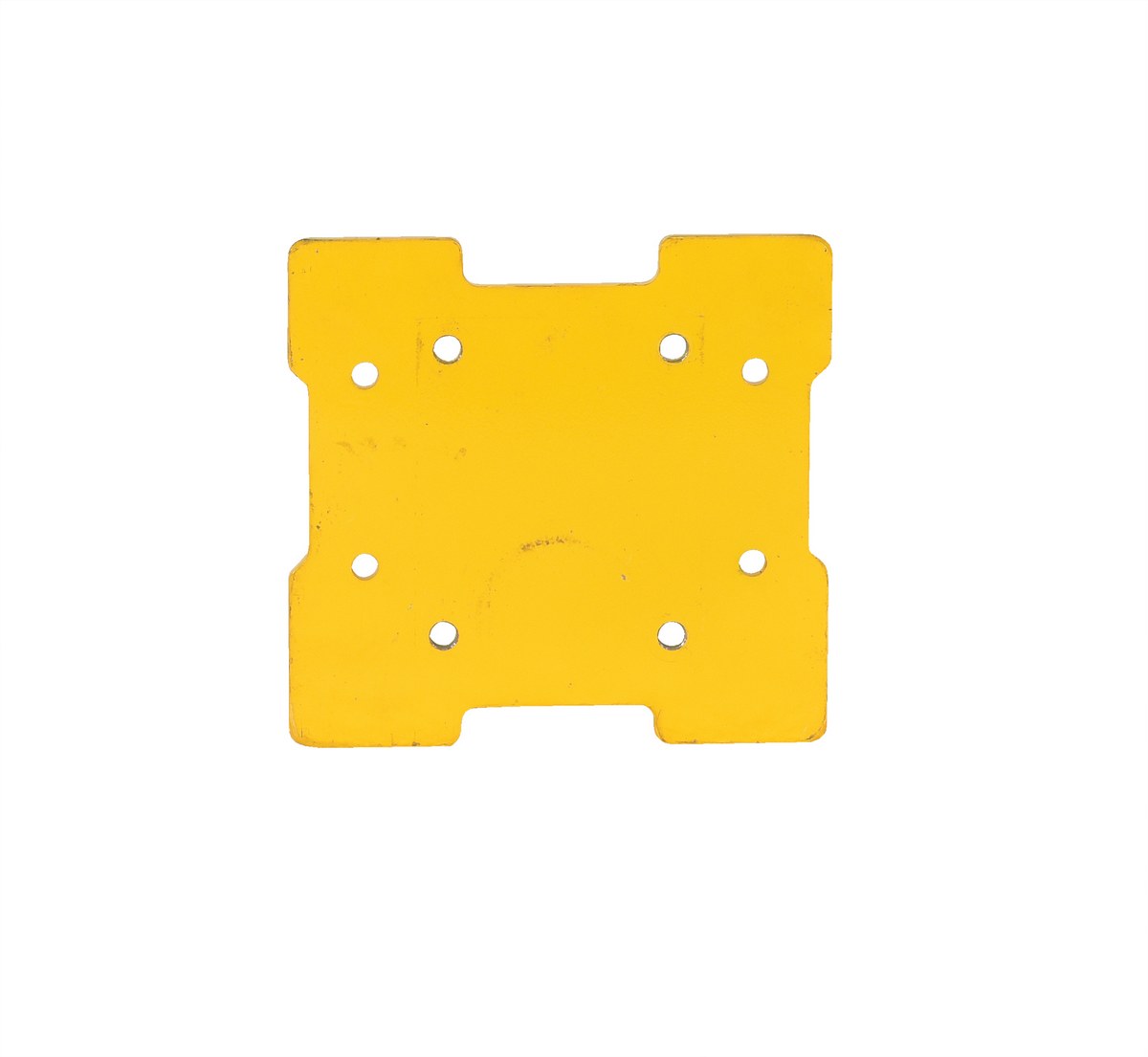

PEL-SPIN tilt_m4.jpg Single Spindle 11

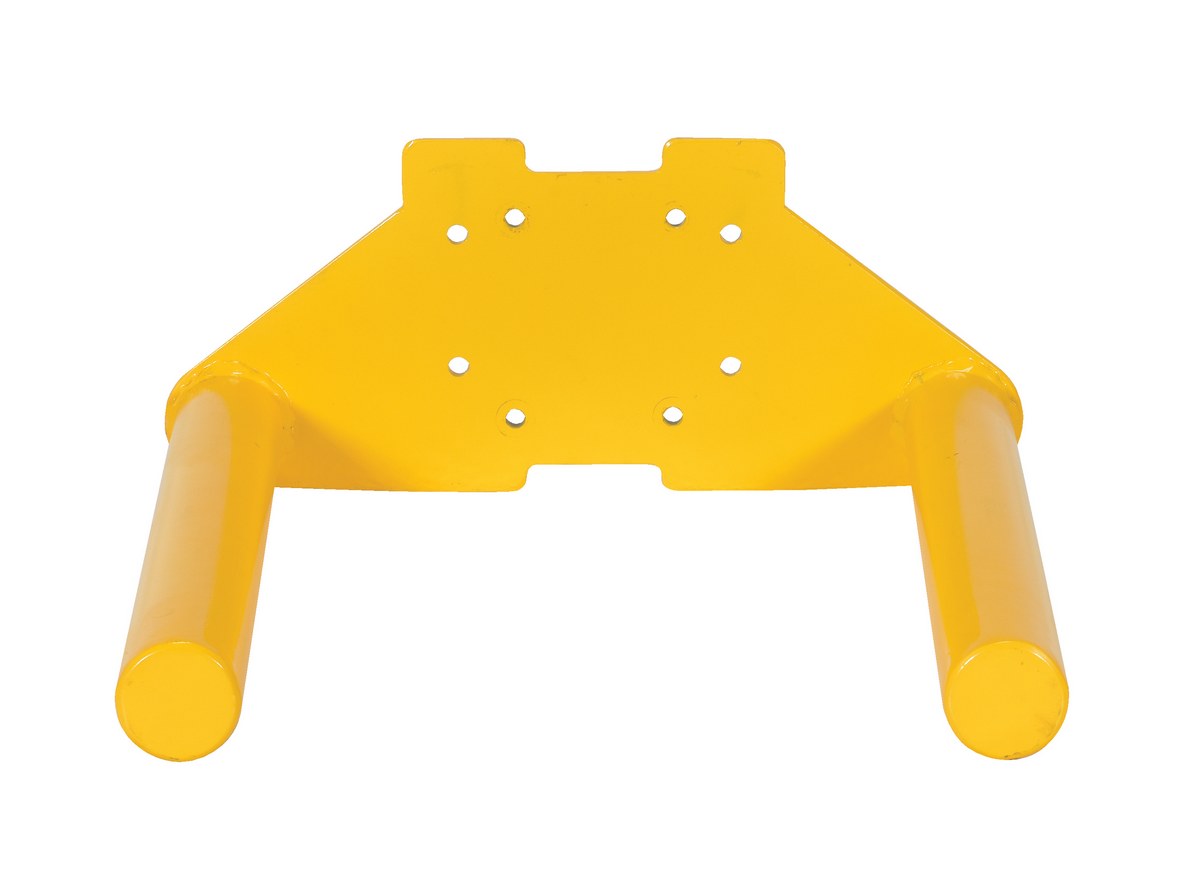

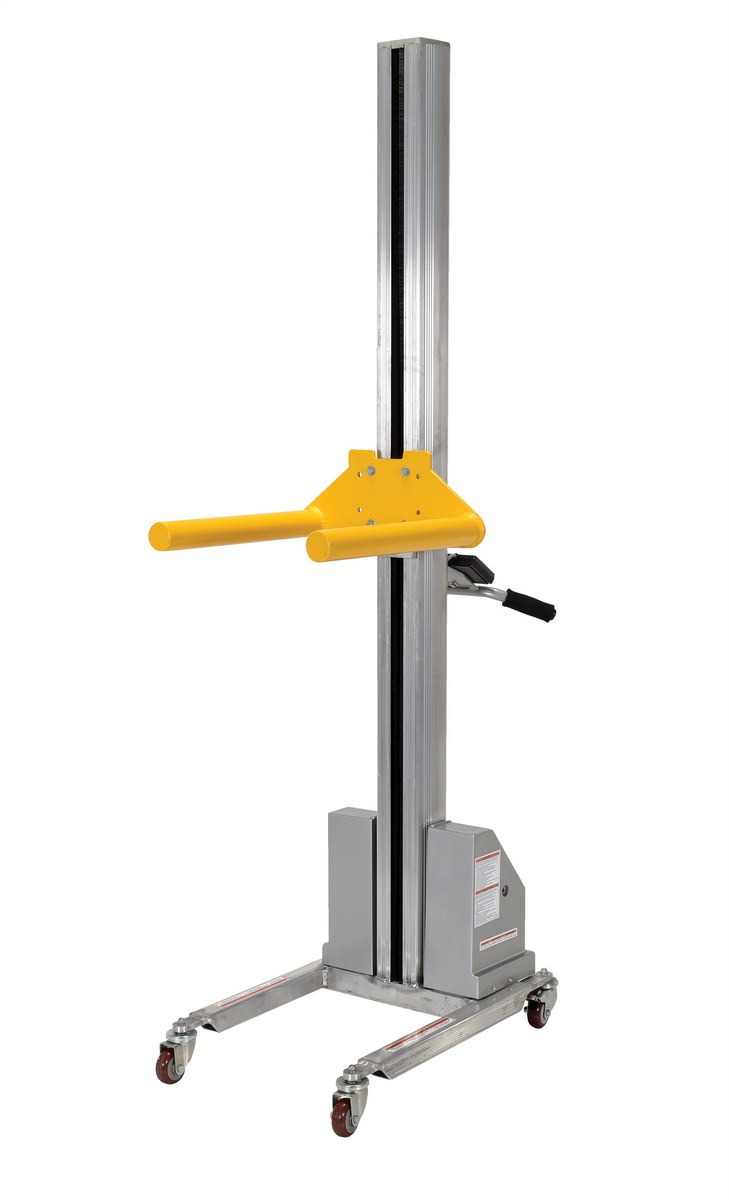

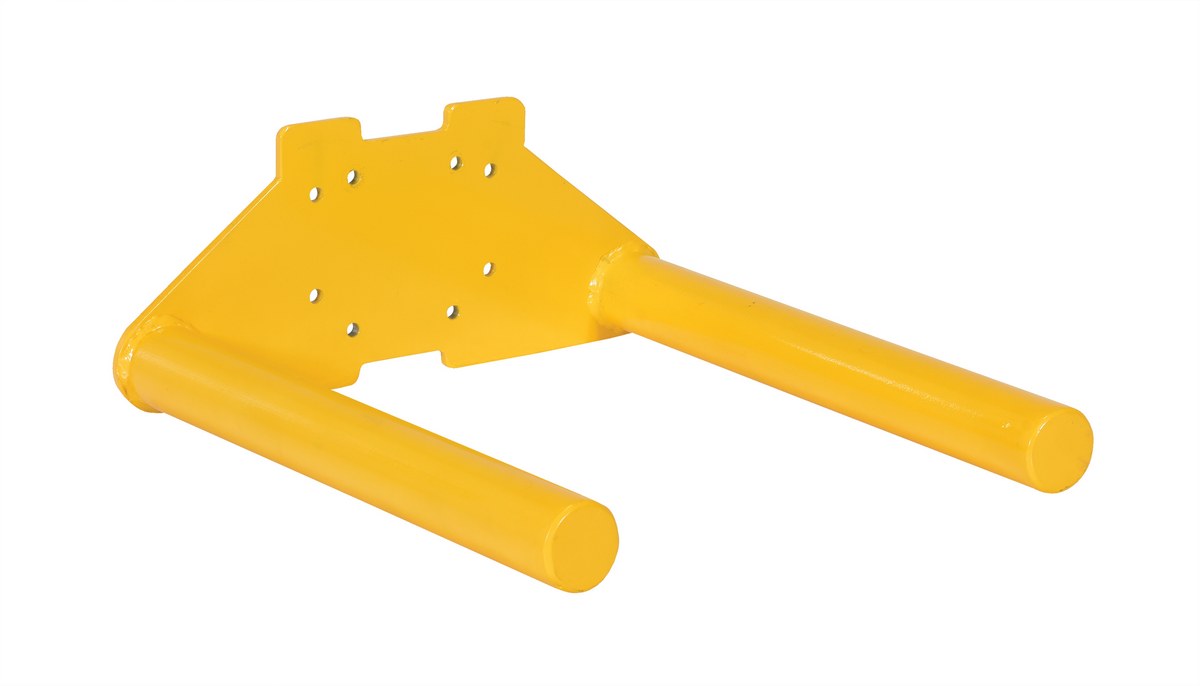

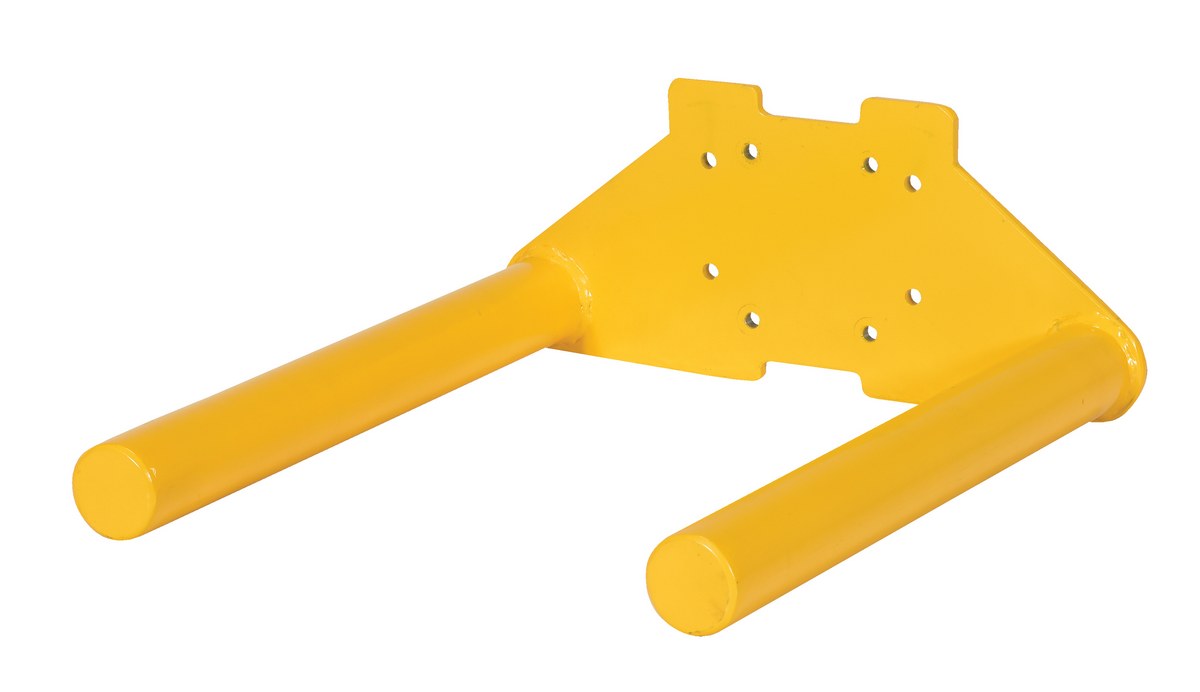

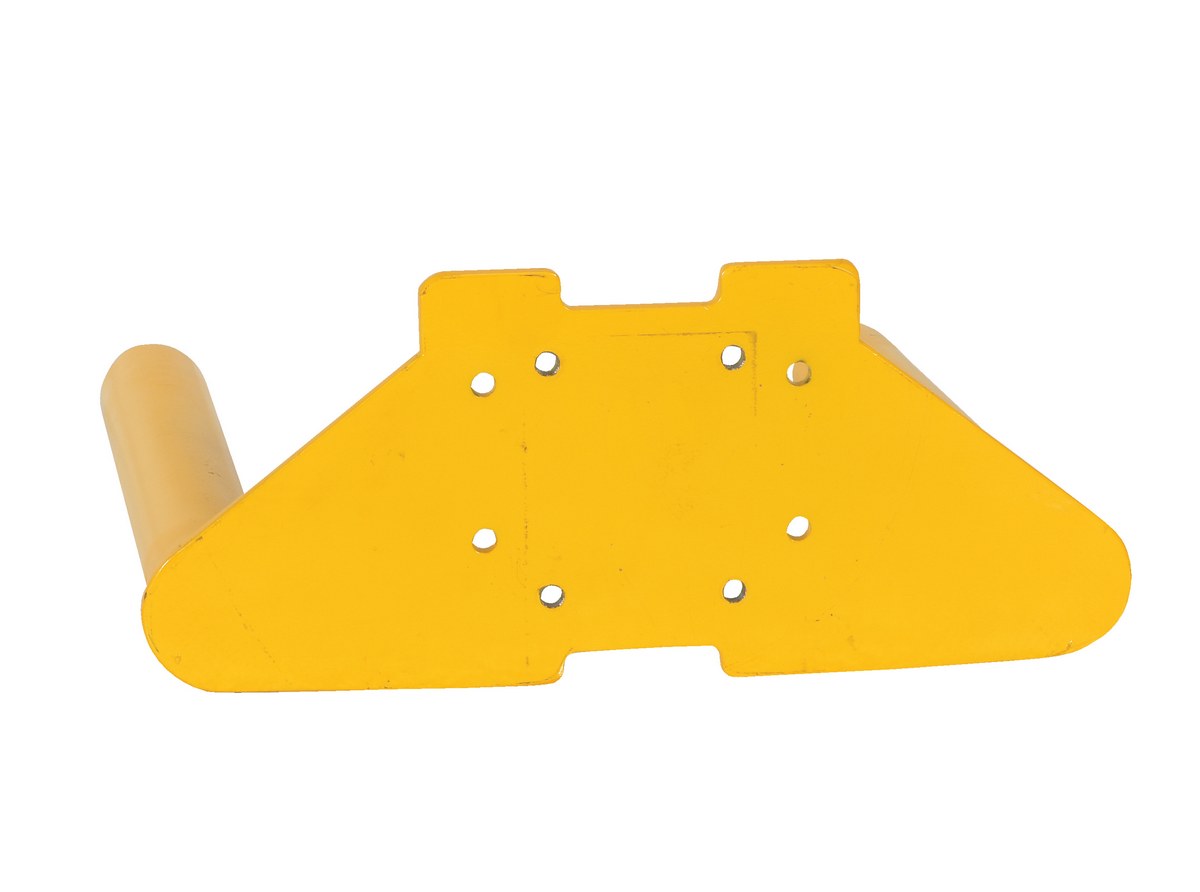

PEL-DSPIN tilt_m4.jpg Double Spindle 21

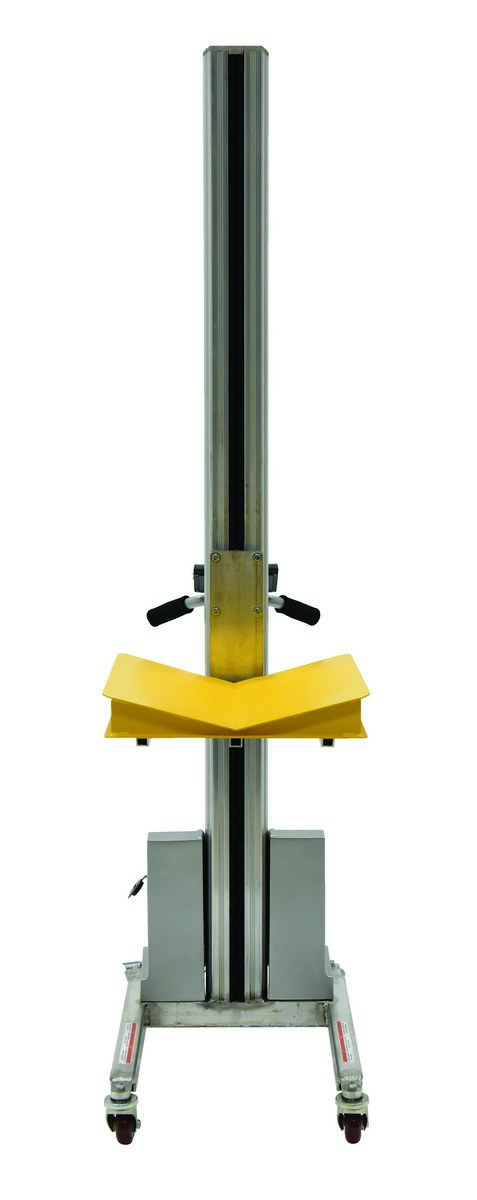

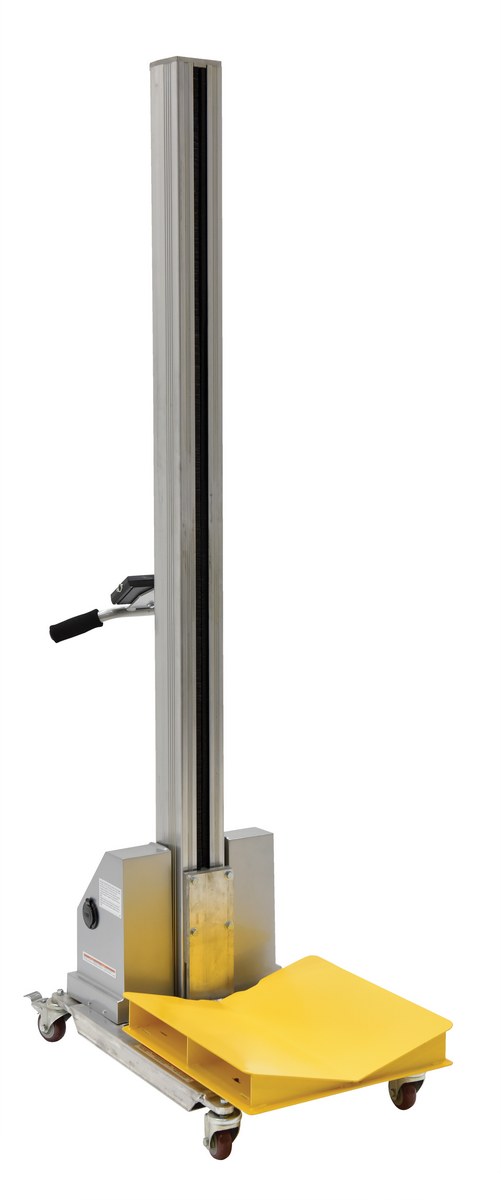

PEL-VBLK tilt_m4.jpg "V" Block Attachment 27

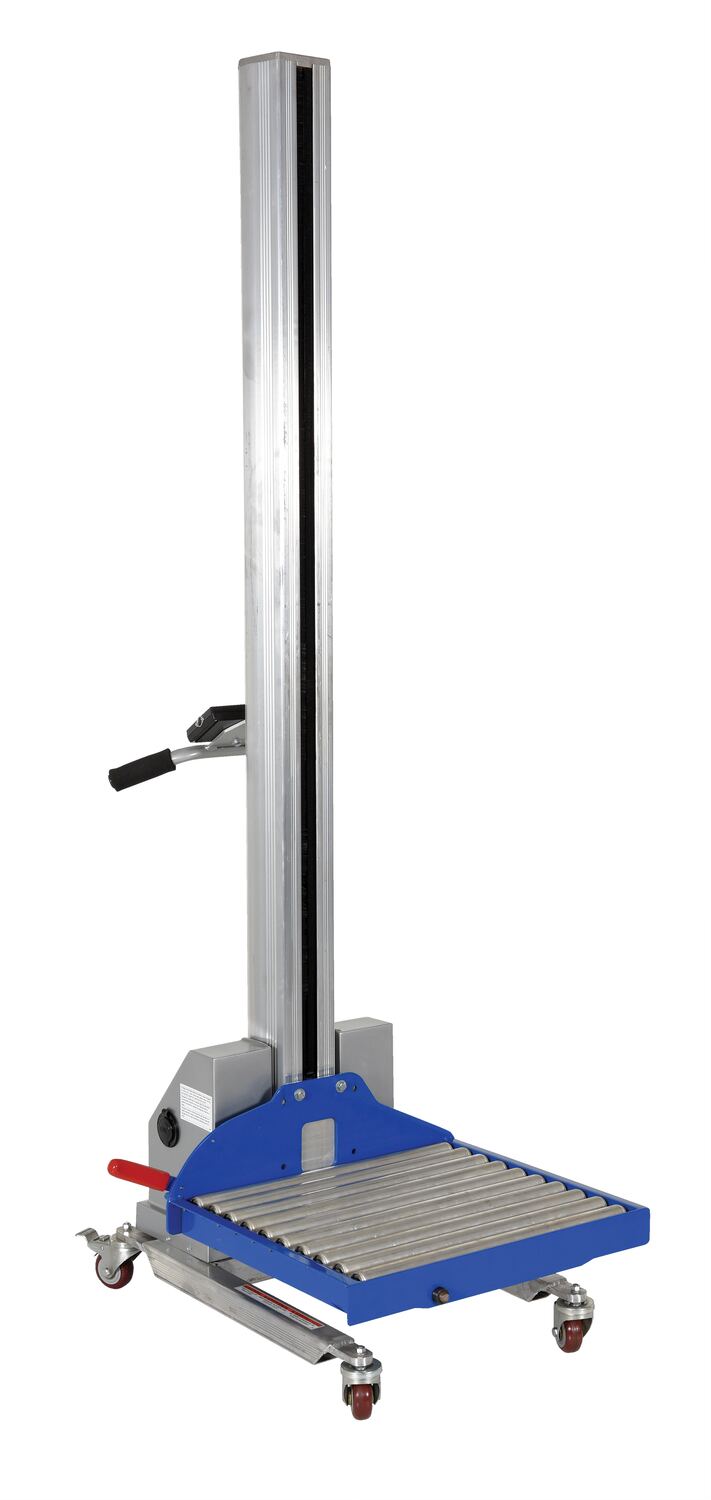

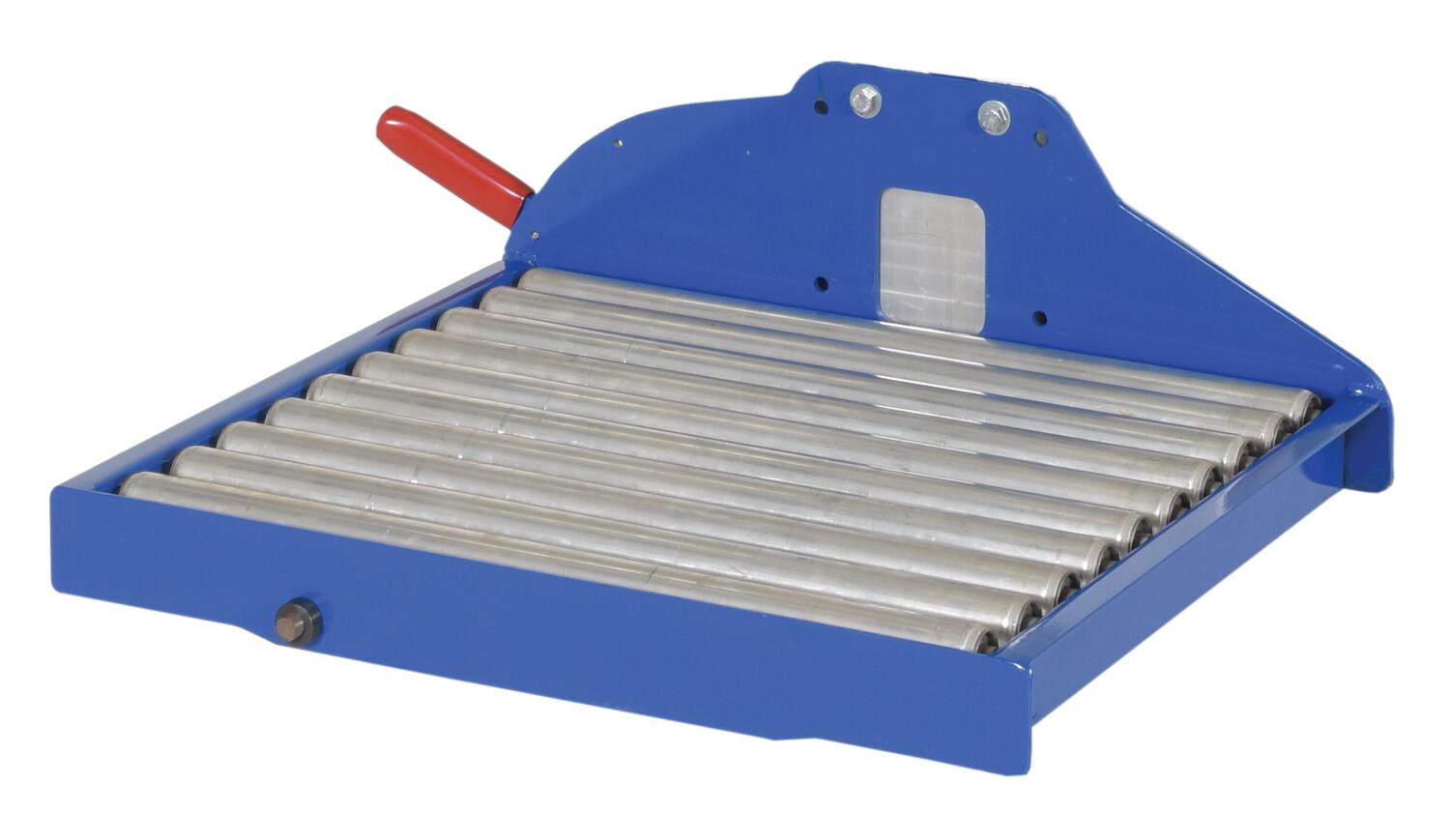

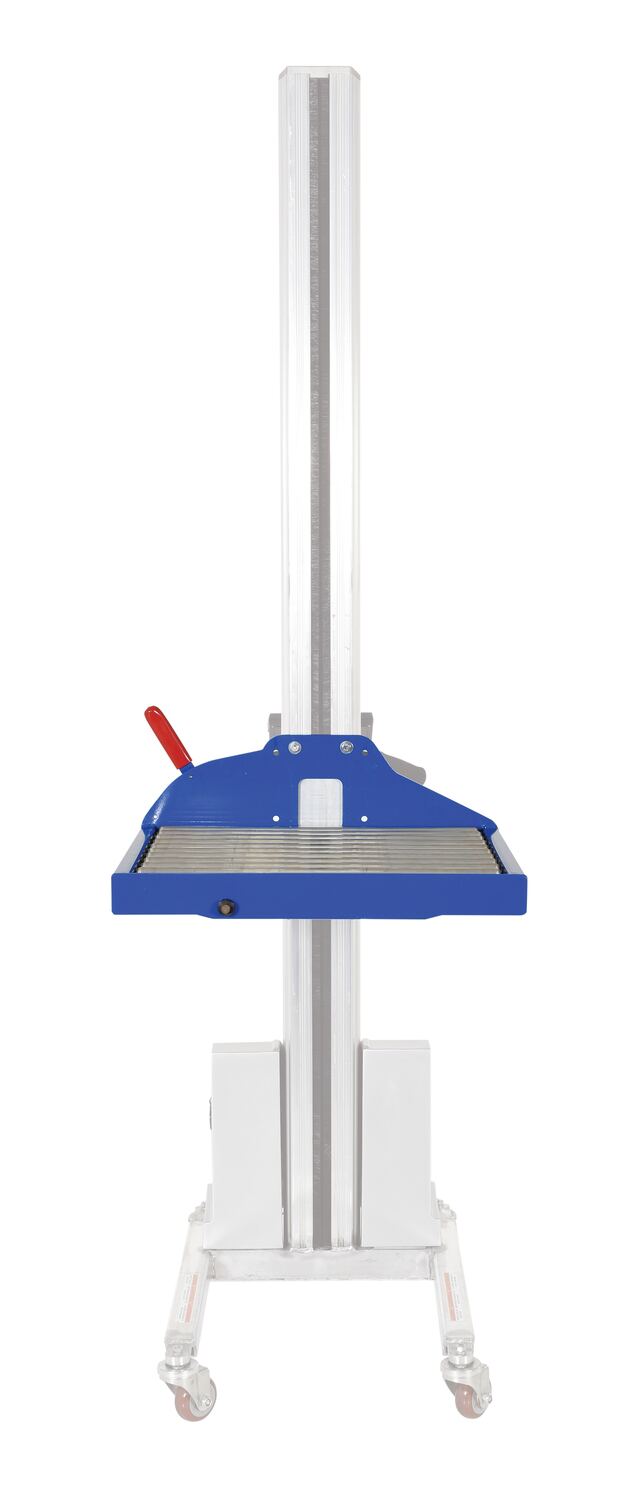

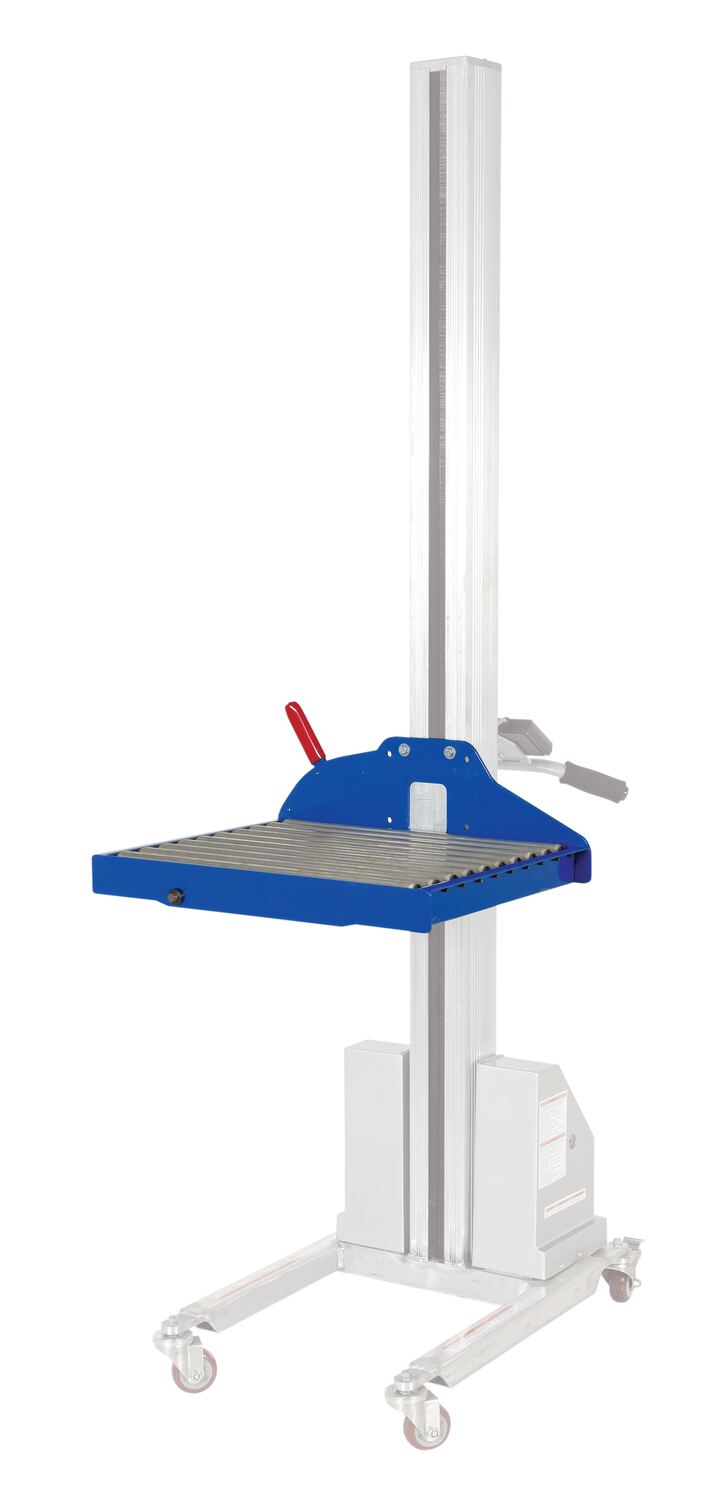

PEL-CONV tilt_m4.jpg Conveyor With Brake 40

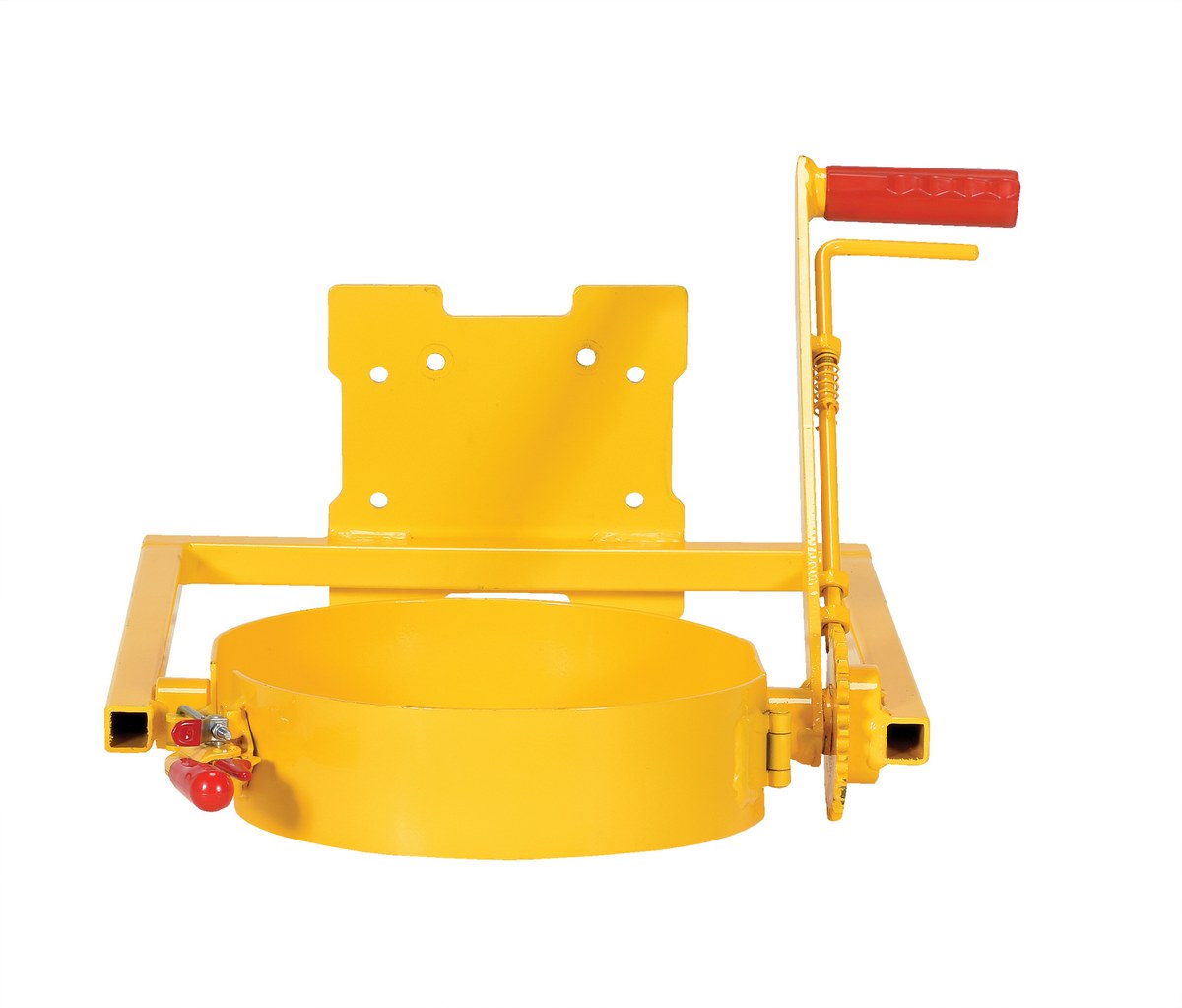

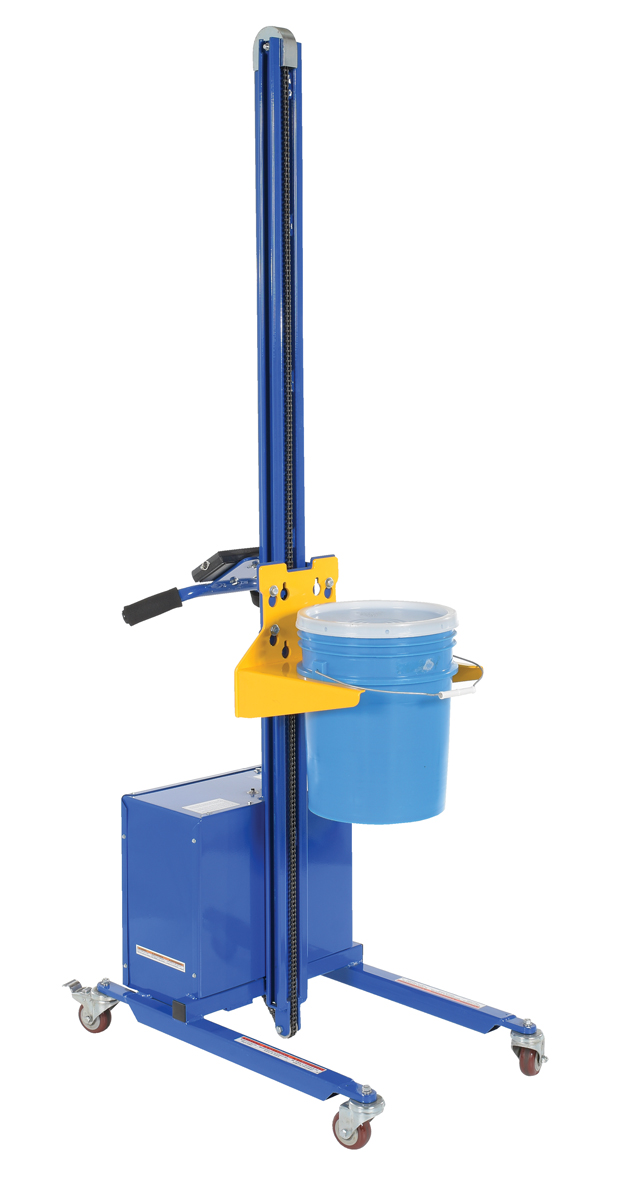

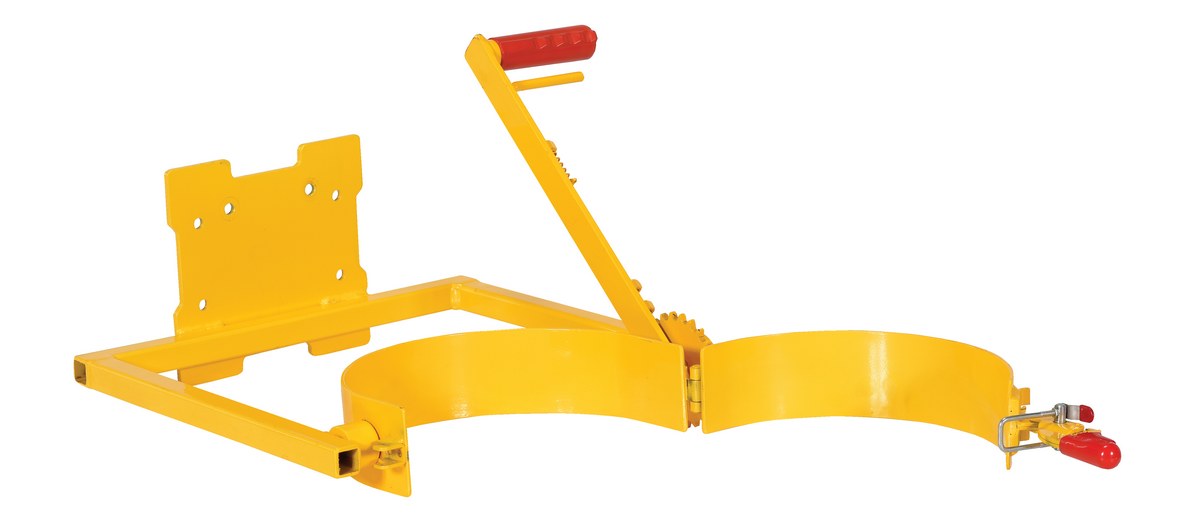

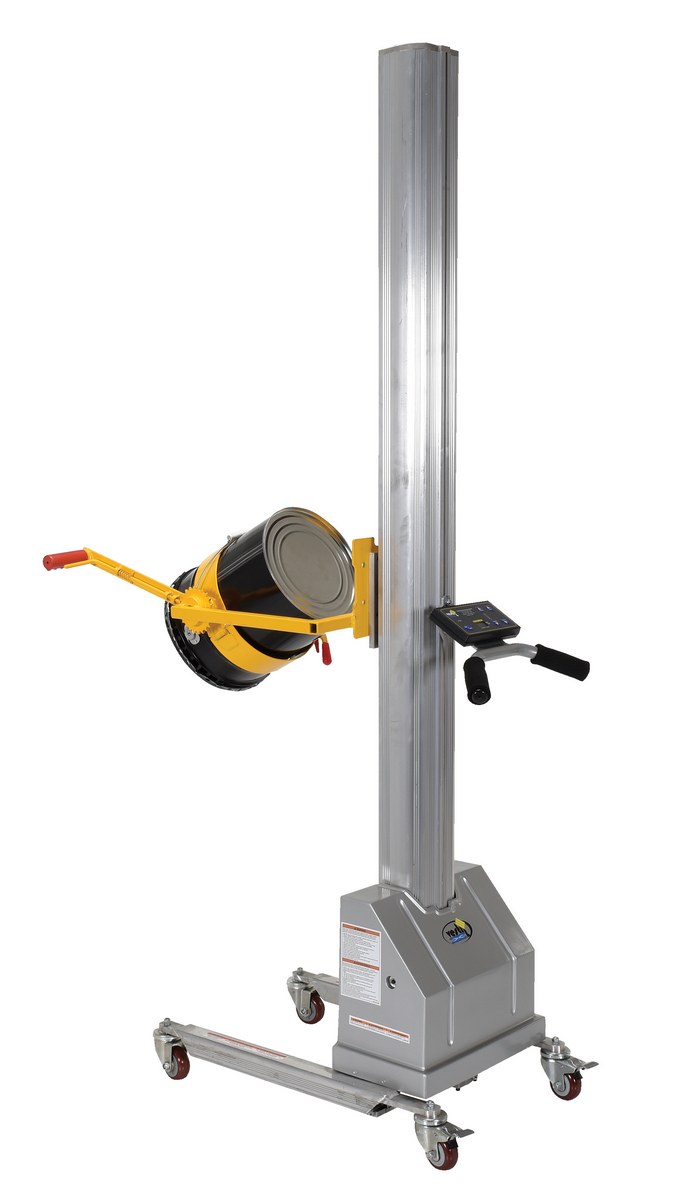

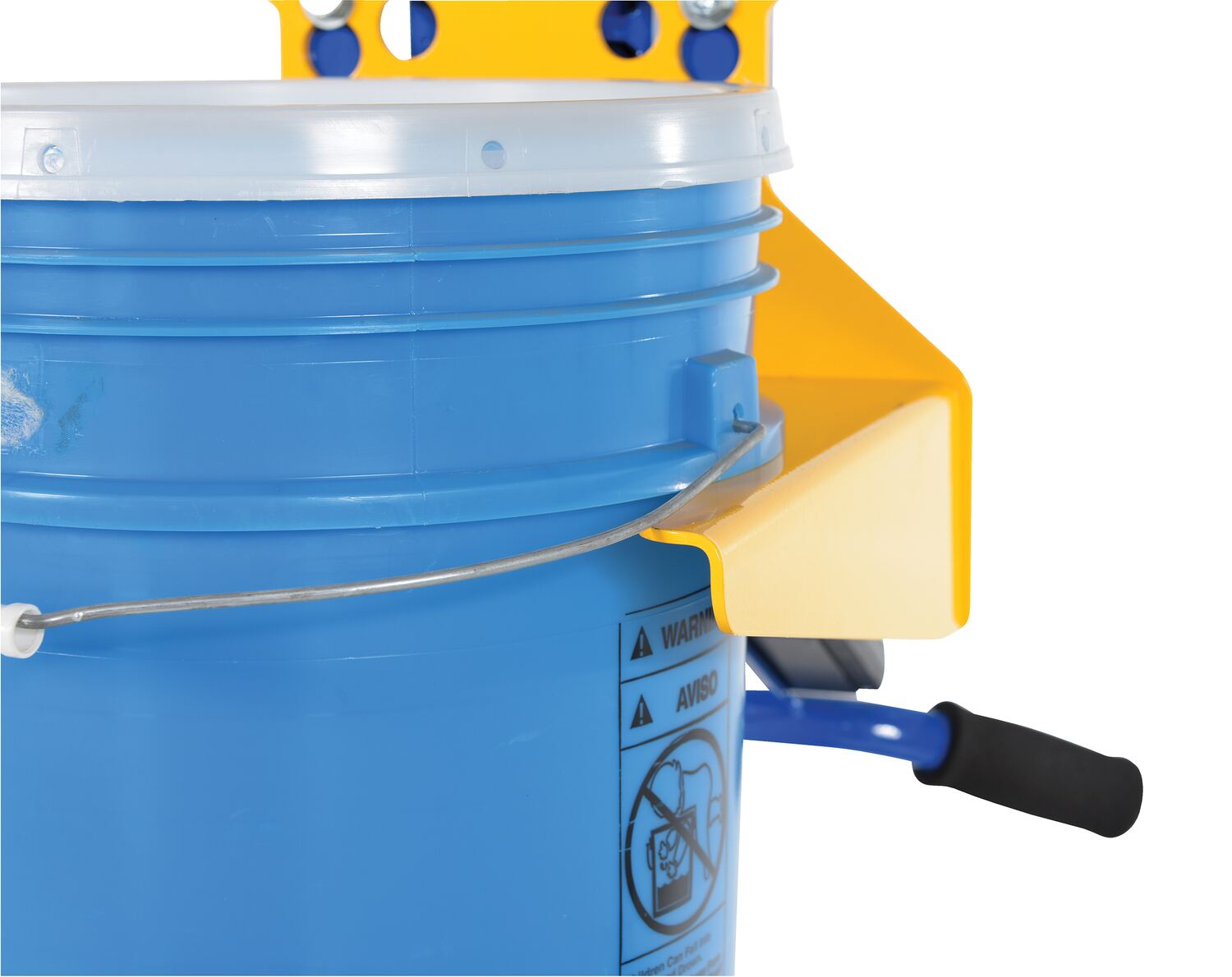

PEL-PAIL tilt_m4.jpg Pail Dumper 20

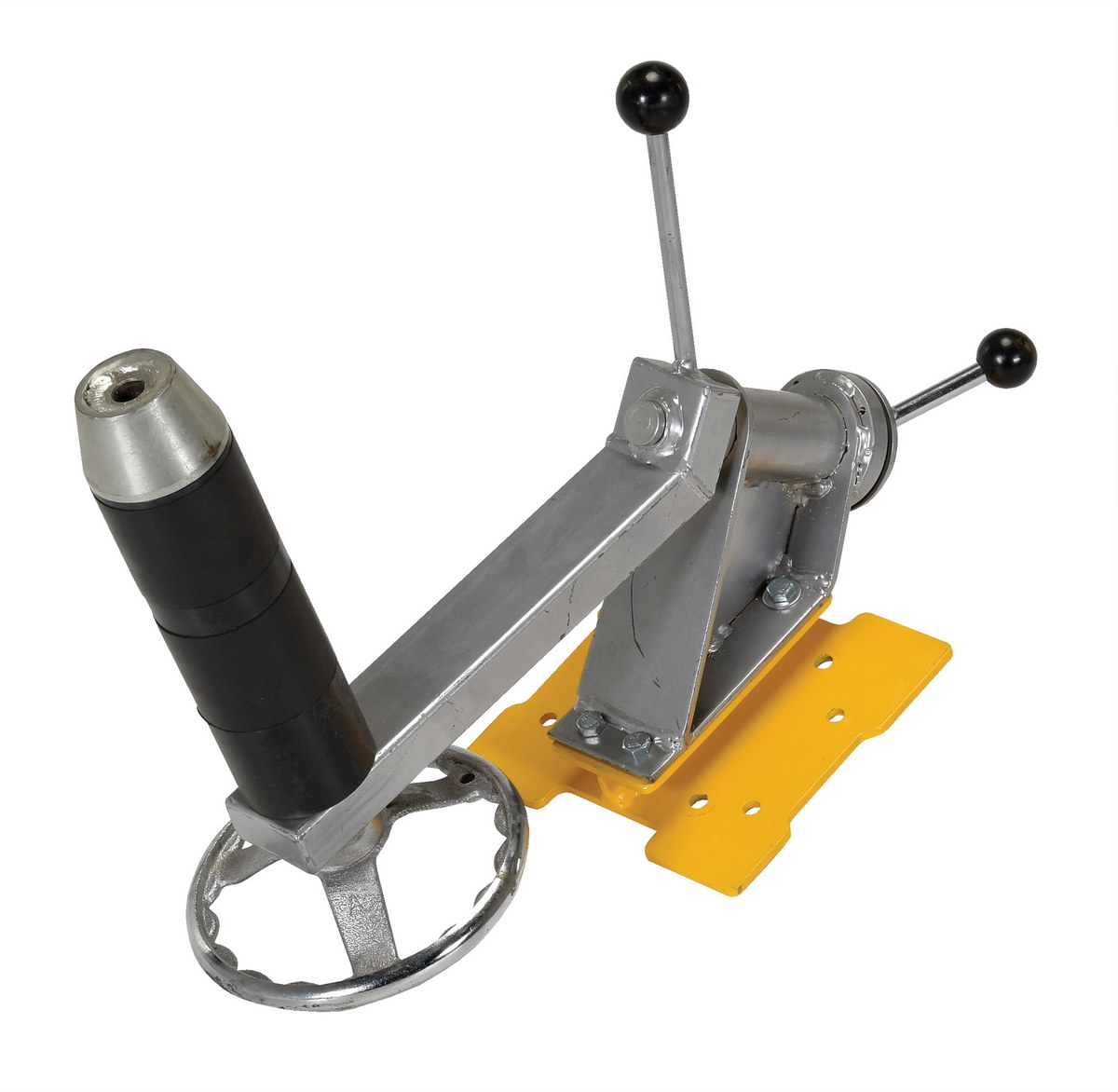

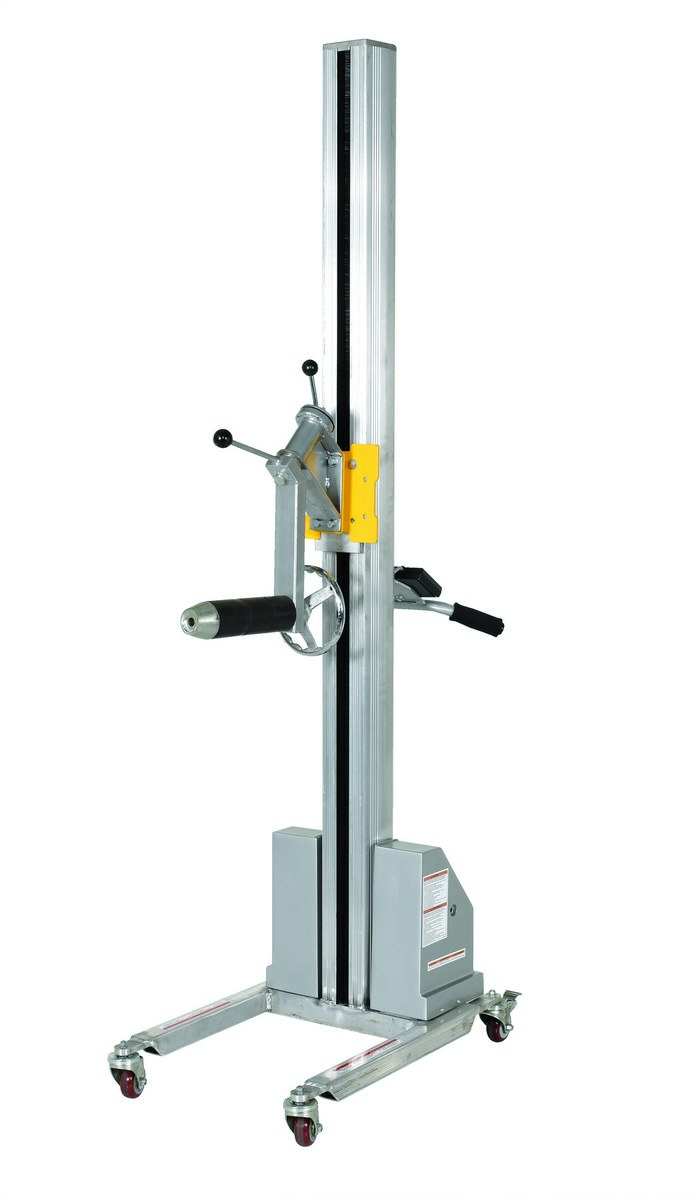

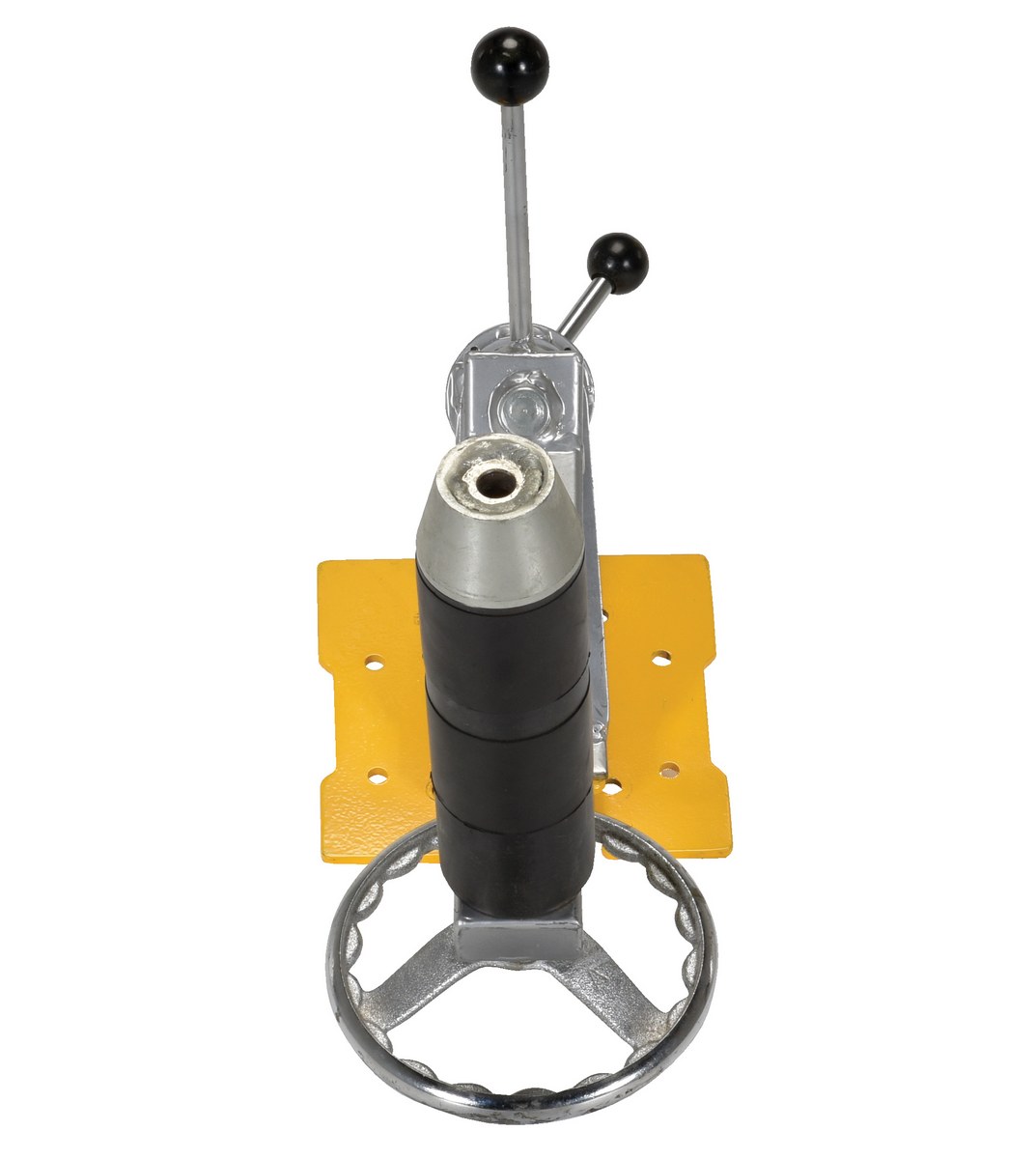

PEL-RR tilt_m4.jpg REEL Rotator 40

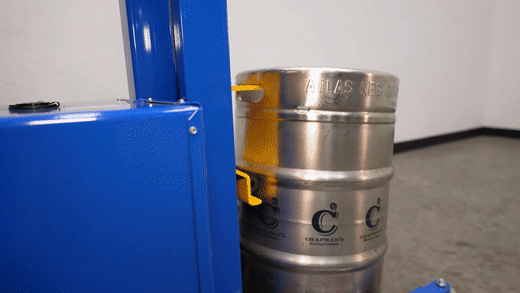

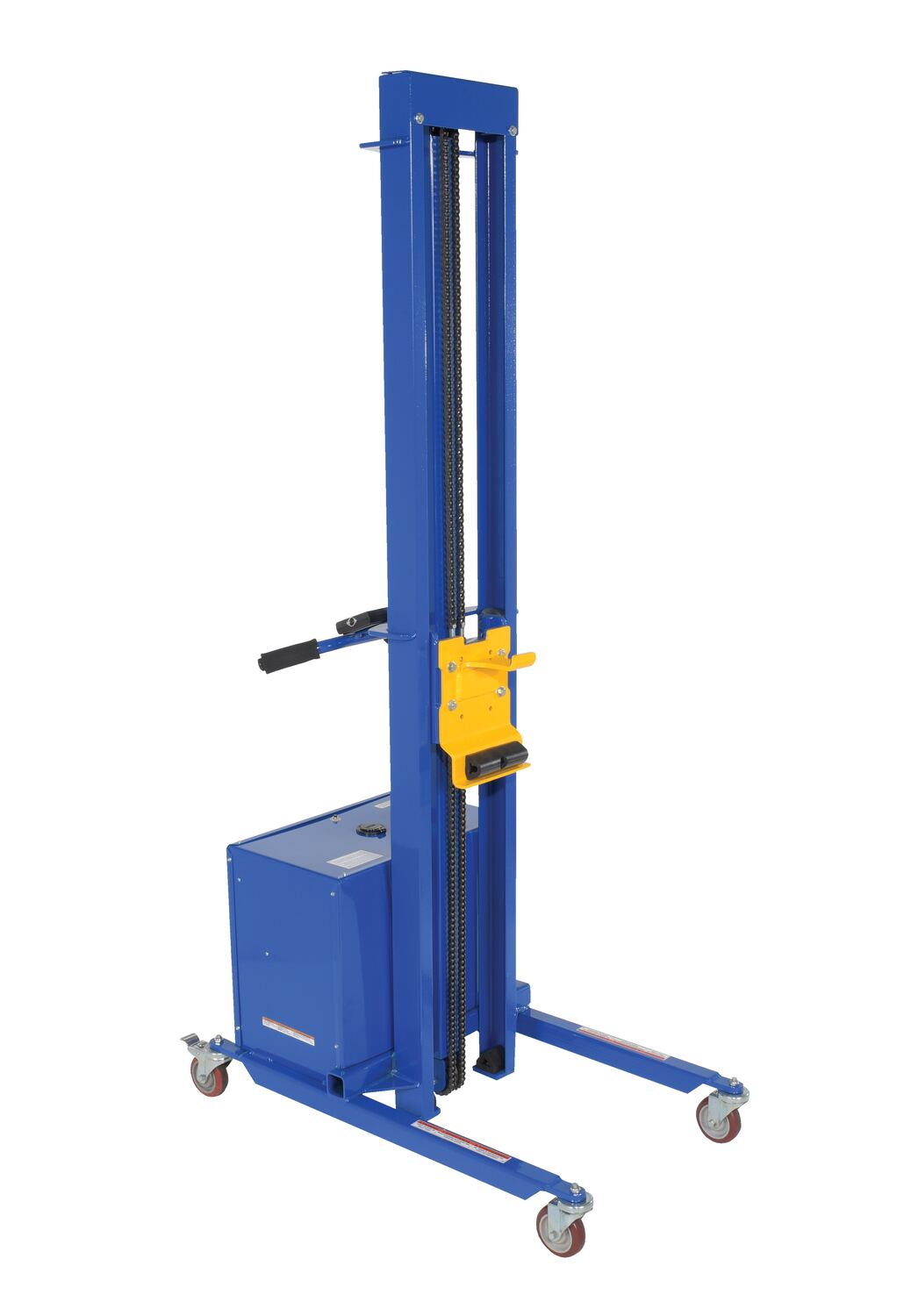

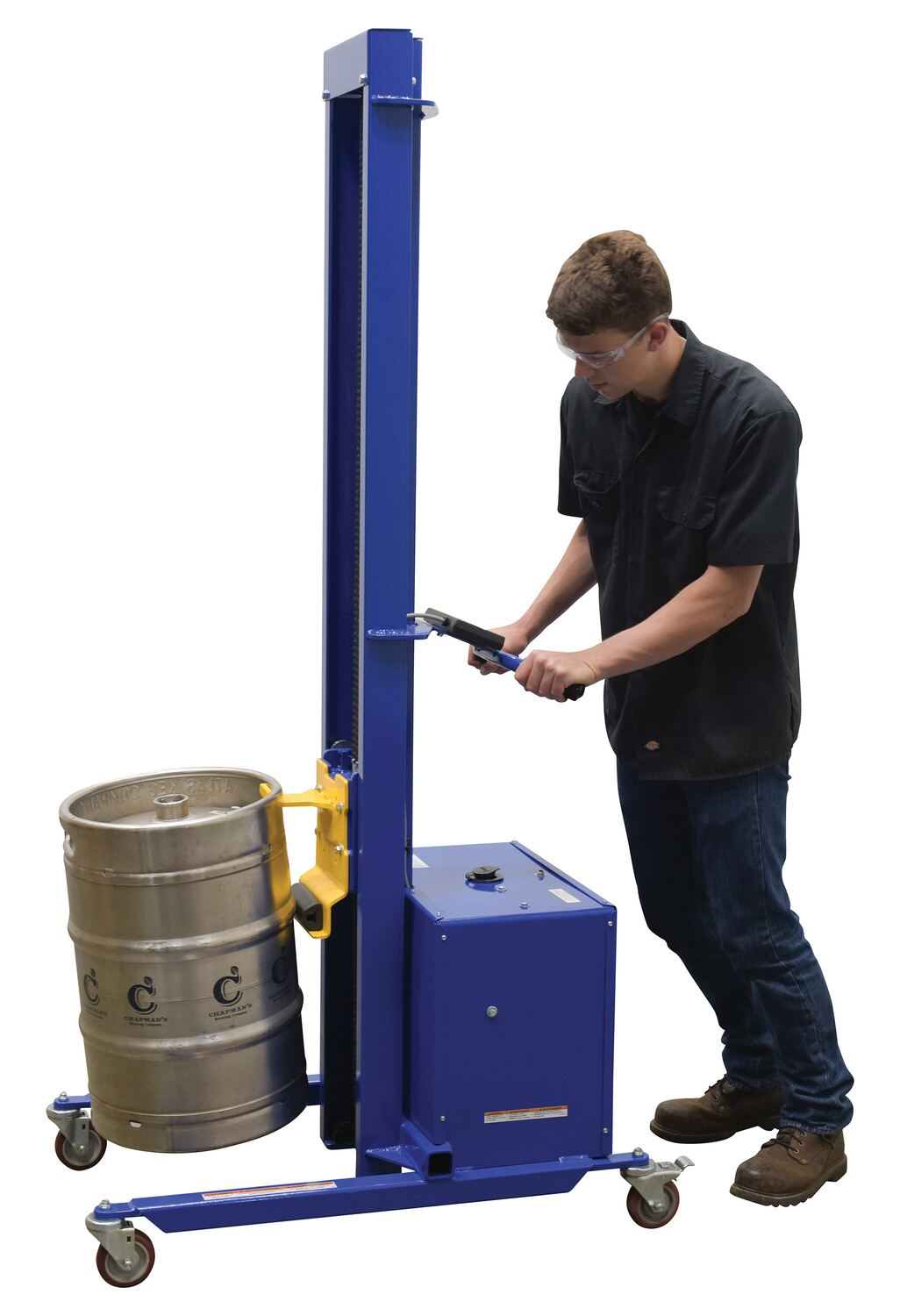

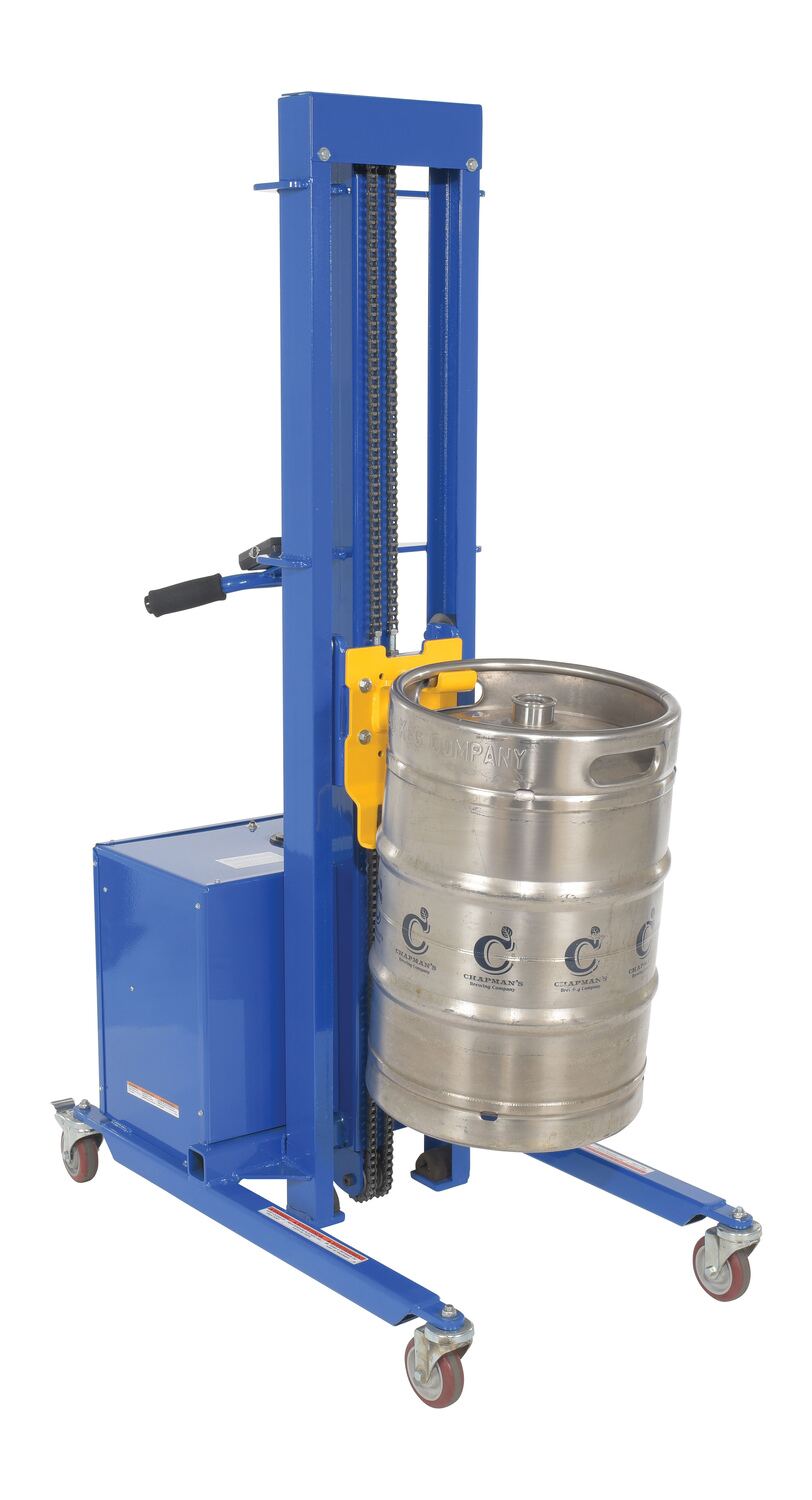

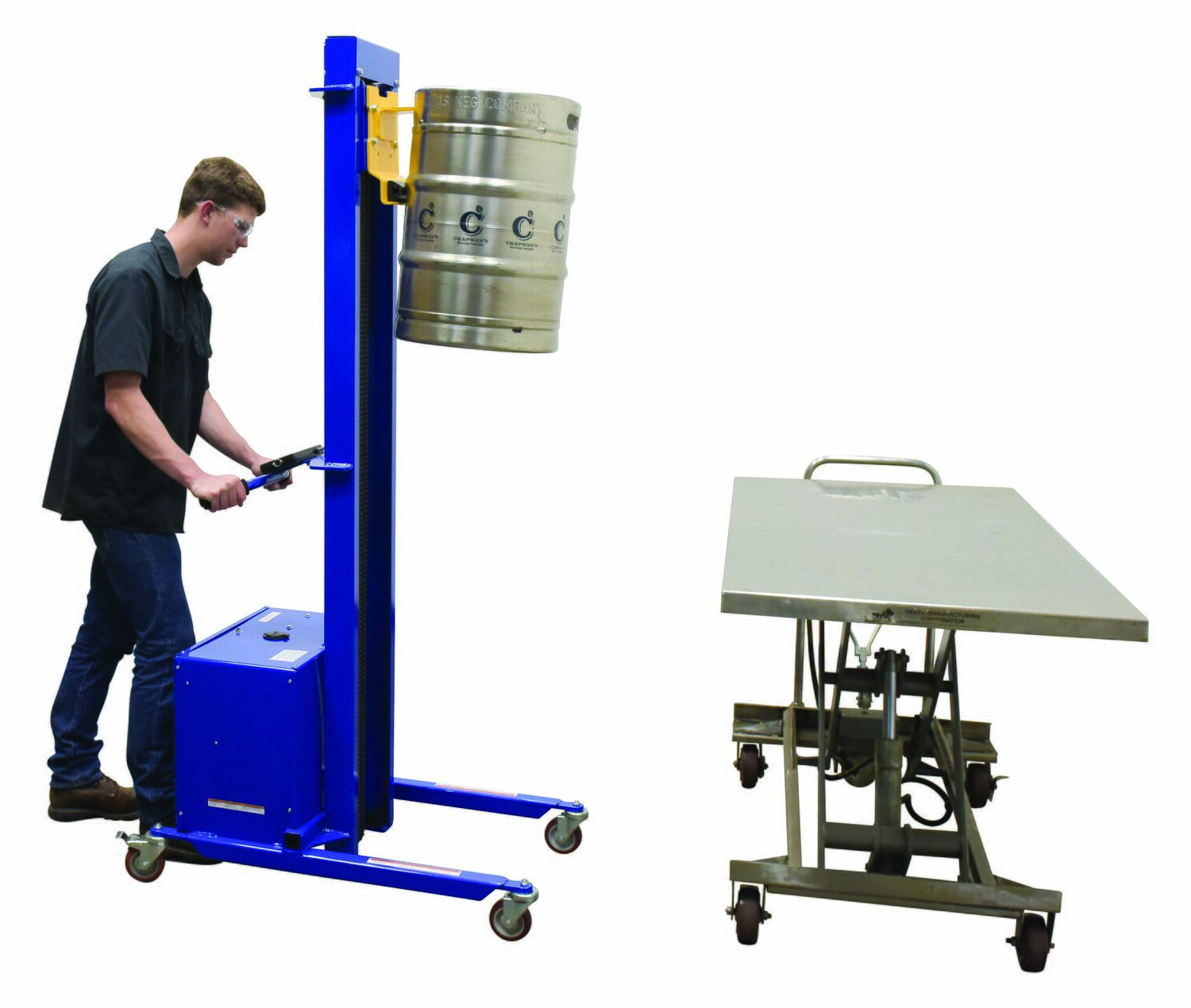

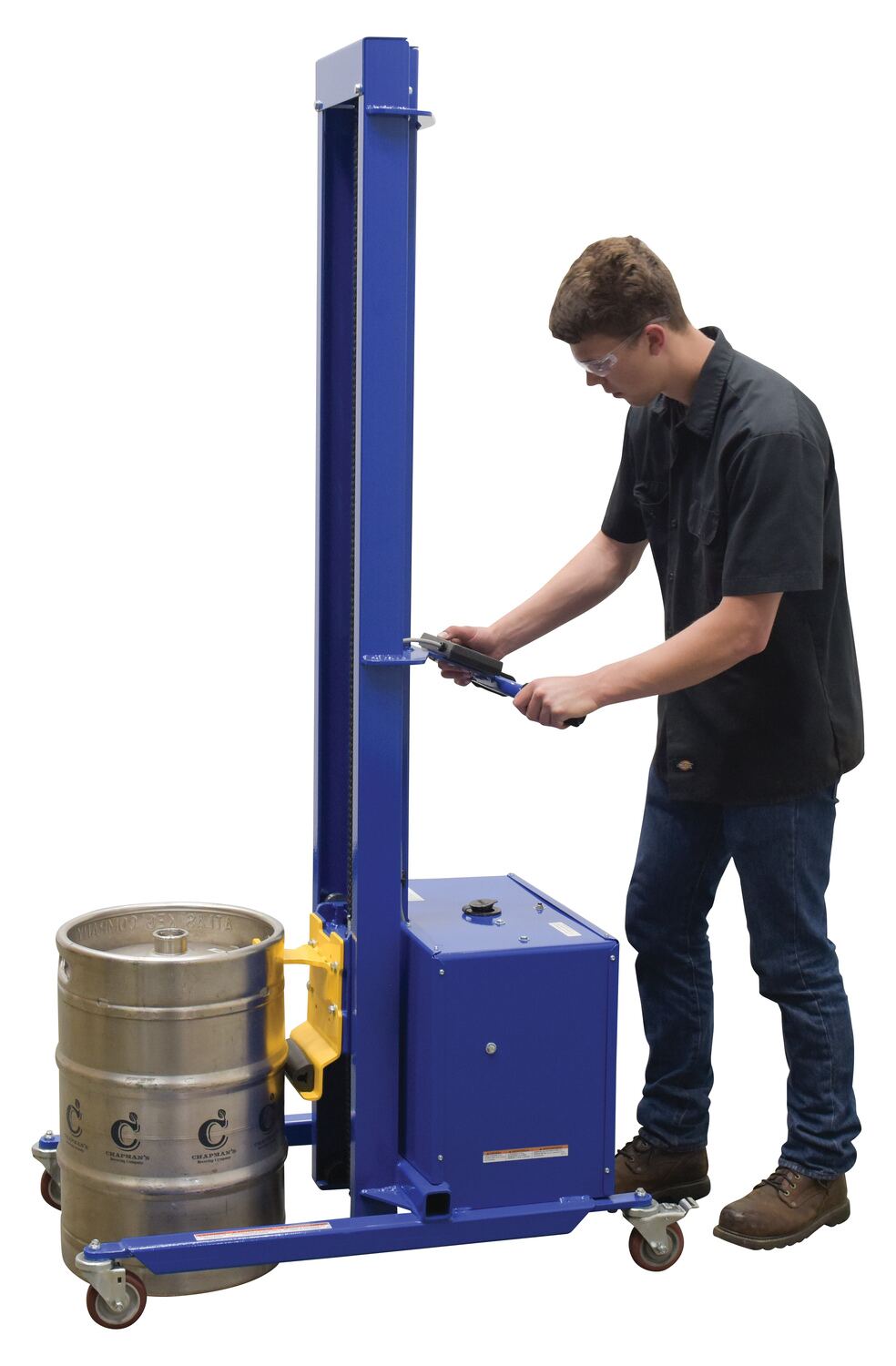

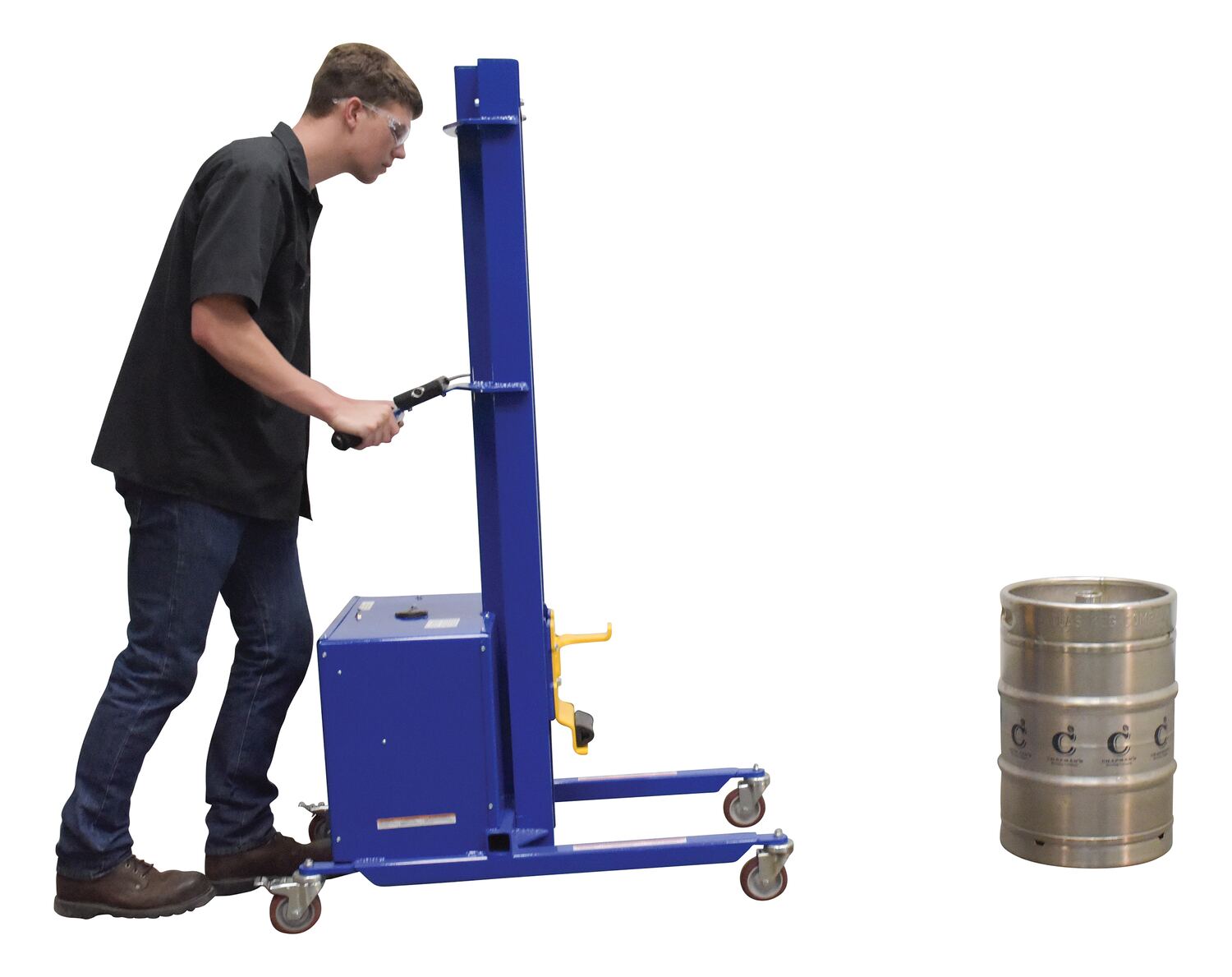

PEL88-KEG-KT - tilt_m4.jpg Keg Lifter Kit for Model PEL-88 11

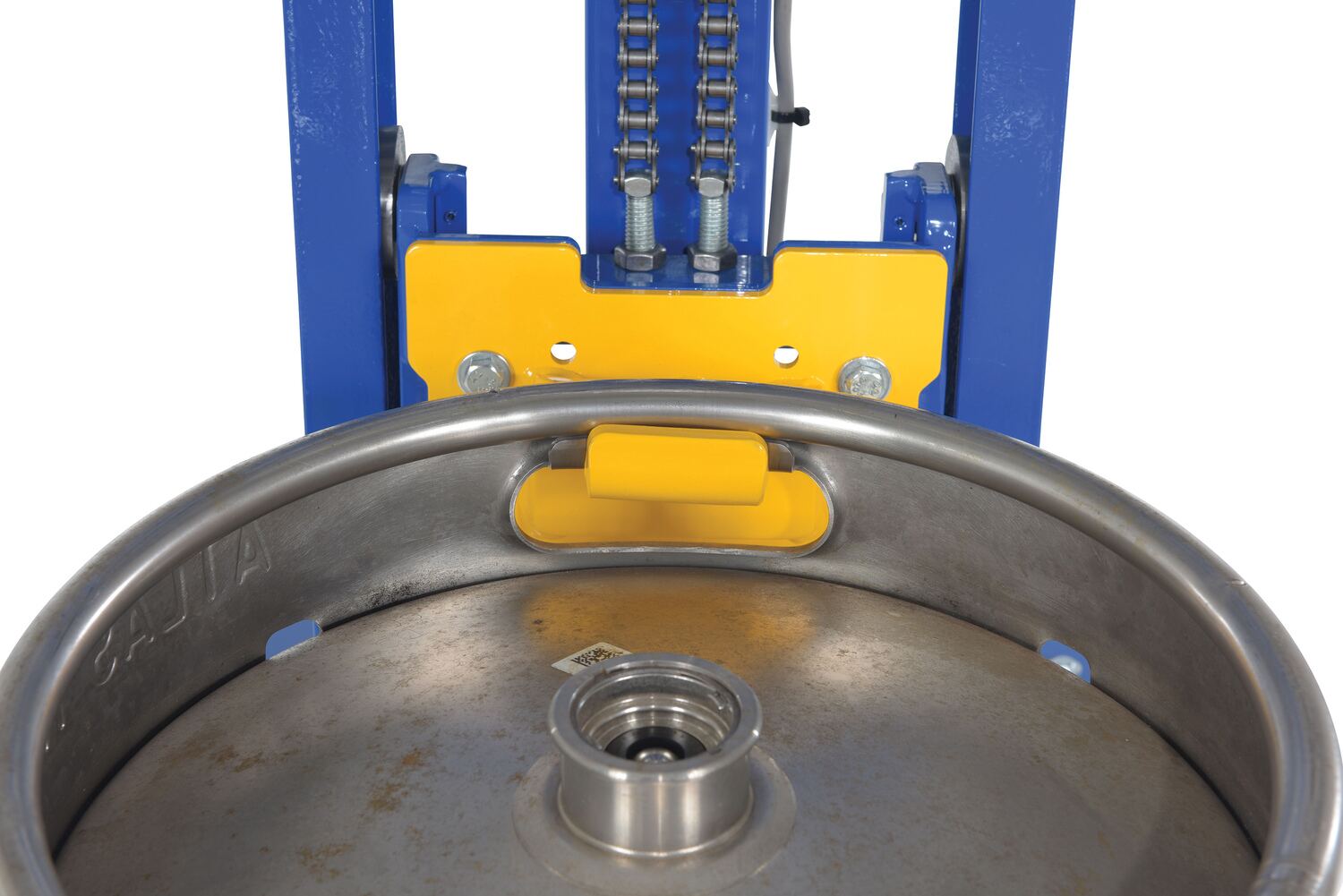

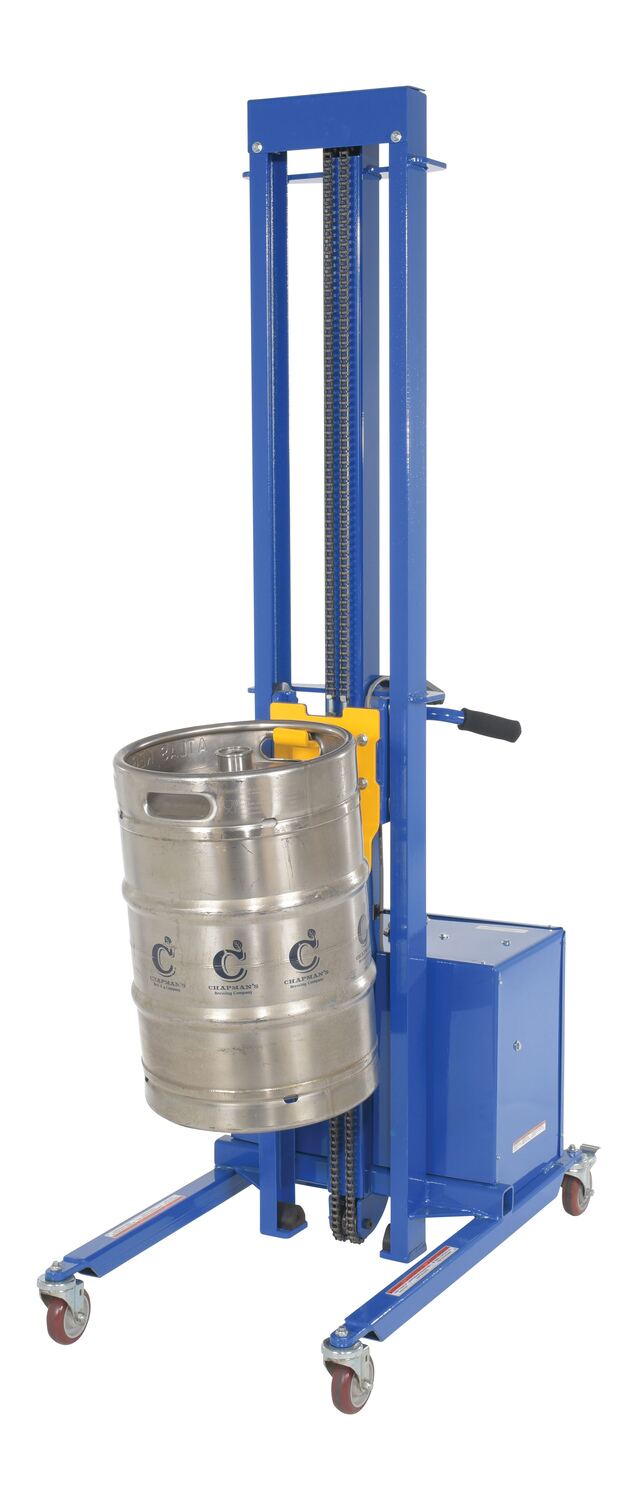

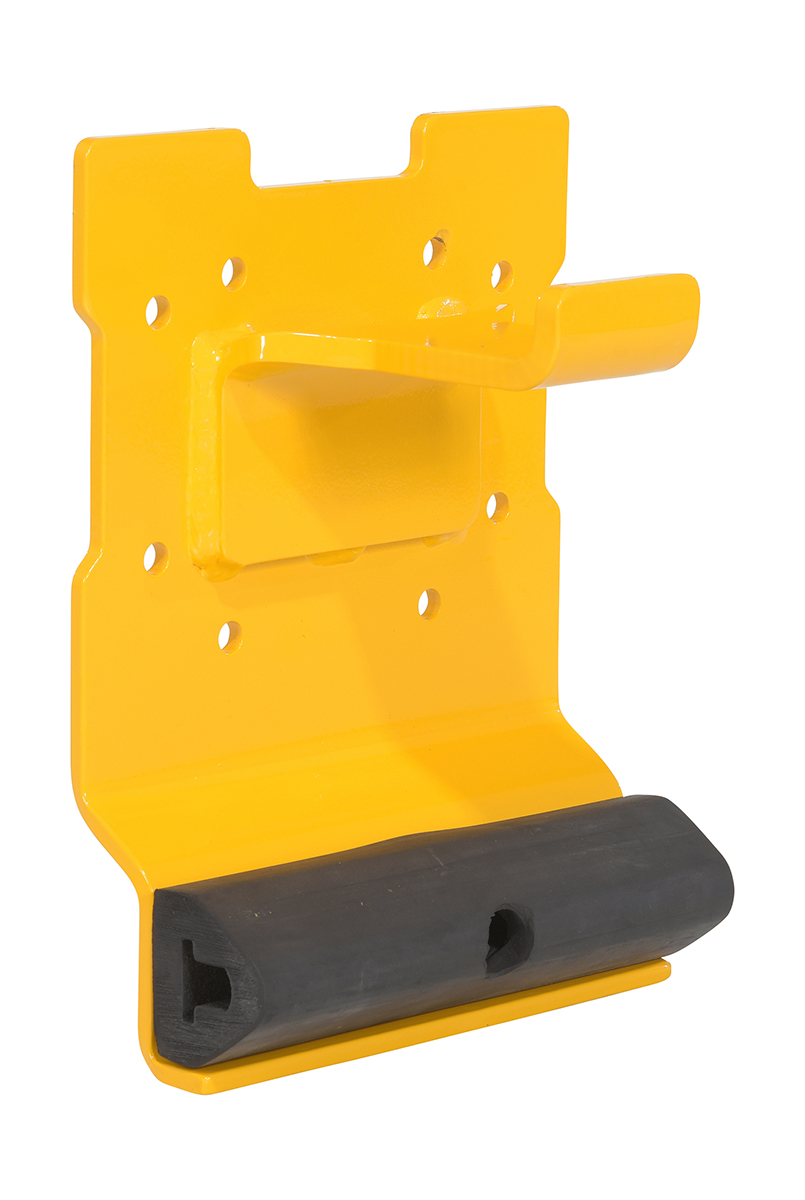

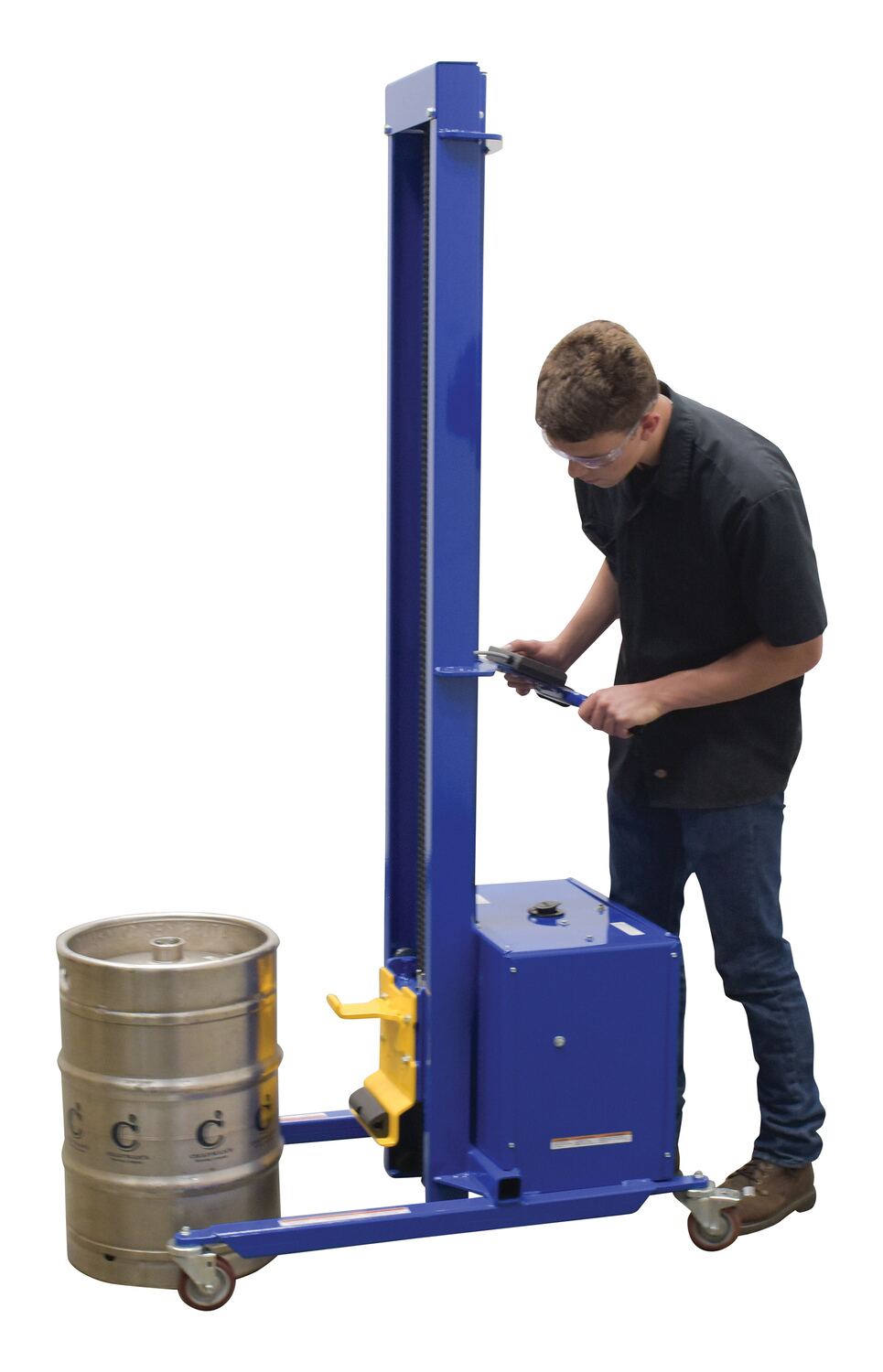

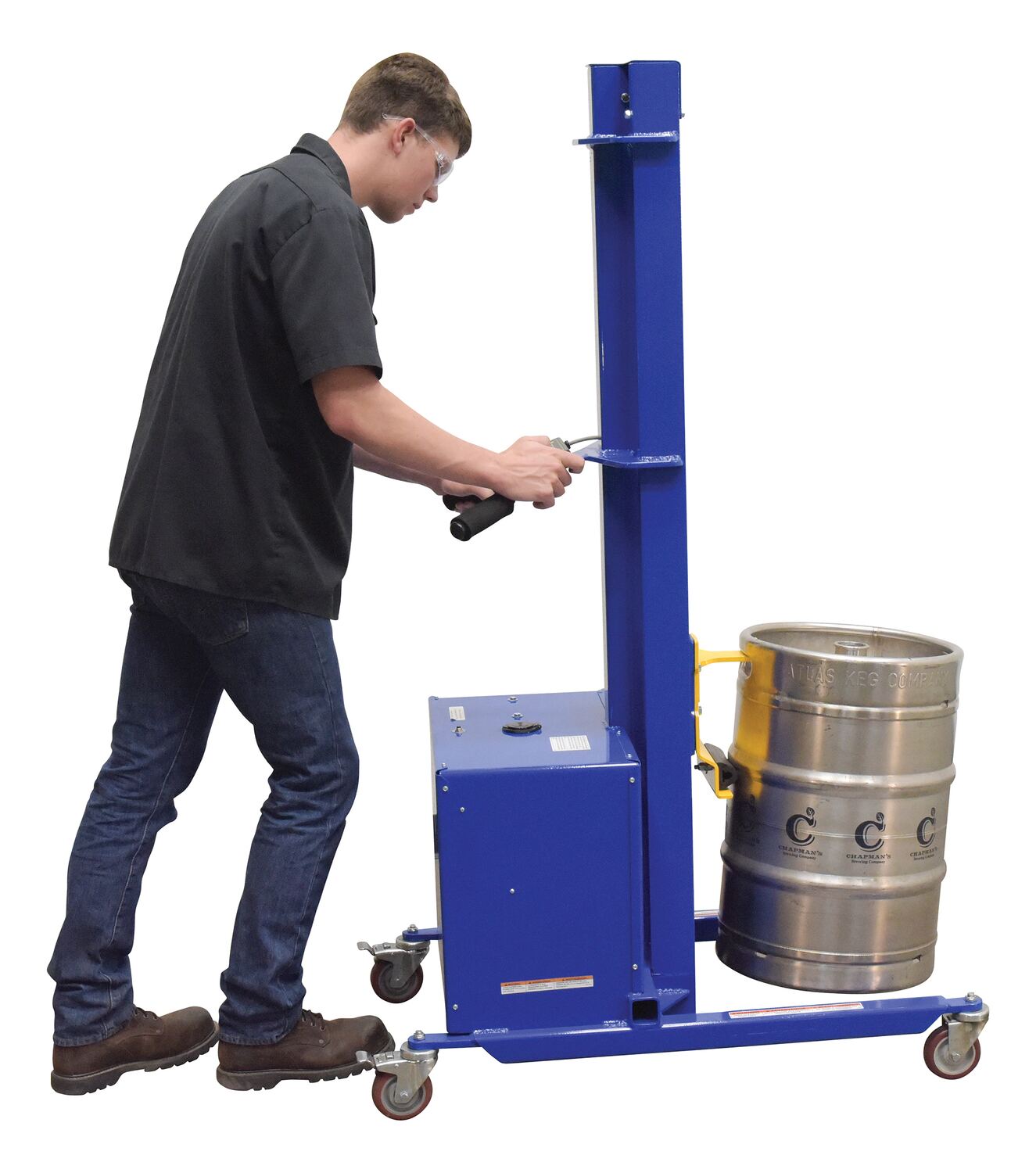

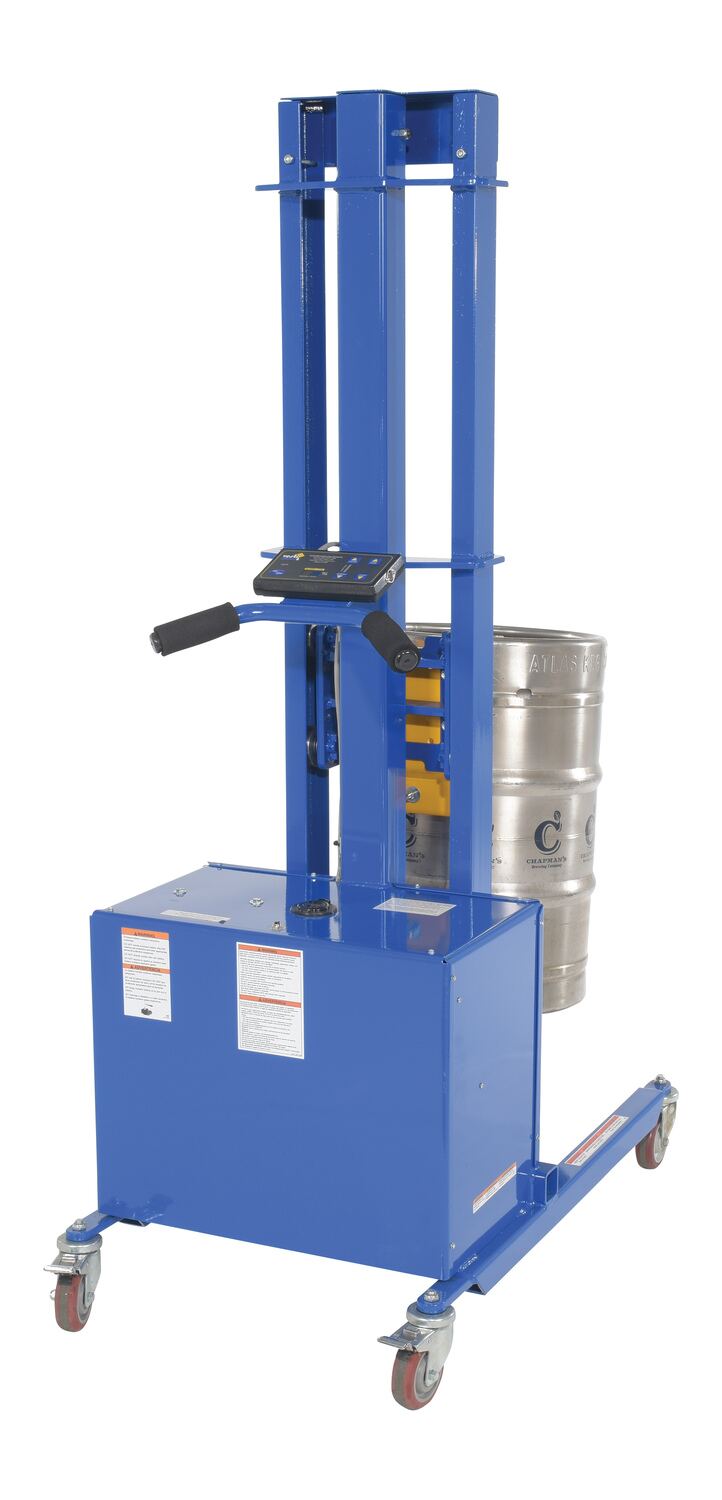

PEL400-KEG-KT - tilt_m4.jpg Keg Lifter Kit for Model PEL-400 14
DC Powered Quick-Lift Options
Model PDFs Description

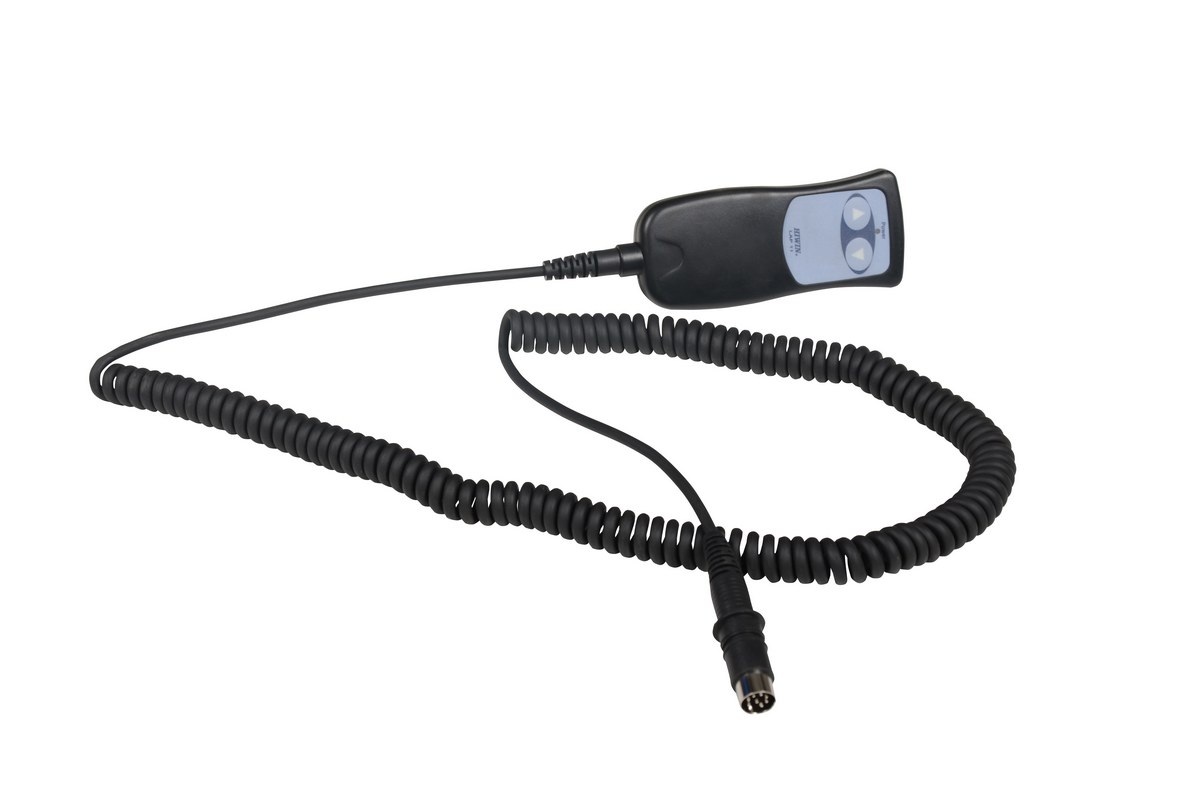

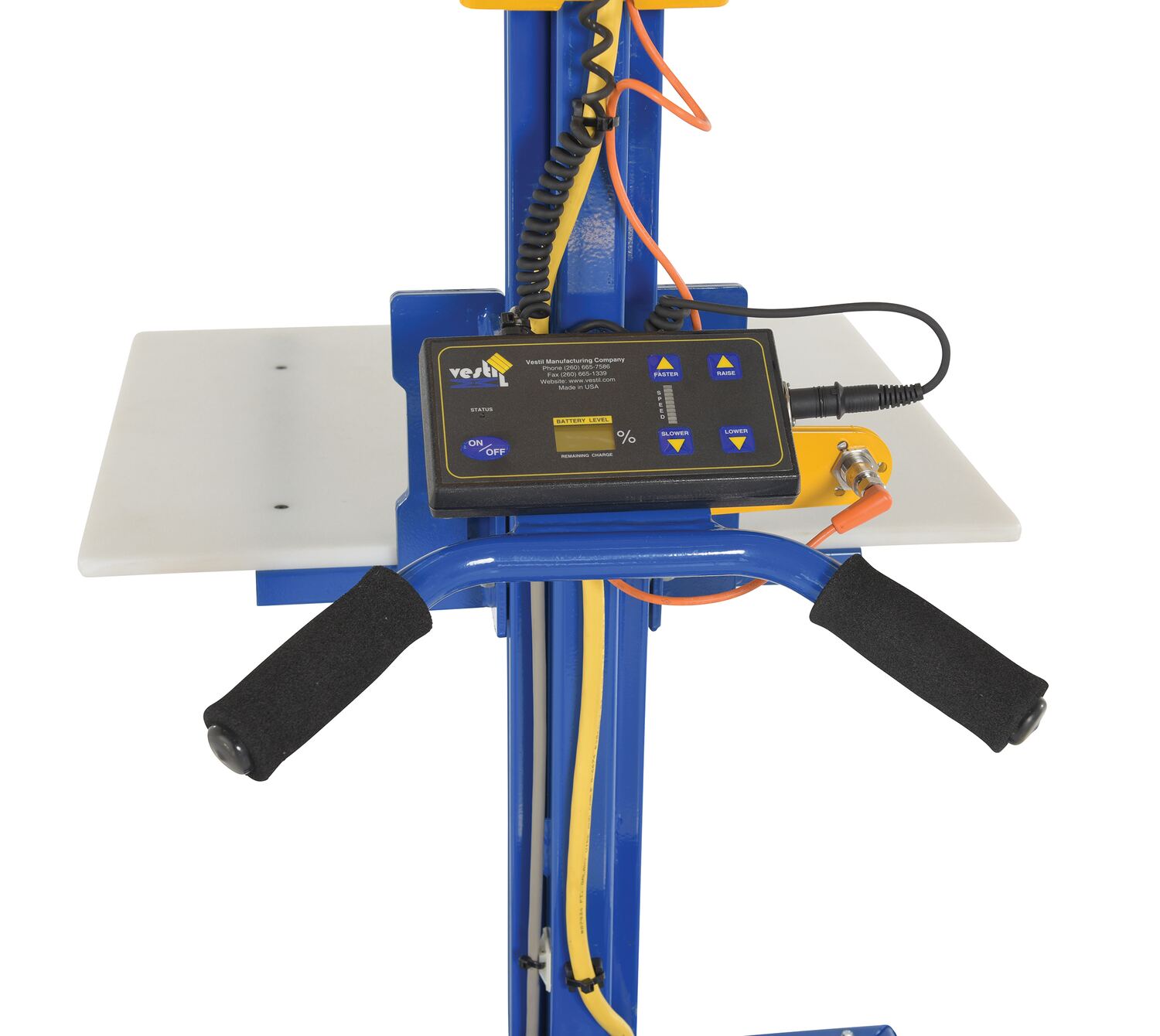

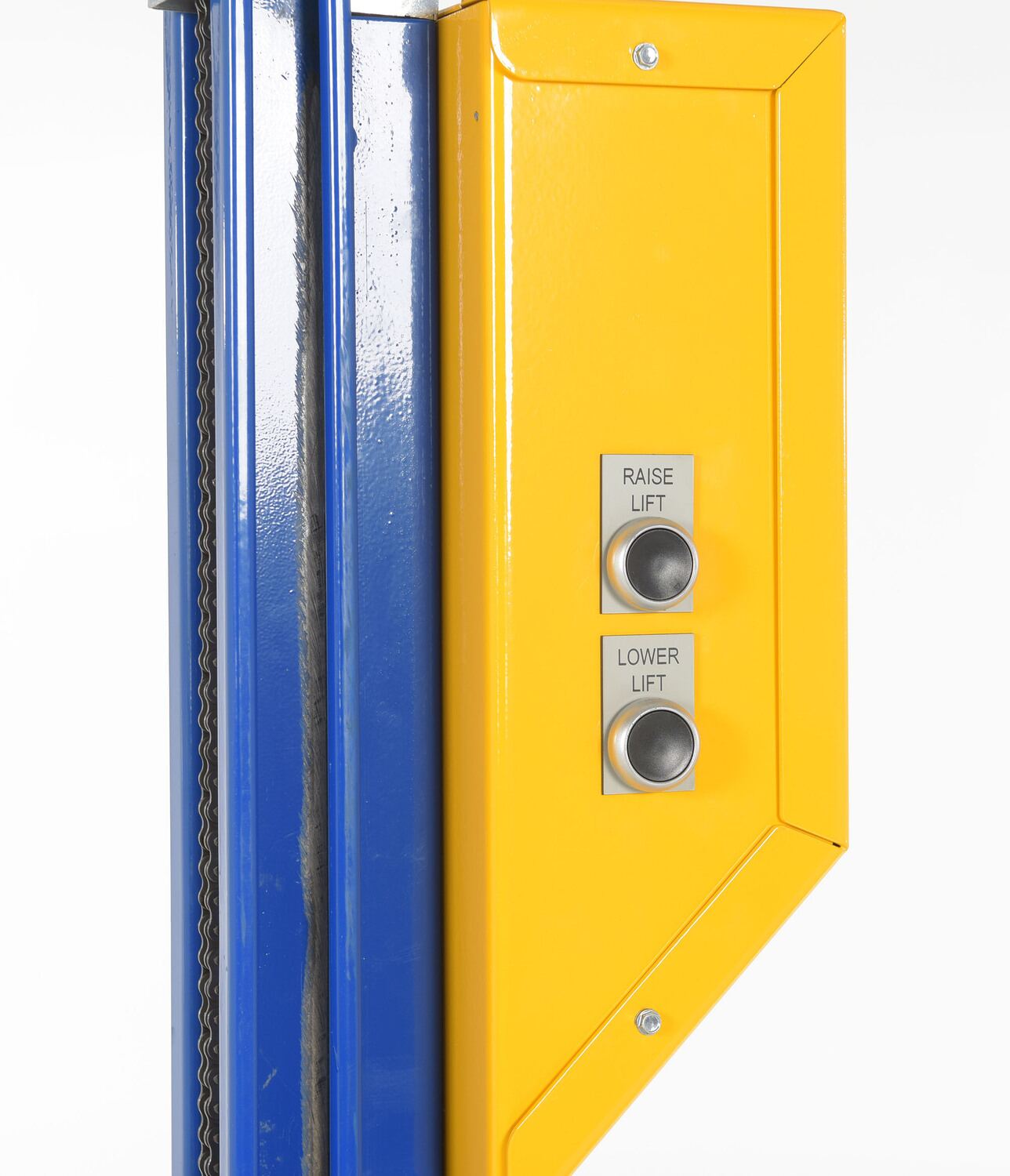

PEL-2PB - HANDHELD PUSH-BUTTON CONTROL
PEL-RRC - WIRELESS REMOTE CONTROL FOR THE QUICK LIFT
PEL-INDEX-4 - PROGRAMMABLE HEIGHT INDEXING 4 SETPOINTS

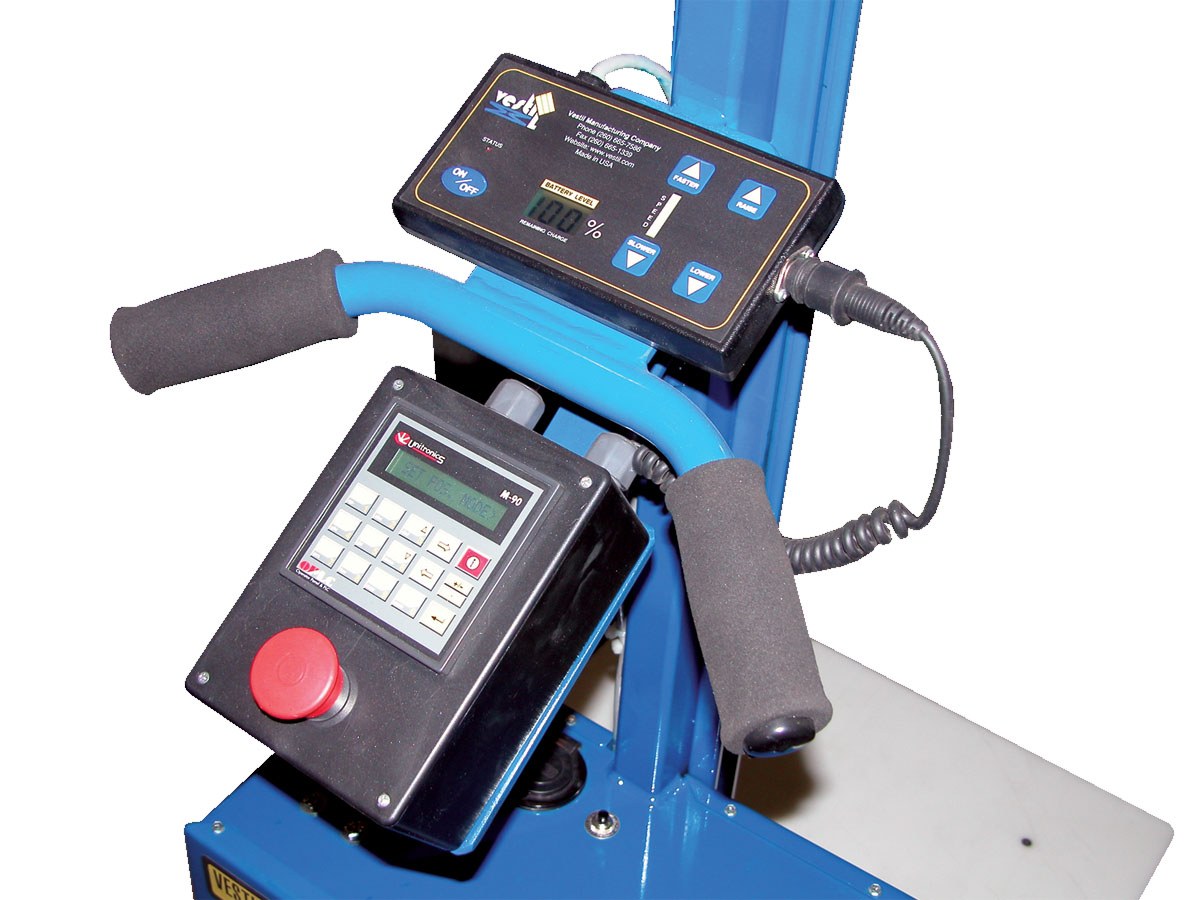

PEL-INDEX-21 - PROGRAMMABLE HEIGHT INDEXING 21 SETPOINTS

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Questions & Answers

Q: How fast does the PEL raise and lower?

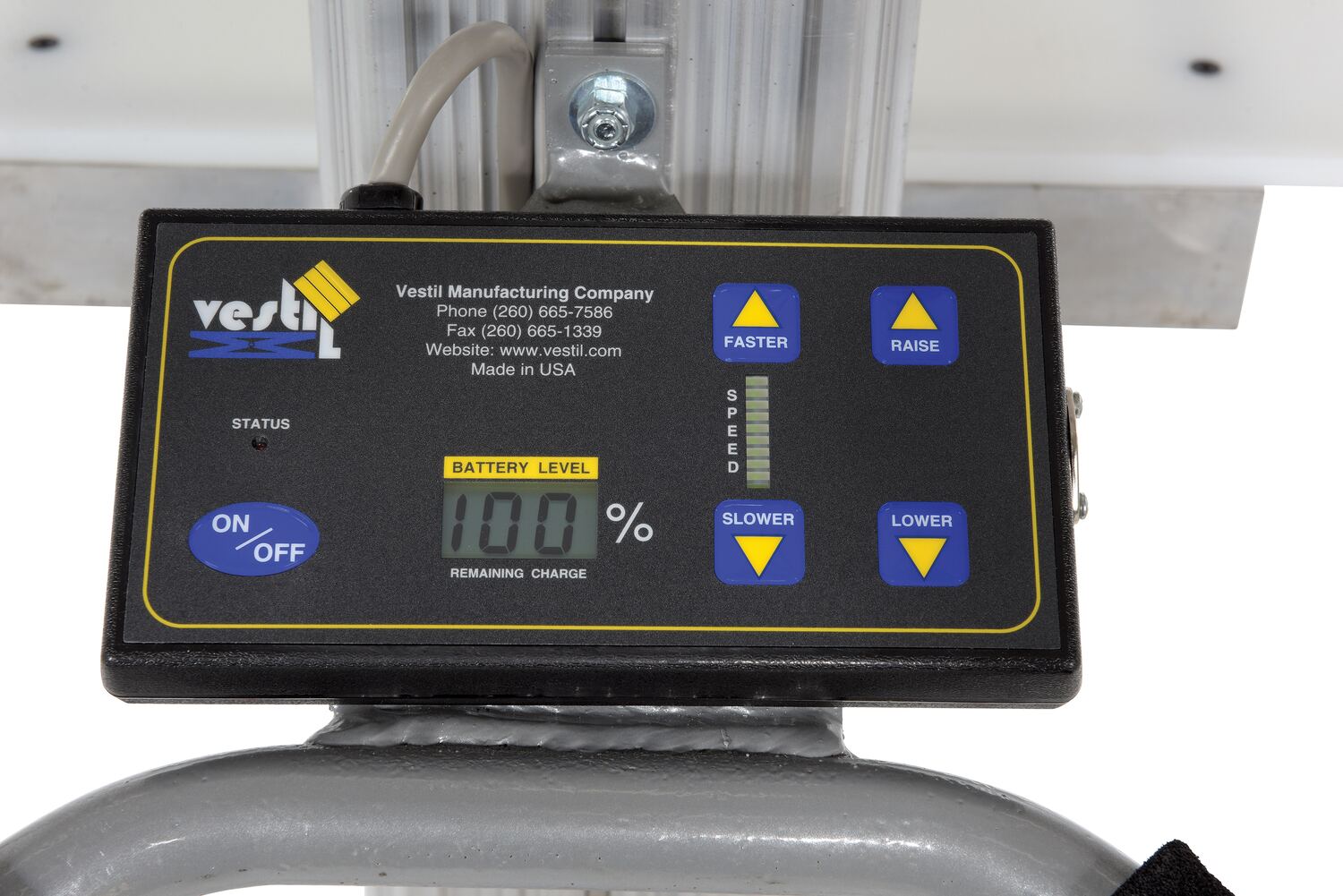

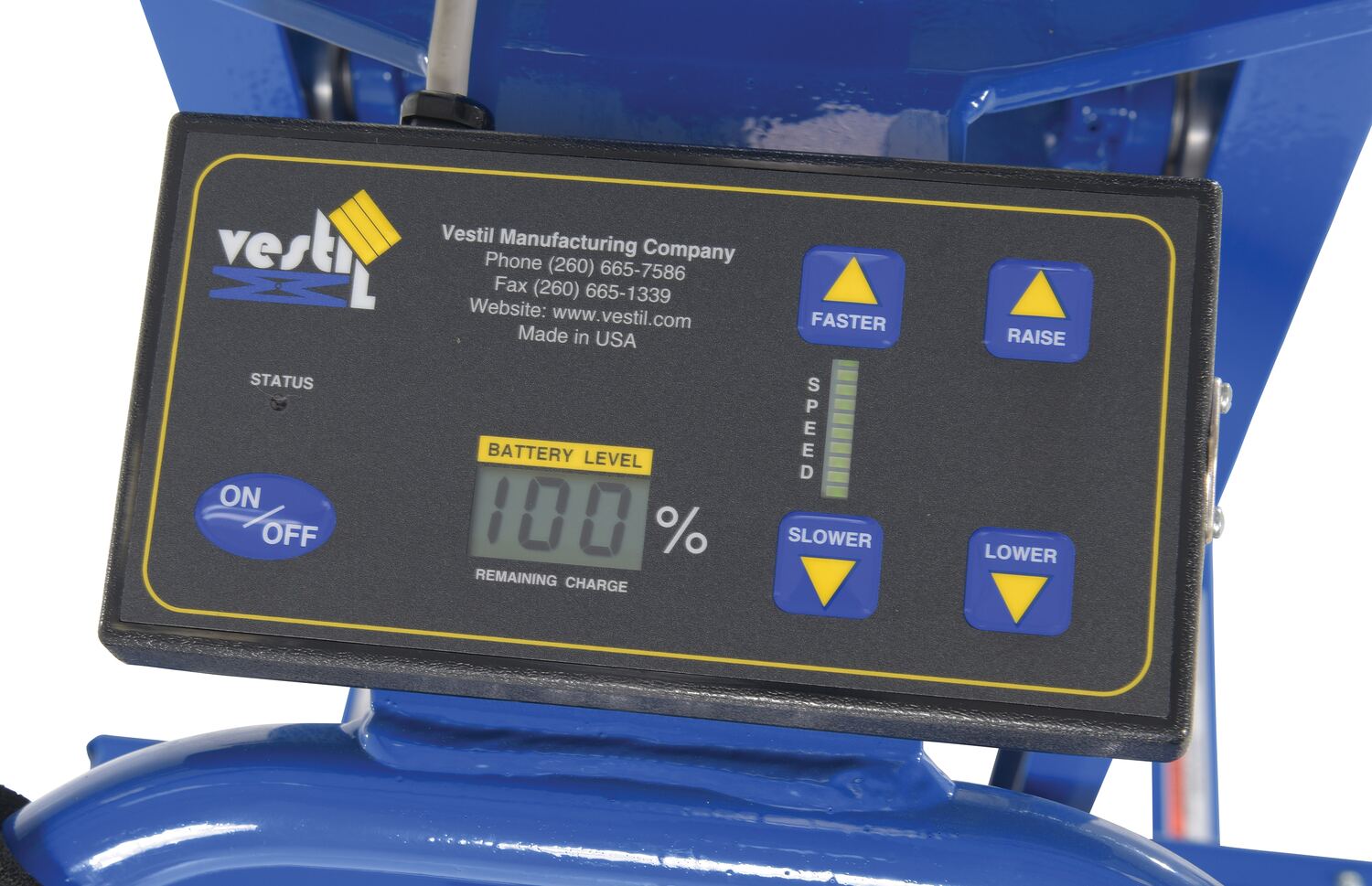

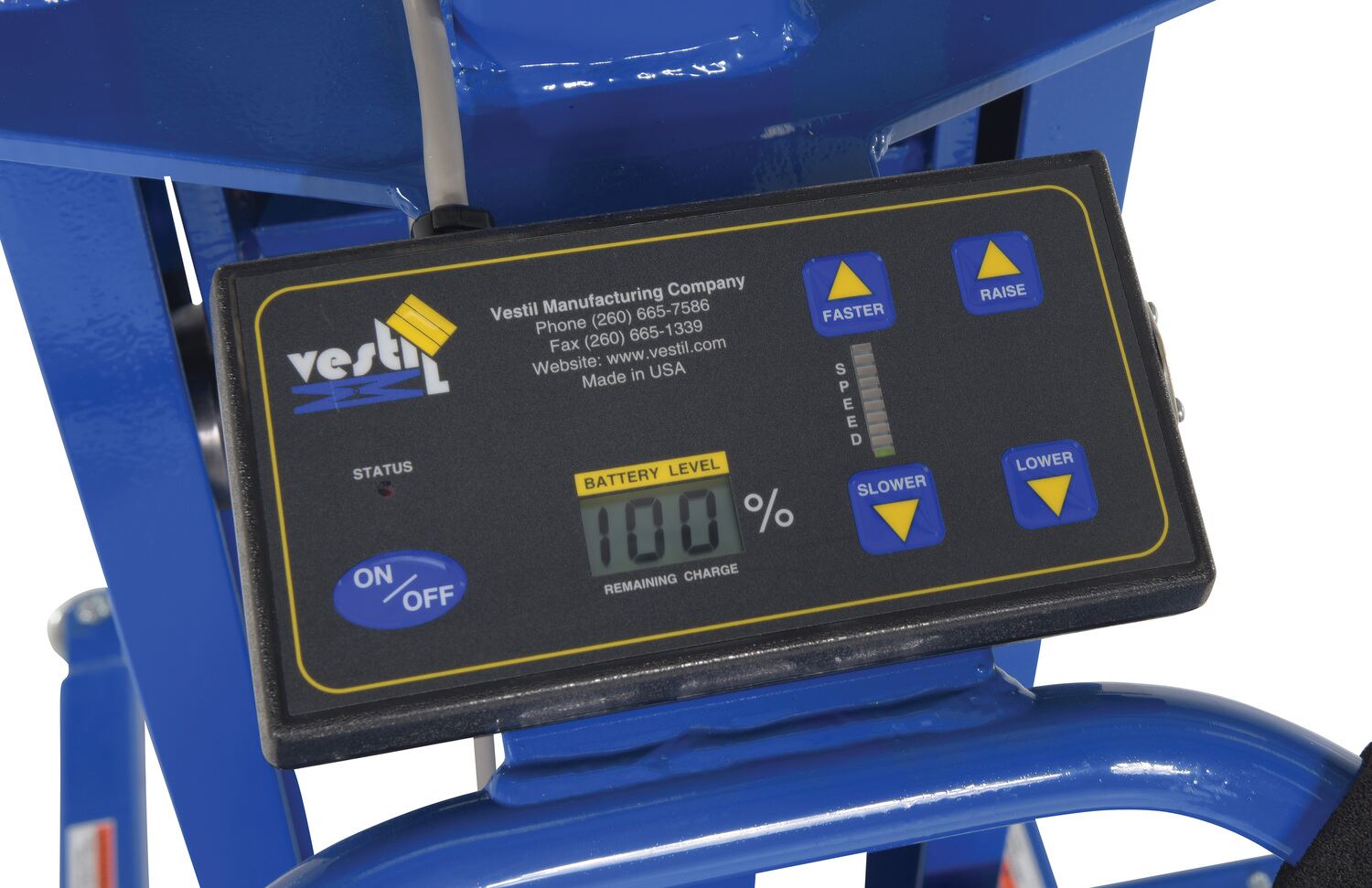

A: All PEL’s, 88, 400, and A models are about the same speed fully loaded, or unloaded at maximum speed setting…approximately 3.6 inches per second up, and 4.5 in/second down. The PEL100A is slightly slower because the pitch on the screw is different. The speed can be slowed down via the touchpad speed control. PEL88, 88A, 400-57 is approximately 14 seconds raise, 11 seconds lower time. PEL 100, 100A, and 400-72 is approximately 18 seconds raise, 15 seconds lower time.


Q: How noisy is the PEL?

A: The Steel units (PEL88, PEL100, PEL400) measure about 63 dB at a distance of 1 foot from the motor enclosure. At 3 feet the level drops to about 59 dB. The units are at least this quiet when rolling too. The Aluminum units are noisier, and would have to be measured on an individual basis.


Q: How many cycles can I get on one charge and how long does it take to charge?

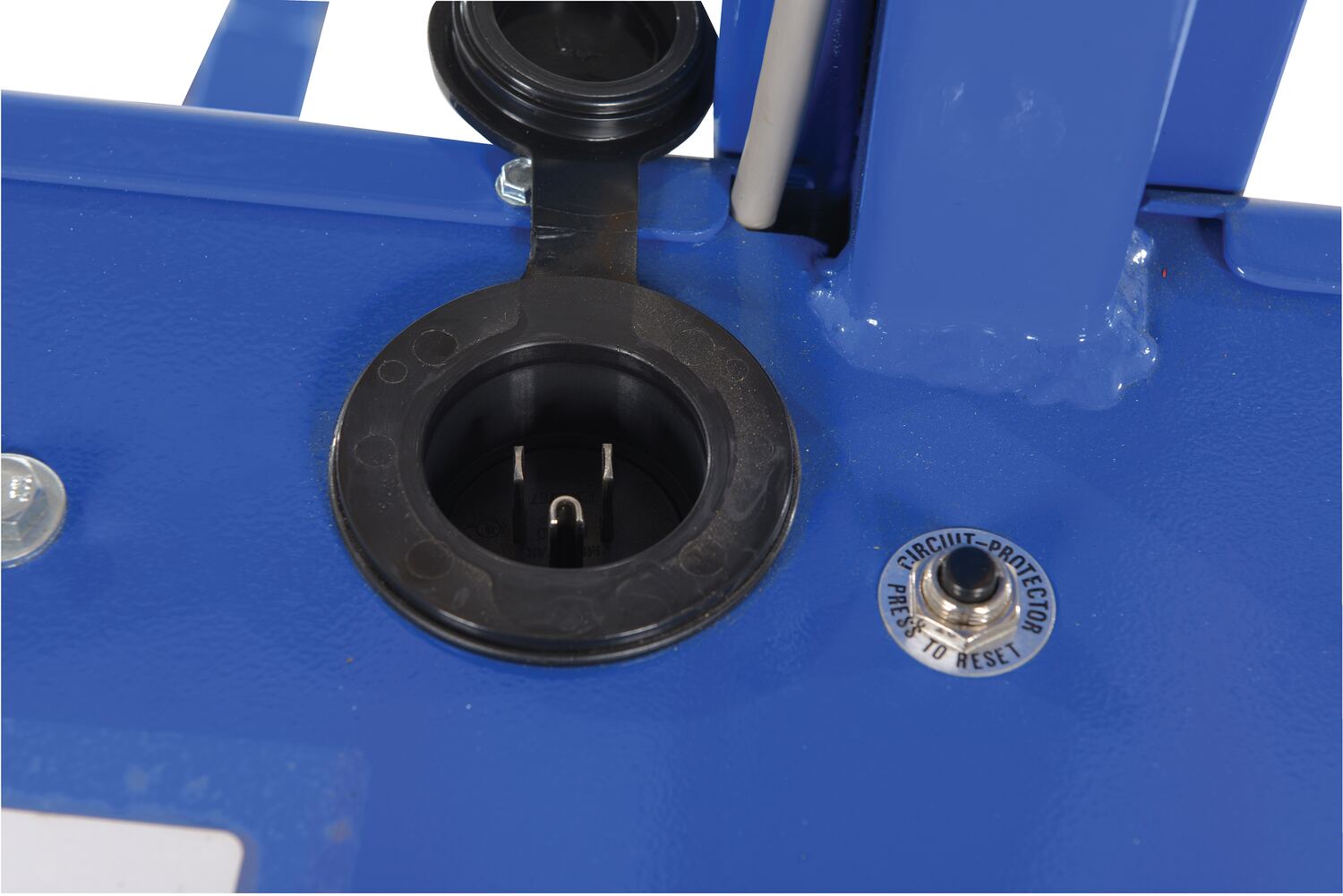

A: This will vary depending on how high the load is lifted, how much weight is lifted, the age of the batteries, and the battery type. The PEL88, 88A, and 100 will last about 200 cycles continuous…or, 1 cycle every 5 minutes for 8 hours. Charge time is anywhere from 4 to 6 hours depending on the condition of the battery, age, etc The PEL400 will last about 300 to 400 cycles continuous…or, 1 cycle every 4 minutes for 8 hours. Charge time is anywhere from 6 to 8 hours depending on the condition of the battery, age, etc.
