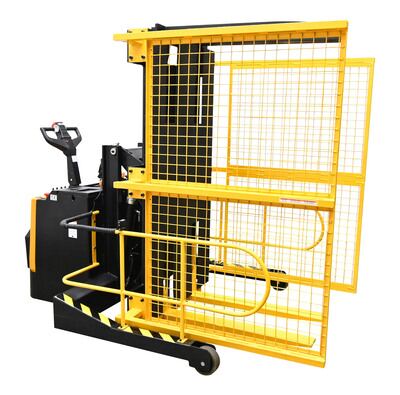

Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black

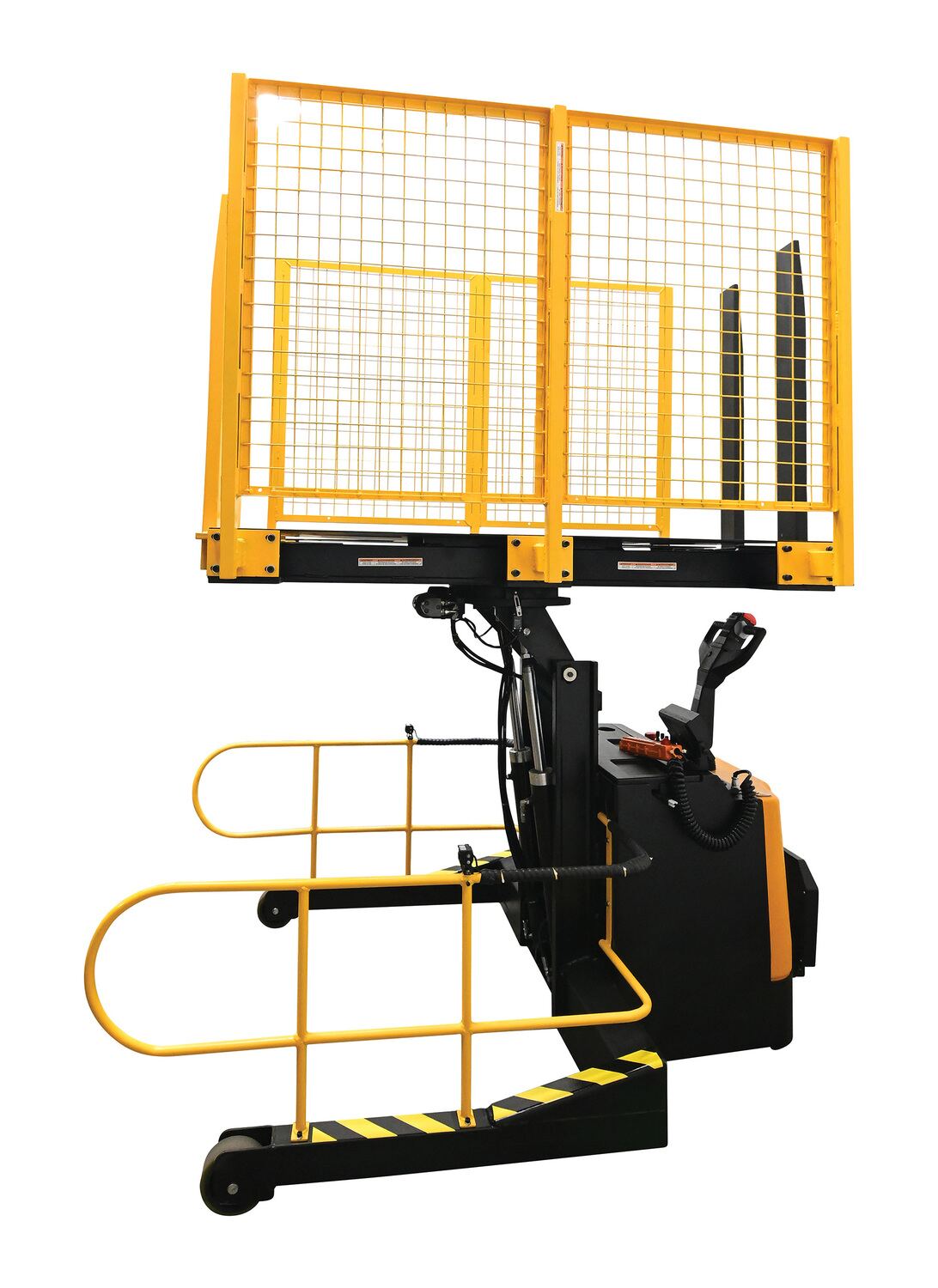

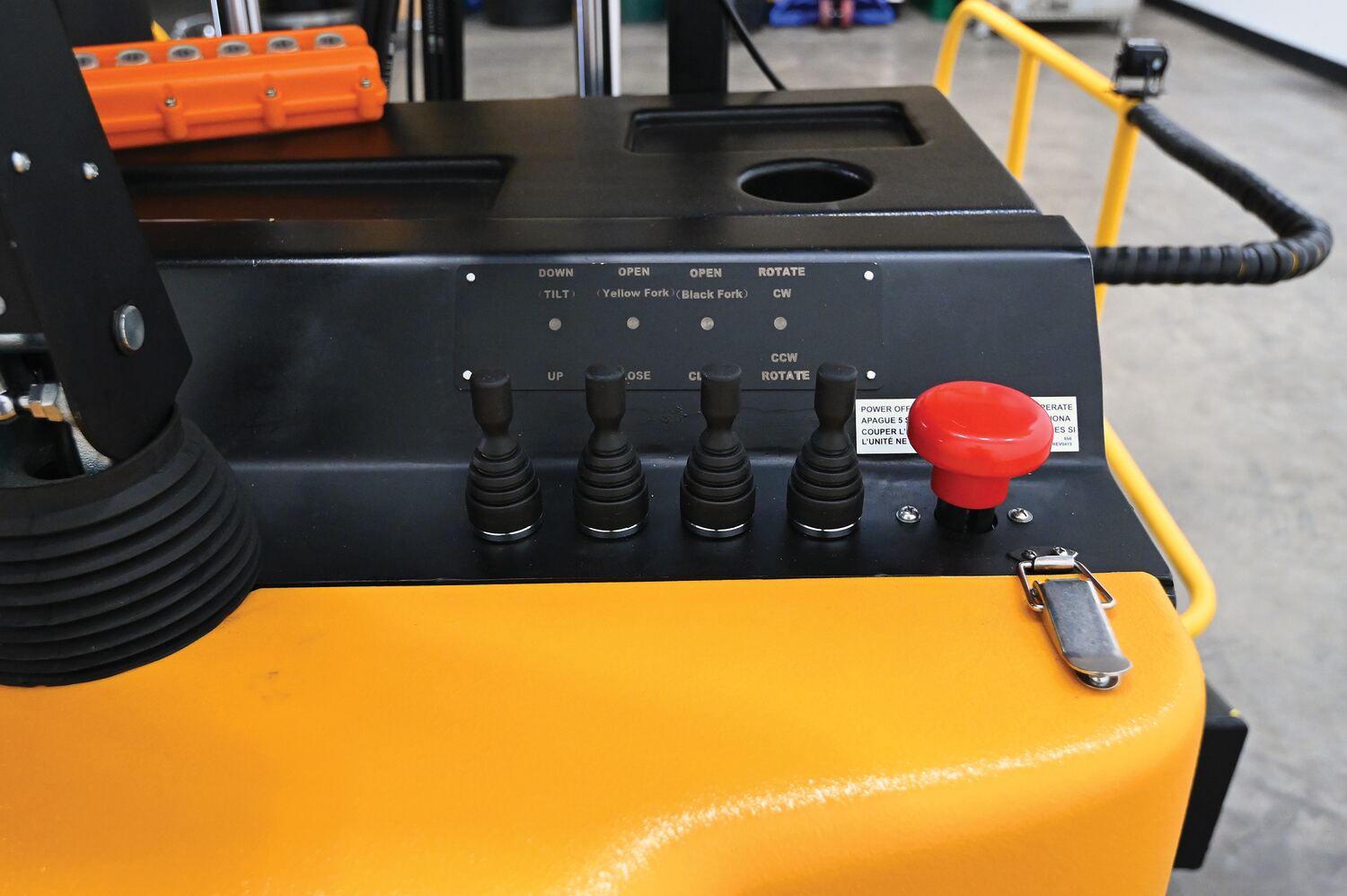

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle and tilt/lower controls. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

  • Safety belly reverse button
  • On-board battery charger and level gauge
  • Steel mesh sides for safe enclosure
  • Infinite forward and reverse speeds
Assembled Wt.(lbs.): 3463 Assembled Size: 56.625"W x 113"L x 108.25"H

Total Ship Wt.(lbs.): 3275 (only 1 package) Package 1 Size: 64"W x 100"D x 85"H Color: Yellow / Black Non-Returnable

Uniform Capacity (lb.): 3,000 Fork Opening (in.): 32 to 76 Fork Width (in.): 5
Fork Size (in.): 22 x 42-1/8 Lowered Height (in.): 3-1/4 Turn Radius (in.): 84-1/2
Fork Center (in.): 17-9/16 Caster Material: Poly-on-Steel Caster Color: Yellow
Stabilizer Caster Quantity/Size (in.): (2) 5 x 2 Driver Caster Quantity/Size (in.): (1) 9-7/8 x 3-1/8 Load Roller Quantity: (2) 6-1/4 x 2-3/8
Handle Height (in.): 5-3/16 Handle Diameter (in.): 1-1/8 Hardware Included: No
For Use With: Pallets & Skids Travel Speed - Unloaded (MPH): 3.7 Travel Speed - Loaded (MPH): 2.5
Drive Motor: 24V / 1.2 KW Lift Motor: 24V / 2.0 KW Battery: 4 -6 V / 200 Ah

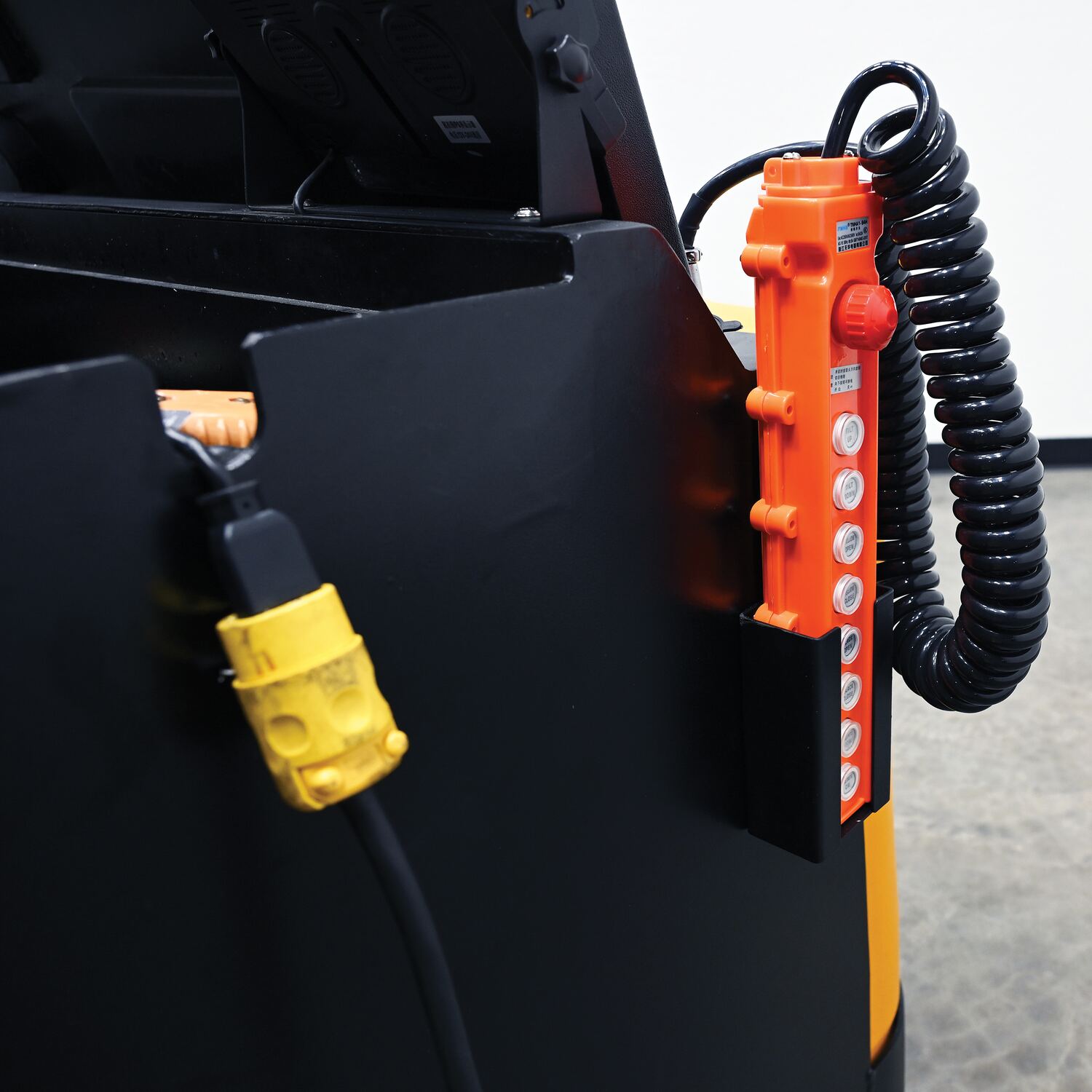

Battery Charger: 24V Control: Hand Control w/ Coil Cord

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PI-P-SL-3276-PRSR
Available
PI-P-SL-3276-PRSR

Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black

Tilt (powered) and rotate (manual) loads with our durable pallet inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle and tilt/lower controls. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

  • Safety belly reverse button
  • On-board battery charger and level gauge
  • Steel mesh sides for safe enclosure
  • Infinite forward and reverse speeds
Dimensions: 56.625"W x 113"L x 108.25"H Sell UOM: -- Color: Yellow / Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 3275 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 3,000 Fork Opening (in.): 32 to 76 Fork Width (in.): 5
Fork Size (in.): 22 x 42-1/8 Lowered Height (in.): 3-1/4 Turn Radius (in.): 84-1/2
Fork Center (in.): 17-9/16 Caster Material: Poly-on-Steel Caster Color: Yellow
Stabilizer Caster Quantity/Size (in.): (2) 5 x 2 Driver Caster Quantity/Size (in.): (1) 9-7/8 x 3-1/8 Load Roller Quantity: (2) 6-1/4 x 2-3/8
Handle Height (in.): 5-3/16 Handle Diameter (in.): 1-1/8 Hardware Included: No
For Use With: Pallets & Skids Travel Speed - Unloaded (MPH): 3.7 Travel Speed - Loaded (MPH): 2.5
Drive Motor: 24V / 1.2 KW Lift Motor: 24V / 2.0 KW Battery: 4 -6 V / 200 Ah
Battery Charger: 24V Control: Hand Control w/ Coil Cord
