model: PI-P-4400-3254


SERIES: PPI

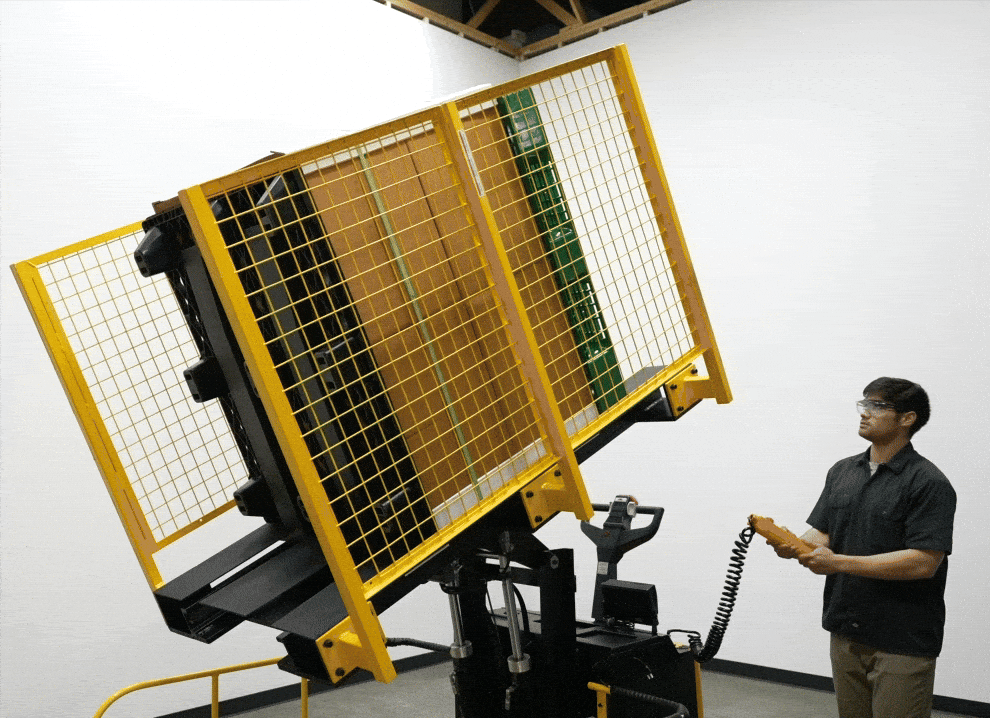

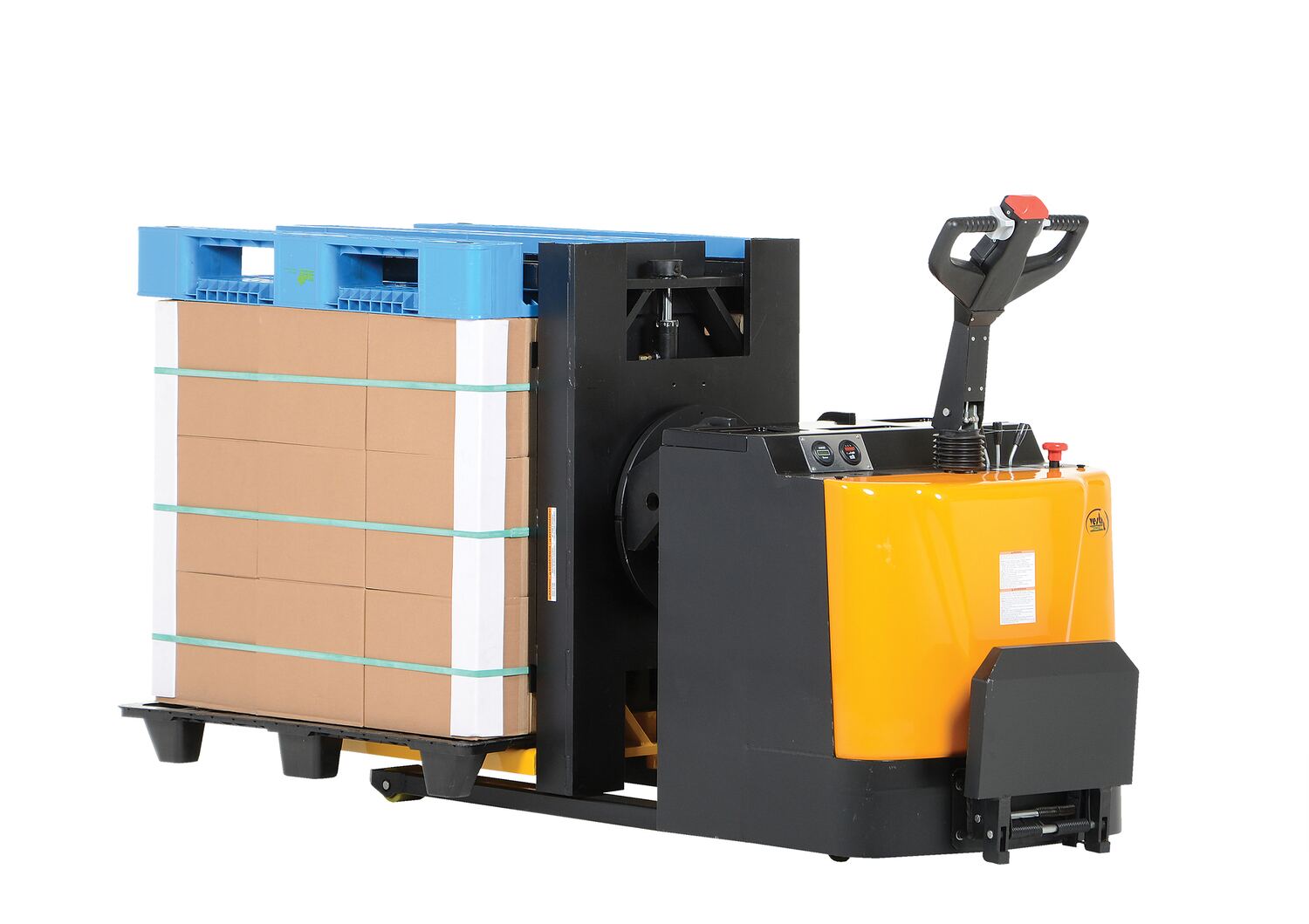

Portable Pallet Inverters

24V DC STANDARD

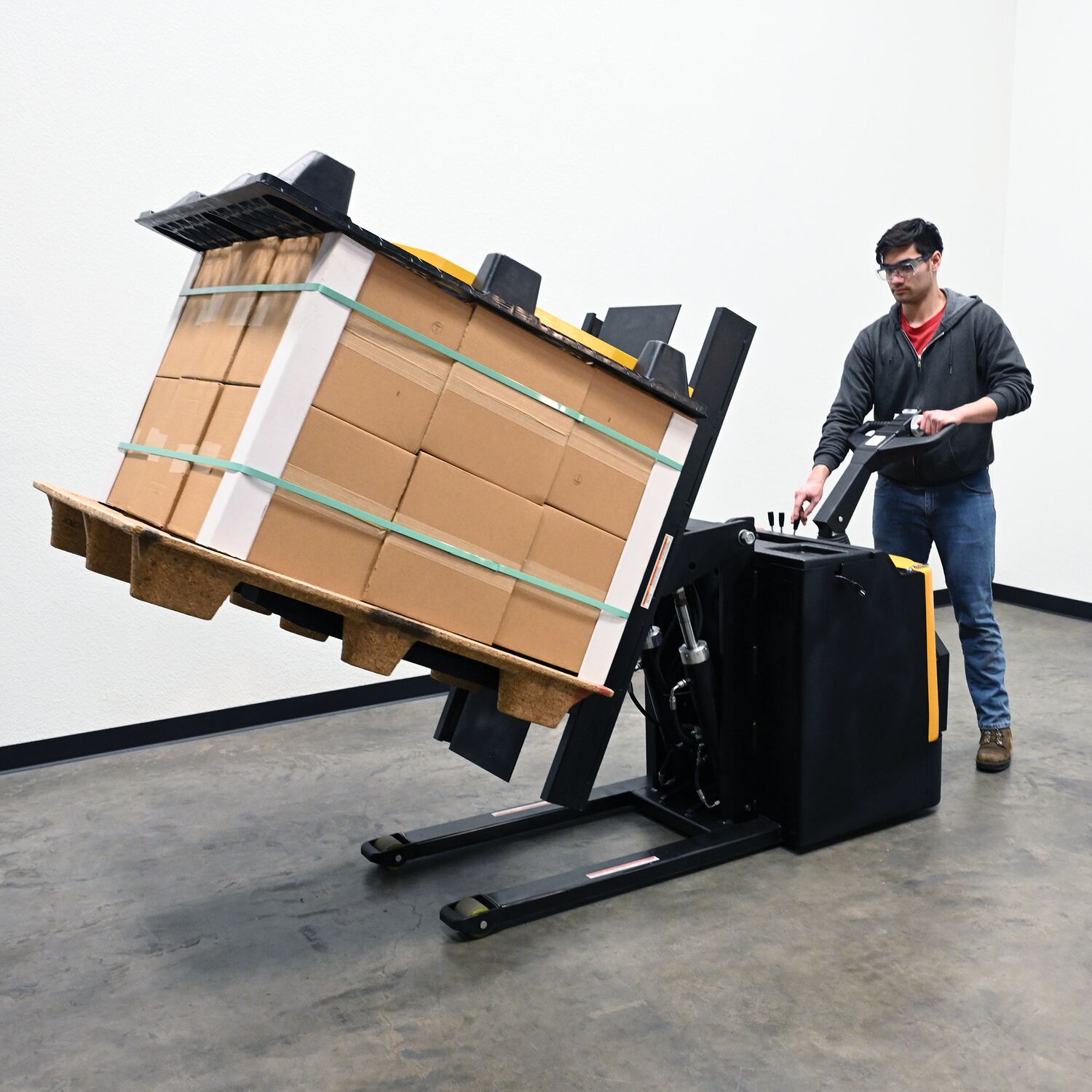

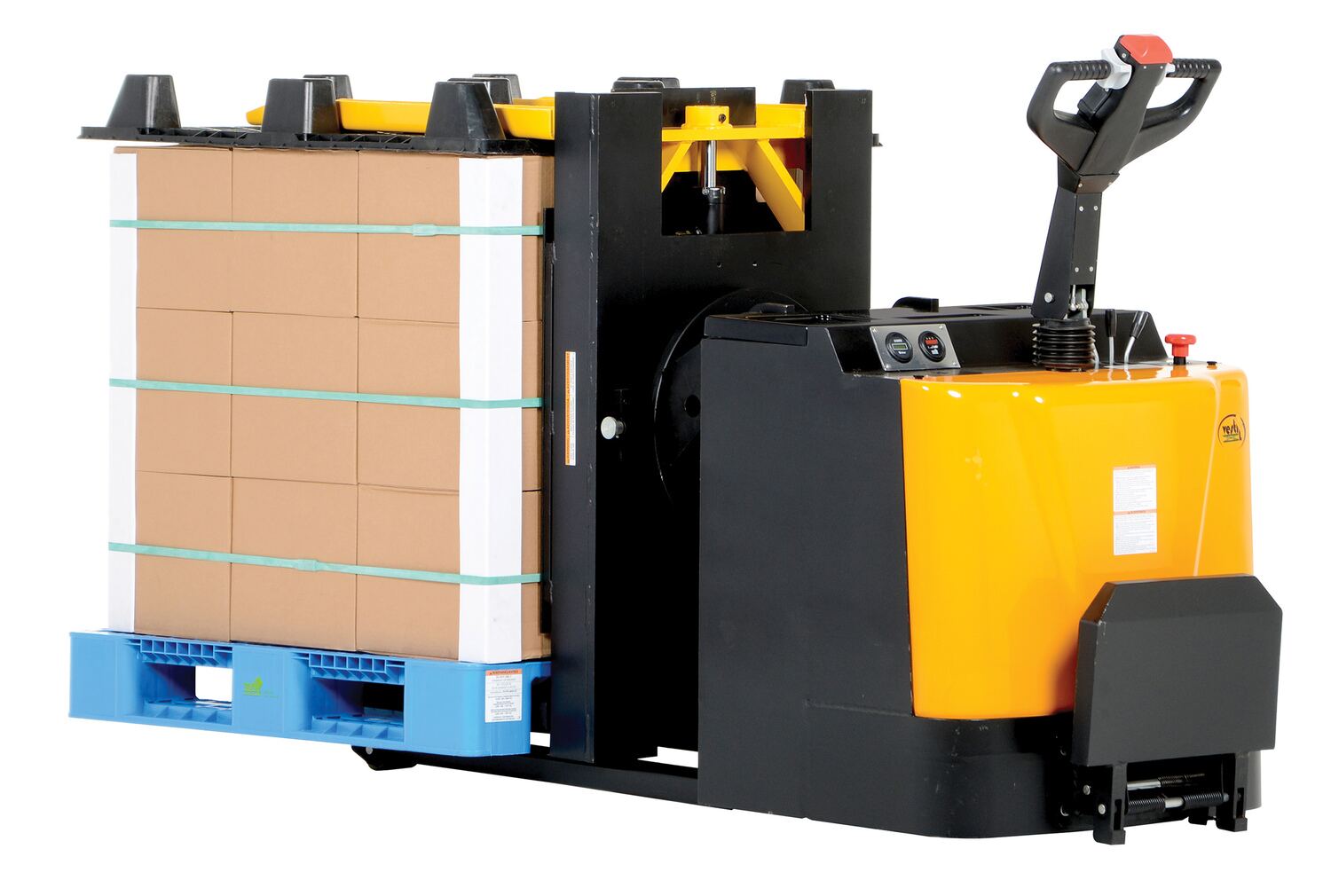

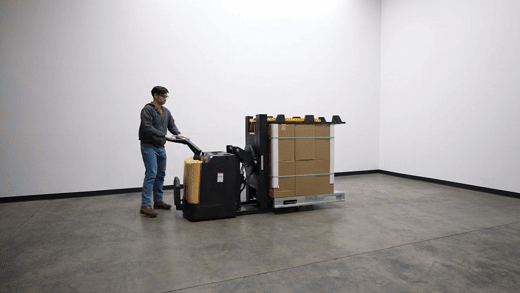

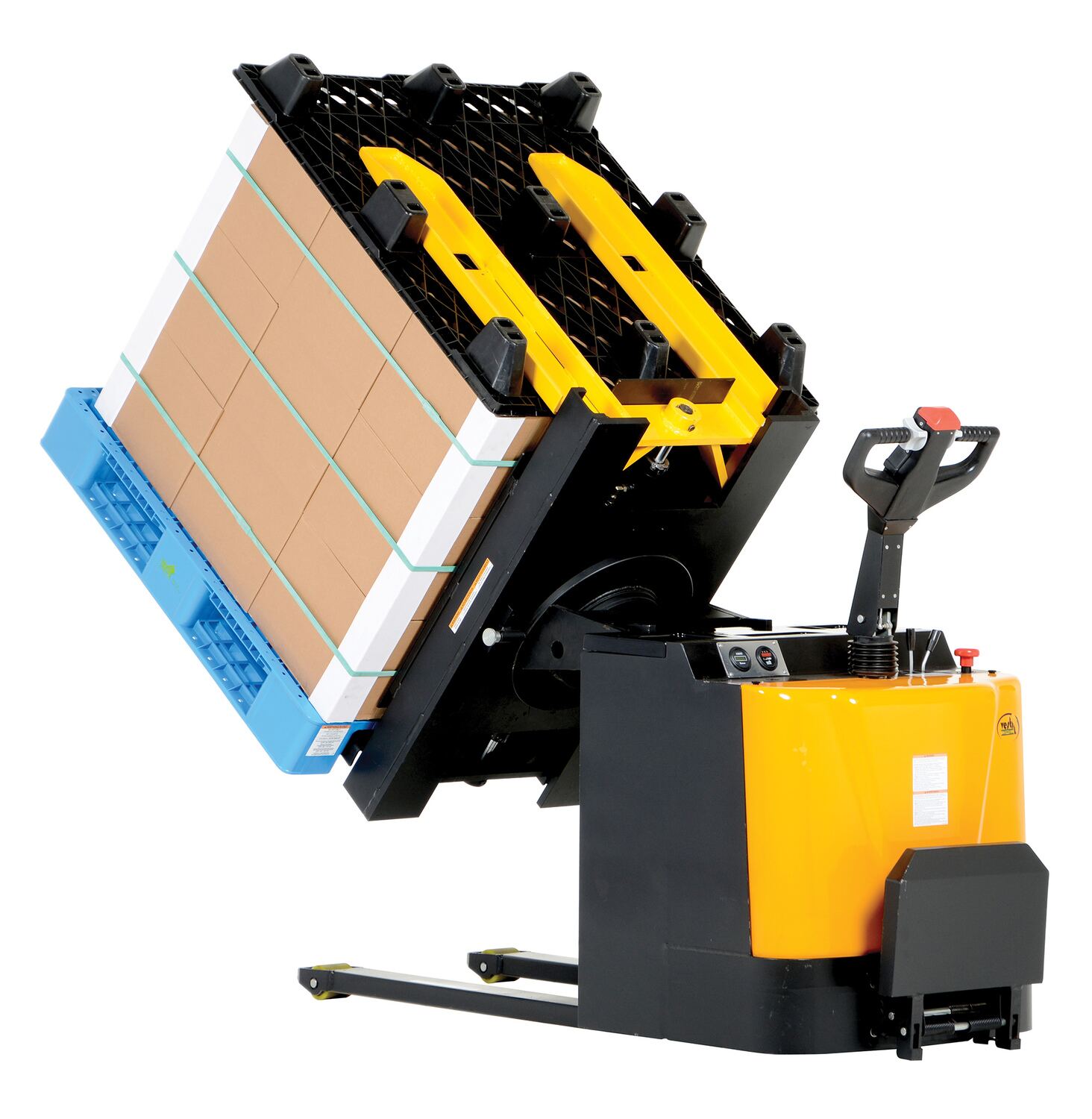

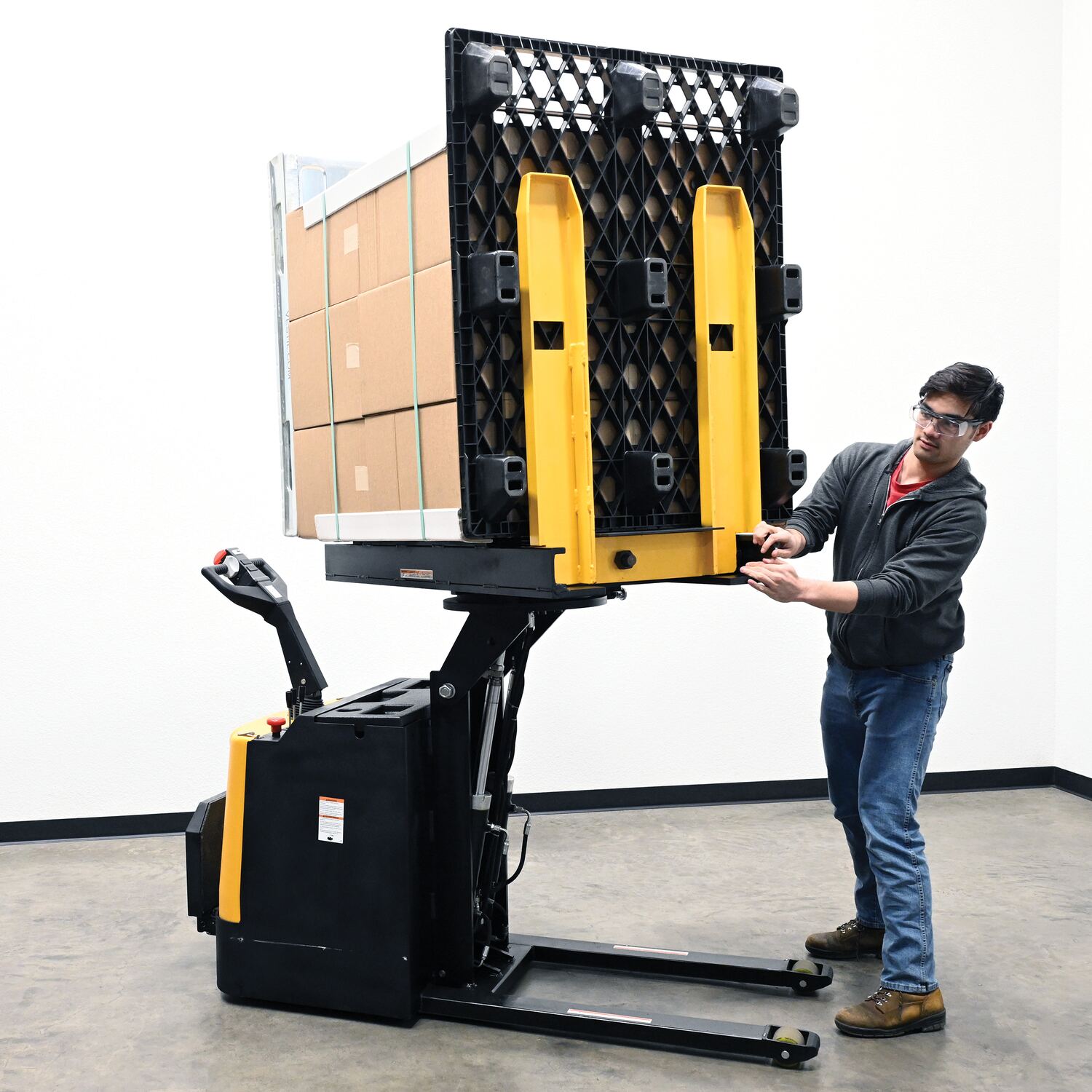

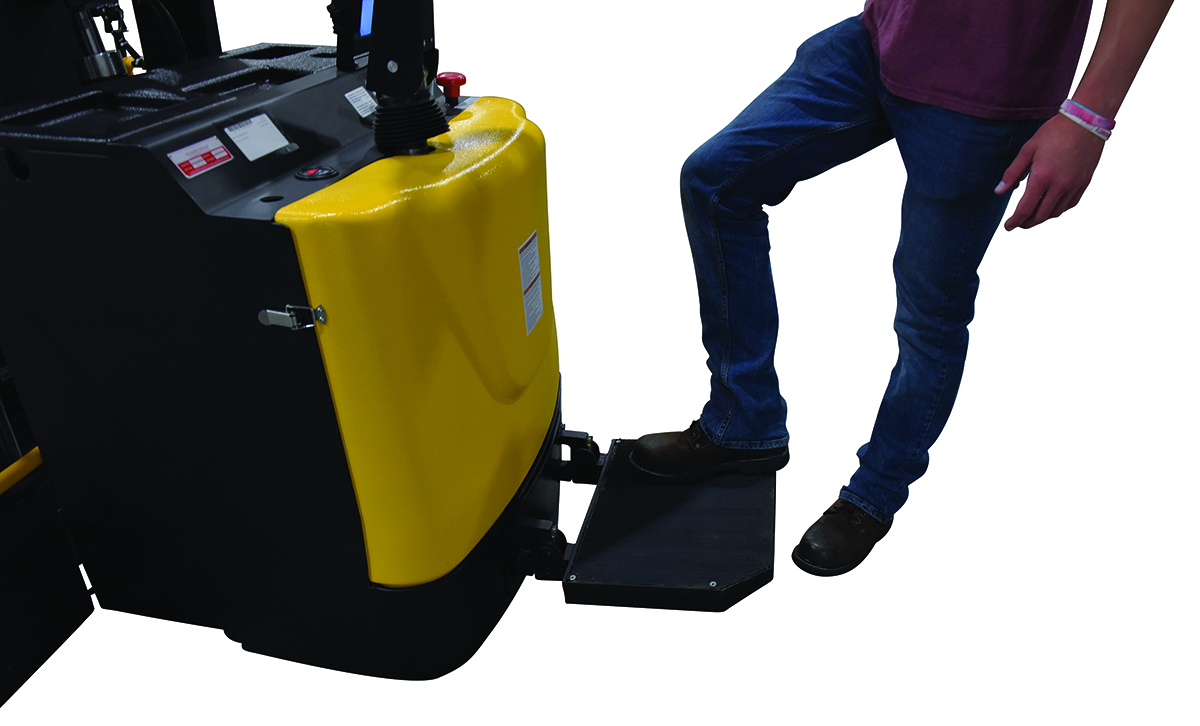

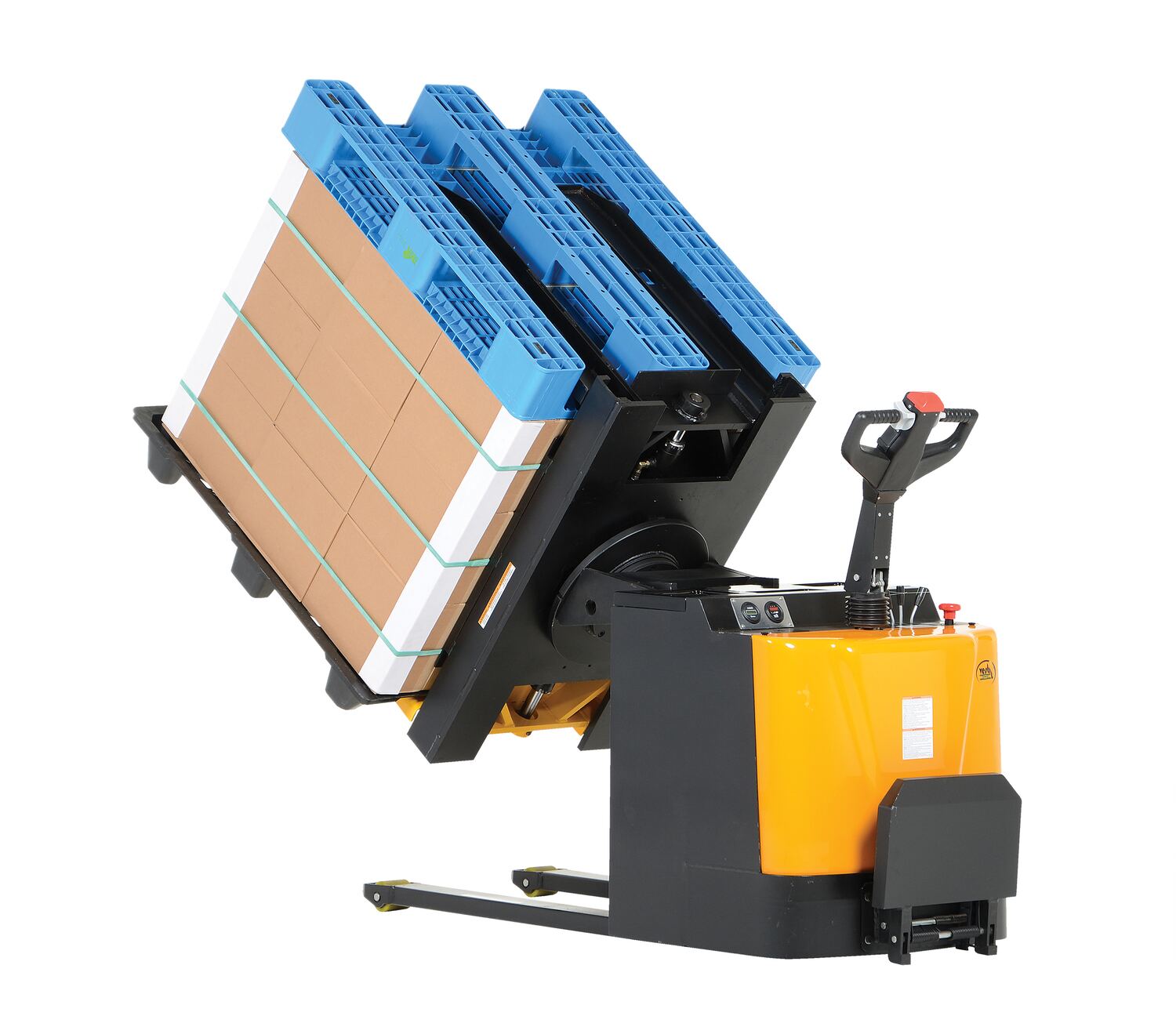

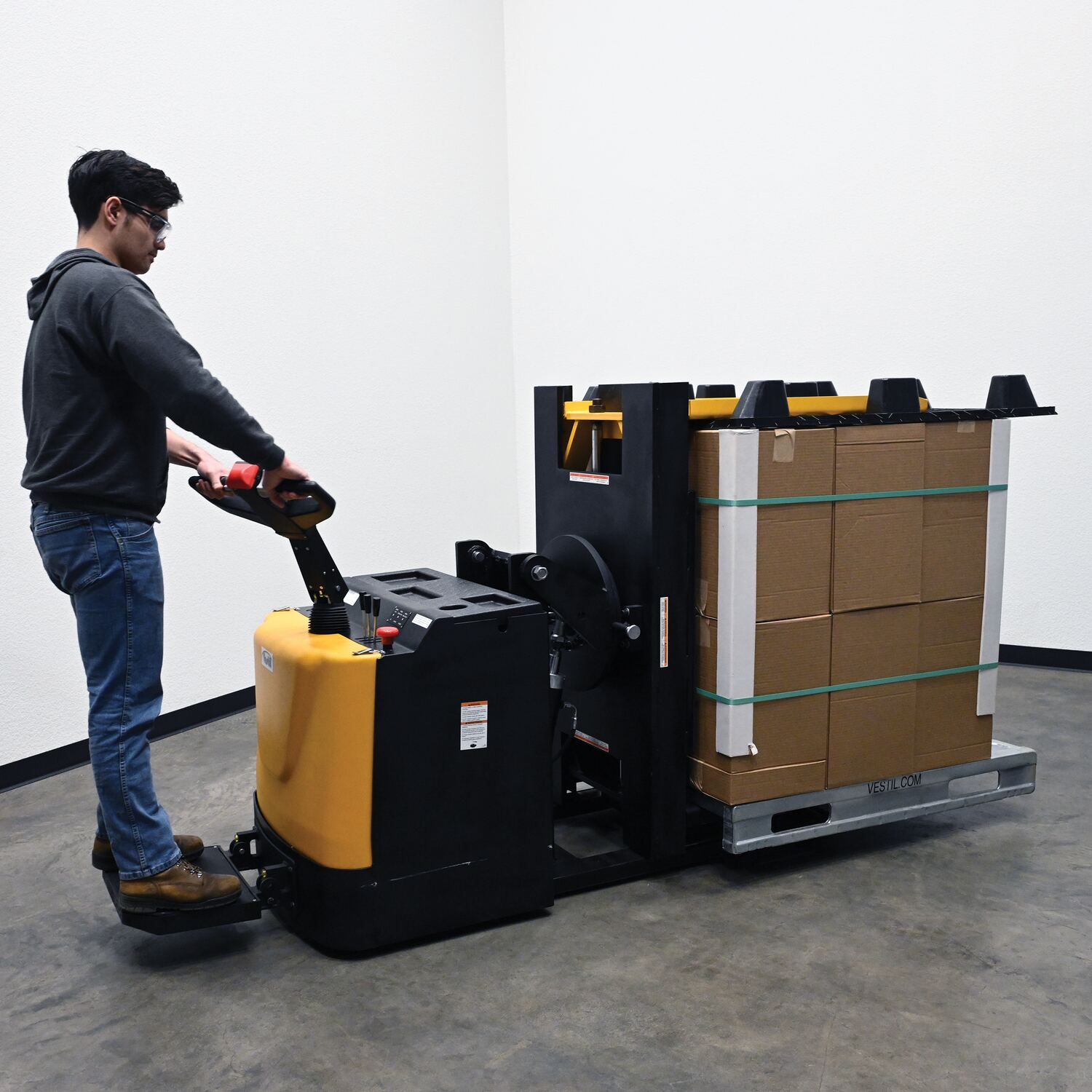

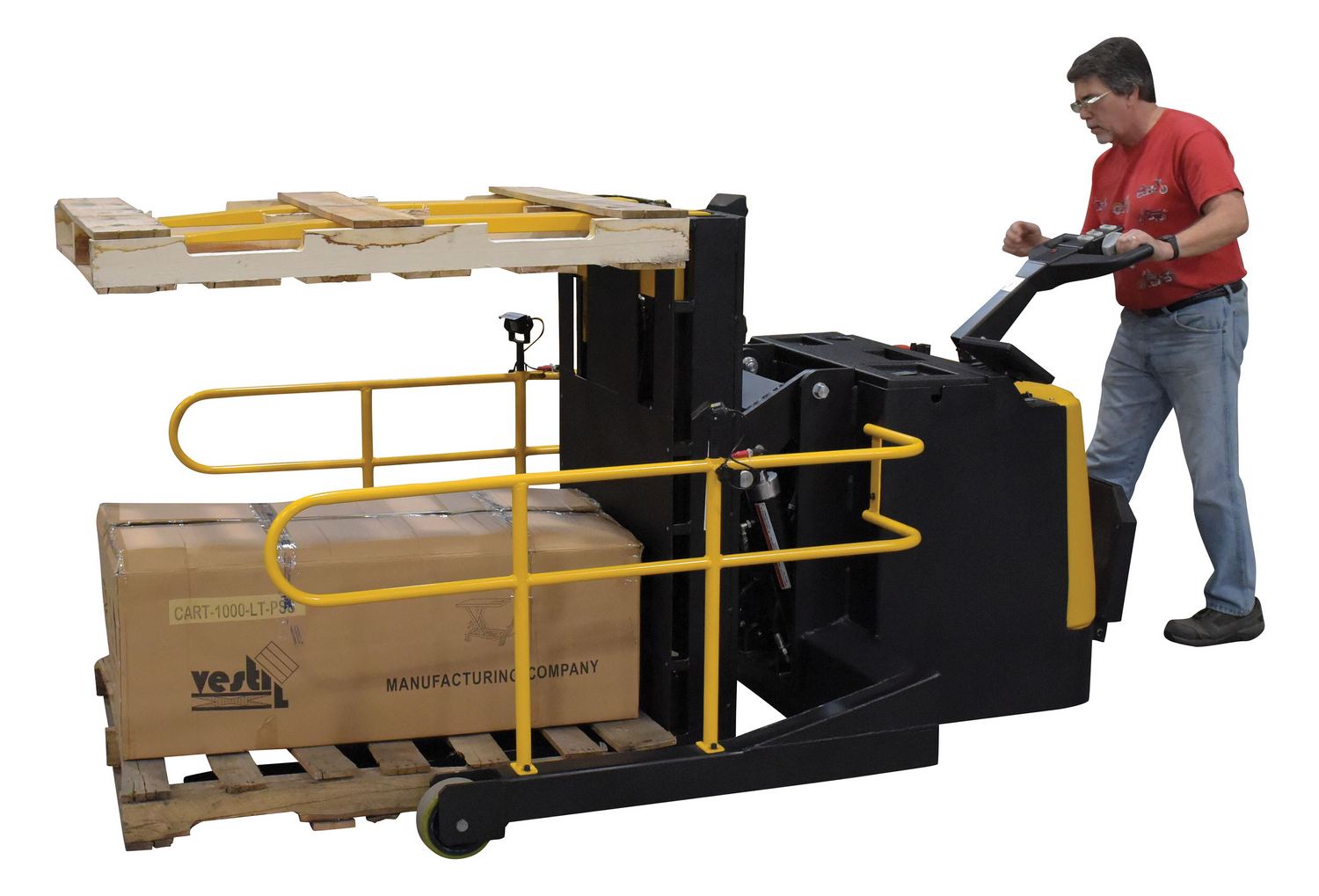

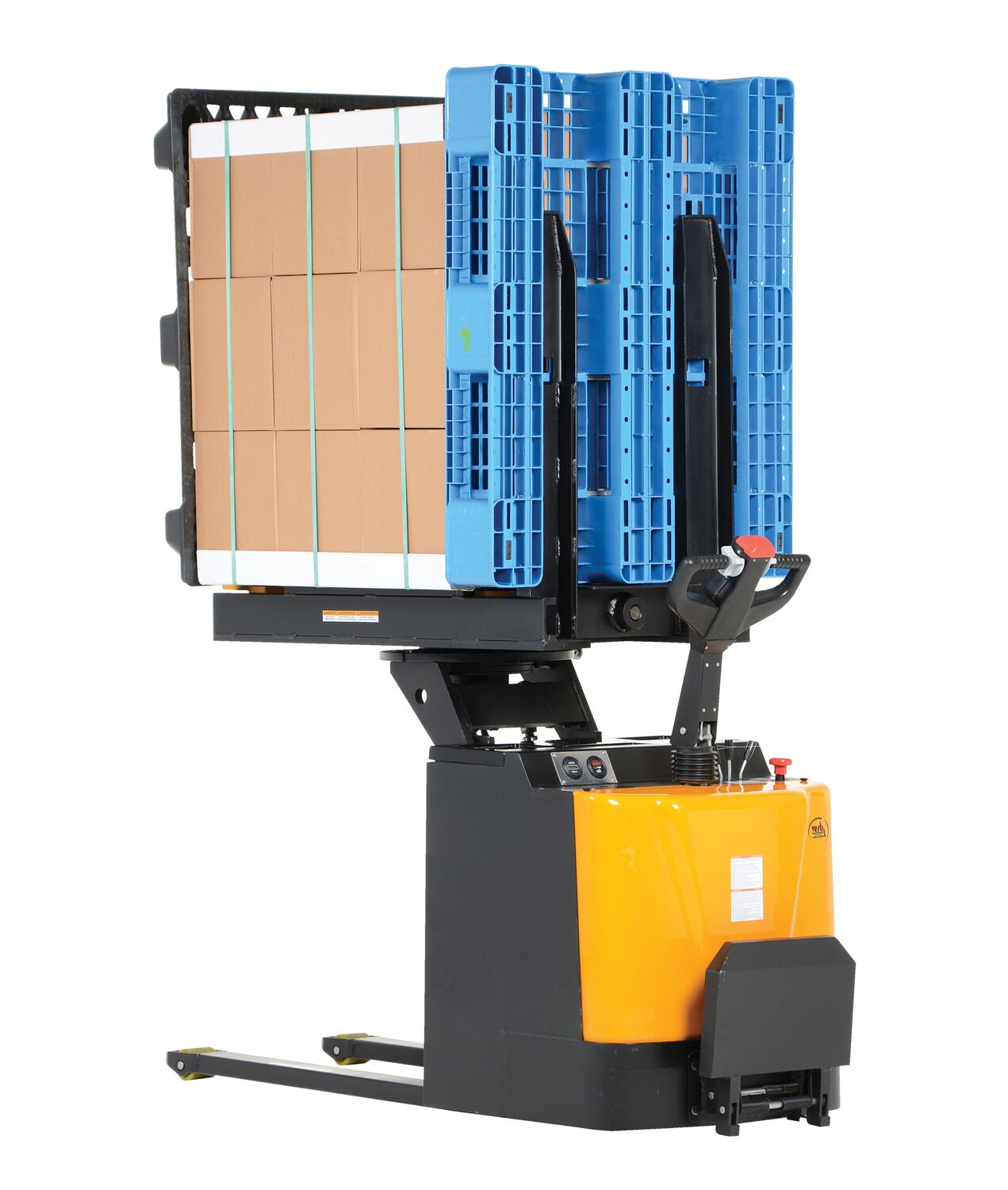

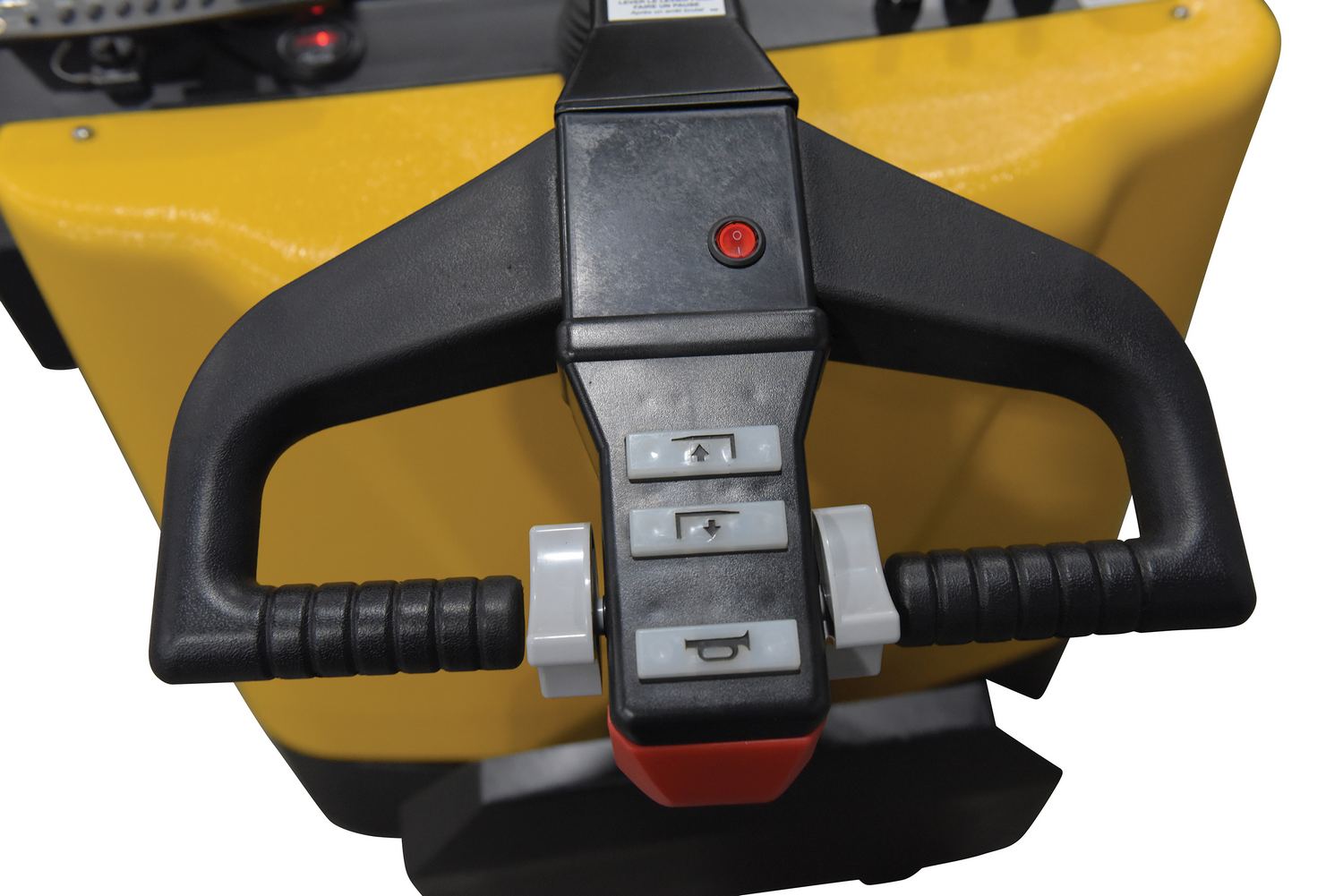

Tilt and rotate loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a power pallet truck, pallet tilter, or as a turntable. Rolls smoothly on polyurethane steer and load wheels.

24V DC STANDARD

Tilt and rotate loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a power pallet truck, pallet tilter, or as a turntable. Rolls smoothly on polyurethane steer and load wheels.

Share This Page

PI-P-SL-3000-3276

model PI-P-SL-3000-3276




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Portable Pallet Inverter
Model PDF Capacity
(lbs)
Fork Opening
(Min & Max)
Lowered
Height
Fork
(WxL)
Overall Size
(WxLxH)
Wt
(lbs.)
PI-P-4400-3254 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3,000 32" to 54" 3-5/8" 6"x36"

36-3/4" x 99-1/2 x 56"

2290

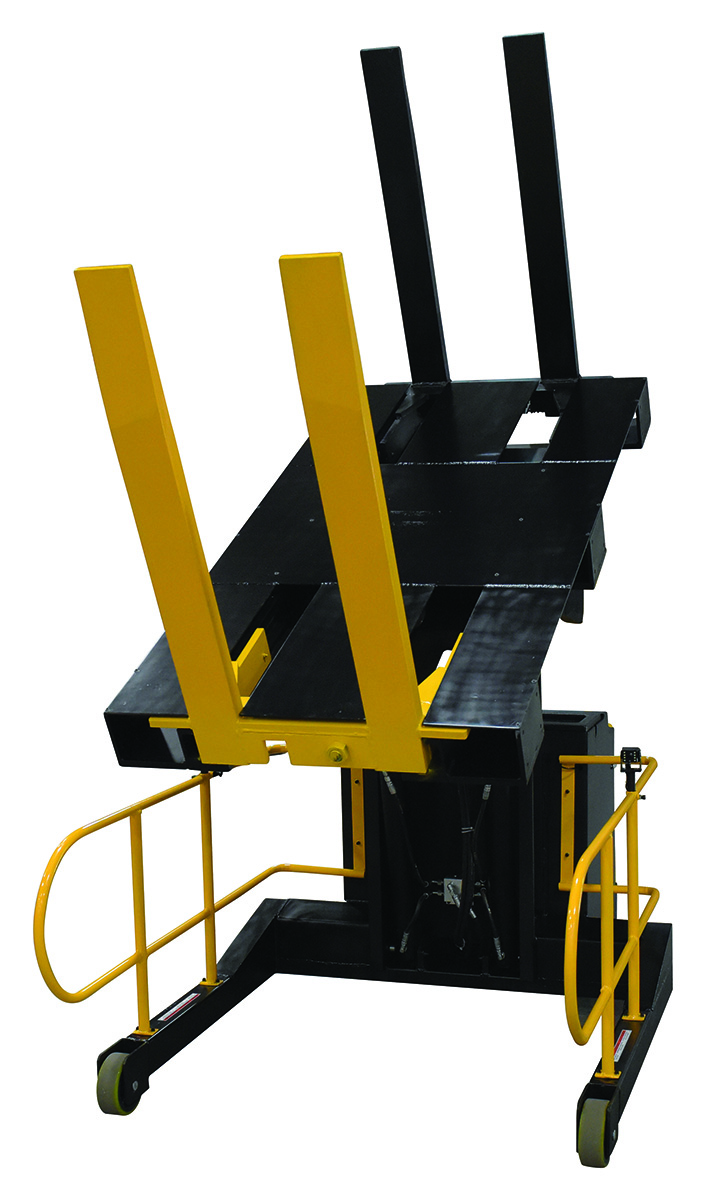

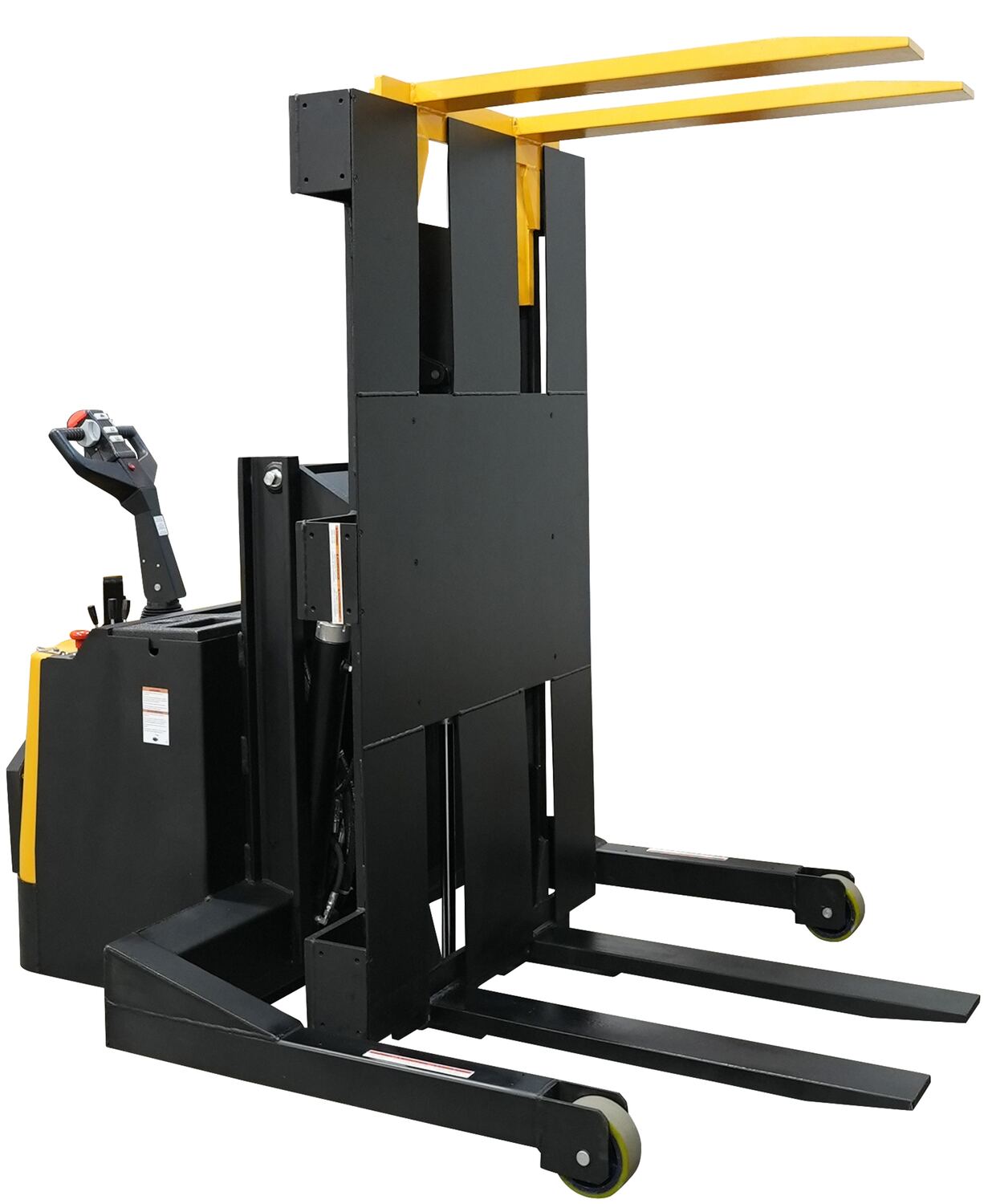

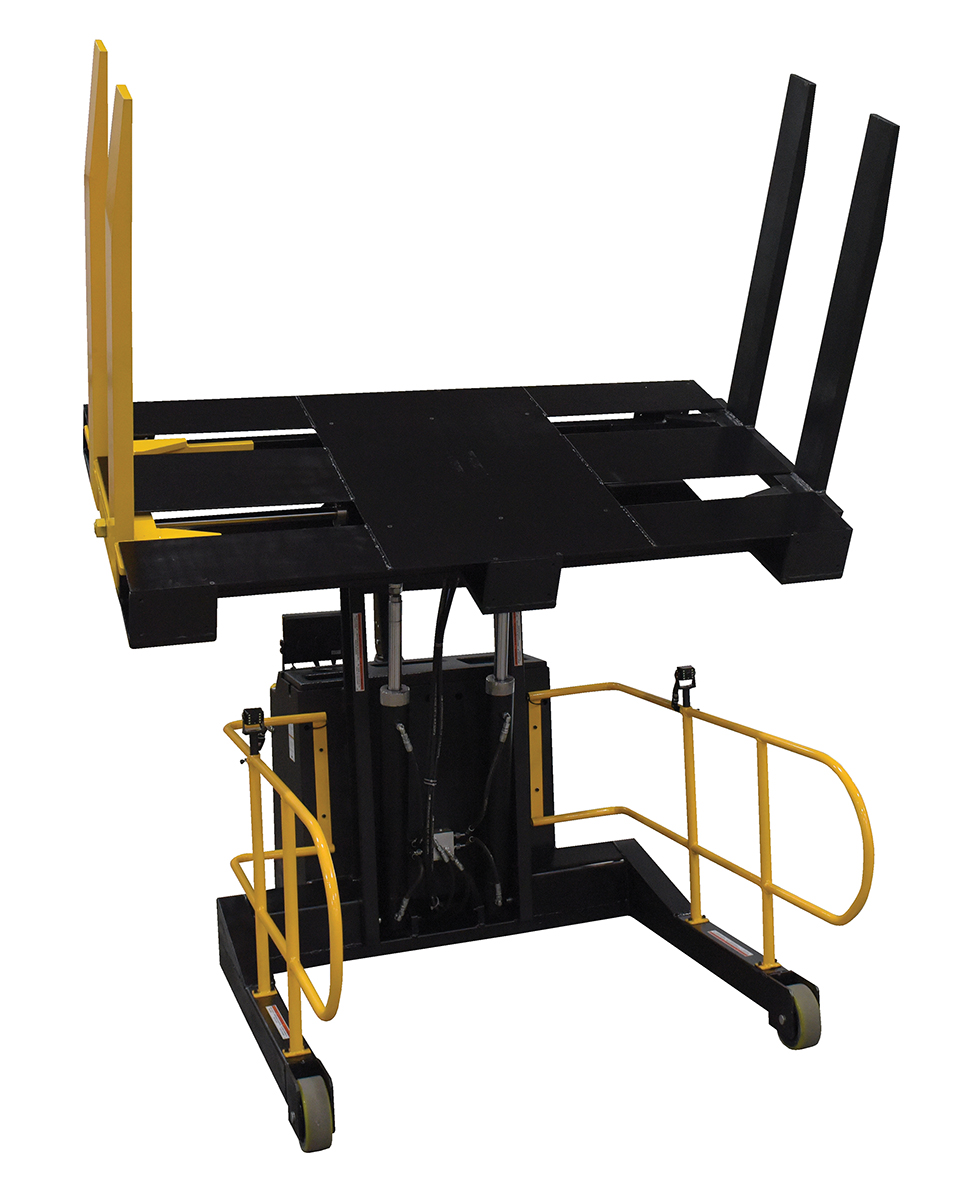

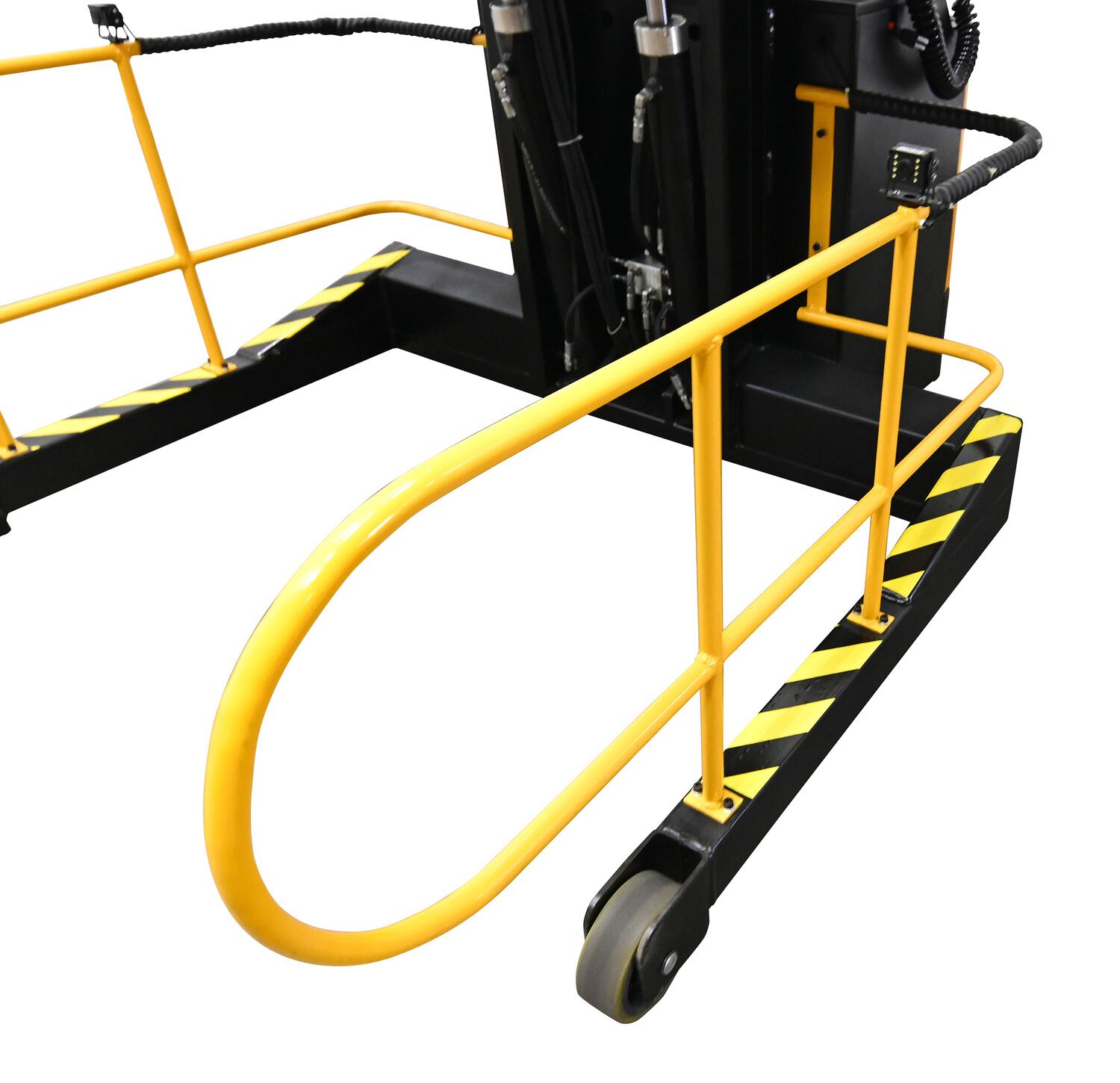

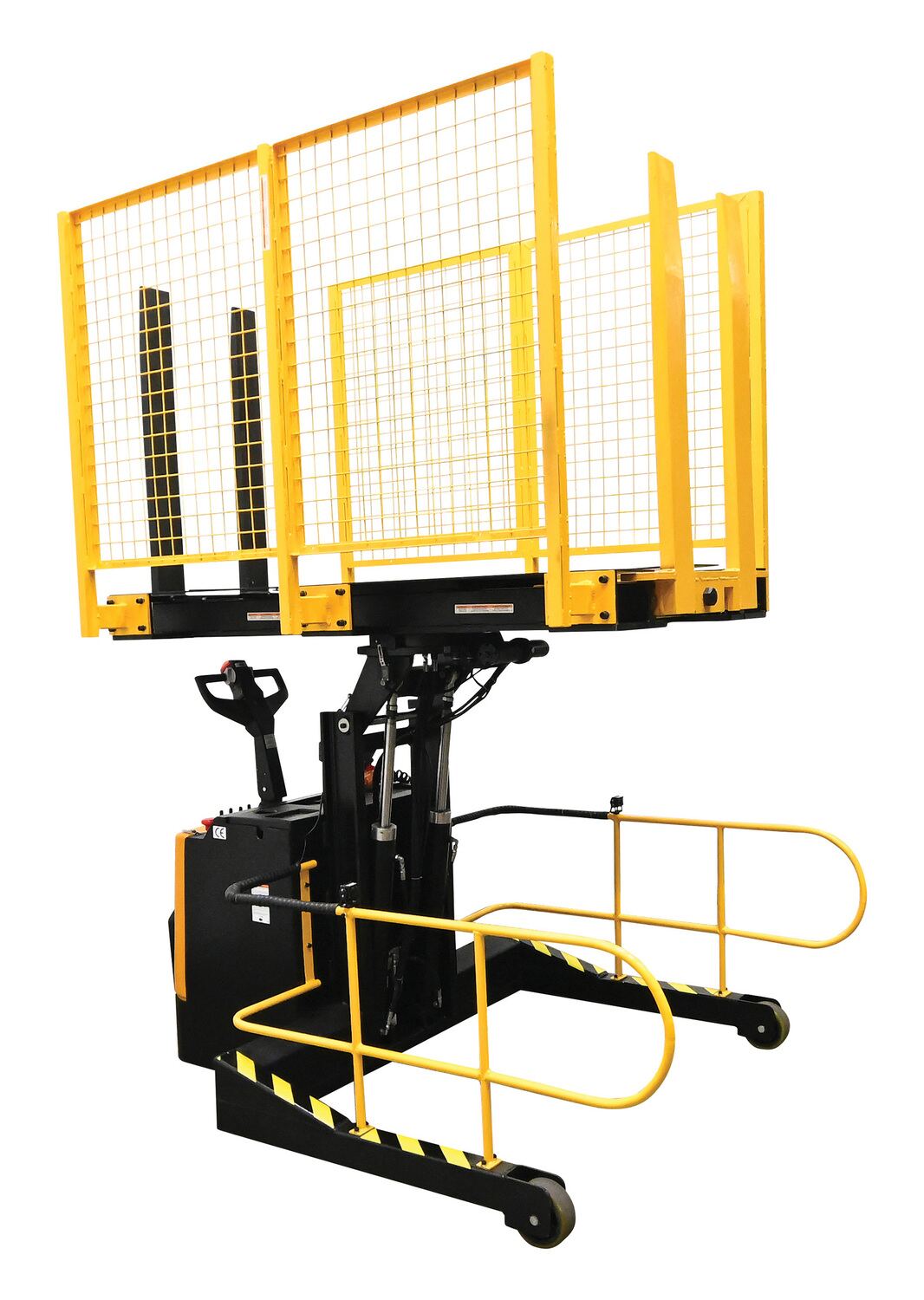

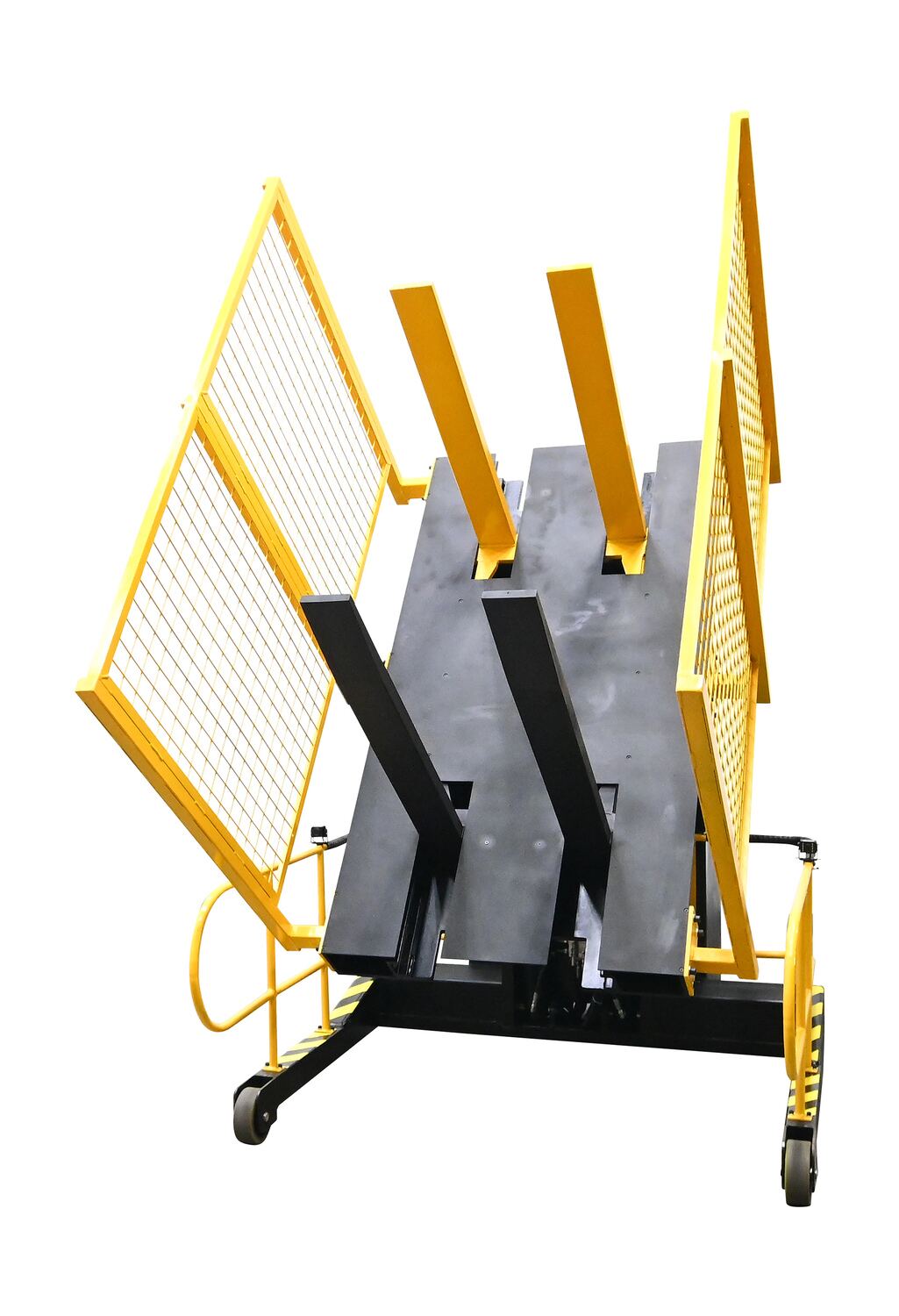

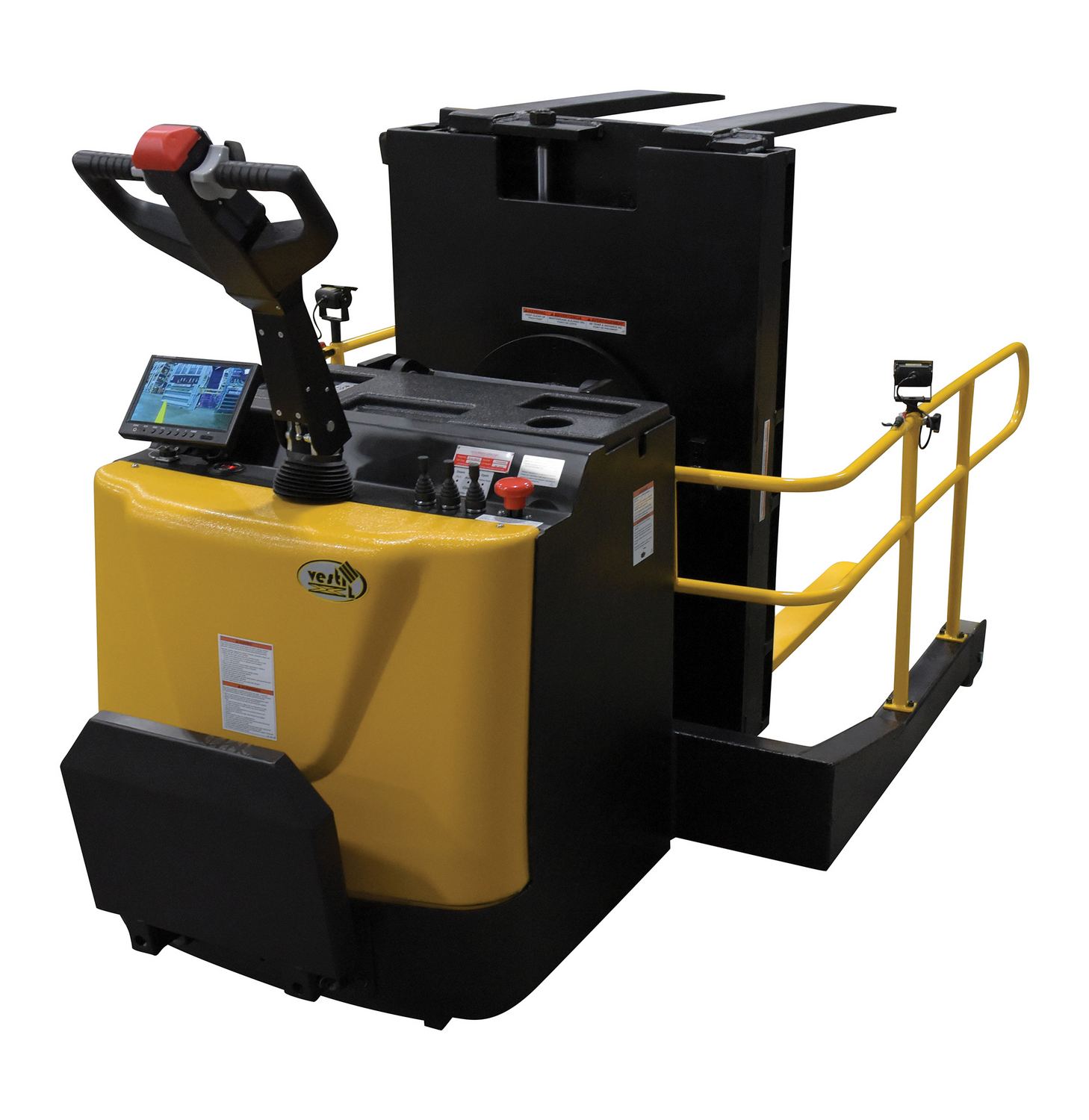

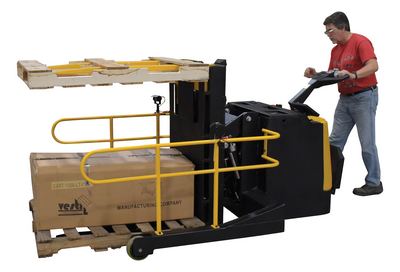

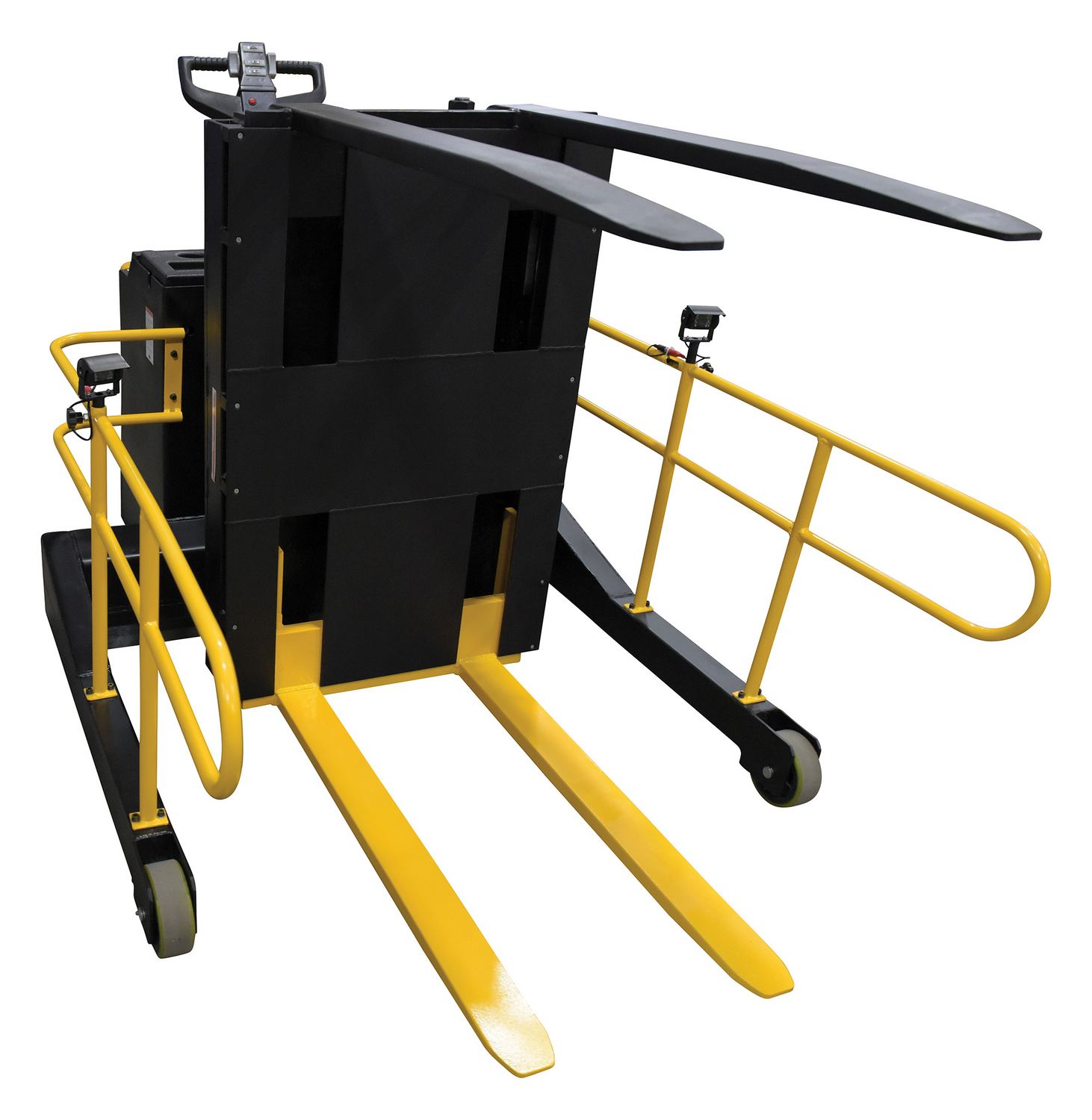

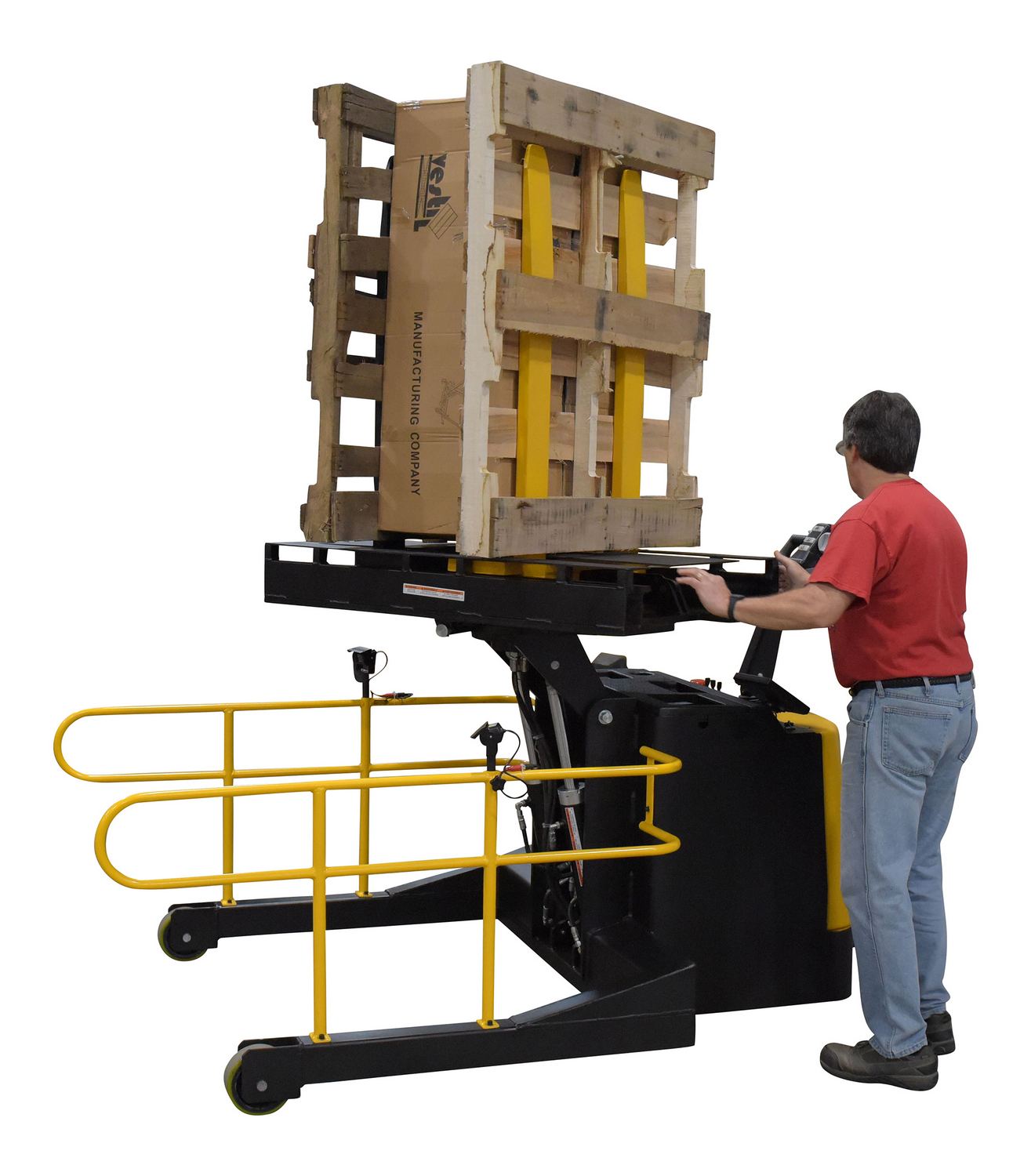

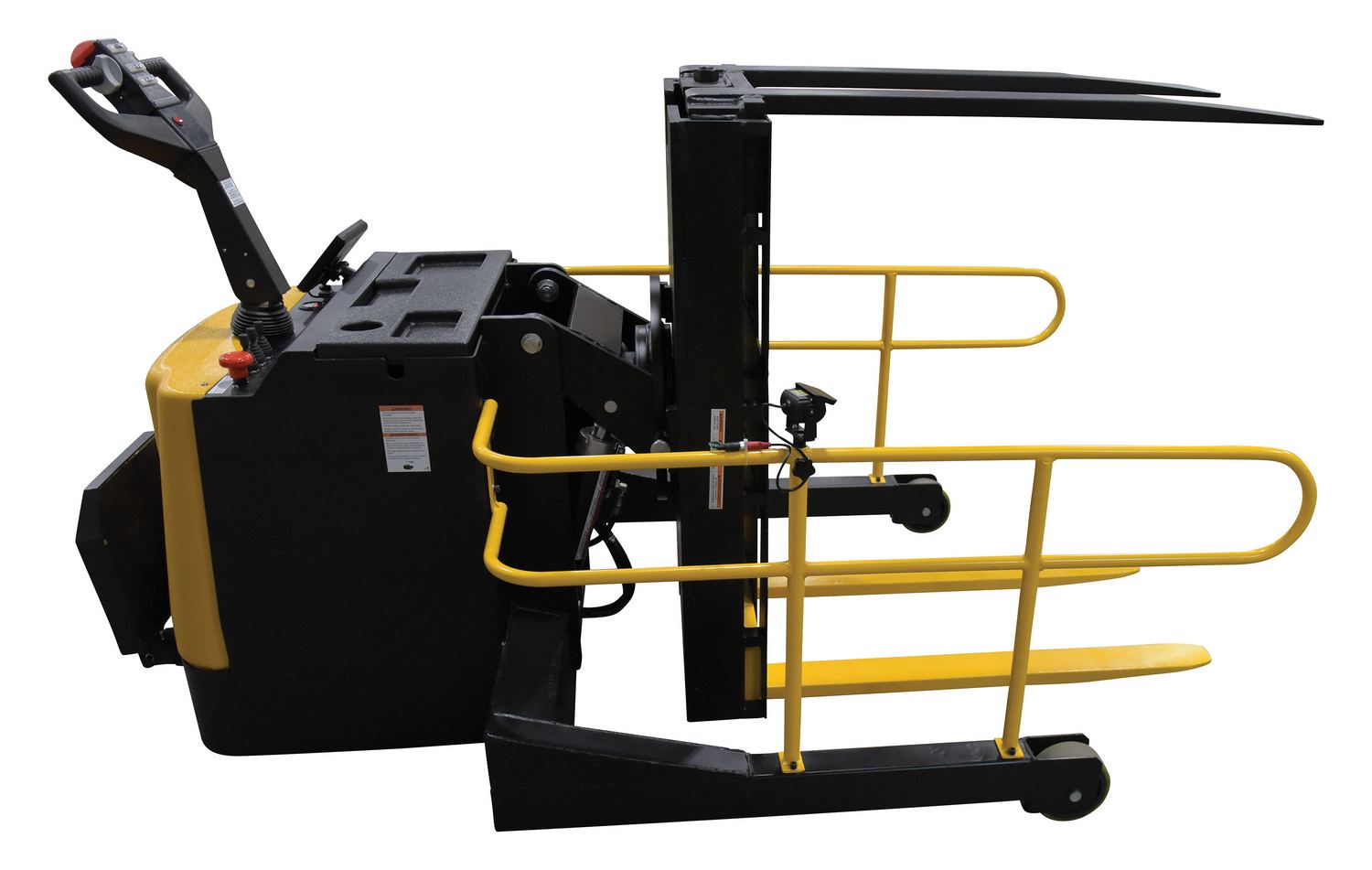

Portable Pallet Inverter Straddle
Model PDF Capacity
(lbs)
Fork Opening
(Min & Max)
Lowered
Height
Fork
(WxL)
Overall Size
(WxLxH)
Wt
(lbs.)
PI-P-SL-3000-3254 Warranty PDF 3,000 32" to 54" 3-3/8" 6"x36" 60" x 113 x60" 2127
PI-P-SL-3000-3276 icon_approvaldrawings.jpgWarranty PDF 3,000 32" to 76" 3-3/8" 6"x36" 60" x 113 x82" 3000
PI-P-SL-3000-4088 Warranty PDF 3,000 40" to 88" 3-3/8" 6"x36" 60" x 113 x94" 3243

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

PI-P-4400-3254

PI-P-4400-3254

PI-P-SL-3000-3254

PI-P-SL-3000-3254

PI-P-SL-3000-3276

PI-P-SL-3000-3276

PI-P-SL-3000-4088

PI-P-SL-3000-4088






Portable Pallet Inverters PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

PI-P-4400-3254
PI-P-SL-3000-3276

Testing Certificates

PI-P-4400-3254
PI-P-SL-3000-4088
PI-P-SL-3000-3276
PI-P-SL-3000-3254

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: Can the portable pallet inverter pick up a loaded pallet?

A: The portable pallet inverter (part number PI-P-4400-3254) can be used to pick up skids. Please see the straddle model options to pick up pallets or skids. (PI-P-SL-3000-3254, PI-P-SL-3000-3276, or PI-P-SL-3000-4088).
