PM5-2748-HB

Printer Friendly
Out of Stock - Please Contact Sales
PM5-2748-HB
PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB PM5-2748-HB

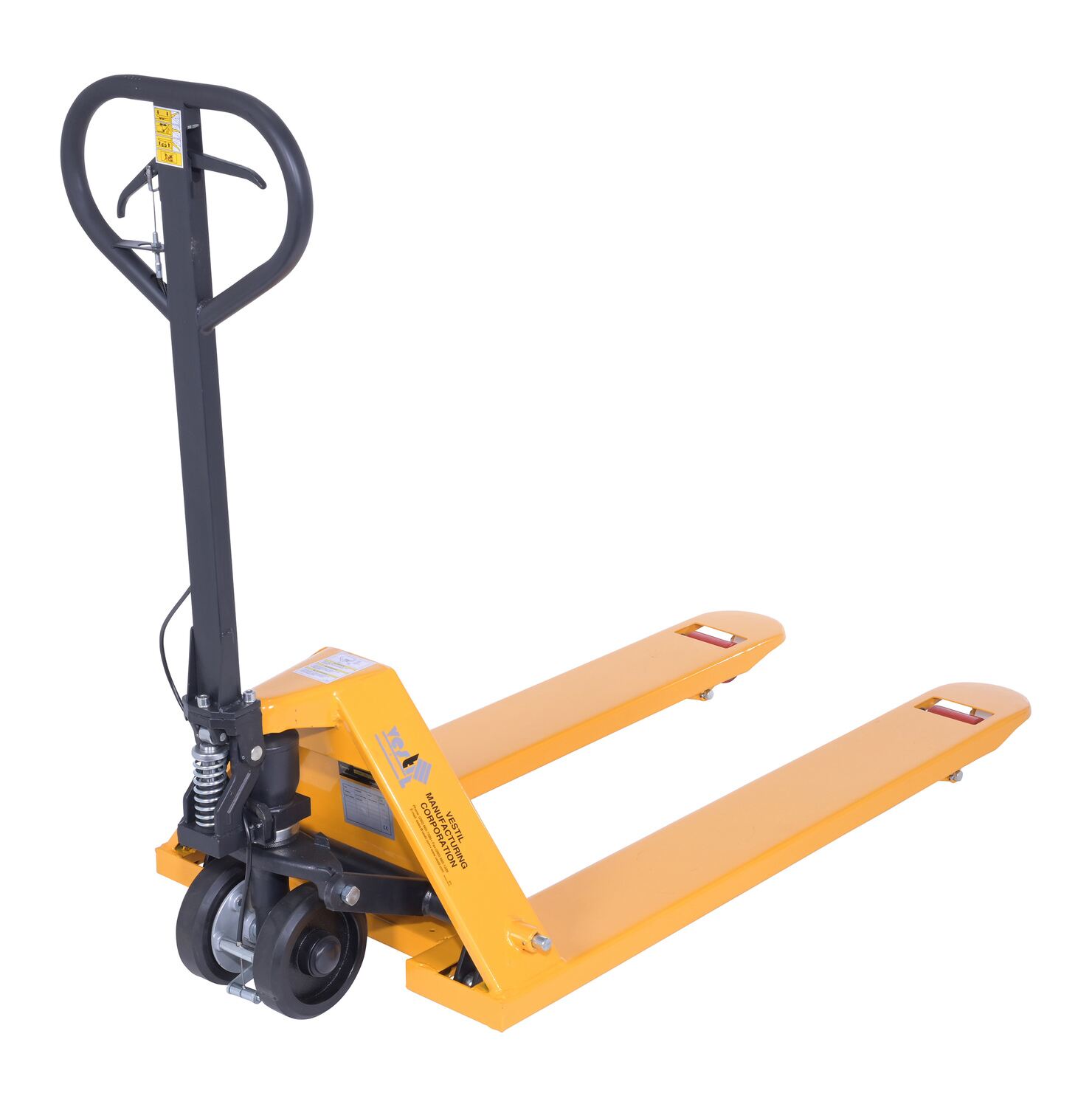

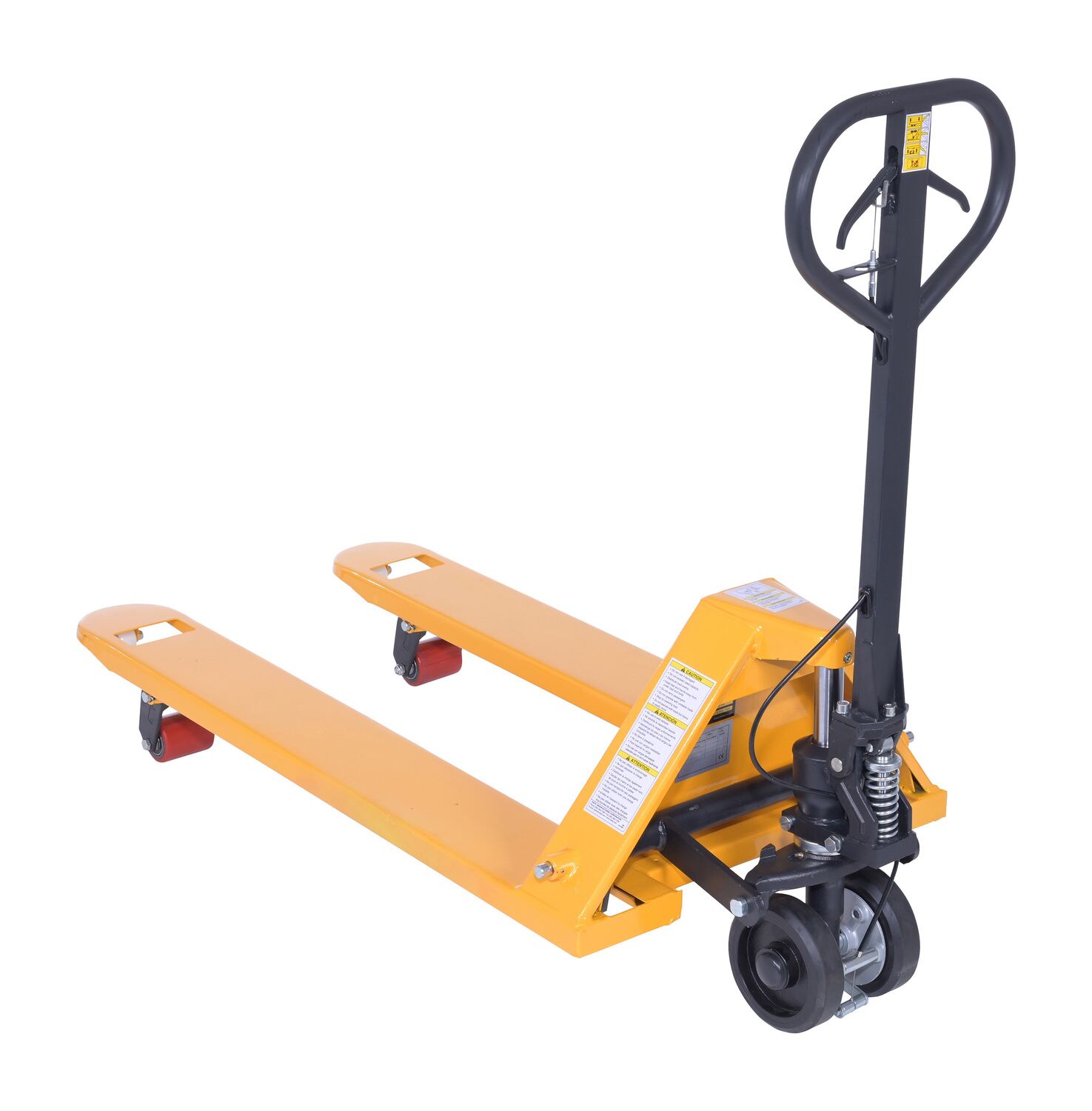

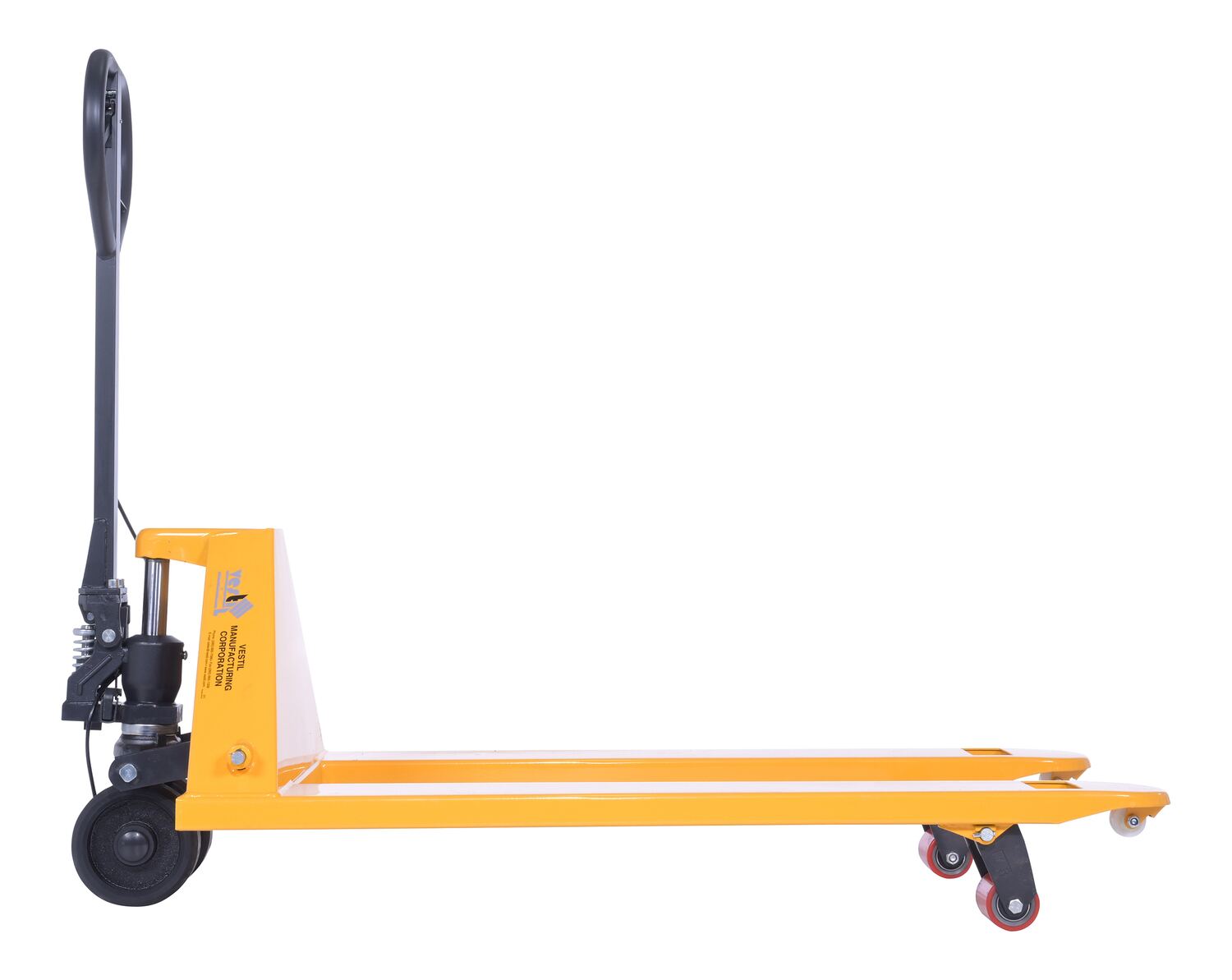

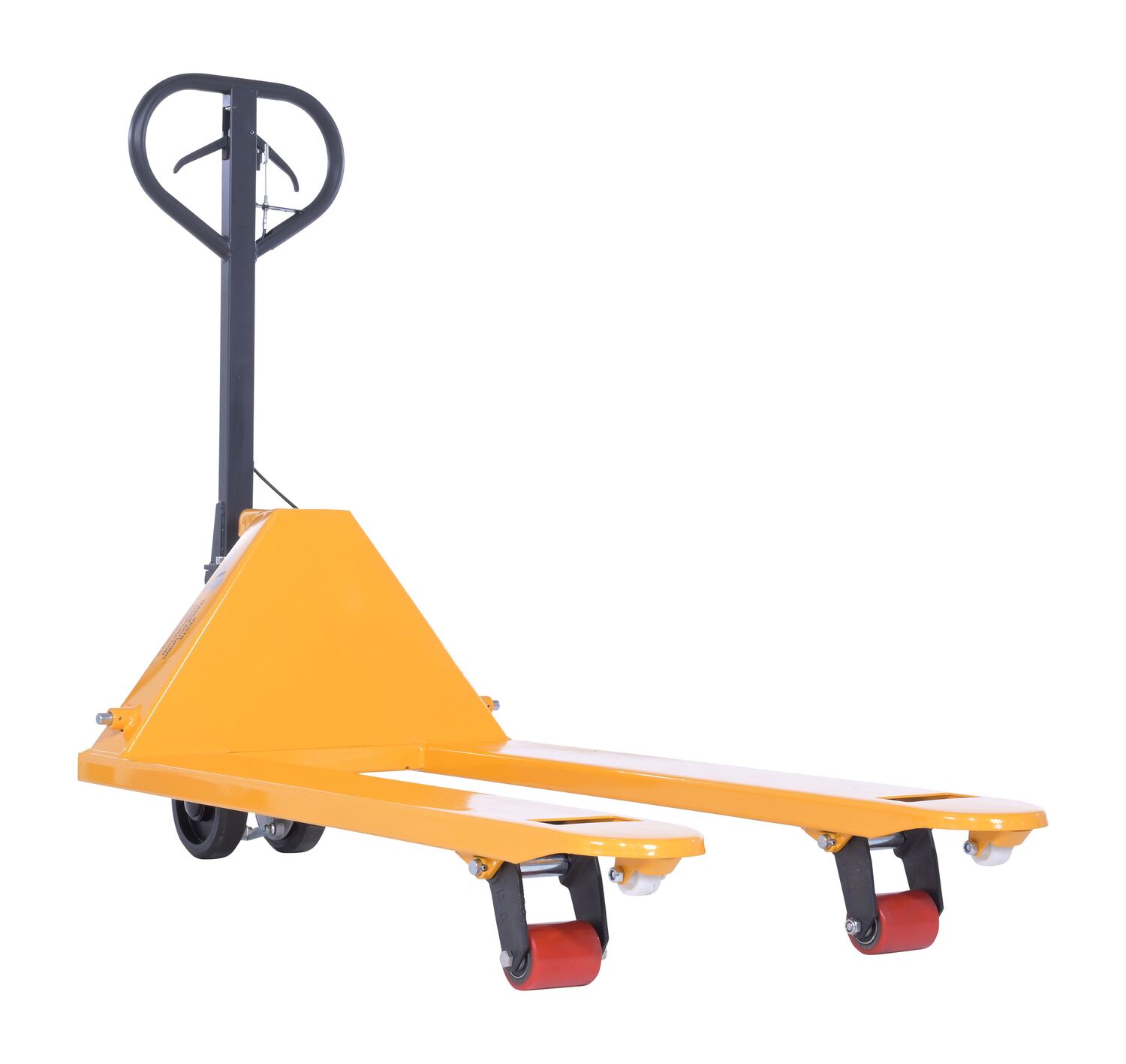

Steel Pallet Truck with Brake 66 In. x 27 In. x 49 In. 5500 Lb. Capacity Yellow

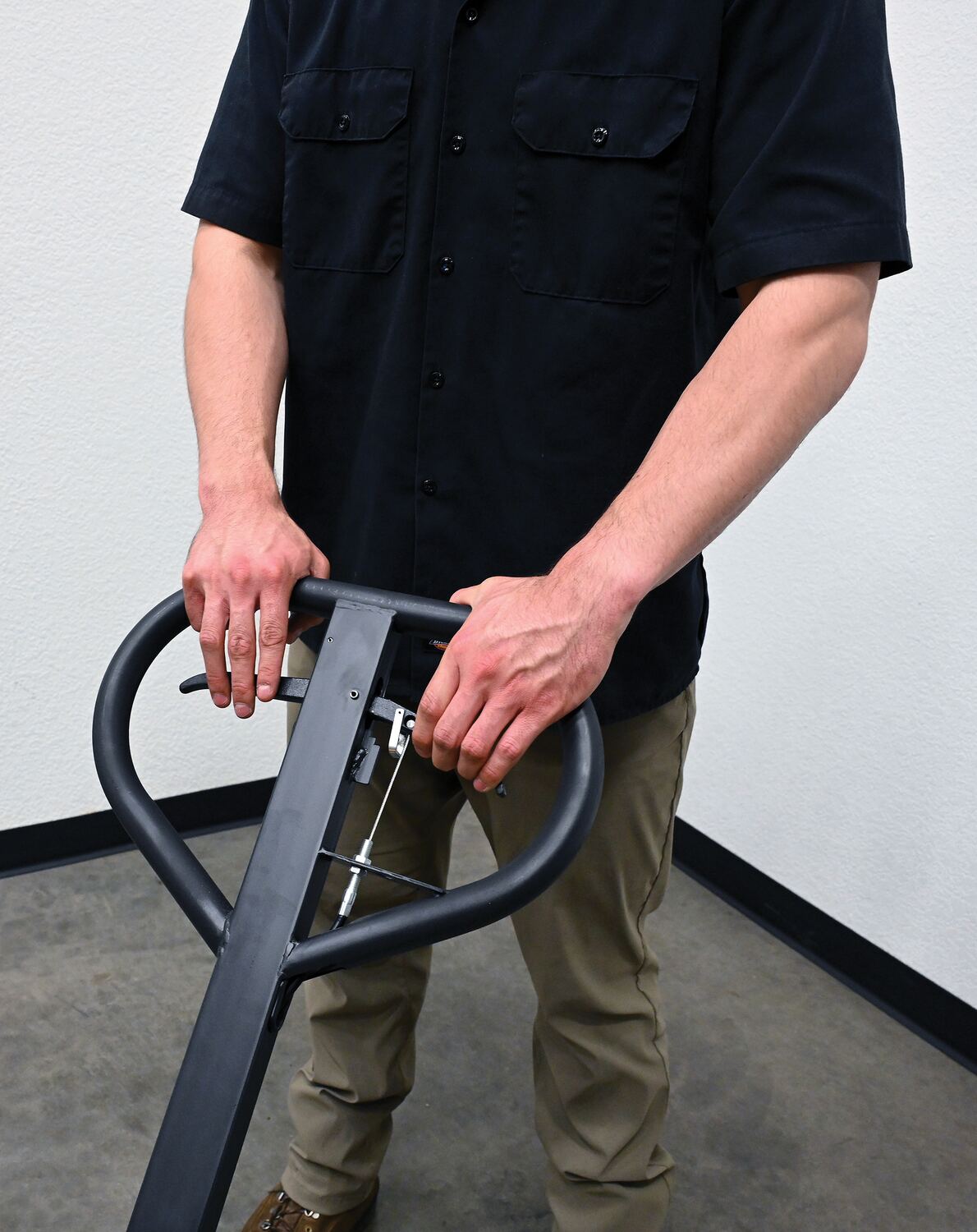

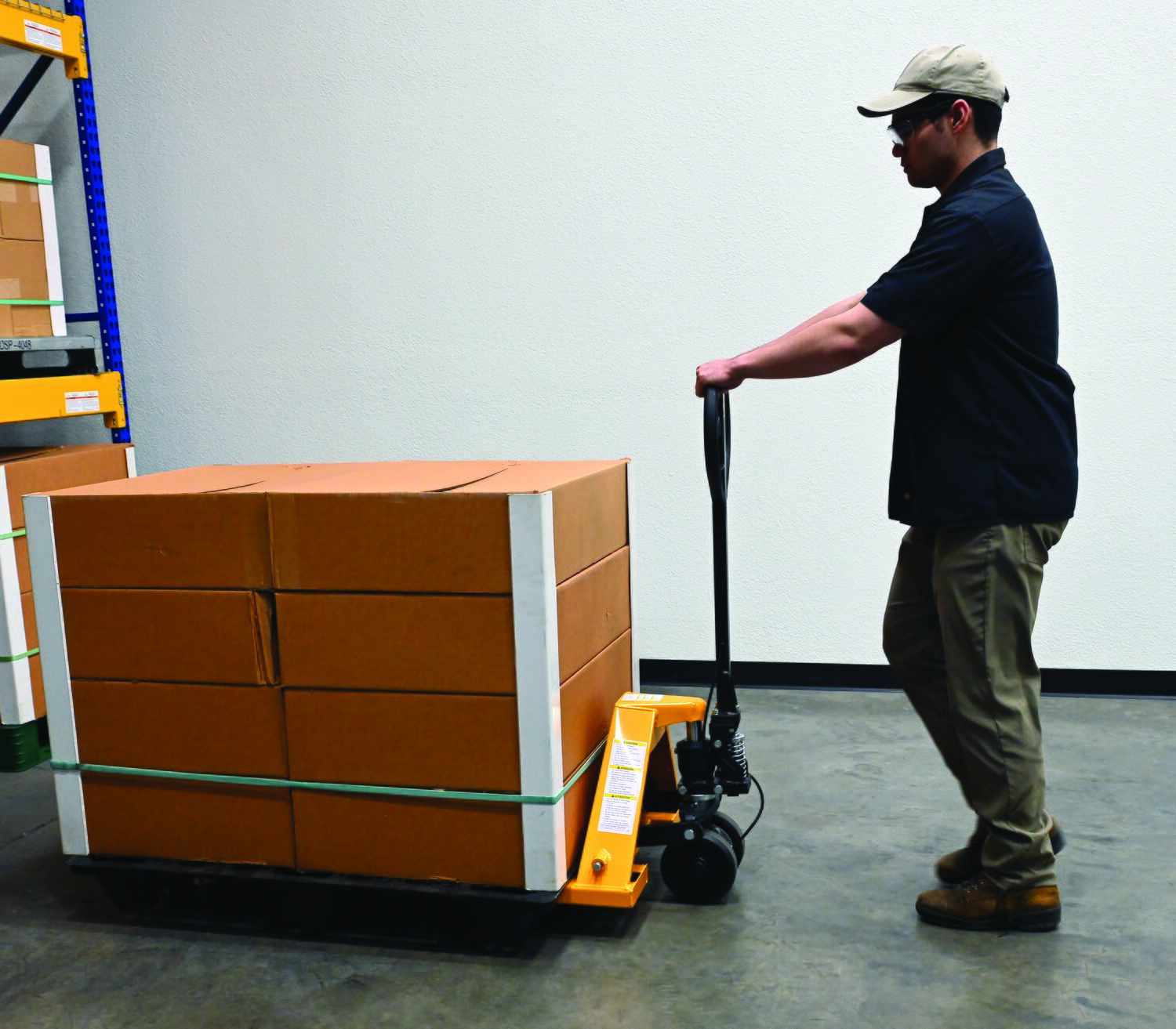

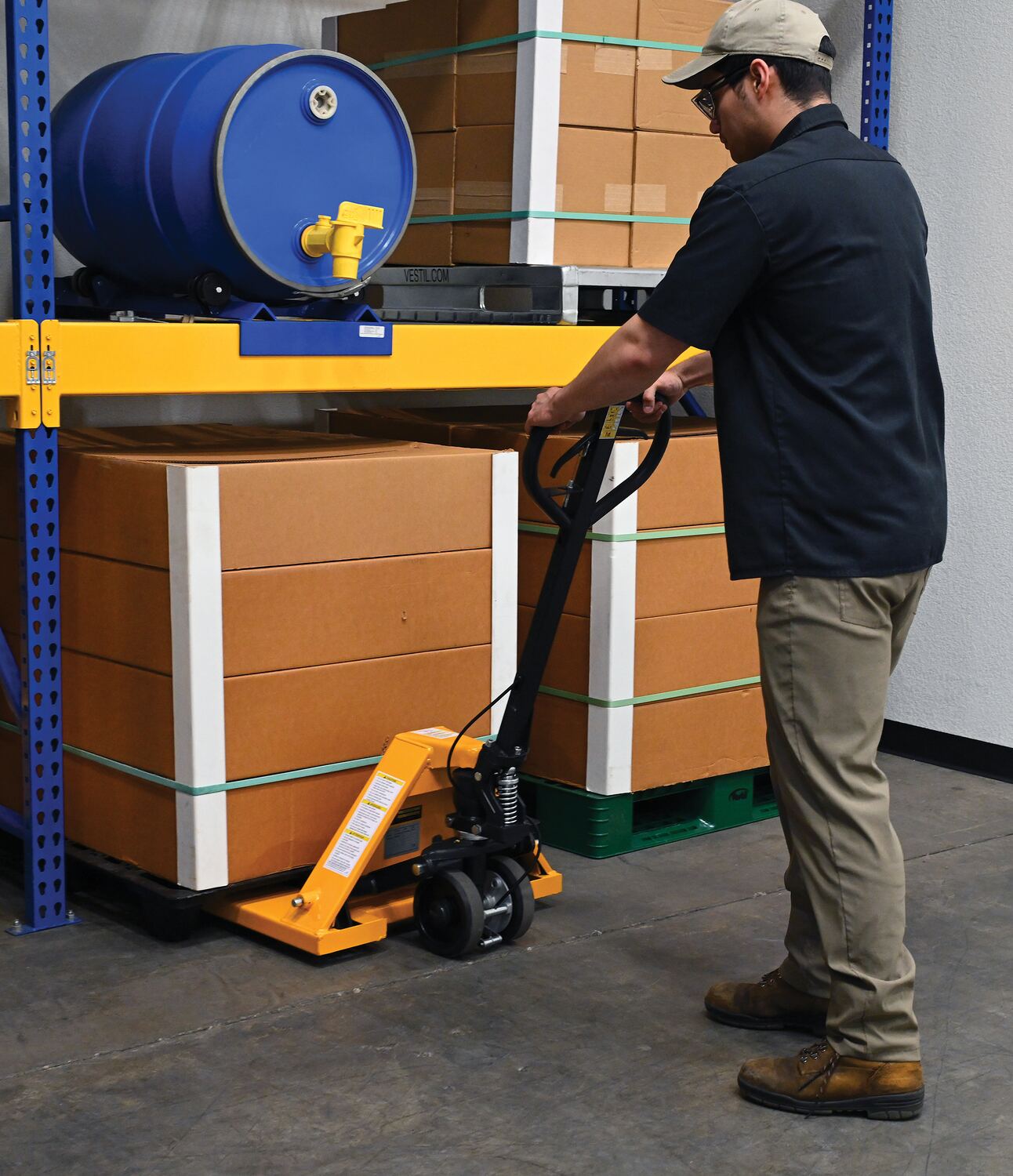

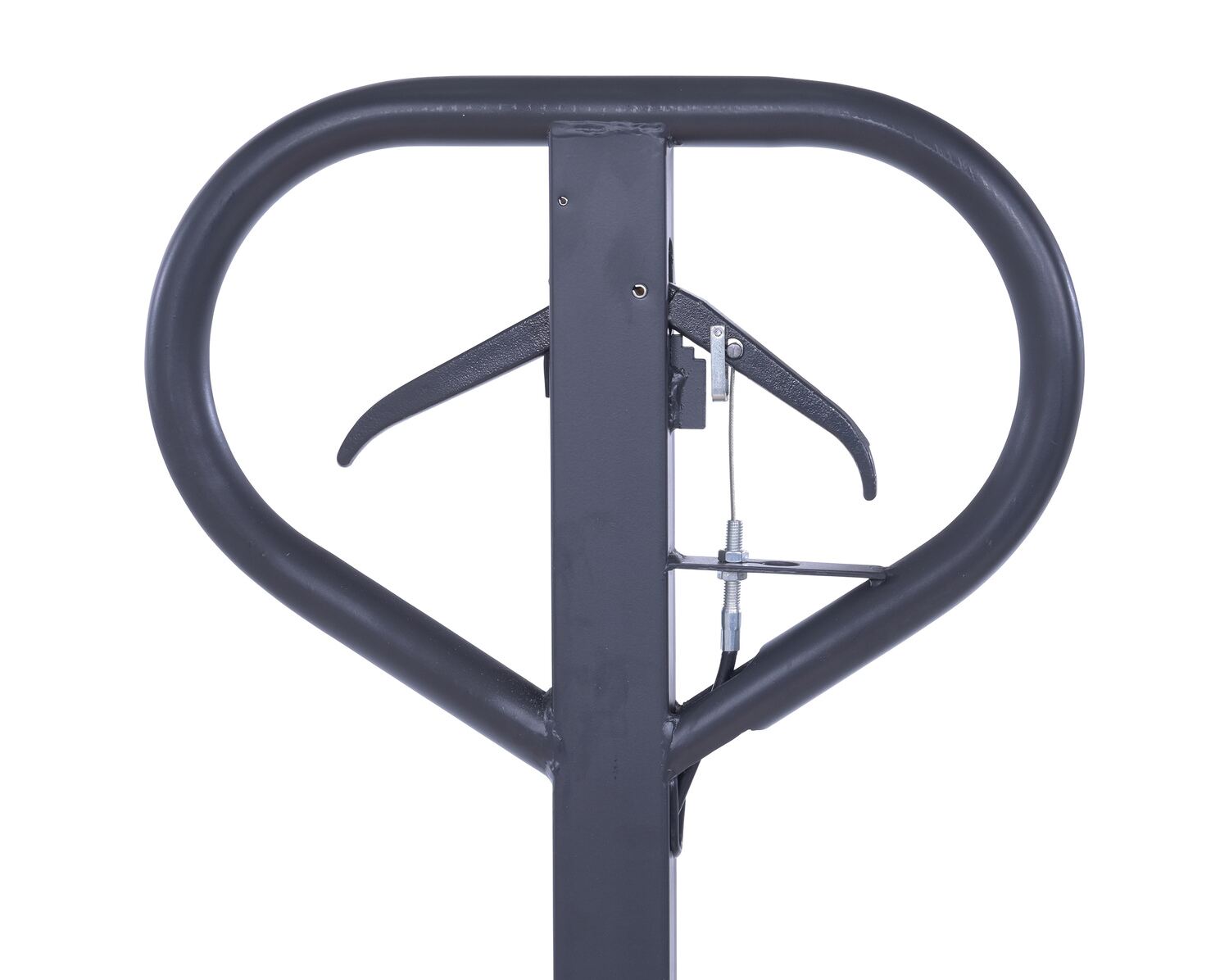

Enhanced load handling safety and precise movement control are the core advantages of this manual pallet jack with an integrated hand brake control. Its braking system helps prevent unplanned movement, making it ideal for tight aisles and high traffic areas. A 5,500 lb capacity, low effort ergonomic pull, and long life hydraulic system ensure dependable performance in demanding industrial environments. Durable components like bearing protected steering wheels, reinforced nose wheels, and a high visibility powder coat finish provide long term reliability and effortless pallet access.

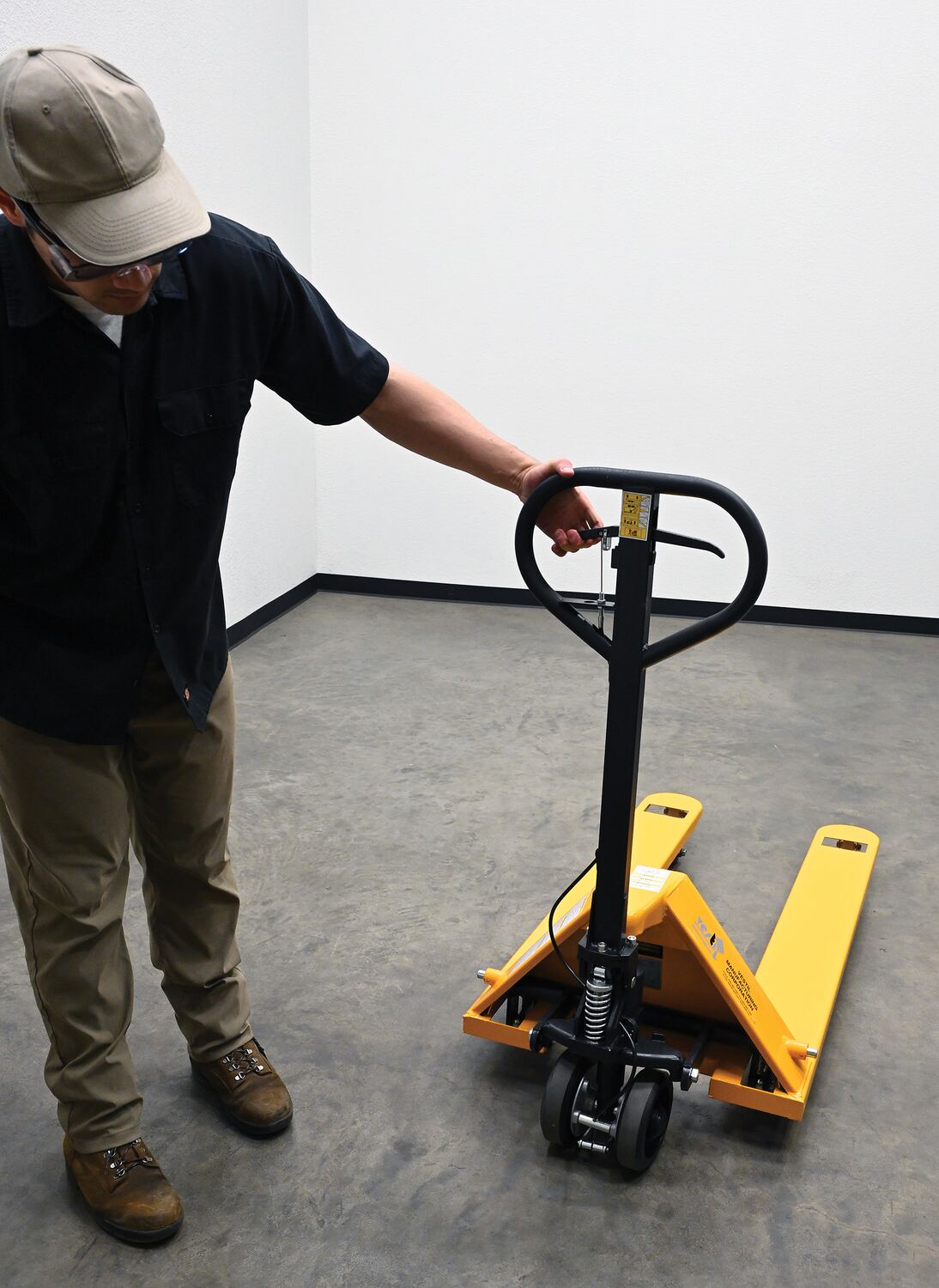

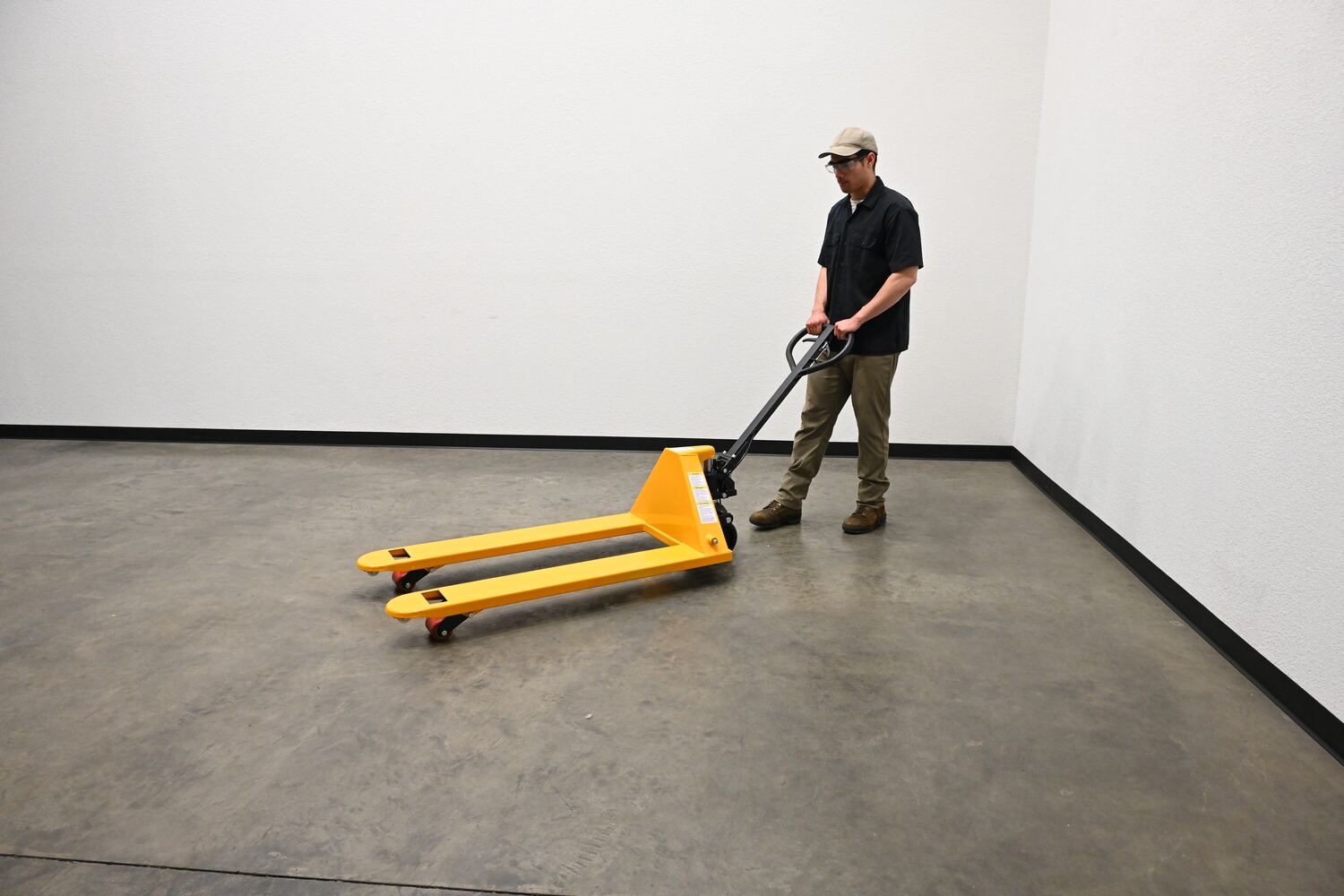

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded

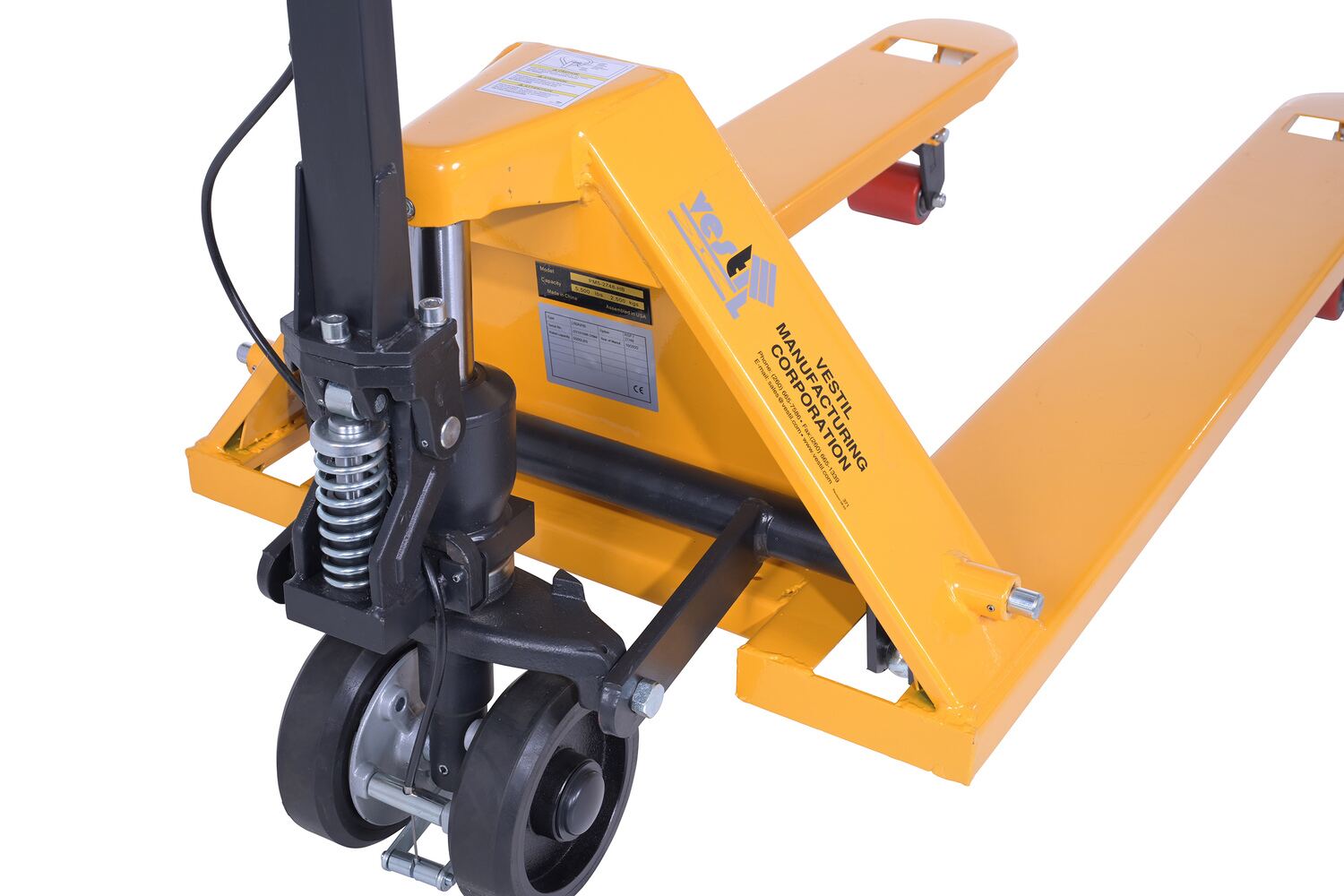

  • Steering wheels include bearing dust covers for added life

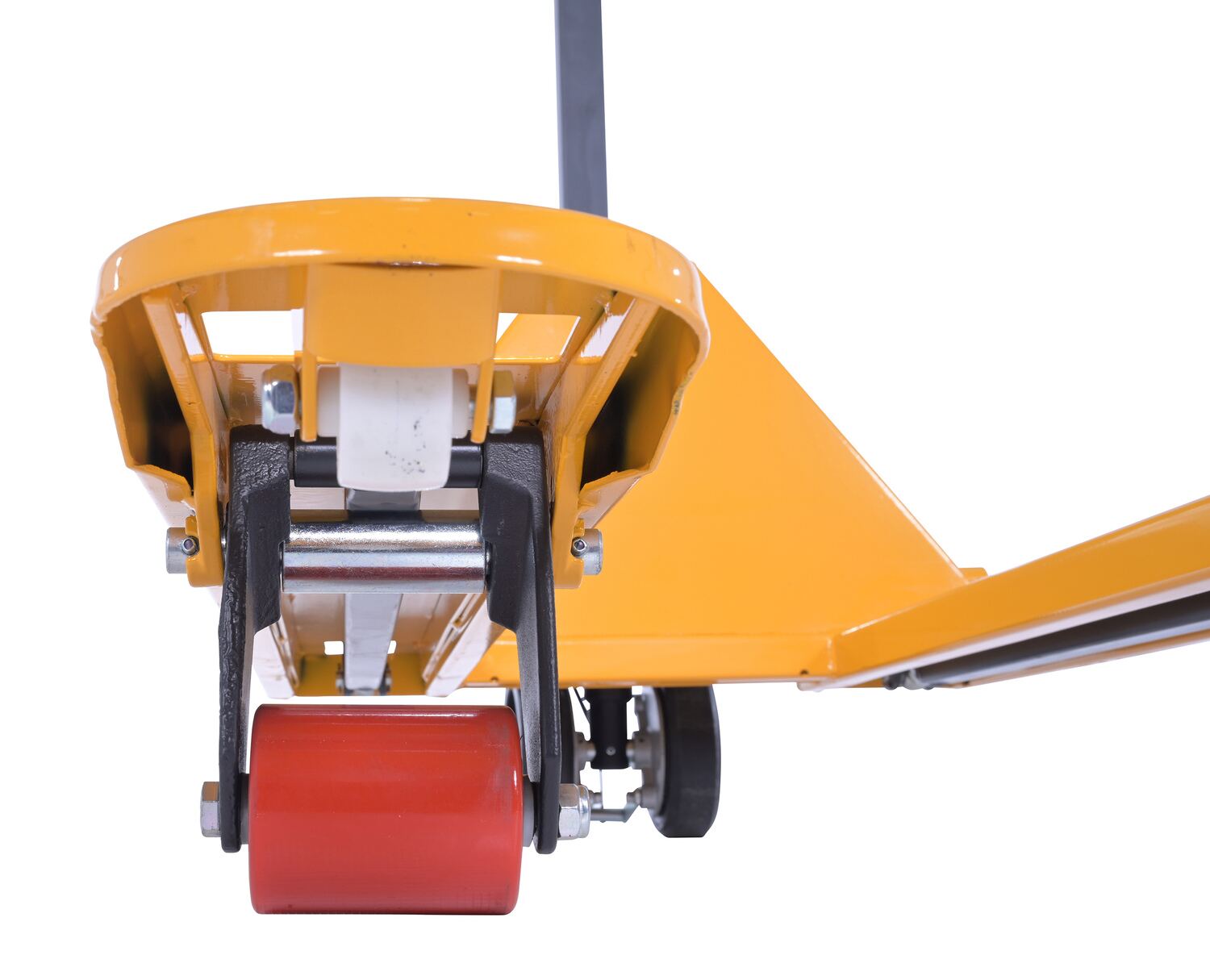

  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit

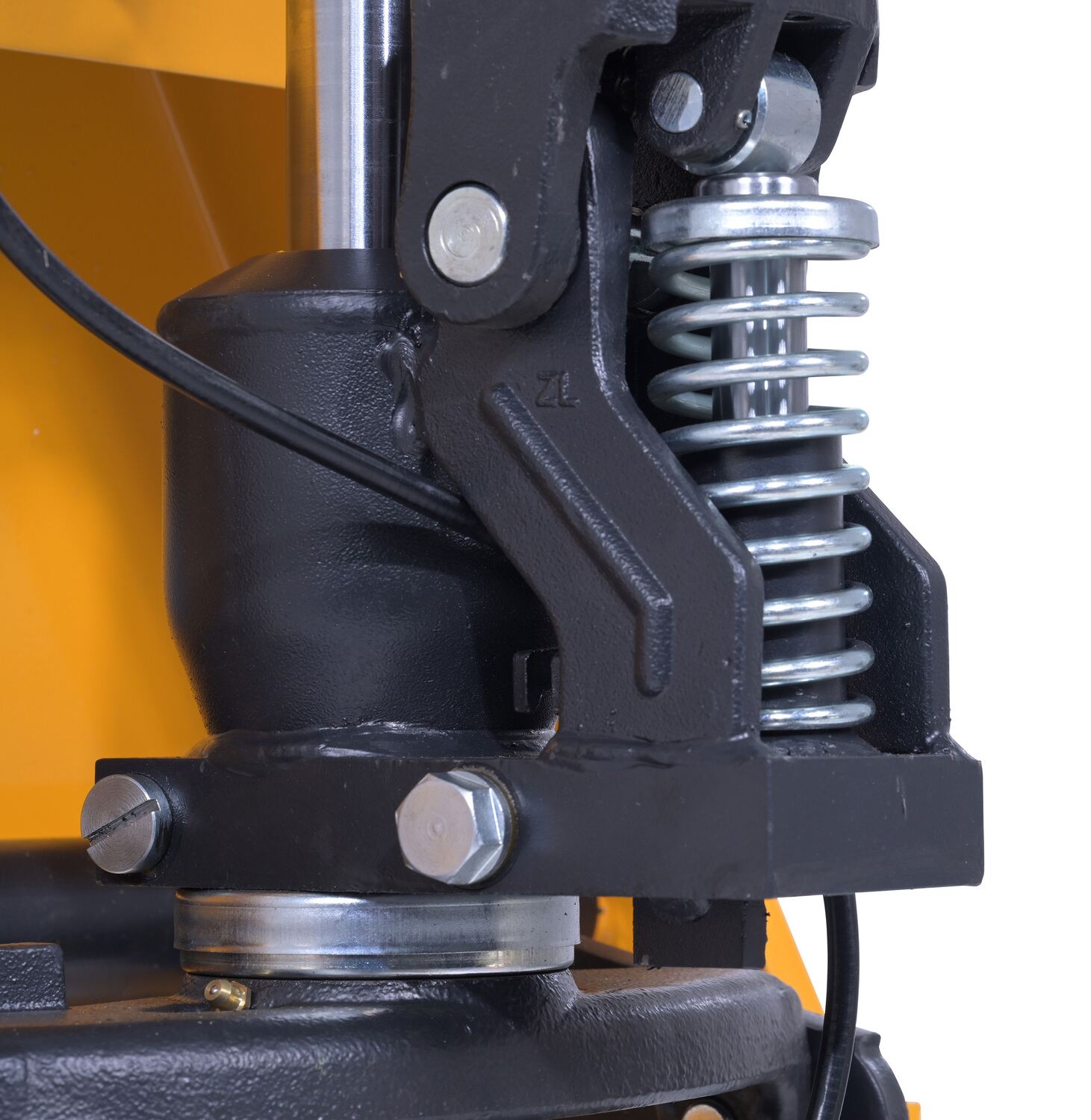

  • Chrome-plated hydraulic pump piston for long seal life
Assembled Wt.(lbs.): 178 Assembled Size: 27"W x 66"L x 49"H

Total Ship Wt.(lbs.): 228 (only 1 package) Package 1 Size: 41"W x 65"D x 53"H Color: Yellow

Uniform Capacity (lb.): 5,500 Fork Spacing (in.): 27 Fork Width/Length (in.): 7 x 48
Service Range (in.): 2-7/8 to 7-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 4 x 3 Load Roller Material: Polyurethane

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PM5-2748-HB
Out of Stock - Please Contact Sales
PM5-2748-HB

Steel Pallet Truck with Brake 66 In. x 27 In. x 49 In. 5500 Lb. Capacity Yellow

Enhanced load handling safety and precise movement control are the core advantages of this manual pallet jack with an integrated hand brake control. Its braking system helps prevent unplanned movement, making it ideal for tight aisles and high traffic areas. A 5,500 lb capacity, low effort ergonomic pull, and long life hydraulic system ensure dependable performance in demanding industrial environments. Durable components like bearing protected steering wheels, reinforced nose wheels, and a high visibility powder coat finish provide long term reliability and effortless pallet access.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Dimensions: 27"W x 66"L x 49"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 228 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 5,500 Fork Spacing (in.): 27 Fork Width/Length (in.): 7 x 48
Service Range (in.): 2-7/8 to 7-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 4 x 3 Load Roller Material: Polyurethane
