Model Details

POS-3636-EH

POS-3636-EH

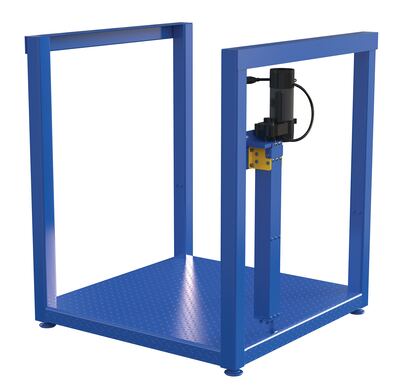

Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity Blue

The post-crank ergonomic work station is an economical variable height worker positioned. with the use of electric hydraulic lifting system, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the post-crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale. The post-crank incorporates the use of acme threaded rods for a simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The unit is constructed of steel to provide years of service.

  • Easily adjustable height
  • Incorporates the use of acme threaded rods
  • Tall side rails for added safety and stability
  • Deck is constructed of steel tread plate for better traction
Total Ship Wt.(lbs.): 429 (only 1 package) Size: 37.1875"W x 36.25"L x 42.625"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 500 Platform Width (in.): 31 Platform Length (in.): 31
Lowered Height (in.): 3 Raised Height (in.): 19 Operation: Electric/Hydraulic
Deck Raises Per 1 Revolution of Crank (in.): 1/8 Lowered Overall Height (in.): 49-5/8 Raised Overall Height (in.): 58-5/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: POS-3636-EH


POS-3636-EH

Steel Ergonomic Electric/Hydraulic Post-Crank Worker Platform 36-1/4 In. x 37-3/16 In. x 42-5/8 In. 500 Lb. Capacity Blue

The post-crank ergonomic work station is an economical variable height worker positioned. with the use of electric hydraulic lifting system, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the post-crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale. The post-crank incorporates the use of acme threaded rods for a simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The unit is constructed of steel to provide years of service.

  • Easily adjustable height
  • Incorporates the use of acme threaded rods
  • Tall side rails for added safety and stability
  • Deck is constructed of steel tread plate for better traction
Dimensions: 37.1875"W x 36.25"L x 42.625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215321396 GTIN: 00691215321396
Warranty: -- Shipping Weight: 429 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 500 Platform Width (in.): 31 Platform Length (in.): 31
Lowered Height (in.): 3 Raised Height (in.): 19 Operation: Electric/Hydraulic
Deck Raises Per 1 Revolution of Crank (in.): 1/8 Lowered Overall Height (in.): 49-5/8 Raised Overall Height (in.): 58-5/8
