model: POS-3636


SERIES: POS
Posi-Crank Worker Platforms

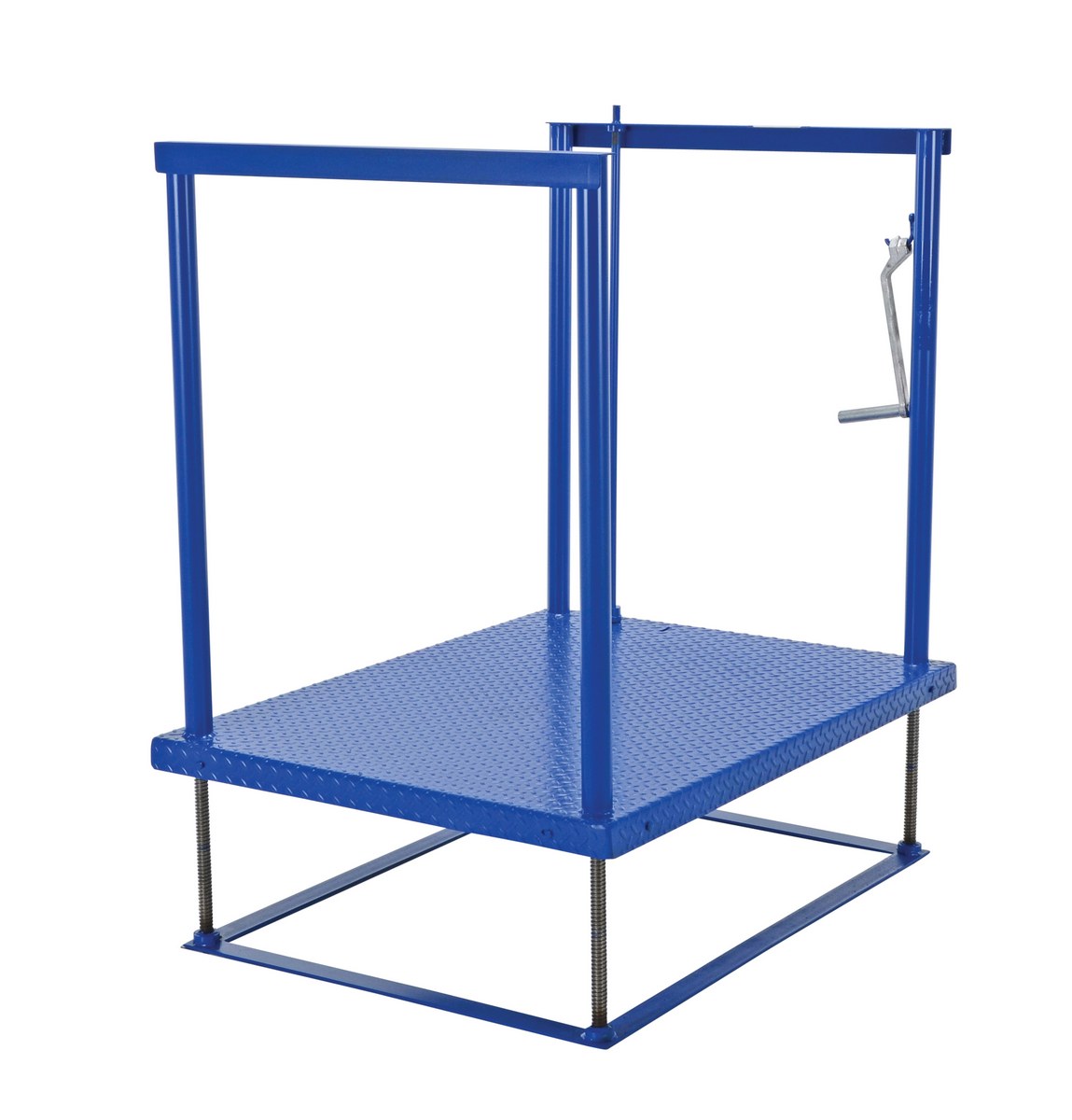

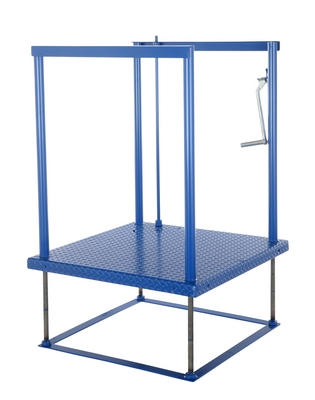

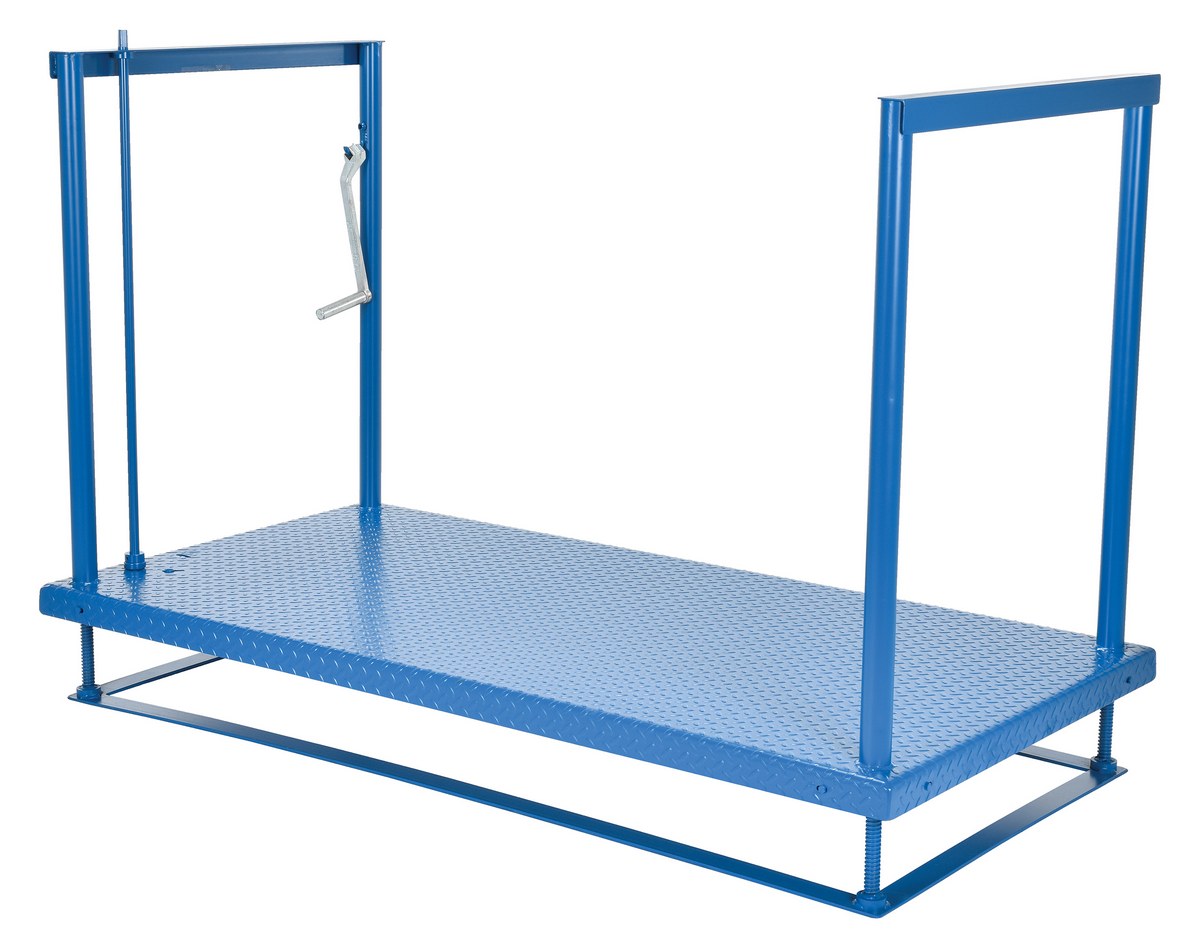

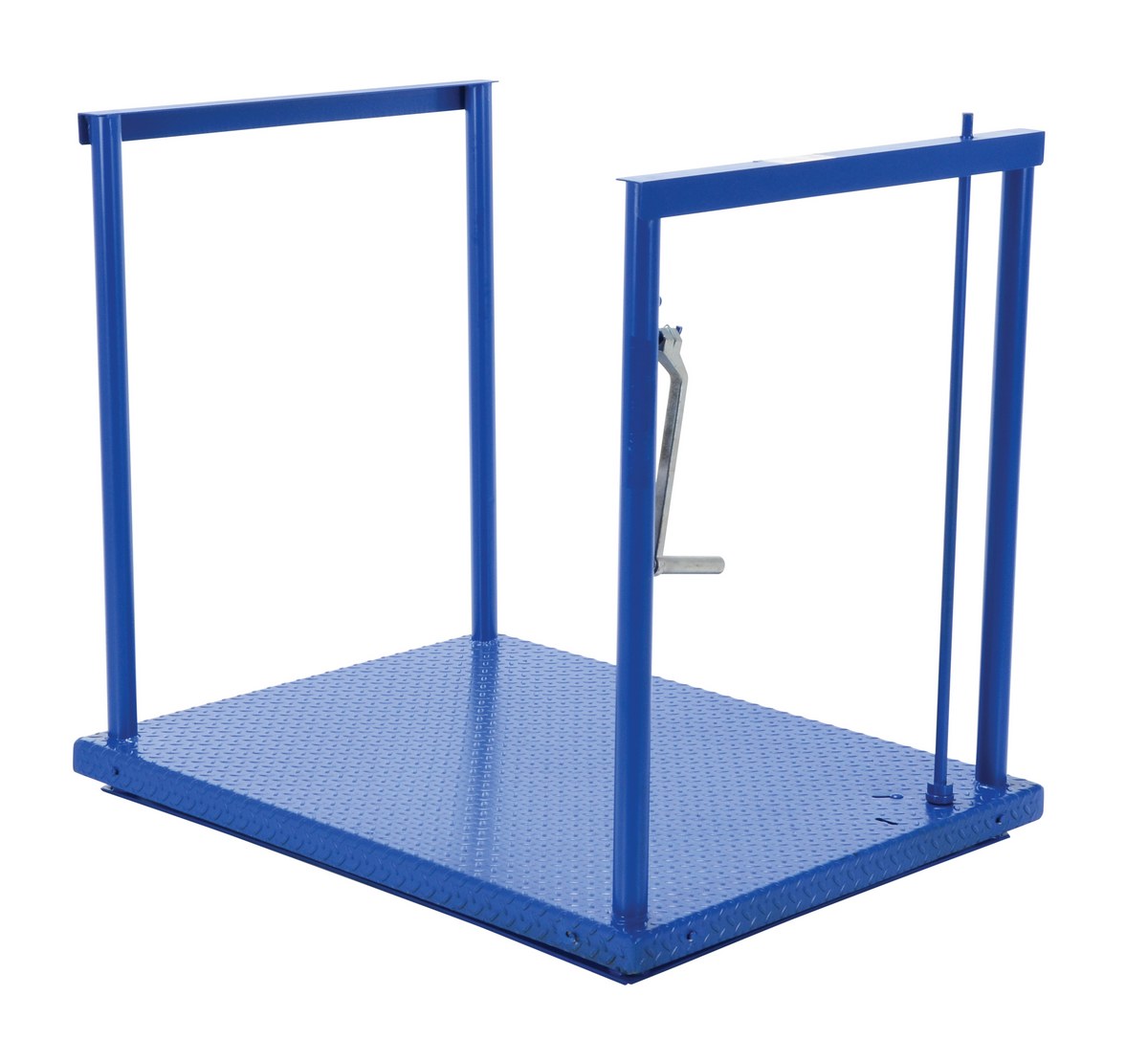

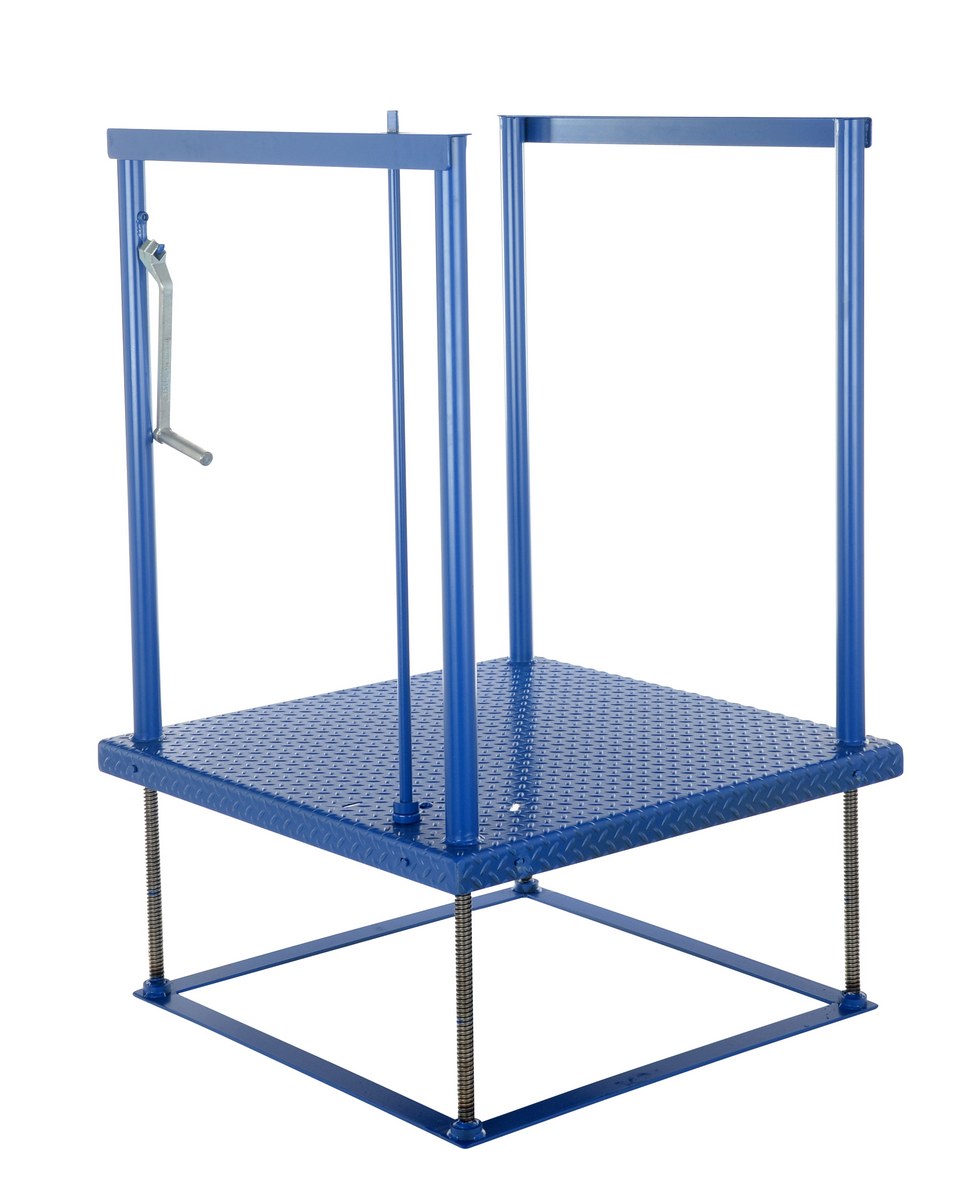

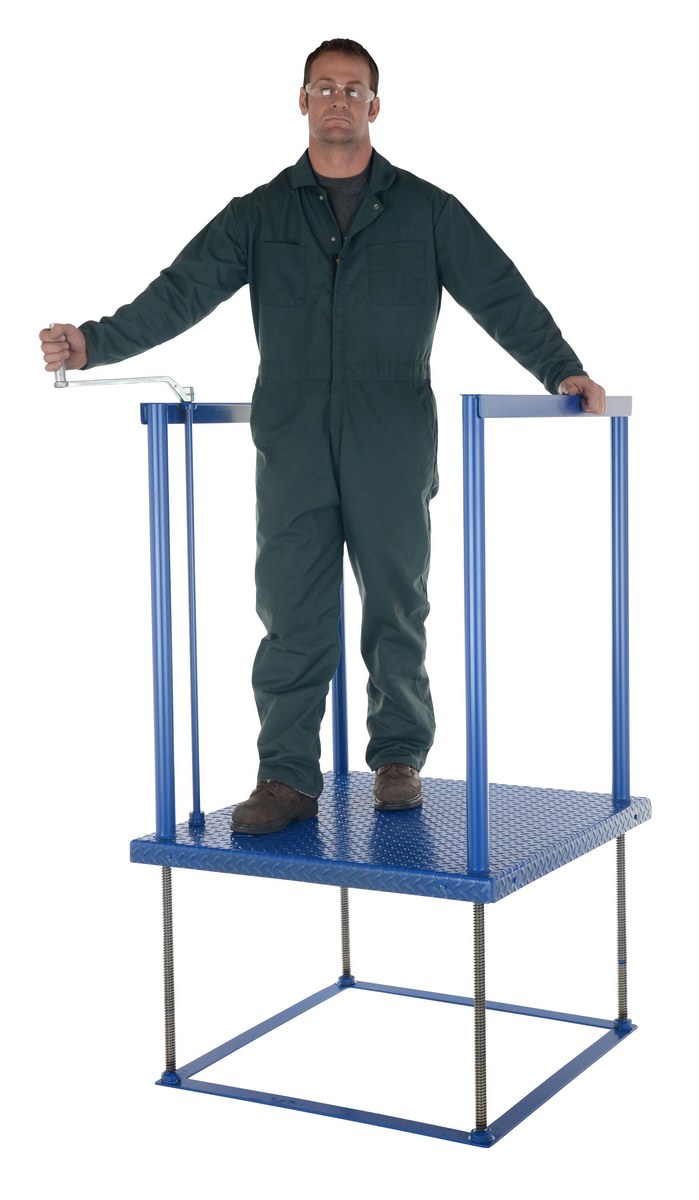

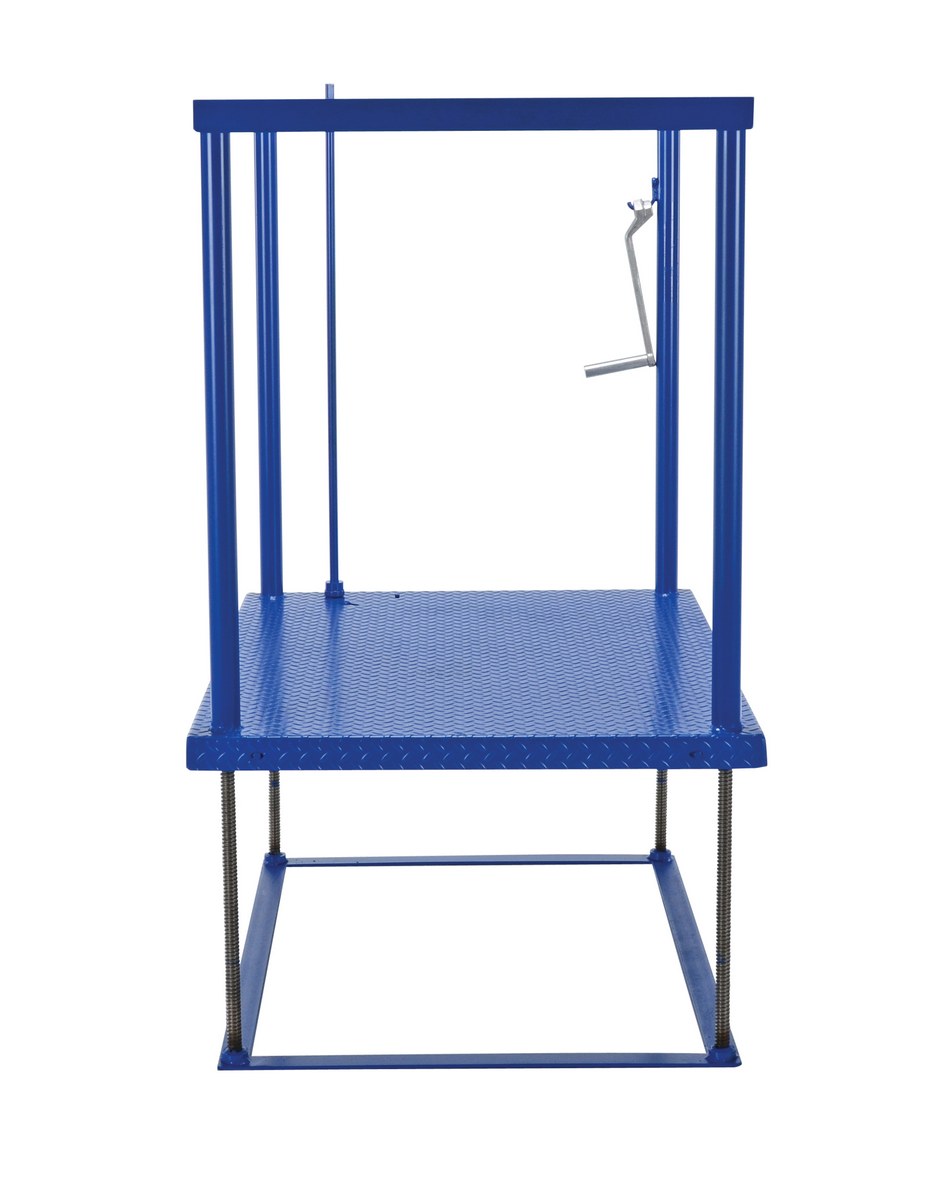

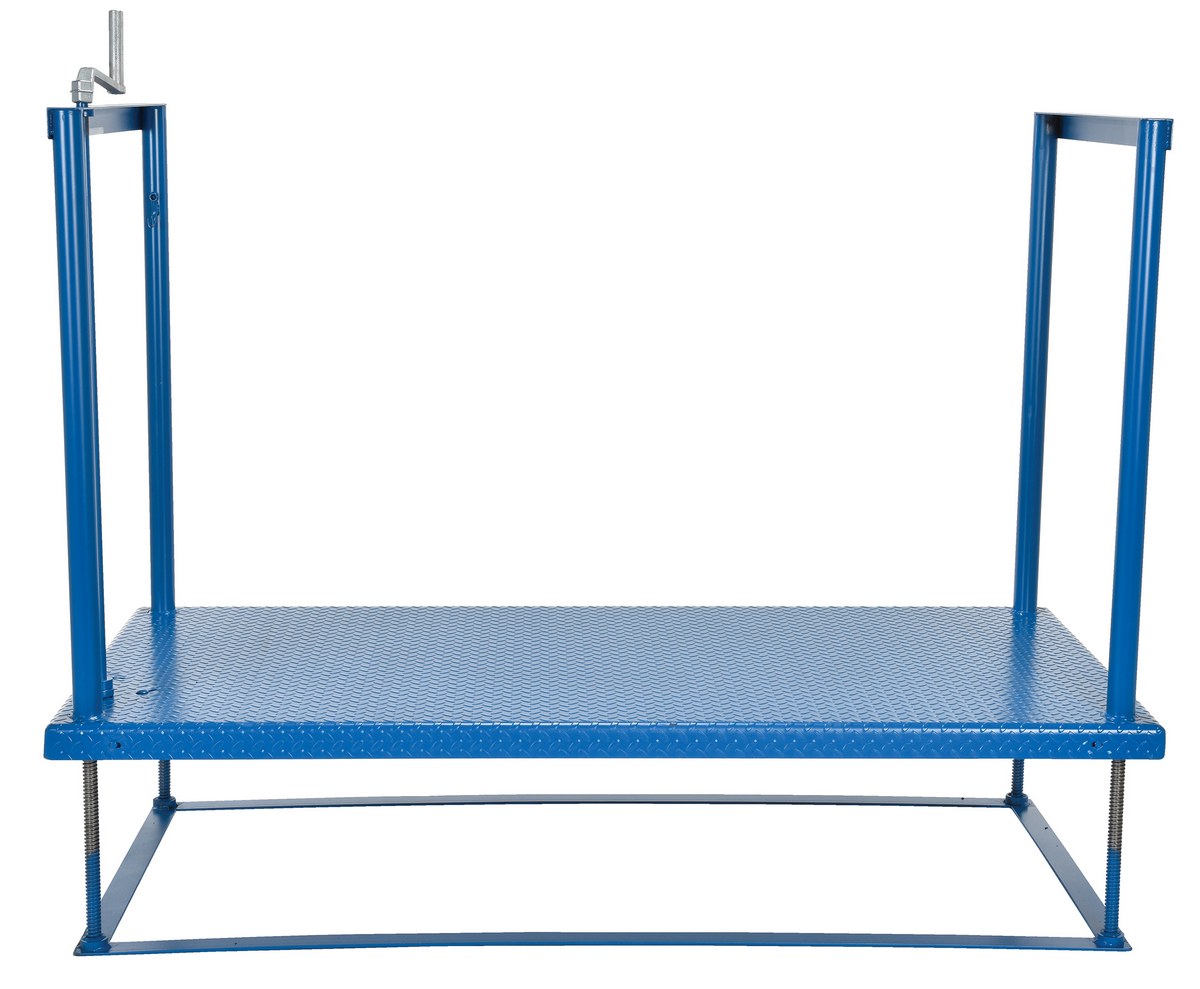

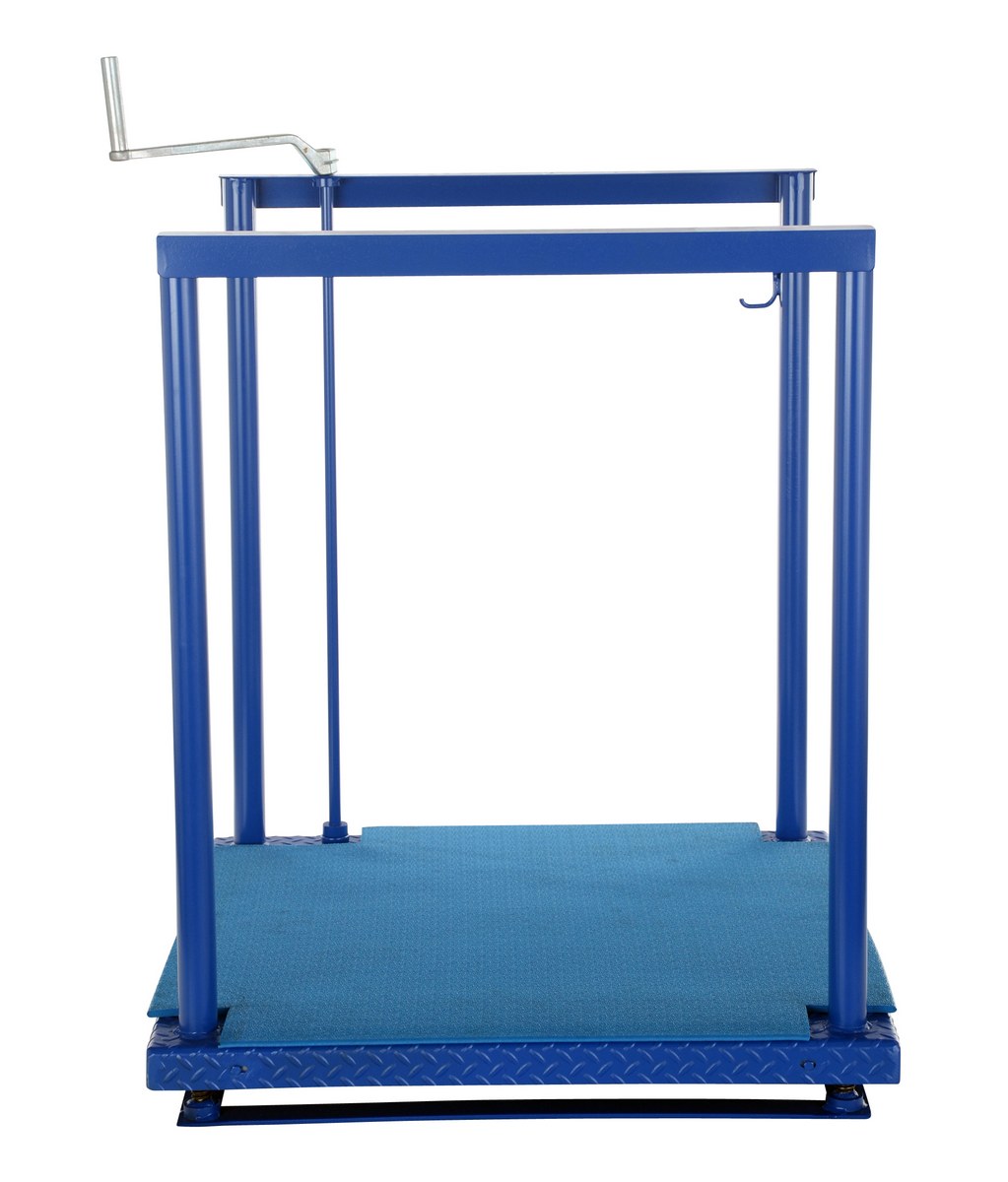

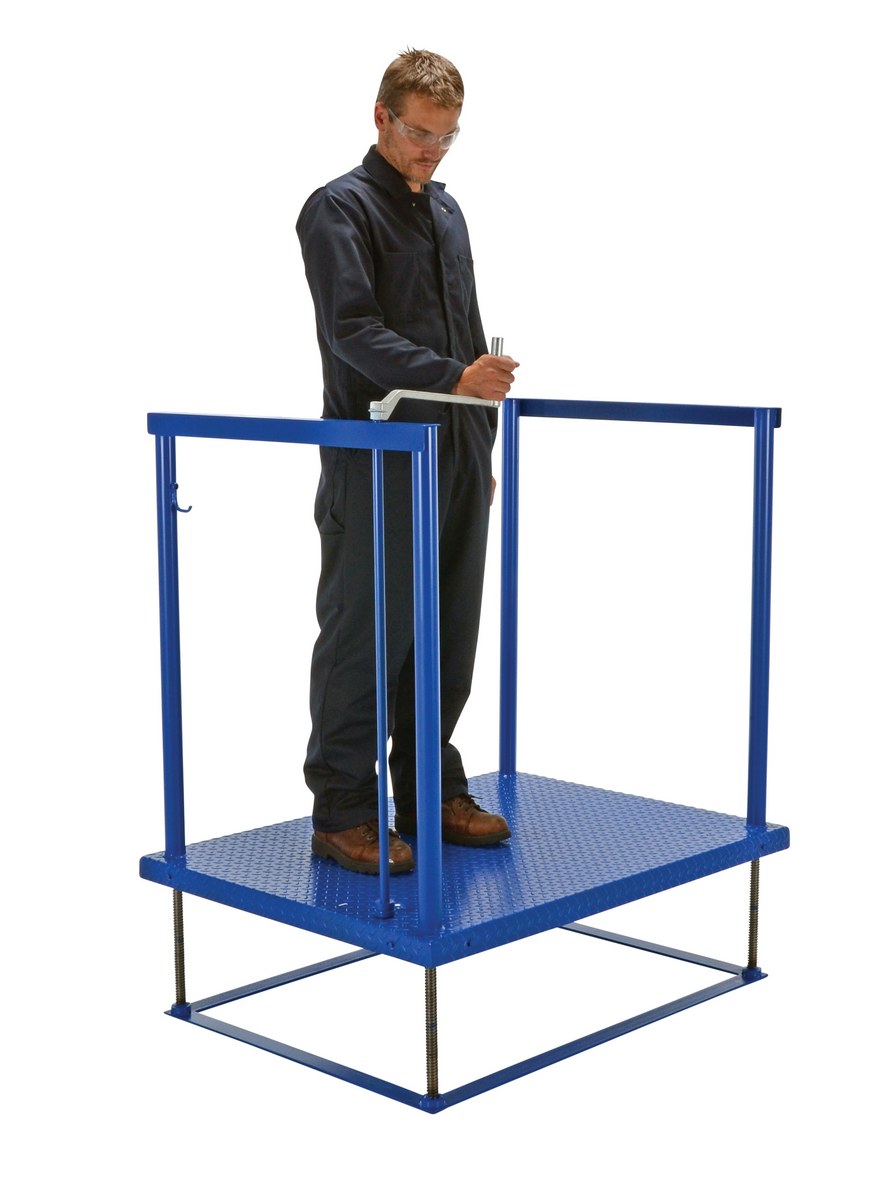

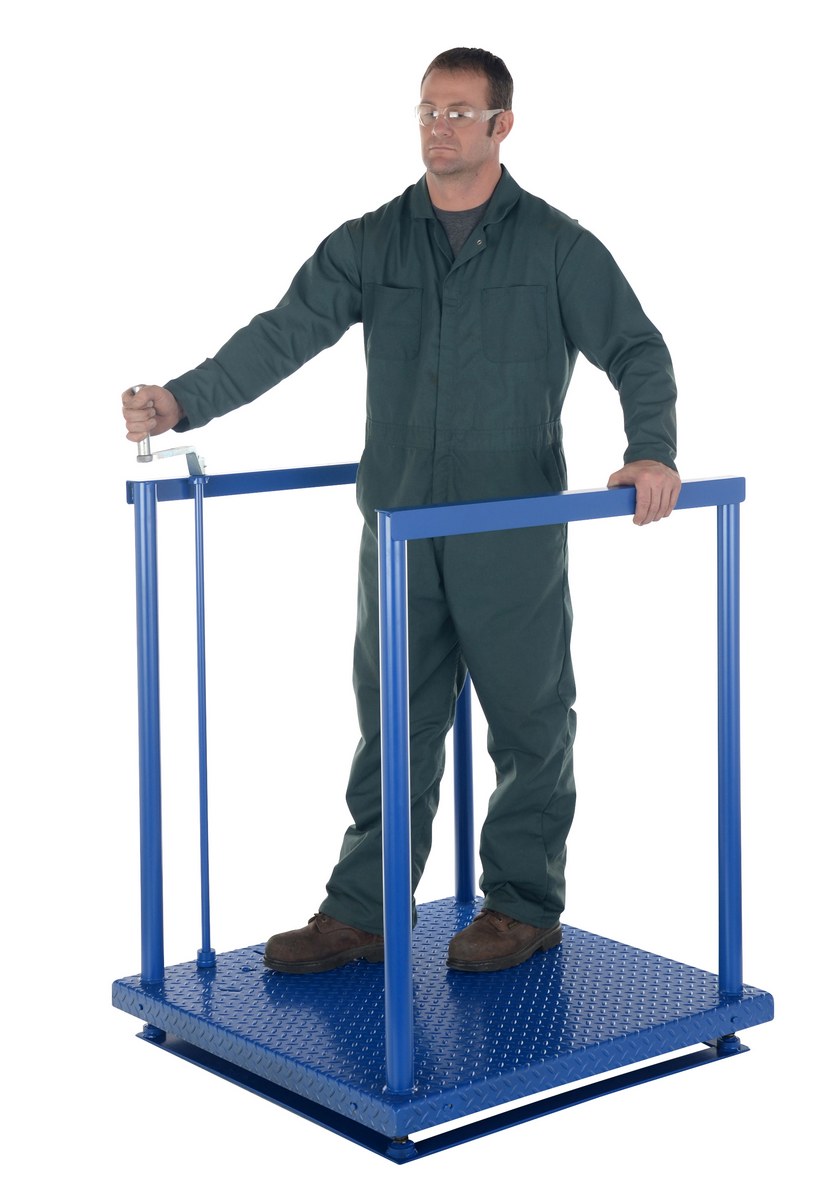

The Posi-Crank ergonomic work station is an economical variable height worker positioner. With a simple turn of a crank, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the Posi-Crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale.

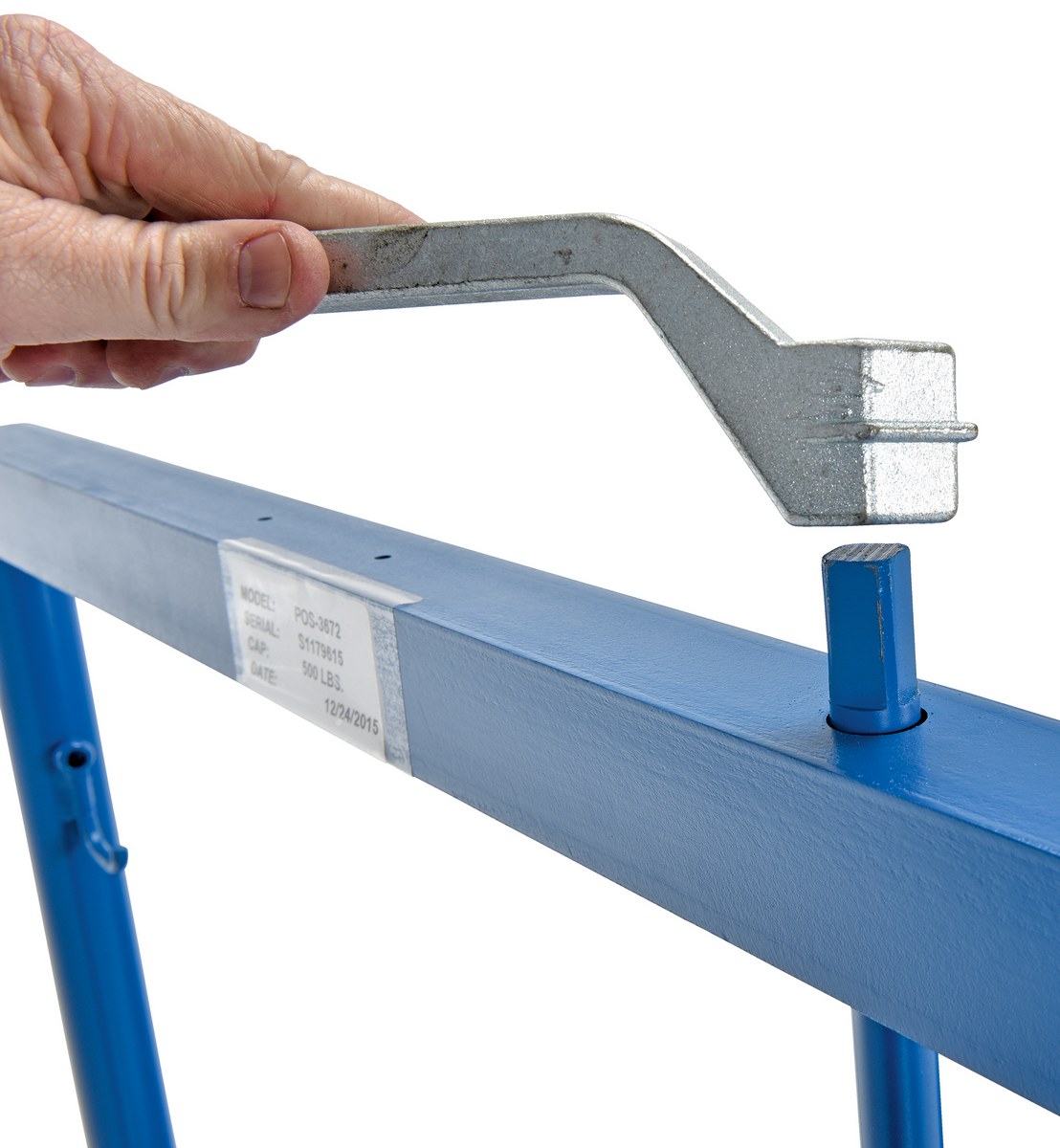

The Posi-Crank incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The crank handle may be removed and placed on the handle holder for maximizing the operating space. The deck is constructed of 1/8" steel tread plate for strength and the best traction. Maximum capacity is 500 pounds. Vertical travel range is 3" lowered to 19" raised. The Posi-Crank is constructed of steel to provide for years of service. The unit is painted blue, while the ergonomic anti-fatigue matting is also blue.

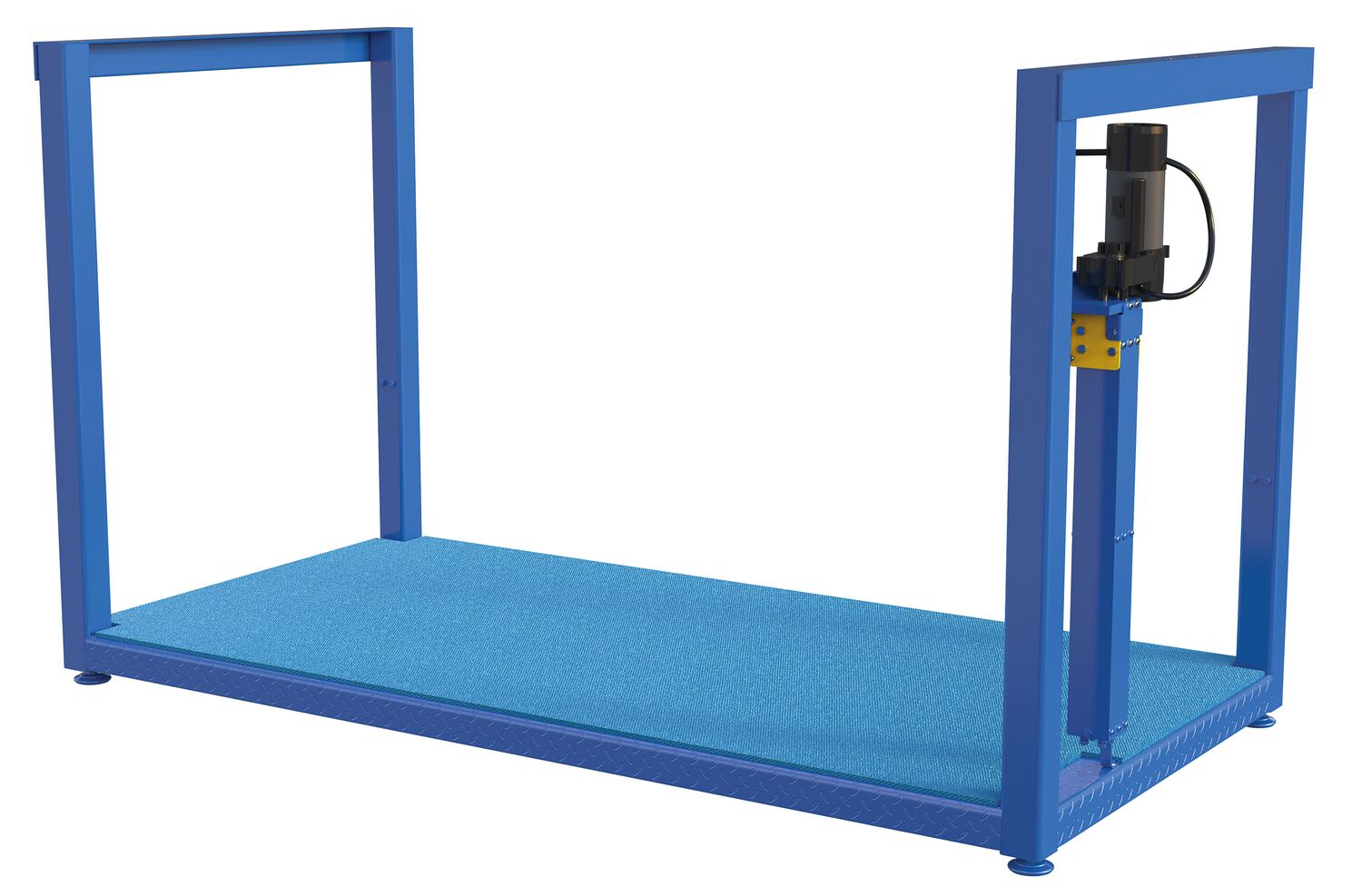

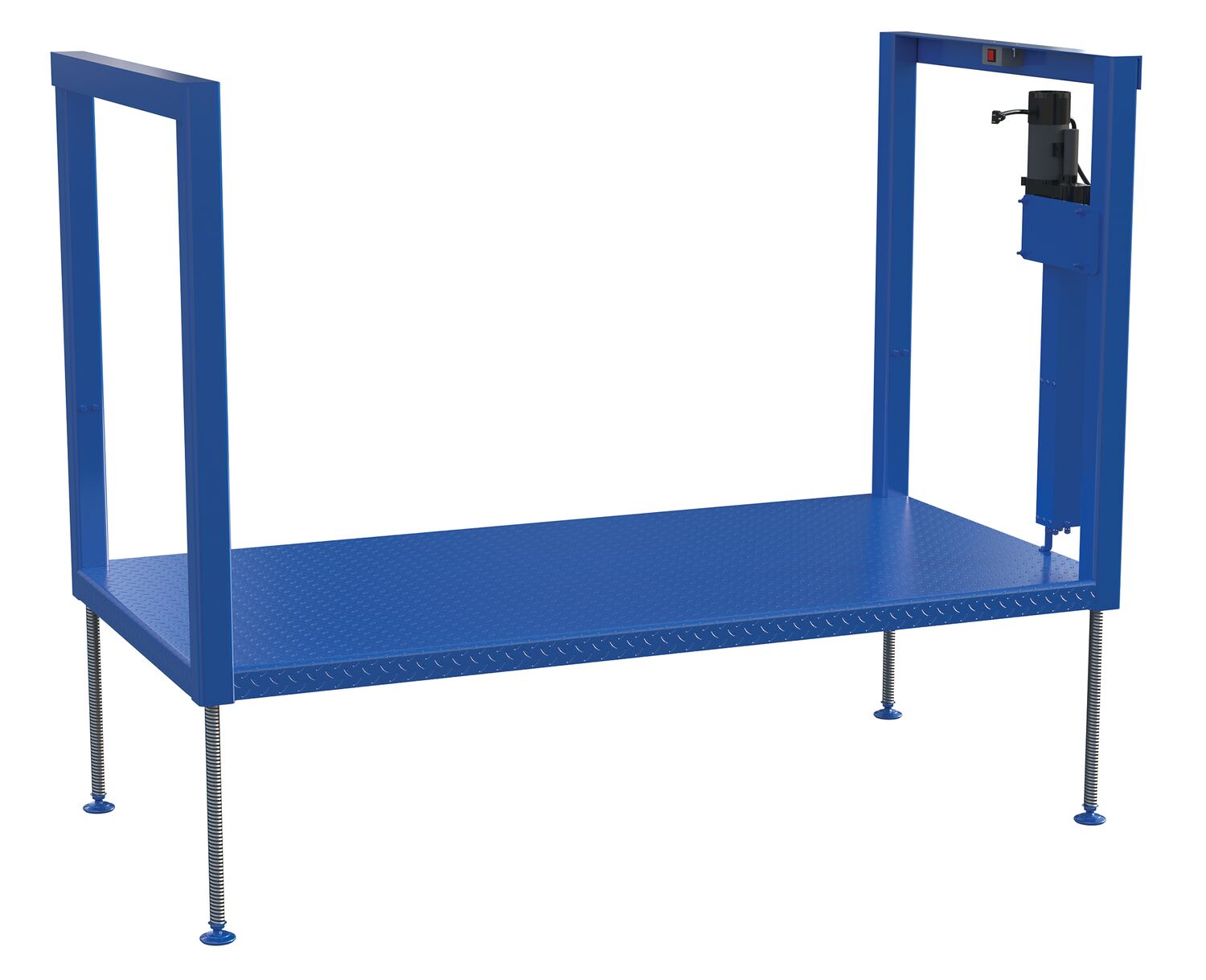

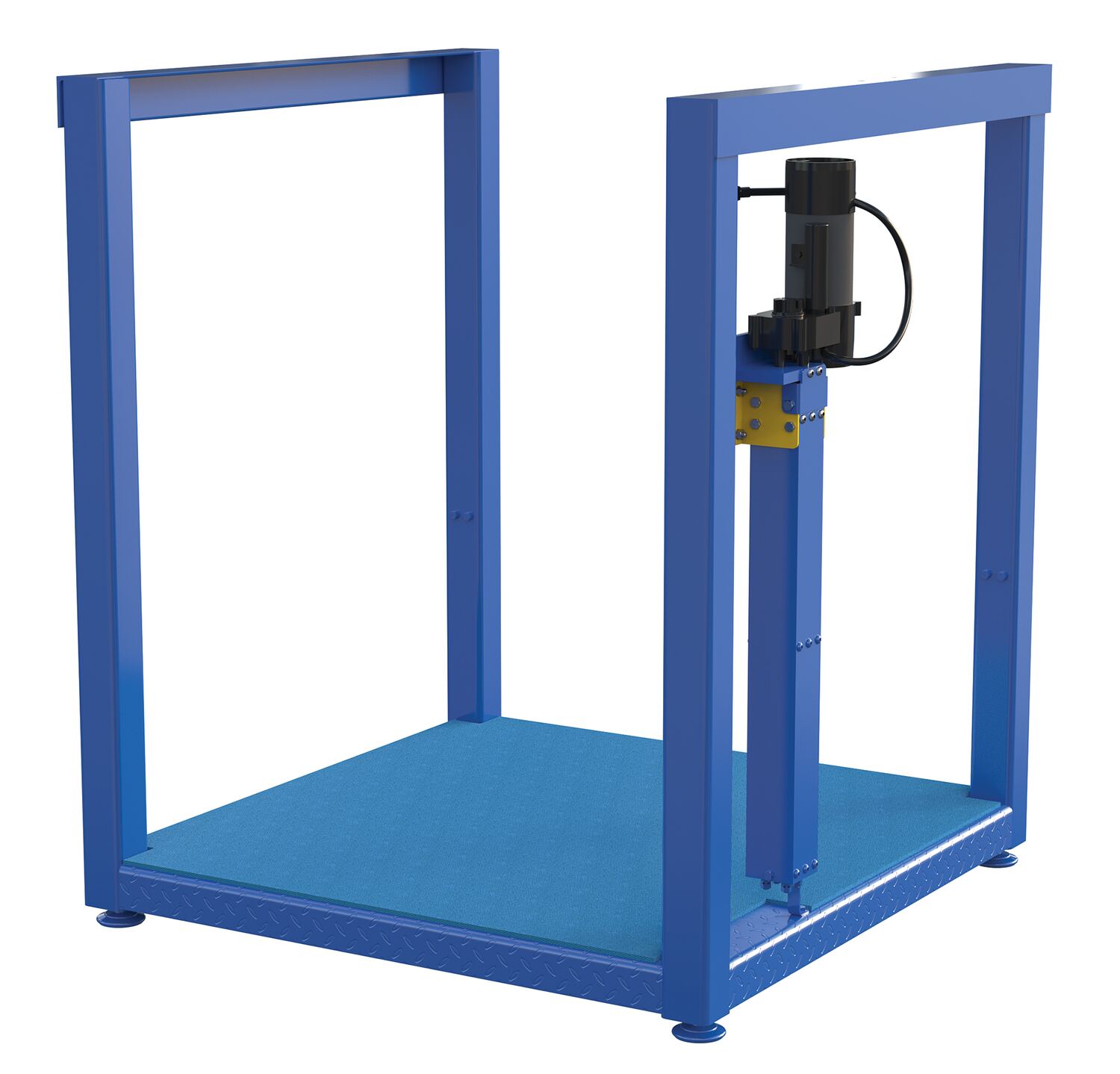

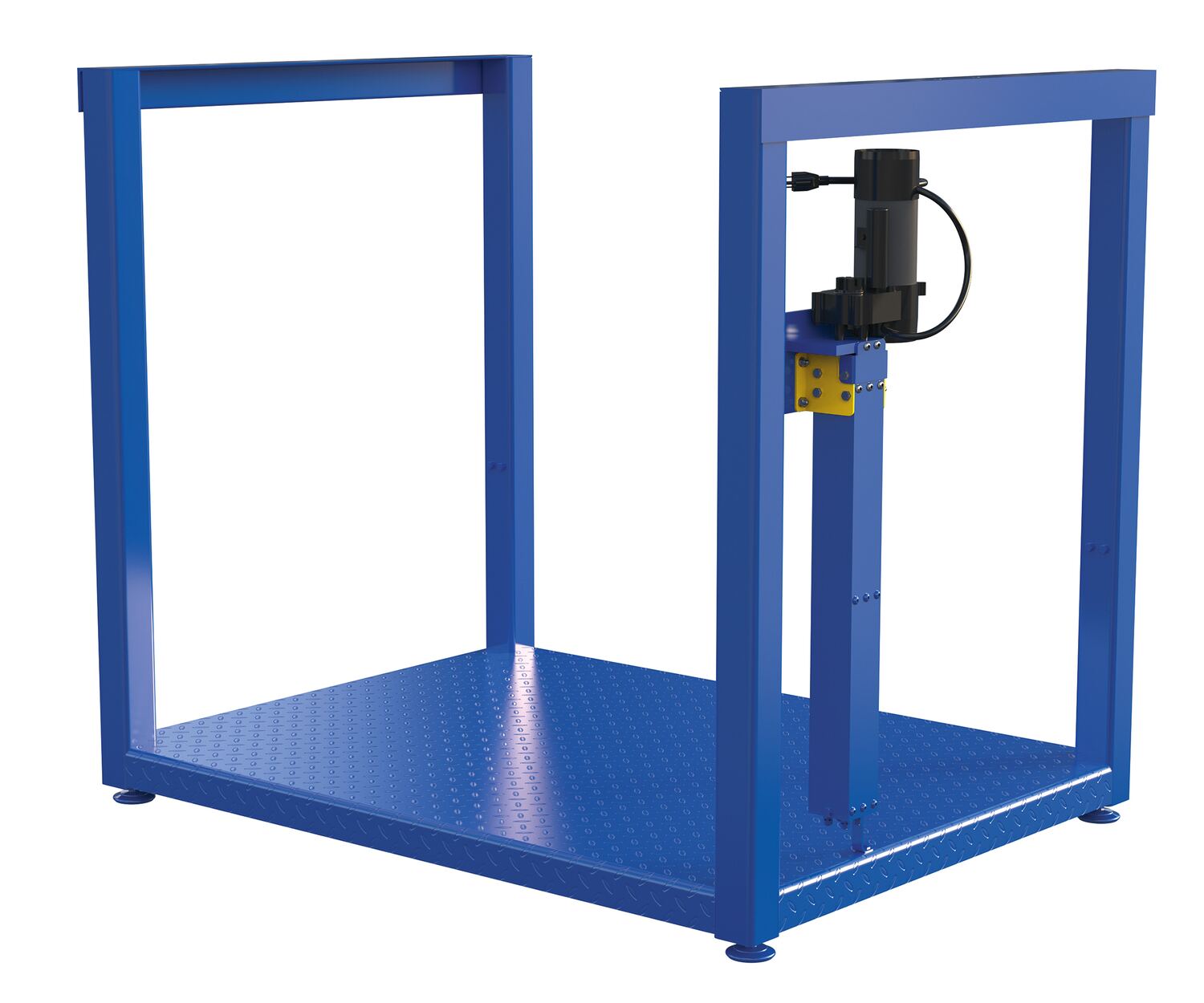

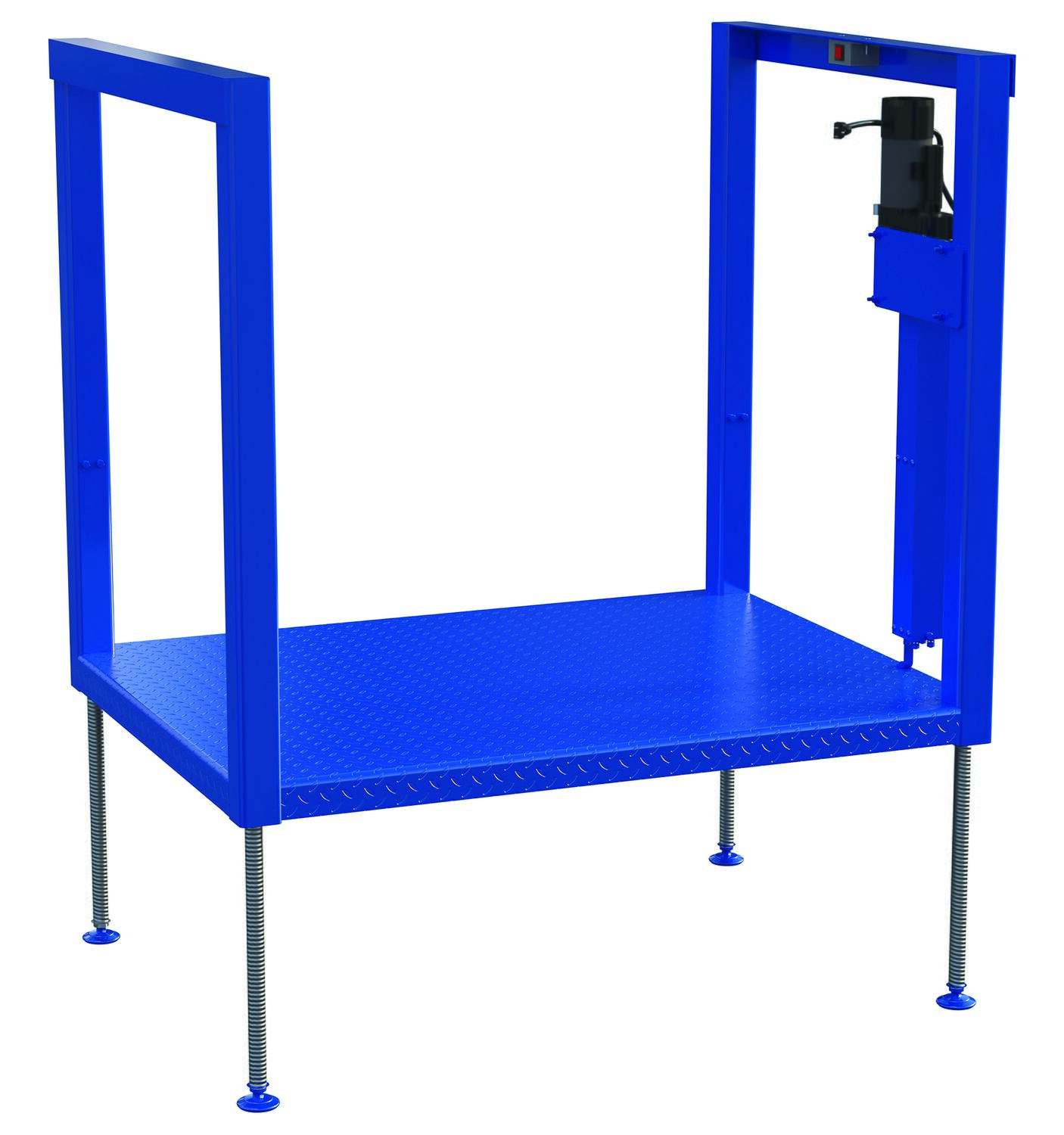

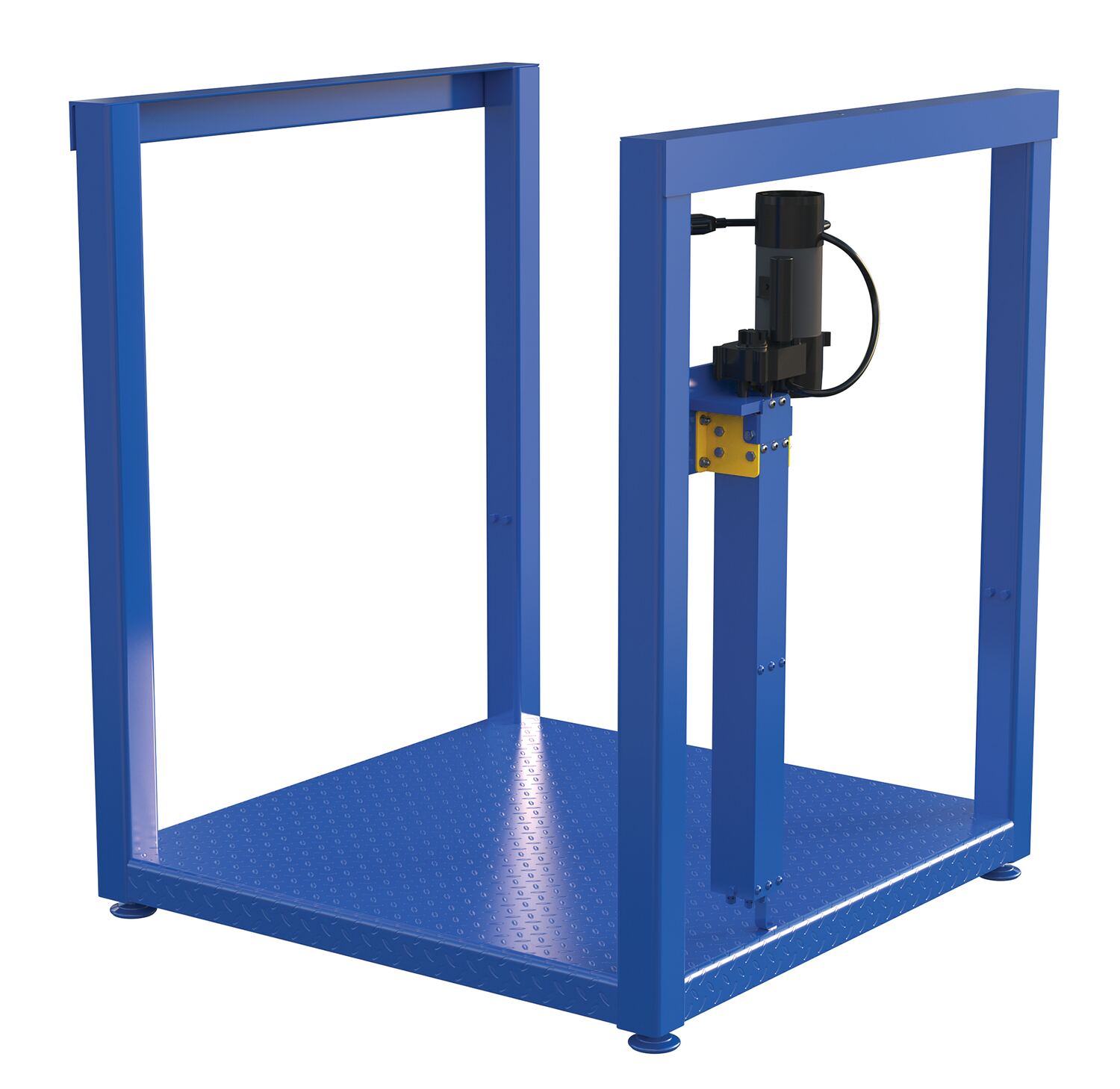

The electric hydraulic platform maintains the performance of the original manual crank version, but with increased user functionality. An electric version creates a more work friendly environment by minimizing manual labor. Raising and lowering personnel quickly and in a safe manner.

The Posi-Crank ergonomic work station is an economical variable height worker positioner. With a simple turn of a crank, the platform height may be adjusted to the optimum ergonomic level suitable for each operator. Benefits of the Posi-Crank include minimizing the risk of cumulative trauma injuries, back injuries and fatigue while maximizing efficiency and operator morale.

The Posi-Crank incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. A heavy duty chain is used in lieu of a belt to ensure a positive working height without risk of slippage. The crank handle may be removed and placed on the handle holder for maximizing the operating space. The deck is constructed of 1/8" steel tread plate for strength and the best traction. Maximum capacity is 500 pounds. Vertical travel range is 3" lowered to 19" raised. The Posi-Crank is constructed of steel to provide for years of service. The unit is painted blue, while the ergonomic anti-fatigue matting is also blue.

The electric hydraulic platform maintains the performance of the original manual crank version, but with increased user functionality. An electric version creates a more work friendly environment by minimizing manual labor. Raising and lowering personnel quickly and in a safe manner.

Other Worker Platforms

Plastic Floor Grid

Plastic Floor Grid

Add-A-Levels

Add-A-Levels

Electric Order Pickers

Electric Order Pickers

Posi-Crank Worker Platforms

Posi-Crank Worker Platforms

Linearizer Electric Worker Platforms

Linearizer Electric Worker Platforms

Share This Page

POS-3636-MAT

model POS-3636-MAT

POS-3648

model POS-3648

POS-3672

model POS-3672




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Posi-Crank Work Platforms
Model PDF's Platform
(WxL)
Lowered
Height
Raised
Height
Uniform Capacity ( Lbs.) Operation Wt.
(lbs)

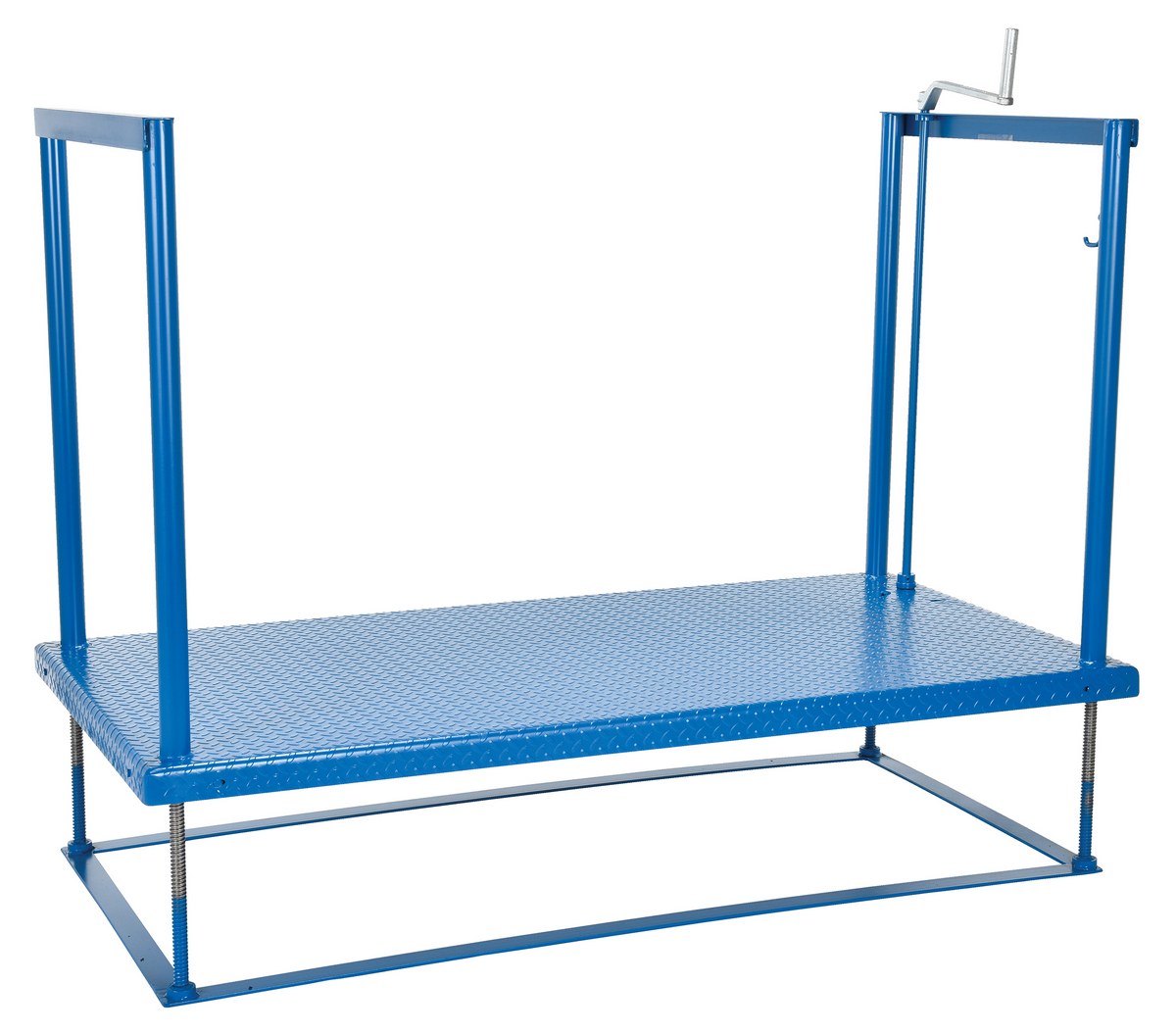

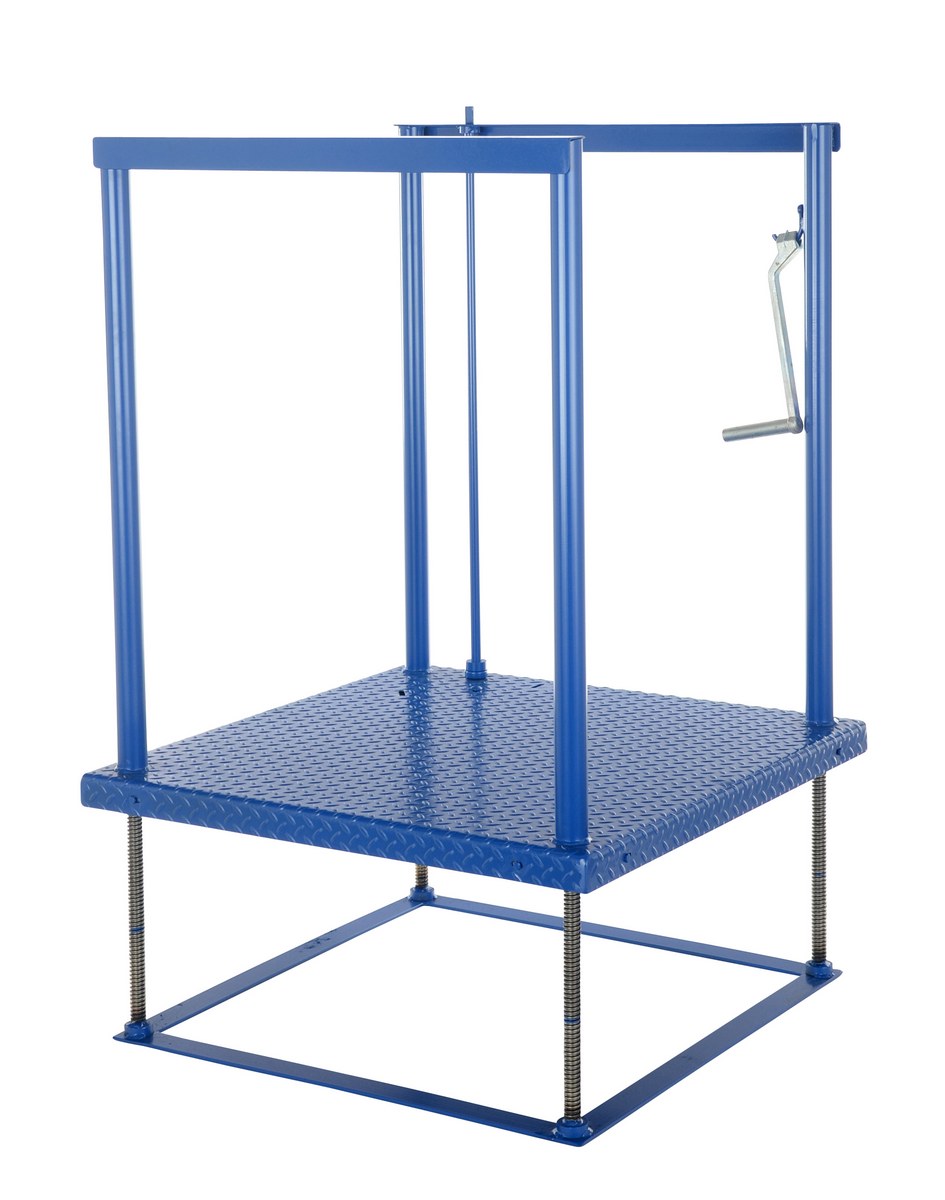

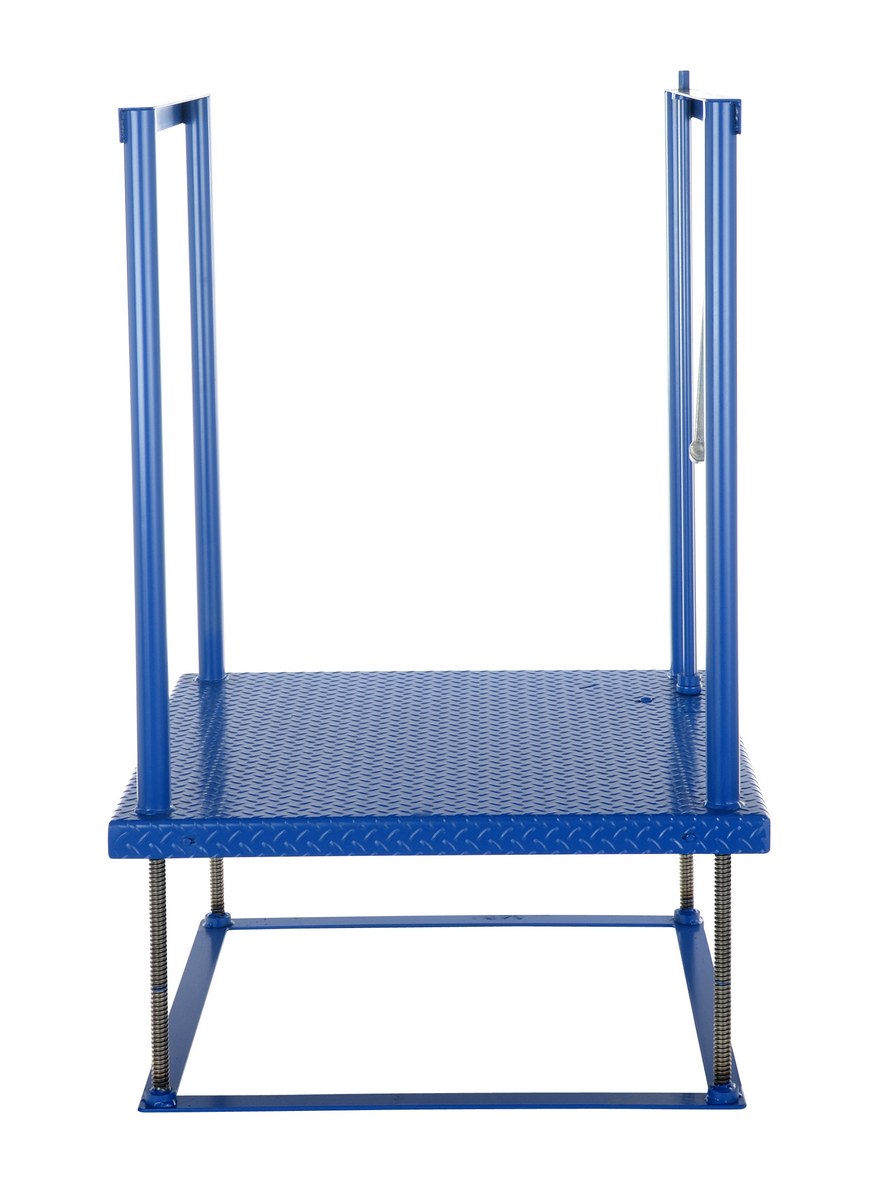

POS-3636 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 36"x36" 3" 19" 500 Hand Crank 192
POS-3648 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 36"x48" 3" 19" 500 Hand Crank 215
POS-3672 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 36"x72" 3" 19" 500 Hand Crank 403
Ergonomic Anti-Fatigue Mat Work Platforms

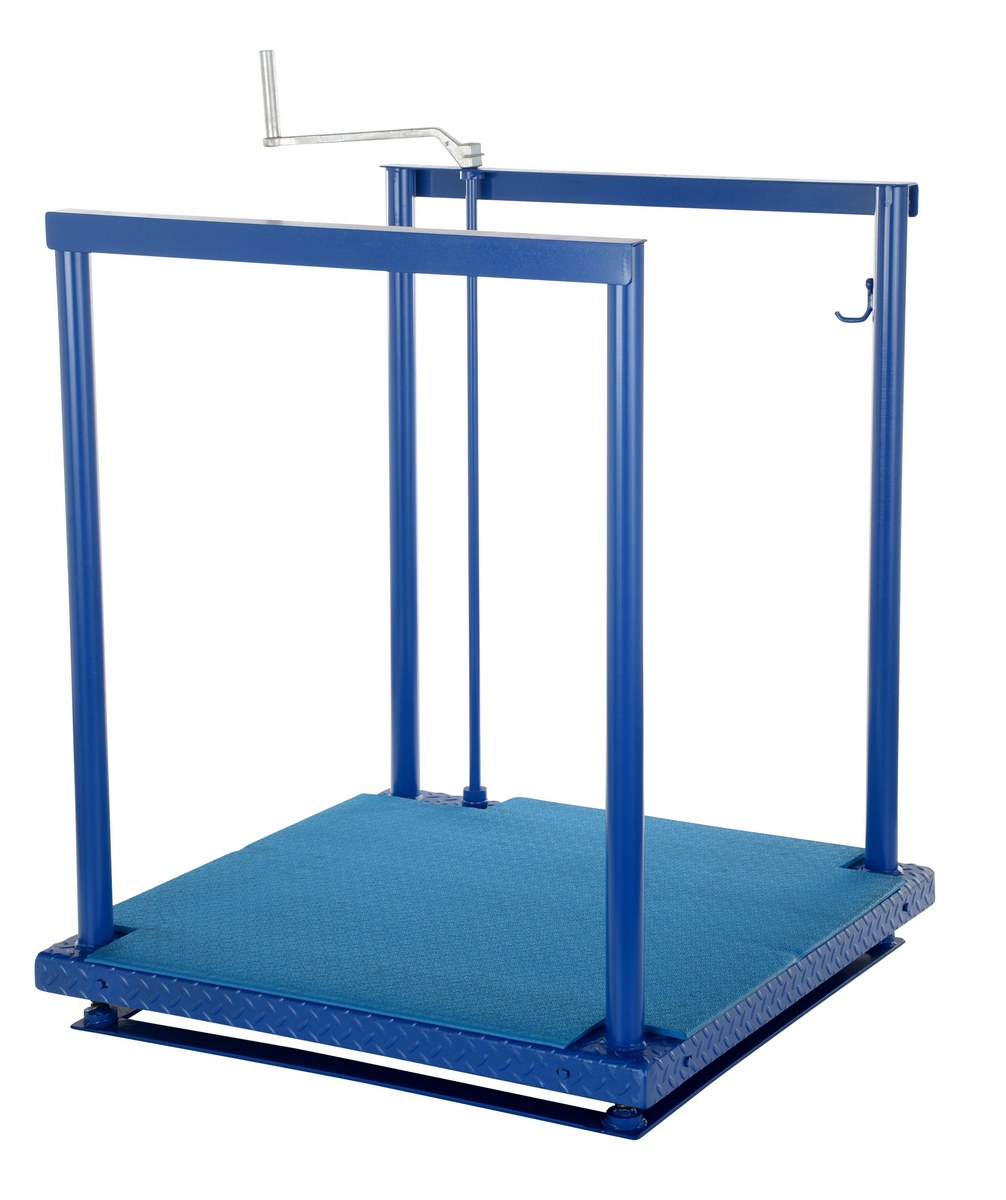

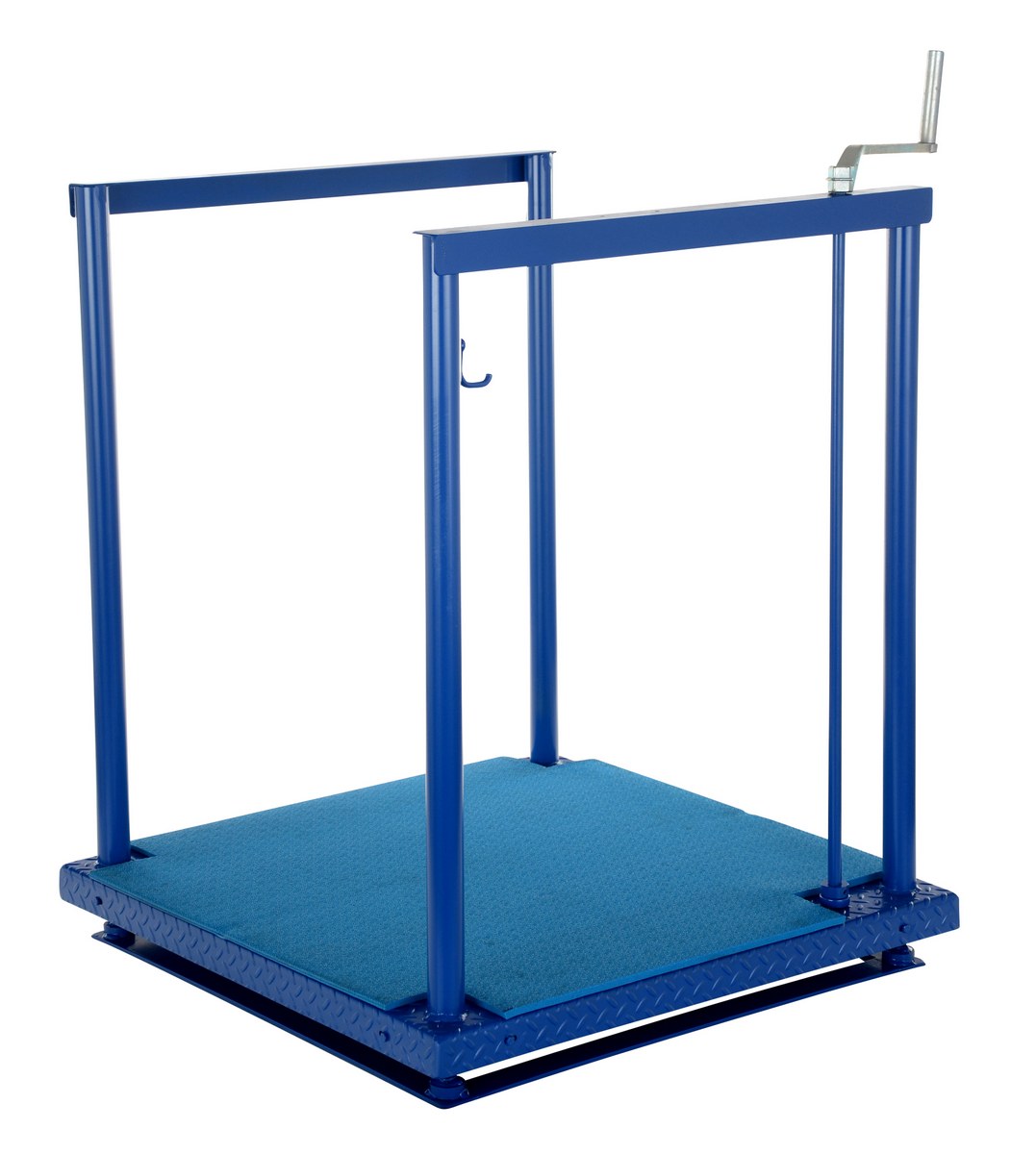

POS-3636-MAT Compliance Certificate 36"x36" 3" 19" 500 Hand Crank 196
POS-3648-MAT Compliance Certificate 36"x48" 3" 19" 500 Hand Crank 219
POS-3672-MAT Compliance Certificate 36"x72" 3" 19" 500 Hand Crank 432
Electric/Hydraulic Work Platforms

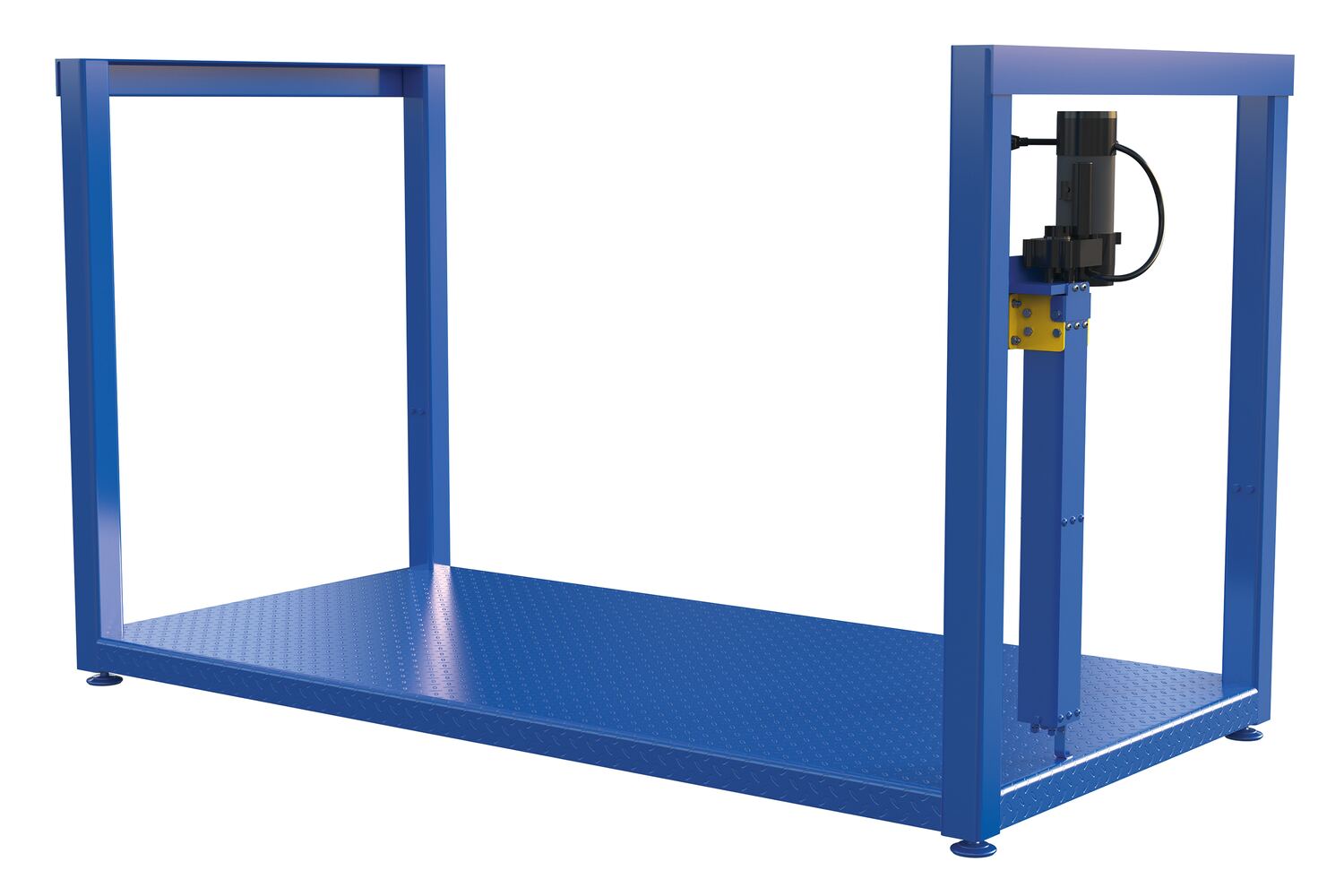

POS-3636-EH icon_approvaldrawings.jpgicon_warranty.jpg 36"x36" 3" 19" 500 Electric/Hydraulic 429
POS-3648-EH icon_approvaldrawings.jpgicon_warranty.jpg 36"x48" 3" 19" 500 Electric/Hydraulic 472
POS-3672-EH icon_approvaldrawings.jpgicon_warranty.jpg 36"x72" 3" 19" 500 Electric/Hydraulic 528
Electric/Hydraulic Anti-Fatigue Work Platforms

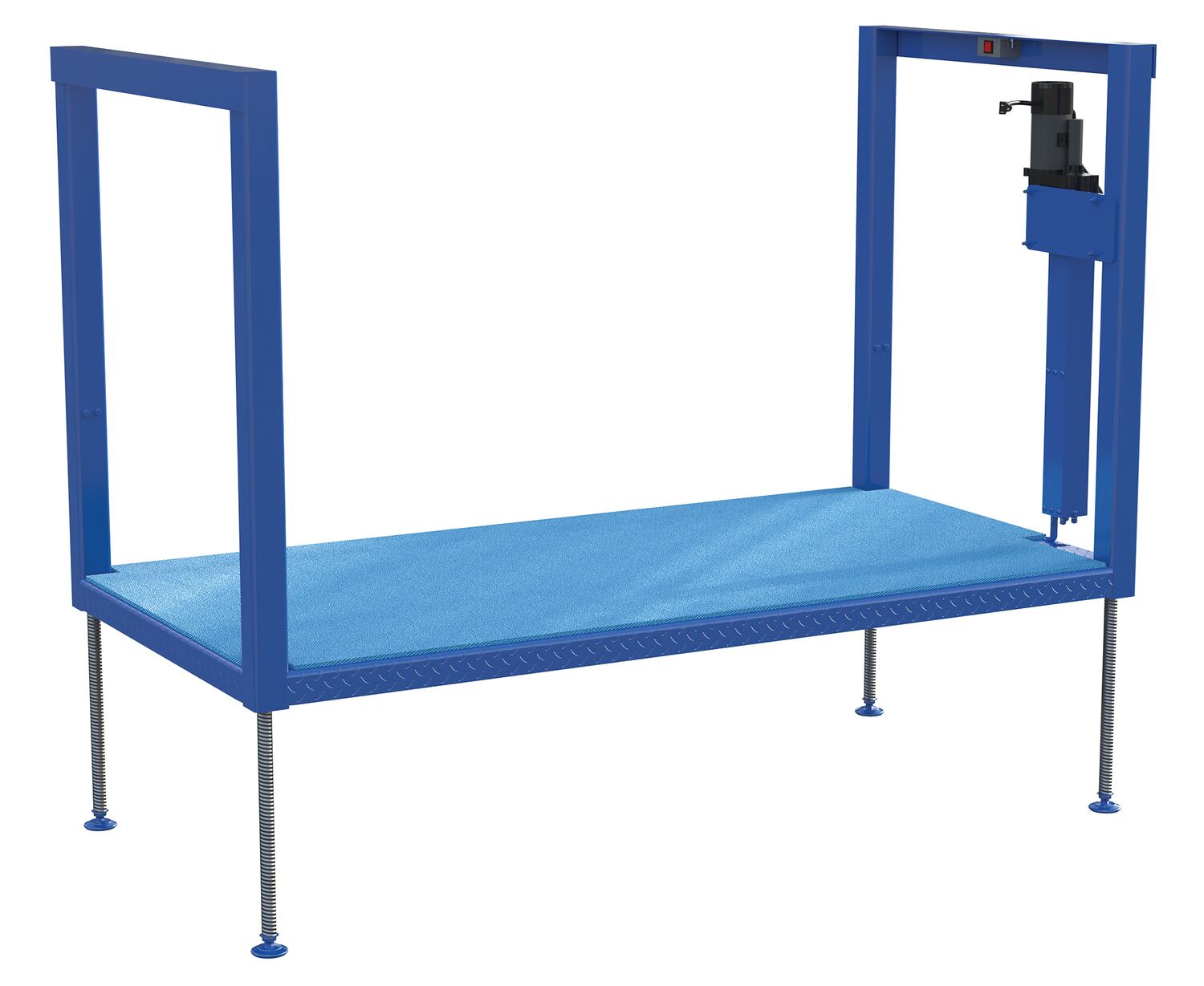

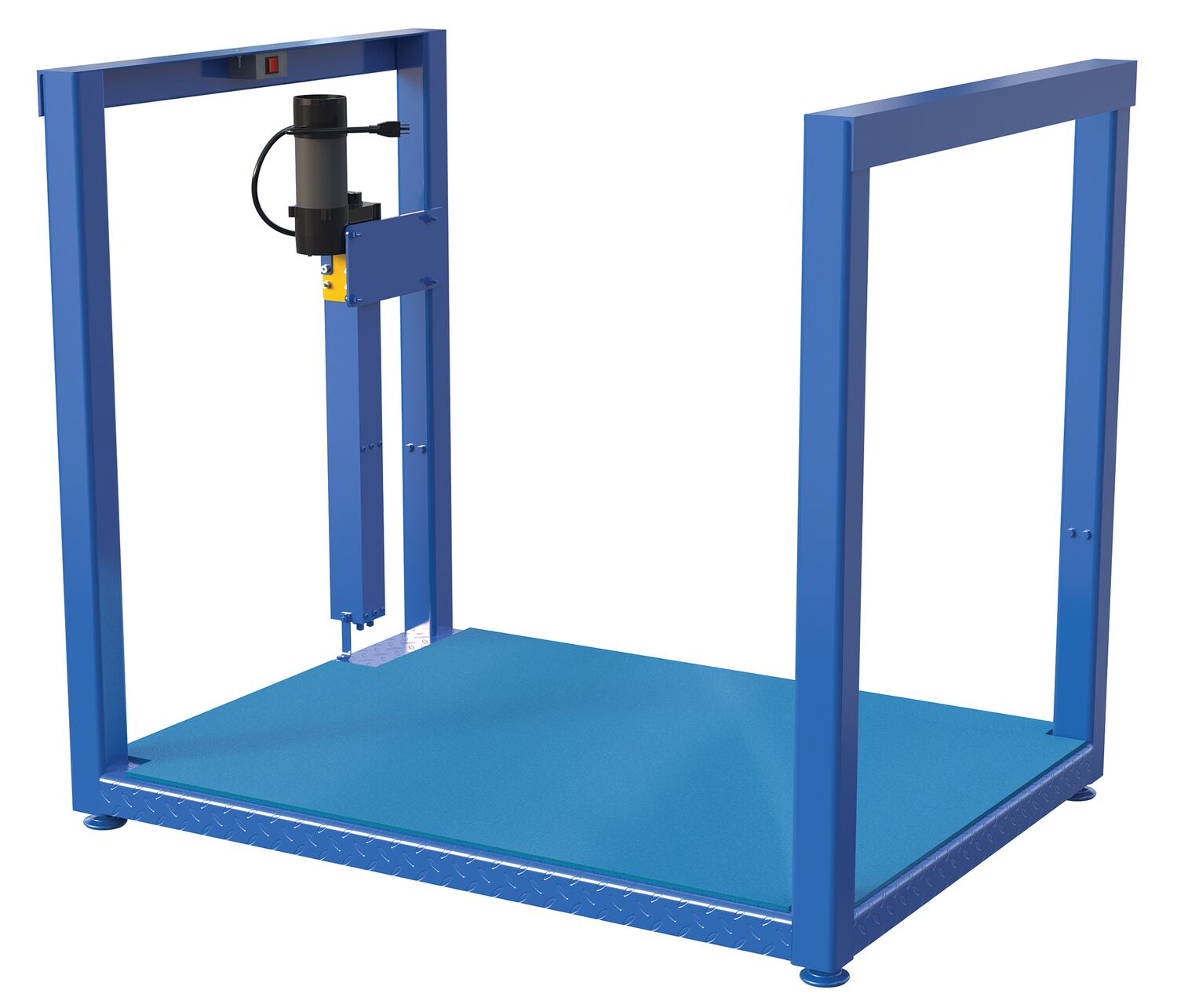

POS-3636-EH-MAT icon_approvaldrawings.jpgicon_warranty.jpg 36"x36" 3" 19" 500 Electric/Hydraulic 431
POS-3648-EH-MAT icon_approvaldrawings.jpgicon_warranty.jpg 36"x48" 3" 19" 500 Electric/Hydraulic 464
POS-3672-EH-MAT icon_approvaldrawings.jpgicon_warranty.jpg 36"x72" 3" 19" 500 Electric/Hydraulic 540

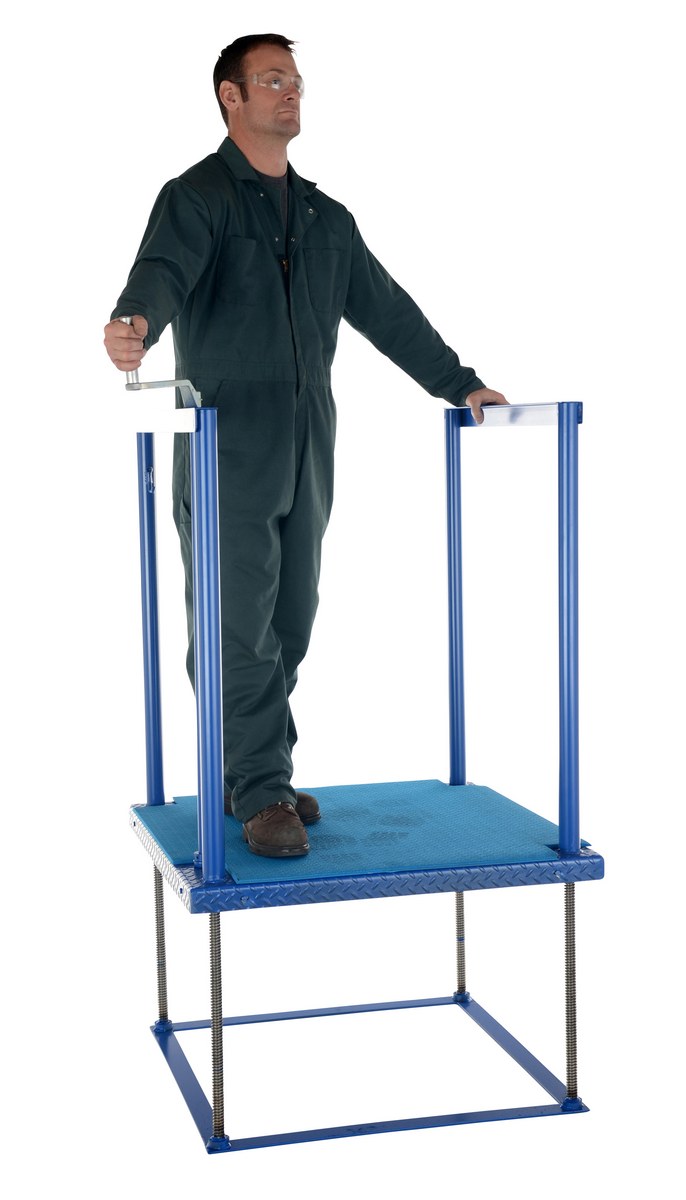

Models with suffix -MAT include an anti-fatigue mat
