Model Details

POS-3648

POS-3648

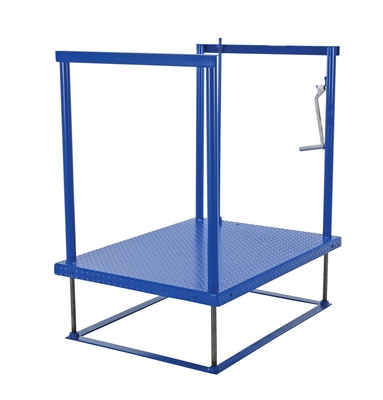

Steel Ergonomic Post-Crank Worker Platform 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue

The post-crank worker platform can be adjusted to the optimum ergonomic level suitable for each operator with a simple turn of the crank. It incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. The crank handle may be removed for maximizing the operating space. The deck is constructed of steel tread plate for better traction.

  • Adjustable with a simple turn of the crank
  • Incorporates the use of acme threaded rods
  • Crank handle may be removed for maximizing space
  • Deck is constructed of steel tread plate for better traction
Total Ship Wt.(lbs.): 215 (only 1 package) Size: 36"W x 48"L x 65.625"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 500 Platform Width (in.): 36 Platform Length (in.): 48
Lowered Height (in.): 3 Raised Height (in.): 19 Operation: Hand Crank
Deck Raises Per 1 Revolution of Crank (in.): 1/8 Lowered Overall Height (in.): 49-5/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: POS-3648


POS-3648

Steel Ergonomic Post-Crank Worker Platform 48 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity Blue

The post-crank worker platform can be adjusted to the optimum ergonomic level suitable for each operator with a simple turn of the crank. It incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. The crank handle may be removed for maximizing the operating space. The deck is constructed of steel tread plate for better traction.

  • Adjustable with a simple turn of the crank
  • Incorporates the use of acme threaded rods
  • Crank handle may be removed for maximizing space
  • Deck is constructed of steel tread plate for better traction
Dimensions: 36"W x 48"L x 65.625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215031196 GTIN: 00691215031196
Warranty: -- Shipping Weight: 215 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 500 Platform Width (in.): 36 Platform Length (in.): 48
Lowered Height (in.): 3 Raised Height (in.): 19 Operation: Hand Crank
Deck Raises Per 1 Revolution of Crank (in.): 1/8 Lowered Overall Height (in.): 49-5/8
