PT12-10

PT12-10

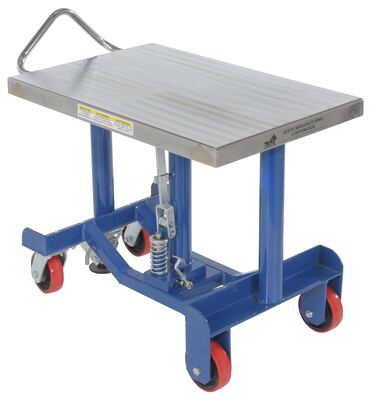

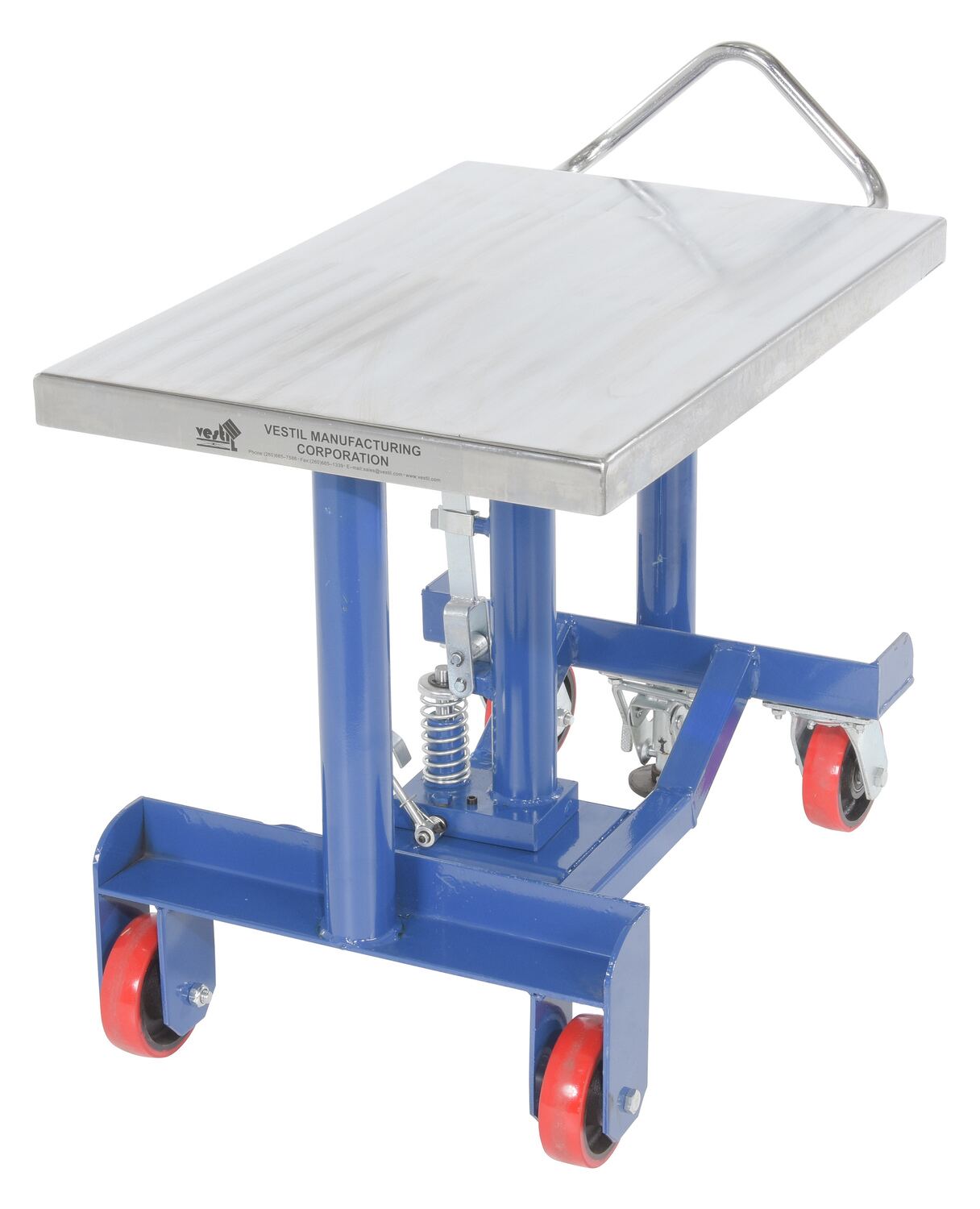

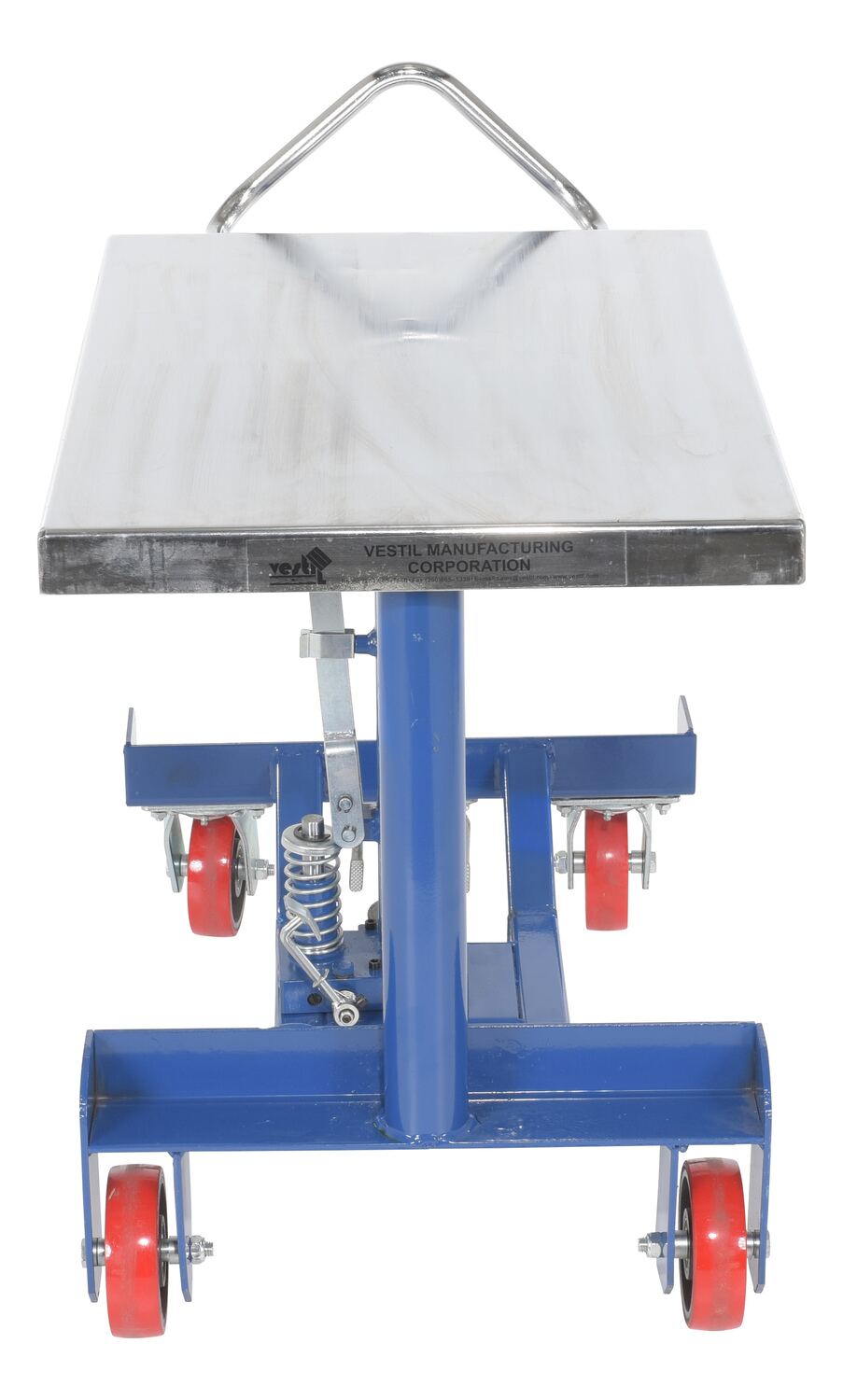

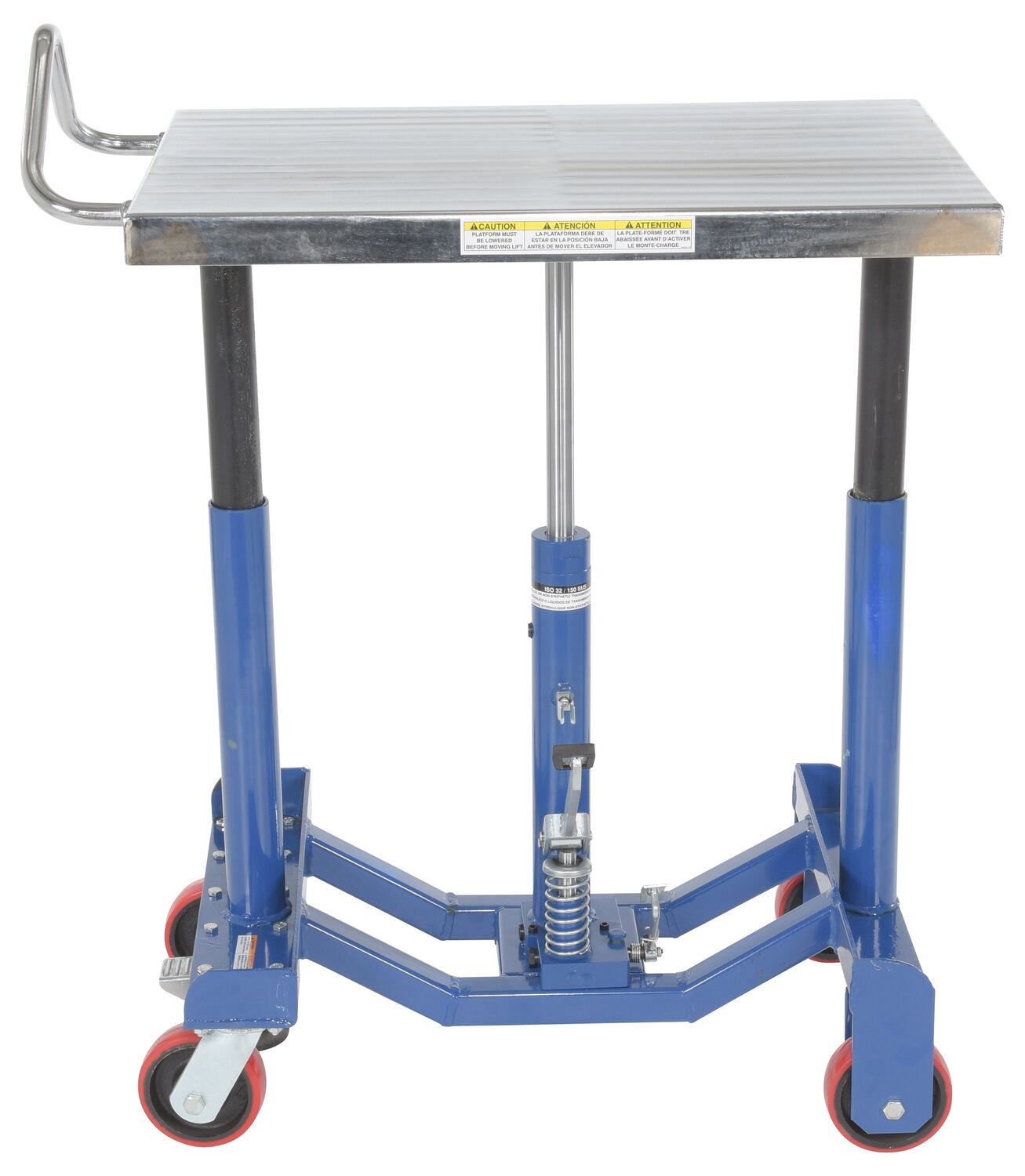

Steel Low Profile Post Lift Table 34 In. x 20 In. x 26 In. 1000 Lb. Capacity Blue

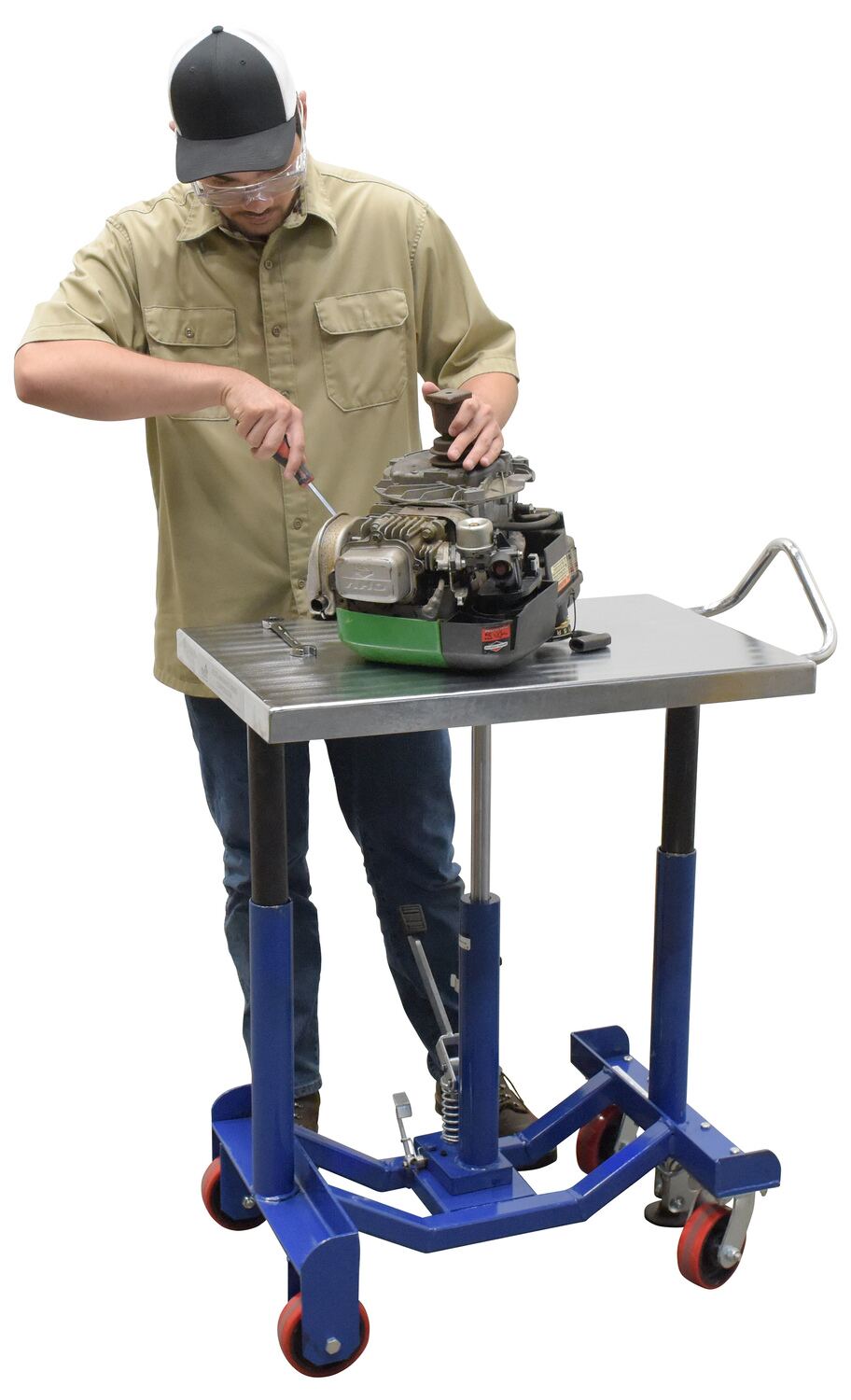

Hydraulic post tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, two speed auto shifter that automatically shifts when the table is loaded, or linear actuated power.

  • Features a low profile hydraulic foot pump
  • Utilizes a formed base and a telescoping cylinder
  • Achieves a more versatile lifting range

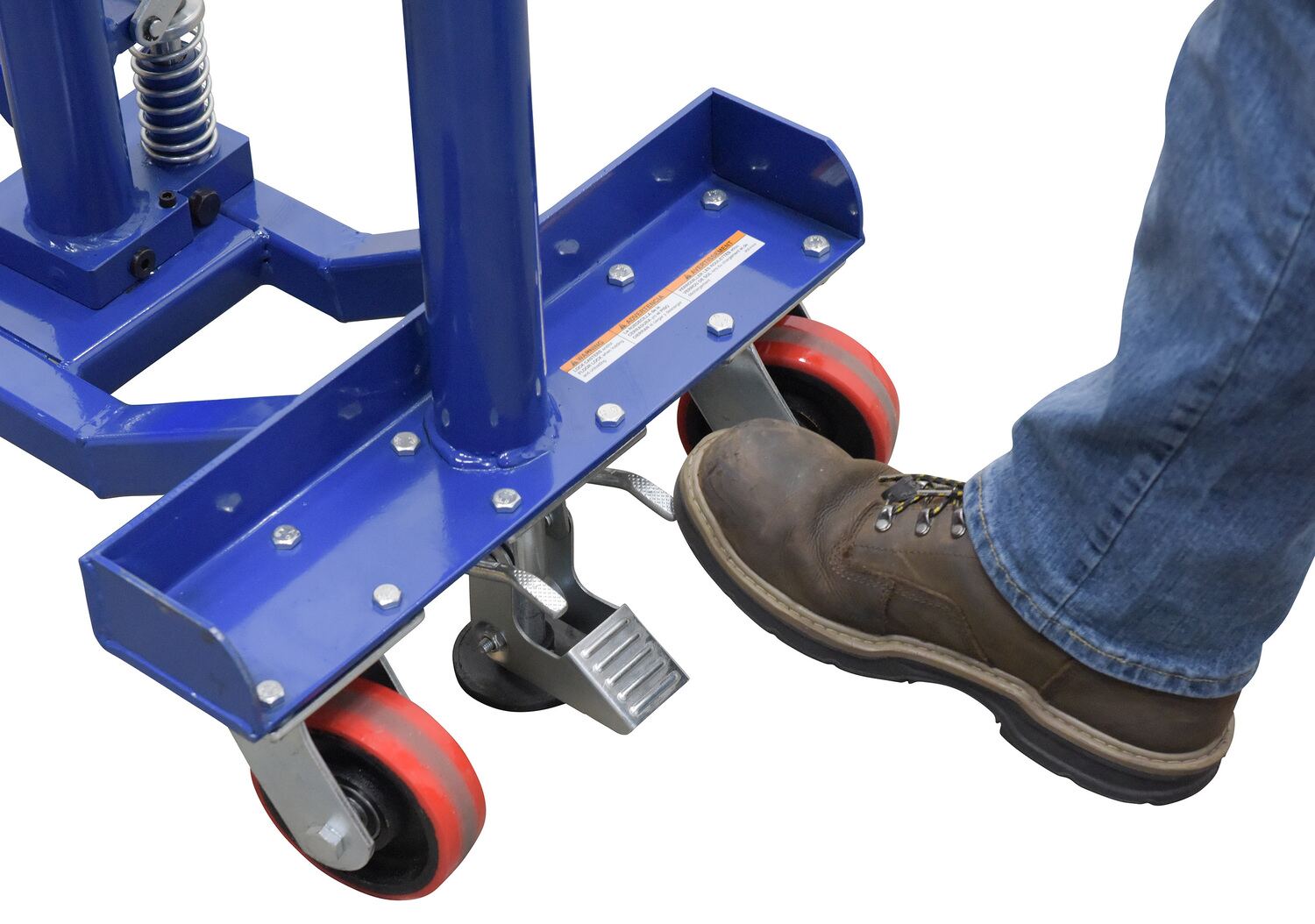

  • Foot brake for maximum stability
Total Ship Wt.(lbs.): 184 (only 1 package) Size: 20"W x 34"L x 26"H Color: Blue QuickShip

Uniform Capacity (lb.): 1,000 Platform Width (in.): 20 Platform Length (in.): 30
Lowered Height (in.): 25 Raised Height (in.): 37 Post (qty.): 2
Operation: 1-Speed Foot Pump Caster Diameter (in.): 5 Caster Width (in.): 1-1/2
Caster Material : Poly-on-Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PT12-10


PT12-10

Steel Low Profile Post Lift Table 34 In. x 20 In. x 26 In. 1000 Lb. Capacity Blue

Hydraulic post tables are ideal in material handling facilities. The unit can be of use in a variety of environments from lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables can be lifted/lowered with a single speed foot pump, two-speed foot pump, two speed auto shifter that automatically shifts when the table is loaded, or linear actuated power.

  • Features a low profile hydraulic foot pump
  • Utilizes a formed base and a telescoping cylinder
  • Achieves a more versatile lifting range
  • Foot brake for maximum stability
Dimensions: 20"W x 34"L x 26"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215062220 GTIN: 00691215062220
Warranty: -- Shipping Weight: 184 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Platform Width (in.): 20 Platform Length (in.): 30
Lowered Height (in.): 25 Raised Height (in.): 37 Post (qty.): 2
Operation: 1-Speed Foot Pump Caster Diameter (in.): 5 Caster Width (in.): 1-1/2
Caster Material : Poly-on-Steel
