Model Details

RR-66-45

- Temporarily Unavailable - Please Contact Sales

RR-66-45

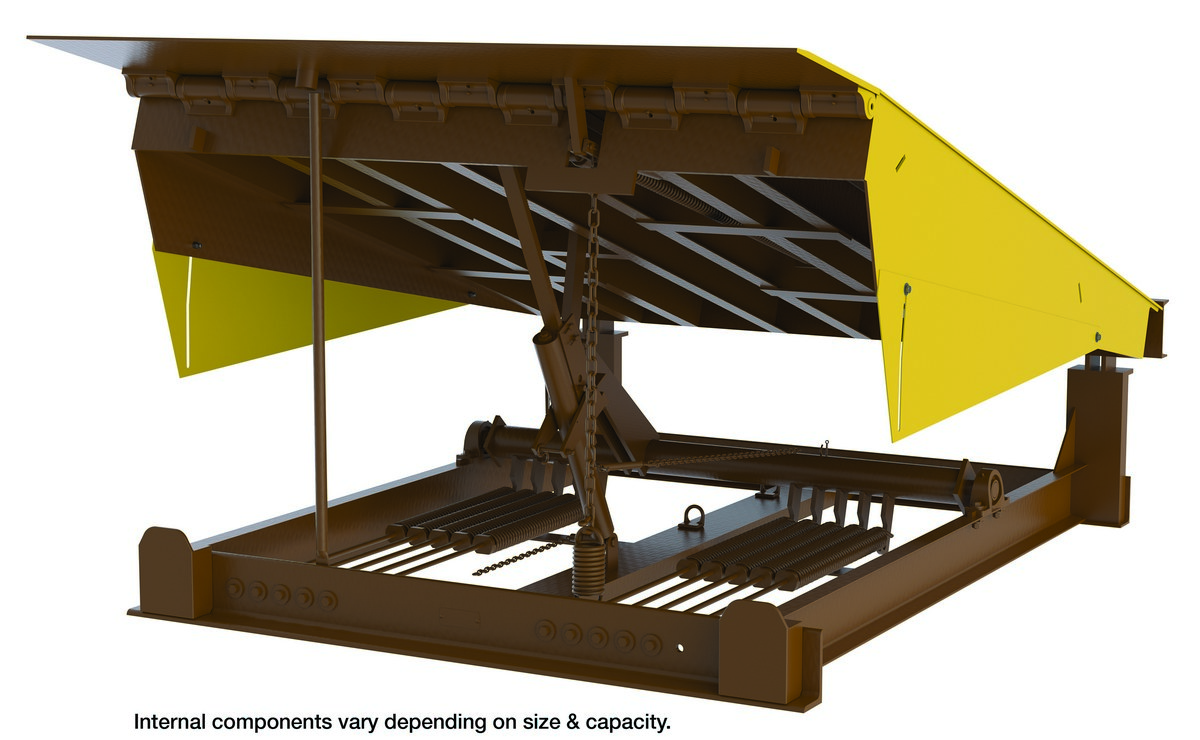

Steel Pull Chain Mechanical Dock Leveler Pit Dimensions 74"W x 62"L x 24"D 45000 Lb. Capacity Brown/Yellow

The mechanical dock leveler is constructed of heavy duty checkered plate deck steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation.

  • 2 laminated bumpers included
  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.6
Total Ship Wt.(lbs.): 2172 (Multiple Packages: P1: 2126 lbs + P2: 46 lbs) Size: 72"W x 76"L x 23.5"H Color: Brown / Yellow (Deck Sides & Toe Guards) Non-Returnable

Uniform Capacity (lb.): 45,000 Steel Checkered Plate Deck (in.): 3/8 Steel Checkered Plate Deck (psi): 55,000
Structural Steel Support (in.): 6 Lip Thickness (in.): 3/4 Lip Length (in.): 16
Service Range Above Dock (in.): 12 Service Range Below Dock (in.): 12 Unit Width (in.): 72
Unit Height (in.): 23-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: RR-66-45


RR-66-45

Steel Pull Chain Mechanical Dock Leveler Pit Dimensions 74"W x 62"L x 24"D 45000 Lb. Capacity Brown/Yellow

The mechanical dock leveler is constructed of heavy duty checkered plate deck steel for long term support of the steel channel understructure. The dock leveler allows for easy truck loading and unloading. The leveler is engineered and designed for minimum maintenance and features a smooth pull chain operation.

  • 2 laminated bumpers included
  • Spring operated mechanical pull-chain makes use easy
  • Telescopic side-mounted toe guards cover opening through the entire service range
  • Complies with CS 202-56, OSHA and ANSI MH14.6
Dimensions: 72"W x 76"L x 23.5"H Sell UOM: EA-Each Color: Brown / Yellow (Deck Sides & Toe Guards)
Material: Steel UPC: 691215128773 GTIN: 00691215128773
Warranty: -- Shipping Weight: 2126 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 45,000 Steel Checkered Plate Deck (in.): 3/8 Steel Checkered Plate Deck (psi): 55,000
Structural Steel Support (in.): 6 Lip Thickness (in.): 3/4 Lip Length (in.): 16
Service Range Above Dock (in.): 12 Service Range Below Dock (in.): 12 Unit Width (in.): 72
Unit Height (in.): 23-1/2
