Model Details

S-101-AA-DM

Printer Friendly
S-101-AA-DM

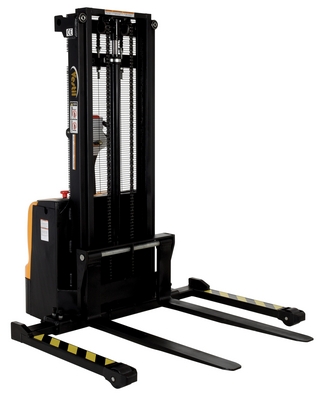

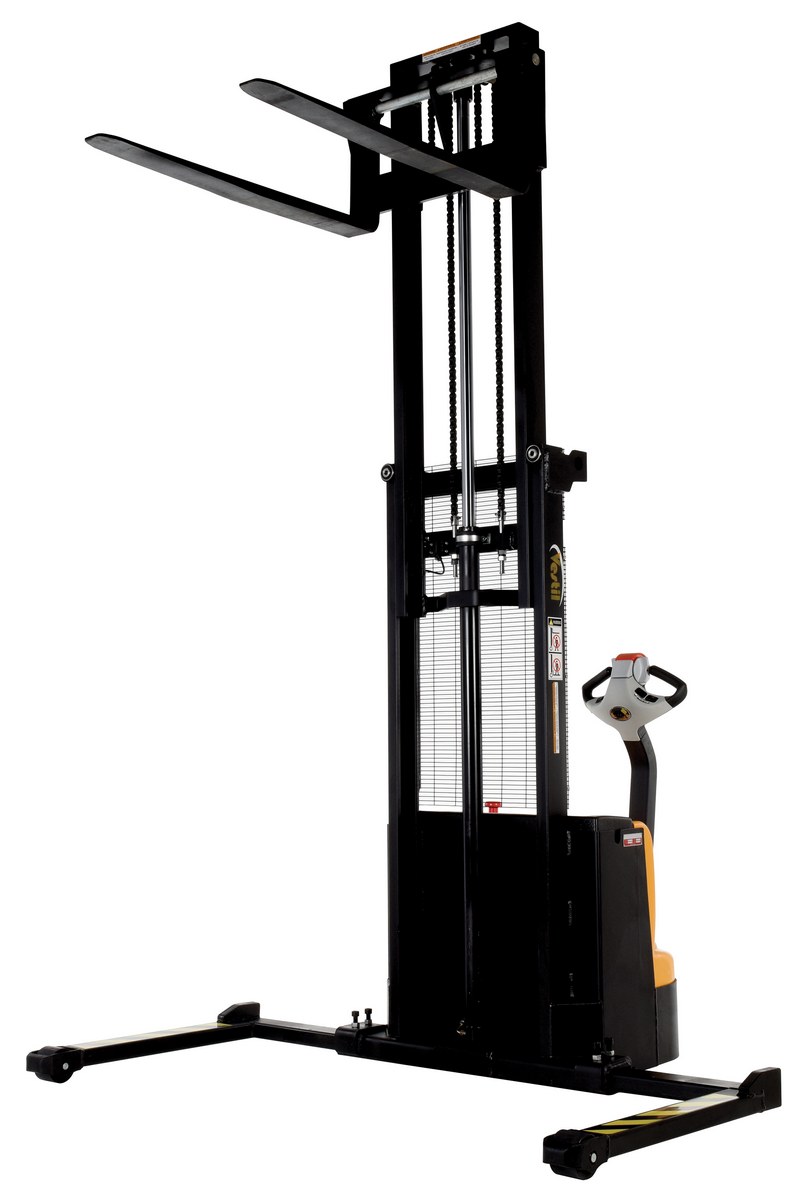

Steel Adjustable Double Mast Stacker 101 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, A battery charger, gauge and horn are included . stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Total Ship Wt.(lbs.): 1480 (only 1 package) Size: 57.75"W x 72"L x 72.5"H Color: Black / Yellow

Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500 Fork Width Min./Max. (in.): 8.3 - 26-3/4
Fork Length (in.): 42 Lowered Height (in.): 2-1/8 Raised Height (in.): 101
Battery: (2) 12V Drive Motor: DC 24V/1.0 KW Lift Motor: DC 24V/2.0KW
Handle Height (in.): 46 Battery: (2) 12V Drive Motor: DC 24V
Lift Motor: DC 24V Front Rigid Caster Diameter/Width (in.): 4x3 Rear Swivel Caster Diameter/Width(in.): 6x2
Rear Drive Wheel Diameter/Width (in.): 10x3

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-101-AA-DM
S-101-AA-DM

Steel Adjustable Double Mast Stacker 101 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, A battery charger, gauge and horn are included . stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 57.75"W x 72"L x 72.5"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215114547 GTIN: 00691215114547
Warranty: -- Shipping Weight: 1480 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500 Fork Width Min./Max. (in.): 8.3 - 26-3/4
Fork Length (in.): 42 Lowered Height (in.): 2-1/8 Raised Height (in.): 101
Battery: (2) 12V Drive Motor: DC 24V/1.0 KW Lift Motor: DC 24V/2.0KW
Handle Height (in.): 46 Battery: (2) 12V Drive Motor: DC 24V
Lift Motor: DC 24V Front Rigid Caster Diameter/Width (in.): 4x3 Rear Swivel Caster Diameter/Width(in.): 6x2
Rear Drive Wheel Diameter/Width (in.): 10x3
