Model Details

S-114-AA-LION

Printer Friendly
S-114-AA-LION

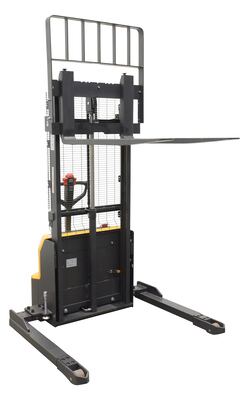

Steel Adjustable Powered Lift Stacker 114 In. Raised Height 2,600 Lb. Capacity Black

Double mast electric stacker quickly and quietly moves through facilities. Many accessories are included such as speed functionality, forward/reverse knobs, and a battery charge indicator. Powered by a lithium ion battery, the stacker is able to lift the heavy loads often found in manufacturing and shipping facilities. The walk behind design allows the driver to have full control of the steering handle. Forks are adjustable for use with a variety of pallet and products. Hardware included.

  • Emergency reverse capabilities
  • Steering handle with built in functionality
  • Pin code access, no key
  • LCD screen
Total Ship Wt.(lbs.): 1710 (only 1 package) Size: 71"W x 47"L x 76.5"H Color: Black QuickShip

Uniform Capacity (lbs.): 2600 Battery Type: Lithium Ion Battery Voltage: 24V
Fork Length (In.): 45 Min. Lift Height (In.): 2 Max. Lift Height (In.): 114
Adjustable Forks: Yes Max. Width Between Forks (In.): 22 Adjustable Legs: Yes
Leg Width (In.): 3.9 Min. Width Between Legs (in): 38.62 Max. Width Between Legs (in): 50.43
Battery Charger Included: Yes Horsepower (hp): 3 Max. Amperage (A): 60
Voltage (V): 24 Number of Casters: 4 Reer Wheel Diameter (in): 8.25
Rear Wheel Material: Polyurethane Front Wheel Diameter (in): 2.75

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-114-AA-LION
S-114-AA-LION

Steel Adjustable Powered Lift Stacker 114 In. Raised Height 2,600 Lb. Capacity Black

Double mast electric stacker quickly and quietly moves through facilities. Many accessories are included such as speed functionality, forward/reverse knobs, and a battery charge indicator. Powered by a lithium ion battery, the stacker is able to lift the heavy loads often found in manufacturing and shipping facilities. The walk behind design allows the driver to have full control of the steering handle. Forks are adjustable for use with a variety of pallet and products. Hardware included.

  • Emergency reverse capabilities
  • Steering handle with built in functionality
  • Pin code access, no key
  • LCD screen
Dimensions: 71"W x 47"L x 76.5"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215370493 GTIN: 00691215370493
Warranty: -- Shipping Weight: 1710 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 2600 Battery Type: Lithium Ion Battery Voltage: 24V
Fork Length (In.): 45 Min. Lift Height (In.): 2 Max. Lift Height (In.): 114
Adjustable Forks: Yes Max. Width Between Forks (In.): 22 Adjustable Legs: Yes
Leg Width (In.): 3.9 Min. Width Between Legs (in): 38.62 Max. Width Between Legs (in): 50.43
Battery Charger Included: Yes Horsepower (hp): 3 Max. Amperage (A): 60
Voltage (V): 24 Number of Casters: 4 Reer Wheel Diameter (in): 8.25
Rear Wheel Material: Polyurethane Front Wheel Diameter (in): 2.75
